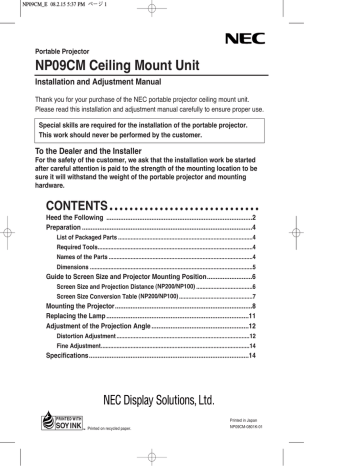

NP09CM_E 08.2.15 5:37 PM ページ 1
Portable Projector
NP09CM Ceiling Mount Unit
Installation and Adjustment Manual
Thank you for your purchase of the NEC portable projector ceiling mount unit.
Please read this installation and adjustment manual carefully to ensure proper use.
Special skills are required for the installation of the portable projector.
This work should never be performed by the customer.
To the Dealer and the Installer
For the safety of the customer, we ask that the installation work be started
after careful attention is paid to the strength of the mounting location to be
sure it will withstand the weight of the portable projector and mounting
hardware.
CONTENTS
Heed the Following ....................................................................................2
Preparation ..................................................................................................4
List of Packaged Parts ......................................................................................4
Required Tools...................................................................................................4
Names of the Parts ............................................................................................4
Dimensions ........................................................................................................5
Guide to Screen Size and Projector Mounting Position..........................6
Screen Size and Projection Distance (NP200/NP100) ....................................6
Screen Size Conversion Table (NP200/NP100) ...............................................7
Mounting the Projector...............................................................................8
Replacing the Lamp ..................................................................................11
Adjustment of the Projection Angle ........................................................12
Distortion Adjustment .....................................................................................12
Fine Adjustment...............................................................................................14
Specifications............................................................................................14
PRINTED WITH
SOY INK
TM
Printed on recycled paper.
Printed in Japan
NP09CM-0801K-01
NP09CM_E 08.2.15 5:37 PM ページ 2
Heed the Following
This symbol alerts the user that important information concerning the
operation and maintenance of this unit has been provided. The
information should be read carefully to avoid problems.
WARNING
• When installing the projector, be sure to
do so as explained in this manual. The
projector may fall and cause injury if it is
installed improperly.
• Do not use broken parts. Doing so may
result in the projector falling and causing
injury. If a part should be broken, consult
your dealer.
• To prevent the projector from falling, install
it in a place and fasten it in a way with
sufficient strength to support the combined
weight (3.6 kg) of the projector (2.1 kg)
and the ceiling mount unit (1.5 kg) for an
extended period of time as well as to
withstand earthquakes. Insufficient
strength or fastening may result in the
projector falling and causing injury.
• Do not look into the lens when the
projector is turned on. Doing so could
damage your eyesight.
• Make adjustments as described in this
manual.
Incorrect adjustments may result in the
projector falling and causing injury.
• To ensure safety, be sure to tighten the
bolts and screws securely. Also be sure to
use the included units and other metal
fittings. Failure to do so may result in the
projector falling and causing injury.
• When sliding the opening of the mounting
adapter over the pin of the ceiling
attachment unit, check that the pin of the
ceiling attachment unit is fully seated in
the opening. If not, the projector may fall
and cause injury.
• Do not modify any parts. Doing so may
result in the projector falling and causing
injury.
2
NP09CM_E 08.2.15 5:37 PM ページ 3
Heed the Following
Installation Precautions
CAUTION
• Special techniques are required for the
installation work of the projector and
• Do not obstruct the projector's ventilation
holes. Doing so will prevent the dissipation
of heat and may result in fires. In
particular, do not use the projector in the
following ways:
Do not install the projector in a wall or in a
tight place where ventilation is poor, place
a cover it, etc.
installation work should only
be
undertaken by qualified and licenced
installers.
• NEC Display Solutions will not accept any
responsibility related to any accidents or
incidents due to insufficient or inferior
mounting techniques.
• Do not install the projector in front of the
outlets of an air conditioner or heater or in
a place where vibrations are strong.
Doing so may result in fires.
Installation Location
Avoid places of high temperature or low
• Do not install the projector in humid or
dusty places or exposed to smoke or
steam (such as near cooking equipment or
humidifiers). Doing so may result in fires.
temperature.
(For ambient operating temperature, see the
user's manual included with the projector.)
Avoid places exposed to direct sunlight and
the vicinity of ventilation holes of room air
• When installing the projector, leave
sufficient space between it and
surrounding objects. Failure to leave
sufficient space will prevent the dissipation
of heat and may result in fires.
conditioning and heating.
Avoid rooms with a lot of dust, humidity,
greasy smoke, or tobacco smoke.
Dirt will adhere to optical parts such as
• When removing the screws on left and
right on the mounting adapter, be sure to
support the projector while doing so.
Failing to do so may result in the projector
swinging back abruptly and causing injury.
lenses and mirrors and this will cause a
deterioration of image quality.
Avoid places in which the screen is exposed
to direct sunlight or illumination light.
When surrounding light directly hits the
• for PLUGGABLE EQUIPMENT, the
socket-outlet shall be installed near the
equipment and shall be easily accessible.
screen, the image appears washed out and
is difficult to view.
3
NP09CM_E 08.2.15 5:37 PM ページ 4
Preparation
List of Packaged Parts
Fixed ceiling part ...1
Projector mounting adapter ...1
Projector mounting screws (M 3)...3
Up-down angle adjustment screws (M5 ) ...4
Installation and adjustment manual ..........1
Required Tools
Phillips screwdriver
Names of the Parts
Left-right angle
adjustment screws
Inclination axis screws
Fixed ceiling part
●
●
Projector mounting
adapter
●
●
Up-down angle adjustment screws
Inclination adjustment screws
4
NP09CM_E 08.2.15 5:37 PM ページ 5
Preparation
Dimensions
Fixed Ceiling Part and Lens Center Dimensions Diagram
42.2
138.9
Center line of fixed ceiling part
Lens center
85.5
Lens center
271.8
Fixed Ceiling Part Bolt Hole Position Dimensions
210
4- 10
Lens center/Center line of fixed ceiling part
(Unit: mm)
5
Distance to lens end
90.4
120
150
180
NP09CM_E 08.2.15 5:37 PM ページ 6
Guide to Screen Size and Projector Mounting Position
Screen Size and Projection Distance··· (NP200/NP100)
Use this guide when considering the distance to the screen and the screen size.
• The ceiling mount unit can be adjusted up and down a maximum of +/-10˚, but if too much
of an angle is taken the image will show some distortion. Therefore, it is recommended that
an adjustment is made in conjunction with the screen projection angle.
• Recommended screen sizes for projectors are from 30 inches to 300 inches. (Screen sizes
represent the diagonal dimension.)
Diagonal Screen Size (Inches)
240
Wide angle (Maximum)
200
180
150
Telephoto (Maximum)
120
100
80
60
40
25
0
1
2
3
4
5
Projection Distance
90.4mm
138.9mm
Projection Height from Lens Center
Zoom adjustment range
300
6
7
8
9
10
11
12(m)
The projection distance is a calculated value and as such,
there is a tolerance of +/- 5%.
(*1)
0
(*2)
(*3)
(*4)
1
2
3
Wide angle
Telephoto
4
5m
0
1
2
3
4
5
6
7
8
9
10
11
12(m)
(*1) Distance from center of fixed ceiling part to end of main unit lens.
(*2) Distance of lens center from ceiling mount surface of fixed ceiling part.
(*3) The angle is 12.8˚ using a telephoto setting for distances from lens center (horizontal) to screen center.
(*4) The angle is 14˚ using a wide angle setting for distances from lens center (horizontal) to screen center.
Using the Diagrams
Referring to the diagram, screen sizes that can be used at a projection distance of 3 m will range from 69
inches to 77 inches.
To project to a screen size of 200 inches, the projection distance will range from 7.9 m to 8.7 according
to the diagram.
See Page 8 for the vertical and horizontal dimensions of the screen size.
6
NP09CM_E 08.2.15 5:37 PM ページ 7
Guide to Screen Size and Projector Mounting Position
Screen Size Conversion Table··· (NP200/NP100)
Using the Table
The dimensions of a 100 inch screen size according to the table will be approximately 2.03 m
horizontally and approximately 1.52 m vertically.
(Inches)
300
(m)
4.5
270
4.0
240
3.5
200
3.0
180
2.5
150
120
2.0
100
1.5
80
60
1.0
40
0.5
0
25
0
0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0m
7
NP09CM_E 08.2.15 5:37 PM ページ 8
Mounting the Projector
1
Attach the Fixed Ceiling Part to the Ceiling
First, partially tighten the four screws, then tighten the screws
firmly after positioning.
Fixed ceiling part
WARNING!
Use M8 bolts for the fixed ceiling part.
Use of types other than M8 could
cause the projector to fall.
2
Attach the Projector Mounting
Adapter to the Projector
Use three M3 screws to mount the
projector mounting adapter.
WARNING!
Be careful not to catch your fingers
when opening or closing the
projector mounting adapter.
Please use the specified screws;
use of screws other than those
specified may damage the projector.
8
M3
NP09CM_E 08.2.15 5:37 PM ページ 9
Mounting the Projector
3
Suspend the Projector from the Fixed Ceiling Part
Slide the slotted part of the projector mounting adapter over the pin of the fixed ceiling
part and push all the way to the back.
The projector is temporarily suspended in this condition and attention must be paid so
that the unit does not fall since it is not fixed in place.
Slotted part of mounting adapter
Pin of fixed ceiling part
4
Temporarily Fasten the Projector Mounting Adapter
Temporarily fasten by partially tightening the four supplied (M5) screws.
Tighten firmly after completing the screen projection angle adjustment.
Temporarily fasten the other side too.
9
NP09CM_E 08.2.15 5:37 PM ページ 10
Mounting the Projector
Installation Examples
■When the Ceiling is Wood Construction:
Mounting board
(Strong enough to support the weight of the whole unit.)
Nut and washer
Beam
Nut and washer
Bolt (M8)
■When the Ceiling is Concrete Construction:
Anchor nut (Purchase commercially-available M8-type anchor nuts
that are strong enough to endure the weight of the whole unit.)
Ceiling
Nut and washer
Bolt (M8)
NOTE : Mounting boards, M8-type anchor nuts, bolts, nuts and washers are commercially
available.
10
NP09CM_E 08.2.15 5:37 PM ページ 11
Replacing the Lamp
CAUTION!
To replace the lamp, first switch off the power, wait for the cooling fans to stop and
disconnect the power plug from the outlet. Now, wait about 60 minutes before
replacing the lamp. Attempts to replace the lamp during operation or immediately
after operation has stopped will cause burns because of the high temperature.
1
Open the Projector Mounting Adapter
Loosen the screw on the front of the projector mounting adapter. (The screw does not
come detached from the fitting.)
Place your hand underneath the projector so that the mounting adapter does not open
suddenly.
CAUTION!
Be careful not to catch your fingers when opening or closing the projector
mounting adapter.
2
Replacing the Lamp
Please refer to the instruction manual of the replacement lamp kit (Model NP10LP). and
the user's manual on the CD-ROM or Important Information (paper) supplied with the
projector.
WARNING!
When performing the lamp replacement work, take care not to exert force on the
projector. Application of a large force could cause the projector to fall and cause injury.
3
Return the Projector to the Original Condition
Follow the procedure in the reverse order to fix the projector mounting adapter in place.
11
NP09CM_E 08.2.15 5:37 PM ページ 12
Adjustment of the Projection Angle
Before the Adjustment
• Refer to the instruction manual of the projector, switch on the power and project an
image.
• Refer to the section "Orientation " of Setup and select the projection orientation.
Select "Ceiling/Front" when projection is from the front side, and "Ceiling/Rear"
when projection is from the rear side.
• Provisionally determine the projection size with the manual zoom, then perform the
angle adjustment.
Adjustment of the projection angle should generally follow the steps described below.
1. Distortion Adjustment
2. Fine Adjustment
Adjust each of the left-right, up-down, and
inclination angles so that the projected image
becomes rectangular.
It is acceptable if the image extends beyond
the screen at this time.
adjust each of the left-right, up-down, and
inclination angles of the fittings so that the
projected image coincides with the screen.
Distortion Adjustment
1
Adjust the Left-Right
Angle
Upper and上下端
lower
edges
Turn the projector left and right so
that the upper and lower edges of
the screen are parallel, then firmly
tighten the four left-right angle
adjustment screws. It is acceptable if
the image extends beyond the
screen.
Maximum adjustment angle +/-10˚
Left-right angle adjustment screws
(There are also screws on the
opposite side.)
12
NP09CM_E 08.2.15 5:37 PM ページ 13
Adjustment of the Projection Angle
2
Adjust the Up-Down Angle
Turn the projector up and down so that the left and right edges of the screen are
parallel, then firmly tighten the four up-down angle adjustment screws. It is acceptable
if the image extends beyond the screen.
Maximum adjustment angle +/-10˚
Up-down angle adjustment screws
(There are also screws on the opposite side.)
3
Adjust the Inclination
Adjust so that the image is projected to the screen without being slanted, then firmly
tighten the four inclination adjustment screws. Lastly, tighten the two inclination axis
screws if they are loose.
Inclination axis screw
Inclination adjustment screws
(There are also screws on the opposite side.)
Maximum adjustment angle +/-10˚
If the adjustment does not work out, readjust from Step
13
1.
NP09CM_E 08.2.15 5:37 PM ページ 14
Adjustment of the Projection Angle
Fine Adjustment
Loosen the same screws that were used in the distortion adjustment and
finely adjust the angle so that the projected image fits the screen, then tighten
all the screws (i.e., a total of 14 including the inclination axis screws).
After the adjustments, check that the parts are fixed securely.
Specifications
Product Name
Model
Adjustment angle
Dimensions
Weight
Supplied Items
: Projector Ceiling Mount Unit
: NP09CM
: Up-down angle +/-10˚
Left-right angle +/-10˚
Inclination angle +/-10˚
: 234 (W) x 213 (D) x 97 (H) mm
(when assembled, not including protruding parts)
: Approximately 1.5 kg
: Projector mounting screws (M3) .................................3
Up-down angle adjustment screws (M5)......................4
Installation and adjustment manual (this document)....1
Specifications and design are subject to change without notice.
14
NP09CM_E 08.2.15 5:37 PM ページ 15
MEMO
NP09CM_E 08.2.15 5:37 PM ページ 16
MEMO
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
