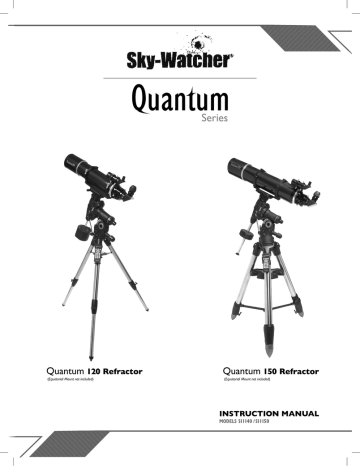

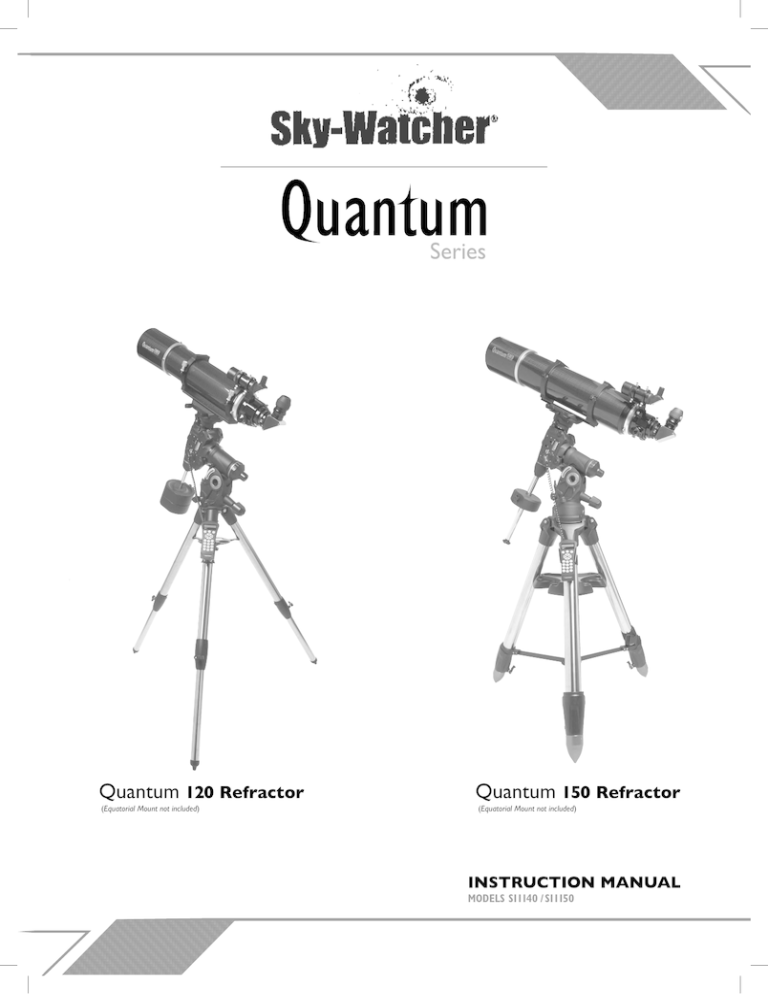

Celestron Sky-Watcher Quantum Series manual

Series
Quantum 120 Refractor
(Equatorial Mount not included)
Quantum 150 Refractor
(Equatorial Mount not included)
INSTRUCTION MANUAL
MODELS S11140 / S11150
WARNING
•Never look directly at the Sun with the naked eye or with a telescope
( unless you have the proper solar filter). Permanent and irreversible
eye damage may result.
•Never use your telescope to project an image of the Sun onto any surface. Internal heat
build-up can damage the telescope and any accessories attached to it.
•Never use an eyepiece solar filter or a Herschel Wedge. Internal heat build-up inside the telescope can cause these devices to crack or break, allowing unfiltered sunlight to pass through to the eye.
•Never leave the telescope unsupervised, either when children are present or with adults who may not be familiar with the correct operating procedures of your telescope.
QUANTUM IS CONVENIENTLY PACKAGED IN ONE REUSABLE SHIPPING
CARTON THAT CONTAINS THE FOLLOWING ACCESSORIES:
QUANTUM 120
QUANTUM 150
Aperture
120 mm
150 mm
Focal Length
840 mm (f/7.0)
1050 mm (f/7.0)
Eyepiece
28 mm - 2”
28 mm - 2”
Finderscope
9x50, erect-image, 90°
9x50, erect-image, 90°
Diagonal
2” mirror diagonal
with dielectric coatings
2” mirror diagonal
with dielectric coatings
Field Flattener
Thread-on
Thread-on
Case
Aluminum, foam lined
Aluminum, foam lined
TECHNICAL SPECS
Highest Useful Magnification
283x
354x
Lowest Useful Magnification
17x
21x
Limiting Stellar Magnitude
12.9
13.4
Resolution: Rayleigh
Dawes Limit
1.16
.97
.93
.77
Light Gathering Power
294x
459x
Optical Coatings – Standard
Fully multi-coated
Fully multi-coated
Optical Tube Length
30 inches
39 inches
FIGURE 1-1 – QUANTUM REFRACTOR
Retractable Lens Shade
Lens Shade Locking Screws
Finderscope
Eyepiece
Tube Ring
Locking Clamp
3” Mounting Bar
Dual Speed
Focus Control
Star Diagonal
3
ATTACHING VISUAL ACCESSORIES
INSTALLING THE FINDERSCOPE
Quantum telescopes come with a 9x50 finderscope. The specifications
for the finderscope refer to the magnification and aperture (in
millimeters). Therefore, a 9x50 finderscope magnifies objects nine times
and has a 50 mm objective lens.
INSTALLING THE STAR DIAGONAL
The star diagonal is a prism or mirror that diverts light at a right angle
to the light path of the telescope. This allows you to observe in positions
that are physically more comfortable than if you looked straight through.
FINDERSCOPE INSTALLATION
TO ATTACH THE 2” STAR DIAGONAL ONTO THE OPTICAL TUBE:
1. The finderscope comes attached to the dovetail finderscope bracket and is ready to be attached to the telescope.
1. Loosen the adapter ring set screws located on the end of the focuser.
2. Slide the 2” barrel end of the star diagonal into the focuser adapter ring.
3. Tighten the set screw on the adapter ring to hold the star diagonal in place.
2. Loosen the thumbscrew on the side of the dovetail mount.
3. Slide the base of the finderscope bracket into the
dovetail mount and lock down the thumbscrew to hold
in place.
If you wish to change the orientation of the star diagonal, loosen the
thumb screw on the focuser draw tube. This will allow the diagonal (or
camera for photography) to rotate freely. Rotate the diagonal to the
desired position and tighten the screw.
INSTALLING THE EYEPIECE
The eyepiece is an optical element that magnifies the image focused by
the telescope. To ensure that your telescope properly reaches focus, the
eyepiece should be inserted into the star diagonal. To install an eyepiece:
Dovetail
Mount
1. Loosen the set screw on the star diagonal until the tip no longer extends into the inner diameter of the eyepiece
end of the diagonal.
2. Slide the chrome portion of the eyepiece into the
star diagonal.
3. Tighten the set screw on the star diagonal to hold the
eyepiece in place.
To remove the eyepiece, loosen the set screw on the star diagonal and
slide the eyepiece out.
FIGURE 1-3
ALIGNING THE FINDERSCOPE
The finderscope is adjusted by using the six adjustment screws located
on the rings of the finderscope bracket. To make the alignment process
a little easier, you should perform this task in the daytime when it is
easier to locate objects in the telescope without the finderscope. To align the finderscope:
Focuser Draw
Tube Locking
Screw
1. Choose a visible object that is in excess of one mile away.
This will eliminate any possible parallax effect between the
telescope and the finderscope.
2. Point your telescope at the object you selected and center it
in the eyepiece of the telescope.
Focuser
Adapter Ring
FIGURE 1-2
3. Check the finderscope to see where the object is located in the field of view.
4. Thread the knurled locking nut away from the finderscope bracket rings.
5. Adjust the thumb screws on the finder bracket until the cross hairs are centered on the target.
6. Thread the knurled locking nut down to hold the finderscope
securely in its bracket.
4
USING YOUR TELESCOPE FOR ASTROPHOTOGRAPHY
Quantum telescopes come with a thread-on field flattening lens design
to provide pinpoint images while imaging. To configure your Quantum
refractor for astrophotography:
1. Remove all visual accessories (eyepiece, diagonal) from
the focuser.
5. Now attach the M48 camera adapter onto the other end of the field flattener lens.
2. Unthread the focuser adapter ring from the end of the focuser (see image1-2).
Focuser
Retaining
Ring
Torque
Handles
3. Thread the photographic adapter ring onto the end of
the focuser.
4. Remove the caps from the field flattener lens and thread it onto the photographic adapter ring.
n
DSLR photography requires a model specific camera adapter for your model of camera. SkyWatcher makes a model for
Canon (S20300), Nikon (S20301) and Sony (S20302). Once
attached, your DSLR body (not included) will mount onto the
telescope just as it would attach to a camera lens.
FIGURE 1-5
1.
Photographic Adapter
Field Flattener Lens
Loosen the focuser retaining ring by rotating the entire ring
one-quarter turn counterclockwise. Use the small torque
handles to achieve a secure grip. Note: Do not remove the
focuser retaining ring or else the focuser will become
disengaged from the telescope tube.
2. Slowly rotate the entire focuser to the desired location.
3. Re-tighten the focuser retaining ring by rotating clockwise.
FOCUSING
Dual Speed Focuser – Your Quantum refractor is equipped with a
dual speed focuser with both course and fine adjustments.
Focus
Position
Lock
M48 camera
adapter
Tensioning
Set Screw
Course
Focusing
Knob
Optional Camera Adapter
(Camera Specific)
FIGURE 1-4
Fine
Focus
Knob
FRAMING YOUR CELESTIAL OBJECT FOR ASTROPHOTOGRAPHY
Quantum refractors give you two ways to rotate your camera for the
purposes of framing celestial objects on the camera chip.
FIGURE 1-6
As described above, your camera can be rotated by simply
loosening the thumb screw on the focuser draw tube (see Fig
1-1) and rotating the camera body to the desired position.
n
Focus Lock – On the bottom side of the focuser is a focus lock that
will disengage the focuser mechanism so that the position will not change
once the desired focus is achieved.
Additionally, you can rotate the entire focuser (with camera
attached) in order to frame your object. This method will ensure
that the camera body will always have the same orientation
relative to the focuser. To rotate the focuser:
n
In addition to the focus lock, there is a 2.5 mm set screw that can be
tightened in order to increase the tension on the focuser draw tube.This
can be tightened to reduce slippage when attaching heavy accessories
to the focuser. Remember to remove all accessories before making any
adjustments to the tensioning screw.
5
TELESCOPE MAINTENANCE
While your telescope requires little maintenance, there are a few things
to remember that will ensure your telescope performs at its best.
solution should be 60% isopropyl alcohol and 40% distilled water. Or,
liquid dish soap diluted with water (a couple of drops per one quart of
water) can be used.
CARE AND CLEANING OF THE OPTICS
Occasionally, you may experience dew build-up on the lens of your
telescope during an observing session. If you want to continue observing,
the dew must be removed, either with a hair dryer (on low setting) or by
pointing the telescope at the ground until the dew has evaporated.
Occasionally, dust and/or moisture may build up on the objective lens
of your telescope. Special care should be taken when cleaning any
instrument so as not to damage the optics.
If dust has built up on the lens, remove it with a brush (made of camel’s
hair) or with a can of pressurized air. Spray at an angle to the lens
for approximately two to four seconds. Next, use an optical cleaning
solution and white tissue paper to remove any remaining debris. Apply
the solution to the tissue and apply the tissue paper to the lens. Low
pressure strokes should go from the center of the corrector to the
outer portion. Do NOT rub in circles!
If moisture condenses on the inside of the lens, remove the accessories
from the rear cell of the telescope. Place the telescope in a dust-free
environment and point it down. This will remove the moisture from the
telescope tube.
To minimize the need to clean your telescope, replace all lens covers
once you have finished using it. Since the rear cell is NOT sealed, the
cover should be placed over the opening when not in use. This will
prevent contaminants from entering the optical tube.
You can use a commercially made lens cleaner or mix your own. A good
cleaning solution is isopropyl alcohol mixed with distilled water. The
CELESTRON TWO YEAR LIMITED WARRANTY
Celestron warrants your telescope to be free from defects in materials
and workmanship for two years. Celestron will repair or replace such
product or part thereof which, upon inspection by Celestron, is found
to be defective in materials or workmanship. As a condition to the
obligation of Celestron to repair or replace such product, the product
must be returned to Celestron together with proof-of-purchase
satisfactory to Celestron.
EXPRESSLY SET FORTH HEREIN. THE SOLE OBLIGATION OF CELESTRON UNDER
THIS LIMITED WARRANTY SHALL BE TO REPAIR OR REPLACE THE COVERED
PRODUCT, IN ACCORDANCE WITH THE TERMS SET FORTH HEREIN. CELESTRON
EXPRESSLY DISCLAIMS ANY LOST PROFITS, GENERAL, SPECIAL, INDIRECT
OR CONSEQUENTIAL DAMAGES WHICH MAY RESULT FROM BREACH OF
ANY WARRANTY, OR ARISING OUT OF THE USE OR INABILITY TO USE ANY
CELESTRON PRODUCT. ANY WARRANTIES WHICH ARE IMPLIED AND WHICH
CANNOT BE DISCLAIMED SHALL BE LIMITED IN DURATION TO A TERM OF
TWO YEARS FROM THE DATE OF ORIGINAL RETAIL PURCHASE.
The Proper Return Authorization Number must be obtained from
Celestron in advance of return. Call Celestron at (310) 328-9560 to
receive the number to be displayed on the outside of your shipping
container.
Some states do not allow the exclusion or limitation of incidental or
consequential damages or limitation on how long an implied warranty
lasts, so the above limitations and exclusions may not apply to you.
All returns must be accompanied by a written statement setting forth
the name, address and daytime telephone number of the owner, together
with a brief description of any claimed defects. Parts or product for
which replacement is made shall become the property of Celestron.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
Celestron reserves the right to modify or discontinue, without prior
notice to you, any model or style telescope.
The customer shall be responsible for all costs of transportation and
insurance, both to and from the factory of Celestron, and shall be
required to prepay such costs.
If warranty problems arise, or if you need assistance in using your
telescope, contact:
Celestron shall use reasonable efforts to repair or replace any telescope
covered by this warranty within thirty days of receipt. In the event repair
or replacement shall require more than thirty days, Celestron shall notify
the customer accordingly. Celestron reserves the right to replace any
product which has been discontinued from its product line with a new
product of comparable value and function.
This warranty shall be void and of no force of effect in the event a
covered product has been modified in design or function, or subjected
to abuse, misuse, mishandling or unauthorized repair. Further, product
malfunction or deterioration due to normal wear is not covered by
this warranty.
Celestron
Customer Service Department
2835 Columbia Street
Torrance, CA 90503
Tel. (310) 328-9560
Fax. (310) 212-5835
Monday-Friday 8AM-4PM PST
NOTE:This warranty is valid to U.S.A. and Canadian customers who have
purchased this product from an authorized Celestron dealer in the U.S.A. or
Canada. Warranty outside the U.S.A. and Canada is valid only to customers
who purchased from a Celestron’s International Distributor or Authorized
Celestron Dealer in the specific country. Please contact them for any
warranty service.
CELESTRON DISCLAIMS ANY WARRANTIES, EXPRESS OR IMPLIED, WHETHER
OF MERCHANTABILITY OF FITNESS FOR A PARTICULAR USE, EXCEPT AS
6
Copyright 2011 Celestron
All rights reserved.
(Products or instructions may change without notice or obligation.)
0811

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
