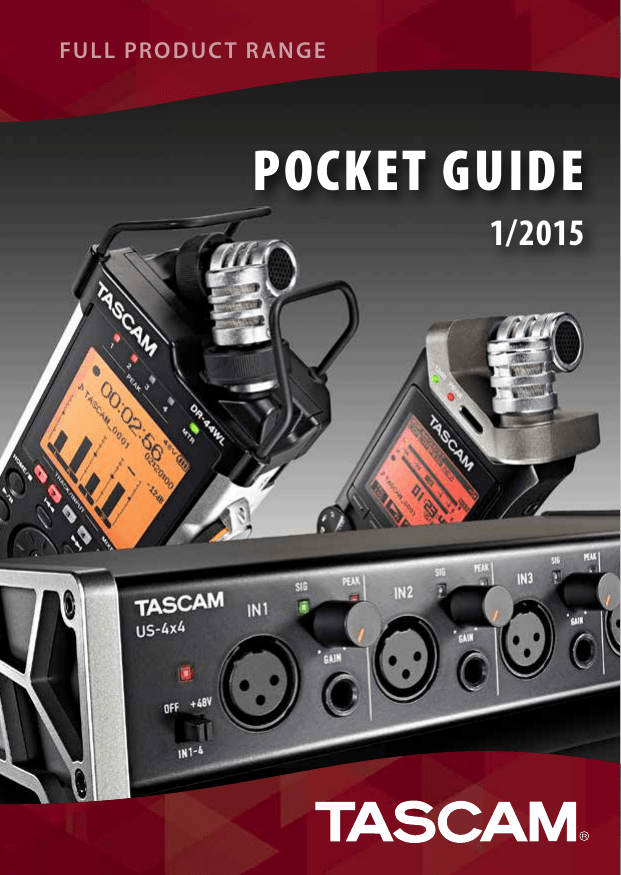

Tascam Pocketguide 2015-01
FULL PRODUC T R ANG E
POCKET GUIDE
1/2015
2015, Issue 1
© 2014–2015 TEAC Europe GmbH
Design and specifications subject to change without notice.
Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries.
iPhone, iPad and iPod are trademarks of Apple Inc.
All other trademarks are property of their respective owners.
2
CONTENT
DR-05................................................... 4
DR-22WL.. ............................................NEW!5
DR-44WL.............................................NEW!6
DR-40................................................... 7
DR-100 mkii ........................................... 8
DR-70D....................................... NEW!9
DR-60D mkii ................................. NEW!10
TM-2X..................................................11
DR-V1HD..............................................12
DR-10X. . ...................................... NEW!13
DR-10C. . ...................................... NEW!14
RC-10 / BP-6AA / AK-DR11G / AK-DR11C......15
DR-680................................................16
DP-006................................................17
DP-008EX.............................................18
DP-03 / DP-03SD....................................19
DP-24..................................................20
DP-32..................................................21
DP-32SD. . .............................................22
GB-10 / LR-10........................................23
CD-BT2 / CD-GT2 / CD-VT2. . ......................24
iXZ......................................................25
US-2x2. . ...................................... NEW!26
US-4x4. . ...................................... NEW!27
US-16x08.. ................................... NEW!28
US-1200...............................................29
UH-7000 . . .................................... NEW!30
TA-1VP.................................................31
DM-3200..............................................32
DM Options..........................................34
X-48 mkii ..............................................35
HS-8....................................................36
HS-4000. . .............................................37
HS-2000...............................................38
HS-20......................................... NEW!39
RC-HS20PD / RC-HS32PD.. ........................40
HS-P82................................................41
RC-F82.................................................42
HD-P2. . ................................................43
DA-3000...............................................44
SS-R200 / SS-CDR200 . . ............................45
SS-R100...............................................46
RC-3F / RC-20. . .......................................47
RC-900. . ...............................................48
CG-1000 / CG-1800 / CG-2000. . ......... NEW!49
DV-D01U..............................................50
CD-9010 / CD-9010CF..............................51
CD-6010...............................................52
CD-500 / CD-500B..................................53
CD-200 / CD-200 i l ..................................54
CD-200 bt / CD-200 sb ..............................55
CD-240. . ...................................... NEW!56
CD-A550 / A750 . . ....................................57
CD-RW900 m kii ............................. NEW!58
CD-RW901 m kii ............................. NEW!59
202 mkvi ...................................... NEW!60
MD-CD1 mkiii ........................................61
LA-40 mkiii ...........................................62
LA-80 mkii / LA-81 mkii ...........................62
LM-8ST................................................63
MH-8...................................................63
3
DR-05 LINEAR PCM/MP3 RECORDER
• • Portable, high-quality handheld recording
• • Small size and easy operation
• • Uses a microSD/microSDHC card as recording
medium (2 GB included)
• • Supported audio formats:
− Linear PCM (WAV format) at 44.1/48/96 kHz
and 16/24-bit
− Compressed (MP3 format): 32–320 kbit/s
Recording features
• • Built-in omni-directional microphones
− Accept high sound pressure level up to 125 dB
− Natural sound independent of the sound
source’s position
− Ideal for live music recording or news
gathering with atmo
• • Stereo mic/line input with plug-in power to
connect an external source or microphone
• • Switchable low-cut filter (40 Hz, 80 Hz, 120 Hz)
• • Manual or automatic recording level setting
• • Limiter to prevent clipping
• • Pre-recording buffer (2 seconds)
• • Self-timer (5 or 10 seconds)
• • Create a new file manually during recording
• • Mark function
4
Playback features
• • Variable speed audition (50–200 %)
• • Repeat function (one track or all tracks)
• • Loop function (repeat a marked section)
• • Playlist feature to play files in a certain order
• • Resume function
• • Flash back function (1–10, 20, 30 seconds)
• • EQ for tone control during playback
• • Built-in loudspeaker
• • Headphones/Line output
Other features
• • Chromatic tuner
• • File divide function
• • Folder management to organize your files
• • Hold function to avoid inadvertent operation
• • USB 2.0 connection for file transfer
• • Power supply by 2 AA size Alkaline or NiMH
batteries, USB bus power or optional AC
adapter (Tacsam PS-P515U)
• • Stand adapter (¼ inch) on bottom side
• • Dimensions (W × H × D):
61 mm × 141 mm × 26 mm
• • Weight: 0.116 kg (without batteries)
DR-22WL HANDHELD RECORDER WITH WI-FI FUNCTIONALIT Y
NEW!
• • Four-position low-cut filter (40/80/120/220 Hz)
• • Peak-reduction and limiter functions for
overload protection
• • Auto-recording function to automatically start
recording based on input level
• • Pre-recording function that can record up to 2
seconds prior to actual record start
• • Self-timer recording function
• • Mark function (manual or automatic by peak
or by time (with firmware version 1.20))
• • Variable Speed Audition (VSA) is ideal for
practice and arrangement (50–150% change
of speed)
• • Key changing function with fine-tuning
(±6 halftones)
• • Divide function (manual/automatic by markers)
• • File delete function
• • Recording at up to 96kHz/24-bit (WAV/BWF)
• • I-O loop playback function – ideal for
• • MP3 recording
rehearsal
• • Micro SD/SDHC/SDXC media supported
• • Resume function retains the last stop position
(4 GB microSD card included)
when power is turned back on
• • Unidirectional condenser microphones in X-Y
• • Audio files created on computer are playable
configuration
(only in formats compatible with this product)
• • Accepts up to 120 dB SPL
•• Track division function creates new files during
• • Cirrus Logic AD/DA codec with improved audio
recording (manual or automatic by time or level)
performance and low power consumption
• • File name format can be set to use a user• • 128x128 graphic LCD with backlight
defined word or dateMetronome for rehearsal
• • Built-in monaural loudspeaker (300 mW)
• • Headphones/line output (20 mW/channel)
• • Wi-Fi connection for monitoring, transport
• • USB 2.0 file transfer to/from your computer
control, level control, file transfer and more
• • Powered by two AA batteries, AC adapter
• • Free remote app for Windows/Mac available
(available as option) or USB bus-power
• • Scene Dial and re-designed user interfaces for
• • Tripod screw socket
ease of operation
• • Dual format recording function (WAV and MP3)
• • Dimensions (W × H × D, mm): 52 × 155 × 37
• • Overdub function
• • Weight: 0,123 kg
• • ERI (Extended Recording Information) function
for notes on recording settings
• • Reverb effect
5
DR-44WL 4-TRACK HANDHELD RECORDER WITH WI-FI FUNCTIONALIT Y
NEW!
• • Dual recording with different level settings or
in different formats
• • ERI (Extended Recording Information) function
for notes on recording settings (with v1.20)
• • Reverb effect
• • Four-position low-cut filter (40/80/120/220 Hz)
• • Peak-reduction and limiter functions
• • Auto-recording, Pre-recording, Self-timer
recording functions
• • Mark function (manual or automatic by peak
or by time (with firmware v1.20))
• • Input delay for time compensation
• • Variable speed, Variable key
• • Divide function (manual/automatic by markers)
• • I-O loop playback functionl
• • Resume function
• • Track division function (manual or automatic
• • Recording at up to 96kHz/24-bit (WAV/BWF)
by time or by level)
• • MP3 recording
• • Chromatic tuner and metronome for rehearsal
• • SD/SDHC/SDXC media supported (4 GB
(Metronome in MTR mode available with v1.20)
microSDHC card and SD card adapter included)
• • M-S decode function for external M-S mics
• • Two recording modes:
• • Punch in/out function in MTR mode
− Normal recording mode (up to 4 tracks) for
• • Bounce function in MTR mode
simple recording
• • Mixdown function for 4-track recording
− Professional MTR mode for music creation
• • Normalize function to improve the sound
• • Improved internal clock – ideal for filmmaking
density (with firmware v1.20)
• • Unidirectional condenser microphones in X-Y
• • MP3 encoding function (with firmware v1.20)
configuration with shock mount system
• • Stereo-mini headphones/line output with 20
• • Accepts up to 132 dB SPL
mW output power per channel
• • XLR/TRS inputs compatible with +4 dBu
• • USB 2.0 high-speed file transfer to/from PC
• • Improved mic preamps for higher-quality
• • Micro-B type USB connector
• • Cirrus Logic AD/DA codec with improved audio
• • Included accessories: AC adapter, hot-shoe
performance and low power consumption
adapter, soft case, hand grip, wind screen and
• • 24/48V phantom power
micro USB cable
• • 128x128 graphic LCD with backlight
• • Powered by four AA batteries, included AC
• • Built-in monaural speaker (300 mW)
adapter or USB bus power
• • Wi-Fi connection for monitoring, transport
• • Tripod screw socket
control, level control, file transfer and more
• • Free remote app for Windows/Mac
• • Dimensions (W × H × D, mm): 79 × 162 × 43
• • Improved user interfaces for ease of operation
• • Weight: 0,251 kg
• • QUICK menu button shows convenient features
for various recording situations
6
DR-40 4-TRACK LINEAR PCM/MP3 RECORDER
• • Portable, high-quality handheld recording
• • Compact size and easy operation
• • Uses a SD/SDHC card as recording medium
(2-GB card included)
• • Supported audio formats:
− WAV/BWF up to 96 kHz / 24-bit
− MP3 32–320 kbit/s at 44.1/48 kHz
• • Built-in cardioid stereo condenser microphone
− Accepts high sound pressure level
− AB and XY configuration supported
− Ideal for live music and field recording,
news gathering, music training etc.
• • Stereo XLR/TRS mic/line input with phantom
power (supports +4 dB line level input)
• • 4-track recording
− Create two stereo recordings from the builtin mics and the external mic/line input at
the same time
− Create two stereo recordings with different
level settings from the built-in mics or
external mic/line input at the same time
− Non-destructive overdub: Record a mix
of one or two stereo playback files and a
stereo input signal to a new stereo file or
record only the input signal while playing
back one stereo file
− Mixdown feature with level, pan and effect
controls for each track (creates a stereo
track from a 4-track recording)
• • MS decoder for recordings created with mid/
side microphone configuration
• • Switchable low-cut filter (40 Hz, 80 Hz, 120 Hz)
• • Manual or automatic recording level setting
• • Three Options of automatic level control
during recording: Peak Reduction, Auto Level,
Limiter
• • Pre-recording buffer (2 seconds)
• • Auto recording start and stop by input level
• • Self-timer
• • Mark function (up to 99 marks for each file)
• • Playback features include automatic level alig,
VSA, Repeat, Loop, Playlist, Resume, Flash
back, EQ, ID3 tag display for MP3 files, monitor
loudspeaker
• • Built-in reverb effect and chromatic tuner
• • Powered by 3 AA batteries, USB or AC adapter
(optional)
• • Optional footswitch (RC-3F) and wired remote
control (RC-10)
• • Dimensions (W × H × D): 70 × 155 × 35 mm
• • Weight: 0.213 kg (not including batteries)
7
DR-100 mkii PORTABLE STEREO RECORDER
• • Handheld digital stereo recorder with rugged
metal chassis for professional use
• • 2 separate types of batteries used together
allow for many hours of operation as well as
the ability to change batteries while recording
• • MP3 and WAV file recording and playback
• • Records to SD/SDHC card
• • Selectable recording formats:
− Linear PCM (WAV format), 16/24-bit
− MP3 32/64/96/128/192/256/320 kbps
• • Sampling frequencies: 96/48/44.1 kHz
• • Four built-in high-quality condenser mics (two
uni-directional, two omni-directional)
• • Two lockable XLR mic ins with phantom power
• • High-performance preamp provides wide
range of gain (58 dBu to +24 dBu)
• • Three selectable input sensitivities
• • Stereo line input with adjustable level
• • Tandem hardware recording level control
• • Digital input (conversion cable included)
• • Switchable low-cut filter (40 Hz, 80 Hz, 120 Hz)
• • Switchable auto gain control and limiter to
prevent clipping (hardware switchable)
• • Built-in monitor speaker
• • Headphones output with level control
8
• • Separate stereo line output (mini jack)
• • Pre-recording buffer (2 seconds)
• • Delayed recording feature
• • Auto recording start and stop by input level
• • Overdub feature
• • Mark function (automatic or manual)
• • Create a new audio file during recording
(manually or by file size)
• • File divide function, file renaming
• • Playback features include: In/Out loop, Folder
or playlist playback, Pitch control function
(–50 % to +16 %), Switchable VSA function
• • Mic stand adapter (¼ inch) on bottom side
• • USB 2.0 connection for file transfer
• • Power supply by lithium-ion rechargeable
(BP-L2), two AA batteries, optional battery pack
(BP-6AA) or optional AC adapter (PS-P520)
• • 2-Gigabyte SD card, RC-10 wireless remote
control, windshield and softcase included
• • Footswitch with three pedals for various
functions available as an option (RC-3F)
Dimensions (W × H × D):
80 mm × 153 mm × 35 mm
• • Weight: 0.29 kg (not including batteries)
DR-70D 4-CHANNEL AUDIO RECORDER FOR DSLR CAMERAS
• • Compact, professional-grade audio recorder
• • Records to SD/SDHC/SDXC card (up to 128 GB)
• • Tascam HDDA microphone preamps
• • NE5532 operational amplifiers for even higher
audio performance (also used on DA-3000)
• • Stereo or four-channel recording (four
channels can be mixed down to stereo)
• • Independent level controls for inputs 1–4
• • Dual recording function allows two files to be
recorded simultaneously at different levels
• • Recording at 44.1/48/96 kHz, 16/24-bit, linear
PCM (WAV format), BWF supported as WAV
• • Two built-in omnidirectional microphones
• • Four XLR/TRS combo inputs can provide
phantom power (+24V/+48V)
• • +24 dBu maximum input level
• • Additional unbalanced input for channels 1
and 2 (stereo mini jack, plug-in power)
• • Low-cut filter (40 Hz, 80 Hz, 120 Hz)
• • Limiter to prevent clipping
• • High-quality audio can be output to a DSLR
camera for recording
• • Camera input enables convenient monitoring
of audio from a DSLR camera
NEW!
• • Selectable mid-side decoding for use with MS
microphone setups
• • Slate tone functions (automatic/manual)
• • Pre-recording, Auto recording, Self-timer
• • Selectable delay to eliminate time lags
• • QUICK button allows easy access to functions
• • Mark function
• • Playback equalizers, level alignment function
• • File name format can be set to use a userdefined word or the date
• • Resume function to memorize the playback
position before the unit is turned off
• • Line output and headphones output with
individual level controls (3.5-mm jack)
• • Dedicated remote control jack for use with
RC-10 and RC-3F (sold separately)
• • Low-noise buttons
• • USB 2.0 port
• • Stand adapter (¼ inch) on bottom side
• • DSLR bracket for easy camera attachment and
removal, hot shoe mount
• • Operates on four AA batteries, optional AC
adapter (PS-P515U), optional battery pack
(BP-6AA) or USB bus power
9
DR-60D mkii PORTABLE AUDIO RECORDER FOR DSLR CAMERAS
• • Compact, high-quality audio recorder designed
to be used with a DSLR camera
• • Uses an SD/SDHC card as recording medium
• • High-quality recording inputs through Tascam
original HDDA microphone preamps
• • Stereo or 4-channel recording with mixdown
• • Dual recording function allows two files to be
recorded simultaneously at different levels
• • Recording at 44.1/48/96 kHz, 16/24-bit (WAV)
• • BWF supported as WAV recording format
•• New, smooth XLR/TRS combo jacks
•• XLR inputs can provide phantom power (24 V/48 V)
• • TRS mic/line inputs support +24 dBu input
• • “HI+PLUS” allows a max. input gain of 64 dB
• • Stereo mini jack input supports mics that
require plug-in power, allowing the input
of video mics and other high-output mics
(+10 dBV maximum input level)
• • Low-cut filter conveniently reduces lowfrequency noise (40 Hz, 80 Hz, 120 Hz)
• • High-quality audio to a DSLR camera
• • Camera input for monitoring
• • Selectable mid-side decoding
• • Slate tone functions (automatic/manual) to
simplify synchronization with video files
10
NEW!
• • Pre-recording and Auto recording functions
• • A new file can be created during recording
(manually or by file size)
• • Self-timer function, Jump-back function
• • Selectable delay to eliminate time lags
between two input sources
•• QUICK button for easy access to various functions
• • Divide function allows files to be split
• • Mark function for moving to specific locations
• • Playback equalizer, level alignment function
• • Resume function
• • Line output and headphones output with
individual level controls (3.5-mm jack)
• • USB 2.0 port for file transfer
• • Stand adapter (¼ inch) , DSLR bracket for easy
camera attachment and removal with a coin
• • Remote control jack (for RC-10 or RC-3F)
• • Hold switch to prevent accidental operation
• • Operates on four AA batteries, an AC adapter
(sold separately: TASCAM PS-P515U), external
battery pack (sold separately: TASCAM BP-6AA)
or USB bus power
• • Power source switches automatically from
external to internal when necessary (with
pop-up message on display)
TM-2X HIGH-QUALIT Y MICROPHONE FOR DIGITAL CAMERAS
• • High-grade stereo condenser microphone for
high-quality sound recording with DSLR or
mirrorless cameras
• • Can be mounted directly to the camera
accessory shoe and swivelled by 180 degrees
to capture sound sources in front or behind
the user
• • Tripod attachment screw-hole (1/4-inch) to
place the microphone apart from the camera
• • XY orientation for clear stereo definition and
minimal phase differences
• • Accepts high sound pressure level up to 125 dB
SPL
• • Switchable input sensitivity for optimum
performance with any camera model
• • Switchable filter to minimize unwanted
low‑frequency noise
• • Operates with plug-in power – no battery
required
• • Noise isolation arm included to reduce ­p ossible
noise being recorded from the camera’s lens or
stabilizer mechanisms
• • Fur windscreen included to reduce noise being
recorded in outdoor situations
••
• • Dimensions (W × H × D):
57 mm × 59 mm × 69 mm
• • Weight: 0.075 kg (without arm)
11
DR-V1HD HD VIDEO / LINEAR PCM RECORDER
• • High-definition audio/video recorder combined in one compact unit
• • Ideal for musicians, podcasters, YouTube
uploaders
• • Lens and microphones can be swivelled by
180 degrees
• • Records to microSD/microSDHC card (2-GB card
included)
• • 2.4-inch TFT color LCD with Movie/Audio/
Photo display modes
Video features
• • HD or VGA video mode (1280x720p / 640x480p)
• • 30 fps frame rate
• • Wide focusing range (0.39 m to infinity)
• • 1x – 4x digital zoom
• • Still image mode to take pictures (1280x720p
or 640x480p, image quality super fine, fine,
or normal)
• • Slide show mode (interval time: 1–10 sec.)
• • HDMI output allows to view HD videos or
pictures on a TV
Audio features
• • Linear PCM (WAV file) recording and playback
at 44.1/48/96 kHz, 16/24 bit
12
• • High-grade stereo condenser microphone
• • Stereo input for microphone or line source
• • Switchable low-cut filter (40/80/120 Hz)
• • Auto or manual gain control
• • Dedicated recording level control
• • Switchable limiter
• • VSA function (Variable Speed Audition)
• • Overdub function
• • Selectable playback area: All/Folder
• • Built-in monaural monitor speaker
• • Stereo phones/line output
Other features
• • Mini-B type USB 2.0 jack for file exchange
• • Powered by three Alkaline (LR6) or Ni-MH
(HR15/51) batteries
• • AC power adapter available as an option
(Tascam PS-P520)
• • Auto power-off (3/5/10/30 minutes or off )
• • Tripod attachment screw hole
• • USB cable included
• • Dimensions (W × H × D):
70 mm × 131 mm × 28 mm
• • Weight: 157 g (without batteries)
DR-10X MIC-ATTACHABLE AUDIO RECORDER
• • Compact, lightweight audio recorder that can
be attached directly to a dynamic microphone
with XLR connector
• • Mono recording at 48 kHz sample rate and
24-bit resolution
• • BWF (WAV) format allows inclusion of time
information within audio files
• • Records to microSD/microSDHC card (up to
32 GB)
• • Dual recording function allows two files to be
recorded simultaneously at different levels
• • Recording level can be set to High/Mid/Low
• • AGC function (Auto Gain Control)
• • Switchable limiter to prevent clipping
• • Switchable low-cut filter conveniently reduces
low-frequency noise
• • Time track increment function
• • Playback function for checking recordings via
headphones
• • Headphones output
NEW!
• • Built-in clock for storing time information
with recordings
• • Fastening mechanism for a stable joint
between the recorder and the microphone
• • OLED display with great visibility
• • Micro USB-B connector for easy data transfer
with a computer
• • Power supply through one AAA battery/
rechargeable or USB connection
• • Settings can be created in a text file on a computer and transferred to the DR-10X via USB
• • Infrared data communication allows setting
information to be transferred to other DR-10X
recorders
• • Firmware update possible using the microSD
card
13
DR-10C RECORDERS FOR LAVALIER MICROPHONES
• • Micro linear PCM recorder for lavalier
microphones
• • Can be connected between a lavalier microphone and a wireless transmitter to provide a
backup recording
• • Mono BWF recording at 48 kHz sample rate
and 24-bit resolution
• • Records to microSD/microSDHC card (up to
32 GB)
• • Dual recording function allows two files to be
recorded simultaneously at different levels to
provide a safety track in case of distortion
• • Hold function prevents accidentally switching
off the recorder
• • Switchable limiter to prevent clipping
• • Switchable low-cut filter conveniently reduces
low-frequency noise
• • Auto gain control
• • Time Track increment function writes
new track after a preset amount of time
(switchable on/off )
• • Playback function for checking recordings via
headphones
• • Headphones output
14
NEW!
• • Built-in clock for storing time information
with recordings
• • OLED display with great visibility
• • Micro USB-B connector for easy data transfer
with a computer
• • Power supply through one AAA battery/
rechargeable or USB connection
• • More than eight hours recording with a single
AAA battery
• • Settings can be created in a text file on a computer and transferred to the DR-10C via USB
• • Infrared data communication allows setting
information to be transferred to other DR-10C
recorders
• • Firmware update possible using the microSD
card
• • Two models for Lectrosonics (DR-10CL) and
Sennheiser (DR-10CS) mics, option packs
available for Shure (AK-DR10CH) and Sony,
Ramsa (AK-DR10CR)
RC-10 / BP-6AA / AK-DR11G / AK-DR11C RC-10
• • Wireless/wired remote control for DR series
recorders
• • 6 buttons for transport control and setting
marks while recording
• • 4 function buttons to control product-specific
features (see Owner’s manual of the related
product)
• • 3 m cable included
BP-6AA
• • External battery pack for DR series and other
products powered by DC 5V or USB
• • Increases the operation time without the need
for an AC adapter or computer
• • Can be used for any Tascam product powered
by PS-P515U or PS-P520 AC adapters or any
product powered by USB
• • Takes six AA batteries
• • Power switch and LED indicators for remaining
battery power
DR-SERIES ACCESSORIES
AK-DR11G General handheld recording
package
• • Fur windscreen to reduce wind noise
• • Grip for handheld recording
• • Power adapter
• • Soft carrying-case
AK-DR11C Filmmaking accessory package
• • Attenuator cable for optimum audio connection to camera
• • Splitter cable for simultaneous connection of
headphones and camera
• • Shoe-mount adapter to attach the recorder to
the camera
• • Fur windscreen to reduce wind noise
• • Grip for handheld recording
• • Soft carrying-case
15
DR-680 PORTABLE MULTI-TRACK RECORDER
Recording/Playback
• • High-quality field recording
• • Compact size and easy operation
• • Up to 8 recording tracks
− 6 tracks + stereo mix track at up to
24-bit/96 kHz
− 6 tracks via the analogue inputs + 2 tracks
via the digital input at up to 24-bit/96 kHz
− 2 tracks at 24-bit/192 kHz
• • Secure and easily available SD/SDHC recording
media
• • Recording/playback in uncompressed BWF or
WAV format or space-saving MP3 format
• • MP3 multi-track recording
(2 stereo or 4 mono files)
• • WAV/BWF sampling frequencies:
44.1/48/96/192 kHz
• • MP3 sampling frequencies: 44.1/48 kHz
• • MP3 bit rates: 96–320 kbit/s
• • 16-bit/24-bit resolution
• • Mid-side (MS) microphone decoding
• • Pre-recording buffer (up to 2 seconds)
• • Auto recording by input level
• • Locate markers
• • Repeat playback feature
16
• • GANG function to operate a group of controls
as one
• • Hold feature to prevent misoperation
• • Built-in loudspeaker for monitor purposes
• • Powered by 8 AA-size batteries or AC adapter
PS-1225L (included)
Inputs/Outputs
• • 6 balanced mic/line inputs (4 XLR/TRS combo
connectors, 2 TRS connectors)
• • 48-volt phantom power
• • Selectable input gain on each analogue input
(hardware-switchable high/low)
• • Switchable low-cut filter and limiter on each
analogue input
• • 6 unbalanced line outputs (RCA)
• • Stereo digital input and output (selectable
between SPDIF and AES/EBU)
• • Headphones output with level control
• • USB 2.0 high-speed data transfer to PC
• • Cascade feature to control up to four DR-680
• • Optional carrying case CS-DR680
• • Dimensions (W × H × D):
217 mm × 56 mm × 189 mm
• • Weight: 1.2 kg (without batteries)
DP-006 6-TRACK DIGITAL POCKETSTUDIO
• • Portable, ultra-compact and easy-to-use
multitrack recorder
• • Simple, intuitive user interface
• • High-quality recording (44.1kHz/16-bit)
• • Recording media: SD/SDHC card (2GB SD card
included)
• • 6 recording tracks (2 mono tracks, 2 stereo
tracks,can also be used as mono tracks)
• • Record a stereo source or two independent
mono sources at once
• • Simultaneous playback of all 6 tracks
• • Built-in stereo condenser microphone
• • Two Mic/Line inputs
• • Dedicated Level and Pan controls
• • Bounce feature (up to 6 tracks plus two input
channels can be bounced to a new mono or
stereo track)
• • Dedicated stereo master track
• • Locate features
• • Repeat playback
• • Editing functions: duplicate or erase tracks,
cut parts, insert silence
• • Undo/Redo feature (up to 500 steps,
depending on memory capacity)
• • Chromatic Tuner/Metronome
• • USB 2.0 port for file transfer to/from computer
• • Export your mix recording or individual tracks
(WAV files) or back up your song to a computer
• • Import individual tracks (WAV files) or restore
backed-up songs from a computer
• • Stand adapter (¼ inch) on bottom side to
mount your Pocketstudio on a tripod or mic
stand to ease instrumental or environmental
recordings
• • Power supply by AA batteries or optional AC
adapter
• • Dimensions (W × D × H):
155 mm × 42 mm × 107 mm
• • Weight: 360 g
17
DP-008EX 8-TRACK DIGITAL POCKETSTUDIO
• • Portable, ultra-compact and easy-to-use
multitrack recorder
• • Simple, intuitive user interface
• • Use real knobs and buttons for frequently-used
functions or easily navigate through the menu
• • High-quality recording (44.1kHz/16-bit)
• • Recording media: SD/SDHC card (2GB SD card
included)
• • 8 recording tracks
• • Record a stereo source or two independent
mono sources at once
• • Simultaneous playback of all 8 tracks
• • Built-in stereo condenser microphone
• • Two Mic/Line inputs (XLR/TS combo connectors)
• • Switchable phantom power for condenser
microphones
• • Dedicated Level and Pan controls
• • Three-band parametric EQ per track, two-band
parametric EQ on both inputs
• • Dynamic effects on both inputs (compressor,
exciter and de-esser)
• • On-board Reverb processor with dedicated
send knobs on each channel
18
• • Auto punch in/out
• • Footswitch connector to allow hands-free
punch-in/out (footswitch available as an
option)
• • Track bounce feature
• • Up to 8 tracks plus two input channels can be
bounced to a new mono or stereo track
• • Dedicated stereo master track
• • Auto and manual mastering tools
• • Single- or multi-band mastering compressor
and a normalizer to master your mixes
manually
• • Locate features
• • Repeat playback
• • Editing functions: duplicate or erase tracks,
copy, move or cut parts, insert silence
• • Undo/Redo feature (up to 500 steps)
• • Chromatic Tuner/Metronome
• • USB 2.0 port for file transfer to/from computer
• • Power supply by four AA batteries or optional
AC adapter (Tascam PS-P520)
• • Dimensions (W × D × H):
221 mm × 44 mm × 127 mm
• • Weight: 610 g
DP-03 / DP-03SD 8-TRACK DIGITAL PORTASTUDIO™
•• 8-track digital Portastudio with CD burner (DP-03)
− Also available without CD drive (DP-03SD)
• • Recording/playback at 44.1 kHz, 16 bit using
SD/SDHC memory card
• • Simultaneous recording of two tracks
• • Simultaneous playback of eight tracks
• • Dedicated stereo mixdown track to mix your
song to a stereo file you can burn on CD or
transfer to a computer for MP3 encoding
• • Built-in stereo condenser microphone
• • Two XLR mic inputs with phantom power for
your favourite studio condenser microphones
• • Two TRS line inputs, one switchable to guitar
for direct connection of an electrical guitar or
bass as well as synths, drum machines etc.
• • RCA line output
• • Headphones output with level control
• • Two-band shelving EQ per track and on both
inputs
• • On-board reverb processor
• • On-board mastering effects with two-band
EQ, single/multi-band compression and a
normalizer to maximise the overall level and
improve the sound density
• • Auto punch in/out for hands-free recording
over a marked section
• • Track bounce feature to use more than eight
tracks by creating a mixdown of several tracks
to another track
• • Workstation-style editing with copy, move,
open, cut etc.
• • Multi-level undo/redo history
• • Location marks to easily locate the start of
verses, soli, vocals etc.
• • Built-in tuner and metronome
• • On-board CD/CD-RW burner
− Create audio CDs from your mixes
− Backup/restore your projects
− Import files from audio CDs
• • USB 2.0 port to backup/restore projects or
import/export wave files from/to a computer
• • Nine 45-mm faders
• • Selectable foot switch operation mode
• • Foot switch with three switches and
assignable functions available as an option
(RC-3F)
• • Dimensions (W × H × D):
290 mm × 54 mm × 207 mm
• • Weight: 1.8 kg (DP-03), 1.4 kg (DP-03SD)
19
DP-24 DIGITAL PORTASTUDIO
• • 24-track digital Portastudio
• • Color LCD display and 12-encoder channel strip
for simple operation
• • Eight microphone inputs on balanced combo
XLR/jack connectors with phantom power
• • Up to eight-track simultaneous recording at
48 kHz/24-bit audio resolution
• • Solid-state recording to SD Card media for
better shock resistance than hard drive
recording
• • Instrument-level input for direct recording of
guitar or bass
• • Dedicated controls for EQ, pan and effect sends
• • Multiple effects processors for input processing, guitar amp simulation and mastering
− Input effects: Limiter, Compressor, Noise
suppressor, Exciter
− Guitar effects: Amplifier simulator, Reverb,
Compressor, Chorus, Flanger, Phase shifter
etc.
− Mixdown effects: Reverb, Delay, Stereo
chorus, Stereo flanger
− Mastering effect: Multi-band compressor,
EQ, Noise shaping etc.
20
• • Virtual tracks for alternate takes and undo
• • CD-RW drive for mixdown and backup
• • Built-in chromatic tuner and metronome
• • MIDI input and output for clocking and control
• • 6.3-mm jack monitor outputs, effect send outs
and headphone output
• • Dimension (W × H × D):
514 mm × 104 mm × 340 mm
• • Weight: 6.2 kg
DP-32 DIGITAL PORTASTUDIO
• • 32-track digital Portastudio
− 8 mono tracks, 12 stereo tracks (can also be
used as mono tracks)
− Record up to 8 tracks at once with 44.1 kHz/
48 kHz and 16/24-bit audio resolution
− Simultaneous playback of all 32 tracks
− Virtual tracks for alternate takes and undo
− Dedicated stereo master track
• • Colour LC display and 12-encoder channel strip
for simple operation
• • Built-in 40-channel mixer
− Mix down your 32 playback tracks with
eight input signals to the dedicated stereo
master track
− Use the Bounce function to mix multiple
tracks to a single mono or stereo track
• • Dedicated controls for EQ, pan and effect sends
• • Solid-state recording to SD Card media for
better shock resistance and reliability compared to hard drive recording
• • 8 balanced microphone inputs on balanced
combo XLR/jack connectors
•• Switchable phantom power for 4 channels each
• • One input switchable to instrument level for
direct recording of a guitar or bass
• • Unbalanced stereo output (RCA jacks)
• • Balanced stereo monitor output (6.3-mm TRS)
• • Two unbalanced effect sends (6.3-mm TS)
• • Stereo headphones output (6.3-mm TRS)
• • MIDI input and output for MMC, Control
Change and MTC output
• • Footswitch input for Tascam RC-3F (optional)
• • Input effects (Limiter, Compressor, Noise suppressor, Exciter)
• • Guitar effects (Amp simulator, Reverb,
Compressor, Chorus, Flanger, Phase shifter)
• • Mixdown effects (Reverb, Delay, Stereo chorus)
• • Mastering effect (Single/Multi-band stereo
compressor, EQ, Noise shaping)
• • Mark function (up to 99 location marks)
• • Built-in chromatic tuner and metronome
• • CD-RW drive for audio CD creation and file
import and export
• • USB 2.0 port for data backup/restore and file
transfer with a computer
• • Dimension (W × H × D):
514 mm × 104 mm × 340 mm
• • Weight: 6.2 kg
21
DP-32SD 32-TRACK DIGITAL PORTASTUDIO
• • 32-track digital Portastudio
− 8 mono tracks, 12 stereo tracks (can also be
used as mono tracks)
− Record up to 8 tracks at once with 44.1/48
kHz and 16/24-bit audio resolution
− Simultaneous playback of all 32 tracks
− Virtual tracks for alternate takes and undo
− Dedicated stereo master track
• • Colour LC display and 12-encoder channel strip
for simple operation
• • Built-in 40-channel mixer
− Mix down your 32 playback tracks with
eight input signals to the dedicated stereo
master track
− Use the Bounce function to set tracks free
by mixing multiple tracks to a single mono
or stereo track
• • Dedicated controls for EQ, pan and effect sends
• • Solid-state recording to SD Card media for
better shock resistance and reliability compared to hard drive recording
• • 8 balanced microphone inputs on balanced
combo XLR/jack connectors
• • Switchable phantom power for 4 channels
each
22
• • One input switchable to instrument level for
direct recording of a guitar or bass
• • Unbalanced stereo output (RCA jacks)
• • Balanced stereo monitor output
(6.3-mm TRS jacks)
• • Two unbalanced effect sends (6.3-mm TS jacks)
• • Stereo headphones output (6.3-mm TRS jack)
• • Footswitch input (2.5-mm mini jack) for
Tascam RC-3F (optional accessory)
• • Input effects (Limiter, Compressor, Noise suppressor, Exciter)
• • Guitar effects (Amp simulator, Reverb,
Compressor, Chorus, Flanger, Phase shifter)
• • Mixdown effects (Reverb, Delay, Stereo chorus)
• • Mastering effect (Single/Multi-band stereo
compressor, EQ, Noise shaping)
• • Mark function (up to 99 location marks)
• • Built-in chromatic tuner and metronome
• • USB 2.0 port for data backup/restore and file
transfer with a computer
• • Dimension (W × H × D):
514 mm × 101 mm × 337 mm
• • Weight: 6.2 kg
GB-10 / LR-10 TRAINERS/RECORDERS FOR GUITAR/BASS AND INSTRUMENTS/VOCALS
• • Compact and light-weight all-in-one trainers/
recorders for jamming/training with your
favorite songs
− Simply plug in your guitar/bass (GB-10) or
record your instrument/vocal performance
with the built-in stereo mics (LR-10)
− Play or sing along with existing songs
− Record over existing songs (overdub)
− Capture musical ideas
− Check your recordings with the built-in
loudspeaker (LR-10)
− Digitize your analogue music archives (line
input, LR-10 only)
• • Amp simulation, compressor and multi-effects
included (GB-10), Reverb effect (LR-10)
• • Tempo control: 50 % to 150 % in 10-% steps
• • Key control: ±6 semi-tones with ±50 cents
fine tune
• • Tempo and key control can be used at the
same time
• • In-Out loop playback (up to five loops can be
set for each file in a playlist)
• • Flashback function (jump back by 1–10
seconds during playback)
• • Built-in tuner and metronome
• • MP3/WAV file playback and WAV file recording
• • Pre-recording buffer (up to 2 seconds)
• • Auto recording feature (start/stop recording
depending on the input level)
• • File divide function to clean a song start or
ending from unwanted noise or to split large
files into smaller pieces
• • Uses an SD/SDHC memory card as recording/
playback medium (a 2-GB card is included)
• • Foot switch available as an option (Tascam
RC-3F) for hands-free operation (Several
operation modes selectable)
• • USB 2.0 port for file transfer (cable included)
• • Three options of power supply:
− 2 AA batteries (Alkaline or NiMH)
− USB bus power
− Optional PS-P520 AC adapter
• • Dimensions (W × H × D):
158 mm × 30 mm × 70 mm
• • Weight: 0.16 kg (GB-10), 0.17 kg (LR-10)
23
CD-BT2 / CD-GT2 / CD-VT2 CD INSTRUMENT AND VOCAL TRAINERS
• • CD players with bass (BT), guitar (GT) or
microphone (VT) pre amp and effects
• • CD-DA/CD-R/CD-RW disc playback
• • 10 second anti-shock memory
• • Album title/Track title indication by CD-Text
• • Elapsed/Remain time display with bar meter
• • +16 to –50% pitch control in 1% steps
• • VSA (Variable Speed Audition, tempo control
without affecting key)
• • Key control: ±6 semi-tones, in semi-tone steps
with ±50 cents fine tune
• • Single play and continuous play
• • Single Loop, All Loop, seamless In-Out Loop
• • Flash Back function (instant review up to 5
seconds prior playback)
• • Chromatic tuner with calibration (435–445 Hz)
• • 3 octaves tone oscillator
• • Metronome (BPM: 40 to 220, Beat: 2 to 6)
• • 6.3-mm input with level control
• • Input level indicator on display
•• Balance between input and CD signals adjustable
• • 3.5-mm stereo line and headphone outputs
• • Headphone volume control
• • Mono monitor function for CD (L+R, L, R)
24
• • Split monitor function (left channel: CD, right
channel: input signal or vice versa)
• • Comprehensive 128 × 64 dot matrix LC display
• • Two options of power supply: alkaline/NiMH
batteries or optional AC adapter PS-P520
• • Dimensions (W × H × D):
194 mm × 39 mm × 138 mm
• • Weight (excluding batteries): 0.55 kg
Individual features
• • Built-in effects/sound controls:
− BT: Up to 4 effect modules plus 7-band graphic
EQ, 10 effect banks, Bass enhancement
− GT: Up to 3 effect modules, 10 effect banks,
Guitar Canceller with selectable pan point
and frequency range
− VT: Reverb and echo effects, Voice Changer
(1 octave up/down), Instrument/Vocal
Canceller with selectable pan point and
frequency range
• • Other inputs:
− BT, GT: Foot switch connector,
5 selectable functions
− VT: Second mic input with separate mix
control on display
iXZ MIC/GUITAR INTERFACE FOR iOS DEVICES
• • High-quality mic/instrument preamp for Apple
iPhone, iPad and iPod
• • Use your Apple device for serious recording,
guitar/bass/vocal training or karaoke
• • Balanced/unbalanced combo input connector
(XLR/TS)
• • Switchable phantom power for condenser
microphones
• • Level control on mic input
• • Headphone output
• • Connection with Apple device via 4-pin mini
plug (analogue)
• • No battery required when used as instrument
preamp
• • Two AA batteries required for mic preamp and
phantom power
• • Tascam 2-track recording app can be downloaded from AppStore at no charge
• • Dimensions (W × H × D):
106 mm × 40 mm × 45 mm
• • Weight: 0.087 kg
25
US-2x2 USB AUDIO/MIDI INTERFACE (2 IN / 2 OUT)
• • High-quality Ultra-HDDA (High Definition
Discrete Architecture) microphone pre-amps
with ultra-low noise (EIN: –125 dBu)
• • NE5532 operational amplifier for audio input
and output circuits
• • Recording at up to 96kHz/24-bit
• • Support for Mac and Windows operating
systems
• • 2-in/2-out audio streaming from a PC
­c onnected via USB 2.0
• • Two XLR/TRS (mic/line) analogue inputs with
phantom power supply
• • Inputs selectable between line and instrument
level
• • Wide input gain range of 57 dB for dynamic
microphones
• • Zero-latency monitoring (direct monitoring)
• • Two TRS (balanced) analogue outputs
• • Headphones output delivering 18 mW per
channel
• • Independent level controls for line and phones
outputs
• • MIDI input/output
26
NEW!
• • Source of audio output can be selected on
settings panel
• • Selectable input monitor mode (stereo/mono)
• • Input mute switch on control panel
• • USB bus-powered for mobile recording
• • USB Audio Compliance 2.0 for iOS connection
• • Standalone operation for practice sessions
• • Bundled with Sonar X3 LE and Ableton Live
Lite 9
• • DAW compatibility
(Sonar, ProTools, Cubase, Live)
• • Rugged aluminum body
• • Angled industrial design for ease-of-use on
a desktop
• • Dimensions (W × H × D):
186 mm × 65 mm × 160 mm
• • Weight: 1.1 kg
US-4x4 USB AUDIO/MIDI INTERFACE (4 IN / 4 OUT)
• • High-quality Ultra-HDDA (High Definition
Discrete Architecture) microphone pre-amps
with ultra-low noise (EIN: –125 dBu)
• • NE5532 operational amplifier for audio input
and output circuits
• • Recording at up to 96kHz/24-bit
• • Support for Mac and Windows operating
systems
• • 4-in/4-out audio streaming from a PC
­c onnected via USB 2.0
• • Four XLR/TRS (mic/line) analogue inputs with
phantom power
• • Input 1/2 selectable between line and
instrument level
• • Wide input gain range of 57 dB for dynamic
microphones
• • Zero-latency monitoring (direct monitoring)
• • Four TRS analogue outputs
• • Two headphones outputs delivering 45 mW
per channel
• • Independent level controls for line and phones
output
• • MIDI input/output
NEW!
• • Source of audio output can be selected on
settings panel
• • Selectable input monitor mode (stereo/mono)
• • AC adapter included
• • USB Audio Compliance 2.0 for iOS connection
• • Standalone operation for practice sessions
• • Bundled with Sonar X3 LE and Ableton Live
Lite 9
• • DAW compatibility
(Sonar, ProTools, Cubase, Live)
• • Rugged aluminum body
• • Angled industrial design for ease-of-use on
a desktop
• • Dimensions (W × H × D):
296 mm × 65 mm × 160 mm
• • Weight: 1.6 kg
27
US-16x08 USB AUDIO/MIDI INTERFACE (16 IN / 8 OUT)
• • High-quality Ultra-HDDA (High Definition
Discrete Architecture) microphone pre-amps
with ultra-low noise (EIN: –125 dBu)
• • Recording at up to 96 kHz/24-bit
• • Support for Mac and Windows operating
systems
• • 16-in/8-out audio streaming from a PC
­c onnected via USB 2.0
• • Selectable operation mode between audio
interface and standalone mic preamp
• • On-board DSP mixer for monitoring
• • Low-latency monitoring via the DSP Mixer
• • Compressor and 4-band EQ for each input
channel on the DSP mixer
• • Eight XLR inputs with phantom power
• • Two TRS (balanced) inputs selectable between
line and instrument level
• • Six TRS (balanced) inputs on rear panel
• • Eight TRS (balanced) analogue outputs
• • Standard headphones output
28
NEW!
• • MIDI input/output
• • USB Audio Compliance 2.0 for iOS connection
• • DAW compatibility
(Sonar, ProTools, Cubase, Live)
• • Rack-mount adapter included
• • Dedicated AC adapter included
• • Angled industrial design for desktop easeof-use
• • Dimensions (W × H × D):
445 mm × 59 mm × 219 mm
• • Weight: 2.8 kg
US-1200 USB AUDIO INTERFACE (6 IN, 2 OUT)
• • USB audio interface with 6 ins and 2 outs
• • All inputs/outputs can be used simultaneously
• • Four XLR balanced microphone inputs with
phantom power switch, level controls and
level indicators on front panel
− Tascam HDDA microphone preamps offering
high S/N ratio, low input-referred noise and
low distortion
− Two guitar/line inputs with level controls
and level indicators on front panel (TRS,
balanced when set to line)
• • Two balanced line outputs on rear panel (TRS)
• • Stereo headphones output with level control
• • Up to 96 kHz sampling rate at 24-bit resolution
• • On-board digital mixer selectable between
− Multi Track mode for DAW recording and
composing: Create a monitor mix independent of the actual recording levels
− Stereo Mix mode for internet broadcasting
and video editing: Create a stereo mix of six
different sources plus loop-back signal from
the computer
• • Mixer panel for intuitive mixing and effects
handling on the computer screen
• • On-board effects (44.1/48 kHz only):
− Insert effects (Compressor, Noise suppressor, De-esser, Exciter, 3-band EQ) can be
used on input channels
− Reverb send effect can be used on any mixer
channel or the master channel
• • Low-latency monitoring
• • Monitor mix control for adjusting the level
balance between signals from external devices
and signals from the computer
• • Supports ASIO, WDM and Core Audio drivers
• • USB 2.0 interface
• • Compatible with Windows 8, Windows 7,
Windows XP and Mac OS X
• • AC adapter included
• • Sonar X3 LE (Windows only) and Ableton Live
Lite (Mac/PC) included
• • 1-U rackmount chassis
• • Dimensions (W × D × H):
483 mm × 45 mm × 300 mm
• • Weight: 2.9 kg
29
UH-7000 HIGH-END USB AUDIO INTERFACE
• • Top-of-the-line two-channel USB audio
interface for Windows and Mac computers
• • Can be used as a stand-alone high-end AD
converter for monitoring or recording to
stand-alone recorders
• • High-performance mic preamp newly designed
for this model for most accurate audio reproduction at the input stage
• • Superb audio quality with samling rates up to
192 kHz at 24-bit resolution
• • Ultra-high dynamic range of 123 dB (A/D) and
128 dB (D/A)
• • Professional-grade PCM4220 A/D and D/A
converters from Texas Instruments
• • Selected components for outstanding sound
quality with minimum noise and distortion
• • High-precision clock synchronization with
sample-accuracy at both recording and playback
• • On-board DSP mixer and effects like EQ,
compressor, noise suppressor, de-esser, exciter
and reverb (effects up to 96 kHz only)
• • Two selectable mixer modes:
− Multi Track mode for DAW recording and
composing
30
NEW!
− Stereo Mix mode for internet broadcasting
and video editing
• • Mixer panel for intuitive mixing and effects
handling on the computer screen
• • Dedicated button for opening/closing the
mixer panel on the computer
• • Two large TRIM knobs for precise level control
• • XLR and TRS balanced analogue inputs
• • Switchable 48-V phantom power on XLR inputs
• • XLR balanced line outputs
• • Line output level can optionally be adjusted
with the headphones level control
• • Output selector allows a source to be output
via the unit’s mixer or via a computer
• • Powerful headphones output with level control
• • AES/EBU digital I/O
• • Low-latency monitoring
• • Easy-to-read 20-dot LED level meter
• • Aluminum front and side panels for long
durability even under tour conditions
• • Half-rack size
• • Dimensions (W x H x D):
214 mm x 81 mm x 233 mm
• • Weight: 2.2 kg
TA-1VP VOCAL PROCESSOR
• • Auto-tune real-time pitch correction
− EVO voice processing technology for enhanced
tracking and correction capabilities
− Correct the pitch of vocals (or solo instruments) in real time and without distortion or
artifacts while preserving all of the expressive
nuances of the original performance
• • Microphone modelling
− Give your vocal tracks the characteristics of
a variety of high-end studio mics
− Adjust the proximity effect associated with
mic distance
• • Analogue tube modelling
− Give your vocals the warmth of a classic
tube preamp
• • Variable knee compressor
− Manipulate the dynamics with a state-ofthe-art dynamics processor
− Threshold, ratio, attack and decay controls
− Continuously variable knee characteristic
• • Downward expanding gate
− Gate with threshold and ratio controls to
eliminate noise and breath sounds
− Works independently of the compressor
• • Variable-frequency de-esser
− Tame the sibilance of vocals
− Controls available: Threshold, ratio, attack,
decay, variable-frequency highpass
• • Flexible parametric 2-band EQ
− Fine-tune your vocal sound with two
independent bands of equalization
− 6 dB or 12 dB high or low cut, high or low
shelving with variable slope, bandpass,
notch and fully parametric peaking
• • Automatic mono or stereo double tracking
− Automatically mix a doubled track into the
units main output or route it to a separate
output for post-processing and mixing
• • Programmable settings
− Every parameter can be saved as a preset
• • Presets for a wide variety of vocal styles
− An extensive collection of factory presets
for many vocal styles included as standard
• • MIDI control in realtime
− MIDI controllers for realtime automation
• • Really easy to use (virtually every major
function is only a single button press away)
• • Dimensions (W × H × D):
483 mm × 44 mm × 128 mm
• • Weight: 2 kg
31
DM-3200 32-CHANNEL DIGITAL MIXING CONSOLE
I
S
Mixer section
• • 48 mixing channels (32 channel inputs plus
16 returns)
• • 16 bus outputs, eight AUX outputs,
one stereo output, 32 direct outputs
• • Four-band EQ and dynamics on each
input channel (CH 1 to 32)
• • Dynamics on each output (16 busses, eight Aux
sends, and Stereo output)
• • Built-in effects processing
• • On board TC Reverb
• • 16 plus one touch-sensitive motorised faders
32
• • SEL/SOLO/MUTE keys and rotary encoder with
ring LED on each channel strip (16 channel
strips)
• • Five mixer layers (Ch. 1–16, Ch. 17–32,
Returns 1–16, Busses 1–16, Auxes 1–8) and a
Remote layer for DAW control
• • Built-in Talkback microphone
• • Flexible I/O routing
• • Surround mixing capability
• • On-board automation
• • Total recall by project management
• • Two Coaxial SPDIF digital I/O
• • ADAT I/O (8 channels)
• • Three TDIF-1 I/O (24 channels)
• • Two headphone outputs
• • RCA TC input
• • Two expansion slots (support for optional
FireWire, ADAT, AES/EBU, Analog, and TDIF
cards; see page 34)
IF-SM/DM
Surround monitoring card
IF-FW/DM mkii
FireWire card
Inputs and outputs
• • 16 XLR balanced MIC inputs with phantom
power and 20dB PAD
• • 16 TRS balanced Line inputs
• • 16 TRS unbalanced inserts
• • Four assignable sends/returns
• • XLR balanced stereo output
• • RCA unbalanced Studio output
• • RCA unbalanced 2-track inputs
• • TRS balanced Control Room output
• • Two XLR AES/EBU digital I/O
General
• • Sampling frequency: 44.1, 48, 88.2, 96 kHz,
Resolution: 24-bit
• • The same mixing specifications in 48k and
96k modes
• • Word Sync In, Out/Thru
• • MIDI In, Out, Thru/MTC Out
• • Dedicated Cascade port for cascading of two
DM-3200 mixers
• • Foot switch connector for hands-free operation
of selected functions
• • Optional Meter bridge (MU-1000)
• • DAW interconnection via optional FireWire
card (IF-FW/DM mkii )
• • Transport Control
• • Surround monitoring with optional expansion
card (IF-SM/DM)
• • CompactFlash card for saving / loading
internal data
• • Includes Tascam Mixer Companion software
(Windows XP & Mac)
• • Driverless USB connection to computer
• • Backup/restore data via USB
• • GPI functionality
• • Dimensions (W × H × D):
700 mm × 230 mm × 824 mm
• • Weight: 24 kg
33
DM OPTIONS OPTIONS FOR DM SERIES MIXING CONSOLES
IF-SM/DM
• • Surround monitoring card
• • Installs into expansion slot of
DM series mixers
• • Eight analogue output channels
• • 44.1k, 48k, 88.2k, 96k operation
• • Flexible downmixing
• • Uses the mixer’s Pink Noise generator for
monitor calibration
• • Individual channel Mute/Solo
• • Individual channel delay compensation
• • Surround Bass Management
MU-1000: 24-channel meterbridge with
­t imecode  display
IF-FW/DM mkii
• • FireWire interface card
• • Simple FireWire (IEEE-1394) connection to
computer for audio and control data exchange
• • 44.1k, 48k, 88.2k, 96k operation
• • Dedicated MIDI input and output ports
• • Mac OS × (10.5 and 10.6) and Windows 7/
Vista/XP compatibility
• • Dedicated control panel for Windows and
Macintosh
IF-CB/DM
• • 16 I/O audio interface to CobraNet® networks
(up to 100 m signal transmission)
• • 48 kHz sample rate at 24-bit resolution
• • Redundant network
• • Selectable signal latency: 1.33/2.67/5.33 ms
• • Less than 1 ns jitter
• • CobraNet applications included
34
IF-AN/DM: 8-channel analogue line-level I/O card
IF-AD/DM: 8-channel ADAT I/O card (44,1/48 kHz)
IF-AE/DM: 8-channel AES/EBU card
IF-AV/DM
• • 16-channel audio output to Aviom® A-Net®
systems (up to 150 m signal transmission)
• • 44.1/48 kHz sample rates at 24-bit resolution
• • Less than 800 µs latency
• • Stereo linking
X-48 mkii 48-TRACK HYBRID HARD DISK WORKSTATION
CO-DEVELOPED WITH
Multitrack Recording
• • 48-track digital recording at up to 96 kHz/24 bit
• • 32-bit floating point audio file recording and
playback with no loss of track count
• • Advanced integrated synchronization and
machine control, including HDTV tri-level sync
• • Time-stamped Broadcast Wave file format
• • Front-panel transport, track arming, project
management and metering functions
• • Built-in 1-TB hard drive
• • Built-in DVD+RW for backup, transfer and
restore
• • ±12.5 % varispeed
• • Grid-style editing
Workstation/Mixing
• • Turn-key operation: no software conflicts to
troubleshoot
• • Graphic user interface for editing, mixing,
plug-ins and meters
• • 48-channel mixing at 96kHz
• • 32-bit floating point mixer resolution
• • 6 stereo returns (60 inputs at mixdown)
• • 24 busses, 6 aux sends, stereo master bus
• • Full dynamic automation
• • Dynamics, 4-band parametric EQ and 4 VST
plug-in inserts per channel
Rear Panel Connections
• • 48 TDIF digital inputs and outputs
• • Stereo SPDIF In and Out
• • Two 24-channel option slots support analogue,
ADAT or AES/EBU expansion cards
• • BNC Video In and Thru, auto-terminating
• • BNC Word Clock In, Out and Thru, auto­
terminating
• • MIDI In and Out
• • TRS balanced 6.3-mm SMPTE In and Out
• • 6.3-mm foot switch input
• • eSATA port for external hard drives
• • Dimensions (W × H × D):
483 mm × 184 mm × 439 mm
• • Weight: 13.7 kg
35
HS-8 8-TRACK AUDIO RECORDER/PLAYER
• • Highly professional 8-track recorder
• • Uses secure CompactFlash cards as recording
media (Dual CompactFlash slot, UDMA support
ensures direct, fast data transfer between
internal memory and CF media)
• • Uses broadcast wave format (BWF) with
industry-standard iXML metadata
• • Tracks available for recording/playback:
− 8 tracks with 2 additional tracks for a
monitor mix at 48/44.1 kHz sample rates
− 8 tracks at 96/88.2 kHz sample rates
− 4 tracks at 192/176.4 kHz sample rates
− Overdubbing is not supported
• • 16/24-bit recording resolution
• • World’s first solid state recorder with multitrack flash start capability (instantaneous
playback start by optional remote control,
parallel control, RS-232C serial control or
computer keyboard)
• • Internal mixer for stereo monitoring and
submix to an additional stereo track
• • TFT colour touch panel interface
• • Pre-recording up to 5 seconds
• • Locate marker function (auto/manual)
• • Auto Cue, Auto Ready, Incremental Play and
Repeat functions
36
Inputs and Outputs
• • 8 balanced line inputs and outputs on 25-pin
D-sub connector
• • 2 balanced XLR inputs and outputs for stereo
mix track
• • 8 AES/EBU digital inputs and outputs on
25-pin D-Sub connector
• • AES/EBU digital input and output (XLR) for
stereo mix track
• • 8-track ADAT digital optical input and output
• • Parallel control port
• • Serial control port (RS-422 or RS-232C format)
• • Remote connector for optional flash start
controller (RC-HS20PD)
• • SMPTE Timecode input/output
• • Video sync input (supports NTSC/PAL, BB and
HD Tri-level)
• • Word sync input/output (BNC)
• • Gigabit Ethernet connection for data transfer,
remote control or remote monitoring (with
future firmware update)
• • Computer keyboard (PS/2) connector for easy
naming of files and folders
• • Dimensions (W × H × D):
483 mm × 88 mm × 288 mm
• • Weight: 4.8 kg
HS-4000 4-TRACK AUDIO RECORDER/PLAYER
• • High-quality 4-track audio recorder for professional broadcast and recording applications
• • Two operation modes:
− Timeline mode: Use the unit like a tape
recorder
− Take mode: Record/play separate audio
takes, use playlists and flash start
• • Ideal replacement for current DAT, MD, MO or
other recorders
• • Fast boot time
• • Dual Deck mode operates as two separate
stereo recorders
• • Easy to read and operate through TFT colour
touch screen interface
• • Dual CompactFlash slot with UDMA support
• • Mirroring and continuous recording between
two CFs
• • Uses broadcast wave format (BWF) with mark
function
• • Sample rates: 96/88.2/48.048/48/47.952/44.1
kHz at 16/24-bit resolution
• • Pre-recording up to 5 seconds (audio is
captured before the record button is actually
pressed)
• • Flash start with optional flash start controller
RC-HS32PD
• • Locate marker function (auto/manual) Online
function with dedicated outputs for prelistening and on-air playback
• • Confidence monitoring
• • Editing fuctions (divide, combine, erase)
• • Projects can be exported in AES31 format
• • Auto Cue, Auto Ready, Incremental Play, Repeat
• • Playlist function
• • Jog/Shuttle function
• • 2U rack-mount size
Inputs and Outputs
• • Balanced analogue inputs and outputs (XLR)
Additional balanced monitor output (XLR)
• • AES/EBU input, main and monitor outputs
• • Parallel control port RS-422 serial control port
• • RS-232C serial control port SMPTE Timecode
input/output as standard
• • Word sync input/output (BNC)
• • Video sync input (BNC)
• • Gigabit Ethernet connection for data transfer,
remote control or remote monitoring
• • Remote connector for optional flash start
controller
• • USB connector for data exchange with external
storage devices
• • Computer keyboard (PS/2) connector for easy
naming of files and folders
• • Dimensions (W × H × D):
483 mm × 88 mm × 317 mm
• • Weight: 5.5 kg
37
HS-2000 STEREO AUDIO RECORDER
• • High-quality stereo audio recorder for professional broadcast and recording applications
• • Two operation modes:
− Timeline mode: Use the unit like a tape
recorder
− Take mode: Record/play separate audio
takes, use playlists and flash start
• • Ideal replacement for current DAT, MD, MO or
other recorders
• • Fast boot time
• • Easy to read and operate through TFT colour
touch screen interface
• • Dual CompactFlash slot with UDMA support
• • Mirroring and continuous recording between
two CFs
• • Uses broadcast wave format (BWF) with mark
function
• • Sample rates: 192/176.4/96/88.2/48.048/48/
47.952/44.1 kHz at 16/24-bit resolution
• • Pre-recording up to 5 seconds (audio is
captured before the record button is actually
pressed)
• • Flash start with optional flash start controller
RC-HS20PD or RC-SS20
• • Locate marker function (auto/manual)
• • Online function with dedicated outputs for
pre-listening and on-air playback
• • Confidence monitoring
• • Editing fuctions (divide, combine, erase)
38
• • Projects can be exported in AES31 format
• • Auto Cue, Auto Ready, Incremental Play,Repeat
• • Playlist function
• • Jog/Shuttle function
• • 2U rack-mount size
Inputs and Outputs
• • Balanced analogue inputs and outputs (XLR)
• • Additional balanced monitor output (XLR)
• • AES/EBU input, main output and monitor
output
• • Parallel control port
• • RS-422 serial control port as standard
• • RS-232C serial control port
• • SMPTE Timecode input/output as standard
• • Word sync input/output (BNC)
• • Video sync input (BNC)
• • Gigabit Ethernet connection for data transfer
or remote control
• • Remote connector for optional flash start
controller
• • USB connector for data exchange
• • Computer keyboard (PS/2) connector for easy
naming of files and folders
• • Dimensions (W × H × D):
483 mm × 88 mm × 317 mm
• • Weight: 5.5 kg
HS-20 STEREO AUDIO RECORDER • • High-quality stereo audio recorder for professional broadcast and recording applications
• • Ideal replacement for current DAT, MD, MO or
other recorders
• • Easy to read and operate through TFT colour
touch screen interface
• • Two memory card slots (CF/SD) with UDMA
support
• • Mirroring between two cards
• • Uses broadcast wave format (BWF) with
industry-standard iXML metadata
• • Sample rates: 192/176.4/96/88.2/48/44.1 kHz
at 16/24-bit resolution
• • Pre-recording up to 5 seconds
• • Flash start with optional flash start controller
RC-HS20PD or RC-SS20
• • Locate marker function (auto/manual)
• • Editing fuctions (divide, combine, erase)
• • Auto Cue, Auto Ready, Incremental Play and
Repeat, Jog/Shuttle function
• • Playlist function
• • 2U rack-mount size
NEW!
Inputs and Outputs
• • Balanced analogue inputs and outputs (XLR)
• • AES/EBU input and output
• • Parallel control port
• • RS-232C serial control port
• • RS-422 serial control port (with optional SY-2
sync extension)
• • SMPTE Timecode input/output (with optional
SY-2 sync extension)
• • Word/video sync input (BNC)
• • Word/video sync through / Word sync output
(BNC)
• • 1000BASE-T Ethernet connection for data
transfer or remote control
• • Remote connector for optional flash start
controller
• • USB connector for data exchange with external
storage devices
• • Computer keyboard can be connected (PS/2,
USB) for easy naming of files and folders
• • Dimensions (W × H × D):
483 mm × 88 mm × 317 mm
• • Weight: 4.9 kg
39
RC-HS20PD / RC-HS32PD FLASH START CONTROLLERS FOR HS RECORDERS
RC-HS20PD
• • Colour TFT touch screen interface
• • 20 illuminated flash start keys
• • Up to 100 tracks available for flash start
through touch screen
• • Transport and Online buttons recessed to
prevent accidental operation
• • 100-mm fader with fader start capability and
0-dB lock
• • Monitor speaker and headphones output for
monitoring
• • CAT6 connection to HS-2 and HS-8
• • Dimensions (W × H × D):
216 mm × 75 mm × 200 mm
• • Weight: 1.4 kg
40
RC-HS32PD
• • Flash start or fader start/stop control for
HS-4000 and HS-2000
• • Colour TFT touch screen interface for full
control of the recorder
• • 32 flash start keys with 64 × 32 dot matrix
colour LCD for file name display
• • Single Deck mode (32 keys × 3 pages) or Dual
Deck mode (16 keys × 6 pages)
• • Two operation modes:
− Flash start: Press key to start playing the
take immediately
− Standby: While a take is playing, press key
to reserve the take as the next playback
take to be started immediately after the
current take is finished
• • Two 100-mm faders with fader start/stop
capability and 0-dB lock
• • Monitor speaker and headphones output for
monitoring
• • CAT6 remote connection with recorder
• • Dimensions (W × H × D):
429 mm × 99 mm × 232 mm
• • Weight: 4.3 kg
HS-P82 PROFESSIONAL MULTI-TRACK FIELD RECORDER
Recording
• • Dual CompactFlash recording media supports
backup and mirroring
• • Long battery life through low power usage
• • Easy to read and operate using pivoting TFT
colour touch panel interface
• • All-aluminum chassis is rugged yet lightweight
• • 8 -track recording plus stereo mix for a total of
10-track recording
• • 8-track recording at up to 96 kHz/24 bit
• • 4-track recording at 192 kHz/24 bit
• • Mirror recording over two CF cards
(44.1 kHz/48 kHz only)
• • Broadcast WAV (BWF) support
• • Support for mid-side (MS) encoding/decoding
• • Various power options:
− NP type batteries
− AC adapter (included)
− External DC input
− Optional V-mount adaptor for Endura
batteries
− AA batteries (x10)
• • Pre-record buffer (up to 5 seconds)
• • Internal microphone for slate recording
• • Limiter and low-cut filter per track
• • Auto or manual cue points
• • Alert signal to headphone output
• • Retake function
• • Panel lockout function to prevent accidental
transport switching
Inputs/Outputs
• • 8 high-quality microphone preamps and A/D
converters with independent 48V phantom
power for each (standard XLR connectors)
• • 8 AES/EBU inputs and outputs (DB-25)
• • Sample rate converter on each AES/EBU input
• • 2 balanced analogue outputs (XLR connectors)
• • Stereo digital output (BNC connector)
• • SMPTE Timecode input and output
• • Video/Word Clock/Cascade input/output
• • Headphones output (6.3-mm stereo jack)
• • PS/2 keyboard input for track naming
• • USB 2.0 high-speed data transfer to PC
• • Optional Fader Unit (RC-F82, see next page)
• • Dimensions (W × H × D):
270 mm × 100 mm × 260 mm
• • Weight: 3.65 kg
41
RC-F82 FADER UNIT FOR HS-P82
• • Fader and transport remote controller for
Tascam HS-P82
• • Eight 100 mm faders (with dust protection) for
controlling the mix or input trim level of each
channel on the HS-P82
• • Eight rotary knobs for controlling the input
trim level, mixer pan or mixer level of each
channel on the HS-P82
• • Two rotary knobs for the stereo mix (for
master and solo levels)
• • Eight dedicated keys for enabling/disabling
SOLO and recording MUTE functions
• • Eight dedicated keys for calling up channel
setup screens and enabling/disabling
recording
• • A dedicated key for calling up the L/R SETUP
screen for the stereo mix and for enabling/
disabling recording
• • Four direct access (shortcut) buttons to open
the MIXER SETUP and REMOTE SETUP screens
• • Dedicated keys for transport control
• • Balanced XLR LINE IN connectors (STEREO)
• • Balanced XLR LINE OUT connectors
(two stereo pairs)
42
• • Convenient talkback function with built-in
microphone (signal can be output from a pair
of line output connectors)
• • Balanced XLR RETURN IN connectors for
talkback (includes level adjustment and solo
control)
• • RETURN signal can be monitored using
headphones
• • Headphones connector with level control for
monitoring
• • Headphones monitoring can be set to STEREO,
MONO, L MONO or R MONO
• • Designed to be placed on top of an HS-P82
unit (same footprint)
• • Connects with an HS-P82 unit by PS/2 (and is
also powered by this connection)
• • PS/2 external keyboard can be connected
• • Dimensions (W × H × D):
270 mm × 63 mm × 260 mm
• • Weight: 2.5 kg
HD-P2 PORTABLE, HIGH-DEFINITION STEREO RECORDER
Recording
• • Recording media: CompactFlash
• • 16 or 24 bit resolution at sample rates from
44.1 kHz through 192 kHz
• • Writes uncompressed, time-stamped Broadcast
Wave file format
• • Pre-Record Cache and Retake function
• • Audio files continually re-saved
Inputs and Outputs
• • Balanced XLR mic inputs with phantom power,
PAD, and analogue peak limiter
• • Low-cut filter on each analogue input
• • Unbalanced stereo line input (RCA)
• • Unbalanced stereo line output (RCA)
• • SPDIF digital input and output (coaxial)
• • Headphone output (6.3-mm stereo jack)
• • Built-in mono microphone and speaker
•• FireWire port for connection with PC/Mac
• • Analogue level controls
Synchronization
• • SMPTE/LTC timecode input (XLR)
• • Chase incoming SMPTE timecode
• • Video clock input
• • Tri-level sync support
• • Frame Lock, Lock and Release and flexible
Freewheel settings
• • Pull-up and Pull-down sample rates
Convenience
• • Familiar tape machine-style layout and
function
• • Easily enter/edit file names via Computer
Keyboard
• • Large, angled, uncluttered LC display
• • Shortcut keys and LED indicators for frequently-accessed functions
• • Recessed CompactFlash slot
• • Runs on eight AA batteries (Alkaline, NiMH or
NiCd) or DC power adapter
• • Approximately 5.5 hours of operating time on
battery power
• • Durable and lightweight housing
• • Supplied accessories: shoulder belt, carrying
case
• • Dimensions (W × H × D):
260 mm × 196 mm × 65 mm
• • Weight: 1.2 kg
43
DA-3000 HIGH-DEFINITION AUDIO RECORDER / AD/DA CONVERTER
• • Sophisticated 2-track audio recorder for
highest demands
• • Latest circuit design with Burr-Brown
converters and selected components for
outstanding sound quality
• • Dual monaural D/A converters for reduced
interference between channels
• • Sampling rate up to PCM 192 kHz, DSD 5.6 MHz
• • High-precision clock synchronization with
sample-accuracy at both recording and
playback
• • Recording to SD/SDHC or CompactFlash media
• • Playback from SD/SDHC, CompactFlash or USB
flash drive media
• • DD mode divides audio material into tracks
automatically by detecting DAT IDs
• • XLR analogue balanced I/O
• • RCA analogue unbalanced I/O
• • Coaxial digital I/O (SPDIF)
• • XLR digital I/O (AES/EBU / SPDIF)
• • BNC digital I/O (SDIF-3 / DSD-raw)
• • Wordclock I/O (output switchable to Thru)
44
• • Up to four units can be cascaded for 8-track
synchronized recording and playback
• • Easy-to-read LED level meters (24 dots)
• • OLED display (128 x 64 dots) provides wide
viewing angle and high visibility
• • 1U compact size
• • Dimensions (W × H × D):
483 mm × 45 mm × 305 mm
• • Weight: 4.2 kg
SS-R200 / SS-CDR200 SOLID STATE/CD-RW AUDIO RECORDERS
XLR
RCA
• • SS-R200: Solid state stereo audio recorder
− Uses SD, CF or USB memory as recording
media
− No moving mechanism for high reliability
− Supports WAV file recording/playback to/
from memory
• • SS-CDR200: Combination solid state / CD-RW
stereo audio recorder
− Applicable media for CD-RW recorder:
CD-R, CD-RW, CD-R-DA, CD-RW-DA
− Supports MP3 file recording/playback to/
from CD (ISO 9660 format) and memory
− CD to memory copy and memory to CD
(CD-DA or Data CD)
• • Remarkable space-saving 1-U rack-mount
• • 16 bit resolution at 44.1/48 kHz
• • 24-bit WAV file playback
• • Sampling rate converter included
• • MP3 bit rates from 64 KBit/s to 384 KBit/s
• • Built-in clock for time-stamping
• • Ideal for replacement of current cassette deck
or MD/CD recorder
• • Long time recording for meeting minute
recording
SPDIF
RS-232C
PARALLEL
PS/2
• • Long time playback and various playback
modes for sound installations (all, folder, play
list (up to 3), single, random, repeat)
• • Edit functions for WAV files on memory card
(divide, combine, delete, rename)
• • Pitch control, key control, call, auto cue, auto
ready, incremental play, power-on play
• • Sync recording
• • Auto or manual track increment
• • Flash start and EOM features
• • XLR balanced and RCA unbalanced analogue I/O
• • Coaxial SPDIF digital I/O
• • Mono mix playback
• • D-sub 9-pin RS-232C serial control port
• • D-sub 25-pin parallel control port
• • Computer keyboard (PS/2, USB) input for
folder/file name editing and remote control
• • Wired remote control included (5m)
• • Optional direct play remote control (RC-SS20
or RC-20) and footswitch (RC-3F)
• • Dimensions (W × H × D):
483 mm × 44 mm × 301 mm
• • Weight: 3.4 kg (SS-R200), 3.7 kg (SS-CDR200)
45
SS-R100 SOLID STATE AUDIO RECORDER
RCA
• • Solid state stereo audio recorder
− Uses SD, CF or USB memory as recording
media
− No moving mechanism for high reliability
− Supports WAV and MP3 file recording/
playback
• • Remarkable space-saving 1-U rack-mount
• • 16 bit resolution at 44.1/48 kHz
• • 24-bit WAV file playback
• • Ideal for replacement of current cassette deck,
CD or MD recorder
• • Long time recording for meeting minute
recording
• • Long time playback and various playback
modes for sound installations (all, folder, play
list (up to 3), single, random, repeat)
• • Edit functions for WAV files on memory card
(divide, combine, delete, rename)
• • Pitch control, key control, call, auto cue, auto
ready, incremental play, power-on play
• • Sync recording
• • Auto or manual track increment
• • Flash start feature
46
SPDIF
PS/2
• • RCA unbalanced analogue I/O
• • Coaxial SPDIF digital I/O with sampling rate
converter
• • Mono mix playback
• • Computer keyboard (PS/2, USB) input for
folder/file name editing and remote control
• • Wired remote control included (5 m)
• • Optional footswitch for controlling transport
and pitch (RC-3F)
• • Dimensions (W × H × D):
483 mm × 44 mm × 301 mm
• • Weight: 3.4 kg
RC-3F / RC-20 REMOTE CONTROLS
RC-3F
• • Three-pedals footswitch (left, center, right)
for hands-free operation of CD-500/CD-500B,
SS-R100, SS-R200, SS-CDR200, DR-40,
DR-100MKII, DP-03, DP-24 and other supported Tascam devices
• • Perfect to control transport and trainer functions of GB-10 and LR-10 trainers
• • Function can be set by the controlled unit
• • Battery charge indicator on bottom side
• • 2.5-mm TRS plug with 3.9 m cable
• • Output format: UART signal (9600 bps baud
rate, even parity)
• • Power supply by two AA batteries (manganese,
alkaline or NiMH rechargeables)
• • Power consumption: 3 mW
• • Dimension (W × H × D):
190 mm × 32 mm × 122 mm
• • Weight: 0.55 kg
RC-20
• • Direct play remote control for CD-500/
CD-500B, SS-R100, SS-R200, SS-CDR200 and
other supported Tascam devices
• • 20 large buttons to start playback of tracks,
program steps or playlist entries on the connected device
• • STOP/LOAD button to stop playback and to
flash load tracks if the connected device is in a
play mode that allows flash loading
• • CONNECTED indicator (lights when the plug is
connected to a compatible device and power is
supplied by that device)
• • Space for labelling strips above buttons
• • 3.9-m connection cable with 2.5-mm TRS plug
• • Power consumption: 4.1 mW
• • Dimension (W × H × D):
210 mm × 20 mm × 94 mm
• • Weight: 0.38 kg
47
RC-900 REMOTE CONTROL UNIT
• • Universal remote control unit for Tascam
Recorders and CD Players
• • Compact and easy to use with HS-4000/
HS-2000/HS-2, CD-9010/9010CF, CD-6010,
SS-R200/SS-CDR200 recorders/players
• • Aluminum jog wheel for precise cueing
• • Highly durable keys for professional use:
• • Standard transport keys with LED indicators
• • 10-key pad for flash start and/or cueing
• • 5 function keys for frequently-used operations
(functions are fixed and vary according to the
controlled model)
48
• • 16-digit LC display
• • Tascam RS-232C serial protocol
• • AC adapter included (Tascam PS-P520)
• • Power consumption: 1 W
• • Dimensions (W × H × D):
176 mm × 59 mm × 215 mm
• • Weight: 1.4 kg
CG-1000 / CG-1800 / CG-2000 MASTER CLOCK GENERATORS
A series of highly reliable, highly stable and
highly accurate master clock generators
• • CG-1000 for recording studios, sound engineers and professional musicians not requiring
video sync
•• CG-1800 for small to large postproduction studios
• • CG-2000 – the ultimate solution for broadcast
and postproduction studios
CG-1000 features
• • High-quality OCXO (Oven Controlled Crystal
Oscillator) rubidium oscillator for highly
accurate clock signal generation not influenced by the temperature of the environment
• • Frequency accuracy: ±0.01 ppm, frequency
stability: ±0.05 ppm/day
• • Jitter management circuit and glitch-less
relock management
• • Clock input supports clock rates up to 10 MHz
• • 12 wordclock outputs, 2 AES3/AES11 outputs,
2 SPDIF outputs
• • 2 wordclock outputs support Fs/4, Fs/2, 2 Fs,
4 Fs and 256 Fs to be used with DAW software
• • Self-calibration function allows maintenance
by operator for optimum accuracy at any time
NEW!
• • Output levels of the wordclock connectors can
be adjusted
• • Analyzer feature to measure input frequencies
• • Logging function for troubleshooting (check
on the display or in a CSV file via USB stick
• • Up to 4 system settings can be saved for
recall and saved settings can be imported and
exported via USB
• • Panel-lock to prevent misoperation
• • Organic EL display with a wide viewing angle
• • Firmware updates possible using the USB port
CG-1800 additional features
• • 4 video sync outputs
• • Support for 0.1%, 4 % pull-up/pull-down
• • Analyzer feature allows to measure input
frequencies, input levels and the termination
of output devices
CG-2000 additional features
• • Highest reliability through redundant power
supply and redundant video sync and wordclock inputs
• • GPO signaling outputs for monitoring the
error status
49
DV-D01U PROFESSIONAL DVD PLAYER
• • 1U rack-mountable DVD player
• • Accepts multiple DVD and CD formats:
− DVD Video
− DVD Audio
− VCD (Video CD)
− SVCD (Super Video CD)
− CD-DA (Digital Audio CD)
• • Compatible with many file formats:
− Audio: MP3, WMA, WAV
− Image: JPEG
− Video: ASF, MPEG-2/MPEG-1, DivX
• • Dolby Digital Surround
• • DTS Digital Surround
• • RCA analogue stereo audio output
• • Optical SPDIF digital audio output
50
• • Composite video output
• • S-Video output
• • Component video output
• • HDMI (High Definition Multimedia Interface)
• • Progressive scan
• • FVPP (Fine Video Picture Processing)
• • HDCP compliant (encryption standard)
• • Power-on Play (Timer Play function)
• • RS-232C serial port
• • Infrared wireless remote control included
• • Dimensions (W × H × D):
482 mm × 51 mm × 269 mm
• • Weight: 2.6 kg
CD-9010 / CD-9010CF BROADCAST CD PLAYERS
• • Professional-quality CD player for broadcast
studios and commercial installations
• • Highly reliable TEAC drive with heavy-duty
tray mechanism and manual eject lever
• • Highly durable keys and fader
• • Carefully selected electronic components for
high-quality sound
• • Large LC display with backlight
• • Illuminated transport keys
• • Online function
• • Supports CD-DA (audio CD) and CD-R (data CD)
with MP3 or BWF/WAV encoded files
• • Memory for 9 cue points per CD, up to 500
CDs in total
• • Program play
• • Auto cue, auto ready and incremental play
• • ±12.5 % pitch control
• • Word sync in/through (BNC)
• • Sample Rate Converter 48 kHz/44.1 kHz
• • Balanced stereo line output (XLR)
• • Unbalanced stereo monitor output (jack)
• • Headphones output with level control
• • Balanced stereo mix input for connection of a
backup CD player
• • AES/EBU (XLR) and coaxial SPDIF digital
outputs
• • Parallel port (D-sub 37pin)
• • RS-232C serial port
• • Rack-mountable chassis (half-rack size, 3 U)
• • Optional accessory:
− RC-9010 Remote control unit (with illuminated keys, jog dial and display)
CD-9010CF additional features
• • CF card slot for playback from CompactFlash
memory cards
• • Programs may contain tracks from both CD
and CF card
• • Stereo/Mono select switch
• • Balanced stereo monitor output (XLR)
• • AES/EBU output on BNC connector (instead of
XLR), no SPDIF output
• • USB keyboard connector
• • Dimensions (W × H × D): 220 × 137 × 362
mm
• • Weight: 5.3 kg/5.5 kg (CD-9010/CD-9010CF)
51
CD-6010 PROFESSIONAL CD PLAYER
• • Highly reliable tray CD player for broadcast,
installation or touring applications
• • Audio CD-R/RW, MP3 and WAV playback
• • Flash start capability for up to 20 tracks
• • Numeric keys for track selection and flash start
• • Frame accurate search
• • Memory for up to 20 cue points
• • Skip back function
• • Auto cue, auto ready, incremental playback,
intro check and resume functions
• • Index search for audio CDs, directory search
for MP3 CDs
• • Playback modes include Single, All and
Program (up to 99 tracks)
• • Memory for playback programs of up to 100 CDs
• • Repeat modes include Single, All and A–B
• • Selectable interval time between tracks
• • ±16% pitch control
• • Key original function (change speed only)
• • Fade in/out (up to 10 seconds)
• • Time display (track elapsed / track remain /
total remain)
• • Power-on play (timer function)
• • Relay play with multiple units
52
• • Fader start / event start
• • Lock function to avoid accidental operation
• • Anti-shock memory
• • XLR balanced analogue output (output level
may be customized by technical support)
• • RCA unbalanced analogue output
• • Coaxial digital output (SPDIF)
• • AES/EBU digital output (XLR)
• • Mono output
• • Serial control (RS-232C, D-sub 9-pin)
• • Parallel control port (D-sub 15-pin)
• • Headphones output with volume control
• • Switchable monitor loudspeaker
• • Last mode memory (Playback mode / Program
/ Repeat mode / Time display)
• • End Of Message notification
• • Backlit LC display
• • Rack-mountable chassis (2 U)
• • Wireless remote control included
• • Available as options:
− Footswitch for several functions (RC-3F)
− Direct play remote control (RC-20)
− Flash start remote control for instant access
to 20 tracks, announcements or effects
(RC-SS20)
CD-500 / CD-500B ULTRA-COMPACT CD PLAYERS
• • Ultra-compact rack-mountable CD player (1U)
• • Highly reliable brushless motor
• • Slot-in CD drive mechanism
• • Audio CD-R/RW, MP3 and WAV playback
• • Flash start capability for up to 20 tracks
• • Numeric keys for track selection and flash start
• • Frame accurate search
• • Call and skip back functions
• • Auto cue, auto ready, intro check functions
• • Resume function
• • Index search for audio CDs
• • Directory search for MP3 CDs
• • Playback modes include Single, All and
Program (up to 99 tracks)
• • Memory for playback programs of up to 100 CDs
• • Repeat modes include Single, All and A–B
• • Selectable interval time between tracks
• • ±16% pitch control with dedicated control
• • Key original function (change speed only)
• • Fade in/out (up to 10 seconds)
• • Time display (elapsed, remain, total remain)
• • Power-on play (timer function)
• • Relay play with multiple units
• • Fader start / event start
• • Lock function to avoid accidental operation
• • Anti-shock memory
• • RCA unbalanced analogue output
• • Optical digital output (SPDIF)
• • Coaxial digital output (SPDIF)
• • Mono output
• • Serial control (RS-232C, D-sub 9-pin)
• • Headphones output with level control
• • Footswitch control of several functions via
three pedals (with optional Tascam RC-3F)
• • Last mode memory (Playback mode / Program
/ Repeat mode / Time display)
• • End Of Message notification
• • Backlit LC display
• • Wireless remote control included (receiver can
be disbaled if required)
• • Removable power cable
• • Dimensions (W × H × D):
483 mm × 45 mm × 301 mm
• • Weight: 3.5 kg / 3.7 kg (CD-500 / CD-500B)
Additional features on CD-500B
• • XLR balanced analogue output
• • XLR AES/EBU digital output
• • D-sub 15-pin parallel control port
53
CD-200 / CD-200il CD PLAYER / CD PLAYER WITH IPOD DOCK
CD-200
• • Easy-to-use, affordable CD player
• • High-quality TEAC drive
(supports CD-R and CD-RW)
• • Audio CD playback
• • MP3 and WAV file playback from CD
• • Folder selection for MP3 and WAV CDs
• • Continuous, Random and Program
playback modes
• • Repeat playback (Single, All, Folder)
• • Intro Check feature
• • CD text and ID3 tag support to display artist
and track information if available
• • Time display (CD-DA: Elapsed, Remain, Total
Remain; MP3: Elapsed)
• • ±12.5 % pitch control
• • Anti-shock memory (10 seconds)
• • Headphones output with level control
• • Analogue output (RCA)
• • SPDIF digital outputs (coaxial and optical)
• • Wireless remote control included
• • 19-inch rack-mount chassis (2U)
54
CD-200iL additional features
• • Apple dock for audio file or audio stream
playback via an iPod or iPhone
• • Playback from other audio sources via AUX IN
connector
• • Folder selection for dock devices
• • ±14 % pitch control
• • Dimensions (W × H × D):
481 mm × 95 mm × 298 mm
• • Weight: 4 .2 kg (CD-200)
5.2 kg (CD-200iL)
CD-200bt / CD-200sb CD PLAYER WITH BLUETOOTH RECEIVER / SOLID-STATE/CD PLAYER
• • Easy-to-use, affordable CD player with
Bluetooth receiver
• • Various playback options:
− Audio CD playback
− MP3 and WAV file playback from CD
− Internet radio or network file playback via
a Bluetooth connection with a smartphone
or computer
− Playback from other audio sources via AUX
IN connector
• • Bluetooth apt-X codec provides high quality
audio transmission with low latency (AAC and
SBS are also supported)
• • Up to 8 Bluetooth devices memorized
• • High-quality TEAC audio CD drive
• • Folder selection for MP3 and WAV CDs
• • Continuous, Random and Program playback
modes
• • Repeat playback (Single, All, Folder)
• • Intro Check feature
• • CD text and ID3 tag support to display artist
and track information if available
• • Time display (CD-DA: Elapsed, Remain, Total
Remain; MP3: Elapsed)
• • ±12.5 % pitch control
• • Anti-shock memory
• • Headphones output with level control
• • Analogue output (RCA)
• • SPDIF digital outputs (coaxial and optical)
• • Wireless remote control included
• • 19-inch rack-mount chassis (2U)
CD-200SB differences
• • WAV, MP3, MP2, WMA, AAC file playback from
SD/SDHC cards or USB memory
• • Direct access to 10 user-defined folders
• • Dubbing from CD to solid-state media (WAV or
MP3 format)
• • Ideal replacement for a disc changer
• • ±14 % pitch control with CDs
• • Balanced analogue output (XLR)
• • No Bluetooth functions
• • Dimensions (W × H × D):
481 mm × 95 mm × 298 mm
• • Weight: 4 .5 kg (CD-200BT)
4.7 kg (CD-200SB)
55
CD-240 • • Combination of network player and CD player
for fixed installations
• • Ideal for background music playback in restaurants, bars, cafes etc.
• • High-resolution audio formats such as 5.6
MHz DSD and 24-bit/192 kHz WAV/FLAC can be
played back from PC, NAS (Network Attached
Server) or other network location (UPnP
service)
• • Compatible with DLNA 1.5 and home media
access
• • Enjoy internet radio and subscription music
services like vTuner (currently more than
24,000 stations worldwide)
• • Play files from USB flash memory (two USB
ports available on front/rear)
• • Play files stored on your iPod/iPhone in high
resolution via USB digital connection while
charging the device (front USB port only)
• • High-performance BurrBrown D/A converter
• • High quality CD drive designed and built for
audio by TEAC
• • Remote app for iOS/Android devices available
for free
56
NEW!
NETWORK/CD PLAYER
• • Wireless remote access can be enabled/
disabled in the menu
• • Stereo XLR balanced line output
• • Stereo RCA unbalanced line output
• • Coaxial and optical digital audio outputs
• • Headphones output with level control on front
panel (55 mW + 55 mW)
• • 100Base-T Ethernet port for network connection
• • Wireless remote control included as standard
• • 2U rack-mount chassis
• • Dimensions (W × H × D):
483 mm × 101 mm × 301 mm
• • Weight: 4.9 kg
CD-A550 / A750 CD-PLAYER / AUTO-REVERSE CASSETTE DECK
General
• • CD player and auto reverse cassette deck
combined in one compact chassis
• • Continuous playback between CD and cassette
• • CD to Tape dubbing including Edit Dubbing
feature to duplicate a marked section
• • Comprehensive combined FL display
• • Separate outputs for cassette and CD
• • Common output with selectable source
• • Mono mix output (CD or Tape)
• • Power-on playback (CD or Tape)
• • Power-on recording (Tape only)
• • Wireless remote control included
CD Player
• • High-quality TEAC drive (CD-R and CD-RW
media)
• • Audio CD playback
• • MP3 and WAV file playback from CD
• • Folder selection for MP3 and WAV CDs
• • Repeat playback (All or A–B)
• • Continuous, Single, Random and Program
playback modes
• • Auto Space function (insert a fixed spacing
between tracks during playback)
• • CD text and ID3 tag support to display artist
and track information if available
• • Auto Cue, Auto Ready and Cue Call functions
• • Incremental Play, Anti-shock memory
• • ±12.5 % pitch control
• • Analogue (RCA) and SPDIF coaxial outputs
Cassette deck
• • Auto reverse playback and recording
• • Dolby B noise reduction
• • Record mute function
• • Tape counter with RTZ (Return to zero)
• • ±10 % pitch control
CD-A750 additional features
• • XLR balanced inputs and outputs
• • Parallel control port
• • Serial control port
• • Dimensions (W × H × D):
483 mm × 138 mm × 275 mm
• • Weight:
6.3 kg (CD-A550)
6.5 kg (CD-A700)
57
CD-RW900 mkii PROFESSIONAL AUDIO CD RECORDER
• • Highly reliable tray-loading optical drive
• • Records to pro CD-R, CD-RW and consumer
CD-R and CD-RW media (Ultra-Speed CD-RW
media are not supported)
• • Selectable read speed to increase playability
of low-grade or damaged media
• • 24-bit A/D and D/A converters
• • Input sample rate converter (32–48 kHz)
• • Independant L/R analogue input level controls
• • Digital volume
• • Sync recording function
• • Auto or manual track division
• • Digital fade in/out from 1 to 30 seconds
• • Rec mute function to record silence
• • Erase/un-finalize CD-RWs
• • Supports CD-Text
• • Computer keyboard can be used for CD-Text
input and as a remote control
• • Timer function (play when power comes on)
• • Continuous, single, random, or program (up to
99 songs) playback
58
NEW!
• • All, single, or A-B repeat play
• • Auto Cue function
• • Skip by track or in 1-minute steps
• • Auto Ready function
• • Plays MP3 files on CDs and inside directories
• • Shows MP3 tags on Display (ID3)
• • Pitch control (±16% in 0.1 to 1.0% steps)
• • Key control (±6 semi-tones)
• • Key original function (change tempo without
changing key)
• • Coaxial and optical digital I/O
• • RCA unbalanced analogue I/O
• • Wireless remote control included
• • Infrared remote receiver can be deactivated
• • 2-U rack mount construction
• • Dimensions (W × H × D):
483 mm × 94 mm × 309 mm
• • Weight: 4.3 kg
CD-RW901 mkii PROFESSIONAL AUDIO CD RECORDER
• • Highly reliable tray-loading optical drive
• • Records to pro CD-R, CD-RW and consumer
CD-R and CD-RW media (Ultra-Speed CD-RW
media are not supported)
• • Selectable read speed to increase playability
of low-grade or damaged media
• • 24-bit A/D and D/A converters
• • XLR balanced and RCA unbalanced analogue I/O
• • Coaxial and optical digital I/O (SPDIF)
• • AES/EBU digital I/O
• • Input sample rate converter (32–48 kHz)
• • Independant L/R analogue input level controls
• • Digital volume
• • Sync recording function
• • Auto track division by level with trim
• • Time track division: Adds a CD track ID every
1 to 10 minutes
• • Set index marks
• • Skip by track, by index, or in 1-minute steps
• • Digital fade in/out from 1 to 30 seconds
• • Rec mute function to record silence
• • Continuous, single, random, or program
(up to 99 songs) playback
• • All, single, or A-B repeat play
NEW!
• • Auto Cue, Auto Ready, Call functions
• • Incremental Play function
• • Plays MP3 files on CDs and inside directories
• • Shows MP3 tags on display (ID3)
• • Pitch control (±16% in 0.1 to 1.0% steps)
• • Key control (±6 semi-tones)
• • Key original function (change tempo without
changing key)
• • Selectable copy ID
• • Erase/un-finalize CD-RWs
• • Supports CD-Text
• • Computer keyboard can be used for CD-Text
input and as a remote control
• • RS-232C serial control (9-pin D-sub)
• • Parallel control (15-pin D-sub)
• • Power-on play: Starts CD playback
when power is applied
• • Continuous recording with two CD-RW901MKII
units
• • Wired remote control included
• • 2-U rack-mount construction
• • Dimensions (W × H × D):
483 × 94 × 309 mm
• • Weight: 4.5 kg
59
202 mkvi DUAL AUTO REVERSE CASSETTE DECK
• • Two cassette decks in one unit
• • Continuous, bi-directional playback or
recording over both decks
• • Parallel recording on both decks
• • Normal and high speed dubbing capability
• • Synchro reverse dubbing
• • Pitch control (±12 %, Deck 1 only)
• • RTZ function (Return To Zero, Deck 1 only)
• • Unbalanced RCA inputs and outputs
• • Repeat playback (A–B section)
60
NEW!
• • Microphone input with seperate level control
for mix recordings
• • Power-on playback/recording (­T imer function)
• • Headphones jack
• • 19-inch rack-mountable chassis
• • Dimensions (W × H × D):
482 × 139 × 286 mm
• • Weight: 4 kg
MD-CD1 mkiii PROFESSIONAL MINI DISC RECORDER / CD PLAYER
CD deck
• • Compatible with CD-R, CD-RW, CD-R Digital
Audio and CD-RW Digital Audio media
• • Plays MP3 and WAV files on ISO 9660 CDs
(44,1 kHz, 16 bit)
• • ID3 tag display (information on artist and title
names stored inside MP3 files)
• • Pitch control (change tempo and key simultaneously from +16 % to –50 %)
• • Key original function
• • Fade-in / fade-out (1–30 seconds)
• • Individual digital (optical and coaxial) and
analogue outputs
• • Transport control via computer keyboard
MD deck
• • Stereo, Mono, LP2 and LP4 recording/playback
• • Individual input level controls (L/R) for
analogue recording
• • Auto track increment
• • Time track increment (adds a track ID every 1
to 10 minutes)
• • Sync recording function
• • Fade-in / fade-out (1–30 seconds)
• • Overwrite recording
• • Edit functions (divide, combine, move tracks)
• • Individual digital I/O (optical and coaxial) and
analogue I/O (RCA)
• • Computer keyboard connector for title input
and external control
General
• • 4 × speed MiniDisc duplication
• • Fade in/out dubbing
• • MD–CD continuous playback
• • Continuous, single, random, or program play
• • All, single, or A–B repeat play
• • Auto Cue and Auto Ready functions
• • Power-on play function
• • Headphones output with level control
• • Input sample rate converter (32 to 48 kHz)
• • RS-232C serial control
• • Balanced input/output kit available as an
option (LA-MC1)
• • Wireless remote control included
• • Remote receiver can be disabled
• • Compact 2U rack-mount chassis
• • Dimensions (W × H × D):
483 mm × 94 mm × 308 mm
• • Weight: 5.4 kg
61
LA-40 mkiii LINE CONVERTER (BALANCED/UNBALANCED, BI-DIRECTIONAL)
• • 4 channels with unbalanced RCA inputs and
balanced XLR outputs
• • 4 channels with balanced XLR inputs and
unbalanced RCA outputs
• • XLR nominal level selectable between +4 dBu
and –20 dBu
• • Trim pots for each channel on front panel
(±12 dB)
• • Signal LED for each channel
LA-80 mkii / LA-81 mkii LINE CONVERTERS (BALANCED/UNBALANCED)
• • LA-80: 8 channels with unbalanced RCA inputs
and balanced XLR outputs
• • LA-81: 8 channels with balanced XLR inputs
and unbalanced RCA outputs
• • XLR nominal level selectable between +4 dBu
and –20 dBu
• • Trim pots (±12 dB) for each channel on front
panel
62
• • Ground lift switches for each channel and
master switch
• • Distribution amplifier functionality: One mono
input signal can be routed to all four output
channels, or one stereo input signal can be
routed to two channels each (RCA to XLR and
XLR to RCA)
• • Internal power supply, no AC adapter needed
• • 1 U rack-mountable chassis, Weight: 3 kg
• • Signal LED for each channel
• • Ground lift switches for each channel and
master switch
• • Both units can act as distribution amplifiers
• • Internal power supply, no adapter needed
• • 1 U rack-mountable chassis, Weight: 3 kg
LM-8ST LINE MIXER
• • Line mixer with flexible signal routing
• • Ideal solution for installations in boardrooms,
conference rooms, health/fitness clubs,
restaurants, houses of worship, as a keyboard
or stage sub mixer and more
• • 8 stereo input channels for line sources (TRS)
• • Additional mic/line input with level control for
channel 1 on front panel (balanced XLR)
• • 2 stereo outputs (balanced / unbalanced)
• • Each stereo input can be mixed to each stereo
output independently:
− ST1: Input signal is sent to ST1 output
− ST2: Signal before the ST1 level control (pre
fader) is sent to ST2/AUX output
MH-8 − AUX: Signal behind the ST1 level control
(post fader) is sent to ST2/AUX output
− Switches for ST2/AUX selection per channel
• • Input level selectable between +4 dBu and
–10 dBV per channel (on rear panel)
• • Signal presence and overload LEDs on each ch.
• • 4-dot LED stereo level meters on each output
• • Each stereo output switchable to mono
• • High-power headphones output with level
control and selectable source (ST1, ST2/AUX)
• • Balanced master bus output and input (input
selectable between ST1, ST2/AUX and Mix) for
cascading of multiple units
• • Ground terminal and ground lift switch
• • 1 U rack-mountable chassis, Weight: 3.8 kg
EIGHTFOLD HEADPHONES AMPLIFIER
• • High-power headphones amplifier with
flexible signal routing
• • 8 channels for one pair of stereo headphones
each
• • 2 stereo inputs assignable to each channel
• • Input level control, signal presence and
overload LEDs on both stereo inputs
• • Additional switchable direct stereo input (balanced TRS) on each headphone channel (left
input can be used for mono signals)
• • High output power (250 mW + 250 mW each)
• • Level control, signal presence and overload
LEDs on each headphone channel
• • Each channel switchable to mono
• • Foldback outputs allow stereo input signals 1
and 2 to be looped through to other units
• • Ground terminal and ground lift switch
• • Easy replaceable fuse
• • 1U rack-mountable chassis
• • 1 U rack-mountable chassis, Weight: 3 kg
63
TEAC CORPORATION
http://tascam.jp
1-47 Ochiai, Tama-shi, Tokyo 206-8530, Japan
Tel: +81-42-356-9143
TEAC AMERICA, INC.
http://tascam.com
1834 Gage Road, Montebello, CA 90640, USA
Tel: +1-323-726-0303
TEAC MEXICO, S.A. de C.V.
http://www.teacmexico.net
TEAC UK LIMITED
http://tascam.eu
TEAC EUROPE GmbH
http://tascam.de
Río Churubusco 364, Colonia Del Carmen,
Delegación Coyoacán, CP 04100 México DF, Tel: +52-555-581-5500
Meridien House, Ground Floor, 69–71 Clarendon Road,
Watford, Hertfordshire, WD17 1DS, UK, Tel: +44-8451-302511
Bahnstraße 12, 65205 Wiesbaden, Germany
Tel: +49-611-71580
Find your local Tascam distributor at www.tascam-europe.com
© 2014–2015 TEAC Europe GmbH · All rights reserved
Design and specifications subject to change without notice · Printed in Germany
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
