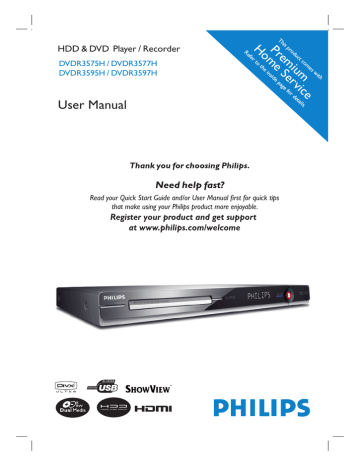

Philips | DVDR3577H | User manual | Philips DVDR3577H 160 GB Hard disk/DVD recorder

Philips DVDR3577H 160 GB Hard disk/DVD recorder
Read your Quick Start Guide and/or User Manual first for quick tips
that make using your Philips product more enjoyable.
Register your product and get support
at www.philips.com/welcome
ith
sw
User Manual
R
DVDR3575H / DVDR3577H
DVDR3595H / DVDR3597H
e
om
tc
m ice ails.
uc
iu rv for det
od
pr
is
em Se page
Th
Pr me inside
o he
Hefer to t
HDD & DVD Player / Recorder
Premium Home Service
English
Dear valued customer,
Thank you for buying a Philips DVD Recorder.
Your product comes with the Philips ‘Premium Home Service’ warranty.
Should you require any assistance in operating your set, Philips offers you professional support via:
Philips Support Center website
www.philips.com/support
or
Philips Consumer Care Helpline *
where our trained representatives will guide you, step-by-step, to solve any issues you have.
If we are unable to provide a solution, Philips will be pleased to pick-up your DVD Recorder from your home; and provide a service
replacement set, within 10 days. That’s the Philips ‘Premium Home Service’ commitment to you. This service comes free-of-charge
(except for Consumer Care Helpline) and applies to all Philips DVD Recorders during the Philips warranty period.
For more information, please contact a representative via the Philips Consumer Care Helpline.
* Refer to the back page of this manual for the Philips Customer Care phone number in your country.
Please have with you the model number, serial number and purchase date of your product when contacting Philips Customer Care.
2
English
Italia
DICHIARAZIONE DI CONFORMITA’
Si dichiara che l’apparecchio DVDR3575H,
DVDR3577H, DVDR3595H, DVDR3597H,
Philips risponde alle prescrizioni dell’art. 2
comma 1 del D.M. 28 Agosto 1995 n. 548.
Fatto a Eindhoven
SHOWVIEW is a registered trademark of
Gemstar Development Corporation. The
SHOWVIEW system is manufactured under
license from Gemstar Development
Corporation.
Philips Consumer Electronics
Philips, Glaslaan 2
5616 JB Eindhoven, The Netherlands
Norge
Typeskilt finnes på apparatens underside.
Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro-Logic” and the
double-D symbol are trademarks of Dolby
Laboratories.
Observer: Nettbryteren er sekundert
innkoplet. Den innebygde netdelen er
derfor ikke frakoplet nettet så lenge
apparatet er tilsluttet nettkontakten.
For å redusere faren for brann eller elektrisk
støt, skal apparatet ikke utsettes for regn eller
fuktighet.
LASER
Type
Wave length
Output Power
Beam divergence
Semiconductor laser
InGaAlP (DVD)
AIGaAs (CD)
658 nm (DVD)
90 nm (CD)
30 mW (DVD+RW write)
1.0 mW (DVD read)
1.0 mW (CD read)
84 degrees (DVD)
61 degrees (CD)
DivX Ultra Certified products: “DivX, DivX
Ultra Certified, and associated logos are
trademarks of DivX, Inc. and are used under
license.
HDMI, and HDMI logo and High-Definition
Multimedia Interface are trademarks or
registered trademarks of HDMI licensing
LLC.
For Customer Use:
Read carefully the information located at
the bottom or rear of your DVD
Recorder and enter below the Serial No.
Retain this information for future
reference.
Model No. DVD/HDD RECORDER
DVDR3575H, DVDR3577H,
DVDR3595H, DVDR3597H
Serial No.
_______________
3
English
DK
Advarsel: Usynlig laserstråling ved åbning
når sikkerhedsafbrydere er ude af funktion.
Undgå utsættelse for stråling.
Bemærk: Netafbryderen er sekundært
indkoblet og ofbryder ikke strømmen fra
nettet. Den indbyggede netdel er derfor
tilsluttet til lysnettet så længe netstikket
sidder i stikkontakten.
S
Klass 1 laseraparat
Varning! Om apparaten används på annat
sätt än i denna bruksanvisning specificerats,
kan användaren utsättas för osynlig
laserstrålning, som överskrider gränsen för
laserklass 1.
Observera! Stömbrytaren är sekundärt
kopplad och bryter inte strömmen från
nätet. Den inbyggda nätdelen är därför
ansluten till elnätet så länge stickproppen
sitter i vägguttaget.
SF
Luokan 1 laserlaite
Varoitus! Laitteen käyttäminen muulla kuin
tässä käyttöohjeessa mainitulla tavalla
saattaa altistaa käyttäjän
turvallisuusluokan 1 ylittävälle
näkymättömälle lasersäteilylle.
Oikeus muutoksiin varataan. Laite ei saa
olla alttiina tippu-ja roiskevedelle.
Huom. Toiminnanvalitsin on kytketty
toisiopuolelle, eikä se kytke laitetta irti
sähköverkosta. Sisäänrakennettu verkko-osa
on kytkettynä sähköverkkoon aina silloin,
kun pistoke on pistorasiassa.
4
CAUTION
VISIBLE AND INVISIBLE LASER
RADIATION WHEN OPEN. AVOID
EXPOSURE TO BEAM
ADVARSEL
SYNLIG OG USYNLIG LASERSTRÅLING
VED ÅBNING UNDGÅ UDSÆTTELSE
FOR STRÅLING
VARNING
SYNLIG OCH OSYNLIG
LASERSTRÅLNING NÄR DENNA DEL ÄR
ÖPPNAD BETRAKTA EJ STRÅLEN
VARO!
AVATTAESSA OLET ALTTIINA
NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE
LASER SÄTEILYLLE. ÄLÄ KATSO
SÄTEESEEN
VORSICHT
SICHTBARE UND UNSICHTBARE
LASERSTRAHLUNG WENN
ABDECKUNG GEÖFFNET NICHT DEM
STRAHL AUSSETZEN
ATTENTION
RAYONNEMENT LASER VISIBLE ET
INVISIBLE EN CAS D’OUVERTURE
EXPOSITION DANGEREUSE AU
FAISCEAU
Disposal of your old product
Your product is designed and manufactured with high quality materials
and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it
means the product is covered by the European Directive 2002/96/EC.
Please inform yourself about the local separate collection system for
electrical and electronic products.
Please act according to your local rules and do not dispose of your old products with
your normal household waste. The correct disposal of your old product will help
prevent potential negative consequences for the environment and human health.
U.S. Patent Number 4,631,603; 4,819,098;
4,907,093; 5,315,448; and 6,516,132
This product complies with the radio
interference requirements of the
European Community.
This product complies with
the requirements of the
following directives and
guidelines: 2006/95/EC +
2004/108/EC
CAUTION!
This unit does not contain any userserviceable parts. Please leave all
maintenance work to qualified
personnel.
5
English
This product incorporates copyright protection technology that is protected by US
patents. Use of this copyright protection
technology must be authorised by Macrovision, and is intended for home and other
limited viewing uses only unless otherwise
authorised by Macrovision. Reverse
engineering or disassembly is prohibited.
Table of Contents
English
General
Care and Safety Information .......................................................................................... 8
Setup precautions.................................................................................................................................................8
Cleaning discs ........................................................................................................................................................8
Hard Disk Drive (HDD) handling care...........................................................................................................8
Energy saving message ........................................................................................................................................8
Product Information ....................................................................................................... 9
Introduction ...........................................................................................................................................................9
Accessories supplied ...........................................................................................................................................9
Region codes..........................................................................................................................................................9
Special features ............................................................................................................................................10~11
Product Overview
Remote Control ........................................................................................................ 12~14
Using the remote control ................................................................................................................................14
Main Unit ......................................................................................................................... 15
Connections & Setup
Step 1: Basic Recorder Connections ......................................................................16~18
Connecting the antenna cables ......................................................................................................................16
Connecting the video/audio cables ........................................................................................................17~18
Step 2: Optional Connections .................................................................................19~23
Connecting to a Cable Box or Satellite Receiver .....................................................................................19
Connecting to a VCR or other similar device........................................................................................... 20
Connecting to a VCR and Cable Box/Satellite Receiver .........................................................................21
Connecting to an AV amplifier/receiver ..................................................................................................... 22
Connecting to a camcorder ............................................................................................................................23
Step 3: Installation and Set-up............................................................................... 24~25
Watch TV
Control TV Programmes ....................................................................................... 26~28
Viewing live TV....................................................................................................................................................26
About Time Shift buffer - temporary HDD storage ....................................................................... 26~27
Pause live TV function...................................................................................................................................... 28
Instant replay function ..................................................................................................................................... 28
FlexTime function .............................................................................................................................................. 28
Main Menu
Using the Home menu ............................................................................................ 29~30
About the Home menu.....................................................................................................................................29
Viewing media information ............................................................................................................................. 30
Recording
Before Recording ......................................................................................................31~34
Recording media .................................................................................................................................................31
Default recording settings ....................................................................................................................... 32~34
Record TV Programmes ......................................................................................... 35~41
Record current TV programme .....................................................................................................................35
Record a specific section of TV programmes ...........................................................................................35
Simultaneous record and play function ........................................................................................................36
Automatic recording from Satellite Receiver.............................................................................................37
About timer recording..................................................................................................................................... 38
Timer recording (ShowView system) ................................................................................................... 39~39
Timer recording (manually) .....................................................................................................................39~40
Changing/Deleting a scheduled recording ...................................................................................................41
Record from external devices ................................................................................ 42~44
Recording from an external device (Camcorder/VCR/DVD player) ...................................................42
Recording from a DV Camcorder .........................................................................................................43~44
6
Copy TV programmes from HDD......................................................................... 45~46
About copying .................................................................................................................................................... 45
Copying recordings to recordable DVD..................................................................................................... 45
Changing the screen display for recordable DVD ................................................................................... 46
Copy Files
Copy files between HDD, USB and DVD ............................................................. 47~48
Copying files from HDD to USB or recordable DVD .............................................................................47
Copying files from USB to HDD or recordable DVD ............................................................................ 48
Copying files from CD/DVD to HDD or USB .......................................................................................... 48
Playback
Playback from HDD .................................................................................................49~51
Hard Disk navigation .........................................................................................................................................49
Basic operation ...................................................................................................................................................50
Delete/Lock/Protect a title in the HDD .....................................................................................................51
Repeat hard disk playback................................................................................................................................51
Playback from USB device ............................................................................................ 52
Playback from Disc .................................................................................................. 53~55
Playable discs .......................................................................................................................................................53
Starting disc playback ................................................................................................................................ 53~55
Additional Playback Features ................................................................................ 56~63
Edit Recordings
Edit Recordings - Hard Disk ................................................................................... 64~68
Changing the title name ................................................................................................................................... 64
Selecting the genre............................................................................................................................................ 64
Video editing ................................................................................................................................................65~68
Edit Recordings - Recordable DVD ........................................................................69~74
About editing recordable DVDs ....................................................................................................................69
Changing the disc/title name ...........................................................................................................................70
Making the edited DVD±RW compatible ...................................................................................................70
Deleting all recordings/titles ...........................................................................................................................70
Finalising the DVD±R for playback ................................................................................................................71
Deleting a recording/title .................................................................................................................................71
Lock/Unlock the disc for playback ............................................................................................................... 72
Protecting the recorded titles (DVD±RW)............................................................................................... 72
Video editing ................................................................................................................................................ 73~74
System Settings
System Menu Options ............................................................................................. 75~85
System menu navigation ...................................................................................................................................75
Language settings................................................................................................................................................76
Playback settings ......................................................................................................................................... 77~78
Video Output settings.......................................................................................................................................79
Audio settings..................................................................................................................................................... 80
Analogue Tuner settings ........................................................................................................................... 81~83
Set up settings ............................................................................................................................................ 84~85
Other
Other Information ..........................................................................................................86
Installing the latest software .......................................................................................................................... 86
Copyright notice ................................................................................................................................................ 86
Frequently Asked Questions ...................................................................................87~89
Troubleshooting ....................................................................................................... 90~95
Display panel symbols/messages ........................................................................... 96~97
Glossary..................................................................................................................... 98~99
Specifications ................................................................................................................100
7
English
Table of Contents
Care and Safety Information
English
IMPORTANT NOTE!
DO NOT disconnect the recorder from
the power supply unless you are
intending not to use this product for a
long period of time. Power is needed to
enable the recorder to perform essential
tasks like timer recordings and
automatically updating the system date/
time.
CAUTION!
Risk of damage to discs! Never use
solvents such as benzene, thinner,
cleaners available commercially, or antistatic sprays intended for discs.
Wipe the disc with a micro fibre cleaning
cloth from the centre to the edge in a
straight line movement.
Setup precautions
Finding a suitable location
– Place this unit on a flat, hard and stable
surface. Do not place the unit on a carpet.
– Do not place this unit on top of other
equipment that might heat it up (e.g.,
receiver or amplifier).
– Do not put anything under this unit
(e.g., CDs, magazines).
– Install this unit near the AC outlet
where the AC power plug can be easily
reached.
Space for ventilation
– Place this unit in a location with
adequate ventilation to prevent internal
heat build up. Allow at least 10 cm (4”)
clearance from the rear and the top of
this unit and 5cm (2”) from the left and
right to prevent overheating.
5cm
10cm )
Cleaning discs
Hard Disk Drive (HDD)
handling care
To avoid damage to the hard disk and
losing important data:
– Do not move the recorder or subject
it to vibration whilst in operation.
– Do not remove the AC power plug
from the mains socket without switching
the recorder to standby mode.
It is recommended to archive important
recording to a recordable DVD as
backup.
10cm
Energy saving message
5cm
Avoid high temperature, moisture,
water and dust
– This unit must not be exposed to
dripping or splashing.
– Do not place any object or items that
can damage this unit (e.g., liquid filled
objects, lighted candles).
8
In order to minimise the power
consumption in standby mode, we
recommend you to leave this unit with
Eco mode enable and turn off the front
panel display brightness. See Playback
settings - { Display } option and Setup
settings - { Eco mode } option.
Introduction
This DVD/Hard Disk Drive (HDD)
recorder changes the way you watch TV.
You have full control over the TV
programmes you watch, because the
Time Shift Buffer function stores all the
programmes that the recorder is tuned
to. You can ‘pause’ TV programmes with
Pause Live TV function, or repeat any
scene with the Instant Replay function.
Recording has never been easier with the
built-in Hard Disk Drive, you can record
up to 180~300 hours of video in SEP
(Super Extended Play) recording mode.
Model
Hard Disk
Drive
(HDD)
Maximum
recording
hours
DVDR3575H
DVDR3577H
160 GB
180
DVDR3595H
DVDR3597H
250 GB
300
Before you can start using this recorder,
you must complete the basic connection
and initial recorder set-up in three simple
steps.
Step 1: Basic recorder connections.
Step 2: Optional connections for other
devices.
Step 3: Installation and set-up.
Please take time to read this user manual
before using your recorder. It contains
important information and notes
regarding the operation of your DVD
recorder.
Helpful Hint:
– Refer to the type plate at the rear or
bottom of the product for identification and
supply ratings.
Accessories supplied
On top of that, you can store the DivX
movies, music files and digital camera
photos in the HDD Media Jukebox.
DVDR3575H
DVDR3577H
DVDR3595H
DVDR3597H
DivX files
150
270
Photos
10,000
10,000
Music files
4,500
7,000
When you want to save or share a
recording, simply copy it to a recordable
DVD. You can also copy recordings
from your video camera or camcorder
through the i-Link connection.
–
–
–
–
Quick Start Guide
RF antenna cable
Scart cable
Remote control and batteries
Region codes
DVD movies are usually not released at
the same time in all regions of the world,
thus all DVD players/recorders are
programmed to a specific region code.
Countries
DVD Region code
Europe
ALL
2
ALL
5
Russia
9
English
Product Information
Product Information (continued)
English
Special features
Pause Live TV
Every TV programme is now under your
control, allowing you to take a break
without missing a moment. You can
pause any live TV programme by simply
pressing PAUSE LIVE TV button and
resume playback by pressing the PAUSE
LIVE TV button again. You can now
continue watching the remainder of the
programme or if you want to return to
the live TV programme again, just press
the LIVE TV button.
Instant Replay
You can repeat any scene of a live TV
programme by pressing the REPLAY ( )
button, as often as you like. If you wish
to return to the live TV programme
again, just press the LIVE TV button.
To enjoy Instant Replay, you need to
turn your recorder on and watch your
favourite TV programmes via your
recorder.
FlexTime
You can be truly flexible with your time
now with FlexTime. FlexTime allows you
to start watching a TV programme while
it is still being recorded, you do not need
to wait for the recording to finish before
starting to watch it. Alternatively, you
can also watch another earlier recorded
programme, play a DVD or DivX movie
or enjoy some music while the recorder
is recording the TV programme.
10
Time Shift Buffer (TSB)
As soon as you turn on your recorder,
the TV channel it is tuned to will be
stored into the Time Shift Buffer. Think
of this as a temporary storage for TV
programmes allowing you great flexibility.
It can contain up to 6 (six) hour of TV
programmes and will automatically flush
anything that is older. You can mark
portions of the Time Shift Buffer and
copy them to your recordings list for
later viewing or copying to recordable
DVD. The recorder needs to be turned
on for the Time Shift Buffer to be active.
When the recorder is turned off, the
Time Shift Buffer is automatically cleared.
ShowView
This is a simple programming system for
recorders. To use it, enter the
programming number associated with
your television programme. You can find
this number in your favourite listings
magazine.
SAT Recording
This function enables you to record a
programme from your Satellite Receiver
or any other device. Make sure that the
device is connected to the
EXT2-TO VCR/SAT socket of this
recorder, and the timer setting has been
done on the connected device.
Product Information (continued)
English
Follow TV
With this function you can align the
sequence of the channels on your TV
(analogue only) with those on your
recorder. This enhances the efficiency of
the system for recordings. Make sure
you have connected the TV to the
EXT1 TO TV socket of this recorder.
* The Follow TV feature may not work
properly on every TV.
i.LINK
i.LINK, also known as ‘FireWire’ or ‘IEEE
1394’, is a digital connection for
connecting your camcorder to enable
you to make high quality copies of your
camcorder videos. The connector can be
found behind the front flap door.
11
Remote Control
English
e OPTIONS
1
2
3
4
5
6
7
8
PAUSE LIVE TV
9
10
11
– Enters/exits the Options menu. This
menu provides various setting options.
f
: Cursor buttons for moving to the
left/right. In recorder’s Live TV mode,
replay or skip the scene by a specified
length of time.
: Cursor buttons for moving up/
down.
g OK
– Confirms an entry or selection.
h HOME
– Enters/exits the recorder’s Home menu.
i PREV í/ NEXTë
– Skips to previous or next title/chapter/
track.
12
SUBTITLE
INFO
AUDIO
SELECT
EDIT
SCART
13
14
j TIMER (SHOWVIEW)
– Enters/Exits the timer programming
mode.
k P +-
a2
– Turns on this unit or turns off to normal
standby mode.
– While in Live TV mode, select the next
or previous TV channel or the external
input source (EXT1, EXT2, CAM1).
– While in camcorder mode, select other
external input source (EXT1, EXT2,
CAM1).
b CAM
– Switches to the camcorder that is
connected to the DV IN CAM2 socket.
l AUDIO
c USB
(only effective when your TV is connected
with the Scart cable to EXT1 of your
recorder)
– Switches to the device that is connected
to the EXT2 Scart connector of your
recorder. If no device is connected to
EXT2, it switches to TV preset instead.
To switch back to recorder mode, press
this button again.
– Switches to USB mode and shows the
content of the USB device.
d Colour coded buttons
– These buttons can be used to select the
coloured options available in some
menus.
– Selects an audio language/channel.
m SCART
n EDIT
– Enters/exits the editing menu.
12
o LIVE TV
– Switches to live TV mode. It activates
the Time Shift Buffer that allows you to
pause or replay the TV programme at
any time.
English
Remote Control (continued)
15
16
17
p HDD LIST
– Shows the list of your recordings stored
in the internal hard disk.
q DISC
18
– Shows the content of the disc.
r BACK
– Returns to the previous menu.
20
s REW m / FFW M
21
– Fast reverse or fast forward search.
t PAUSE LIVE TV u
– Pauses or resumes a live TV programme.
– Starts or pauses playback of any recorded
title or disc.
22
23
u TV VOL +– Adjusts the volume of the TV (for Philips
TVs or compatible brands only).
v Alphanumeric keypad
– Used to enter numbers or letters (using
SMS style entry).
– Selects a chapter/track/title number to
play.
– Selects the recorder’s preset tuner
channel.
SUBTITLE
INFO
AUDIO
SELECT
EDIT
SCART
24
25
STOP x
– Stops playback/recording.
– Hold down this button to open or close
the disc tray.
REC z
– Starts recording the currently viewed TV
programme. Press repeatedly to set the
recording length in 30-minute increments.
PAUSE LIVE TV
19
w SUBTITLE
– Selects a DVD or DivX subtitle language.
x INFO
– Displays on-screen information.
y SELECT
– Selects multiple files for copying or
deleting.
– Toggles between ‘T’ (title) and ‘C’
(chapter) selection during disc playback,
then use the í / ë keys to select the
previous or next title/chapter.
– Toggles between upper and lower case
characters while using the alphanumeric
keypad.
13
Remote Control (continued)
English
Using the remote control
CAUTION!
– Remove batteries if they are
exhausted or if the remote control
is not to be used for a long time.
– Do not mix batteries (old and new
or carbon and alkaline, etc.).
– Batteries contain chemical
substances, they should be disposed
of properly.
Using the alphanumeric keypad to
enter the characters
A Open the battery compartment cover.
PAUSE LIVE TV
B Insert two batteries type R03 or AAA.
Match the indications (+-) inside the
battery compartment.
C Close the cover.
SUBTITLE
INFO
AUDIO
SELECT
EDIT
SCART
D Point the remote control directly at the
remote sensor on the front panel and
select the desired function.
– Press a number button repeatedly until
the required character or the number
appears.
– To enter special symbols, press button
repeatedly.
– To select upper/lower case (capital/
small) letters, press SELECT.
– To enter a space, press button
PAUSE LIVE TV
SUBTITLE
INFO
14
AUDIO
SELECT
EDIT
SCART
English
Main Unit
a STANDBY-ON
– Turns on this unit or turns off to normal
standby mode.
Sockets behind the flap
Flip down the door as indicated by the
OPEN label at the right hand corner.
b Disc tray
c OPEN CLOSE ç
h DV IN-CAM2 socket
– Opens or closes the disc tray.
– Input for digital camcorders (also
referred to as FireWire or IEEE1394).
d Display panel
i VIDEO-AUDIO-CAM1 socket
– Shows information about the current
status of the recorder.
e HDD ACTIVE
– Composite video and audio inputs for
camcorder/DVD player/VCR or other
similar device.
– Lights up when access hard disk.
j USB socket
fu
– Input for USB flash drive, USB memory
reader or digital camera.
* Not all brands and models of digital
cameras are supported, except those
compliant with the PTP standard.
– Pauses or resumes a live TV show.
– Starts or pauses playback.
.>
– Skips to the previous or next chapter/
track. Hold down the button to make a
reverse/forward search.
x
– Stops playback/recording.
gz
– Starts recording the currently viewed TV
programme. Press repeatedly to set the
recording length in 30-minute increments.
– Lights up while recording is in progress.
15
Step 1: Basic Recorder Connections
English
CVBS OUT
EXT 1
TV-OUT
TO TV
EXT 2
TO VCR/SAT
ANTENNA-IN
HDMI
OUT
L
R
MAINS
AUDIO
AUDIO OUT
Connecting the antenna
cables
These connections enable you to watch
and record TV programmes using this
recorder. If the antenna signal is
connected via a Cable Box or Satellite
Receiver, ensure that these devices are
turned on in order to watch or record
the cable programmes.
If you want to connect to a VCR
and/or a separate Cable Box/
Satellite Receiver,
see ‘Step 2: Optional Connections’ for
details.
Helpful Hint:
– Depending on how you have currently
connected your TV channel (directly from an
off-air antenna or cable box or VCR), you’ll
have to disconnect some of the cables before
you make the antenna connection.
16
COAXIAL
DIGITAL OUT
S-VIDEO OUT
VIDEO OUT
A Connect the existing Antenna cable (it
can be from the off-air wall socket or
Cable Box) to the ANTENNA-IN
socket on the recorder.
B Connect a RF antenna cable (supplied)
from the TV-OUT
socket on the
recorder to the antenna input socket on
your TV (usually labelled as ANT,
ANTENNA IN, RF IN).
EXT 1
TV-OUT
TO TV
EXT 2
TO VCR/SAT
CVBS OUT
HDMI
OUT
ANTENNA-IN
English
Step 1: Basic Recorder Connections (continued)
XT 2
L
TO VCR/SAT
HDMI
OUT
L
R
AUDI
AUDIO
AUDIO O
AUDIO OUT
COAXIAL
DIGITAL OUT
S-VIDEO OUT
VIDEO OUT
Option 3
Option 1
Option 2
OR
TV
TV
Connecting the video/audio
cables
This connection enables you to view the
playback from this recorder. You only
need to choose one of the options
below to make your video connection.
– For a standard TV, follow option 1, 2
or 3.
– For a HDMI TV, follow option 4.
Helpful Hint:
– Audio connection is only required if you
are connecting this recorder to your TV using
the S-VIDEO or CVBS socket.
Option 2: Using the S-Video socket
A Connect a S-video cable (not supplied)
from the S-VIDEO OUT socket on the
recorder to the S-Video input socket
(usually labelled as Y/C or S-VHS) on the
TV.
B Connect the audio cables (not supplied)
from the AUDIO OUT sockets on the
recorder to the audio input sockets on
the TV.
Option 3: Using the Video (CVBS)
socket
A Connect a composite video cable (yellow
Option 1: Using the Scart socket
Connect a scart cable (supplied) from the
EXT1-TO TV socket on the recorder
to the corresponding SCART socket on
the TV.
Helpful Hint:
– Use the EXT2- TO VCR/SAT socket for
connecting the recorder to additional device.
- not supplied) from the CVBS OUT
socket on the recorder to the video
input socket (usually labelled as A/V In,
Video In, Composite or Baseband) on the
TV.
B Connect the audio cables (not supplied)
from the AUDIO OUT sockets on the
recorder to the audio input sockets on
the TV.
17
Step 1: Basic Recorder Connections (continued)
English
CVBS OUT
EXT 1
TV-OUT
TO TV
EXT 2
HDMI
OUT
TO VCR/SAT
ANTENNA-IN
L
R
MA
AUDIO
AUDIO OUT
COAXIAL
DIGITAL OUT
S-VIDEO OUT
VIDEO OUT
Option 4
TV
Option 4: Connecting to a HDMIcompatible TV
HDMI (High Definition Multimedia
Interface) is a digital interface that allows
pure digital video/audio transmission
without the loss of image quality.
Connect a HDMI cable (not supplied)
from the HDMI OUT on the main unit
to the HDMI IN on a HDMI-compatible
device (e.g., HDMI TV, HDCP compliant
DVI TV).
Helpful Hints:
– Some HDMI TVs/monitors from different
manufacturers may adhere to different
standards resulting in unreliable signal
transfers.
– The HDMI connector is only compatible
with HDMI compliant devices and DVI-TVs.
– The teletext information will not be
accessible in the recorder’s live TV mode.
18
Note:
To enable HDMI connection, you must
set the recorder’s video output correctly.
A Make an addition video connection from
this recorder to your TV using Scart,
S-Video or Video (CVBS).
B Turn on your TV to the correct viewing
channel for the above video connection.
C When you have completed the
installation and set-up, change the video
output setting of this recorder as
follows:.
1) Press OPTIONS.
2) Move to { Settings } > { Video
output } > { Active video output }
> { HDMI output }, then press OK
to confirm.
D Switch your TV to the correct viewing
channel for the HDMI connection (refer
to your TVs user manual).
English
Step 2: Optional Connections
Cable Box /
Satellite Receiver
C
CVBS OUT
EXT 1
TV-OUT
ANTENNA-IN
TO TV
EXT 2
TO VCR/SAT
HDMI
OUT
L
R
MAINS
AUDIO
AUDIO OUT
COAXIAL
DIGITAL OUT
S-VIDEO OUT
VIDEO OUT
TV
B
Connecting to a Cable Box or
Satellite Receiver
Option 2 (as shown on the above illustration)
If your Cable Box/Satellite Receiver
has a Scart output socket
A Keep the existing antenna connection
Option 1
If your Cable Box/Satellite Receiver
has only an antenna output socket
(RF OUT or TO TV),
see ‘Basic Recorder Connections Connecting the antenna cables’ for
details.
from the Cable Box/Satellite Receiver to
your TV.
B Connect a scart cable (supplied) from the
EXT1-TO TV socket on the recorder
to the corresponding SCART socket on
the TV.
C Connect another scart cable (not
supplied) from the EXT2-TO VCR/
SAT socket on the recorder to the Scart
socket (usually labelled as TV OUT or
TO VCR) on the Cable Box/ Satellite
Receiver.
19
Step 2: Optional Connections (continued)
English
VCR (example only)
VHF/UHF
RF IN
SCART OUT
SCART IN
VHF/UHF
RF OUT
D
CVBS OUT
EXT 1
TV-OUT
TO TV
EXT 2
TO VCR/SAT
ANTENNA-IN
HDMI
OUT
L
R
MAINS
AUDIO
AUDIO OUT
COAXIAL
DIGITAL OUT
B
S-VIDEO OUT
VIDEO OUT
TV
C
Connecting to a VCR or
other similar device
This connection enables you to record
from video tape to hard disk and allows
the VCR to be used for playback on the
TV if the recorder is turned off.
Note:
Your new recorder can replace the VCR
for all your recording needs. Just unplug
all the connections to your VCR.
A Connect the existing Antenna cable (it
can be from the off-air wall socket or
Cable Box) to the ANTENNA-IN
socket on the recorder.
B Connect a RF antenna cable (supplied)
from the TV-OUT
socket on the
recorder to the antenna input socket on
your TV (usually labelled as ANT,
ANTENNA IN, RF IN).
20
C Connect a scart cable (supplied) from the
EXT1-TO TV socket on the recorder
to the corresponding SCART socket on
the TV.
D Connect another scart cable (not
supplied) from the EXT2-TO VCR/
SAT socket on the recorder to the Scart
socket (usually labelled as TV OUT or
TO TV) on the VCR.
Helpful Hints:
– Most commercial video cassettes and
DVDs are copy-protected and therefore
cannot be recorded.
– Connect the recorder directly to the TV. If
there is a VCR or an additional device in
between, the picture quality may be poor.
Back of a Satellite Box
(example only)
E
A
English
Step 2: Optional Connections (continued)
Back of a VCR
(example only)
D
CVBS OUT
EXT 1
TV-OUT
ANTENNA-IN
TO TV
EXT 2
TO VCR/SAT
HDMI
OUT
L
R
MAINS
AUDIO
AUDIO OUT
COAXIAL
DIGITAL OUT
S-VIDEO OUT
VIDEO OUT
B
C
Connecting to a VCR and
Cable Box/Satellite Receiver
A Connect the existing Antenna cable from
the antenna output socket on the Cable
Box or Satellite Receiver to the
ANTENNA-IN
socket on the
recorder.
B Connect a RF antenna cable (supplied)
socket on the
from the TV-OUT
recorder to the antenna input socket on
your TV (usually labelled as ANT,
ANTENNA IN, RF IN).
D Connect another scart cable (not
supplied) from the EXT2-TO VCR/
SAT socket on the recorder to the Scart
socket (usually labelled as TV OUT or
TO TV) on the VCR.
E Connect another scart cable (not
supplied) from the Scart socket (usually
labelled as TV IN or TO DECODER) on
the VCR to the Scart socket (usually
labelled as TV OUT or TO VCR) on the
Cable Box/ Satellite Receiver.
C Connect a scart cable (supplied) from the
EXT1-TO TV socket on the recorder
to the corresponding SCART socket on
the TV.
21
Step 2: Optional Connections (continued)
English
CVBS OUT
EXT 1
TV-OUT
TO TV
EXT 2
TO VCR/SAT
ANTENNA-IN
HDMI
OUT
L
R
MAINS
AUDIO
AUDIO OUT
AV amplifier/receiver
Connecting to an AV
amplifier/receiver
You can connect the recorder to an AV
amplifier/receiver in order to enjoy
multichannel surround sound.
Connect a coaxial cable (not supplied)
from the COAXIAL DIGITAL OUT
socket on the recorder to the digital
coaxial input socket (or labelled as
COAXIAL IN or DIGITAL IN) of the
connected device.
Helpful Hint:
– You have to set the appropriate Digital
Audio Output setting. Otherwise, no sound or
interference may occur. See ‘System Menu
Options - Audio settings’ for details.
22
COAXIAL
DIGITAL OUT
S-VIDEO OUT
VIDEO OUT
English
Step 2: Optional Connections (continued)
Option 1
Connecting to a camcorder
You can use the front sockets to copy
camcorder recordings. These sockets are
located behind the flap on the right hand
side which provides convenient
connections.
Option 1: Using the DV IN socket
Use this connection if you have a Digital
Video or Digital 8 camcorder. The DV
socket conforms to the i.LINK standard.
It provides the best picture quality.
A Connect an i.LINK 4-pin cable (not
supplied) from the DV IN socket on the
recorder to the appropriate DV OUT
socket on the camcorder.
Option 2
Option 2: Using the VIDEO In
socket
Use the VIDEO connection if your
camcorder has only a single video output
(Composite Video, CVBS). It provides
good picture quality.
A Connect the VIDEO socket at the front
panel of the recorder to the
corresponding S-VHS or Video output
socket on the camcorder.
B Connect the audio cable (red/white - not
supplied) from the AUDIO L/R sockets
at the front panel of the recorder to the
audio output socket on the camcorder.
C Press CAM on the remote control
followed by P +/- repeatedly to select
‘CAM1’.
B Press CAM on the remote control to
select ‘CAM2’.
Helpful Hint:
– It is not possible to record from this
recorder to your camcorder via the DV IN
socket on your recorder.
Helpful Hint:
– If you connect your camcorder to the scart
socket at the rear of this recorder, select
{ EXT1 } or { EXT2 } as the input source.
23
Step 3: Installation and Set-up
English
The installation menu appears the very
first time you turn on this recorder.
These settings help you set up the basic
recorder features easily, including TV
programme installation and language
settings.
Country Selection
Country selection is
important for TV channels
search.
A Turn on the TV.
B Press STANDBY-ON 2 to turn on
the recorder.
Your TV should show the recorder’s
initial installation screen now - { Menu
Language } screen.
If not, you may need to select the
correct input on your TV. Refer to your
TVs user manual on how to select the
correct input on your TV.
B Belgium
DK Denmark
FIN Finland
F France
D Germa
GR Greece
IRL Ireland
Previous
Before you start ...
Complete the installation settings before
inserting a disc for playback or recording.
A Austria
Next
Note: Press the Red button on the
remote control for returning to the
previous screen or press the Green
button for proceeding to the next
installation step.
E The TV shape screen appears on the TV.
Select the appropriate TV shape in the
way you want the wide-screen movies to
be displayed and press OK to confirm.
TV shape
Select the appropriate TV shape
according to the TV you have
connected.
4:3 Panscan
4:3 Letterbox
16:9 Widescreen
Menu Language
Please select your language.
Defines the languages of all
on-screen menu displays.
English
Dansk
Deutsch
Español
Previous
Next
Français
Italiano
Nederlands
Norsk
Next
4:3 PanScan (PS)
C Use
keys on the remote control to
select the desired on-screen display
language and press OK to confirm.
4:3 LetterBox (LB)
D The Country Selection screen appears on
the TV. Move the selection bar to the
country you live in and press OK to
confirm.
This setting is important for automatic
installation of TV channels in your area.
16:9 (Widescreen)
F The Channel Search screen appears on
the TV. Press OK to start auto channel
search.
The recorder starts the analogue
channel search.
24
Channel search
Start Auto search
Previous
English
Step 3: Installation and Set-up (continued)
Time
Time setting is required for
making recordings. Time
format is 24h (hh:mm)
00 : 00
Skip
Previous
Next
Note: Make sure you have successfully
made all the required connections to this
recorder, the TV and Satellite Receiver/
Cable Box (if any) and turned them on.
The channel search will detect the signals
and save all the available programme
channels.
I The Date entry screen appears. Use the
alphanumeric keypad 0-9 or
keys to enter the correct date, then
press OK to confirm or the Green
button to continue.
G After the channel search is finished, the
number of found and stored channels
appear, press the Green button to
continue.
Date
Date setting is required to
make recordings. Please
make sure it is correct.
31 01 2007
Analogue channel search
Previous
Searching channels.
This may take a few minutes. Please wait.
Analogue TV channels found: 3
Next
J The installation is now completed. Press
Analogue channel
Cancelsearch completed
the Green button on the remote control
to close the screen.
Analogue TV channels found: 9
Next
Restart
Installataion Complete
You have successfully completed the installation
H The Time entry screen appears. Use the
alphanumeric keypad 0-9 or
keys to enter the correct time, then
press OK to confirm or the Green
button to continue.
of your recorder.
System is now ready for use.
Previous
Done
The DVD recorder is now ready for
use.
25
Control TV Programmes
English
Viewing live TV
About Time Shift Buffer temporary HDD storage
The current TV programme will be
stored in the temporary hard disk
storage called ‘TSB’ (Time Shift Buffer)
once the recorder is turned on. It
continuously stores up to 6 (six) hours of
TV programmes.
PAUSE LIVE TV
SUBTITLE
INFO
AUDIO
SELECT
EDIT
SCART
The Time Shift video bar indicates the
status and timing of the stored TV
programmes.
A Turn on the TV. If necessary, switch the
TV to the correct input channel for
viewing the recorder’s playback.
Now
22:04:30
B Press STANDBY-ON 2 to turn on
1
this recorder.
You should see the TV programme on
the TV. If not, press LIVE TV.
C Press P +/− to select a desired channel.
The TV programme you are tuned to
is automatically stored in the Time Shift
Buffer. This allows you to pause the live
TV and resume playback at any time.
If you switch to another TV channel on
the recorder, a new title will be created
and a vertical line will be shown on the
Time Shift video bar.
Live
You can choose to display or hide the
Time Shift video bar by pressing the
INFO on the remote control.
26
2
3
4
5
The Time Shift video bar consists of the
following information:
a The TV programme start time.
b
c
d
e
Once it has exceeded 6 (six) hours, the
start time will be changed accordingly.
Clips that are selected to be recorded
onto the hard disk (marked Red).
Title markers (when you switch to a TV
channel for more than 2 minutes, a new
title marker will be created).
Current position and time of the TV
programme broadcast.
Present time
Helpful Hint:
– The Time Shift Buffer stores and retains
up to the last 6 (six) hours of TV
programmes when the recorder is turned on.
If you switch the recorder to standby mode,
all the contents in the Time Shift Buffer will
be cleared.
Marking the contents for recording
You need to ‘mark’ the contents in the
Time Shift Buffer before it can be
recorded to the hard disk.
Clearing the Time Shift Buffer
All the contents in the Time Shift Buffer
will be cleared when you switch the
recorder to standby mode, except for
the marked contents which will then be
stored into the hard disk. You can also
clear the contents using the following
steps while the recorder is turned on.
A Press OPTIONS on the remote control.
23:30
21:00
The tools menu appears.
22:13
Cancel Rec.
Prog Info
Tools
Audio language
Time search
Reset TSB
Settings
To find a scene within the Time
Shift Buffer
Use m / M or / keys.
To mark the starting point of
recording
Press REC z once.
To mark the end of the recording
Navigate to the end of the scene and
press STOP x.
To cancel the marked recording
Press the Red button.
Helpful Hint:
– You can set the length of skip search
interval, see chapter ‘System Menu Options Playback settings - { Replay interval } / { Skip
interval }’ for details.
B Move to { Reset TSB } and press OK.
A warning message on clearing the
Time Shift Buffer appears.
Warning
This action will clear the Time Shift Buffer.
Do you want to continue?
Yes
No
C To proceed, select { Yes } in the menu
and press OK on the remote control.
Otherwise, select { No } in the menu and
press OK on the remote control to
abort the operation.
Note:
In addition, executing the following
actions will also clear the contents in the
Time Shift Buffer:
– Press CAM on the remote control.
– Access { Tuner } option in the system
settings menu.
– Change the { Record mode } or
{ Clock } setting.
27
English
Control TV Programmes (continued)
Control TV Programmes (continued)
English
Pause live TV function
Before you start ...
Turn on the recorder to LIVE TV mode
to watch your favourite TV programmes.
A Press PAUSE LIVE TV u on the
remote control to pause playback.
B To resume playback, press the same
button again.
If you want to return to the live TV
programme, just press LIVE TV.
Instant replay function
Before you start ...
Turn on the recorder to LIVE TV mode
to watch your favourite TV programmes.
Press on the remote control to replay
the live TV programme.
The scene is jumped back by 30
seconds (default setting) upon every
single press.
If you want to return to the live TV
programme, just press LIVE TV.
FlexTime function
While recording is in progress, press
on the remote control to go back to the
beginning of the recording and start
playback.
OR
Press REW m or PREV í until you
reach the scene to begin.
28
About the Home menu
Home menu allows access to contents on
your Hard Disk recording, media files on
Hard Disk, and contents of disc and USB.
It also allows transferring of content
among various media types.
C Use
keys to select recordings,
audio/video files or photos.
D Press u to start playback.
PAUSE LIVE TV
SUBTITLE
INFO
AUDIO
SELECT
EDIT
SCART
A Press HOME on the remote control.
The Home menu appears.
Source
Hard Disk
Content
Disc Tray
Video files
USB
Music
Recordings
B Move the selection bar to a desired
media or function and press
select.
or OK to
{ Hard Disk }
To access the contents stored on the
hard disk, such as your recordings,
photos, music or video files.
{ Disc Tray }
To access the contents of the disc. In
case the tray is empty, nothing will be
shown.
{ USB }
To access the contents of the connected
USB flash drive or camera. In case there
is no device connected or the device is
not able to detect by the recorder,
nothing will be shown.
29
English
Using the Home menu
Using the Home menu (continued)
English
Viewing media information
To view general information on the
selected media such as size, remaining
space, media type etc.
A Press HOME.
The Home menu appears.
B Move the selection bar to a desired
source.
If the media information is available, a
text label will be appeared next to the
blue softkey.
C Press the Blue button on the remote
control to display the information.
{ HDD Info }
Recorder hard disk information.
– Remaining hard disk size for video
partition (TV recordings and DivX
movies).
– Space used by protected/unprotected
titles.
– Free time for recording based on the
current active recording mode.
– Remaining hard disk size for data
partition (for music and photo files)
and its free space size for recording.
{ DVDR Info }
DVD±R or DVD±RW information.
– Disc name, type and status
– Total size.
– Used space.
– Available space.
– Space used by protected titles.
{ USB Info }
USB drive information.
– Name.
– Total memory size.
– Available space.
D Press the Blue button again returns to
the previous menu.
30
Recording media
The recording media for this recorder
are internal hard disk drive and DVD±R/
±RW/+R DL.
– The hard disk has a high storage density
which enables long recording duration
and quick access to the recording titles.
DVD±RW (DVD Rewritable)
– Discs that are rewritable can be used for
multiple recordings once the existing data
is erased.
DVD±R (DVD Recordable)
– Discs can only be used for a single
recording. Each new recording is always
added at the end of all previous
recordings as existing recordings cannot
be overwritten.
– Editing can be done on DVD±R discs as
long as they have not been finalised.
– You can also delete unwanted recordings.
However, the disc space occupied by the
deleted recordings cannot be recovered
for further recording.
– To play a DVD±R disc on other DVD
players, it must be finalised. After this is
done, no more data can be added to the
disc. See ‘Edit Recordings - Recordable
DVD - Finalising the DVD±R for
playback’ for details.
DVD+R DL (DVD+R Double Layer)
– It contains the same usage as DVD+R, the
only difference is the capacity of 8.5 GB.
It offers two recordable layers on a single
DVD disc. The layers are accessible from
the same side of the disc, so recording
can occur completely uninterrupted.
Supported disc type and media
speeds
Disc
DVD+R
DVD+RW
DVD-R
DVD-RW
DVD+R DL
Media speeds
1x - 16x
2.4x - 8x
1x - 16x
2.4x - 4x
2.4x
Helpful Hints:
– In some cases, you may not be able to add
new recording to a recordable DVD that
contains recordings from other DVD recorders.
– If the newly recorded title in the hard disk
is not accessible, turn the recorder off and on
again to recover the recording.
– If you are unable to fit a title to a
recordable DVD, split the title to remove the
unwanted sections. See ‘Edit Recordings Hard Disk - Video editing’ for details.
– If power failure occurred while copying the
recordings from hard disk is in progress, it
may lead to a bad disc.
31
English
Before Recording
Before Recording (continued)
English
D Use
Default recording settings
You can preset your recording settings in
the recording setup menu.
PAUSE LIVE TV
keys to select the setting you
wish to change and press to access its
options.
Instructions and explanations of the
options are provided in the following
pages.
If the option in the menu is greyed
out, that means the feature is not
available or not possible to change at the
current state.
E Press OK to confirm any new settings.
SUBTITLE
INFO
To return to the previous menu screen,
press .
AUDIO
SELECT
EDIT
SCART
F To exit, press OPTIONS.
A Press OPTIONS on the remote control.
The tools menu appears.
Tools
Audio language
Time search
Reset TSB
Settings
B Move to { Settings } and press OK.
The system settings menu appears.
Preferences
Language
Record mode
Recording
Auto protect
Playback
SAT recording
Video output
Audio
Chapters
Analogue tuner
Setup
C Move to { Recording } and press
32
.
Helpful Hints:
– Changing the Recording Mode clears the
contents in the Time Shift Buffer, only the
marked contents (in red bar) will be recorded
into the hard disk of this recorder.
– Your recording picture quality will be
changed according to the selected record
mode, including watching the live TV through
the recorder.
English
Before Recording (continued)
Recording settings (underlined options are the factory default settings)
Record mode
The recording mode defines the picture quality of recordings
and the maximum recording time.
DVDR3575H / DVDR3577H
Record Mode
HQ (high quality)
SP (standard play)
SPP (standard play plus)
LP (long play)
EP (extended play)
SLP (super long play)
SEP (super extended play)
23
45
56
68
90
135
180
1
2
2.5
3
4
6
8
1 hr 55 mins
3 hrs 40 mins
4 hrs 35 mins
5 hrs 30 mins
7 hrs 20 mins
11 hrs 5 mins
14 hrs 45 mins
DVDR3595H / DVDR3597H
Record Mode
(250GB)
HQ (high quality)
SP (standard play)
SPP (standard play plus)
LP (long play)
EP (extended play)
SLP (super long play)
SEP (super extended play)
40
77
96
115
153
230
300
1
2
2.5
3
4
6
8
1 hr 55 mins
3 hrs 40 mins
4 hrs 35 mins
5 hrs 30 mins
7 hrs 20 mins
11 hrs 5 mins
14 hrs 45 mins
Note: When copying from hard disk to a recordable DVD, the
recording mode of the selected recording in the hard disk will
automatically be transferred. Selecting another recording mode
is not possible. The factory default setting is SPP.
Auto protect
With this feature, delete and edit on the protected titles are not
possible.
{ On }
– New recorded titles will be automatically
protected.
{ Off }
– Disable the function.
Note: To delete a protected title, first press the Blue button
on the remote control to turn off the protect feature, then
press the Red button to delete.
SAT recording
This feature is only available if you have connected a Satellite
Receiver or other device to the EXT2-TO VCR/SAT scart
socket of this recorder. See ‘Record to Hard Disk - Automatic
recording from Satellite Receiver’ for details.
{ On }
– Enable this recorder to start and stop
recording when a signal is received from
the connected device.
{ Off }
– Disable the function.
33
Before Recording (continued)
English
Recording settings (underlined options are the factory default settings)
Chapters
34
Automatically divides a recording (title) into chapters by inserting
chapter markers at a specific interval. This enables you to access
a specific point in the recording quickly.
{ Smart }
– This setting is only available for the DV
camcorder recording. A chapter marker is
inserted whenever there is a break in the
time code on the DV tape.
{ Off }
– No chapter marker is inserted in the
recording.
{ Standard }
– Chapter markers are inserted automatically
during recording at approximately 5 (five)
minutes interval.
CAUTION!
– Copy prohibited contents cannot be
recorded on this recorder.
– When the hard disk is full, making a
new recording automatically deletes the
oldest unprotected title on the hard disk
to make space for the new recording.
English
Record TV Programme
Record a specific section of
TV programmes
This is only possible for the TV
programmes that can be found in the
Time Shift Buffer.
Record current TV
programme
PAUSE LIVE TV
Follow the instructions below to record
the TV programmes to this recorder’s
hard disk, where you can store for future
viewing and copy to a recordable DVD
disc if required.
A While the Time Shift Buffer is at ‘LIVE’
position, press REC z on the remote
control.
It starts recording from the current
position, up to maximum of 6 (six) hours.
AUDIO
SUBTITLE
INFO
SELECT
EDIT
SCART
A Use
keys to search for the beginning
of the scene where you want to start
recording.
23:30
21:00
22:13
Cancel Rec.
21:00
Prog Info
23:30
LIVE
Cancel Rec.
Prog Info
B Press REC z on the remote control.
C Press
Press REC z repeatedly will set the
recording time length in 30-minute
increments, up to a maximum of 6 (six)
hours.
B You can turn off your TV and the
recorder to standby mode while
recording.
The recorder continues recording and
stops at the designated end time.
to search for the point where
you want to end the recording and press
STOP x on the remote control.
A red marking will be visible on the
video bar to indicate the marked
recording.
To cancel the recording, press the Red
button for { Cancel Rec }.
If you wish to stop the recording before
the scheduled time, press STOP x.
35
Record TV Programme (continued)
English
Simultaneous record and play
function
Playback from DVD
A Press OPEN CLOSE ç on the
recorder’s front panel.
While recording a TV programme to the
hard disk, you can play a previously
recorded title from hard disk, playback a
DVD video disc or you can also playback
music, photo slideshows or DivX videos
from hard disk, optical disc or USB. It is
also possible to watch playback from
other connected devices.
B Load in a disc to start playback.
Playback from USB
A Insert a USB flash drive to the USB
socket.
B Press USB on the remote control.
C Select a file and press u to start
playback.
PAUSE LIVE TV
SUBTITLE
INFO
Playback from other device
This is only possible if this recorder is
connected to the TV using the
EXT1 TO TV socket.
AUDIO
SELECT
EDIT
SCART
Press SCART to view the picture from
the device which is connected to the
EXT2-TO VCR/SAT socket of this
recorder.
Playback from HDD
A Press HDD LIST on the remote
control.
Source
Hard Disk
Content
Disc Tray
Video files
USB
Music
Recordings
Watching other TV programmes
Previous
B Use
HDD Info
keys to reach the title you want
to play.
C Press u to start playback.
36
If there is no device connected to the
EXT2-TO VCR/SAT socket, pressing
SCART switches to TV preset.
Use the TVs channel up/down button to
select a different TV channel.
Helpful Hint:
– Remember to switch the TV back to its
video input channel if you want to watch the
TV channel through the recorder or play
back the recorded disc.
English
Record TV Programme (continued)
Automatic recording from
Satellite Receiver
The feature is only applicable for the
Satellite Receiver (or any similar devices)
that is connected to the EXT2-TO VCR/
SAT scart socket of this recorder. In
addition, the Satellite Receiver must have
a timer function that is able to control
the recording function of this recorder.
Before you start ...
Ensure that the { SAT record } mode in
the recording setting is set to { On }.
A Use the Satellite Receiver’s timer
programming function to program the
recording (refer to the Satellite
Receiver’s user manual).
Each recording can be programmed up
to 6 (six) hours.
B Turn off the Satellite Receiver to standby
mode.
C Turn off the recorder to standby mode.
Leave the recorder and Satellite
Receiver in standby mode for the
recording.
The recorder starts recording when it
detects a signal from the Satellite
Receiver.
Helpful Hint:
– The recorder’s timer recordings take
priority over automatic satellite recording.
Automatic Satellite recording stops if the
recorder’s timer recording is due to start.
37
Record TV Programme (continued)
English
About timer recording
Use the timer recording to automatically
start and stop a recording at a later date/
time. This recorder tunes to the right
programme channel and begins recording
at the specified time.
With this recorder, you can schedule up
to 40 recordings at a time and up to 6
(six) hours for each recording. During
timer recording, changing the recorder’s
channel is not possible.
Note: If the scheduled timer recording
is longer than 6 (six) hours, it splits into
two or more titles.
Timer recording (ShowView
system)
This is a simple timer programming
system. To use it, enter the ShowView
programme number associated with your
television programme. You can find this
number in your TV listings magazine.
A Turn on the TV to the correct viewing
channel for the recorder.
B Press TIMER (SHOWVIEW) on the
remote control.
The timer menu appears.
List of timers
Timer details
Start time
Stop time
Date
Channel
Title name
Repeat
VPS/PDC
Recording target
There are two ways to program a
timer recording
– Using the ShowView
– Using manual timer programming
New Timer
ShowView
C Press the Blue button on the remote
OK
TIMER
(SHOWVIEW)
PAUSE LIVE TV
SUBTITLE
INFO
control for { ShowView }
The ShowView entry menu appears.
ShowView System
Enter ShowView program number :
AUDIO
SELECT
EDIT
SCART
Clear
About ‘VPS/PDC’
‘VPS’ (Video Programming System) or
‘PDC’ (Programme Delivery Control) is
used to control the start and duration of
TV channel recordings. If a TV
programme starts earlier or ends later
than was scheduled, this recorder will
then turn on and off at the correct time.
38
Store
Cancel
D Use the alphanumeric keypad 0-9 to
enter the ShowView programme number
(e.g. 5-312-4 or 5,312 4, key in ‘53124’).
To clear the programme number, press
the Red button for { Clear }.
To cancel the programme and exit the
menu, press the Yellow button for
{ Cancel }.
E To confirm your entry, press the Green
button for { Store }.
A message to enter channel list
appears.
Timer recording (manually)
A Turn on the TV to the correct viewing
F Select { OK } in the menu and press OK
to confirm.
The programme information appears.
channel for the recorder.
B Press TIMER (SHOWVIEW) on the
remote control.
The timer menu appears.
Start time
New timer
Start time
20:30
Stop time
Date
21:30
16/01/07
Start time
Channel
P05
Title name
Stop time
Date
Repeat
ABC
Once
VPS/PDC
On
20 30
List of timers
Timer details
Channel
Title name
Repeat
VPS/PDC
Recording target
Recording target DVD
Cancel
English
Record TV Programme (continued)
Store
New Timer
ShowView
G To change the recording settings, move
to the respective field and press
.
{ Repeat }
- Once
- Weekly
- Mon~Fri
{ VPS/PDC }
- Off
- On
{ Recording target }
- HDD
- DVD
C Press the Green button on the remote
control for { New Timer }
The new timer entry menu appears.
New Timer
Start time
Start time
Stop time
Date
Channel
Title name
Repeat
VPS/PDC
H Select a setting and press OK.
Recording target
Clear All
Store
Cancel
I Once complete, store the setting by
pressing the Green button for { Store }.
J To exit, press TIMER (SHOWVIEW).
The ‘TIMER’ icon lights up on the
display panel if a timer recording is set.
Helpful Hint:
– If the recorder is not in standby mode, a
notification message appears before the
timer recording begins. If you ignore the
message, the recorder automatically switches
to the respective channel and starts
recording.
39
Record TV Programme (continued)
English
{ Start time }
Enter the start time of
recording (hours :
minutes).
{ Stop time }
Enter the end time of
recording (hours :
minutes).
{ Date }
Enter the date for
recording (Day/
Month/Year).
{ Channel }
Select the TV channel
or the external input
channel for recording.
{ Title name }
Enter the title name
for this recording.
{ Repeat }
Select a repeat
recording setting
(Once, Weekly,
Mon~Fri).
{ VPS/PDC }
Turn on or off the
VPS/PDC setting.
{ Recording
target }
Select the destination
for recording (HDD
or DVD).
D Select the entry field and press
.
E Use
keys or the alphanumeric
keypad 0-9 to select or enter the
recording information, then press OK to
confirm.
F Once complete, store the setting by
pressing the Green button for { Store }.
G To exit, press TIMER (SHOWVIEW).
The ‘TIMER’ icon lights up on the
display panel if a timer recording is set.
40
Helpful Hint:
– If the recorder is not in standby mode, a
notification message appears before the
timer recording begins. If you ignore the
message, the recorder automatically switches
to the respective channel and start recording.
G Once complete, store the setting by
Changing/Deleting a
scheduled recording
pressing the Green button for { Store }.
H To exit, press TIMER (SHOWVIEW).
A Turn on the TV to the correct viewing
channel for the recorder.
B Press TIMER (SHOWVIEW) on the
remote control.
The timer menu appears.
List of timers
Timer details
20:30 - P05 TELE-Once
Start time
20:30
09:00 - P03 TELE-Once
Stop time
Date
21:30
16/01/07
Channel
P05
ABC
11:30 - P04 TELE-Once
Title name
Repeat
VPS/PDC
Recording target
Delete
New Timer
Change
Once
On
DVD
ShowView
C Select a scheduled recording which you
want to delete or edit.
D To delete the scheduled recording, press
the Red button on the remote control
for { Delete }.
E To change the scheduled recording, press
the Yellow button on the remote
control for { Change }.
The timer entry menu appears.
Start time
New timer
Start time
Stop time
Date
Channel
Title name
Repeat
20:30
21:30
16/01/07
VPS/PDC
On
20 30
P05
ABC
Once
Recording target DVD
Cancel
Store
F Make the necessary changes in the
respective entry field.
41
English
Record TV Programme (continued)
Record from external devices
English
Recording from an external
device (Camcorder/VCR/
DVD player)
Switching to camera mode will clear the
Time Shift Buffer.
Select a media type to record.
Hard Disk
When you connect your external device
to this recorder, you can choose to make
a recording from the external device to
the hard disk or a recordable DVD.
Copy-protected material cannot be
recorded on this recorder.
Before you start...
Mark the contents in the Time Shift
Buffer for which you wish to record to
the hard disk. Otherwise, all the contents
will be cleared when you start camcorder
recording.
Optical Disc
Cancel
D Select the destination for recording and
press OK to confirm.
E Press P +/- repeatedly to select the
correct input channel that matches the
connected socket of the device.
{ CAM 1 } : S-VIDEO or VIDEO
socket at the front.
{ EXT 1 } : EXT1 TO TV scart socket
at the back.
{ EXT 2 } : EXT2-TO VCR/SAT scart
socket at the back.
F Turn on the external device and find the
place where you want the recording to
begin, then put the external device to
pause mode.
G Press REC z to start recording and
PAUSE LIVE TV
start the external device playback.
SUBTITLE
INFO
AUDIO
SELECT
EDIT
SCART
A Turn on the TV to the correct viewing
channel for the recorder.
B Connect the external device (e.g.
camcorder, VCR, DVD player) to this
recorder.
C Press CAM on the remote control.
A warning message appears. All the
contents in the Time Shift Buffer will be
cleared, only the ‘marked’ contents will
be stored onto the hard disk.
42
To pause the recording, press u.
To continue recording, press u again.
A new chapter marker is created after
recording restarts (for recordable DVD
only).
H To stop the recording, press STOP x.
A new title will be created when you
begin another recording.
I To exit, press LIVE TV.
Helpful Hint:
– While recording from an external device to
the hard disk or recordable DVD is in
progress, you can press the OK button to
generate chapter marker at a specific point.
Recording from a DV
Camcorder
When you connect a DV camcorder to
the DV IN socket of this recorder, you
can control both the camcorder and this
recorder using the recorder’s remote
control. Furthermore, the smart
chaptering feature ensures the chapter
markers are created at each break in the
images.
Before you start...
Mark the contents in the Time Shift
Buffer for which you wish to record to
the hard disk. Otherwise, all the contents
will be cleared when you start camcorder
recording.
C Press CAM on the remote control.
A warning message appears. All the
contents in the Time Shift Buffer will be
cleared, only the ‘marked’ contents will
be stored onto the hard disk.
Switching to camera mode will clear the
Time Shift Buffer.
Select a media type to record.
Hard Disk
INFO
press OK to confirm.
E Turn on the DV camcorder and start
playback.
F Press REC z to start recording.
DV control
AUDIO
SELECT
EDIT
Cancel
D Select the destination for recording and
PAUSE LIVE TV
SUBTITLE
Optical Disc
SCART
A Turn on the TV to the correct viewing
G To use the recorder’s remote control to
control the camcorder’s operation during
recording, press the Green button on the
remote control for { DV control }.
The DV control buttons display on the
screen.
channel for the recorder.
B Connect your Digital Video or Digital 8
camcorder to the DV IN socket of this
recorder.
00:11:25
Cancel
CHAPTER
DIVIDE
HIDE
43
English
Record from external devices (continued)
Record from external devices (continued)
English
H You can navigate to the respective
control keys on the screen to control the
playback of your DV camcorder.
I To stop the recording, press STOP x.
Both the recorder and camcorder
stop.
J To exit, press LIVE TV.
Helpful Hints:
– Some camcorders cannot be controlled by
on-screen DV control buttons.
– Mixing of PAL and NTSC video format
recording on a same recordable DVD is not
possible.
– If a part of the tape is blank, the recording
will pause. Recording starts automatically
when there is a recordable signal. However,
if there is more than 5 (five) minutes of
blank tape, the recording ends automatically.
44
About copying
Content
Recordings
Video files
Music
English
Copy TV programmes from HDD
Copying recordings to
recordable DVD
Sorting
New
All
Genre
Protected
Delete order
Last played
A Turn on the TV to the correct viewing
channel for the recorder.
B Insert a recordable DVD into the
recorder.
TV programmes recorded to the hard
disk will be kept as ‘Recordings’ content.
It allows you to edit your recording easily
and copy to a recordable DVD for safe
keeping or later viewing.
The time required for copying is
depending on the recording mode that
was used on the hard disk recordings. It
is not possible to change the recording
mode for the copying process. It is
therefore important that you choose the
appropriate recording mode when you
set up the recording to the hard disk.
The copying process is done at a higher
speed than the recording. The maximum
copying speed is up to 4x. You cannot
shorten the time required for recording
even with high-speed discs.
Hard disk
HDD
recording
mode
HQ
SP
SPP
LP
EP
SLP
SEP
Recordable DVD
Hours of recordings can
be stored in an empty
4.7GB recordable DVD
Time required
for copying 1 hour
of recording
1
2
2.5
3
4
6
8
15.0 mins
8.0 mins
7.0 mins
6.0 mins
4.5 mins
3.5 mins
2.5 mins
C Press HDD LIST on the remote
control.
D Use
keys to reach the title you
want, then press the Green button on
the remote control for { Copy }.
The making disc copy information
appears.
Check Disc
Title
Length
Available Space
Copying Time
Erase disc
Start
CH8 15-Jul-2007 13:54
52 min
2 hr 03 min
19 min
Cancel
E Press the Green button to start copy.
Otherwise, press the Yellow button to
abort the operation.
If you are using a DVD±RW for
recording, you can press í / ë to
select the space in the disc where you
want the recording to be placed (e.g. the
space of a deleted title).
Helpful Hint:
– If you are unable to fit a title to a
recordable DVD, split the title to remove the
unwanted sections. See ‘Edit Recordings Hard Disk - Video editing’ for details.
45
Copy TV programmes from HDD (continued)
English
Changing the screen display
for recordable DVD
If the recordable DVD has been used in a
computer drive or in another recorder,
the screen menu may not be displayed
correctly.
Before you can make recording to this
disc on this recorder, you must change
the screen display of the disc to ‘Philips’
type.
A Load in a recordable DVD.
B Press HOME on the remote control.
C Move to { Disc Tray }.
Source
Titles
Hard Disk
Title 01
Disc Tray
Title 02
USB
Title 03
Title 04
Title 05
Title 06
Title 07
Title n
Adapt menu
D If { Adapt menu } appears, it means this
disc has a different menu format. Press
the Red button on the remote control.
A message to confirm your action
appears on the TV.
E Press OK to confirm adapt menu action.
46
A part of this recorder’s hard disk drive
can be used as a Media Jukebox, allowing
you to store and playback your videos,
music and photos. You can copy these
files from either USB or DVD to the
hard disk, from hard disk to USB and
recordable DVD and even directly
between USB and recordable DVD.
Notes:
It is not possible to copy video or
TV recordings from the hard disk to
a USB device.
The Media Jukebox supports the
following files:
– MP3 and Windows Media music (.mp3
and .wma)
– JPEG digital camera photos (.jpg)
– DivX movies (.avi and .divx)
F Press the Green button for { Copy }.
Media type selection screen appears.
Target for copy.
Choose destination for copy.
To Disc
To USB
G Select the destination for copying and
press OK to confirm.
Otherwise, press BACK
the previous menu.
to return to
H Press OK again to start copy.
Otherwise, select { Cancel } in the menu
and press OK to abort the operation.
Copying files from HDD to
USB or recordable DVD
You can copy the files from the
recorder’s hard disk to your USB thumb
drive or recordable DVD. When copy
to USB, only data files (MP3, WMA,
DivX and JPEG) are allowed.
A Turn on the TV to the correct viewing
channel for the recorder.
B Insert a recordable DVD into the
recorder or a USB thumb drive to the
USB slot.
C Press HOME.
D Select the media where the files are
stored and press
.
E Use
keys to reach the title you
want. To make multiple selection, press
SELECT.
47
English
Copy files between HDD, USB and DVD
Copy files between HDD, USB and DVD (continued)
English
Copying files from USB to
HDD or recordable DVD
Copying files from CD/DVD
to HDD or USB
You can copy the data files (MP3, WMA,
DivX and JPEG) in your USB drive to this
recorder’s hard disk drive or recordable
DVD.
You can only copy the data files (MP3,
WMA, DivX and JPEG) from your disc to
this recorder’s hard disk drive or USB
device.
A Turn on the TV to the correct viewing
channel for the recorder.
A Turn on the TV to the correct viewing
channel for the recorder.
B Connect the USB flash drive/memory
card reader or digital camera to the USB
socket at the front panel of the recorder.
C Press USB on the remote control to
view the files.
D Navigate in the menu and select the files
to copy. To make multiple selection,
press SELECT.
B Insert a CD/DVD into the recorder.
C Press DISC on the remote control.
The disc content menu appears.
D Use
keys to reach the title you
want. To make multiple selection, press
SELECT.
E Press the Green button for { Copy }.
Media type selection screen appears.
E Press the Green button for { Copy }.
Media type selection screen appears.
Target for copy.
Choose destination for copy.
To Hard Disk
Target for copy.
Choose destination for copy.
To USB
To Hard Disk
To Disc
F Select the destination for copying and
press OK to confirm.
F Select the destination for copying and
press OK to confirm.
Otherwise, press BACK
the previous menu.
to return to
G A confirmation dialogue appears, press
OK to start copy.
Otherwise, press BACK
the previous menu.
to return to
G A confirmation dialogue appears, press
OK to start copy.
Otherwise, select { Cancel } in the menu
and press OK to abort the operation.
Copy
1 item(s) selected for copying.
Copy
Cancel
Otherwise, select { Cancel } in the menu
and press OK to abort the operation.
48
Helpful Hint:
– All DivX (.avi or .divx) files will be copied
to the Video partition of the hard disk, while
all music (.mp3 or .wma) and digital camera
photos (.jpg) will be copied to the Data
partition.
Playback from Hard Disk
to
English
B Select a contents type and press
Hard Disk navigation
access its sorting display options.
The Hard Disk drive serves as a media
jukebox which allows you to store all
source of recordings (TV recordings,
videos, music and photos). The titles
recorded or copied to the hard disk will
automatically be saved under separate
contents based on the characteristics of
the recordings.
Hard Disk
Content
Recordings
Sorting
Video files
All
Music
Genre
Protected
New
Delete order
Last played
The sorting options are varied with the
kind of content selected.
C Select a sorting option and press
Content
to
view the titles.
Sorting
D To exit the menu, press HOME.
Titles
A Press HOME.
The Home menu appears.
Source
Hard Disk
Content
Disc Tray
Video files
USB
Music
Recordings
Previous
HDD Info
{ Recordings }
Contains recordings from the Time Shift
Buffer (TV programmes).
{ Video files }
Contains only DivX or compatible video
files (.avi or .divx).
{ Music }
Contains only audio files (.mp3 or .wma).
{ Photo }
Contains only picture files (.jpg or .jpeg).
49
Playback from Hard Disk (continued)
English
Basic operation
Each recording stored on the hard disk is
displayed in the HDD list with an Index
Picture.
A Press HDD LIST on the remote
control.
Titles
Info
Title 1
Title 2
Title 3
Title 4
Title 5
Delete
Copy
Time
Date
Genre
00:37:34 SP
07.07.2007
Others
Child Lock
Protect
B Use
keys to reach the title you want
to play, then press u to start playback.
This recorder has resume playback
ability. Playback always begins at the last
stopped point. To start playback from
the beginning, press OK.
Symbols at the { Info } screen indicating:
– title is still part of the recording
in the ‘Time Shift Buffer’.
– title is locked.
P – title is protected.
– title has been viewed.
PREV í / NEXTë
– Move to the beginning or previous/
next chapter.
REW m / FFW M
– Fast backward/forward search. Press
the button again to increase the search
speed (4x, 16x, 64x, 256x).
– While in pause mode, start slow
motion playback.
(REPLAY) / (SKIP)
– Skip backward or forward in the Time
Shift Buffer.
INFO
– Show or hide the title information,
video bar and additional features that can
be accessed via the colour coded button.
PAUSE LIVE TV u
– View a still picture or resume
playback.
STOP x
– Stop playback.
D To exit the menu, press HOME.
– title has been edited.
PAUSE LIVE TV
C During playback, you can use the
following buttons on the remote control
to access additional playback features.
50
SUBTITLE
INFO
AUDIO
SELECT
EDIT
SCART
Delete/Lock/Protect a title in
the HDD
These options are displayed at the
bottom of the hard disk title content
menu.
A Press HDD LIST on the remote
control.
B Use
keys to reach the title you
want.
C Press the matching colour coded button
on the remote control to access the
options displayed at the bottom of the
menu.
Delete
Copy
Child Lock
Protect
Chld Unlck
Unprotect
Repeat hard disk playback
While playback the title in the hard disk,
you can select to repeat playback the title
or a specific segment within the title.
Repeat
Repeat A-B
Press the Yellow button on the remote
control for { Repeat }.
The title will be played back
repeatedly until you press the Yellow
button again.
Press the Blue button on the remote
control for { Repeat A-B }.
The first press to mark the starting
point of repeat playback and the second
press to mark the ending point.
The marked segment will be played
back repeatedly until you press the Blue
button again.
{ Delete }
Red button – Delete the selected title
from the hard disk.
{ Copy }
Green button – Copy the selected title
to a recordable DVD. Copy to USB
device only possible for data files.
{ Child Lock } / { Chld Unlck }
Yellow button – Lock or unlock the
selected title from viewing. A four-digit
pin code is required to play the locked
title or to unlock the title.
Note: This option only visible if the
{ Child lock } setting is enabled. See
‘System Menu Options - Playback settings
- { Access }’.
{ Protect } / { Unprotect }
Blue button – Protect or unprotect the
title against editing or automatic deletion
of recordings.
D To exit the menu, press HOME.
51
English
Playback from Hard Disk (continued)
Playback from USB device
English
You can view, copy or delete the
contents of a USB flash drive/memory
card reader or digital camera through
this recorder.
D To stop playback, press STOP x or
remove the USB flash drive/memory card
reader or digital camera from the USB
socket.
Helpful Hints:
– The USB socket only supports playback
and copying of JPEG/MP3/WMA/DivX files.
– The USB socket does not support the
connection of other USB devices except to a
USB flash drive/memory card reader or
digital camera.
– When the USB device does not fit into the
USB socket, a USB extension cable is
required.
A Connect the USB flash drive/memory
card reader or digital camera directly to
the USB socket on the front panel (as
shown in the above illustration).
B Press USB on the remote control to
view the files.
The content menu appears.
Content
Root
Video
Folder 01
Music
Folder 02
C Select the file to play and press u to
start playback.
During playback, the available playback
settings are displayed at the bottom of
the screen.
For more playback information, see
‘Playing an audio CD (MP3/WMA)’,
‘Playing a JPEG photo (slideshow)’ or
‘Playing a DivX disc’ for details.
52
Playable discs
Using this recorder, you can play and
record on the following discs:
Recording and Playback
DVD±RW
(DVD Rewritable);
can be recorded on
over and over.
DVD±R
(DVD Recordable);
can be recorded
only once.
IMPORTANT!
– If the inhibit icon ‘X’ or
appears on the TV screen when a
button is pressed, it means the
function is not available on the
current disc or at the current time.
– DVD discs and players are
designed with regional restrictions.
Before playing a disc, make sure the
disc is for the same region zone as
your player.
Starting disc playback
A Press STANDBY-ON 2 to turn on
the recorder.
DVD+R DL
(DVD+R Double Layer);
same as DVD±R.
B Press OPEN CLOSE ç on the front of
the recorder.
You can also hold down the STOP x
button on the remote control to open
and close the disc tray.
Playback only:
DVD Video (Digital Versatile
Disc)
CD-RW (CD-Rewritable)
Audio/ MP3/ JPEG contents
C Place the disc into the tray with the label
facing up, then press OPEN CLOSE ç.
For double-sided discs, load the side
which you want to play facing up.
ReWritable
D Turn on the TV to the correct viewing
CD-R (CD-Recordable)
Audio/ MP3/ JPEG contents
Audio CD (Compact Disc
Digital Audio)
MP3/WMA-Disc
Video CD
(Formats 1.0, 1.1, 2.0)
Super Video CD
DivX, DivX Ultra
channel for the recorder.
Recordable
E Playback may start automatically.
Otherwise, press DISC. Navigate to the
track/title to play and press u.
Helpful Hints:
– This recorder has resume playback ability
(for certain type of disc). Press PLAY to
resume playback or press OK to start
playback from the beginning.
– If the pin code entry dialogue appears on
the TV, this means that the child lock was
activated for the inserted disc. You have to
enter your four-digit pin code.
53
English
Playback from Disc
Playback from Disc (continued)
English
Playing a DVD video disc
Normally the DVD disc contains a disc
menu. You may have to make your
selection (e.g.,, subtitle or audio language)
within the disc menu.
A Insert a DVD.
If the disc menu appears, use
keys
to select a play option and press OK to
confirm or the alphanumeric keypad
0-9 to input your selection.
To access the disc menu
Press DISC on the remote control.
To select the previous or next
chapter/title
During playback, press SELECT on the
remote control to toggle between
‘TITLE’ or ‘CHAPTER’, then press í /
ë.
B To stop playback, press STOP x.
Playing a (Super) Video CDs
(Super) Video CDs may feature ‘PBC’
(Play Back Control). This allows you to
play the video CDs interactively,
following the menu on the display.
A Insert a (Super) Video CD.
If the disc index menu appears, use
keys to select a play option or use the
alphanumeric keypad 0-9 to input
your selection and press OK to confirm.
To return to the previous menu, press
BACK on the remote control.
B To stop playback, press STOP x.
Playing a DVD recordable disc
A Insert a DVD recordable disc.
The Index Picture screen appears.
Title
Title 1
Title 2
Title 3
Title 4
Title 5
Empty title
Delete
00:05:12
HQ
15.07.06
02:00:24
SP
28.07.06
00:35:12
SP
Child Lock
Protect
B Use
keys to select a title to play,
then press u.
C To stop playback, press STOP x.
Helpful Hint:
– If the message ‘EMPTY DISC’ appears on
the display panel, this means that there are
no recordings on this disc.
54
Playing an audio CD (MP3/WMA)
MP3 (MPEG1 Audio Layer-3) files are
highly compressed music files. The MP3
format lets you store about ten times
more data (music, pictures) on a single
CD-ROM than a regular CD.
Playing a DivX file
See ‘System Menu Options - Setup
Settings - { DivX VOD }’ for information
on purchasing or renting movies from
DivX VOD service. This recorder can
only playback DivX movies which are less
than 4GB.
A Insert an audio CD.
The content menu appears.
Otherwise, press DISC.
A Press HOME.
B Select the media where the DivX file is
stored and press
Content
.
Root
Video
Images
Music
MP3
C Select { Video } in the content menu.
D Use
B Select the audio album or track to play
and press u.
keys to reach the title you
want to play, then press u to start
playback.
During playback, you can;
Track 01
Track 02
Track 03
Track 04
Album
Track 05
Track 06
Track 07
Track number 06/14
Track time 04:12:10
C During playback, you can press í / ë
to select the next/previous track.
D To stop playback, press STOP x.
Helpful Hints:
– If both JPEG pictures and MP3/WMA are
in the same disc, you can choose to playback
the JPEG pictures or MP3/WMA by selecting
{ Photo } or { Music } in the menu.
– Only the first session of a multi-session CD
will be played back.
– This recorder does not support MP3PRO
audio format.
– If any special characters are present in the
MP3 track name (ID3) or album name, it
might not be displayed correctly on the
screen because this recorder does not
support the characters.
If multilingual subtitles are available on
the DivX disc, you can press SUBTITLE
on the remote control to change the
subtitle language.
If the DivX title provides different audio
tracks, you can press AUDIO on the
remote control to change the audio
stream.
To select the font type that supports the
recorded subtitle:
1) Press OPTIONS.
2) Move to { Character set } in the
menu and press .
3) Make your selection and press OK.
E To stop playback, press STOP x.
Helpful Hints:
– Subtitle files with the following file name
extensions (.srt, .smi, .sub, .ssa, .ass) are
supported but do not appear on the file
navigation menu.
– The subtitle file name has to be the same
as the file name of the movie.
– The subtitle can only be displayed up to an
average of 45 characters.
55
English
Playback from Disc (continued)
Additional Playback Features
English
Playing JPEG photo files
(slide show)
E Select a file and press u to start the
slide show playback or press OK to
show the overview images.
During playback, the available playback
settings are displayed at the bottom of
the screen.
A Press HOME.
Source
Hard Disk
Disc Tray
USB
B Select the media where the JPEG photos
are stored and press
Zoom
Repeat
Speed Dn
Speed Up
.
Content
Video
{ Zoom }
Red button – Activate zoom mode. The
slideshow playback will pause.
Music
C Select { Photo } in the menu and press
{ Zoom In }
Blue button: enlarge the
picture.
{ Zoom Out }
Yellow button: revert to
the actual size.
{ End }
Red button: exit zoom
mode and continue
slideshow playback.
.
From Hard Disk only, { Photo folders }
and { Photo albums } options appear.
Press again to select the option you
want the photo files to appear.
Note: { Photo albums } option is not
available on optical disc and USB.
D Press
repeatedly until a list of photo
file names appear.
The first 4 photos found in the
currently selected folder will be displayed
at the right hand panel.
Photo folders
Info
{ Repeat }
Green button – Toggle between repeat
on and off.
{ Speed Dn } / { Speed Up }
Yellow and Blue buttons – Change the
slideshow playback speed.
{ Slow }
10 (ten) seconds interval.
{ Medium }
5 (five) seconds interval.
{ Fast }
3 (three) seconds interval.
roll 1
roll 2
roll 3
F To stop playback, press STOP x.
07.07.2007
100 photo(s)
Copy
56
To Album
Helpful Hints:
– If both JPEG photos and MP3s are in the
same disc, you can choose to playback the
JPEG photos or MP3s by selecting { Photo }
or { Music } in the menu.
– If the JPEG photo is not recorded with an
‘exif’ type file, the actual thumbnail picture
will not be shown on the display. It will be
replaced with a ‘blue mountain’ thumbnail
picture.
– Some types of JPEG file cannot be played
on this recorder.
– It may require longer time for the recorder
to display the disc content on the TV due to
the large number of songs/pictures compiled
into one disc.
– Unreadable disc or disc with no name will
be displayed as ‘Unknown Data’.
– During JPEG photo playback, pressing
OPTIONS button switches to live TV mode.
Supported JPEG picture formats
File format:
– The file extension has to be ‘*.JPG’ and
‘*.JPEG’.
– This recorder can only display digital
camera pictures according to the JPEGEXIF format, typically used by almost all
digital cameras. It cannot display Motion
JPEG, progressive JPEG and other JPEG
formats, or pictures in formats other
than JPEG, or sound clips associated with
pictures.
– The JPEG photos with resolution more
than 13 megapixel cannot be supported.
English
Additional Playback Features (continued)
Playing musical slideshow
This is only possible if both the JPEG
photo files and music are stored in the
same media.
A Press HOME.
B Select the media where the music are
stored and press
Content
.
Root
Video
Images
Music
MP3
C Select { Music } in the menu and press
.
D Use
keys to reach the folder/
file you want to play, then press u to
start playback.
Track 01.mp3
Track 02.mp3
Artist
Track Name
Track 03.mp3
Track 04.mp3
Album
Track 05.mp3
Track 06.mp3
Track 07.mp3
SlideShow
Shuffle
Track number 06/14
Track time 04:12:10
Repeat
E Press the Red button on the remote
control for { SlideShow }.
The { Photo Content } menu
appears.
F Select a photo file and press u to start
slideshow playback.
The music keeps playing back and will
be repeated if reaches the end of the
playlist or track.
G Press STOP x to stop the slideshow.
57
Additional Playback Features (continued)
English
Creating a photo playlist
(album)
You can customise the JPEG photos
slideshow playback by storing your
selection in an album.
This recorder can handle up to a
maximum of 100 albums. Each album can
contain up to 100 images.
Note:
This feature is only available for photos
stored in the Hard Disk.
A Press HOME.
B Select { Hard Disk } in the menu and
press
.
in the menu, then press
Sorting
Date sort
Delete
.
Photo folders
Name sort
Copy
roll 1
roll 2
roll 3
To Album
D To select all the photos in the selected
folder, press SELECT on the remote
control.
E To select a specific photos in the folder,
press OK to show the overview images.
58
keys to navigate and press
SELECT to select the photo.
A marking appears on the top right
hand corner of the selected photo(s).
To delete a photo or the selected
photo(s), press the Red button for
{ Delete }.
G Press the Yellow button on the remote
control for { To Album }.
The { Add Photo to Album } menu
appears.
H Create a new album or select an existing
album, then press OK to add the
photo(s) to it.
The selected photos are now stored
in the album.
I To exit the menu, press HOME.
C Move to { Photo } > { Photo folders }
Delete
F Use
Copy
To Album
Rotate
Editing the album
You can re-arrange the photo position in
the album in order to create the desired
slideshow playback order, or remove the
photo(s) from the album. However, the
photos in the ‘Photo folders’ remain
unchanged.
Note:
This feature is only available for photos
stored in the Hard Disk.
G Use
keys to move the
‘navigator’ around the menu and press
OK to confirm the position where you
want to insert the photo(s).
To rotate the selected photo(s)
H Press the Blue button for { Rotate }.
A Press HOME.
B Select { Hard Disk } in the menu and
press
To change the photo(s) position in
the album
F Press the Yellow button on the remote
control for { Move }.
A ‘navigator’ appears in the menu, it
enables you to select the position
between the photos.
The photo rotates in 90 degree
clockwise increments for each press.
.
C Move to { Photo } > { Photo albums }
in the menu, then press .
A list of photo albums appears.
Photo folders
To remove the photo(s) from the
album
Press the Red button for { Remove }.
I To exit the menu, press HOME.
Info
Alb0001
Alb0002
Alb0003
Deleting an album
07.07.2007
100 photo(s)
Delete
Copy
A Select an album from the { Photo
albums } list.
B Press the Red button for { Delete }.
D Use
keys to select an album and
press OK to view the overview images.
Changing the album information
A Select an album from the { Photo
albums } list.
B Press EDIT on the remote control.
Remove
Copy
Move
Rotate
C Make the necessary changes on the
respective fields (name or date) and press
OK and EDIT to exit the menu.
E Use
keys to navigate and press
SELECT to select the photo.
A marking appears on the top right
hand corner of the selected photo(s).
59
English
Additional Playback Features (continued)
Additional Playback Features (continued)
English
Searching forwards/
backwards
You can fast forward or fast reverse a
disc during playback and select a desired
search speed.
PAUSE LIVE TV
SUBTITLE
INFO
AUDIO
SELECT
EDIT
SCART
A During playback, press m (reverse) or
M (forward) until the search speed
status bar (4X) appears on the TV.
The sound will be muted.
Selecting another title/
chapter/ track
B Press m (reverse) or M (forward)
When a disc contains more than one
track, title or chapter, you can change to
a different track, title or chapter as
follows.
C To resume normal playback, press u.
During playback,
Pausing playback / slow
motion play
Press ë to go to the next title/chapter/
track.
A During playback, press u to pause
Press í to return to the start of the
current title/chapter/track.
B Press m (reverse) or M (forward)
Pressing í twice can return to the start
of the previous title/chapter/track.
OR
Use the alphanumeric keypad 0-9 to
input the title/chapter/track number.
OR
Press SELECT on the remote control
to toggle between ‘Title’ or ‘Chapter’,
then press í / ë to select the previous
or next title/ chapter.
60
repeatedly to cycle through the different
search speed (4X, 8X, 32X).
playback and display a still picture.
until the slow motion status bar (1/8X)
appears on the TV.
The sound will be muted.
C Press the m (reverse) or M
(forward) repeatedly to cycle through the
different slow motion speed (1/8X, 1/4X,
1/2X).
D To resume normal playback, press u.
During disc playback, press INFO on the
remote control to display the available
playback options. These options are
varied depending on the disc type and can
be selected by pressing the matching
colour coded buttons on the remote
control.
Scan
Shuffle
Repeat
Repeat A-B
Scan disc
(for CD, VCD, DVD±R/±RW disc only)
This function allows you to preview the
first 10 seconds of each track on the disc.
A During playback, press the Red button
on the remote control.
The recorder skips to the next track
after 10 seconds of playback.
B To resume normal playback, press the
Repeat play
The repeat play options vary depending
on the disc type.
A During playback, press the Yellow
button on the remote control to select
one of the repeat options.
Repeat chapter (DVD, DVD±R/±RW
only)
Repeat track/title
Repeat folder/playlist (if applicable)
Repeat entire disc (video CD, audio
CD, DVD±R/±RW only)
B To cancel repeat playback, press the
Yellow button repeatedly until the
repeat mode is off or press STOP x.
Red button again.
Repeat playback a specific
segment (A-B)
Shuffle play
You can repeat the playback of a specific
segment within a title/chapter track. To
do this, you must mark the start and end
of the segment you want.
(for CD, MP3 disc only)
Select shuffle play mode to allow the
recorder to randomly select and play
tracks on the disc.
A Press the Green button on the remote
control.
It starts play back of all the tracks
within the folder in a random order.
B To cancel shuffle playback, press the
Green button again.
A During playback, press the Blue button
on the remote control.
This indicates that the start point has
been marked.
B Press the Blue button again to mark the
end of the segment.
A visual marker is placed on the
programme bar.
Playback skips to the start of the
marked segment. The segment is
repeated until the repeat mode is
cancelled.
C To cancel repeat playback, press the
Blue button once again.
61
English
Additional Playback Features (continued)
Additional Playback Features (continued)
English
Using the Toolbar options
Note:
Select { Settings } to access the system
setup menu options. See ‘System Menu
Options’ for details.
Clearing the Time Shift Buffer
This option is only available while in live
TV mode.
PAUSE LIVE TV
A Move to { Reset TSB } and press
A During playback, press OPTIONS on
the remote control.
The available options might differ
depending on the state of playback or
media type.
During HDD playback:
.
B Press OK.
A warning message appears.
C To proceed, select { Yes } in the menu
and press OK on the remote control.
The contents in the Time Shift Buffer
(TSB) will be cleared.
Tools
Audio language
Subtitle language
Time search
Lang I
Changing audio soundtrack
language
Reset TSB
Settings
During disc playback:
A Move to { Audio language } and press
Tools
Audio language
This operation works only on DVDs with
multiple soundtrack language, or VCDs
with multiple audio channel, or DVD±R/
±RW recorded with 5.1 multi-channel.
1 en
to enter its options.
Subtitle language
Angle
Zoom
Time search
Settings
B Use
keys to select a setting.
C Press
to enter its options.
Instructions and explanations of the
options are provided in the following
pages.
If the selection in the menu is greyed
out, that means the feature is not
available or cannot be changed in the
current state.
D To exit, press OPTIONS.
62
B Press
repeatedly until the audio
language or soundtrack you want is
selected.
The languages may be numbered or
abbreviated, such as ‘en’ for English.
{ Lang 1 } is the original broadcast
language and { Lang II } is the additional
broadcast language.
C Press
to confirm.
Helpful Hint:
– While in disc playback mode, you can also
press the AUDIO on the remote control
repeatedly to select different audio language.
Changing subtitle language
Zooming in/out
This operation works only on DVDs with
multiple subtitle languages. You can
change to the language you want while
playing DVD.
A Move to { Subtitle language } and
press
to enter its options.
B Press
repeatedly until the language
you want is selected.
The languages may be numbered or
abbreviated, such as ‘en’ for English.
C Press
This option only available on DVDs and
recordable DVDs playback. It allows you
to enlarge the picture on the TV screen
and to pan through the enlarged picture.
A Move to { Zoom } and press OK to
enter zoom in mode.
The zoom status bar appears and
displays the zoom factor.
Zoom
200%
to confirm.
Helpful Hint:
– While in disc playback mode, you can also
press the SUBTITLE on the remote control
repeatedly to select different subtitle language.
End
Zoom Out
Zoom In
B Press the Blue button on the remote
Switching camera angles
This option is only available with DVDs
that contain sequences recorded from
different camera angles. This allows you
to view the picture from different angles.
A Move to { Angle } and press
to enter
its options.
The camera angles available for
selection appear.
B Select the camera angle you want to
switch to and press
to confirm.
control to zoom in or Yellow button to
zoom out.
C Use
keys to pan through the
zoomed picture.
D To exit zoom mode, press the Red
button.
Searching by time
This option allows you to skip to a
specific point in the current disc or a
specific time in the Time Shift Buffer.
A Move to { Time search } and press
to enter the time field (hours : minutes :
seconds).
B Use the alphanumeric keypad 0-9 to
enter the time where playback should
start.
C Press OK to confirm.
Playback skips to the time entered.
63
English
Additional Playback Features (continued)
Edit Recordings - Hard Disk
English
Changing the title name
Selecting the genre
Some TV channels transmit the name of
the programme. In this case, the
programme name will automatically be
stored when recording to the hard disk.
Otherwise, only the programme number
and date/time of the recording will be
stored as title name.
You may select the genre type provided
in the list for easy and fast searching of a
recorded title.
A Press HDD LIST on the remote
A Press HDD LIST on the remote
control.
B Use
keys to reach the title you
want.
C Press EDIT on the remote control.
control.
The HDD edit menu appears.
Titles
Info
Title 1
Title 2
Title 3
Title 4
Title 5
B Use
Edit
Genre
Title name
Movie
Sports
News
Music
Games & Shows
Children
Others
Cultural
Genre
Time
Date
00:37:34 SP
07.07.2007
Video edit
keys to reach the title you
want.
C Press EDIT on the remote control.
The HDD edit menu appears.
Edit
Title name
Photo Rolls
Title
name
The Wall
Genre
Video edit
D Move to { Genre } in the menu and
press
.
E Select a genre type and press
confirm.
D Move to { Title name } in the menu and
press
.
E Use
keys to change the character/
number or make an entry by using the
alphanumeric keypad 0-9.
Use
keys to move to the
previous or next field.
To switch between upper and lower case
characters, press SELECT.
To clear the title name, press the Red
button for { Clear }.
F Press OK to confirm the changes.
64
to
English
Edit Recordings - Hard Disk (continued)
Video editing
This recorder allows you to edit the
video content after a recording has been
made. You can insert/delete chapter
markers or hide unwanted scenes.
00:11:25
No Chapter
When you play back a recording in video
edit mode, the entire recording will be
played back including the hidden scenes.
Chapter
Divide
Hide
Video bar:
In the video bar, the record playback
head represents the actual position of the
playback.
E Press the matching colour coded buttons
on the remote control to access the
options displayed at the bottom of the
menu.
PAUSE LIVE TV
SUBTITLE
INFO
AUDIO
SELECT
EDIT
SCART
A Press HDD LIST on the remote
control.
B Use
keys to reach the title you
want.
C Press EDIT on the remote control.
The HDD edit menu appears.
Edit
Video edit
Title name
Genre
Video edit
{ No Chapter }
Red button – Erase all the chapter
markers in the current title.
{ Chapter }
Green button – Access chapter editing
menu.
{ Divide }
Yellow button – Divide the recording
into two separate titles.
{ Hide } / { Stop Hide }
Blue and Green buttons – Define the
scene to hide.
{ Show } / { Stop Show }
Blue and Green buttons – Make the
hidden scene visible.
F To exit, press EDIT.
D Move to { Video edit } and press OK to
start video edit playback.
Helpful Hint:
– The edited title will be appeared with
symbol in the menu.
65
Edit Recordings - Hard Disk (continued)
English
Merge/split a specific chapter
within a recording
You can create a chapter by inserting
chapter marker (using the SPLIT option)
or remove a chapter marker (using the
MERGE option).
{ Merge }
Merge the current chapter with the
chapter before it.
Note: If the previous chapter was
selected to be hidden, then the joined
chapter will also become hidden.
Title
A During hard disk recording playback,
press u to pause playback at the scene
where you want to edit.
Use m / M keys or / keys on
the remote control for fast reverse or
forward search.
B Press the Green button on the remote
control for { Chapter }.
The chapter editing menu appears.
No Chapter
Chapter
Merge
Back
Divide
Hide
Split
Chapter 1 Chapter 2 Chapter 3 Chapter 4
Chapter 1
Chapter 2 Chapter 3
(for example, chapter 2 is selected)
{ Back }
Return to the previous screen.
{ Split }
Insert a new chapter marker at the
current point of playback. This allows you
to access a specific point in the recording
easily or set a chapter you wish to hide
(for example, commercial scenes).
C Press the matching colour coded buttons
Title
on the remote control to access the
options displayed at the bottom of the
menu.
Chapter 1 Chapter 2 Chapter 3 Chapter 4
Chapter 1
Chapter Chapter
2a
2b
Chapter 3 Chapter 4
(for example, chapter 2 is selected)
Helpful Hint:
– There is a limit on chapter markers that
can be stored within a title and on the hard
disk drive.
PAUSE LIVE TV
SUBTITLE
INFO
66
AUDIO
SELECT
EDIT
SCART
Dividing titles
Hiding unwanted scenes
You can divide a title into two or more
titles. You can use this function to
separate and delete undesired portions of
a recording, such as commercials.
CAUTION!
Once a title has been divided, it
cannot be reversed.
A During hard disk recording playback,
press u to pause playback at the scene
where you want to edit.
You can choose to hide certain scenes
for playback (e.g., skipping a commercial
scene) or make the hidden scene visible
again.
A During hard disk recording playback,
press u to pause playback at the scene
where you want to edit.
Use m / M keys or / keys on
the remote control for fast reverse or
forward search.
B Press EDIT on the remote control.
C Press the Blue button on the remote
control for { Hide }.
It sets the start marker for hide.
No Chapter
Chapter
Divide
Hide
00:11:25
No Chapter
Chapter
Divide
Hide
Stop Hide
Use m / M or / keys on the
remote control for fast reverse or
forward search.
B Press EDIT on the remote control.
C Press the Yellow button on the remote
control for { Divide }.
A new title and new Index Picture will
be created from the current point of
playback.
Title1
Title1
Title2
Title 2
Title 3
Cancel
D Press M key on the remote control to
search for the end of the scene to hide.
E Press the Green button for { Stop
Hide }.
It sets the end marker for hide.
The ‘hidden’ area will be marked in
blue.
Otherwise, cancel the operation by
pressing the Blue button on the remote
control for { Cancel }.
F To exit, press EDIT.
(for example, title 1 is selected)
67
English
Edit Recordings - Hard Disk (continued)
Edit Recordings - Hard Disk (continued)
English
Showing the hidden scene
Deleting all chapter markers
A During hard disk recording playback,
press EDIT on the remote control.
The hidden chapter will be played
back while in video editing mode
During recording, the chapter marker is
set automatically at a specific interval if
the function is active. You can choose to
delete all the chapter markers when the
recording has finished.
A During hard disk recording playback,
press EDIT on the remote control.
Hidden
scenes
00:11:25
No Chapter
NO
CHAPTER
Chapter
CHAPTER
Divide
DIVIDE
Show
HIDE
B Press the Blue button on the remote
control for { Show }.
It marks the beginning of scene to
show.
C Press M on the remote control to
search for the end of the scene to show.
D Press the Green button for { Stop
Show }.
Otherwise, cancel the operation by
pressing the Blue button on the remote
control for { Cancel }.
Helpful Hints:
– All the hidden chapters will be played back
while in video editing mode.
– The selection of scenes to hide or show
can only be done within a title.
68
00:11:25
No Chapter
Chapter
Divide
Hide
B Press the Red button on the remote
control for { No Chapter }.
All the chapter markers in the current
title will be deleted.
Edit Recordings - Recordable DVD
This recorder offers various disc edit
options. You can change the disc content
and settings of a recorded DVD from the
editing menu. If a DVD±R has been
finalised, it cannot be edited. The edited
contents may not be available if you play
the disc on another DVD player.
Index Picture screen
English
About editing recordable
DVDs
The Index Picture screen shows your
recordings on a recordable DVD. It
appears on the TV once you load a
recordable DVD or when playback is
stopped.
Title
Title 1
Title 2
Title 3
Title 4
Title 5
Empty title
00:05:12
HQ
15.07.06
02:00:24
SP
28.07.06
00:35:12
SP
An Index Picture screen represents each
recording information save :
PAUSE LIVE TV
A The title’s Index Picture.
SUBTITLE
INFO
AUDIO
SELECT
EDIT
SCART
B The title’s information (length of
recording, record mode and date).
The displayed options in the editing menu
differ depending on the situation and disc
type.
– Change disc name
– Make DVD compatible (DVD±RW
only)
– Finalise disc (DVD±R only)
– Change title name
– Delete all titles
– Video editing
Edit
Disc name
Photo Rolls
Disc
name
The Wall
C The empty space for recording.
Helpful Hint:
– If the disc is not recorded from this
recorder, the format of Index Picture screen
might be different. You have to adapt the
disc menu to the format of this recorder
before editing. See ‘About Home - Changing
the disc format for recordable DVD’ for
details.
Compatible
Finalise
Title Name
Delete all
Video edit
Clear
69
Edit Recordings - Recordable DVD (continued)
English
Changing the disc/title name
The original disc/title name is generated
automatically by the recorder. You can
change the disc/title name by following
the steps below.
A Insert a recorded DVD into the
recorder.
The Index Picture screen appears.
B Press EDIT on the remote control.
The editing menu appears.
C Move to { Disc name } or { Title
name } in the menu and press
.
D Use
keys to change the character/
number or make an entry by using the
alphanumeric keypad 0-9.
Use
keys to move to the
previous or next field.
To switch between upper and lower case
characters, press SELECT on the
remote control.
E Press OK to confirm the changes.
Making the edited DVD±RW
compatible
The edited DVD±RW may still display
the original titles or hidden scenes when
played back on other DVD players. This
function allows you to make an edited
DVD±RW compatible with other players.
A Insert a recorded DVD±RW into the
recorder.
The Index Picture screen appears.
B Press EDIT on the remote control.
The editing menu appears.
C Move to { Compatible } and press OK.
If the option is not available for
selection, it means that the disc is already
compatible.
D Press OK to proceed.
Deleting all recordings/titles
Allows you to delete all the recordings
from the current recordable DVD.
A Insert a recorded DVD into the
recorder.
The Index Picture screen appears.
B Press EDIT on the remote control.
The editing menu appears.
C Move to { Delete all } and press OK.
A warning message appears.
D To proceed, select { Erase } in the menu
and press OK on the remote control.
Otherwise, select { Cancel } in the menu
and press OK to abort the operation.
70
Finalising the DVD±R for
playback
It is necessary to finalise a DVD±R or
DVD±R (DL) disc before you can play it
on another DVD player. Otherwise, the
DVD±R can only be played back on this
recorder.
Note:
After a DVD±R disc has been finalised,
no further recordings or editing can be
made to it. Make sure that you have
completed all the recordings and editing
before finalising the disc.
A Insert a recorded DVD±R into the
recorder.
The Index Picture screen appears.
Otherwise, press DISC.
B Press EDIT on the remote control.
The edit menu appears.
C Move to { Finalise } and press OK.
A warning message appears.
D To proceed, select { Finalise } in the
menu and press OK on the remote
control.
Finalisation may take more than 30
minutes, depending on the length of
recordings.
Do not try to open the disc tray or
turn the power off as this may render the
disc unusable.
Otherwise, select { Cancel } in the menu
and press OK to abort the operation.
Deleting a recording/title
You can delete a specific title from the
disc. However, for DVD±R discs, the
deleted space cannot be used for further
recordings.
A Insert a recorded DVD into the
recorder.
The Index Picture screen appears.
Otherwise, press DISC.
B Use
keys to reach the title you
want.
Title
Title 1
Title 2
Title 3
Title 4
Title 5
Empty title
Delete
00:05:12
HQ
15.07.06
02:00:24
SP
28.07.06
00:35:12
SP
Child Lock
Protect
C Press the Red button on the remote
control for { Delete }.
A warning message appears.
D To proceed, select { Delete } in the
menu and press OK on the remote
control.
For DVD±RW disc, ‘Empty Title’ will
be appeared in the Index Picture screen
where the title was deleted. The empty
space can be used for new recordings.
For DVD±R disc, ‘Deleted title’ will
be appeared in the Index Picture screen
where the title was deleted. During
playback, the deleted title will be skipped.
Otherwise, select { Cancel } in the menu
and press OK to abort the operation.
71
English
Edit Recordings - Recordable DVD (continued)
Edit Recordings - Recordable DVD (continued)
English
Lock/Unlock the disc for
playback
Protecting the recorded titles
(DVD±RW)
You can choose to lock the recorded
disc from viewing.
You can choose to protect the recorded
title on a DVD±RW in order to prevent
the recordings from being accidentally
erased or edited.
Before you start ...
Turn on the Child Lock feature. See
‘System Menu Options - Playback settings
- Access - Child lock’ for details.
A Insert a recorded DVD into the
recorder.
The Index Picture screen appears.
Otherwise, press DISC.
B Press the Yellow button on the remote
A Insert a recorded DVD±RW into the
recorder.
The Index Picture screen appears.
Otherwise, press DISC.
B Use
keys to reach the title you
want.
C Press the Blue button on the remote
control for { Child Lock }.
control for { Protect }.
Note:
Once the disc is locked, a four-digit pin
code is required to play the disc or to
unlock the disc.
Note:
Once the title has been protected, the
Blue button option changes to
{ Unprotect }. Select this to cancel the
protect setting if required.
Protect
72
Unprotect
E Press the matching colour coded buttons
Video editing
This recorder allows you to edit the video
content after a recording has been made.
You can add/delete chapter marker or
hide unwanted scenes.
on the remote control to access the
options displayed at the bottom of the
menu.
Title
PAUSE LIVE TV
Chapter Chapter Chapter Chapter
SUBTITLE
INFO
AUDIO
SELECT
EDIT
SCART
chapter markers
When you play back a recording in video
edit mode, the entire recording will be
played back including the hidden scenes.
A Insert a recorded DVD into the
recorder.
The Index Picture screen appears.
{ No Chapter }
Red button – Erase all the chapter
markers in the current title.
{ Chapter }
Green button – Access chapter editing
menu.
No Chapter
Chapter
Title
Hide
Back
Split
Hide
Otherwise, press DISC.
B Use
keys to reach the title you
want, then press u to start playback.
C Use m / M keys or
/ keys on
the remote control to search for the
scene you want to edit, then press u
to pause playback.
D Press EDIT on the remote control.
The video editing menu appears.
Merge
{ Merge }
Merge the current chapter with the
chapter before it.
Note: If the two chapters were
hidden, then the joined chapter will
also be hidden.
{ Back }
Return to the previous screen.
00:11:25
No Chapter
Chapter
Title
Hide
{ Split }
Insert a new chapter marker at the
current point of playback. This allows
you to access a specific point in the
recording easily or set a chapter you
wish to hide.
{ Hide } / { Show }
Hide or show the current chapter. During
playback, the hidden chapter will be skipped.
73
English
Edit Recordings - Recordable DVD (continued)
Edit Recordings - Recordable DVD (continued)
English
{ Title }
Yellow button – Access title editing
menu.
No Chapter
Divide
Chapter
Title
Hide
Back
Index Pic.
{ Divide } for DVD±RW only
Create a new title from the current
point of playback. The existing title will
be divided into two titles.
Caution! Once a title has been
divided, it cannot be reversed.
{ Back }
Return to the previous screen.
{ Index Pic }
Use the current scene as the Index
Picture.
Note: In the Index Picture screen,
normally the first frame of a recording
is shown as the title’s Index Picture.
{ Hide } / { Show }
Blue button – Hide or show the current
chapter.
Helpful Hints:
– All the hidden chapters will be played back
while in video editing mode.
– The selection of scenes to hide or show can
only be done within a title.
– There is a limit on chapter markers that
can be stored within a title and the hard disk
drive.
74
System menu navigation
The system menu provides various setup
options for your recorder.
Before you start ...
Mark the contents in the Time Shift Buffer
for which you wish to record to the hard
disk. Otherwise, all the contents will be
cleared when you access { Tuner } or
{ Set up } option.
C Use
keys to move the selection
bar up/down/left/right to cycle through
the menu options.
Instructions and explanations of the
options are provided in the following
pages.
If the selection in the menu is greyed
out, that means the feature is not
available or cannot be changed in the
current state.
D Press OK to confirm the selection or
new setting.
To return to the previous menu screen,
press .
E To exit, press OPTIONS.
PAUSE LIVE TV
SUBTITLE
INFO
AUDIO
SELECT
EDIT
SCART
Note:
For { Recording } setting, see
‘Before Recording - Default
Recording settings’ for details.
A Press OPTIONS on the remote
control.
The tools menu appears.
Tools
Audio language
Time search
Reset TSB
Settings
B Move to { Settings } and press OK.
The system settings menu appears.
Language
Recording
Playback
Video output
Audio
Analogue tuner
Setup
75
English
System Menu Options
System Menu Options (continued)
English
Language settings (underlined options are the factory default settings)
Audio language
Select the preferred audio language for DVDs with multiple
sound tracks, VCDs with multiple audio channels, or DVD±R/
±RW recorded with 5.1 multi-channel.
Subtitle language
Select the preferred subtitle language for DVD playback.
Notes:
– If the selected audio/subtitle language is not available on the
disc, the disc’s default language will be used instead.
– For some DVDs, the subtitle/audio language can only be
changed via the DVD disc menu.
Dual language
Select the recording language to be used for TV programmes
(analogue TV channels only) which transmitting an additional
audio language. For example, if a programme is available in
English and Spanish, with Spanish being the additional language
option.
{ Lang. I }
– Original broadcast language.
{ Lang. II }
– Additional audio language.
Menu language
Select the menu language for this unit’s on-screen display. This
setting will be taken from the initial installation.
76
English
System Menu Options (continued)
Playback settings (underlined options are the factory default settings)
Access
Access Control
Enter PIN of your choice.
This will be used to access locked features
Child lock:
When this is selected, you will be prompted to enter the fourdigit pin code.
Notes:
– When doing this for the first time, use the alphanumeric
keypad 0-9 on the remote control to enter any four-digit pin
code you prefer.
– If you forget your four-digit pin code, key in ‘1504’. Then
enter any four-digit you prefer and enter the same pin code
again to confirm it.
With this feature, you can prevent children from viewing certain
discs or the recorded titles in the hard disk.
{ On }
– Enable child lock function.
A four-digit pin code must be entered in
order to play the locked disc or title in the
hard disk.
{ Off }
– All discs can be played.
Notes:
– This recorder can memorise settings for 50 discs.
– When this feature is enabled, it appears as { Child Lock } at
the bottom of the coloured options screen whenever you select
a title in the content menu. You can press the Yellow button
on the remote control to set the child lock on or off.
Change PIN:
Set a new pin code. Follow the instructions in the menu to
change the pin code.
Note: To cancel the change, press BACK on the remote
control.
Display
OSD:
Set the level of on-screen display information.
{ Full }
{ Reduced }
Front panel
brightness:
– Complete information is always displayed
during use.
– The help text and colour button bar will be
removed from the display.
Set the front panel display brightness.
{ Bright }
– Normal brightness.
{ Dimmed }
– Medium brightness.
{ Off }
– Turn off the display.
77
System Menu Options (continued)
English
Playback settings (underlined options are the factory default settings)
PBC
Play Back Control feature is only applicable for VCD/SVCD
only. It allows you to play Video CDs (2.0) interactively,
following the menu on the display.
{ Off }
– The VCD/SVCD skips the index menu and
playback directly from the beginning.
{ On }
– The index menu (if available) appears on the
TV when you load a VCD/SVCD.
Note: This option is not visible unless a VCD/SVCD is in the
disc tray.
Replay interval
Set the replay interval (minutes : seconds) and press OK to
confirm. The maximum setting is 59 minutes and 59 seconds.
In live TV mode, use key on the remote control to do the
skip backward playback.
Skip interval
Set the skip interval (minutes : seconds) and press OK to
confirm. The maximum setting is 59 minutes and 59 seconds.
In live TV mode, use key on the remote control to do the
skip ahead playback.
78
English
System Menu Options (continued)
Video Output settings (underlined options are the factory default settings)
TV shape
The picture shape can be adjusted to fit your TV.
{ 4:3 Letterbox } – For a ‘wide-screen’ display with
black bars on the top and bottom.
{ 4:3 Panscan } – For a full-height picture with the
sides trimmed.
{ 16:9 Widescreen } – For wide-screen TV
(frame ratio 16:9).
Active video output
Select the type of video output that matches the video
connection between this recorder and your TV.
{ SCART (RGB) } – For SCART connection.
{ HDMI output } – For HDMI connection.
Note: Video output setting is not required for S-Video or
Composite (CVBS) video connection.
HDMI
This feature is only applicable for HDMI connection.
{ Auto }
– Automatically select the best supported
video resolution.
{ Native }
– Follow the native video resolution.
{ Manual }
– Select a suitable video resolution depending
on the capability of the connected TV/
device to further enhance the HDMI video
output (480p/576p, 720p 50/60Hz, 1080i
50/60Hz, 1080p 50/60Hz). ‘i’ denotes
interlace and ‘p’ denotes progressive.
Black level
Adapt the colour dynamic for NTSC disc.
{ Normal }
– Normal colour contrast.
{ Enhanced }
– Improve the colour contrast and brightens
the picture of an NTSC-compatible DVD.
Vertical
This feature is only available in progressive scan mode.
Use
keys to adjust the vertical position of the picture on
your TV screen, press OK to confirm the setting.
79
System Menu Options (continued)
English
Audio settings (underlined options are the factory default settings)
Audio output
This setting is only required if you are using the recorder’s
COAXIAL/OPTICAL OUT socket to connect other audio/video
device.
{ All }
– The connected device supports multichannel audio formats. The digital audio
format will be output as on disc.
{ PCM only }
– The connected device does not support
multi-channel formats. The recorder
converts multi-channel to PCM (Pulse Code
Modulation) format.
HDMI audio
This setting is only required if you are using the recorder’s HDMI
OUT socket to connect your TV or other display device.
{ Auto }
– Auto selection of the best supported audio
output through the HDMI connection.
{ Disable }
– Disable HDMI audio output. In this case, an
alternative audio connection is required
from the recorder to your TV.
Sound mode
This setting is only required if you used the recorder’s AUDIO
OUT L/R sockets to connect other audio/video device.
{ Stereo }
– The sound output through the left and right
audio channels. Use this setting when this
recorder is connected to a TV or Stereo
system.
{ Surround }
– The connected audio/video device is
compatible with Dolby Surround. Dolby
Digital and MPEG-2 multi-channel are mixed
to a compatible two-channel output signal.
Night mode
This mode optimises playback of sound at low volume. High
volume outputs will be softened and low volume outputs are
brought upward to an audible level. This feature is only
applicable to DVD disc playback.
{ On }
– Turn on night mode.
{ Off }
– Turn off night mode. Select this to enjoy the
surround sound with its full dynamic range.
80
English
System Menu Options (continued)
Analogue Tuner settings
Auto search
Press OK on the remote control to start the automatic TV
channel search process and replace all previously stored
analogue TV channels. This process may take several minutes.
Follow TV
This feature is only available if you have connected this recorder
to your TV using the EXT1 TO TV scart socket. It allows you to
copy the preset order from your TV to the recorder (analogue
channels only).
1) Press OK the remote control to access.
2) Press OK to confirm the message on the TV, ‘TV 01’
appears on the display panel. Use the TV’s remote
control to select programme number {1} at your TV, then
press OK on the recorder’s remote control.
– If the recorder finds the same TV channel as on the TV, it
stores it as ‘P01’. ‘TV 02’ will then appear on the display
panel.
– If no video signal is received from the TV, ‘NO TV’ will
appear.
– If you make a mistake, press BACK button to return to
‘TV 01’ setting.
3) Use the TV’s remote control to select programme
number {2} at your TV, then press OK on the recorder’s
remote control. Repeat the above steps until you have
assigned all the TV channels.
4) To exit the menu, press OPTIONS.
Note: The Follow TV feature may not work properly on every
TV. In case no channels are matched, please proceed with
manual install.
Manual install
Use this setting only if the automatic install detected the wrong
tuner signals.
{ Entry mode } – Select manual search based on channel
allocation or frequency entry
{ CH (channel), S-CH (specified hyperband
channel), MHz (frequency) }, then press OK.
{ Entry }
– Use the alphanumeric keypad 0-9 to
enter the frequency value or the channel
number, then press OK and the Green
button for { Store }.
OR
– Press the Blue button on the remote
control for { Search }, once you have found
the correct frequency/channel, press the
Green button for { Store }.
81
System Menu Options (continued)
English
Analogue Tuner settings
Manual install
continued ...
{ Preset }
– Use the alphanumeric keypad 0-9 to
enter the preset number for the channel to
store (e.g. ‘01’), press OK and the Green
button for { Store }.
{ Preset name } – Use the alphanumeric keypad 0-9 to
enter the preset channel name, press OK
and the Green button for { Store }. All
channels can have a name of up to four
characters.
82
{ Decoder }
– Select { On } if the current TV channel is
transmitted by coded TV signals that can
only be viewed properly with a decoder
which is connected to the EXT2-TO VCR/
SAT socket.
{ TV system }
– Set the TV system that produces the least
distortion of picture and sound. See last
page ‘TV System Guide’ for more
information.
{ NICAM }
– NICAM is a digital sound transmission
system. It can transmit either one stereo
channel or two separate mono channels.
Selects { On } to improve the sound
transmission or { Off } if the reception is
poor.
{ Finetune }
– Use
keys to adjust the frequency of
the TV channel if the reception is poor and
press OK to confirm.
English
System Menu Options (continued)
Analogue Tuner settings
Sort channels
Change the order of the stored channels according to your
preference.
01 BBC
02
03
04
05
06
07
RTL4
ARD
ORF2
TELET
01
02
03
04
05
06
07
BBC
RTL4
ARD
ORF2
TELET
01 RTL4
02 ARD
03 ORF2
01 BBC
04 BBC
05
06 TELET
07
1) Select the channel that you want to move and press .
2) Move the selection bar to the preset number for which you
want to place the channel and press or OK to confirm.
Favourites
Define your favourite channels that can be quick accessed by
using the programme up/down button (P +-) on the remote
control.
1 BBC
2
3
4
5
6
7
RTL4
ARD
ORF2
TELET
X – Mark (or unmarked) your favourite channels using the OK
button on the remote control.
Note: Unmarked channels
can only be accessed by pressing
the corresponding number button on the remote control.
83
System Menu Options (continued)
English
Set up settings (underlined options are the factory default settings)
Clock
Set the clock for your recorder before you can use any of the
timer recording features.
Clock preset:
The time/date can be set automatically on this recorder if the
stored TV channel transmits a time signal.
{ Auto }
– The recorder automatically detects the first
available channel which is transmitting the
time/date information.
{ XXX } (preset channel) – Select the TV channel to use for
transmitting the time/date information.
{ Off }
– Disable automatic clock setting. Select this
before setting the time/date manually.
Time:
Set the time manually.
{ 00 : 00 }
– Use
keys to set the hours and
minutes. Use
keys to move in the
entry field. Once complete, press OK.
Date:
Set the date manually.
{ 31/01/2007 } – Use
keys to set the day, month and
year, Use
keys to move in the entry
field. Once complete, press OK.
Country
Select the country of your residence for auto channel tuning.
Remote control
You only need to set this if you are using more than one Philips
remote control in the same room.
{ DVD }
– Enable control of this recorder using the
Philips DVD player’s remote control (not
supplied).
{ Native }
– Disable second RC control function.
Eco mode
This is an energy saving mode.
{ On }
– When switches to standby mode, the
power consumption is less than the normal
standby power.
{ Off }
– Turn off the eco mode.
84
Set up settings (underlined options are the factory default settings)
Screen saver
The TV screen turns black to prevent damage to the screen due
to over exposure to a static image for too long.
{ Off }
– Disable screen saver function.
{ 5, 10, 30 minutes } – Set the TV to screen saver mode after
a period of inactivity (for example, recorder
is put to pause or stop state).
DivX(R) VOD
Philips provides you with the DivX® VOD (Video On Demand)
registration code that allows you to rent or purchase videos
from DivX® VOD service at www.divx.com/vod. All the
downloaded videos from DivX® VOD can only be played back
on this unit
Version Info
This is only an information screen that shows the current
version of software installed in your recorder. You may
require this information for future online software upgrades.
85
English
System Menu Options (continued)
Other Information
English
Installing the latest software
Periodically Philips will issue software
upgrades to enhance the user experience.
A Get the version information of this unit
by pressing OPTIONS on the remote
control.
The tools menu appears.
Tools
Audio language
Time search
Reset TSB
F Visit Philips website ‘www.philips.com/
support’ to check the availability of the
latest software upgrade and download
the software to a CD-R.
G Insert the CD-R to the disc tray.
The software starts to install on this
unit automatically.
H When the disc compartment open,
remove the CD-R.
Do not close the disc compartment or
power off the unit.
I Wait until the disc compartment closes
Settings
automatically, you can now power off and
on the unit.
B Move to { Settings } and press OK.
The system settings menu appears.
Language
Clock
Recording
Country
Playback
Remote control
Video output
Eco mode
Audio
Screen saver
Analogue tuner
DivX VOD
Setup
Version Info
C Move to { Setup } and press OK.
A warning message on clearing the
Time Shift Buffer appears.
D Press OK to continue.
E Move to { Version Info } in the menu to
view the version information.
Write down the information for your
current software version.
Setup
Clock
Country
Remote control
Eco mode
Screen saver
DivX VOD
Version Info
86
Version Info
(c) PHILIPS 2007 Version
Information :
Number :
Please visit our website
www.philips.com/support
for software updates and additional
product information.
Copyright notice
The making of unauthorised copies of
copy-protected material, including
computer programmes, files, broadcasts
and sound recordings, may be
infringement of copyrights and constitute
a criminal offence. This unit should not
be used for such purposes.
What kind of disc should I use for
recording?
You can only record on DVD±R, DVD±RW
or DVD+R DL discs. DVD±R/±RW is the
most compatible recordable DVD format in
the market today. They are fully compatible
with most of the existing DVD-Video players
and DVD-ROM drives in computers.
What is the capacity of a DVD±R and
DVD±RW?
4.7GB, or equivalent to six CDs. You can
store only one hour of recording on a single
disc at the highest quality (DVD standard)
and about 8 hours recording at the lowest
quality (VHS standard). The recording mode
indicates the number of hours that can fit on
a single disc.
What is the difference between
DVD±R and DVD±RW?
DVD±R is ‘recordable’ and DVD±RW is
“erasable” and “rewritable”. With a DVD±R,
you can record multiple sessions on the
same disc. But when the disc is full, you
cannot record any more on the disc. The
DVD±RW allows you to record over the
same disc repeatedly.
Can I copy a VHS tape or DVD from
an external player?
Yes, but only if the VHS tape or DVD is not
copy protected.
What is DV?
Using DV, also known as i.LINK, you can
connect a DV-equipped camcorder to this
recorder using a single DV cable for input
and output of audio, video, data and control
signals.
– This recorder is only compatible with
DV-format (DVC-SD) camcorders.
Digital satellite tuners and Digital VHS
video recorders are not compatible.
– You cannot connect more than one DV
camcorder at a time to this recorder.
– You cannot control this recorder from
external equipment connected via the DV
IN socket.
What are Titles and Chapters?
A DVD disc contains Titles and Chapters,
which are similar to the Titles and Chapters
of a book. A Title is often a complete movie
and is broken down into Chapters, or
individual scenes from the movies.
Title
Chapter Chapter Chapter Chapter
chapter markers
Programmes are recorded as a single title.
They may consist of one chapter or a few
chapters within a title, depending on the
recording settings.
How do I set up Titles and Chapters?
The recorder automatically creates a new
Title every time you start a new recording.
You can then add Chapters to these
recordings manually or have them
automatically inserted at a specific intervals.
87
English
Frequently Asked Questions
Frequently Asked Questions (continued)
English
What does ‘finalising’ a disc do?
Finalising a disc locks the disc so it can no
longer be recorded. This is only required for
DVD±R. It will then be compatible with
virtually any DVD player. To remove a disc
without finalising it, simply stop recording and
eject the disc. You can still record on the disc
if there is storage space for more recordings.
Some recordings listed on the HDD
menu cannot be played or copied to
disc.
Some TV broadcasts or videos from external
device that are recorded to this recorder
may contain copy protection signals. Such
material cannot be played back from the
HDD or copied to a recordable DVD.
How good is the quality of the
recording?
There are a few picture quality levels to choose
from, ranging from ‘HQ’ (1 hour recording at
high quality) to ‘SEP’ (8 hours recording at VHS
quality) on a recordable DVD.
The copy-protected recordings are marked
with the icon C in the HDD menu. They are
either fully protected (copy never) or
partially protected (copy once). For copy
once recording, playback is possible but once
copied to a recordable DVD, the recording
will be removed from the HDD.
DVDR3575H / DVDR3577H
Record Mode
HQ (high quality)
SP (standard play)
SPP (standard play plus)
LP (long play)
EP (extended play)
SLP (super long play)
SEP (super extended play)
23
45
56
68
90
135
180
1
2
2.5
3
4
6
8
1 hr 55 mins
3 hrs 40 mins
4 hrs 35 mins
5 hrs 30 mins
7 hrs 20 mins
11 hrs 5 mins
14 hrs 45 mins
DVDR3595H / DVDR3597H
Record Mode
(250GB)
HQ (high quality)
SP (standard play)
SPP (standard play plus)
LP (long play)
EP (extended play)
SLP (super long play)
SEP (super extended play)
40
77
96
115
153
230
300
1
2
2.5
3
4
6
8
1 hr 55 mins
3 hrs 40 mins
4 hrs 35 mins
5 hrs 30 mins
7 hrs 20 mins
11 hrs 5 mins
14 hrs 45 mins
What is HDMI?
High-Definition Multimedia Interface (HDMI)
is a high-speed digital interface that can
transmit uncompressed high definition video
and digital multichannel audio. It delivers
high quality picture and sound quality,
completely free from noise. HDMI is fully
backward-compatible with DVI.
As required by the HDMI standard,
connecting to HDMI or DVI products
without HDCP (High-bandwidth Digital
Content Protection) will result in no Video
or Audio output.
88
When playing a DivX movie, why the
subtitle cannot be displayed properly?
– You have to make sure that the subtitle
file has the exact same file name as the
movie file. If for example the filename of
the movie is “Movie.avi”, then you will
need to name the text file “Movie.sub” or
“Movie.srt”.
– You may need to change the ‘Character
set’ or ‘DivX subtitle’ display of this
player to which supports the recorded
DivX subtitle.
Character set /
DivX Subtitle
Subtitle language
Standard
English, Irish, Danish,
Estonian, Finnish, French,
German, Italian, Portuguese,
Luxembourgish, Norwegian
(Bokmål and Nynorsk),
Spanish, Swedish, Turkish
Central
Europe
Polish, Czech, Slovak,
Albanian, Hungarian,
Slovene, Croatian, Serbian
(Latin script), Romanian,
Cyrillic
Belarusian, Bulgarian,
Ukrainian, Macedonian,
Russian, Serbian,
Greek
Greek
Why does it take so long to display the
contents on my USB device?
– This could be due to the large numbers
of files (>500 files/folders) or size of the
files (>1MB).
– There could be other non-supported files
in the device that this unit is trying to
read/display.
What if unsupported devices (e.g. USB
mouse, keyboards) are plugged into
the unit?
The device may cause this unit to be
unstable. Remove the unsupported device
and unplug the mains cord. Wait for a few
minutes before reconnecting the mains cord
and power on this unit again.
What happens when I plug in a USB
HDD?
HDD is not supported as the large storage
capacity makes navigation very difficult.
Transfer the music files (mp3) and photos
(jpg) into a flash drive if you want to
playback on this recorder.
Why does this unit fail to detect my
USB portable music player?
The portable music player may require
propriety software that is bundled with our
system in order to access the contents (eg.
playlist). MTP class not supported, only can
support mass storage class devices.
Why does the file name appear to be
different from what was displayed on my
computer (e.g. from ‘Good Bye. jpg’ to
‘Good_B~1.jpg’)?
– The length of the file name is restricted
by the file system of the device (FAT16),
which only supports eight (8) characters.
– The computer may be able to display the
full file name as the operating system can
convert the file system.
Why can’t I rotate the pictures in my
device?
In order to rotate the pictures in the USB
device, the picture must contain EXIF
information, stored by most digital cameras.
This EXIF information may have been
removed when you edit or copy the picture
from other devices using editing
programmes.
Why can’t this unit play some of my
music files, photos or movies?
The music files may not be playable because
of different formats and encoding bit-rates.
Similarly, the photos may be of low
resolution or too high resolution for this unit
to support.
What types of file does the system
support?
We support only FAT16 and FAT32, not
NTFS.
89
English
Frequently Asked Questions (continued)
Troubleshooting
English
WARNING!
Under no circumstances should you try to repair the system yourself, as this
will invalidate the warranty. Do not open the system as there is a risk of
electric shock.
If a fault occurs, first check the points listed below before taking the system for
repair. If you are unable to solve a problem by following these hints, consult
your dealer or Philips for help.
Problem (General)
Solution
No power.
– Press the STANDBY-ON button on the front of the unit
to turn on the power.
– Make sure the mains cord is properly connected and the
AC outlet has power.
The message ‘IS TV ON?’
appears on the display
panel.
– This recorder will not operate until you complete the
first installation. See ‘Step 3: Installation and Set-up’ for
details.
The buttons on the
recorder do not work.
– There is a technical problem. Disconnect the recorder
from the power outlet for 30 seconds, then connect
again. If the recorder still will not operate, then reset it
to the default factory settings :
1) Disconnect the recorder from the power outlet.
2) Press and hold down STANDBY-ON button on the
front of the recorder while reconnecting to the power
outlet.
3) Release STANDBY-ON button when ‘STARTING’
appears on the display.
4) Wait until the recorder’s demo start scrolling on the
display, press STANDBY-ON again to turn on the
recorder. All the information stored in the memory
(programmes, time) will be cleared. The initial
installation menu will be displayed on the TV.
Remote control does not
work.
– Aim the remote control directly at the sensor on the
front of this recorder (not towards TV).
– Remove any obstacles between recorder and the remote
control.
– Batteries are weak, replace the batteries.
90
Problem (General)
Solution
No picture.
– Turn on your TV and set it to the correct Video In
channel for the recorder. You may go to Channel 1 on
your TV, then press the channel down button on your
TV’s remote control until you see the recorder’s built-in
live TV.
– Check the video connection between the recorder and
the TV.
No sound.
– Check the recorder audio connection. See ‘Basic
Recorder Connections - Connecting the video/audio
cables’ for details.
– Set the Analogue output or Digital output correctly,
based on the device you have connected to this
recorder. See ‘System Menu Options - Audio settings’ for
details.
No TV signal received from – Make sure that the antenna cables are correctly
connected. See ‘Step 1: Basic Recorder Connections the recorder.
Connecting the antenna cables’ for details.
– Install the TV channel. See ‘System Menu Options Analogue Tuner settings’ for details.
The message ‘Disc contains – This message may appear if you insert a disc that
contains junk data. DVD±Rs that have not been finalised
unknown data’ appears.
are very sensitive to fingerprints, dust, or dirt. This may
cause problems during recording. To use the disc again,
do the following :
1) Make sure that the surface of the disc is clean.
2) Press OPEN/CLOSE on this recorder.
3) Insert the disc but do not close the tray.
4) Hold down button number {5} on the remote control
until the tray closes. This recorder starts the repair
process.
5) If the disc is recovered, the Picture Index screen will
appear.
The message ‘NO
SIGNAL’ or ‘X’ appears.
– Check that the antenna cable is plugged in firmly.
– No aerial signal received for the current channel or no
video signal received from the external input channel
(EXT1, EXT2, CAM1 or CAM2).
– If you connect the recorder to a Cable Box/Satellite
Receiver, make sure that it is turned on.
91
English
Troubleshooting (continued)
Troubleshooting (continued)
English
Problem (Playback)
Solution
Disc will not play.
– Insert the disc with the label facing up.
– The child lock is on. See ‘System Menu Options Playback settings - Child lock’ for details.
– Wrong region code. Check the rear or bottom of the
DVD recorder for the supported region code.
– There is no recording on the disc or wrong disc type.
See ‘Playback from Disc - Playable discs’ for details.
– Make sure the disc is not scratched or warped.
The picture is distorted
or black and white during
playback.
– The disc does not match with the TV colour system
standard (PAL/NTSC).
– The disc is dirty. Clean the disc.
– Sometimes a small amount of picture distortion may
appear. This is not a malfunction.
There is picture or sound
interference with the TV
reception.
– Check that the antenna cable is plugged in firmly.
– Fine-tune your TV channel. See ‘System Menu Options Analogue Tuner settings - Manual install - Finetune’ for
details.
Distorted sound coming
from a connected hi-fi
amplifier.
– Do not connect any cables from this recorder to the
‘Phono’ input of your amplifier.
– If you are playing a DTS CD, you must use the
COAXIAL or OPTICAL-DIGITAL AUDIO OUTPUT
socket of this recorder to connect to the Hi-Fi system
or amplifier. If the Hi-Fi system or amplifier does not
support DTS, distorted sound might occur.
No surround sound from
the Coaxial/Optical
output.
– If this unit is connected to the TV through the HDMI
connection, there may be no surround sound on
Coaxial/Optical output, depending on the TVs audio
capabilities. In this case, press OPTIONS on the remote
control, go to Audio Output setting and set the { HDMI
audio } to { Disable }.
Unable to display JPEG
pictures.
– This unit only supports pictures in JPEG-Exif file format,
using 4:2:2 or 4:2:0 chroma subsampling, with a
resolution not exceeding 4096 x 4096 (horizontal/
vertical). JPEG pictures that downloaded from the
internet or have been modified using computer may not
be able to display properly.
Unable to play DivX
movies.
– Ensure that the DivX file is encoded according to the
‘Home Theatre Profile’ with the DivX encoder.
– Check that the DivX movie downloaded is a complete
file.
92
Problem (Recording)
Solution
The message ‘Insert
recordable disc’ appears.
– Either no disc was inserted or the disc that was inserted
cannot be used for recordings. Insert a recordable DVD
(DVD±R, DVD±RW, or DVD+R Double Layer).
The message ‘Collision’
appears.
– The timer recording overlaps with another timer
recording.
– If you ignore this warning, the programmed recording
with the earlier start time will start first.
– Change the information for one of the two recordings.
– Delete one of the two recordings
Recordings are not
occurring as scheduled.
New recordings cannot
be made.
– Make sure that the recorder’s time and date are set
correctly. See ‘System Menu Options - Set up settings Clock’ for details.
– Two timer programmes may have overlapped, in which
case only the earlier one will record completely.
– You cannot use the recorder to duplicate copyright
material (DVDs or videotapes) onto a recordable DVD,
‘COPY PROTECT’ will be displayed.
The index screen flickers
when a DVD±R is
inserted.
– You can finalise the disc using the following function:
1) Press OPEN CLOSE on this recorder to open the disc
tray.
2) Insert the disc but do not close the tray.
3) Hold down button number {4} on the remote control
until the tray closes. ‘FINALIZING DISC’ appears on
the display panel.
4) If finalising has been successful, the Picture Index
screen will appear.
Unable to copy DivX file
to Hard Disk even though
the data partition still has
enough free space.
– All the video files (TV recordings and DivX movies) are
stored in the Video partition in the hard disk. Delete
some recordings in the Video partition to free up some
space before copying additional files.
Music/photo/DivX files
copied from the hard
disk/USB device to a
recordable DVD cannot
be played back on other
DVD players.
– Some PC/DVD players do not support the UDF1.50 file
system used on the disc. Any PC installed with Windows
XP or higher is able to play this DVD.
93
English
Troubleshooting (continued)
Troubleshooting (continued)
English
Problem (Recording)
Solution
Picture is fuzzy and
– This happens if you try to copy DVDs or video tapes
brightness varies when
that have been copy-protected. Even though the picture
played back your recording.
on the TV is fine, the recording on the recordable DVD
is faulty. This interference is unavoidable with copyprotected DVDs or video tapes.
– The recordable DVD has a limited recording lifetime,
use a new disc for recording.
DVD±R/±RW recorded on
this DVD recorder cannot
be played back on other
DVD players.
– If a recording is too short, it is possible that a DVD
player cannot detect it.
– You have to finalise the DVD±R. See ‘Finalising the
DVD±R for playback’ for details.
– You have to make the DVD±RW compatible. See
‘Making the edited DVD±RW compatible’ for details.
The DVD±RW cannot be
used for recording on this
recorder. Even though it
has been formatted using
the PC drive.
– You have to re-format the DVD±RW.
1) Press OPEN CLOSE on this recorder to open the disc
tray.
2) Insert the disc but do not close the tray.
3) Hold down button number {0} on the remote control
until the disc tray closes.
4) Start recording on the DVD±RW before you remove
it from the disc tray.
94
Troubleshooting (continued)
Solution
English
Problem (USB/HDMI)
The contents of the USB
flash drive cannot be read.
– The USB flash drive format is not compatible with the
system.
– Drive is formatted with a different file system which is
not supported by this DVD recorder (e.g., NTFS).
Slow operation of the USB
flash drive.
– Large file size or high memory USB flash drive takes
longer time to read and display on the TV.
The connected card
reader/flash drive is not
detected. The message
‘USB Hub is not
supported’ appears.
– This recorder only supports Mass Storage Class (MSC)
devices. Not all card readers/flash drives implement this
standard. Please use another device.
No sound on HDMI
connection.
– You may not hear any sound from the HDMI output if
the connected device is non-HDCP compliant or only
DVI-compatible.
– It is not possible to output SACD or copy-controlled
DVD-Audio sources from the HDMI connection.
No picture on HDMI
connection.
– Make sure that you have activated this recorder as the
HDMI input in the settings for the device you are using.
Press OPTIONS on the remote control, go to Video
setting and set the { Active Video Output } to
{ HDMI Output }.
– HDMI connection can only be made to HDMI-equipped
devices with HDCP (High Bandwidth Digital Content
Protection). If you wish to connect to a DVI connector
(equipped with HDCP), you will need a separate
adaptor (DVI to HDMI).
– Make sure the resolution of this recorder matches the
device you have connected using the HDMI. See HDMI
setting.
– Check if the HDMI cable is faulty. Replace a new HDMI
cable.
– When connecting to a non-HDCP compliant TV, the
HDCP warning message will appear only on the
analogue video output.
95
Display panel symbols/messages
English
The following symbols/messages may
appear on your recorder display:
BLOCKED
The disc tray cannot be opened or closed
due to some mechanical obstruction.
BROWSER
The recorder is currently in media
browser mode.
00:00
Multifunction display/text line
– Title/track number
– Total/elapsed/remaining title/track
time
– Disc/title name
– Error or warning messages
– Additional information regarding the
disc
– TV channel number or source of
video
– Clock (This is displayed in Standby
mode).
– TV programme title
X TIMER
A timer recording has been programmed
or is active.
! SAT
The recorder is prepared for satellite
recording.
CLOSING
Disc tray is closing.
COMPATIBLE
The recorder is busy making changes to
make the disc DVD-compatible.
COPY PROTECT
The DVD/video cassette you are trying
to copy is copy-protected.
CREATING MENU
After the first recording has been
successfully complete on a new disc, the
menu structure is created.
DISC ERR
An error occurred when writing the title.
If this happens often, clean the disc or use
a new one.
DISC FULL
Disc is full. There is no storage space for
new recordings.
DISC WARNING
An error occurred when recording from
external device. The recording continues
but the error will be skipped.
EMPTY DISC
Inserted disc is new or has been
completely erased (no recordings
present).
FREE TITLE
An empty title was selected.
96
FINALIZING DISC
The DVD±R disc is being finalised.
OPENING
Disc tray is opening.
INFO DVD
Information on the inserted DVD is
displayed on the TV.
PAL DISC
A disc with PAL recordings has been
inserted and an attempt was made to
record an NTSC signal. Insert a new disc
or use a disc containing NTSC
recordings.
INSTALL
After the automatic channel search, the
menu for setting the time/date appears
on the TV.
IS TV ON?
The recorder is currently in the first
installation mode. Turn on your TV and
read the chapter ‘Installation and Set-up’
in the user manual.
MAX CHAP
The maximum number of chapters per
title disc has been reached. The
maximum number of chapters per title is
99, and 255 per disc.
MAX TITLE
The maximum number of titles has been
reached for the disc. Each disc can have a
maximum of 49 titles.
UPDATING MENU
After a successful recording, the list of
disc contents is updated.
NO DISC
No disc has been inserted. If a disc has
been inserted, then it is possible that the
disc cannot be read.
NOSIGNAL
No signal or poor signal strength.
STARTING
The recorder has been turned on.
PHOTO MMM/NNN
Number of the current photo (for Photo
mode). MMM represents the order of the
current photo, NNN represents the total
number of photos in the album. If the
number exceeds 999, ‘999’ will be
displayed instead.
POST FORMAT
The disc is being prepared after the menu
structure has been created.
PROTECTED
Title is copy-protected and cannot be
recorded.
READING
Disc is being recognised by the recorder.
STANDBY
The recorder has been turned off.
SYS MENU
The on-screen menu display is on.
BUSY
Wait until this message disappears. The
recorder is busy processing an operation.
NTSC DISC
A disc with NTSC recordings has been
inserted and an attempt was made to
record a PAL signal. Insert a new disc or
use a disc containing PAL recordings.
97
English
Display panel symbols/messages (continued)
Glossary
English
Analogue audio: Sound that has not been
turned into numbers. Analogue sound is
available with you use the AUDIO LEFT/
RIGHT. These red and white sockets send
audio through two channels, the left and
right.
Aspect ratio: Aspect ratio refers to the
length to height ratio of TV screens. The
ratio of a standard TV is 4:3, while the ratio
of a high-definition or wide TV is 16:9. The
letter box allows you to enjoy a picture with
a wider perspective on a standard 4:3 screen.
Composite video (CVBS): A single video
signal commonly used in most consumer
video products.
Digital audio: Sound signal that has been
converted into numerical values. Digital
sound is available when you use the DIGITAL
AUDIO OUT COAXIAL. These sockets
send audio through multiple channels, instead
of just two channels as analogue does.
Disc menu: A screen display prepared for
allowing a selection of images, sounds,
subtitles, multi-angles, etc., recorded on a
DVD.
DivX: The DivX code is a patent-pending,
MPEG-4 based video compression
technology, developed by DivX Networks,
Inc., that can shrink digital video to sizes
small enough to be transported over the
internet, while maintaining high visual quality.
Dolby Digital: A surround sound system
developed by Dolby Laboratories containing
up to six channels of digital audio (front left
and right, surround left and right, centre and
subwoofer).
98
JPEG-EXIF: JPEG-Exchangeable Image File.
A file format developed by Fuji Photo Film
for digital still cameras. Digital cameras from
various manufacturers use this compressed
file format which carries date, time and
thumbnails information, as well as the picture
data.
Finalise: A process that makes playback of a
recorded DVD±R or CD-R possible on
device that can play such media. You can
finalise DVD±R on this unit. After finalising,
the disc becomes play only and you can no
longer record or edit on the disc.
HDMI: High-Definition Multimedia
Interface (HDMI) is a high-speed digital
interface that can transmit uncompressed
high definition video and digital multichannel
audio. It delivers high quality picture and
sound quality, completely free from noise.
HDMI is fully backward-compatible with DVI.
As required by the HDMI standard,
connecting to HDMI or DVI products
without HDCP (High-bandwidth Digital
Content Protection) will result in no Video
or Audio output.
HDCP (High-bandwidth Digital Content
Protection) is a specification that provides a
secure transmission of digital contents
between different devices (to prevent
unauthorised copyright).
Index Picture Screen: A screen that gives
an overview of a DVD±RW or DVD±R. An
Index Picture represents each recording.
JPEG: A very common digital still picture
format. A still-picture data compression
system proposed by the Joint Photographic
Expert Group, which features small decrease
in image quality in spite of its high
compression ratio. Files are recognised by
their file extension ‘JPG or JPEG’.
MP3: A file format with a sound data
compression system. ‘MP3’ is the
abbreviation of Motion Picture Experts
Group 1 (or MPEG-1) Audio Layer3. By
using the MP3 format, one CD-R or CD-RW
can contain about 10 times more data than a
regular CD. Files are recognised by their file
extension ‘.MP3’.
S-Video: Produces a clear picture by
sending separate signals for the luminance
and the colour. You can use S-Video only if
your TV has an S-Video In socket.
Surround: A system for creating realistic
three dimensional sound fields full of realism
by arranging multiple speakers around the
listener.
WMA: Windows Media™ Audio. Refers to
an audio compression technology developed
by Microsoft Corporation. WMA data can be
encoded by using Windows Media Player
version 9 or Windows Media Player for
Windows XP. Files are recognised by their
file extension ‘WMA’.
MPEG: Motion Picture Experts Group. A
collection of compression systems for digital
audio and video.
PBC: Playback Control. A system of
navigating a Video CD/Super VCD through
on-screen menus recorded onto the disc.
You can enjoy interactive playback and
searching.
PCM: Pulse Code Modulation. A digital
audio encoding system.
Region code: A system allowing discs to be
played only in the region designated. This
unit will only play discs that have compatible
region codes. You can find the region code
of your unit by looking on the product label.
Some discs are compatible with more than
one region (or ALL regions).
99
English
Glossary (continued)
Specifications
English
Recording media
•
HDD. DVD+R/-R, DVD+RW/-RW, DVD+R
Double layer, USB flash drive
•
DVD-Video, Video CD/SVCD, Audio CD, CDR/CD-RW, DVD+R/+RW, DVD-R/-RW,
Picture CD, MP3-CD, MP3-DVD, WMA-CD,
USB flash drive
•
•
•
A/D Converter: 10 bit, 54 MHz
D/A Converter: 13 bit, 162 MHz
Picture enhancement: HDMI
•
•
A/D Converter: 16 bit, 48 kHz
D/A Converter: 24 bit, 96 kHz
Connectivity
•
Playback media
Picture/Display
•
Sound
Rear Connections
– RF antenna in
– RF TV out
– Scart 1 (CVBS, RGB out)
– Scart 2 (CVBS, RGB in)
– S-Video out
– Video out (CVBS)
– Audio left/right out
– Digital Coaxial out
– HDMI out
– Mains
Front Connections
– DV in (i.LINK)
– Video in (CVBS)
– Audio left/right in
– USB 2.0
Convenience
Video Recording
•
•
•
•
Audio compression: Dolby Digital
Compression formats: MPEG2
Recording modes: High Quality (HQ), Standard
Play (SP), Standard Play Plus (SPP), Long Play
(LP), Super Long Play (SLP), Extended Play (EP),
Super Extended Play (SEP)
Recording system: PAL
•
•
Compression formats: MPEG2, MPEG1
Video disc playback system: NTSC, PAL
Video Playback
Audio Playback
•
•
Compression formats: Dolby Digital, MPEG2
Multichannel, PCM, MP3, WMA
MPEG1 bit rates: 64-384 kbps and VBR
Storage Media
•
Hard Disk capacity:
DVDR3575H / DVDR3577H - 160 GB
DVDR3595H / DVDR3597H - 250 GB
Tuner/Reception/Transmission
•
•
TV system: PAL, SECAM
Aerial input: 75 Ohm coaxial (IEC75)
100
•
•
•
•
•
HDD Media Jukebox: DivX, JPEG, MP3, WMA
Programmable events: 40
ShowView programming
Programming/Timer Enhancement:
– Automatic Satellite Recording
– Daily/Weekly repeat programme
– One Touch Recording
– Manual Timer
– VPS/PDC recording control
Ease of installation: Follow TV, Auto install
Power
•
•
•
Power supply: 220-240V, ~50 Hz
Power consumption: 35 W
Standby power consumption: < 3.5 W
Cabinet
•
•
Dimensions (WxHxD): 435 x 43 x 324 mm
Net Weight: 3.8 kg
Specification and design are subject to
change without notice.
101
TV System Guide
COUNTRY
VHF
AFGHANISTAN
ALBANIA
ALGERIA
ANGOLA
ARGENTINA
AUSTRALIA
AUSTRIA
AZORES
BAHAMAS
BAHRAIN
BANGLADESH
BARBADOS
BELGIUM
BERMUDA
BOLIVIA
BOTSWANA
BRAZIL
BRUNEI
BULGARIA
BURKINA FASO
BURMA
BURUNDI
CAMBODIA
CAMEROON
CANADA
CANARY ISLANDS
CHAD
CHILE
CHINA
COLOMBIA
COSTA RICA
CROATIA
CUBA
CYPRUS
CZECH REPUBLIC
DAHOMEY
DENMARK
DJIBOUTI
DOMINICAN REP
ECUADOR
EGYPT
EL SALVADOR
EQUAT. GUINEA
ESTONIA
ETHIOPIA
FIJI
FINLAND
FRANCE
FRENCH POLYNESIA
GABON
GAMBIA
GERMANY
GHANA
GIBRALTAR
GREECE
GREENLAND
GUADELOUPE
GUAM
GUATEMALA
GUINEA
GUYANA (FRENCH)
HONDURAS
PAL/SECAM B
PAL B
PAL B
PAL I
PAL N
PAL B
PAL B
PAL B
NTSC M
PAL B
PAL B
NTSC M
PAL B
NTSC M
NTSC M
PAL I
PAL M
PAL B
PAL B
SECAM K1
NTSC M
SECAM K1
NTSC M
PAL B
NTSC M
PAL B
SECAM K1
NTSC M
PAL D
NTSC M
NTSC M
PAL B
NTSC M
PAL B
PAL D
SECAM K1
PAL B
SECAM B
NTSC M
NTSC M
SECAM B/PAL B
NTSC M
PAL B
PAL B (was SECAM)
PAL B
PAL B
PAL B
SECAM L
SECAM K1
SECAM K1
PAL I
PAL B
PAL B
PAL B
PAL B (was SECAM)
NTSC/PAL B
SECAM K1
NTSC M
NTSC M
PAL K
SECAM K1
NTSC M
102
UHF
PAL G
PAL G
PAL N
PAL H
PAL G
PAL G
PAL H
NTSC M
PAL M
PAL B
PAL G
PAL G
NTSC M
NTSC M
NTSC M
NTSC M
PAL G
NTSC M
PAL G
PAL K
PAL G
SECAM G
NTSC M
NTSC M
SECAM G/PAL G
NTSC M
DVD REGIONS
5
2
5
5
4
4
2
4
2
5
4
2
4
5
4
2
5
5
3
5
1
2
5
4
6
4
4
2
4
2
PAL D
PAL G
2
5
4
4
2
4
5
5
5
PAL G
SECAM L
2
2
PAL G
PAL G
PAL H
PAL G
NTSC M
NTSC M
5
5
2
5
2
2
2
1
4
5
4
4
TV System Guide (continued)
COUNTRY
VHF
UHF
DVD REGIONS
LIBYA
LITHUANIA
LUXEMBOURG
MADAGASCAR
MADEIRA
MALAGASY
MALAWI
MALAYSIA
MALI
MALTA
MARTINIQUE
MAURITANIA
MAURITIUS
MEXICO
MONACO
MONGOLIA
MOROCCO
MOZAMBIQUE
NAMIBIA
NEPAL
NETHERLANDS
NETH. ANTILLES
NEW CALEDONIA
NEW GUINEA
NEW ZEALAND
NICARAGUA
NIGER
NIGERIA
NORWAY
OMAN
PAKISTAN
PANAMA
PARAGUAY
PERU
PHILIPPINES
POLAND
PORTUGAL
PUERTO RICO
QATAR
REUNION
RUMANIA
RUSSIA
RWANDA
SABAH/SAWARA
ST. KITTS
SAMOA (US)
SAUDI ARABIA
SENEGAL
SEYCHELLES
SIERRA LEONE
SINGAPORE
SLOVAK REPUBLIC
SOMALIA
SOUTH AFRICA
SPAIN
SRI LANKA
SUDAN
SURINAM
SWAZILAND
SWEDEN
SWITZERLAND
SYRIA
SECAM B
PAL D (was SECAM)
PAL B/SECAM L
SECAM K1
PAL B
SECAM K1
PAL B
PAL B
SECAM K1
PAL B
SECAM K1
SECAM B
SECAM B
NTSC M
SECAM L
SECAM D
SECAM B
PAL B
PAL I
PAL B
PAL B
NTSC M
SECAM K1
PAL B
PAL B
NTSC M
SECAM K1
PAL B
PAL B
PAL B
PAL B
NTSC M
PAL N
NTSC M
NTSC M
PAL D
PAL B
NTSC M
PAL B
SECAM K1
PAL D
SECAM D
SECAM K1
PAL B
NTSC M
NTSC M
SECAM-B/PAL-B
PAL
PAL B
PAL B
PAL B
PAL
PAL B
PAL I
PAL B
PAL B
PAL B
NTSC M
PAL B
PAL B
PAL B
SECAM B
SECAM G
PAL K
PAL G/SEC L
5
5
2
5
PAL G
5
3
5
2
PAL H
NTSC M
5
5
4
2
5
5
5
5
PAL G
NTSC M
2
PAL G
PAL G
NTSC M
4
4
4
5
5
2
2
5
4
4
4
3
2
2
1
2
PAL G
PAL G
PAL G
NTSC M
PAL N
NTSC M
NTSC M
PAL K
PAL G
NTSC M
PAL K
SECAM K
2
5
5
NTSC M
SECAM G
PAL G
PAL G
PAL G
PAL
PAL G
PAL I
PAL G
PAL G
NTSC M
PAL G
PAL G
PAL G
1
2
5
5
5
2
5
2
2
5
5
4
2
2
2
103
English
Meet Philips at the Internet
http://www.philips.com
http://www.philips.com/welcome
DVDR3575H / DVDR3577H
DVDR3595H / DVDR3597H
CLASS 1
LASER PRODUCT
3139 245 28313
Philips Customer Care phone numbers:
Austria
Belgium
Czech Republic
Denmark
Finland
France
Germany
Greece
Ireland
Italy
Hungary
Luxembourg
Netherlands
Norway
Poland
Portugal
Slovakia
Spain
Sweden
Switzerland
United Kingdom
104
0810 000205
078 250 145
800 142840
3525 8759
09 2311 3415
0821 611655
0900 1 101 211
0 0800 3122 1280
01 601 1777
840 320 086
06 80018 189
40 6661 5644
0900 8407
2270 8111
022 349 15 04
2 1359 1442
0800 004537
902 888 784
08 5792 9100
0844 800 544
0870 900 9070
€ 0.07/ min
€ 0.06/ min
free
pstn
pstn
€ 0.09/ min
€ 0.10/ min
free
pstn
€ 0.08/ min
pstn
pstn
€ 0.10/ min
pstn
pstn
pstn
free
€ 0.10/ min
pstn
pstn
pstn
Sgpjp-0851/58-1
