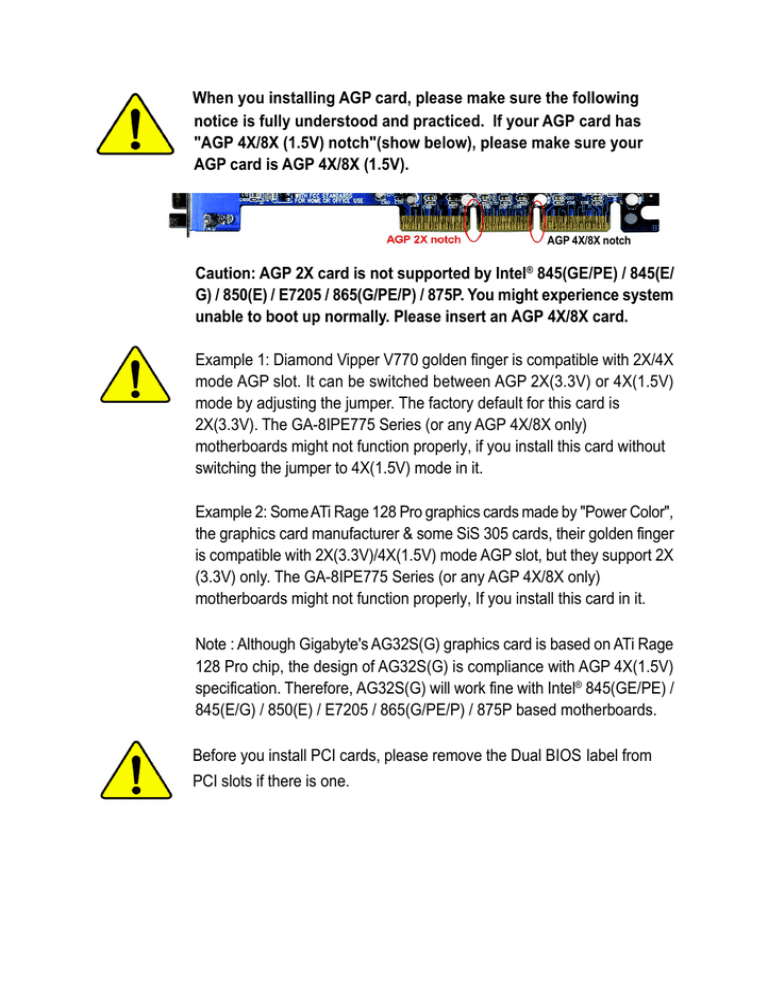

When you installing AGP card, please make sure the following
notice is fully understood and practiced. If your AGP card has
"AGP 4X/8X (1.5V) notch"(show below), please make sure your
AGP card is AGP 4X/8X (1.5V).
AGP 4X/8X notch
Caution: AGP 2X card is not supported by Intel® 845(GE/PE) / 845(E/
G) / 850(E) / E7205 / 865(G/PE/P) / 875P. You might experience system
unable to boot up normally. Please insert an AGP 4X/8X card.
Example 1: Diamond Vipper V770 golden finger is compatible with 2X/4X
mode AGP slot. It can be switched between AGP 2X(3.3V) or 4X(1.5V)
mode by adjusting the jumper. The factory default for this card is
2X(3.3V). The GA-8IPE775 Series (or any AGP 4X/8X only)
motherboards might not function properly, if you install this card without
switching the jumper to 4X(1.5V) mode in it.
Example 2: Some ATi Rage 128 Pro graphics cards made by "Power Color",
the graphics card manufacturer & some SiS 305 cards, their golden finger
is compatible with 2X(3.3V)/4X(1.5V) mode AGP slot, but they support 2X
(3.3V) only. The GA-8IPE775 Series (or any AGP 4X/8X only)
motherboards might not function properly, If you install this card in it.
Note : Although Gigabyte's AG32S(G) graphics card is based on ATi Rage
128 Pro chip, the design of AG32S(G) is compliance with AGP 4X(1.5V)
specification. Therefore, AG32S(G) will work fine with Intel® 845(GE/PE) /
845(E/G) / 850(E) / E7205 / 865(G/PE/P) / 875P based motherboards.
Before you install PCI cards, please remove the Dual BIOS label from
PCI slots if there is one.
0 The author assumes no responsibility for any errors
or omissions that may appear in this document nor
does the author make a commitment to update the
information contained herein.
0 Third-party brands and names are the property of
their respective owners.
0 Please do not remove any labels on motherboard, this
may void the warranty of this motherboard.
0 Due to rapid change in technology, some of the
specifications might be out of date before publication
of this booklet.
Mother Board
GA-8IPE775 Pro/GA-8IPE775-G/GA-8IPE775
May 14, 2004
DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2.1077(a)
Responsible Party Name: G.B.T. INC. (U.S.A.)
Address: 17358 Railroad Street
City of Industry, CA 91748
Phone/Fax No: (818) 854-9338/ (818) 854-9339
hereby declares that the product
Product Name: Motherboard
Model Number: GA-8IPE775 Pro/GA-8IPE775-G
/GA-8IPE775
Conforms to the following specifications:
FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109
(a),Class B Digital Device
Supplementary Information:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful and (2) this device must accept any inference received,
including that may cause undesired operation.
Representative Person’s Name: ERIC LU
Signature: E r i c
Lu
Date: May 14, 2004
GA-8IPE775 Series
Intel® Pentium® 4 Socket 775 Processor Motherboard
USER'S MANUAL
Pentium® 4 Processor Motherboard
Rev. 1004
12ME-8IPE775-1004
English
Table of Content
Warning ................................................................................................... 4
Chapter 1 Introduction ............................................................................. 5
Features Summary ...................................................................................... 5
GA-8IPE775 Series Motherboard Layout .................................................... 7
Block Diagram ............................................................................................. 8
Chapter 2 Hardware Installation Process ............................................. 11
Step 1: Install the Central Processing Unit (CPU)..................................... 12
Step 1-1: Installation of the CPU .................................................................................... 12
Step 1-2: Installation of the Heatsink .............................................................................. 13
Step 2: Installation of Memory ................................................................... 13
Step 3: Install expansion cards ................................................................. 16
Step 4: Install I/O Peripherals Cables ....................................................... 17
Step 4-1: I/O Back Panel Introduction ............................................................................ 17
Step 4-2: Connectors Introduction .................................................................................. 19
Chapter 3 BIOS Setup .......................................................................... 31
The Main Menu (For example: BIOS Ver. : 8IPE775 Pro.D4) .................. 32
Standard CMOS Features......................................................................... 34
Advanced BIOS Features .......................................................................... 37
Integrated Peripherals .............................................................................. 39
Power Management Setup ....................................................................... 43
GA-8IPE775 Series Motherboard
-2-
Frequency/Voltage Control ........................................................................ 48
Load Fail-Safe Defaults ............................................................................. 50
Load Optimized Defaults ........................................................................... 50
Set Supervisor/User Password .................................................................. 51
Save & Exit Setup ....................................................................................... 52
Exit Without Saving ................................................................................... 52
Chapter 4 Technical Reference ............................................................ 53
Flash BIOS Method Introduction ............................................................... 53
2- / 4- / 6- / 8- Channel Audio Function Introduction ................................. 67
Jack-Sensing and UAJ Introduction .......................................................... 73
Xpress Recovery2 Introduction ................................................................. 75
Chapter 5 Appendix .............................................................................. 79
-3-
Table of Content
English
PnP/PCI Configurations ............................................................................. 45
PC Health Status........................................................................................ 46
English
Warning
Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To
protect them against damage from static electricity, you should follow some precautions whenever you
work on your computer.
1. Unplug your computer when working on the inside.
2.
Use a grounded wrist strap before handling computer components. If you do not have one,
touch both of your hands to a safely grounded object or to a metal object, such as the power
3.
supply case.
Hold components by the edges and try not touch the IC chips, leads or connectors, or other
4.
components.
Place components on a grounded antistatic pad or on the bag that came with the components
5.
whenever the components are separated from the system.
Ensure that the ATX power supply is switched off before you plug in or remove the ATX power
connector on the motherboard.
Installing the motherboard to the chassis...
If the motherboard has mounting holes, but they don't line up with the holes on the base and there
are no slots to attach the spacers, do not become alarmed you can still attach the spacers to the
mounting holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so
be careful of your hands). In this way you can still attach the motherboard to the base without worrying
about short circuits. Sometimes you may need to use the plastic springs to isolate the screw from the
motherboard PCB surface, because the circuit wire may be near by the hole. Be careful, don't let the
screw contact any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it
may damage the board or cause board malfunctioning.
GA-8IPE775 Series Motherboard
-4-
Features Summary
CPU
Motherboard
Chipset
y
y
y
y
On-Board IDE
y
y
y
y
y
y
y
y
y
On-Board Floppy
y
y
Memory
Slots
On-Board Peripherals
y
y
y
y
y
y
y
y
Supports the latest Intel® Pentium® 4 Socket 775 CPU
Supports 533/800MHz FSB
L2 cache varies with CPU
GA-8IPE775 Series Motherboard:
GA-8IPE775 Pro/GA-8IPE775-G/GA-8IPE775
North Bridge: Intel® 865PE
South Bridge: Intel® ICH5
4 184-pin DDR DIMM sockets
Supports Dual channel DDR400/DDR333/DDR266 DIMM
Supports 128MB/256MB/512MB/1GB unbuffered DRAM
Supports up to 4GB DRAM (Max) (Note 1)
1 AGP slot supports 8X/4X(1.5V) mode
5 PCI slots
2 IDE bus master (UDMA33/ATA66/ATA100) IDE ports for up to
4 ATAPI devices
Can connect up to 4 IDE devices
1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M and
2.88M bytes
1 Parallel port supports Normal/EPP/ECP mode
2 Serial ports (COMA & COMB)
8 USB 2.0/1.1 ports (4 x Rear, 4 x Front by cable)
1 IrDA connector for IR/CIR
3 IEEE1394 (by cable)
1 Front Audio connector
1 PS/2 keyboard port
1 PS/2 mouse port
to be continued......
Due to chipset (Intel 865PE) architecture limitation, a FSB 800 Pentium 4
processor will support DDR400/DDR333/DDR266 memory module. A FSB 533 Pentium 4
processor will support DDR333 and DDR266 memory module.
(Note 1) Due to standard PC architecture, a certain amount of memory is reserved for system
usage and therefore the actual memory size is less than the stated amount.
For example, 4 GB of memory size will instead be shown as 3.xxGB memory
during system startup.
Only for GA-8IPE775 Pro.
-5-
Introduction
English
Chapter 1 Introduction
English
On-Board LAN
y
y
y
y
y
y
y
y
y
y
y
y
y
y
y
y
y
y
y
y
y
y
y
Build in Marvell 8001 Chipset (10/100/1000 Mbit)
1 RJ45 port
Ti TSB43AB23
ALC850 CODEC (UAJ)
Supports Jack Sensing function
Supports 2 / 4 / 6 / 8 channel audio
Supports Line In / Line Out / MIC connection
Surround Back Speaker (use of Surround-Kit to select)
SPDIF In / Out
CD In / Game connector
2 Serial ATA connectors (SATA0/SATA1)
Controlled by ICH5
CPU/Power /System Fan Revolution detect
CPU/Power /System Fan Fail Warning
CPU Overheat Warning
System Voltage Detect
IT8712
PS/2 Keyboard interface and PS/2 Mouse interface
Licensed AWARD BIOS
Supports Dual BIOS /Q-Flash
Supports EasyTune
Supports @BIOS
Supports CPU Smart Fan Control function
Overclocking
y
Over Voltage (DDR/AGP/CPU) by BIOS
Form Factor
y
y
Over Clock (DDR/AGP/CPU/PCI) by BIOS
ATX size form factor; 30.5cm x 24.4cm
On-Board IEEE1394
On-Board Sound
Serial ATA
Hardware Monitor
I/O Control
PS/2 Connector
BIOS
Additional Features
Only for GA-8IPE775 Pro.
Only for GA-8IPE775-G.
GA-8IPE775 Series Motherboard
-6-
English
GA-8IPE775 Series Motherboard Layout
KB_MS
COMA
ATX_12V
FDD
COMB
ATX
LPT
CPU_FAN
AGP
IDE1
DDR4
8001
DDR3
F_AUDIO
Intel® 865PE
Marvell
DDR2
CD_IN
DDR1
LAN
USB
AUDIO
IDE2
GA-8IPE775 (Pro/-G)
SOCKET 775
R_USB
PWR_FAN
DUAL CHANNEL DDR
PCI1
CODEC
SATA
ICH5
P4 Titan
SATA1
SATA0
SUR_CEN
PCI2
BAT
IT8712
PCI3
CI
PCI4
IR_CIR
PCI5
SPDIF_IO
SYS_FAN
INFO_LINK
TSB43AB23
MAIN
BIOS
F_PANEL
F_USB2
BACKUP
GAME
CLR_CMOS
BIOS
F2_1394
F1_1394
PWR_LED
F_USB1
Only for GA-8IPE775 Pro.
Only for GA-8IPE775-G.
-7-
Introduction
LGA 775
Processor
CPUCLK+/- (200MHz)
AGP 8X/4X
AGPCLK
(66MHz)
System Bus
800MHz
DDR
Intel 865PE
266/333/400MHz
ZCLK (66MHz)
5 PCI
HCLK+/- (200MHz)
RJ45
IEEE 1394
TSB43AB23
66MHz
33 MHz
14.318 MHz
48 MHz
Marvell 8001
Dual BIOS
ICH5
Game Port
LPC BUS
AC97 Link
IT8712
AC97
CODEC
LINE-OUT
PCICLK
(33MHz)
PCICLK (33MHz)
USBCLK (48MHz)
14.318 MHz
33 MHz
PS/2
KB/Mouse
8 USB
(2.0/1.1)
Ports
ATA33/66/100
IDE Channels
33 MHz
Serial ATA
Channels
CLK GEN
24 MHz
ZCLK (66MHz)
CPUCLK+/- (200MHz)
AGPCLK (66MHz)
HCLK+/- (200MHz)
ICH3V66 (66MHz)
Only for GA-8IPE775 Pro.
Only for GA-8IPE775-G.
GA-8IPE775 Series Motherboard
Floppy
LPT Port
24 MHz
MIC
LINE-IN
English
Block Diagram
-8-
COM
Ports
English
-9-
Introduction
English
GA-8IPE775 Series Motherboard
- 10 -
To set up your computer, you must complete the following steps:
Step 1- Install the Central Processing Unit (CPU)
Step 2- Install memory modules
Step 3- Install expansion cards
Step 4- Install I/O Peripherals Cables
Step 4
Step 1
Step 2
Step 4
Step 4
Step 3
Congratulations! You have accomplished the hardware installation!
Turn on the power supply or connect the power cable to the power outlet. Continue with
the BIOS/software installation.
- 11 -
Hardware Installation Process
English
Chapter 2 Hardware Installation Process
English
Step 1: Install the Central Processing Unit (CPU)
Before installing the CPU, please comply with the following conditions:
1. Please make sure that the motherboard supports the CPU.
2. Please take note of the one indented corner of the CPU. If you install the CPU in the wrong
direction, the CPU will not insert properly. If this occurs, please change the insert direction
of the CPU.
3. Please add an even layer of heat sink paste between the CPU and heatsink.
4. Please make sure the heatsink is installed on the CPU prior to system use, otherwise
overheating and permanent damage of the CPU may occur.
5. Please set the CPU host frequency in accordance with the processor specifications. It is
not recommended that the system bus frequency be set beyond hardware specifications
since it does not meet the required standards for the peripherals. If you wish to set the
frequency beyond the proper specifications, please do so according to your hardware
specifications including the CPU, graphics card, memory, hard drive, etc.
HT functionality requirement content :
Enabling the functionality of Hyper-Threading Technology for your computer system requires
all of the following platform components:
- CPU: An Intel® Pentium 4 Processor with HT Technology
- Chipset: An Intel ® Chipset that supports HT Technology
- BIOS: A BIOS that supports HT Technology and has it enabled
- OS: An operation system that has optimizations for HT Technology
Step 1-1: Installation of the CPU
Metal Lever
Fig. 1
Gently lift the metal
lever located on the
CPU socket to the
upright position.
Fig. 2
Remove the plastic
covering on the CPU
socket.
Fig. 3
Notice the small gold
colored triangle located
on the edge of the CPU
socket. Align the
indented corner of the
CPU with the triangle
and gently insert the
CPU into position.
Fig. 4
Once the CPU is
properly inserted,
please replace the
plastic covering and
push the metal lever
back into its original
position.
GA-8IPE775 Series Motherboard
- 12 -
Fig.1
Please apply an even
layer of heatsink paste
on the surface of the
installed CPU.
Fig. 2
Place the heatsink atop
the CPU and then
secure each of the four
heatsink clips by
pressing downwards.
(for detailed installation instructions, please refer to
the heat sink installation section of the user manual)
Fig. 3
Please attach the power connector of the heatsink to the CPU fan header
located on the motherboard. Installation is complete.
The heatsink may adhere to the CPU as a result of hardening of the heatsink paste. If the heatsink
is removed when this occurs, the CPU may become pulled from its socket with the metal lever
still in its locked position and result in damage to the processor pins. To prevent such an
occurrence, it is suggested that either thermal tape rather than heat sink paste be used for heat
dissipation or using extreme care when removing the heatsink.
Step 2: Installation of Memory
Before installing the memory modules, please comply with the following conditions:
1. Please make sure that the memory used is supported by the motherboard. It is
recommended that memory of similar capacity, specifications and brand be used.
2. Before installing or removing memory modules, please make sure that the computer
power is switched off to prevent hardware damage.
3. Memory modules have a foolproof insertion design. A memory module can be installed in
only one direction. If you are unable to insert the module, please switch the direction.
- 13 -
Hardware Installation Process
English
Step 1-2: Installation of the Heatsink
English
The motherboard supports DDR memory modules, whereby BIOS will automatically detect memory
capacity and specifications. Memory modules are designed so that they can be inserted only in one
direction. The memory capacity used can differ with each slot.
Notch
DDR
1. The DIMM socket has a notch, so the DIMM memory
module can only fit in one direction.
2. Insert the DIMM memory module vertically into the DIMM
socket. Then push it down.
3. Close the plastic clip at both edges of the DIMM sockets to
lock the DIMM module.
Reverse the installation steps when you wish to remove
the DIMM module.
DDR Introduction
Established on the existing SDRAM infrastructure, DDR (Double Data Rate) memory is a high
performance and cost-effective solution that allows easy adoption for memory vendors, OEMs, and
system integrators.
DDR memory is a great evolutionary solution for the PC industry that builds on the existing SDRAM
architecture, yet make the awesome advances in solving the system performance bottleneck by doubling
the memory bandwidth. Nowadays, with the highest bandwidth of 3.2GB/s of DDR400 memory and
complete line of DDR400/333/266/200 memory solutions, DDR memory is the best choice for building high
performance and low latency DRAM subsystem that are suitable for servers, workstations, and full range
of desktop PCs.
GA-8IPE775 Series Motherboard
- 14 -
z Figure 1: Dual Channel Technology (DS: Double Side, SS: Single Side)
2 memory modules
4 memory modules
DIMM 1
DIMM 2
DIMM 3
DS/SS
X
DS/SS
DIMM 4
X
X
DS/SS
X
DS/SS
DS/SS
DS/SS
DS/SS
DS/SS
z Figure 2: Don't operate Dual Channel Technology (DS: Double Side, SS: Single Side)
1 memory module
2 memory modules
3 memory modules
DIMM 1
DIMM 2
DIMM 3
DIMM 4
DS/SS
X
X
X
X
DS/SS
X
X
X
X
DS/SS
X
X
X
X
DS/SS
DS/SS
DS/SS
X
X
X
X
DS/SS
DS/SS
DS/SS
DS/SS
DS/SS
X
DS/SS
DS/SS
X
DS/SS
DS/SS
X
DS/SS
DS/SS
X
DS/SS
DS/SS
DS/SS
- 15 -
Hardware Installation Process
English
GA-8IPE775 Series supports the Dual Channel Technology. After operating the Dual Channel Technology,
the bandwidth of Memory Bus will add double up to 6.4GB/s.
GA-8IPE775 Series includes 4 DIMM sockets, and each Channel has two DIMM sockets as following:
Channel A : DIMM 1, DIMM 2
Channel B : DIMM 3, DIMM 4
If you want to operate the Dual Channel Technology, please note the following explanations due
to the limitation of Intel ® chipset specifications.
1. Only one DDR memory module is installed: The Dual Channel Technology can't operate
when only one DDR memory module is installed.
2. Two DDR memory modules are installed (the same memory size and type): The Dual
Channel Technology will operate when two memory modules are inserted individually into
Channel A and B. If you install two memory modules in the same channel, the Dual Channel
Technology will not operate.
3. Three DDR memory modules are installed: Please note that The Dual Channel
Technology will not operate when three DDR memory modules are installed; part of
them will not be detected.
4. Four DDR memory modules are installed: If you install four memory modules at the same
time, the Dual Channel Technology will operate only when those modules have the same
memory size and type.
We'll strongly recommend our user to slot two DDR memory modules into the DIMMs with the same color
in order for Dual Channel Technology to work.
The following tables include all memory-installed combination types:
(Please note that those types not in the tables will not boot up.)
English
Step 3: Install expansion cards
1. Read the related expansion card's instruction document before install the expansion card into the
computer.
2. Remove your computer's chassis cover, screws and slot bracket from the computer.
3. Press the expansion card firmly into expansion slot in motherboard.
4. Be sure the metal contacts on the card are indeed seated in the slot.
5. Replace the screw to secure the slot bracket of the expansion card.
6. Replace your computer's chassis cover.
7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.
8. Install related driver from the operating system.
AGP Card
GA-8IPE775 Series Motherboard
Please carefully pull out the small white- drawable
bar at the end of the AGP slot when you try to install/
Uninstall the AGP card. Please align the AGP card
to the onboard AGP slot and press firmly down on
the slot .Make sure your AGP card is locked by the
small white- drawable bar.
- 16 -
English
Step 4: Install I/O Peripherals Cables
Step 4-1: I/O Back Panel Introduction
PS/2 Keyboard and PS/2 Mouse Connector
PS/2 Mouse Connector
(6 pin Female)
This connector supports standard PS/2
keyboard and PS/2 mouse.
PS/2 Keyboard Connector
(6 pin Female)
Parallel Port, Serial Port and VGA Port (LPT/COMA/COMB)
Parallel Port
(25 pin Female)
This connector supports 2 standard COM ports
and 1 Parallel port. Device like printer can be
connected to Parallel port; mouse and modem
etc can be connected to Serial ports.
COMA
COMB
Serial Port (9 pin Male)
- 17 -
Hardware Installation Process
English
/
USB / LAN Connector
USB 0
USB 1
LAN
USB 2
USB 3
Audio Connectors
LAN is fast Ethernet with 10/100/1000 Mbps
speed.
Before you connect your device(s) into USB
connector(s), please make sure your
device(s) such as USB keyboard,mouse,
scanner, zip, speaker..etc. Have a standard
USB interface. Also make sure your OS
supports USB controller.
If your OS does not support USB controller,
please contact OS vendor for possible patch
or driver upgrade. For more information
please contact your OS or device(s) vendors.
After install onboard audio driver, you may
connect speaker to Line Out jack,
microphone to MIC In jack. Devices like
CD-ROM, walkman etc. can be connected
to Line-In jack.
Please note:
Line In
Line Out
You are able to use 2-/4-/6-/8-channel audio
feature by S/W selection.
If you want to enable 8-channel function you
can refer to page 24, and contact your
MIC In
nearest dealer for optional SUR_CEN cable.
If you want the detail information for 2-/4-/6-/8-channel audio setup
installation, please refer to page 67.
Only for GA-8IPE775 Pro.
Only for GA-8IPE775-G.
GA-8IPE775 Series Motherboard
- 18 -
English
Step 4-2: Connectors Introduction
1 3
7
2
6
12
5
22
20
10
11
4
17
9
8
21
14
16
13
23
19
15
18
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
ATX_12V
ATX
CPU_FAN
SYS_FAN
PWR_FAN
IDE1/IDE2
FDD
PWR_LED
F_PANEL
F_AUDIO
SUR_CEN
CD_IN
13)
14)
15)
16)
17)
18)
19)
20)
21)
22)
23)
SPDIF_IO
IR_CIR
F_USB1/F_USB2
GAME
INFO_LINK
F1_1394
F2_1394
SATA0/SATA1
CI
CLR_CMOS
BAT
Only for GA-8IPE775 Pro.
- 19 -
Hardware Installation Process
English
1/2) ATX_12V/ATX (Power Connector)
With the use of the power connector, the power supply can supply enough stable power to all the
components on the motherboard. Before connecting the power connector, please make sure that all
components and devices are properly installed. Align the power connector with its proper location
on the motherboard and connect tightly.
The ATX_12V power connector mainly supplies power to the CPU. If the ATX_12V power
connector is not connected, the system will not start.
Caution!
Please use a power supply that is able to handle the system voltage requirements. It is
recommended that a power supply that can withstand high power consumption be used (300W or
greater). If a power supply is used that does not provide the required power, the result can lead to
an unstable system or a system that is unable to start.
Please remove the sticker on the motherboard before plugging in while the ATX power supplier is
24 pins; Otherwise, please do not remove it.
Pin No.
1 3
2 4
1
13
12
24
GA-8IPE775 Series Motherboard
- 20 -
Definition
1
2
GND
GND
3
+12V
4
+12V
Pin No.
Definition
1
2
3.3V
3.3V
3
GND
4
VCC
5
6
GND
VCC
7
GND
8
Power Good
9
10
5V SB(stand by +5V)
+12V
11
+12V
12
3.3V (Only for 24pins ATX)
13
14
3.3V
-12V
15
GND
16
PS_ON(soft On/Off)
17
18
GND
GND
19
GND
20
-5V
21
22
VCC
VCC
23
VCC
24
GND
(Cooler Fan Power Connector)
The cooler fan power connector supplies a +12V power voltage via a 3-pin power connector and
possesses a foolproof connection design.
Most coolers are designed with color-coded power connector wires. A red power connector wire
indicates a positive connection and requires a +12V power voltage. The black connector wire is
the ground wire (GND).
Please remember to connect the power to the cooler to prevent system overheating and failure.
Caution!
Please remember to connect the power to the CPU fan to prevent CPU overheating and failure.
1
Pin No.
CPU_FAN
1
Definition
1
2
GND
+12V
3
Sense
4
Control
(Only for CPU_FAN)
SYS_FAN
1
PWR_FAN
6) IDE1 / IDE2 (IDE1 / IDE2 Connector)
Important Notice:
Please connect first hard disk to IDE1 and connect CD-ROM to IDE2.
The red stripe of the ribbon cable must be the same side with the Pin1.
40
39
2
1
IDE2
Only for GA-8IPE775 Pro.
- 21 -
IDE1
Hardware Installation Process
English
3/4/5) CPU_FAN / SYS_FAN / PWR_FAN
English
7) FDD (Floppy Connector)
Please connect the floppy drive ribbon cables to FDD. It supports 360K, 1.2M, 720K, 1.44M and
2.88M bytes floppy disk types.
The red stripe of the ribbon cable must be the same side with the Pin1.
34
33
2
1
8) PWR_LED
PWR_LED is connect with the system power indicator to indicate whether the system is on/off.
It will blink when the system enters suspend mode. If you use dual color LED, power LED will turn
to another color.
Pin No.
1
1
GA-8IPE775 Series Motherboard
- 22 -
Definition
MPD+
2
MPD-
3
MPD-
Please connect the power LED, PC speaker, reset switch and power switch etc. of your chassis
front panel to the F_PANEL connector according to the pin assignment below.
Speaker
Connector
20 19
SPEAKReset Switch
SPEAK+
Power Switch
NC
PWPW+
MSGMSG+
RES+
RESHDHD+
2 1
Message LED/Power/
Sleep LED
IDE Hard Disk
Active LED
HD (IDE Hard Disk Active LED)
Pin 1: LED anode(+)
(Blue)
Pin 2: LED cathode(-)
SPEAK (Speaker Connector)
Pin 1: VCC(+)
(Amber)
Pin 2- Pin 3: NC
Pin 4: Data(-)
RES (Reset Switch)
Open: Normal Operation
(Green)
Close: Reset Hardware System
PW (Power Switch)
Open: Normal Operation
(Red)
Close: Power On/Off
MSG(Message LED/ Power/ Sleep LED)
Pin 1: LED anode(+)
(Yellow)
Pin 2: LED cathode(-)
NC (Purple)
NC
- 23 -
Hardware Installation Process
English
9) F_PANEL (2 x 10 pins Connector)
English
10) F_AUDIO (Front Audio Connector)
If you want to use Front Audio connector, you must remove 5-6, 9-10 Jumper.
In order to utilize the front audio header, your chassis must have front audio connector. Also please
make sure the pin assigment on the cable is the same as the pin assigment on the MB header. To
find out if the chassis you are buying support front audio connector, please contact your dealer.
Please note, you can have the alternative of using front audio connector or of using rear audio
connector to play sound.
Pin No.
1
2
9
10
Definition
1
MIC
2
3
GND
MIC_BIAS
4
Power
5
Front Audio (R)
6
7
Rear Audio (R)
Reserved
8
No Pin
9
Front Audio (L)
10
Rear Audio (L)
11) SUR_CEN (Surround Center Connector)
Please contact your nearest dealer for optional SUR_CEN cable.
Pin No.
GA-8IPE775 Series Motherboard
1
2
7
8
- 24 -
Definition
1
SUR OUTL
2
3
SUR OUTR
GND
4
No Pin
5
CENTER_OUT
6
7
BASS_OUT
AUX_L
8
AUX_R
English
12) CD_IN (CD In Connector)
Connect CD-ROM or DVD-ROM audio out to the connector.
1
Pin No.
Definition
1
2
CD-L
GND
3
GND
4
CD-R
13) SPDIF_IO (SPDIF In/Out Connector)
The SPDIF output is capable of providing digital audio to external speakers or compressed AC3
data to an external Dolby Digital Decoder. Use this feature only when your stereo system has
digital input function. Be careful with the polarity of the SPDIF_IO connector. Check the pin
assignment carefully while you connect the SPDIF cable, incorrect connection between the cable
and connector will make the device unable to work or even damage it. For optional SPDIF cable,
please contact your local dealer.
Pin No.
2 6
1 5
- 25 -
Definition
1
VCC
2
3
No Pin
SPDIF
4
SPDIFI
5
GND
6
GND
Hardware Installation Process
English
14) IR_CIR
Make sure the pin 1 on the IR device is aling with pin one the connector. To enable the IR/CIR
function on the board, you are required to purchase an option IR/CIR module. To use IR function
only, please connect IR module to Pin1 to Pin5. Be careful with the polarity of the IR/CIR
connector. Check the pin assignment carefully while you connect the IR/CIR cable, incorrect
connection between the cable and connector will make the device unable to work or even damage
it. For optional IR/CIR cable, please contact your local dealer.
Pin No.
Definition
1
VCC
6
10
2
3
NC
IRRX
1
5
4
GND
5
IRTX
6
7
NC
CIRRX
8
+5VSB
9
CIRTX
10
NC
15) F_USB1 / F_USB2 (Front USB Connector)
Be careful with the polarity of the front USB connector. Check the pin assignment carefully while
you connect the front USB cable, incorrect connection between the cable and connector will make
the device unable to work or even damage it. For optional front USB cable, please contact your
local dealer.
GA-8IPE775 Series Motherboard
- 26 -
2
10
1
9
Pin No.
Definition
1
Power
2
Power
3
4
USB DxUSB Dy-
5
USB Dx+
6
USB Dy+
7
8
GND
GND
9
No Pin
10
NC
This connector supports joystick, MIDI keyboard and other relate audio devices.
2
16
1
15
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Definition
VCC
GRX1_R
GND
GPSA2
VCC
GPX2_R
GPY2_R
MSI_R
GPSA1
GND
GPY1_R
VCC
GPSB1
MSO_R
GPSB2
No Pin
17) INFO_LINK
This connector allows you to connect some external devices to provide you extra function. Check
the pin assignment while you connect the external device cable. Please contact your nearest
dealer for optional external device cable.
Pin No.
10
9
2
1
- 27 -
Definition
1
SMBCLK
2
VCC
3
4
SMBDATA
GPIO
5
GND
6
GND
7
8
No Pin
NC
9
+12V
10
+12V
Hardware Installation Process
English
16) GAME (GAME Connector)
English
18) F1_1394 (IEEE 1394 Connector)
Please Note: Serial interface standard set by Institute of Electrical and Electronics Engineers, which
has features like high speed, high bandwidth and hot plug.
Be careful with the polarity of the IEEE1394 connector. Check the pin assignment carefully while you
connect the IEEE1394 cable, incorrect connection between the cable and connector will make the
device unable to work or even damage it. For optional IEEE1394 cable, please contact your local
dealer.
Pin No.
2
1
10
9
Definition
1
2
TPA2+
TPA2-
3
GND
4
GND
5
6
TPB2+
TPB2-
7
No Pin
8
Power
9
10
Power
GND
19) F2_1394 (IEEE 1394 Connector)
Please Note: Serial interface standard set by Institute of Electrical and Electronics Engineers, which
has features like high speed, high bandwidth and hot plug.
Be careful with the polarity of the IEEE1394 connector. Check the pin assignment carefully while you
connect the IEEE1394 cable, incorrect connection between the cable and connector will make the
device unable to work or even damage it. For optional IEEE1394 cable, please contact your local
dealer.
Pin No.
1
2
Power
Power
3
TPA0+
TPA0-
5
6
GND
GND
2
16
4
1
15
7
TPB0+
8
TPB0-
9
10
Power
Power
11
TPA1+
12
TPA1-
13
14
GND
No Pin
Only for GA-8IPE775 Pro.
GA-8IPE775 Series Motherboard
Definition
- 28 -
15
TPB1+
16
TPB1-
English
20) SATA0/SATA1 (Serial ATA Connector)
You can connect the Serial ATA device to this connector.
Pin No.
1
7
1
Definition
GND
2
TXP
3
4
TXN
GND
5
RXN
6
RXP
7
GND
21) CI (Chassis Intrusion, Case Open)
This 2-pin connector allows your system to enable or disable the "Case Open" item in BIOS, if the
system case begin remove.
1
- 29 -
Pin No.
Definition
1
2
Signal
GND
Hardware Installation Process
English
22) CLR_CMOS (Clear CMOS)
You may clear the CMOS data to its default values by this jumper. To clear CMOS, temporarily
short 1-2 pin. Default doesn't include the "Shunter" to prevent from improper use this jumper.
1
Open: Normal
1
Short: Clear CMOS
23) BAT (BATTERY)
CAUTION
Danger of explosion if battery is incorrectly
replaced.
Replace only with the same or equivalent type
recommended by the manufacturer.
Dispose of used batteries according to the
manufacturer's instructions.
If you want to erase CMOS...
1. Turn OFF the computer and unplug the power cord.
2. Remove the battery, wait for 30 second.
3. Re-install the battery.
4. Plug the power cord and turn ON the computer.
GA-8IPE775 Series Motherboard
- 30 -
BIOS (Basic Input and Output System) includes a CMOS SETUP utility which allows user to configure
required settings or to activate certain system features.
The CMOS SETUP saves the configuration in the CMOS SRAM of the motherboard.
When the power is turned off, the battery on the motherboard supplies the necessary power to the CMOS
SRAM.
When the power is turned on, pushing the <Del> button during the BIOS POST (Power-On Self Test) will
take you to the CMOS SETUP screen. You can enter the BIOS setup screen by pressing "Ctrl + F1".
When setting up BIOS for the first time, it is recommended that you save the current BIOS to a disk in the
event that BIOS needs to be reset to its original settings. If you wish to upgrade to a new BIOS, either
Gigabyte's Q-Flash or @BIOS utility can be used.
Q-Flash allows the user to quickly and easily update or backup BIOS without entering the operating
system.
@BIOS is a Windows-based utility that does not require users to boot to DOS before upgrading BIOS but
directly download and update BIOS from the Internet.
CONTROL KEYS
<Ç>
<È>
<Å>
<Æ>
Enter
<Esc>
Move to previous item
Move to next item
Move to the item in the left hand
Move to the item in the right hand
Select item
Main Menu - Quit and not save changes into CMOS Status Page Setup Menu and
Option Page Setup Menu - Exit current page and return to Main Menu
<+/PgUp> Increase the numeric value or make changes
<-/PgDn> Decrease the numeric value or make changes
<F1>
General help, only for Status Page Setup Menu and Option Page Setup Menu
<F2>
Item Help
<F3>
Reserved
<F4>
Reserved
<F5>
Restore the previous CMOS value from CMOS, only for Option Page Setup Menu
<F6>
Load the file-safe default CMOS value from BIOS default table
<F7>
Load the Optimized Defaults
<F8>
Dual BIOS /Q-Flash function
<F9>
System Information
<F10>
Save all the CMOS changes, only for Main Menu
Only for GA-8IPE775 Pro.
- 31 -
BIOS Setup
English
Chapter 3 BIOS Setup
English
GETTING HELP
Main Menu
The on-line description of the highlighted setup function is displayed at the bottom of the screen.
Status Page Setup Menu / Option Page Setup Menu
Press F1 to pop up a small help window that describes the appropriate keys to use and the possible
selections for the highlighted item. To exit the Help Window press <Esc>.
The Main Menu (For example: BIOS Ver. : 8IPE775 Pro.D4)
Once you enter Award BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main
Menu allows you to select from eight setup functions and two exit choices. Use arrow keys to select
among the items and press <Enter> to accept or enter the sub-menu.
CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
`
`
`
`
`
`
`
Standard CMOS Features
Advanced BIOS Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
Frequency/Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
KLJI: Select Item
F10: Save & Exit Setup
ESC: Quit
F8: Dual BIOS 1/Q-Flash
Time, Date, Hard Disk Type...
If you can't find the setting you want, please press "Ctrl+F1" to
search the advanced option widden.
z
Standard CMOS Features
This setup page includes all the items in standard compatible BIOS.
z
Advanced BIOS Features
This setup page includes all the items of Award special enhanced features.
z
Integrated Peripherals
This setup page includes all onboard peripherals.
Only for GA-8IPE775 Pro.
GA-8IPE775 Series Motherboard
- 32 -
Power Management Setup
English
z
This setup page includes all the items of Green function features.
z
PnP/PCI Configurations
This setup page includes all the configurations of PCI & PnP ISA resources.
z
PC Health Status
This setup page is the System auto detect Temperature, voltage, fan, speed.
z
Frequency/Voltage Control
This setup page is control CPU's clock and frequency ratio.
z
Load Fail-Safe Defaults
Fail-Safe Defaults indicates the value of the system parameters which the system would
be in safe configuration.
z
Load Optimized Defaults
Optimized Defaults indicates the value of the system parameters which the system would
be in best performance configuration.
z
Set Supervisor password
Change, set, or disable password. It allows you to limit access to the system and Setup,
or just to Setup.
z
Set User password
Change, set, or disable password. It allows you to limit access to the system.
z
Save & Exit Setup
Save CMOS value settings to CMOS and exit setup.
z
Exit Without Saving
Abandon all CMOS value changes and exit setup.
- 33 -
BIOS Setup
English
Standard CMOS Features
CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
Standard CMOS Features
`
`
`
`
Date (mm:dd:yy)
Time (hh:mm:ss)
Mon, May 10 2004
22:31:24
Item Help
Menu Level`
IDE Channel 0 Master
IDE Channel 0 Slave
IDE Channel 1 Master
IDE Channel 1 Slave
[None]
[None]
[None]
[None]
Change the day, month,
year
Drive A
Drive B
Floppy 3 Mode Suport
[1.44M, 3.5"]
[None]
[Disabled]
Holt On
[All, But Keyboard]
Base Memory
Extended Memory
Total Memory
640K
127M
128M
KLJI: Move
Enter: Select
F5: Previous Values
+/-/PU/PD: Value
F6: Fail-Save Default
<Week>
Sun. to Sat.
<Month>
Jan. to Dec.
<Day>
1 to 31 (or maximum
allowed in the month)
<Year>
1999 to 2098
F10: Save
ESC: Exit
F7: Optimized Defaults
F1: General Help
Date
The date format is <week>, <month>, <day>, <year>.
Week
The week, from Sun to Sat, determined by the BIOS and is display only
Month
The month, Jan. Through Dec.
Day
The day, from 1 to 31 (or the maximum allowed in the month)
Year
The year, from 1999 through 2098
Time
The times format in <hour> <minute> <second>. The time is calculated base on the 24-hour
military-time clock. For example, 1 p.m. is 13:00:00.
GA-8IPE775 Series Motherboard
- 34 -
IDE HDD Auto-Detection
Press "Enter" to select this option for automatic device detection.
IDE Channel 0 Master(Slave) / IDE Channel 1 Master(Slave) IDE Device Setup. You can use
one of three methods:
Auto
Allows BIOS to automatically detect IDE devices during POST(default)
None
Select this if no IDE devices are used and the system will skip the automatic
detection step and allow for faster system start up.
Manual
Access Mode
User can manually input the correct settings
Use this to set the access mode for the hard drive. The four options are:
CHS/LBA/Large/Auto(default:Auto)
Hard drive information should be labeled on the outside drive casing. Enter the appropriate option
based on this information.
Cylinder
Number of cylinders
Head
Number of heads
Precomp
Write precomp
Landing Zone
Landing zone
Sector
Number of sectors
If a hard disk has not been installed, select NONE and press <Enter>.
Drive A / Drive B
The category identifies the types of floppy disk drive A or drive B that has been installed in the
computer.
None
No floppy drive installed
360K, 5.25"
5.25 inch PC-type standard drive; 360K byte capacity.
1.2M, 5.25"
5.25 inch AT-type high-density drive; 1.2M byte capacity
(3.5 inch when 3 Mode is Enabled).
720K, 3.5"
3.5 inch double-sided drive; 720K byte capacity
1.44M, 3.5"
3.5 inch double-sided drive; 1.44M byte capacity.
2.88M, 3.5"
3.5 inch double-sided drive; 2.88M byte capacity.
- 35 -
BIOS Setup
English
IDE Channel 0 Master, Slave / IDE Channel 1 Master, Slave
English
Floppy 3 Mode Support (for Japan Area)
Disabled
Normal Floppy Drive. (Default value)
Drive A
Drive A is 3 mode Floppy Drive.
Drive B
Drive B is 3 mode Floppy Drive.
Both
Drive A & B are 3 mode Floppy Drives.
Halt on
The category determines whether the computer will stop if an error is detected during power up.
NO Errors
The system boot will not stop for any error that may be detected and
you will be prompted.
All Errors
Whenever the BIOS detects a non-fatal error the system boot will be
stopped.
All, But Keyboard
The system boot will not stop for all errors except a keyboard error.
(Default value)
All, But Diskette
The system boot will not stop for all errors except a disk error.
All, But Disk/Key
The system boot will not stop for all errors except keyboard and disk
errors.
Memory
The category is display-only which is determined by POST (Power On Self Test) of the BIOS.
Base Memory
The POST of the BIOS will determine the amount of base (or conventional) memory installed
in the system.
The value of the base memory is typically 512 K for systems with 512K memory installed on
the motherboard, or 640 K for systems with 640 K or more memory installed on the motherboard.
Extended Memory
The BIOS determines how much extended memory is present during the POST.
This is the amount of memory located above 1MB in the CPU's memory address map.
GA-8IPE775 Series Motherboard
- 36 -
CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
Advanced BIOS Features
X Hard Disk Boot Priority
First Boot Device
Second Boot Device
Third Boot Device
Password Check
Boot to OS2 or DR-DOS
# CPU Hyper-Threading
Limit CPUID Max. to 3
[Press Enter]
[Floppy]
[Hard Disk]
[CDROM]
[Setup]
[No]
[Enabled]
[Enabled]
KLJI: Move
Enter: Select
F5: Previous Values
+/-/PU/PD: Value
F6: Fail-Save Default
Item Help
Menu Level`
Select Hard Disk Boot
Device Priority
F10: Save
ESC: Exit
F7: Optimized Defaults
F1: General Help
" # " System will detect automatically and show up when you install the Intel® Pentium® 4 processor with
HT Technology.
Hard Disk Boot Priority
Select boot sequence for onboard(or add-on cards) SCSI, RAID, etc.
Use < > or < > to select a device, then press<+> to move it up, or <-> to move it down the list.
Press <ESC> to exit this menu.
First / Second / Third Boot Device
0 This feature allows you to select the boot device priority.
Floppy
Select your boot device priority by Floppy.
LS120
Select your boot device priority by LS120.
Hard Disk
Select your boot device priority by Hard Disk.
CDROM
Select your boot device priority by CDROM.
ZIP
Select your boot device priority by ZIP.
USB-FDD
Select your boot device priority by USB-FDD.
USB-ZIP
Select your boot device priority by USB-ZIP.
USB-CDROM
Select your boot device priority by USB-CDROM.
USB-HDD
Select your boot device priority by USB-HDD.
LAN
Select your boot device priority by LAN.
Disabled
Select your boot device priority by Disabled.
- 37 -
BIOS Setup
English
Advanced BIOS Features
English
Password Check
Setup
The system will boot but will not access to Setup page if the correct
password is not entered at the prompt. (Default value)
System
The system will not boot and will not access to Setup page if the correct
password is not entered at the prompt.
Boot to OS2 or DR-DOS
Yes
If you are running OS/2 or DR-DOS with greater than 64MB of RAM on the
system.
No
Disable this function. (Default value)
CPU Hyper-Threading
Enabled
Enables CPU Hyper Threading Feature. Please note that this feature is
only working for operating system with multi processors mode supported.
(Default value)
Disabled
Disables CPU Hyper Threading.
Limit CPUID Max. to 3
Enabled
Limit CPUID Maximum value to 3 when use older OS like NT4. (Default value)
Disabled
Disables CPUID Limit for windows XP.
GA-8IPE775 Series Motherboard
- 38 -
CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
Integrated Peripherals
On-Chip Primary PCI IDE
On-Chip Secondary PCI IDE
On-Chip SATA
x SATA Port0 Configure as
SATA Port1 Configure as
USB Controller
USB 2.0 Controller
USB Keyboard Support
USB Mouse Support
AC97 Audio
Onboard H/W 1394 1
Onboard H/W LAN 12
Onboard LAN Boot ROM 12
Onboard Serial Port 1
Onboard Serial Port 2
UART Mode Select
x UR2 Duplex Mode
Onboard Parallel Port
Parallel Port Mode
KLJI: Move
Enter: Select
F5: Previous Values
[Enabled]
[Enabled]
[Auto]
SATA Port0
SATA Port1
[Enabled]
[Enabled]
[Disabled]
[Disabled]
[Auto]
[Enabled]
[Enabled]
[Disabled]
[3F8/IRQ4]
[2F8/IRQ3]
[Normal]
Half
[378/IRQ7]
[SPP]
+/-/PU/PD: Value
F6: Fail-Save Default
Item Help
Menu Level`
If a hard disk
controller card is
used, set at Disabled
[Enabled]
Enable on-chip IDE
Port
[Disabled]
Disable on-chip IDE
Port
F10: Save
ESC: Exit
F7: Optimized Defaults
F1: General Help
CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
Integrated Peripherals
x ECP Mode Use DMA
Game Port Address
Midi Port Address
Midi Port IRQ
CIR Port Address
x CIR Port IRQ
KLJI: Move
Enter: Select
F5: Previous Values
Only for GA-8IPE775 Pro.
3
[201]
[Disabled]
10
[Disabled]
11
+/-/PU/PD: Value
F6: Fail-Save Default
Item Help
Menu Level`
F10: Save
ESC: Exit
F7: Optimized Defaults
F1: General Help
Only for GA-8IPE775-G.
- 39 -
BIOS Setup
English
Integrated Peripherals
English
On-Chip Primary PCI IDE
Enabled
Enable onboard 1st channel IDE port. (Default value)
Disabled
Disable onboard 1st channel IDE port.
On-Chip Secondary PCI IDE
Enabled
Enable onboard 2nd channel IDE port. (Default value)
Disabled
Disable onboard 2nd channel IDE port.
On-chip SATA
Disabled
Disable SATA controller.
Auto
When there is no device to be plugged in IDE1 or IDE2, SATA controller
will remap to IDE controller. (Default value)
Manual
Set SATA Mode manually.
SATA Port0 Configure as
IDE Pri. Master
Remap SATA Port 0 to IDE Pri. Master.
IDE Pri. Slave
Remap SATA Port 0 to IDE Pri. Slave.
IDE Sec. Master
Remap SATA Port 0 to IDE Sec. Master.
IDE Sec. Slave
Remap SATA Port 0 to IDE Sec. Slave.
SATA Port0
SATA controller set to SATA port0. As this mode, it support by WinXP or
later OS only. (Default value)
SATA Port1
SATA controller set to SATA port1. As this mode, it support by WinXP or
later OS only.
SATA Port1 Configure as
The values depend on SATA Port0.
USB Controller
Enabled
Enable USB Controller. (Default value)
Disabled
Disable USB Controller.
USB 2.0 Controller
Disable this function if you are not using onboard USB 2.0 feature.
Enabled
Enable USB 2.0 Controller. (Default value)
Disabled
Disable USB 2.0 Controller.
USB Keyboard Support
Enabled
Enable USB Keyboard Support.
Disabled
Disable USB Keyboard Support. (Default value)
GA-8IPE775 Series Motherboard
- 40 -
Enabled
Enable USB Mouse Support.
Disabled
Disable USB Mouse Support. (Default value)
English
USB Mouse Support
AC97 Audio
Auto
Auto detect AC'97 audio function. (Default value)
Disabled
Disable AC'97 audio function.
Onboard H/W 1394
Enabled
Enable onboard IEEE 1394 function.(Default value)
Disabled
Disable this function.
Onboard H/W LAN
Enabled
Enable Onboard H/W LAN function. (Default value)
Disabled
Disable this function.
Onboard LAN Boot ROM
This function decide whether to invoke the boot ROM of the onboard LAN chip.
Disabled
Disable this function. (Default Value)
Enabled
Enable this function.
Onboard Serial Port 1
Auto
BIOS will automatically setup the port 1 address.
3F8/IRQ4
Enable onboard Serial port 1 and address is 3F8. (Default value)
2F8/IRQ3
Enable onboard Serial port 1 and address is 2F8.
3E8/IRQ4
Enable onboard Serial port 1 and address is 3E8.
2E8/IRQ3
Enable onboard Serial port 1 and address is 2E8.
Disabled
Disable onboard Serial port 1.
Onboard Serial Port 2
Auto
BIOS will automatically setup the port 2 address.
3F8/IRQ4
Enable onboard Serial port 2 and address is 3F8.
2F8/IRQ3
Enable onboard Serial port 2 and address is 2F8. (Default value)
3E8/IRQ4
Enable onboard Serial port 2 and address is 3E8.
2E8/IRQ3
Enable onboard Serial port 2 and address is 2E8.
Disabled
Disable onboard Serial port 2.
Only for GA-8IPE775 Pro.
Only for GA-8IPE775-G.
- 41 -
BIOS Setup
English
UART Mode Select
This item allows you to determine which Infra Red(IR) function of Onboard I/O chip.
ASKIR
Set onboard I/O chip UART to ASKIR Mode.
IrDA
Set onboard I/O chip UART to IrDA Mode.
Normal
Set onboard I/O chip UART to Normal Mode. (Default Value)
UR2 Duplex Mode
This feature allows you to seclect IR mode.
This function will available when "UART Mode Select" doesn't set at Normal.
Half
IR Function Duplex Half. (Default value)
Full
IR Function Duplex Full.
Onboard Parallel port
This feature allows you to select from a given set of parameters if the parallel port uses the onboard
I/O controller.
Disabled
Disable onboard LPT port.
378/IRQ7
Enable onboard LPT port and address is 378/IRQ7. (Default value)
278/IRQ5
Enable onboard LPT port and address is 278/IRQ5.
3BC/IRQ7
Enable onboard LPT port and address is 3BC/IRQ7.
Parallel Port Mode
This feature allows you to connect with an advanced printer via the port mode it supports.
SPP
Using Parallel port as Standard Parallel Port. (Default value)
EPP
Using Parallel port as Enhanced Parallel Port.
ECP
Using Parallel port as Extended Capabilities Port.
ECP+EPP
Using Parallel port as ECP & EPP mode.
ECP Mode Use DMA
This feature allows you to select Direct Memory Access(DMA) channel if the ECP mode selected.
This function will available when "Parallel Port Mode" set at ECP or ECP+EPP.
3
Set ECP Mode Use DMA to 3. (Default value)
1
Set ECP Mode Use DMA to 1.
Game Port Address
201
Set Game Port Address to 201. (Default value)
209
Set Game Port Address to 209.
Disabled
Disable this function.
Midi Port Address
300
Set Midi Port Address to 300.
330
Set Midi Port Address to 330.
Disabled
Disable this function. (Default value)
GA-8IPE775 Series Motherboard
- 42 -
5
Set Midi Port IRQ to 5.
10
Set Midi Port IRQ to 10. (Default value)
English
Midi Port IRQ
CIR Port Address
310
Set CIR Port Address to 310.
320
Set CIR Port Address to 320.
Disabled
Disable this function. (Default value)
CIR Port IRQ
5
Set CIR Port IRQ to 5.
11
Set CIR Port IRQ to 11. (Default value)
Power Management Setup
CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
Power Management Setup
ACPI Suspend Type
Power LED in S1 state
Off by Power button
PME Event Wake Up
ModemRingOn/WakeOnLan
Resume by Alarm
x Date (of Month) Alarm
x Time (hh:mm:ss) Alarm
Power On By Mouse
Power On By Keyboard
x KB Power ON Password
AC Back Function
KLJI: Move
Enter: Select
F5: Previous Values
[S1(POS)]
[Blinking]
[Instant-off]
[Enabled]
[Enabled]
[Disabled]
Everyday
0:0:0
[Disabled]
[Disabled]
Enter
[Soft-Off]
+/-/PU/PD: Value
F6: Fail-Save Default
Item Help
Menu Level`
[S1]
Set suspend type to
Power On Suspend under
ACPI OS
[S3]
Set suspend type to
Suspend to RAM under
ACPI OS
F10: Save
ESC: Exit
F7: Optimized Defaults
F1: General Help
ACPI Suspend Type
S1(POS)
Set ACPI suspend type to S1/POS(Power On Suspend). (Default value)
S3(STR)
Set ACPI suspend type to S3/STR(Suspend To RAM).
Power LED in S1 state
Blinking
In standby mode(S1), power LED will blink. (Default value)
Dual/OFF
In standby mode(S1):
a. If use single color LED, power LED will turn off.
b. If use dual color LED, power LED will turn to another color.
- 43 -
BIOS Setup
English
Off by Power button
Instant-off
Press power button then Power off instantly. (Default value)
Delay 4 Sec.
Press power button 4 sec. to Power off. Enter suspend if button is pressed
less than 4 sec.
PME Event Wake Up
Disabled
Disable this function.
Enabled
Enable PME Event Wake up. (Default value)
ModemRingOn/WakeOnLAN
An incoming call via modem can awake the system from any suspend state or an input signal
comes from the other client server on the LAN can awake the system from any suspend state.
Disabled
Disable Modem Ring on/wake on Lan function.
Enabled
Enable Modem Ring on/wake on Lan. (Default value)
Resume by Alarm
You can set "Resume by Alarm" item to enabled and key in Data/time to power on system.
Disabled
Disable this function. (Default value)
Enabled
Enable alarm function to POWER ON system.
If RTC Alarm Lead To Power On is Enabled.
Date (of Month) Alarm : Everyday, 1~31
Time (hh: mm: ss) Alarm : (0~23) : (0~59) : (0~59)
Power On By Mouse
Disabled
Disable this function. (Default value)
Mouse Click
Double click on PS/2 mouse left button to power on the system.
Power On By Keyboard
This feature allows you to set the method for powering-on the system.
The option "Password" allows you to set up to 5 alphanumeric characters to power-on the system.
The option "Keyboard 98" allows you to use the standard keyboard 98 to power on the system.
Password
Enter from 1 to 5 characters to set the Keyboard Power On Password.
Disabled
Disabled this function. (Default value)
Keyboard 98
If your keyboard have "POWER Key" button, you can press the key to
power on the system.
KB Power ON Password
When "Power On by Keyboard" set at Password, you can set the password here.
Enter
Input password (from 1 to 5 characters) and press Enter to set the Keyboard
Power On password.
GA-8IPE775 Series Motherboard
- 44 -
Soft-Off
When AC-power back to the system, the system will be in "Off" state.
(Default value)
Full-On
When AC-power back to the system, the system always in "On" state.
Memory
When AC-power back to the system, the system will return to the Last state
before AC-power off.
PnP/PCI Configurations
CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
PnP/PCI Configurations
PCI
PCI
PCI
PCI
1/PCI 5 IRQ Assignment
2 IRQ Assignment
3 IRQ Assignment
4 IRQ Assignment
KLJI: Move
Enter: Select
F5: Previous Values
[Auto]
[Auto]
[Auto]
[Auto]
+/-/PU/PD: Value
F6: Fail-Save Default
Item Help
Menu Level`
F10: Save
ESC: Exit
F7: Optimized Defaults
F1: General Help
PCI 1/PCI 5 IRQ Assignment
Auto
Auto assign IRQ to PCI 1/PCI 5. (Default value)
3,4,5,7,9,10,11,12,14,15
Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 1/PCI 5.
PCI 2 IRQ Assignment
Auto
3,4,5,7,9,10,11,12,14,15
Auto assign IRQ to PCI 2. (Default value)
Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 2.
PCI 3 IRQ Assignment
Auto
Auto assign IRQ to PCI 3. (Default value)
3,4,5,7,9,10,11,12,14,15
Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 3.
PCI 4 IRQ Assignment
Auto
Auto assign IRQ to PCI 4. (Default value)
3,4,5,7,9,10,11,12,14,15
Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 4.
- 45 -
BIOS Setup
English
AC BACK Function
English
PC Health Status
CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
PC Health Status
Reset Case Open Status
Case Opened
Vcore
DDR25V
+3.3V
+12V
Current CPU Temperature
Current CPU FAN Speed
Current POWER FAN Speed 1
Current SYSTEM FAN Speed
CPU Warning Temperature
CPU FAN Fail Warning
POWER FAN Fail Warning 1
SYSTEM FAN Fail Warning
CPU Smart FAN Control 12
[Disabled]
Yes
OK
OK
OK
OK
50oC
4687 RPM
0
RPM
0
RPM
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Enabled]
KLJI: Move
Enter: Select
F5: Previous Values
+/-/PU/PD: Value
F6: Fail-Save Default
Item Help
Menu Level`
[Disabled]
Don't monitor
current fan speed
[Enabled]
Clear case open status
and set to be Disabled
at next boot
F10: Save
ESC: Exit
F7: Optimized Defaults
F1: General Help
Reset Case Open Status
Disabled
Don't reset case open status. (Default value)
Enabled
Clear case open status at next boot.
Case Opened
If the case is closed, "Case Opened" will show "No".
If the case have been opened, "Case Opened" will show "Yes".
If you want to reset "Case Opened" value, set "Reset Case Open Status" to "Enabled" and save
CMOS, your computer will restart.
Current Voltage (V) Vcore / DDR25V / +3.3V / +12V
Detect system's voltage status automatically.
Current CPU Temperature
Detect CPU Temp. automatically.
Current CPU/POWER
/SYSTEM FAN Speed (RPM)
Detect CPU/POWER/SYSTEM Fan speed status automatically.
Only for GA-8IPE775 Pro.
Only for GA-8IPE775-G.
GA-8IPE775 Series Motherboard
- 46 -
60 oC / 140 o F
Monitor CPU Temp. at 60 oC / 140 oF.
70 oC / 158 o F
Monitor CPU Temp. at 70 oC / 158 oF.
o
o
80 C / 176 F
Monitor CPU Temp. at 80 oC / 176 oF.
90 oC / 194 o F
Monitor CPU Temp. at 90 oC / 194 oF.
Disabled
Disable this function. (Default value)
English
CPU Warning Temperature
CPU FAN Fail Warning
Disabled
Fan Warning Function Disable. (Default value)
Enabled
Fan Warning Function Enable.
POWER FAN Fail Warning
Disabled
Fan Warning Function Disable. (Default value)
Enabled
Fan Warning Function Enable.
SYSTEM FAN Fail Warning
Disabled
Fan Warning Function Disable. (Default value)
Enabled
Fan Warning Function Enable.
CPU Smart FAN Control
Disabled
Enabled
Disable this function.
Enable CPU Smart Fan control function.(Default value)
a.
When the CPU temperature is higher than 70 degrees Celsius, CPU fan
will run at full speed.
b.
When the CPU temperature is between 50 and 70 degrees Celsius,
c.
When the CPU temperature is between 40 and 50 degrees Celsius,
CPU fan will run at high speed.
CPU fan will run at medium speed.
d.
When the CPU temperature is lower than 40 degrees Celsius, CPU fan
will run at low speed.
Only for GA-8IPE775 Pro.
Only for GA-8IPE775-G.
- 47 -
BIOS Setup
English
Frequency/Voltage Control
CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
Frequency/Voltage Control
CPU Clock Ratio
CPU Host Clock Control
x CPU Host Frequency (Mhz)
x AGP/PCI/SRC Fixed
Memory Frequency For
Memory Frequency (Mhz)
AGP/PCI/SRC Frequency (Mhz)
DIMM OverVoltage Control
AGP OverVoltage Control
CPU Voltage Control
Normal CPU Vcore
KLJI: Move
Enter: Select
F5: Previous Values
[15X]
[Disabled]
100
66/33/100
[Auto]
266
66/33/100
[Normal]
[Normal]
[Normal]
1.3875V
+/-/PU/PD: Value
F6: Fail-Save Default
Item Help
Menu Level`
F10: Save
ESC: Exit
F7: Optimized Defaults
F1: General Help
Incorrect using these features may cause your system broken. For power End-User use only!
CPU Clock Ratio
This option will not be shown or not be available if you are using a CPU with the locked ratio.
This setup option will automatically assign by CPU detection.
The option will display "Locked" and read only if the CPU ratio is not changeable.
CPU Host Clock Control
Please note that if your system is overclocked and cannot restart, please wait 20secs.
for automatic system restart or clear the CMOS setup data and perform a safe restart.
Disabled
Disable CPU Host Clock Control. (Default value)
Enabled
Enable CPU Host Clock Control.
CPU Host Frequency (Mhz)
This item will be available when "CPU Host Clock Control" is set to Enabled.
100MHz ~ 355MHz
Set CPU Host Clock from 100MHz to 355MHz.
If you use FSB400 Pentium 4 processor, please set "CPU Clock" to 100MHz.If you use FSB533
Pentium 4 processor, please set "CPU Clock" to 133MHz. If you use FSB800 Pentium 4
processor, please set "CPU Clock" to 200MHz.
Incorrect using it may cause your system broken. For power End-User use only!
GA-8IPE775 Series Motherboard
- 48 -
This item will be available when "CPU Host Clock Control" is set to Enabled.
Serial ATA device is very sensitive to SRC clock. SRC over clock may make Serial ATA device
function can't work properly.
Adjust AGP/PCI/SRC clock asychrohous with CPU.
Memory Frequency For
for FSB(Front Side Bus) frequency=400MHz,
2.66
Memory Frequency = Host clock X 2.66.
Auto
Set Memory frequency by DRAM SPD data. (Default value)
for FSB(Front Side Bus) frequency=533MHz,
2.0
Memory Frequency = Host clock X 2.0.
2.5
Memory Frequency = Host clock X 2.5.
Auto
Set Memory frequency by DRAM SPD data. (Default value)
for FSB(Front Side Bus) frequency=800MHz,
2.0
Memory Frequency = Host clock X 2.0.
1.6
Memory Frequency = Host clock X 1.6.
1.33
Memory Frequency = Host clock X 1.33.
Auto
Set Memory frequency by DRAM SPD data. (Default value)
Memory Frequency (Mhz)
The values depend on CPU Host Frequency(Mhz).
AGP/PCI/SRC Frequency (Mhz)
The values depend on Fixed AGP/PCI/SRC Fixed.
DIMM OverVoltage Control
Normal
Set DIMM OverVoltage Control to Normal. (Default value)
+0.1V
Set DIMM OverVoltage Control to +0.1V.
+0.2V
Set DIMM OverVoltage Control to +0.2V.
+0.3V
Set DIMM OverVoltage Control to +0.3V.
Increase DRAM voltage may get stable for Over_Clock. But it may damage to DRAM module
when enable this feature.
AGP OverVoltage Control
Normal
Set AGP OverVoltage Control to Normal. (Default value)
+0.1V
Set AGP OverVoltage Control to +0.1V.
+0.2V
Set AGP OverVoltage Control to +0.2V.
+0.3V
Set AGP OverVoltage Control to +0.3V.
Increase AGP voltage may get stable for Over_Clock. But it may damage to AGP Card when
enable this feature.
- 49 -
BIOS Setup
English
AGP/PCI/SRC Fixed
English
CPU OverVoltage Control
Supports adjustable CPU Vcore from 0.8375V to 1.7600V. (Default value: Normal)
Normal CPU Vcore
Display your CPU Vcore Voltage.
Load Fail-Safe Defaults
CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
`
`
`
`
`
`
`
Standard CMOS Features
Load Fail-Safe Defaults
Advanced BIOS Features
Load Optimized Defaults
Integrated Peripherals
Set Supervisor Password
Power Management Setup
Set User Password
Load Fail-Safe Defaults (Y/N)?
N Exit Setup
PnP/PCI Configurations
Save &
PC Health Status
Exit Without Saving
Frequency/Voltage Control
KLJI: Select Item
F10: Save & Exit Setup
ESC: Quit
F8: Dual BIOS 1/Q-Flash
Load Fail-Safe Defaults
Fail-Safe defaults contain the most appropriate values of the system parameters that allow
minimum system performance.
Load Optimized Defaults
CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
`
`
`
`
`
`
`
Standard CMOS Features
Advanced BIOS Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
Frequency/Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Load Optimized DefaultsSave
(Y/N)?
N Setup
& Exit
Exit Without Saving
KLJI: Select Item
F10: Save & Exit Setup
ESC: Quit
F8: Dual BIOS 1/Q-Flash
Load Optimized Defaults
Selecting this field loads the factory defaults for BIOS and Chipset Features which the
system automatically detects.
Only for GA-8IPE775 Pro.
GA-8IPE775 Series Motherboard
- 50 -
English
Set Supervisor/User Password
CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
`
`
`
`
`
`
`
Standard CMOS Features
Advanced BIOS Features
Integrated Peripherals
Power Management Setup
Enter Password:
PnP/PCI Configurations
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
PC Health Status
Frequency/Voltage Control
KLJI: Select Item
F10: Save & Exit Setup
ESC: Quit
F8: Dual BIOS 1/Q-Flash
Change/Set/Disable Password
When you select this function, the following message will appear at the center of the screen to assist
you in creating a password.
Type the password, up to eight characters, and press <Enter>. You will be asked to confirm the
password. Type the password again and press <Enter>. You may also press <Esc> to abort the
selection and not enter a password.
To disable password, just press <Enter> when you are prompted to enter password. A message
"PASSWORD DISABLED" will appear to confirm the password being disabled. Once the password is
disabled, the system will boot and you can enter Setup freely.
The BIOS Setup program allows you to specify two separate passwords:
SUPERVISOR PASSWORD and a USER PASSWORD. When disabled, anyone may access all BIOS
Setup program function. When enabled, the Supervisor password is required for entering the BIOS
Setup program and having full configuration fields, the User password is required to access only
basic items.
If you select "System" at "Password Check" in Advance BIOS Features Menu, you will be prompted
for the password every time the system is rebooted or any time you try to enter Setup Menu.
If you select "Setup" at "Password Check" in Advance BIOS Features Menu, you will be prompted
only when you try to enter Setup.
Only for GA-8IPE775 Pro.
- 51 -
BIOS Setup
English
Save & Exit Setup
CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
`
`
`
`
`
`
`
Standard CMOS Features
Advanced BIOS Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
Frequency/Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save to CMOS and EXITSave
(Y/N)?
Y Setup
& Exit
Exit Without Saving
KLJI: Select Item
F10: Save & Exit Setup
ESC: Quit
F8: Dual BIOS 1/Q-Flash
Save & Exit Setup
Type "Y" will quit the Setup Utility and save the user setup value to RTC CMOS.
Type "N" will return to Setup Utility.
Exit Without Saving
CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
`
`
`
`
`
`
`
Standard CMOS Features
Advanced BIOS Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
Frequency/Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Quit Without Saving (Y/N)?
Save &NExit Setup
Exit Without Saving
KLJI: Select Item
F10: Save & Exit Setup
ESC: Quit
F8: Dual BIOS 1/Q-Flash
Abandon all Data
Type "Y" will quit the Setup Utility without saving to RTC CMOS.
Type "N" will return to Setup Utility.
Only for GA-8IPE775 Pro.
GA-8IPE775 Series Motherboard
- 52 -
English
Revision History
Chapter
4 Technical Reference
Flash BIOS Method Introduction
Method 1: Dual BIOS
/Q-Flash
A. What is Dual BIOS Technology?
Dual BIOS means that there are two system BIOS (ROM) on the motherboard, one is the Main
BIOS and the other is Backup BIOS. Under the normal circumstances, the system works on the
Main BIOS. If the Main BIOS is corrupted or damaged, the Backup BIOS can take over while the
system is powered on. This means that your PC will still be able to run stably as if nothing has
happened in your BIOS.
B. How to use Dual BIOS and Q-Flash Utility?
a. After power on the computer, pressing <Del> immediately during POST (Power On Self Test) it will
allow you to enter Award BIOS CMOS SETUP, then press <F8> to enter Flash utility.
CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
`
Standard CMOS Features
Load Fail-Safe Defaults
`
`
Advanced BIOS Features
Integrated Peripherals
Load Optimized Defaults
Set Supervisor Password
`
`
Set User Password
Power Management Setup
Enter Dual BIOS/Q-Flash Utility
Y
Save (Y/N)?
& Exit Setup
PnP/PCI Configurations
`
`
PC Health Status
Frequency/Voltage Control
Exit Without Saving
ESC: Quit
KLJI: Select Item
F8: Dual BIOS1/Q-Flash
F10: Save & Exit Setup
Only for GA-8IPE775 Pro.
- 53 -
Technical Reference
English
b. Award Dual BIOS Flash ROM Programming Utility
Dual BIOS Utility V1.30
Boot From....................................................... Main Bios
Main ROM Type/Size...................................... SST 49LF003A
Backup ROM Type/Size.................................. SST 49LF003A
Wide Range Protection Disable
Boot From Main Bios
Auto Recovery Enable
512K
512K
Halt On Error Disable
Keep DMI Data Enable
Copy Main ROM Data to Backup
Load Default Settings
Save Settings to CMOS
Q-Flash Utility
Update Main BIOS from Floppy
Update Backup BIOS from Floppy
Save Main BIOS to Floppy
Save Backup BIOS to Floppy
PgDn/PgUp: Modify
K L : Move
ESC: Reset
F10: Power Off
c. Dual BIOS Item explanation:
Wide Range Protection: Disable(Default), Enable
Status 1:
If any failure (ex. Update ESCD failure, checksum error or reset…) occurs in the Main BIOS, just
before the Operating System is loaded and after the power is on, and that the Wide Range Protection
is set to "Enable", the PC will boot from Backup BIOS automatically.
Status 2:
If the ROM BIOS on peripherals cards(ex. SCSI Cards, LAN Cards,..) emits signals torequest
restart of the system after the user make any alteration on it, the boot up BIOS will not be changed to
the Backup BIOS.
Boot From : Main BIOS(Default), Backup BIOS
Status 1:
The user can set to boot from main BIOS or Backup BIOS.
Status 2:
If one of the main BIOS or the Backup BIOS fails, this item "Boot From : Main BIOS(Default)"
will become gray and will not be changed by user.
GA-8IPE775 Series Motherboard
- 54 -
When one of the Main BIOS or Backup BIOS occurs checksum failure, the working BIOS will
automatically recover the BIOS of checksum failure.
(In the Power Management Setup of the BIOS Setting, if ACPI Suspend Type is set to Suspend to
RAM, the Auto Recovery will be set to Enable automatically.)
(If you want to enter the BIOS setting, please press "Del" key when the boot screen appears.)
Halt On Error : Disable(Default), Enable
If the BIOS occurs a checksum error or the Main BIOS occurs a WIDE RANGE PROTECTION
error and Halt On Error set to Enable, the PC will show messages on the boot screen, and the
system will pause and wait for the user's instruction.
If Auto Recovery :Disable, it will show <or the other key to continue.>
If Auto Recovery :Enable, it will show <or the other key to Auto Recover.>
Keep DMI Data : Enable(Default), Disable
Enable: The DMI data won't be replaced by flashing new BIOS.(recommend)
Disable: The DMI data will be replaced by flashing new BIOS.
Copy Main ROM Data to Backup
(If you boot from Backup ROM, this item will change to Copy Backup ROM Data to Main)
Auto recovery message:
BIOS Recovery: Main to Backup
The means that the Main BIOS works normally and could automatically recover the Backup BIOS.
BIOS Recovery: Backup to Main
The means that the Backup BIOS works normally and could automatically recover the Main BIOS.
(This auto recovery utility is set by system automatically and can’t be changed by user.)
Load Default Settings
Load dual BIOS default value.
Save Settings to CMOS
Save revised setting.
- 55 -
Technical Reference
English
Auto Recovery : Enable(Default), Disable
Q-Flash is a BIOS flash utility embedded in Flash ROM.
English
TM
With this utility, users only have to stay in the BIOS menu
when they want to update BIOS. Q-Flash™ allows users to
flash BIOS without any utility in DOS or Windows. Using
Q-Flash indicating no more fooling around with any complicated instructions and operating system since
TM
it is in the BIOS menu.
Please note that because updating BIOS has potential risk, please do it with caution!! We
are sorry that Gigabyte Technology Co., Ltd is not responsible for damages of system
because of incorrect manipulation of updating BIOS to avoid any claims from end-users.
Before You Begin:
Before you start updating BIOS with the Q-Flash utility, please follow the steps below first.
TM
1. Download the latest BIOS for your motherboard from Gigabyte's website.
2. Extract the BIOS file downloaded and save the BIOS file (the one with model name.Fxx. For
example, 8KNXPU.Fba) to a floppy disk.
3. Reboot your PC and press Del to enter BIOS menu.
The BIOS upgrading guides below are separated into two parts.
If your motherboard has dual-BIOS, please refer to Part One.
If your motherboard has single-BIOS, please refer to Part Two.
GA-8IPE775 Series Motherboard
- 56 -
Updating BIOS with Q-Flash Utility on Dual BIOS Motherboards.
TM
Some of Gigabyte motherboards are equipped with dual BIOS. In the BIOS menu of the motherboards
supporting Q-Flash and Dual BIOS, the Q-Flash utility and Dual BIOS utility are combined in the same
screen. This section only deals with how to use Q-Flash utility.
In the following sections, we take GA-8KNXP Ultra as the example to guide you how to flash
BIOS from an older version to the latest version. For example, from Fa3 to Fba.
Award Modular BIOS v6.00PG, An Energy Star Ally
Copyright (C) 1984-2003, Award Software, Inc.
The BIOS file is Fa3
Intel i875P AGPset BIOS for 8KNXP Ultra Fa3
Check System Health OK , VCore = 1.5250
Main Processor : Intel Pentium(R) 4 1.6GHz (133x12)
<CPUID : 0F27 Patch ID : 0027>
Memory Testing : 131072K OK
before updating
Memory Frequency 266 MHz in Single Channel
Primary Master : FUJITSU MPE3170AT ED-03-08
Primary Slave : None
Secondary Master : CREATIVEDVD-RM DVD1242E BC101
Secondary Slave : None
Press DEL to enter SETUP / Dual BIOS / Q-Flash / F9 For Xpress Recovery
08/07/2003-i875P-6A79BG03C-00
Entering the Q-Flash utility:
TM
Step1: To use Q-Flash utility, you must press Del in the boot screen to enter BIOS menu.
CMOS Setup Utility-Copyright (C) 1984-2003 Award Software
`
`
Standard CMOS Features
Advanced BIOS Features
`
`
Integrated Peripherals
Load Optimized Defaults
Power Management Setup
Set Supervisor Password
Enter Dual BIOS/Q-Flash Utility
(Y/N)?
Y
PnP/PCI Configurations
Set User
Password
`
`
`
Top Performance
Load Fail-Safe Defaults
PC Health Status
Save & Exit Setup
Frequency/Voltage Control
Exit Without Saving
KLJI: Select Item
F10: Save & Exit Setup
ESC: Quit
F8: Dual BIOS/Q-Flash
Step 2: Press F8 button on your keyboard and then Y button to enter the Dual BIOS/Q-Flash utility.
- 57 -
Technical Reference
English
Part One:
Exploring the Q-Flash / Dual BIOS utility screen
English
TM
The Q-Flash / Dual BIOS utility screen consists of the following key components.
Dual BIOS Utility
Boot From......................................... Main Bios
Main ROM Type/Size.............................SST 49LF003A
Backup ROM Type/Size.........................SST 49LF003A
Dual BIOS utility bar
512K
512K
Wide Range Protection Disable
Boot From Main Bios
Auto Recovery Enable
Halt On Error Disable
Copy Main ROM Data to Backup
Load Default Settings
Save Settings to CMOS
Task menu for
Dual BIOS
utility
Task menu for
TM
Q-Flash utility
Enter : Run
Q-Flash Utility
Load Main BIOS from Floppy
Load Backup BIOS from Floppy
Save Main BIOS to Floppy
Save Backup BIOS to Floppy
KL:Move
ESC:Reset
TM
Q-Flash utility title
bar
F10:Power Off
Action bar
Task menu for Dual BIOS utility:
Contains the names of eight tasks and two item showing information about the BIOS ROM type. Blocking
a task and pressing Enter key on your keyboard to enable execution of the task.
Task menu for Q-Flash utility:
Contains the names of four tasks. Blocking a task and pressing Enter key on your keyboard to enable
execution of the task.
Action bar:
Contains the names of four actions needed to operate the Q-Flash/Dual BIOS utility. Pressing the buttons
mentioned on your keyboards to perform these actions.
Using the Q-Flash utility:
TM
This section tells you how to update BIOS using the Q-Flash utility. As described in the "Before you begin"
section above, you must prepare a floppy disk having the BIOS file for your motherboard and insert it to
your computer. If you have already put the floppy disk into your system and have entered the Q-Flash
utility, please follow the steps below to flash BIOS.
Steps:
1. Press arrow buttons on your keyboard to move the light bar to "Load Main BIOS from Floppy" item in
the Q-Flash menu and press Enter button.
Later, you will see a box pop up showing the BIOS files you previously downloaded to the floppy disk.
If you want to save the current BIOS for backup purpose, you can begin Step 1 with "Save Main
BIOS to Floppy" item.
GA-8IPE775 Series Motherboard
- 58 -
In this example, we only download one BIOS file to the floppy disk so only one BIOS file,
8KNXPU.Fba, is listed.
Please confirm again you have the correct BIOS file for your motherboard.
Dual BIOS Utility
Boot From......................................... Main Bios
Main ROM Type/Size.............................SST 49LF003A
Backup ROM Type/Size.........................SST 49LF003A
512K
512K
Wide Range Protection Disable
Boot
From found
Main Bios
1 file(s)
512K
Auto Recovery Enable
Halt On Error Disable
Total size: 1.39M
Free
size: 911.50K
Copy Main ROM Data to
Backup
F5 : Refresh
DEL : Delete
Load Default Settings
Save Settings to CMOS
BIOS file in the floppy disk.
8KNXPU.Fba
Enter : Run
Q-Flash Utility
Load Main BIOS from Floppy
Load Backup BIOS from Floppy
Save Main BIOS to Floppy
Save Backup BIOS to Floppy
KL:Move
ESC:Reset
F10:Power Off
After pressing Enter, you'll then see the progress of reading the BIOS file from the floppy disk.
Dual BIOS Utility
Boot From......................................... Main Bios
Main ROM Type/Size.............................SST 49LF003A
Backup ROM Type/Size.........................SST 49LF003A
512K
512K
Wide Range Protection Disable
Boot From Main Bios
Auto Recovery Enable
Reading BIOS
HaltfileOnfrom
Error
floppy...
Disable
>>>>>>>>>>>>......................
Copy Main ROM Data to Backup
Load Default Settings
Don't Turn OffSave
Power
Settings
Or Reset
to CMOS
System
Enter : Run
Q-Flash Utility
Load Main BIOS from Floppy
Load Backup BIOS from Floppy
Save Main BIOS to Floppy
Save Backup BIOS to Floppy
KL:Move
ESC:Reset
Do not trun off power or reset your
system at this stage!!
F10:Power Off
After BIOS file is read, you'll see a confirmation dialog box asking you "Are you sure to update BIOS?"
3. Press Y button on your keyboard after you are sure to update BIOS.
Then it will begin to update BIOS. The progress of updating BIOS will be displayed.
Please do not take out the floppy disk when it begins flashing BIOS.
- 59 -
Technical Reference
English
2. Move to the BIOS file you want to flash and press Enter.
English
4. Press any keys to return to the Q-Flash menu when the BIOS updating procedure is completed.
Dual BIOS Utility
Boot From......................................... Main Bios
Main ROM Type/Size.............................SST 49LF003A
Backup ROM Type/Size.........................SST 49LF003A
512K
512K
Wide Range Protection Disable
Boot From Main Bios
Auto Recovery Enable
Halt On Error Disable
Copy
Main
ROM
Data to Backup
!! Copy
BIOS
completed
- Pass !!
Load Default Settings
Please
press
any key
to continue
Save
Settings
to CMOS
Enter : Run
Q-Flash Utility
Load Main BIOS from Floppy
Load Backup BIOS from Floppy
Save Main BIOS to Floppy
Save Backup BIOS to Floppy
KL:Move
ESC:Reset
F10:Power Off
You can repeat Step 1 to 4 to flash the backup BIOS, too.
5. Press Esc and then Y button to exit the Q-Flash utility. The computer will restart automatically after
you exit Q-Flash.
Dual BIOS Utility
Boot From......................................... Main Bios
Main ROM Type/Size.............................SST 49LF003A
Backup ROM Type/Size.........................SST 49LF003A
512K
512K
Wide Range Protection Disable
Boot From Main Bios
Auto Recovery Enable
Halt On Error Disable
CopyAre
Main
to Backup
youROM
sureData
to RESET
?
Load Default Settings
[Enter] Save
to continure
to abort...
Settingsorto[Esc]
CMOS
Enter : Run
Q-Flash Utility
Load Main BIOS from Floppy
Load Backup BIOS from Floppy
Save Main BIOS to Floppy
Save Backup BIOS to Floppy
KL:Move
ESC:Reset
F10:Power Off
After system reboots, you may find the BIOS version on your boot screen becomes the one you flashed.
Award Modular BIOS v6.00PG, An Energy Star Ally
Copyright (C) 1984-2003, Award Software, Inc.
The BIOS file becomes
Fab after updating
Intel i875P AGPset BIOS for 8KNXP Ultra Fba
Check System Health OK , VCore = 1.5250
Main Processor : Intel Pentium(R) 4 1.6GHz (133x12)
<CPUID : 0F27 Patch ID : 0027>
Memory Testing : 131072K OK
Memory Frequency 266 MHz in Single Channel
Primary Master : FUJITSU MPE3170AT ED-03-08
Primary Slave : None
Secondary Master : CREATIVEDVD-RM DVD1242E BC101
Secondary Slave : None
Press DEL to enter SETUP / Dual BIOS / Q-Flash / F9 For Xpress Recovery
09/23/2003-i875P-6A79BG03C-00
GA-8IPE775 Series Motherboard
- 60 -
CMOS Setup Utility-Copyright (C) 1984-2003 Award Software
`
`
Standard CMOS Features
Advanced BIOS Features
Top Performance
Load Fail-Safe Defaults
`
`
Integrated Peripherals
Power Management Setup
Load Optimized Defaults
Set Supervisor Password
`
`
PnP/PCI Configurations
PC Health Status
Set User Password
Save & Exit Setup
`
Frequency/Voltage Control
Exit Without Saving
ESC: Quit
F8: Dual BIOS/Q-Flash
Press Enter on
your keyboard
KLJI: Select Item
F10: Save & Exit Setup
CMOS Setup Utility-Copyright (C) 1984-2003 Award Software
`
Standard CMOS Features
Top Performance
`
`
Advanced BIOS Features
Integrated Peripherals
Load Fail-Safe Defaults
Load Optimized Defaults
`
`
Power Management Setup
Set Supervisor Password
Load Fail-Safe DefaultsSet
(Y/N)?
PnP/PCI Configurations
User Y
Password
`
`
PC Health Status
Frequency/Voltage Control
ESC: Quit
F8: Dual BIOS/Q-Flash
Save & Exit Setup
Exit Without Saving
Press Y on your
keyboard to
load defaults.
KLJI: Select Item
F10: Save & Exit Setup
7. Select Save & Exit Setup item to save the settings to CMOS and exit the BIOS menu.
System will reboot after you exit the BIOS menu. The procedure is completed.
CMOS Setup Utility-Copyright (C) 1984-2003 Award Software
`
Standard CMOS Features
Top Performance
`
`
Advanced BIOS Features
Integrated Peripherals
Load Fail-Safe Defaults
Load Optimized Defaults
`
`
Power Management Setup
Set Supervisor Password
Save to CMOS and EXIT
Y
PnP/PCI Configurations
Set(Y/N)?
User Password
`
`
PC Health Status
Frequency/Voltage Control
ESC: Quit
F8: Dual BIOS/Q-Flash
Save & Exit Setup
Exit Without Saving
Press Y on your
keyboard to
save and exit.
KLJI: Select Item
F10: Save & Exit Setup
- 61 -
Technical Reference
English
6. Press Del to enter BIOS menu after system reboots. When you are in BIOS menu, move to Load
Fail-Safe Defaults item and press Enter to load BIOS Fail-Safe Defaults. Normally the system
redetects all devices after BIOS has been upgraded. Therefore, we highly recommend reloading the
BIOS defaults after BIOS has been upgraded.
English
Part Two:
Updating BIOS with Q-Flash Utility on Single-BIOS Motherboards.
TM
This part guides users of single-BIOS motherboards how to update BIOS using the Q-Flash ™ utility.
Entering the Q-Flash utility:
TM
Step1: To use the Q-Flash utility, you must press Del in the boot screen to enter BIOS menu.
CMOS Setup Utility-Copyright (C) 1984-2003 Award Software
`
`
Standard CMOS Features
Advanced BIOS Features
`
`
Integrated Peripherals
Load Optimized Defaults
Power Management Setup
Set Supervisor Password
Enter Q-Flash Utility Set
(Y/N)?
PnP/PCI Configurations
UserYPassword
`
`
`
Top Performance
Load Fail-Safe Defaults
PC Health Status
Save & Exit Setup
Frequency/Voltage Control
Exit Without Saving
KLJI: Select Item
F10: Save & Exit Setup
ESC: Quit
F8: Q-Flash
Step 2: Press F8 button on your keyboard and then Y button to enter the Q-Flash utility.
Exploring the Q-FlashTM utility screen
The Q-FlashBIOS utility screen consists of the following key components.
Q-Flash Utility V1.30
Flash Type/Size..............................
SST 49LF003A
Task menu for
TM
Q-Flash utility
256K
Q-Flash TM utility bar
Keep DMI Data
Enable
Update BIOS from Floppy
Save BIOS to Floppy
Enter : Run
KL:Move
ESC:Reset
F10:Power Off
Action bar
Task menu for Q-Flash utility:
Contains the names of three tasks. Blocking a task and pressing Enter key on your keyboard to enable
execution of the task.
Action bar:
Contains the names of four actions needed to operate the Q-Flash utility. Pressing the buttons mentioned
on your keyboards to perform these actions.
GA-8IPE775 Series Motherboard
- 62 -
TM
This section tells you how to update BIOS using the Q-Flash utility. As described in the "Before you begin"
section above, you must prepare a floppy disk having the BIOS file for your motherboard and insert it to
your computer. If you have already put the floppy disk into your system and have entered the Q-Flash
utility, please follow the steps below to flash BIOS.
Steps:
1. Press arrow buttons on your keyboard to move the light bar to "Update BIOS from Floppy" item in the
Q-Flash menu and press Enter button.
Later, you will see a box pop up showing the BIOS files you previously downloaded to the floppy disk.
If you want to save the current BIOS for backup purpose, you can begin Step 1 with "Save BIOS
to Floppy" item.
2. Move to the BIOS file you want to flash and press Enter.
In this example, we only download one BIOS file to the floppy disk so only one BIOS file,
8GE800.F4, is listed.
Please confirm again you have the correct BIOS file for your motherboard.
Q-Flash Utility V1.30
Flash Type/Size..............................
SST 49LF003A
8GE800.F4
Keep DMI Data
Enable
Update BIOS from Floppy
file(s)
Save 1BIOS
to found
Floppy
Enter : Run
KL:Move
Total size: 1.39M
F5 : Refresh
256K
BIOS file in the floppy disk.
256K
ESC:Reset
F10:Power Off
Free size:1.14M
DEL : Delete
Q-Flash Utility V1.30
Flash Type/Size..............................
SST 49LF003A
256K
Keep DMI Data
Enable
Reading BIOS
file BIOS
from floppy...
Update
from Floppy
>>>>>>>>>>>>......................
Save BIOS to Floppy
Enter : Run
Don't Turn Off Power Or Reset System
KL:Move
ESC:Reset
Do not trun off power or
F10:Power Off
reset your system at this
stage!!
After BIOS file is read, you'll see a confirmation dialog box asking you "Are you sure to update BIOS?"
Please do not take out the floppy disk when it begins flashing BIOS.
- 63 -
Technical Reference
English
Using the Q-Flash utility:
English
3. Press Y button on your keyboard after you are sure to update BIOS.
Then it will begin to update BIOS. The progress of updating BIOS will be shown at the same time.
Q-Flash Utility V1.30
Flash Type/Size..............................
SST 49LF003A
256K
The porcess of updating
BIOS
Keep DMI Data
Enable
Updating
BIOS
Update
BIOS
fromNow...
Floppy
>>>>>>>>>>>>>>........................
Save BIOS to Floppy
Enter : Run
Don't Turn Off Power Or Reset System
KL:Move
ESC:Reset
F10:Power Off
Do not trun off power or
reset your system at this
stage!!
4. Press any keys to return to the Q-Flash menu when the BIOS updating procedure is completed.
Q-Flash Utility V1.30
Flash Type/Size..............................
SST 49LF003A
256K
Keep DMI Data
Enable
Update BIOS from Floppy
!! Copy BIOS completed - Pass !!
Save BIOS to Floppy
Please press any key to continue..........
Enter : Run
KL:Move
ESC:Reset
F10:Power Off
5. Press Esc and then Y button to exit the Q-Flash utility. The computer will restart automatically after
you exit Q-Flash.
Q-Flash Utility V1.30
Flash Type/Size..............................
SST 49LF003A
256K
Keep DMI Data
Enable
Update BIOS from Floppy
Are you sure to RESET ?
Save BIOS to Floppy
[Enter] to continure or [Esc] to abort...
Enter : Run
KL:Move
ESC:Reset
F10:Power Off
After system reboots, you may find the BIOS version on your boot screen becomes the one you flashed.
Award Modular BIOS v6.00PG, An Energy Star Ally
Copyright (C) 1984-2003, Award Software, Inc.
The BIOS file becomes
Fab after updating
Intel 845GE AGPSet BIOS for 8GE800 F4
Check System Health OK
Main Processor : Intel Pentium(R) 4 1.7GHz (100x17.0)
<CPUID : 0F0A Patch ID : 0009>
Memory Testing : 122880K OK + 8192K Shared Memory
Primary Master : FUJITSU MPE3170AT ED-03-08
Primary Slave : None
Secondary Master : CREATIVEDVD-RM DVD1242E BC101
Secondary Slave : None
Press DEL to enter SETUP / Q-Flash
03/18/2003-I845GE-6A69YG01C-00
6. Press Del to enter BIOS menu after system reboots and "Load BIOS Fail-Safe Defaults". See how
to Load BIOS Fail-Safe Defaults, please kindly refer to Step 6 to 7 in Part One.
Congratulation!! You have updated BIOS successfully!!
GA-8IPE775 Series Motherboard
- 64 -
If you don't have DOS boot disk, we recommend that you used Gigabyte @BIOSTM program to
flash BIOS.
2.Click"Start"-"Programs""GIGABYTE"-"@BIOS"
Press here.
1.Click "@BIOS"
(2)
(1)
3.Click " ". 4.Click here.
5. Please select @BIOS sever site,
then Click "OK".
(3)
(4)
Methods and steps:
I. Update BIOS through Internet
a.
b.
c.
d.
Click "Internet Update" icon
Click "Update New BIOS" icon
Select @BIOSTM sever
Select the exact model name on your motherboard
e. System will automatically download and update the BIOS.
- 65 -
Technical Reference
English
Method 2: @ BIOS Utility
English
II. Update BIOS NOT through Internet:
a.
b.
c.
d.
Do not click "Internet Update" icon
Click "Update New BIOS"
Please select "All Files" in dialog box while opening the old file.
Please search for BIOS unzip file, downloading from internet or any other methods (such as:
8IPE775 Pro.D4).
e. Complete update process following the instruction.
III. Save BIOS
In the very beginning, there is "Save Current BIOS" icon shown in dialog box. It means to save the
current BIOS version.
IV. Check out supported motherboard and Flash ROM:
In the very beginning, there is "About this program" icon shown in dialog box. It can help you check
out which kind of motherboard and which brand of Flash ROM are supported.
Note:
a. In method I, if it shows two or more motherboard's model names to be selected, please make
sure your motherboard's model name again. Selecting wrong model name will cause the
system unbooted.
b. In method II, be sure that motherboard's model name in BIOS unzip file are the same as your
motherboard's. Otherwise, your system won't boot.
c. In method I, if the BIOS file you need cannot be found in @BIOSTM server, please go onto
Gigabyte's web site for downloading and updating it according to method II.
d. Please note that any interruption during updating will cause system unbooted
GA-8IPE775 Series Motherboard
- 66 -
Function Introduction
The installation of windows 98SE/2K/ME/XP is very simple. Please follow next step to install the
function!
Stereo Speakers Connection and Settings:
We recommend that you use the speaker with amplifier to acqiire the best sound effect if the stereo output
is applied.
STEP 1:
Connect the stereo speakers or earphone to "Line
Out".
Line Out
STEP 2 :
Following installation of the audio driver, you find a
icon a Sound Effect
icon on the lower right hand
taskbar. Click the icon to select the function.
STEP 3:
Click "Speaker Configuration" then click on the left
selection bar and select "2CH Speaker" to complete 2 channel audio configuration.
- 67 -
Technical Reference
English
2- / 4- / 6- / 8- Channel Audio
English
4 Channel Analog Audio Output Mode
STEP 1 :
Connect the front channels to "Line Out",
the rear channels to "Line In".
Line Out Line In
STEP 2 :
Following installation of the audio driver, you find a
icon a Sound Effect
icon on the lower right hand
taskbar. Click the icon to select the function.
STEP 3 :
Click "Speaker Configuration" and select the "UAJ
Function". Then click on the left selection bar and
select "4CH Speaker" to complete 4 channel audio
configuration.
GA-8IPE775 Series Motherboard
- 68 -
English
Basic 6 Channel Analog Audio Output Mode
Use the back audio panel to connect the audio output without any additional module.
STEP 1 :
Connect the front channels to "Line Out", the rear
channels to "Line In", and the Center/Subwoofer
channels to "MIC In".
Line In
MIC In
Line Out
STEP 2 :
Following installation of the audio driver, you find a
icon a Sound Effect
icon on the lower right hand
taskbar. Click the icon to select the function.
STEP 3 :
Click "Speaker Configuration" and select the "UAJ
Function". Then click on the left selection bar and
select "6CH Speaker" to complete 6 channel audio
configuration.
- 69 -
Technical Reference
English
8 Channel Audio Setup (using Audio Combo Kit, Optional Device):
(Audio Combo Kit offers SPDIF output, an optical
and coaxial cable and a Surround-Kit. The
Surround-Kit offers R/L surround, center/subwoofer
output and rear surround)
STEP 1 :
Secure the Audio Combo Kit at the panel on the
back of the case.
STEP 2 :
Connect the Surround-Kit to the SUR_CEN connector located on the motherboard.
STEP 3 :
There are two methods of 8 channel audio
configuration:
Method 1:
Connect the front channels to the "LINE OUT"
port located on the audio panel and the rear channels to the Surround-Kit "REAR R/L" port. Connect the center/subwoofer channels to the Surround-Kit "SUB CENTER" and the R/L channels
to the Surround-Kit "SUR BACK" port.
GA-8IPE775 Series Motherboard
- 70 -
English
Method 2:
Connect the front channels to the "LINE OUT"
port located on the audio panel and the rear channels to the "LINE IN" port. Connect the center/
subwoofer channels to the "MIC IN" port located
on the audio panel and the R/L channels to the
Surround-Kit "SUR BACK" port. (This method
requires UAJ function)
STEP 4 :
Following installation of the audio driver, you find a
icon a Sound Effect
icon on the lower right hand
taskbar. Click the icon to select the function.
STEP 5 :
Click "Speaker Configuration" and select both the
"UAJ Function" and "Only Surround-Kit". Then
click on the left selection bar and select "8CH
Speaker" to complete 8 channel audio configuration.
Sound Effect Configuration:
At the sound effect menu, users can adjust
sound option settings as desired.
- 71 -
Technical Reference
English
SPDIF Output Device (Optional Device)
A "SPDIF output" device is available on the
motherboard. Cable with rear bracket is provided
and could link to the "SPDIF output" connector (As
picture.) For the further linkage to decoder, rear
bracket provides coaxial cable and Fiber
connecting port.
1. Connect the SPDIF output device to the rear
bracket of PC, and fix it with screw.
2. Connect SPDIF device to the motherboard.
3. Connect SPDIF to the SPDIF decoder.
GA-8IPE775 Series Motherboard
- 72 -
English
Jack-Sensing and UAJ Introduction
Jack-Sensing provides audio connectors error-detection function.
Install Microsoft DirectX8.1 or later version before to enable Jack-Sensing support for Windows
98/98SE/2000/ME.
Jack-Sensing includes 2 parts: AUTO and MANUAL. Following is an example for 2 channels (Windows
XP):
Introduction of audio connectors
You may connect CDROM, Walkman or others
audio input devices to Line In jack, speakers, earphone or others output devices to Line Out jack,
and microphone to MIC In jack.
Auto-detecting:
Please connect the devices to the right jacks
as above. A window will appear as right picture if you setup the devices properly.
Please note that 3D audio function will only
appear when 3D audio inputs.
- 73 -
Technical Reference
English
If you set wrong with the connectors, the warning
message will come out as right picture.
Manual setting:
If the device picture shows different from what you
set, please press "Manual Selection" to set.
UAJ Introduction
UAJ (Universal Audio Jack) has a very smart feature: It will switch signal automatically when user
plugs his audio device to the wrong jack (Line-in/ Line-out). That means users do not need to worry the
audio device should be plug in Line-in or Line-out jack, the device will work perfectly after UAJ is
activated.
Enable UAJ function:
You can click "UAJ Automatic" button to enable
UAJ function.
GA-8IPE775 Series Motherboard
- 74 -
Xpress Recovery2 is designed to provide quick backup and restoration of hard disk data. Supporting Microsoft operating systems including
Windows XP/2000/NT/98/Me and DOS, and file systems including
FAT16, FAT32, and NTFS, Xpress Recovery2 is able to back up data
on hard disks on PATA and SATA IDE controllers. After Xpress Recovery2 is executed from CD-ROM
for the first time, it will stay permanent in your hard disk. If you wish to run Xpress Recovery2 later, you
can simply press F9 during system bootup to enter Xpress Recovery2 without the CD-ROM.
System requirements:
1. Intel x86 platforms
2. At least 64M bytes of system memory
3. VESA-supported VGA cards
How to use the Xpress Recovery2
Initial access by booting from CD-ROM and subsequent access by pressing the F9 key:
Steps: After entering BIOS Setup, go to Advanced BIOS Feature and set to boot from CD-ROM. Save
the settings and exit the BIOS Setup. Insert the provided driver CD into your CD-ROM drive. Upon
system restart, the message which says "Boot from CD/DVD:" will appear in the bottom left corner
of the screen. Press any key to enter Xpress Recovery2.
After the steps above are completed, subsequent access to Xpress Recovery2 can be made
by simply pressing the <F9> key during system power-on.
.
.
Boot from CD/DVD:
Press any key to startup XpressRecovery2.....
Boot from CD/DVD:
Award Modular BIOS v6.00PG, An Energy Star Ally
Copyright (C) 1984-2004, Award Software, Inc.
Intel 945 BIOS for 8I945GME E7
.
.
.
.
<F9> Xpress Recovery2
<DEL>:BIOS Setup/Q-Flash, <F9>: Xpress Recovery2
11/07/2005-I945-6A79HG0GC-00
1.
2.
3.
If you have already entered Xpress Recovery2 by booting from the CD-ROM, you can
enter Xpress Recovery2 by pressing the <F9> key in the future.
System storage capacity and the reading/writing speed of the hard disk will affect
the data backup speed.
It is recommended that Xpress Recovery2 be immediately installed once you complete installations of OS and all required drivers as well as software.
- 75 -
Technical Reference
English
Xpress Recovery2 Introduction
English
The Main Screen of Xpress Recovery2
1. RESTORE:
Restore the backed-up data to your hard disk.
(This button will not appear if there is no backup
file.)
2. BACKUP:
Back up data from hard disk.
3. REMOVE:
Remove previously-created backup files
to release disk space.
(This button will not appear if there is no backup
file.)
4. REBOOT:
Exit the main screen and restart the system.
Limitations:
1.
2.
3.
Not compatible to Xpress Recovery.
For the use of Xpress Recovery2, a primary partition must be reserved.
Xpress Recovery2 will store the backup file at the end of the hard disk, so free space available
on the hard disk for the backup file must be allocated in advance. (A minimum 4GB is recommended but the actual space is dependent on the size of the data to be backed up)
4. Capable of backing up hard disks installed with Windows operating systems including DOS and
Windows XP/2000/NT/9x/Me.
5. USB hard disks are currently not supported.
6. Does not support RAID/AHCI (class code 0104/0106) hard disks.
7. Capable of backing up and restoring only the first physical hard disk.
Hard disks detection sequence is as follows:
a. PATA IDE primary channel
b. PATA IDE secondary channel
c . SATA IDE channel 1
d. SATA IDE channel 2
e. SATA IDE channel 3
f. SATA IDE channel 4
Precautions:
1.
When using hard disks with more than 128G under Windows 2000, be sure to execute the
EnableBigLba.exe program from the driver CD before data backup.
2. It is normal that data backup takes longer time than data restoration.
3. Xpress Recovery2 is compliant with the GPL regulations.
4. On a few motherboards based on Nvidia chipsets, BIOS update is required for Xpress Recovery2
to correctly identify RAID and SATA IDE mode. Please contact your motherboard manufacturer.
5. Xpress Recovery2 supports only PATA hard disks and not SATA hard disks on the following
motherboards (As this is a BIOS-related issue, it can be solved by BIOS update)
GA-8N-SLI Royal
GA-K8NXP-9
GA-K8U
GA-K8N Ultra-9
GA-8N-SLI Pro
GA-K8U-9
GA-K8NF-9 (PCB Ver. 1.0)
GA-8N-SLI
GA-K8NXP-SLI
GA-K8NE (PCB Ver. 1.0)
GA-K8N Ultra-SLI
GA-K8NMF-9
GA-K8N Pro-SLI
GA-8IPE775 Series Motherboard
- 76 -
English
- 77 -
Technical Reference
English
GA-8IPE775 Series Motherboard
- 78 -
English
Revision History
Chapter
5 Appendix
Install Drivers
Pictures below are shown in Windows XP
Insert the driver CD-title that came with your motherboard into your CD-ROM drive, the
driver CD-title will auto start and show the installation guide. If not, please double click
the CD-ROM device icon in "My computer", and execute the setup.exe.
INSTALL CHIPSET DRIVER
This page shows the drivers that need to be installed for the system. Click each item to install the
driver manually or switch to the
to install the drivers automatically.
Massage: Some device drivers will restart your
system automatically. After restarting your
system the "Xpress Install" will continue to
install other drivers.
The "Xpress Install" uses the"Click and Go" technology to install the drivers automatically. Just
select the drivers you want then click the "GO" button. The
will execute the installation
for you by itself.
We recommend that you install all components in the list.
Click "GO".
- 79 -
Appendix
English
Driver install finished!! you have to reboot
system!!
Item Description
„ Intel Chipset Software Installation Utility
Tell the operating system how the chipset components will be configured.
„ USB Patch for WinXP
This patch driver can help you to resolve the USB device wake up S3 hang up issue in XP.
„ Marvell 10/100/1000 Base LAN Driver
For Marvell 10/100/1000 LAN chip use.
„ RealTek AC97 Codec Driver
For Intel(R) ICH/ICH2/ICH4/ICH5 AC97 audio.
„ Intel USB 2.0 Driver
It is recommended that you use the Microsoft Windows update for the most updated driver.
For USB2.0 driver support under Windows XP operating system, please use Windows Service
Pack. After install Windows Service Pack, it will show a question mark "?" in "Universal Serial Bus
controller" under "Device Manager". Please remove the question mark and restart the system
(System will auto-detect the right USB2.0 driver).
Only for GA-8IPE775 Pro.
Only for GA-8IPE775-G.
GA-8IPE775 Series Motherboard
- 80 -
This page reveals the value-added software developed by Gigabyte and its worldwide partners.
„ Gigabyte Windows Utilities Manager(GWUM)
This utility can integrate the Gigabyte's applications in the system tray.
„ Gigabyte Management Tool(GMT)
A useful tool which can manage the computer via the network.
„ EasyTune4
Powerful utility that integrates the overclocking and hardware monitoring functions.
„ DMI Viewer
Windows based utility which is used to browse the DMI/SMBIOS information of the system.
„ Face-Wizard
New utility for adding BIOS logo.
„ @BIOS
Gigabyte windows flash BIOS utility.
„ Acrobat e-Book
Useful utility from Adobe.
„ Acrobat Reader
Popular utility from Adobe for reading .PDF file format documents.
„ Norton Internet Security(NIS)
Integrated utility which includes anti-virus, ad control, etc
„ DirectX 9
Install Microsoft DirectX 9 to enable 3D hardware acceleration that support for operating
system to achieve better 3D performence.
„ Marvell VCT Utility
Utility for Marvell chips. [VCT(Virtual Cable Tester) Technology for Gigabit Networks]
Only for GA-8IPE775 Pro.
Only for GA-8IPE775-G.
- 81 -
Appendix
English
SOFTWARE APPLICATION
English
SOFTWARE INFORMATION
This page list the contects of softwares and drivers in this CD title.
HARDWARE INFORMATION
This page lists all device you have for this motherboard.
CONTACT US
Please see the last page for details.
GA-8IPE775 Series Motherboard
- 82 -
Below is a collection of general asked questions. To check general asked questions based on a specific
motherboard model, please log on to http://tw.giga-byte.com/faq/faq.htm
Question 1: I cannot see some options that were included in previous BIOS after updating BIOS. Why?
Answer: Some advanced options are hidden in new BIOS version. Please press Ctrl and F1 keys after
entering BIOS menu and you will be able to see these options.
Questions 2: Why is the light of my keyboard/optical mouse still on after computer shuts down?
Answer: In some boards, a small amount of electricity is kept on standby after computer shuts down and
that's why the light is still on.
Question 3: How do I clear CMOS?
Answer: If your board has a Clear CMOS jumper, please refer to the Clear CMOS steps in the manual. If your
board doesn't have such jumper, you can take off the on-board battery to leak voltage to clear CMOS.
Please refer to the steps below:
Steps:
1. Turn off power.
2. Disconnect the power cord from MB.
3. Take out the battery gently and put it aside for about 10 minutes (Or you can use a metal object to
connect the positive and negative pins in the battery holder to makethem short for one minute).
4. Re-insert the battery to the battery holder.
5. Connect power cord to MB again and turn on power.
6. Press Del to enter BIOS and load Fail-Safe Defaults.
7. Save changes and reboot the system.
Question 4: Why does system seem unstable after updating BIOS?
Answer: Please remember to load Fail-Safe Defaults (Or Load BIOS Defaults) after flashing BIOS. However,
if the system instability still remains, please clear CMOS to solve the problem.
Question 5: Why do I still get a weak sound after turning up the speaker to the maximum volume?
Answer: Please make sure the speaker you are using is equipped with an internal amplifier. If not, please
change another speaker with power/amplifier and try again later.
Question 6: How do I disable onboard VGA card in order to add an external VGA card?
Answer: Gigabyte motherboards will auto-detect the external VGA card after it is plugged in, so you don't
need to change any setting manually to disable the onboard VGA.
- 83 -
Appendix
English
FAQ
English
Question 7: Why cannot I use the IDE 2?
Answer: Please refer to the user manual and check whether you have connected any cable that is not
provided with the motherboard package to the USB Over Current pin in the Front USB Panel. If the cable is
your own cable, please remove it from this pin and do not connect any of your own cables to it.
Question 8: Sometimes I hear different continuous beeps from computer after system boots up. What do
these beeps usually stand for?
Answer: The beep codes below may help you identify the possible computer problems. However, they are
only for reference purposes. The situations might differ from case to case.
AMI BIOS Beep Codes
*Computer gives 1 short beep when system boots successfully.
*Except for beep code 8, these codes are always fatal.
1 beep Refresh failure
2 beeps Parity error
3 beeps Base 64K memory failure
4 beeps Timer not operational
5 beeps Processor error
6 beeps 8042 - gate A20 failure
7 beeps Processor exception interrupt error
8 beeps Display memory read/write failure
9 beeps ROM checksum error
10 beeps CMOS shutdown register read/write error
11 beeps Cache memory bad
GA-8IPE775 Series Motherboard
- 84 -
AWARD BIOS Beep Codes
1 short: System boots successfully
2 short: CMOS setting error
1 long 1 short: DRAM or M/B error
1 long 2 short: Monitor or display card error
1 long 3 short: Keyboard error
1 long 9 short: BIOS ROM error
Continuous long beeps: DRAM error
Continuous short beeps: Power error
If you encounter any trouble during boot up, please follow the troubleshooting
procedures .
START
Turn off the power and unplug the AC power cable, then
remove all of the add-on cards and cables from motherboard.
Please make sure motherboard & chassis are not short ?
Yes
Please isolate
the short pin.
No
Failure has been excluded.
Please make sure all jumper settings (such as CPU system bus
speed, frequency ratio, voltage and etc.) are set properly.
Yes
No
Make sure the
jumper setting
are correct.
Failure has been excluded.
Check if the CPU cooling fan attached to CPU properly. ls
CPU cooling fan power connected to CPU_FAN
properly?
Yes
No
Plug the CPU
cooling fan power
in the CPU fan
connector. Plug in
the AC power
connector.
Failure has been excluded.
Check if the memory install properly into the DIMM slot.
No
Insert and push
the memory
module vertically
into the DIMM slot.
Yes
Failure has been excluded.
Insert the VGA card. Then plug in ATX power cable and
turn on the system.
A
- 85 -
Appendix
English
Troubleshooting
English
A
Is memory LED on and CPU fan running?
No
The problem could
be caused by
power supply, CPU,
memory or CPU/
memory socket
itself.
Yes
Failure has been excluded.
No
Check if there is display.
Yes
Perhaps your VGA
card / VGA slot or
monitor is defective.
Failure has been excluded.
Turn off the system. Reboot after keyboard and mouse
have been plugged in.
No
Check if keyboard is working properly.
It is possible that
your keyboard or
keyboard connector
is defective.
Yes
Press <Del> to enter BIOS setup. Choose "Load
Optimized Defaults" and save then exit setup.
Turn off the system and re-connect the IDE cable. Check
if the system can reboot successfully.
Failure has been excluded.
No
The problem was
probably caused by
the IDE device /
connector or cable.
Yes
Reinstall Windows OS, and reinstall add-on cards and cables.
Then try to reboot the system.
Failure has been excluded.
END
If the above procedure unable to solve your problem, please contact with your local retailer or
national distributor for help. Or, you could submit your question to the service mail via Gigabyte
website technical support zone
(http://www.gigabyte.com.tw). The appropriate response will be provided ASAP.
GA-8IPE775 Series Motherboard
- 86 -
Customer/Country:
Contact Person:
Company:
E-mail Add. :
Phone No.:
Model name/Lot Number:
BIOS version:
Hardware
Configuration
English
Technical Support/RMA Sheet
PCB revision:
O.S./A.S.:
Mfs.
Model name
Size:
Driver/Utility:
CPU
Memory
Brand
Video Card
Audio Card
HDD
CD-ROM /
DVD-ROM
Modem
Network
AMR / CNR
Keyboard
Mouse
Power supply
Other Device
Problem Description:
- 87 -
Appendix
English
Acronyms
Acronyms
ACPI
APM
AGP
Meaning
Advanced Configuration and Power Interface
Advanced Power Management
Accelerated Graphics Port
AMR
ACR
BIOS
CPU
Audio Modem Riser
Advanced Communications Riser
Basic Input / Output System
Central Processing Unit
CMOS
CRIMM
CNR
DMA
Complementary Metal Oxide Semiconductor
Continuity RIMM
Communication and Networking Riser
Direct Memory Access
DMI
DIMM
DRM
DRAM
Desktop Management Interface
Dual Inline Memory Module
Dual Retention Mechanism
Dynamic Random Access Memory
DDR
ECP
ESCD
ECC
Double Data Rate
Extended Capabilities Port
Extended System Configuration Data
Error Checking and Correcting
EMC
EPP
ESD
FDD
Electromagnetic Compatibility
Enhanced Parallel Port
Electrostatic Discharge
Floppy Disk Device
FSB
HDD
IDE
IRQ
Front Side Bus
Hard Disk Device
Integrated Dual Channel Enhanced
Interrupt Request
to be continued......
GA-8IPE775 Series Motherboard
- 88 -
Meaning
IOAPIC
ISA
LAN
I/O
Input Output Advanced Programmable Input Controller
Industry Standard Architecture
Local Area Network
Input / Output
LBA
LED
MHz
MIDI
Logical Block Addressing
Light Emitting Diode
Megahertz
Musical Instrument Digital Interface
MTH
MPT
NIC
OS
Memory Translator Hub
Memory Protocol Translator
Network Interface Card
Operating System
OEM
PAC
POST
PCI
Original Equipment Manufacturer
PCI A.G.P. Controller
Power-On Self Test
Peripheral Component Interconnect
RIMM
SCI
SECC
SRAM
Rambus in-line Memory Module
Special Circumstance Instructions
Single Edge Contact Cartridge
Static Random Access Memory
- 89 -
English
Acronyms
Appendix
English
GA-8IPE775 Series Motherboard
- 90 -
English
Contact Us
Taiwan (Headquarters)
GIGA-BYTE TECHNOLOGY CO., LTD.
Address: No.6, Bau Chiang Road, Hsin-Tien, Taipei 231,
Japan
NIPPON GIGA-BYTE CORPORATION
WEB address : http://www.gigabyte.co.jp
Singapore
Taiwan
TEL: +886-2-8912-4888
GIGA-BYTE SINGAPORE PTE. LTD.
FAX: +886-2-8912-4003
Tech. Support :
Tech. Support :
http://tw.giga-byte.com/TechSupport/ServiceCenter.htm
http://tw.giga-byte.com/TechSupport/ServiceCenter.htm
Non-Tech. Support(Sales/Marketing) :
Non-Tech. Support(Sales/Marketing) :
http://ggts.gigabyte.com.tw/nontech.asp
http://ggts.gigabyte.com.tw/nontech.asp
WEB address (English): http://www.gigabyte.com.tw
WEB address: http://www.gigabyte.com.sg
U.K.
WEB address (Chinese): http://chinese.giga-byte.com
G.B.T. TECH. CO., LTD.
U.S.A.
Tech. Support :
G.B.T. INC.
TEL: +1-626-854-9338
http://tw.giga-byte.com/TechSupport/ServiceCenter.htm
Non-Tech. Support(Sales/Marketing) :
FAX: +1-626-854-9339
http://ggts.gigabyte.com.tw/nontech.asp
Tech. Support :
WEB address : http://uk.giga-byte.com
http://tw.giga-byte.com/TechSupport/ServiceCenter.htm
Non-Tech. Support(Sales/Marketing) :
The Netherlands
GIGA-BYTE TECHNOLOGY B.V.
http://ggts.gigabyte.com.tw/nontech.asp
Tech. Support :
WEB address : http://www.giga-byte.com
http://tw.giga-byte.com/TechSupport/ServiceCenter.htm
Germany
G.B.T. TECHNOLOGY TRADING GMBH
Non-Tech. Support(Sales/Marketing) :
http://ggts.gigabyte.com.tw/nontech.asp
Tech. Support :
WEB address : http://www.giga-byte.nl
http://tw.giga-byte.com/TechSupport/ServiceCenter.htm
Non-Tech. Support(Sales/Marketing) :
http://ggts.gigabyte.com.tw/nontech.asp
WEB address : http://www.gigabyte.de
- 91 -
Memo
English
China
Russia
NINGBO G.B.T. TECH. TRADING CO., LTD.
Moscow Representative Office Of GIGA-BYTE Technology Co.,
Tech. Support :
http://tw.giga-byte.com/TechSupport/ServiceCenter.htm
Ltd.
Tech. Support :
Non-Tech. Support(Sales/Marketing) :
http://tw.giga-byte.com/TechSupport/ServiceCenter.htm
http://ggts.gigabyte.com.tw/nontech.asp
Non-Tech. Support(Sales/Marketing) :
WEB address : http://www.gigabyte.com.cn
Shanghai
http://ggts.gigabyte.com.tw/nontech.asp
WEB address : http://www.gigabyte.ru
Poland
TEL: +86-021-63410999
FAX: +86-021-63410100
Office of GIGA-BYTE TECHNOLOGY Co., Ltd. in POLAND
Beijing
TEL: +86-10-62102838
Tech. Support :
http://tw.giga-byte.com/TechSupport/ServiceCenter.htm
FAX: +86-10-62102848
Non-Tech. Support(Sales/Marketing) :
Wuhan
http://ggts.gigabyte.com.tw/nontech.asp
TEL: +86-27-87851061
FAX: +86-27-87851330
WEB address : http://www.gigabyte.pl
Serbia & Montenegro
GuangZhou
Representative Office Of GIGA-BYTE Technology Co., Ltd. in
SERBIA & MONTENEGRO
TEL: +86-20-87586074
FAX: +86-20-85517843
Chengdu
Tech. Support :
TEL: +86-28-85236930
Non-Tech. Support(Sales/Marketing) :
http://ggts.gigabyte.com.tw/nontech.asp
FAX: +86-28-85256822
http://tw.giga-byte.com/TechSupport/ServiceCenter.htm
Xian
TEL: +86-29-85531943
WEB address: http://www.gigabyte.co.yu
FAX: +86-29-85539821
Representative Office Of GIGA-BYTE Technology Co., Ltd. in
CZECH REPUBLIC
Shenyang
TEL: +86-24-23960918
FAX: +86-24-23960918-809
Australia
GIGABYTE TECHNOLOGY PTY. LTD.
Czech Republic
Tech. Support :
http://tw.giga-byte.com/TechSupport/ServiceCenter.htm
Non-Tech. Support(Sales/Marketing) :
http://ggts.gigabyte.com.tw/nontech.asp
Tech. Support :
http://tw.giga-byte.com/TechSupport/ServiceCenter.htm
WEB address: http://www.gigabyte.cz
Non-Tech. Support(Sales/Marketing) :
Representative Office Of GIGA-BYTE Technology Co., Ltd. in
Romania
http://ggts.gigabyte.com.tw/nontech.asp
Romania
WEB address : http://www.giga-byte.com.au
France
Tech. Support :
GIGABYTE TECHNOLOGY FRANCE S.A.R.L.
Non-Tech. Support(Sales/Marketing) :
http://ggts.gigabyte.com.tw/nontech.asp
Tech. Support :
http://tw.giga-byte.com/TechSupport/ServiceCenter.htm
Non-Tech. Support(Sales/Marketing) :
http://tw.giga-byte.com/TechSupport/ServiceCenter.htm
WEB address: http://www.gigabyte.com.ro
http://ggts.gigabyte.com.tw/nontech.asp
WEB address : http://www.gigabyte.fr
GA-8IPE775 Series Motherboard
- 92 -
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
