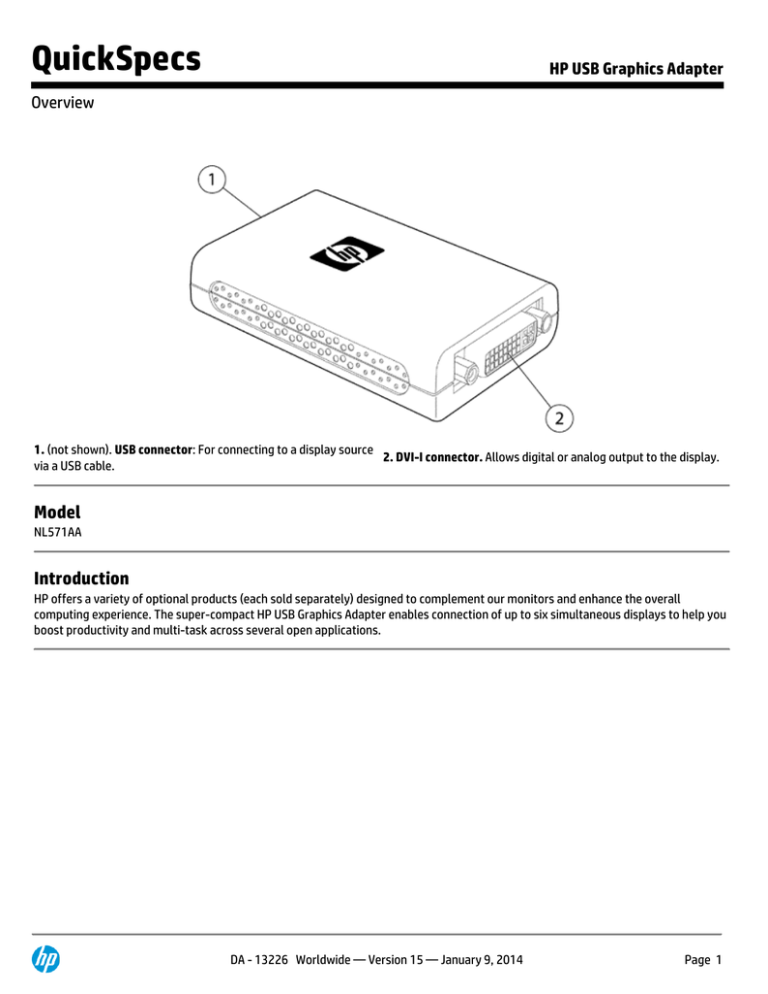

HP USB Graphics Adapter
1. (not shown). USB connector: For connecting to a display source
2. DVI-I connector. Allows digital or analog output to the display.
via a USB cable.
HP offers a variety of optional products (each sold separately) designed to complement our monitors and enhance the overall
computing experience. The super-compact HP USB Graphics Adapter enables connection of up to six simultaneous displays to help you
boost productivity and multi-task across several open applications.
DA - 13226 Worldwide — Version 15 — January 9, 2014
Page 1
HP USB Graphics Adapter
Compatibility & Exceptions
See minimum system requirements below.
Compatible with the HP ElitePad with the Z2760 Atom processor and the ElitePad Expansion Jacket, Productivity Jacket and
Docking Station.
NOTE: Please note the exceptions below.
SIS graphics cards are not supported
Matrox graphics cards are not supported
NVidia SLI graphics cards in SLI mode are not supported
ATI Crossfire graphics cards are not supported
SLI graphics cards not in SLI mode are not supported
Cannot support Multiple WDDM graphics drivers that are active at the same time
Hosts with Intel 3600 or 4600 graphics engines are not supported
The solution may not work if there are multiple graphics cards installed on the host PC.
A variety of uses
Build a wall of tiled displays or use several monitors with a notebook or desktop PC on the desk. The HP USB Graphics Adapter can help
boost productivity and flexibility in a variety of settings:
Office: View large spreadsheets across two screens or multitask without overlapping windows
On the road: Enable multiple screen presentations from one PC
Graphics houses: Use a second display for palettes or tools or a panoramic view of large documents
Editing: Edit documents on one screen and reference data on another; compare multiple documents simultaneously
Financial: Use one monitor for each data stream
DA - 13226 Worldwide — Version 15 — January 9, 2014
Page 2
HP USB Graphics Adapter
Technical Specifications
Host Interface
USB 2.0
Video interface
Video output: VGA HDDE 15pin Female Connector or DVI-I 24pin + 5pin Female Connector
Host upstream link: USB Mini-B Type Female Connector
Up to 6 adapters on a computer
Power Mode
Supported Modes
Extend (Default), Mirror, Primary Display
Supported resolutions
Up to 1920 x 1080 (widescreen) or 1600 x 1200 (traditional)
USB Cable
USB A -Type Male to 5pin Mini USB B-Type Male, 3.28 ft (1 m)
Operating Temperature
10-40°C (50-104°F)
Storage Temperature
-10~80°C (14~176°F)
Relative Humidity
< 85% non-condensing
System Requirements
Dimensions (H x W x L)
Limited warranty
Windows 8 Pro (32-bit and 64-bit), Windows 8 (32-bit and 64-bit), Microsoft®
Windows® 7 with Service Pack 1 (32-bit or 64-bit), Windows Vista® with
Service Pack 1 (32-bit or 64-bit), Microsoft® Windows® XP Home or
Professional with Service Pack 3
The driver will run on a variety of processors ranging from basic single
Core CPUs to the latest Dual, Quad Core and Core i3/i5/i7 CPUs.
1.2 GHz or higher processor clock speed, with an Intel® Core™ 2 Duo or
equivalent power CPU
512 MB RAM for a single attached monitor, 1 GB for two attached
monitors, and more for additional attached monitors
At least one USB 2.0 port
30 MB of available disk space
Super VGA (800 x 600) or higher-resolution video adapter and monitor
CD-ROM or DVD drive if installing from a CD or network access if
installing from a network
For Windows Vista, the Windows Experience Index must be greater than
NOTE: The Windows Experience Index is found under
Computer->Properties. Click on Windows Experience Index to see the Graphics
Sub Index Score.
0.71 x 2.13 x 3.1 in (1.8 x 5.4 x 8.4 cm)
FCC Part 15 Class B, IC ICES-003
CE (EN55022, EN61000, EN55024)
RoHS Compliant
HP USB Graphics Adapter, USB Cable, DVI to VGA Adapter, Driver and Documentation CD, Quick Installation
The HP USB Graphics Adapter has a one-year limited warranty when purchase separately as an AMO.
Technical support is available seven days a week, 24 hours a day, by phone, as well as online support
forums. Certain restrictions and exclusions apply.
DA - 13226 Worldwide — Version 15 — January 9, 2014
Page 3
HP USB Graphics Adapter
Technical Specifications
© 2014 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in
the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Microsoft, Windows, Windows
7, and Windows Vista are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. Intel and
Core are trademarks of Intel Corporation in the U.S. and other countries.
