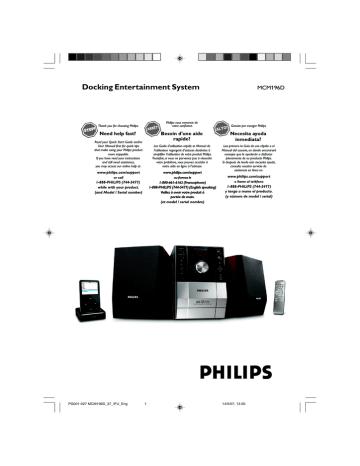

MCM108DB
MCM196D
Docking Entertainment System
Thank you for choosing Philips.
Philips vous remercie de
votre confiance.
Gracias por escoger Philips
Read your Quick Start Guide and/or
User Manual first for quick tips
that make using your Philips product
more enjoyable.
If you have read your instructions
and still need assistance,
you may access our online help at
Besoin d'une aide
rapide?
Necesita ayuda
inmediata?
Les Guide d'utilisation rapide et Manuel de
l'utilisateur regorgent d'astuces destinées à
simplifier l'utilisation de votre produit Philips.
Toutefois, si vous ne parvenez pas à résoudre
votre probléme, vous pouvez accéder à
notre aide en ligne à l'adresse
www.philips.com/support
www.philips.com/support
Lea primero la Guía de uso rápido o el
Manual del usuario, en donde encontrará
consejos que le ayudarán a disfrutar
plenamente de su producto Philips.
Si después de leerlo aún necesita ayuda,
consulte nuestro servicio de
asistencia en línea en
Need help fast?
or call
ou formez le
www.philips.com/support
1-888-PHILIPS (744-5477)
while with your product.
(and Model / Serial number)
1-800-661-6162 (Francophone)
1-888-PHILIPS (744-5477) (English speaking)
Veillez à avoir votre produit à
portée de main.
(et model / serial nombre)
1-888-PHILIPS (744-5477)
y tenga a mano el producto.
(y número de model / serial)
PG001-027 MCM196D_37_IFU_Eng
1
o llame al teléfono
14/5/07, 13:20
Note : This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures :
– Relocate the receiving antenna.
– Increase the separation between the equipment and receiver
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT !
modifications not authorized by the manufacturer may void users authority to operate this device.
Remarque : Cet équipement a été testé et a été certifié conforme aux limites imposées pour un
appareil numérique de Classe B, conformément à la partie 15 des réglements FCC. Ces limites sont
définies aux fins d'assurer une protection raisonnable contre les interférences nuisibles dans une
installation résidentielle. Cet équipement génère, utilise et émet des fréquences radio qui, en cas d'une
mauvaise installation ou d'une utilisation non-conforme aux instructions de ce manuel d'utilisation
peuvent causer des interférences nuisibles aux communications radio. Il n'y a toutefois aucune garantie
que des interférences nuisibles ne se produiront pas dans une installation donnée. Si cet équipement
cause des interférences nuisibles avec votre poste radio ou de télévision, ce que vous pouvez déterminer
en éteignant et en rallumant votre équipement, il est conseillé à l'utilisateur d'essayer de pallier à ces
interférences nuisibles en prenant l'une ou l'autre des mesures suivantes:
– Changez la position de l'antenne de réception.
– Augmentez la séparation entre l'équipement et le récepteur.
– Branchez l'équipement sur une source d'alimentation différente de celle sur laquelle le récepteur est
branché.
– Consultez votre distributeur ou un technicien qualifié en la matière pour assistance.
IMPORTANTE !
las modificaciones no autorizadas por el fabricante pueden anular la autoridad de los usuarios para
utilizar este aparato.
Nota : Este aparato ha sido probado y cumple con los límites correspondientes a un aparato digital de Clase
B, según la parte 15 de las Normas. FCC. Estos límites han sido diseñados para facilitar suficiente protección
frente a interferencias perjudiciales en una instalación residencial. Este aparato genera, utiliza y puede emitir
energía de frecuencias de radio y, si no se instala y utiliza según el manual de instrucciones, puede provocar
interferencias perjudiciales en las comunicaciones de radio. Sin embargo, no existe garantía de que las
interferencias no ocurrirán en una instalación particular. Si este aparato provoca interferencias perjudiciales en
la recepción de radio o television, que se puede identificar encendiendo y apagando el aparato,
recomendamos al usuario que intente solucionar las interferencias siguiendo una o más de las siguientes
medidas:
– Cambie la posición de la antena receptora.
– Aumente la separación entre el aparato y el receptor.
– Conecte el aparato a una toma de un circuito diferente al que está conectado el receptor.
– Consulte con el distribuidor o un técnico de radio/TV con experiencia para que le ayuden.
¡IMPORTANTE!
modificações não autorizadas pelo fabricante, podem causar danos na operação deste aparelho.
2
PG001-027 MCM196D_37_IFU_Eng
2
14/5/07, 13:20
1
^
$
@
%
3
*
(
7
#
&
7
8
!
MICRO SYSTEM MCM196D
1
6
2
3
7
4
5
8
9
0
3
PG001-027 MCM196D_37_IFU_Eng
3
14/5/07, 13:20
Return your Product Registration Card or register online at
www.philips.com/usasupport today to get the very most from your purchase.
Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below, so
don't miss out. Complete and return your Product Registration Card at once, or register online at
www.philips.com/usasupport to ensure:
*Proof of Purchase
*Product Safety
Notification
Returning the enclosed card
guarantees that your date of
purchase will be on file, so no
additional paperwork will be
required from you to obtain warranty service.
*Additional Benefits
Registering your product guarantees that you'll receive all of
the privileges to which you're
entitled, including special
money-saving offers.
By registering your product,
you'll receive notification directly from the manufacturer
- in the rare case of a product
recall or safety defect.
Know these
safetysymbols
Congratulations on your purchase,
and welcome to the “family!”
Dear PHILIPS product owner:
Thank you for your confidence in PHILIPS.
You’ve selected one of the best-built, bestbacked products available today.We’ll do
everything in our power to keep you happy
with your purchase for many years to come.
As a member of the PHILIPS “family,” you’re
entitled to protection by one of the most
comprehensive warranties and outstanding
service networks in the industry.What’s
more, your purchase guarantees you’ll
receive all the information and special offers
for which you qualify, plus easy access to
accessories from our convenient home
shopping network.
Most importantly, you can count on our
uncompromising commitment to your total
satisfaction.
All of this is our way of saying welcome and thanks for investing in a PHILIPS product.
P.S. To get the most from your PHILIPS
purchase, be sure to complete and
return your Product Registration Card
at once, or register online at:
www.philips.com/usasupport
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This “bolt of lightning” indicates uninsulated material within your unit may
cause an electrical shock. For the safety of
everyone in your household, please do not
remove product covering.
The “exclamation point” calls attention
to features for which you should read
the enclosed literature closely to prevent
operating and maintenance problems.
WARNING: To reduce the risk of fire or
electric shock, this apparatus should not be
exposed to rain or moisture and objects
filled with liquids, such as vases, should not
be placed on this apparatus.
CAUTION: To prevent electric shock, match
wide blade of plug to wide slot, fully insert.
ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large de la
fiche dans la borne correspondante de la
prise et pousser jusqu’au fond.
For Customer Use
Enter below the Serial No. which is located
on the rear of the cabinet. Retain this
information for future reference.
Model No. __________________________
Serial No. __________________________
Visit our World Wide Web Site at http://www.philips.com/usasupport
4
PG001-027 MCM196D_37_IFU_Eng
4
14/5/07, 13:20
IMPORTANT SAFETY INSTRUCTIONS
Clean only with dry cloth.
Where the MAINS plug or an appliance
coupler is used as the disconnet device,
the disconnet device shall remain
readily operable.
9
materials
Class II equipment symbol
This symbol indicates that the unit has
a double insulation system
5
PG001-027 MCM196D_37_IFU_Eng
5
14/5/07, 13:20
Canada
English:
This digital apparatus does not exceed
the Class B limits for radio noise
emissions from digital apparatus as set
out in the Radio Interference
Regulations of the Canadian
Department of Communications.
Français:
Cet appareil numérique n'emet pas de
bruits radioélectriques dépassant les
limites applicables aux appareils
numériques de Class B prescrites dans
le Règlement sur le Brouillage
Radioélectrique édicté par le Ministère
des Communications du Canada.
CAUTION
Use of controls or adjustments or
performance of procedures other
than herein may result in hazardous
radiation exposure or other unsafe
operation.
ATTENTION
L’utilisation des commandes ou
réglages ou le non respect des
procédures ci-incluses peuvent se
traduire par une exposition
dangereuse à l’irradiation.
ATENCIÓN
El uso de mando o ajustes o la
ejecucción de métodos que no sean
los aquí descritos puede ocasionar
peligro de exposición a radiación.
6
PG001-027 MCM196D_37_IFU_Eng
6
14/5/07, 13:20
English
Index
Français
English ------------------------------------------------ 6
Español
Français -------------------------------------------- 28
Polski
Español --------------------------------------------- 50
7
PG001-027 MCM196D_37_IFU_Eng
7
14/5/07, 13:20
Contents
English
General Information
Tape Operation / Recording
Supplied accessories ............................................ 9
Environmental information ................................ 9
Safety information .......................................... 9-10
Tape playback ...................................................... 19
General information on recording ................. 19
Synchro start CD recording ...................... 19-20
Recording from the radio ................................. 20
Preparations
Rear connections ......................................... 11-12
Inserting batteries into the remote control . 12
Maintenance .............................................. 20
Other Connection
Controls
Listening to an external source ...................... 20
Controls on the system and remote
control .................................................................. 13
Controls buttons available on the remote
control only ......................................................... 13
Clock/Timer
Basic Functions
Plug and play (for tuner installation) .............. 14
Switching the system on ................................... 15
Adjusting volume and sound ............................ 15
CD/MP3 Operation
Loading a disc ...................................................... 16
Basic playback controls ..................................... 16
Playing an MP3/WMA disc ......................... 16-17
Different play modes: Shuffle and Repeat ..... 17
Programming track numbers ........................... 17
Reviewing the programme ............................... 17
Erasing the programme ..................................... 17
Setting the clock ................................................. 21
Setting the timer ................................................. 21
Activating and deactivating TIMER ................. 21
Activating and deactivating SLEEP .................. 21
Dock for iPod
Playing iPod using the dock......................... ..... 22
Compatible portable player
Dock
Dock adaptor
Selecting the correct dock adaptor
Installing the dock adaptor
Removing the dock adaptor......................... 22
Playing iPod...................................................... 23
Charging iPod battery using the dock ........... 23
Specifications ........................................... 24
Radio Reception
Tuning to radio stations .................................... 18
Programming radio stations ............................. 18
Troubleshooting .............................. 24-26
Automatic programming
Manual programming
Tuning to preset radio stations ....................... 18
8
PG001-027 MCM196D_37_IFU_Eng
8
14/5/07, 13:20
This set complies with the FCC rules,
Part 15 and with 21 CFR 1040.10.
Operation is subject to the following two
conditions:
– This device may not cause harmful
interference, and
– This device must accept any interference
received, including interference that may
cause undesired operation.
Supplied accessories
–
–
–
–
2 speaker boxes
remote control
AM loop antenna
Docking kit
- 1 dock used for Apple iPod
- Dock adaptors (8 adaptors for different
iPod types)
Environmental Information
All unnecessary packaging has been omitted. We
have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags,
protective foam sheet).
Your system consists of materials which can be
recycled and reused if disassembled by a
specialized company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
● Place the system in a location with adequate
ventilation to prevent internal heat build-up in
your system. Allow at least 10 cm (4 inches)
clearance from the rear and the top of the unit
and 5 cm (2 inches) from each side.
● The ventilation should not be impeded by
covering the ventilation openings with items,
such as newspapers, table-cloths, cur tains, etc.
● Do not expose the system, batteries or discs to
excessive moisture, rain, sand or heat sources
caused by heating equipment or direct sunlight.
● No naked flame sources, such as lighted candles,
should be placed on the apparatus.
● No objects filled with liquids, such as vases, shall
be placed on the apparatus.
● If the system is brought directly from a cold to a
warm location, or is placed in a very damp room,
moisture may condense on the lens of the disc
unit inside the system. Should this occur, the CD
player would not operate normally. Leave the
power on for about one hour with no disc in the
system until normal playback is possible.
● The mechanical parts of the set contain selflubricating bearings and must not be oiled or
lubricated.
● When the system is switched to Standby
mode, it is still consuming some power.
To disconnect the system from the
power supply completely, remove the AC
power plug from the wall socket.
Safety Information
● Before operating the system, check that the
operating voltage indicated on the typeplate (or
the voltage indication beside the voltage
selector) of your system is identical with the
voltage of your local power supply. If not, please
consult your dealer.
● Place the system on a flat, hard and stable
surface.
● The apparatus shall not be exposed to
dripping or splashing.
● Install the unit near the AC outlet and where the
AC power plug can be easily reached.
9
PG001-027 MCM196D_37_IFU_Eng
9
14/5/07, 13:20
English
General Information
General Information
English
Hearing Safety
Listen at a moderate volume.
● Using headphones at a high volume can impair
your hearing. This product can produce sounds
in decibel ranges that may cause hearing loss for
a normal person, even for exposure less than a
minute. The higher decibel ranges are offered
for those that may have already experienced
some hearing loss.
● Sound can be deceiving. Over time your hearing
"comfort level" adapts to higher volumes of
sound. So after prolonged listening, what sounds
"normal" can actually be loud and harmful to
your hearing. To guard against this, set your
volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
● Set your volume control at a low setting.
● Slowly increase the sound until you can hear it
comfortably and clearly, without distortion.
Listen for reasonable periods of time:
● Prolonged exposure to sound, even at normally
"safe" levels, can also cause hearing loss.
● Be sure to use your equipment reasonably and
take appropriate breaks.
Be sure to observe the following
guidelines when using your headphones.
● Listen at reasonable volumes for reasonable
periods of time.
● Be careful not to adjust the volume as your
hearing adapts.
● Do not turn up the volume so high that you
can't hear what's around you.
● You should use caution or temporarily
discontinue use in potentially hazardous
situations.
● Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it
may create a traffic hazard and is illegal in many
areas.
10
PG001-027 MCM196D_37_IFU_Eng
10
14/5/07, 13:20
FM wire antenna
AM loop
antenna
FM
AERIAL
speaker
(right)
English
Preparations
AM
AERIAL
speaker
(left)
n
AC power cord
Rear connections
B Antenna Connection
The type plate is located at the rear of the
system.
AM Antenna
Connect the supplied AM loop antenna to the
“AM aerial” terminal. Adjust the position of the
antenna for optimal reception.
● Position the antenna as far as possible from a TV,
VCR or other radiation source.
A Power
Before connecting the AC power cord to the
wall outlet, ensure that all other connections
have been made.
WARNING!
– For optimal performance, use only the
original power cable.
– Never make or change any connections
with the power switched on.
To avoid overheating of the system, a safety
circuit has been built in. Therefore, your
system may switch to Standby mode
automatically under extreme conditions. If
this happens, let the system cool down
before reusing it (not available for all versions).
MW
11
PG001-027 MCM196D_37_IFU_Eng
11
14/5/07, 13:20
Preparations
English
FM Antenna
It is unnecessary to connect the FM pigtail
antenna since it is fixed to the main unit.
● Adjust the FM antenna for optimal FM stereo
reception.
Before using the remote control
1
2
3
C Speakers Connection
Pull out the plastic protective sheet.
Select the source you wish to control by
pressing one of the source select keys on the
remote control (for example CD, TUNER).
Then select the desired function (for example
É, í, ë).
Front Speakers
Connect the speaker wires to the SPEAKERS
terminals, right speaker to "RIGHT" and left
speaker to "LEFT", coloured (marked) wire to
"+" and black (unmarked) wire to "-".
1
2
Replacing battery (lithium
CR2025) into the remote control
● Fully insert the stripped portion of the speaker
wire into the terminal as shown.
Notes:
– For optimal sound performance, use the
supplied speakers.
– Do not connect more than one speaker to any
one pair of +/- speaker terminals.
– Do not connect speakers with an impedance
lower than the speakers supplied. Please refer to
the SPECIFICATIONS section of this manual.
1
2
3
Push to open the battery tray.
Replace a new battery according to the
indicated polarity.
Push the battery tray back to close it.
CAUTION!
– Remove battery if it is exhausted or will
not be used for a long time.
– Batteries contain chemical substances, so
they should be disposed of properly.
– Perchlorate Material-special handling
may apply. See www.dtsc.ca.gov/
hazardouswaste/perchlorate.
12
PG001-027 MCM196D_37_IFU_Eng
12
14/5/07, 13:20
Controls on the system and
remote control
0 Tape Deck Operation
RECORD● ... starts recording.
PLAY 2 ............ starts playback.
SEARCHà / á fast rewinds/winds the tape.
STOP•OPENÇ0
................................. stops the tape; opens the tape
compartment.
PAUSEÅ ....... interrupts recording or playback.
1 STANDBY ON (2)
–
switches the system to standby/Eco-power
stnadby/on.
2 DISPLAY/CLOCK
3
for CD ................. displays the current track
number or total remaining time
(or ID3 information for MP3
disc) during playback.
* for clock .......... sets the clock function
INTERACTIVE SOUND controls:
DBB .................... (Dynamic Bass Boost) enhances
the bass.
DSC ..................... (Digital Sound Control) selects
sound characteristics: JAZZ/POP/
CLASSIC/ROCK.
4 iPod
–
5
–
6
–
–
selects iPod source
AUX jack
connects an external source (3.5 mm socket)
SOURCE
selects the respective sound source for CD/iPod/
TUNER/TAPE/AUX.
switches on the system.
7 Mode Selection
2; ........................... starts or interrupts CD playback.
9 ............................. stops CD playback or erases a
CD programme.
................................. deactivates timer function.
ALBUM/PRESET 4 3
for radio .............. selects a preset radio station.
for MP3 disc ..... selects an album.
TUNING 4 ¢
for Tuner ............. tunes to radio stations.
for CD ................. skips to the beginning of the
current/previous/subsequent
track.
................................. fast searches back and forward
within a track/CD.
for clock/timer adjusts the hours and minutes
for the clock/timer function
8 VOLUME (VOL -/+ )
–
! OPEN•CLOSE3
–
opens/closes the CD door.
Controls available on the remote
control only
@ TIMER/SLEEP
–
–
* activates or sets the timer function.
activates/deactivates or selects the sleeper time.
# DISPLAY/CLOCK/MENU
* for clock ............. sets the clock function.
for CD ................. displays the current track
number or total remaining time
(or ID3 information for MP3
disc) during playback.
for iPod................ equivalent to the MENU button
on your iPod player.
$ PROGRAM
for CD ................. programmes tracks and reviews
the programme.
for Tuner ............. programmes tuner stations
manually or automatically.
% REPEAT/SHUFFLE
–
–
repeats a track/disc/ all programmed tracks.
plays CD/MP3 tracks in random order.
^ CD/iPod/TUNER/TAPE/AUX
–
selects the respective sound source.
& MUTE
–
interrupts and resumes sound reproduction
*3/4
for iPod................ selects an item in a menu.
( OK
–
confirms a selection (for iPod menu operation
only).
adjusts the volume level.
9 iR
–
infrared sensor for remote control.
* = Press and hold the button for more than two seconds.
13
PG001-027 MCM196D_37_IFU_Eng
13
14/5/07, 13:20
English
Controls (illustrations on page 3)
Basic Functions
English
To exit without storing the Plug and Play
● PressÇon the system.
➜ If you do not complete the Plug and Play
installation, the function will be restarted when
you next turn on the main supply again.
MICRO SYSTEM MCM196D
Notes:
– If no stereo frequency is detected during Plug
and Play, "CHECK ANTENNA" will be displayed.
– During Plug and Play, if no button is pressed
within 15 seconds, the system will exit Plug and
Play mode.
IMPORTANT:
Before you operate the system, complete
the preparation procedures.
Plug and Play (for tuner installlation)
Plug and Play allows you to store all available
radio stations automatically.
First time setup/power up
1
When you turn on the main supply, "AUTO
INSTALL - PRESS PLAY" is displayed.
2
PressÉÅ on the system to start installation.
➜ "PLUG AND PLAY" .... "INSTALL" is
displayed, followed by "TUNER" and "AUTO".
➜ PROG starts flashing.
➜ The system will automatically store the radio
stations with sufficient signal strength, starting
from FM, then followed by AM band.
➜ When all the available radio stations are
stored or the memory for 40 presets are used,
the last preset radio station will be played.
1
In standby mode, press and holdÉÅon the
system until "AUTO INSTALL - PRESS PLAY"
is displayed.
2
PressÉÅagain to start installation.
➜ All previously stored radio stations will be
replaced.
To reinstall Plug and Play
14
PG001-027 MCM196D_37_IFU_Eng
14
14/5/07, 13:20
Adjusting volume and sound
MICRO SYSTEM MCM196D
IMPORTANT:
Before you operate the system, complete
the preparation procedures.
Switching the system on
● Press STANDBY ON or SOURCE (or 2on
the remote control).
➜ The system will switch to the last selected
source.
● Press CD, iPod, TUNER, TAPE or AUX on
the remote control.
➜ The system will switch to the selected source.
1
Turn the VOLUME control anti-clockwise to
decrease or clockwise to increase volume on the
system (or press VOL -/+ on the remote
control).
➜ Display shows the volume level VOL and a
number from 0-32.
2
Press DSC repeatedly to select the desired
sound effect: JAZZ / POP / CLASSIC / ROCK.
3
Press DBB to switch bass enhancement on or
off.
➜ Display shows:
if the DBB is activated.
4
Press MUTE on the remote
control to interrupt sound
reproduction instantly.
➜ Playback will continue
without sound.
● To activate sound
reproduction you can:
– press MUTE again;
– adjust the volume controls;
– change source.
To switch the system to standby mode
● Press STANDBY ON on the system (or 2on
the remote control).
● If in tape mode or recording mode, press
STOP•OPENÇ0 first.
➜ The volume level (up to a maximum volume
level of 12), interactive sound settings, last
selected source and tuner presets will be
retained in the player's memory.
To switch the system to Eco-power
standby mode
● Press and hold STANDBY ON (y on the
remote control) for more than 2 seconds.
➜ The display will go blank.
Power-saving automatic standby
The power-saving feature automatically switches
to Eco power standby 15 minutes after a CD
playback has ended and no control is operated.
15
PG001-027 MCM196D_37_IFU_Eng
15
14/5/07, 13:20
English
Basic Functions
CD/MP3 Operation
English
Basic playback controls
MICRO SYSTEM MCM196D
To play a disc
● Press 2; to star t playback.
➜ The current track number and elapsed
playing time of the track are displayed during
disc playback.
To select a different track
● Press TUNING 4 ¢ (on the remote
control 4 ¢) once or repeatedly until the
desired track number appears in the display.
To find a passage within a track
IMPORTANT:
The lens of the CD player should never be
touched.
1
2
Loading a disc
This CD player plays Audio Discs including CDRecordables, CD-Rewritables and MP3/WMA
CD.
● CD-ROM, CD-I, CDV, VCD, DVD or computer
CDs, however, are not possible.
● DRM-protected WMA is not supported.
1
Select CD source.
2
Press OPEN/CLOSE3 on
the top of the system to open
the CD compartment.
➜ OPEN is displayed when
you
open the CD compartment.
3
Press and hold down on TUNING 4 ¢
(on the remote control 4 ¢).
➜ The disc is played at high speed and low
volume.
When you recognise the passage you want,
release TUNING 4 ¢ (on the remote
control 4 ¢).
➜ Normal playback continues.
To interrupt playback
● Press 2; during playback.
➜ The display freezes and the elapsed playing
time flashes when playback is interrupted.
➜ To resume, press 2; again.
To stop playback
● Press 9.
Insert a disc with the printed side facing up and
press down on OPEN/CLOSE3 to close the
CD door.
➜ READING is displayed as the CD player
scans the contents of a disc, and then the total
number of tracks and playing time (or the total
number of albums and tracks for MP3 disc) are
shown.
Notes: CD play will also stop when;
– the CD door is opened.
– the disc has reached the end.
– you select another source:TAPE, iPod,TUNER or
AUX.
– you select standby.
– you press the tape deck PLAY 2 key.
Playing an MP3/WMA disc
1
2
Load an MP3/WMA disc.
➜ The disc reading time may exceed 10
seconds due to the large number of songs
compiled into one disc.
➜ "YY XXX" is displayed. YY is the total album
number and XXX is the total track number.
Press ALBUM/PRESET 4 3 to select a
desired album.
16
PG001-027 MCM196D_37_IFU_Eng
16
14/5/07, 13:20
3
4
Press TUNING 4 ¢ (on the remote
control 4 ¢) to select a desired track.
➜ The album number will change accordingly as
you reach the first track of an album by pressing
4 or the last track of an album by pressing
¢.
Note:
– The SHUFFLE and REPEAT functions cannot be
used simultaneously.
Programming track numbers
Programme in the STOP position to select and
store your disc tracks in the desired sequence. If
you like, store any track more than once. Up to
40 tracks can be stored in the memory.
Press 2; to start playback.
● During playback, press DISPLAY/CLOCK to
display the ID3 information if available.
Supported MP3 disc formats:
– ISO9660, Joliet, UDF 1.5
– Maximum title number: 256 (depending on
filename length)
– Maximum album number: 32
– Supported sampling frequencies: 32 kHz, 44.1
kHz, 48 kHz
– Supported Bit-rates: 32~256 (kbps), variable
bitrates
Different play modes: SHUFFLE
and REPEAT
You can select and change the various play
modes before or during playback. The play
modes can also be combined with
PROGRAMME.
SHUF ................ tracks of the entire disc are
played in random order
REP ALL ........... repeats the entire disc/
programme
REP ................... plays the current track
continuously
REP ALB ........... repeats all tracks in the current
(for MP3 only) album
1
In the stop position, use the TUNING 4
¢ (on the remote control 4 ¢) to
select your desired track number.
● For MP3/WMA, you may press ALBUM/
PRESET 4 3 to select a desired album, then
press ¡1 2™ to select your desired track.
2
3
4
Press PROGRAM to store.
➜ Display: PROG flashes, and PR 01 is displayed
briefly, then the selected track number (and the
selected album number for MP3/WMA).
Repeat steps 1-2 to select and store all desired
tracks.
➜ FULL is displayed if you attempt to
programme more than 40 tracks.
To start playback of your disc programme, press
2;.
Reviewing the programme
● Stop playback and press PROGRAM
repeatedly.
● To exit review mode, pressÇ.
Erasing the programme
You can erase the programme by:
1
To select your play mode, press the REPEAT/
SHUFFLE button before or during playback
until the display shows the desired function.
2
Press 2; to start playback if in the STOP
position.
➜ If you have selected SHUFFLE, playback starts
automatically.
3
● pressing 9 once in the STOP mode;
● pressing 9 twice during playback;
● opening the CD compartment;
➜ PROG disappears from the display.
To return to normal playback, press the
REPEAT/SHUFFLE button until the various
SHUFFLE/ REPEAT modes are no longer
displayed.
● You can also press 9 to cancel your play mode.
17
PG001-027 MCM196D_37_IFU_Eng
17
14/5/07, 13:20
English
CD/MP3 Operation
Radio Reception
English
Automatic programming
Automatic programming will start with a chosen
preset number. From this preset number
upwards, former programmed radio stations will
be overridden. The system will only programme
stations which are not in the memory already.
MICRO SYSTEM MCM196D
1
Press ALBUM/PRESET 4 3 to select the
preset number where programming should start.
Note:
– If no preset number is selected, default is preset
(1) and all your presets will be overridden.
2
Tuning to radio stations
1
2
Select TUNER source.
3
Press down on TUNING 4 ¢ (or 4
¢ on the remote control) and release button.
➜ The radio automatically tunes to a station
with sufficient reception. Display indication during
automatic tuning: SEARCH.
Press SOURCE on the set repeatedly or press
TUNER on the remote repeatedly until the
desired waveband (FM or MW) is displayed.
Press PROGRAM for more than 2 seconds to
activate programming.
➜ AUTO is displayed and available stations are
programmed in order of waveband reception
strength. The first preset automatically stored will
then be played.
Manual programming
1
Tune to your desired station (see Tuning to radio
stations).
2
Press PROGRAM to activate programming.
➜ PROG flashes in the display.
Repeat step 3 if necessary until you find the
desired station.
3
Press ALBUM/PRESET 4 3 to allocate a
number from 1 to 20 to this station.
● To tune to a weak station, press TUNING 4
¢ (or 4 ¢ on the remote control)
briefly and repeatedly until you have found
optimal reception.
4
Press PROGRAM again to confirm the setting.
➜ PROG disappears, the preset number and the
frequency of the preset station are shown.
4
Programming radio stations
You can store up to a total of 40 radio stations
in the memory.
5
Repeat the above four steps to store other
stations.
● You can override a preset station by storing
another frequency in its place.
Tuning to preset radio stations
● Press ALBUM/PRESET 4 3 until the desired
preset station is displayed.
18
PG001-027 MCM196D_37_IFU_Eng
18
14/5/07, 13:20
● The best recording level is set automatically.
Altering the VOLUME, DBB or DSC controls will
not affect the recording in progress.
● The recording sound quality might differ
depending on the quality of your recording
source and the recording tape.
● At the very beginning and end of the tape, no
recording will take place during the 7 seconds
when the leader tape passes the recorder heads.
● To protect a tape from accidental erasure, have
the tape in front of you and break out the left
tab. Recording on this side is no longer possible.
If, however, you wish to record over this side
again, cover the tabs with a piece of adhesive
tape.
Tape playback
1
Select TAPE source.
➜ Display: shows throughout tape operation.
2
Open the tape key flap marked “PULL TO
OPEN” on the front panel.
3
Press STOP•OPENÇ0 to open the tape
door.
4
Insert a recorded tape and close the tape door.
● Load the tape with the open side downward and
the full spool to the left.
5
Synchro start CD recording
1
2
Select CD source.
3
Press STOP•OPENÇ0 to open the tape
door.
4
5
Press PLAY 2 to start playback.
● The key is automatically released at the end of a
tape, except if PAUSE; has been activated.
6
To pause, press PAUSE;. Press again to
resume.
7
By pressing à or á on the system fast winding
of tape is possible in both directions.
8
To stop the tape, press STOP•OPENÇ0.
Note:
– The source cannot be changed while playing or
recording a tape.
General information on
recording
Insert a disc and if desired, programme track
numbers.
Insert a suitable tape into the deck and close the
tape door.
Press RECORD to start recording.
➜ Playing of the CD programme starts
automatically from the beginning of the CD
after 7 seconds. It is not necessary to start the
CD player separately.
To select and record a particular passage
within a CD track:
● Press and hold down on 4 ¢. Release the
control when you recognize the passage you
want.
● To pause CD playback, press 2; .
● Recording starts from this exact point in the
track when you press RECORD●.
6
To pause, press PAUSE;. Press again to
resume.
7
To stop recording, press STOP•OPENÇ0.
● Recording is permissible insofar as copyright or
other rights of third par ties are not infringed.
● For recording, use only NORMAL (IEC type I)
tapes on which the tabs have not yet been
broken. This deck is not suited for recording on
METAL (IEC IV) type tapes.
19
PG001-027 MCM196D_37_IFU_Eng
19
14/5/07, 13:20
English
Tape Operation/Recording
Tape Operation/Recording
English
1
2
3
Other Connection
Recording from the radio
Listening to an external source
Tune to the desired radio station (see Tuning to
radio stations).
You can listen to the sound of the connected
external device through your system’s speakers.
Press STOP•OPENÇ0 to open the tape
door.
Insert a suitable tape into the deck and close the
tape door.
4
Press RECORD● to start recording.
5
To interrupt playback press PAUSE;. To
resume, press this key again.
6
To stop recording, press STOP•OPENÇ0.
1
2
Select AUX source.
Use a line-in cable (not supplied) to connect
MCM196D’s AUX jack (3.5 mm ) to an AUDIO
OUT or headphone jack on an external
equipment (such as CD player, VCR or iPod).
Maintenance
Cleaning the Cabinet
● Use a soft cloth slightly moistened with a mild
detergent solution. Do not use a solution
containing alcohol, spirits, ammonia or abrasives.
Cleaning Discs
● When a disc becomes dirty,
clean it with a cleaning cloth.
Wipe the disc from the centre
out.
● Do not use solvents such as
benzene, thinner, commercially
available cleaners, or antistatic
spray intended for analogue records.
Cleaning the disc lens
● After prolonged use, dir t or dust may
accumulate at the disc lens. To ensure good
playback quality, clean the disc lens with Philips
CD Lens Cleaner or any commercially available
cleaner. Follow the instructions supplied with
cleaner.
Cleaning the Heads and the Tape Paths
● To ensure good recording and playback quality,
clean the heads A, the capstan(s) B, and
pressure roller(s) C after every 50 hours of
tape operation.
● Use a cotton swab slightly moistened with
cleaning fluid or alcohol.
● You can also clean the heads by playing a
cleaning tape once.
A
A B C
Demagnetising the heads
● Use a demagnetising tape available at your
dealer.
20
PG001-027 MCM196D_37_IFU_Eng
20
14/5/07, 13:20
MICRO SYSTEM MCM196D
6
Press TUNING 4 ¢ to set the minutes.
7
Press SLEEP/TIMER to confirm the time.
➜ The timer is now set and activated.
● To deactivate timer, in timer setting mode,
press 9.
➜ disappears from the display.
Activating and deactivating
SLEEP
The sleep timer enables the
system to switch off by itself
after a set period of time.
Setting the clock
1
In standby mode, press and hold DISPLAY/
CLOCK (DISPLAY/CLOCK/MENU on the
remote control) for 2 seconds.
➜ The clock digits for the hours flash.
2
Press TUNING 4 ¢ to set the hours.
3
Press DISPLAY/CLOCK again.
➜ The clock digits for the minutes flash.
4
Press TUNING 4 ¢ to set the minutes.
5
Press DISPLAY/CLOCK to confirm the time.
● Press SLEEP/TIMER on the
remote control once or more.
➜ Display shows
and one
of the sleep time options in sequence: 60, 45,
30,15, 0, 60... if you have selected a time.
● To deactivate, press SLEEP/TIMER on the
remote control once or more until “ 0“ is shown,
or press STANDBY ON ECO POWER on the
system (or 2on the remote control).
disappears from the display.
➜
Note:
– The backlight for clock display is off in standby.
Setting the timer
● The system can be used as an alarm clock,
whereby the CD, TUNER or iPod is switched on
at a set time. The clock time needs to be set first
before the timer can be used.
1
In standby or active mode, press and hold
SLEEP/TIMER on the remote control.
2
Press SOURCE (CD, iPod or TUNER on the
remote control) to select sound source.
3
Press SLEEP/TIMER to confirm your desired
mode.
➜ The clock digits for the hours flash.
4
Press TUNING 4 ¢ to set the hours.
5
Press SLEEP/TIMER again.
➜ The clock digits for the minutes flash.
21
PG001-027 MCM196D_37_IFU_Eng
21
14/5/07, 13:20
English
Clock/Timer
Dock for iPod
English
Portable player
AM
AERIAL
FM
AERIAL
speaker
(right)
n
speaker
(left)
Dock
Playing iPod using the dock
By connecting the supplied dock to your Hi-Fi
system, you can listen to the sound of the
docked player through the powerful speakers of
the Hi-Fi system.
Installing the dock adaptor
● Align two latches and two holes on the dock and
the adaptor, then gently push in the adaptor until
it clicks.
2
Compatible portable player
● Most Apple iPod models with 30-pin dock
connector as follows:
20GB, 40GB, 20/30GB photo, 40/60GB photo,
30GB video, 60GB video, mini and nano.
1
Dock
● This system comes with a dock used for iPod.
Connect the cable of the dock to the system to
let the system and your iPod work together.
Removing the dock adaptor
● Slightly push down the dock adaptor, as indicated
in the figure below, to un-latch the adaptor, then
take it out.
Dock adaptor
Before plugging your player in the dock, snap the
suitable dock adaptor into the dock to provide a
snug fit for the player to be docked.
Selecting the correct dock adaptor
● For the iPod dock, 8 dock adaptors of different
type, as indicated at the back of the adaptor, are
included to fit the following iPod:
20GB, 40GB, 20/30GB photo, 40/60GB photo,
30GB video, 60GB video, mini and nano.
22
PG001-027 MCM196D_37_IFU_Eng
22
14/5/07, 13:20
Playing iPod
1
2
3
4
Select the dock adaptor of the correct type and
size, and snap it into the dock (See “ Dock
adaptor ” ).
Correctly place your iPod in the dock.
Connect the cables of the dock to DOCKING
IN jacks on the main set correspondingly.
Press SOURCE repeatedly or iPod to select
iPod source.
● The connected player will play automatically.
● Use MENU, 4/ 3, and OK to navigate the iPod
menu.
Charging iPod battery using the
dock
Docking your iPod and connecting the dock to
MCM196D you can charge the iPod in the
standby mode and power-on mode of
MCM196D.
Notes:
– In Eco power standby mode, iPod cannot be
charged.
– When the set is switched to the dock mode, if no
player is plugged in for 15 minutes, the set will
switch to the Eco power mode.
Notes:
– By using the buttons ( 2;, ¡1, 2™ and
VOLUME ) on the MCM196D and its remote
control, the following iPod playback features are
available: Play/Pause, selecting next/previous track,
fast forwarding/rewinding and changing volume.
– The buttons ( 2;, ¡1, 2™ and VOLUME ) on
the MCM196D and its remote control can work
only with playback of the audio contents stored on
the docked player.
– Stop (Ç) function of disc playback is not
available to the docked player.
23
PG001-027 MCM196D_37_IFU_Eng
23
14/5/07, 13:20
English
Dock for iPod
Specifications
English
AMPLIFIER
Output power ........................................... 2 x 4W RMS
FTC output power ..................................................... 3 W
Signal-to-noise ratio .......................... ≥ 60 dBA (IEC)
Frequency response ....................... 125 – 16000 Hz
Impedance loudspeakers ........................................... 4Ω
CD PLAYER
Frequency range ............................... 125 – 16000 Hz
Signal-to-noise ratio ............................................ 65 dBA
TUNER
FM wave range ................................... 87.5 – 108 MHz
AM wave range .................................. 530 – 1700 kHz
Sensitivity at 75 Ω
– FM 26 dB sensitivity .......................................... 20 µV
– AM 26 dB sensitivity ..................................... 5 mV/m
Total harmonic distortion ..................................... ≤ 5%
SPEAKERS
Bass reflex system
Dimensions (w x h x d) . 146 x 228 x 160 (mm)
GENERAL INFORMATION
AC Power ................................................... 120 V / 60 Hz
Dimensions (w x h x d) ... 146 x 228 x 216(mm)
Weight (with/without speakers) ..................................
............................................................... approx. 4.4 / 2.0 kg
Power consumption
Active .......................................................................... 30 W
Standby .................................................................... < 4 W
Eco Power Standby ........................................... < 1 W
Specifications and external appearance are
subject to change without notice.
TAPE DECK
Frequency response
Normal tape (type I) ...... 125 – 8000 Hz (8 dB)
Signal-to-noise ratio
Normal tape (type I) .................................... 40 dBA
Wow and flutter .............................................. ≤ 0.4% JIS
Troubleshooting
WARNING
Under no circumstances should you try to repair the system yourself, as this will invalidate the
warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If you
are unable to remedy a problem by following these hints, consult your dealer or Philips for
help.
Problem
Solution
“NO DISC” is displayed.
✔ Insert a disc.
✔ Check if the disc is inserted upside down.
✔ Wait until the moisture condensation at the lens
has cleared.
✔ Replace or clean the disc, see “Maintenance”.
✔ Use a finalized CD-RW or a correct MP3-CD
format disc.
24
PG001-027 MCM196D_37_IFU_Eng
24
14/5/07, 13:20
✔
If the signal is too weak, adjust the antenna or
connect an external antenna for better
reception.
✔ Increase the distance between the Mini HiFi
System and your TV or VCR.
Radio reception is poor.
✔
✔
✔
Clean deck parts, see “Maintenance”.
Use only NORMAL (IEC I) tape.
Apply a piece of adhesive tape over the missing
tab space.
The tape deck door cannot open.
✔
Remove and reconnect the AC power plug and
switch on the system again.
The system does not react when buttons
are pressed.
✔
Remove and reconnect the AC power plug and
switch on the system again.
Sound cannot be heard or is of poor
quality.
✔
✔
✔
Recording or playback cannot be made.
The left and right sound outputs are
reversed.
The remote control does not function
properly.
Adjust the volume.
Disconnect the headphones.
Check that the speakers are connec ted
correctly.
✔ Check if the stripped speaker wire is clamped.
✔ Make sure the MP3-CD was recorded within
32-256 kbps bit rate with sampling frequencies
at 48 kHz, 44.1 kHz or 32 kHz.
✔
Check the speaker connections and location.
✔
Select the source (CD or TUNER, for example)
before pressing the function button (É,í,ë).
Reduce the distance between the remote
control and the system.
Insert the batteries with their polarities
(+/– signs) aligned as indicated.
Replace the batteries.
Point the remote control directly towards the IR
sensor.
✔
✔
✔
✔
✔
✔
Set the clock correctly.
Press and hold Timer on/off to switch on the
timer.
✔ If recording or tape dubbing is in progress, stop
recording.
The time is not working.
✔
Power has been interrupted or the power cord
has been disconnected. Reset the clock/timer.
25
PG001-027 MCM196D_37_IFU_Eng
25
14/5/07, 13:20
English
Troubleshooting
Troubleshooting
English
The menu navigation or photo playback
of the docked player cannot be carried
out through the buttons on MCM196D
or its remote control.
✔ The buttons on MCM196D and its remote
The STOP 9 and some buttons on
MCM196D and its remote control have
no function.
✔ The playback of the docked player cannot be
control can only control playback of audio
contents. To navigate the menu, use the controls
on the docked player.
stopped using the STOP 9 button on
MCM196D and its remote control.
✔ The buttons ( 2;, ¡1, 2™ and VOLUME) can
function only.
26
PG001-027 MCM196D_37_IFU_Eng
26
14/5/07, 13:20
PHILIPS LIMITED WARRANTY
ONE (1) YEAR
WARRANTY COVERAGE:
PHILIPS warranty obligation is limited to the terms set forth
below.
WHO IS COVERED:
Philips warrants the product to the original purchaser or the
person receiving the product as a gift against defects in materials and workmanship as based on the date of original purchase
(“Warranty Period”) from an Authorized Dealer. The original
sales receipt showing the product name and the purchase date
from an authorized retailer is considered such proof.
WHAT IS COVERED:
The Philips warranty covers new products if a defect arises and
a valid claim is received by Philips within the Warranty Period.
At its option, Philips will either (1) repair the product at no
charge, using new or refurbished replacement parts, or (2)
exchange the product with a product that is new or which has
been manufactured from new, or serviceable used parts and is
at least functionally equivalent or most comparable to the original product in Philips current inventory, or (3) refund the original purchase price of the product.
Philips warrants replacement products or parts provided under
this warranty against defects in materials and workmanship
from the date of the replacement or repair for ninety (90) days
or for the remaining portion of the original product’s warranty,
whichever provides longer coverage for you. When a product
or part is exchanged, any replacement item becomes your
property and the replaced item becomes Philips’ property.
When a refund is given, your product becomes Philips’ property.
Note: Any product sold and identified as refurbished or
renewed carries a ninety (90) day limited warranty.
Replacement product can only be sent if all warranty
requirements are met. Failure to follow all requirements can result in delay.
WHAT IS NOT COVERED - EXCLUSIONS AND LIMITATIONS:
This Limited Warranty applies only to the new products manufactured by or for Philips that can be identified by the trademark, trade name, or logo affixed to it. This Limited Warranty
does not apply to any non-Philips hardware product or any
software, even if packaged or sold with the product. NonPhilips manufacturers, suppliers, or publishers may provide a
separate warranty for their own products packaged with the
bundled product.
Philips is not liable for any damage to or loss of any programs,
data, or other information stored on any media contained within the product, or any non-Philips product or part not covered
by this warranty. Recovery or reinstallation of programs, data
or other information is not covered under this Limited
Warranty.
This warranty does not apply (a) to damage caused by accident,
abuse, misuse, misapplication, or non-Philips product, (b) to
damage caused by service performed by anyone other than
Philips or Philips Authorized Service Location, (c) to a product
or a part that has been modified without the written permission of Philips, or (d) if any Philips serial number has been
removed or defaced, or (e) product, accessories or consumables sold “AS IS” without warranty of any kind by including
refurbished Philips product sold “AS IS” by some retailers.
This Limited Warranty does not cover:
• Shipping charges to return defective product to Philips.
• Labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation
or repair of antenna systems outside of the product.
• Product repair and/or part replacement because of improper
installation, connections to improper voltage supply, abuse,
neglect, misuse, accident, unauthorized repair or other cause
not within the control of Philips.
• Damage or claims for products not being available for use, or
for lost data or lost software.
• Damage occurring to product during shipping.
• A product that requires modification or adaptation to enable
it to operate in any country other than the country for
which it was designed, manufactured, approved and/or
authorized, or repair of products damaged by these modifications.
• A product used for commercial or institutional purposes
(including but not limited to rental purposes).
• Product lost in shipment and no signature verification receipt
can be provided.
• Failure to operate per Owner’s Manual.
TO OBTAIN ASSISTANCE IN THE U.S.A., PUERTO
RICO, OR U.S. VIRGIN ISLANDS…
Contact Philips Customer Care Center at:
1-888-PHILIPS (1-888-744-5477)
TO OBTAIN ASSISTANCE IN CANADA…
1-800-661-6162 (French Speaking)
1-888-PHILIPS (1-888-744-5477) - (English or Spanish
Speaking)
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CONSUMER. PHILIPS SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF
ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS
PRODUCT IS LIMITED IN DURATION TO THE DURATION
OF THIS WARRANTY.
Some states do not allow the exclusions or limitation of incidental or consequential damages, or allow limitations on how
long an implied warranty lasts, so the above limitations or
exclusions may not apply to you.
This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.
Philips, P.O. Box 671539, Marietta, GA. 30006-0026
3121 233 48801
27
PG001-027 MCM196D_37_IFU_Eng
27
14/5/07, 13:20
PHILIPS CONSUMER ELECTRONICS NORTH AMERICA
English
P.O. BOX 671539, Marietta, GA. 30006-0026
Français
Meet Philips at the Internet
http://www.philips.com/usasupport
Español
MCM196D
CLASS 1
LASER PRODUCT
Printed In China
_37 back cover
