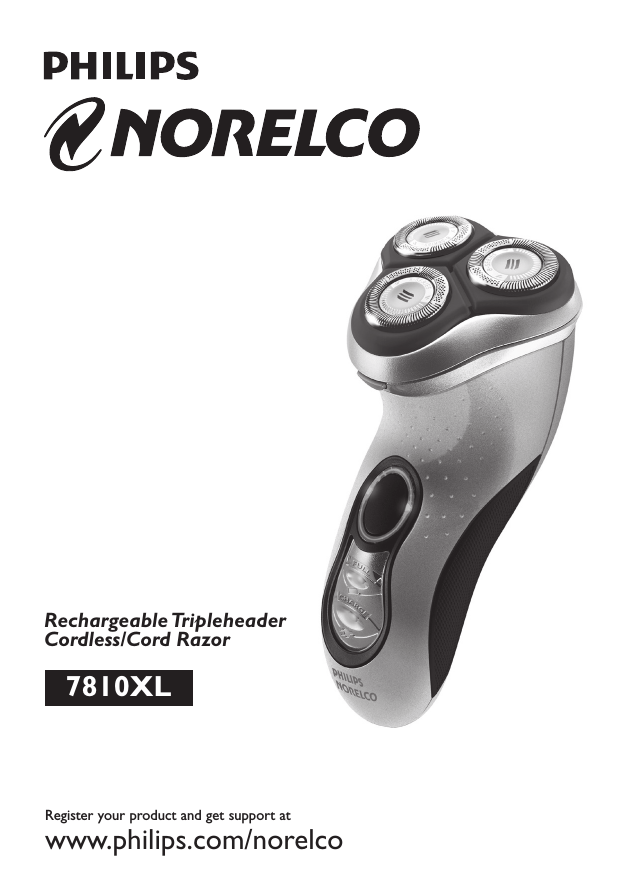

Rechargeable Tripleheader
Cordless/Cord Razor
7810XL
Register your product and get support at
www.philips.com/norelco
2
ENGLISH 4
Congratulations on your purchase and
welcome to Philips Norelco!
7810XL
To fully benefit from the support that Philips
Norelco offers, register your product at
www.philips.com/norelco
4
ENGLISH
IMportant Safety
Instructions
When using an electric razor, basic safety precautions should
always be followed, including the following:
Read all instructions before using this appliance.
DANGER
To reduce the risk of electric shock:
1. Do not reach for a corded razor that has fallen into water.
Unplug immediately.
2. Use razor only in dry condition. Do not use a razor while
bathing or in a shower.
3. Do not submerge razor in water.
4. Do not place or store a razor where it can fall or be pulled
into a tub or sink. Do not place or drop a razor into water or
other liquid.
5. Always unplug this razor from the electrical outlet immediately
after use, except when razor is (re)charging.
6. Remove power supply cord from razor before cleaning.
WARNING
To reduce the risk of burns, fire, electric shock, or injury to
persons:
1. Close supervision is necessary when this razor is used by, on,
or near children or invalids.
2. Use this razor for its intended household use as described in
this manual. Do not use attachments not recommended by
Philips Electronics North America Corporation.
3. Never operate this razor if it has a damaged cord or charging
plug, if it is not working properly, if it has been dropped or
damaged, or dropped into water while plugged in. For assistance
call 1-800-243-3050.
ENGLISH
5
4. Keep the razor, cord and charging plug away from heated
surfaces.
5. Never drop or insert any object into any opening.
6. Do not charge or plug in razor outdoors or operate where
aerosol (spray) products are being used or where oxygen is
being administered.
7. Do not use this razor with a damaged or broken comb, as facial
injury may occur.
8. For corded use, always attach plug to razor first, then to outlet.
Be certain that plug is inserted firmly into razor, up to mark
indicated on plug. To disconnect, turn razor off then remove
charging plug from outlet.
9. Never put the razor in direct sunlight or store in a pouch at a
temperature above 140°F.
10.Razor can be rinsed under running tap water. Do not operate
razor corded until fully dried.
11.To prevent possible damage to the cord, do not wrap cord
around the razor.
12. Only use the power plug supplied with the razor.
SAVE THESE
INSTRUCTIONS
IMPORTANT: The power plug contains a transformer. Do not
cut off the power plug to replace it with another plug, as this will
cause a hazardous condition.
6
ENGLISH
ENGLISH
Table of Contents
45 - DAY MONEY-BACK GUARANTEE
To enjoy the closest and most comfortable shave from your new Philips Norelco
Men’s Razor, the razor should be used exclusively for 3 weeks. This allows your
hair and skin enough time to adapt to the Philips Norelco Shaving System. If, after
that period of time, you are not fully satisfied with your Philips Norelco Men’s
Razor, send the product back along with dated sales receipt and we’ll refund you
the full purchase price. The razor must be shipped prepaid by insured mail,
insurance prepaid, and have the original sales receipt, indicating purchase price and the date of purchase, enclosed. We cannot be responsible for lost mail. The razor must be postmarked no later than 45 days from
the date of purchase. Philips Norelco reserves the right to verify the purchase
price of the razor and limit refunds not to exceed suggested retail price.
To obtain money-back guarantee return authorization form, call 1-800-243-3050
for assistance. Please allow 4-6 weeks for delivery of check.
Features..........................................................8-9
LED Indicators .............................................. 10
Before First Use............................................ 10
Charging....................................................10-12
Recharging...................................................... 12
Quick Charge................................................ 12
Put It To The Test & Shaving Tips.........12-13
How to Shave With An
Electric Razor..........................................13-14
Trimming......................................................... 14
Cleaning.....................................................15-19
Replacing Razor Heads............................... 20
Storage............................................................. 20
Assistance....................................................... 21
Accessories.................................................... 22
Warranty......................................................... 23
7
8
ENGLISH
ENGLISH
9
Features
Spring-Release Trimmer
Razor Head
Assembly
Automatic
Worldwide Voltage
100V to 240V AC
Protective Razor
Head Cap
Cleaning Brush
Individually Floating
Heads
Rechargeable - Initial
4-hour full charge
for up to 55 minutes
of cordless shave time
Razor Head Release
Button
• Hair Chamber
captures shaven hair
1-Hour Quick Charge
Cordless/Cord To shave with or
without a cord
Electronic On/Off
Button
Full 2-Year Warranty
Battery Full
Indicator Light
45-Day Money-Back
Guarantee
LED Charge Indicator
Light
• Indicates razor is
(re)charging
How the Unique Philips Norelco
Lift and Cut
Shaving System Makes Close Comfortable:
Groove channels
beard closer to
cutting system
Lifter raises hair
Slots to cut long
hairs
Holes to cut short
hairs even closer
10
ENGLISH
ENGLISH
LED Indicators
C ◗ Charging Indicator
When you charge razor, the charge light on the display will light up green.
C
◗ Full Charge Indicator
When the batteries have been fully charged, the top light blinks green.
◗ Charge the razor before you start using
it (see ‘Charging’). Make sure the razor is
switched off before you start charging it.
Important
◗ Only use the power plug provided to charge
the razor.
w The charging plug converts 100 – 240V AC to
less than 24V DC.
Charging
w Battery performance is best if you recharge
only when the batteries are (almost)
completely empty.
w Charging or recharging at temperatures below
40ºF or higher than 95ºF adversely affects
lifetime of batteries.
w Continuously recharging or continuously using
as a corded razor will reduce life of batteries.
w You may also shave using the charging plug
provided. This razor will not recharge while
being used corded.
w Do not charge razor in a pouch.
w Do not charge/recharge or use razor corded until fully dried.
C 1
Before First Use
11
Connect cord directly to razor and
connect the charging plug into any 100V to
240V AC outlet. Use only the charging plug
provided.
◗ An adaptor plug may be necessary for charging plug usage in some foreign countries. Use an attachment plug adaptor of the proper configuration for the power outlet.
The charging plug will automatically convert to
work on 100V to 240V AC systems.
2
First time charging and recharging after
non-use for 1 month or more requires a
full 4 hours. A fully charged razor has a
cordless shaving time of up to 17 days.
When batteries are fully charged, the top light
blinks green.
12
ENGLISH
ENGLISH
◗ Do not leave the razor continuously plugged
into outlet charging as it would reduce life
of batteries. Remove the plug from outlet as
soon as the razor is fully charged.
Recharging
1
2
First time charging requires 4 hours. After
initial charge, recharging requires 1 hour.
When razor is fully charged, disconnect the
charging plug from outlet.
Do not keep razor permanently plugged into
outlet.
◗ At first you may not get as close a shave as you expect, or your face may even become slightly irritated.This is normal since your beard
and skin will need time to adjust. Invest 3 weeks and you’ll soon experience the full joy of your new razor.
◗Stick with it! If you alternate shaving methods
during the adjustment period, it may make it
more difficult to adapt to the Philips Norelco
shaving system.
◗If you are still not convinced after 21 days,
Philips Norelco will refund you the full
purchase price as long as the request is
received within 45 days of purchase.
How To Shave With An Electric Razor
Quick Charge
When batteries are totally depleted, recharging the
razor for approximately 3 minutes gives enough
energy for a 3-minute cordless shave.
◗ Use this razor for its intended household use
as described in this manual.
◗ Shaving with a clean, dry face gives the best
results.
C 1
Put It To The Test & Shaving Tips
◗ 21 Day Trial and Conversion Process. It is a fact
that your skin and beard need time to adjust to a new shaving system.
◗Use your new razor exclusively for 3 weeks to
fully enjoy the closeness of a Philips Norelco
shave.
13
Turn razor ON by pressing the on/off
button once. The blue light ring around
the button will light to indicate razor is on.
Shave against the direction of beard growth
using both straight and circular movements.
2
Stretch your skin with your free hand so
blades can lift and cut whiskers. Gently
press razor to skin so the floating heads
can follow the contours of your face. DO
NOT press too hard. Too much pressure
can pinch the skin into the combs.
14
ENGLISH
ENGLISH
3
Turn razor OFF by pressing the on/off
button once.
The blue light ring around on/off button goes
OFF.
C 4
Put the Protective Razor Head Cap on the
razor to protect razor heads.
For optimal shaving results, replace Philips
Norelco razor heads (model HQ8) once a year.
Cleaning
C◗The tap symbol on the back of the razor
indicates that the razor can be rinsed under
running tap water.
w Regular cleaning guarantees better shaving
results.
w Always switch Razor OFF, unplug and remove
power cord before cleaning.
w Never clean, remove or replace head assembly
while motor is on.
◗Do not apply pressure to combs. Do not touch
razor heads with hard objects as this may dent
or damage precision-made slotted combs.
w Do not use razor if combs are damaged or broken. Facial injury may occur.
Trimming
To groom sideburns and moustache:
1
Turn razor ON.
Cleaning: Razor Heads
2 Push down spring-release trimmer switch.
C The
trimmer can be activated while the razor is
running.
trimmer as shown and move in
C 3Hold
downward strokes with gentle pressure.
C 4
5
Close trimmer by pressing trimmer down.
Turn razor OFF.
15
The quickest and easiest way to clean the razor
heads is to rinse them after each use or at least
once a week with hot water: Water from the tap
should be on a hot setting, BUT BE CAREFUL
TO TEST WATER FIRST SO AS NOT TO BURN
OR SCALD HANDS.
◗Regular cleaning guarantees better shaving
results.
w Do not immerse razor in water.
w While rinsing razor heads, water may drip
out of the base of razor. This is a normal
occurrence.
C
16
ENGLISH
ENGLISH
1
Once A Month: Razor Heads
Always turn razor OFF, unplug from outlet
and remove cord from razor before
cleaning.
C 2
ress the Razor Head Release Button, flip
P
open the Razor Head Assembly.
C 3
Clean inside razor heads and hair chamber
by running under hot water.
17
Do not mix up the cutters and combs as the
shaving performance may be adversely affected
for several weeks before optimal shaving
performance is restored.
1
C 2
Turn razor OFF, remove the charging plug
from the outlet and cord from the razor.
Press the razor head release button to
open the Razor Head Assembly.
outside of Razor Head Assembly by
C 4Clean
running under hot water.
5Close the Razor Head Assembly and shake
off excess water.
Razor Head assembly again and
C 6Open
leave open to air dry.
NOTE: Do not wipe or dry the shaving heads
with a towel or tissue. This could damage the
shaving heads.
shaving unit becomes detached from
C 7Ifthetherazor,
you can easily reattach it.
8You may also clean the hair chamber
without water by using the supplied brush.
C 3
C 4
C 5
Turn the black 3-pronged locking bracket
counterclockwise to unlock (1) and
remove the retaining frame (2).
Remove and clean one set of cutters and
combs at a time.
Separate the cutter from the comb and
rinse clean under hot water.
18
ENGLISH
ENGLISH
Once A Month: Razor Head
Do not clean more than one cutter and comb
at a time, since they are all matching sets. If you
accidentally interchange the cutters and combs, it
could take several weeks before optimal shaving
performance is restored.
C 6
7
Repeat the process for the other two sets
of cutters and combs.
8
Replace the frame.
C 9
For optimum performance, razor cutters and
combs should be cleaned in a degreasing liquid
(e.g. rubbing alcohol) and lubricated with one
drop of mineral oil (in the center of the head).
This helps prevent wear of the shaving heads.
Replace the set back into the Razor Head
Assembly so that the ‘wings’ on the comb
fit within the brackets located towards the
center of the Assembly.
The set will only fit into the Razor Head Assembly
if the ‘wings’ are between the brackets. Make sure
that the two pointy edges of the head fit exactly
into the recesses.
Press down (1) and turn the black
3-pronged locking bracket clockwise (2)
until it locks into place.
10 Close the Razor Head Assembly.
19
After Each Use:Trimmer
1
2
C 3
C 4
5
Turn razor OFF.
Push down spring-release trimmer switch.
Clean trimmer with the brush every time
you use it.
Lubricate the trimmer teeth with one
drop of mineral oil every 6 months.
Close trimmer by pressing trimmer down.
This razor has no other user-serviceable parts.
For assistance call 1-800-243-3050.
20
ENGLISH
ENGLISH
Replacing the Razor Heads
◗Replace the razor heads once a year for
optimal shaving results.
w Replace damaged or worn razor heads with
model HQ8 Philips Norelco razor heads only.
Storage
◗ Information is available 24 hours a day,
7 days a week.
w Be sure razor is turned off. Remove cord from
outlet and razor before storing in a safe, dry
location where it will not be crushed, banged,
or subject to damage.
w Do not wrap cord around razor when storing.
w Store cord in a safe location where it will not
be cut or damaged.
w Do not keep razor permanently plugged into
outlet.
w Do not place or store razor where it can fall
or be pulled into a tub or sink, water or other
liquid while plugged in.
w Put the Protective Razor Head Cap on razor
to protect heads.
C
Assistance
◗For assistance, visit our website:
www.philips.com/support
or call toll free:
1-800-243-3050
21
22
ENGLISH
ENGLISH
Accessories
23
FULL TWO YEAR WARRANTY
Philips Electronics North America Corporation warrants each new Philips Norelco Product,
Model 7810XL (except cutters and combs) against defects in materials or workmanship for a
period of two years from the date of purchase, and agrees to repair or replace any defective
product without charge.
IMPORTANT: This warranty does not cover damage resulting from accident, misuse or
abuse, lack of reasonable care, the affixing of any attachment not provided with the product or
loss of parts or subjecting the product to any but the specified voltage.* Use of unauthorized
replacement parts will void this warranty.
PHILIPS ELECTRONICS NORTH AMERICA CORPORATION WILL NOT
PAY FOR WARRANTY SERVICE PERFORMED BY A NON-AUTHORIZED
REPAIR SERVICE AND WILL NOT REIMBURSE THE CONSUMER FOR
DAMAGE RESULTING FROM WARRANTY SERVICE PERFORMED BY A NONAUTHORIZED REPAIR SERVICE. NO RESPONSIBILITY IS ASSUMED FOR ANY
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES.
In order to obtain warranty service, simply go to www.philips.com/norelco or call 1-800-2433050 for assistance. It is suggested that for your protection you return shipments of product
by insured mail, insurance prepaid. Damage occurring during shipment is not covered by this
warranty.
NOTE: No other warranty, written or oral, is authorized by Philips Electronics North America
Corporation.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above exclusion and limitations may not apply to you.
* Read enclosed instructions carefully.
◗ Replacement Heads
Model HQ8 - For maximum razor
performance, replace your Philips Norelco
razor heads once a year.
w Car Cord Adaptor Cable
HQ8010 - Charges razor from a 12V battery
in your car, truck, van, boat or camper.
w Philips Norelco Razor Accessories may be
purchased at a store near you, or on our
website www.philips.com/store
Manufactured for:
Philips Consumer Lifestyle
A Division of Philips Electronics North America Corporation
LISTED
P.O. Box 10313, Stamford, CT 06904
®
®
LISTED
®
LISTED
TM
TM
This symbol on the product’s nameplate means it is
TM
listed by Underwriters’
Laboratories, Inc.
LISTED TM
®
Norelco, Tripleheader, Lift and Cut and
North America Corporation.
are Registered Trademarks of Philips Electronics
is a Trademark of Philips Electronics North America Corporation.
PHILIPS is a Registered Trademark of Koninklijke Philips Electronics N.V.
© 2010 Philips Electronics North America Corporation. All Rights Reserved.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
