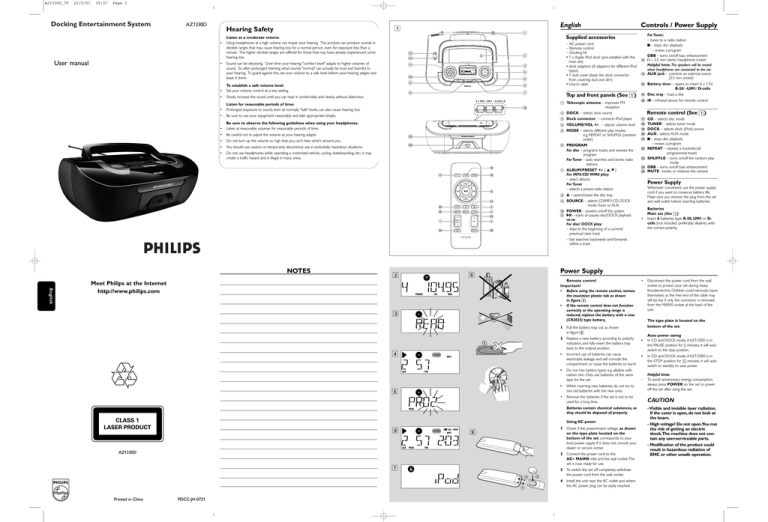

Page 1
Docking Entertainment System
User manual
Hearing Safety
Supplied accessories
Listen at a moderate volume.
Using headphones at a high volume can impair your hearing. This product can produce sounds in
decibel ranges that may cause hearing loss for a normal person, even for exposure less than a
minute. The higher decibel ranges are offered for those that may have already experienced some
hearing loss.
Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of
sound. So after prolonged listening, what sounds "normal" can actually be loud and harmful to
your hearing. To guard against this, set your volume to a safe level before your hearing adapts and
leave it there.
Slowly increase the sound until you can hear it comfortably and clearly, without distortion.
– AC power cord
– Remote control
– Docking kit
• 1 x Apple iPod dock (pre-installed with the
main set)
• dock adaptors (8 adaptors for different iPod
• 1 dust cover (keep the dock connector
from covering dust and dirt)
• Line-in cable
To establish a safe volume level:
Set your volume control at a low setting.
Top and front panels (See 1)
6 x R20 • UM-1 • D-CELLS
Listen for reasonable periods of time:
Prolonged exposure to sound, even at normally "safe" levels, can also cause hearing loss.
Be sure to use your equipment reasonably and take appropriate breaks.
Be sure to observe the following guidelines when using your headphones.
Listen at reasonable volumes for reasonable periods of time.
Be careful not to adjust the volume as your hearing adapts.
Do not turn up the volume so high that you can't hear what's around you.
You should use caution or temporarily discontinue use in potentially hazardous situations.
Do not use headphones while operating a motorized vehicle, cycling, skateboarding, etc.; it may
create a traffic hazard and is illegal in many areas.
1 Telescopic antenna – improves FM
Controls / Power Supply
For Tuner:
– tunes to a radio station
9 – stops disc playback;
– erases a program
DBB – turns on/off bass enhancement
@ p – 3.5 mm stereo headphone socket
Helpful hints: The speakers will be muted
when headphones are connected to the set.
# AUX jack – connects an external source
(3.5 mm socket)
$ Battery door – opens to insert 6 x 1.5V
R-20/ -UM1/ D-cells
% Disc tray – load a disc
^ iR – infrared sensor for remote control
Remote control (See 1)
2 DOCK – selects dock source
3 Dock connector – connects iPod player
4 VOLUME/VOL +/- – adjusts volume level
5 MODE – selects different play modes:
e.g. REPEAT or SHUFFLE (random
For disc – programs tracks and reviews the
For Tuner – auto searches and stores radio
7 ALBUM/PRESET +/- ( 3, 4 )
For MP3-CD/ WMA play:
– select albums
For Tuner
– selects a preset radio station
Whenever convenient, use the power supply
cord if you want to conserve battery life.
Make sure you remove the plug from the set
and wall outlet before inserting batteries.
9 SOURCE: – selects CD/MP3-CD, DOCK
mode,Tuner or AUX
0 POWER – powers on/off the system
! 2; – starts or pauses disc/DOCK playback
For disc/ DOCK play:
– skips to the beginning of a current/
previous/ later track
CD – selects disc mode
TUNER – selects tuner mode
DOCK – selects dock (iPod) source
AUX– selects AUX mode
9 – stops disc playback;
– erases a program
REPEAT – repeats a track/disc/all
programmed tracks
SHUFFLE – turns on/off the random play
DBB – turns on/off bass enhancement
MUTE –mutes or restores the volume
Power Supply
8 / – opens/closes the disc tray
Main set (See 1)
Insert 6 batteries, type R-20, UM1 or Dcells (not included, preferably alkaline) with
the correct polarity.
– fast searches backwards and forwards
within a track
Power Supply
Remote control
• Before using the remote control, remove
the insulation plastic tab as shown
in figure 9.
• If the remote control does not function
correctly or the operating range is
reduced, replace the battery with a new
(CR2025) type battery.
Meet Philips at the Internet
Pull the battery tray out as shown
in figure 9.
Replace a new battery according to polarity
indication, and fully insert the battery tray
back to the original position.
Incorrect use of batteries can cause
electrolyte leakage and will corrode the
compartment or cause the batteries to burst:
Do not mix battery types: e.g. alkaline with
carbon zinc. Only use batteries of the same
type for the set.
When inserting new batteries, do not try to
mix old batteries with the new ones.
Remove the batteries if the set is not to be
used for a long time.
Using AC power
Printed in China
In CD and DOCK mode, if AZ1330D is in
the STOP position for 15 minutes, it will auto
switch to standby to save power.
Batteries contain chemical substances, so
they should be disposed of properly.
Auto power saving
In CD and DOCK mode, if AZ1330D is in
the PAUSE position for 5 minutes, it will auto
switch to the stop position.
Helpful hints:
To avoid unnecessary energy consumption,
always press POWER on the set to power
off the set after using the set.
Disconnect the power cord from the wall
socket to protect your set during heavy
thunderstorms. Children could seriously injure
themselves as the free end of the cable may
still be live if only the connector is removed
from the MAINS socket at the back of the
The type plate is located on the
bottom of the set.
Check if the power/mains voltage, as shown
on the type plate located on the
bottom of the set, corresponds to your
local power supply. If it does not, consult your
dealer or service center.
Connect the power cord to the
AC~ MAINS inlet and the wall socket.The
set is now ready for use.
To switch the set off completely, withdraw
the power cord from the wall socket.
Install the unit near the AC outlet and where
the AC power plug can be easily reached.
- Visible and invisible laser radiation.
If the cover is open, do not look at
the beam.
- High voltage! Do not open.You run
the risk of getting an electric
shock.The machine does not contain any user-serviceable parts.
- Modification of the product could
result in hazardous radiation of
EMC or other unsafe operation.
Page 2
Basic Function/Radio
Basic functions
Switching on/off the set
To switch on, press POWER.
➜ Display lights up.The system will switch to
the last selected source.
To switch off, press POWER again.
➜ Display lights off.
MP3-CD/CD Player
Manual programming
Press PROG to activate programming.
➜ Display: PROG flashes.
Press ALBUM/PRESET +/(ALBUM/PRESET 3, 4 on the remote
control ) once or more to allocate a number
(from 1 to 25).
Adjusting volume and sound
Adjust the sound with the VOLUME and
DBB controls.
Digital tuner
Tuning to radio stations
Press repeatedly SOURCE (or TUNER
on the remote control) to select FM or
➜ “TUNER” is displayed briefly, then the
radio station frequency, waveband and, if
programmed, a preset number are shown
(See 2).
Press and hold ∞ or § until the frequency in
the display starts running.
➜ The radio automatically tunes to a station
of sufficient reception. Display shows
“SEARCH” during automatic tuning.
Press PROG to confirm.
Repeat steps 1-4 to store other stations.
Helpful hints:
You can erase a preset station by storing
another frequency in its place.
Repeat step 2 if necessary until you find the
desired station.
To tune to a weak station, press ∞ or §
briefly and repeatedly until you have found
optimal reception.
For MW, the set uses a built-in aerial. Direct
this aerial by turning the whole set.
Compatible portable player
Most Apple iPod models with 30-pin dock
connector as follows:
20GB, 40GB, 20/30GB photo, 40/60GB
photo, 30GB video, 60/80GB video, mini and
Dock adaptor
Before plugging your player in the dock, snap
the suitable dock adaptor into the dock to
provide a snug fit for the player to be docked.
Snap the compatible iPod into the dock
AZ1330D will auto switch to DOCK source
(See 7).
For iPod, the connected player will play
This player plays Audio Discs including
CD-R/ CD-RW, MP3 CD and WMA. Do not
try to play a CD-ROM, CD-I, CDV,VCD,
DVD or computer CD.
CDs encoded with copyright protection
technologies by some record companies may
be unplayable by this product.
DRM-protected WMA disc is not supported.
Charging iPod battery using the dock
In the power-on and standby mode of
AZ1330D, you can charge the iPod when
Helpful hints:
In DOCK and CD mode, if AZ1330D is in the
STOP position for 15 minutes, it will auto switch
to standby.
Press repeatedly SOURCE (or AUX on the
remote contorl) to select AUX mode.
Use the supplied line-in cable to connect
AZ1330D’s AUX jack (3.5 mm, located on
the top panel) to an AUDIO OUT or
headphone jack on an external equipment
(such as CD player, VCR or iPod).
Press 2; to start playback.
➜ First the song title of the track scrolls
across the display, then the track number
and the elapsed playing time are displayed.
For MP3-CD/ WMA only:
➜ The current track number (TRK) and
album number (ALB) will be displayed
To pause playback press 2;.
➜ Display: 2 and the elapsed playing time
Press 2; again to resume playback.
To stop playback, press 9.
Helpful hints:
The disc playback will also stop when:
you open the disc compartment door;
you select FM, MW, AUX or DOCK;
the disc has reached the end of the playback.
Finding a passage within a
You may store up to 20 tracks in the desired
sequence. If you like, store any track more
than once.
1 In the stop position, press ∞ or § to select
your desired track number.
• For MP3-CD/WMA: First press
ALBUM/PRESET +/- ( ALBUM/PRESET 3, 4 on the remote control ) once or
more to find your album.
2 Press PROG to store desired track.
➜ Display shows “PRO 2” , indicating the
programmed location (See 5).
• If you attempt to program without first
selectig a track, display will show “SELECT
TRACK” briefly, then the total track number
and playing time.
3 Repeat steps 1 to 2 to select and store all
desired tracks.
4 Press 2; to play the program.
➜ “PROG” is dispalyed during program
(See 8)
Helpful hints:
Display shows “NO PROG” if no track is
If you try to store more than 20 tracks, no
track can be stored and the display will show
Philips Consumer Electronics warrants its products to
the purchaser as follows and subject to the stated
1 Year Free Repair Service - at Philips ASC
You can select and change the various play
modes before or during playback, and
combine play modes with PROG.
Colour Television, Plasma Television, LCD Television,
Projection Televsion, DVDR/VCR Combo, DVD
Recorders with Hard Drive, LCD Projectors, Wireless
Audio Systems, Audio Systems, Home Theatre
Systems & Digital Set-Top-Box.
REP – plays the current track continuously.
REP ALL – plays the entire disc/program
SHUF – plays all tracks in random order.
REP ALL SHUF – plays all tracks in
random order continuously.
To select play modes, press MODE on the
set (REPEAT or SHUFFLE on the remote
contorl) once or more.
Press 2; to start playback if in the stop
➜ Shuffle play will start automatically soon
after shuffle mode is selected.
To select normal playback, press MODE on
the set (REPEAT or SHUFFLE on the
remote control) repeatedly until the various
play modes are no longer displayed.
– You can also press 9 to cancel your play
Helpful hints:
Shuffle (SHUF and REP ALL SHUF) play is
not available in the program mode.
Care Centre for free replacement of faulty accessories.
8. This Manufacturers Warranty is neither transferable
The benefits given to the purchaser by this
warranty are in addition to all other rights
and remedies which the purchaser has in
respect of the product under the Trade
Practices Act or other Commonwealth or
State Law.
Selecting different play
modes (See 6)
To review your program
In the stop position, press and hold PROG 3
➜ The display shows all the stored tracks
(and album numbers for MP3) in
• Press ∞ or § once or repeatedly until the
desired track number appears in the display.
• In the pause/stop position, press 2; to start
Programming tracks
Selecting a different track
For MP3-CD/WMA: First press
PRESET 3, 4 on the remote control ) once
or more to find your album.
During playback, press and hold down
∞ or §.
➜ The disc is played at high speed and low
When you recognize the passage you want,
release ∞ or §.
➜ Normal playback resumes.
These warranty conditions are valid for the
following consumer electronics products:
Colour Televisions, Projection TV, Plasma &
LCD TV, Video Cassette Recorders, CD
Recorders & Players, DVD Players, DVD
Recorders, DVD Recorders with HDD, Audio
Systems, Home Theatre systems, Digital Set
Top Box & Portable Audio products.
To erase a program
You can erase a program by:
pressing 9 (twice during playback or once in
the stop position);
selecting FM, MW, AUX or DOCK;
pressing POWER to power off;
opening the disc door.
➜ “PROGRAM CLEAR” scrolls across the
display once, and “PROG” disappears.
1 Year free Replacement – at your Retailer
Portable Audio, MP3 Infotainment products, Video
Cassette recorders, DVD Player, DVD/VCR Combo
Player, DVD Recorder without HDD & Portable
DVD/LCD players.
Conditions of Repair Warranty
1. All claims for warranty service should be made to
your nearest Philips Authorised Service Centre or the
Philips Technology Care Centre. Reasonable evidence
of date of purchase must be provided.
This warranty extends only to defects in material or
workmanship occurring under normal use of the product
when operated in accordance with the instructions.
If a replacement product is supplied under the repair
policy it is warranted, under this warranty, for the
remainder of the warranty of the original purchased
product only.
Home service is provided only within the normal
service area of one of our recommended Authorised
Service Centres (ASC). It will be provided for
television receivers only with a screen side of 67cms
or above (product includes CRT, LCD TV, PTV, and
Plasma TV). Televisions with screen side less than
67cms and all other products types are to be taken or
sent by the consumer to the workshop of your
nearest Authorised Service Centre, at the Consumer’s
This Manufacturers Warranty is limited to 3 months
for the above listed Consumer Electronics products if
used in commercial applications.
Philips may, at its discretion choose to replace rather
than repair any product covered by this warranty.
Product accessories are covered by the same
warranty period. Please contact the Philips Technology
nor valid in countries other than Australia.
This warranty does not cover:
a) Mileage or travel outside the normal service area
covered by selected Authorised Service Centre.
b) Service costs arising from failure to correctly
adjust the controls of the product or to observe the
instructions, or inspections that reveal that the
product is in normal working order.
c) Product failures caused by misuse, neglect,
accidental breakage, transit damage, inexpert repairs
or modification by un-authorised persons, external
fires, lightning strikes, floods, vermin infestation or
liquid spillage.
d) Cleaning of video or audio heads.
e) Inadequate receiving antennae.
f) Replacement of worn or used batteries or other
g) Consumer products used in commercial applications
(This warranty is limited to 3 months only).
h) Second hand products.
The conditions contained in this warranty
card replace and override the provision of
the Philips World-Wide Guarantee for
products purchased in Australia and used in
Service is provided through more than 100
accredited Authorised Service Centres throughout
Australia. For direct contact with the nearest
recommended Authorised Service Centre in capital
& regional cities/towns
Authorised Service Centre Network
1300 361 392
Customer suppor t is provided in Australia by our
trained call centre staff. For assistance with product
features and specifications, please call
Technology Care Centre
1300 363 391
Please record the following information for
your records and keep in a safe place.
We recommend retaining your purchase
receipt to assist with any warranty claim.
Model number :....................................................
Serial number :....................................................
Date of purchase:....................................................
Philips Consumer Electronics
a division of Philips Electronics Australia Limited
ABN 24 008 445 743,
Level 1, 65 Epping Road NORTH RYDE NSW 2113.
Warranty valid for all new products purchased after 1st January 2007
NEW ZEALAND - Guarantee and Service for New Zealand
Thank-you for purchasing this quality Philips product.
Safety information
Connecting an external device
You can listen to the sound of the connected
external device through your AZ1330D’s
Press repeatedly SOURCE (CD on the
remote control) to select CD source.
➜ Display shows flashing “READ” if CD
source is selected (see 3).
Safety & Maintenance
Selecting the correct dock adaptor
For the iPod dock, 8 dock adaptors of
different type, as indicated at the back of the
adaptor, are included to fit the following iPod:
20GB, 40GB, 20/30GB photo, 40/60GB
photo, 30GB video, 60GB video, miniand nano.
Playing Apple iPod using AZ1330D
Make sure that the file names of the MP3 files
end with .mp3 or .wma.
Number of albums: maximum 100.
Number of tracks: maximum 999.
The length of file names affects the number of
tracks for playback. With shorter file names,
more files can be burned on a disc.
Playing a disc
Insert a disc with the printed side facing up
and press the disc door gently to close.
➜ The disc scanning of MP3-CD may run
longer than audio CD.
➜ Display: The total number of tracks
appears (and album number for
MP3/WMA) (see 4).
Helpful hints:
Press PROG until “AUTO” flashes.
➜ Available stations are programmed (MW
or FM). After all stations are stored, the
first autostore preset station will then
automatically play.
By using the buttons ( 2;, ¡1, 2™ and
VOLUME ) on the AZ1330D and its remote
control, the following disc playback features are
available: Play/Pause, selecting next/previous track,
fast forwarding/rewinding and changing volume.
The buttons ( 2;, ¡1, 2™ and VOLUME ) on
the AZ1330D and its remote control can work
only with playback of the audio contents stored
on the docked player.
from your computer hard disc on a CDR or
CDRW using your CD burner.
Press repeatedly SOURCE (or TUNER
on the remote control) to select FM or
Auxiliary connection
Press / to open the disc door.
Creating a MP3 CD: burn the music files
By connecting the iPod to your AZ1330D,
you can listen to the sound of the docked
player through the powerful speakers of the
Hi-Fi system.
Programming radio stations
You can store 15 FM and 10 MW radio
stations in the memory manually or
automatically (Auto store).
Playing iPod using
legal music files from the internet to your
computer hard disc, or create such files by
converting audio CD files in your computer
through appropriate encoder software.
(128kbps bit rate or higher is recommended
for MP3 files.)
Autostore automatically starts programming
radio stations from preset 1. Any previous
presets e.g. manually programmed will be
Press the ALBUM/PRESET +/(ALBUM/PRESET 3, 4 on the remote
control ) buttons once or more until the
desired preset station is displayed.
For FM, extend, incline and turn the
telescopic aerial. Reduce its length if the signal
is too strong.
Getting MP3 files: you can either download
To listen to a preset or autostore
To improve radio reception:
The music compression technology MP3
(MPEG1 Audio Layer 3) significantly reduce
the digital data of an audio CD while
maintaining CD quality sound.
➜ “ NO DISC” will be displayed if CD is not
About MP3
Tune to your desired station (see Tuning to
radio stations).
AUSTRALIA - Philips Manufacturers Warranty for Australia only
MP3-CD/CD Player
MP3-CD/CD Player
Place the set on a hard, flat and stable surface
so that the system does not tilt.
Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnet device shall remain readily operable.
Do not expose the set, batteries, CDs to
humidity, rain, sand or excessive heat caused
by heating equipment or direct sunlight.
The apparatus shall not be exposed to
dripping or splashing.
Adequate ventilation with a minimum gap of
15 cm between the ventilation holes and
surrounding surfaces is necessary to prevent
heat build-up.
The ventilation should not be impeded by
covering the ventilation openings with items,
such as newspapers, table-cloths, curtains, etc.
No objects filled with liquids, such as vases,
shall be placed on the apparatus.
No naked flame sources, such as lighted
candles, should be placed on the apparatus.
The mechanical parts of the set contain
self-lubricating bearings and must not be oiled
or lubricated.
To clean the set, use a dry cloth. Do not use
any cleaning agents containing alcohol,
ammonia, benzene or abrasives as these may
harm the housing.
CD player and CD handling
If the CD player cannot read CDs correctly,
use a cleaning CD to clean the lens before
taking the set to repair.
The lens of the CD player should never be
Sudden changes in the surrounding
temperature can cause condensation on the
lens of your CD player. Playing a CD is then
not possible. Do not attempt to clean the
lens but leave the set in a warm environment
until the moisture evaporates.
Always close the CD door to avoid dust on
the lens.
To clean the CD, wipe in a straight line from
the center towards the edge using a soft,
lint-free cloth. Do not use cleaning agents as
they may damage the disc.
Never write on a CD or attach any stickers
to it.
Environmental information
All unnecessary packaging material has been omitted.The packaging can be easily separated
into three materials: cardboard, polystyrene and plastic.
Your set consists of materials which can be recycled if disassembled by a
specialized company. Please observe the local regulations regarding the
disposal of packaging, dead batteries and old equipment.
If a fault occurs, first check the points listed below before taking the set for repair.
If you are unable to remedy a problem by following these hints, consult your dealer or service centre.
WARNING: Do not open the set as there is a risk of electric shock. Under no circumstances should you try to repair the set yourself, as this will invalidate the guarantee.
No sound/ power
The disc skips tracks
Volume not adjusted
Adjust the VOLUME
Power cord not securely connected
Connect the AC power cord properly
Batteries dead/ incorrectly inserted
Insert (fresh) batteries correctly
Disc contains non-audio files
Insert a suitable disc or press ∞ or § once or
more skip to an audio track, instead of the data
Disc damaged or dirty
Replace or clean disc
Shuffle or program is active
Switch off shuffle/program
Sound skips during MP3 playback
– MP3 file made at compression level exceeding
• Use a lower compression level to record CD
tracks into MP3 format
Display does not function properly/No
reaction to operation of any of the
– Disc damaged or dirty
• Replace or clean disc.
– Electrostatic discharge
• Switch off and unplug the set. Reconnect after a
few seconds.
DRM-protected WMA disc is not supported.
no indication
– The menu navigation or photo playback of the
docked player cannot be carried out through the
buttons on AZ1330D or its remote control.
• The buttons on AZ1330D and its remote control
can control playback of audio contents only.To
navigate the menu, use the controls on the
docked player.
– Some buttons on AZ1330D and its remote
control have no function.
• The buttons ( 2;, ¡1, 2™ and VOLUME )
function only.
No disc inserted
Insert a suitable disc
Disc badly scratched or dirty
Replace/clean CD (See Maintenance)
CD-R(W) is blank or the disc is not finalized.
Use a finalized CD-R(W)
Laser lens steam up
Wait until lens has cleared.
Make sure the CD is not encoded with
Copyright protection technologies, as some
do not conform to the Compact
Disc standard.
Dock operation
Philips New Zealand Ltd guarantees this product against defective components and faulty
workmanship for a period of 12 months. Any defect in materials or workmanship occurring
within 12 months from the date of purchase subject to the following conditions will be rectified
free of charge by the retailer from whom this product was purchased.
1. The product must have been purchased in New Zealand.As proof of purchase, retain the
original sales docket indicating the date of purchase.
2. The guarantee applies only to faults caused by defective components, or faulty workmanship
on the part of the manufacturer.
3. The guarantee does not cover failures caused by misuse, neglect, normal wear and tear,
accidental breakage, use onthe incorrect voltage, use contrary to operating instructions,
or unauthorised modification to the product or repair by an unauthorised technician.
4. Reasonable evidence (in the form of a sales docket) must be supplied to indicate that the
product was purchased no more than 12 months prior to the date of your claim.
5. In the event of a failure, Philips shall be under no liability for any injury, or any loss or
damage caused to property or products other than the product under guarantee.
This guarantee does not prejudice your rights under common law and statute,
and is in addition to the normal responsibilities of the retailer and Philips.
How to claim
Should your Philips product fail within the guarantee period, please return it to the
retailer from whom it was purchased. In most cases the retailer will be able to
satisfactorily repair or replace the product.
However, should the retailer not be able to conclude the matter satisfactorily, or if you
have other difficulties claiming under this guarantee, please contact
The Guarantee Controller
Philips New Zealand Ltd.
4 P.O. Box 41.021
3 (09) 84 94 160
fax 3 (09) 84 97 858
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
