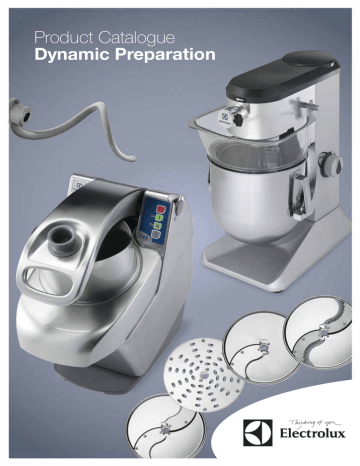

Product Catalogue Dynamic Preparation

Product Catalogue Dynamic Preparation
Product Catalogue
Dynamic Preparation
Quality
Speed
Performance
electrolux dynamic preparation
Combined cutter/slicers
4
Vegetable slicers
12
Food processors 18
Portable/Turbo mixers 24
Planetary mixers 30
Vegetable peelers 40
Vegetable washers/dryers 44
Complementary products 46
3
4
electrolux dynamic
vegetablepreparation
combined
slicers
machines
Multigreen
Combined cutter-slicers
The perfect combination. Vegetable slicer and cutter mixer all in one.
Provide a variety of fresh cut vegetables as well as condiments and sauces.
ff
The powerful 370 W motor (1500 rpm) allows you
to slice up to 250 kg of vegetables per hour or
prepare 1 kg of mayonnaise quickly and easily
ff
Versatile and easy to change from slicer to food
processor in a matter of seconds
ff
Sturdy 2,5 lt stainless steel or plastic bowl
(depending on model)
ff
Perfect balance and design of the smooth blade
rotor guarantee a rapid and constant mixing
ff
Opening on top of the lid allowing to add liquids
and ingredients while processing
ff
A variety of stainless steel discs, Ø 175 mm
(grating, shredding, straight blades, or corrugated)
are available upon request
electrolux
electrolux
electrolux
dynamic
combined
vegetable
preparation
machines
slicers
ff
Wide load hopper with lever presses the
vegetables against the discs ensuring an
even cut
ff
The loading of long shaped vegetables
(carrots, zucchini, cucumbers, etc.) is through
the long vegetable hopper integrated into the
lever design (Ø 52 mm)
ff
Continuous feeding model
ff
High discharge zone permits the use of
containers up to 175 mm
Disc
Model
Size (mm)
Grating disc
RD2
RD3
RD4
RD7
2
3
4
7
Shredding
disc
ED2
ED4
2
4
Slicing disc
TD2
TD3
TD5
TD7
2
3
5
7
Disc with
corrugated
blades
WD2
2
ff
A safety microswitch stops the machine if the
hopper/lid is opened during operation
ff
All parts in contact with food are
100% dishwasher safe
Multigreen
Speed
Phases
Power
RPM
1 speed
1 ph
370 W
1500
External dimensions (wxdxh): 216x347x412mm
5
6
electrolux dynamic
vegetablepreparation
combined
slicers
machines
TRK 45 / 55 / 70
Combined cutter-slicers
3 in 1! With TRK your culinary creativity has no limits.
A versatile machine able to prepare an entire menu from hors d’oeuvres to dessert.
ff
Easily change from a vegetable slicer to a food
processor/emulsifier in a matter of seconds
ff
Waterproof and user friendly touch button control
panel with pulse function for more precision
ff
Incly System: inclined motor base by 20° for better
ejection of vegetables
ff
Easy cleaning thanks to the rounded shapes and
stainless steel and plastic components
ff
Automatic speed limitation for vegetable slicer
attachment
ff
All parts in contact with food are
100% dishwasher safe
ff
Asynchronous motor for silent operation and
longer life
electrolux
electrolux
electrolux
dynamic
combined
vegetable
preparation
machines
slicers
Cutter specifications:
ff
Cutter-mixer attachment to mix, blend, chop, mince,
emulsify and puree meats and vegetables
ff
Transparent lid with scraper for a better
homogenization
ff
Dedicated rotors with smooth or microtoothed
blades as well as specific for emulsions
Incly System
inclined base 20°
ff
Stainless steel bowl with high chimney to increase
the real liquid capacity (75% of the nominal one),
with round corners and ergonomic handle
Removable shaft
ff
Maximum speed up to 3700 rpm
Vegetable slicer specifications:
ff
Vegetable slicer attachment for slicing, shredding,
grating and dicing
ff
Large and long vegetable hoppers integrated in
the same design
ff
Wide range of more than 40 stainless steel discs
(more than 80 different cuts)
Combined cutter-slicer
TRK45 - 4,5 lt combined cutter-slicer
Speed
Phases
Power
RPM
Variable
1 ph
1000 W
300 to 3700
External dimensions (wxdxh)
Slicer: 252x485x505mm Cutter: 252x410x490mm
TRK55 - 5,5 lt combined cutter-slicer
Speed
Phases
Power
RPM
Variable
1 ph
1300 W
300 to 3700
External dimensions (wxdxh)
Slicer: 252x485x505mm Cutter: 252x410x490mm
TRK70 - 7 lt combined cutter-slicer
Speed
Phases
Power
RPM
Variable
1 ph
1500 W
300 to 3700
External dimensions (wxdxh)
Slicer: 252x485x505mm Cutter: 252x410x530mm
7
8
electrolux dynamic
vegetablepreparation
combined
slicers
machines
TRS / TRK S-shaped slicing discs
Stainless steel grating discs - 2 mm to 9 mm
J2X
2 mm
J3X
3 mm
J4X
4 mm
J7X
7 mm*
J9X
9 mm*
KX
for knoedeln/bread
PX
for parmesan/bread
* 7 and 9 mm discs are
suitable to grate mozzarella
Stainless steel shredding discs - 2 mm to 10 mm
AS2X
2 mm
AS3X
3 mm
AS4X
4 mm
AS6X
6 mm
AS8X
8 mm
AS10X
10 mm
Stainless steel slicing discs - 0.6 mm to 13 mm
C06S
0.6 mm
C1S
1 mm
C2S
2 mm
C3S
3 mm
C4S
4 mm
C5S/C5PS 5 mm
C6S/C6PS 6 mm
C8S/C8PS 8 mm
C10PS
10 mm
C12PS
12 mm
C13PS
13 mm
electrolux
electrolux
electrolux
dynamic
combined
vegetable
preparation
machines
slicers
Unique and exclusive “S” shaped blades for greater efficiency and versatility in cutting.
Stainless steel discs for maximum hygiene. 100% dishwasher safe.
Stainless steel pressing/slicing disc for mozzarella/solid cheese
C10PSM
10 mm
mozzarella
disc with
non-stick
blade
Stainless steel corrugated slicing discs - 2 mm to 10 mm
C2WS
2 mm
C3WS
3 mm
C6WS
6 mm
C8WP
8 mm
C10WP
10 mm
Dicing grids - 5x5 mm to 20x20 mm (to be combined with CP/CWP slicers)
MT05T
5x5x5 mm
MT08T
8x8x8 mm
MT10T
10x10x10 mm
MT12T
12x12x12 mm
MT20T
20x20x20 mm
Grids for chips - 6, 8 and 10 mm (to be combined with CP/CWP slicers)
FT06
6x6 mm
FT08
8x8 mm
FT10
10x10 mm
9
10
electrolux dynamic
vegetablepreparation
combined
slicers
machines
K / TRK Rotors
Smooth or micro-toothed blades to prepare everything from coarse meats
to the finest creams.
Smooth blade rotor
Micro-toothed blade rotor
Smooth emulsifier blade
Ground meat
Peppers
Chocolate
Grated cheese
Smooth microtoothed
emulsifier blade
electrolux
electrolux
electrolux
dynamic
combined
vegetable
preparation
machines
slicers
Almonds
Tomato sauce
Chicken
Asparagus
Mixed herbs
Hummus (Garbanzo beans)
11
12
electrolux dynamic
vegetablepreparation
slicers
TRS
Vegetable slicers
Increased productivity, outstanding performance, superior quality and extreme
sturdiness.
ff
Compact, powerful and with inclined base (20°)
makes loading and unloading operations quick and
easy
ff
Able to slice, shred, grate and dice up to
550 kg/hour
ff
Long life and silent operation thanks to
the durable stainless steel construction and
asynchronous motor
ff
Wide range of more than 40 stainless steel discs
(more than 80 different cuts)
ff
Maximum cleanability due to the ergonomic design
with rounded shapes and stainless steel parts
ff
Large hopper for higher output and processing of
large size and unusual shaped vegetables.
No need to pre-cut
electrolux
electrolux
dynamic
vegetable
preparation
slicers
ff
Large and long vegetable hoppers integrated in
the same design
ff
User friendly waterproof control panel with pulse
function for precise slicing
ff
Ergonomic, easy to lift lever: minimal pressure is
required to process vegetables (for right or left hand
use)
ff
Automatic start/stop function will stop the machine
when the lever hopper is lifted and will restart
automatically when lowered, to allow continuous
feeding
Long vegetable hopper
Touch button control
ff
Save time and effort: powerful lever remains in
upright position so operator can freely use both
hands to feed vegetables
ff
Variable speed models for more flexibility and
precision, speed adjusted to type of cut
ff
High discharge zone permits the
use of deep GN containers
(up to 20 cm)
20cm
Large round hopper (215 cm2)
ff
With a few simple movements all parts in contact
with food can be removed, without tools, and are
100% dishwasher safe
ff
Safety device protects the operator by stopping
the machine in case of misuse
Vegetable slicer TRS
Speed
1 speed
Stainless steel discs
with holder included
standard
Phases
1 ph
Power
370 W
RPM
340
1 ph
500 W
340
3 ph
500 W
340
2 speeds
3 ph
750 W
340-680
Variable
1 ph
750 W
140 to 750
External dimensions (wxdxh): 252x500x502mm
13
14
electrolux dynamic
vegetablepreparation
slicers
Minigreen
Vegetable slicers
The ever-ready ideal solution for the economic preparation of fresh-cut vegetable
buffets, trays of starters or à la carte service.
ff
Compact vegetable slicer for small to medium size
facilities
ff
Can be easily moved from one area to another and
can be used on all types of preparation tables
ff
A variety of stainless steel discs, Ø 175 mm
(grating, shredding, straight blades, or corrugated)
are available upon request
ff
Able to slice, shred or grate up to 200 kg/hour
ff
Durable and robust plastic casing guarantees
long life
ff
Optimum slicing speed: 1000 rpm
ff
Stability during operation thanks to 4 rubber feet
electrolux
electrolux
dynamic
vegetable
preparation
slicers
ff
Wide load hopper with lever presses the
vegetables against the discs ensuring an
even cut
ff
The loading of long shaped vegetables
(carrots, zucchini, cucumbers, etc.) is through
the long vegetable hopper integrated into the
lever design (Ø 52 mm)
ff
Continuous feeding model
ff
High discharge zone permits the use of
containers up to 175 mm
Disc
Model
Size (mm)
Grating disc
RD2
RD3
RD4
RD7
2
3
4
7
Shredding
disc
ED2
ED4
2
4
Slicing disc
TD2
TD3
TD5
TD7
2
3
5
7
Disc with
corrugated
blades
WD2
2
ff
A safety microswitch stops the machine if the
hopper is opened during operation
ff
All parts in contact with food are
100% dishwasher safe
Vegetable slicer Minigreen
Speed
Phases
Power
RPM
1 speed
1 ph
250 W
1000
External dimensions (wxdxh): 216x347x412mm
15
16
electrolux dynamic
vegetablepreparation
slicers
TR260
Vegetable slicers
A universal slicing machine with a wide variety of accessories to create stylish and
imaginative preparations for the largest culinary events.
TR260
with optional lever hopper
and mobile stand
ff
Slice up to 2500 kg/h thanks to automatic hopper,
large cutting discs and powerful speed
ff
Slow blade rotation for perfect slicing
ff
300 mm diameter discs guarantee high productivity
ff
Safety device protects the operator by stopping the
machine in case of misuse
ff
Maximum versatility. Combine
motor base with a variety of
optional accessories to suit your
needs
ff
User friendly waterproof control
panel with pulse function and
speed selector (only on 2 speed
models) for precise slicing
electrolux
electrolux
dynamic
vegetable
preparation
slicers
A vast range of accessories
ff
Lever operated hopper
ff
Automatic hopper for
continuous operation
and productivity
ff
Vertical motion of the
handle for improved
ergonomics and space
saving
ff
For a single load of
6 kg of vegetables
(max.110 mm diam.)
ff
Long vegetable hopper
with 3 tubes (diam. 50
to 70 mm)
ff
Long vegetable
accessory for lever
operated hopper
ff
Cabbage hopper
for slicing an entire
cabbage at once
(max. 250 mm diam.).
To be combined with
cabbage discs
ff
Stainless steel mobile
stand. Disc rack
(optional)
ff
Stainless steel trolley for
2/1 GN containers
ff
Wide selection of slicing
discs
ff
100% dishwasher
safe grating discs
Vegetable slicer TR260
Speed
Phases
Power
RPM
1 speed
1 ph
1500 W
330
2 speeds
3 ph
2000 W
330-660
External dimensions (wxdxh): 750x380x460 mm
17
18
electrolux dynamic
food processors
preparation
K25 / 35
Food processors
The perfect choice for chopping, mixing, or emulsifying. Simple and robust
multi-purpose cutters ideal for small to medium size kitchens.
K25
K35
ff
Mince meats, chop condiments, mix mayonnaise,
liquidise soups and prepare all types of pastry in a
matter of seconds
ff
Pulse function for coarse chopping of large pieces
ff
Easy to use. Simply press one of the “start”
buttons for either continuous or intermittent
operation (for K25)
ff
No need to stop the machines during operation.
Ingredients may be added through a funnel-shaped
opening incorporated in the lids
ff
Sturdy, reliable and stable design. Mixes at a speed
of 1500 rpm or 3000 rpm (depending on model)
electrolux
electrolux
dynamic
food preparation
processors
ff
Stainless steel bowl, rotor and polycarbonate cover
can be assembled in a matter of seconds
ff
Simply turn cover to lock it in place and begin
operation
ff
Operator safety guaranteed. A magnetic control
system stops the machine immediately if the cover is
opened
Transparent lid K35
ff
Rotor and bowl design ensure consistent mixing
ff
Smooth or finely toothed stainless steel blades
(depending on model) to prepare everything from a
smooth to coarse consistency
ff
Maximum hygiene guaranteed thanks to stainless
steel cutter bowl and smooth surfaces
ff
All parts in contact with food can be easily
disassembled without tools and are 100%
dishwasher safe
K25 - 2,5 lt capacity
Speed
Phases
Power
RPM
1 speed
1 ph
370 W
1500
External dimensions (wxdxh) 216x297x371mm
K35 - 3,5 lt capacity
Speed
Phases
Power
RPM
1 speed
1 ph
500 W
1500
2 speeds
3 ph
500 W
1500-3000
External dimensions (wxdxh) 247x407x303mm
19
20
electrolux dynamic
food processors
preparation
K45 / 55 / 70
Food processors
High powered, built to last. The ideal machines for the professional chef.
Chop, mince, grind and blend any preparation your recipe requires.
ff
4,5, 5,5, and 7 lt capacities are a complement
to any size kitchen
ff
Special pulse function for coarse chopping of
large pieces
ff
A unique scraper / emulsifier allows you to
prepare everything from meats to creams
ff
Rotor can be placed in a special holder for storage
ff
Easily upgrade to a combined machine with a
special kit (variable speed models)
ff
The unique design of bowl and rotor blades
guarantees perfect results when mixing both large
or small quantities
ff
Maximum hygiene thanks
to the ergonomic design
with rounded edges
electrolux
electrolux
dynamic
food preparation
processors
ff
Transparent lid permits the operator to check the
preparation during operation and to add ingredients
without opening the lid
ff
Hinged cover, when lifted, remains open to permit a
fast, easy and practical check of the preparation
ff
Waterproof and user friendly touch button control
panel with pulse function for more precision
ff
Maximum speed up to 3700 rpm (variable speed
models)
Transparent lid
Variable speed control
ff
Stainless steel bowl with high chimney to increase
the real liquid capacity, with round corners and
ergonomic handle
ff
Dedicated rotors with smooth or microtoothed
blades as well as specific for emulsions
ff
Ergonomic handle for easy placement of the bowl
and self-locking mechanism for maximum stability
ff
Asynchronous motor for silent operation and
longer life
Bowl with high chimney
K45 - 4,5 lt capacity
Speed
1 speed
Phases
1 ph
Power
750 W
RPM
1500
2 speeds
3 ph
900 W
1500-3000
Variable
1 ph
1000 W
300 to 3700
External dimensions (wxdxh): 256x415x470mm
K55 - 5,5 lt capacity
ff
The lid and scraper can easily removed and
disassembled without tools
ff
All parts in contact with food are
100% dishwasher safe
Speed
2 speeds
Phases
3 ph
Power
1000 W
RPM
1500-3000
Variable
1 ph
1300 W
300 to 3700
External dimensions (wxdxh): 256x415x470mm
K70 - 7 lt capacity
ff
Operator safety guaranteed. A magnetic control
system stops the machine immediately if the cover is
opened
Speed
2 speeds
Phases
3 ph
Power
1200 W
RPM
1500-3000
Variable
1 ph
1500 W
300 to 3700
External dimensions (wxdxh): 256x422x510mm
21
22
electrolux dynamic
food processors
preparation
K120S / 180S
Food processors
11,5 and 17,5 lt capacities are a complement to any size catering facility.
Mix and mince quickly and easily to preserve texture and flavour.
K180S
K120S
ff
For the preparation of sauces, mixing and fine
and super fine chopping
ff
Stability guaranteed during operations thanks to
central position of stainless steel bowl
ff
Process in a matter of seconds without risk
of heating or altering the products
ff
Asynchronous motor for silent operation and
longer life
ff
Large bowl capacities (e.g. mayonnaise):
- 11,5 lt (K/KE120S) process up to 6 kg
- 17,5 lt (K/KE180S) process up to 8 kg
ff
Stainless steel mobile stand available as an option
ff
Unique scraper/emulsifier to prepare everything
from meats to creams
electrolux
electrolux
dynamic
food preparation
processors
ff
Stainless steel bowl with transparent lid permits the
operator to check the preparation during use
ff
No need to stop the machine during operation.
Ingredients may be added through the opening in
the lid
ff
Waterproof and user friendly touch button control
panel
ff
Pulse function for coarse chopping of large pieces
(on 2 speed models)
Transparent lid
Touch button control panel
ff
Microtoothed blade rotor, scraper and bowl design
ensure consistent mixing
ff
Thick-walled stainless steel bowl with two handles for
easier movement
ff
Smooth or serrated stainless steel blade rotor (special
serrated rotor for meat processing) upon request
ff
Models with 2 speeds (1500-3000 rpm) or variable
speed (300-3500 rpm)
Stainless steel bowl
Smooth microtoothed
emulsifier blade rotor
ff
Transparent lid, bowl and rotor can be easily removed
without tools
ff
All parts in contact with food are 100%
dishwasher safe
Bowl scraper
Double safety locking system
K120S/KE120S - 11,5 lt capacity
ff
Double safety locking system avoids the risk of
spillage and splashing when lid is opened while rotor
is coming to a stop
Model
K120S
ff
Safety guaranteed by magnetic microswitch which
stops the machine if lid or bowl are not correctly
positioned
External dimensions (wxdxh): 416x680x517mm
ff
3 devices to ensure operator safety:
- 1 hinge sensor when handle is lifted
- 1 bowl presence sensor
- 1 cover presence sensor
KE120S
Speed Phases
2 speeds
3 ph
Variable
1 ph
Power
RPM
2200 W 1500-3000
2200 W
300-3500
K180S/KE180S - 17,5 lt capacity
Model
K180S
KE180S
Speed Phases
2 speeds
3 ph
Variable
3 ph
Power
RPM
3600 W 1500-3000
3000 W
300-3000
External dimensions (wxdxh): 416x680x603mm
23
electrolux dynamic
portable mixers
preparation
Bermixer range
Portable mixers
Prepare soups, purees, sauces, creams and whip egg whites quickly and easily with
the Electrolux Bermixers.
less
than
!
4 kg
Bermixer Combi
ff
Exceptionally light: less than 4 kg!
ff
The tube attachment is ideal for the preparation of
creams, soups, sauces, vegetable purees, pancake
batter and mousses
ff
The whisk attachment is ideal for whipping creams,
beating egg whites or making mayonnaise
ff
Electronic speed variation from 500 to 10000 rpm
with full load
ff
SMART Speed Control: autoregulation of the power
based on the load consistency to ensure a longer
life and reduced vibrations
eed
SSC
o n t rol
ff
A special wall support holds the unit and tools,
when not in use
Sp
C
ff
Tube, shaft and blade are easily disassembled
without tools
ar
Sm t
24
S yste m
Wall support
supplied as standard
electrolux
electrolux
dynamic
portable
preparation
mixers
ff
Double-fan air cooling system guarantees longer
working time without overheating
ff
Overload alarm indicator in the control panel will
light if the unit is used improperly
ff
The special lipped design of the blade protection
avoids splashing
ff
Ergonomic handle for a comfortable use
Special lipped design of the
blade protection
Air cooling system
ff
Visible control panel with speed adjustment and
warning light
ff
Flat motor base connected to the tube via “Bayonet”
system
Reinforced “Bayonet” system
Handle
ff
All the parts in contact with food are
100% dishwasher safe
Disassembly of tube, shaft and blade without tools
Optional accessories
ff
Adjustable
rail to sustain
portable mixer
in containers
(must to be
used together
with holder)
ff
Holder to
support
portable mixer
in containers
25
26
electrolux dynamic
portable mixers
preparation
Speedy mixer range
Portable mixers
Versatile tools for your busy kitchen! Multifunctional and easy to handle, these
portable mixers allow you to serve a variety of foods quickly and easily.
ff
For the preparation of small quantities of soups,
purées, sauces, creams and much more
ff
The ergonomic, easy to grip handle assures
maximum control with less fatigue
Disassembly without tools
Blade protection
Speedy mixer
ff
The 250 W motor is available with fixed or variable
speed (max speed 15000 rpm)
ff
Thanks to the easy tool junctions, the motor unit
and tube can be disassembled without tools for
cleaning
20 cm
Model
Power (W)
SMT20W25
25 cm
20 cm
25 cm
SMT25W25 SMVT20W25 SMVT25W25
250 W
250 W
variable speed
Tube (cm)
20 cm
25 cm
20 cm
25 cm
Weight (kg)
1,4 kg
1,45 kg
1,4 kg
1,45 kg
Capacity
ideal for small quantities
ff
The tube and blade are in stainless steel and the
motor body is in special alimentary plastic for a
longer life
ff
An optional whisk is available for variable speed
models
27
electrolux
electrolux
dynamic
portable
preparation
mixers
Bermixer Plus (up to 9000 rpm)
Models
350 W
450 W
550 W
Tube
35 cm
45 cm
35 cm
45 cm
Capacity
up to
30 lt
50 lt
80 lt
100 lt 120 lt
55 cm
45 cm
65 cm
65 cm
55 cm
650 W
750 W
55 cm
45 cm
55 cm
65 cm
55 cm
65 cm
150 lt 170 lt
200 lt
220 lt
240 lt
270 lt
290 lt
Bermixer Combi
Bermixer Turbo Combi
(up to 9000 rpm)
(up to 10000 rpm)
eed
C
SSC
o n t rol
ar
Sm t
45 cm
BMX350T35 BMX350T45 BMX450T35 BMX450T45 BMX450T55 BMX550T45 BMX550T55 BMX650T45 BMX650T55 BMX650T65 BMX750T55 BMX750T65
Power
Sp
55 cm
45 cm
55 cm
45 cm
35 cm
35 cm
45 cm
S yste m
55 cm
SSC
o n t rol
ar
Sm t
eed
C
Sp
Bermixer Turbo (up to 10000 rpm)
Models
BMK350T45
BMK450T45
BMK450T55
Power
350 W
450 W
450 W
Tube
45 cm
45 cm
55 cm
45 cm
55 cm
55 cm
65 cm
55 cm
65 cm
Capacity
up to
50 lt
100 lt
120 lt
150 lt
170 lt
220 lt
240 lt
270 lt
290 lt
BMK550T45
BMK550T55
BMK650T55
550 W
BMK650T65
BMK750T55
650 W
40 cm
65 cm
40 cm
55 cm
40 cm
65 cm
40 cm
55 cm
40 cm
55 cm
40 cm
45 cm
40 cm
55 cm
40 cm
45 cm
40 cm
45 cm
S yste m
BMK750T65
750 W
28
electrolux dynamic
portable mixers
preparation
TBX120/130 - TBM150
Turbo liquidisers
Turbo liquidisers are the best choice for mixing, grinding, mincing or emulsifying
soups, purées, liquid pastes and sauces in large quantities.
TBX120
ff
Floor standing removable tube mixers with a turbineeffect head for increased output and an optimal
grinding result
ff
Choose either the soup version for liquids or
emulsions or the purée version for thick products
ff
Preparations can be carried out directly in the
cooking containers
ff
Versatile, can be adapted to all pan forms:
cylindrical, rectangular and hemispheric
ff
Can be used in braising pans (30 cm deep) with
the optional braising pan kit (minimum 20 cm of
liquid)
ff
Mounted onto a stainless steel trolley for easier
movement in the kitchen
ff
Robust stainless steel construction able to
withstand humidity
ff
Operator safety assured. Security device in nonworking position and protective ring for the grinding
head
TBM150
Model
Speed
RPM
Power
TBX120
1 speed
1200
900 W
External dimensions (wxdxh): 640x1625x1330mm
Model
Speed
RPM
Power
TBX130
1 speed
1200
1500 W
TBX130
2 speed
850 -1700
2200 W
External dimensions (wxdxh): 689x1600x1278mm
Model
Speed
RPM
Power
TBM150
1 speed
1600
3000 W
TBM150
2 speed
830 -1660
4500 W
External dimensions (wxdxh): 664x1852x1475mm
electrolux
electrolux
dynamic
portable
preparation
mixers
ff
Ergonomic, easy to grasp handle, facilitates the raising and
lowering of the tube
ff
The working position is stabilized during operation thanks to a
self-maintaining device
ff
Waterproof touch button control panel
ff
1 speed models with on/off buttons and digital time setting; 2
speed models with 1 or 2 speed buttons, off button, digital time
setting and pulse function
Ergonomic handle
ff
Easily convert the turbo mixer for soups and sauces into a mixer
for thick products with the optional puree kit
ff
Delicate fish soups can also be mixed by using the optional fish
grid which guarantees the pieces are not emulsified
ff
The mixer tubes can be removed without tools and are
100% dishwasher safe
ff
The separate parts: tube, shaft, bearing and rotor are
easily dismantled (no tools) for further cleaning
and sanitization in order to avoid the risk
of contamination
Purée tube attachment
Make the right choice
Final result
Soups, liquids,
semiliquids,
emulsions
Type
in deep container
more than 30 cm of liquid
in low container (ex. braising)
less than 30 cm of liquid
Purées
Quantity
Choose
up to 500 lt of liquid
TBX120 Soup
up to 700 lt of liquid
TBX130 Soup
up to 1000 lt of liquid
TBM150
TBX120 Soup + Braising pan ejector (optional)
minimum 20 cm of liquid
TBX130 Soup + Braising pan kit (optional)
minimum 30 cm of liquid
up to 100 kg of potatoes
TBX120 Purée
up to 200 kg of potatoes
TBX130 Purée
potatoes
29
30
electrolux dynamic
planetarypreparation
mixers
BE5 / BE8
5 and 8 lt planetary mixers
Maximum performance. Compact yet powerful. Sturdiness above all.
BE8
with accessory hub
BE5
Electrolux BE5 & BE8 guarantee superior performance
in kneading, blending and whipping thanks to:
ff
the variable speed rotation of the tools
from 67 rpm to 740 rpm
ff
the exclusive design of the planetary mechanism,
for a unique movement
ff
the tools which perfectly adapt to the bowl for
uniform mixing of even small quantities
ff
the variable speed rotation of the planetary
mechanism from 20 to 220 rpm
3 tools - 100% efficiency
ff
100% stainless steel tools
ff
100% more resistant for longer life
ff
100% dishwasher safe
(tools, bowl and splash guard)
Spiral hook, paddle and whisk
electrolux
electrolux
dynamic
planetary
preparation
mixers
ff
Sturdy metal accessory
hub able to withstand
heavy usage (on
selected models)
ff
Powerful asynchronous
motor for silent operation
and longer life
ff
Ergonomic knob regulates
the variable speed of the
planetary mechanism from
20 - 220 rpm
ff
Transparent splash guard
with innovative shape to
easily add ingredients
during operation
ff
Simple “clip” system
without screws for easy
removal of the guard for
cleaning
ff
Slice, mince and
prepare pasta with the
optional accessories (for
models with K accessory
hub)
ff
Double-handled, 8 lt
stainless steel bowl
(single handle on 5 lt
model)
Highly resistant splash guard
ff
Maximum reliability guaranteed. Transparent screen made of Eastman Tritan™
copolyester*, bisphenol-A free (BPA): impact resistant, stays clear and durable
even after hundreds of dishwashing cycles
ff
Simple movement of the splash guard activates the raising and lowering of
the bowl
*Eastman and Tritan are trademarks of Eastman Chemical Company
31
32
electrolux dynamic
planetarypreparation
mixers
XBE / XBM table top
10 and 20 lt planetary mixers
Sturdy and built to last. Electrolux offers a wide range of planetary mixers from
10 to 80 lt to suit all requirements of your busy kitchen.
XBE10
XBE20
ff
Knead all types of doughs and pastry, mix meats
and sauces and emulsify creams
ff
Powerful asynchronous motor for silent operation and
longer life
ff
Electronic or mechanical speed variator
(depending on model)
ff
Models available with accessory hub (type H)
ff
Motor with frequency variator permits a precise
adjustment of the planetary mechanism speed
(from 26 to 180 rpm for 10 lt models and from 30
to 180 rpm for 20 lt models)
ff
Water protected planetary system and control panel,
equipped with 0-59 minute timer
electrolux
electrolux
dynamic
planetary
preparation
mixers
ff
The simple movement of the safety screen raises
and lowers the bowl while at the same time stops
the motor (10 lt models)
ff
The safety screen can be easily removed for
cleaning
ff
Stainless steel column for higher resistance and
hygiene (on selected models)
ff
Height adjustable feet to ensure stability
Transparent safety
screen (10 lt)
Stainless steel column
(on specific models)
ff
Waterproof, user friendly touch button control panel
for improved ergonomics
ff
Stainless steel removable rotating safety screen,
equipped with removable spout
ff
Lever for raising and lowering the bowl (20 lt)
ff
Safety device stops the machine if screen is not
properly closed or when bowl is lowered
Touch button control panel
Removable spout
ff
Supplied with stainless steel bowl and 3 tools:
stainless steel wire whisk, robust paddle and spiral
hook
ff
Tools rotate at variable speeds (from 82 to 570 rpm
for 10 lt models and from 73 to 440 rpm for 20 lt
models)
ff
A 10 lt bowl reduction kit (bowl, whisk, paddle and
spiral hook) is available on request (20 lt models)
Spiral hook, paddle and whisk
Reduction kit
(bowl, hook, paddle, whisk)
33
34
electrolux dynamic
planetarypreparation
mixers
XBE / XBM / MBE floor standing
20, 30 and 40 lt planetary mixers
20/30/40 lt professional mixers are an essential item for all kitchens using fresh
ingredients to prepare pastry bases, creams, mousses and mixtures of all types.
XBM20
XBE30
20 / 30 lt planetary mixers
ff
Powerful asynchronous motor for silent operation
and longer life
ff
Electronic or mechanical speed variator
(depending on model)
ff
The planetary mechanism rotates at speeds of: 30 to
180 rpm (20/30 lt)
ff
Supplied with stainless steel bowl with easy to
grip handles and 3 tools: stainless steel wire whisk,
robust paddle and spiral hook
ff
Tools rotate at speeds from 73 to 440 rpm
ff
Water protected planetary system and control
panel, equipped with 0-59 minute timer
ff
Safety device stops the machine if screen is not
properly closed or when bowl is lowered
ff
A bowl reduction kit (bowl, whisk, paddle and
spiral hook) is available on request
ff
Wheel kit and bowl trolley optional
electrolux
electrolux
dynamic
planetary
preparation
mixers
ff
The safety guard can be easily removed for
cleaning
ff
Stainless steel removable rotating safety screen,
equipped with removable spout
ff
Lever for raising and lowering the bowl
Wire safety screen
Planetary mechanism
ff
Stainless steel column for higher resistance and
hygiene (on selected models)
ff
Planetary mixers can be easily moved thanks to the
wheel kit accessory (optional)
ff
Models available with accessory hub (type H) and
a wide range of optional accessories
Stainless steel column
(on request)
Kit wheels
40 lt planetary mixer
ff
Specially designed for intensive kneading as well as blending and
whipping preparations
ff
Powerful asynchronous motor for silent operation and longer life
ff
3 fixed speeds (40, 80 and 160 rpm) and electronic variable
speed from 30 to 175 rpm and timer (0-59 min.)
ff
Supplied with stainless steel bowl and 3 tools (reinforced whisk,
paddle, spiral hook)
ff
Tools rotate at speeds from 94 to 540 rpm
ff
Stainless steel removable rotating safety screen, equipped with
removable spout
ff
Lever for raising and lowering the bowl
ff
Safety device stops the machine if screen is not properly closed or
when bowl is lowered
ff
Bowl trolley optional
MBE40
3 tools: spiral hook, paddle, reinforced whisk (specific for MB/MBE40)
35
36
electrolux dynamic preparation
BMX / BMXE / XBE
60 and 80 lt planetary mixers
60/80 lt high performing, powerful and sturdy mixers able to withstand
intensive use.
BMX60S
XBE80S
ff
Powerful asynchronous motor for silent operation
and longer life
ff
Electronic, electromechanical or mechanical
speed variator (depending on model) with speeds
ranging from 20 to 180 rpm
ff
Supplied with stainless steel bowl with easy to
grip handles and 3 tools: stainless steel wire whisk,
robust paddle and stainless steel spiral hook.
ff
Tools rotate at speeds from 62 to 560 rpm
ff
Control panel with timer, bowl lighting, on/off and
speed control
Mechanical speed variation
ff
Safety device stops the machine if screen is not
properly closed
ff
Motorized bowl movement (on specific models)
ff
Models available with accessory hub (type H) and
a wide range of optional accessories
ff
Bowl trolley with wheels and bumper facilitates
bowl movement (standard on 80 lt)
Robust stainless steel hook
Bowl lighting
electrolux
electrolux
dynamic
planetary
preparation
mixers
A range of accessories for all needs
Meat mincer on hub
Vegetable slicer
Puree strainer
Electronic speed variation
model
capacity
hook
*
whisk
BE5
5 lt
1,5 kg
10
BE8
8 lt
2,5 kg
14
XBE10
10 lt
3,5 kg
18
XBE20-table
20 lt
6 kg
32
XBE20-floor
20 lt
6 kg
32
XBE30
30 lt
7 kg
50
MBE40
40 lt
10 kg
70
XBE60
60 lt
20 kg
100
XBE80
80 lt
25 kg
120
Models also available with mechanical speed variation
*
*Hook: kg of flour for dough
(with 60% moisture content)
*Whisk: max. number of egg whites
37
38
electrolux dynamic
planetarypreparation
mixers
Bakery, pastry and pizza
20, 30 and 40 lt planetary mixers
Electrolux offers a complete range of planetary mixers specially designed to
withstand the strong demands of bakery, pastry and pizza preparations.
MB40
Spiral hook, paddle, reinforced whisk (MB/MBE40)
40 lt planetary mixer
ff
Powerful asynchronous motor (2200 W) for silent
operation and longer life
ff
Electromechanical 3 fixed speeds (40, 80
and 160 rpm)
ff
Control panel with stop button, 3 speeds and
0-15 minute timer
ff
Stainless steel bowl and 3 tools (reinforced whisk,
paddle and spiral hook)
Removable spout
ff
Tools rotate at speeds 125, 250, 500 rpm
ff
Stainless steel removable rotating safety screen,
equipped with removable spout
ff
Lever for raising and lowering the bowl
ff
Safety device stops the machine if screen is not
properly closed or when bowl is lowered
ff
A wide range of accessories such as bowl scraper,
bowl trolley and reduction bowl kits (MB/MBE40)
Bowl scraper
Bowl trolley
electrolux
electrolux
dynamic
planetary
preparation
mixers
40 lt planetary mixer
ff
Powerful asynchronous motor (2200 W) for silent operation and
longer life
ff
3 fixed speeds (40, 80 and 160 rpm) and electronic variable
speed from 30 to 175 rpm
ff
Supplied with stainless steel bowl and 3 tools (reinforced whisk,
paddle and spiral hook)
ff
Tools rotate at speeds from 94 to 540 rpm
ff
Water protected planetary system and control panel, equipped with
0-59 minute timer
ff
Stainless steel removable rotating safety screen, equipped with
removable spout
ff
Lever for raising and lowering the bowl
ff
Safety device stops the machine if screen is not properly closed or
when bowl is lowered
MBE40
20/30 lt planetary mixers
ff
Powerful asynchronous motor (1500 W) for silent operation and
longer life
ff
3 fixed speeds (40, 80 and 160 rpm) and electronic variable
speed from 30 to 175 rpm
ff
Supplied with stainless steel bowl and 3 tools (reinforced whisk,
paddle and spiral hook)
ff
Tools rotate at speeds from 73 to 425 rpm
ff
Water protected planetary system and control panel, equipped
with 0-59 minute timer
ff
Stainless steel removable rotating safety screen, equipped with
removable spout
ff
Lever for raising and lowering the bowl
ff
Reinforced column and base for added support and stability
XBB30
ff
Safety device stops the machine if screen is not properly closed or
when bowl is lowered
ff
Wheel kit and bowl trolley optional
Bakery, pastry and pizza
model
capacity
hook *
whisk *
XBB20
20 lt
7 kg
32
XBB30
30 lt
8 kg
50
MB40
40 lt
10 kg
70
MBE40
40 lt
10 kg
70
*Hook: kg of flour
for dough (with 60%
moisture content)
*Whisk: max.
number of egg
whites
39
40
electrolux dynamic
vegetablepreparation
peelers
T series
Vegetable peelers
Electrolux peelers solve the problem of best removing not only potato peels but also
peeling many other vegetables or cleaning shellfish.
T5S
5 kg vegetable peeler with its high quality stainless
steel finish guarantees longer service life
ff
Transparent cover allows vegetables to be checked
during operation
ff
Extremely simple control with on/off button and
timer
ff
Lid can be easily removed without tools and is
dishwasher safe
ff
No risks. Safety interlock turns off the motor if the
cover or outlet are opened
ff
Removable rotating plate covered with an abrasive
lava stone material that guarantees durability and
longer life
ff
Ergonomic handle and outlet facilitate collection of
the vegetables once peeled
ff
Optimum performance: 5kg loading capacity with
an output of 80 kg/hr
Ergonomic handle and outlet
Knife plate (optional)
ff
Knife plate (for a smooth cut of the peel), washing
plate (for cleaning vegetables that don’t require
peeling) and stainless steel filter table available
upon request
Transparent lid
electrolux
electrolux
dynamic
vegetable
preparation
peelers
5/8 kg vegetable peelers (table top) able to satisfy the
requirements of small to medium size restaurants
ff
Maximum output guaranteed from 80 kg (T5E) to
130 kg (T8E) per hour
ff
Specific models available for cleaning shellfish
(T5M/T8M) with a reduced speed (208 rpm), seashell
plate and cylinder
ff
Versatile with optional drying basket for washing and
spin drying salads, herbs or other leafy vegetables
T5E/T8E
Drying basket (optional)
Seashell plate (optional)
ff
Transparent lid to observe the peeling process
without stopping the machine
ff
Removable handle connected to a water supply can
be used during peeling or for cleaning operations
ff
Integrated filter can be easily removed and is
dishwasher safe
ff
Strong rubber feet guarantee stability during
operation
ff
Stainless steel removable peeling chamber
Transparent lid with spray gun
Removable filter
ff
Maximum hygiene guaranteed. All parts can be
removed for fast and easy cleaning
ff
Removable rotating plate covered with an abrasive
material that guarantees durability and longer life
ff
Stainless steel table and replacement filter are
available as optional accessories
ff
A special kit, with abrasive plate and cylinder, is
available upon request to convert the shellfish cleaner
into vegetable peeler
41
42
electrolux dynamic
vegetablepreparation
peelers
10/15 kg vegetable peelers that can be used for
multiple operations such as: washing, scrubbing, peeling
and even drying due to the wide choice of optional
accessories
ff
Ideal for restaurants, catering and delicatessen, with
peeling capacities between 160/240 kg/hr
ff
High quality peeled vegetables with little waste
thanks to the abrasive lava stone material covering
the rotating plate
ff
Door with constant pressure control system for the
safe evacuation of the vegetables
ff
Safety: the motor stops if the lid or door is opened
during operation
ff
Simple and easy to use waterproof touch button
control panel with on/off and programmable timer
T10E/T15E
ff
Sturdy stainless steel construction with a
transparent lid made of damage resistant plastic
to allow complete visibility of the peeling cycle
during operation
ff
Removable rotating plate covered with an abrasive
lava stone material that guarantees durability and
longer life
ff
Special models available with an abrasive cylinder
for a more perfect peeling (hard tubers)
ff
Removable handle connected to a water supply
can be used during peeling or for cleaning
operations
Unloading hole
Abrasive plate and cylinder
Washing plate (optional)
Drying basket (optional)
ff
Stainless steel filter table available on request
ff
More flexibility with optional plates (knife plate,
onion plates, mussel cleaner, brushing plate)
ff
Drying basket (as optional accessory)
electrolux
electrolux
dynamic
vegetable
preparation
peelers
25 kg vegetable peelers able to satisfy the needs of even the largest
customers thanks to their peeling capacity over 400 kg/hr
ff
Simple and easy to use waterproof touch button control panel with
on/off and programmable timer
ff
Unloading made easy thanks to optional mobile trolley with filter
tray (for T25E)
ff
Door with constant pressure control system for the safe evacuation
of the vegetables
ff
The cylinder and removable rotating plate are covered with an abrasive
lava stone material that guarantees durability and longer life
ff
Safety: the motor stops if the lid or door is opened during operation
ff
No blockage of peels thanks to special size and design of drain hole
T25E
Unloading door
Drain hole
ff
Stainless steel cylinder (540mm diam.) tilted at 18° towards front to
facilitate loading and unloading operations
ff
Transparent lid with microswitch to stop the machine if lid is opened
guaranteeing operator safety
ff
Stainless steel filter table incorporated as standard (Ti25)
Model
Ti25
Capacity
Dimensions (wxdxh)
T5S
5 kg
314x485x450 mm
T5E/T5M
5 kg
424x390x590 mm
T8E/T8M
8 kg
422x396x676 mm
T10E
10 kg
440x690x680 mm
T15E
15 kg
440x690x750 mm
T25E
25 kg
585x785x1215 mm
Ti25
25 kg
565x880x1425 mm
Notes
special model
for seashells
special model
for seashells
inclined body
43
44
electrolux dynamic
vegetablepreparation
washers
Vegetable washers
and Spin dryers
Choose from a wide range of vegetable washers and spin dryers, essential
components for small, medium and large size kitchens.
LVA100
ff
Vegetable washer and dryer in one machine.
The washing effect is obtained by combining basket
rotation and water turbulence generated by a pump
ff
Advanced programmable model with automatic and
manual cycles and self-cleaning cycle
ff
Designed for the efficient and safe treatment of all
types of vegetables
ff
Avoid damage to delicate items by regulating the
power of the washing water
ff
Complete stainless steel construction guarantees long
term reliability
ff
Efficient and easy to clean filtering system and well with
rounded corners
ff
Integrated dispenser with liquid for sanitizing vegetables
(activated during a specific cycle)
ff
Operator safety thanks to microswitch which stops the
machine if the lid is opened
ff
Spray and/or immersion washing, depending on cycle
ff
3 preset cycles according to the type of products to be
washed
ff
Basket with 2 speed rotation: washing (60 rpm), drying
(270 rpm)
Model
Load
capacity
Basket
volume
Power
LVA100B
2-6 kg
30 lt
900 W
External dimensions (wxdxh): 700x700x1000mm
electrolux
electrolux
dynamic
vegetable
preparation
washers
ff
Spin dryers ideal for drying lettuce, spinach, leeks,
parsley, swiss chard and cabbage
ff
Very short drying time (1-2 minutes) preserves the
flavour and texture of all leafy vegetables until
served
ff
Stainless steel construction guarantees hygiene and
is resistant to corrosion
ff
Waterproof touch button control panel for easy
cleaning is protected even against strong jets of water
ELX65
Touch button control
Residual water drain
ff
Drying basket either in stainless steel (only for ELX65)
or high quality resin
ff
Basket rotation speed ideal for drying fragile items
without crushing them (330 rpm for ELX65; 470 rpm
for EL40)
ff
Residual water is easily eliminated through an
outlet pipe at the bottom of the well
ff
Motor brake guarantees the dryer will stop
immediately after the drying cycle (ELX65)
Stainless steel drying basket
ff
Safety: the motor stops when the lid is opened
ff
Two cycles for all types of vegetables: “automatic”
(75 seconds) which alternates rotation with several
sudden stops (for all vegetables); “manual” thanks to
the adjustable timer 0-59 min. (for delicate items)
Model
EL40
Load capacity
Heavy veg.
Lettuce heads
5 kg
9
Basket
Power
volume
32 lt
370 W
External dimensions (wxdxh) 460x540x800mm
ELX65
EL40
10 kg
18
65 lt
750 W
External dimensions (wxdxh) 578x639x1005mm
45
46
electrolux dynamic
complementary
preparation
A complement
for bakery, pastry and pizza
Electrolux offers a wide range of dough kneaders and dough sheeters to suit
the needs of all bakery, pastry and pizza preparations.
25/40 lt fork kneaders (approx. 15/24 kg of dough per operation)
ff
2 speed motor for optimum kneading quality: slow speed
(45 rpm) and 2nd speed (90 rpm)
ff
Precise control with touch button panel with timer (0-59 min.)
ff
Welded base for added support and stability
ff
Operator safety assured thanks to the particular head raising and
instantaneous locking system. The machine will not start if the bowl
is not correctly placed on the base
ff
Maximum hygiene thanks to the transparent screen: allows
products to be added during operation and avoids the emission of
flour into the work area. Removable stainless steel bowl
BPO
12 to 49 lt spiral kneaders (approx. 10/40 kg of dough per operation)
ff
Sturdy and reliable construction in painted steel
ff
When screen is raised the motor automatically stops, guaranteeing
operator safety
ff
High capacity stainless steel bowl with rounded bottom facilitates
cleaning
ff
Extremely resistant stainless steel mixing arm
ff
Carefully designed motor guarantees long life and reliability
ZSP
ff
Larger models equipped with central shaft (38, 49 lt)
50 and 90 lt spiral kneaders (approx. 26/48 kg of dough per operation)
ff
Sturdy and reliable construction in painted steel
ff
Control panel with on/off switch and timer
ff
When screen is raised the motor automatically stops, guaranteeing
operator safety
ff
Stainless steel bowl and spiral tool which prevents dough from rising
ff
Two speed kneading motor with manual speed variation
ff
Protective screen to avoid the emission of flour into the work area
ff
Rounded bottom stainless steel bowl facilitates cleaning
PSR
electrolux
electrolux
dynamic
complementary
preparation
Manual dough sheeter - table top model
ff
Compact and easy to move
ff
Wire safety screen
ff
Teflon coated cylinders (Ø 60 mm)
ff
Working width: 400 mm
ff
Removable stainless steel slides
Motorized dough sheeter - table top model
ff
Wire safety screen
ff
Teflon coated removable slides facilitate the sliding of
the dough
ff
Chrome plated steel cylinders (Ø 60 mm) may be
adjusted depending on the thickness requested
ff
Working width: 500 mm
ff
Manual lever to invert cylinder rotation
ff
Flour container fixed on the top of the machine
LMP500
ff
Remote foot pedal to change rolling direction
(optional accessory)
Motorized belt dough sheeters - table top and
floor standing models
ff
Models with 1 speed or variable speed
ff
Tables can be raised to save space
ff
Wire gratings with safety microswitch to stop motor
if raised over a particular level
ff
Teflon coated removable slides facilitate the sliding of
the dough
ff
Chrome plated steel cylinders (Ø 60 mm) may be
adjusted depending on the thickness requested
ff
Manual lever to invert cylinder rotation
ff
Working widths: 500 mm or 600 mm
(depending on model)
ff
Flour container fixed on the top of the machine
ff
Remote foot pedal to change rolling direction
(optional accessory)
Remote foot pedal
(optional)
Cutting module for croissants
(optional on selected models)
47
48
electrolux dynamic
complementary
preparation
A complement
to your kitchen
The new range of appliances which provides the highest quality and hygiene in
line with every professional kitchen.
A versatile and easy to use single chute electric
bread slicer well suited for fast and efficient service in
high volume catering establishments
ff
Slices from 130 to 260 slices/minute (2 baguettes)
and operates three to six times faster than slicing
by hand with optimal results. Slices can be
adjusted from 8 to 60 mm thick
ff
Great for long loaves or baguettes. Simply insert
the bread into the vertical spout (175x110mm) and it
will be cut automatically
ff
Maximum safety. Fitted with an original safety
device which prohibits access to the blade especially
during cleaning operations. The blade is immobilized
and covered as soon as the bread evacuation door
is raised
CPX
ff
Waterproof touch button control panel with start/
stop and pulse button for controlled slicing
ff
Maximum hygiene guaranteed. The optional
stainless steel table can suit GN 1/1 polycarbonate
trays to collect the sliced bread and avoid handling
Free-standing and table top vacuum packers, from
10 to 60 m3/h (100 to 800 meals/day)
ff
Stainless steel construction and domed transparent
plexiglass lid suitable for use with all types of food
ff
Easy to program digital control panel guarantees
optimal vacuum pressure and heat seal times
ff
Models pre-arranged for connection to inert gas for
packaging delicate foods
ff
Highest levels of hygiene and ease of cleaning
thanks to pressure chamber with rounded corners
ff
Maximum reliability. Warning light indicates any
malfunctioning in the vacuum packing process and
stops operation before the products are heat sealed,
thus allowing them to be reused
EVP45F
EVP45NXT
ff
Models available with printer for adhesive labels,
according to HACCP standards
electrolux
electrolux
dynamic
complementary
preparation
Meat mincer/graters ideal for mincing meats as well as
grating bread, cheese and nuts
ff
Body in die-cast aluminium and stainless steel for
added strength and reliability
ff
Operator safety guaranteed. Microswitch
positioned on the handle prevents accidental contact.
Protection grill is positioned beneath the grating
cylinder and in front of the shredder attachment, to
avoid injury
ff
Removable stainless steel grinding unit (diam. 70mm)
can be easily cleaned
MMG12/22
ff
Grater: Motor speeds - 900 rpm (MMG12) or
1400 rpm (MMG22). Steel roller and stainless steel
collection container. Output: 50/130 kg cheese/hr
and 100/150 kg bread/hr
ff
Meat mincer: Motor speeds - 140 rpm (MMG12)
or 210 rpm (MMG22). Chopper end, feed pan,
collecting container, plate and self-sharpening knife in
stainless steel. Output: 200/300 kg meat/hr
An extensive range of food slicers which provide
a rational solution for any kind of customers:
restaurants, catering, supermarkets and delis.
ff
Ideal for slicing raw meats, salamis and pressed
meats thanks to the variable blade diameters from
250 to 370 mm, constructed in hollow ground
chrome
ff
Versatile. Prepare square, round or rectangular
slices. Variable slicing thickness (depending on the
model). Models available with special tightening arm
ff
Choose between vertical or gravity slicers, gear or
belt transmission based on specific needs and types
of products to be sliced
Vertical food slicers
ff
Poly-V belt drive system is ideal for normal daily use,
gear transmission for heavy duty operations
ff
Ventilated blade drive motor for continuous use
ff
Built-in precision sharpener
ff
Cleaning is made easy since blade cover, product
deflector and carriage system can be easily removed
ff
Operator safety assured since gauge plate
interlock allows the removal of the carriage only if the
appliance is switched off
ff
Permanently mounted blade guard ring protects user
from cutting blades during operation and cleaning
Gravity food slicers
49
50
electrolux dynamic preparation
Electrolux,
customer oriented
We are convinced that this is the right approach: be competitive
on the market and anticipate the customer’s requirements,
whether it is a question of design, production, marketing or service.
In Electrolux we call it “customer obsession”, because these
are our customer’s requests, desires, opinions, which drive
our actions and our product development.
Production, inspection and end-of-line testing of
the appliances
Pre-sales service: more than 1,000 specialists
ready to assist the customer
Production quality means improved performance
over time. “Made by Electrolux” represents,
worldwide, a guarantee of high technological and
quality standards, customer focused design and
product development. In the Electrolux Professional
platforms, all units are quality tested
piece by piece, and all the functions are singularly
checked by expert technicians before packaging.
In addition to this procedure, spot checking
is also performed at the end of the line and
i n t h e w a r e h o u s e . E l e c t r o l u x ’s h i g h l e v e l
of quality standards continues to satisfy the ever more
demanding customers.
A team of more than 1,000 specialized technicians
throughout the world with one single objective: to design
appliances that are easy to use, functional and totally reliable.
The constant collaboration between design engineers,
technicians and chefs ensures that Electrolux products
are made according to exact professional specifications.
These specialists are fully prepared to assist the customer
in defining the correct workflow and proposing the most
functional equipment for the requested specifications
whether it be a small restaurant or a large institution.
Project & Quotation
Software for Kitchen Solutions
electrolux dynamic preparation
After-sales service: near the customer, everywhere
in the world
Electrolux Chef Academy: live seminars and chefto-chef experiences
When speaking about Electrolux Professional reliability and
global presence we speak about the widest service network
worldwide, composed of skilled and qualified partners,
engaged daily in multiple tasks: from installation to spare
parts and maintenance. Their common aim is to guarantee
an efficient customer service and fast technical assistance.
The products are delivered, installed and efficiently
supervised through a global after-sales service network
which ensures prompt and expert advice all over the
world.
The Electrolux Chef Academy was created with a specific
goal in mind: to offer the best in hospitality, education
and information services. Dedicated seminars free of
charge for catering professionals, live demonstrations
and detailed instructions are just a few of the activities
offered to more than 6,000 guests that visit us every year.
You can try “hands on” the wide range of appliances under
the guidance of an Electrolux Executive Chef, part of a team
of professionals who combine the experience of ‘starred’
hotels and restaurants with the knowledge of the most
innovative concepts in kitchen technology. Each seminar
provides:
ff
1,139 authorized service centers
ff
more than 5,000 expert technicians
ff
10-year availability of spare parts from the end
of production
ff
44.000 available spare parts on stock
ff
24/48 hours spare parts delivery worldwide
ff
Technical demo: display functions, working
procedures, utilities, correct maintenance
ff
Culinary demo: cooking techniques, ingredients,
planning of the new flow in the kitchen, live cooking
CHEFACADEMY
demos
CHEFACADEMY
51
Excellence
with the environment in mind
Electrolux Professional solutions perfectly match the customers’
needs, including the areas of reliability, cost efficiency and
sustainability. The products are the best in terms of quality –
durability with low running costs. Some installations have been
running for more than 40 years!
• All Electrolux Professional factories are ISO 14001-certified
•A
ll Electrolux Professional solutions are designed for low water,
energy and detergent consumption, and for low emissions into
the environment
•A
ll Electrolux Professional solutions are the best-in-class in terms
of quality, for a long life cycle with the lowest life cycle costs.
There are solutions still running after 40 years
The Company reserves the right to change specifications without notice. Pictures are not contractual.
Share more of our thinking at www.electrolux.com/professional
•A
ll Electrolux Professional solutions are ROHS and REACHcompliant and over 95% recyclable
• In the last five years, more than 70% of Electrolux Professional
solutions have been updated with features that are always
designed with the needs of customers and environmental
considerations in mind
•E
lectrolux Professional sustains a specific
energy saving program to reduce the energy
consumption of its production plants
9JEELU
•A
ll Electrolux Professional solutions are 100% quality tested and
all of the functions are singularly checked by expert technicians
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
