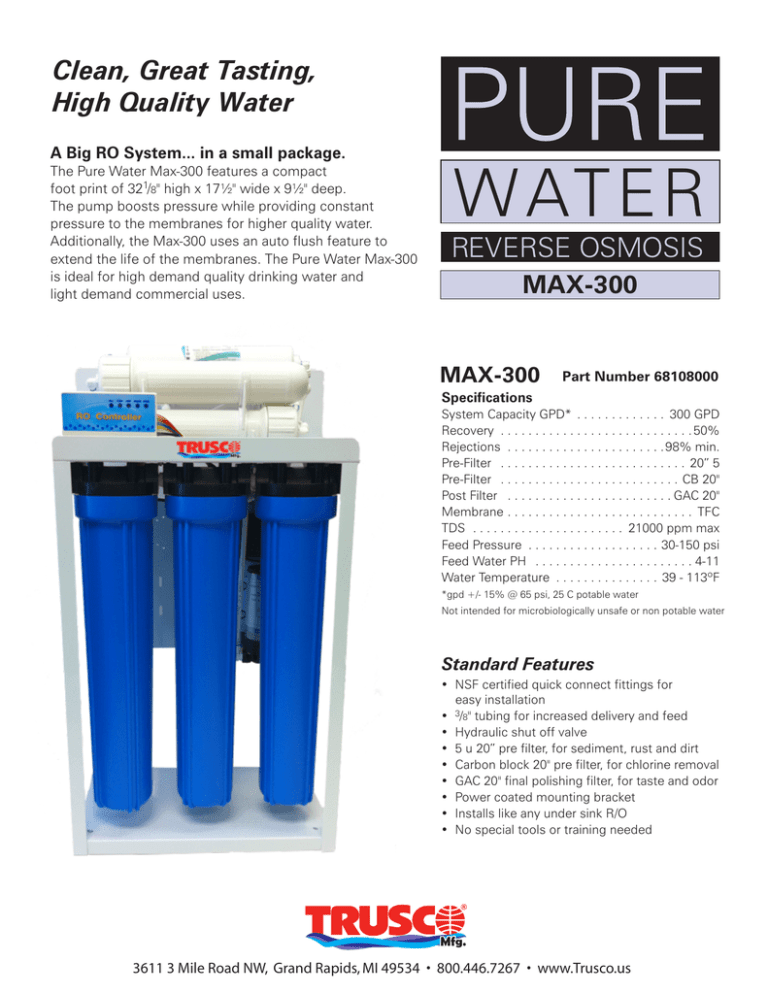

Pure Water Max 300
Clean, Great Tasting,
High Quality Water
A Big RO System... in a small package.
The Pure Water Max-300 features a compact
foot print of 321/8" high x 17½" wide x 9½" deep.
The pump boosts pressure while providing constant
pressure to the membranes for higher quality water.
Additionally, the Max-300 uses an auto flush feature to
extend the life of the membranes. The Pure Water Max-300
is ideal for high demand quality drinking water and
light demand commercial uses.
W ATER
REVERSE OSMOSIS
MAX-300
MAX-300
Part Number 68108000
Specifications
System Capacity GPD* . . . . . . . . . . . . . 300 GPD
Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50%
Rejections . . . . . . . . . . . . . . . . . . . . . . . 98% min.
Pre-Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . 20” 5
Pre-Filter . . . . . . . . . . . . . . . . . . . . . . . . . . CB 20"
Post Filter . . . . . . . . . . . . . . . . . . . . . . . . GAC 20"
Membrane . . . . . . . . . . . . . . . . . . . . . . . . . . . TFC
TDS . . . . . . . . . . . . . . . . . . . . . . 21000 ppm max
Feed Pressure . . . . . . . . . . . . . . . . . . . 30-150 psi
Feed Water PH . . . . . . . . . . . . . . . . . . . . . . . 4-11
Water Temperature . . . . . . . . . . . . . . . 39 - 113ºF
*gpd +/- 15% @ 65 psi, 25 C potable water
Not intended for microbiologically unsafe or non potable water
Standard Features
• NSF certified quick connect fittings for
easy installation
• 3/8" tubing for increased delivery and feed
• Hydraulic shut off valve
• 5 u 20” pre filter, for sediment, rust and dirt
• Carbon block 20" pre filter, for chlorine removal
• GAC 20" final polishing filter, for taste and odor
• Power coated mounting bracket
• Installs like any under sink R/O
• No special tools or training needed
®
3611 3 Mile Road NW, Grand Rapids, MI 49534 • 800.446.7267 • www.Trusco.us
