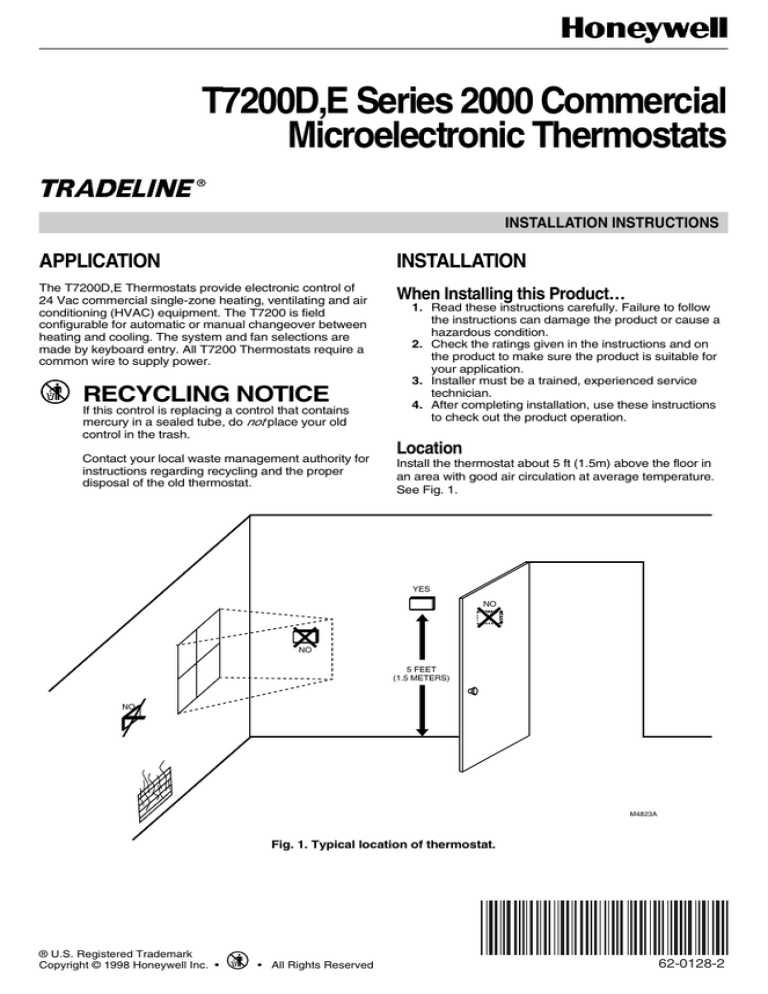

T7200D,E Series 2000 Commercial
Microelectronic Thermostats
INSTALLATION INSTRUCTIONS
APPLICATION
INSTALLATION
The T7200D,E Thermostats provide electronic control of
24 Vac commercial single-zone heating, ventilating and air
conditioning (HVAC) equipment. The T7200 is field
configurable for automatic or manual changeover between
heating and cooling. The system and fan selections are
made by keyboard entry. All T7200 Thermostats require a
common wire to supply power.
When Installing this Product…
RECYCLING NOTICE
If this control is replacing a control that contains
mercury in a sealed tube, do not place your old
control in the trash.
Contact your local waste management authority for
instructions regarding recycling and the proper
disposal of the old thermostat.
1. Read these instructions carefully. Failure to follow
the instructions can damage the product or cause a
hazardous condition.
2. Check the ratings given in the instructions and on
the product to make sure the product is suitable for
your application.
3. Installer must be a trained, experienced service
technician.
4. After completing installation, use these instructions
to check out the product operation.
Location
Install the thermostat about 5 ft (1.5m) above the floor in
an area with good air circulation at average temperature.
See Fig. 1.
YES
NO
NO
5 FEET
(1.5 METERS)
NO
M4823A
Fig. 1. Typical location of thermostat.
® U.S. Registered Trademark
Copyright © 1998 Honeywell Inc. •
• All Rights Reserved
X-XX UL
62-0128-2
T7200D,E SERIES 2000 COMMERCIAL MICROELECTRONIC THERMOSTATS
Do not install the thermostat where it can be affected by:
— drafts, or dead spots behind doors and in corners.
— hot or cold air from ducts.
— radiant heat from sun or appliances.
— concealed pipes and chimneys.
— unheated (uncooled) areas such as an outside wall
behind the thermostat.
CAUTION
Electrical Shock Hazard.
Power source can cause electrical shock.
Disconnect power before wiring to prevent
electrical shock or equipment damage.
1. Loosen the terminal screws on the wallplate and
connect the system wires. See Fig. 3.
IMPORTANT
Use 18-gauge, solid-conductor color-coded
thermostat cable for proper wiring. If using
18-gauge stranded wire, do not use more than
ten wires. Do not use larger than 18-gauge wire.
Mounting Wallplate
The wallplate mounts horizontally on the wall or on a
2 in. x 4 in. wiring box. Position the wallplate horizontally
on the wall or on a 2 in. x 4 in. wiring box.
1. Position and level the wallplate (for appearance
only). The thermostat functions properly even when
not level.
2. Use a pencil to mark the mounting holes. See Fig. 2.
3. Remove the wallplate from the wall and drill two
3/16 inch (4.8 mm) holes in the wall (if drywall) as
marked. For firmer material such as plaster or wood,
drill two 7/32 inch (5.5 mm) holes. Gently tap
anchors (provided) into the drilled holes until flush
with the wall.
4. Position the wallplate over the holes, pulling wires
through the wiring opening.
5. Loosely insert the mounting screws into the holes.
6. Tighten mounting screws.
2. Securely tighten each terminal screw.
3. Push excess wire back into the hole.
4. Plug the hole with nonflammable insulation to
prevent drafts from affecting the thermostat.
WALL
WIRES
THROUGH WALL
FOR WRAPAROUND
INSERTION STRIP
7/16 IN. (11 MM).
FOR STRAIGHT
INSERTION STRIP
5/16 IN. (8 MM).
M4826
Fig. 3. Proper wiring technique.
WALL
ANCHORS
(2)
THERMOSTAT
X
Y1
G
W1
RH
RC
2
HEATING
RELAY OR
VALVE COIL
COMPRESSOR
CONTACTOR
MOUNTING
HOLES
FAN
RELAY
MOUNTING
SCREWS
1
M10237
L1
(HOT)
LEDS
L2
Fig. 2. Mounting the wallplate.
1
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND
OVERLOAD PROTECTION AS REQUIRED.
2
JUMPER RC AND RH FOR SINGLE TRANSFORMER SYSTEMS.
M4942A
WIRING WALLPLATE
Fig. 4. Typical hookup of T7200D in single-stage
heating and cooling conventional system.
All wiring must comply with local electrical codes and
ordinances. Follow equipment manufacturer wiring
instructions when available. Refer to Fig. 4 and 5 for
typical hookups. A letter code is located near each
terminal for identification.
62-0128—2
2
T7200D,E SERIES 2000 COMMERCIAL MICROELECTRONIC THERMOSTATS
THERMOSTAT
X
Y
G
O
•
•
•
•
•
R
COOL
CHANGEOVER
VALVE
COMPRESSOR
CONTACTOR
override the program temperatures,
display present setting,
set system and fan operation,
configure Installer Setup,
check Installer System Test.
See Fig. 7 for thermostat key information.
A. ENGAGE TABS AT TOP OF THERMOSTAT AND SUBBASE OR WALLPLATE.
FAN
RELAY
1
L1
(HOT)
L2
1
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND
OVERLOAD PROTECTION AS REQUIRED.
M4943A
Fig. 5. Typical hookup of T7200E in single-stage heat
pump system.
B. PRESS LOWER EDGE OF CASE TO LATCH.
Mounting Thermostat on Wallplate
The thermostat mounts on the wallplate after it is installed.
1. Engage the tabs at the top of the thermostat and
wallplate. See Fig. 6.
2. Press the lower edge of the case to latch.
NOTE: To remove the thermostat from the wall, first pull
out at the bottom of the thermostat; then remove
the top.
SETTINGS
M4824A
Fig. 6. Mounting thermostat on wallplate.
Using Thermostat Keys
The thermostat keys are used to:
• set current time and day,
• program times and setpoints for heating and cooling,
ENTER UNOCCUPIED
PROGRAM MODE
ENTER OCCUPIED
PROGRAM MODE
AM
Room
Mon
Occupied
System
Heat
RETURNS TO
NORMAL
OPERATIONS
Fan
Auto
Set Program
SET OVERRIDE
TEMPERATURE
OFFSET AND
ACTIVATE
TEMPORARY
OVERRIDE
ENTER HOLD MODE
SET UNOCCUPIED TEMPERATURE
SETPOINTS AND SCROLLS
THROUGH INSTALLER SETUP
AND SYSTEM TEST
SET OCCUPIED
TEMPERATURE
SETPOINTS
SET CURRENT DAY OR
PROGRAM DAY
Set Temperature
Run
Program
Occupied
Start Time
Unoccupied
Start Time
Day
Temporary
Occupied
Set Current
Day/Time
Clear
Start Time
Copy
Occupied
Temp
Unoccupied
Temp
Change
Time/Temp
INCREASE
TEMPERATURE
OR TIME SETTING
Heat/Cool
Settings
Continuous
Unoccupied
System
Fan
SELECT
SYSTEM
OPERATION
COPY ONE
PROGRAMMED DAY
TO ANOTHER DAY
SET CURRENT
DAY AND TIME
CLEAR PROGRAM PERIOD
DECREASE
TEMPERATURE
OR TIME SETTING
SELECT FAN
OPERATION
CHANGE BETWEEN HEATING
AND COOLING SETPOINTS
AND SCROLLS BACKWARDS
THROUGH INSTALLER SETUP
NUMBERS AND SYSTEM TEST
M10233A
Fig. 7. Thermostat key locations and descriptions.
3
62-0128—2
T7200D,E SERIES 2000 COMMERCIAL MICROELECTRONIC THERMOSTATS
—
To advance to the next Installer Setup number, press
the Unoccupied Temp key.
— To return to a previous Installer Setup number, press
the Heat/Cool Settings key.
— To change a setting, use the increase ▲ or decrease
▼ key.
— To exit the Installer Setup, press the Run Program
key. The Installer Setup is automatically exited if no
key presses are made for four minutes.
Setting System and Fan (select models)
The system default setting is Heat. The fan default is set
so the fan operates continuously in the Occupied and
Recovery modes and with the heating or cooling equipment in the Unoccupied mode. Use the System and Fan
keys to change the settings.
The system settings are:
Heat: Thermostat controls the heating.
Off: Both the heating and cooling are off.
Cool: Thermostat controls the cooling.
Auto: Thermostat automatically changes between
heating and cooling operation depending on the
indoor temperature.
Set Program Start Time Set Day/Time Temporary Setting Enrg
Sav
Em Ht
AM
Aux Ht
Room
PM
Comm
%Humid
MonTueWedThuFriSatSun
Remote
Heat Cool
UnOccupied 12 Override
In Recovery Auto Only Duct
System
Fan
LoMedHi
On Auto
Em Heat OffCool Auto Wait
The fan settings are:
On: Fan operates continuously.
Auto: Equipment controls the fan in the Unoccupied
mode. The Intelligent Fan™ operation (Installer
Setup number 17) offers three choices for the fan
operation in Occupied mode:
— fan turns on only when there is a call for heating
or cooling,
— fan operates continuously in Occupied mode,
— fan is on continuously in Occupied and recovery
modes.
M4916
Fig. 8. LED display of all segments.
Setting Temperature
Refer to Table 1 for the default temperature setpoints. See
Owners Guide, form number 63-4356, for complete
instructions on changing the setpoints.
INSTALLER SETUP
NUMBER DISPLAY
(COLUMN 2
OF TABLE 2)
Table 1. Default Temperature Setpoints.
Control
Occupied
Unoccupied
Heating
70°F (21°C)
55°F (13°C)
Cooling
78°F (25.5°C)
90°F (32°C)
M10238B
Fig. 9. Installer Setup number and setting display.
Installer Setup numbers are listed in Table 2.
CAUTION
Possible Equipment Damage.
Fan must be running when system is
operating.
Configure heat pump and electric heat systems in
Installer Setup 2 to prevent equipment damage
caused by the system running without the fan.
INSTALLER SETUP
NOTE: For most applications, the thermostat factorysettings do not need to be changed. Review the
factory-settings in Table 2 and if no changes are
necessary, go to the Installer System Test
section.
IMPORTANT
Only configurable numbers are shown on the
device. Example: If the thermostat does not have
a system key, Installer Setup Number 12 will not
be displayed. Review Table 2 factory settings
and mark any desired changes in the Actual
Setting column. When Installer Setup is complete, review the settings to confirm that they
match the system.
The Installer Setup is used by the installer to customize
the thermostat to specific systems. Installer Setup
numbers are listed in Table 2. The table includes all the
configuration options available.
A combination of key presses are required to use the
Installer Setup feature.
— To enter the Installer Setup mode, press and hold the
Heat/Cool Settings key while pressing both the
increase ▲ and decrease ▼ keys until the first
number is displayed. All display segments appear for
approximately three seconds before the number is
displayed. See Fig. 8 and 9.
62-0128—2
FACTORY SETTING
OR OTHER CHOICE
DISPLAY (COLUMN 3
OR 5 OF TABLE 2)
4
T7200D,E SERIES 2000 COMMERCIAL MICROELECTRONIC THERMOSTATS
Table 2. Thermostat Installer Setup Options.
Select
Installer Setup
Number
(Press
Unoccupied
Factory Setting
Temp key
to change)
Display
Description
—
Other Choices
(Press ▲ or ▼ key to change)
Display
—
—
Description
Actual
Setting
—
—
Not used.
1
Fan operation a
(T7200D only).
2
0
Conventional applica- 1
tions where
equipment controls
fan operation in heat
mode.
Electric heat applications
where thermostat controls
fan operation in heat mode.
Degree
temperature
display.
14
0
Temperature is
displayed in °F.
Temperature is displayed
in °C.
Intelligent Fan™ 17
operation.
2
0 or 1
Fan operates
continuously in
Occupied and
Recovery mode. Fan
operates with call for
heating or cooling in
Unoccupied mode.
0—Fan only operates with
calls for heating or cooling
in Occupied and
Unoccupied modes.
1—Fan operates
continuously in Occupied
mode. Fan operates with
calls for heating or cooling
in Unoccupied mode.
Keypad lockout
level (keypad
lockout is
enabled and
disabled by dip
switch 1 on
thermostat
back).
25
0
No lockout.
1 or 2
1—Lockout all keys on
thermostat except system
and fan settings, temporary
setpoint; clock and day
adjustments.
2—Lockout all keys except
set Current Day/Time,
increase ▲ and decrease
▼ keys.
3—Lockout all keys except
Temporary Occupied, Set
Current Day/Time (for
clock, day adjustments).
O/B Operation b
(T7200E only).
29
0
0—Energize in Cool
mode.
1
1—Energize in Heat Mode.
Minimum offtime for the
compressor.
33
4
4-minute minimum
off-time for the
compressor.
0, 1, 2, 3 Minimum number of minutes
or 5
(0 thru 5) the compressor will
be off between calls for the
compressor.
Temperature
display
adjustment.
37
0
No difference in
displayed
temperature and
actual room
temperature.
1 thru 6
a Number 2 must be set to 1 to extend fan operation.
b Some models may not have this feature.Table 2.
1
1—Display adjusts to 1°F
(0.6°C) higher than actual
room temperature.
2—Display adjusts to 2°F
(1.1°C) higher than actual
room temperature.
3—Display adjusts to 3°F
(1.7°C) higher than actual
room temperature.
4—Display adjusts to 1°F
(0.6°C) lower than actual
room temperature.
5—Display adjusts to 2°F
(1.1°C) lower than actual
room temperature.
6—Display adjusts to 3°F
(1.7°C) lower than actual
room temperature.
(continued)
5
62-0128—2
T7200D,E SERIES 2000 COMMERCIAL MICROELECTRONIC THERMOSTATS
Table 2. Thermostat Installer Setup Options (Continued).
Select
Installer Setup
Number
(Press
Unoccupied
Factory Setting
Temp key
to change)
Display
Description
Other Choices
(Press ▲ or ▼ key to change)
Display
Minimum off38
times in heating.
4
4—4-minute
minimum off-time.
40
Installer Setup
lockout (keypad
lockout is
enabled and
disabled by dip
switch 1 on back
of thermostat).
0
0—No Installer Setup 1
lockout.
IMPORTANT
Review the settings to confirm that they match
the system. Press Run Program to exit the
Installer Setup. Set the current day and time
immediately.
Actual
Setting
Description
0, 1, 2, 3, Minimum number of minutes
or 5
(0 thru 5) the heating
equipment will be off
between calls for heat.
1—Installer Setup lockout
activated.
4. Press Run Program.
Run
Program
AM
Set Program
Set Temperature
Run
Program
Occupied
Start Time
Unoccupied
Start Time
Day
Temporary
Occupied
Set Current
Day/Time
Clear
Start Time
Copy
Continous
Unoccupied
Occupied
Temp
Unoccupied
Temp
Room
Change
Time/Temp
Heat/Cool
Settings
System
Fan
Mon
Occupied 1
System
Heat
Fan
Auto
M4954A
Setting Current Day and Time
1. Press Set Current Day/Time.
INSTALLER SYSTEM TEST
NOTE: On initial power up or after an extended
power loss, 1:00 pm flashes on the LCD
until a key is pressed.
Use the Installer System Test to check the thermostat
configurations and operation. Refer to Table 3 for a list of
the available system tests.
Set Day/Time
Set Current
Day/Time
Set Program
Run
Program
Occupied
Start Time
Unoccupied
Start Time
Temporary
Occupied
Set Current
Day/Time
Clear
Start Time
Set Temperature
Occupied
Temp
Day
Table 3. Tests Available in Installer System Test.
PM
Change
Time/Temp
Unoccupied
Temp
Mon
Heat/Cool
Settings
Copy
Continous
Unoccupied
System
Test
Number
Fan
M4951B
2. Press Day until the current day is displayed.
NOTE: Sun=Sunday, Mon=Monday,
Tue=Tuesday, Wed=Wednesday,
Thu=Thursday, Fri=Friday, Sat=Saturday.
Set Day/Time
Day
Set Program
Set Temperature
Run
Program
Occupied
Start Time
Unoccupied
Start Time
Day
Temporary
Occupied
Set Current
Day/Time
Clear
Start Time
Copy
Continous
Unoccupied
Occupied
Temp
Unoccupied
Temp
PM
Change
Time/Temp
Tue
Heat/Cool
Settings
System
Fan
M4952B
3. Press increase ▲ or decrease ▼ until the current
time is displayed.
Set Temperature
Occupied
Start Time
Unoccupied
Start Time
Day
Set Current
Day/Time
Clear
Start Time
Copy
Continous
Unoccupied
Occupied
Temp
Unoccupied
Temp
Heat/Cool
Settings
System
Tue
40 to 49
Fan equipment can be turned on and off
60 0 to
60 19
Keyboard keys test
70 to 79
Thermostat information including date
code, software versions and subbase
identification are displayed
Fan
Press and hold the increase ▲ and decrease ▼ keys, at
the same time, until 10 appears. All segments of the LCD
are displayed for three seconds before 10 appears. See
Fig. 10 and 11.
M4953B
62-0128—2
Cooling equipment can be turned on and
off
Possible Equipment Damage.
Equipment damage can result if compressor is
cycled too quickly.
The minimum off-time for compressors is bypassed
during the Installer System Test.
PM
Change
Time/Temp
30 to 39
CAUTION
Set Day/Time
Set Program
Run
Program
Heating equipment can be turned on and
off
To start the system test:
NOTE: Tapping the Set Current Day/Time changes
the time in one hour increments.
Temporary
Occupied
System Test Description
10 to 19
6
T7200D,E SERIES 2000 COMMERCIAL MICROELECTRONIC THERMOSTATS
NOTE: If a duct temperature sensor is installed, the duct
temperature is also displayed.
Refer to Table 4 and Thermostat Information section for
directions and results of the specific system tests.
NOTE: Press Run Program to exit the system test. The
system test times out after four minutes if there
are no additional key presses.
TEST NUMBER
M10257A
Fig. 11. Test number display.
Set Program Start Time Set Day/Time Temporary Setting Enrg
Sav
Em Ht
AM
Aux Ht
Room
PM
Comm
%Humid
Remote
Heat Cool
MonTueWedThuFriSatSun
UnOccupied 12 Override
In Recovery Auto Only Duct
System
Fan
LoMedHi
On Auto
Em Heat OffCool Auto Wait
M4916
Fig. 10. LCD display of all segments.
Table 4. Installer System Test Options.
Test
Key to Press
Number
Heating Equipment Test
10
Heat/Cool Settings
▲
11
▼
10
Cooling Equipment Test
30
Heat/Cool Settings
▲
31
▼
30
Fan Equipment Test
40
Heat/Cool Settings
▲
41
▼
40
Key Operation Test
60 2
Heat/Cool Settings
60 0
Unoccupied Temp
60 1
Occupied Temp
▲
▼
Clear Start Time
Day
Copy
Unoccupied Start
TIme
System
(select models)
Fan (select models)
Set Current Day/Time
Run Program
Temporary Occupied
Occupied Start Time
Continuous
Unoccupied
60
60
60
60
60
60
3
5
7
8
9
10
Description
Enter heating equipment test.
Heat turns on. The system fan is also energized.
Heat and system fan turn off.
Change from heating to cooling equipment test.
Cool and system fan turn on.
Cool and system fan turn off.
Change from cooling to fan equipment test.
Fan turns on.
Fan turns off.
Change from fan to key operation test.
Unoccupied Temp test number is displayed.
Occupied Temp test number is displayed.
Increase test number is displayed.
Decrease test number is displayed.
Clear Start Time test number is displayed.
Day test number is displayed.
Copy test number is displayed.
Unoccupied Start Time test number is displayed.
60 11
System test number is displayed.
60
60
60
60
60
60
Fan test number is displayed.
Set Current Day/Time test number is displayed.
Run Program test number is displayed.
Temporary Occupied test number is displayed.
Occupied Start Time test number is displayed.
Continuous Unoccupied test number is displayed.
12
14
15
16
17
19
7
62-0128—2
T7200D,E SERIES 2000 COMMERCIAL MICROELECTRONIC THERMOSTATS
5. Press the increase ▲ key again to display the
EEPROM identification code. (Example: 314 =
EEPROM ID 314).
Thermostat Information
1. Press the Heat/Cool Settings key to access the
thermostat information.
M4933A
M4934
6. Press the increase ▲ key again to display the
wallplate identification code. (Example: HP = heat
pump wallplate).
2. Press the increase ▲ key to display the production
date code. The first two large digits are the month
and the third digit is the last digit of the year.
(Example: 036 = March 1996).
M10290
M4931
7. Press Run Program to exit the system test. The
system test times out after four minutes without any
key presses.
3. Press the increase ▲ key again to display the
software identification code. (Example: 02 =
software ID code 2).
Setting Keypad Lockout Switch
The dip switch 1 on the back of the thermostat activates
the Installer Setup lockout feature. The switch must be set
to the ON position (up) to activate the lockout feature. See
Fig. 12. The factory setting is off (down). Remove the
thermostat from the wallplate and set the switch to ON if
keypad lockout is desired. The level of lockout is determined by the Installer Setup number 40.
M4932A
4. Press the increase ▲ key again to display the
software revision number. (Example: 001 = revision
number 1).
ON
1
2
1
2
M10229
1 DIP 1 IS ON
2 DIP 2 IS NOT USED.
BACK OF THERMOSTAT
M10235
Fig. 12. Set Installer Setup lockout dip switch 1
on back of thermostat.
62-0128—2
8
T7200D,E SERIES 2000 COMMERCIAL MICROELECTRONIC THERMOSTATS
TROUBLESHOOTING GUIDE
Symptom
Possible Cause
Display does not
turn on.
No power to thermostat.
• Check that C terminal is connected to the system
transformer.
• Check for 24 Vac between C and R terminals.
— If missing 24 Vac:
— check if the circuit breaker is tripped; if so, reset the
circuit breaker.
— check if the system fuse is blown; if so, replace the
fuse.
— check if the power switch on the HVAC equipment
is in the Off position; if so, set to the On position.
— check wiring between thermostat and HVAC
equipment and replace any broken wires and
tighten any loose connections.
— If 24 Vac is present, proceed with troubleshooting.
Temperature display
is incorrect.
Room temperature display
has been reconfigured.
Enter Installer Setup number 37 and reconfigure the display.
Thermostat is configured for
°F or °C display.
Enter Installer Setup number 14 and reconfigure the display.
Bad thermostat location.
Action
Relocate the thermostat.
Temperature settings Upper or lower temperature
will not change.
limits were reached.
(Example: Cannot set
heating higher or
cooling lower.)
Check the temperature setpoints:
• Heating limits are 40°F to 90°F (7°C to 31°C).
• Cooling limits are 45°F to 99°F (9°C to 37°C).
Unable to configure
Installer Setup.
Installer Setup is locked out.
Reset the dip switch 1 on the back of the thermostat to enable
keypad.
Temperature settings
change from original
setting.
Heating and cooling setpoints • Check that the heating setpoint is lower than the cooling
setpoint.
are set too close together.
There is a deadband in
automatic changeover
thermostat models. Example:
cool setpoint = 72, deadband
= 3, heat setpoint = 68,
changing heat setpoint to 70
automatically changes the
cool setpoint to 73.
Room temperature is
out of control.
Remote temperature sensing
is not working.
Checkout all remote sensors.
Heating does not
turn on.
No power to the thermostat.
• Check that C terminal is connected to the system
transformer.
• Check for 24 Vac between C and R terminals.
— If missing 24 Vac:
— check if the circuit breaker is tripped; if so, reset the
circuit breaker.
— check if the system fuse is blown; if so, replace the
fuse.
— check if the system switch at the equipment is in
the Off position; if so, set to On position.
— check wiring between thermostat and HVAC
equipment and replace any broken wires and
tighten any loose connections.
— If 24 Vac is present, proceed with troubleshooting.
Thermostat minimum off-time • Wait up to five minutes for the system to respond.
is activated and wait indicator • Enter Installer Setup number 38. Reconfigure minimum offis displayed.
time (if required).
System selection is not set
to Heat.
Set system selection to Heat.
(continued)
9
62-0128—2
T7200D,E SERIES 2000 COMMERCIAL MICROELECTRONIC THERMOSTATS
Troubleshooting Guide (continued).
Symptom
Cooling does not
turn on.
Possible Cause
No power to the thermostat.
Action
• Check that C terminal is connected to the system
transformer
• Check for 24 Vac between C and R or RC and Y
terminals.
— If missing 24 Vac:
— check if the circuit breaker is tripped; if so, reset the
circuit breaker.
— check if the system fuse is blown; if so, replace the
fuse.
— check if the system switch at the equipment is in
the Off position; if so, set to the On position.
— check wiring between thermostat and HVAC
equipment and replace any broken wires and
tighten any loose connections.
— If 24 Vac is present, proceed with troubleshooting.
Thermostat minimum off-time • Wait up to five minutes for the system to respond.
is activated and wait indicator • Enter Installer Setup number 33. Reconfigure minimum offis displayed.
time (if required).
System on
indicator (flame =
heat, snowflake =
cool) is displayed, but
no warm or cool air is
coming from the
registers.
62-0128—2
System selection is not set to
Cool.
Set system selection to Cool.
Conventional heating
equipment turns on the fan
when the furnace has
warmed up to a setpoint.
Wait one minute after the on indicator lights and then check
the registers.
Heating or cooling equipment Verify operation of heating or cooling equipment in system
is not operating.
test.
10
T7200D,E SERIES 2000 COMMERCIAL MICROELECTRONIC THERMOSTATS
11
62-0128—2
T7200D,E SERIES 2000 COMMERCIAL MICROELECTRONIC THERMOSTATS
By using this Honeywell literature, you agree that Honeywell will have no liability for any damages arising out of your use or modification to, the
literature. You will defend and indemnify Honeywell, its affiliates and subsidiaries, from and against any liability, cost, or damages, including
attorneys’ fees, arising out of, or resulting from, any modification to the literature by you.
Home and Building Control
Honeywell
1985 Douglas Drive North
Minneapolis, MN 55422-4386
62-0128—2 J.S. Rev. 12-98
Home and Building Control
Honeywell Limited/Honeywell Limitée
35 Dynamic Drive
Scarborough, Ontario M1V 4Z9
12
www.honeywell.com/yourhome
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
