Panasonic PT-AE2000U Operating instructions

Panasonic PT-AE2000U Operating instructions

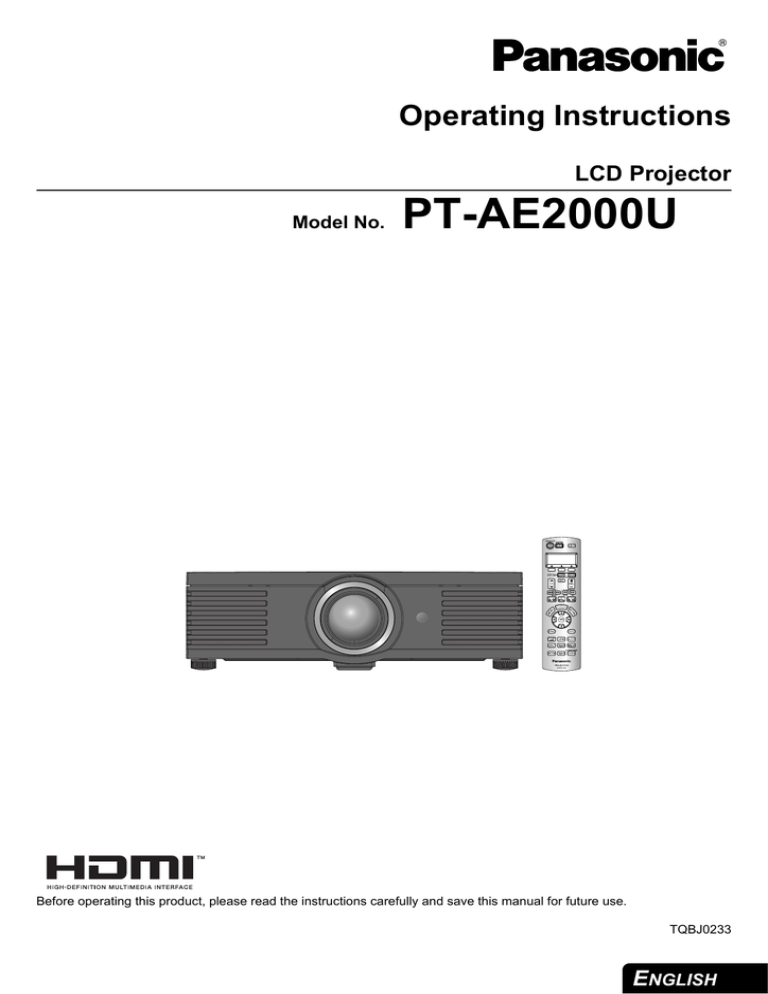

Operating Instructions
LCD Projector
Model No.
PT-AE2000U
Before operating this product, please read the instructions carefully and save this manual for future use.
TQBJ0233
ENGLISH
Important
Information
Important Safety Notice
Dear Panasonic Customer:
The following information should be read and understood as it provides details, which will enable you to operate the
projector in a manner which is both safe to you and your environment, and conforms to legal requirements regarding
the use of projectors. Before connecting, operating or adjusting this projector, please read these instructions
completely and save this booklet with the projector for future reference. We hope it will help you to get the most out
of your new product, and that you will be pleased with your Panasonic LCD projector.
The serial number of your product may be found on its bottom. You should note it in the space provided below and
retain this booklet in case service is required.
Model number:
PT-AE2000U
Serial number:
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DONOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE.
Power Supply:
CAUTION:
This LCD Projector is designed to operate on 100 V - 240 V, 50 Hz/60 Hz AC, house current
only.
The AC power cord which is supplied with the projector as an accessory can only be used for
power supplies up to 125 V, 7 A. If you need to use higher voltages or currents than this, you will
need to obtain a separate 250 V power cord. If you use the accessory cord in such situations, fire
may result.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the
user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
product.
CAUTION:
This equipment is equipped with a three-pin grounding-type power
plug. Do not remove the grounding pin on the power plug. This plug
will only fit a grounding-type power outlet. This is a safety feature. If
you are unable to insert the plug into the outlet, contact an
electrician. Do not defeat the purpose of the grounding plug.
Do not remove
NOTICE:
2 - ENGLISH
This product has a High Intensity Discharge (HID) lamp that contains mercury. Dispose may be
regulated in your community due to environmental considerations. For disposal or recycling
information, please contact your local authorities, or the Electronic Industries Alliance: http://
www.eiae.org
WARNING:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Important
Information
Important Safety Notice
-
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when
connecting to computers or peripheral devices. Any unauthorized
changes or modifications to this equipment will void the users authority to
operate.
If you use serial port to connect PC for external control of projector, you
must use optional RS-232C serial interface cable with ferrite core. Any
unauthorized changes or modifications to this equipment will void the
user’s authority to operate.
Pursuant to at the directive 2004/108/EC, article 9(2)
Panasonic Testing Center
Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, F.R. Germany
WARNING:
Not for use in a computer room as defined in the Standard for the Protection
of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.
Declaration of Conformity
Model Number:
PT-AE2000U
Trade Name:
Panasonic
Responsible party:
Panasonic Corporation of North America
Address:
One Panasonic Way, Secaucus, New Jersey 07094
Telephone number:
(888) 411 - 1996
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct
method of disposal.
ENGLISH - 3
Contents
J Quick steps
1. Set up your projector
See “Setting up” on page 14.
2. Connect with other devices
See “Connections” on page 18.
Important Information
Important Safety Notice........................................ 2
Precautions with regard to safety ....................... 6
WARNINGS................................................................. 6
CAUTIONS .................................................................. 8
Cautions when transporting......................................... 9
Cautions when installing.............................................. 9
Cautions on use ........................................................ 10
Accessories ............................................................... 10
Preparation
About Your Projector.......................................... 11
Remote control .......................................................... 11
Projector body ........................................................... 12
Getting Started
3. Prepare the remote control
See “Remote control” on page 11.
Setting up............................................................. 14
Screen size and throw distance................................. 14
Projection method...................................................... 15
Front leg adjusters and throwing angle ..................... 15
Lens shift and positioning .......................................... 16
Connections ........................................................ 18
Before connecting to the projector............................. 18
Connecting to COMPONENT IN/VIDEO IN/S-VIDEO IN ....18
Connecting to COMPUTER IN/HDMI IN ................... 18
4. Start projecting
See “Switching the projector on/off” on
page 19.
Basic Operation
Switching the projector on/off ........................... 19
Power cord ................................................................ 19
POWER indicator ...................................................... 19
Switching on the projector ......................................... 20
Switching off the projector ......................................... 20
5. Adjust the image
See “Menu Navigation” on page 28.
Projecting an image ............................................ 21
Selecting the input signal........................................... 21
Positioning the image ................................................ 21
Remote control operation .................................. 22
Operating range ........................................................ 22
Turning on the button backlight ................................. 22
Resetting to the factory default settings .................... 22
Capturing an image ................................................... 22
Switching the input signal .......................................... 23
Switching the aspect ratio.......................................... 23
Loading a saved setting ............................................ 23
Adjusting the signal condition with a waveform ......... 24
Adjusting the focus and zoom ................................... 25
Switching the picture mode ....................................... 25
Adjusting the image ................................................... 25
Switching off the projector automatically ................... 25
Setting your own color profile .................................... 26
4 - ENGLISH
Maintenance
Menu Navigation ..................................................28
TEMP and LAMP Indicators ............................... 42
Main menu and sub-menu ........................................ 28
Navigating through the MENU .................................. 30
Care and Replacement ....................................... 43
LENS CONTROL...................................................39
ZOOM/FOCUS .......................................................... 39
FUNCTION BUTTON.............................................39
BUTTON1/2/3 ........................................................... 39
OPTION menu.......................................................40
INPUT GUIDE ........................................................... 40
OSD DESIGN............................................................ 40
OSD POSITION ........................................................ 40
BACK COLOR........................................................... 40
STARTUP LOGO ...................................................... 40
AUTO SEARCH ........................................................ 40
HDMI SIGNAL LEVEL............................................... 40
FRAME RESPONSE................................................. 40
INSTALLATION......................................................... 41
SLEEP....................................................................... 41
ALTITUDE ................................................................. 41
LAMP POWER .......................................................... 41
LAMP RUNTIME ....................................................... 41
Technical Information ......................................... 47
List of compatible signals.......................................... 47
Serial terminal ........................................................... 48
Ceiling mount bracket safeguards ............................ 51
Specifications............................................................ 52
Dimensions ............................................................... 54
Trademark acknowledgements................................. 55
Index ..................................................................... 56
Preparation
Appendix
Basic Operation
H-POSITION ............................................................. 36
V-POSITION ............................................................. 36
DOT CLOCK ............................................................. 36
CLOCK PHASE......................................................... 36
ASPECT .................................................................... 36
WSS .......................................................................... 38
OVER SCAN ............................................................. 38
KEYSTONE............................................................... 38
AUTO SETUP ........................................................... 38
Troubleshooting .................................................. 46
Settings
POSITION menu ...................................................36
Cleaning the projector............................................... 43
Replacing the lamp unit ............................................ 44
Maintenance
PICTURE MODE....................................................... 31
CONTRAST .............................................................. 31
BRIGHTNESS........................................................... 31
COLOR ..................................................................... 31
TINT .......................................................................... 31
SHARPNESS ............................................................ 31
COLOR TEMPERATURE ......................................... 32
DYNAMIC IRIS.......................................................... 32
WAVEFORM MONITOR ........................................... 32
SPLIT ADJUST ......................................................... 32
ADVANCED MENU................................................... 33
MEMORY SAVE ....................................................... 34
MEMORY LOAD ....................................................... 34
MEMORY EDIT ......................................................... 35
SIGNAL MODE ......................................................... 35
Appendix
PICTURE menu.....................................................31
Managing the indicated problems ............................. 42
Getting Started
Settings
Important
Infomation
Contents
ENGLISH - 5
Important
Information
Precautions with regard to safety
WARNINGS
If you notice smoke, strange smells or noise coming
from the projector, disconnect the power plug from
the wall outlet.
Do not continue to use the projector in such cases,
otherwise fire or electric shocks could result.
Check that no more smoke is coming out, and then
contact an Authorized Service Center for repairs.
Do not attempt to repair the projector yourself, as this
can be dangerous.
Do not install this projector in a place which is not
strong enough to take the full weight of the
projector.
If the installation location is not strong enough, it may
fall down or tip over, and severe injury or damage
could result.
Installation work (such as ceiling suspension)
should only be carried out by a qualified technician.
If installation is not carried out correctly, there is the
danger that injury or electric shocks may occur.
Do not use other than an authorized ceiling mount
bracket.
If foreign objects or water get inside the projector, or
if the projector is dropped or the cabinet is broken,
disconnect the power plug from the wall outlet.
Continued use of the projector in this condition may
result in fire or electric shocks.
Contact an Authorized Service Center for repairs.
Do not overload the wall outlet.
If the power supply is overloaded (for example, by
using too many adapters), overheating may occur
and fire may result.
Never attempt to modify or disassemble the
projector.
High voltages can cause fire or electric shocks.
For any inspection, adjustment and repair work,
please contact an Authorized Service Center.
Clean the power plug regularly to prevent it from
becoming covered in dust.
If dust builds up on the power plug, the resulting
humidity can damage the insulation, which could
result in fire. Pull the power plug out from the wall
outlet and wipe it with a dry cloth.
If not using the projector for an extended period of
time, pull the power plug out from the wall outlet.
Do not handle the power plug with wet hands.
Failure to observe this may result in electric shocks.
Insert the power plug securely into the wall outlet.
If the plug is not inserted correctly, electric shocks or
overheating could result.
Do not use plugs which are damaged or wall outlets
which are coming loose from the wall.
6 - ENGLISH
Do not place the projector on top of surfaces which
are unstable.
If the projector is placed on top of a surface which is
sloped or unstable, it may fall down or tip over, and
injury or damage could result.
Do not place the projector into water or let it become
wet.
Failure to observe this may result in fire or electric
shocks.
Do not do anything that might damage the power
cord or the power plug.
Do not damage the power cord, make any
modifications to it, place it near any hot objects, bend
it excessively, twist it, pull it, place heavy objects on
top of it or wrap it into a bundle.
If the power cord is used while damaged, electric
shocks, short-circuits or fire may result.
Ask an Authorized Service Center to carry out any
repairs to the power cord that might be necessary.
Do not place the projector on soft materials such as
carpets or sponge mats.
Doing so may cause the projector to overheat, which
can cause burns, fire or damage to the projector.
Do not place liquid containers on top of the
projector.
If water spills onto the projector or gets inside it, fire
or electric shocks could result.
If any water gets inside the projector, contact an
Authorized Service Center.
Do not insert any foreign objects into the projector.
Do not insert any metal objects or flammable objects
into the projector or drop them onto the projector, as
doing so can result in fire or electric shocks.
Do not allow the + and - terminals of the batteries to
come into contact with metallic objects such as
necklaces or hairpins.
Failure to observe this may cause the batteries to
leak, overheat, explode or catch fire.
Store the batteries in a plastic bag and keep them
away from metallic objects.
Do not touch the leaked liquid from the batteries.
If you touch the leaked liquid, it may hurt your skin.
Immediately wash away the liquid with water and
seek medical advice.
If you get the leaked liquid in your eye, it may cause
blindness or damage. Never rub your eye, and
immediately wash away the liquid with water and
seek medical advice.
During a thunderstorm, do not touch the projector or
the cable.
Electric shocks can result.
Do not use the projector in a bath or shower.
Fire or electric shocks can result.
Do not place your skin into the light beam while the
projector is being used.
Strong light is emitted from the projector’s lens. If you
place directly into this light, it can hurt or damage
your skin.
Important
Information
Precautions with regard to safety
Do not look into the lens while the projector is being
used.
Strong light is emitted from the projector’s lens. If you
look directly into this light, it can hurt and damage
your eyes.
Be especially careful not to let young children look
into the lens. In addition, turn off the power and
disconnect the power plug when you are away from
the projector.
Do not place your hands or other objects close to the
air outlet port.
Heated air comes out of the air outlet port. Do not
place your hands or face, or objects which cannot
withstand heat close to this port [allow at least
50 cm (20") of space], otherwise burns or damage
could result.
Replacement of the lamp is recommended to be
carried out by a qualified technician.
The lamp has high internal pressure. If improperly
handled, explosion might result.
The lamp can easily become damaged if struck
against hard objects or dropped, and injury or
malfunctions may result.
When replacing the lamp, allow it to cool for at least
one hour before handling it.
The lamp cover gets very hot, and touching it can
cause burns.
Before replacing the lamp, be sure to disconnect the
power plug from the wall outlet.
Electric shocks or explosions can result if this is not
done.
Do not allow infants or pets to touch the remote
control unit.
The accessory remote control unit can be used to
operate not only the projector but also other
appliances such as air conditioners and electrical
device by programming them using the learning
function. If the remote control unit operated
inappropriately, fire or injury may result.
Keep the remote control unit out of the reach of
infants and pets after using it.
ENGLISH - 7
Important
Information
Precautions with regard to safety
CAUTIONS
Do not cover the air inlet port or the air outlet port.
Doing so may cause the projector to overheat, which
can cause fire or damage to the projector.
Do not place the projector in narrow, badly ventilated
places such as closets or bookshelves.
Do not place the projector on cloth or papers, as
these materials could be drawn into the air inlet port.
Do not set up the projector in humid or dusty places
or in places where the projector may come into
contact with oily smoke or steam.
Using the projector under such conditions may result
in fire, electric shocks or plastic deterioration. The
plastic deterioration may cause the falling down of
the projector which is mounted in the ceiling.
Do not set up the projector in a high temperature
environment, such as near a heater or in direct
sunlight.
Failure to observe this may result in fire, malfunction
or plastic deterioration.
Do not set up the projector outdoors.
The projector is designed for indoor use only.
When disconnecting the power cord, hold the plug,
not the cord.
If the power cord itself is pulled, the cord will become
damaged, and fire, short-circuits or serious electric
shocks may result.
Always disconnect all cables before moving the
projector.
Moving the projector with cables still attached can
damage the cables, which could cause fire or electric
shocks to occur.
Do not place any heavy objects on top of the
projector.
Failure to observe this may cause the projector to
become unbalanced and fall, which could result in
damage or injury.
Do not short-circuit, heat or disassemble the
batteries or place them into water or fire.
Failure to observe this may cause the batteries to
overheat, leak, explode or catch fire, and burns or
other injury may result.
When inserting the batteries, make sure the
polarities (+ and -) are correct.
If the batteries are inserted incorrectly, they may
explode or leak, and fire, injury or contamination of
the battery compartment and surrounding area may
result.
8 - ENGLISH
Use only the specified batteries.
If incorrect or different kind of batteries are used, they
may explode or leak, and fire, injury or contamination
of the battery compartment and surrounding area
may result.
Do not mix old and new batteries.
If the batteries are inserted incorrectly, they may
explode or leak, and fire, injury or contamination of
the battery compartment and surrounding area may
result.
Remove the used batteries from the remote control
promptly.
If you leave used batteries in the remote control for
an extended period of time, it may cause liquid
leaking, abnormal internal temperature rising or
explosion.
If not using the projector for an extended period of
time, disconnect the power plug from the wall outlet
and remove the batteries from the remote control.
If dust builds up on the power plug, the resulting
humidity may damage the insulation, which could
result in fire.
Keeping or leaving the remote control with batteries
inside may cause insulation deterioration, electrical
leakage or explosion which could result in fire.
Do not put your weight on this projector.
You could fall or the projector could break, and injury
may result.
Be especially careful not to let young children stand
or sit on the projector.
Disconnect the power plug from the wall outlet as a
safety precaution before carrying out any cleaning.
Electric shocks can result if this is not done.
If the lamp has broken, ventilate the room
immediately. Do not touch or bring your face close
to the broken pieces.
Failure to observe this may cause the user to absorb
the gas which was released when the lamp broke and
which contains nearly the same amount of mercury
as fluorescent lamps, and the broken pieces may
cause injury.
If you believe that you have absorbed the gas or that
the gas has got into your eyes or mouth, seek
medical advice immediately.
Ask your dealer about the replacement of the lamp
unit and check the inside of the projector.
Ask an Authorized Service Center to clean inside the
projector at least once a year.
If dust is left to build up inside the projector without
being cleaned out, it can result in fire or problems
with operation.
It is a good idea to clean the inside of the projector
before the season for humid weather arrives. Ask
your nearest Authorized Service Center to clean the
projector when required. Please discuss with the
Authorized Service Center regarding cleaning costs.
Important
Information
Precautions with regard to safety
We are constantly making efforts to preserve and maintain a clean environment. Please take non repairable
units back to your dealer or a recycling company.
Cautions when transporting
Do not subject the projector to excessive vibration
or shocks.
The projector lens need to be handled with care.
Cover the lens with the lens cover when transporting
the projector.
When transporting the projector, hold the body at
the bottom securely.
Do not hold the adjuster legs or the top cover to move
the projector, as this may damage the projector.
Cautions when installing
Avoid setting up in places which are subject to
vibration or shocks.
The internal parts can be damaged, which may cause
malfunctions or accidents.
Avoid setting up in places which are subject to
sudden temperature changes, such as near an air
conditioner or lighting equipment.
The life of the lamp may be shortened or the projector
may be turned off. See “TEMP indicator” on page 42.
Do not set up the projector near high-voltage power
lines or near motors.
The projector may be subject to electromagnetic
interference.
If installing the projector to the ceiling, ask a
qualified technician or an Authorized Service Center
to carry out all installation work.
You will need to purchase the separate installation kit
(Model No. ET-PKE2000, ET-PKE1000S).
Furthermore, all installation work is should only be
carried out by a qualified technician.
See “Ceiling mount bracket safeguards” on page 51
for the safety cable installation.
If using this projector at high elevations
(above 1 400 m), set the HIGHLAND to ON. See
“ALTITUDE” on page 41.
Failure to observe this may result in malfunctions or
the life of the lamp or the other components may be
shortened.
ENGLISH - 9
Important
Information
Precautions with regard to safety
Cautions on use
In order to get the best picture quality
Draw curtains or blinds over any windows and turn off
any lights near the screen to prevent outside light or
light from indoor lamps from shining onto the screen.
Do not touch the surfaces of the lens with your bare
hands.
If the surface of the lens becomes dirty from
fingerprints or anything else, this will be magnified
and projected onto the screen. Moreover, when not
using the projector, attach the lens cover.
Liquid crystal panel
Do not project the same image for long periods of
time, as this may remain as an afterimage on the
liquid crystal panel.
The liquid crystal panel of the projector is built with
very high precision technology to provide fine picture
details. Occasionally, a few stuck pixels may appear
on the screen as fixed points of blue, green or red. It
is recommended to switch off the projector once and
try after 1 hour later again. Please note that this does
not affect the performance of your LCD.
The projector has a high pressure mercury lamp and
that is characterized as follows.
The brightness of the lamp depends on the duration
of use.
The lamp may explode or shorten the lamp life by
shocks or chipping damage.
The lamp may explode only occasionally after using
the projector.
The lamp may explode if using the projector after the
instructed lamp replacement timing.
The lamp life is depends on individual lamp
characteristics, usage condition and the installation
environment. Especially the consecutive use of the
projector for more than 10 hours, or the frequent
switching on or off may greatly affect on the lamp life.
Screen
Do not apply any volatile substances which may
cause discoloration to the screen, and do not let it
become dirty or damaged.
Optical components
If you use the projector consecutively 6 hours every
day, the optical components may need to be replaced
in less than 1 year.
Accessories
Make sure the following accessories are provided with your projector.
Remote control for
PT-AE2000U (x1)
EUR7914Z60
AA batteries for remote
control (x2)
Power cord (x1)
K2CG3FZ00008
3 m (9'10")
10 - ENGLISH
Safety cable
TTRA0141
Attachment screw (x1)
Safety cable (x1)
Lens cover (x1)
TXFKK01VKF5
About Your Projector
POWER button
While the MAIN POWER
button is on, switch between
stand-by mode and projection
mode. (page 19)
Remote control signal emitter
Remote control signal. (page 22)
Display the main menu or
return to the previous menu.
(page 30)
Turn the button backlight
of the remote control on/
off. (page 22)
Navigate through the
menus with FGIH,
and activate the menu
item with ENTER.
(page 30)
Preparation
Remote control
Function buttons
Assign the frequently used functions
from the options for shortcut. (page 39)
Reset some of the settings
to the factory default
settings. (page 22)
Learning remote control buttons and
LCD
Program and operate other devices.
See “Remote Control Operating Guide”
which is provided with the projector.
Battery compartment
1. Press the tab and lift up the cover.
2. Insert the batteries according to the
polarity diagram indicated inside.
Return to the previous menu.
(page 30)
Capture the projected
image as a still image.
(page 22)
Switch to cycle through
the input method.
(page 23)
Display the LENS
CONTROL menu and
adjust the focus and size
of the image. (page 25)
Turn off the power
automatically by setting
the duration. (page 25)
Switch to cycle through
the aspect ratio.
(page 23)
Switch to cycle through
the PICTURE MODE.
(page 25)
Display the MEMORY
LOAD menu. (page 23)
Display the input
waveform. (page 24)
Display the PICTURE
menu. (page 25)
Display the COLOR
MANAGEMENT menu.
(page 26)
NOTE:
•
•
•
•
•
•
•
Do not drop the remote control.
Avoid contact with liquids or moisture.
Use manganese batteries or alkaline batteries with the remote control.
Do not attempt to modify or disassemble the remote control. Contact an Authorized Service Center for repairs.
Do not keep pressing the remote control buttons as this may shorten battery life.
Do not point the laser in other people’s eyes or stare into beam.
See “Remote control operation” on page 22.
ENGLISH - 11
About Your Projector
Projector body
J Top and front view
Preparation
Air exhaust port
Heated air comes out of
this opening.
Lens shift dial • Vertical
(page 16)
Lens shift dial • Horizontal
(page 16)
POWER/LAMP/TEMP
indicators
(page 19/page 42)
Air filter
(page 43)
MAIN POWER
Switch the projector on/off
(page 20)
Projection lens
Lens cover
Protects the projection lens
from dust or dirt.
Remote control signal
receptor
(page 22)
Air exhaust port
Heated air comes
out of this opening.
INPUT SELECT
Switch to cycle through the
input method. (page 21)
Navigate through the menus with F G H I,
and activate the menu item with ENTER.
(page 30)
(Push to open/close the cover.)
POWER
While the MAIN POWER is on, switch between
stand-by mode and project mode. (page 19)
MENU
Display the main menu.
Return to the previous menu. (page 30)
RETURN
Return to the previous menu.
(page 30)
FOCUS and ZOOM
Adjust the focus and size of the
image. (page 21)
NOTE:
• Do not cover the ventilation openings or place anything within 50 cm (20") of them as this may cause damage or injury.
• While the projector is not in use, keep the lens cover to protect the lens.
12 - ENGLISH
About Your Projector
Air intake port
Security lock
Attach the commercial shackle lock
which is provided with the projector.
Compatible with the Kensington
MicroSaver Security System.
(page 51)
Top cover
Hold at the back corner of the top
cover and slightly push up to open.
(page 44)
Preparation
J Back and bottom view
Air intake port
AC IN
Connect the power cord to
supply electronic power to the
projector. (page 19)
Safety cable attachment point
Attach the safety cable when
mounted in the ceiling.
(page 51)
Front leg adjusters
Screw up/down to adjust the
projection angle. (page 15)
Lens cover attachment hole
COMPUTER IN
Connect an RGB signal cable
from your PC.
Front leg adjusters
Screw up/down to adjust the
projection angle. (page 15)
COMPONENT IN
Connect YPBPR signal cables.
S-VIDEO IN
Connect a S-VIDEO
signal cable.
VIDEO IN
Connect an RCA
composite video cable.
Connecting
terminals
(page 18)
HDMI IN
Connect HDMI signal cables.
SERIAL
Connect a compatible cable for
controlling the projector
remotely via your computer.
(page 48)
NOTE:
• Do not cover the ventilation openings or place anything within 50 cm (20") of them as this may cause damage or injury.
• The projector should only be used with the attached power cord to ensure optimum performance and avoid damage to the
projector.
• Do not open the top cover other than replacing the lamp unit.
ENGLISH - 13
Setting up
Screen size and throw distance
Projected image
SH
You can adjust the projection size with 2.0x zoom lens. Calculate and define the throw distance as follows.
SD
SW
Screen
Getting Started
Projection size (16 : 9)
Screen Diagonal
(SD)
Screen height (SH)
Throw distance (L)
Screen width (SW)
Minimum distance
(LW)
Maximum distance
(LT)
1.01 m
(40")
0.50 m (1'7")
0.89 m (2'11")
1.2 m (3'11")
2.3 m
1.27 m
(50")
0.62 m
(2')
1.11 m (3'7")
1.5 m (4'11")
2.9 m
1.52 m
(60")
0.75 m (2'5")
1.33 m (4'4")
1.8 m (5'10")
3.5 m
1.77 m
(70")
0.87 m (2'10")
1.55 m (5'1")
2.1 m (6'10")
4.1 m
2.03 m
(80")
1.00 m (3'3")
1.77 m (5'9")
2.4 m (7'10")
4.7 m
2.28 m
(90")
1.12 m (3'8")
1.99 m (6'6")
2.7 m (8'10")
5.3 m
2.54 m (100")
1.25 m (4'1")
2.21 m (7'3")
3.0 m (9'10")
5.9 m
3.05 m (120")
1.49 m (4'10")
2.66 m (8'8")
3.6 m (11'9")
7.2 m
3.81 m (150")
1.87 m (6'1")
3.32 m (10'10")
4.5 m (14'9")
9.0 m
5.08 m (200")
2.49 m (8'2")
4.43 m (14'6")
6.0 m (19'8")
12.0 m
* All measurements above are approximate and may differ slightly from the actual measurements.
J Calculation methods for screen dimensions
You can calculate more detailed screen dimension from the screen diagonal.
SW (m) = SD (m) x 0.872
SH (m) = SD (m) x 0.490
LW (m) = 1.189 x SD (m) - 0.04
LT (m) = 2.378 x SD (m) - 0.05
* The results above are approximate and may differ slightly from the actual measurements.
NOTE:
• Do not use the projector at a raised or a horizontally tilted position as it may cause
malfunction of the projector.
• Make sure the projector lens surface is parallel with the screen. You can tilt the projector
body less than approximately ± 30° vertically. Overtilting may result in shortening the
component’s life.
• For the best quality of the projection image, install a screen where sun light or room light
does not shine directly onto the screen. Close window shades or curtains to block the lights.
14 - ENGLISH
(7'6")
(9'6")
(11'5")
(13'5")
(15'8")
(17'4")
(19'4")
(23'7")
(29'6")
(39'4")
Setting up
Projection method
You can use the projector with any of the following 4 projection methods. To set the desired method in the projector,
See “INSTALLATION” on page 41.
INSTALLATION: FRONT/DESK
J Mounting in the ceiling and
projecting from front
INSTALLATION: FRONT/CEILING
J Setting on a desk/floor and
projecting from rear
INSTALLATION: REAR/DESK
J Mounting in the ceiling and
projecting from rear
Getting Started
J Setting on a desk/floor and
projecting from front
INSTALLATION: REAR/CEILING
NOTE:
• A translucent screen is required for rear projection.
• When mounting the projector in the ceiling, the optional ceiling mount bracket (ET-PKE2000, ET-PKE1000S) is required.
• See “Ceiling mount bracket safeguards” on page 51.
Front leg adjusters and throwing angle
You can screw up/down the front leg adjusters to control the angle of the projector for adjusting the throwing angle.
See “Positioning the image” on page 21.
NOTE:
• Heated air comes out of the air exhaust port. Do not touch the air exhaust port directly.
• If keystone distortion occurs, see “KEYSTONE” on page 38.
• Screw up the adjuster legs, and an audible click will be heard as the limit.
ENGLISH - 15
Setting up
Lens shift and positioning
If the projector is not positioned right in front of the center of the screen, you can adjust the projected image position
by moving the lens shift dials within the shift range of the lens.
J Adjusting the lens shift dials
Q Horizontal shift
You can place the projector where the projector lens is up to 40% horizontally off-center from the screen and
then adjust the image position with the Lens shift dial • Horizontal.
Up to about 40 %
of the projection
Up to about 40 %
of the projection
Getting Started
Turn the dial clockwise:
Moving to screen’s right
Turning the dial counterclockwise:
Moving to screen’s left
Q Vertical shift
You can place the projector where the projector lens is up to 100% vertically off-center from the screen and the
adjust the image position with the Lens shift dial • Vertical.
Shifting the lever down:
Moving to screen’s bottom.
Up to about 100 %
of the projection
Up to about 100 %
of the projection
Shifting the lever up:
Moving to screen’s top.
16 - ENGLISH
Setting up
J Projector location range
You can determine where to locate the screen and the projector by considering the lens shift possibilities. See
“Positioning the image” on page 21.
Q When the screen position is fixed
H
Projector
Placement
V
Vertical center of
screen
Screen
Getting Started
Center of lens
SH
SW
Q When the projector position is fixed
Shift range
100%
100%
40%
40%
Projector
NOTE:
• When the projector is located right in front of the screen and the lens shift dials is centered, you will get the best quality of
the projection image.
• When the Lens shift dial • Vertical is at the vertical limit of the shift range, you cannot turn the dial to the horizontal limit,
likewise when the Lens shift dial • Horizontal is at the horizontal limit of the shift range, you cannot turn the dial to the
horizontal limit.
• When the projector is tilted and you adjust KEYSTONE, the center of the screen and the lens need to be realigned.
• Do not force the lens shift dials to turn as this may damage the projector. Turning the dials maximum limit is 4 or 5 times
from the default position.
ENGLISH - 17
Connections
Before connecting to the projector
Read and follow the operating and connecting instructions of each peripheral device.
The peripheral devices must be turned off.
Use cables that match each peripheral device to be connected.
Confirm the type of video signals. See “List of compatible signals” on page 47.
Audio cables must be connected from each peripheral device directly to the audio reproduction system.
Connecting to COMPONENT IN/VIDEO IN/S-VIDEO IN
\
Getting Started
To COMPONENT
video output
To VIDEO output
DVD player
Video player
To S-VIDEO output
DVD player
Connecting to COMPUTER IN/HDMI IN
RGB signal cable
(Commercial item)
HDMI cable
(RP-CDHG100: Optional))
To HDMI output
DVD player
Computer
NOTE:
• Make sure the HDMI cable is adapted to your HDMI device for proper performance.
• A compatible cable is required for an HDMI 1 080p signal.
• It is possible to connect with DVI devices via a HDMI/DVI conversion adapter, but some equipment may not project the
image properly or other problems could be encountered. “Serial terminal” on page 48
18 - ENGLISH
Switching the projector on/off
Power cord
J Connecting
J Disconnecting
1. Make sure the shape of
the power plug and the
AC IN connector on the
back of the projector
match, then push the plug all the way in.
2. Connect the power cord to a wall outlet.
1. Make sure the MAIN POWER is switched off and
unplug the power cord from the wall outlet.
2. Hold the plug and unplug the power cord from the
AC IN connector on the side of the projector.
NOTE:
•
•
•
•
•
Do not use other than the provided power cord.
Ensure all the input devices are connected and turned off before connecting the power cord.
Do not force the connector as this may damage the projector and/or the power cord.
Dirt or dust build-up around plugs may cause fire or electrical hazards.
Switch off the power to the projector when not in use.
Basic Operation
POWER indicator
POWER indicator
Indicator status
Status
No illumination or flashing
Red
Green
Orange
Lit
Flashing
The MAIN POWER button is switched off.
The MAIN POWER button is switched on and the projector is in standby.
The POWER button is switched on and the projector is getting ready to project.
Lit
The projector is ready to project.
Lit
The POWER button is switched off and the projector is cooling the lamp.
Flashing
The POWER button is switched on again when cooling the lamp and recovering to
projection mode. Recovery may take a while.
NOTE:
• While the projector is cooling the lamp, do not switch the MAIN POWER button off or unplug the power cord.
• The electric consumption in standby mode is 0.08 W.
ENGLISH - 19
Switching the projector on/off
Switching on the projector
POWER indicator
(1)
(3)
(2)
3. Press the POWER button.
1. Switch the MAIN POWER button on.
The power indicator lights up in red.
The power indicator lights up in green after flashing
for a while.
The STARTUP LOGO is displayed on the screen.
See “STARTUP LOGO” on page 40.
2. Remove the lens cover from the lens.
NOTE:
Basic Operation
• When starting up the projector, some small rattling or tinkling sound may be heard, or the display may flicker for the
characteristics of the lamp. Those are normal and do not affect the performance of the projector.
• Do not attempt to modify the lens cover which may cause burns, fire or damage to the projector.
Switching off the projector
POWER indicator
(3)
(1)
(2)
1. Press the POWER button.
The confirmation screen is displayed. It will
disappear and return to the projection after
10 seconds without any operation.
To return to the projection, press any button except
the POWER button.
2. Press I to select OK and press the POWER or
ENTER button.
The power indicator lights up in orange while cooling
the lamp, then illuminates red when it is ready to
switch off the MAIN POWER button.
3. Switch off the MAIN POWER button on the back of
the projector.
NOTE:
• Press the POWER twice or for a long duration to switch the power off.
20 - ENGLISH
Projecting an image
Selecting the input signal
1. Switch on the connected devices.
Press the play button of the required device.
2. Press the INPUT button to select the required input
method if needed. See “Switching the input signal”
on page 23.
NOTE:
• AUTO SEARCH is ON as default and the signal from
the connected devices is detected automatically. See
“AUTO SEARCH” on page 40.
The image will be projected on the screen.
Positioning the image
4. Adjust the focus and the projected image size.
Press +/- of the FOCUS and ZOOM buttons to
adjust.
Press the LENS button to adjust the focus and zoom
by the remote control. See........................
3. Adjust the angle of the projector.
Screw down the front leg adjusters and adjust the
angle vertically.
See “Front leg adjusters and throwing angle” on
page 15.
NOTE:
• Do not touch the air exhaust port as this may cause
burns or injury.
• If keystone distortion occurs, see “KEYSTONE” on
page 38.
• If you adjust the focus, you may need to adjust the size
of the image by pressing the ZOOM button again.
Basic Operation
1. Press the ASPECT button to select the required
aspect mode. See “Switching the aspect ratio” on
page 23.
2. Adjust the projected image with the lens shift dials.
See “Lens shift and positioning” on page 16.
ENGLISH - 21
Remote control operation
Operating range
You can operate the projector with the remote control
within the remote range 7 m (22'11").
Q Facing to the projector
Ensure the remote control emitter is facing to the
remote control signal receptor on front/back of the
projector and press the required buttons to
operate.
Q Facing to the screen
Ensure the remote control emitter is facing to the
screen and press the required buttons to operate
the projector. The signal will be reflected off the
screen. The operating range may differ due to the
screen material. This function may not be effective
with a translucent screen.
NOTE:
Basic Operation
• Do not let strong light shine onto the signal receptor.
The remote control may malfunction under strong light
such as fluorescent.
• If there are any obstacles between the remote control
and the remote control signal receptor, the remote
control may not operate correctly.
Turning on the button backlight
In a dark room, you can turn on the button
backlight to operate the remote control.
Press the LIGHT button on the upper right
corner of the unit to turn on the backlight and
enter the light-on mode.
After 30 seconds without any operation, the backlight will
go out and press any but the LIGHT button to turn on
again. To escape from the light-on mode, press the
LIGHT button.
Resetting to the factory default settings
You can reset most of the customized
settings to the factory defaults by pressing
DEFAULT button of the remote control.
Display the required sub-menu or the menu
items and press the button again.
NOTE:
• Some menu items are not available to reset by pressing
the DEFAULT button. Adjust each menu items
manually.
Capturing an image
When projecting an image, press FREEZE
button to capture the projected image and
display it on the screen as a still picture. Press
again to escape.
22 - ENGLISH
You can adjust AREA SELECT of the SPLIT ADJUST
menu by pressing the ENTER button while the frozen
image is displayed. See “SPLIT ADJUST” on page 32.
Remote control operation
Switching the input signal
You can switch the input method manually
by pressing the INPUT button. Press the
button several times or press I H to cycle
through the input methods as follows. The
actual projected image will be changed in a
while.
The graphical guidance will be displayed on the upper
right of the projected image and you can confirm the
selected input method which is highlighted in yellow. See
“INPUT GUIDE” on page 40.
COMPONENT 1 IN
COMPONENT 2 IN
COMPONENT 1 IN
COMPONENT 2 IN
S-VIDEO IN
VIDEO IN
HDMI 1 IN
HDMI 2 IN
COMPUTER IN
S-VIDEO IN
HDMI 3 IN
VIDEO IN
HDMI 2 IN
HDMI 1 IN
HDMI 3 IN
COMPUTER IN
COMPONENT (YPBPR) signals
from the equipment connected to
COMPONENT IN 1/
COMPONENT IN 2.
S-VIDEO signal from the equipment
connected to S-VIDEO IN.
VIDEO signal from the equipment
connected to VIDEO IN.
HDMI signal from the equipment
connected to HDMI IN 1/HDMI IN 2/
HDMI IN 3.
COMPUTER (RGB) signal from the
equipment connected to
COMPUTER IN.
• If you select an unplugged input method, the guidance will blink on and off several times.
• See “List of compatible signals” on page 47.
• See “Connections” on page 18.
Switching the aspect ratio
The aspect ratio will be selected
automatically, or you can switch it manually
by pressing the ASPECT button. Press the
button several times to cycle through the
different aspect type as follows. See
“ASPECT” on page 36.
Q VIDEO/S-VIDEO/COMPONENT (YPBPR)
4:3
JUST
16:9
ZOOM2
14:9
ZOOM1
Q COMPUTER (RGB)
4:3
Q HDMI
4:3
16:9
NOTE:
Basic Operation
NOTE:
• If you project an image with an unmatched aspect ratio,
the image may distort or some portions may be
cropped. Select an aspect ratio which preserves the
intention of the image creator.
• The order of aspect type is defined not only by the input
method but also by the input signals. See “List of
compatible signals” on page 47.
• If you project a copyrighted image enlarged or distorted
by using ASPECT function in commercial use in a
public place, such as a restaurant or hotel, you might
infringe on the copyright of the creator which is
protected by copyright law.
16:9
Loading a saved setting
You can access saved settings instantly.
See “MEMORY LOAD” on page 34.
1. Select the required setting from MEMORY1 - 16.
NOTE:
• If you have not saved any settings, MEMORY1 - 16
will not be displayed.
Undefined setting will not be displayed.
2. Press ENTER to activate the selected setting.
ENGLISH - 23
Remote control operation
Adjusting the signal condition with a waveform
You can display the image brightness and
contrast level of the input signal with a
waveform. See “WAVEFORM MONITOR”
on page 32.
100%
Monitoring the waveform of
brightness and contrast of the whole
image.
Monitoring the waveform of
SINGLE LINE SCAN brightness and contrast in each
horizontal line of the image.
FULL SCAN
COMPUTER (except 1080)
HDMI (Expand)
Adjust to 100%
Adjust to 100%
50%
0%
ENTER
ENTER
50%
0%
Adjust to 0%
J Displaying the waveform
Basic Operation
1. Press the WAVEFORM button and display the
waveform monitor.
Press the WAVEFORM button again to escape from
the waveform mode.
2. Press ENTER button until the required waveform
option is displayed.
In FULL SCAN mode, press F G I H to change
the waveform position.
In SINGLE LINE SCAN mode, press F G to select
the required line position.
FULL SCAN(Y)
SINGLE LINE SCAN(B)
FULL SCAN(R)
SINGLE LINE SCAN(G)
FULL SCAN(G)
SINGLE LINE SCAN(R)
FULL SCAN(B)
SINGLE LINE SCAN(Y)
NOTE:
• In SINGLE LINE SCAN mode, the position of the
waveform monitor depends on the position of the
selected line.
• You can display the main menu by pressing the MENU
button and adjust the menu items.
• The called up menu items displayed position depends
on the position of the waveform monitor.
• You can activate AUTO ADJUST of the WAVEFORM
menu by pressing the DEFAULT button.
• The signal which is lower than 0% in the waveform will
be displayed as same as 0% on the projected image.
• While the waveform is displayed, the image is
displayed without the COLOR MANAGEMENT
adjustment.
• When adjusting the KEYSTONE of the POSITION
menu while the waveform is displayed, xvYCC will be
deactivated.
24 - ENGLISH
100%
Optimal
dynamic range
Monitor position
Signal level
Signal level
100%
50%
0%
Optimal
dynamic range
Adjust to 0%
Monitor position
J Adjustment example
Project a commercial test signal for picture
adjustment on the screen and press the
WAVEFORM button.
Q Adjusting with luminance options
1. Press the ENTER button until FULL SCAN(Y)/
SINGLE LINE SCAN(Y) is displayed.
2. Press the PIC. ADJUST to display the PICTURE
MODE of the PICTURE menu.
3. Press G several times to display the
BRIGHTNESS.
4. Adjust the BRIGHTNESS by pressing I H.
Adjust the bottom line of the waveform to 0%
(0 or 7.5 IRE).
Setting range: -32 to +32
5. Press G once to display the CONTRAST.
6. Adjust the CONTRAST by pressing I H.
Adjust the bottom line of the waveform to 100%
(100 IRE).
Setting range: -64 to +64
FULL SCAN(Y)/SINGLE LINE SCAN(Y)
Adjust the bottom line of the
BRIGHTNESS
waveform to 0% (0 IRE or 7.5 IRE)
Adjust the top line of the waveform
CONTRAST
to 100% (100 IRE)
Remote control operation
Q Adjusting with RGB options
1. Press the ENTER button until the required option
is displayed.
2. Press the PIC. ADJUST twice to display the
GAMMA of the ADVANCED MENU menu.
3. Press G several times to display the required
brightness option.
4. Adjust the brightness option by pressing I H.
Adjust the bottom line of the waveform to 0%
(0 IRE or 7.5 IRE).
Setting range: -16 to +16
5. Press G once to display the required contrast
option.
6. Adjust the contrast option by pressing I H.
Adjust the top line of the waveform to 100%
(100 IRE).
Setting range: -32 to +32
FULL SCAN(R)/SINGLE LINE SCAN(R)
Adjust the bottom line of the
BRIGHTNESS R
waveform to 0% (0 IRE or 7.5 IRE)
Adjust the top line of the waveform
CONTRAST R
to 100% (100 IRE)
FULL SCAN(G)/SINGLE LINE SCAN(G)
Adjust the bottom line of the
BRIGHTNESS G
waveform to 0% (0 IRE or 7.5 IRE)
Adjust the top line of the waveform
CONTRAST G
to 100% (100 IRE)
FULL SCAN(B)/
Adjust the bottom line of the
BRIGHTNESS B
waveform to 0% (0 IRE or 7.5 IRE)
Adjust the top line of the waveform
CONTRAST B
to 100% (100 IRE)
Adjusting the focus and zoom
display the LENS CONTROL menu. See “LENS
CONTROL” on page 39.
Switching the picture mode
You can switch the preset picture mode
settings by pressing the PIC. MODE button.
Press the button until the required setting is
selected. See “PICTURE MODE” on page 31.
NORMAL
CINEMA3
DYNAMIC
CINEMA2
COLOR1
COLOR2
CINEMA1
Basic Operation
You can adjust the focus and zoom of the
projected image. Press the LENS button to
Adjusting the image
You can display the PICTURE and
ADVANCED MENU menu items with called
up style by pressing the PIC. ADJUST
button. Press the button to switch between
PICTURE and ADVANCED MENU menu. Press F G to
select the required menu item and I H to adjust.
Q PICTURE menu items
PICTURE MODE, CONTRAST, BRIGHTNESS,
COLOR, TINT, SHARPNESS, COLOR
TEMPERATURE and DYNAMIC IRIS
Q ADVANCED MENU items
GAMMA, CONTRAST, BRIGHTNESS, xvYCC,
DETAIL CLARITY, NR, MPEG NR, CINEMA
REALITY and TV-SYSTEM
NOTE:
• For each menu items description, see “PICTURE
menu” on page 31.
• The screen will be cleared after 7 seconds without
any operation.
Switching off the projector automatically
You can switch off the POWER
automatically by setting the SLEEP feature.
Press the SLEEP button several times to
cycle through the duration of time. See
“SLEEP” on page 41.
OFF
240MIN.
60MIN.
210MIN.
90MIN.
180MIN.
120MIN.
150MIN.
ENGLISH - 25
Remote control operation
Setting your own color profile
You can adjust a selected color individually
and save and retrieve under the PICTURE
MODE setting. Press the COLOR M. button
to open the menu.
3. Select a menu item and the I H to adjust each
item level.
The result box is displayed on the right of the cursor
and shows the adjusted color.
CURSOR
RETURN
PROFILE
NORMAL
CURSOR
LOG
PROFILE SAVE
PROFILE DELETE
PROFILE NAME CHANGE
SELECT
ENTER
DEFAULT
COLOR
TINT
BRIGHTNESS
Adjusted color
J Create a new profile
Q Adjusting the selected color
Select a color and adjust COLOR, TINT and
BRIGHTNESS.
1. Select the CURSOR menu and press ENTER.
Basic Operation
The projected image is captured, and the target
cursor is displayed.
When the LOG is fully stored, the target cursor will
not be displayed. See “Managing stored logs” on
page 26.
Target cursor
Adjust the vividness of the color.
Setting range: -30 to +30
Adjust the color tone.
TINT
Setting range: -30 to +30
Adjust the brightness of the color.
BRIGHTNESS
Setting range: -20 to +20
COLOR
4. Press ENTER to store the adjusted result.
“PROCESSING” is displayed for a few seconds and
the result is stored in LOG.
You can store up to 8 logs under LOG for each
PICTURE MODE setting.
5. Press MENU or RETURN to return to the previous
menu.
Repeat the steps above to store more adjustment.
Q Managing stored logs
You can edit or delete the stored logs of the
selected PICTURE MODE.
1. Select LOG and press ENTER.
The LOG menu is displayed.
2. Move the cursor with F G I H to the required
place to select a color and press ENTER.
The color at the center of the target cursor is
sampled and the sample box is displayed on the left
of the cursor. The menu items are displayed on the
upper part of the screen.
PICTURE MODE : CINEMA1
POINT1
POINT2
POINT3
POINT4
POINT5
POINT6
POINT7
CURSOR
RETURN
SELECT
ENTER
DEFAULT
Sampled color
COLOR
TINT
BRIGHTNESS
POINT8
ALL DELETE
Sampled color
Adjusted color
2. Select the required log from 1 - 8 or ALL DELETE,
and press ENTER.
Select CHANGE to edit the log.
The cursor menu is displayed and you can readjust
the color.
Select DELETE to delete the log.
The confirmation screen will be displayed. Select OK
to delete.
When you select ALL DELETE, the "DELETE ALL
LOG." screen is displayed. Select OK to delete all
logs. The PROFILE setting will be set to NORMAL.
26 - ENGLISH
Remote control operation
Return to the COLOR MANAGEMENT menu and
save the stored log as a profile. Make sure that the
PICTURE MODE is not switched.
1. Select the PROFILE SAVE menu and press
ENTER
The PROFILE SAVE menu is displayed. You can
save the profile as USER1, USER2 and USER3.
USER1
USER2
USER3
Q Changing the profile names
1.
2.
3.
4.
2. Press ENTER to save the profile
The confirmation screen is displayed. Press ENTER
again to save.
3. Use F G I H to specify the location of the
required character to enter and press the ENTER
button.
You can enter up to 14 characters.
PROFILE NAME INPUT
ALL DELETE
You can change the name of the profiles from the
PROFILE NAME CHANGE menu.
Select PROFILE NAME CHANGE and press the
ENTER button.
Select the required profile and press the ENTER
button.
Use F G I H to specify the location of the
required character to enter and press the ENTER
button.
Select OK and press the ENTER button to set the
entered text as a name.
Q Loading saved profiles
When profiles are loaded under the PICTURE
MODE setting, you can keep them as you defined
until the PROFILE is set to NORMAL.
1. Select the required PICTURE MODE and press
ENTER.
2. Press the COLOR M. button and select the
PROFILE menu.
The profile settings of the selected PICTURE MODE
will be displayed.
3. Select the required profile and press ENTER.
NORMAL
Return to the default setting of the
PICTURE MODE menu.
USER1
OK
CANCEL
4. Repeat step 3 until you finish the text line.
Move cursor to ALL DELETE and press the ENTER
button to delete all the entered text line.
Press the DEFAULT button to delete the last entered
character or indicated with cursor in the text box.
To insert a character in the entered text line, move
the cursor to the text box to select the required place
and press G then perform step 4.
5. Select OK and press the ENTER button to set the
entered text as a name.
Press the ENTER button without entering any text to
keep the default name.
Q Deleting the saved profiles
You can delete the profiles from PROFILE
DELETE menu.
1. Select PROFILE DELETE and press the ENTER
button.
2. Select the required profile or ALL DELETE and
press the ENTER button.
USER2
Defined profile settings.
USER3
NOTE:
Basic Operation
Q Saving a log setting as a profile
• LOG and PROFILE SAVE are not displayed before
you apply COLOR MANAGEMENT.
• If you load a profile with a different attribute mode of
the profile, the CURSOR and PROFILE SAVE
menus will not be displayed.
• The approximate colors will be adjusted at the same
time. If you adjust the exact same color differently,
both colors will affect each other and you might get
unexpected results.
• White, Black and Gray are not adjustable.
• If you escape the COLOR MANAGEMENT menu or
attempt to perform another menu action before you
save the adjusted profile, the confirmation screen will
be displayed.
• If you switch the input signal before you save the
profile, the setting will be cancelled without notice.
The confirmation screen will be displayed and select
OK.
3. Press the ENTER button.
ENGLISH - 27
Menu Navigation
The menu system allows you to access functions which do not have their own dedicated buttons on the remote
control. The menu options are structured and categorized. You can navigate through the menu with F G H I
buttons.
Main menu and sub-menu
NOTE:
• Some default settings vary by the selected input signal.
• Sub-menu items vary according to the selected input signal.
• Some settings are adjustable without any signals.
Main menu
Sub-menu
PICTURE MODE
NORMAL
COLOR2
CINEMA3
CONTRAST
BRIGHTNESS
COLOR
TINT
SHARPNESS
COLOR TEMPERATURE
DYNAMIC IRIS
WAVEFORM MONITOR
•
•
•
•
•
•
SPLIT ADJUST
ADVANCED MENU
Settings
MEMORY SAVE
MEMORY LOAD
MEMORY EDIT
SIGNAL MODE*1
*1. COMPUTER/COMPONENT/HDMI signals only
28 - ENGLISH
Options (Underlined is default setting)
DYNAMIC
CINEMA1
COLOR1
CINEMA2
Default: 0
Default: 0
Default: 0
Default: 0
Default: 0
Default: 0
ON
OFF
FULL SCAN(Y)
FULL SCAN(R)
FULL SCAN(G)
FULL SCAN(B)
OFF
SINGLE LINE SCAN(Y)
SINGLE LINE SCAN(R)
SINGLE LINE SCAN(G)
SINGLE LINE SCAN(B)
MONITOR POSITION
AUTO ADJUST
AREA SELECT
NORMAL
REVERSE
SPLIT ADJUST MODE
GAMMA
GAMMA HIGH
• Default: 0
GAMMA MID
• Default: 0
GAMMA LOW
• Default: 0
CONTRAST
CONTRAST R
• Default: 0
CONTRAST G
• Default: 0
CONTRAST R
• Default: 0
BRIGHTNESS
BRIGHTNESS R
• Default: 0
BRIGHTNESS G
• Default: 0
BRIGHTNESS B
• Default: 0
COLOR MANAGEMENT PROFILE
CURSOR
LOG
PROFILE SAVE
PROFILE DELETE
PROFILE NAME CHANGE
xvYCC
ON
OFF
DETAIL CLARITY
ON
OFF
NR
ON
OFF
MPEG NR
ON
OFF
CINEMA REALITY
ON
OFF
TV-SYSTEM
AUTO
SECAM
PAL-N
PAL-M
PAL
NTSC 4.43 NTSC
MEMORY1 - 16
MEMORY1 - 16
MEMORY DEL
MEMORY NAME CHANGE
Page
page 31
page 31
page 31
page 31
page 31
page 31
page 32
page 32
page 32
page 32
page 33
page 34
page 34
page 35
page 35
Menu Navigation
Main menu
POSITION
Sub-menu
H-POSITION
V-POSITION
DOT CLOCK*1
PHASE*2
CLOCK
ASPECT
Options (Underlined is default setting)
•
•
•
•
Page
Default: 0
Default: 0
Default: 0
Default: 0
4:3
ZOOM1
page 36
page 36
page 36
16:9
ZOOM2
page 36
page 36
14:9
JUST
WSS*3
OVER SCAN*4
KEYSTONE
LENS CONTROL
FUNCTION
BUTTON
page 38
• Default: 0
• Default: 0
page 38
page 38
AUTO SETUP*5
ZOOM/FOCUS
page 38
page 39
BUTTON1
BUTTON2
BUTTON3
page 39
LANGUAGE
INPUT GUIDE
OSD DESIGN
OSD POSITION
BACK COLOR
STARTUP LOGO
AUTO SEARCH
HDMI SIGNAL LEVEL
FRAME RESPONSE
INSTALLATION
SLEEP
ALTITUDE
LAMP POWER
LAMP RUNTIME
*1.
*2.
*3.
*4.
*5.
DETAILED
TYPE1
UPPER LEFT
SIMPLE
OFF
TYPE2
TYPE3
UPPER CENTER
UPPER RIGHT
CENTER
LOWER LEFT
LOWER CENTER LOWER RIGHT
BLUE
BLACK
ON
OFF
ON
OFF
NORMAL
EXPAND
NORMAL
FAST
FRONT/DESK
FRONT/CEILING
REAR/DESK
REAR/CEILING
OFF
60MIN.
90MIN.
120MIN.
150MIN.
180MIN.
210MIN.
240MIN.
LOW
HIGH
NORMAL
ECO-MODE
page 40
page 40
page 40
page 40
page 40
page 40
page 40
page 40
page 41
Settings
OPTION
page 41
page 41
page 41
page 41
COMPUTER signals only
COMPUTER/COMPONENT signals only
VIDEO/S-VIDEO/COMPONENT signals only
Not available with COMPUTER signals
COMPUTER signals only
ENGLISH - 29
Menu Navigation
Navigating through the MENU
J Displaying the main menu
J Operating procedure
Press the MENU button to display the main
menu and the operating guidance.
Main menu
Current
settings
Sub-menu
1. Press F G to scroll to the required main menu
item and press ENTER to select.
The selected item is highlighted in orange and the
sub-menu is displayed on the right.
See “Main menu and sub-menu” on page 28.
POSITION
POSITION
LANGUAGE
LENS CONTROL
FUNCTION BUTTON
OPTION
RETURN
SELECT
ENTER
PICTURE MODE
CONTRAST
BRIGHTNESS
COLOR
TINT
SHARPNESS
COLOR TEMPERATURE
DYNAMIC IRIS
WAVEFORM MONITOR
SPLIT ADJUST
ADVANCED MENU
MEMORY SAVE
MEMORY LOAD
MEMORY EDIT
NORMAL
LANGUAGE
LENS CONTROL
FUNCTION BUTTON
H-POSITION
V-POSITION
ASPECT
WSS
OVER SCAN
KEYSTONE
ON
OPTION
RETURN
ON
OFF
SELECT
ENTER
2. Press F G to scroll to the required sub-menu item
and press I H or ENTER to adjust.
Operating guidance
Contains the required buttons to adjust the settings.
J Adjusting with the bar scale
items
The triangle mark under the bar indicates factory
default setting and the square indicates the current
setting.
Current setting
The selected item is called up and the other menu
items disappear from the screen. Called up item will
be disappear after 5 seconds and return to the menu
mode.
If there is a lower level, the next level will be
displayed.
POSITION
ENGLISH
LENS CONTROL
FUNCTION BUTTON
H-POSITION
V-POSITION
ASPECT
WSS
OVER SCAN
KEYSTONE
ON
OPTION
BRIGHTNESS
RETURN
Settings
Default
SELECT
ENTER
J Returning to the previous menu
Press the MENU or RETURN button to return to
the previous menu. Press repeatedly to escape
from the menu mode and return to the projection.
3. Press I H to adjust or set the selected item.
For items using a bar scale, the current settings are
displayed on the left of the bar scale.
You can cycle through the options of an item by
pressing I H.
BRIGHTNESS
4. Press MENU or RETURN to return to the previous
menu.
NOTE:
• See “Resetting to the factory default settings” on page 22 to reset each menu items.
30 - ENGLISH
PICTURE menu
Remote control
Control panel
CONTRAST
You can adjust the contrast of the projected image.
Adjust the BRIGHTNESS in advance if necessary.
Lower
See “Navigating through the MENU” on page 30.
See “Main menu and sub-menu” on page 28.
Setting range: -64 to +64
BRIGHTNESS
PICTURE MODE
Depending on the projection environment, you can use
these preset parameter settings to optimize image
projection. Press I H to cycle through the options.
NORMAL
Higher
You can adjust the brightness of the projected image.
Darker
Brighter
CINEMA3
Setting range: -32 to +32
CINEMA2
COLOR1
COLOR2
CINEMA1
NORMAL
Setting for a general image, such
as sports or games
DYNAMIC
Bright and sharp setting
COLOR1
Setting for HDTV standard in ITUR BT. 709 and color temperature
6 500 K at the default setting of
the PICTURE menu items.
COLOR2
Setting for DCDM standard
(SMPTE431-2) and color
temperature 6 300 K at the
default setting of the PICTURE
menu items.
CINEMA1
Hollywood style colors
CINEMA2
Deeper and more rich color
setting
CINEMA3
Vivid and crisp color setting
NOTE:
• It may take for a while until the selected mode is
stabilized.
COLOR
You can adjust the color saturation of the projected
image.
Lighter
Darker
Setting range: -32 to +32
When COMPUTER signal is connected, only available
with the following signals.
1 125 (1 080)/60i
1 125 (1 080)/50i
1 125 (1 080)/60p
1 125 (1 080)/50p
TINT
You can adjust the skin tone in the projected image.
More
reddish
More
greenish
Settings
DYNAMIC
Setting range: -32 to +32
When COMPUTER signal is connected, only available
with the following signals.
1 125 (1 080)/60i
1 125 (1 080)/50i
1 125 (1 080)/60p
1 125 (1 080)/50p
SHARPNESS
You can adjust the sharpness of the projected image.
Less
sharp
More
sharp
Setting range will vary according to the selected input
signal.
ENGLISH - 31
PICTURE menu
COLOR TEMPERATURE
You can adjust the white balance of the projected image.
More
bluish
Less
bluish
Setting range: -6 to +6
DYNAMIC IRIS
You can switch automatic adjustment of the lamp and
the lens iris on/off.
ON:
OFF:
Automatic adjustment
No adjustment
WAVEFORM MONITOR
You can monitor whether or not the luminance level of
the input signal is in the recommended range by
displaying it in the waveform monitor. If the waveform is
not in the range, adjust it for the best quality. See
“Adjusting the signal condition with a waveform” on
page 24.
OFF
J AUTO ADJUST
You can switch on/off the automatic adjustment
system in each items.
Items
Default setting
BLACK LEVEL ADJUST
ON
WHITE LEVEL ADJUST
ON
RGB ADJUST (BLACK)
OFF
RGB ADJUST (WHITE)
OFF
1. Press F G and select the required item.
2. Press I H and switch on/off.
3. Press F G and select AUTO and press ENTER.
The confirmation screen will be displayed.
4. Press I H and select OK.
5. Press ENTER.
NOTE:
• When the WAVEFORM MONITOR is set to OFF, the
AUTO ADJUST is not displayed.
SPLIT ADJUST
You can perform image adjustment in some PICTURE
menu items while displaying a certain area of the frozen
image in a split window.
Q SPLIT ADJUST MODE
FULL SCAN(Y)
Select the required split style from NORMAL and
REVERSE in the SPLIT ADJUST MODE menu.
FULL SCAN(R)
FULL SCAN(G)
NORMAL
FULL SCAN(B)
SINGLE LINE SCAN(Y)
SINGLE LINE SCAN(R)
SINGLE LINE SCAN(G)
Settings
SINGLE LINE SCAN(B)
MONITOR POSITION
UPPER LEFT
AUTO ADJUST
1. Press F G to move to the required waveform
style.
2. Press ENTER to select.
The WAVEFORM MONITOR will be displayed.
See “Adjusting the signal condition with a waveform”
on page 24.
J MONITOR POSITION
When the FULL SCAN is selected, press F G I
H to adjust the position of the monitor.
See “Adjusting the signal condition with a waveform”
on page 24.
32 - ENGLISH
REVERSE
PICTURE menu
Q Adjusting the image in a split window
1. Select AREA SELECT and press the ENTER
button.
The image will be frozen and the area cursor will be
displayed.
ADVANCED MENU
You can perform more detailed image adjustment
manually.
J GAMMA
You can adjust linear intensity at 3 levels. Press I
H to increase/decrease 1 point.
MOVE AREA
ENTER
GO TO SPLIT ADJUST
ENTER
GO TO SPLIT ADJUST
2. Press I H to move the area cursor to select the
required area and press the ENTER button.
The selected frozen image will be displayed in a split
window.
3. Press the MENU to display the PICTURE menu on
the right.
POSITION
LANGUAGE
LENS CONTROL
FUNCTION BUTTON
OPTION
RETURN
SELECT
ENTER
PICTURE MODE
CONTRAST
BRIGHTNESS
COLOR
TINT
SHARPNESS
COLOR TEMPERATURE
DYNAMIC IRIS
WAVEFORM MONITOR
SPLIT ADJUST
ADVANCED MENU
MEMORY SAVE
MEMORY LOAD
MEMORY EDIT
Levels
Default setting
GAMMA HIGH
0
GAMMA MID
0
GAMMA LOW
0
Setting range: -8 to +8
J CONTRAST
You can adjust the amount of contrast in RGB
colors individually. Press I H to increase/
decrease 1 point.
RGB
Default setting
CONTRAST R
0
CONTRAST G
0
CONTRAST B
0
NORMAL
ON
OFF
Setting range: -32 to +32
J BRIGHTNESS
4. Adjust the required PICTURE menu items.
The Other menu items are not available.
Sub-menu items vary according to the selected input
signal. See “Main menu and sub-menu” on page 28.
5. Press MENU/RETURN button several times to
escape from the menu.
6. Press the ENTER button.
The confirmation screen will be displayed. Select OK
to finish the adjustment.
7. Press the ENTER button.
Press the ENTER button again to return to the AREA
SELECT.
Press the RETURN button escape from the SPLIT
ADJUST mode.
RGB
Default setting
BRIGHTNESS R
0
BRIGHTNESS G
0
BRIGHTNESS B
0
Setting range: -16 to +16
J NR (Noise Reduction)
Settings
You can adjust the brightness in RGB colors
individually. Press I H to increase/decrease
1 point.
You can switch the automatic noise reduction
system on/off. Press I H to select the required
setting.
ON:
OFF:
Automatic noise reduction
No noise reduction
J MPEG NR
You can switch the automatic noise reduction
system for MPEG format images on/off. The
system minimize block noise and mosquito noise
to eliminate jagged edges, providing an overall
smoother image. Press I H to select the required
setting.
ON:
OFF:
Active
Deactive
NOTE:
• MPEG NR system is not available with COMPUTER/
HDMI (VGA60) signals.
ENGLISH - 33
PICTURE menu
J COLOR MANAGEMENT
You can manage your own defined color settings.
See “Setting your own color profile” on page 26.
J xvYCC
You can switch on/off the automatic adjustment
system for signals which complied with xvYCC.
ON:
OFF:
Active
Deactive
NOTE:
• xvYCC adjustment system is only available with HDMI
signals in COLOR1 of PICTURE MODE menu.
J DETAIL CLARITY
You can switch on/off the automatic detail clarity
system.
ON:
OFF:
MEMORY SAVE
You can save and name the adjusted PICTURE menu
settings for instant access from MEMORY LOAD menu.
1. Adjust the items in PICTURE menu.
2. Select MEMORY SAVE and press the ENTER
button.
3. Select the required memory setting and press the
ENTER button.
The confirmation screen will be displayed. Select OK
and press the ENTER button.
Indicated with ★ is in use, and ✩ is empty.
4. Use F G I H to specify the location of the
required character to enter and press the ENTER
button.
You can enter up to 16 characters.
MEMORY NAME INPUT
Active
Deactive
J CINEMA REALITY
ALL DELETE
You can switch the automatic image synchronizer
on/off for 24 frames a second images, such as
movies. Press I H to select the required setting.
ON:
OFF:
Active
Deactive
OK
NOTE:
• CINEMA REALITY is effective only with interlace
signals.
J TV-SYSTEM
Settings
When the video signal is changed, the setting
switches automatically.
You can switch the setting manually to match the
video data. Press I H to cycle through the
options.
AUTO
NTSC
SECAM
NTSC 4.43
5. Repeat step 4 until you finish the text line.
Move the cursor to ALL DELETE and press the
ENTER button to delete all the entered text line.
Press the DEFAULT button to delete the last entered
character or indicated with cursor in the text box.
To insert a character in the entered text line, move
the cursor to the text box to select the required place
and press G then perform step 4.
6. Select OK and press the ENTER button to set the
entered text as a name.
NOTE:
• If you leave the text box empty and save, the default
memory number will stay as a name.
MEMORY LOAD
PAL-N
PAL-M
CANCEL
PAL
NOTE:
• AUTO setting will select from NTSC/NTSC 4.43/PAL/
PAL60/PAL-M/PAL-N/SECAM.
You can access the saved settings instantly. See
“Loading a saved setting” on page 23.
1. Select a setting from MEMORY1 - 16.
Undefined settings will not be selectable.
2. Press ENTER to activate.
NOTE:
• If you have not saved any settings, MEMORY1 - 16 will
not be displayed.
34 - ENGLISH
PICTURE menu
MEMORY EDIT
SIGNAL MODE
You can edit the named memory settings.
Q Deleting a memory setting
1. Select MEMORY DEL and press the ENTER
button.
2. Select the required memory setting and press the
ENTER button.
The current selected signal will be displayed. This is
available with signals from COMPUTER IN/
COMPONENT IN/HDMI IN only.
NOTE:
• See “List of compatible signals” on page 47.
If you select ALL DELETE, you can delete all of the
saved memory settings.
3. Select OK in the confirmation screen and press the
ENTER button.
Q Changing the name of the memory
setting
1. Select the required memory setting and press the
ENTER button.
2. Use F G I H to specify the location of the
required character to enter and press the ENTER
button.
You can enter up to 16 characters.
MEMORY NAME INPUT
ALL DELETE
OK
CANCEL
Move the cursor to ALL DELETE and press the
ENTER button to delete all the entered text line.
Press the DEFAULT button to delete the last entered
character or indicated with cursor in the text box.
To insert a character in the entered text line, move
the cursor to the text box to select the required place
and press G then perform step 4.
Settings
3. Repeat step 4 until you finish the text line.
4. Select OK and press the ENTER button to set the
entered text as a name.
NOTE:
• If you have not saved any settings, MEMORY1 - 16 will
not be displayed.
ENGLISH - 35
POSITION menu
Remote control
Control panel
CLOCK PHASE
If you require further adjustment for the same reason as
the DOT CLOCK adjustment, you can fine adjust the
timing of the clock. Press I H to adjust. (Available with
signals from COMPUTER IN/COMPONENT IN only)
See “Navigating through the MENU” on page 30.
See “Main menu and sub-menu” on page 28.
H-POSITION
You can move the projected image horizontally for fine
adjustment.
Move left
Move
right
NOTE:
• If the projecting signal’s dot clock frequency is higher
than 150 MHz, the adjustment may not make a
difference.
• Available signals from COMPONENT IN:
1 125 (1 080)/60i, 1 125 (1 080)/50i, 1 125 (1 080)/60p,
1 125 (1 080)/50p, 1 125 (1 080)/24p, 750 (720)/60p
ASPECT
You can switch the aspect ratio manually when needed.
J Aspect ratio depend on signals
V-POSITION
You can move the projected image vertically for fine
adjustment.
Move
down
Move up
DOT CLOCK
Press I H to cycle through the aspect ratio
options. The cycle pattern depends on the
connected signals.
VIDEO/
S-VIDEO
Settings
COMPUTER
(RGB)
4:3 \ 16:9
4:3 \ 16:9
VGA or SVGA signals
Not switchable
WIDE480/600/720/768/768-2/800/900
signals
HDMI
4:3 \ 16:9
16:9 \ H - FIT \ V - FIT \ ZOOM
1 125 (1 080)/50i, 1 125 (1 080)/60i,
1 125 (1 080)/50p, 1 125 (1 080)/60p,
1 125 (1 080)/24p, 750 (720)/50p and
750 (720)/60p signals
4:3 \ 16:9 \ JUST \ ZOOM
525p (480p) and 625p (576p) signals
If you have interference patterns of the projected image,
which is sometimes referred to as moire or noise, you
can minimize it by pressing I H to adjust the clock
frequency. (Available with signals from COMPUTER IN
only)
NOTE:
• If the projecting signal’s dot clock frequency is higher
than 150 MHz, the adjustment may not make a
difference.
• DOT CLOCK needs to be adjusted before adjusting the
CLOCK PHASE.
36 - ENGLISH
4:3 \ 16:9 \ 14:9 \ ZOOM1 \
ZOOM2 \ JUST
AUTO \ 4:3 \ 16:9 \ JUST \ ZOOM
NTSC signal
COMPONENT
(YPBPR)
4:3 \ 16:9 \ 14:9 \ JUST \ ZOOM1
\ ZOOM2
625i (576i), 625p (576p)
AUTO \ 4:3 \ 16:9 \ JUST \ ZOOM
525i (480i), 525p (480p)
16:9 \ H - FIT \ V - FIT
1 125 (1 080)/50i, 1 125 (1 080)/60i,
1 125 (1 080)/50p, 1 125 (1 080)/60p,
1 125 (1 080)/24p, 750 (720)/50p,
750 (720)/60p signals
POSITION menu
J Aspect ratio options and projection example
If you apply the aspect ratio options to the projected image, the result will be as follows. The result may differ
due to the input signals. See “Switching the aspect ratio” on page 23.
Q VIDEO/S-VIDEO/COMPONENT
Not available with 1 125 (1 080)/50i, 1 125 (1 080)/60i, 1 125 (1 080)/50p, 1 125 (1 080)/60p, 1 125 (1 080)/
24p, 750 (720)/50p and 750 (720)/60p signals.
4:3
Squeeze
signal
16:9
Letter box
14:9
Letter Box
2.35:1
Cinescope
Original size
4:3
Projects at 4:3.
16:9
Adjusts horizontally to 16:9.
JUST
ZOOM/
ZOOM1
ZOOM2
14:9
Adjusts horizontally to fit 16:9. Closer
to edge, more enlarged. Not available
with COMPUTER signals.
Adjusts to 16:9 size with preserving
original ratio. Escape the menu mode
and press FG to adjust vertically.
Adjusts to cinescope size not
including letter box. Escape the menu
mode and press FG to adjust
vertically.
Adjusts to 14:9.
Q COMPONENT signals
4:3
Original Size
H - FIT
Adjusts horizontally to 16:9.
V - FIT
Adjusts to 16:9 vertically. Escape and press F G to scroll
the image to adjust the edge vertically.
ZOOM
Adjusts to 16:9 size with preserving original ratio. Escape
the menu mode and press FG to adjust vertically.
16:9
Cinescope
Settings
Available with 1 125 (1 080)/50i, 1 125 (1 080)/60i, 1 125 (1 080)/50p, 1 125 (1 080)/60p, 1 125 (1 080)/24p,
750 (720)/50p and 750 (720)/60p signals
ENGLISH - 37
POSITION menu
WSS
KEYSTONE
WSS (Wide Screen Signalling) detects if a PAL/
625p (576p)/625i (576i) signal is input and that signal
has an identification signal, and switch the aspect ratio
to required setting automatically. You can switch the
system off manually.
If the projector is aligned non-perpendicularly to the
screen, or if the projection screen has an angled surface,
you can vertically correct keystone.
Operation
OVER SCAN
If the 4 edges of an image is partly dropped, you can use
this function to adjust and project it properly.
Setting range: 0 to +10
OVER SCAN is not available with COMPUTER
signals.
Shrink
Enlarge
Setting range: -32 to 32
NOTE:
• You can correct the distortion ± 30 degrees from the
vertical plane. For a better quality image, installing the
projector with a minimum of distortion is recommended.
• Some distortion may be retained for the lens shift
adjustment.
• The distortion of the main menu screen is not
correctable.
• The result of the keystone correction will affect the
aspect ratio and the size of the image.
AUTO SETUP
You can adjust V - POSITION, H - POSITION, DOT
CLOCK and CLOCK PHASE automatically when
connecting via COMPUTER IN. Press ENTER to adjust
these at the same time.
Settings
38 - ENGLISH
LENS CONTROL
Remote control
Control panel
See “Navigating through the MENU” on page 30.
See “Main menu and sub-menu” on page 28.
Remote control
See “Navigating through the MENU” on page 30.
See “Main menu and sub-menu” on page 28.
BUTTON1/2/3
You can use the 2 different test patterns to adjust the
focus and zoom of the image. See “Lens shift and
positioning” on page 16.
1. Press ENTER to display test pattern 1.
Press F G to adjust the focus and I H to adjust
the zoom.
You can assign certain menu options to the 3 function
buttons for instant operation.
1. Select the required button from BUTTON1,
BUTTON2 or BUTTON3 and press the ENTER
button.
2. Press F G I H to select the required menu
options and press the ENTER button.
HDMI 1 IN
RETURN
ENTER
FOCUS
ZOOM
2. Press ENTER to display test pattern 2.
Press F G to adjust the focus and I H to adjust
the zoom.
RETURN
ENTER
Control panel
FOCUS
ZOOM
3. Press ENTER to display the projected image.
You can confirm the adjustment is fit to the projected
image.
4. Press MENU or RETURN to return to the previous
menu, or press repeatedly to escape the menu
mode.
NOTE:
NORMAL
HDMI 2 IN
DYNAMIC
HDMI 3 IN
COLOR1
COMPUTER IN
COLOR2
COMPONENT 1 IN
CINEMA1
COMPONENT 2 IN
CINEMA2
S-VIDEO IN
CINEMA3
VIDEO IN
SPLIT ADJUST
BLANK
WAVEFORM AUTO
ADJUST
AUTO SETUP
MEMORY LOAD
CONTRAST
BRIGHTNESS
CONTRAST R
BRIGHTNESS R
CONTRAST G
BRIGHTNESS G
CONTRAST B
BRIGHTNESS B
Q BLANK function
Settings
ZOOM/FOCUS
FUNCTION BUTTON
You can stop the projection temporary for electrical
power save. Press any button except the LIGHT
and learning remote control buttons.
• When the projector and/or the screen is tilted, adjust
the focus at the center of the image. The upper and
lower edge might be out of focus.
• When the image is distorted in keystone, adjust the
KEYSTONE in POSITION menu.
ENGLISH - 39
OPTION menu
Remote control
Control panel
BACK COLOR
You can choose a screen color from BLUE or BLACK
for when the projector is in idle. Press I H to select.
STARTUP LOGO
See “Navigating through the MENU” on page 30.
See “Main menu and sub-menu” on page 28.
INPUT GUIDE
ON
OFF
When you change the input method, the guidance
appears in the upper right corner of the screen. The
following display methods are available. Press I H to
cycle through the options.
Options
OFF
SIMPLE
DETAILED
Function
Turn off the guidance.
Display the input method by text. The
INPUT GUIDE will go out after
5 seconds without any operation.
Display the input method by graphic. The
INPUT GUIDE will go out after
10 seconds without any operation.
OSD DESIGN
You can change the background color of the menu.
Press I H to cycle through the options.
TYPE1
TYPE2
TYPE3
Semi transparent black
Solid blue
Semi transparent dark blue
Settings
OSD POSITION
UPPER
CENTER
UPPER
RIGHT
40 - ENGLISH
LOWER
CENTER
AUTO SEARCH
When the projector is turned on, the input terminals are
detected and an input signal is selected automatically.
You can switch the system on/off. Press I H to cycle
through the options.
ON
OFF
Active
Deactive
NOTE:
• When no signal is detected, the last used input will be
selected.
HDMI SIGNAL LEVEL
When an HDMI IN is selected, you can switch the HDMI
signal NORMAL or EXPAND to display the image. Press
I H to select an option.
NORMAL
EXPAND
For general HDMI equipment
For HDMI equipment with expanded
signals.
• HDMI SIGNAL LEVEL is not available with some
equipment.
FRAME RESPONSE
You can minimize the time delay of image displaying for
the interlace signals.
NORMAL
FAST
CENTER
LOWER
LEFT
Active
Deactive
NOTE:
You can change the position where to display the menu.
Press I H to cycle through the options.
UPPER
LEFT
You can switch the logo on/off that is displayed when
starting up the projector. Press I H to select the
required option. STARTUP LOGO will be displayed for
30 seconds.
LOWER
RIGHT
Prioritize the image quality
Prioritize the frame response
OPTION menu
When installing the projector, select the projection
method according to the projector position. Press I H
to cycle through the options. See “Projection method” on
page 15.
FRONT/DESK
Setting on a desk/floor and
projecting from front
FRONT/CEILING
Mounting in the ceiling and
projecting from front
REAR/DESK
Setting on a desk/floor and
projecting from rear
REAR/CEILING
Mounting in the ceiling and
projecting from rear
SLEEP
You can select the required duration of time and set the
off timer to turn off the power of the projector
automatically. 3 minutes before turn-off, the countdown
of minutes will be displayed in the lower right corner.
Press I H to cycle through the options. See “Switching
off the projector automatically” on page 25.
ALTITUDE
If you use the projector at high elevation, the ALTITUDE
setting need to be HIGH to set the fan speed high. Press
I H to select the required option.
LOW
HIGH
The fan speed is low.
The fan speed is high.
NOTE:
• At 1 400 m (4 593 ft) above sea level, the setting must
be HIGH.
• The loudness of fan noise depends on the ALTITUDE
setting.
LAMP POWER
You can adjust the power of the lamp to save on
electricity, prolong the lamp life and reduce the noise.
Options
Function
NORMAL
When higher luminance is
required.
ECO-MODE
When lower luminance is
sufficient.
NOTE:
• When no input signal is detected, the function is
disabled.
LAMP RUNTIME
You can check how long the lamp has been used.
NOTE:
• LAMP RUNTIME is a relevant matter for lamp
replacement timing. See “Replacing the lamp unit” on
page 44.
Settings
INSTALLATION
ENGLISH - 41
TEMP and LAMP Indicators
Managing the indicated problems
If a problem should occur with the projector, the LAMP and/or TEMP
indicators will inform you. Manage the indicated problems as follow.
1. Confirm the status of all indicators and projector, and switch off
the projector in proper way.
2. Find out the cause of the problem by status of the LAMP and/or
TEMP indicators.
3. Follow the following instruction for each indication and solve the
problem.
4. Turn on the projector in the correct way and confirm the
indicator is not indicating a problem any longer.
POWER LAMP TEMP
NOTE:
• If no problem is found or the problem remains, do not turn on the projector. Instead contact an Authorized Service Center.
J LAMP indicator
Illuminating red
Indicator
Flashing red
Problem
LAMP RUNTIME has
reached 1 800 hours.
The lamp circuit failure, abnormal function or lamp unit is damaged.
Cause
The lamp unit will run
out soon and needs to
be replaced.
The MAIN POWER is
switched on again
before the lamp unit is
cooled enough.
Remedy
Let the lamp unit cool
See “Replacing the
down and turn on the
lamp unit” on page 44.
MAIN POWER.
The lamp circuit failure, The lamp unit is
abnormal function.
damaged.
Contact an Authorized
Service Center.
See “Replacing the
lamp unit” on page 44.
J TEMP indicator
Illuminating red and still projecting
Flashing red and the POWER button is turned off
Indicator
Problem
The temperature inside and/or outside the projector is abnormally high.
Cause
The ventilation
openings are covered.
The air filter is
The room temperature
excessively dirty and
is too high.
the ventilation is poor.
Remedy
Remove the object(s)
from the ventilation
openings or clear
around the projector.
Reinstall the projector
in temperature
controlled place. See
page 52.
Maintenance
42 - ENGLISH
The projector is located
at high elevations
(above 1 400 m).
Turn on the projector
Replace the air filter in
and set the ALTITUDE
the proper method.
to HIGH.
See page 43.
See page 41.
Care and Replacement
Cleaning the projector
J Before cleaning the projector
Switch off the MAIN POWER switch in proper way and disconnect the power plug from the wall outlet.
Unplug all the cables from the projector.
J Cleaning the outer surface of the projector
Wipe off dirt and dust gently with a soft cloth.
If it is difficult to remove the dirt, soak a cloth in a neutral detergent diluted with water, wring the cloth well and then wipe
the projector. Dry off the projector with dry cloth.
If you use a chemical treated wipe, follow the instructions supplied with it.
J Cleaning the lens surface
Wipe off dirt and dust gently with a lint-free cloth.
Make sure no dirt or dust remains on the surface of the lens. It will be enlarged and projected onto a screen.
J Cleaning the air filter
If the air filter is excessively dirty, the internal temperature of the projector increases and may cause
malfunction. Clean the air filter regularly every 100 hours of usage.
1. Place a finger at the bottom of the air filter
2. Slightly push up and pull out the air filter to remove.
3. Vacuum dirt and dust from the air filter.
Do not wash the air filter.
4. Place and slightly slide in the air filter in the air intake port to attach.
Make sure the air filter clicks into the place.
NOTE:
J Replacing the air filter
The air filter should be replaced when cleaning is ineffective and when replacing the lamp unit. A replacement
air filter is provided with a replacement lamp unit, ET-LAE1000. Contact an Authorized Service Center for the
optional air filter.
Maintenance
• Do not use the projector without attaching the air filter.
ENGLISH - 43
Care and Replacement
Replacing the lamp unit
J Before replacing the lamp unit
Switch off the MAIN POWER button in proper way and disconnect the power plug from the wall outlet.
Make sure the lamp unit and the surroundings are cooled enough.
Unplug all the cables from the projector.
Prepare a Phillips-head screwdriver.
Contact an Authorized Service Center to purchase a replacement lamp unit (ET-LAE1000).
When the projector is mounted in the ceiling, do not work directly under the projector or put your face closer to the
projector.
NOTE:
• Prior to replacing the lamp unit, allow it to cool down to prevent the risk of burns, damage and other hazards.
• Do not attempt replacement with an unauthorized lamp unit.
J When to replace the lamp unit
The lamp unit is consumable and the brightness decreases by duration of usage. The LAMP indicator will
inform you of the replacement timing at 1 800 hours, and at 2 000 hours, the projector will be turned off. Those
figures are rough guidance and might be shortened by the usage conditions, characteristics of the lamp unit,
environmental conditions, and so on. You can check the duration of usage time using LAMP RUNTIME in the
OPTION menu.
On screen
Indication
Over 1 800 hours
Over 2 000 hours
LAMP indicator
REPLACE LAMP
“REPLACE LAMP” is displayed on the upper left
of the screen for 30 seconds.
To clear the screen immediately, press any
button.
Illuminates red.
“REPLACE LAMP” is displayed on the upper left
of the screen, and it will stay until you respond.
To clear the screen, press any button.
NOTE:
• The guide times, 1 800 and 2 000 hours, are rough estimates based on certain conditions and is not a guaranteed time.
The estimated condition is: LAMP POWER in OPTION menu set to NORMAL.
• To prolong the lamp life, set the LAMP POWER in OPTION menu to ECO-MODE. See “LAMP POWER” on page 41.
• For more information about the lamp unit, such as guaranteed time, see the instructions which is provided with the lamp
unit.
Maintenance
J Opening the top cover
1. Hold at the back corner of the top cover and
slightly push up to open.
2. Unhook the top cover safety hook from the
projector.
3. Hold the top cover up and press one of the buttons
of the hinge parts each to remove.
When the projector is mounted in the ceiling,
removing the hinge parts is not required.
4. Remove the top cover aside.
NOTE: When the projector is mounted in
the ceiling;
• Place yourself at back side of the projector, then open
and close the top cover.
• Do not work directly under the projector or put your face
closer to the projector.
44 - ENGLISH
Press here
Top cover safety hook
Hinge parts
Care and Replacement
J Removing and replacing the lamp unit
1. Use a Phillips screw driver to loosen the 3 lamp unit fixing
screws until the screws turn freely.
2. Hold the handle of the lamp unit and release the lamp unit lock.
3. Pull out the lamp unit gently from the projector.
Lamp unit
fixing screws
Lamp unit lock
4. Replace the new lamp unit while making sure that the direction
of insertion is correct.
Press here
Press here
Press the top of the lamp unit and make sure the unit is installed securely.
5. Tighten the lamp unit fixing screws securely with a Phillips screwdriver.
J Attaching the top cover
1. Attach the hinge parts of the top cover to the projector and press slightly until it
clicks.
When the projector is mounted in the ceiling, attaching the hinge parts is not required.
2. Hook the top cover safety hook to the projector.
3. Hooking the tabs of the top cover to the front of the projector and lift down slowly.
4. Press the back corner of the top cover gently until it clicks.
Make sure to hook the top cover safety hook to the body.
NOTE:
• Be sure to install the lamp unit and the top cover of the projector securely. If they are not
securely installed, it may cause the protection circuit to operate so that the power cannot be
turned on.
• Grip the handle and keep the lamp unit paralleled when you remove the lamp unit. Some parts
of the lamp unit are sharpened and may cause injury.
• Do not switch the power on while the top cover is opened.
• When the projector is mounted in the ceiling, keep the lamp unit paralleled up and remove.
1.
2.
3.
4.
5.
If the lamp usage time has passed 2 000 hours (when LAMP POWER has been set to NORMAL), the
projector will switch to standby mode after approximately 10 minutes of operation. The resetting procedure
should thus be completed within 10 minutes.
6. Press and hold the ENTER button for
Connect the power cord to the projector and a wall
approximately 3 seconds.
outlet, and switch the MAIN POWER on.
7. The confirmation screen will be displayed and
Switch the POWER button.
select OK.
Press the MENU button to display the menu.
8. Switch off the POWER button to reset the duration
Press F G to select OPTION and press ENTER.
of the LAMP RUNTIME.
Press F G to select LAMP RUNTIME.
SLEEP
OFF
9.
Confirm the duration of time in LAMP RUNTIME is
LOW
ALTITUDE
reset to "0".
NORMAL
LAMP POWER
LAMP RUNTIME
1820H
Maintenance
J Resetting the LAMP RUNTIME
ENGLISH - 45
Troubleshooting
Should any problem persist, contact your dealer.
Problem
Cause
Reference
page
Power does not turn on.
The power cord may not be connected.
The MAIN POWER switch is turned off.
No electric supply is at the wall outlet.
TEMP indicator is lit or flashes.
LAMP indicator is lit or flashes.
The lamp unit cover has not been securely installed.
The circuit breakers have tripped.
19
20
19
42
42
44
18
No picture appears.
The video signal input source may not be connected to a terminal
properly.
The input selection setting may not be correct.
The BRIGHTNESS adjustment setting may be at the minimum setting.
The SHUTTER function may be in use.
The lens cover may still be attached to the lens.
The picture is fuzzy.
The lens focus may not have been set correctly.
The projector may not be at the correct distance from the screen.
The lens may be dirty.
The projector may be tilted too much.
21
14
10
16
The color is pale or grayish.
COLOR or TINT adjustment may be incorrect.
The input source which is connected to the projector may not be
adjusted correctly.
31
28
The Remote control does
not operate.
The batteries may be weak.
The batteries may not have been inserted correctly.
The remote control signal receptor on the projector may be
obstructed.
The remote control unit may be out of the operation range.
11
22
The picture does not
display correctly.
The signal format (TV-SYSTEM) may not have been set correctly.
There may be a problem with the VCR or other signal source.
A signal which is not compatible with the projector is being input.
34
47
Picture from a computer
does not appear.
The cable may be longer than the optional cable.
The external video output from a laptop computer may not be correct.
(You may be able to change the external output settings by pressing
the [Fn] + [F3] or [Fn] + [F10] keys simultaneously. The actual method
varies depending on the type of computer; refer to the documentation
provided with your computer for further details.)
48
Maintenance
46 - ENGLISH
23
31
39
12
22
Technical Information
List of compatible signals
Mode
NTSC/NTSC 4.43/
PAL-M/PAL60
PAL/PAL-N/SECAM
525i (480i)
625i (576i)
525p (480p)
625p (576p)
1 125 (1 080)/60i
1 125 (1 080)/50i
1 125 (1 080)/24p
1 125 (1 080)/60p
1 125 (1 080)/50p
750 (720)/60p
750 (720)/50p
VGA480
WIDE480
SVGA
WIDE600
WIDE720
XGA
WIDE768
MXGA
SXGA
SXGA60+
WIDE768-2
WIDE800
WIDE900
Display
Display
resolution
(dots)*1
Scanning
frequency
H
(kHz)
V (Hz)
Dot clock
frequency
(MHz)
quality*2
-
720 x 480i
15.7
59.9
-
A
525i
625i
525p
625p
1 125/60i
1 125/50i
1 125/24p
1 125/60p
1 125/50p
750/60p
750/50p
VGA60
VGA75
VGA85
VGA138
WIDE480
SVGA55
SVGA60
SVGA70
SVGA75
SVGA85
WIDE600
WIDE720
XGA60
XGA70
XGA75
XGA85
XGA89
WIDE768
MXGA70
MXGA75
SXGA60
SXGA60+
WIDE768-2
WIDE800
WIDE900
720 x 576i
720 x 480i
720 x 576i
720 x 483
720 x 576
1 920 x 1 080i
1 920 x 1 080i
1 920 x 1 080
1 920 x 1 080
1 920 x 1 080
1 280 x 720
1 280 x 720
640 x 480
640 x 480
640 x 480
640 x 480
856 x 480
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
1 072 x 600
1 280 x 720
1 024 x 768
1 024 x 768
1 024 x 768
1 024 x 768
1 024 x 768
1 280 x 768
1 152 x 864
1 152 x 864
1 280 x 1 024
1 400 x 1 050
1 360 x 768
1 280 x 800
1 440 x 900
15.6
15.7
15.6
31.5
31.3
33.8
28.1
27.0
67.5
56.3
45.0
37.5
31.5
37.5
43.3
72.1
30.1
35.2
37.9
48.1
46.9
53.7
37.2
45.1
48.4
56.5
60.0
68.7
72.1
45.3
64.0
67.5
64.0
65.1
48.8
49.7
55.9
50.0
59.9
50.0
59.9
50.0
60.0
50.0
24.0
60.0
50.0
60.0
50.0
59.9
75.0
85.0
138.0
60.1
56.3
60.3
72.2
75.0
85.1
59.9
60.1
60.0
70.1
75.0
85.0
89.0
56.5
71.2
74.9
60.0
59.9
59.8
59.8
59.8
13.5
13.5
27.0
27.0
74.3
74.3
74.3
148.5
148.5
74.3
74.3
25.2
31.5
36.0
62.3
31.5
36.0
40.0
50.0
49.5
56.3
51.4
76.5
65.0
75.0
78.8
94.5
99.2
76.2
94.2
108.0
108.0
122.4
74.3
83.5
106.5
A
A
A
A
A
AA
AA
AA
AA
AA
AA
AA
A
A
A
A
A
A
A
A
A
A
A
AA
A
A
A
A
A
A
A
A
A
A
A
A
A
Terminals
VIDEO/S-VIDEO
COMPONENT
COMPONENT/HDMI
COMPONENT/
HDMI/COMPUTER
COMPONENT/HDMI
COMPONENT/
HDMI/COMPUTER
COMPONENT/HDMI
COMPUTER
Appendix
*1. The “i” appearing after the resolution indicates an interlaced signal.
*2. The following symbols are used to indicate picture quality.
AA Maximum picture quality can be obtained.
A
Signals are converted by the image processing circuit before picture is projected.
ENGLISH - 47
Technical Information
Serial terminal
The serial connector which is on the connector panel of the projector conforms to the RS-232C interface
specification, so that the projector can be controlled by a personal computer which is connected to this connecter.
J Connection
D-sub 9 pin (male)
Serial terminal (female)
Computer
NOTE:
• You must use only an RS-232C Serial Interface Cable with a ferrite core, type ET-ADSER.
J Pin assignments and signal names
Pin No.
Signal name
Contents
NC
A
B
TXD
Transmitted data
C
RXD
Received data
NC
D
GND
E
Earth
NC
F
G
RTS
H
CTS
Connected internally
NC
I
J Cable specifications
NC
NC
NC
NC
NC
NC
NC
NC
(When connected to a personal computer)
Projector
PC (DTE)
J Basic format
STX
Command
Start byte
(02h)
3 bytes
:
1 byte
Parameter
1 byte 4 bytes
ETX
End
(03h)
The data streaming from the computer will
start with STX, and proceed to Command,
Parameter and end with ETX. You can
add the required parameter.
Appendix
The projector can not receive any command for 10 seconds after the lamp is switched on. Wait 10 seconds
before sending the command.
If sending multiple commands, check that a response has been received from the projector for one
command before sending the next command.
When a command which does not require parameters to be sent, the colon (:) is not required.
If an incorrect command is sent from the personal computer, the ER401 command will be sent from the
projector to the personal computer.
48 - ENGLISH
Technical Information
J Communication settings
Signal level
RS-232C
Sync. method
Baud rate
Parity
Character length
8 bits
Stop bit
1 bit
9 600 bps
X parameter
None
None
S parameter
None
Asynchronous
J Control commands
Command
Control contents
Remarks
PON
POWER ON
In standby mode, all commands other than the PON command are ignored.
The PON command is ignored during lamp ON control.
POF
POWER OFF
If a PON command is received while the cooling fan is operating after the lamp has switched
off, the lamp is not turned back on again straight away in order to protect the lamp.
IIS
INPUT
Parameter:
CP1 = COMPONENT1 IN
SVD = S-VIDEO IN
HD1 = HDMI1 IN
HD3 = HDMI3 IN
OMN
MAIN
Displaying the main menu.
OEN
ENTER
OBK
RETURN
OCU/OCD/
OCL/OCR
Navigation buttons
OLE
LENS
OST
DEFAULT
Resetting to the factory default setting. (page 22)
OFZ
FREEZE
Freezing the projected screen.
Parameter:
0 = OFF
CP2 = COMPONENT2 IN
VID = VIDEO IN
HD2 = HDMI2 IN
RG1 = COMPUTER IN
Activating the selected items in the menu mode.
Returning to the previous menu or escaping from the menu mode.
OCU = F button
OCD = G button
OCL = I button
OCR = H button
Activating the LENS CONTROL menu.
1 = ON
OOT
SLEEP
Setting the duration of time to turn off the power automatically. (page 25)
0 = OFF
1 = 60min.
2 = 90min.
3 = 120min.
5 = 180min.
6 = 210min.
7 = 240min.
OSH
BLANK
Turning off the projection temporarily.
Send the command to switch between ON and OFF.
Do not send the command consecutively.
OVM
WAVEFORM
VS1
ASPECT
VPM
PICTURE MODE
Activating the PICTURE menu. Send the command to switch menu items. (page 25)
Activating the WAVEFORM.
Parameter:
0 = OFF
1 = FULL SCAN (Y)
2 = FULL SCAN (R)
3 = FULL SCAN (G)
4 = FULL SCAN (B)
(page 24)
5 = SINGLE LINE SCAN (Y)
6 = SINGLE LINE SCAN (R)
7 = SINGLE LINE SCAN (G)
8 = SINGLE LINE SCAN (B)
Switching the aspect ratio. (page 23)
Switching the PICTURE MODE. (page 25)
Parameter:
NOR = NORMAL DYN = DYNAMIC CL1 = COLOR1 CL2 = COLOR2
CN1 = CINEMA1 CN2 = CINEMA2 CN3 = CINEMA3
Appendix
OWM
4 = 150min.
ENGLISH - 49
Technical Information
J Inquiry commands
Command
Control contents
QPW
Power status
QFZ
FREEZE status
QIN
INPUT signal status
QOT
SLEEP status
QPM
PICTURE MODE status
QSH
BLANK status
QWM
Appendix
50 - ENGLISH
WAVEFORM status
Parameter
000 = OFF
001 = ON
0 = OFF
1 = ON
CP1 = COMPONENT1 IN
SVD = S-VIDEO IN
HD1 = HDMI1 IN
HD3 = HDMI3 IN
CP2 = COMPONENT2 IN
VID = VIDEO IN
HD2 = HDMI2 IN
RG1 = COMPUTER IN
0 = OFF
5 = 180min.
1 = 60min.
6 = 210min.
2 = 90min.
7 = 240min.
3 = 120min.
NOR = NORMAL DYN = DYNAMIC CL1 = COLOR1 CL2 = COLOR2
CN1 = CINEMA1 CN2 = CINEMA2 CN3 = CINEMA3
0 = OFF
Parameter:
0 = OFF
1 = FULL SCAN (Y)
2 = FULL SCAN (R)
3 = FULL SCAN (G)
4 = FULL SCAN (B)
5 = SINGLE LINE SCAN (Y)
6 = SINGLE LINE SCAN (R)
7 = SINGLE LINE SCAN (G)
8 = SINGLE LINE SCAN (B)
4 = 150min.
Technical Information
Ceiling mount bracket safeguards
The projector and the ceiling mount bracket are designed sufficiently safety though, make sure the safety cable
provided with the projector is installed and attached to the bottom of the projector when mounting in the ceiling for
safety and security.
NOTE:
• Even if it is guarantee period, the manufacturer is not responsible for any hazard or damage caused by using a ceiling
mount bracket which is not purchased from an authorized distributors, or environmental conditions.
• Make sure to use a torque driver and do not use an electrical screwdriver or an impact screwdriver.
• Installation work of the ceiling mount bracket should only be carried by a qualified technician.
• Remove an unused ceiling mount bracket promptly.
J Installing the safety cable
1. Install the ceiling mount bracket according to the Installation Instructions.
2. Loop the security cable around the ceiling mount bracket with less slack.
Lace the cable of the end with a latch through the loop on the other end of the cable.
3. Attach the latch on to the bottom of the projector with a provided screw.
Torque: 1.25±0.2 N·m
Appendix
* Indicated above is ET-PKE1000S.
ENGLISH - 51
Technical Information
Specifications
Power supply
AC 100 - 240 V 50 Hz/60 Hz
Power consumption
240 W
During standby (when fan is stopped): 0.08 W
Amps
2.8 A - 1.2 A
LCD panel
Panel size (diagonal)
0.74 type (17.78 mm)
Aspect ratio
16 : 9
Display method
3 transparent LCD panels (RGB)
Drive method
Active matrix method
Pixels
2 073 600 (1 980 x 1 080) x 3 panels
Lens
Manual zoom (2x)/Manual focus
F 1.9 - 3.2, f 22.4 mm - 44.8 mm
Lamp
UHM lamp (165 W)
Luminosity
1 500 lm
Operating environment
Horizontal scanning
frequency
Scanning
Vertical scanning
frequency*1
(for RGB signal) frequency
Dot clock frequency
Temperature
0 °C - 40 °C (32 °F - 104 °F)
When the ALTITUDE (page 41)
is set to ON: 0 °C - 35 °C (32 °F 95 °F)
Humidity
20% - 80% (no condensation)
30 kHz - 70 kHz
50 Hz - 85 Hz
Less than 150 MHz
COMPONENT (YPBPR) signals
525i (480i), 525p (480p), 625i (576i), 625p (576p), 750 (720)/60p,
750 (720)/50p, 1 125 (1 080)/60i, 1 125 (1 080)/50i,
1 125 (1 080)/60p, 1 125 (1 080)/50p, 1 125 (1 080)/24p
Color system
7 (NTSC/NTSC 4.43/PAL/PAL-M/PAL-N/PAL60/SECAM)
Projection size
40" - 200" (1 016 mm - 5 080 mm)
Throw distance
1.2 m - 12 m (3'11" - 39'4")
Screen aspect ratio
16 : 9
Installation
FRONT/DESK, FRONT/CEILING, REAR/DESK, REAR/CEILING
(Menu selection method)
*1. See “List of compatible signals” on page 47 for available signals.
Appendix
52 - ENGLISH
Technical Information
S-VIDEO IN
Single - line, Mini DIN 4p Y: 1.0 V [p-p], C: 0.286 V [p-p], 75 Ω
VIDEO IN
Single - line, RCA pin jack1.0 V [p-p], 75Ω
Single - line, D - sub HD 15-pin (female)
Selectable for input and output by menu operation.
COMPUTER IN
R.G.B.
0.7 V [p-p], 75 Ω
G.SYNC
1.0 V [p-p], 75 Ω
HD/SYNC
TTL high impedance, automatic
positive/negative polarity
compatible
VD
TTL high impedance, automatic
positive/negative polarity
compatible
Y, PB/CB, PR/CR
Single - line, RCA pin jack x 3
Y:
1.0 V [p-p] (including sync), 75 Ω
PB/CB, (PR/CR)
0.7 V [p-p], 75 Ω
Terminals
COMPONENT IN
HDMI IN
Triple - line, 19-pin HDMI connector
SERIAL
D-sub 9-pin RS-232C compatible
Cabinet
Moulded plastic (PC+ABS)
Width
Dimensions
460 mm (18 -3/32")
Height
130 mm (5 -3/32")
Length
300 mm (11 -25/32")
Weight
7.2 kg (15.9 lbs.)
Certifications
UL60950-1
FCC Class B
Power supply
3 V DC (AA battery x 2)
Operating range
Approx. 7 m (23') (when operated directly in front of signal receptor)
Weight
170 g (6 ozs.) (including batteries)
Dimensions
Options
Width
52 mm (2 -1/32")
Length
200 mm (7 -27/32")
Height
28.5 mm (1 -3/32") (not including
surface projection parts)
Cable cover
ET-PCE2000
Ceiling bracket
ET-PKE2000/ET-PKE1000S
Projection screen
ET-SRW90CC
Cables
ET-SC10CP
ET-SC10DT
(RCA pin jack x 3 - RCA pin jack x3)
(RCA pin jack x3 - D-Terminal)
Appendix
Remote control
C-UL
ICES-003
ENGLISH - 53
Technical Information
Dimensions
Unit: mm
300 (11-23/32)
230 (9 -1/32)
460 (18 -3/32)
Appendix
54 - ENGLISH
17 (-21/32)
130
147 (5 -25/32)
60 (2 -5/16)
116
(4 -9/16)
15 (19/6)
Technical Information
Trademark acknowledgements
Appendix
VGA and XGA are trademarks of International Business Machines Corporation.
S-VGA is a registered trademark of the Video Electronics Standards Association.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing LLC.
The font used in the on-screen displays is a Ricoh bitmap font, which is manufactured and sold by Ricoh
Company, Ltd.
All other trademarks are the property of the various trademark owners.
These Operating Instructions are printed on recycled paper.
ENGLISH - 55
Index
A
F
AC IN ......................................................................13
Accessories ..............................................................10
ADVANCED MENU ...................................................33
Air exhaust port ........................................................12
Air filter ....................................................................12
Replacing ...........................................................43
Air intake port ...........................................................13
ALTITUDE ...............................................................41
ASPECT ..................................................................36
Remote control button .........................................11
Remote control function .......................................23
AUTO SEARCH ........................................................40
AUTO SETUP ..........................................................38
B
BACK COLOR ..........................................................40
Batteries
Accessory ..........................................................10
Compartment .....................................................11
BLANK ....................................................................39
BRIGHTNESS
ADVANCED MENU .............................................33
PICTURE menu ..................................................31
FOCUS
Control panel button ........................................... 12
LENS CONTROS menu ...................................... 39
FRAME RESPONSE ................................................ 40
FREEZE
Remote control button ........................................ 11
Remote control function ...................................... 22
Front leg adjusters ............................................. 13, 15
FUNCTION BUTTON
BUTTON1/2/3 .................................................... 39
Main menu ........................................................ 39
Remote control buttons ....................................... 11
G
GAMMA .................................................................. 33
H
HDMI IN
Connection ........................................................ 18
Terminal ............................................................ 13
HDMI SIGNAL LEVEL .............................................. 40
H-POSITION ........................................................... 36
I
INPUT
Control panel button ........................................... 12
Remote control button ........................................ 11
Remote control function ...................................... 23
INPUT GUIDE ......................................................... 40
INPUT SELECT
Control panel button ........................................... 12
INSTALLATION
POSITION menu ................................................ 41
Projection method .............................................. 15
C
Ceiling mount bracket ................................................51
CINEMA REALITY ....................................................34
Cleaning ..................................................................43
CLOCK PHASE ........................................................36
COLOR ....................................................................31
COLOR M.
Remote control button .........................................11
Remote control function .......................................26
COLOR MANAGEMENT ...........................................34
Remote control button .........................................11
Remote control function .......................................26
COLOR TEMPERATURE ..........................................32
COMPONENT IN
Connection .........................................................18
Terminal ............................................................13
COMPUTER IN
Connection .........................................................18
Terminal ............................................................13
Connections .............................................................18
CONTRAST
ADVANCED MENU .............................................33
PICTURE menu ..................................................31
D
DEFAULT
Remote control button .........................................11
Remote control function .......................................22
DETAIL CLARITY .....................................................34
Dimensions ..............................................................54
DOT CLOCK ............................................................36
DYNAMIC IRIS .........................................................32
E
Appendix
ENTER
Control panel button ............................................12
Remote control button .........................................11
56 - ENGLISH
K
KEYSTONE ............................................................. 38
L
LAMP
Indicator ............................................................ 12
Indicator status .................................................. 42
LAMP POWER ........................................................ 41
LAMP RUNTIME ................................................ 41, 45
Lamp unit
Replacing .......................................................... 44
LANGUAGE ............................................................ 29
LENS
Remote control button ........................................ 11
Remote control function ...................................... 25
LENS CONTROL
Main menu ........................................................ 39
Remote control button ........................................ 11
Lens cover .............................................................. 12
Accessory ......................................................... 10
Attachment hole ................................................. 13
Lens shift
Lens shift dial • Horizontal ................................... 12
Lens shift dial • Vertical ....................................... 12
LIGHT
Remote control buttons ....................................... 11
Remote control function ...................................... 22
Index
S
MAIN POWER ..........................................................12
MEM.LOAD
Remote control button .........................................11
Remote control function .......................................23
MEMORY EDIT ........................................................35
MEMORY LOAD .......................................................34
Remote control button .........................................11
Remote control function .......................................23
MEMORY SAVE .......................................................34
MENU
Control panel button ............................................12
Remote control button .........................................11
Remote control function .......................................30
Menu
Main menu .........................................................28
Navigation ..........................................................30
Sub-menu ..........................................................28
MPEG NR ................................................................33
Safety cable ............................................................ 51
Accessory ......................................................... 10
Attachment point ................................................ 13
Screen size ............................................................. 14
Calculation methods ........................................... 14
Security lock ............................................................ 13
SERIAL
Basic format ...................................................... 48
Cable specifications ........................................... 48
Communication settings ...................................... 49
Connection ........................................................ 48
Control commands ............................................. 49
Inquiry commands .............................................. 50
Pin assignments ................................................ 48
Terminal ............................................................ 13
SHARPNESS .......................................................... 31
SLEEP .................................................................... 41
Remote control button ........................................ 11
Remote control function ...................................... 25
Specifications .......................................................... 52
SPLIT ADJUST ........................................................ 32
STARTUP LOGO ..................................................... 40
S-VIDEO IN
Connection ........................................................ 18
Terminal ............................................................ 13
N
Navigation buttons
Control panel button ............................................12
Remote control button .........................................11
NR ..........................................................................33
O
OPTION menu ..........................................................40
OSD DESIGN ...........................................................40
OSD POSITION ........................................................40
OVER SCAN ............................................................38
T
Technical Information ............................................... 47
TEMP
Indicator ............................................................ 12
Indicator status .................................................. 42
Throw distance ........................................................ 14
Throwing angle ........................................................ 15
TINT ....................................................................... 31
Top cover .......................................................... 13, 44
Troubleshooting ....................................................... 46
TV-SYSTEM ............................................................ 34
P
PIC.ADJUST
Remote control button .........................................11
Remote control function .......................................25
PIC.MODE
Remote control button .........................................11
PICTURE .................................................................31
Remote control button .........................................11
Remote control function .......................................25
PICTURE MODE ......................................................31
Remote control button .........................................11
Remote control function .......................................25
POSITION ................................................................36
POWER
Control panel button ............................................12
Indicator .............................................................12
Indicator status ...................................................19
Remote control button .........................................11
Power cord
Accessory ..........................................................10
Connecting .........................................................19
R
Remote control .........................................................11
Accessory ..........................................................10
Operating range ..................................................22
Operation ...........................................................22
Signal emitter .....................................................11
Signal receptor ...................................................12
RETURN
Control panel button ............................................12
Remote control button .........................................11
Remote control function .......................................30
V
VIDEO IN
Connection ........................................................ 18
Terminal ............................................................ 13
V-POSITION ............................................................ 36
W
WAVEFORM
Remote control button ........................................ 11
Remote control function ...................................... 24
WAVEFORM MONITOR ........................................... 32
WSS ....................................................................... 38
X
xvYCC .................................................................... 34
Z
ZOOM
Control panel button ........................................... 12
LENS CONTROL menu ...................................... 39
ZOOM/FOCUS ........................................................ 39
Appendix
M
ENGLISH - 57
NOTE:
This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material - special handling may
apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Projectors
Panasonic Projector Systems Company
Unit of Panasonic Corporation of North America
One Panasonic Way, Secaucpus, NJ 07094
(201) 392 - 6591
Technical Support:
(888) 411 - 1996
FAX: (201) 348 - 7523
E-Mail: projectors[email protected]
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
(905) 624 - 5010
Panasonic Puerto Rico, Inc.
Ave. 65 de Infanteria, Km 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985
(787) 750 - 4300
http://panasonic.net
© 2007 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
Printed in Japan
S0807-1087B
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
