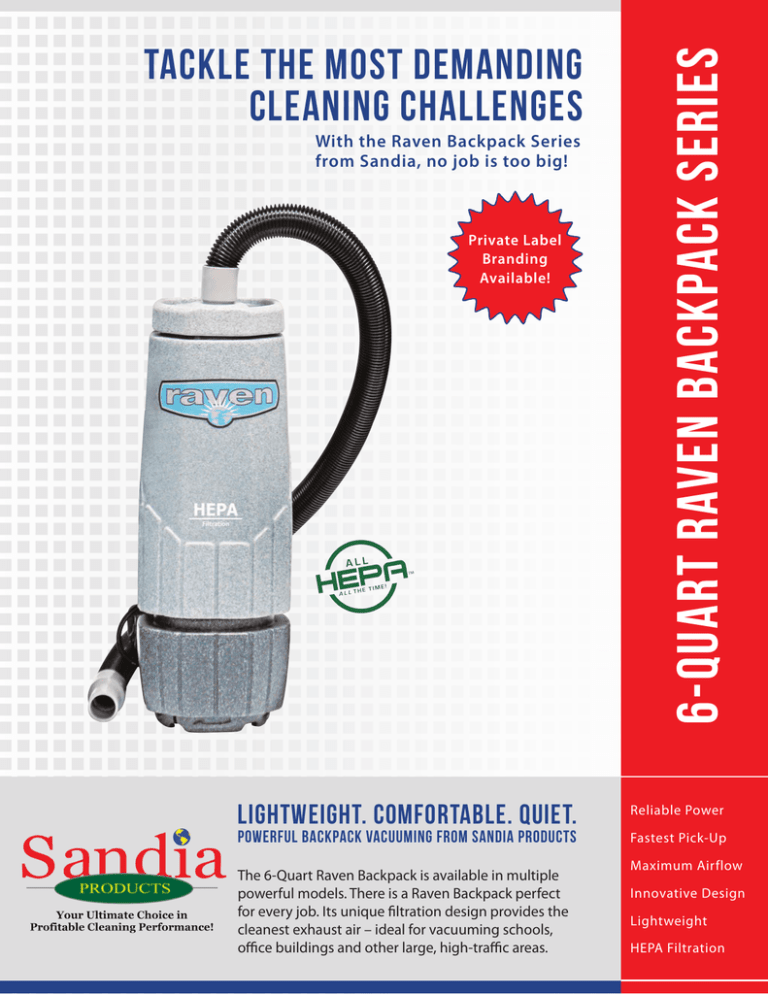

6-Quart RAVEN BACKPACK SERIES

6-Quart RAVEN BACKPACK SERIES
With the Raven Backpack Series
from Sandia, no job is too big!
Private Label
Branding
Available!
Lightweight. Comfortable. Quiet.
Powerful Backpack Vacuuming from Sandia Products
The 6-Quart Raven Backpack is available in multiple
powerful models. There is a Raven Backpack perfect
for every job. Its unique filtration design provides the
cleanest exhaust air – ideal for vacuuming schools,
office buildings and other large, high-traffic areas.
6-Quart RAVEN BACKPACK SERIES
Tackle the most Demanding
Cleaning challenges
Reliable Power
Fastest Pick-Up
Maximum Airflow
Innovative Design
Lightweight
HEPA Filtration
RAVEN BACKPACK SERIES
Manufactured with
Pride in the U.S.A.
by Sandia Products
See the benefits
Tapered VS. Cylindrical
of the Raven Backpack Series
Compare the features. Compare the technology.
• Fastest soil pick-up with high CFM airflow,
making the Raven significantly more
proficient than traditional uprights.
With three innovative design advances, the Raven has increased airflow,
increased efficiency and has created the quietest vacuum in its class.
TAPERED
• Collects the most soils, leaving exhaust
air cleaner with a disposable, heavyduty paper micro-bag mounted inside a
washable cloth shakeout bag.
• Lightweight ergonomic design, with a
cushioned back-pad that fits the curve
of any operator’s back. The comfortable
shoulder and waist belt design reduces
fatigue, making work easier.
A
B
2
C
1
1
• Twist top lid with static-dissipating
vacuum hose and swivel cuff for right and
left-handed vacuuming.
AIR
FLOW
Cylindrical
design reduces
airflow as the
bag bulges
and sags.
2
• Easy-to-reach On/Off power switch, quiet
motor and 50-foot long safety power cord.
3
• 5-piece tool kit included on select models.
• Lifetime warranty on roto-molded
polyethylene tank. 5-years on electrical
components and tools.
Cylindrical
3
1) Increased Airflow: the
Raven’s deflector plate holds
heavy debris away from the
motor filter during use. It
prevents the cloth bag from
contacting the motor filter
and reducing airflow.
2) Excellent Design: by
tapering the vacuum
body 3/4 inch per side, it
prevents a bulging bag from
contacting the body, allowing
airflow around the bag.
3) Quietest in its Category:
by adding 70 inches of sound
deadening waffle foam
material, the Raven is the
quietest backpack vacuum
available!
A) Angled, Static Dissipating Vacuum Hose: keeps the hose out of the way.
B) Vacuum Bag Deflector: keeps particles from tearing the vacuum bag.
C) Bag Support Plate: keeps sagging, heavy bags from impending air flow.
Available in three models - Find your fit
6-Quart Unit
* 230 Volt Models Available
AVENGER Raven
Whisper Raven
Super Raven
hepa Raven
Capacity: 6-Quarts
Airflow: 112 CFM
Power: 802 Watts
Motor: 1.5 HP, 1-Stage
dB: 60
Amps: 6.8
Volts: 115 V
Static/Lift: 85
Weight: 9 lbs.
Height: 23”
Capacity: 6-Quarts
Airflow: 120 CFM
Power: 1122 Watts
Motor: 1.5 HP, 2-Stage
dB: 61
Amps: 9.6
Volts: 115 V
Static/Lift: 105
Weight: 10 lbs.
Height: 23”
Capacity: 6-Quarts
Airflow: 150 CFM
Power: 1340 Watts
Motor: 1.5 HP, 1-Stage
dB: 67
Amps: 11.5
Volts: 115 V
Static/Lift: 95
Weight: 9 lbs.
Height: 23”
Capacity: 6-Quarts
Airflow: 150 CFM
Power: 1340 Watts
Motor: 1.5 HP, 1-Stage
dB: 67
Amps: 11.5
Volts: 115 V
Static/Lift: 95
Weight: 9.5 lbs.
Height: 23”
5-Piece Tool Kit:
3” Round Dust
Brush
5” Upholstery
Tool
14” Scalloped Floor Tool
17” Crevice Tool
56” 2-Piece Wand
CALL US TODAY IF YOU HAVE ANY QUESTIONS,
OR WOULD LIKE TO PLACE AN ORDER!
15571 Container Lane, Huntington Beach, CA 92649
(p) 800-983-5834 | (f ) 714-901-8404 | www.sandiaplastics.com
