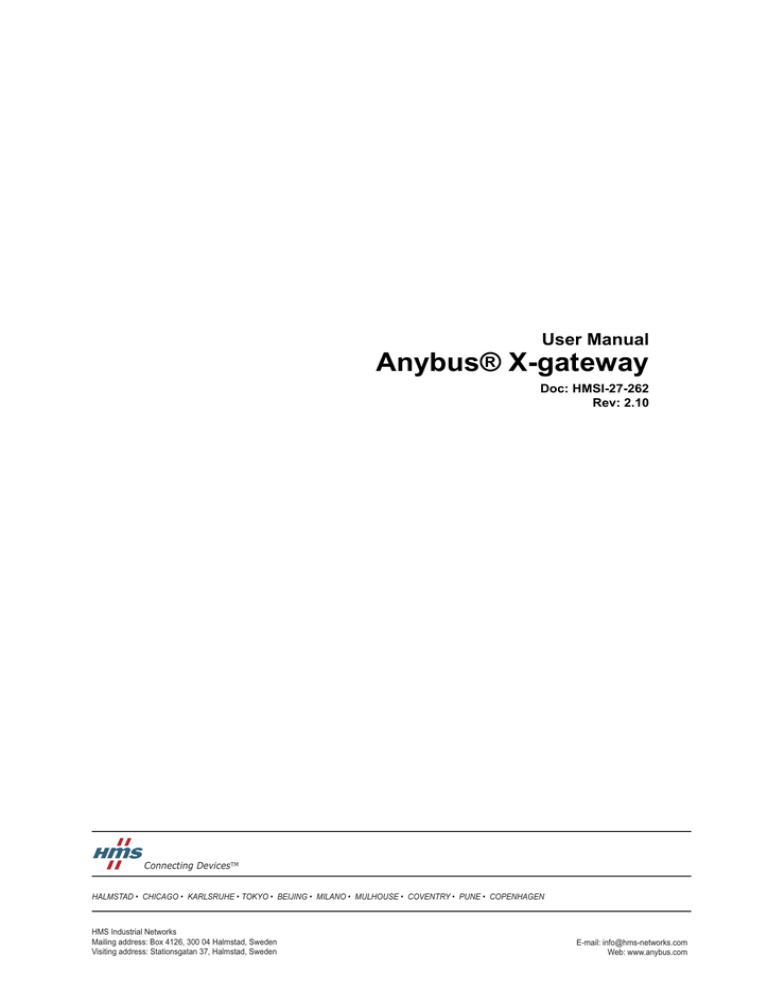

User Manual
Anybus® X-gateway
Doc: HMSI-27-262
Rev: 2.10
Connecting DevicesTM
+$/067$'‡&+,&$*2‡.$5/658+(‡72.<2‡%(,-,1*‡0,/$12‡08/+286(‡&29(175<‡381(‡&23(1+$*(1
HMS Industrial Networks
Mailing address: Box 4126, 300 04 Halmstad, Sweden
Visiting address: Stationsgatan 37, Halmstad, Sweden
E-mail: info@hms-networks.com
Web: www.anybus.com
Important User Information
This document is intended to provide a good understanding of the functionality offered by the Anybus X-Gateway.
The reader is expected to be familiar with high level software design, and communication systems in general. The
use of advanced interface-specific functionality may require in-depth knowledge of networking internals and/or
information from the network specifications. In such cases, the persons responsible for the implementation of this
product should either obtain the necessary specifications to gain sufficient knowledge, or alternatively limit the
implementation in such a way that this is not necessary.
Liability
Every care has been taken in the preparation of this manual. Please inform HMS Industrial Networks AB of any
inaccuracies or omissions. The data and illustrations found in this document are not binding. We, HMS Industrial
Networks AB, reserve the right to modify our products in line with our policy of continuous product development.
The information in this document is subject to change without notice and should not be considered as a commitment by HMS Industrial Networks AB. HMS Industrial Networks AB assumes no responsibility for any errors that
may appear in this document.
There are many applications of this product. Those responsible for the use of this device must ensure that all the
necessary steps have been taken to verify that the applications meet all performance and safety requirements including any applicable laws, regulations, codes, and standards.
HMS Industrial Networks AB will under no circumstances assume liability or responsibility for any problems that
may arise as a result from the use of undocumented features, timing, or functional side effects found outside the
documented scope of this product. The effects caused by any direct or indirect use of such aspects of the product
are undefined, and may include e.g. compatibility issues and stability issues.
The examples and illustrations in this document are included solely for illustrative purposes. Because of the many
variables and requirements associated with any particular implementation, HMS Industrial Networks AB cannot
assume responsibility for actual use based on these examples and illustrations.
Intellectual Property Rights
HMS Industrial Networks AB has intellectual property rights relating to technology embodied in the product described in this document. These intellectual property rights may include patents and pending patent applications
in the US and other countries.
Trademark Acknowledgements
Anybus ® is a registered trademark of HMS Industrial Networks AB. All other trademarks are the property of their
respective holders.
!
WARNING: This is a class A product. in a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
ESD Note: This product contains ESD (Electrostatic Discharge) sensitive parts that may be damaged if ESD
control procedures are not followed. Static control precautions are required when handling the
product. Failure to observe this may cause damage to the product.
Anybus X-Gateway User Manual
Copyright© HMS Industrial Networks AB
Doc: HMSI-27-262, Rev: 2.10
August 2014
Table of Contents
Table of Contents
Preface
About This Document
Important User Information................................................................................................................... 4
Document History ................................................................................................................................... 5
Revision List.................................................................................................................................... 5
Conventions & Terminology .................................................................................................................. 5
Support....................................................................................................................................................... 5
Chapter 1
About the Anybus X-gateway
Introduction .............................................................................................................................................. 6
Functional Overview................................................................................................................................ 6
External View............................................................................................................................................ 7
Installation ................................................................................................................................................. 8
DIN-rail Installation....................................................................................................................... 8
Power............................................................................................................................................... 8
Network Installation........................................................................................................................ 8
Anybus X-gateway User Manaul
Doc: HMSI-27-262, Rev: 2.10
1-4
Chapter 2
Basic Operation
Data Exchange.......................................................................................................................................... 9
Status & Diagnostics .............................................................................................................................. 10
Status Word .................................................................................................................................. 10
Live List (Master Configurations Only) ......................................................................................... 11
Network Specific Status ................................................................................................................. 11
Controlling the Gateway from the Network...................................................................................... 12
Control Word ................................................................................................................................ 12
Network Specific Controls .............................................................................................................. 12
Data Mapping.......................................................................................................................................... 13
Error Handling........................................................................................................................................ 14
Chapter 3
Anybus Configuration Manager
General Information .............................................................................................................................. 15
Open Communication to the X-gateway............................................................................................ 16
Download and Change the Configuration.......................................................................................... 17
Chapter 4
Connectors and Cables
Power Supply .......................................................................................................................................... 18
Gateway Config Interface (USB) ......................................................................................................... 18
Appendix A Mechanical Drawings
Appendix B Technical Specifications
Power........................................................................................................................................................ 20
Protective Earth and Shielding............................................................................................................. 20
Temperature ............................................................................................................................................ 20
Relative Humidity................................................................................................................................... 20
EMC Compliance ................................................................................................................................... 20
Anybus X-gateway User Manaul
Doc: HMSI-27-262, Rev: 2.10
Preface
P. About This Document
This document provides an understanding of the functionality shared by the various versions of the
Anybus X-gateway. It does not, however, cover any network-specific features. These are instead covered
in separate documents known as Interface Addendums.
The reader is expected to be familiar with communication systems in general, and industrial networking
systems in particular. For more information, documentation etc., please see www.anybus.com.
P.1 Document History
P.1.1 Revision List
Revision
1.00
1.01
1.02
1.10
1.11
1.12
Date
2004-04-02
2005-02-14
2005-09-01
2007-06-25
2007-11-23
2009-05-08
Author(s)
PeP
PaL
PaL
PeP
PeP
KeL
1.13
1.20
2.00
2.10
2011-02-07
2013-01-21
May 2014
August
2014
KaD
SDa
SDa
SDa
Chapter(s)
All
5, 7 and 8
6, 7 and 8
All
2
Preface
and 2
3, B
1, 2
Several
1, 4, B
Description
First release
Reset bit, offset bits main menu
Changed default setting of Control/Status and Live List
Major rewrite
Minor update
Minor update
Minor update
Minor corrections. New document template.
New hardware and Anybus Configuration Manager
Updates for UL approval
P.2 Conventions & Terminology
The following conventions are used throughout this manual:
•
Numbered lists provide sequential steps
•
Bulleted lists provide information, not procedural steps
•
The terms ‘gateway’ and ‘X-gateway’ refer to the Anybus X-gateway
•
Hexadecimal values are written in the format NNNNh, where NNNN is the hexadecimal value.
•
All measurements in this document have a tolerance of ±0.25mm unless otherwise stated
•
16/32 bit values are generally stored in Motorola (big endian) format unless otherwise stated.
•
The term “byte” always refers to a string of 8 bits
P.3 Support
For contact information and support, please refer to the contact and support pages at:
www.anybus.com/support
Anybus X-gateway User Manaul
Doc: HMSI-27-262, Rev: 2.10
Chapter 1
1. About the Anybus X-gateway
1.1 Introduction
The Anybus X-gateway is a series of network gateways, used to provide a seamless connection between
two networks of different types.
The gateway is based on patented Anybus
technology; a proven industrial communication solution used by leading manufacturers of industrial automation products
all over the world.
The X-gateway enhances the common
gateway concept by providing gateway
versions with both master and slave functionality, as well as Ethernet capabilities.
Network 1
24V DC
Network 2
1.2 Functional Overview
Network 2
Anybus-S Network Interface
Anybus-S Network Interface
Network 1
Internally, the gateway consists of two Anybus-S network interface cards, interconnected through an
intelligent gateway platform, which forwards data from one network to the other and vice-versa, as
shown below. This design allows almost any combination of network systems, in both master and slave
configurations.
Note: This document does not describe any features specific to a particular network. Such information
is instead available in supplementary documents, known as “X-gateway Interface Addendums”.
Anybus X-gateway User Manaul
Doc: HMSI-27-262, Rev: 2.10
About the Anybus X-gateway 8
1.3 External View
The flexible design of the X-gateway platform allows each network interface to be mounted at the top
or bottom of the unit. Note that this will affect the orientation of the on-board switches and network
connectors.
Front View
Network A mounts in
upper slot
Gateway Status LEDs
These LEDs (1 per network) reflect the
overall status of each network interface.
Colour
Green
Green, flashing
Red
Red, flashing
Off
Network Status LEDs for
each network.
(See separate X-gateway
Interface Addendums).
Indication
Communication running
Transport provider connected
Communication error
Network interface error
No power
Gateway Configuration Connector
This USB connector enables the connection of a PC to the gateway, for configuration purposes.
See also: “Anybus Configuration Manager”
on page 16.
Network B mounts in
lower slot
Top Panel
The top panel of the Anybus X-Gateway includes the connectors & switches specific to the installed
network. See the separate X-gateway Interface Addendum for further information.
This panel also includes the unit’s power connector. See also “Power Supply” on page 19.
Network-specific connectors
and switches
Gateway power
connector
Bottom Panel
Network-specific connectors
and switches
Anybus X-gateway User Manaul
The bottom panel of the Anybus X-Gateway includes the connectors & switches
specific to the installed network.
Doc: HMSI-27-262, Rev: 2.10
About the Anybus X-gateway 9
1.4 Installation
1.4.1 DIN-rail Installation
The gateway is DIN-rail mountable. To ensure proper EMC behaviour, the DIN-rail must be connected
to protective earth (PE).
Snap On
1
To fasten the gateway to the DIN-rail, align it with the DIN-rail
connector, according to the figure shown here. Press firmly on the
top (1) and push the lower part into position (2).
2
Snap Off
To remove the gateway from the DIN rail, press firmly on the
top (1) and pull the lower part away from the rail (2).
1
2
1.4.2 Power
The gateway requires a regulated 24VDC ±20% Class
2 power source. Power is applied via a 2-pole pluggable
screw connector.
Note that this connector is polarized; using the wrong
polarity will not work and may even damage the
product.
1.4.3 Network Installation
Where applicable, specific installation procedures for specific networks are described in the separate
interface addendums for each product.
Anybus X-gateway User Manaul
Doc: HMSI-27-262, Rev: 2.10
Chapter 2
2. Basic Operation
2.1 Data Exchange
Each of the two network interfaces exchange data on it’s network through two buffers. The gateway
forwards the data between these buffers as shown below. Note that this process is separated from the
network data exchange; while the gateway ensures data consistency (where applicable), it does not feature any built-in mechanisms for synchronisation between the two networks.
Network Interface 1
Data From
Network 1
Network Interface 2
Data From
Network 1
Network 2
Network 1
Data From
Network 2
Data From
Network 2
Each buffer holds up to 512 bytes of data, which is the theoretical upper limit for the number of bytes
that can be exchanged in each direction. Note however that the actual number of bytes that can be exchanged is highly network dependent.
Besides network I/O, these buffers are optionally also used to provide access to network status information, and to control various aspects of the gateway. This may be general diagnostic information (called
the ‘Status Word’), list of active slaves (known as the ‘Live List’), or other network specific status information. A dedicated Control Word may be used to start/stop the exchange of data, or to reset the gateway if needed.
Most networks distinguishes between fast cyclical I/O and less time critical acyclic data. Where applicable, this is also reflected in how data is treated by the gateway and the on-board network interfaces.
The amount of data that shall be exchanged, and the use of the control- and status functionality, is specified separately for each network via the Gateway Config interface. This means that even though up to
512 bytes of data can be forwarded to an interface, the amount of data that will actually be exchanged
on that network is determined by settings in the network interface itself. While this may not seem logical
at first, it allows data exchange regardless of network specific needs and limitations.
Note that the available control- and status functionality highly depends on the actual gateway configuration. Also note that the terminology and definitions used for different types of data varies greatly between different networking systems. In this document, they are simply referred to as ‘I/O Data’ (as in
fast, cyclic data) and ‘Parameter Data’ (as in acyclic, slow data).
See also...
•
See also “Status & Diagnostics” on page 11.
•
See also “Controlling the Gateway from the Network” on page 13.
•
See also “Data Mapping” on page 14.
Anybus X-gateway User Manaul
Doc: HMSI-27-262, Rev: 2.10
Basic Operation 11
2.2 Status & Diagnostics
2.2.1 Status Word
Optionally, the gateway provides runtime status and diagnostics through the Status Word. This functionality is disabled by default, but can be enabled separately for each network via the Gateway Config
Interface.
Status Word Contents:
b15
b14
b13
b12
Gateway Cycle Counter
b11
b10
b9
b8
b7
b6
General Error Counter
b5
b4
(reserved)
b3
b2
Master Mode
b1
b0
Init
Run
(MSB)
•
(LSB)
Gateway Cycle Counter
This 4-bit counter is incremented for each successful gateway cycle, i.e. each time data has been
successfully transferred between the network interfaces.
•
General Error Counter
This 4-bit counter is incremented each time the throughput of the gateway exceeds 100 ms.
•
Master Mode1
These bits indicate the current operation mode of the on-board master to the other network
(these bits are not available on the master/scanner side).
The exact definition of these bits depend on the network in question. For further information,
consult the interface addendum for the on board master/scanner.
•
Init
This bit indicates if the other network interface has been initialised as follows:
1: Other network interface successfully initialised.
0: Could not initialise other network interface.
•
Run
This bit indicates the status of the data exchange on the other network as follows:
1: Other network is on line / running
0: Other network is not on line / not running
See also...
1.
•
See also “Controlling the Gateway from the Network” on page 13.
•
See “Anybus Configuration Manager” on page 16.
Master configurations only.
Anybus X-gateway User Manaul
Doc: HMSI-27-262, Rev: 2.10
Basic Operation 12
2.2.2 Live List (Master Configurations Only)
Optionally, the gateway provides a list of the active status of the slaves associated with the on board master. The list is assembled by the master interface and forwarded to the other network each gateway cycle.
This functionality is disabled by default, but can be enabled via the Gateway Config Interface.
Live List Contents:
Offset
0
1
2
3
4
5
6
7
•
Bit 0
Slave 0
Slave 8
Slave 16
Slave 24
Slave 32
Slave 40
Slave 48
Slave 56
Bit 1
Slave 1
Slave 9
Slave 17
Slave 25
Slave 33
Slave 41
Slave 49
Slave 57
Bit 2
Slave 2
Slave 10
Slave 18
Slave 26
Slave 34
Slave 42
Slave 50
Slave 58
Bit 3
Slave 3
Slave 11
Slave 19
Slave 27
Slave 35
Slave 43
Slave 51
Slave 59
Bit 4
Slave 4
Slave 12
Slave 20
Slave 28
Slave 36
Slave 44
Slave 52
Slave 60
Bit 5
Slave 5
Slave 13
Slave 21
Slave 29
Slave 37
Slave 45
Slave 53
Slave 61
Bit 6
Slave 6
Slave 14
Slave 22
Slave 30
Slave 38
Slave 46
Slave 54
Slave 62
Bit 7
Slave 7
Slave 15
Slave 23
Slave 31
Slave 39
Slave 47
Slave 55
Slave 63
Bit Set (1)
Slave active.
(The exact interpretation of this bit is network specific. Consult the separate interface addendum
for the master network interface)
•
Bit Cleared (0)
Slave not active.
(The exact interpretation of this bit is network specific. Consult the separate interface addendum
for the master network interface)
Note 1: Although certain masters may support more than 64 slaves, only node number 1... 64 will be
represented in the Live List.
Note 2: The EtherNet/IP Scanner Interface does not feature a Live List. Instead, it is possible to represent statistics about configured, active, and erroneous connections.
See also...
•
3-16 “Anybus Configuration Manager”
2.2.3 Network Specific Status
Some network interfaces may provide additional registers or status lists. For further information, consult
the separate interface addendums for your product.
Anybus X-gateway User Manaul
Doc: HMSI-27-262, Rev: 2.10
Basic Operation 13
2.3 Controlling the Gateway from the Network
2.3.1 Control Word
It is possible to control certain aspects of the gateway from the network by setting the corresponding
bits in the Control Word.
This functionality is disabled by default, but can be enabled separately for each network interface
through the Gateway Config Interface. Note that if enabled, certain actions may be required in order for
the gateway to start exchanging data.
Control Word Contents:
b15
b14
b13
b12
b11
b10
b9
b8
b7
b6
b5
b4
Reset
(MSB)
•
b3
b2
b1
b0
Master Mode
(LSB)
Master Mode1
These bits specify the current operation mode of the on-board master from the other network
(these bits are not available on the master/scanner side).
The exact definition of these bits depend on the network in question, however common for all
networks is that if the Control Word has been enabled, it is required to specify a value for these
bits in order for the gateway to start exchanging data.
See also...
- 3-16 “Anybus Configuration Manager”
- Interface addendum for the on board master/scanner.
•
Reset
This bit is used to reset the gateway.
1: Restart the gateway and re-initialize both network interfaces.
0: (no action)
See also...
•
2-11 “Status & Diagnostics”
•
3-16 “Anybus Configuration Manager”
2.3.2 Network Specific Controls
Some interfaces may provide additional methods of controlling the gateway from the network. For further information, consult the separate interface addendums for your product.
1.
Master configurations only.
Anybus X-gateway User Manaul
Doc: HMSI-27-262, Rev: 2.10
Basic Operation 14
2.4 Data Mapping
If enabled, the Control- and Status Words, and the Live List (when available), affects how data is
mapped to the on-board network interfaces.
Note: The actual representation of the data on the network is highly network specific and is described
in detail in the interface addendums for your product.
Typical Slave to Slave Gateway Configuration
Status Word
Status Word
I/O Data
I/O Data
Network 1
Parameter Data
Control Word
Parameter Data
Network Interface 1
(Slave)
Network Interface 2
(Slave)
Control Word
I/O Data
I/O Data
Parameter Data
Parameter Data
Network 2
The figure below illustrates how data is mapped in a typical slave-to-slave gateway configuration. Note
the Control- and Status Words, which in this particular example has been enabled for both networks.
See also...
•
2-11 “Status & Diagnostics”
•
2-13 “Controlling the Gateway from the Network”
Typical Master to Slave Gateway Configuration
The figure below illustrates how data is mapped in a typical master-to-slave gateway configuration. The
mapping is similar to that of the slave-to-slave configuration above, but additionally also features the
‘Live List’, which indicates the active status of the slaves attached to the on-board master interface.
Status Word
Network 1
I/O Data
I/O Data
Parameter Data
Parameter Data
Control Word
Network Interface 1
(Master)
Network Interface 2
(Slave)
Control Word
I/O Data
I/O Data
Parameter Data
Parameter Data
Network 2
Live List
Status Word
See also “Live List (Master Configurations Only)” on page 12.
Anybus X-gateway User Manaul
Doc: HMSI-27-262, Rev: 2.10
Basic Operation 15
2.5 Error Handling
When a network goes off line, it is often desirable to have certain control over what happens on the other
network. The gateway can either freeze (keep the current value) or clear (set to zero) the data from the
network that has gone off line.
Which action to perform can be specified via the Gateway Config Interface.
See “Anybus Configuration Manager” on page 16.
Anybus X-gateway User Manaul
Doc: HMSI-27-262, Rev: 2.10
Chapter 3
3. Anybus Configuration Manager
3.1 General Information
In general, the X-gateway requires very little effort to get it up and running. However, since all networks
are different, certain settings may need adjustment to suit a particular application.
This can be achieved by using the Anybus Configuration Manager (ACM), which accesses the gateway
settings via the USB connector. ACM is Windows-based software available free of charge from
www.anybus.com
Note: This document only covers the common procedures applicable to all gateway configurations
(with some minor exceptions). Where applicable, network-specific settings are described separately in
the online help available from ACM.
See also: “Gateway Config Interface (USB)” on page 19.
Anybus X-gateway User Manaul
Doc: HMSI-27-262, Rev: 2.10
Anybus Configuration Manager 17
3.2 Open Communication to the X-gateway
1. Connect a USB cable between the USB port
on the X-Gateway and a USB port on the PC.
2. Start Anybus Configuration Manager. The
window will look much like the example here.
3. Go to the menu Online>>Select Connection.
4. In the list of connections that appears, select
the one to use. If the connection requires configuration, click the Config button.
5. Click Connect to open the connection.
Anybus X-gateway User Manaul
Doc: HMSI-27-262, Rev: 2.10
Anybus Configuration Manager 18
3.3 Download and Change the Configuration
Now that Anybus Configuration Manager has an active connection to the X-gateway, the interface configurations from the unit can be uploaded, viewed and modified.
1. Click Upload configuration from X-gateway.
2. After the current configuration has loaded, it can then
be edited as required.
3. After making changes to the configuration, select Online>>Download Configuration. The
new configuration is saved to the X-gateway.
To check that the new configuration was saved successfully, the configuration can be uploaded again
from the X-gateway.
For further information on all of the available settings for each network interface, please see the online
help in Anybus Configuration Manager.
Anybus X-gateway User Manaul
Doc: HMSI-27-262, Rev: 2.10
Chapter 4
4. Connectors and Cables
4.1 Power Supply
Pin
+
Signal
Ground
+24V DC ±20%, Class 2
4.2 Gateway Config Interface (USB)
The configuration interface for the Anybus X-Gateway is provided via a USB-B socket on the front surface.
Note that all other network-specific connectors are detailed in the documentation for each network.
Anybus X-gateway User Manaul
Doc: HMSI-27-262, Rev: 2.10
Appendix A
A. Mechanical Drawings
Anybus X-gateway User Manaul
Doc: HMSI-27-262, Rev: 2.10
Appendix B
B. Technical Specifications
Power
The gateway requires a regulated 24V±20% DC Class 2 power source. Maximum power consumption
is 400mA at 24VDC. Typical consumption is 200mA at 24VDC.
Protective Earth and Shielding
The product must be connected to protective earth (PE) via the DIN-rail connector in order to achieve
proper EMC behaviour.
Temperature
Operating
Profinet IRT Fibre Optic: -25 to +50 degrees Celsius
All other models: -25 to +65 degrees Celsius. Test performed according to IEC-68-2-1 and IEC 68-2-2.
Non-operating
-40 to +85 degrees Celsius. Test performed according to IEC-68-2-1 and IEC 68-2-2.
Relative Humidity
The product is designed for a relative humidity of 5-95%, non-condensing.
Test performed according to IEC 68-2-30.
EMC Compliance
The onboard network interfaces are tested according to the following:
Electrostatic discharge
Electromagnetic RF fields
Fast Transients
Surge protection
RF conducted interference
Emission (at 3 m)
Anybus X-gateway User Manaul
+/- 4 kV
10 V/m 80 MHz - 1 GHz
3 V/m 1,4 GHz - 2,0 GHz
1 V/m 2,0 GHz - 2,7 GHz
+/- 1 kV
+/- 1 kV
10 V/ms
50 dB 30 MHz - 230 MHz
57 dB 30 MHz - 1 GHz
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 55016-2-3
Doc: HMSI-27-262, Rev: 2.10
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
