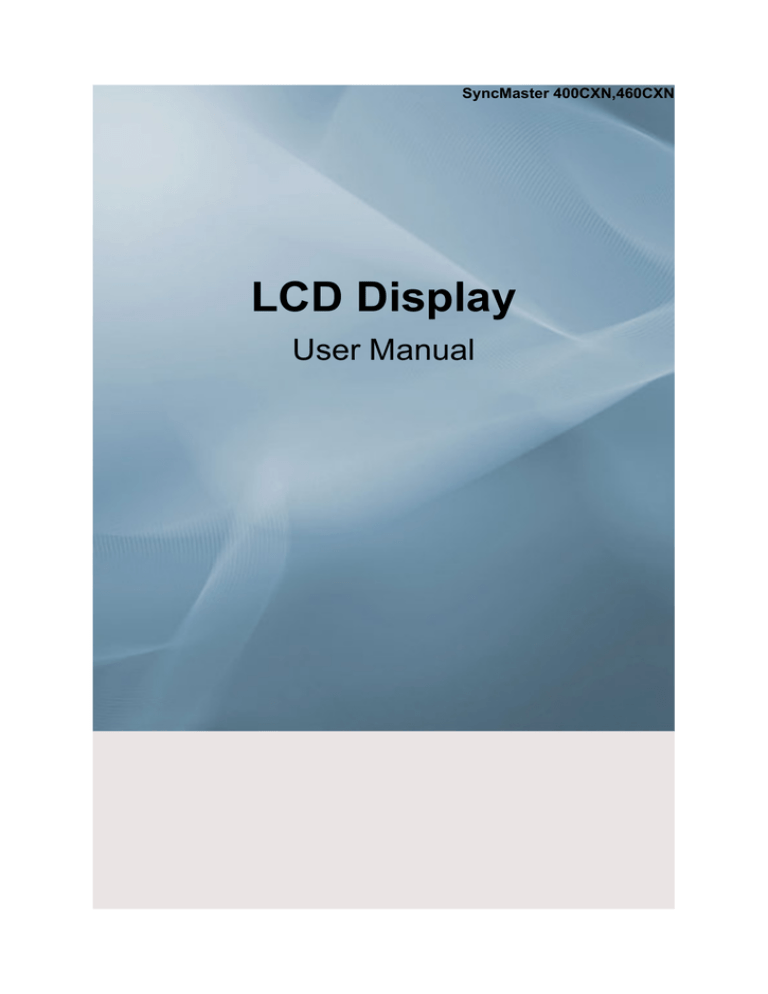

SyncMaster 400CXN,460CXN
LCD Display
User Manual
Safety Instructions
Notational
Note
These safety instructions must be followed to ensure your safety and prevent property damage.
Make sure to read the instructions carefully and use the product in the correct manner.
Warning / Caution
Failure to follow directions noted by this symbol could result in bodily harm
or damage to the equipment.
Notational Conventions
Prohibited
Important to read and understand at all times
Do not disassemble
Disconnect the plug from the
outlet
Do not touch
Ground to prevent an electric
shock
Power
When not used for extended period of time, set your computer to DPM.
If using screen saver, set it to active screen mode.
The images here are for reference only, and are not applicable in all cases (or
countries).
Shortcut to Anti-Afterimage Instructions
Do not use a damaged power cord or plug or a damaged or loose power
outlet.
•
Otherwise, this may result in electric shock or fire.
Do not touch the power plug with wet hands when removing or plugging the plug into the outlet.
•
Otherwise, this may result in electric shock.
Make sure to connect the power cord to a grounded power outlet.
•
Otherwise, it may result in electric shock or personal injury.
Ensure that the power plug is plugged into the power outlet firmly and
correctly.
•
Otherwise, this may result in fire.
Safety Instructions
Do not forcefully bend or pull the power plug and do not place any
heavy material on it.
•
Otherwise, this may result in fire.
Do not connect multiple appliances to the same power outlet.
•
Otherwise, this may cause fire due to overheating.
Do not disconnect the power cord while using the product.
•
Otherwise, this may result in damage to the product due to electric
shock.
To disconnect the apparatus from the mains, the plug must be pulled
out from the mains socket, therefore the mains plug shall be readily operable.
•
This may cause electric shock or fire.
Use only the power cord provided by our company. Do not use the
provided power cord of another product.
•
Otherwise, this may result in fire or electric shock.
Installation
Be sure to contact an authorized Service Center when installing your LCD Display in a location with heavy dust, high or low temperatures, high humidity, and
exposed to chemical substances and where it operates for 24 hours such as at
airports, train stations etc.
Failure to do so may cause serious damage to your LCD Display.
Ensure that at least two persons lift and move the product.
•
Otherwise, it may be dropped and cause personal injury, and/or damage the product.
When installing the product in a cabinet or rack, make sure that the
front end of the bottom of the product does not project out.
•
Otherwise, it may fall or cause personal injury.
•
Use a cabinet or rack of a size appropriate to the product.
DO NOT PLACE CANDLES, MOSQUITO REPELLANT, CIGARETTES AND ANY HEATING APPLIANCES NEAR THE PRODUCT.
•
Otherwise, this may result in fire.
Keep heating appliances as far away from the power cord or the product as possible.
•
Otherwise, this may result in electric shock or fire.
Safety Instructions
Do not install it in a badly ventilated location such as a bookcase or
closet.
•
Otherwise, this may result in fire due to an increase in the internal
temperature.
When putting the product down, make sure to put it down softly.
•
Otherwise, this may result in damage to the screen display.
Do not place the front of the product on the floor.
•
Otherwise, this may result in damage to the screen display.
Ensure that an authorized installation company installs the wall mount.
•
Otherwise, it may fall and cause personal injury.
•
Make sure to install the specified wall mount.
Install your product in a well ventilated location. Ensure that there is
a clearance of more than 10 cm from the wall.
•
Otherwise, it may result in fire due to an increase in the internal temperature.
Bend the outdoor antenna cable downwards at the location where it
goes in so that rainwater does not flow in.
•
If rainwater enters the product, it may result in electric shock or fire.
Install the antenna far away from any high voltage cables.
•
If the antenna touches or falls onto a high voltage cable, it may result
in electric shock or fire.
Ensure that the packaging vinyl is kept away from children.
•
Otherwise, it may result in serious harm (suffocation) if children play
with it.
If the height of your LCD Display is adjustable, do not place any object
or part of your body on the stand when lowering it.
•
This may cause damage to the product or the person carrying it.
Clean
When cleaning the LCD Display case or the surface of the TFT-LCD screen,
wipe with a slightly moistened, soft fabric.
Do not spray cleaner directly onto the surface of the product.
•
Otherwise, this may result in the discoloration and distortion of the
structure and the screen surface may peel off.
Safety Instructions
Clean the product using a soft cloth with a LCD Display cleaner only.
If you must use a cleaner other than the LCD Display cleaner, dilute it
with water at a ratio of 1:10.
When cleaning the power plug pins or dusting the power outlet, clean
it with a dry cloth.
•
Otherwise, it may result in fire.
When cleaning the product, make sure to disconnect the power cord.
•
Otherwise, it may result in electric shock or fire.
When cleaning the product, disconnect the power cord and clean it
softly with a dry cloth.
•
(Do not use chemicals such as wax, benzene, alcohol, thinner, mosquito repellant, lubricant, or cleaner.) These may change the appearance of the product surface and peel off the indication labels on the
product.
Since the product housing is easily scratched, make sure to use the
specified cloth only.
•
Use the specified cloth adding only a little water. As the product may
be scratched if there is any foreign material on the cloth, make sure
to shake it thoroughly before using it.
When cleaning the product, do not spray water directly onto the main
body of the product.
•
Ensure that water does not enter the product and that it is not wet.
•
Otherwise, this may result in electric shock, fire or a malfunction.
Others
The product is a high voltage product. Ensure that users do not disassemble, repair or modify the product themselves.
•
Otherwise, this may result in electric shock or fire. If the product
needs to be repaired, contact a Service Center.
If there is a strange smell or a strange sound or smoke is coming from
the product, disconnect the power plug immediately and contact a Service
Center.
•
Otherwise, this may result in electric shock or fire.
Do not place this product in a location exposed to moisture, dust,
smoke, water, or in a car.
•
Otherwise, this may result in electric shock or fire.
Safety Instructions
When you drop the product or the case is broken, turn the power off
and disconnect the power cord. Contact a Service Center.
•
Otherwise, this may result in electric shock or fire.
If thunder or lightening is occurring, do not touch the power cord or
antenna cable.
•
Otherwise, this may result in electric shock or fire.
Do not try to move the LCD Display by pulling only the wire or the
signal cable.
•
Otherwise, it may fall and result in electric shock, damage to the
product or fire due to damage to the cable.
Do not lift or move the product back and forwards or right and left
while only holding the power cord or signal cables.
•
Otherwise, it may fall and result in electric shock, damage to the
product or fire due to damage to the cable.
Make sure that the ventilating opening is not blocked by a table or
curtain.
•
Otherwise, it may result in fire due to an increase in the internal temperature.
Do not place any containers containing water, vases, flowerpots, medicines as well as any metal on the product.
•
If water or a foreign material enters the product, disconnect the power
cord and contact a Service Center.
•
This may result in a product malfunction, electric shock, or fire.
Do not use or keep combustible spray or flammable material near the
product.
•
Otherwise, this may result in an explosion or fire.
Do not insert any metal, such as chopsticks, coins, pins and steel, or
flammable objects, such as matches or paper, inside the product (through
the ventilating openings, input and output terminals, etc).
•
If water or foreign material enters the product, disconnect the power
cord and contact a Service Center.
•
Otherwise, this may result in electric shock or fire.
When using a fixed screen for a long time, an afterimage or stain may
occur.
•
If you are not using your product for a long period of time, put it into
sleep mode or use a moving screen saver.
Set a resolution and frequency appropriate to the product.
•
Otherwise, your eyesight may be damaged.
Safety Instructions
When using headphones or earphones, do not turn the volume too high.
•
Having the sound too loud may damage your hearing.
If you continually move closer to the product screen, your eyesight
may be failing.
Take a rest for at least five (5) minutes after using the LCD Display for
one (1) hour.
This reduces the weariness of your eyes.
Do not install it in an unstable location such as an unstable rack or
uneven surface or a location exposed to vibrations.
•
Otherwise, it may fall and cause personal injury and/or damage the
product.
•
If you use the product in a location exposed to vibrations, it may
damage the product and result in fire.
When moving the product, turn the power off and disconnect the power
plug, antenna cable, and all the cables connected to the product.
•
Otherwise, it may result in electric shock or fire.
Ensure that children do not hang onto the product or climb up onto the
product.
•
The product may fall and cause personal injury or death.
If you do not use the product for a long period of time, disconnect the
power cord from the power outlet.
•
Otherwise, this may result in overheating or fire due to dust, and may
result in fire due to electric shock or leakage.
Do not place any heavy items or toys or confectionery, such as cookies
etc. that may attract the attention of children and to the product.
•
Your children may hang onto the product causing it to fall and this
may result in personal injury or death.
Be careful that children do not place the battery in their mouths when
removed from the remote control. Place the battery in a location that
children or infants cannot reach.
•
If children have had the battery in their mouths, consult your doctor
immediately.
When replacing the battery, insert it with right polarity (+, -).
•
Otherwise, the battery may become damaged or it may cause fire,
personal injury or damage due to leakage of the internal liquid.
Safety Instructions
Use only the specified standardized batteries, and do not use a new
battery and a used battery at the same time.
•
Otherwise, the batteries may be damaged or cause fire, personal injury or damage due to a leakage of the internal liquid.
The batteries (and rechargeable batteries) are not ordinary refuse and
must be returned for recycling purposes. The customer is responsible for
returning the used or rechargeable batteries for recycling.
•
The customer can return used or rechargeable batteries to a nearby
public recycling center or to a store selling the same type of the battery
or rechargeable battery.
Do not place the product in a location exposed to direct sunlight or
near any heat such as a fire or heater.
•
This may reduce the lifetime of the product, and may result in fire.
Do not drop any objects onto the product or cause any impact to the
product.
•
Otherwise, this may result in electric shock or fire.
Do not use a humidifier or kitchen table near the product.
•
Otherwise, this may result in electric shock or fire.
When there is a gas leak, do not touch the product or the power plug
but ventilate immediately.
•
If a spark occurs, it may cause an explosion or fire.
If the product has been turned on for a long time, the display panel
becomes hot. Do not touch it.
•
Keep the small accessories in a location out of the reach of children.
Be careful when adjusting the angle of the product or the height of the
stand.
•
This may result in personal injury as your hand or fingers may become caught.
•
Also, if you tilt the product too far, it may fall and cause personal
injury.
Do not install the product in a location low enough for children to
reach.
•
Otherwise, it may fall and result in personal injury.
•
Since the front part of the product is heavy, install the product on a
level and stable surface.
Do not put any heavy objects on the product.
•
This may result in personal injury and/or damage to the product.
Introduction
Package Contents
Note
Please make sure the following items are included with your LCD Display.
If any items are missing, contact your dealer.
Contact a local dealer to buy optional items.
Note
This stand is not for the Floor Standing Type.
Unpacking
LCD Display
Manuals
Quick Setup Guide
Warranty Card
(Not available in all locations)
Cables
D-Sub Cable
Others
Power Cord
User's Guide
Introduction
Others
Remote Control
Batteries (AAA X 2)
Cleaning Cloth
(Not available in all locations)
Sold separately
DVI Cable
Wall Mount KIT
LAN Cable
Semi Stand KIT
Note
Cleaning Cloth is only provided for highly polished black products as a product feature.
Your LCD Display
Front
MENU button [MENU]
Opens the on-screen menu and exits from the menu. Also use to exit the OSD menu
or return to the previous menu.
Navigate buttons (Down-Up buttons) / Channel buttons
Moves from one menu item to another vertically or adjusts selected menu values.
/ When OSD is not on the screen, push the button to adjust channel.
Introduction
Adjust buttons (Left-Right buttons) / Volume buttons
Moves from one menu item to another horizontally or adjusts selected menu values. When OSD is not on the screen, push the button to adjust volume.
ENTER button [ENTER]
Activates a highlighted menu item.
SOURCE button [SOURCE]
Switches from PC mode to Video mode. Changing the source is only allowed for
external devices that are connected to the LCD Display at the time.
[PC] → [DVI] → [AV] → [HDMI] → [MagicInfo] → [TV]
D.MENU
Opens the on-screen D.MENU.
Power button [
]
Use this button for turning the LCD Display on and off.
Brightness Sensor
The product's Brightness Sensor function automatically detects the surrounding
brightness using a brightness sensor and adjusts its brightness accordingly.
Power indicator
Shows PowerSaver mode by blinking green
Note
See PowerSaver described in the manual for further information regarding power
saving functions. For energy conservation, turn your LCD Display OFF when it
is not needed or when leaving it unattended for long periods.
Remote Control Sensor
Aim the remote control towards this spot on the LCD Display.
Rear
Note
For detailed information concerning cable connections, refer to Connecting Cables under Setup. The
LCD Display 's configuration at the back may vary slightly depending on the LCD Display model.
Introduction
POWER S/W ON [ │ ] / OFF [O]
Switches the LCD Display On/Off.
POWER IN
The power cord plugs into the LCD Display and
the wall plug.
RS232C OUT/IN (RS232C Serial PORT)
MDC(Multiple Display Control) Program Port
DVI / PC / HDMI IN [DVI/PC/HDMI AUDIO
IN] (PC/DVI/HDMI Audio Connection Terminal
(Input))
DVI / PC / HDMI IN [HDMI]
Connect the HDMI terminal at the back of your
LCD Display to the HDMI terminal of your digital output device using a HDMI cable.
DVI / PC / HDMI IN [RGB](PC Video Connection Terminal)
Using a D-Sub Cable (15 pin D-Sub) - PC mode
(Analog PC)
DVI / PC / HDMI IN [DVI] (PC Video Connection Terminal)
Using a DVI Cable (DVI-D to DVI-D) - DVI
mode (Digital PC)
Introduction
AV IN [VIDEO] (VIDEO Connection Terminal)
AV AUDIO IN [L-AUDIO-R](LCD Display
Audio Connection Terminal (Input))
AUDIO OUT [L-AUDIO-R] (LCD Display
Audio Connection Terminal (Output))
COMMON INTERFACE
This contains information on CAM inserted in the
CI slot and displays it.
When not inserting CI CARD in some channels,
Scramble Signal is displayed onthe screen.
You can install the CAM anytime whether the TV
is ON or OFF.
ANT IN
Connect the CATV cable or TV antenna cable to
the " ANT IN" port on the rear side of the LCD
Display. Make sure to use a TV antenna cable
(sold separately) as the antenna cable.
RGB OUT
LAN (LAN Connection Terminal)
USB(USB Connection Terminal)
Keyboard / Mouse, Mass Storage Device Compatible.
Note
The number of LCD Displays that can be connected to loopout may differ depending on the
cables, signal source etc. With cables where there
is no degradation or signal source, up to ten LCD
Displays can be connected.
Introduction
Kensington Lock
The Kensington Lock is a device used to physically fix the system when using it in a public
place. The locking device has to be purchased
separately. The appearance and locking method
may differ from the illustration depending on the
manufacturer. Refer to the manual provided with
the Kensington Lock for proper use. The locking
device has to be purchased separately.
Note
The location of the Kensington Lock may be different depending on its model.
Using the Anti-Theft Kensington Lock
1.
Insert the locking device into the Kensington
slot on the LCD Display
the locking direction
and turn it in
.
2.
Connect the Kensington Lock cable.
3.
Fix the Kensington Lock to a desk or a heavy
stationary object.
Note
See Connecting Cables for further information regarding cable connections.
Remote Control
Note
The performance of the remote control may be affected by a TV or other electronic device operating
near the LCD Display , causing a malfunction due to interference with the frequency.
Introduction
POWER
OFF
Number Buttons
DEL
button
+ VOL MUTE
TV/DTV
MENU
INFO
COLOR BUTTONS
TTX/MIX
STILL
AUTO
S.MODE
MDC
LOCK
SOURCE
ENTER/PRE-CH
CH/P
D.MENU
GUIDE
RETURN
Up-Down Left-Right buttons
EXIT
SRS
MagicInfo
P.MODE
DUAL/MTS
PIP
SWAP
1.
POWER
Turns the product On.
2.
Off
Turns the product Off.
3. Number Buttons
Press to change the channel.
Introduction
4. DEL
button
The "-" button operates only for DTV. It is used to select MMS
(multi-channel) for a DTV.
5. + VOL -
Adjusts the audio volume.
6.
Pauses (mutes) the audio output temporarily. This is displayed on
the lower left corner of the screen. The audio resumes if MUTE
or - VOL + is pressed in the Mute mode.
MUTE
7. TV/DTV
Selects the TV and DTV mode directly.
8.
Opens the on-screen menu and exits from the menu or closes the
adjustment menu.
MENU
Activates a highlighted menu item.
9.
10.
INFO
Current picture information is displayed on the upper left corner
of the screen.
11.COLOR BUTTONS
Press to add or delete channels and to store channels to the favorite
channel list in the “Channel List” menu.
12.
TV channels provide written information services via teletext.
TTX/MIX
- Teletext Buttons
For more information > TTX / MIX
13.STILL
Press the button once to freeze the screen. Press it again to unfreeze.
14.AUTO
Adjusts the screen display automatically in PC mode. By changing
the resolution in the control panel, auto function is performed.
15. S.MODE
When pressing this button, the current mode is displayed at the
bottom centre of the screen. The LCD Display has a built-in high
fidelity stereo amplifier. Then press the button again to circle
through available preconfigured modes. ( Standard → Music
→ Movie → Speech → Custom )
16.MDC
MDC Quick Launch Button.
17.LOCK
Activates or deactivates all function keys on both the remote control and the LCD Display except for the Power and LOCK buttons.
18.
Press the button to change the input signal SOURCE.
SOURCE
Changing the SOURCE is only allowed for external devices that
are connected to the LCD Display at the time.
19.
ENTER/PRE-CH
This button is used to return to the immediately previous channel.
20. CH/P
In TV mode, selects TV channels.
21.D.MENU
DTV menu display
22.GUIDE
Electronic Program Guide (EPG) display.
23.
Returns to the previous menu.
RETURN
Introduction
24. Up-Down Left-Right buttons
Moves from one menu item to another horizontally, vertically or
adjusts selected menu values.
25.
EXIT
Exits from the menu screen.
26.
SRS
Not Available.
27.MagicInfo
MagicInfo Quick Launch Button.
28. P.MODE
When you press this button, current picture mode is displayed on
the lower center of the screen.
AV / HDMI / TV : P.MODE
The LCD Display has four automatic picture settings that are preset at the factory. Then push button again to circle through available preconfigured modes. ( Dynamic → Standard → Movie
→ Custom )
PC / DVI / MagicInfo: M/B (MagicBright)
MagicBright is a feature providing the optimum viewing environment depending on the contents of the image you are watching.
Then push button again to circle through available preconfigured
modes. (Entertain → Internet → Text → Custom )
29.
DUAL/MTS
DUALSTEREO/MONO, DUAL l / DUAL ll and MONO/NICAM
MONO/NICAM STEREO can be operated depending on the
broadcasting type by using the DUAL button on the remote control
while watching TV.
MTSYou can select MTS (Multichannel Television Stereo) mode.
FM Stereo
30. PIP
Audio Type
MTS/S_Mode
Default
Mono
Mono
Manual Change
Stereo
Mono ↔ Stereo
SAP
Mono ↔ SAP
Mono
Every time you press the button, a PIP screen appears.
- This fuction does not work for this LCD Display.
31.SWAP
Swaps the contents of the PIP and main image. The image in the
PIP window will appear on the main screen, and the main screen
image will appear in the PIP window.
- This fuction does not work for this LCD Display.
Introduction
Mechanical Layout (400CXn)
Mechanical Layout
NETWORK MODEL SIZE
Introduction
LCD Display Head
NETWORK MODEL SIZE
Installation VESA Bracket
•
When installing VESA, make sure to comply with the international VESA standards.
•
Purchasing VESA Bracket and Installation Information : Please contact your nearest SAMSUNG
Distributor to place an order. After your order is placed, installation professionals will visit you
and install the bracket.
•
At least 2 persons are needed in order to move the LCD Display.
•
SAMSUNG is not responsible for any product damage or any injury caused by installation at
customer's discretion.
Introduction
Dimensions
Notice
For securing the bracket on a wall, use only machine screws of 6 mm diameter and 8 to 12 mm length.
Wall Bracket Installation
•
Contact a technician for installing the wall bracket.
•
SAMSUNG Electronics is not responsible for any damages to the product or harm to customers
when the installation is done by the customer.
•
This product is for installing on cement walls. The product may not stay in place when installed
on plaster or wood.
Components
Only use the components and accessories shipped with the product.
Wall Bracket(1)
Hinge(Left 1, Right Plastic
1)
Hanger
(4)
Screw
(A)(11)
Screw(B) Anchor
(4)
(11)
Wall Bracket Assembly
Note
There are two hinges(left and right). Use the correct one.
1.
Insert and tighten the Captive Screw in the direction of the arrow.
Introduction
When done, mount the wall bracket on the wall.
There are two hinges(left and right). Use the correct one.
2.
A-
Captive Screw
B-
Wall Bracket
C-
Hinge (Left)
D-
Hinge (Right)
Before drilling into the wall, check if the length between the two locking holes at the back of the
product is correct.
If the length is too short or long, loosen all or some of the 4screws on the wall bracket to adjust
the length.
A-
3.
Length between the two locking holes
Check the installation diagram and mark the drill points on the wall. Use the 5.0 mm bit to drill
holes deeper than 35 mm. Fix each anchor in the corresponding hole. Match each of the brackets
and hinge holes to the corresponding anchor holes and insert and tighten the 11 screws A.
Introduction
To mount the product on the wall bracket
The shape of the product may vary depending on the model. (The assemblies of the plastic hanger and
the screw are the same)
1.
Remove the 4 screws on the back of the product.
2.
Insert the screw B into the plastic hanger.
Notice
3.
•
Mount the product on the wall bracket and make sure it is properly fixed to the left and right
plastic hangers.
•
Be careful when installing the product on the bracket as fingers can be caught in the holes.
•
Make sure the wall bracket is securely fixed to the wall, or the product may not stay in place
after installation.
Tighten the 4 screws in step 2 (plastic hanger + screw B)to the rear holes of the product.
Introduction
4.
Remove safety pin (3) and insert the 4 product holders into the corresponding bracket holes (1).
Then place the product(2) so that it is firmly fixed to the bracket. Make sure to re-insert and tighten
the safety pin (3) to securely hold the product to the bracket.
A-
LCD Display
B-
Wall Bracket
C-
Wall
Wall Bracket Angle Adjustment
Adjust the bracket angle to -2° before installing it on the wall.
1.
Fix the product to the wall bracket.
2.
Hold the product at the top in the center and pull it forward (direction of the arrow) to adjust the
angle.
3.
You can adjust the bracket angle between -2° and 15°.
Introduction
Make sure to use the top center, and not the leftor the right side of the product to adjust the angle.
Mechanical Layout (460CXN)
Mechanical Layout
NETWORK MODEL SIZE
Introduction
LCD Display Head
NETWORK MODEL SIZE
Installation VESA Bracket
•
When installing VESA, make sure to comply with the international VESA standards.
•
Purchasing VESA Bracket and Installation Information : Please contact your nearest SAMSUNG
Distributor to place an order. After your order is placed, installation professionals will visit you
and install the bracket.
•
At least 2 persons are needed in order to move the LCD Display.
•
SAMSUNG is not responsible for any product damage or any injury caused by installation at
customer's discretion.
Dimensions
Introduction
Notice
For securing the bracket on a wall, use only machine screws of 6 mm diameter and 8 to 12 mm length.
Wall Bracket Installation
•
Contact a technician for installing the wall bracket.
•
SAMSUNG Electronics is not responsible for any damages to the product or harm to customers
when the installation is done by the customer.
•
This product is for installing on cement walls. The product may not stay in place when installed
on plaster or wood.
Components
Only use the components and accessories shipped with the product.
Wall Bracket(1)
Hinge(Left 1, Right Plastic
1)
Hanger
(4)
Screw
(A)(11)
Screw(B) Anchor
(4)
(11)
Wall Bracket Assembly
Note
There are two hinges(left and right). Use the correct one.
1.
Insert and tighten the Captive Screw in the direction of the arrow.
When done, mount the wall bracket on the wall.
There are two hinges(left and right). Use the correct one.
Introduction
2.
A-
Captive Screw
B-
Wall Bracket
C-
Hinge (Left)
D-
Hinge (Right)
Before drilling into the wall, check if the length between the two locking holes at the back of the
product is correct.
If the length is too short or long, loosen all or some of the 4screws on the wall bracket to adjust
the length.
A-
3.
Length between the two locking holes
Check the installation diagram and mark the drill points on the wall. Use the 5.0 mm bit to drill
holes deeper than 35 mm. Fix each anchor in the corresponding hole. Match each of the brackets
and hinge holes to the corresponding anchor holes and insert and tighten the 11 screws A.
To mount the product on the wall bracket
The shape of the product may vary depending on the model. (The assemblies of the plastic hanger and
the screw are the same)
Introduction
1.
Remove the 4 screws on the back of the product.
2.
Insert the screw B into the plastic hanger.
Notice
•
Mount the product on the wall bracket and make sure it is properly fixed to the left and right
plastic hangers.
•
Be careful when installing the product on the bracket as fingers can be caught in the holes.
•
Make sure the wall bracket is securely fixed to the wall, or the product may not stay in place
after installation.
3.
Tighten the 4 screws in step 2 (plastic hanger + screw B)to the rear holes of the product.
4.
Remove safety pin (3) and insert the 4 product holders into the corresponding bracket holes (1).
Then place the product(2) so that it is firmly fixed to the bracket. Make sure to re-insert and tighten
the safety pin (3) to securely hold the product to the bracket.
Introduction
A-
LCD Display
B-
Wall Bracket
C-
Wall
Wall Bracket Angle Adjustment
Adjust the bracket angle to -2° before installing it on the wall.
1.
Fix the product to the wall bracket.
2.
Hold the product at the top in the center and pull it forward (direction of the arrow) to adjust the
angle.
3.
You can adjust the bracket angle between -2° and 15°.
Make sure to use the top center, and not the leftor the right side of the product to adjust the angle.
Connections
Connecting a Computer
Using a Power cord with Earth
•
In the event of failure, the earth lead may cause electric shock. Make sure to
wire the earth lead in correctly, before connecting the AC power. When unwiring the earth lead, make sure to disconnect the AC power in advance.
Note
AV input devices such as DVD players, VCR's or camcorders as well as your computer can be connected to the LCD Display. For detailed information on connecting AV input devices, refer to the
contents under Adjusting Your LCD Display.
Connect the power cord for your LCD Display to the power port on the back of
the LCD Display. Trun on the power switch.
There are 2 ways to connect the D-sub to your LCD Display. Choose one of the
following:
Using the D-sub (Analog) connector on the video card.
•
Connect the D-sub to the 15-pin, RGB port on the back of your LCD Display
and the 15 pin D-sub Port on the computer.
Using the DVI (Digital) connector on the video card.
•
Connect the DVI Cable to the DVI(HDCP) port on the back of your LCD
Display and the DVI port on the computer.
Connections
Connect the audio cable for your LCD Display to the audio port on the back of
your computer.
Note
•
Turn on both your computer and the LCD Display.
•
The DVI cable is optional.
•
Contact a local SAMSUNG Electronics Service Center to buy optional items.
Connecting to Other devices
Using a Power cord with Earth
•
In the event of failure, the earth lead may cause electric shock. Make sure to
wire the earth lead in correctly, before connecting the AC power. When unwiring the earth lead, make sure to disconnect the AC power in advance.
Note
AV input devices such as DVD players, VCR's or camcorders as well as your computer can be connected to the LCD Display. For detailed information on connecting AV input devices, refer to the
contents under Adjusting Your LCD Display.
Connecting TV
Note
You may view television programs on the LCD Display if it is connected to an antenna or CATV cable
without installing any separate TV reception hardware or software on your computer.
1.
Connect the CATV cable or TV antenna cable to the "ANT IN" port on the rear side of the LCD
Display.
Make sure to use a TV antenna cable (sold separately) as the antenna cable.
•
When using an interior antenna terminal:
Check the antenna terminal on the wall first and connect the antenna cable.
Connections
•
When using an outdoor antenna:
If you are using an outdoor antenna, use a professional for installation if possible.
•
To connect the RF cable to the antenna input terminal:
Keep the copper wire portion of the RF cable straight.
2.
Turn on the LCD Display.
3.
Select TV using the TV / DTV.
4.
Select a desired TV channel.
Note
Is weak signal causing poor reception?
Purchase and install a signal amplifier for better reception.
Connecting COMMON INTERFACE
Note
You can install the CAM anytime whether the TV is ON or OFF.
Purchase the CI CAM module by visiting your nearest dealer or by phone.
1.
Insert the CI CARD into the CAM in the direction of the arrow until it fits.
2.
Insert the CAM with the CI CARD installed into the common interface slot.
(Insert the CAM in the direction of the arrow, right up to the end so that it is parallel with the
slot.)
3.
Check if you can see a picture on a scrambled signal channel.
Connecting AV Devices
Connections
1.
Connect the port of the DVD, VCR (DVD / DTV Set-Top Box) to the [R-AUDIO-L] port of the
LCD Display.
2.
Then, start the DVD, VCR or Camcorders with a DVD disc or tape inserted.
3.
Select AV using the SOURCE .
Note
The LCD Display has AV connection terminals to connect AV input devices like DVDs, VCRs or
Camcorders. You may enjoy AV signals as long as the LCD Display is turned on.
Connecting to a Camcorder
1.
Locate the A/V output jacks on the camcorder. They are usually found on the side or back of the
camcorder. Connect a set of audio cables between the AUDIO OUTPUT jacks on the camcorder
and the AV AUDIO IN [L-AUDIO-R] on the LCD Display.
2.
Connect a video cable between the VIDEO OUTPUT jack on the camcorder and the AV IN
[VIDEO] on the LCD Display.
3.
Select AV for the Camcorder connection using the Source button on the front of the LCD Display
or on the remote control.
4.
Then, start the Camcorders with a tape inserted.
Note
The audio-video cables shown here are usually included with a Camcorder. (If not, check your local
electronics store.) If your camcorder is stereo, you need to connect a set of two cables.
Connecting Using a HDMI Cable
Note
•
Input devices such as digital DVD are connected to the HDMI terminal of the LCD Display using
the HDMI cable.
Connections
•
You cannot connect a PC to the HDMI terminal.
Connecting Using a DVI to HDMI Cable
Note
•
Connect the DVI output terminal of a digital output device to the HDMI terminal of the LCD
Display using a DVI to HDMI cable.
•
Connect the red and white jacks of an RCA to stereo (for PC) cable to the same colored audio
output terminals of the digital output device, and connect the opposite jack to the HDMI / PC /
DVI-D AUDIO IN terminal of the LCD Display.
Connecting to an Audio System
Note
•
Connect a set of audio cables between the AUX L, R jacks on the AUDIO SYSTEM and AUDIO
OUT [L-AUDIO-R] on LCD Display.
Connecting a LAN Cable
Using a Power cord with Earth
•
In the event of failure, the earth lead may cause electric shock. Make sure to
wire the earth lead in correctly, before connecting the AC power. When unwiring the earth lead, make sure to disconnect the AC power in advance.
Note
AV input devices such as DVD players, VCR's or camcorders as well as your computer can be connected to the LCD Display. For detailed information on connecting AV input devices, refer to the
contents under Adjusting Your LCD Display.
Connections
Note
Connect the LAN cable.
Connecting a USB device
Using a Power cord with Earth
•
In the event of failure, the earth lead may cause electric shock. Make sure to
wire the earth lead in correctly, before connecting the AC power. When unwiring the earth lead, make sure to disconnect the AC power in advance.
Note
AV input devices such as DVD players, VCR's or camcorders as well as your computer can be connected to the LCD Display. For detailed information on connecting AV input devices, refer to the
contents under Adjusting Your LCD Display.
Note
You can connect USB devices such as a mouse or keyboard.
Using the Software
Monitor Driver
Note
When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions appropriate for the operating system you
have.
Prepare a blank disk and download the driver program file at the Internet web site
shown here.
Internet web site :
http://www.samsung.com/ (Worldwide)
Installing the Monitor Driver (Automatic)
1.
Insert CD into the CD-ROM drive.
2.
Click "Windows".
3.
Choose your monitor model in the model list, then click the "OK" button.
4.
If you can see following message window, then click the "Continue Anyway" button. Then click
"OK" button (Microsoft® Windows® XP/2000 Operating System).
Using the Software
Note
This monitor driver is under certifying MS logo, and this installation doesn't damage your system.
The certified driver will be posted on Samsung Monitor homepage.
http://www.samsung.com/
Installing the Monitor Driver (Manual)
Microsoft® Windows Vista™‚ Operating System
1.
Insert your Manual CD into your CD-ROM drive.
2.
Click
3.
Click "Personalization" and then "Display Settings".
4.
Click "Advanced Settings...".
5.
Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the
configuration for your monitor is completed. The monitor can be used as is.
(Start) and "Control Panel". Then, double-click on "Appearance and Personalization".
If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue".
Using the Software
Note
This monitor driver is under certifying MS logo, and this installation doesn't damage your system.
The certified driver will be posted on Samsung Monitor homepage.
6.
Click "Update Driver..." in the "Driver" tab.
7.
Check the "Browse my computer for driver software" checkbox and click "Let me pick from a
list of device drivers on my computer".
8.
Click "Have Disk...” and select the folder (for example, D:\Drive) where the driver setup file is
located, and click "OK".
Using the Software
9.
Select the model that matches your monitor from the list of monitor models on the screen, and
click "Next".
10. Click "Close" → "Close" → "OK" → "OK" on the following screens displayed in sequence.
Microsoft® Windows® XP Operating System
Using the Software
1.
Insert CD into the CD-ROM drive.
2.
Click "Start" → "Control Panel" then click the "Appearance and Themes" icon.
3.
Click "Display" icon and choose the "Settings" tab then click "Advanced...".
4.
Click the "Properties" button on the "Monitor" tab and select "Driver" tab.
5.
Click "Update Driver..." and select "Install from a list or..." then click "Next" button.
6.
Select "Don't search, I will..." then click "Next" and then click "Have disk".
Using the Software
7.
Click the "Browse" button then choose A:(D:\Driver) and choose your monitor model in the model
list and click the "Next" button.
8.
If you can see following message window, then click the "Continue Anyway" button. Then click
"OK" button.
Note
This monitor driver is under certifying MS logo, and this installation doesn't damage your system.
The certified driver will be posted on Samsung Monitor homepage.
http://www.samsung.com/
9.
Click the "Close" button then click "OK" button continually.
Using the Software
10. Monitor driver installation is completed.
Microsoft® Windows® 2000 Operating System
When you can see "Digital Signature Not Found" on your monitor, follow these steps.
1.
Choose "OK" button on the "Insert disk" window.
2.
Click the "Browse" button on the "File Needed" window.
3.
Choose A:(D:\Driver) then click the "Open" button and then click "OK" button.
How to install
1.
Click "Start", "Setting", "Control Panel".
2.
Double click the "Display" icon.
3.
Select the "Settings" tab and click "Advanced Properties" button.
4.
Choose "Monitor".
Case1 : If the "Properties" button is inactive, it means your monitor is properly configured. Please
stop installation
Case2 : If the "Properties" button is active, click the "Properties" button then follow next steps
continually.
5.
Click "Driver" and then click on "Update Driver..." then click on the "Next" button.
6.
Choose "Display a list of the known drivers for this device so that I can choose a specific driver"
then click "Next" and then click "Have disk".
7.
Click the "Browse" button then choose A:(D:\Driver).
8.
Click the "Open" button, then click "OK" button.
9.
Choose your monitor model and click the "Next" button then click "Next" button.
10. Click the "Finish" button then the "Close" button.
If you can see the "Digital Signature Not Found" window then click the "Yes" button. And click
the "Finish" button then the "Close" button.
Microsoft® Windows® Millennium Operating System
1.
Click "Start", "Setting", "Control Panel".
2.
Double click the "Display" icon.
3.
Select the "Settings" tab and click "Advanced Properties" button.
Using the Software
4.
Select the "Monitor" tab.
5.
Click the "Change" button in the "Monitor Type" area.
6.
Choose "Specify the location of the driver".
7.
Choose "Display a list of all the driver in a specific location..." then click "Next" button.
8.
Click the "Have Disk" button.
9.
Specify A:\(D:\driver) then click "OK" button.
10. Select "Show all devices" and choose the monitor that corresponds to the one you connected to
your computer and click "OK".
11. Continue choosing "Close" button and "OK" button until you close the Display Properties dialogue box.
Microsoft® Windows® NT Operating System
1.
Click "Start", "Settings", "Control Panel", and then double-click "Display" icon.
2.
In Display Registration Information window, click Settings Tab and then click "All Display
Modes".
3.
Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency) and
then click "OK".
4.
Click "Apply" button if you see the screen working normally after clicking "Test". If the screen
is not normal, change to a different mode (lower mode of resolution, colors or frequency).
Note
If there is no Mode at All Display Modes, select the level of resolution and vertical frequency by
referring to the Preset Timing Modes in the user guide.
Linux Operating System
To execute X-Window, you need to make the X86Config file, which is a type of system setting file.
1.
Press "Enter" at the first and the second screen after executing the X86Config file.
2.
The third screen is for setting your mouse.
3.
Set a mouse for your computer.
4.
The next screen is for selecting a keyboard.
5.
Set a Keyboard for your computer.
6.
The next screen is for setting your monitor.
7.
First of all, set a horizontal frequency for your monitor. (You can enter the frequency directly.)
8.
Set a vertical frequency for your monitor. (You can enter the frequency directly.)
9.
Enter the model name of your monitor. This information will not affect the actual execution of
X-Window.
10. You have finished setting up your monitor. Execute X-Window after setting other requested
hardware.
Using the Software
Installation MagicInfo Pro
Installation
1.
Insert CD into the CD-ROM drive.
2.
Click the MagicInfo Pro installation file.
3.
When the Install Shield Wizard window appears, click "Next."
4.
Select "I agree to the terms of the license agreement" to accept the terms of use.
5.
You are required to log in to the MagicInfo Pro Server program. Please enter the password to
login. The password cannot be changed when you are logged in.
Using the Software
6.
Choose a folder to install the MagicInfo Pro program.
7.
Click "Install."
Using the Software
8.
The "Setup Status" window appears.
9.
It is recommended restarting the system for the normal operation of the MagicInfo Pro Server
program. Click "Finish."
Using the Software
10. When the installation is complete, the MagicInfo Pro executable icon appears on your desktop.
11. Double-click the icon to start the program.
System Requirements
Minimum
CPU
RAM
Ethernet
OS
P1.8
256M
100M/1G
Windows XP WMP 9 or
Windows
later
2000 (Service Pack 4)
Recommen- P3.0Ghz
ded
512M
Application
Adjusting the LCD Display
Input
Available Modes
•
PC / DVI
•
AV
•
HDMI
•
MagicInfo
•
TV
Source List
MENU → ENTER → [Input] → ENTER → [Source List]
→
,
→ ENTER
Use to select PC, DVI or other external input sources connected to the LCD Display. Use to select the
screen of your choice.
1.
PC
2.
DVI
3.
AV
4.
HDMI
5.
MagicInfo
6.
TV
Note
•
The direct button on the remote control is the 'SOURCE' button.
•
For PC and DVI, this is deactivated if the cable is disconnected.
Edit Name
MENU → ENTER → [Input] →
→ [Edit Name]
Adjusting the LCD Display
→
,
→ ENTER
Name the input device connected to the input jacks to make your input source selection easier.
1.
PC
2.
DVI
3.
AV
4.
HDMI
Picture [PC / DVI / MagicInfo Mode]
Available Modes
•
PC / DVI
•
AV
•
HDMI
•
MagicInfo
•
TV
MagicBright
MENU →
→
,
→ ENTER → [Picture] → ENTER → [MagicBright]
→ ENTER
MagicBright is a feature providing the optimum viewing environment depending on the contents of
the image you are watching. Currently four different modes are available: Entertain, Internet, Text
and Custom. Each mode has its own pre-configured brightness value. You can easily select one of the
four settings by simply pressing the MagicBright control button.
(Not available in Dynamic Contrast mode of On.)
Adjusting the LCD Display
1.
Entertain
High brightness
For watching motion pictures such as a DVD or VCD.
2.
Internet
Medium brightness
For working with a mixture of images such as texts and graphics.
3.
Text
Normal brightness
For documents or works involving heavy text.
4.
Custom
Although the values are carefully chosen by our engineers, the pre-configured values may not be
comfortable to your eyes depending on your taste.
If this is the case, adjust the brightness and contrast by using the OSD menu.
Custom
By using the on-screen menus, the contrast and brightness can be changed to your personal preference.
MENU →
→ ENTER → [Picture] →
→ ENTER → [Custom]
(Not available in Dynamic Contrast mode of On.)
Note
By adjusting the picture using the Custom function, MagicBright will change to Custom mode.
Contrast
MENU →
→ ,
→ ENTER → [Picture] →
→ ENTER → [Custom] → ENTER→ [Contrast]
→ ENTER
Adjusts the Contrast.
Brightness
MENU →
→ ,
→ ENTER → [Picture] →
→ ENTER → [Custom] →
→ ENTER→ [Brightness]
→ ENTER
Adjusts the Brightness.
Sharpness
MENU →
ness]
→ ENTER → [Picture] →
→ ENTER → [Custom] → → → ENTER→ [Sharp-
Adjusting the LCD Display
→ ,
→ ENTER
Adjusts the Sharpness.
Color Tone
MENU →
→
,
→ ENTER → [Picture] →
→
→ENTER → [Color Tone]
→ ENTER
The color tones can be changed.
(Not available in Dynamic Contrast mode of On.)
1.
Off
2.
Cool
3.
Normal
4.
Warm
5.
Custom
Note
If you set the Color Tone to Cool, Normal, Warm, or Custom, the Color Temp function is disabled.
If you set the Color Tone to Off, the Color Control function is disabled
Color Control
Adjusts individual Red, Green, Blue color balance.
MENU →
→ ENTER → [Picture] →
→
→ → ENTER → [Color Control]
(Not available in Dynamic Contrast mode of On.)
Note
If you adjust the picture by using the Color Control function, Color Tone will turn to the Custom
mode.
Red
MENU →
[Red]
→ ENTER → [Picture] →
→
→ → ENTER → [Color Control] → ENTER →
Adjusting the LCD Display
→ ,
→ ENTER
Green
MENU → → ENTER → [Picture] →
→ [Green]
→ ,
→
→ → ENTER → [Color Control] → → ENTER
→ ENTER
Blue
MENU → → ENTER → [Picture] →
ENTER → [Blue]
→ ,
→
→ → ENTER → [Color Control] →
→ →
→ ENTER
Color Temp
MENU →
→ ,
→ ENTER → [Picture] →
→
→ → ENTER → [Color Temp]
→ ENTER
Color Temp is a measure of the 'warmth' of the image colors.
(Not available in Dynamic Contrast mode of On.)
Note
This function is only enabled if the Color Tone is set to Off.
Image Lock
Image Lock is used to fine-tune and get the best image by removing noise that creates unstable images
with jitters and shakiness. If satisfactory results are not obtained using the Fine adjustment, use the
Coarse adjustment and then use Fine again.
(Available in PC mode only)
MENU →
→ ENTER → [Picture] →
→
→ → → ENTER → [Image Lock]
Coarse
MENU → → ENTER → [Picture] →
→ [Coarse]
→ ,
→ ENTER
→
→ → → ENTER → [Image Lock] → ENTER
Adjusting the LCD Display
Removes noise such as vertical stripes. Coarse adjustment may move the screen image area. You may
relocate it to the center using the horizontal control menu.
Fine
MENU → → ENTER → [Picture] → → → → → ENTER → [Image Lock] → → ENTER
→ [Fine]
→ ,
→ ENTER
Removes noise such as horizontal stripes. If the noise persists even after Fine tuning, repeat it after
adjusting the frequency (clock speed).
H-Position
MENU → → ENTER → [Picture] →
ENTER → [H-Position]
→ ,
→
→ → → ENTER → [Image Lock] → → →
→ ENTER
Adjusts the screen location horizontally.
V-Position
MENU → → ENTER → [Picture] →
→ ENTER→ [V-Position]
→ ,
→
→ → → ENTER → [Image Lock] → → →
→
→
→ ENTER
Adjusts the screen location vertically.
Auto Adjustment
MENU →
→ ENTER → [Picture] →
→ → → ENTER → [Auto Adjustment ]
The values of Fine, Coarse, Position are adjusted automatically. By changing the resolution in the
control panel, the auto function is performed.
(Available in PC mode only)
Note
The direct button on the remote control is the 'AUTO' button.
Signal Balance
This is used to make up for the weak RGB signal transmitted by a long signal cable.
MENU →
→ ENTER → [Picture] →
→
→
→ → → → ENTER → [Signal Balance]
Adjusting the LCD Display
(Available in PC mode only)
Signal Balance
MENU → → ENTER → [Picture] →
→ ENTER → [Signal Balance]
→
,
→
→
→ → → → ENTER → [Signal Balance]
→
→ → → → ENTER → [Signal Balance]
→ ENTER
Selects either On or Off with the signal control.
Signal Control
MENU → → ENTER → [Picture] →
→ → ENTER → [Signal Control]
1.
→
R-Gain
MENU → → ENTER → [Picture] → → → → → → → ENTER → [Signal Balance] → → ENTER → [Signal Control] → ENTER → [R-Gain] → ENTER
→ ,
2.
→ ENTER
G-Gain
MENU → → ENTER → [Picture] → → → → → → → ENTER → [Signal Balance] → → ENTER → [Signal Control] → → ENTER→ [G-Gain] → ENTER
→ ,
3.
→ ENTER
B-Gain
MENU → → ENTER → [Picture] → → → → → → → ENTER → [Signal Balance] → → ENTER → [Signal Control] → → → ENTER→ [B-Gain] → ENTER
→ ,
4.
→ ENTER
R-Offset
MENU → → ENTER → [Picture] → → → → → → → ENTER → [Signal Balance] → → ENTER → [Signal Control] → → → → ENTER→ [R-Offset] → ENTER
Adjusting the LCD Display
→ ,
5.
→ ENTER
G-Offset
MENU → → ENTER → [Picture] → → → → → → → ENTER → [Signal Balance] → → ENTER → [Signal Control] → → → → → ENTER→ [G-Offset] →
ENTER
→ ,
6.
→ ENTER
B-Offset
MENU → → ENTER → [Picture] → → →
ance] → → ENTER → [Signal Control] → →
→ ENTER
→ ,
→ → → → ENTER → [Signal Bal→ → → → → ENTER[B-Offset]
→ ENTER
Size
MENU →
→
,
→ ENTER → [Picture] →
→
→
→ → → → → ENTER → [Size]
→
→
→ → → → → → ENTER → [Dynamic
→ ENTER
The Size can be switched.
1.
16:9
2.
4:3
Dynamic Contrast
MENU →
Contrast]
→
,
→ ENTER → [Picture] →
→ ENTER
Adjusting the LCD Display
Dynamic Contrast automatically detects the distribution of the visual signal and adjusts to create an
optimum contrast.
1.
Off
2.
On
Picture [ AV / HDMI / TV Mode]
Available Modes
•
PC / DVI
•
AV
•
HDMI
•
MagicInfo
•
TV
Mode
MENU →
→
,
→ ENTER → [Picture] → ENTER → [Mode]
→ ENTER
The LCD Display has four automatic picture settings ("Dynamic", "Standard", "Movie" and "Custom") that are preset at the factory.
Dynamic, Standard, Movie, or Custom can be activated.
(Not available in Dynamic Contrast mode of On.)
1.
Dynamic
2.
Standard
3.
Movie
4.
Custom
Note
The direct button on the remote control is the 'P.MODE' button.
Custom
By using the on-screen menus, the contrast and brightness can be changed to your personal preference.
MENU →
→ ENTER → [Picture] →
→ ENTER → [Custom]
Adjusting the LCD Display
(Not available in Dynamic Contrast mode of On.)
Contrast
MENU →
→ ,
→ ENTER → [Picture] →
→ ENTER → [Custom] → ENTER→ [Contrast]
→ ENTER
Adjusts the Contrast.
Brightness
MENU →
→ ,
→ ENTER → [Picture] →
→ ENTER → [Custom] →
→ ENTER→ [Brightness]
→ ENTER
Adjusts the Brightness.
Sharpness
MENU →
ness]
→ ,
→ ENTER → [Picture] →
→ ENTER → [Custom] → → → ENTER→ [Sharp-
→ ENTER
Adjusts the picture Sharpness.
Color
MENU →
[Color]
→ ,
→ ENTER → [Picture] →
→ ENTER → [Custom] → → → → ENTER→
→ ENTER
Adjusts the picture Color.
Tint
MENU →
→ [Tint]
→ ,
→ ENTER → [Picture] →
→ ENTER
Adds a natural tone to the display.
→ ENTER → [Custom] →
→
→ →
→ ENTER
Adjusting the LCD Display
Color Tone
MENU →
→
,
→ ENTER → [Picture] →
→
→ ENTER → [Color Tone]
→ ENTER
The color tones can be changed. The individual Color components are also user adjustable.
(Not available in Dynamic Contrast mode of On.)
1.
Off
2.
Cool2
3.
Cool1
4.
Normal
5.
Warm1
6.
Warm2
Note
If you set the Color Tone to Cool2, Cool1, Normal, Warm1, or Warm2, the Color Temp function
is disabled.
Color Temp
MENU →
→ ,
→ ENTER → [Picture] →
→ → → ENTER → [Color Temp]
→ ENTER
Color temp is a measure of the 'warmth' of the image colors.
(Not available in Dynamic Contrast mode of On.)
Note
This function is only enabled if the Color Tone is set to Off.
Size
MENU →
→ ENTER → [Picture] →
→
→
→ → ENTER → [Size]
Adjusting the LCD Display
→
,
→ ENTER
The Size can be switched.
1.
16:9
2.
Zoom 1
3.
Zoom 2
4.
4:3
5.
Just Scan
(Not available in Dynamic Contrast mode of On.)
Note
The Zoom1, Zoom2 are not available HDMI.
The Just Scan are available in HDMI.
Digital NR (Digital Noise Reduction)
MENU →
→
,
→ ENTER → [Picture] →
→
→
→ → → ENTER → [Digital NR]
→ ENTER
Turns the Digital Noise Reduction feature Off/On. The Digital Noise Reduction feature allows you to
enjoy clearer and crisper images.
1.
Off
2.
On
Film Mode
MENU →
→ ENTER → [Picture] →
→
→
→
→
→
→ ENTER → [Film Mode ]
Adjusting the LCD Display
→
,
→ ENTER
Turns Film Mode Off/On.
The Film Mode feature offers you a theater-quality viewing experience.
(Not available in HDMI Mode)
1.
Off
2.
On
Dynamic Contrast
MENU →
Contrast ]
→
,
→ ENTER → [Picture] →
→
→
→ → → → → ENTER → [Dynamic
→ ENTER
Dynamic Contrast automatically detects the distribution of the visual signal and adjusts to create an
optimum contrast.
1.
Off
2.
On
Brightness Sensor
MENU → → ENTER → [Picture] → → → → → → → → → ENTER → [Brightness
Sensor ]
→ ,
→ENTER
Brightness Sensor is to automatically detect distribution of inputted visual signal and adjust to create
optimum brightness.
Adjusting the LCD Display
1.
Off
2.
On
Sound
Available Modes
•
PC / DVI
•
AV
•
HDMI
•
MagicInfo
•
TV
Mode
MENU →
→
,
→ → ENTER → [Sound] → ENTER → [Mode]
→ ENTER
The LCD Display has a built-in high fidelity stereo amplifier.
1.
Standard
Selects Standard for the standard factory settings.
2.
Music
Selects Music when watching music videos or concerts.
3.
Movie
Selects Movie when viewing movies.
4.
Speech
Selects Speech when watching a show that is mostly dialogue (i.e., news).
5.
Custom
Selects Custom if you want to adjust the settings according to your personal preferences.
Custom
The sound settings can be adjusted to suit your personal preferences.
MENU →
→ → ENTER → [Sound] → → ENTER → [Custom ]
Adjusting the LCD Display
Note
•
You can hear the sound even when sound value is set to 0.
•
If you adjust sound using Custom function, Mode will turn to Custom mode.
Bass
MENU →
→ ,
→ → ENTER → [Sound] → → ENTER → [Custom ]→ENTER→ [Bass]
→ ENTER
Emphasizes low frequency audio.
Treble
MENU →
→ ,
→ → ENTER → [Sound] → → ENTER → [Custom ]→ →ENTER→ [Treble]
→ ENTER
Emphasizes high frequency audio.
Balance
MENU →
ance]
→ ,
→ → ENTER → [Sound] → → ENTER → [Custom ]→ → →ENTER→ [Bal-
→ ENTER
Allows you to Adjusts the sound balance between the left and right speakers.
Auto Volume
MENU →
→
,
→ → ENTER → [Sound] → → → ENTER → [Auto Volume]
→ ENTER
Reduces the difference in volume control between broadcasters.
1.
Off
2.
On
Adjusting the LCD Display
SRS TS XT
MENU →
→
,
→ → ENTER → [Sound] → → → → ENTER → [SRS TS XT]
→ ENTER
SRS TS XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content
over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any
two-speaker playback system, including internal television speakers. It is fully compatible with all
multichannel formats.
1.
Off
2.
On
Note
The direct button on the remote control is the 'SRS' button.
Setup
Available Modes
•
PC / DVI
•
AV
•
HDMI
•
MagicInfo
•
TV
Language
MENU →
→
,
→ → → ENTER → [Setup] → ENTER → [Language ]
→ ENTER
You can choose one of 11 languages.
Adjusting the LCD Display
Note
The language chosen affects only the language of the OSD. It has no effect on any software running
on the computer.
Time
Selects from one of 4 time settings, Clock Set, Sleep Timer, On Timer, and Off Timer.
MENU →
→ → → ENTER → [Setup] →
→ ENTER → [Time ]
→ → → ENTER → [Setup] →
→ ENTER → [Time ] → ENTER→ [Clock Set]
Clock Set
MENU →
→
,
→ ,
→ ENTER
Current Time Setting.
Sleep Timer
MENU →
Timer]
→
,
→ → → ENTER → [Setup] →
→ ENTER → [Time ] →
→ ENTER
Turns the LCD Display off automatically at certain times.
1.
Off
2.
30
3.
60
4.
90
5.
120
→ ENTER→ [Sleep
Adjusting the LCD Display
6.
150
7.
180
On Timer
MENU → → → → ENTER → [Setup] → → ENTER → [Time ] → → → ENTER→ [On
Timer]
→
,
/ ,
→ ENTER
Turns the LCD Display on automatically at a preset time. Controls the mode and the volume level at
the time the LCD Display turns on automatically.
Off Timer
MENU → → → → ENTER → [Setup] →
→ [Off Timer]
→
,
/ ,
→ ENTER → [Time ] → → →
→ ENTER
→ ENTER
Turns the LCD Display off automatically at a preset time.
Menu Transparency
MENU →
→
,
→ → → ENTER → [Setup] → →
→ ENTER → [Menu Transparency]
→ ENTER
Change the transparency of the background of the OSD.
Adjusting the LCD Display
1.
High
2.
Medium
3.
Low
4.
Opaque
Safety Lock PIN
MENU →
→ → → ENTER → [Setup] → → →
→ ENTER → [Safety Lock PIN ]
→ [0∼ 9] → [0∼ 9] → [0∼ 9]
The password can be changed.
Energy Saving
MENU →
→
,
→ → → ENTER → [Setup] → → → →
→ ENTER → [Energy Saving]
→ ENTER
This feature adjusts the power consumption of the unit in order to save energy.
1.
Off
2.
On
Note
If you want to reduce the standby power consumption, set Energy Saving to On. However, when
Energy Saving is On, you cannot use the remote Power On function of the MDC and the WOL (Wake
On LAN) function of MagicInfo.
HDMI Black Level
MENU →
Level ]
→ → → ENTER → [Setup] → → → →
→
→ ENTER → [HDMI Black
Adjusting the LCD Display
→
,
→ ENTER
When a DVD or set-top box is connected to your TV via HDMI, it may cause a degradation in the
screen quality, such as an increase in the black level, a low contrast, or discoloration, etc., depending
on the external device connected. In this case, adjust the screen quality of your TV by configuring the
HDMI black level.
1.
Normal
2.
Low
Video Wall
A Video Wall is a set of video screens connected together, so that each screen shows a part of the
whole picture or where the same picture is repeated on each screen.
When the Video Wall is on, you can adjust the Video Wall screen setting.
MENU →
Wall ]
→ → → ENTER → [Setup] → → → →
→
→
→ ENTER → [Video
Note
When Video Wall is running, the Auto Adjustment, Image Lock, and Size functions are not available.
Video Wall does not operate in MagicInfo mode.
Video Wall
MENU → → → → ENTER → [Setup] → → → →
Wall ]→ ENTER → [Video Wall ]
→
,
→
→ ENTER
Turns Off/On the Video Wall function of the selected display Off/On.
1.
Off
2.
On
→
→ ENTER → [Video
Adjusting the LCD Display
Format
MENU → → → → ENTER → [Setup] → → → →
Wall ]→ → ENTER → [Format]
→
,
→
→
→ ENTER → [Video
→
→
→ ENTER → [Video
→
→
→ ENTER → [Video
→ ENTER
The Format can be selected to see a divided screen.
1.
Full
Provides a full screen without any margins.
2.
Natural
Displays a natural image with the original aspect ratio intact.
Horizontal
MENU → → → → ENTER → [Setup] → → → →
Wall ]→ → → ENTER → [Horizontal]
→
,
→ ENTER
Sets how many parts the screen should be divided horizontally.
Five adjustment levels: 1, 2, 3, 4, and 5.
Vertical
MENU → → → → ENTER → [Setup] → → → →
Wall ]→ → → → ENTER → [Vertical]
Adjusting the LCD Display
→
,
→ ENTER
Sets how many parts the screen should be divided vertically.
Five adjustment levels: 1, 2, 3, 4, and 5.
Screen Divider
MENU → → → → ENTER → [Setup] → → → →
Wall ]→ → → → → ENTER → [Screen Divider]
→
→
→ ENTER → [Video
The screen can be divided into several images. A number of screens can be selected with a different
layout when dividing.
•
Select a mode in Screen Divider.
•
Select a display in Display Selection.
•
The selection will be set up by pressing a number in the selected mode.
Safety Screen
The Safety Screen function is used to prevent afterimages that may appear when a still picture is
displayed on the screen over a long time.
•
The Screen Scroll function scrolls the screen for the specified period of time.
•
This function is not available when the power is turned off.
MENU →
Screen]
→ → → ENTER → [Setup] → → → →
→
→
→
→ ENTER → [Safety
Pixel Shift
Pixel Shift
MENU → → → → ENTER → [Setup] → → → → → →
Screen] → ENTER → [Pixel Shift] → ENTER → [Pixel Shift] → ,
→ → ENTER → [Safety
→ ENTER
To prevent after-images on the screen you can use this function, so that every minute pixels on the
PDP are moved in horizontal or vertical direction.
Adjusting the LCD Display
1.
Off
2.
On
Horizontal Dot
MENU → → → → ENTER → [Setup] → → → → → → → → ENTER → [Safety
Screen] → ENTER → [Pixel Shift] → → ENTER → [Horizontal Dot] → , → ENTER
Sets how many pixels the screen moves horizontally.
Five adjustment levels: 0, 1, 2, 3, and 4.
Vertical Line
MENU → → → → ENTER → [Setup] → → → → → → → → ENTER → [Safety
Screen] → ENTER → [Pixel Shift] → → → ENTER → [Vertical Line] → , → ENTER
Sets how many pixels the screen moves vertically.
Five adjustment levels: 0, 1, 2, 3, and 4.
Time
MENU → → → → ENTER → [Setup] → → → → → → → → ENTER → [Safety
Screen] → ENTER → [Pixel Shift] → → → → ENTER → [Time] → , → ENTER
Set the time interval for performing the horizontal or vertical movement, respectively.
Adjusting the LCD Display
Timer
Timer
MENU → → → → ENTER → [Setup] → → → → → → → → ENTER → [Safety
Screen] → → ENTER → [Timer] → ENTER → [Timer] → , → ENTER
You can set the timer for Screen Burn Protection.
If you start the operation to erase any residual image, the operation will be performed for the set period
of time and then automatically finish.
1.
Off
2.
On
Mode
MENU → → → → ENTER → [Setup] → → → → → → → → ENTER → [Safety
Screen] → → ENTER → [Timer] → → ENTER → [Mode] → , → ENTER
You can change the Safety Screen Type.
1.
Scroll
2.
Bar
3.
Eraser
Period
MENU → → → → ENTER → [Setup] → → → → → → → → ENTER → [Safety
Screen] → → ENTER → [Timer] → → → ENTER → [Period] → , → ENTER
Adjusting the LCD Display
Use this function to set the execution period for each mode set in the timer.
Time
MENU → → → → ENTER → [Setup] → → → → → → → → ENTER → [Safety
Screen] → → ENTER → [Timer] → → → → ENTER → [Time] → , → ENTER
Within the set period of time specify a time for execution.
•
Mode-Scroll : 1~5 sec
•
Mode-Bar, Eraser : 10~50 sec
Scroll
MENU → → → → ENTER → [Setup] → → → →
Screen] → → → ENTER → [Scroll]
→
→
→
→ ENTER → [Safety
This function prevents after-images on the screen by moving all the pixels on the PDP according to a
pattern.
Use this function when there are remaining after-images or symbols on the screen, especially when
you displayed a still image on the screen for a long time.
Bar
MENU → → → → ENTER → [Setup] → → → →
Screen] → → → →ENTER → [Bar]
→
→
→
→ ENTER → [Safety
This function prevents after-images on the screen by moving long black and white vertical lines.
Adjusting the LCD Display
Eraser
MENU → → → → ENTER → [Setup] → → → →
Screen] → → → → →ENTER → [Eraser]
→
→
→
→ ENTER → [Safety
This function prevents after-images on the screen by moving a rectangular pattern.
Resolution Select
MENU → → → → ENTER → [Setup] → → → →
[Resolution Select ]
→
,
→
→
→
→
→ENTER →
→ ENTER
When the picture is not displayed properly on the screen when setting the graphics card resolution of
the computer to 1024 x 768 @ 60Hz, 1280 x 768 @ 60Hz, 1360 x [email protected] 60Hz or 1366 x768 @ 60Hz,
by using this function(Resolution Select), you can have the picture displayed on the screen in the
specified resolution.
Note
Available in PC mode only
1.
Off
2.
1024 X 768
3.
1280 X 768
4.
1360 x 768
5.
1366 X 768
Note
Selecting the menu is only allowed when the graphics resolution is set to 1024 x 768 @ 60Hz, 1280 x
768 @ 60Hz, 1360 x [email protected] 60Hz or 1366 x768 @ 60Hz.
Power On Adjustment
MENU → → → → ENTER → [Setup] → → → →
→ [Power On Adjustment ]
→
→
→
→
→ → ENTER
Adjusting the LCD Display
→
,
→ ENTER
Adjusts the Power On time for the screen.
Caution: Set the Power On time to be loger to avoid overvoltage.
Side Gray
MENU → → → → ENTER → [Setup] → → → → → → → → → → → ENTER
→ [Side Gray]
→
,
→ ENTER
Select the brightness of the grey for the screen background.
1.
Off
2.
Light
3.
Dark
Reset
Reverts the product settings to factory defaults. The Reset function is only available when PC / DVI
is being used.
MENU → → → → ENTER → [Setup] → → → →
ENTER → [Reset ]
→
→
→
→
→ → → →
→
→
→
→
→ → → →
Image Reset
MENU → → → → ENTER → [Setup] → → → →
ENTER → [Reset ]→ ENTER → [Image Reset ]
→ , → ENTER
Adjusting the LCD Display
Note
Available in PC mode only
Note
The Reset function is not available when Video Wall is On.
Color Reset
MENU → → → → ENTER → [Setup] → → → →
ENTER → [Reset ]→ → ENTER → [Color Reset ]
→ ,
→
→
→
→
→ → → →
→ ENTER
Lamp Control
MENU → → → → ENTER → [Setup] → → → →
→ ENTER → [Lamp Control ]
→ ,
→
→
→
→
→ → → →
→ ENTER
Adjusts the inverter lamp in order to reduce energy consumption.
Note
This function does not operate when Dynamic Contrast is set to On in PC, DVI, AV, HDMI, TV
modes.
Multi Control
Available Modes
•
PC / DVI
•
AV
•
HDMI
•
MagicInfo
•
TV
Multi Control
Assigns an individual ID to the SET.
MENU →
→ → →
→ ENTER → [Multi Control ] → ENTER
Adjusting the LCD Display
→
•
,
→ [0~9]
ID Setup
Assigns distinctive IDs to the SET.
•
ID Input
Use to select the transmitter functions of the individual SET. Only a SET where the ID corresponds
to the transmitter setting becomes activated.
MagicInfo
Available Modes
•
PC / DVI
•
AV
•
HDMI
•
MagicInfo
•
TV
Note
•
The operating system for this set only supports English so the other languages might be corrupted
on the screen.
•
For MagicInfo, a remote control is available for MagicInfo. However, it is recommended using
a separate USB keyboard.
•
For MagicInfo in Device mode, moving external devices while booting may cause errors. Set up
external devices only if the LCD Display turns on.
•
Do not unplug the LAN cable used for the network (ex: video display). Otherwise, the program
(MagicInfo) may stop. If you do unplug the cable, restart the system.
•
Do not unplug the LAN cable used by an USB device (ex: video display). Otherwise, the program
(MagicInfo) may stop.
•
To access other sources, press the SOURCE button in MagicInfo.
•
The preset password for the LCD Display is "000000".
•
The server program's Power-On option works only if the LCD Display's power is completely shut
off.
Please make sure not to use the Power-On option when the LCD Display is in the process of shutting
down since this may cause system errors on the LCD Display.
•
In the OSD image of MagicInfo, Network mode is the same as Device.
•
When using MagicInfo with the MagicInfo Pro Server Program: perform Network mode.
•
When using MagicInfo with the device directly connected to LCD Display : execute Device mode.
•
Press ALT + F12 to directly go to the MagicInfo Window screen.
Adjusting the LCD Display
•
To setup MagicInfo on a Windows screen, a keyboard and mouse are required.
•
To setup MagicInfo on a Windows screen, refer to the MagicInfo Server Help.
It is highly recommended not to turn off the AC power during an operation.
•
For pivoted LCD Displays, ticker transparency is not supported.
•
For pivoted LCD Displays, a screen resolution of up to 720*480(SD) is supported for movies.
•
For drive D:, EWF is not applied.
•
When the contents of Setup have been changed when EWF is in the Enable state, to save the
changes in the disk, you must Commit them.
•
By selecting Disable, Enable or Commit, the system is restarted.
The JPEG, BMP file format are supported.
Auto
Automatically fits the image to the window.
Original
Shows the properties of the original file.
Adjusting the LCD Display
Slide Show
Displays the properties of the original file as they are.
Interval
Controls the time intervals between image files for a slide show. (5 Sec, 10 Sec, 20 Sec, 30 Sec, 60
Sec)
Adjusting the LCD Display
Rotation
Displays an image file by turning it clockwise by 90 degrees.
Zoom
Displays a reduced picture.
Adjusting the LCD Display
Close
Closes the image control Menu.
Music
The MP3 file format is supported.
Movie
The MPEG1, WMV file format are supported.
Adjusting the LCD Display
Play
Plays a movie file.
Full Size
Plays a movie file in full screen.
Adjusting the LCD Display
OFFICE / HTML
PPT(Power Point), DOC(MS Word), XLS(MS Excel), PDF, HTML, HTM files are displayed.
Note
•
Install the proper viewer(freeware) program to see the MS Office(Word, Excel, Power Point) or
PDF doucuments.
Internet
Connects to the Internet
Setup
Sets various functions in MagicInfo mode. A password must be entered to access Setup mode.
Adjusting the LCD Display
Schedule View
Displays a schedule.
TCP/IP
Changes the TCP/IP settings.
Adjusting the LCD Display
Connection
Modifies the network settings.
Password
The password can be changed.
•
The password should be between 6 and 12 characters in numeric format.
(You should enter a password between 6 and 12 characters in numeric format)
•
If you enter the wrong password three times, the setup configuration is reset and a warning message
appears from the server.
Adjusting the LCD Display
•
If you forget the password, enter Info, 8, 2 and 4 on the remote control to initialize the password.
This will reset the previous settings of Setup mode.
File
Local : You can delete or copy files on both local and removable disks.
Play Option
You can set the repeat play and screen settings.
Repeat : Determines the repeat option for playing movies and music.
•
None - Select No Repeat to play a movie or tune in the list only once.
Adjusting the LCD Display
•
File Repeat - Select Repeat File to play a movie or tune in the list repeatedly.
•
List Repeat - Select Repeat List to play movies or tunes in the list in sequence repeatedly.
Rotation - Sets the picture orientation.
•
Landscape - Sets the screen resolution to 1366x768 pixels.
•
Portrait - Sets the screen resolution to 768x1366 pixels.
EWF(Enhanced Write Filter) : Prevents change to and loss of the data saved on
the disk.
•
Disable - Disables EWF to allow saved data to be changed data on the protected disk (drive C:).
When switching from the Enable to the Disable state, you can select Commit.
•
Enable - Enables EWF to prevent saved data to be changed on the protected disk (drive C:).
•
Commit - Commit the changed data to the protected disk (drive C:) when EWF is in the Enable state. Commit is not available when EWF is in the Disable state.
D.Menu
Available Modes
•
PC / DVI
•
AV
•
HDMI
•
MagicInfo
•
TV
Size
D.MENU →[Picture] → ENTER → ENTER→[Size]
→
, → ENTER
Use to select PC, DVI or other external input sources connected to the LCD Display. Use to select the
screen of your choice.
1.
Auto Wide
: Automatically adjusts the picture size to the "16:9" aspect ratio.
2.
16:9
Adjusting the LCD Display
: Sets the picture to 16:9 wide mode.
3.
Wide Zoom
: Magnify the size of the picture more than 4:3.
4.
Zoom
: Magnifies the size of the picture on the screen.
5.
4:3
: Sets the picture to 4:3 normal mode.
6.
Just Scan
: Use the function to see the full image without any cutoff when HDMI (720p/1080i/1080p), DTV
(1080i) signals are input.
Note
Auto Wide function is available only in TV, DTV, AV mode.
In PC Mode, only 16:9 and 4:3 mode can be adjusted.
Screen Mode
D.MENU →[Picture] → ENTER → → ENTER
→
, → ENTER
Only when setting the picture size to Auto Wide can the user determine the Screen mode. Each
individual European country requires a different picture size so this function is intended to help users
to select it.
“Screen mode” is supported in TV, Ext., Component (480i/1080i) and HDMI (480i/1080i)
Picture Size is available in Auto Wide mode
This function is not available in PC or Component, Ext., HDMI mode.
1.
16:9
2.
Wide Zoom
3.
Zoom
4.
4:3
Channel
Country
D.MENU → →[Channel] → ENTER→ ENTER →[Country]
Adjusting the LCD Display
→
, → ENTER
Select the country in which the product is being used before you use the Auto Store feature. If you do
not see your country in the list, select Others.
Auto Store
D.MENU → →[Channel] → ENTER → → ENTER →[Auto Store]
You can scan the frequency ranges available on your television in your area and store all the channels
found automatically.
Manual Store
D.MENU → →[Channel] → ENTER → → → ENTER →[Manual Store]
You can scan the frequency ranges available on your television in your area and store all the channels
found manually.
Programme
D.MENU → →[Channel] → ENTER → → → ENTER →[Manual Store] → ENTER →[Programme]
→ENTER →
,
→ ENTER
Inputting the appropriate program number on the screen.
Adjusting the LCD Display
Colour System
D.MENU → →[Channel] → ENTER → → → ENTER →[Manual Store] →
[Colour System]
→
,
→ENTER→
→ ENTER
Adjusts repeatedly until the colour is of the best quality.
(Auto <-> PAL <-> SECAM <-> NTSC4.43 )
Sound System
D.MENU → →[Channel] → ENTER → → → ENTER →[Manual Store] →
→ [Sound System]
→
,
→ →ENTER
→ ENTER
Adjusts repeatedly until the sound is of the best quality.
Channel
D.MENU → →[Channel] → ENTER → → → ENTER →[Manual Store] → → → →ENTER
→ [Channel]
→
, / ,
→ ENTER
You can store television channels, including those received via cable networks.
When storing channels manually, you can choose:
Whether or not to store each of the channels found. The Programme number of each stored channel
which you wish to identify
- C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode.
Adjusting the LCD Display
- S (Cable channel mode): You can select a channel by entering the assigned number for each cable
channel in this mode.
Search
D.MENU → →[Channel] → ENTER → → → ENTER →[Manual Store] → →
ENTER→ [Search]
→
,
→ → →
→ ENTER
The tuner scans the frequency range until the first channel or the channel that you selected is received
on your screen.
Store
D.MENU → →[Channel] → ENTER → → → ENTER →[Manual Store] → →
→ENTER→ [Store]
→ → →
→ ENTER
It's used to restore the number user inputs.
Channel Manager
Channel List
D.MENU → →[Channel] → ENTER → → → → ENTER →[Channel Manager] →ENTER
→ [Channel List]
→
, / ,
→ ENTER
Adjusting the LCD Display
You can add or delete a channel so only channels you want are displayed.
is active when Child Lock is selected to On.
Child Lock
D.MENU → →[Channel] → ENTER → → → → ENTER →[Channel Manager] → →ENTER
→ [Child Lock]
→
, → ENTER
Protects children from viewing inappropriate programs by blocking certain broadcast or video programs.
The Child Lock feature can be selected only from the remote.
Sort
D.MENU → →[Channel] → ENTER → → → → → ENTER →[Sort]
→
, / ,
→ ENTER
It's used to exchange the numbers of two channels.
Name
D.MENU → →[Channel] → ENTER → → → → → → ENTER →[Name]
→ ENTER →
, / ,
→ ENTER
Name the device connected to the input jacks to make your input source selection easier.
The following characters are available: Letters of the alphabet (A~Z) / Numbers (0~9) / Special characters (+, -, *, /, space)
Adjusting the LCD Display
Fine Tune
D.MENU → →[Channel] → ENTER → → → → → → → ENTER →[Fine Tune]
→
, / ,
→ ENTER
Due to weak signals or an incorrect antenna configuration, some of the channels may not be tuned
correctly.
LNA
D.MENU → →[Channel] → ENTER → → → → → → → → ENTER →[LNA]
→
, → ENTER
Turns the low noise amplifier on or off.
Setup
Plug & Play
D.MENU → → →[Setup] → ENTER →ENTER →[Plug & Play]
You can manage the entire configuration.
Language
D.MENU → → →[Setup] → ENTER→ →ENTER →[Language]
You can choose one of 18 languages.
Adjusting the LCD Display
The language chosen affects only the language of the OSD.
Digital Menu
Guide
Now & Next Guide
D.MENU → → → →[Digital Menu] → ENTER→[Guide] → ENTER→ENTER →[Now & Next
Guide]
For the six channels indicated in the left-hand column, displays the Current programme and the Next
programme information.
Full Guide
D.MENU → → → →[Digital Menu] → ENTER→[Guide] → ENTER→ →ENTER →[Full
Guide]
Displays the programme information as time ordered One hour segments. Two hours of programme
information is displayed which may be scrolled forwards or backwards in time.
Note
•
You can also display the guide menu simply by pressing the GUIDE button.
•
The programme title is on the upper part of the screen center. Please click on INFO button for the
detailed information. Channel Number, Running Time, Status Bar, Parental Level, Video Quality
Information(HD/SD), Sound Modes, Subtitle or Teletext, Languages of Subtitle or Teletext, and
brief summary of the highlighted programme are included on the detailed information. "..." will be
appeared if the summary is long.
•
Six channels are displayed. To scroll between channels, move to a channel using the or button.
To display page by page, use the channel button.
Adjusting the LCD Display
Scheduled List
D.MENU → → → →[Digital Menu] → ENTER→[Guide] → ENTER→ → →ENTER →
[Scheduled List]
If you make a scheduled viewing list of programs you may like to see, the channel will be automatically
switched to the scheduled Programme at the scheduled time even if you are watching another program.
You can also set hour and minute by pressing the number buttons on the remote control.
1.
Channel : Set the channel.
2.
Time : Set the time.
3.
Date : Set Year, Month and Day.
4.
Frequency : Set the frequency. ("Once", "Daily", or "Weekly")
1.
Save
Save the adjusted schedule.
2.
Cancel
Cancel the adjusted schedule.
3.
Add Programme
Add a new schedule.
4.
Edit
Re-adjust the selected schedule.
Adjusting the LCD Display
5.
Delete
Delete the selected schedule.
Default Guide
D.MENU → → → →[Digital Menu] → ENTER→[Guide] → ENTER→ → → →ENTER →
[Default Guide]
→
, → ENTER
You can preset the default guide style.
1.
Now/Next
2.
Full Guide
Digital Channel
Country
D.MENU → → → →[Digital Menu] → ENTER→ →[Digital Channel]→ENTER →[Country] → ENTER
→
, → ENTER
Select the country in which the product is being used before you use the Auto Store feature. If you do
not see your country in the list, select Others.
Auto Store
D.MENU → → → →[Digital Menu] → ENTER→ →[Digital Channel]→ENTER →
[Auto Store] → ENTER
→
You can update the channel list when the broadcaster adds new Services or if you move the TV to a
new location.
Adjusting the LCD Display
Note
•
Even though you have changed the country setting in this menu, the country setting for Analog TV
is not changed .
•
When it has finished, the number of scanned services will be displayed.
•
The existing favourite channel list will not be deleted when the channel list is updated.
•
To stop the scan before it has finished, press the ENTER button with "Stop" selected.
•
If the signal status is poor, the "No Service found! Check the aerial connection" message is
displayed.
Manual Store
D.MENU → → → →[Digital Menu] → ENTER→ →[Digital Channel]→ENTER → → →
[Manual Store] → ENTER
→
,
→ ENTER
You can specify the channel for a fast channel search.
•
Channel: Channel "5" to "69" in sequence are displayed (depending on the country)
•
Frequency: The frequency available in the Channel group is displayed.
•
Bandwidth: The available bandwidths are 7 and 8 MHz.
Edit Favourite Channels
D.MENU → → → →[Digital Menu] → ENTER→ →[Digital Channel]→ENTER → → →
→[Edit Favourite Channels] → ENTER
You can edit your favourite channels using the four colour buttons.
Adjusting the LCD Display
Note
•
A " " icon is shown next to the selected channel and the channel will be added to the favourite
channel list.
•
To undo, press the ENTER button again.
•
Select All: Select all channels currently displayed.
•
Select None: Deselect all selected channels.
•
Preview: Displays (a) currently selected channel(s).
The Favorite Channels settings have been completed.
Add
•
D.MENU → → → →[Digital Menu] → ENTER→ →[Digital Channel]→ENTER →
→ →[Edit Favourite Channels] → ENTER
→
You can use this function when one or more favourite channels have been selected.
Renumber
•
D.MENU → → → →[Digital Menu] → ENTER→ →[Digital Channel]→ENTER →
→ →[Edit Favourite Channels] → ENTER
→
Press the green button.
Note
•
The space for entering the number is a blank.
Enter the new channel number. Press ENTER button to store or RETURN button to cancel.
Note
•
Press the button to delete an entered digit. If you enter a number already assigned to another
channel, the number is assigned to the selected channel and the previous number assigned to
the selected channel is assigned to the other channel. That is, the two numbers are exchanged.
The favorite channels are automatically sorted in ascending order of channel numbers.
Adjusting the LCD Display
Preview
•
D.MENU → → → →[Digital Menu] → ENTER→ →[Digital Channel]→ENTER →
→ →[Edit Favourite Channels] → ENTER
→
Press the yellow button
The selected channel is displayed on the screen.
Delete
•
D.MENU → → → →[Digital Menu] → ENTER→ →[Digital Channel]→ENTER →
→ →[Edit Favourite Channels] → ENTER
→
Press the blue button
Note
•
The selected channel and number will be deleted. To add a deleted channel back in to the
favourite channel list.
Channel List
D.MENU → → → →[Digital Menu] → ENTER→ →[Digital Channel]→ENTER → → →
→ →[Channel List] → ENTER
You can exclude the channels you have chosen from the channels you have scanned. When you scan
through the stored channels, those you have chosen to skip are not displayed. All channels that you do
not specifically choose to skip are displayed during scanning.
Note
•
Your favourite channels are only displayed if they were previously set in the "Editing Your Favourite Channels" menu.
Adjusting the LCD Display
•
The channel number, name and an icon are displayed in the top left corner while changing the
channel.
•
The channel number and name are displayed if the channel is one of the all channels, and a icon if
the channel is one of the favourite channels.
Setup
Menu Transparency
D.MENU → → → →[Digital Menu] → ENTER→ → →[Setup]→ENTER → [Menu Transparency] → ENTER
→
, → ENTER
You can set the translucency of the menu.
1.
High
2.
Medium
3.
Low
4.
Opaque
Change PIN
D.MENU → → → →[Digital Menu] → ENTER→ → →[Setup]→ENTER → → [Change
PIN] → ENTER
→[0] ∼ [9] → [0] ∼ [9] → [0] ∼ [9] → ENTER
The Your PIN code has been changed successfully message is displayed.
Note
•
If you forget the PIN code, press the remote control buttons in the following sequence, which resets
the PIN to 0-0-0-0: POWER (Off), MUTE, 8, 2, 4, POWER (On).
Parental Lock
D.MENU → → → →[Digital Menu] → ENTER→ → →[Setup]→ENTER → →
[Parental Lock] → ENTER → [0] ∼ [9] → ENTER
→
Adjusting the LCD Display
→
, → ENTER
This feature allows you to prevent unauthorized users, such as children, from watching unsuitable
programmes by a 4-digit PIN (Personal Identification Number) code that is defined by the user. The
on-screen menu will instruct you to assign a PIN code (you can change it later, if necessary).
Note
•
The default PIN code for a new TV set is 0000.
•
If you enter an invalid PIN code, the "Invalid PIN code. Please try again." message is displayed.
Subtitle
D.MENU → → → →[Digital Menu] → ENTER→ → →[Setup]→ENTER → →
[Subtitle] → ENTER
→
→
→
→
→
, → ENTER
You can activate and deactivate the subtitles.
1.
On
2.
Off
Subtitle Mode
D.MENU → → → →[Digital Menu] → ENTER→ → →[Setup]→ENTER → →
→ [Subtitle Mode] → ENTER
→
, → ENTER
Use this menu to set the Subtitle Mode. "Normal" under the menu is the basic subtitle and "Hard of
hearing" is the subtitle for a hearing-impaired person.
1.
Normal
Adjusting the LCD Display
2.
Hard of hearing
Note
•
If the programme you are watching does not support the "Hard of hearing" function, "Normal"
automatically activates even though "Hard of hearing" mode is selected.
Audio Format
D.MENU → → → →[Digital Menu] → ENTER→ → →[Setup]→ENTER → →
→ → [Audio Format] → ENTER
→
→
→
, → ENTER
You can only hear Dolby Digital sound through the audio receiver connected through an optical cable.
You can only hear PCM sound through the main speaker. When sound is emitted from both the main
speaker and the audio receiver, a sound echo may occur due to the decoding speed difference between
the main speaker and the audio receiver. In this case, use the internal mute function.
1.
PCM
2.
Dolby Digital
Note
•
The Audio Format appears according to the broadcasting signal.
•
Dolby digital sound is only available when the TV is connected with an external speaker using an
optical cable.
Audio Description
D.MENU → → → →[Digital Menu] → ENTER→ → →[Setup]→ENTER → →
→ → → [Audio Description] → ENTER
→
→
→
, → ENTER
Note
•
"Audio Description" is active when "Audio Format" is set to "PCM".
This is an auxiliary audio function that provides an additional audio track for visually challenged
persons. this function handles the Audio Stream for the AD (Audio Description), when it is sent along
with the Main audio from the broadcaster. Users can turn the Audio Description On or Off and control
the volume.
Adjusting the LCD Display
1.
Audio Description - Off, On
2.
Volume
Note
•
"Volume" is active when "Audio Description" is set to "On".
Digital Text
D.MENU → → → →[Digital Menu] → ENTER→ → →[Setup]→ENTER → →
→ → → → [Digital Text] → ENTER
→
→
→
, → ENTER
If the programme is broadcast with digital text, this feature is enabled.
1.
Disable
2.
Enable
Note
•
MHEG(Multimedia and Hypermedia Information Coding Experts Group) An International standard for data encoding systems used in multimedia and hypermedia. This is at a higher level than
the MPEG system which includes data-linking hypermedia such as still images, character service,
animation, graphic and video files as well as multimedia data. MHEG is user runtime interaction
technology and is being applied to various fields including VOD (Video-On-Demand), ITV (Interactive TV), EC (Electronic Commerce), tele-education, tele-conferencing, digital libraries and
network games.
Time Zone
Note
•
Spain only
D.MENU → → → →[Digital Menu] → ENTER→ → →[Setup]→ENTER → →
→ → → → → [Time Zone] → ENTER
→
, → ENTER
Select the time zone where locate
→
→
Adjusting the LCD Display
Note
•
The following options are available The Iberian Peninsula and Balears Islands - Canarian
Islands
Common Interface
D.MENU → → → →[Digital Menu] → ENTER→ → →[Setup]→ENTER → →
→ → → → → → [Common Interface]
1.
Application Info
2.
CI Menu
→
→
→
→
System
D.MENU → → → →[Digital Menu] → ENTER→ → →[Setup]→ENTER → →
→ → → → → → → [System] → ENTER
To keep your product up-to-date with new Digital Television features then software upgrades are
periodically broadcast as part of the normal Television signal. It will automatically detect these signals
and display the software upgrade banner. You are given the option to install the upgrade.
1.
Product Information
D.MENU → → → →[Digital Menu] → ENTER→ → →[Setup]→ENTER → →
→ → → → → → → → [System] → ENTER → ENTER
2.
Signal Information
D.MENU → → → →[Digital Menu] → ENTER→ → →[Setup]→ENTER → →
→ → → → → → → → [System] → ENTER → →ENTER
3.
→
Software Upgrade
→
Adjusting the LCD Display
D.MENU → → → →[Digital Menu] → ENTER→ → →[Setup]→ENTER → →
→ → → → → → → → [System] → ENTER → → →ENTER
4.
•
Software Information
•
Manual Upgrade
•
Standby Mode upgrade
→
Reset
D.MENU → → → →[Digital Menu] → ENTER→ → →[Setup]→ENTER → → →
→ → → → → → → → [System] → ENTER → → → →ENTER →[0] ∼ [9]
You can reset the values stored to the factory default values.
The Reset operation deletes all channel information and user preferences returning all values to
their default factory state.
Note
•
The warning message is displayed.All values will be reset by pressing the coloured buttons
(red, green, yellow, and blue) in turn.
Language
Audio Language
D.MENU → → → →[Digital Menu] → ENTER→ → → →[Language]→ENTER →ENTER
→[Audio Language] → ENTER
Adjusting the LCD Display
You can change the default value for subtitle, audio teletext languages. Displays the language information for the incoming stream.
Note
•
English is the default in cases where the selected language is unavailable in the broadcast.
Subtitle Language
D.MENU → → → →[Digital Menu] → ENTER→ → → →[Language]→ENTER → →
ENTER →[Subtitle Language] → ENTER
You can change the default value for subtitle, audio teletext languages. Displays the language information for the incoming stream.
Note
•
English is the default in cases where the selected language is unavailable in the broadcast.
Teletext Language
D.MENU → → → →[Digital Menu] → ENTER→ → → →[Language]→ENTER → →
→ENTER →[Teletext Language] → ENTER
You can change the default value for subtitle, audio teletext languages. Displays the language information for the incoming stream.
Note
•
English is the default in cases where the selected language is unavailable in the broadcast.
Preference
D.MENU → → → →[Digital Menu] → ENTER→ → → →[Language]→ENTER → →
→ →ENTER →[Preference] → ENTER
Adjusting the LCD Display
This menu consists of 6 sub-menus:Primary Subtitle Language, Secondary Subtitle Language,
Primary Audio Language, Secondary Audio Language, Primary Teletext Language.
1.
Primary Audio Language
2.
Secondary Audio Language
3.
Primary Subtitle Language
4.
Secondary Subtitle Language
5.
Primary Teletext Language
Note
•
If you change the language setting, the Subtitle Language, Audio Language, and the Teletext Language of the Language menu are automatically changed to the selected language.
•
The Subtitle Language, Audio Language, and the Teletext Language of the Language menu show
a list of languages supported by the current channel and the selection is highlighted. If you change
this language setting, the new selection is only valid for the current channel. The changed setting
does not change the setting of the Primary Subtitle Language, Primary Audio Language, or the
Primary Teletext Language of the Preference menu.
Troubleshooting
Self-Test Feature Check
Note
Check the following items yourself before calling for assistance. Contact a Service Center for problems
that you cannot solve by yourself.
Self-Test Feature Check
1.
Turn off both your computer and the LCD Display.
2.
Unplug the video cable from the back of the computer.
3.
Turn on the LCD Display.
The figure shown below ("Check Signal Cable") appears on a black background when the LCD
Display is working normally even though no video signal is detected: While in the Self-Test mode,
the LED power indicator remains green and the figure moves around on the screen.
4.
Turn off your LCD Display and reconnect the video cable; then turn on both your computer and
the LCD Display
If your LCD Display screen remains blank after using the previous procedure, check your video controller and computer system; your LCD Display is functioning properly.
Warning Messages
You can even view the screen at a resolution of 1360(1920) x 768(1080). However, you will receive
the following message for a minute; You can choose to change the screen resolution or stay in the
current mode during that time. And if the resolution is more than 85Hz, you will see the black screen
because the LCD Display does not support over 85Hz.
Note
Refer to Specifications > Preset Timing Modes for the resolutions or frequencies supported by the
LCD Display.
Maintenance and Cleaning
1) Maintaining the LCD Display Case.
Clean with a soft cloth after disconnecting the power cord.
Troubleshooting
•
Do not use benzene, thinner or other flammable substances, or a wet cloth.
•
We recommend that a SAMSUNG cleansing agent is used
to prevent damage to the screen.
2) Maintaining the Flat Panel Display Screen.
Clean with a soft cloth (cotton flannel) smoothly.
•
Never use acetone, benzene or thinner.
(They may cause flaws or deformation of the screen surface.)
•
The user will be required to pay costs and related expenses
for repairing damages caused.
Symptoms and Recommended Actions
Note
A LCD Display recreates visual signals received from the computer. Therefore, if there is a problem
with the computer or the video card, this can cause the LCD Display to become blank, have poor
coloring, become noisy, and video mode not supported, etc. In this case, first check the source of the
problem, and then contact a Service Center or your dealer.
1.
Check if the power cord and the video cables are properly connected to the computer.
2.
Check if the computer beeps more than 3 times when booting.
(If it does, request an a service for the main board of the computer.)
3.
If you installed a new video card or if you assembled the PC, check if you installed the Adaptor
(video).
4.
Check if the scanning ratio of the video screen is set to between 50 Hz ~ 85 Hz.
(Do not exceed 60Hz when using the maximum resolution.)
5.
If you have problems in installing the Adaptor (video) driver, boot the computer in Safe Mode,
remove the Display Adaptor in the "Control Panel → System → Device Administrator" and then
reboot the computer to reinstall the Adaptor (video) driver.
Check List
Note
•
The following table lists possible problems and their solutions. Before calling for assistance, check
the information in this section to see if you can remedy any problems for yourself. If you do need
assistance, please call the phone number on the Information section or contact your dealer.
•
For more network-related information, refer to the MagicInfo Troubleshooting section.
Problems related to the Installation
Note
Problems related to the LCD Display installation and their solutions are listed.
Troubleshooting
PC Mode
Q:
The LCD Display screen flickers.
A:
Check if the signal cable between the computer and the LCD Display is securely connected.
(Refer to Connecting a Computer)
TV Mode
Q:
TV screen is blurred or shows noise signals.
A:
Check if the TV antenna connector is securely connected to the external antenna.(Refer to
Connecting TV)
Q:
TV signal is not received
A:
Select "Auto Program" to configure the channel system automatically. (Refer to the Auto Program)
Problems related to the Screen
Note
Problems related to the LCD Display screen and their solutions are listed.
Q:
The screen is blank and the power indicator is off.
A:
Ensure that the power cord is firmly connected and the LCD Display is on.
(Refer to the Connecting a Computer)
Q:
"Check Signal Cable" message.
A:
Ensure that the signal cable is firmly connected to the PC or video sources.
(Refer to the Connecting a Computer)
A:
Ensure that the PC or video sources are turned on.
Q:
"Not Optimum Mode" message.
A:
Check the maximum resolution and the frequency of the video Adaptor.
A:
Compare these values with the data in the Preset Timing Modes Chart.
Q:
The picture rolls vertically.
A:
Check if the signal cable is securely connected. Re-connect it, if necessary.
(Refer to Connecting a Computer)
Q:
The image is not clear; picture is blurred.
A:
Run Frequency Coarse and Fine tuning.
A:
Turn on again after removing all accessories (video extension cable, etc.)
A:
Set the resolution and frequency to the recommended ranges.
Q:
The picture image is unstable and shakes.
Troubleshooting
A:
Check if the resolution and frequency set for the computer video card falls in the range supported
by the LCD Display. If not, reset them referring to the current Information under the LCD Display
menu and Preset Timing Modes.
Q:
Ghost images are shown in the picture.
A:
Check if the resolution and frequency set for the computer video card falls in the range supported
by the LCD Display. If not, reset them referring to the current Information under the LCD Display
menu and Preset Timing Modes.
Q:
The image is too light or too dark.
A:
Adjusts the brightness and contrast.
(Refer to the Brightness, Contrast)
Q:
The screen color is inconsistent.
A:
Adjust color using Custom under OSD Color Adjustment menu.
Q:
The color image is distorted by dark shadows.
A:
Adjust color using Custom under OSD Color Adjustment menu.
Q:
The color white is poor.
A:
Adjust color using Custom under OSD Color Adjustment menu.
Q:
The Power Indicator blinks.
A:
The LCD Display is currently saving the changes made in the settings to the OSD memory.
Q:
The screen is blank and the power indicator light blinks every 0.5 or 1 seconds.
A:
The LCD Display is using its power management system.
A:
Press any key on the keyboard.
Q:
The screen is blank and it is blinking.
A:
If you see the "TEST GOOD" message on the screen when you pressing the MENU button,
check the cable connection between the LCD Display and the computer to ensure that the connector is properly connected.
Problems related to Audio
Note
Problems related to audio signals and their solutions are listed below.
Q:
No sound.
A:
Ensure that the audio cable is firmly connected to both the audio-in port on your LCD Display
and the audio-out port on your sound card.
(Refer to the Connecting a Computer)
A:
Check the volume level.
Q:
The sound level is too low.
A:
Check the volume level.
Troubleshooting
A:
If the volume is still too low after turning the control to its maximum, check the volume control
on the computer sound card or software program.
Q:
The sound is too high or too low.
A:
Adjusts the Treble and Bass to the appropriate levels.
Problems related to the Remote Control
Note
Problems related to the remote control and their solutions are listed.
Q:
The remote control buttons do not respond.
A:
Check the polarities (+/-) of the batteries.
A:
Check if the batteries are empty.
A:
Check if the power is on.
A:
Check if the power cord is securely connected.
A:
Check if a special fluorescent or neon lamp is on in the vicinity.
Problems related to MagicInfo
Note
Making a Bootable USB Flash Disk.
Q:
Making a Bootable USB Flash Disk
A:
1) You can turn a common 512-MB or bigger USB storage media into a bootable disk using a
USB bootable disk creation tool. (For example, the HP USB Disk Storage Format Tool)
A:
2) Copies the OS ghost image and executables to your USB disk.
A:
3) Enter the BIOS menu of your set by pressing the F2 key in the BIOS logo screen. Then, enable
the USB Boot First option by selecting that option and pressing the Enter key in the Boot menu.
A:
4) Switch your set on while your USB disk is connected and boot up in DOS mode.
A:
5) Run C:\ghost.exe and choose Local → Partition → From Image from the menu. Choose the
ghost image to update your USB disk with and choose the target disk.
A:
6) When the ghost image update finishes, the set will be rebooted automatically.
Q:
How can I change the frequency?
A:
The frequency can be changed by reconfiguring the video card.
Q&A
Note
that video card support can vary, depending on the version of the driver used. (Refer to the
computer or the video card manual for details.)
Q:
How can I Adjusts the resolution?
A:
Windows XP:
Troubleshooting
Set the resolution in the Control Panel → Appearance and Themes → Display → Settings.
A:
Windows ME/2000:
Set the resolution in the Control Panel → Display → Settings.
* Contact the video card manufacturer for details.
Q:
How can I set the Power Saving function?
A:
Windows XP:
Set the resolution in the Control Panel → Appearance and Themes → Display → Screen Saver.
Set the function in the BIOS-SETUP of the computer. (Refer to the Windows / Computer Manual).
A:
Windows ME/2000:
Set the resolution at the Control Panel → Display → Screen Saver.
Set the function in the BIOS-SETUP of the computer. (Refer to the Windows / Computer Manual).
Q:
How can I clean the outer case/LCD Panel?
A:
Disconnect the power cord and then clean the LCD Display with a soft cloth, using either a
cleaning solution or plain water.
Do not leave any detergent or scratches on the case. Do not let any water enter the LCD Display.
Q:
How can I play the video?
A:
The video supports the MPEG1 and WMV codecs only. Install the corresponding codec to play
the video. Note that some of the codecs can be incompatible.
Q:
What are the benefits of digital broadcasting?
A:
Digital TV broadcasting generates less noise and provides clearer visuals and sound than analog
TV broadcasting does. As services develop, you can also enjoy various information services
because various kinds of data besides video and audio can be sent.
A:
For example, while watching a sports game, you can view various data on your favorite player
or you can view all or selected screens which have been captured from different angles for a
specific scene. In addition, you can retrive information on a previous story or drama or you can
buy home shopping products such as an accessory currently on TV.
Digital TV broadcasting allows you to easily access various information services in your home
creating a more information-oriented home.
Q:
What is the difference between HDTV and SDTV?
A:
There are various types of digital TVs.
A:
The most widely known types of digital TV are HDTV and SDTV. They are classified according
to the screen quality and the video specifications.
•
HDTV (High Definition TV): High screen quality, very clear TV.
•
SDTV (Standard Definition TV): Common standard digital TV.
Troubleshooting
A:
An SDTV has an aspect ratio of 4:3 which is the same as that of an analog TV. HDTV has an
aspect ratio of 16:9 which is similar to a cinema screen. This provides a much better screen
quality than SDTV. It's like having a theater in your home.
A:
Digital TV broadcasting in our country is ultimately orientated towards HDTV.
Q:
Can I watch HD broadcasting with all digital TVs?
A:
You can receive all digital broadcasts, whether they are SD or HD, using any digital TV. However, you cannot enjoy HD programs, which are the highest quality digital TV programs, using
an SD digital TV. Especially, as SD broadcasting has an aspect ratio of 4:3, HD broadcasting
has an aspect ratio of 16:9, similar to a cinema screen.
Therefore, to enjoy the full benefits of digital TV, it is better to purchase an HD digital TV. (At
present, all digital TVs from Samsung Electronics have the 16:9 wide aspect ratio.)
Q:
Can I watch digital TV broadcasting with an analog TV?
A:
No.
A:
The analog TV cannot interpret digital signals. Therefore, a digital TV is required to watch digital
TV broadcasting.
Q:
Can I use my present antenna to receive digital broadcasting?
A:
As for existing analog TV, digital TV is designed so that digital broadcasting signals are received
via both indoor and outdoor antennas.
A:
If signal reception is very good in your environment, you can watch digital broadcasts with your
existing indoor antenna. If not, it is better to install an outdoor UHF antenna.
Q:
How do I connect an antenna for an apartment or tenement house?
A:
Consult the superintendent's office or broadcasting facility administrator for your apartment or
tenement house to check whether UHF reception is available.
A:
Even if digital TV broadcasting is available in your area, if you cannot watch it because the
superintendent's office or common broadcasting facility does not rebroadcast the signal, you
have to install an indoor or outdoor antenna.
A:
Alternatively, your local cable broadcasting company provides a digital TV service, and you can
subscribe to it.
A:
If a cable broadcasting company is sharing a common broadcasting facility for your apartment
or tenement house, it has to adjust and send digital TV signals so that they are compatible to
shared viewing which is the original purpose of the common broadcasting facility.
Note
Before calling for assistance, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call the phone number on the Information section or
contact your dealer.
Specifications
General
General
Model Name
SyncMaster 400CXN
LCD Panel
Size
40 " Diagonal (101 cm)
Display area
885.17 mm (H) X 497.7 mm (V)
Pixel Pitch
0.648 mm (H) X 0.648 mm (V)
Synchronization
Horizontal
30 ~ 81 kHz
Vertical
56 ~ 85 Hz
Display Color
16.7 M
Resolution
Optimum resolution
1360 x 768 @ 60 Hz / 1366 x 768 @ 60 Hz depends on graphics
card used
Maximum resolution
1920 x 1080 @ 60 Hz (RB)
Input Signal, Terminated
RGB Analog, DVI(Digital Visual Interface) Compliant Digital RGB
0.7 Vp-p ±5 %
Separate H/V sync, Composite, SOG
TTL level (V high ≥ 2.0 V, V low ≤ 0.8 V)
Maximum Pixel Clock
165MHz (Analog,Digital)
Power Supply
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz ± 3 Hz
Signal Cable
15pin-to-15pin D-sub cable, Detachable
DVI-D to DVI-D connector, Detachable
Dimensions (W x H x D) / Weight
971.0 x 582.0 x 119.0 mm / 38.2 x 22.9 x 4.7 inch (Without Stand)
971.0 x 641.5 x 311.0 mm / 38.2 x 25.3 x 12.2 inch (With Stand) / 21.0 kg / 46.3 lbs
(With protection glass-option) 26.5 kg / 58.4 lbs
Specifications
VESA Mounting Interface
600 x 400 mm
Environmental considerations
Operating
Temperature : 50°F ~ 104°F (10°C ~ 40°C)
Humidity : 10 % ~ 80 %, non-condensing
Storage
Temperature : -4°F ~ 113°F (-20°C ~ 45°C)
Humidity : 5 % ~ 95 %, non-condensing
Plug and Play Capability
This LCD Display can be installed on any Plug & Play compatible system. The interaction
of the LCD Display and the computer systems will provide the best operating conditions
and LCD Display settings. In most cases, the LCD Display installation will proceed automatically, unless the user wishes to select alternate settings.
Dot Acceptable
TFT-LCD panels manufactured by using advanced semiconductor technology with precision of 1ppm (one millionth) above are used for this product. But the pixels of RED,
GREEN, BLUE and WHITE color appear to be bright sometimes or some black pixels may
be seen. This is not from bad quality and you can use it without any problems.
For example, the number of TFT-LCD sub pixels contained in this product are 3,133,440.
Note
Design and specifications are subject to change without prior notice.
Class B Equipment (Information Communication equipment for residential use)
This product complies with the Electromagnetic Compatibility Directives for residential use and can
be used in all areas including common residential areas. (Class B equipment emits less electromagnetic
waves than Class A equipment.)
MagicInfo - Client
Item
Contents
Specification
Remarks
LAN
1 Gbps
USB
Keyboard/Mouse, Mass Stor- USB removable storage can be
age Device Compatible
supported.
Supported File Format : BMP/
JPEG
Music
Supported File Format : MP3 Sound bandwidth : 50 Hz to 15
kHz
Movie
2274x1704 or less
- MPEG1, WMV
- Max 1280 x 720 30 fps
File
MS Office(Word, Excel, - Some files may not be supporPower Point), HTML, PDF ted depending on the format or
the version.
- Install the proper viewing
(freeware) program to see MS
Specifications
Item
Specification
Remarks
Office (Word, Excel, Power
Point) or PDF documents.
Internet Browser
MS Internet Explorer
Not Support Flash, Java Applet,
Security Site
Language
English
OS
Windows XP Embedded
MagicInfo Pro - Server Requirement
CPU
RAM
Ethernet OS
Application
Minimum
P1.8 GHz 256 M
100 M / 1 Windows WMP 9 or latG
XP
er
Recommended
P3.0 GHz 512 M
100 M / 1 Windows WMP 9 or latG
XP
er
PowerSaver
This LCD Display has a built-in power management system called PowerSaver. This system saves
energy by switching your LCD Display to low-power mode when it has not been used for a certain
amount of time. The LCD Display automatically returns to normal operation when you press a key on
the keyboard. For energy conservation, turn your LCD Display OFF when it is not needed, or when
leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant
video card installed in your computer. Use the software utility installed on your computer to set up this
feature.
PowerSaver
State
Normal Operation
Power saving
mode
Power off
(Power-button)
Power off
(Powerswitch)
Power Indicator
On
Blinking
On
Off
Power Consumption
251 W
Less than 5 W
Less than 5 W
0W
Preset Timing Modes
If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjusts the screen as follows.
Display Mode
Horizontal
Frequency
(kHz)
Vertical Frequency (Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 640 x 350
31.469
70.086
25.175
+/-
IBM, 640 x 480
31.469
59.940
25.175
-/-
IBM, 720 x 400
31.469
70.087
28.322
-/+
MAC, 640 x 480
35.000
66.667
30.240
-/-
MAC, 832 x 624
49.726
74.551
57.284
-/-
MAC, 1152 x 870
68.681
75.062
100.000
-/-
VESA, 640 x 480
37.861
72.809
31.500
-/-
Specifications
Display Mode
Horizontal
Frequency
(kHz)
Vertical Frequency (Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
VESA, 640 x 480
37.500
75.000
31.500
-/-
VESA, 800 x 600
35.156
56.250
36.000
+/+
VESA, 800 x 600
37.879
60.317
40.000
+/+
VESA, 800 x 600
48.077
72.188
50.000
+/+
VESA, 800 x 600
46.875
75.000
49.500
+/+
VESA, 848 x 480
31.020
60.000
33.750
+/+
VESA, 1024 x 768
48.363
60.004
65.000
-/-
VESA, 1024 x 768
56.476
70.069
75.000
-/-
VESA, 1024 x 768
60.023
75.029
78.750
+/+
VESA, 1152 x 864
67.500
75.000
108.000
+/+
VESA, 1280 x 768
47.776
59.870
79.500
-/+
VESA, 1280 X 960
60.000
60.000
108.000
+/+
VESA, 1280 X 1024
63.981
60.020
108.000
+/+
VESA, 1280 X 1024
79.976
75.025
135.000
+/+
VESA, 1360 x 768
47.712
60.015
85.500
+/+
VESA, 1600 x 1200
75.000
60.000
162.000
+/+
VESA, 1920 x 1080
66.587
59.934
138.500
+/-
Horizontal Frequency
The time to scan one line connecting the right edge to the
left edge of the screen horizontally is called the Horizontal
Cycle and the inverse number of the Horizontal Cycle is
called the Horizontal Frequency. Unit: kHz
Vertical Frequency
Like a fluorescent lamp, the screen has to repeat the same
image many times per second to display an image to the
user. The frequency of this repetition is called the Vertical
Frequency or Refresh Rate. Unit: Hz
General
General
Model Name
SyncMaster 460CXN
LCD Panel
Size
46 " Diagonal (116 cm)
Display area
1018.08 mm (H) x 572.7 mm (V)
Pixel Pitch
0.53025 mm (H) x 0.53025 mm (V)
Synchronization
Horizontal
30 ~ 81 kHz
Vertical
56 ~ 85 Hz
Specifications
Display Color
16.7 M
Resolution
Optimum resolution
1920 x 1080 @ 60 Hz
Maximum resolution
1920 x 1080 @ 60 Hz
Input Signal, Terminated
RGB Analog, DVI(Digital Visual Interface) Compliant Digital RGB
0.7 Vp-p ±5 %
Separate H/V sync, Composite, SOG
TTL level (V high ≥ 2.0 V, V low ≤ 0.8 V)
Maximum Pixel Clock
165MHz (Analog,Digital)
Power Supply
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz ± 3 Hz
Signal Cable
15pin-to-15pin D-sub cable, Detachable
DVI-D to DVI-D connector, Detachable
Dimensions (W x H x D) / Weight
1102.0 x 658.0 x 125.5 mm / 43.4 x 25.9 x 4.9 inch (Without Stand)
1102.0 x 719.0 x 311.0 mm / 43.4 x 28.3 x 12.2 inch / 27.0 Kg / 59.5 lbs (With Stand)
(With protection glass - option) 32.0 kg / 70.5 lbs
VESA Mounting Interface
600 x 400 mm
Environmental considerations
Operating
Temperature : 50°F ~ 104°F (10°C ~ 40°C)
Humidity : 10 % ~ 80 %, non-condensing
Storage
Temperature : -4°F ~ 113°F (-20°C ~ 45°C)
Humidity : 5 % ~ 95 %, non-condensing
Plug and Play Capability
This LCD Display can be installed on any Plug & Play compatible system. The interaction
of the LCD Display and the computer systems will provide the best operating conditions
and LCD Display settings. In most cases, the LCD Display installation will proceed automatically, unless the user wishes to select alternate settings.
Specifications
Dot Acceptable
TFT-LCD panels manufactured by using advanced semiconductor technology with precision of 1ppm (one millionth) above are used for this product. But the pixels of RED,
GREEN, BLUE and WHITE color appear to be bright sometimes or some black pixels may
be seen. This is not from bad quality and you can use it without any problems.
For example, the number of TFT-LCD sub pixels contained in this product are 6,220,800.
Note
Design and specifications are subject to change without prior notice.
Class B Equipment (Information Communication equipment for residential use)
This product complies with the Electromagnetic Compatibility Directives for residential use and can
be used in all areas including common residential areas. (Class B equipment emits less electromagnetic
waves than Class A equipment.)
MagicInfo - Client
Item
Specification
Remarks
LAN
1 Gbps
USB
Keyboard/Mouse, Mass Stor- USB removable storage can be
age Device Compatible
supported.
Contents
Supported File Format : BMP/
JPEG
Music
Supported File Format : MP3 Sound bandwidth : 50 Hz to 15
kHz
Movie
2274x1704 or less
- MPEG1, WMV
- Max 1280 x 720 30 fps
File
MS Office(Word, Excel, - Some files may not be supporPower Point), HTML, PDF ted depending on the format or
the version.
- Install the proper viewing
(freeware) program to see MS
Office (Word, Excel, Power
Point) or PDF documents.
Internet Browser
MS Internet Explorer
Language
English
OS
Windows XP Embedded
Not Support Flash, Java Applet,
Security Site
MagicInfo Pro - Server Requirement
CPU
RAM
Ethernet OS
Application
Minimum
P1.8 GHz 256 M
100 M / 1 Windows WMP 9 or latG
XP
er
Recommended
P3.0 GHz 512 M
100 M / 1 Windows WMP 9 or latG
XP
er
Specifications
PowerSaver
This LCD Display has a built-in power management system called PowerSaver. This system saves
energy by switching your LCD Display to low-power mode when it has not been used for a certain
amount of time. The LCD Display automatically returns to normal operation when you press a key on
the keyboard. For energy conservation, turn your LCD Display OFF when it is not needed, or when
leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant
video card installed in your computer. Use the software utility installed on your computer to set up this
feature.
PowerSaver (When used as a Network LCD Display)
State
Normal Operation
Power saving
mode
Power off
(Power-button)
Power off
(Powerswitch)
Power Indicator
On
Blinking
On
Off
Power Consumption
310 W
Less than 5 W
Less than 5 W
0W
Preset Timing Modes
If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjusts the screen as follows.
Display Mode
Horizontal
Frequency
(kHz)
Vertical Frequency (Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 640 x 350
31.469
70.086
25.175
+/-
IBM, 640 x 480
31.469
59.940
25.175
-/-
IBM, 720 x 400
31.469
70.087
28.322
-/+
MAC, 640 x 480
35.000
66.667
30.240
-/-
MAC, 832 x 624
49.726
74.551
57.284
-/-
MAC, 1152 x 870
68.681
75.062
100.000
-/-
VESA, 640 x 480
37.861
72.809
31.500
-/-
VESA, 640 x 480
37.500
75.000
31.500
-/-
VESA, 800 x 600
35.156
56.250
36.000
+/+
VESA, 800 x 600
37.879
60.317
40.000
+/+
VESA, 800 x 600
48.077
72.188
50.000
+/+
VESA, 800 x 600
46.875
75.000
49.500
+/+
VESA, 848 x 480
31.020
60.000
33.750
+/+
VESA, 1024 x 768
48.363
60.004
65.000
-/-
VESA, 1024 x 768
56.476
70.069
75.000
-/-
VESA, 1024 x 768
60.023
75.029
78.750
+/+
VESA, 1152 x 864
67.500
75.000
108.000
+/+
VESA, 1280 x 768
47.776
59.870
79.500
-/+
VESA, 1280 X 960
60.000
60.000
108.000
+/+
VESA, 1280 X 1024
63.981
60.020
108.000
+/+
VESA, 1280 X 1024
79.976
75.025
135.000
+/+
Specifications
Display Mode
Horizontal
Frequency
(kHz)
Vertical Frequency (Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
VESA, 1360 x 768
47.712
60.015
85.500
+/+
VESA, 1600 x 1200
75.000
60.000
162.000
+/+
VESA, 1920 x 1080
66.587
59.934
138.500
+/-
Horizontal Frequency
The time to scan one line connecting the right edge to the
left edge of the screen horizontally is called the Horizontal
Cycle and the inverse number of the Horizontal Cycle is
called the Horizontal Frequency. Unit: kHz
Vertical Frequency
Like a fluorescent lamp, the screen has to repeat the same
image many times per second to display an image to the
user. The frequency of this repetition is called the Vertical
Frequency or Refresh Rate. Unit: Hz
Information
For Better Display
Adjust the computer resolution and screen injection rate (refresh rate) on the computer
as described below to enjoy the best picture quality. You can have an uneven picture quality
on screen if the best picture quality is not provided for TFT-LCD.
•
Resolution: 1360(1920) x 768(1080)
•
Vertical frequency (refresh rate): 60 Hz
TFT-LCD panels manufactured by using advanced semiconductor technology with a
precision of 1ppm (one millionth) and above is used for this product. But the pixels of RED,
GREEN, BLUE and WHITE color seem to be bright sometimes or some of black pixels
could be seen. This is not from bad quality and you can use it without any problems.
•
For example, the number of TFT-LCD sub pixels contained in this product are 3,133,440
(6,220,800).
When cleaning the LCD Display and the panel outside, please apply the recommended
small amount of cleaner by using a soft cloth to polish. Do not force the LCD area but rub
softly. If excessive force is applied, you may stain it.
If you are not satisfied with the picture quality, you can get better quality of picture by
performing the "Auto Adjustment function" in display screen that is appeared as window
termination button is pressed. If there's still noise after the automatic adjustment, use the
Fine/Coarse adjustment function.
When viewing a fixed screen for an extended period of time, a residual image or blurriness may appear. Change the mode to energy save or set a screensaver to move the picture
when you need to be away from the LCD Display for an extended period of time.
PRODUCT INFORMATION (Image Retention Free)
What is Image Retention ?
Image retention may not occur when a LCD panel is operated under normal conditions.
Normal conditions are defined as continuously changing video patterns. When the LCD
panel is operated for a long time with a fixed pattern (over 12 hours), there may be slight
difference in voltage between electrodes that work the liquid crystal (LC) in a pixel. The
voltage difference between electrodes increases with time, forcing the liquid crystal to lean.
When this occurs, the previous image may be seen when the pattern is changed. To prevent
this, the accumulated voltage difference must be decreased.
Information
Power Off, Screen Saver, or Power Save Mode
•
Turn the power off for 4 hours after 20 hours in use
•
Turn the power off for 2 hours after 12 hours in use
•
Set the LCD Display to power off with the PC Display Properties Power Scheme.
•
Use a Screen saver if possible - Screen saver in one color or a moving image is recommended.
Change the Color Information periodically
Note
Use Two different colors
Rotate the Color Information with 2 different colors every 30 minutes.
Information
•
Avoid using a combination of characters and background color with large difference in
luminance.
Avoid using Grey colors, which can cause Image retention easily.
Avoid: Colors with big difference in luminance (Black & White, Grey)
Change the characters color periodically
•
Use Bright colors with little difference in luminance.
- Cycle : Change the characters color and background color every 30 minutes
•
Every 30 minutes, change the characters with movement.
•
All area display Moving image together with Logo periodically.
- Cycle: Display moving image together with Logo for 60 seconds after 4 hours in use.
•
The best way to protect your LCD Display from Image retention is to turn Power off,
or set your PC, or System to operate a Screen Saver program when you are not using
it. Also Warranty service will be limited based on instruction guide.
Apply the Screen Scroll function on Product
•
Apply the Screen Scroll function
- Symptom: Horizontal Bar with Black Color move up and down.
- Select method
•
Instruction Guide : OSD Menu -> Set Up -> Safety Screen -> Screen Scroll
•
Time Interval : 1 ~ 10 hours ( Recommend : 1 )
•
Time Period : 1 ~ 5 second ( Recommend : 5 )
Information
Note
( Please check CD's User Guide at "OSD Function", some model's will not available )
Apply the Screen Pixel function on Product
•
Apply the Screen Pixel function
- Symptom: Dot with Black Color move up and down.
- Select method
•
•
Instruction Guide : OSD Menu -> Set Up -> Safety Screen -> Pixel
•
Time Interval : 1 ~ 10 hours ( Recommend : 1 )
•
Time Period : 10 ~ 50 second ( Recommend : 50 )
Apply the Screen Bar function
- Symptom: Horizontal / Vertical Bar with Black Color move up and down.
- Select method
•
Instruction Guide : OSD Menu -> Set Up -> Safety Screen -> Bar
•
Time Interval : 1 ~ 10 hours ( Recommend : 1 )
•
Time Period : 10 ~ 50 second ( Recommend : 50 )
Note
( Please check CD's User Guide at "OSD Function", some model's will not available. )
Apply the Screen Erasing function on Product
•
Apply the Screen Erasing function
- Symptom: 2 Vertical blocks move with erasing the display
Information
- Select method
•
Instruction Guide : OSD Menu -> Set Up -> Safety Screen -> Eraser
•
Time Interval : 1 ~ 10 hours ( Recommend : 1 )
•
Time Period : 10 ~ 50 second ( Recommend : 50 )
Note
( Please check CD's User Guide at "OSD Function", some model's will not available )
Appendix
Contact SAMSUNG WORLDWIDE
Note
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care center.
North America
U.S.A
1-800-SAMSUNG(726-7864)
http://www.samsung.com
CANADA
1-800-SAMSUNG(726-7864)
http://www.samsung.com/ca
MEXICO
01-800-SAMSUNG(726-7864) http://www.samsung.com
Latin America
ARGENTINE
0800-333-3733
http://www.samsung.com/ar
BRAZIL
0800-124-421
http://www.samsung.com
4004-0000
CHILE
800-SAMSUNG(726-7864)
http://www.samsung.com/cl
COLOMBIA
01-8000112112
http://www.samsung.com/co
COSTA RICA
0-800-507-7267
http://www.samsung.com/latin
ECUADOR
1-800-10-7267
http://www.samsung.com/latin
EL SALVADOR
800-6225
http://www.samsung.com/latin
GUATEMALA
1-800-299-0013
http://www.samsung.com/latin
HONDURAS
800-7919267
JAMAICA
1-800-234-7267
NICARAGUA
00-1800-5077267
PANAMA
800-7267
http://www.samsung.com/latin
PUERTO RICO
1-800-682-3180
http://www.samsung.com/latin
REP. DOMINICA
1-800-751-2676
http://www.samsung.com/latin
http://www.samsung.com/latin
TRINIDAD & TO- 1-800-SAMSUNG(726-7864)
BAGO
http://www.samsung.com/latin
VENEZUELA
http://www.samsung.com/latin
0-800-100-5303
Europe
AUSTRIA
0800-SAMSUNG (726-7864)
http://www.samsung.com/at
BELGIUM
0032 (0)2 201 24 18
http://www.samsung.com/be
CZECH REPUBLIC 844 000 844
http://www.samsung.com/cz
DENMARK
70 70 19 70
http://www.samsung.com/dk
EIRE
0818 717 100
http://www.samsung.com/ie
FINLAND
030-6227 515
http://www.samsung.com/fi
FRANCE
3260 SAMSUNG (€ 0,15/Min) http://www.samsung.com
08 25 08 65 65 (€ 0,15/Min)
Appendix
Europe
GERMANY
01805 - SAMSUNG (726-7864) http://www.samsung.com
(€ 0,14/Min)
HUNGARY
06-80-SAMSUNG (726-7864)
http://www.samsung.com
ITALIA
800-SAMSUNG (726-7864)
http://www.samsung.com
LUXEMBURG
0035 (0)2 261 03 710
http://www.samsung.com/be
NETHERLANDS
0900 SAMSUNG (726-7864 € http://www.samsung.com/nl
0,10/Min)
NORWAY
815-56 480
http://www.samsung.com/no
POLAND
0 801 801 881
http://www.samsung.com/pl
022-607-93-33
PORTUGAL
80820-SAMSUNG (726-7864)
http://www.samsung.com/pt
SLOVAKIA
0800-SAMSUNG (726-7864)
http://www.samsung.com/sk
SPAIN
902 10 11 30
http://www.samsung.com
SWEDEN
0771-400 200
http://www.samsung.com/se
SWITZERLAND
0800-SAMSUNG (726-7864)
http://www.samsung.com/ch
U.K
0845 SAMSUNG (7267864)
http://www.samsung.com
CIS
ESTONIA
800-7267
http://www.samsung.ee
LATVIA
800-7267
http://www.samsung.com/lv
LITHUANIA
8-800-77777
http://www.samsung.lt
KAZAKHSTAN
8-10-800-500-55-500
http://www.samsung.kz
KYRGYZSTAN
00-800-500-55-500
RUSSIA
8-800-555-55-55
TADJIKISTAN
8-10-800-500-55-500
UKRAINE
8-800-502-0000
http://www.samsung.com
UZBEKISTAN
8-10-800-500-55-500
http://www.samsung.uz
http://www.samsung.ru
Asia Pacific
AUSTRALIA
1300 362 603
http://www.samsung.com
CHINA
800-810-5858
http://www.samsung.com
010-6475 1880
HONG KONG
3698 - 4698
http://www.samsung.com/hk
INDIA
3030 8282
http://www.samsung.com
1800 110011
INDONESIA
0800-112-8888
http://www.samsung.com
JAPAN
0120-327-527
http://www.samsung.com/jp
MALAYSIA
1800-88-9999
http://www.samsung.com/my
NEW ZEALAND
0800 SAMSUNG(726-7864)
http://www.samsung.com/nz
PHILIPPINES
1800-10-SAMSUNG(726-7864) http://www.samsung.com/ph
SINGAPORE
1800-SAMSUNG(726-7864)
http://www.samsung.com
THAILAND
1800-29-3232, 02-689-3232
http://www.samsung.com
Appendix
Asia Pacific
TAIWAN
0800-329-999
http://www.samsung.com/tw
VIETNAM
1 800 588 889
http://www.samsung.com
Middle East & Africa
SOUTH AFRICA
0860-SAMSUNG(726-7864)
http://www.samsung.com
TURKEY
444 77 11
http://www.samsung.com
U.A.E
800-SAMSUNG(726-7864)
http://www.samsung.com
8000-4726
Terms
Dot Pitch
The image on a monitor is composed of red, green and blue dots.
The closer the dots, the higher the resolution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit:
mm
Vertical Frequency
The screen must be redrawn several times per second in order to
create and display an image for the user. The frequency of this
repetition per second is called the Vertical Frequency or Refresh
Rate. Unit: Hz
Example: If the same light repeats itself 60 times per second, this
is regarded as 60 Hz.
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge
of the screen horizontally is called the Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: kHz
Interlace
Methods
Showing the horizontal lines of the screen from the top to the bottom sequentially is called the Non-Interlace method while showing odd lines and then even lines in turn is called the Interlace
method. The Non-Interlace method is used for the majority of
monitors to ensure a clear image. The Interlace method is the same
as that used in TVs.
and
Non-Interlace
Plug & Play
This is a function that provides the best quality screen for the user
by allowing the computer and the monitor to exchange information automatically. This monitor follows the international standard
VESA DDC for the Plug & Play function.
Resolution
The number of horizontal and vertical dots used to compose the
screen image is called the 'resolution'. This number shows the accuracy of the display. A high resolution is good for performing
multiple tasks as more image information can be shown on the
screen.
Example: If the resolution is 1360(1920) x 768(1080), this means
the screen is composed of 1360(1920) horizontal dots (horizontal
resolution) and 768(1080) vertical lines (vertical resolution).
Satellite Broadcasting
Balances the levels of the sound coming from each speaker in
televisions with two speakers.
Cable TV
Whereas the terrestrial broadcasting is delivered via frequency
signals through the air, cable broadcasting is transmitted via a ca-
Appendix
ble network. In order to view cable TV, one must purchase a cable
receiver and hook it up to the cable network.
CATV
"CATV" refers to the broadcasting service offered at hotels,
schools and other buildings through their own broadcasting system, apart from VHF or UHF broadcasting by terrestrial broadcasters. The CATV programs may include movies, entertainment
and educational programs. (Different from cable TV.)
CATV can be viewed only within the area in which the CATV
service is offered.
VHF/UHF
VHF indicates TV channels 2 to 13, and UHF indicates channels
14 through 69.
Channel Fine Tuning
This feature allows the viewer to fine-tune the TV channel to obtain the best viewing conditions. The Samsung LCD TV has both
automatic and manual channel fine-tuning features to enable the
viewer to adjust their desired settings.
DVD
A type of digital disk technology that takes up only the benefits
of CD and LD, to implement a high resolution/quality, which enables the user to enjoy clearer images.
DTV Broadcasting (Digital TV
Broadcasting)
An enhanced broadcasting technology to process digital video
signals using a set-top box, which implements a high resolution
and clearer digital images on the screen.
LNA (Low Noise Amplifier)
This derives from artificial satellite technology that amplifies
weak signals even in poor reception areas for sharper images.
English Caption (= Caption Setting)
A kind of language selection feature that provides English subtitles (caption) or character information services from broadcasting
services (ex: AFKN) or video tapes (marked CC), and which are
especially useful for studying English.
Multiplex Broadcasting
This enables the user to enjoy the broadcasting service in both
Korean and foreign (original) language as well as in stereo mode.
A2
This system uses two carriers to transmit voice data. Countries
such as South Korea and Germany use this system.
BTSC
Broadcast Television System CommitteeThe stereo broadcasting
system that is used in most of the countries that have adopted the
NTSC system, including the United States, Canada, Chile, Venezuela and Taiwan. It also refers to the organization that has been
organized to promote its development and management.
EIAJ
Electronic Industries Association of Japan.
DVI
DVI is the acronym for Digital Video Interface. It is a new type
of video interface technology that provides the maximum screen
quality for high quality display devices and high-end graphics
cards including flat panel LCD monitors.
HDMI(High Definition Multimedia Interface)
This is an interface that connects both quality video signals and
digital audio signals with a cable without any compression.
•
HD (High Definition)
Appendix
In HD, 1080-line, 2x density beaming (1080i) is used. HD
provides a five times clearer screen quality than the existing
analog method and has a wide 16:9 aspect ratio.
•
SD (Standard Definition)
In SD, 480-line, double beaming (480i) is used. SD provides
a screen quality somewhere between HD and the existing analog method. It exhibits a two times better screen quality than
analog TV.
SRS TS XT
This feature outputs sonorous and vivid 3D sound as for 5.1 channel speaker sound but through a 2-channel speaker. It has a good
effect when stereo signals are input.
Correct Disposal
Correct Disposal of This Product (Waste Electrical & Electronic Equipment) Europe only
(Applicable in the European Union and other European
countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household
wastes at the end of its working life. To prevent possible
harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of
wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where
they purchased this product, or their local government office, for details of where and how they can take this item
for environmentally safe recycling.
Business users should contact their supplier and check the
terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for
disposal.
Authority
Information in this document is subject to change without notice.
© 2008 Samsung Electronics Co., Ltd. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co.,
Ltd. is strictly forbidden.
Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
Samsung is the registered trademark of Samsung Electronics Co., Ltd.; Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation; VESA, DPM and DDC are registered
trademarks of Video Electronics Standard Association; the ENERGY STAR® name and logo are registered trademarks of the U.S. Environmental Protection Agency (EPA). All other product names
mentioned herein may be the trademarks or registered trademarks of their respective owners.
Appendix
