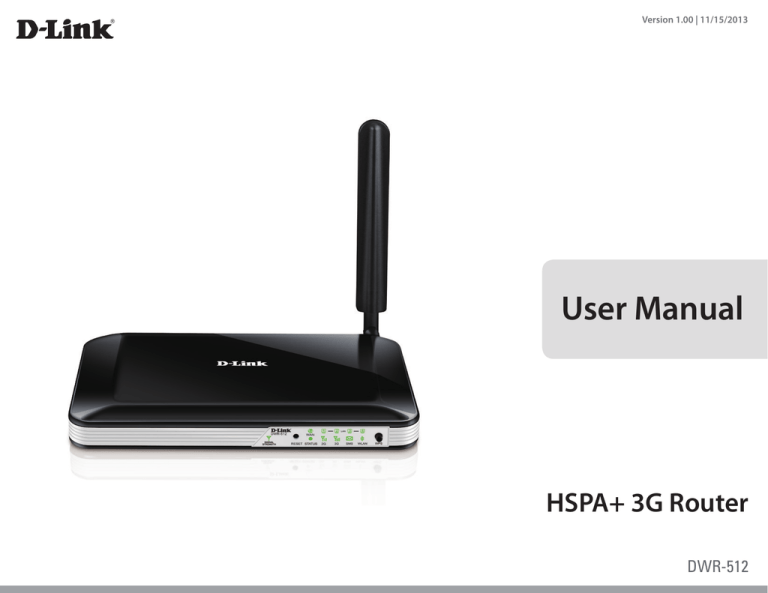

USER MANUAL
Version 1.00 | 11/15/2013
User Manual
HSPA+ 3G Router
DWR-512
Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify
any person or organization of such revisions or changes.
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks
of their respective companies.
Copyright © 2013 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Corporation, Inc.
D-Link DWR-512 User Manual
i
Table of Contents
Table of Contents
Product Overview............................................................... 1
Package Contents.......................................................................... 1
System Requirements.................................................................. 1
Introduction.................................................................................... 2
Hardware Overview...................................................................... 3
Rear Panel................................................................................. 3
Front Panel............................................................................... 4
LEDs............................................................................................ 5
Installation.......................................................................... 6
Connect to Your Network........................................................... 6
Wireless Installation Considerations....................................... 7
Configuration...................................................................... 8
Web-based Configuration Utility............................................. 8
Setup.................................................................................................. 9
Internet...................................................................................... 9
Internet Connection Setup Wizard............................. 9
Manual Internet Connection Setup.........................12
Internet Connection......................................................12
Static IP...............................................................................13
Dynamic IP (DHCP).........................................................14
PPPoE..................................................................................15
PPTP.....................................................................................17
L2TP.....................................................................................18
3G.........................................................................................19
Wireless Settings..................................................................21
D-Link DWR-512 User Manual
Wireless Connection Setup Wizard..........................21
Manual Wireless Connection Setup.........................23
Wireless Settings.............................................................24
Wireless Security Mode................................................25
Wi-Fi Protected Setup........................................................28
Network Settings.................................................................30
Router Settings................................................................30
DHCP Server Settings....................................................31
Message Service...................................................................32
SMS Inbox..........................................................................32
Create Message...............................................................33
Advanced.......................................................................................34
Virtual Server.........................................................................34
Application Rules.................................................................36
QoS Engine............................................................................37
MAC Address Filter..............................................................38
URL Filter.................................................................................39
Outbound Filter....................................................................40
Inbound Filter.......................................................................41
SNMP........................................................................................42
Routing....................................................................................43
Advanced Wireless..............................................................44
Advanced Network.............................................................45
DMZ..........................................................................................46
Tools.................................................................................................47
Admin......................................................................................47
ii
Table of Contents
Time..........................................................................................48
Syslog.......................................................................................49
E-mail Settings......................................................................50
System.....................................................................................51
Firmware.................................................................................52
Dynamic DNS........................................................................53
System Check........................................................................54
Schedules...............................................................................55
Connection Reset................................................................56
Status...............................................................................................57
Device Info.............................................................................57
Log............................................................................................58
Statistics..................................................................................59
Wireless...................................................................................60
Support...........................................................................................61
Tips....................................................................................................80
Wireless Modes.............................................................................81
Networking Basics............................................................82
Check your IP address................................................................82
Statically Assign an IP address................................................83
Technical Specifications...................................................84
Connecting to a Wireless Network..................................62
Using Windows 7 ........................................................................62
Configuring Wireless Security.........................................64
Using Windows Vista™...............................................................67
Configuring Wireless Security.........................................68
Using Windows® XP.....................................................................70
Configure WEP......................................................................71
Configure WPA-PSK.............................................................73
Troubleshooting...............................................................75
Wireless Basics..................................................................77
What is Wireless?..........................................................................78
D-Link DWR-512 User Manual
iii
Section 1 - Product Overview
Product Overview
Package Contents
• D-Link DWR-512 HSPA+ 3G Router
• Power adapter
• Manual and Warranty on CD
• Antenna
Note: Using a power supply with a different voltage rating than the one included with the DWR-512 will cause damage and void the warranty for
this product.
System Requirements
• A compatible (U)SIM card with service.*
• Computers with Windows®, Macintosh®, or Linux-based operating system with an installed Ethernet adapter
• Internet Explorer 6 or Netscape Navigator™ Version 6.0 and above (for configuration)
*Subject to services and service terms available from your carrier.
D-Link DWR-512 User Manual
1
Section 1 - Product Overview
Introduction
The D-Link HSPA+ 3G Router allows users to access worldwide mobile broadband networks. Once connected, users can
transfer data, stream media, and send SMS messages. Simply insert your UMTS/HSUPA SIM card, and share your 3G Internet
connection through a secure 802.11n wireless network or using any of the four 10/100 Ethernet ports.
Keep your wireless network safe with WPA/WPA2 wireless encryption. The DWR-512 utilizes dual-active firewalls (SPI and
NAT) to prevent potential attacks across the Internet, and includes MAC address filtering to control access to your network.
The HSPA+ 3G Router can be installed quickly and easily almost anywhere. This router is great for situations where an
impromptu wireless network must be set up, or wherever conventional network access is unavailable. The DWR-512 can
even be installed in buses, trains, or boats, allowing passengers to check e-mail or chat online while commuting.
D-Link DWR-512 User Manual
2
Section 1 - Product Overview
Hardware Overview
Rear Panel
WAN Port
Power Connector
Phone Port
LAN Ports
Port
LAN Ports
(RJ-45)
WAN (RJ-45)
SIM
Power
Power Switch
Phone Port
D-Link DWR-512 User Manual
SIM Card Slot
Power Switch
Function
Connects to a network device such as a desktop or notebook
computer through an Ethernet cable.
Connects to a DSL/Cable modem or router through an Ethernet
cable.
Accepts a standard (U)SIM card for 3G connectivity.
Connects to the included power adapter.
Turns the device on or off.
Connect to a regular phone line.
3
Section 1 - Product Overview
Hardware Overview
Front Panel
Signal Strength
Reset Button
Button Name
Reset
WPS
D-Link DWR-512 User Manual
WAN
LAN1
Status
2G
LAN2
LAN3
3G
SMS
LAN4
WLAN
WPS Button
Function
Press this button with an unfolded paperclip to reset
the device.
Press this button to initiate a new WPS connection.
4
Section 1 - Product Overview
Hardware Overview
LEDs
LED Name
Status
WAN
LAN 1-4
Signal
Strength
WPS
2G
3G
SMS
WLAN
D-Link DWR-512 User Manual
Function
Blinking Green: Device is working
Solid Green: Ethernet connection has been established
Blinking Green: Data is being transferred
Solid Green: Ethernet connection has been established
Blinking Green: Data is being transferred
Blinking Red: No SIM card / signal or unverified PIN code
Solid Red: Signal strength is at level one (weak)
Solid Amber: Signal strength is at level two or three (medium)
Solid Green: Signal strength is at level four or five (strong)
Slow Blinking Green: WPS is functioning normally
Fast Blinking Green: WPS is functioning in PBC mode
Solid Green: EDGE or GPRS connection has been established
Blinking Green: Data is being transferred via 2G/2.5G
Solid Green: UMTS/HSDPA/HSUPA connection is established
Blinking: Data is being transferred via 3G/3.75G
Solid Green: SMS storage is full
Blinking Green: There is an unread SMS message
Solid Green: WLAN is active and available
Blinking Green: Data is being transferred over the WLAN
5
Section 2 - Installation
Installation
This section will guide you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area
such as a closet, cabinet, or in an attic or garage.
Connect to Your Network
1. Ensure that your DWR-512 HSPA+ 3G Router is disconnected and powered off.
2. Insert a standard (U)SIM card into the SIM card slot on the back of the router as indicated by the SIM card logo next to the slot. The gold contacts
should face downwards.
Caution: Always unplug/power down the router before installing or removing the SIM card. Never insert or remove the SIM card while the router
is in use.
3. Insert your Internet/WAN network cable into the WAN port on the back of the router.
Note: The 3G connection can also be used as a backup WAN. Once a backup is configured, the router will automatically use 3G for the Internet
connection if the Ethernet WAN is not available.
4. Insert the Ethernet cable into the LAN Port 1 on the back panel of the DWR-512 HSPA+ 3G Router and an available Ethernet port on the network
adapter in the computer you will use to configure the router.
Note: The DWR-512 HSPA+ 3G Router LAN Ports are Auto-MDI/MDIX, so both patch and crossover Ethernet cables can be used.
5. Connect the power adapter to the socket on the back panel of your DWR-512 HSPA+ 3G Router. Plug the other end of the power adapter into
a wall outlet or power strip and turn the device on.
a. The Status LED will light up to indicate that power has been supplied to the router.
b. The LEDs on the front panel will flash on and off as the DWR-512 HSPA+ 3G Router performs initialization and Internet connection processes.
c. After a few moments, if a connection has been established, the following LEDs will turn solid green: Power, Status, WAN, WLAN, and any LAN
Port LEDs that are connected computers or other devices.
D-Link DWR-512 User Manual
6
Section 2 - Installation
Wireless Installation Considerations
The DWR-512 can be accessed using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in
mind that the quantity, thickness, and location of walls, ceilings, or other objects that the wireless signals must pass through may limit the range
of the wireless signal. Ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or office. The key
to maximizing the wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between the D-Link router and other network devices. Each wall or ceiling can reduce your adapter’s
range from 3 to 90 feet (1 to 30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree angle appears to be almost 3 feet
(1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick. Position devices so that the signal will travel straight through a wall
or ceiling (instead of at an angle) for better reception.
3. Try to position access points, wireless routers, and computers so that the signal passes through open doorways and drywall. Materials such as
glass, metal, brick, insulation, concrete, and water can affect wireless performance. Large objects such as fish tanks, mirrors, file cabinets, metal
doors, and aluminum studs may also have a negative effect on range.
4. If you are using 2.4 GHz cordless phones, make sure that the 2.4 GHz phone base is as far away from your wireless device as possible. The base
transmits a signal even if the phone is not in use. In some cases, cordless phones, X-10 wireless devices, and electronic equipment such as ceiling
fans, fluorescent lights, and home security systems may dramatically degrade wireless connectivity.
D-Link DWR-512 User Manual
7
Section 3 - Configuration
Configuration
This section will show you how to configure your new D-Link mobile router using the web-based configuration utility.
Web-based Configuration Utility
To access the configuration utility, open a web-browser such as Internet Explorer and enter
the IP address of the router (192.168.0.1 by default).
To log in to the configuration utility, enter admin as the username, and then enter the password.
By default, the password is blank.
If you get a Page Cannot be Displayed error, please refer to the Troubleshooting section
for assistance.
The configuration utility will open to the STATUS > DEVICE INFO page. You can view different
configuration pages by clicking on the categories at the top of the screen (SETUP/ADVANCED/
TOOLS/STATUS/SUPPORT), and then selecting a configuration page from the bar on the left side.
The following pages will describe each section in detail, starting with the SETUP pages.
D-Link DWR-512 User Manual
8
Section 3 - Configuration
Setup
The SETUP pages allow you to configure your Internet and wireless settings, as well as manage
your SMS inbox. To view the Setup configuration pages, click on SETUP at the top of the screen.
Internet
The Internet page allows you to configure how your router connects to the Internet. There are
two ways to set up your Internet connection.
You can click on the Internet Connection Setup Wizard button to start a wizard that will
guide you through setting up your Internet settings.
If you want to manually configure your settings, click Manual Internet Connection Setup
and skip to “Manual Internet Connection Setup” on page 12.
Internet Connection Setup Wizard
This wizard will guide you through a step-by-step process to configure your D-Link router to
connect to the Internet.
Click Next to continue.
Note: While using the wizard, you can click Prev to go back to the previous page or you can
click Cancel to close the wizard.
D-Link DWR-512 User Manual
9
Section 3 - Configuration
Create a new password and then click Next to continue.
Select your time zone from the drop-down box and then click Next to continue.
Select the Internet connection type you use. The connection types are explained on the
following page. If you are unsure which connection type you should use, contact your Internet
Service Provider (ISP).
Click Prev to go back to the previous page or click Cancel to close the wizard.
Note: The DWR-512 has a WAN Failover feature that allows the router to switch to a 3G
connection if the WAN connection is down or unavailable. To configure this feature,
please refer to “Internet Connection” on page 12.
D-Link DWR-512 User Manual
10
Section 3 - Configuration
The subsequent configuration pages will differ depending on the selection you make on this page.
DHCP Connection Choose this if your Internet connection automatically provides you with an IP Address. Most cable modems use
(Dynamic IP Address): this type of connection. See “Dynamic IP (DHCP)” on page 14 for information about how to configure this type of
connection.
Username / Password Choose this option if your Internet connection requires a username and password to connect. Most DSL modems
Connection (PPPoE): use this style of connection. See “PPPoE” on page 15 for information about how to configure this type of
connection.
Username / Password Choose this option if your Internet connection requires Point-to-Point Tunneling Protocol (PPTP). See “PPTP” on
Connection (PPTP): page 17 for information about how to configure this type of connection.
Username / Password Choose this option if your Internet connection requires Layer 2 Tunneling Protocol (L2TP). See “L2TP” on page 18
Connection (L2TP): for information about how to configure this type of connection.
3G Connection: Choose this connection if you have installed a SIM card into the DWR-512. See “3G” on page 19 for information
about how to configure this type of connection.
Static IP Address Choose this option if your Internet Setup Provider provided you with IP Address information that has to be
Connection: manually configured. See “Static IP” on page 13 for information about how to configure this type of connection.
After entering the requested information,click Next to continue.
This completes the Internet Connection Setup Wizard. Click Connect to save your changes
and reboot the router.
D-Link DWR-512 User Manual
11
Section 3 - Configuration
Manual Internet Connection Setup
To set up your Internet connection manually, click Manual Internet Connection Setup.
Internet Connection
Several different Internet Connection types can be selected depending upon the specifications of your Internet Service Provider (ISP). You can also
set up the Auto-Backup feature, which allows you to use a 3G connection for your Internet connection if your main connection fails.
My Internet Connection Select the Internet Connection type specified by your Internet
is: Service Provider (ISP). The corresponding settings will be
displayed below. Please see the following pages for details on
how to configure these different connection types.
Host Name: If the Internet Host you are using for the Auto-Backup feature
requires you to enter a Host Name, enter it here. In most cases,
you may leave this blank.
Auto-Backup: When this box is checked, the router will switch over to
a 3G connection if the Internet Host (specified below) is
unreachable.
Internet Host: Enter an IP address for the router to use to check if it is
connected to the Internet. If Auto-Backup is enabled and the
IP address cannot be reached, the router will switch over to a
3G connection.
D-Link DWR-512 User Manual
12
Section 3 - Configuration
Static IP
Choose this Internet connection if your ISP assigns you a static IP address. After modifying any settings, click Save Settings to save your changes.
IP Address: Enter the IP address assigned to your network connection.
Subnet Mask: Enter the subnet mask.
Default Gateway: Enter the default gateway.
Primary DNS Server: Enter the primary DNS server.
Secondary DNS Server: Enter the secondary DNS server.
MTU: You may need to change the Maximum Transmission Unit
(MTU) for optimal performance. The default value is 1500.
MAC Address: The default MAC Address is set to the Internet port’s physical
interface MAC address on the Broadband Router. It is not
recommended that you change the default MAC address
unless required by your ISP. You can use the Clone Your PC’s
MAC Address button to replace the Internet port’s MAC
address with the MAC address of your Ethernet card.
D-Link DWR-512 User Manual
13
Section 3 - Configuration
Dynamic IP (DHCP)
This section will help you to obtain IP Address information automatically from your ISP. Use this option if your ISP didn’t provide you with IP Address
information and/or a username and password. After modifying any settings, click Save Settings to save your changes.
Primary DNS Server: (Optional) Fill in with IP address of primary DNS server.
Secondary DNS Server: (Optional) Fill in with IP address of secondary DNS server.
MTU (Maximum You may need to change the Maximum Transmission Unit
Transmission Unit): (MTU) for optimal performance. The default value is 1500.
MAC Address: The default MAC Address is set to the Internet port’s physical
interface MAC address on the Broadband Router. It is not
recommended that you change the default MAC address
unless required by your ISP. You can use the Clone Your PC’s
MAC Address button to replace the Internet port’s MAC
address with the MAC address of your PC.
Auto-reconnect: This feature enables this product to renew the WAN IP address
automatically when the lease time has expired.
D-Link DWR-512 User Manual
14
Section 3 - Configuration
PPPoE
Choose this Internet connection if your ISP provides you PPPoE account. After modifying any settings, click Save Settings to save your changes.
Username: The username/account name that your ISP provides to you for
PPPoE dial-up.
Password: Password that your ISP provides to you for PPPoE dial-up.
Verify Password: Fill in with the same password in Password field.
Reconnect Mode: Choose Always-on when you want to establish PPTP
connection all the time. If you choose Connect-on-demand,
the device will establish PPTP connection when local users
want to surf Internet, and disconnect if no traffic after time
period of Maximum Idle Time.
Service Name: (Optional) Fill in if provided by your ISP.
IP Address: (Optional) Fill in if provided by your ISP. If not, keep the default
value.
Primary DNS Server: (Optional) Fill in if provided by your ISP. If not, keep the default
value.
Secondary DNS Server: (Optional) Fill in if provided by your ISP. If not, keep the default
value.
D-Link DWR-512 User Manual
15
Section 3 - Configuration
MAC Address: MAC address of WAN interface. You can also copy MAC address
of your PC to its WAN interface by pressing Clone Your PC’s
MAC button. The Restore MAC button will reset the router to
its default MAC address.
Maximum Idle Time: The amount of time of inactivity before disconnecting
established PPPoE session. Set it to zero or enable Autoreconnect will disable this feature.
Maximum Transmission The default setting of PPPoE is 1492.
Unit (MTU):
D-Link DWR-512 User Manual
16
Section 3 - Configuration
PPTP
Choose this Internet connection if your ISP provides you PPTP account. After modifying any settings, click Save Settings to save your changes.
Address Mode: Choose Static IP only if your ISP assigns you an IP address.
Otherwise, please choose Dynamic IP.
PPTP IP Address: Enter the information provided by your ISP.
(Only applicable for Static IP PPTP.)
PPTP Subnet Mask: Enter the information provided by your ISP.
(Only applicable for Static IP PPTP.)
PPTP Gateway IP Enter the information provided by your ISP.
Address: (Only applicable for Static IP PPTP.)
PPTP Server IP Address: IP address of PPTP server.
Username: User/account name that your ISP provides to you for PPTP dialup.
Password: Password that your ISP provides to you for PPTP dial-up.
Verify Password: Fill in with the same password in Password field.
Reconnect Mode: Choose Always-on when you want to establish PPTP
connection all the time. If you choose Connect-on-demand,
the device will establish PPTP connection when local users
want to surf Internet, and disconnect if no traffic after time
period of Maximum Idle Time.
Maximum Idle Time: The time of no activity to disconnect your PPTP session. Set it
to zero or choose Always-on to disable this feature.
D-Link DWR-512 User Manual
17
Section 3 - Configuration
L2TP
Choose this Internet connection if your ISP provides you L2TP account. After modifying any settings, click Save Settings to save your changes.
Address Mode: Choose Static IP only if your ISP assigns you an IP address.
Otherwise, please choose Dynamic IP.
L2TP IP Address: Enter the information provided by your ISP.
(Only applicable for Static IP L2TP.)
L2TP Subnet Mask: Enter the information provided by your ISP.
(Only applicable for Static IP L2TP.)
L2TP Gateway IP Enter the information provided by your ISP.
Address: (Only applicable for Static IP L2TP.)
L2TP Server IP Address: IP address of L2TP server.
Username: User/account name that your ISP provides to you for L2TP dialup.
Password: Password that your ISP provides to you for L2TP dial-up.
Verify Password: Fill in with the same password in Password field.
Reconnect Mode: Choose Always-on when you want to establish L2TP
connection all the time. Choose Connect-on-demand the
device will establish L2TP connection when local users want to
surf Internet, and disconnect if no traffic after time period of
Maximum Idle Time.
Maximum Idle Time: The time of no activity to disconnect your L2TP session. Set it
to 0 or choose Always-on to disable this feature.
D-Link DWR-512 User Manual
18
Section 3 - Configuration
3G
Choose this Internet connection if you already use a SIM card for 3G Internet service from your Telecom company. The fields here may not be
necessary for your connection. The information on this page should only be used if required by your service provider. After modifying any settings,
click Save Settings to save your changes.
Prefer Service Type: Choose whether the DWR-512 should only use 3G networks,
2G networks, or use Auto Mode to automatically select a
network.
Account/Profile Name:
Fill in a name to identify the following 3G configuration.
Username:
(Optional) Fill in only if requested by ISP.
Password:
(Optional) Fill in only if requested by ISP.
Dialed Number:
Enter the number to be dialed.
Authentication:
Select PAP, CHAP, or Auto detection. The default authentication
method is Auto.
APN:
(Optional) Enter the APN information.
PIN:
Enter the PIN associated with your SIM card.
Reconnect Mode:
Select Auto or Manual to decide whether the routher should
reconnect to your 3G network automatically or manually.
Maximum Idle Time:
Set the maximum time your connection can be idle before
disconnecting. Set it to 0 or choose Auto in Reconnect Mode
to disable this feature.
Primary DNS Server:
(Optional) Fill in if provided by your ISP. If not, keep the default
D-Link DWR-512 User Manual
19
Section 3 - Configuration
Secondary DNS Server: value.
(Optional) Fill in if provided by your ISP. If not, keep the default
value.
Keep Alive:
Select Disable or Use LCP Echo Request depending on the
settings required by your ISP.
PING Test
You can enable PING testing to check whether there is an
active connection. Set the ping interval, the IP address to ping,
and the packet size to use.
Bridge Ethernet Ports:
Activate this feature to use the Ethernet WAN port as an
additional LAN port.
NAT Disable
Enabling this option will disable the NAT function of the
DWR-512, allowing it to act as a link for your devices to your
Internet connection, but without routing functions.
D-Link DWR-512 User Manual
20
Section 3 - Configuration
Wireless Settings
This section will help you to manually configure the wireless settings of your router. Please
note that changes made on this section may also need to be duplicated on your Wireless Client.
The Wireless Settings page allows you to configure how your router connects to the Internet.
There are several ways to set up your wireless connection.
You can click on the Wireless Connection Setup Wizard button to start a wizard that will
guide you through setting up your wireless settings.
If you want to manually configure your settings, click the Manual Wireless Connection Setup
button and skip to “Manual Wireless Connection Setup” on page 23.
You can also set up a wireless connection to a device automatically, or configure your router
automatically from a by clicking the Wi-Fi Protected Setup button. This is described in “Wi-Fi
Protected Setup” on page 28.
Wireless Connection Setup Wizard
This wizard will guide you through a step-by-step process to configure your D-Link router’s
wireless .
Click Next to continue.
Note: While using the wizard, you can click Prev to go back to the previous page or you can
click Cancel to close the wizard.
D-Link DWR-512 User Manual
21
Section 3 - Configuration
Enter a name for your wireless network, then click Next to continue.
Select a level of wireless security to use, then click Next to continue.
If you chose BEST or BETTER, select whether to use TKIP or AES encryption, then enter a
password to use for your wireless network. It is recommended that you use AES if your wireless
computers and devices support it, as it is more secure. Click Next to continue.
If you chose GOOD, select whether to use a HEX or ASCII password, then enter a password
to use for your wireless network. If you choose HEX, you will need to enter a 10 or 26 digit
password using only hex characters (0-9, A-F). If you choose ASCII, the password can be up to
5 or 13 alphanumeric characters. Click Next to continue.
This completes the Wireless Connection Setup Wizard. Click Save to save your changes and
reboot the router.
D-Link DWR-512 User Manual
22
Section 3 - Configuration
Manual Wireless Connection Setup
To set up your wireless connection manually, click Manual Wireless Connection Setup.
D-Link DWR-512 User Manual
23
Section 3 - Configuration
Wireless Settings
This page lets you set up your wireless network and choose a wireless security mode. After modifying any settings, click Save Settings to save your
changes.
Enable Wireless: Select this checkbox to enable wireless access. When you set
this option, the following parameters take effect.
Wireless Network Name: Also known as the SSID (Service Set Identifier), this is the name
of your Wireless Local Area Network (WLAN). Enter a name
using up to 32 alphanumeric characters. The SSID is casesensitive.
802.11 Mode: B/G mixed: Enable this mode if your network contains a mix of
802.11b and 802.11g devices.
N only: Enable this mode if your network only has 802.11n
devices.
B/G/N mixed: Enable this mode if you have a mix of 802.11n,
802.11g, and 802.11b clients.
Auto Channel Scan: Enabling this feature will allow the router to scan for the best
channel to use automatically.
Wireless Channel: A wireless network uses specific channels in the wireless
spectrum to handle communication between clients. Some
channels in your area may experience interference from
other electronic devices. Choose the clearest channel to help
optimize the performance and coverage of your wireless
network, or enable Auto Channel Scan for the router to
automatically select the best channel.
Visibility Status: This setting determines whether the SSID will be Visible or
Invisible to wireless clients looking for wireless networks.
Setting this to Invisible can increase the security of your
network by hiding it, but clients will need to manually enter
the SSID of your network to connect.
D-Link DWR-512 User Manual
24
Section 3 - Configuration
Wireless Security Mode
You can choose from several different wireless security modes. After selecting a mode, the settings for that mode will appear. After modifying any
settings, click Save Settings to save your changes.
Security Mode: You can choose from 4 different security modes.
• None: No security will be used. This setting is not
recommended.
• WEP: WEP encryption will be used. This setting is
only recommended if your wireless devices cannot
support WPA or WPA2.
• WPA-Personal: WPA-PSK encryption will be used.
This setting is recommended for most users.
• WPA-Enterprise: WPA-EAP encryption will be
used. This setting is only recommended if you
have a RADIUS authentication server. Otherwise,
WPA-Personal should be used.
D-Link DWR-512 User Manual
25
Section 3 - Configuration
If you choose WEP, the following options will appear:
Authentication: Select whether to use Open or Shared authentication.
WEP Encryption: Select whether to use 64-bit or 128-bit encryption.
Default WEP Key: Select which WEP key (1-4) to use as the default key. This will
also change the WEP Key text box to that WEP key for your to
configure(1-4).
WEP Key: Set the WEP key/password for your wireless network. Based
on whether you are using 64 or 128-bit encryption, and
whether you are using a HEX or ASCII key, you will need to
enter different numbers of characters for your key, as indicated
below the WEP Key text box. ASCII keys may use letters and
numbers only, and HEX keys may use numbers 0-9 and letters
A-F only.
If you choose WPA-Personal, the following options will appear:
WPA Mode: Select whether to use WPA2 only or WPA only. WPA2 only is
the most secure, provided that all of your clients can support
it.
Cipher Type: Select whether to use the TKIP or AES cipher. The AES cipher
is the most secure, provided that all of your clients can support
it.
Network Key: Enter the key/password you want to use for your wireless
network. The key must be 8 to 63 characters long, and may
only contain letters and numbers.
D-Link DWR-512 User Manual
26
Section 3 - Configuration
If you choose WPA-Enterprise, the following options will appear:
WPA Mode: Select whether to use WPA2 only or WPA only. WPA2 only is
the most secure, provided that all of your clients can support
it.
Cipher Type: Select whether to use the TKIP or AES cipher. The AES cipher
is the most secure, provided that all of your clients can support
it.
RADIUS Server IP Enter the IP address of your RADIUS server.
Address:
RADIUS Server Port: Enter the port used for your RADIUS server.
RADIUS Server Shared Enter the Shared Secret/password for your RADIUS server.
Secret:
D-Link DWR-512 User Manual
27
Section 3 - Configuration
Wi-Fi Protected Setup
To open the Wi-Fi Protected Setup page, click Wi-Fi Protected Setup.
The Wi-Fi Protected Setup page allows you to create a wireless connection between your router
and a device automatically by simply pushing a button or entering a PIN code.
You can also use Windows 7 to do initial configuration of your router by using the Connect to
a network wizard in Windows, and entering the WPS PIN/AP PIN of the router when prompted.
After modifying any settings, click Save Settings to save your changes.
D-Link DWR-512 User Manual
28
Section 3 - Configuration
WPS: Select whether you would like to enable or disable WPS
features.
AP PIN (also known as If you use Windows 7’s Connect to a network wizard to do
WPS PIN): initial configuration of the router, you will need to enter the
WPS PIN/AP PIN into the wizard when prompted. The factory
default WPS PIN/AP PIN is printed on a label located on the
bottom of the router. You can click the Generate New PIN
button to change it to a randomly generated PIN.
Config Mode: Select whether the WPS config mode should be set to
Registrar or Enrollee. In most cases, this should be set to
Registrar so that you can use WPS to connect new wireless
clients.
Config Status: If this is set to CONFIGURED, the router will be marked
as “already configured” to computers that try to use WPS
configuration, such as Windows 7’s Connect to a network
wizard. You can click the Release button to change the status
to UNCONFIGURED to allow for WPS configuration of the
router.
If this is set to UNCONFIGURED, you can click the Set
button to change the status to CONFIGURED to block WPS
configuration of the router.
Config Method: This lets you choose whether to use the Push Button
connection method (PBC) or PIN method to connect to a
wireless client when the Trigger button is clicked. If you
choose the PIN method, you will need to enter a 8-digit PIN
number that the wireless client need to use to connect to your
router.
WPS Status: This will show the current WPS connection process status. Click
the Trigger button to initiate a WPS connection.
D-Link DWR-512 User Manual
29
Section 3 - Configuration
Network Settings
This section will help you to change the internal network settings of your router and to configure the DHCP Server settings. After modifying any
settings, click Save Settings to save your changes.
Router Settings
Router IP Address: Enter the IP address you want to use for the router. The default
IP address is 192.168.0.1. If you change the IP address, you
will need to enter the new IP address in your browser to get
into the configuration utility.
Default Subnet Mask: Enter the Subnet Mask of the router. The default subnet mask
is 255.255.255.0.
Local Domain Name: Enter the local domain name for your network.
D-Link DWR-512 User Manual
30
Section 3 - Configuration
DHCP Server Settings
The DWR-512 has a built-in DHCP (Dynamic Host Control Protocol) server. The DHCP server assigns IP addresses to devices on the network that
request them. By default, the DHCP Server is enabled on the device. The DHCP address pool contains a range of IP addresses, which is automatically
assigned to the clients on the network. After modifying any settings, click Save Settings to save your changes.
Enable DHCP Server: Select this box to enable the DHCP server on your router.
DHCP IP Address Range: Enter the range of IPs for the DHCP server to use to assign IP
addresses to devices on your network.
DHCP Lease Time: Enter lease time for IP address assignments.
Primary DNS IP Address: Enter the primary DNS IP Address that will be assigned to
DHCP clients.
Secondary DNS IP Enter the secondary DNS IP Address that will be assigned to
Address: DHCP clients.
Primary WINS IP Enter the primary WINS IP Address that will be assigned to
Address: DHCP clients.
Secondary WINS IP Enter the secondary WINS IP Address that will be assigned to
Address: DHCP clients.
D-Link DWR-512 User Manual
31
Section 3 - Configuration
Message Service
If your ISP provides SMS service, you can check and send messages from this page.
SMS Inbox: Click this button to view SMS messages that you have
received.
Create Message: Click this button to create a new message to send.
SMS Inbox
This page shows all messages that are stored on the SIM card. Select a message to display its contents in the SMS window. After you read it, you
can delete it, or reply to the sender. Click the Refresh button to update the list.
Delete: Deletes the selected SMS message.
Reply: Opens a Create Message window to reply to the selected SMS
message.
Forward: Opens a Create Message windows to forward the selected SMS
message to another recipient.
Refresh: Click this button to check for new messages.
D-Link DWR-512 User Manual
32
Section 3 - Configuration
Create Message
This page allows you to send an SMS to your contacts. Just fill in the phone number of the recipient, and type the content of message. Then push
the “Send Message” button to send out this message. If you would like to add more than one recipient, you must put a semicolon (;) between each
of the phone numbers.
Receiver: Type the phone number of the recipient.
Text Message: Type the message that you would like to send.
Send Message: Click this button to send the message.
Cancel: Click this button to clear the message.
D-Link DWR-512 User Manual
33
Section 3 - Configuration
Advanced
The ADVANCED pages allow you to configure the more advanced settings of the router, such
as Virtual Server(Port Forwarding), MAC and URL filtering, and advanced wireless and network
settings. To view the Advanced configuration pages, click on ADVANCED at the top of the
screen.
Virtual Server
The device can be configured as a virtual server so that users can access services such as Web or FTP via the public (WAN) IP address of the router.
You can also allow the settings to run on a specified schedule. The Virtual Server function is also known as Port Forwarding. After modifying any
settings, click Save Settings to save your changes.
Well-known Services: This contains a list of pre-defined services. You can select a
service, select a rule ID, then click the Copy to button to copy
the default settings for that service to the specified rule ID.
ID: Specifies which rule to copy the selected Well known service
settings to when you click the Copy to button.
Use schedule rule: Select a schedule to use and copy to the specified rule ID
when you click the Copy to button. You may select Always On
or use a specific schedule that you have defined. To create and
edit schedules, please refer to “Schedules” on page 55.
D-Link DWR-512 User Manual
34
Section 3 - Configuration
VIRTUAL SERVERS LIST
ID: This identifies the rule.
Server IP: Port: Enter the last digits of the IP address of the computer on your
local network that you want to allow the incoming service. In
the next box, enter the port number that you would like to
open.
Enable: Tick the checkbox to enable the specified rule.
Schedule Rule #: Specify the schedule rule number. To create schedules, please
refer to “Schedules” on page 55.
D-Link DWR-512 User Manual
35
Section 3 - Configuration
Application Rules
Some applications require multiple connections, such as Internet gaming, video conferencing, and Internet telephony among others. These
applications may have difficulty working through NAT (Network Address Translation). Application Rules allow some of these applications work
with the DWR-512 by opening ports after detecting traffic being sent through a trigger port. After modifying any settings, click Save Settings to
save your changes.
Popular Applications: Select from a list of popular applications. You can select a
service, select a rule ID, then click the Copy to button to copy
the default settings for that service to the specified rule ID.
ID: Specifies which rule to copy the selected Popular application
settings to when you click the Copy to button.
APPLICATION RULES
ID: This identifies the rule.
Trigger: Enter the port to listen to in order to trigger the rule.
Incoming Ports: Specify the incoming port(s) to open when traffic comes over
the Trigger port.
Enable: Tick the checkbox to enable the specified rule.
D-Link DWR-512 User Manual
36
Section 3 - Configuration
QoS Engine
The QoS Engine improves your online gaming or streaming media experience by ensuring that your game or media traffic is prioritized over
other network traffic, such as FTP or Web. For best performance, use the Automatic Classification option to automatically set the priority for your
applications. After modifying any settings, click Save Settings to save your changes.
QOS ENGINE SETUP
Enable QOS Packet Filter: Select this box to enable the QoS feature.
Upstream Bandwidth: Specify the maximum upstream bandwidth here (e.g. 400
kbps).
Use Schedule Rule: Select a schedule to use and copy to the specified rule ID
when you click the Copy to button. You may select Always On
or use a specific schedule that you have defined. To create and
edit schedules, please refer to “Schedules” on page 55.
QOS RULES
ID: This identifies the rule.
Local IP : Ports: Specify the local IP address(es) and port(s) for the rule to
affect.
Remote IP : Ports: Specify the remote IP address(es) and port(s) for the rule to
affect.
QoS Priority: Select what priority level to use for traffic affected by the rule:
Low, Normal, or High.
Enable: Tick the checkbox to enable the specified rule.
Use Rule #: Specify the schedule rule number. To create schedules, please
refer to “Schedules” on page 55.
D-Link DWR-512 User Manual
37
Section 3 - Configuration
MAC Address Filter
The MAC (Media Access Controller) Address Filter option is used to control network access based on the MAC Address of the network adapter.
A MAC address is a unique ID assigned by the manufacturer of the network adapter. This feature can be configured to ALLOW or DENY network/
Internet access. After modifying any settings, click Save Settings to save your changes.
MAC FILTERING SETTINGS
MAC Address Control: Tick this box to enable MAC Filtering.
Connection Control: Wireless and wired clients with C selected can connect to this
device and allow/deny connections from unspecified MAC
addresses.
Association Control: Wireless clients with A selected can associate to the wireless
LAN and allow/deny connections from unspecified MAC
addresses.
MAC FILTERING RULES
ID: This identifies the rule.
MAC Address: Specify the MAC Address of the computer to be filtered.
IP Address: Specify the last section of the IP address.
Wake On LAN: Click Trigger to configure Wake On LAN.
C: If this box is ticked, the rule will follow the connection control
setting specified in MAC filtering settings specified above.
A: If this box is ticked, the rule will follow the association control
setting specified in MAC filtering settings specified above.
D-Link DWR-512 User Manual
38
Section 3 - Configuration
URL Filter
URL Filter allows you to set up a list of websites that will be blocked from users on your network. After modifying any settings, click Save Settings
to save your changes.
URL Filtering: Select this box to enable URL Filtering.
URL FILTERING RULES
ID: This identifies the rule.
URL: Enter URL that you would like to block. All URLs that begin
with this URL will be blocked.
Enable: Tick the checkbox to enable the specified rule.
D-Link DWR-512 User Manual
39
Section 3 - Configuration
Outbound Filter
Outbound Filter enables you to control what packets are allowed to be sent out to the Internet. The outbound filter applies to all outbound packets.
After modifying any settings, click Save Settings to save your changes.
OUTBOUND FILTER SETTING
Outbound Filter: Select this box to Enable outbound filtering.
Use Schedule Rule: Select a schedule to use and copy to the specified rule ID
when you click the Copy to button. You may select Always On
or use a specific schedule that you have defined. To create and
edit schedules, please refer to “Schedules” on page 55.
OUTBOUND FILTER RULES LIST
Here, you can select whether to Allow or Deny all outgoing
traffic except for traffic that matches the listed rules.
ID: This identifies the rule.
Source IP : Ports: Specify the local IP address and then specify the port after the
colon.
Destination IP : Ports: Specify the remote IP address and then the port after the
colon.
Enable: Tick the checkbox to enable the specified rule.
Schedule Rule #: Specify the schedule rule number.
Previous Page: Go back to the previous filter page.
Next Page: Advance to the next filter page.
D-Link DWR-512 User Manual
40
Section 3 - Configuration
Inbound Filter
Inbound Filter enables you to control what packets are allowed to come in to your network from the Internet. The inbound filter only applies to
packets that are destined for Virtual Servers or DMZ hosts. After modifying any settings, click Save Settings to save your changes.
INBOUND FILTER SETTING
Inbound Filter: Select this box to Enable the filter.
Use Schedule Rule: Select a schedule to use and copy to the specified rule ID
when you click the Copy to button. You may select Always On
or use a specific schedule that you have defined. To create and
edit schedules, please refer to “Schedules” on page 55.
INBOUND FILTER RULES LIST
Here, you can select whether to Allow or Deny all incoming
traffic except for traffic that matches the listed rules.
ID: This identifies the rule.
Source IP : Ports: Specify the local IP address and then specify the port after the
colon.
Destination IP : Ports: Specify the remote IP address and then the port after the
colon.
Enable: Tick the checkbox to enable the specified rule.
Schedule Rule #: Specify the schedule rule number.
Previous Page: Go back to the previous filter page.
Next Page: Advance to the next filter page.
D-Link DWR-512 User Manual
41
Section 3 - Configuration
SNMP
SNMP (Simple Network Management Protocol) is a widely used network monitoring and control protocol that reports activity on each network
device to the administrator of the network. SNMP can be used to monitor traffic and statistics of the DWR-512. The DWR-512 supports SNMP v1
and v2c. After modifying any settings, click Save Settings to save your changes.
SNMP
SNMP Local: Select whether to Enable or Disable local SNMP
administration.
SNMP Remote: Select whether to Enable or Disable remote SNMP
administration.
Get Community: Enter the password public in this field to allow read-only
access to network administration using SNMP. You can view
the network, but no configuration is possible with this setting.
Set Community: Enter the password private in this field to enable
read/write access to the network using SNMP.
IP 1, IP 2, IP 3, IP 4: Enter up to 4 IP addresses to use as trap targets for your
network.
SNMP Version: Select the SNMP version of your system.
WAN Access IP Address If you want to limit remote access SNMP access, enter the IP
address of the remote computer you will use to access this
device. All other IP addresses will be denied remote SNMP
access.
D-Link DWR-512 User Manual
42
Section 3 - Configuration
Routing
The Routing page allows you to specify custom routes that determine how data is moved around your network. After modifying any settings, click
Save Settings to save your changes.
RIP SETTING
RIP: Select this box to enable routing, then select which routing
protocol to use:
• RIPv1: Protocol in which the IP address is routed
through the internet.
• RIPv2: Enhanced version of RIPv1 with added
features such as Authentication, Routing Domain,
Next Hop Forwarding, and Subnet-mask Exchange.
ROUTING RULES
ID: This identifies the rule.
Destination: Enter in the IP of the specified network that you want to access
using the static route.
Subnet Mask: Enter in the subnet mask to be used for the specified network.
Gateway:
Enter in the gateway IP address for the specified network.
Enter in the amount of hops it will take to reach the specified
Hop: network.
Note: In a transmission path, each link is terminated at a
network device such as a router or gateway. The number of
hops equals the number of routers or gateways that data must
pass through before reaching the destination.
Enable: Select this box to enable the rule.
D-Link DWR-512 User Manual
43
Section 3 - Configuration
Advanced Wireless
Advanced Wireless contains settings which can negatively affect the performance of your router if configured improperly. Do not change these
settings unless you are already familiar with them or have been instructed to make the change by one of our support personnel. After modifying
any settings, click Save Settings to save your changes.
Beacon Interval: Specify a value for the beacon interval. Beacons are packets
sent by an Access Point to synchronize a wireless network. 100
is the default setting and is recommended.
Transmit Power: Set the transmit power of the antennas.
RTS Threshold: This value should remain at its default setting of 2347. If
inconsistent data flow is a problem, only a minor modification
should be made.
Fragmentation: The fragmentation threshold, which is specified in bytes,
determines whether packets will be fragmented. Packets
exceeding the 2346 byte setting will be fragmented before
transmission. 2346 is the default setting.
DTIM Interval: Set the interval for DTIM. A Delivery Traffic Indication Message
(DTIM) is a countdown informing clients of the next window
for listening to broadcast and multicast messages. The default
interval is 3.
WMM Capable: WMM (Wi-Fi Multimedia) is a QoS (Quality of Service) system
for your wireless network. Enable this option to improve
the quality of video and voice applications for your wireless
clients.
TX Rates: Select the basic transfer rates based on the speed of
wireless adapters on your wireless network. It is strongly
recommended to keep this setting to Auto.
D-Link DWR-512 User Manual
44
Section 3 - Configuration
Advanced Network
Advanced Network contains settings which can change the way the router handles certain types of traffic. We recommend that you do not change
any of these settings unless you are already familiar with them or have been instructed to make the change by one of our support personnel. After
modifying any settings, click Save Settings to save your changes.
Enable UPnP: Tick this checkbox to use the Universal Plug and Play (UPnP™)
feature. UPNP provides compatibility with various networking
equipment, software, and peripherals.
Enable WAN Ping Select the box to allow the WAN port to be “pinged.” Blocking
Respond: WAN pings may provide some extra security from hackers.
D-Link DWR-512 User Manual
45
Section 3 - Configuration
DMZ
Sometimes you may want a computer exposed to the outside world for certain types of applications. If you choose to expose a computer, you can
enable DMZ. DMZ is short for Demilitarized Zone. This option will expose the chosen computer completely to the outside world.
Enable DMZ:
If an application has trouble working from behind the router,
you can expose one computer to the Internet and run the
application on that computer.
Note: Placing a computer in the DMZ may expose that
computer to a variety of security risks. Use of this option is only
recommended as a last resort.
DMZ IP Address:
Specify the IP address of the computer on the LAN that you want
to have unrestricted Internet communication. If this computer
obtains its IP address automatically using DHCP, be sure to make
a static reservation on the Setup > Network Settings page so
that the IP address of the DMZ machine does not change.
Click Save Settings to save your changes, or click Don’t Save
Settings to discard your changes.
D-Link DWR-512 User Manual
46
Section 3 - Configuration
Tools
The TOOLS pages allow you to adjust various system setting for your router, such as the system
time, firmware, and custom schedules. To view the Tools pages, click on TOOLS at the top of
the screen.
Admin
The Admin page allows you to change the Administrator password and enable Remote Management. The admin has read/write access while users
only have read-only access. Only the admin has the ability to change both admin and user account passwords. After modifying any settings, click
Save Settings to save your changes.
ADMINISTRATOR
Admin Password: Enter and confirm the password that the admin account will
use to access the router’s management interface.
REMOTE MANAGEMENT
Remote Management: Tick this check box to enable remote management. Remote
management allows the DWR-512 to be configured over the
Internet through a web browser. A username and password
will still be required to access the Web-Management interface.
IP Allowed to Access: Enter the Internet IP address of the PC that has access to the
Broadband Router. If you enter an asterisk (*) in this field,
then anyone will be able to access the Router. Adding an
asterisk (*) into this field could present a security risk and is not
recommended.
Port: This is the port number used to access the router. 8080 is the
port usually used for the Web-Management interface.
D-Link DWR-512 User Manual
47
Section 3 - Configuration
Time
This section will help you set the time zone that you are in and an NTP (Network Time Protocol) server to use. Daylight Saving can also be configured
to adjust the time when needed. After modifying any settings, click Save Settings to save your changes.
TIME AND DATE CONFIGURATION
Time Zone: Select the appropriate Time Zone from the drop-down box.
Enable Daylight Saving: Tick this checkbox to allow for daylight saving adjustments.
Use the dropdown boxes to specify a start date and end date
for daylight saving time adjustments.
AUTOMATIC TIME AND DATE CONFIGURATION
Tick the Automatically synchronize with Internet time
server checkbox to allow the router to use an NTP server to
update the router’s internal clock.
NTP Server Used: Enter an NTP server to use for time synchronization, or use the
dropdown box to select one. Click the Update Now button to
synchronize the time with the NTP server.
D-Link DWR-512 User Manual
48
Section 3 - Configuration
Syslog
The DWR-512 keeps a running log of events and activities occurring on the router. You may send these logs to a syslog server on your network.
After modifying any settings, click Save Settings to save your changes.
Enable Logging to Syslog Tick this checkbox to send the router logs to a syslog server.
Server:
Syslog Server IP Address: Enter the IP address of the syslog server that the router will
send the logs to.
D-Link DWR-512 User Manual
49
Section 3 - Configuration
E-mail Settings
E-mail Settings allow you to send the system log files, router alert messages, and firmware update notifications to an e-mail address. After modifying
any settings, click Save Settings to save your changes.
Enable E-mail When this option is enabled, router activity logs will be
Notification: e-mailed to the specified e-mail address.
SMTP Sever IP and Port: Enter the SMTP server IP address the router will use to send
e-mails. Enter the complete IP address followed by a colon(:)
and the port number. (e.g. 123.123.123.1:25).
SMTP Username: Enter the username for the SMTP account.
SMTP Password: Enter the password for the SMTP account.
Send E-mail Alert to: Enter the e-mail address where you would like the router to
send e-mails to.
E-mail Subject: Enter a subject for the e-mail.
E-mail Log Now: Click this button to send the current logs to the specified
e-mail address.
D-Link DWR-512 User Manual
50
Section 3 - Configuration
System
Here, you can save the current system settings to a local hard drive. After modifying any settings, click Save Settings to save your changes.
Save Settings To Local Use this option to save your current router configuration
Hard Drive settings to a file. Click Save to open a file dialog, and then
select a location and file name for the settings.
Load Settings From Local Use this option to load previously saved router configuration
Hard Drive: settings. Click Browse... and select the saved file and then
click the Upload Settings button to upload the settings to the
router.
Restore To Factory This option will restore all settings back to their defaults. Any
Default Settings: settings that have not been backed up will be lost, including
any rules that you have created.
D-Link DWR-512 User Manual
51
Section 3 - Configuration
Firmware
Here, you can upgrade the firmware of your router. Make sure the firmware you want to use is on the local hard drive of the
computer and then click Browse to upload the file. You can check for and download firmware updates at the D-Link support site at
http://support.dlink.com. After modifying any settings, click Save Settings to save your changes.
Current Firmware Displays your current firmware’s version.
Version:
Current Firmware Date: Displays your current firmware’s release date.
Upload: After you have downloaded a new firmware, click Browse to
locate the firmware on your computer, then click Upload to
start the firmware upgrade.
Warning: You must use a wired computer to upload the
firmware file; do not use a wireless computer. During
the upgrade process, do not power off your computer
or router, and do not refresh the browser window
until the upgrade is complete.
Accept Unofficial If the firmware you want to install is not an official D-Link
Firmware: release, you will need to check this checkbox.
Warning: Unofficial firmwares are not supported, and may
cause damage to your device. Use of unofficial
firmwares is at your own risk.
D-Link DWR-512 User Manual
52
Section 3 - Configuration
Dynamic DNS
The DDNS feature allows you to host a server (Web, FTP, or Game Server) using a domain name that you have purchased (such as
www.exampledomain.com) with your dynamically assigned IP address. You can use one of the listed DDNS service, or you can sign up for D-Link’s
free DDNS service at www.dlinkddns.com. After modifying any settings, click Save Settings to save your changes.
DDNS: Tick this checkbox to enable the DDNS feature.
Provider: Select a DDNS service provider to use.
Host Name: Enter the Host Name that you registered with your DDNS
service provider.
Username / E-mail: Enter the Username for your DDNS account.
Password / Key: Enter the Password for your DDNS account.
D-Link DWR-512 User Manual
53
Section 3 - Configuration
System Check
This useful diagnostic utility can be used to check if a computer is connected to the network. It sends ping packets and listens for responses from
the specific host. After modifying any settings, click Save Settings to save your changes.
Host Name or IP Address: Enter a host name or the IP address that you want to ping and
click the Ping button. The results of the ping attempt will be
displayed in the PING RESULT section below.
D-Link DWR-512 User Manual
54
Section 3 - Configuration
Schedules
This section allows you to manage schedule rules for various firewall and parental control features. After modifying any settings, click Save Settings
to save your changes.
Enable Schedule: Tick this checkbox to enable schedules.
Edit: Click this button to edit the selected rule. (see below)
Delete: Click this button to delete the selected rule.
Previous Page: Click this button to go to the previous page of rules.
Next Page: Click this button to go to the next page of rules.
Click this button to specify the start time, end time, and name
of the rule.
Add New Rule..: Click this button to create a new rule. (see below)
Name of Rule #: Enter a name for your new schedule.
Policy: Select Activate or Inactivate to decide whether features that
use the schedule should be active or inactive except during
the times specified.
Week Day: Select a day of the week for the start time and end time.
Start Time (hh:mm): Enter the time at which you would like the schedule to
become active.
End Time (hh:mm): Select the time at which you would like the schedule to
become inactive.
After making your changes, click Save Settings to save the
schedule.
D-Link DWR-512 User Manual
55
Section 3 - Configuration
Connection Reset
This feature allows you to reset the internet connection on your router by periodically resetting the connection. You can choose to have this happen
on a predetermined schedule by configuring the options on this page.
Auto-Reboot: Select whether the connection reset feature should be
Enabled or Disabled.
Reboot-Schedule: If the connection reset feature is enabled, select when it
should activate via the hour and minute from the dropdown
boxes.
Daily Schedule: Select this option if you want the connection reset feature to
activate on a daily schedule.
Weekly Schedule Day of Select this option if you want the connection reset feature to
Week: activate only on a certain day of the week.
D-Link DWR-512 User Manual
56
Section 3 - Configuration
Status
The STATUS pages allow you to see the current status of the router for various categories,
including WAN, 3G, network, and wireless. To view the Status pages, click on STATUS at the
top of the screen.
Device Info
All of your Internet and network connection details are displayed on this page. The firmware version is also displayed here.
General: Displays the current time and firmware version.
WAN: Displays the WAN connection details of the router.
3G Card: Displays the 3G connection details of the router.
LAN: Displays the LAN connection details of the router.
Wireless LAN: Displays the wireless LAN connection details of the router
LAN Computers: Displays the list of clients connected to the router.
D-Link DWR-512 User Manual
57
Section 3 - Configuration
Log
Here, you can view and download the system log.
Previous: Click this button to go to the previous page of the log.
Next: Click this button to go to the next page of the log.
First Page: Click this button to skip to the first page of the log.
Last Page: Click this button to skip to the last page of the log.
Refresh: Click this button to refresh the system log.
Download: Click this button to download the current system log to your
computer.
Clear Logs: Click this button to clear the system log.
Link To Log Settings: Click this button to go to the Log Settings page. For more,
refer to “Log” on page 58.
D-Link DWR-512 User Manual
58
Section 3 - Configuration
Statistics
Here you can view the packets transmitted and received passing through your router on both WAN and LAN ports. The traffic counter will reset if the
device is rebooted. Click the Refresh button to refresh the WAN statistics.
D-Link DWR-512 User Manual
59
Section 3 - Configuration
Wireless
This table displays a list of wireless clients that are connected to your wireless router. It also displays the connection time and MAC address of the
connected wireless clients. Click Refresh to refresh the list.
D-Link DWR-512 User Manual
60
Section 3 - Configuration
Support
The SUPPORT pages provide help information for each section of the device’s interface. To
view the Support pages, click on SUPPORT at the top of the screen.
D-Link DWR-512 User Manual
61
Section 4 - Connecting to a Wireless Network
Connecting to a Wireless Network
Using Windows 7
Windows 7 users may use the built-in wireless utility to connect to a wireless network. If you are using another company’s utility or Windows 2000,
please refer to the user manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option
similar to the Windows 7 utility as seen below.
If you receive the Wireless Networks Detected bubble, click on the center of
the bubble to access the utility. You can also click on the wireless icon in your
system tray (lower-right corner).
Wireless
The utility will display any available wireless networks in your area.
D-Link DWR-512 User Manual
62
Section 4 - Connecting to a Wireless Network
Highlight the wireless network (SSID) you would like to connect to and click
the Connect button.
If you get a good signal but cannot access the Internet, check your TCP/IP
settings for your wireless adapter. Refer to the Networking Basics section
in this manual for more information.
D-Link DWR-512 User Manual
63
Section 4 - Connecting to a Wireless Network
Configuring Wireless Security
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before configuring your wireless adapter. If you
are joining an existing network, you will need to know the security key or passphrase being used.
1. Click on the wireless icon in your system tray (lower-right corner).
Wireless
2. The utility will display any available wireless networks in your area.
D-Link DWR-512 User Manual
64
Section 4 - Connecting to a Wireless Network
3. Highlight the wireless network (SSID) you would like to connect to and
click the Connect button.
4. The following window appears while your computer tries to connect to
the router.
D-Link DWR-512 User Manual
65
Section 4 - Connecting to a Wireless Network
5. Enter the same security key or passphrase that is on your router and click
Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The key
or passphrase must be exactly the same as on the wireless router.
D-Link DWR-512 User Manual
66
Section 4 - Connecting to a Wireless Network
Using Windows Vista™
Windows® Vista™ users may use the built-in wireless utility. If you are using another company’s utility or Windows® 2000, please refer to the user
manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows®
Vista™ utility as seen below.
If you receive the Wireless Networks Detected bubble, click on the center of
the bubble to access the utility.
or
Right-click on the wireless computer icon in your system tray (lower-right corner
next to the time). Select Connect to a network.
The utility will display any available wireless networks in your area. Click on a
network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check the TCP/IP settings
for your wireless adapter. Refer to the Networking Basics section in this manual
for more information.
D-Link DWR-512 User Manual
67
Section 4 - Connecting to a Wireless Network
Configuring Wireless Security
It is recommended to enable wireless security (WEP/WPA/WPA2) on your wireless router or access point before configuring your wireless adapter.
If you are joining an existing network, you will need to know the security key or passphrase being used.
1. Open the Windows® Vista™ Wireless Utility by right-clicking on the wireless
computer icon in your system tray (lower right corner of screen). Select
Connect to a network.
2. Highlight the wireless network (SSID) you would like to connect to and click
Connect.
D-Link DWR-512 User Manual
68
Section 4 - Connecting to a Wireless Network
3. Enter the same security key or passphrase that is on your router and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the connection fails,
please verify that the security settings are correct. The key or passphrase must be
exactly the same as on the wireless router.
D-Link DWR-512 User Manual
69
Section 4 - Connecting to a Wireless Network
Connect to a Wireless Network
Using Windows® XP
Windows® XP users may use the built-in wireless utility (Zero Configuration Utility). The following instructions are for Service Pack 2 users. If you are
using another company’s utility or Windows® 2000, please refer to the user manual of your wireless adapter for help with connecting to a wireless
network. Most utilities will have a “site survey” option similar to the Windows® XP utility as seen below.
If you receive the Wireless Networks Detected bubble, click on the center of the
bubble to access the utility.
or
Right-click on the wireless computer icon in your system tray (lower-right corner
next to the time). Select View Available Wireless Networks.
The utility will display any available wireless networks in your area. Click on a
network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check the TCP/IP settings
for your wireless adapter. Refer to the Networking Basics section in this manual
for more information.
D-Link DWR-512 User Manual
70
Section 4 - Connecting to a Wireless Network
Configure WEP
It is recommended to enable WEP on your wireless router or access point before configuring your wireless adapter. If you are joining an existing
network, you will need to know the WEP key being used.
1. Open the Windows ® XP Wireless U tilit y by r ight- click ing
on the wireless computer icon in your system tray
(lower-right corner of screen). Select View Available Wireless Networks.
2. Highlight the wireless network (SSID) you would like to connect to
and click Connect.
D-Link DWR-512 User Manual
71
Section 4 - Connecting to a Wireless Network
3.The Wireless Network Connection box will appear. Enter the same WEP key that
is on your router and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the connection fails,
please verify that the WEP settings are correct. The WEP key must be exactly the same
as on the wireless router.
D-Link DWR-512 User Manual
72
Section 4 - Connecting to a Wireless Network
Configure WPA-PSK
It is recommended to enable WPA on your wireless router or access point before configuring your wireless adapter. If you are joining an existing
network, you will need to know the WPA key being used.
1. Open the Windows ® XP Wireless Utilit y by right- click ing
on the wireless computer icon in your system tray
(lower-right corner of screen). Select View Available Wireless Networks.
2. Highlight the wireless network (SSID) you would like to connect to and
click Connect.
D-Link DWR-512 User Manual
73
Section 4 - Connecting to a Wireless Network
3.The Wireless Network Connection box will appear. Enter the WPA-PSK passphrase
and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the connection fails,
please verify that the WPA-PSK settings are correct. The WPA-PSK passphrase must be
exactly the same as on the wireless router.
D-Link DWR-512 User Manual
74
Section 6 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DWR-512. Read the following descriptions
if you are having problems. (The examples below are illustrated in Windows® XP. If you have a different operating system, the screenshots on your
computer will look similar to the following examples.)
1. Why can’t I access the web-based configuration utility?
When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website on the Internet or have to be
connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must be on the same IP subnet to
connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
• Internet Explorer 6 or higher
• Netscape 8 or higher
• Mozilla 1.7.12 (5.0) or higher
• Opera 8.5 or higher
• Safari 1.2 or higher (with Java 1.3.1 or higher)
• Camino 0.8.4 or higher
• Firefox 1.5 or higher
• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a different cable or connect
to a different port on the device if possible. If the computer is turned off, the link light may not be on.
• Disable any internet security software running on the computer. Software firewalls such as Zone Alarm, Black Ice, Sygate, Norton Personal Firewall,
and Windows® XP firewall may block access to the configuration pages. Check the help files included with your firewall software for more information
on disabling or configuring it.
D-Link DWR-512 User Manual
75
Section 6 - Troubleshooting
• Configure your Internet settings:
• • Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click
the button to restore the settings to their defaults.
• • Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button.
Make sure nothing is checked. Click OK.
• • Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.
• • Close your web browser (if open) and open it.
• Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This should open the
login page for your the web management.
• If you still cannot access the configuration, unplug the power to the router for 10 seconds and plug back in. Wait about 30 seconds and try accessing
the configuration. If you have multiple computers, try connecting using a different computer.
2. What can I do if I forgot my password?
If you forgot your password, you must reset your router. Unfortunately, this process will change all your settings back to the factory defaults.
To reset the router, locate the reset button (hole) on the rear panel of the unit. With the router powered on, use a paperclip to hold the button
down for 10 seconds. Release the button and the router will go through its reboot process. Wait about 30 seconds to access the router. The default
IP address is 192.168.0.1. When logging in, the username is admin and leave the password box empty.
D-Link DWR-512 User Manual
76
Appendix A - Wireless Basics
Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your
home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link wireless family of products will allow you to
securely access the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of wires. Wireless
LANs are used increasingly in both home and office environments, and public areas such as airports, coffee shops and universities. Innovative ways
to utilize WLAN technology are helping people to work and communicate more efficiently. Increased mobility and the absence of cabling and other
fixed infrastructure have proven to be beneficial for many users.
Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support the
same protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to use servers, printers
or an Internet connection supplied through the wired LAN. A Wireless Router is a device used to provide this link.
D-Link DWR-512 User Manual
77
Appendix A - Wireless Basics
What is Wireless?
Wireless or Wi-Fi technology is another way of connecting your computer to the network without using wires. Wi-Fi uses radio frequency to connect
wirelessly, so you have the freedom to connect computers anywhere in your home or office network.
Why D-Link Wireless?
D -Link is the worldwide leader and award winning designer, developer, and manufac turer of net work ing produc ts.
D-Link delivers the performance you need at a price you can afford. D-Link has all the products you need to build your network.
How does wireless work?
Wireless works similar to how cordless phone work, through radio signals to transmit data from one point A to point B. But wireless technology has
restrictions as to how you can access the network. You must be within the wireless network range area to be able to connect your computer. There
are two different types of wireless networks Wireless Local Area Network (WLAN), and Wireless Personal Area Network (WPAN).
Wireless Local Area Network (WLAN)
In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point has a small antenna
attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access point as seen in the picture, the signal can
travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles to serve places like manufacturing plants, industrial
locations, college and high school campuses, airports, golf courses, and many other outdoor venues.
Wireless Personal Area Network (WPAN)
Bluetooth is the industry standard wireless technology used for WPAN. Bluetooth devices in WPAN operate in a range up to 30 feet away.
Compared to WLAN the speed and wireless operation range are both less than WLAN, but in return it doesn’t use nearly as much power which
makes it ideal for personal devices, such as mobile phones, PDAs, headphones, laptops, speakers, and other devices that operate on batteries.
D-Link DWR-512 User Manual
78
Appendix A - Wireless Basics
Who uses wireless?
Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, office, business, D-Link has a
wireless solution for it.
Home
• Gives everyone at home broadband access
• Surf the web, check e-mail, instant message, and etc
• Gets rid of the cables around the house
• Simple and easy to use
Small Office and Home Office
• Stay on top of everything at home as you would at office
• Remotely access your office network from home
• Share Internet connection and printer with multiple computers
• No need to dedicate office space
D-Link DWR-512 User Manual
79
Appendix A - Wireless Basics
Where is wireless used?
Wireless technology is expanding everywhere not just at home or office. People like the freedom of mobility and it’s becoming so popular that
more and more public facilities now provide wireless access to attract people. The wireless connection in public places is usually called “hotspots”.
Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations like Airports, Hotels,
Coffee Shops, Libraries, Restaurants, and Convention Centers.
Wireless network is easy to setup, but if you’re installing it for the first time it could be quite a task not knowing where to start. That’s why we’ve put
together a few setup steps and tips to help you through the process of setting up a wireless network.
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your Router or Access Point
Make sure you place the router/access point in a centralized location within your network for the best performance. Try to place the router/access
point as high as possible in the room, so the signal gets dispersed throughout your home. If you have a two-story home, you may need a repeater
to boost the signal to extend the range.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, and televisions as far away as possible from the router/access point. This would
significantly reduce any interference that the appliances might cause since they operate on same frequency.
Security
Don’t let you next-door neighbors or intruders connect to your wireless network. Secure your wireless network by turning on the WPA or WEP
security feature on the router. Refer to product manual for detail information on how to set it up.
D-Link DWR-512 User Manual
80
Appendix A - Wireless Basics
Wireless Modes
There are basically two modes of networking:
• • Infrastructure – All wireless clients will connect to an access point or wireless router.
• • Ad-Hoc – Directly connecting to another computer, for peer-to-peer communication, using wireless network
adapters on each computer, such as two or more WNA-2330 wireless network Cardbus adapters.
An Infrastructure network contains an Access Point or wireless router. All the wireless devices, or clients, will connect to the wireless router or access
point.
An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in Ad-Hoc mode to communicate.
D-Link DWR-512 User Manual
81
Appendix B - Networking Basics
Networking Basics
Check your IP address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless
router) automatically. To verify your IP address, please follow the steps below.
Click on Start > Run. In the run box type cmd and click OK.
(Windows® Vista™ users type cmd in the Start Search box.)
At the prompt, type ipconfig and press Enter.
This will display the IP address, subnet mask, and the default
gateway of your adapter.
If the address is 0.0.0.0, check your adapter installation, security settings, and the settings on your router. Some firewall software programs may
block a DHCP request on newly installed adapters.
D-Link DWR-512 User Manual
82
Appendix B - Networking Basics
Statically Assign an IP address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:
Step 1
Windows® Vista™ -
Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network Connections.
Windows® XP -
Click on Start > Control Panel > Network Connections.
Windows® 2000 -
From the desktop, right-click My Network Places > Properties.
Step 2
Right-click on the Local Area Connection which represents your network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4
Click Use the following IP address and enter an IP address that is on the same subnet as your network
or the LAN IP address on your router.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X where X is a
number between 2 and 99. Make sure that the number you choose is not in use on the network. Set
Default Gateway the same as the LAN IP address of your router (192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The Secondary DNS is not
needed or you may enter a DNS server from your ISP.
Step 5
Click OK twice to save your settings.
D-Link DWR-512 User Manual
83
Appendix C - Technical Specifications
Technical Specifications
GSM Band (GSM/GPRS/EDGE)
• 850 / 900 / 1800 / 1900 MHz
• Power Class 4 (850 / 900 MHz)
• Power Class 1 (1800 / 1900 MHz)
UMTS/HSDPA Band 1
• 900 / 2100 MHz, 850/1900 / 2100 MHz
• Power Class 3
Data Rates
2
• Up to 150 Mbps with 802.11n clients
• 6/9/11/12/18/24/36/48/54 Mbps in 802.11g mode
• 1/2/5.5/11 Mbps in 802.11b mode
• 3G Uplink: Up to 5.76 Mbps
• 3G Downlink: Up to 21 Mbps
Standards
• 802.11b/g, compatible with 802.11n devices
• 802.3
• 802.3u
Wireless Security
• 64/128-bit WEP (Wired Equivalent Privacy)
• WPA & WPA2 (Wi-Fi Protected Access)
Firewall
• Network Address Translation (NAT)
D-Link DWR-512 User Manual
• Stateful Packet Inspection (SPI)
VPN
• L2TP/PPTP/IPSEC/VPN Pass-through
Antenna
• External 3G antenna
Ports
• Four LAN ports (RJ-45)
• WAN port (RJ-45)
• Phone port (RJ-11)
USIM Slot
• Standard 6-pin SIM card interface
LED Status Indicators
• Status
• WAN
• LAN
• WLAN
• 2G
• 3G
• SMS
• Signal
Dimensions (L x W x H)
84
Appendix C - Technical Specifications
• 190 x 119 x 22 mm (7.48 x 4.69 x 0.87 inches)
Operating Temperature
• 0 to 40 ˚C (32 to 104 ˚F)
• 10% to 90% (Non-condensing)
Certifications
• CE
Operating Humidity
Supported frequency band is dependent upon regional hardware version.
Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental
factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
factors will adversely affect wireless signal range.
1
2
D-Link DWR-512 User Manual
85
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
