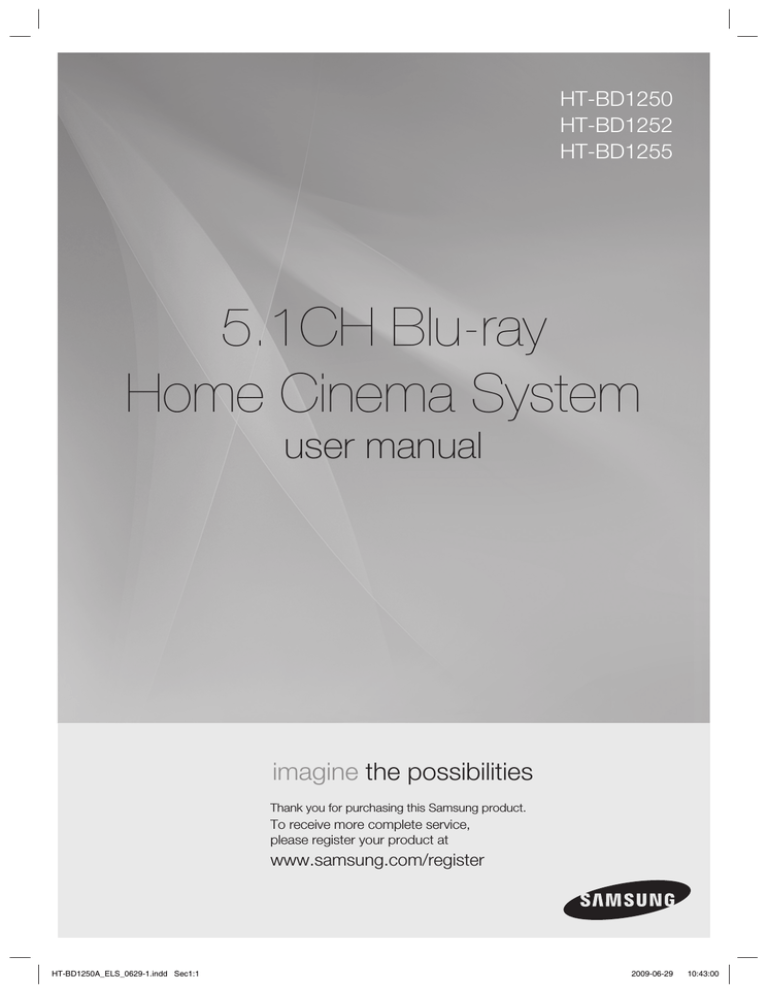

HT-BD1250
HT-BD1252
HT-BD1255
5.1CH Blu-ray
Home Cinema System
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register
HT-BD1250A_ELS_0629-1.indd Sec1:1
2009-06-29
10:43:00
Key features of your new
Blu-ray Home Cinema
PLAYER FEATURES
Playback of many disc types, plus an FM Tuner
The HT-BD1250/HT-BD1252/HT-BD1255 allows you to play various discs, including BD-ROM, DVD-VIDEO, DVDRW/-R(V mode), CD, MP3-CD, DivX and CD-R/RW, with a sophisticated FM tuner, all in a single player.
Full HD Audio Decoding Support (Dolby Digital, Dolby Pro Logic ll, Dolby Digital Plus, Dolby TrueHD,
DTS,DTS-HD HRA, DTS-HD MA Essential)
Please refer to www.DOLBY.COM and DTS.COM for more detail.
TV Screen Saver Function
If the main unit remains in stop mode for 5 minutes, the logo appears on TV screen. The HT-BD1250/HT-BD1252/
HT-BD1255 automatically switches itself into the power saving mode after 15 minutes in the Screen Saver mode.
Power Saving Function
The HT-BD1250/HT-BD1252/HT-BD1255 automatically shuts itself off after 20 minutes in Stop mode.
USB Host support
You can connect and play files from external USB storage devices such as MP3 players, USB flash memory, etc.
using the Home Cinema's USB HOST function.
HDMI
HDMI transmits Blu-Ray/DVD video and audio signals simultaneously, and provides a clearer picture.
The 1080p(Full HD) resolution provides even clearer pictures.
AV SYNC Function
Video may lag behind the audio if the unit is connected to a digital TV.
To compensate for this, you can adjust the audio delay time to sync up with the video.
Anynet+(HDMI-CEC) Function
Anynet+ is a function that can be used to operate the main unit of this system using a Samsung TV remote control,
by connecting the Blu-ray Home Cinema to a SAMSUNG TV using an HDMI Cable. (This is only available with
SAMSUNG TV's that support Anynet+.)
Wireless receiver amplifier
Samsung ’s rear- channel wireless module does away with cables running between the main unit and rear- channel
speakers. Instead, the rear speakers connect to a compact wireless module that communicates with the main unit.
iPod & iPhone support
You can enjoy music files by connecting your iPod to the home cinema with the supplied
iPod dock.
BD Wise
BD Wise automatically adjusts BD Wise-compliant Samsung products to the optimal settings between them. This
feature is enabled only if BD Wise-compliant Samsung products are connected to each other using an HDMI cable.
2
HT-BD1250A_ELS_0629-1.indd 2
2009-06-29
10:43:11
Blu-ray Discs support the highest quality HD video available in the industry - Large capacity means no compromise
on video quality. Furthermore, a Blu-ray Disc has the same familiar size and look as a DVD.
* The following Blu-ray Disc features are disc dependant and will vary. Appearance and navigation of features will
also vary from disc to disc. Not all discs will have the features described below.
Video highlights
The BD-ROM format for movie distribution
supports three highly advanced video codecs,
including AVC, VC-1, and MPEG-2.
HD video resolutions are also available:
• 1920 x 1080 HD
• 1280 x 720 HD
PLAY MOVIE
LANGUAGES
PREVIEWS
Graphic
Planes
▼
For High-Definition Playback
To view high-definition contents on a Blu-ray disc,
an HDTV (High Definition Television) is required.
Some discs may require using the player's HDMI
HD Video
OUT to view high-definition content. The ability to
view high-definition content on Blu-ray disc may be limited
depending on the resolution of your TV.
3
4
5
6
7
PLAY MOVIE
8
9
LANGUAGES
Subtitles
You may be able to select different font styles, sizes and colours for the
subtitles, Subtitles may also be animated, scrolled or faded in and out,
depending on what is contained on the Blu-ray Disc.
BD-LIVE
You can use a Blu-ray Disc supporting BD-LIVE through network
connection to enjoy various contents provided by the disc
manufacturer.
SCENE SELECTIONS
ENG
BLU-RAY DISC FEATURES
10
11
12
13
SCENE SELECTIONS
14
15
PREVIEWS
▼
3
4
5
6
7
8
9
10
11
12
13
14
15
3
HT-BD1250A_ELS_0629-1.indd 3
2009-06-29
10:43:12
Key features of your new
Blu-ray Home Cinema
WHAT’S INCLUDED
Check for the supplied accessories below.
Video Cable
FM Antenna
Speaker Wire (6 EA)
iPod Dock
User's Manual
Remote Control
/ Batteries (AAA size)
4
HT-BD1250A_ELS_0629-1.indd 4
2009-06-29
10:43:15
ENG
Safety information
SAFETY WARNINGS
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates important instructions
accompanying the product.
CLASS 1 LASER PRODUCT
This Compact Disc player is classified as a CLASS 1
LASER product.
Use of controls, adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION : INVISIBLE LASER RADIATION WHEN
OPEN AND INTERLOCKS DEFEATED,
AVOID EXPOSURE TO BEAM.
WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the
mains plug shall be readily operable.
CAUTION
• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be
placed on the apparatus.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time.
Wiring the Main Power Supply Plug (UK Only)
IMPORTANT NOTICE
The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on
the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used.
Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the
same colour as the fuse fitted in the plug. Replacement covers are available from your dealer.
If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you
should obtain a suitable safety approved extension lead or consult your dealer for assistance.
However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect
the plug to a mains socket as there is a risk of shock hazard from the bared flexible cord.
Never attempt to insert bare wires directly into a mains socket. A plug and fuse must be used at all times.
IMPORTANT
The wires in the mains lead are coloured in accordance with the following code:– BLUE = NEUTRAL BROWN = LIVE
As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:–
The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK.
The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.
WARNING : DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE
LETTER E OR BY THE EARTH SYMBOL
, OR COLOURED GREEN OR GREEN AND YELLOW.
5
HT-BD1250A_ELS_0629-1.indd 5
2009-06-29
10:43:16
Safety information
PRECAUTIONS
2.7 inch
3.9 inch
3.9 inch
3.9 inch
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your
player horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5~10cm). Make sure the ventilation slots
are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may
become hot. Before moving the player, ensure the Disc Insert Hole is empty. This player is designed for continuous use. Switching off
the Blu-ray Home Cinema to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player
completely from the power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.
During thunderstorms, disconnect the AC main plug from the
wall outlet. Voltage peaks due to lightning could damage the unit.
Do not expose the unit to direct sunlight or other heat sources.
This could lead to overheating and malfunction of the unit.
Phones
Protect the player from moisture (i.e. vases) , and excess heat
(e.g.fireplace) or equipment creating strong magnetic or electric fields
(i.e.speakers...). Disconnect the power cable from the AC supply if the
player malfunctions. Your player is not intended for industrial use. Use of
this product is for personal use only.
Condensation may occur if your player or disc has been stored in
cold temperatures. If transporting the player during the winter,
wait approximately 2 hours until the unit has reached room temperature
before using.
The batteries used with this product contain chemicals that are harmful to
the environment.
Do not dispose of batteries in the general household trash.
"This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights.
Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.”
6
HT-BD1250A_ELS_0703-1.indd 6
2009-07-03
3:37:22
ENG
Contents
2
3
4
Player Features
Blu-ray Disc Features
What’s Included
5
6
Safety Warnings
Precautions
GETTING STARTED
10
11
Before Reading the User’s Manual
Disc Type and Characteristics
DESCRIPTION
14
15
Front Panel
Rear Panel
REMOTE CONTROL
16
18
Tour of the Remote Control
Setting the Remote Control
CONNECTIONS
20
22
30
32
Connecting the Speakers
Connecting the Optional Wireless Receiving
Module
Connecting the Video Out to Your TV
Connecting an iPod
Connecting Audio from External
Components
Connecting to the Network
Connecting the FM Antenna
33
34
34
35
35
36
Before Playing
On-Screen Menu Navigation
Playing a Disc
Setting the Sound
Using the Search and Skip Functions
Slow Motion Play/Step Motion Play
37
Setting the Clock
38
Setting up the Language Options
KEY FEATURES OF YOUR NEW
BLU-RAY HOME CINEMA
2
5
10
14
16
20
SAFETY INFORMATION
BASIC FUNCTIONS OF YOUR
BLU-RAY HOME CINEMA
33
SYSTEM SETUP
37
38
LANGUAGE SETUP
HT-BD1250A_ELS_0629-1.indd 7
24
26
28
7
2009-06-29
10:43:17
Contents
39
Setting up the Speaker Options
42
44
Setting up the Display Options
Setting up the Video Display/Output Options
46
Setting up the HDMI Setup Options
49
Setting up the Parental Lock
51
Setting up the Network Setup Options
56
System Device Management
SYSTEM UPGRADE
57
59
59
59
59
Firmware Upgrade
System Information
Firmware Upgrade Notification
DivX (R) Registration
DivX(R) Deactivation
WATCHING A MOVIE
60
61
62
63
63
64
65
65
66
Using the Display Function
Using the Disc Menu & Popup/Title Menu
Repeat Play
Selecting the Audio Language
Selecting the Subtitle Language
Changing the Camera Angle
PIP (Picture In Picture) Settings
BD-LIVE™
DivX Playback
AUDIO SETUP
39
DISPLAY SETUP
42
HDMI SETUP
46
PARENTAL SETUP
49
NETWORK SETUP
51
BD DATA MANAGEMENT
56
57
60
8
HT-BD1250A_ELS_0629-1.indd 8
2009-06-29
10:43:17
68
68
68
69
Buttons on the Remote Control Used for
Audio CD(CD-DA)/ MP3 Disc Playback
Repeat Audio CD(CD-DA) & MP3
Playing an Audio CD(CD-DA)/MP3
71
71
71
72
72
Viewing a Picture
Slide Show/Speed
Rotate
Zoom
Go To Photo List
73
73
74
SFE(Sound Field Effect) Mode
Dolby Pro Logic II Mode
Dolby Pro Logic II Effect
75
Playing Media Files Using the USB Host
Feature
77
77
78
Listening to Radio
Presetting Stations
About RDS Broadcasting
USING AN iPod
80
82
Listening to Music
Watching a Movie
PC STREAMING FUNCTION
83
Connecting to a PC and Playing MP3, JPEG
or DivX Content
CONVENIENT FUNCTION
85
85
85
Sleep Timer Function
Adjusting Display Brightness
Mute Function
88
89
Cautions on Handling and Storing Discs
Specifications
VIEWING A PICTURE
71
SOUND MODE
73
USING THE USB FUNCTION
75
RADIO
77
80
83
85
86
88
ENG
LISTENING TO MUSIC
TROUBLESHOOTING
APPENDIX
9
HT-BD1250A_ELS_0629-1.indd 9
2009-06-29
10:43:17
Getting started
BEFORE READING THE USER’S MANUAL
Make sure to check the following terms before reading the user manual.
Icons that will be used in manual
Icon
h
g
f
Z
C
V
Term
BD-ROM
This involves a function available on a BD-ROM.
BD-RE
This involves a function available on the BD-RE.
BD-R
This involves a function available on the BD-R.
DVD-VIDEO
DVD-RW
DVD-R
Audio CD
A
G
This involves a function available on DVD-Video or DVD-RW/-R discs that have been recorded
and finalized in Video Mode.
This involves a function available on DVD-RW. (V mode and finalized only)
This involves a function available on DVD-R. (V mode and finalized only)
This involves a function available on an audio CD-RW/CD-R (CD-DA format).
MP3
This involves a function available on DVD-RW/-R, CD-RW/CD-R discs and USB storage devices.
JPEG
This involves a function available on DVD-RW/-R, CD-RW/CD-R discs and USB storage devices.
D
DivX
F
USB storage
device
Caution
M
Definition
Note
This involves a function available with MPEG4 discs.
(DVD±R/RW, CD-R or CD-RW)
This involves a function available on USB storage device.
This involves a case where a function does not operate or settings may be
cancelled.
This involves tips or instructions on the page that help each function operate.
About the use of this user’s manual
1) Be sure to be familiar with Safety Information before using this product. (See pages 5~6)
2) If a problem occurs, check the Troubleshooting. (See pages 86~87)
Copyright
©2009 Samsung Electronics Co.,Ltd.
All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the
prior written permission of Samsung Electronics Co.,Ltd.
10
HT-BD1250A_ELS_0629-1.indd 10
2009-06-29
10:43:17
ENG
DISC TYPE AND CHARACTERISTICS
Disc types that can be played
Disc Types
Disc Logo
BD-ROM
BD-RE/BD-R
Recorded content
AUDIO + VIDEO
AUDIO + VIDEO
AUDIO
AUDIO-CD
Max. Playing minute
Playing time depends
on the Title
Single sided
Single sided(12 cm)
240
Double sided(12 cm)
480
Single sided(8 cm)
80
Double sided(8 cm)
160
Single sided(12 cm)
74
Single sided(8 cm)
20
12 cm
-
8 cm
-
● GETTING STARTED
DVD-VIDEO
Disc Shape
DivX
AUDIO + VIDEO
DVD-RW
(V mode and finalized only)
AUDIO + VIDEO
12 cm (4.7GB)
480
(EX : Extended Play)
DVD-R
(V mode and finalized only)
AUDIO + VIDEO
12 cm (4.7GB)
480
(EX : Extended Play)
• This player is compatible with the PAL colour system only.
• NTSC discs will not play.
Logos of Discs that can be played
Blu-ray Disc
PAL broadcast system in
U.K, France, Germany, etc.
Digital Audio
M
MP3
Dolby Digital Plus
DTS-HD High Resolution Audio
Dolby TrueHD
DTS-HD Master Audio | Essential
Stereo
Java
BD-LIVE
Manufactured under license from Dolby Laboratories. Dolby, Pro Logic and the double-D symbol
are trademarks of Dolby Laboratories.
11
HT-BD1250A_ELS_0629-1.indd 11
2009-06-29
10:43:18
Getting started
Discs that cannot be played
•
•
•
•
HD DVD Disc
DVD-RAM
3.9 GB DVD-R Disc for Authoring.
DVD-RW(VR mode)
M
• DVD-ROM/PD/MV-Disc, etc
• CVD/CD-ROM/CDV/CD-G/CD-I/LD
• 8cm MD (mini disc)
Some commercial discs and DVD discs purchased outside your region may not be playable with this
product. When these discs are played, either “No disc.” or “Please check the regional code of the disc.”
will be displayed.
 If a DVD-R/-RW disc has not been recorded properly in DVD video format, it will not be playable.
Region code
Both the Blu-ray Home Cinema and the discs are coded by region. These regional codes must match in
order to play the disc. If the codes do not match, the disc will not play. The Region Number for this Bluray Home Cinema is described on the rear panel of the Blu-ray Home Cinema.
BD Region Code
Area
A
North America, Central America, South America, Korea, Japan, Taiwan, Hong Kong and South East Asia.
B
C
Europe, Greenland, French territories, Middle East, Africa, Australia and New Zealand.
India, China, Russia, Central and South Asia.
DVD-Video
Area
Region Code
1
USA, Canada
Japan, Europe, South Africa, Middle East,
2
Greenland
Korea, Taiwan, Hong Kong, parts of South
3
East Asia
Australia, New Zealand, Latin America
4
(including Mexico)
5
Eastern Europe, Russia, India, Africa
DVD-Video
Region Code
6
China
Area
7
Unspecified Special Use
8
Airlines/Cruise Ships (including Mexico)
9
Region free
Blu-ray Disc Compatibility
Blu-ray Disc is a new and evolving format. Accordingly, disc compatibility issues are possible. Not all discs are
compatible and not every disc will play back. For additional information, refer to the Compliance and Compatibility
Notice section of this Manual. If you encounter compatibility problems, please contact the SAMSUNG customer care
centre.
M
Playback may not work for some types of discs, or when specific operations, such as angle change and aspect
ratio adjustment, are being performed. Information about the discs is written in detail on the box. Please refer to
this if necessary.
 Do not allow the disc to become dirty or scratched. Fingerprints, dirt, dust, scratches or deposits of cigarette
smoke on the recording surface may make it impossible to use the disc for playback.
 Discs with NTSC programs recorded on them cannot be played using this product.
 When a BD-Java title is played, loading may take longer than a normal title, or some functions may perform slowly.
12
HT-BD1250A_ELS_0629-1.indd 12
2009-06-29
10:43:19
ENG
Disc Types
❖ BD-RE/BD-R
Blu-ray Disc Rewritable/Blu-ray Disc Recordable. BD-RE/BD-R is the ideal format for making backups,
or recording personal video.
❖ BD-ROM
Blu-ray Disc Read Only Memory. A BD-ROM disc contains pre-recorded data. Although a BD-ROM
may contain any form of data, most BD-ROM discs will contain movies in High Definition format, for
playback on Blu-ray Home Cinemas. This unit can play back pre-recorded commercial BD-ROM discs.
• A digital versatile disc (DVD) can contain up to 135-minutes of images, 8 audio languages and 32
subtitle languages. It is equipped with MPEG-2 picture compression and Dolby Digital surround,
allowing you to enjoy vivid and clear theatre quality images.
• When switching from the first layer to the second layer of a dual-layered DVD Video disc, there may be
momentary distortion in the image and sound. This is not a malfunction of the unit.
• Once a DVD-RW/-R recorded in Video Mode is finalized, it becomes DVD-Video. Pre-recorded (prestamped) commercial DVDs with movies are also referred to as DVD-Videos. This unit can play back
pre-recorded commercial DVD discs (DVD-Video discs) with movies.
● GETTING STARTED
❖ DVD-Video
❖ Audio CD
• An audio disc on which 44.1kHz PCM Audio is recorded.
• This unit can play back CD-DA format audio CD-R and CD-RW discs.
• The unit may not be able to play some CD-R or CD-RW discs due to the condition of the recording.
❖ CD-R/-RW
• Use a 700MB(80 minutes) CD-R/-RW disc. If possible, do not use a 800MB(90 minutes) or above
disc, as the disc may not play back.
• If the CD-R/-RW disc was not recorded as a closed session, you may experience delays when playing
back the beginning of the disc or all recorded files may not play.
• Some CD-R/-RW discs may not be playable with this unit, depending on the device which was used
to burn them. For contents recorded on CD-R/-RW media from CDs for your personal use, playability
may vary depending on contents and discs.
❖ DVD-R Disc Playback
• Once a DVD-R recorded in Video Mode is finalized, it becomes DVD-Video.
• This unit can play back DVD-R discs recorded and finalized with a Samsung DVD video recorder. It
may not be able to play some DVD-R discs depending on the disc and the condition of the recording.
❖ DVD-RW Disc Playback
• Playback can be performed with DVD-RW discs in the Video Mode and finalized only.
• Once a DVD-RW recorded in Video Mode is finalized, it becomes DVD-Video. Ability to play back may
depend on recording conditions.
Disc Format
❖ Using MP3 disc
•
•
•
•
•
CD-R/-RW, DVD-RW/-R recorded with UDF, ISO9660 or JOLIET format can be played back.
Only MP3 files with the “.mp3” or “.MP3” extension can be played.
Playable bit-rate range is from 56 Kbps to 320 Kbps.
Playable sample-rate is 32KHz to 48KHz.
The unit can handle a maximum of 1500 files and folders under a parent folder. For MP3 files recorded
with a VBR(Variable Bit Rates), the sound may cut in and out.
❖ Using JPEG disc
• CD-R/-RW, DVD-RW/-R recorded with UDF, ISO9660 or JOLIET format can be played back.
• Only JPEG files with the ".jpg", ".JPG", ".jpeg" or "JPEG" extension can be displayed.
• Progressive JPEG is supported.
❖ DVD-RW/-R (V)
• This is a format that is used for recording data on a DVD-RW or DVD-R disc. The disc can be played
by this Blu-ray Home Cinema once it has been finalized.
• If a disc that has been recorded in Video Mode by a different maker’s recorder but has not been
finalized, it cannot be played by this Blu-ray Home Cinema.
13
HT-BD1250A_ELS_0629-1.indd 13
2009-06-29
10:43:19
Description
FRONT PANEL
1 2
3
4
5
6
7
8 9
11
10
POWER BUTTON
Turns the Blu-ray Home Cinema on and off.
STANDBY INDICATOR
When the unit is first plugged in, this indicator lights.
OPEN/CLOSE BUTTON
Opens and closes the disc tray.
FUNCTION BUTTON
The mode switches as follows :
BD/DVD ➞ D.IN 1 ➞ D.IN 2 ➞ AUX ➞ FM.
TUNING DOWN &
SKIP (
) BUTTON
Goes back to the previous title/chapter/track.
STOP BUTTON
Stops disc playback.
Volume Control BUTTON
Volume adjustment.
PLAY/PAUSE BUTTON
Plays a disc or pauses playback.
TUNING UP &
SKIP(
) BUTTON
Goes to the next title/chapter/track.
10
DISC TRAY
Opens to accept a disc.
11
USB HOST
A USB storage device can be connected here and used as storage when connected to
BD-LIVE. It can also be used for firmware upgrades and MP3/JPEG/DivX playback.
M
Tunes down the FM frequency band.
Tunes up the FM frequency band.
You must use the USB HOST on the rear panel of the Blu-ray Home Cinema to connect a wireless LAN Adapter.
14
HT-BD1250A_ELS_0629-1.indd 14
2009-06-29
3:28:06
1
2
3
4 5 6 7
8
ENG
REAR PANEL
9 10
● DESCRIPTION
11
12
iPod JACK
Connect the iPod dock connector here.
FM 75Ω COAXIAL JACK
Connect the FM antenna.
TX CARD CONNECTION (WIRELESS)
The TX card enables communication between the main unit and the
optional wireless receiver amplifier.
AUX IN JACKS
Connect to the 2CH analogue output of an external device (such as a
VCR)
VIDEO OUTPUT JACK
Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT Jack on
this unit.
COMPONENT VIDEO OUTPUT JACKS
Connect a TV with Component video inputs to these jacks.
HDMI OUT JACK
Use the HDMI cable, connect this HDMI output terminal to the HDMI input
terminal on your TV for the best quality picture.
EXTERNAL DIGITAL OPTICAL INPUT
JACKS (OPTICAL1, OPTICAL2)
Use this to connect external equipment capable of digital output.
LAN TERMINAL
Can be used for connection to BD-LIVE.
It can be also used for firmware upgrades.
10
WIRELESS LAN JACK
A USB storage device can be connected here and used as storage when
connected to BD-LIVE. It can also be used for firmware upgrades and
MP3/JPEG/DivX playback, as well as for connecting to BD-Live with a
wireless LAN adapter.
11
5.1 CHANNEL SPEAKER OUTPUT
CONNECTORS
Connect the front, centre, surround, subwoofer speakers.
12
COOLING FAN
The fan always revolves when the power is on. Ensure a minimum of
10cm of clear space on all sides of the fan when installing the product.
M
Oversized USB drives may not be able to be inserted when a LAN or HDMI cable is connected.
15
HT-BD1250A_ELS_0629-1.indd 15
2009-06-29
3:28:11
Remote control
TOUR OF THE REMOTE CONTROL
21
1
2
3
4
5
6
7
8
22
23
24
25
26
27
28
9
29
10
11
30
12
13
14
15
16
17
18
19
20
31
32
33
34
35
36
37
16
HT-BD1250A_ELS_0629-1.indd 16
2009-06-29
10:43:22
POWER button
19
PIP button
2
BD RECEIVER button
20
DISC MENU button
3
TV button
21
OPEN/CLOSE button
4
Number (0~9) buttons
22
DIMMER button
5
AUDIO button
6
SLOW, MO/ST button
7
Tuning Preset/CD Skip buttons
PLAY button
STOP button
SEARCH buttons
8
BD button
TUNER button
AUX button
24
SOURCE button
25
RDS Selection buttons
26
SUBTITLE button
9
VOLUME button
27
PAUSE button
10
STEP button
28
MUTE button
11
MENU button
29
TUNING/CH button
12
Cursor/ENTER button
30
RETURN button
13
INFO button
31
EXIT button
14
COLOUR Buttons : RED(A),
GREEN (B), YELLOW(C), BLUE(D)
32
PL II MODE button
15
POPUP MENU, TITLE MENU button
33
PL II EFFECT button
16
TUNER MEMORY button
34
DSP button
17
REPEAT button
35
SLEEP button
18
REPEAT A-B button
36
SFE MODE button
37
ZOOM button
● REMOTE CONTROL
23
ENG
1
Installing batteries in the Remote Control
1.
Lift the cover at the back of
the remote control upward
as shown.
2.
Install two AAA size batteries.
Make sure to match the “+” and “–” ends of the
batteries with the diagram inside the compartment.
3.
Replace the cover.
Assuming typical TV usage,
the batteries last for about one
year.
17
HT-BD1250A_ELS_0629-1.indd 17
2009-06-29
10:43:23
Remote control
SETTING THE REMOTE CONTROL
You can control certain functions of your TV with this remote control.
When operating a TV with the remote control
1. Press the TV button to set the remote to TV mode.
2. Press the POWER button to turn on the TV.
3. While holding down the POWER button, enter the code
corresponding to your brand of TV.
• If there is more than one code listed for your TV in the able,
enter one at a time to determine which code works.
Example : For a Samsung TV
While holding down the POWER button, use the number
buttons to enter 00, 15, 16, 17 and 40.
4. If the TV turns off, the setting is complete.
• You can use the TV POWER, VOLUME, CHANNEL, and
Numeric buttons (0~9).
M
 The remote control may not work on some brands of TV's. Also, some operations may not
be possible depending on your brand of TV.
 If you do not set the remote control with the code for your brand of TV, the remote control
will work on a Samsung TV by default.
Operation Range of the Remote Control
The remote control can be used up to approximately 7 meters
in a straight line. It can also be operated at a
horizontal angle of up to 30° from the remote control sensor.
18
HT-BD1250A_ELS_0629-1.indd 18
2009-06-29
10:43:24
No.
No.
Brand
1
Admiral (M.Wards)
56, 57, 58
44
MTC
18
2
A Mark
01, 15
45
NEC
18, 19, 20, 40, 59, 60
3
Anam
01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11,
46
Nikei
03
12, 13, 14
47
Onking
03
Code
Brand
ENG
TV Brand Code List
Code
AOC
01, 18, 40, 48
48
Onwa
03
5
Bell & Howell (M.Wards)
57, 58, 81
49
Panasonic
06, 07, 08, 09, 54, 66, 67, 73, 74
6
Brocsonic
59, 60
50
Penney
18
7
Candle
18
51
Philco
03, 15, 17, 18, 48, 54, 59, 62, 69, 90
8
Cetronic
03
52
Philips
15, 17, 18, 40, 48, 54, 62, 72
9
Citizen
03, 18, 25
53
Pioneer
63, 66, 80, 91
10
Cinema
97
54
Portland
15, 18, 59
11
Classic
03
55
Proton
40
12
Concerto
18
56
Quasar
06, 66, 67
13
Contec
46
57
Radio Shack
17, 48, 56, 60, 61, 75
14
Coronado
15
58
RCA/Proscan
18, 59, 67, 76, 77, 78, 92, 93, 94
15
Craig
03, 05, 61, 82, 83, 84
59
Realistic
03, 19
16
Croslex
62
60
Sampo
40
17
Crown
03
61
Samsung
00, 15, 16, 17, 40, 43, 46, 47, 48, 49,
18
Curtis Mates
59, 61, 63
19
CXC
03
62
Sanyo
19, 61, 65
20
Daewoo
02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24,
63
Scott
03, 40, 60, 61
25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90
64
Sears
15, 18, 19
21
Daytron
40
65
Sharp
15, 57, 64
22
Dynasty
03
66
Signature 2000 (M.Wards)
57, 58
23
Emerson
03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85
67
Sony
50, 51, 52, 53, 55
24
Fisher
19, 65
68
Soundesign
03, 40
25
Funai
03
69
Spectricon
01
26
Futuretech
03
70
SSS
18
27
General Electric (GE)
06, 40, 56, 59, 66, 67, 68
71
Sylvania
18, 40, 48, 54, 59, 60, 62
28
Hall Mark
40
72
Symphonic
61, 95, 96
29
Hitachi
15, 18, 50, 59, 69
73
Tatung
06
30
Inkel
45
74
Techwood
18
31
JC Penny
56, 59, 67, 86
75
Teknika
03, 15, 18, 25
32
JVC
70
76
TMK
18, 40
33
KTV
59, 61, 87, 88
77
Toshiba
19, 57, 63, 71
34
KEC
03, 15, 40
78
Vidtech
18
35
KMC
15
79
Videch
59, 60, 69
36
LG (Goldstar)
01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44
80
Wards
15, 17, 18, 40, 48, 54, 60, 64
37
38
Luxman
18
81
Yamaha
18
LXI (Sears)
19, 54, 56, 59, 60, 62, 63, 65, 71
82
York
40
39
Magnavox
15, 17, 18, 48, 54, 59, 60, 62, 72, 89
83
Yupiteru
03
40
Marantz
40, 54
84
Zenith
58, 79
41
Matsui
54
85
Zonda
01
42
MGA
18, 40
86
Dongyang
03, 54
43
Mitsubishi/MGA
18, 40, 59, 60, 75
● REMOTE CONTROL
4
59, 60, 98
19
HT-BD1250A_ELS_0629-1.indd 19
2009-06-29
10:43:25
Connections
This section involves various methods of connecting the Blu-ray Home Cinema to other external components.
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
CONNECTING THE SPEAKERS
Position of the Blu-ray Home Cinema
Place it on a stand or cabinet shelf, or under the TV stand.
Selecting the Listening Position
The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV.
Example : For 32" TV's 2~2.4m
For 55" TV's 3.5~4m
Front Speakersei
Place these speakers in front of your listening position, facing inwards (about 45°) toward you.
Place the speakers so that their tweeters will be at the same height as your ear.
Align the front face of the front speakers with the front face of the centre speaker or place them slightly in front
of the centre speakers.
Centre Speaker
f
It is best to install it at the same height as the front speakers. You can also install it directly over or under the TV.
Surround Speakers
hj
Place these speakers to the side of your listening position. If there isn't enough room, place these speakers so they face
each other. Place them about 60 to 90cm above your ear, facing slightly downward.
the front and centre speakers, the rear speakers are used to handle mainly sound effects and sound will not
* Unlike
come from them all the time.
Subwoofer
The position of the subwoofer is not so critical. Place it anywhere you like.
Connecting The Speakers
1. Press down the terminal tab on the back of the speaker.
2. Insert the black wire into the black terminal (–) and the red wire into
the red (+) terminal, and then release the tab.
3. Connect the connecting plugs to the back of the Blu-ray Home
Cinema by matching the colours of the speaker plugs to the speaker
jacks.
Black
Red
20
HT-BD1250A_ELS_0629-1.indd 20
2009-06-29
10:43:25
1. Turn the STAND upside-down and connect it
to the STAND BASE.
1
ENG
How to Install the Speaker on the Stand (HT-BD1252/HT-BD1255)
2
STAND BASE
STAND
BASE
STAND
STAND
2. Insert five small SCREWS into the five holes
marked with arrows using a screwdriver as
shown in the illustration.
3
● CONNECTIONS
3. Connect upper SPEAKER to the assembled STAND.
4
SPEAKER
4. Insert another large SCREW into the hole on the
rear of the speaker marked with arrow using
a screwdriver.
HT-BD1250
STAND
Centre Speaker
Front Speaker (L)
Subwoofer Speaker
Front Speaker (R)
Rear Speaker (R)
Rear Speaker (L)
HT-BD1252
Centre Speaker
Front Speaker (R)
Front Speaker (L)
Subwoofer Speaker
Rear Speaker (R)
HT-BD1255
Rear Speaker (L)
Centre Speaker
Front Speaker (R)
Rear Speaker (R)
Front Speaker (L)
Subwoofer Speaker
Rear Speaker (L)
 Do not let children play with or near the speakers. They could get hurt if a speaker falls.
 When connecting the speaker wires to the speakers, make sure that the polarity (+/–) is correct.
 Keep the subwoofer speaker out of reach of children so as to prevent children from inserting their hands or
alien substances into the duct (hole) of the subwoofer speaker.
 Do not hang the subwoofer on the wall through the duct (hole).
M
HT-BD1250A_ELS_0629-1.indd 21
If you place a speaker near your TV set, screen colour may be distorted because of the magnetic field
generated by the speaker. If this occurs, place the speaker away from your TV set.
21
2009-06-29
10:43:25
Connections
CONNECTING THE WIRELESS RECEIVING
Wireless Receiving Module (SWA-4000)
This product (HT-BD1250/HT-BD1252/HT-BD1255) should be connected with the SWA-4000 only.
HT-BD1250
Centre Speaker
Front Speaker (L)
Front Speaker (R)
Rear Speaker (L)
Subwoofer
Rear Speaker (R)
WIRELESS RECEIVER MODULE
HT-BD1252
Centre Speaker
Front Speaker (L)
Front Speaker (R)
Subwoofer
Rear Speaker (L)
Rear Speaker (R)
WIRELESS RECEIVER MODULE
HT-BD1255
Centre Speaker
Front Speaker (L)
Front Speaker (R)
Subwoofer
Rear Speaker (L)
Rear Speaker (R)
WIRELESS RECEIVER MODULE
22
HT-BD1250A_ELS_0629-1.indd 22
2009-06-29
10:43:31
ENG
Wireless Receiving Module (SWA-4000)
1. Connect the front, centre and Subwoofer speakers to the
Blu-ray Home Cinema, referring to page 22.
3. Connect the left and right rear speakers to the wireless
receiving module.
Slanted side face left
● CONNECTIONS
2. With the Blu-ray Home Cinema turned off, insert the TX card
into the TX Card Connection(WIRELESS) on the back
of the main unit.
• Hold the TX card so that the slanted side faces to the left
and insert the card into the port.
• The TX card enables communication between the main
unit and the wireless receiver.
TX card
4. Plug the power cord of the wireless receiving module
in the wall outlet.
5. Turn on the Blu-ray Home Cinema. The main unit and wireless module will now communicate with
each other and you will hear sound from the rear speakers.
M
Place the wireless receiver module at the rear of the listening position. If the wireless
receiver module is too close to the main unit, some sound interruption may be heard due
to interference.
 If you use a device such as a microwave oven, wireless LAN Card or any other device that
uses the same frequency (5.8GHz) near the system, some sound interruption may be
heard due to interference.
 The transmission distance from the main unit to the wireless receiving module is about
10m, but may vary depending on your operating environment. If a steel-concrete wall or
metallic wall is between the main unit and the wireless receiver module, the system may
not operate at all, because the radio wave cannot penetrate metal.
 If the main unit doesn't make wireless connection, the system needs ID Setting between
main unit and wireless receiver module. With the main unit turned off, press the remote
control's number button buttons "0"J"1"J"3"J"5" and the main unit will turn on. With the
wireless receiver module turned on, press "ID SET" button on the back of the unit for
5 seconds.
 Do not insert any other card except the TX card dedicated to the product.







If a different TX card is used, the product may be damaged or the card may not be
removed easily.
Do not insert the TX card upside down or in the reverse direction.
Insert the TX card when the Blu-ray Home Cinema is turned off. Inserting the card when it
is turned on may cause a problem.
If the TX Card is inserted and wireless receiving module setting is complete, sound is not
output from the Rear Speaker connectors on the main unit.
The wireless receiving antenna is built into the wireless receiver module. Keep the unit
away from water and moisture.
For optimal listening performance, make sure that the area around the wireless receiver
module location is clear of any obstructions.
If no sound is heard from the wireless rear speakers, switch the mode to DVD 5.1
channel or Dolby Pro Logic II .
In 2-CH mode, no sound will be heard from the wireless rear speakers.
23
HT-BD1250A_ELS_0629-1.indd 23
2009-06-29
10:43:35
Connections
CONNECTING THE VIDEO OUT TO YOUR TV
Choose one of the three methods for connecting to a TV.
METHOD3
(supplied)
METHOD2
METHOD1
METHOD 1 : HDMI (BEST)
Connect the HDMI cable from the HDMI OUT (not supplied) jack on the back of the Blu-ray Home Cinema
to the HDMI IN jack on your TV.
M
Certain HDMI output resolutions may not work, depending on your TV.
 If an HDMI cable is connected from the player to a TV, the Blu-ray Home Cinema’s output is set to
HDMI automatically within 10 seconds.
 If you are using the Anynet + feature (see page 46) and Component and HDMI are both
connected, HDMI mode is automatically selected.
 When you connect the player to the TV using the HDMI cable for the first time or to a new TV, the
HDMI output resolution will automatically be set to the highest provided by the TV.
 If you connect a Samsung TV to the Blu-ray Home Cinema using an HDMI cable, the player can
be easily operated using the TV remote control. (This is only available with Samsung TV's that
support the Anynet+ feature.) (See page 46)
 If the HDMI cable is connected or removed during playback of a CD-DA, MP3 or JPEG file, the
player will stop playing.
 After making the video connection, set the Video input source on your TV to match the
corresponding Video output (HDMI, Component or Composite) on your Blu-ray Home Cinema.
See your TV owner's manual for more information on how to select the TV's Video Input source.
 If you have set the remote control to operate your TV, press the SOURCE button on the remote
control and select HDMI as the external source of the TV.
HDMI Auto Detection Function
The player's video output will automatically change to HDMI mode when connecting an HDMI cable
while power is on. For possible HDMI resolutions, see page 44.
• HDMI (High Definition Multimedia Interface)
HDMI is an interface that enables the digital transmission of video and audio data with just a single connector.
Using HDMI, the Blu-ray Home Cinema transmits a digital video and audio signal and displays a vivid picture on a
TV having an HDMI input jack.
24
HT-BD1250A_ELS_0629-1.indd 24
2009-06-29
10:43:36
ENG
● CONNECTIONS
• HDMI connection description
HDMI connector - Supports video and digital audio data.
- HDMI outputs only a pure digital signal to the TV.
- If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.
• Why does Samsung use HDMI?
Analogue TV's require an analogue video/audio signal. However, when playing a BD/DVD, the data
transmitted to a TV is digital. Therefore either a digital-to-analogue converter (in the Blu-ray Home Cinema) or an
analogue-to-digital converter (in the TV) is required. During this conversion, the picture quality is degraded due to
noise and signal loss. HDMI technology is superior because it requires no D/A conversion and is a pure digital
signal from the player to your TV.
• What is the HDCP?
HDCP (High-band width Digital Content Protection) is a system for protecting BD/DVD content outputted via HDMI
from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a display device (TV,
projector. etc). Content is encrypted at the source device to prevent unauthorized copies from being made.
• What is Anynet+?
Anynet+ is a convenient function that offers linked operation of this unit through Samsung TV's with the Anynet+ feature.
- If your Samsung TV has an
logo, then it supports the Anynet+ function.
- If you turn on the player and insert a disc, the player will start playing the disc, and the TV will turn on
automatically and switch to HDMI mode.
- If you turn on the player and press the PLAY button with a disc already inserted, the TV will immediately turn on
and switch to HDMI mode.
• What is BD Wise?
BD Wise is Samsung's latest inter-connectivity feature.
- When you connect Samsung products with BD-Wise to each other via HDMI, the optimum resolution will be set
automatically.
METHOD 2 : Component Video (BETTER)
If your television is equipped with Component Video inputs, connect a Component video cable (not
supplied) from the Component Video Output (Pr, Pb and Y) Jacks on the back of the Blu-ray Home
Cinema to the Component Video Input Jacks on your TV.
M




You can select from a variety of resolution settings such as 1080i, 720p, 576p(480p) and 576i(480i),
depending on the disc type. (See page 44)
The actual resolution may differ from the setting in the SETUP menu if both Component and HDMI
cables are connected. The resolution may also be different depending on the disc. (See page 44)
After making the video connection, set the Video input source on your TV to match the
corresponding Video output (HDMI, Component or Composite) on your Blu-ray Home Cinema.
See your TV owner's manual for more information on how to select the TV's Video Input source.
If you have set the remote control to operate your TV, press the SOURCE button on the remote
control and select COMPONENT as the external source of the TV.
In DVD playback, if both HDMI and Component jacks are connected and you select the
Component 1080p, 1080i or 720p mode, the Display Setup menu will show the output resolution
as 1080p, 1080i or 720p in the menu.
The resolution is actually 576i(480i).
METHOD 3 : Composite Video (GOOD)
Connect the supplied Video cable from the VIDEO OUT jack on the back of the Blu-ray Home Cinema
to the VIDEO IN jack on your TV.
M
The VIDEO source is always output in 576i(480i) resolution regardless of the resolution set in the
SETUP menu. (See page 44)
 After making the video connection, set the Video input source on your TV to match the
corresponding Video output (HDMI, Component or Composite) on your Blu-ray Home Cinema.
See your TV owner's manual for more information on how to select the TV's Video Input source.
 If you have set the remote control to operate your TV, press the SOURCE button on the
remote control and select VIDEO as the external source of the TV.
 Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by
copyright protection systems and the picture will be distorted on the television.
25
HT-BD1250A_ELS_0629-1.indd 25
2009-06-29
10:43:38
Connections
CONNECTING AN iPod
You can enjoy music, video files from an iPod through the main unit. For iPod operation with this Blu-ray Home
Cinema, see pages 27 and 80 ~ 82.
(supplied)
1. Connect the iPod Dock to the iPod Jack on the rear side of the main unit.
2. Place the iPod in the dock.
• “iPod Connected” message appears on the TV screen.
M
You must have the VIDEO output connected to your TV to view iPod video (See page 25).
 As the cable ports are close together, be sure to remove the USB memory drive before




disconnecting the ipod docking cable.
Adjust the volume to a moderate level before you connect your iPod and Blu-ray Home Cinema.
When the unit is powered on and you connect an iPod, the unit will charge your iPod's battery.
Make sure to connect the dock connector so that the label “SAMSUNG” faces upward.
“Made for iPod” means that an electronic accessory has been designed to connect
specifically to iPod and has been certified by the developer to meet Apple performance
standards.
26
HT-BD1250A_ELS_0629-1.indd 26
2009-06-29
10:43:38
ENG
iPod models that can be used with the HT-BD1250/HT-BD1252/HT-BD1255
● CONNECTIONS
M
“Made for iPod” means that an electronic accessory has been designed to connect specifically to
iPod and has been certified by the developer to meet Apple performance standards.
 “Works with iPhone” means that an electronic accessory has been designed to connect
specifically to an iPhone and has been certified by the developer to meet Apple performance
standards.
 Apple is not responsible for the operation of this device or its compliance with safety and
regulatory standards.
iPod is a trademark of Apple Inc., registered in the U.S. and other countries. iPhone is a
trademark of Apple Inc.
27
HT-BD1250A_ELS_0629-1.indd 27
2009-06-29
10:43:39
Connections
CONNECTING AUDIO FROM EXTERNAL COMPONENTS
OPTICAL : Connecting an External Digital Component
Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box).
1. Connect the Digital Input (OPTICAL 1 or OPTICAL 2) on the main unit to the Digital Output of the
external digital component.
2. Press the FUNCTION button on the main unit to select D.IN input.
• The mode switches as follows : BD/DVD ➞ D.IN 1 ➞ D.IN 2 ➞ AUX ➞ FM.
Optical Cable
(not supplied)
M
To see video from your Cable Box/Satellite receiver, you must connect it's video output
to a TV.
 This system supports Digital sampling frequencies of 32 kHz of higher from external digital
components.
 This system supports only DTS and Dolby Digital audio, MPEG audio which is bitstream
cannot be supported.
28
HT-BD1250A_ELS_0629-1.indd 28
2009-06-29
10:43:39
ENG
AUX : Connecting an External Analogue Component
Analogue signal components such as a VCR.
1. Connect AUX IN (Audio) on the main unit to the Audio Out of the external analogue component.
• Be sure to match connector colours.
● CONNECTIONS
2. Press the AUX button on the remote control to select AUX input.
• You can also use the FUNCTION button on the main unit.
The mode switches as follows : BD/DVD ➞ D.IN 1 ➞ D.IN 2 ➞ AUX ➞ FM.
Audio Cable (not supplied)
If the external analogue component has
only one Audio Out, connect either left
or right.
M
You can connect the Video Output jack of your VCR to the TV, and connect the Audio
Output jacks of the VCR to this product.
29
HT-BD1250A_ELS_0629-1.indd 29
2009-06-29
10:43:41
Connections
CONNECTING TO THE NETWORK
To access network service or upgrade the current firmware, you must make one of the following connections.
By connecting to a network, you can access the BD-LIVE service and software upgrades from Samsung’s update
server.
Case 1 : Connecting a Direct LAN Cable to your Modem
1. Using the Direct LAN Cable (UTP cable, not supplied), connect the LAN terminal of the Blu-ray
Home Cinema to the LAN terminal of your modem.
To LAN port
Broadband modem
(with integrated router)
Connecting using a router
(e.g. DSL)
Router
Broadband modem
Or
Broadband
service
To LAN port
To LAN port
Broadband
service
PC connection to Router
for PC streaming
M
To use the PC streaming function (see pages 83~84), please make a network between your
PC and router.
 Internet access to Samsung’s update server may not be allowed, depending on the router you
use or the ISP’s policy.
For more information, contact your ISP (Internet Service Provider).
 For DSL users, please use a router to make a network connection.
30
HT-BD1250A_ELS_0629-1.indd 30
2009-06-29
10:43:43
ENG
Case 2 : Connecting to a Wireless IP sharer
You can connect to network with a Wireless IP sharer. See page 52 for Wireless Network Setup.
Modem Port
● CONNECTIONS
Wireless IP sharer
Modem Cable
M
Wireless LAN
Adapter
(not supplied)
This unit is compatible with only Samsung Wireless LAN Adapter. (not supplied)
(Model name: WIS09ABGN).
- The Samsung Wireless LAN Adapter is sold separately.
- Contact a Samsung Electronics agent or service center for purchasing.
 You must use a wireless IP sharer that supports IEEE 802.11 a/b/g/n. (n is recommended
for stable operation of the wireless network.)
 Wireless LAN, in its nature, may cause interference, depending on the use condition (AP
performance, distance, obstacle, interference by other radio devices, etc).
 Set the wireless IP sharer to Infrastructure mode. Ad-hoc mode is not supported.
 When applying the security key for the AP (wireless IP sharer), only the following is
supported.
1) Authentication Mode : WEP, WPAPSK, WPA2PSK
2) Encryption Type : WEP, TKIP, AES
31
HT-BD1250A_ELS_0629-1.indd 31
2009-06-29
10:43:44
Connections
CONNECTING THE FM ANTENNA
1. Connect the FM antenna supplied to the FM 75Ω COAXIAL Jack.
2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it
to a wall or other rigid surface.
FM Antenna
(supplied)
M
This unit does not receive AM broadcasts.
Cooling Fan
The cooling fan supplies cool air to the unit to prevent overheating.
Please observe the following cautions for your safety.
• Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit may rise
and may damage it.
• Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a
newspaper or cloth, heat may build up inside the unit and fire may result.)
32
HT-BD1250A_ELS_0629-1.indd 32
2009-06-29
10:43:46
ENG
Basic functions of your Blu-ray Home Cinema
This section introduces basic playback functions and playback by disc type.
BEFORE PLAYING
● BASIC FUNCTIONS
• Turn on your TV and set it to the correct Video Input (the input the Blu-ray Home Cinema is connected to).
• If you connected an external Audio System, turn on your Audio System and set it to the correct Audio Input.
After plugging in the player, the first time you press the
POWER button, this screen comes up:
If you want to select a language, press a NUMBER button.
(This screen will only appear when you plug in the player for
the first time.) If the language for the startup screen is not set,
the settings may change whenever you turn the power on or
off. Therefore, make sure that you select the language you
want to use. Once you select a menu language, you can
change it by pressing the STOP () button on the front panel
of the unit for more than 5 seconds with no disc in the unit.
Then the MENU LANGUAGE SELECTION window appears
again where you can reset your preferred language.
M
MENU LANGUAGE SELECTION
Press 1 for English
Pulsar 2 para Español
Touche 3 pour Français
Drücken Sie 4 für Deutsch
Premere 5 per Italiano
Druk op 6 voor Nederlands
Macrovision : BBS42
Discs which can be played on this player (For the following discs, the ability to play back
may depend on recording conditions.)
• BD-ROM
• BD-RE
• BD-R
• DVD-R
• DVD-RW (V mode)
• CD-RW/CD-R
• The unit may not play certain CD-RW/CD-R and DVD-R due to the disc type or
recording conditions.
 Discs which cannot be played on this player.
• HD DVD
• DVD+RW
• DVD-ROM
• DVD-RAM
• CD-ROM
• CVD
• Super Audio CD(except CD layer)
• DVD+R
• CDV
• CD-I
• CDGs play audio only, not graphics.
 Blu-ray is a new and evolving format. Accordingly, disc compatibility issues with new and
existing format discs are possible. Not all discs are compatible and not every disc will
playback.
For additional information, refer to the Disc Type and Characteristics and Compliance and
Compatibility Notice sections of this Manual. If you encounter compatibility problems,
please contact SAMSUNG customer care center.
33
HT-BD1250A_ELS_0629-1.indd 33
2009-06-29
10:43:47
Basic functions of your Blu-ray Home Cinema
ON-SCREEN MENU NAVIGATION
System Information
System
Time Zone
Clock Set
Language
Video
Music
Setup
Audio
Power On/Off sound
Subtitle
BD Data Management
DivX Subtitle
DivX(R) Registration
Disc Menu
DivX(R) Deactivation
Menu
System Update
Audio
Display
Dynamic Compression
TV Aspect
AV Sync
Movie Frame (24 Fs)
Test Tone
Resolution
Speaker Distance
Progressive Mode
Sound Edit
Still Mode
Screen Message
HDMI
Network
Anynet + (HDMI-CEC)
Network Selection
Cable Network
Wireless Network
HDMI Format
BD Wise
HDMI Audio
Proxy
NTP Server
Network Connection Test
BD-LIVE Internet Connection
Parental
Parental Lock
Rating Level
New Password
PLAYING A DISC
1. Press the OPEN/CLOSE button.
2. Place a disc gently into the tray with the disc’s label facing up.
3. Press the PLAY button or OPEN/CLOSE button to close the disc tray.
M
When you stop disc play, the player remembers where you stopped, so when you press
PLAY button again, it will pick up where you left off. This is called the "Resume" function.
With some Blu-ray discs(BD-J), this function may not work.
 Press the STOP button twice during playback to disable the Resume function.
 To pause the playback, press the PAUSE button during playback.
To resume, press the PLAY button.
 If the player is left in the stop mode more than 5 minutes without any user interface, a
screen saver will appear on your TV. If the player is left in the screen saver mode for more
than 30 minutes, the power will automatically turn off except during playback of an CD-DA
(Automatic Power-Off Function).
 If no buttons are pressed on the unit or remote control for more than 5 minutes when the
unit is in Pause mode, operation will stop (except for some Blu-ray Discs).
34
HT-BD1250A_ELS_0629-1.indd 34
2009-06-29
10:43:47
ENG
SETTING THE SOUND
Setting the Power On / Off Melody Sound
A Melody sound can be set so it is heard each time you turn the player on or off.
1. With the unit in Stop mode, press the MENU button.
System Information
Music
2. Press the ▲▼◄► buttons to select Setup, then press the
ENTER or ► button.
Time Zone
Setup
Clock Set
Power On/Off sound : On On
Off
BD Data Management
Audio
DivX(R) Registration
Display
DivX(R) Deactivation
HDMI
System Update
4. Press the ▲▼ buttons to select Power On/Off sound,
then press the ENTER or ► button.
Network
System
◄
►
● BASIC FUNCTIONS
3. Press the ▲▼ buttons to select System, then press the
ENTER or ► button.
Language
DVD
Parental
5. Press the ▲▼ buttons to select On or Off, then press the
ENTER or ► button.
6. Press the MENU button to exit the setup menu.
USING THE SEARCH AND SKIP FUNCTIONS
During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection.
Searching through a Chapter or Track
hgfZCV
During playback, press the SEARCH (
) button.
Each time you press the SEARCH button, the playback speed will change as follows.
BD-ROM, BD-RE, BD-R, DVD-VIDEO,
DVD-RW, DVD-R
 X 2  X 4  X 8  X 16  X 32  X 128
 X 2  X 4  X 8  X 16  X 32  X 128
• You can scan the program in reverse.
• To return to normal speed playback, press the PLAY button.
M
No sound is heard during search mode.
hgfZCV
Skipping Tracks
During playback, press the SKIP (
) button.
) button, it moves to the next chapter.
When playing a Blu-ray Disc/DVD, if you press the SKIP (
If you press the SKIP (
) button, it moves to the beginning of the chapter. One more press makes it
move to the beginning of the previous chapter.
35
HT-BD1250A_ELS_0629-1.indd 35
2009-06-29
10:43:47
Basic functions of your Blu-ray Home Cinema
SLOW MOTION PLAY/STEP MOTION PLAY
Slow Motion Play
hgfZCV
In pause or step mode, press the SLOW button on the
remote control for Slow Motion play.
• If you press the SLOW button,  1/8  1/4  1/2
• To return to normal speed playback, press the
PLAY ( ) button.
M
This (
) icon indicates an invalid button press.
 No sound is heard during slow mode.
 Slow motion operates only in the forward direction.
Step Motion Play
hgfZCV
Press the STEP button on the remote control during play for Step
Motion play.
• Each time the button is pressed a new frame will appear.
• When the STEP button is pressed, the next frame will be
activated.
• Press the PLAY ( ) button to resume normal play.
M
No sound is heard during step mode.
 Step motion operates only in the forward direction.
36
HT-BD1250A_ELS_0629-1.indd 36
2009-06-29
10:43:49
ENG
System setup
SETTING THE CLOCK
Choose your time zone
1. With the unit in Stop mode, press the MENU button.
Music
DVD
Setup
3. Press the ▲▼ buttons to select System, then press the
ENTER or ► button.
4. Press the ▲▼ buttons to select Time Zone, then press the
ENTER or ► button.
5. Use the ◄ ► button to place the cursor to the appropriate
time zone for your area and press the ENTER button.
System Information
System
◄
Time Zone
►
Language
Clock Set
Audio
Power On/Off sound : On
Display
BD data management
HDMI
DivX(R) Registration
Network
DivX(R) Deactivation
Parental
System Update
● SYSTEM SETUP
2. Press the ▲▼◄► buttons to select Setup, then press the
ENTER or ► button.
Music
Time Zone
DVD
Setup
System Information
System Setup
◄
Time Zone
►
Language Setup
Clock Set
Audio Setup
Power On/Off sound : On
Display Setup
BD data management
HDMI Setup
◄
DivX(R) Registration
Network SetupGMT + 00:00
DivX(R) Deactivation
London, Lisbon
Parental Setup
System Update
Save
M
►
Return
To set the time automatically, set the NTP server to On (see page 57).
Set the clock
To setup, follow steps 1 through 3 above.
4. Press the ▲▼ buttons to select Clock Set, then press the
ENTER or ► button.
Music
System Information
DVD
Setup
Time Zone
System
◄
Clock Set
►
Language
Power On/Off sound : On
Audio
BD data management
Display
DivX(R) Registration
HDMI
DivX(R) Deactivation
Network
System Update
Parental
5. Press the ◄ ► buttons to move to “da.”(date), “hr” (hour),
“min” (minute) and “am/pm”. Set the date and time by
pressing the ▲▼ buttons, then press the ENTER button.
Music
System Information
DVD
Setup
Time Zone
Clock Set
◄
Clock Set
System
da.
hr.
min.
Power On/Off sound : On
Language
01 management
01
Audio JAN/01/2009 BD data
Display Thursday
HDMI
Network
►
DivX(R) Registration
DivX(R) Deactivation
Save
System UpdateReturn
Parental
37
HT-BD1250A_ELS_0629-2.indd 37
2009-06-29
10:45:11
Language setup
SETTING UP THE LANGUAGE OPTIONS
Once you set the audio, subtitle, disc menu and player menu language options, they will be applied automatically
every time you watch a movie.
M
If you want to choose a different audio and subtitle language while playing a disc, you can
also use the disc menu to make the selection.
Music
2. Press the ▲▼◄► buttons to select Setup, then press
the ENTER or ► button.
DVD
Setup
System
◄
Language
◄
1. With the unit in Stop mode, press the MENU button.
Audio
Display
HDMI
Network
Parental
3. Press the ▲▼ buttons to select Language , then press
the ENTER or ► button.
Language setup menu will be displayed.
Music
DVD
Setup
System
Audio
: Original
Audio
Subtitle
: Auto
Display
DivX Subtitle
: Western
HDMI
Disc Menu
: English
Network
Menu
: Auto
Audio
: Original
Original
English
: Auto
Français
: Western
Deutsch
: English
Español
: Auto
Italiano
Language
◄
►
Parental
4. Press the ▲▼ buttons to select the desired language
option, press the ENTER or ► button.
Music
DVD
Setup
System
Language
◄
Audio
Subtitle
Display
DivX Subtitle
HDMI
Disc Menu
Network
Menu
►
Parental
• Audio : For the disc audio language.
• Subtitle : For the disc subtitles.
• DivX Subtitle : For the DivX subtitle language by region.
Western
Afrikaans, Basque, Catalan, Danish, Dutch, English, Faeroese, Finnish, French, German, Icelandic,
Indonesian, Italian, Malay, Norwegian, Portuguese, Spanish, Swahili, Swedish
Central
English, Albanian, Croatian, Czech, Hungarian, Polish, Romanian, Serbian(Latin), Slovak, Slovenian
Greek
English, Greek
Cyrillic
English, Azeri, Belarusian, Bulgarian, Kazakh, Macedonian, Russian, Serbian, Tatar, Ukrainian, Uzbek
• Disc Menu : For the disc menu contained on the disc
• Menu : For the on-screen menu of your Blu-ray Home Cinema.
5. Press the ▲▼ buttons to select the desired language, then press the ENTER button.
M
Press the RETURN or ◄ button to return to the previous menu. Press the MENU button to
exit the menu.
 The selected language will only appear if it is supported on the disc.
 If the subtitle language is displayed in broken fonts, change DivX Subtitle to the appropriate region.
If is still does not work, the format is not supported.
38
HT-BD1250A_ELS_0629-2.indd 38
2009-06-29
10:45:20
ENG
Audio setup
SETTING UP THE SPEAKER OPTIONS
Dynamic Compression
Music
System
DVD
Setup
Language
Display
Dynamic Compression : On On
Off
AV Sync
: 50msec
HDMI
Test Tone
Audio
◄
Network
● AUDIO SETUP
This is only active when a Dolby Digital signal is detected.
• On : When Movie soundtracks are played at low volume or
from smaller speakers, the system can apply appropriate
compression to make low-level content more intelligible and
prevent dramatic passages from getting too loud.
• Off : You can enjoy the movie with the standard Dynamic
Range.
►
Speaker Distance
Parental
Sound Edit
AV Sync
Video may look slower than the audio when the player is
Music
System
connected to a digital TV. If this occurs, adjust the audio
delay time to match the video.
• You can set the audio delay time between 0 ms and 300 ms.
Set it to the optimal status.
DVD
Setup
Dynamic Compression : On
Language
Audio
AV Sync
◄
: 50msec
0msec
Display
Test Tone
HDMI
Speaker Distance
Network
25msec
50msec
75msec
Sound Edit
100msec
Parental
125msec
Setting the Test Tone
Use the Test Tone feature to check the speaker connections.
Music
System
1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼◄► buttons to select Setup, then press the
ENTER or ► button.
DVD
Setup
Audio
Dynamic Compression : On
◄
Display
AV Sync
HDMI
Test Tone
Network
3. Press the ▲▼ buttons to select Audio, then press the
ENTER or ► button.
• Audio setup menu will be displayed.
►
: 50msec
Speaker Distance
Parental
Sound Edit
4. Press the ▲▼ buttons to select Test Tone, then press the
ENTER or ► button.
5. Press the RED(A) button
• A test tone will be sent to L C R SR SL LFE in order so you can make sure the speakers are set
up correctly.
Language
Music
Dynamic Compression : On
System
DVD
Setup
Language
Audio
AV Sync
: 50msec
Test Tone
◄
Display
Speaker Distance
HDMI
Sound Edit
►
Network
Parental
6. To end the test tone, press the RED (A) button again.
M
Press the RETURN button to return to the previous
menu.
 When playing a BD/DVD or CD, this will work only in
Stop mode.
 Use this function to check that each speaker is
correctly connected and that there is no problem.
 When HDMI AUDIO is on (audio is produced through
TV speakers), the TEST TONE function is not
available.
Music
DVD
Dynamic Compression : On
System
System Setup
Setup
Test Tone
Language
AV Sync
: 50msec
Language Setup
Setup
Setup
Audio
Audio Setup
Setup
DD ii ss pp ll aa yy
Setup
Setup
HH D
D M
M II
Setup
Setup
◄
◄
Test Tone
►
Speaker Distance
USER
Sound Edit
NN ee tt w
w oo rr kk
Setup
Surround Left
Setup
Parental
Setup
Parental
Setup
A Stop
Return
39
HT-BD1250A_ELS_0629-2.indd 39
2009-06-29
10:45:23
Audio setup
SETTING UP THE SPEAKER OPTIONS
Setting the Speaker Distance
If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay
time of the audio signals from the front, subwoofer, centre, surround speakers.
1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼◄► buttons to select Setup, then press the
ENTER or ► button.
Music
System
DVD
Setup
3. Press the ▲▼ buttons to select Audio,
then press the ENTER or ► button.
Language
Audio
◄
Dynamic Compression : On
Display
AV Sync
HDMI
Test Tone
Network
►
: 50msec
Speaker Distance
Parental
Sound Edit
• Audio setup menu will be displayed.
4. Press the ▲▼ buttons to select Speaker Distance,
then press the ENTER or ► button.
5. Press the ▲▼ buttons to select the desired Speaker,
then press the ◄► buttons to set the Speaker Distance.
Dynamic Compression : On
Music
AV Sync
System
DVD
Setup
Language
: 50msec
Test Tone
Audio
◄
Display
Speaker Distance
►
Sound Edit
HDMI
• You can set the Speaker Distance between 0.3m and 9m.
Network
Parental
6. When done, use the ▲▼◄► buttons to select Save,
then press the ENTER button.
If you don’t want to save your settings, use the ▲▼◄►
buttons to select Cancel, then press the ENTER button.
Dynamic Compression : On
Music
DVD
Front
Setup
AV Sync
System Speaker
Setup
Distance
Test Tone
Audio Setup
Speaker Distance10ft (3.0m)
◄
SubwooferDisplay Setup
Center
Sound Edit
▲
▼
10ft (3.0m)
Cancel
Move
▲
▼
A Test Tone
►
10ft (3.0m)
10ft (3.0m)
HDMI Setup
Surround Network Setup
Parental Setup
Save
M
: 50msec
Language Setup
Adjust
Return
Press the RETURN button to return to the previous menu.
Setting the Sound Edit
You can adjust the balance and level for each speaker.
Music
System
1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼◄► buttons to select Setup, then press the
ENTER or ► button.
3. Press the ▲▼ buttons to select Audio, then
press the ENTER or ► button.
DVD
Setup
Language
Audio
◄
Dynamic Compression : On
Display
AV Sync
HDMI
Test Tone
Network
►
: 50msec
Speaker Distance
Parental
Sound Edit
• Audio setup menu will be displayed.
40
HT-BD1250A_ELS_0629-2.indd 40
2009-06-29
10:45:29
4. Press the ▲▼ buttons to select Sound Edit,
then press the ENTER or ► button.
5. Press the ▲▼ buttons to select the desired Speaker,
then press the ◄► button to adjust the settings.
AV Sync
Music
DVD
Setup
Speaker Distance
Language
Audio
Sound Edit
◄
►
Display
HDMI
6. When done, use the ▲▼◄► buttons to select Save,
then press the ENTER button.
If you don’t want to save your settings, use the ▲▼◄►
buttons to select Cancel, then press the ENTER button.
Network
Parental
● AUDIO SETUP
M
: 50msec
Test Tone
System
ENG
Setting the Sound Edit
Press the RETURN butt on to return to the previous menu.
Adjusting Front/Surround Speaker Balance
AV Sync
Music
: 50msec
Speaker Edit
Test Tone
System Setup
• You can select between 0, -6, and OFF.
• The volume decreases as you move closer to –6.
DVD
Setup
Language Setup
Audio Setup
Speaker Distance
◄
Sound Edit
►
Display Setup
HDMI Setup
Network Setup
Parental Setup
Adjusting Centre/Surround/Subwoofer Speaker Level
Save
A Test Tone
▲
▼
Cancel
Move
▲
▼
• The volume level can be adjusted in steps from +6dB to
-6dB.
Adjust
Return
• The sound gets louder as you move closer to +6dB and
quieter as you get closer to -6dB.
M
Press the RED(A) button to run the test tone with
the screen as shown; It operates the same as a
normal test tone.
 Press the RED(A) button again to stop running the
test tone and return to the previous screen.
Music
DVD
Setup
Dynamic Compression : On
System Setup
Test Tone
Language Setup
Audio Setup
AV Sync
◄
Display
Setup
H D M I
Setup
: 50msec
Test Tone
►
Speaker Distance
USER
Sound Edit
Network
Surround Left
Setup
Parental
Setup
A Stop
Return
DSP(Smart Sound) Function
This will regulate and stabilize the volume level against a drastic volume change when changing
channels or during a scene transition.
Press the DSP button.
• Each time the button is pressed, the selection changes as
follows:
S.SOUND ON S.SOUND OFF
41
HT-BD1250A_ELS_0629-2.indd 41
2009-06-29
10:45:33
Display setup
SETTING UP THE DISPLAY OPTIONS
This function allows you to setup the TV screen settings. This function depends on the disc or TV type. It may not
work with some discs or TV's.
1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼◄► buttons to select Setup, then press the
ENTER or ► button.
System
Music
Language
DVD
Setup
Audio
◄
Display
►
HDMI
3. Press the ▲▼ buttons to select Display, then press the
ENTER or ► button.
Video setup menu will be displayed.
Network
Parental
4. Press the ▲▼ buttons to select the desired display option
from the options on the following pages.
5. Press the ▲▼ buttons to select the desired sub-menu
item from a video display option, then press the ENTER
button.
Music
DVD
Setup
6. Each video option is described in detail below.
M
System
Language
Audio
Display
◄
TV Aspect
: 16:9 Normal
HDMI
Movie Frame (24 Fs) : Off
Network
Resolution
Parental
Progressive Mode
: Auto
Still Mode
: Auto
Screen Message
: On
►
: 1080p
Press the RETURN or ◄ button to return to the previous
menu. Press the MENU button to exit the menu.
TV Aspect
You may want to adjust the screen setting, depending on the type of television you have. (aspect ratio)
• 4:3 Letter Box :
Select when you want to see the total 16:9
ratio screen a Blu-ray Disc/DVD supplies,
even though you have a TV with a 4:3 ratio
screen. Black bars will appear at the top
and bottom of the screen.
System
Music
DVD
Setup
Language
Audio
Display
HDMI
Network
Parental
◄
TV Aspect
: 16:94:3
Normal
Letter Box
Movie Frame (24 Fs) : Off 4:3 Pan-Scan
16:9 Wide
Resolution
: 1080p
16:9 Normal
Progressive Mode : Auto
►
Still Mode
: Auto
Screen Message
: On
• 4:3 Pan-Scan :
Select when you want to see the 16:9 video
supplied by the Blu-ray Disc/DVD without the
black bars on top and bottom, even though you
have a TV with a 4:3 ratio screen(extreme left and
right portion of the movie picture will be cut off).
• 16:9 Wide :
You can view the full 16:9 picture on your widescreen TV.
• 16:9 Normal :
Certain movies(4:3 source) will be displayed in 4:3 Pillarbox (black bars on sides of picture)
if 16:9 normal is selected.
M
Some aspect ratios may not be available, depending on the disc type.
 If you select an aspect ratio which is different than the aspect ratio of your TV screen, then
the picture might appear to be distorted.
42
HT-BD1250A_ELS_0629-2.indd 42
2009-06-29
10:45:38
Movies are usually filmed at 24 frames per second. Some
Blu-ray Discs have the capability of playing back at this frame
rate. Setting the Movie Frame (24Fs) feature to ON allows you
to adjust the Blu-ray Home Cinema's HDMI output to 24
frames per second for improved picture quality.
ENG
Movie Frame (24 Fs)
System
Music
DVD
Setup
Language
Audio
TV Aspect
Display
◄
: 16:9 Normal
Movie Frame (24 Fs) : Off On
HDMI
Resolution
Network
Progressive Mode
: Auto
Parental
Still Mode
: Auto
Screen Message
: On
You can enjoy the Movie Frame (24Fs) feature only on a TV
supporting this frame rate.
►
Off
: 1080p
● DISPLAY SETUP
This menu can only be selected in 1080i or 1080p HDMI
output resolution modes.
Two types of frame rates may be included, depending on the disc: Movie material (24 frame) and Video
material (30 frame). When the setting switches between Movie (24 frame) and Video (30 frame), the
screen may blink for a few seconds.
Resolution
Sets the output resolution of the HDMI and Component video
signal.
• The number in 576i/480i, 576p/480p, 720p, 1080p and
1080i indicates the number of lines of video. The i and p
indicate interlace and progressive scan, respectively.
- BD Wise : Automatically sets the optimal resolution when
connected via HDMI to a TV with the BD Wise
feature. (The BD Wise menu item appears only
if BD Wise is set to On.)
- 1080p : Outputs 1080 lines of progressive video (HDMI only).
- 1080i : Outputs 1080 lines of interlaced video.
- 720p : Outputs 720 lines of progressive video.
- 576p/480p : Outputs 576(480) lines of progressive video.
- 576i/480i : Outputs 480 lines of interlaced video (Component only).
DVD
If the connected TV does not support Movie Frame or the
selected resolution, you will see the following message:
If you select Yes and the resolution is not supported, the TV's
screen will be blank. Please wait for 15 seconds and
the resolution will revert to the previous value automatically.
Music
Setup
System
Language
: 16:9 Normal
Movie Frame (24 Fs) : Off
Resolution
: 1080p
1080p
HDMI
Progressive Mode
Network
Still Mode
Parental
Screen Message
1080i
: Auto
720p
: Auto
: On 576p/480p
Display
◄
576i/480i
System
Music
DVD
Setup
Language
TV Aspect
: 16:9 Normal
Audio
Movie after
Framethe(24selection,
Fs) : Off
If no pictures are shown
◄ 15 Resolution
please wait for
seconds. And then, : 1080p
Display
the resolution will be reverted
Progressive Mode : Auto
HDMI
to the previous value automatically.
Still Mode
: Auto
Network
Would you like to make a selection?
Screen Message
: On
Parental
Yes
M
TV Aspect
Audio
►
No
If the screen is blank, press and hold the STOP () button on the front of the player for
more than 5 seconds (no disc inserted). All settings are restored to the factory default.
Follow the steps on the previous page to access each mode and select the Display Setup
that your TV will support.
 When the factory default settings are restored, all the user data stored in the BD data will
be deleted.
43
HT-BD1250A_ELS_0629-2.indd 43
2009-06-29
10:45:41
Display setup
SETTING UP THE VIDEO DISPLAY/OUTPUT OPTIONS
Resolution according to the output mode
• Blu-ray Disc playback
HDMI
Component
(HDMI&Comp. connected / Comp.
connected only)
VIDEO
1080p, Movie Frame(24Fs)
off
[email protected]
1080i
576i(480i)
1080p/1080i, Movie
Frame (24Fs) on
[email protected]
576i(480i) / 1080i
576i(480i)
1080i, Movie Frame (24Fs)
off
1080i
1080i
576i(480i)
720p
720p
720p
576i(480i)
576p(480p)
576p(480p)
576p(480p)
576i(480i)
576i(480i)
576p(480p)
576i(480i)
576i(480i)
HDMI
Component
(HDMI&Comp. connected / Comp.
connected only)
VIDEO
1080p
[email protected]
576i(480i) / 576p(480p)
576i(480i)
1080i
1080i
576i(480i) / 576p(480p)
576i(480i)
720p
720p
576i(480i) / 576p(480p)
576i(480i)
576p(480p)
576p(480p)
576i(480i) / 576p(480p)
576i(480i)
576i(480i)
576p(480p)
576i(480i)
576i(480i)
Output
Setup
• DVD playback
Output
Setup
M
In DVD playback, if both HDMI and Component jacks are connected and you select the
Component 1080p, 1080i or 720p mode, the Display Setup menu will show the output
resolution as 1080p, 1080i or 720p in the menu.
The resolution is actually 576i(480i).
 This player has the HDMI Auto Detect Feature. When the player is first connected to a TV
via HDMI, the player's output will be set automatically to HDMI.
 If the HDMI Auto Detection feature does not work, you can't select the 1080p resolution or
Movie Frame (24Fs).
 The Blu-ray Disc must have the 24 frame feature in order to use the Movie Frame (24Fs)
mode.
44
HT-BD1250A_ELS_0629-2.indd 44
2009-06-29
10:45:45
The Progressive Mode helps to improve picture quality when
viewing 576i(480i) resolution DVD discs.
• Auto : Select this to have the player automatically set the
best picture for the DVD you're watching.
• Video : Select this for the best picture from Concert or TV
show DVDs.
Music
DVD
Setup
System
TV Aspect
: 16:9 Normal
Movie Frame (24 Fs) :
Off
Resolution
: 1080p
Language
Audio
HDMI
Progressive Mode : PCMAuto
Still Mode
: AutoVideo
Network
Screen Message
Display
ENG
Progressive Mode
◄
►
: On
Parental
● DISPLAY SETUP
Frame & Field bar
Still Mode
Music
Set the Auto, Field or Frame setting for the best possible still
picture (pause mode) from a DVD.
• Auto: Select this setting to have the player automatically
display the best Still picture depending on the content.
• Field Mode: Select this when pausing a scene with a lot of
action.
• Frame Mode: Select this to increase the resolution of the
Still picture.
DVD
Setup
System
Movie Frame (24 Fs) : Off
Language
Resolution
Audio
Display
◄
: Auto
Still Mode
: Auto
Auto
: On Field
Frame
Screen Message
HDMI
: 1080p
Progressive Mode
Network
Parental
Screen Message
• On : Displays messages related to operation mode.
• Off : Does not display messages related to operation mode.
Music
DVD
Setup
System
Resolution
Language
Audio
Display
HDMI
◄
: 1080p
Progressive Mode
: Auto
Still Mode
: Auto
Screen Message
: On On
Off
Network
Parental
45
HT-BD1250A_ELS_0629-2.indd 45
2009-06-29
10:45:45
HDMI setup
SETTING UP THE HDMI SETUP OPTIONS
1. With the unit in Stop mode, press the MENU button.
Audio
Display
DVD
Setup
◄
HDMI
◄
2. Press the ▲▼◄► buttons to select Setup, then press
the ENTER or ► button.
Language
Music
Network
3. Press the ▲▼ buttons to select HDMI, then press the
ENTER or ► button.
HDMI setup menu will be displayed.
Parental
4. Press the ▲▼ buttons to select the desired display option,
then press the ENTER or ► button.
M
Press the RETURN or ◄ button to return to the previous menu. Press the MENU button to exit the menu.
Anynet+ (HDMI-CEC)
Samsung products only
What is Anynet+?
Anynet+ is a convenient function that offers linked operations with other Samsung products with the
Anynet+ feature.
You can operate this unit using a Samsung TV remote control or power on your Samsung TV and Home
cinema and start disc playback simply by pressing the PLAY button on the TV’s remote.
M
This function is not available if the HDMI cable does not support CEC.
To use Anynet+
1. Connect the Blu-ray Home Cinema to a Samsung TV with an HDMI cable. (See pages 24~25)
2. Set the Anynet+ function on your TV. (See the TV instruction manual for more information.)
Anynet+ Functions
• One touch play
You can power on your Samsung TV and Home Cinema, and play the disc in this unit simply by
pressing the PLAY button on the TV’s remote.
• One touch watching
Select “Watching Blu-ray Home Theater” or “Connected to Blu-ray Home Theater” (depending on
your TV's menu) in the Anynet+ menu on the TV. The Blu-ray Home Cinema will automatically turn on
and the TV will be switched to HDMI mode.
• Remote control Link
You can operate this player with your Samsung TV remote control.
• Available buttons on the Samsung TV remote: These buttons work the same as this Blu-ray Home
Cinema's remote control.
- Playback control buttons :
- Menu operation button :
- Numeric buttons : ~
46
HT-BD1250A_ELS_0629-2.indd 46
2009-06-29
10:45:48
● HDMI SETUP
M
ENG
TV Anynet+ Menu
When you press the Anynet+ button on your Samsung TV's remote
n
control, the following On-Screen Display (OSD) will be shown.
THEATER
View
TV
• Blu-ray Home Cinema Menu
Select Device
Record
- When playing a movie : brings up the disc’s menu (same
Menu on Device
as DISC MENU button on the Blu-ray Home Cinema’s
Device Operation
Receiver : Off
remote control)
Setup
- In Stop mode : brings up the SETUP menu (same as the
Move
Enter
Exit
MENU button on the Blu-ray Home Cinema’s remote
control.)
• Blu-ray Home Cinema Operation Menu
- When playing a DVD VIDEO, DVD-RW/-R, BD-ROM, BD-RE :
shows INFO OSD (same as INFO button on the player's remote control)
These menus may look different depending on your Samsung TV.
HDMI Format
You can optimize the HDMI output for connection to a TV or
Monitor.
• TV : Select if connected to a TV via HDMI.
• Monitor : Select if connected to a Monitor via HDMI.
If the player is connected to a TV, the Monitor
option is unavailable.
M
Language
Music
Audio
Display
DVD
HDMI
Anynet + (HDMI-CEC) : On
◄
HDMI Format
: Tv TV
Network
BD Wise
: On Monitor
Parental Stup
HDMI Audio
: Off
TV or monitor has to be connected to the player before you select this option.
BD Wise
BD Wise is Samsung's latest inter-connectivity feature.
When you connect Samsung products with BD-Wise to each
other via HDMI, the optimum resolution will be set
automatically.
• On : The original resolution of the BD/DVD disc will be
output to the TV direct.
• Off : The output resolution will be fixed according to the
Resolution previously set, regardless of the resolution of the
disc.
M
Setup
Samsung products only
Language
Music
Audio
Anynet + (HDMI-CEC) : On
Display
DVD
Setup
HDMI
Network
◄
HDMI Format
: TV
BD Wise
: PCMOn
Off
: Off
HDMI Audio
►
Parental Stup
If you want to change the resolution when you set BD Wise on, you must set BD Wise to Off in advance.
 If you set BD Wise to off, the resolution of the connected TV will be automatically adjusted to its maximum
resolution.
 If the player is connected to a device that does not support BD Wise, you can not use the BD wise function.
 For a proper operation of BD Wise, set BD Wise to ON in the menus of the player and the TV.
47
HT-BD1250A_ELS_0629-2.indd 47
2009-06-29
10:45:49
HDMI setup
SETTING UP THE HDMI SETUP OPTIONS
HDMI Audio
The audio signals transmitted over the HDMI Cable can be toggled ON/OFF.
• On : Both video and audio signals are transmitted over the
Music
HDMI connection cable, and audio is output through
your TV speakers only.
• Off : Video is transmitted over the HDMI connection cable
Language
Anynet + (HDMI-CEC) : On
HDMI Format
: TV
BD Wise
: On
Audio
Display
DVD
Setup
HDMI
Network
◄
HDMI Audio
: OffOn
Off
Parental Stup
only, and audio is output through the Blu-ray Home Cinema
speakers only.
M
The default setting of this function is HDMI Audio Off.
 HDMI AUDIO is automatically down-mixed to 2ch for TV speakers.
48
HT-BD1250A_ELS_0629-2.indd 48
2009-06-29
10:45:51
ENG
Parental setup
SETTING UP THE PARENTAL LOCK
The Parental Lock function works in conjunction with Blu-ray Disc/DVDs that have been assigned a rating which
helps you control the types of Blu-ray Disc/DVDs that your family watches. There are up to 8 rating levels on a disc.
1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼◄► buttons to select Setup, then press
the ENTER or ► button.
3. Press the ▲▼ buttons to select Parental, then press the
ENTER or ► button.
When you operate your Blu-ray Home Cinema for the first
time, the “Enter New password.” message will be
displayed.
Display
Music
HDMI
DVD
Setup
Network
Parental
◄
● PARENTAL SETUP
hZ
Display
Music
HDMI
DVD
Setup
Network
Parental
Parental Setup
Enter New password.
Return
0.9 Number
Display
4. Enter the 4-digit password using the number buttons on
the remote control.
The “Confirm the password.” message will be displayed.
Enter your password again.
Music
HDMI
DVD
Setup
Network
Parental
Parental Setup
Confirm the password.
Return
0.9 Number
Display
Music
HDMI
5. Press the ENTER or ► button to select Parental Lock.
6. Press the ▲▼ buttons to select On or Off, then press the
ENTER button.
M
DVD
Setup
Network
Parental
◄
Parental Lock
: Off
Rating Level
: 1(Kids)
►
New Password
Press the RETURN or ◄ button to return to the previous menu. Press the MENU button to
exit the menu.
49
HT-BD1250A_ELS_0629-2.indd 49
2009-06-29
10:45:52
Parental setup
SETTING UP THE PARENTAL LOCK
If you forgot your password
1. Remove the disc.
2. Press and hold the STOP () button on the front panel for 5 seconds or more.
• All settings will revert to the factory settings.
M
When the factory default settings are restored, all the user data stored in the BD data will
be deleted.
Setting the Rating Level
1. Press the ▲▼ buttons to select Rating Level, then press
the ENTER or ► button.
2. Press the ▲▼ buttons to select the rating level you want,
then press the ENTER button. For example, if you select
up to Level 6, discs that contain Level 7, 8 will not play.
A larger number indicates that the program is intended for
adult use only.
Level 1 is the most restrictive and Level 8 is the least.
Display
Music
HDMI
DVD
Setup
Network
Parental
◄
Parental Lock
: Off
Rating Level
: 1(Kids)
8(Adults)
7
6
5
4
3
2
1(Kids)
New Password
►
Changing the Password
1. Press the ▲▼ buttons to select New Password, then
press the ENTER or ► button.
Display
Music
HDMI
DVD
2. Enter the 4-digit password using the number buttons on
the remote control. The “Enter New password.” message
will be displayed.
Setup
Music
DVD
Setup
Network
Parental
◄
Parental Lock
: Off
Rating Level
: 1(Kids)
New Password
►
Display
Parental Lock
HDMI
Rating Level
Parental
Setup
◄
New Password
Parental
Network
: Off
: 1(Kids)
►
Enter New password.
0.9 Number
3. Enter your password again using the number buttons on
the remote control.
Return
Display
Music
HDMI
DVD
Setup
Parental Lock
Rating Level
Parental Setup
◄
New Password
Parental
Network
: Off
: 1(Kids)
►
Confirm the password.
0.9 Number
Return
50
HT-BD1250A_ELS_0629-2.indd 50
2009-06-29
10:45:56
ENG
Network setup
SETTING UP THE NETWORK SETUP OPTIONS
To obtain information on the proper settings, check the network settings on your computer or contact
your Internet provider.
To set the network of your Blu-ray Home Cinema, follow the steps below.
2. Press the ▲▼◄► buttons to select Setup, then press
the ENTER or ► button.
Music
DVD
Setup
● NETWORK SETUP
1. With the unit in Stop mode/No Disc mode, press the
MENU button.
Display
HDMI
Network
◄
Parental
3. Press the ▲▼ buttons to select Network, then press the
ENTER or ► button.
4. Press the ▲▼ buttons to select the desired network
option from the options described below, then press the
ENTER or ► button.
5. Press the ▲▼ buttons to select the desired item, then press the ENTER button.
Each network option is described in detail below.
Network Selection
Select Cable or Wireless as the method to connect to
network.
To setup, follow steps 1~3 above.
Music
DVD
Setup
Display
HDMI
Network
◄
Parental
4. Press the ▲▼ buttons to select Network Selection, then
press the ENTER or ► button.
• Cable : Select this to connect to the network using a
cable. (see page 30)
• Wireless : Select this to connect to the network
wirelessly. (see page 31)
Network Selection : Cable
►
Cable Network
Wireless Network
Proxy
NTP Server
: Off
Network Connection Test
BD-LIVE
Connection
: Allow (Valid Only)
Cable Network
To setup, follow steps 1~3 above.
4. Press the ▲▼ buttons to select Cable Network, then
press the ENTER or ► button.
Music
DVD
Setup
Display
HDMI
Network Selection : Cable
Network
◄
Parental
►
Wireless Network
Proxy
NTP Server
: Off
Network Connection Test
5. Press the ▲▼ buttons to select DHCP, then press the
ENTER button.
M
Cable Network
BD-LIVE
Connection
: Allow (Valid Only)
If DHCP is set to On, you can't select IP Address,
Subnet Mask or Gateway.
 If DNS is set to Auto, you can’t select Primary/
Music
Audio
Display
Secondary DNS.
DVD
Setup
Cable Network
HDMI
DHCP
Network
IP Address
ParentalMask
Subnet
◄
Network Selection : Cable
: On
Cable Network
: 000 . 000 . 000 . 000
Wireless
Network
: 255
. 255 . 255
. 000
►
Proxy
: 000
. 000 . 000 . 000
Gateway
DNS
NTP Server
: Auto
Primary DNS
Network
Connection
Test
: 000
. 000 . 000
. 000
Secondary DNS
: 000
. 000 . 000
. 000
BD-LIVE
Internet
: Allow (Vaild Only)
Connection
Cancel
Save
Select
: Off
Return
51
HT-BD1250A_ELS_0629-2.indd 51
2009-06-29
10:46:00
Network setup
SETTING UP THE NETWORK SETUP OPTIONS
6. Press the ▲▼ buttons to select a desired item, then
press the ENTER button.
• If DHCP is set to Off and, DNS to Manual, enter
your IP Address, Subnet Mask, Gateway and
Primary DNS settings (Secondary DNS is optional).
Music
DVD
Setup
Audio
Cable Network
Display
HDMI
DHCP
Network
IP Address
Parental
Subnet Mask
◄
Network Selection : Cable
: Off
◄
Cable Network
: 000 . 000 . 000 . 000
Wireless
Network
: 255
. 255 . 255
. 000
►
Proxy
: 000
. 000 . 000 . 000
Gateway
DNS
NTP Server
: Manual
Primary DNS
Network
Connection
Test
: 000
. 000 . 000
. 000
Secondary DNS
: 000
. 000 . 000
. 000
BD-LIVE
Internet
: Allow (Vaild Only)
Connection
No
Yes
Select
: Off
Return
Setup available
• If DHCP is set to On and, DNS to Manual, enter
your Primary DNS setting (Secondary DNS is
optional).
Music
DVD
Setup
Audio
Display
Cable Network
HDMI
DHCP
Network
IP Address
Parental
Subnet Mask
◄
Network Selection : Cable
: On
◄
Cable Network
: 000 . 000 . 000 . 000
Wireless
Network
: 255
. 255 . 255
. 000
►
Proxy
: 000
. 000 . 000 . 000
Gateway
DNS
NTP Server
: Manual
Primary DNS
Network
Connection
Test
: 000
. 000 . 000
. 000
Secondary DNS
: 000
. 000 . 000
. 000
BD-LIVE
Internet
: Allow (Vaild Only)
Connection
No
Yes
Select
: Off
Return
Setup available
Setup not available
• If DHCP is set to On and, DNS to Auto, you don’t
need further or additional settings.
Music
DVD
Setup
Audio
Display
Cable Network
HDMI
DHCP
Network
IP Address
Parental
Subnet Mask
When you select an item, use the number
and ▲▼◄ ► buttons.
 If the automatic settings don’t work, contact
your ISP.
Network Selection : Cable
: On
◄
Cable Network
: 000 . 000 . 000 . 000
Wireless
Network
: 255
. 255 . 255
. 000
►
Proxy
: 000
. 000 . 000 . 000
Gateway
M
◄
DNS
NTP Server
: Auto
Primary DNS
Network
Connection
Test
: 000
. 000 . 000
. 000
Secondary DNS
: 000
. 000 . 000
. 000
BD-LIVE
Internet
: Allow (Vaild Only)
Connection
No
Yes
Select
: Off
Return
Setup not available
7. When done, use the ▲▼ buttons to select Save, then press the ENTER button.
8. If you don’t want to save your work, use the ▲▼◄ ► buttons to select Cancel, then press the
ENTER button.
M
The IP address used in this manual is for illustrative purposes only. You must refer to your
network settings for the actual IP address.
 To obtain settings for IP address, Subnet mask, Gateway and Primary DNS, check the
network settings in your computer or contact your internet service provider.
Wireless Network
To setup, follow steps 1~3 on page 51.
4. Press the ▲▼ buttons to select Wireless Network,
then press the ENTER or ► button.
Music
Audio
Network Selection : Wireless
Display
Cable Network
HDMI
DVD
Setup
Network
Parental
◄
Wireless Network
►
Proxy
NTP Server
: Off
Network Connection Test
BD-LIVE Internet : Allow (Vaild Only)
Connection
52
HT-BD1250A_ELS_0629-2.indd 52
2009-06-29
10:46:03
Music
DVD
M
Setup
Audio
Network Selection : Wireless
Wireless Network
Cable Network
HDMI
Access Point
: Not Selected
◄
Network
Wireless Network
◄
DHCP
: On
Parental
Proxy
IP Address
: 000
. 000 . 000 . 000
Display
Gateway
BD-LIVE Internet : Allow (Vaild Only)
: Auto
Connection
: 000 . 000 . 000 . 000
DNS
DNS Server
 If DNS is set to Auto, you can’t select Primary/
Save
Cancel
Select
Secondary DNS.
Music
DVD
Setup
Audio
Network Selection : Wireless
Display Wireless Network
Cable Network
HDMI
Access Point
:◄ Not Selected
Network
Wireless Network
◄
DHCP
: On
Parental
Proxy
IP Address
: 000
. 000 . 000 . 000
Gateway
BD-LIVE Internet : Allow (Vaild Only)
: Auto
Connection
: 000 . 000 . 000 . 000
DNS
DNS Server
Save
Cancel
Select
Music
Setup
- Select your appropriate Security Access Point if it is
known. If it is not, select WEP, WPAPSK or
WPA2PSK from the list below and enter in the
password. Keep trying each Security Access Point
and enter the Password until a connection is made.
►
NTP
Server
: 255
. 255
. 255 . 000 : Off
Network
Connection
Test
: 000
. 000 . 000
. 000
Subnet Mask
DVD
Return
Audio
Network Selection : Wireless
Display
Access Point – Security
1 2 3
Cable Network
HDMI
OPEN
Network
WEP
Parental
WPAPSK
◄
◄
Wireless Network
►
Proxy
NTP Server
WPA2PSK
: Off
Network Connection Test
BD-LIVE Internet : Allow (Vaild Only)
Connection
Select
Music
- Enter in the Password then press the BLUE (D)
button to connect to your access point (Router).
Setup
Display
DVD
Setup
◄
◄
Wireless Network
►
Proxy
E F G
U V W
k l m
1 2 3
! @ #
b Space
0-9 Number
Music
Network Selection : Wireless
1 2 3
Password
Cable Network
Network
_ Parental
A B C D
Q R S T
g h i j
w x y z
+ = . ~
a Back Space
For further details on AP security, refer to the AP’s (Router)
user manual.
Return
Audio
HDMI
DVD
• If DHCP is set to Off and, DNS to Manual, enter your
IP Address, Subnet Mask, Gateway and DNS Server.
Return
● NETWORK SETUP
6. Press the ▲▼ buttons to select a desired item, then press
the ENTER button.
• Select an Access Point, and then press the ENTER
button to display available list of APs.
(It may take several seconds to search.)
- When you select an AP and press the ENTER
button, it tries to connect to the designated AP.
- If successful, a notification appears.
(If selected AP shows a Lock icon, you may need to
provide security authentication.)
NTP
Server
: 255
. 255
. 255 . 000 : Off
Network
Connection
Test
: 000
. 000 . 000
. 000
Subnet Mask
If DHCP is set to On, you can't select IP Address,
Subnet Mask or Gateway.
►
ENG
5. Press the ▲▼ buttons to select DHCP, then press the
ENTER button.
H
X
n
4
$
I J K L M N O P
NTP Server
: Off
Y Z a b c d e f
o Network
p q r Connection
s t u v Test
5 6 7 8 9 0 − _
BD-LIVE Internet
% ^ & ( ) / ? | : Allow (Vaild Only)
Connection
Clear
d Save
Select
Return
Audio
Network Selection : Wireless
Wireless Network
Cable Network
HDMI
Access Point
: Not Selected
◄
Network
Wireless Network
◄
DHCP
: Off
Parental
Proxy
IP Address
: 000 . 000 . 000 . 000
NTP Server
: Off
Subnet Mask
: 255 . 255 . 255 . 000
Network
Connection
Test
Gateway
: 000
. 000 . 000
. 000
Display
DNS
DNS Server
►
BD-LIVE Internet : Allow (Vaild Only)
: Manual
Connection
: 000 . 000 . 000 . 000
Save
Cancel
Select
Return
Setup available
53
HT-BD1250A_ELS_0629-2.indd 53
2009-06-29
10:46:08
Network setup
SETTING UP THE NETWORK SETUP OPTIONS
• If DHCP is set to On and, DNS to Manual, enter your
DNS Server.
Music
DVD
Setup
Audio
Display
Network Selection : Wireless
Wireless Network
Cable Network
: Not Selected
◄
Wireless Network
◄
: On
Proxy
: 000
. 000 . 000 . 000
HDMI
Access Point
Network
DHCP
Parental
IP Address
►
NTP
: 255
. 255Server
. 255 . 000 : Off
Network
Connection
Test
: 000
. 000 . 000
. 000
BD-LIVE Internet : Allow (Vaild Only)
: Manual
Connection
: 000 . 000 . 000 . 000
Subnet Mask
Gateway
DNS
DNS Server
Save
Cancel
Select
Return
Setup available
Setup not available
• If DHCP is set to On and, DNS to Auto, you don’t
need further or additional settings.
Music
DVD
M
Setup
Audio
Network Selection : Wireless
Wireless Network
Cable Network
HDMI
Access Point
:◄ Not Selected
Network
Wireless Network
◄
DHCP
: On
Parental
Proxy
IP Address
: 000 . 000 . 000 . 000
NTP
Server
Subnet Mask
: 255
. 255
. 255 . 000 : Off
Display
Network
Connection
Test
: 000
. 000 . 000
. 000
BD-LIVE Internet : Allow (Vaild Only)
: Manual
Connection
: 000 . 000 . 000 . 000
Gateway
DNS
When you select an item, use the number and
▲▼◄ ► buttons.
DNS Server
Save
Cancel
Select
 If the automatic settings don’t work, contact
►
Return
your ISP.
Setup not available
7. When done, use the ▲▼ buttons to select Save, then press the ENTER button.
8. If you don’t want to save your work, use the ▲▼◄ ► buttons to select Cancel, then press the
ENTER button.
M
The IP address used in this manual is for illustrative purposes only. You must refer to the
your network settings for the actual IP address.
 To obtain settings for IP address, Subnet mask, Gateway and DNS Server, check the
network settings in your computer or contact your internet service provider.
Proxy Setting
A proxy server services requests by forwarding them to other servers.
If you are required to configure the proxy setting, enter the settings specified by the ISP.
To setup, follow steps 1~3 on page 51.
4. Press the ▲▼ buttons to select Proxy, then press the
ENTER or ► button.
• Server
• Port
• User
• Password
Music
DVD
Setup
Audio
Display
HDMI
Proxy
Network
Server
Parental
Port
Proxy
►
User
:
NTP Server
Password
:
Network Connection Test
: Off
BD-LIVE Internet : Allow (Vaild Only)
Connection
Save
Cancel
Select
M
Network Selection : Wireless
Cable Network
: ◄Off
Wireless Network
◄
:
Proxy
: 8080
Return
For more information, contact your ISP (Internet Service Provider).
54
HT-BD1250A_ELS_0629-2.indd 54
2009-06-29
10:46:14
ENG
NTP Server (Used to Retrieve Time Information from NTP Server)
To setup, follow steps 1~3 on page 51.
4. Press the ▲▼ buttons to select NTP Server, then press
the ENTER or ► button.
• On : the player automatically connects to the Internet
server in order to adjust the time setting.
• Off : the player does not connect to the Internet server
to adjust the time setting.
Music
Cable Network
Audio
Wireless Network
Display
Proxy
HDMI
DVD
Setup
Network
◄
Parental
: OffOn
Off
Network Connection Test
NTP Server
►
BD-LIVE Internet : Allow (Vaild Only)
Connection
● NETWORK SETUP
Network Connection Test
Use this menu to check whether your network connection is working or not.
To setup, follow steps 1~3 on page 51.
4. Press the ▲▼ buttons to select Network Connection
Test, then press the ENTER or ► button.
DVD
Cable Network
Music
Audio
Wireless Network
DisplayNetwork Connection
Test
Proxy
HDMI
Setup
✔Network
MAC Address (00:10:18:00:00:70)
◄
►
NTP Server
: Off
◄
✔ IP Address.Subnet Mask.Gateway.DNS Server
Parental
Network Connection Test
✔ Gateway Ping
BD-LIVE Internet : Allow (Vaild Only)
✔ Internet Service TestConnection
Your network is operating properly
Return
BD-LIVE Internet Connection
The Blu-ray Home Cinema supports BD-LIVE which enables you to enjoy a variety of interactive service
contents provided by the disc manufacturer through a network connection. To enjoy this feature, you
must first perform the LAN connection (see page 30) or Wireless Lan adapter connection to the USB slot.
* You must have a minimum 1 GB USB Memory device inserted in one of the USB slots in order to
download content from BD-LIVE.
The Internet connection may be restricted while you are using BD-LIVE contents.
To setup, follow steps 1~3 on page 51.
4. Press the ▲▼ buttons to select BD-LIVE Internet
Connection, then press the ENTER or ► button.
• Allow (All) : The Internet connection will be allowed for
all BD-LIVE contents.
• Allow (Valid Only) : The Internet connection will be
allowed only for BD-LIVE contents containing a valid
certificate.
• Prohibit : No Internet connection will be allowed for
any BD-LIVE content.
M
Music
Proxy
Audio
NTP Server
Display
DVD
Setup
Network
Parental
: Off
Network Connection Test
HDMI
◄
BD-LIVE Internet : Allow
Allow(All)
(Vaild Only)
Connection
Allow(Valid Only)
Prohibit
What is a valid certificate? When the Blu-ray Home Cinema uses BD-LIVE to send the disc
data and request to the server to certify the disc, the server uses the transferred data to
check if the disc is valid and sends the certificate back to the player.
 The Internet connection may be restricted while you are using BD-LIVE contents.
55
HT-BD1250A_ELS_0629-2.indd 55
2009-06-29
10:46:17
BD data management
BD Data (stored in external USB flash memory) is Blu-ray Disc content such as trailers and other
special features downloaded from the BD-LIVE service or Blu-ray Discs.
* You must have a minimum 1GB USB Memory device inserted in one of the USB slots in order to download
content from BD-LIVE.
SYSTEM DEVICE MANAGEMENT
You can manage user data stored in BD data.
1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼◄► buttons to select Setup, then press
the ENTER or ► button.
DVD
Setup
4. Press the ▲▼ buttons to select BD Data Management,
then press the ENTER or ► button.
- To delete the flash memory 1. Press the ENTER button to select BD Data Delete.
The message "All BD data will be deleted. Do you want to
continue?" will be displayed.
Setup
◄
BD Data Management
►
DivX(R) Registration
DivX(R) Deactivation(R)
System Update
Time Zone
Clock Set
Power On/Off sound : On
Music
DVD
Description of Device(Storage) Information on the Player
System
Language
Audio
Display
HDMI
Network
Parental
3. Press the ▲▼ buttons to select System, then press the
ENTER or ► button.
2. Press the ◄► button to select Yes, then press the
ENTER button.
Time Zone
Clock Set
Power On/Off sound : On
Music
System BD Data◄ Management
BD Data Management
►
Language
Current
Device : External
Flash
Memory
DivX(R)
Registration
TotalAudio
Size : 953MB Available Size : 889MB
DivX(R) Deactivation(R)
Display
System Update
BD Data Delete
HDMI
Network
Parental
Select
Return
• Total Size : Total size of the Device(Storage).
• Available Size : Available size of the Device(Storage).
M
Memory size information on the current device(storage) is located to the right of the BD
Data Management menu.
 In the external memory mode, disc playback will be stopped if you disconnect the USB
device in the middle of the playback.
 We recommend using an USB device that supports USB 2.0 protocols, FAT32 format and
4MB or more read /write speed.
 The Resume Play function may not work after formatting the storage device.
56
HT-BD1250A_ELS_0629-2.indd 56
2009-06-29
10:46:22
ENG
System upgrade
Samsung may offer upgrades to your Blu-ray Home Cinema's firmware in the future. To upgrade this firmware you must :
1. Go to samsung.com and refer to the ‘SUPPORT’ page to download the latest firmware.
You can use a CD-R or a USB flash drive to perform the firmware upgrade. For more information, see “Upgrade
Manual” at the website mentioned above.
or
● SYSTEM UPGRADE
2. Connect the network (see pages 30~31) and follow the steps below.
FIRMWARE UPGRADE
1. With the unit in Stop mode/No Disc mode, press the
MENU button.
2. Press the ▲▼◄► buttons to select Setup, then press
the ENTER or ► button.
Music
DVD
Setup
◄
System
◄
Language
Audio
3. Press the ▲▼ buttons to select System, then press the
ENTER or ► button.
Display
HDMI
Network
Parental
4. Press the ▲▼ buttons to select System Update, then
press the ENTER or ► button.
BD Data Menagement
Music
DivX(R) Registration
DVD
Setup
DivX(R) Deactivation(R)
System
System Update
◄
►
Language
Audio
Display
HDMI
5. The player will check the cable or network connection
status automatically. The connection checking window will
be displayed.
Network
Parental
BD Data Menagement
Music
DVD
Setup
DivX(R) Registration
System Update
DivX(R) Deactivation(R)
System Setup
1
◄
2
3
System
Update
4
►
Language Setup
Audio Setup
Now, Checking.
 If the upgrade is possible : You will see information on the
current and new versions of firmware in a message box.
 If the upgrade is not possible : You will see the following
description in the message box.
• If the cable is not connected :
“Ethernet cable is not connected. Please, check the
Ethernet cable”
• If the network connection has failed :
“This system can not connect to internet for update.
Please, check the network setup”
• If no latest version is released (the latest version has
been already installed) :
"The latest version of the firmware is already installed.
There is no need to update."
• If there is a disc in the player :
"Please maintain "No Disc" state for network update."
This indicates that you must remove all discs from the
unit to perform the update.
• If the server service is not available :
“ Update Server is under maintenance. Please try again
later.”
HT-BD1250A_ELS_0629-3.indd 57
Display Setup
Please wait...
HDMI Setup
Network Setup
Parental Setup
BD Data Menagement
Music
DVD
Setup
DivX(R) Registration
System Update
DivX(R) Deactivation(R)
System Setup
1
◄
2
3
System Update
►
4
Language Setup
The new
Audio
Setupupdate data was found.
Current Version : XXXXX
Display Setup
New Version : XXXXX
HDMI Setup
Network Setup
StartSetup
Parental
Cancel
BD Data Menagement
Music
DVD
Setup
DivX(R) Registration
System Update
DivX(R) Deactivation(R)
System Setup
1
◄
2
3
System Update
►
4
Language Setup
This
system can not connect
Audio
Setup
to internet for update.
Display Setup
Please, check the network setup.
HDMI Setup
Network Setup
Parental Setup
OK
57
2009-06-29
10:56:38
System upgrade
FIRMWARE UPGRADE
6. To perform the system upgrade, press the ◄ ► buttons
to select Start and then press the ENTER button.
BD Data Menagement
Music
DivX(R) Registration
System Update
DivX(R) Deactivation(R)
DVD
Setup
Update
System Setup
1 2 ◄ 3 System
4
►
Language Setup
The new update data was found.
Audio Setup
Current Version : XXXXX
Display New
SetupVersion : XXXXX
HDMI Setup
Network Setup
Start
Parental
Cancel
7. The system update gets started.
BD Data Menagement
Music
DivX(R) Registration
System Update
DivX(R) Deactivation(R)
DVD
Setup
Update
1 2 ◄ 3 System
4
System Setup
►
Language Setup
update data...
AudioDownloading
Setup
Please, do not turn off the power.
Display Setup
60%
HDMI Setup
8. If you select Cancel during the download process, you are
prompted to confirm your selection in a message box.
If you want to cancel the download, select Yes and press
the ENTER button.
Network Setup
Cancel
Parental
BD Data Menagement
Music
DivX(R) Registration
System Update
DivX(R) Deactivation(R)
DVD
Setup
Update
System Setup
1 2 ◄ 3 System
4
►
Language Setup
Audio Setup
Do you want to cancel the update operation?
Display Setup
9. Verification will proceed. When download is done, the
firmware update process will begin automatically.
HDMI Setup
Network Setup
Yes
Parental
10. When the installation is done, the player will automatically
turn off in 5 seconds.
All settings will revert to the factory settings. The next
time you start the system and you will see the menu
language selection window.
BD Data Menagement
Music
DivX(R) Registration
System Update
DivX(R) Deactivation(R)
DVD
Setup
No
Update
System Setup
1 2 ◄ 3 System
4
►
Language Setup
Audio Setup
Verifying update data
Please wait.
Display Setup
HDMI Setup
Network Setup
M
Parental
If you want to cancel the upgrade in the process of
downloading the upgrade data, press the ENTER
button. You will see a confirmation message.
Selecting Yes will end the upgrade process, and
selecting No will continue the upgrade process.
 When the system upgrade is done, check the
firmware details in the System Upgrade menu.
 Do not turn off the player during the System Upgrade,
as it may cause the player to not work properly.
BD Data Menagement
Music
DivX(R) Registration
System Update
DivX(R) Deactivation(R)
DVD
Setup
Update
System Setup
1 2 ◄ 3 System
4
►
Update.
LanguageFirmware
Setup
Now, Processing...
Audio Setup
Please, do not turn off the power.
Display
Setup
The
power
will be off automatically
HDMI after
Setupupdate is finished.
Network Setup
Parental
 You must use a USB Flash Drive to do software
upgrades using the USB Host jack.
Other USB devices(ex. MP3 player) are not
guaranteed to work.
 There should be only one firmware upgrade file in USB flash drive for the player to properly
perform an upgrade.
 Oversized USB drives may not be able to be inserted when a LAN or HDMI cable is connected.
58
HT-BD1250A_ELS_0629-3.indd 58
2009-06-29
10:57:18
When the firmware upgrade is done, check the firmware details by
following the steps below.
Music
DVD
Setup
◄
System
◄
1. With the unit in Stop mode/No Disc mode, press the
MENU button.
ENG
SYSTEM INFORMATION
Language
Audio
Display
2. Press the ▲▼◄► buttons to select Setup, then press the
ENTER or ► button.
HDMI
Network
Parental
Music
DVD
Setup
4. Press the ▲▼ buttons to select System Information,
then press the ENTER or ► button.
You can see detailed information about the current
firmware.
System
◄
System Information
Language
Time Zone
Audio
Clock Set
Display
Power On/Off sound
►
: On
HDMI
BD Data Management
Network
DivX(R) Registration
Parental
DivX(R) Deactivation(R)
● SYSTEM UPGRADE
3. Press the ▲▼ buttons to select System, then press the
ENTER or ► button.
System Update
Music
DVD
Setup
5. Press the ENTER button to select OK.
System Setup menu will be displayed.
System Information
◄
System Information
System Setup
Time Zone
Language Setup
S/W : XXXXXXX
Audio Setup
Clock Set
Loader : XXXXXXX
Display Setup
Region : B/2 (BD/DVD)
Power On/Off sound
HDMI Setup ESN : XXXX
BD Data Management
Network Setup
►
: On
DivX(R) Registration
Parental Setup
OK DivX(R) Deactivation(R)
System Update
FIRMWARE UPGRADE NOTIFICATION
This popup menu appears when a newer firmware version is available
from SAMSUNG's update server than what is currently on the Blu-ray
Home Cinema.
System Update
New Firmware is available.
Do you want to update now?
• Yes : Select this to upgrade now.
• No : Select this if you plan to upgrade later.
Yes
No
DIVX (R) REGISTRATION
Music
Please use the Registration code to register this Home Cinema System
with the DivX(R) Video On Demand format. For more information, visit
www.divx.com/vod
M
DVD
Setup
Power On/Off sound
BD Data Management
DivX(R) Registration
◄
DivX(R) Registration
System Setup
: On
►
DivX(R) Deactivation(R)
Language Setup
DemandUpdate
AudioDivX(R)
Setup Video On System
Your registration code is : XXXXXXXXXX
Display Setup
To learn more visit www.divx.com/vod
HDMI Setup
Network Setup
 This option is not activated if you select the OK. To activate this
Parental Setup
option, please activate the DivX(R) Deactivation.
OK
DIVX(R) DEACTIVATION
Music
If you want to deactivate the registration code on the website, please
select the Yes. Then, you can get a new registration code.
DVD
Setup
BD Data Management
DivX(R) Registration
DivX(R) Deactivation
◄
DivX(R) Deactivation(R)
System Setup
Language Setup
M
►
System Update
Audio Setup
DivX(R) Video On Demand
Setup
DoDisplay
you want
to deactivate your device?
 This function can be operated when DivX(R) Registration function
is available.
HDMI Setup
Network Setup
Parental Setup
Yes
No
59
HT-BD1250A_ELS_0629-3.indd 59
2009-06-29
10:57:23
Watching a movie
USING THE DISPLAY FUNCTION
hgfZCV
1. During playback, press the INFO button on the remote
control.
• If the Blu-ray Disc has the PIP feature, press the INFO
button in the PIP section to display PIP-related
information.
2. Press the ▲▼ buttons to select the desired item.
3. Press the ◄ ► buttons to make the desired setup change
and then press the ENTER button.
• You may use the number buttons of the remote control
to directly access a title, chapter or to start the playback
4. To make the screen disappear, press the INFO button
again.
BD
Title
Chapter
Playing Time
Audio
Subtitle
Angle
Picture Mode
§ Change
s Select
<INFO menu for the PIP section>
BD
Title
Chapter
Playing Time
Audio
Subtitle
Angle
BONUSVIEW Video
BONUSVIEW Audio
Picture Mode
§ Change
M
Info
: 000/034
: 000/002
: 00:00:06
: 1/1 ENG Multi CH
: NONE
: 01/01
: Normal
Info
: 000/034
: 000/002
: 00:00:06
: 1/1 ENG Multi CH
: NONE
: 01/01
: 01/01
: 1/1 ENG 2CH
: Normal
s Select
If you are playing contents from the info menu, some functions may not be enabled depending on the disc.
 Title : To access the desired title when there is more than one in the disc. For example, if there is more than
one movie on a Blu-ray Disc/DVD, each movie will be identified as a Title.
 Chapter: Most Blu-ray Disc/DVD discs are recorded in chapters so that you can quickly find a specific chapter.
 Audio : Refers to the film's soundtrack language. A Blu-ray Disc can contain up to 32 audio languages and a
DVD up to 8.
 Playing Time : Allows playback of the film from a desired time. You must enter the starting time as a reference.
The time search function does not operate on some discs.
 Subtitle : Refers to the subtitle languages available in the disc. You will be able to choose the subtitle
languages or, if you prefer, turn them off from the screen. A Blu-ray Disc can contain up to 255 subtitle
languages, and a DVD up to 32.
 Angle : When a Blu-ray Disc/DVD contains multiple angles of a particular scene, you can use the ANGLE
function.
 BONUSVIEW Video/BONUSVIEW Audio : You can make BONUSVIEW Video or BONUSVIEW Audio settings if the
current title of a Blu-ray Disc appears in the PIP section. The BONUSVIEW Video / BONUSVIEW Audio options,
however, will be disabled with a Blu-ray Disc that does not support the PIP feature.
 Picture Mode : This function enables you to adjust video quality when you are connected to a TV via HDMI.
- Dynamic : Choose this setting to increase Sharpness.
- Normal : Choose this setting for most viewing applications.
- Movie : This is the best setting for watching movies.
- User : The user can adjust the sharpness and noise reduction function respectively.
60
HT-BD1250A_ELS_0629-3.indd 60
2009-06-29
3:29:26
hZ
Using the Disc Menu
1. During playback, press the DISC MENU button on the
remote control.
PLAY MOVIE
LANGUAGES
▼
3
M
PREVIEWS
4
5
6
7
8
9
10
11
12
13
14
15
The Disc Menu may not be available, depending on the disc.
Z
Using the Title Menu
● WATCHING A MOVIE
2. Press the ▲▼◄ ► buttons to make the desired selection,
then press the ► or ENTER button.
• The Disc menu setup items may vary from disc to disc.
SCENE SELECTIONS
ENG
USING THE DISC MENU & POPUP/TITLE MENU
1. During playback, press the TITLE MENU button on the remote control.
2. Press the ▲▼◄ ► buttons to make the desired selection, then press the ENTER button.
• The Title menu setup options may vary from disc to disc.
M
The Title Menu may not be available, depending on the disc.
 Title Menu will only be displayed if there are at least two titles on the disc.
gf
Playing the Title List
1. With the unit in Stop mode/Playback mode, press the
DISC MENU or TITLE MENU button.
CD
BD-RE
Video
2. Press the ▲▼ buttons to select an entry you want to play
from Title List, then press the ► or ENTER button.
The selected entry (title) will be played back.
◄
Music
Setup
Title 008
00:04:36
Title 009
Title 010
Title 011
Title 012
Title 013
Title 014
00:04:17
00:04:11
00:04:07
00:04:46
00:04:21
00:03:43
- Go to Playlist To go to the Playlist, press the RED(A) button.
Page
h
Using the Popup Menu
1. During playback, press the POPUP MENU button on the
remote control.
MAIN MENU
AUDIO SET UP
2. Press the ▲▼◄ ► buttons or ENTER button to select
the desired menu.
• The Popup menu setup options may vary from disc to
disc.
SCENE SELECTIONS
▼
3
M
SUBTITLES
4
5
6
7
8
9
10
11
12
13
14
15
The Popup Menu may not be available, depending on the disc.
61
HT-BD1250A_ELS_0629-3.indd 61
2009-06-29
10:57:35
Watching a movie
REPEAT PLAY
Repeat the current chapter or title.
Repeat playback
hgfZCV
1. During playback, press the REPEAT button on the remote
control. Repeat screen appears.
Repeat
Off
2. Press the ▲▼ buttons to select Chapter or Title.
• Blu-ray Disc/DVD repeats play by chapter or title.
3. To return to normal play, press the REPEAT button again,
then press the ▲▼ buttons to select Off.
M
The Repeat function may not be available, depending on the disc.
Using the A-B Repeat function
1. Press the REPEAT A-B button on the remote control
during playback.
hgfZCV
►
Repeat A-B
00:18:41 / 01:34:37
DVD
2. Press the REPEAT A-B button at the point where you
want repeat play to start (A).
3. Press the REPEAT A-B button at the point where you
want repeat play to stop (B).
4. To return to normal play, press the REPEAT A-B button
again.
M
REPEAT A
B Off
Exit
Point B cannot be set until 5 seconds of playback has elapsed from point A.
62
HT-BD1250A_ELS_0629-3.indd 62
2009-06-29
10:57:40
ENG
hgfZ
SELECTING THE AUDIO LANGUAGE
You can select a desired audio language quickly and easily with the AUDIO button.
Using the AUDIO button
Audio
1/4 ENG Dolby Digital Multi CH
● WATCHING A MOVIE
1. Press the AUDIO button during playback. The Audio
changes when the button is pressed repeatedly.
• The audio languages are represented by abbreviations.
2. To remove the Audio bar, press the RETURN button.
Using the INFO button
1. During playback, press the INFO button on the remote
control.
2. Press the ▲▼ buttons to select Audio language.
3. Press the ◄ ► buttons on the remote control to select the desired audio language.
M
This function depends on what audio languages are encoded on the disc and may not be
available.
 A Blu-ray Disc can contain up to 32 audio languages and a DVD up to 8.
 You can use the AUDIO button to change the audio soundtrack as well as the audio
language, depending on the disc type.
Some Blu-ray Discs may allow you to select either the multi-channel LPCM or Dolby Digital
audio soundtrack in English.
 Information about the primary / secondary mode will be also displayed if the Blu-ray Disc
has a PIP section.
Use the ◄ ► button to switch between primary and secondary audio modes.
 The ◄ ► indicator will not be displayed on the screen if the PIP section does not contain
any PIP audio settings.
SELECTING THE SUBTITLE LANGUAGE
You can select a desired subtitle quickly and easily with the SUBTITLE button.
hZ
Using the SUBTITLE button
1. Press the SUBTITLE button. The subtitle changes when
the button is pressed repeatedly. The subtitle languages
are represented by abbreviations.
Subtitle
0/2 Off
2. To remove the Subtitle bar, press the RETURN button.
63
HT-BD1250A_ELS_0629-3.indd 63
2009-06-29
10:57:41
Watching a movie
SELECTING THE SUBTITLE LANGUAGE
Using the INFO button
1. During playback, press the INFO button on the remote control.
2. Press the ▲▼ buttons to select Subtitle.
3. Press the ◄ ► buttons on the remote control to select the desired subtitle language.
M
You may be able to change the desired subtitle in the Disc Menu, depending on the Bluray Disc / DVD.
Press the DISC MENU button.
 This function depends on what subtitles are encoded on the disc and may not be available
on all Blu-ray Discs/DVDs.
 A Blu-ray Disc can contain up to 255 subtitle languages and a DVD up to 32.
 Information about the primary / secondary mode will be also displayed if the Blu-ray Disc
has a PIP section.
 This function changes both the primary and secondary subtitles at the same time.
 The total number of subtitles is the sum of the primary and secondary ones.
CHANGING THE CAMERA ANGLE
When a Blu-ray Disc/DVD contains multiple angles of a particular scene, you can use the ANGLE function.
hZ
Using the ANGLE function
1. During playback, press the INFO button on the remote
control.
2. Press the ▲▼ buttons to select Angle.
DVD-Vedio
Info
Title
: 001/006
Chapter
: 003/016
Playing Time : 00:11:14
3. Press the ◄ ► buttons or you can use the number buttons
on the remote control to select the desired angle.
Audio
: ENG Multi CH
Subtitle
: ENG
Angle
: 01/01
Change
M
Move
If the disc has only one angle, this feature won’t work. Currently, very few discs have this
feature.
 These functions may not work, depending on the disc.
64
HT-BD1250A_ELS_0629-3.indd 64
2009-06-29
10:57:41
ENG
PIP (PICTURE IN PICTURE) SETTINGS
The PIP feature allows you to view additional content (such as commentaries) in a small screen window while the
movie is playing.
h
Using the PIP button
1. If the current Blu-ray Disc features the PIP function, you
can use the PIP button to turn PIP On or Off.
● WATCHING A MOVIE
2. Each time you press the PIP button, you can toggle
between PIP On and PIP Off.
M
You can change detailed settings of the PIP feature in the INFO menu (see page 60:
selection of secondary audio, video stream and subtitle etc.).
 If you switch from BONUSVIEW Video, BONUSVIEW Audio will change automatically in
accordance with BONUSVIEW Video.
 If the Blu-ray Disc supports only BONUSVIEW Audio, you can just press the PIP button to
turn the secondary audio on or off.
BD-LIVE™
The Blu-ray Home Cinema supports BD-LIVE which enables you to enjoy a variety of interactive service contents
provided by the disc manufacturer through network connection.
Using the BD-LIVE Disc
1. Connect the network (see pages 30~31) and check the network setup (see pages 51~55).
2. Insert a Blu-ray disc that supports BD-LIVE.
3. Select the contents provided by the disc manufacturer to enjoy the BD-LIVE.
M
The way you use BD-LIVE and the features may differ, depending on the disc.
 To use BD-LIVE, you must insert a minimum 1GB USB memory device into one of the
USB slots.
65
HT-BD1250A_ELS_0629-3.indd 65
2009-06-29
3:30:03
Watching a movie
DIVX PLAYBACK
The functions discussed on this page apply to DivX disc playback only.
Skip Forward/Back
D
During playback, press the #, $ button.
• Goes to the next file whenever you press the $ button,
if there are over 2 files on the disc.
• Goes to the previous file whenever you press the
# button, if there are over 2 files on the disc.
Fast Playback
D
During playback, press the ,  button.
To play back the disc at a faster speed, press the  or  button during playback.
• Each time you press either button, the playback speed will change as follows:
2x Π4x Π8x.
Audio Display
D
Press the AUDIO button.
• If there are multiple audio languages on a disc, you can
toggle between them.
• Each time you press the button, your selection will toggle
between AUDIO (1/N, 2/N ...).
M
is displayed when there is one supported
language on the disc.
Subtitle Display
D
Press the SUBTITLE button.
• Each time you press the button, your selection will toggle
between SUBTITLE (1/N, 2/N ...) and SUBTITLE OFF.
• If the disc has only one subtitle file, it will be played
automatically.
• See number 2 (Caption Function) below for more details
concerning Subtitle usage with DivX discs.
66
HT-BD1250A_ELS_0629-3.indd 66
2009-06-29
10:57:42
If the disc has more than one subtitle file, the default
subtitle may not match the movie and you will have to
select your subtitle language as follows:
ENG
D
If the Disc has more than One Subtitle File
1. In Stop mode, press the Cursor ▲, ▼ button, select the
desired subtitle ( ) from the TV screen, and then
press the ENTER button.
DivX(Digital internet video eXpress)
DivX is a video file format developed by Microsoft and is based on MPEG4 compression technology to
provide audio and video data over the Internet in real-time.
MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at
near DVD-quality video and audio.
1. Supported Formats
This product only supports the following media formats.If both video and audio formats are not
supported, the user may experience problems such as broken images or no sound.
● WATCHING A MOVIE
2. When you select the desired DivX file from the TV
screen, the movie will be played normally.
Supported Video Formats
Format
AVI
Supported Versions
DivX3.11~DivX5.1, XviD
Supported Audio Formats
Format
MP3
AC3
DTS
Bit Rate
80~384kbps
128~384kbps
1.5Mbps
Sampling Frequency
44.1khz
44.1/48khz
44.1khz
• DivX files, including audio and video files, created in the DTS format can only support up to 6Mbps.
• Aspect Ratio : Although the default DivX resolution is 640x480 pixels (4:3), this product supports
up to 800x600 pixels (16:9). TV screen resolutions higher than 800 will not be supported.
• When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may
experience shaking on the screen during playback.
• Qpel and gmc is not supported.
2. Caption Function
• You must have some experience with video extraction and editing in order to use this feature properly.
• To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX
media file (*.avi) within the same folder.
Example. Root
Samsung_007CD1.avi
Samsung_007CD1.smi
• Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean
and Chinese) for the file name.
• ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc.
This is an official DivX Certified or DivX Ultra Certified device that plays DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX® Certified device must be registered in order to
play DivX Video-on-Demand (VOD) content. First generate the DivX VOD registration code for your
device and submit it during the registration process. [Important: DivX VOD content is protected by
a DivX DRM (Digital Rights Management) system that restricts playback to registered DivX
Certified devices. If you try to play DivX VOD content not authorized for your device, the message
“Authorization Error” will be displayed and your content will not play.] Learn more at www.divx.
com/vod
DivX® is a registered trademark of DivX, Inc., and is used under licence
67
HT-BD1250A_ELS_0629-3.indd 67
2009-06-29
10:57:43
Listening to music
BUTTONS ON THE REMOTE CONTROL USED FOR AUDIO CD
(CD-DA)/ MP3 DISC PLAYBACK
1. PAUSE button : Pauses playback.
0
STOP
2. SKIP (
) button : During playback, moves to the next page in the
Music List or moves to the next track in the Playlist.
PLAY
3. PLAY button : Plays the currently selected track.
4. ▲▼ buttons : Selects a track(song) in the Music List or Playlist.
ME
NU
RE
TU
RN
ENTER
IN
EX
IT
FO
A
B
C
D
5. COLOUR buttons
• RED(A) button : Selects the Play Mode(Repeat) during playback.
• GREEN(B) button : Go to Playlist from Music List.
• YELLOW(C) button : Playlist play.
6. ◄ ► buttons
◄ : Plays the applicable track, according to the current position.
► : Moves to the menu.
7. ENTER button : Plays the selected track (song).
8. STOP button : Stops a track(song).
9. SKIP (
) button : If you pressed this button after three seconds of
playback, the current track will be replayed from the beginning. But, if
you pressed this button within three seconds after playback starts, the
previous track will be played.
Used to move to the previous page in the Music List or Playlist.
REPEAT AUDIO CD(CD-DA) & MP3
During playback, press the REPEAT or RED(A) button repeatedly to select the repeat mode you want.
When playing an Audio CD(CD-DA) :
When playing an MP3 disc :
•
•
•
•
•
Normal (Audio CD(CD-DA)/MP3): Tracks on a disc are played in the order in which they were
recorded on the disc.
Repeat Track (Audio CD(CD-DA)/MP3)
Repeat Folder (MP3)
Random (Audio CD(CD-DA)/MP3)
- When playing an Audio CD(CD-DA): The random option plays a disc’s tracks in random order.
- When playing an MP3 disc : The random option plays a folder’s file in random order.
Repeat All (Audio CD(CD-DA)): All tracks are repeated.
- To return to normal playback Press the REPEAT or RED(A) button repeatedly to return to normal playback.
68
HT-BD1250A_ELS_0629-3.indd 68
2009-06-29
10:57:43
2. To move to the Music List, press the STOP or RETURN
button.
The Music List screen is displayed on your TV.
►
TRACK 001
1/18
00:02:24 / 00:05:57
CD
A Play Mode
3. Press the ▲▼ buttons to select the track you want to
play, then press the ENTER button.
Video
Music
TRACK 001
00:04:08 ►
TRACK 002
00:03:41
Setup
TRACK 003
00:03:17
TRACK 004
00:03:36
TRACK 005
00:03:47
TRACK 006
00:03:50
◄
TRACK 007
B Playlist
00:03:54
● LISTENING TO MUSIC
1. Insert an Audio CD(CD-DA) or an MP3 Disc into the disc
tray.
• For an Audio CD, the first track will be played
automatically.
• For an MP3 disc, press the ▲▼◄► buttons to select
Music, then press the ENTER button.
(You can listen to mp3 files using a USB storage device)
ENG
AF
PLAYING AN AUDIO CD(CD-DA)/MP3
Page
❖ Audio CD(CD-DA)/MP3 Screen Elements
Displays the media type.
►
CD
TRACK 001
1/18
00:02:24 / 00:05:57
Current track (song)
Displays the number of the track currently being played.
Play Status Bar.
Displays the repeat status.
a Play Mode
Displays the current play index, total track number.
Current /Total Play Time.
Displays available COLOUR buttons.
69
HT-BD1250A_ELS_0629-3.indd 69
2009-06-29
10:57:44
Listening to music
AF
Playlist
You can create a playlist with up to 99 tracks.
1. Insert an Audio CD(CD-DA) or an MP3 Disc into the disc
tray.
• For an Audio CD, the first track will be played
automatically.
• For an MP3 disc, press the ▲▼◄► buttons to select
Music, then press the ENTER button.
(You can listen to mp3 files using a USB storage device)
TRACK 001
00:04:08
TRACK 002
00:03:41
TRACK 003
00:03:17 ►
TRACK 004
00:03:36
Setup
TRACK 005
00:03:47
TRACK 006
00:03:50
TRACK 007
00:03:54
TRACK 008
00:03:57
TRACK 009
00:03:59
Video
CD
CD
◄
2. To move to the Music List, press the GREEN(B) or
RETURN button.
The Music List screen is displayed.
Music
◄
B Playlist
Page
Original
3. Press the GREEN(B) button to go to the Playlist.
Playlist
Video
CD
CD
◄
4. Press the ▲▼ buttons to select a track, then press the
ENTER button to add it to the Playlist. Repeat this
procedure to add additional tracks.
Music
◄
TRACK 001
TRACK 002
Setup
TRACK 003
TRACK 004
TRACK 005
TRACK 006
TRACK 007
5. If there is an undesired track in the playlist, press the
►▲▼ button to select that track, and then press the
ENTER button.
• The selected track will be deleted.
B Music List
C Playlist play
Add
Play
Original
Playlist
TRACK 001
Video
TRACK 002
CD
CD
◄
Music
6. Press the YELLOW(C) button to play the selected tracks.
When the track is finished, the next track will automatically
play.
Setup
◄
TRACK 003
01.TRACK 001
TRACK 004
02.TRACK 002
TRACK 005
03.TRACK 003
TRACK 006
TRACK 007
B Music List
C Playlist play
Add
Play
7. To edit the Playlist, press the STOP or RETURN button.
8. To go to the Music List, press the RETURN button.
70
HT-BD1250A_ELS_0629-3.indd 70
2009-06-29
10:57:48
ENG
Viewing a picture
VIEWING A PICTURE
1. Insert a JPEG disc into the Disc Slot .
• The Menu screen is displayed.
..
◄
◄
Setup
• The Photo List is displayed.
08 JUL 2000
127 KB ►
17 JUL 2000
27 KB
10 JUL 2000
194 KB
3. Press the ▲▼ buttons to select a picture.
10 JUL 2000
20 JUL 2000
30 KB
08 JUL 2000
76 KB
18 JUL 2000
17 KB
• To see the next page, press the SKIP (
) button.
• To see the previous page, press the SKIP (
) button.
191 KB
D Slide Show
SLIDE SHOW/SPEED
To setup, follow steps 1 and 2 above.
3. Press the BLUE(D) button.
• The slide show starts.
►
● VIEWING A PICTURE
2. Press the ▲▼◄► buttons to select Photo, then press the
ENTER button.
Video
Music
CD
CD
03/07
CD
4. When the SlideShow starts, press the BLUE(D) button to
adjust the play speed.
• Each time you press the button, the play speed will
increase accordingly.
D Speed
➞
➞
- To stop the Slide Show Press the STOP or RETURN button.
ROTATE
To setup, follow steps 1 and 3 above.

03/07
CD
4. Press the ENTER button.
5. Use the RED(A) and GREEN(B) buttons to rotate the image in a
desired direction.
A r90°
B u90°
C Zoom
D Speed
Slide Show
71
HT-BD1250A_ELS_0629-3.indd 71
2009-06-29
10:57:56
Viewing a picture
ZOOM
To setup, follow steps 1 to 3 in "Viewing a Picture" on page 71.

4. Press the ENTER button.
03/07
CD
5. Press the YELLOW(C) button.
A r90°
C Zoom
B u90°
Slide Show
D Speed
6. Use the YELLOW(C) or ZOOM button to zoom the image in/out.
- To move the area Press the ▲▼◄ ► buttons to the area you want to enlarge.
x2
Move
C Zoom
- To stop the Zoom Press the YELLOW(C) button.
GO TO PHOTO LIST
To setup, follow steps 1 to 3 in "Viewing a Picture" on page 71.

4. Press the ENTER button.
03/07
CD
5. To go Photo List, press the RETURN or STOP button.
A r90°
C Zoom
B u90°
Slide Show
D Speed
Video
..
Music
CD
CD
◄
Setup
◄
08 JUL 2000
127 KB
17 JUL 2000
27 KB ►
10 JUL 2000
194 KB
10 JUL 2000
20 JUL 2000
30 KB
08 JUL 2000
76 KB
18 JUL 2000
17 KB
191 KB
D Slide Show
72
HT-BD1250A_ELS_0629-3.indd 72
2009-06-29
10:58:01
ENG
Sound mode
SFE(SOUND FIELD EFFECT) MODE
You can set the SFE best suited for the type of music you are listening to.
● SOUND MODE
Press the SFE MODE button.
• SFE MODE appears on the display panel.
• Each time the button is pressed, the selection changes as
follows
HALL1 ➞ HALL2 ➞ JAZZ ➞ CHURCH ➞ ROCK ➞ SFE OFF.
•
•
•
•
•
HALL : Provides a clear vocal as if listening in a concert hall.
JAZZ : Recommended setting for Jazz.
ROCK : Recommended setting for Rock.
CHURCH : Gives the feel of being in a grand church.
SFE OFF : Select this for normal listening.
Dolby Pro Logic II Mode
You can select the desired Dolby Pro Logic II audio mode.
Press the
PL II MODE button.
• Each time the button is pressed, the mode changes as
follows.
MUSIC ➞ MOVIE ➞ PRO LOG ➞ MATRIX ➞
STEREO.
• MUSIC : When listening to music, you can experience sound effects as if you are listening to the
actual performance.
• MOVIE : Adds realism to the movie soundtrack.
• PRO LOG : You will experience a realistic multi-channel effect, as if using six speakers, while using just
the front left and right speakers.
• MATRIX : You will hear multi channel surround sound.
• STEREO : Select this to listen to sound from the front left and right speakers and the subwoofer only.
M
When selecting Dolby Pro Logic II mode, connect your external device to the AUDIO
INPUT jacks (L and R) on the player. If you connect to only one of the inputs (L or R), you
cannot listen to surround sound.
 This mode is available only with 2 channel audio.
73
HT-BD1250A_ELS_0629-3.indd 73
2009-06-29
10:58:05
Sound mode
Dolby Pro Logic II Effect
This function works only in Dolby Pro Logic ll MUSIC mode.
1. Press the
mode.
PL II MODE button to select MUSIC
PL II EFFECT button.
2. Press the
• Each time the button is pressed, the mode changes as
follows.
3. Press the ◄ ► buttons to select the desired effect setting.
• PANORAMA : This mode extends the front stereo
image to include the surround speakers for an exciting
"wraparound" effect with side wall imaging.
You can select either 0 or 1.
• C- WIDTH : Sound is output to the centre speaker only.
The front left and right speakers produce phantom
sound.
You can select between 0 and 7.
• DIMENS : Incrementally adjusts the sound field (DSP) from the front or rear.
You can select between 0 and 6.
74
HT-BD1250A_ELS_0629-3.indd 74
2009-06-29
10:58:06
ENG
Using the USB function
PLAYING MEDIA FILES USING THE USB HOST FEATURE
You can enjoy media files such as pictures, movies and music saved on an MP3 player, USB memory stick or digital
camera in high quality video with 5.1 channel Home Cinema sound by connecting the storage device to the USB
port of the Home Cinema.
● USING THE USB FUNCTION
1. Connect the USB device to the USB port on
the side of the unit.
2. USB Connected appears on the display
screen and then disappears.
3. USB icon is displayed on the Setup Menu.
Safe USB Removal
To prevent damage to the data stored in the USB device, perform safe removal before disconnecting
the USB cable.
• Press the YELLOW(C) button. The display will show Now. You can remove USB safely.
• Remove the USB cable.
M
To listen to your music files with 5.1 channel home cinema sound, you must set the Dolby
Pro Logic II mode to Matrix. (See page 73)
Skip Forward/Back
During playback, press the #, $ button.
• When there is more than one file and you press the $ button,
the next file is selected.
• When there is more than one file and you press the # button,
the previous file is selected.
75
HT-BD1250A_ELS_0629-3.indd 75
2009-06-29
10:58:06
Using the USB function
USB Host Specification
USB Host Specification
Non-compliance
Operational Limitations
• Supports USB 1.1 or USB 2.0 compliant devices.
• Supports devices connected using the USB A type cable.
• Supports UMS (USB Mass Storage Device) V1.0 compliant devices.
• Supports the device of which the connected drive is formatted in the FAT(FAT,
FAT16, FAT32) file system.
• Does not support a device that requires installing a separate driver on the PC (Windows).
• Does not support connection to a USB hub.
• A USB device that is connected using the USB extension cable may not be recognized.
• A USB device requiring a separate power source needs to be connected to the
player with the separate power connection.
• If the connected device has multiple drives (or partitions) installed, only one drive
(or partition) can be connected.
• A device supporting USB 1.1 alone may cause a difference in the picture quality,
depending on the device.
USB Devices that can be used with the Home Cinema
1. USB Storage Device
2. MP3 Player
3. Digital Camera
4. Removable HDD
• Removable HDDs equipped with less than 160 Gbytes are supported. Removable HDDs
equipped with 160Gbytes or more may not be recognized, depending on the device.
• If the connected device does not work due to insufficient power supply, you can use a separate
power cable to supply power so that it can work properly. The connector of the USB cable may
differ, depending on the manufacturer of the USB device.
5. USB card Reader: One slot USB card reader and Multi slot USB card reader.
• The USB card reader may not be supported, depending on the manufacturer.
• If you install multiple memory devices into a multi card reader, you may experience problems.
Supported file Formats
Format
File name
File
extension
Bit rate
Version
Pixel
Sampling
Frequency
Still Picture
JPG
JPG .JPEG
–
–
640x480
–
Music
MP3
.MP3
80~384kbps
–
–
44.1kHz
• CBI (Control/Bulk/Interrupt) is not supported.
• Digital Cameras that use PTP protocol or require additional program installation when connected to a
PC are not supported.
• A device using NTFS file system is not supported. (Only FAT 16/32 (File Allocation Table 16/32) file
system is supported.)
• Does not operate with Janus enabled MTP (Media Transfer Protocol) devices.
76
HT-BD1250A_ELS_0629-3.indd 76
2009-06-29
10:58:06
ENG
Radio
LISTENING TO RADIO
1. Press the TUNER button to select the FM band.
● RADIO
2. Tune in to the desired station.
• Automatic Tuning 1 : When the SKIP (
) button is
pressed, a preset broadcast station is selected.
• Automatic Tuning 2 : Press and hold the
TUNING/CH (
) button to automatically search for active
broadcasting stations.
• Manual Tuning : Briefly press the TUNING/CH (
)
button to increase or decrease the frequency incrementally.
Main Unit
1. Press the FUNCTION button to select the FM band.
2. Select a broadcast station.
• Automatic Tuning 1 : Press the STOP ( ) button to select PRESET and then press the
) button to select the preset station.
SKIP (
• Automatic Tuning 2 : Press the STOP ( ) button to select MANUAL and then press and hold
) button to automatically search the band.
the SKIP (
• Manual Tuning : Press the STOP ( ) button to select MANUAL and then briefly press the
SKIP (
) button to tune in to a lower or higher frequency.
Mono/Stereo
Press the MO/ST button to listen in Mono/Stereo.
• Each time the button is pressed, the sound switches
between STEREO and MONO.
• In a poor reception area, select MONO for a clear,
interference-free broadcast.
PRESETTING STATIONS
Example : Presetting FM 89.10 in the memory
1. Press the TUNER button to select the FM band.
2. Press the TUNING/CH (
) button to select <89.10>.
3. Press the TUNER MEMORY button.
• NUMBER flashes in the display.
4. Press the SKIP (
) button to select preset number.
• You can select between 1 and 15 presets.
5. Press the TUNER MEMORY button again.
• Press the TUNER MEMORY button before NUMBER disappears from the display.
• NUMBER disappears from the display and the station is stored in memory.
6. To preset another station, repeat steps 2 to 5.
• To tune in to a preset station, press the SKIP (
) button on the remote control to select a channel.
77
HT-BD1250A_ELS_0629-3.indd 77
2009-06-29
10:58:07
Radio
ABOUT RDS BROADCASTING
Using the RDS (Radio Data System) to receive FM stations
RDS allows FM stations to send an additional signal along with their regular program
signals. For example, the stations send their station names, as well as information
about what type of program they broadcast, such as sports or music, etc.
When tuned to an FM station which provides the RDS service, the RDS
indicator lights up on the display.
Description on RDS function
• PTY (Program Type) : Displays the type of programme currently being broadcast
• PS NAME (Program Service Name) : Indicates the name of broadcasting station and is composed of 8
characters.
• RT (Radio Text) : Decodes the text broadcast by a station (if any) and is composed of maximum 64
characters.
• CT (Clock Time) : Decodes the real time clock from the FM frequency.Some stations may not transmit PTY, RT
or CT information therefore this may not be displayed in all cases.
• TA (Traffic Announcement) : TA ON/OFF it shows that the traffic announcement is in progress.
M
RDS may not operate correctly if the station tuned is not transmitting RDS signal properly
or if the signal strength is weak.
To show the RDS signals
You can see the RDS signals the station sends on the display.
Press the RDS DISPLAY while listening to an FM station.
 Each time you press the button, the display change to show
you the following information : PS NAME RT CT Frequency
• PS (Program Service) : While searching, <PS> appears and then the station names will be displayed.
<NO PS> appears if no signal is sent.
• RT(RadioText) : while searching, <RT> appears and then text messages the station sends will be
displayed. <NO RT> appears if no signal is sent.
• Frequency : station frequency (non-RDS service)
About characters shown in the display
When the display shows PS,or RT signals,the following characters are used.
• The display window cannot differentiate upper case and lower case letters and always uses upper case letters.
• The display window cannot show accented letters, <A,> for instance, may stands for accented <A’s> like
<À, Â, Ä, Á, Å and Ã.>
78
HT-BD1250A_ELS_0629-3.indd 78
2009-06-29
10:58:11
One of the advantages of the RDS service is that you can locate a particular kind of program from the preset channels by
specifying the PTY codes
ENG
PTY (Program Type) indication and PTY-SEARCH function
To search for a program using the PTY codes
Before you start, remember...
● RADIO
• The PTY Search is only applicable to preset stations.
• To stop searching any time during the process, press PTY SEARCH while searching.
• There is a time limit in doing the following steps. If the setting is cancelled before you finish, start from step 1 again.
• When pressing the buttons on the primary remote control, make sure that you have selected the FM
station using the primary remote control.
1. Press the PTY SEARCH while listening to an FM station.
2. Press the PTY- or PTY+ until the PTY code you want appears
on the display.
• The display gives you the PTY codes described to the right.
3. Press the PTY SEARCH again, while the PTY code selected
in the previous step is still on the display.
• The centre unit searches 15 preset FM stations, stops when it
finds the one you have selected, and tunes in that station.
Display
Program Type
Display
Program Type
NEWS
News including an announced opinion
and report
LIGHT M
Light classical music- Classical music
and instrumental and chorus music
CLASSICS
Heavy classical music-Orchestra music,
symphony, chamber music and opera
AFFAIRS
INFO
SPORT
EDUCATE
DRAMA
CULTURE
SCIENCE
Several matters including a current
incident, documentary, discussion and
analysis.
Information including weights and
measures, returns and forecast, matters
interesting the customer, medical information, etc.
OTHER M
Other music - Jazz, R&B country
music
WEATHER
Weather
Sports
CHILDREN
FINANCE
Finance
Children’s programmes
Education
SOCIAL A
Social affairs
Drama-Radio serial, etc.
RELIGION
Religion
Culture-National or local culture
including the religious problem, social
science, language, cinema, etc.
PHONE IN
Phone in
Natural science and technology
TRAVEL
Travel
LEISURE
Leisure
JAZZ
Jazz Music
VARIED
Others-Speech, amusing program
(quiz, game), interview, comedy and
satirical play, etc.
POP M
Pop music
OLDIES
Oldies Music
ROCK M
Rock music
FOLK M
Folk Music
M.O.R.M
Current contemporary music considered
to be “easy listening.”
COUNTRY
Country Music
NATION M
National Music
DOCUMENT
Documentary
79
HT-BD1250A_ELS_0629-3.indd 79
2009-06-29
10:58:11
Using an iPod
You can enjoy playback of your iPod using the supplied remote control.
LISTENING TO MUSIC
You can play music files stored in the iPod player by connecting it to the
Blu-ray Home Cinema.
1. Connect the iPod dock connector to the iPod jack on the Blu-ray
Home Cinema.
2. Place the iPod in the Dock.
• Your iPod is automatically turned on.
• “iPod Connected” message appears on the TV screen.
3. Press the MENU button on the remote control.
4. Press the S,T,W, X buttons on the remote control to select iPod
mode.
5. Press the S,T,W, X buttons on the remote control to select Music and
press the ENTER button.
• The Music categories appear.
6. Press the S,T buttons desired category and press the ENTER button.
• The music list appears on your TV.
7. Press the S,T buttons to select the music file to play and
press the ENTER button.
• The music will start with a new screen which shows the
song title, time, artist, and progress bar.
Video
Music
►
◄
TRACK 001
TRACK 002
Setup
TRACK 003
►
TRACK 004
8. You can use the remote control or main unit to control
simple playback functions such as PLAY, PAUSE, STOP,
/
,
/
and REPEAT.
TRACK 005
TRACK 006
TRACK 007
B Playlist
Page
• Press the RED(A) button to select a desired play mode.
❖ iPod Playback Screen Elements
Displays the media type.
►
My love
6/186
00:00:11 / 00:03:34
Current track (song)
Displays the number of the track currently being played.
Play Status Bar.
Displays the repeat status.
Displays the current play index, total track number.
A Play Mode
Current /Total Play Time.
Displays available COLOUR buttons.
80
HT-BD1250A_ELS_0629-3.indd 80
2009-06-29
10:58:12
ENG
To move to the Music List and select a track:
1. Press the MENU or STOP button.
• It stops playing and returns to the music list.
2. Press the S,T buttons to select the file you want to play and press the ENTER button.
• Press the RETURN or W button to return to the parent menu.
iPod Music categories
Now Playing : Plays a recently played file or moves to the playback screen of the current file.
Artists : To play by artist.
Songs : To play in numeric or alphabetical order
Playlists : To play by Playlist.
Albums : To play by album.
Genres : To play by genre.
Composer : To play by composer.
M
● USING AN iPod
File information including the artist name, album name, music title and genre will be displayed according
to the ID3 Tag information on the appropriate music file.
See page 27 for compatible iPods.
Compatibility depends on the software version of your iPod.
 The category list may differ, depending on the iPod model.
 What is an ID3 Tag?
This is what is attached to an MP3 to carry information relevant to the file such as
the title, artist, album, year, genre and a comment field.
 When the i-Pod is put into the i-Pod Dock, the Shuffle function does not work.
81
HT-BD1250A_ELS_0629-3.indd 81
2009-06-29
12:36:54
Using an iPod
WATCHING A MOVIE
You can play video files stored in the iPod player by connecting it to the Blu-ray Home Cinema.
1. Connect the iPod dock connector to the iPod jack on the Blu-ray
Home Cinema.
2. In the iPod screen, move to Videos > Settings and set the TV Out
option to On.
3. Place the iPod in the Dock.
• “iPod Connected” message appears on the TV screen.
4. Press the S,T,W, X buttons on the remote control to select iPod mode.
5. Press the S,T,W, X buttons on the remote control to select Video and
press the ENTER button.
6. Press the S,T buttons on the remote control to select Movies and press
the ENTER button.
• The video list appears on your TV.
7. Press the S,T buttons to select the video file to play and press the
ENTER button.
• Video file of the iPod player will be played on the TV screen.
8. You can use the remote control or main unit to control simple playback
/
and
/
.
functions such as PLAY, PAUSE, STOP,
• If you press the PREV button within 2 seconds after the playback,
the player will play previous file.
If you press the PREV button 2 seconds or later after the playback, the player will move to the
start screen of the current file.
• Press the NEXT button to play next file.
To move to the Video List and select a file:
1. Press the MENU or STOP button.
• It stops playing and returns to the video list.
2. Press the S,T buttons to select the file you want to play
and press the ENTER button.
• Press the RETURN or W button to return to the parent
menu.
M




CD
Nodisc
►
Video
►
◄
MOVIE 001
Music
MOVIE 002
MOVIE 003
Setup
MOVIE 004
►
MOVIE 005
MOVIE 006
MOVIE 007
B Playlist
Page
See page 26 for compatible iPods.
Compatibility depends on the software version of your iPod.
You must have the VIDEO output connected to your TV to view iPod video (See page 25).
If you want to iPod video via VIDEO output, change HDMI CEC off fi rst in case of HDMI CEC is on.
No other screen than the playback one will appear on the TV screen. Check other screens on
the iPod player.
If connected iPod does not support video playback, “Cannot play video files saved on this iPod”
message appears when you select the Video menu.
82
HT-BD1250A_ELS_0629-3.indd 82
2009-06-29
10:58:16
ENG
CONNECTING TO A PC AND PLAYING MP3, JPEG OR DIVX CONTENT
The shared folder setup method may be different, depending on the PC operating system.
You can connect the Blu-ray Home Cinema to a PC and play mp3, jpeg or DivX file content in a shared folder.
(Refer to pages 30~31 for the connection)
1. Use a router and LAN cable or wireless LAN adapter to
connect between the PC and Blu-ray Home Cinema.
Nodisc
◄
● PC STREAMING FUNCTION
2. Create a shared folder in the PC and store desired mp3,
jpeg or DivX files there.
- For more detailed information about setting a shared
folder, visit the Samsung website and download the
"Setting the shared folder" manual from the Download
centre.
Video
DISC
Music
Setup
a Network Search
3. Press the MENU button.
4. Press the RED(A) button.
You will see a window where you can select a network search
type.
Nodisc
◄
Network Search Type
Video
DISC
PleaseMusic
select natwork search type
5. Use the ◄ ► button to select a network search type.
A list of shared servers will appear.
Auto
Manual
Setup
s Select
² Return
• Auto : Automatically searches for an available PC.
• Manual : You must enter the IP address, folder name,
windows user name and password before you can find a
desired PC.
6. To search a shared folder
There are 2 methods to access shared folders on a PC. (If you
search a folder in Auto mode. it must contain
less than 12 characters. You must select manual to search for
folders with 12 or more characters.)
• Auto Mode
1. Press the ▲▼ button to select a desired PC and press
the ENTER button.
(When first connected, you must enter the window user
name and password to display the shared folder.)
a Network Search
Music
Nodisc
◄
Setup
DISC
B
C
a Network Search
Music User
DISC
No disc
_
►
B
C
2. Enter the PC’s user name in the window.
Setup
A B C D
Q R S T
g h i j
w x y z
+ = . ~
a Back Space
E F G
U V W
k l m
1 2 3
! @ #
b Space
« Number
H
X
n
4
$
I J K
Y Z a
o p q
5 6 7
% ^ &
Clear
L
b
r
8
(
s Select
M N O
c d e
s t u
9 0 −
) / ?
d Save
P
f
v
_
|
² Return
a Network Search
3. Enter the PC’s password in the window.
The shared folder will be displayed.
Password
DISC
No disc
►
B
C
_
A B C D
Q R S T
g h i j
w x y z
+ = . ~
a Back Space
E F G
U V W
k l m
1 2 3
! @ #
b Space
« Number
H
X
n
4
$
I J K
Y Z a
o p q
5 6 7
% ^ &
Clear
s Select
L
b
r
8
(
M N O
c d e
s t u
9 0 −
) / ?
d Save
P
f
v
_
|
² Return
a Network Search
83
HT-BD1250A_ELS_0629-3.indd 83
2009-06-29
10:58:19
pc streaming function
4. Press the ▲▼ button to select a desired folder.
Select Folder
DISC
No disc
ADMIN$
B
►
CS
DS
FS
GS
print$
SharedD
C
s Save
² Return
a Network Search
• Manual Mode
1. Enter in the IP address of the PC that has the shared
folders.
Manual Search
DISC
No disc
►
B
1
2
3
4
3
4
Please input IP address
C
0
0
.
« Number
0
.
0
.
s Select
² Return
a Network Search
2. Type in the name of the shared folder in the window then
press the BLUE (D) button to Save.
No disc
Manual Search
DISC
1
2
Please input shared folder name
B
►
C
_
A B C D
Q R S T
g h i j
w x y z
+ = . ~
a Back Space
E F G
U V W
k l m
1 2 3
! @ #
b Space
« Number
H
X
n
4
$
I J K
Y Z a
o p q
5 6 7
% ^ &
Clear
L
b
r
8
(
s Select
M N O
c d e
s t u
9 0 −
) / ?
d Save
P
f
v
_
|
² Return
a Network Search
3. Type in the PC’s password then press the BLUE (D) button
to Save.
No disc
Manual Search
DISC
1
2
3
4
Please input password
►
B
C
_
A B C D
Q R S T
g h i j
w x y z
+ = . ~
a Back Space
E F G
U V W
k l m
1 2 3
! @ #
b Space
« Number
H
X
n
4
$
I J K
Y Z a
o p q
5 6 7
% ^ &
Clear
L
b
r
8
(
s Select
M N O
c d e
s t u
9 0 −
) / ?
d Save
P
f
v
_
|
² Return
a Network Search
7. Press the ► button, then press the ▲▼ button to select Video, Music or Photo.
(For playing a Video, Music or Photo, refer to pages 68~70)
M
The PC name should be in English, excluding characters such as symbols.
 You can search up to 4 PCs connected to the network to play content over.
 You may experience connection problems depending on your PC environment.
- If you encounter a problem with "Auto Mode", please try to "Manual Mode".
 If a conflict occurs between Windows XP simple file sharing and the PC streaming function of the Blu-ray Home
Cinema, please disable the simple file sharing.
- For more detailed information, visit the Samsung website and download the "Setting the shared folder"
manual from the Download centre.
 If you experience PC streaming function problems when using a shared folder on the desktop of windows vista,
visit the operating system's technical support site to change a setting or change the directory.
84
HT-BD1250A_ELS_0629-3.indd 84
2009-06-29
10:58:24
ENG
Convenient function
SLEEP TIMER FUNCTION
You can set the time that the Blu-ray Home Cinema will shut itself off.
Press the SLEEP button.
• Each time the button is pressed, the preset time changes as follows :
10 ➞ 20 ➞ 30 ➞ 60 ➞ 90 ➞ 120 ➞ 150 ➞ OFF.
To confirm the sleep timer setting, press the SLEEP button.
• The remaining time before the Blu-ray Home Cinema will shut itself off
is displayed.
• Pressing the button again changes the sleep time from what you have
set earlier.
To cancel the sleep timer, press the SLEEP button until OFF appears on the display.
ADJUSTING DISPLAY BRIGHTNESS
You can adjust the brightness of the display on the main unit so it won't interfere with your movie viewing.
Press the DIMMER button.
• Each time the button is pressed, the brightness of front display will
be adjusted.
MUTE FUNCTION
This is useful when answering a doorbell or telephone call.
Press the MUTE button.
• MUTE appears in the display.
• To restore the sound, press the MUTE button again.
85
HT-BD1250A_ELS_0629-3.indd 85
2009-06-29
10:58:26
Troubleshooting
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed
below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest
authorized dealer or Samsung Electronics Service Centre.
SYMPTOM
Check/Remedy
I cannot eject the disc.
• Is the power cord plugged securely into the outlet?
• Turn off the power and then turn it back on.
Playback does not start.
• Check the region number of the BD/DVD.
BD/DVD discs purchased from abroad may not be playable.
• CD-ROMs and DVD-ROMs cannot be played on this Blu-ray Home Cinema.
• Make sure that the rating level is correct.
Playback does not start
immediately when the
Play/Pause button is pressed.
• Are you using a deformed disc or a disc with scratches on the surface?
• Wipe the disc clean.
Sound is not produced.
• No sound is heard during fast playback, slow playback, and step motion playback.
• Are the speakers connected properly? Is the speaker setup correctly customized?
• Is the disc severely damaged?
Sound can be heard only from a few
speakers and not all 6.
• On certain BD/DVD discs, sound is output from the front speakers only.
• Check if the speakers are connected properly.
• Adjust the volume.
• When listening to a CD, radio or TV, sound is output to the front speakers
only. Select "PRO LOGIC II" by pressing PL II (Dolby Pro Logic II) on the
remote control to use all six speakers.
Dolby Digital 5.1 CH Surround Sound is
not produced.
• Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1 CH Surround
Sound is produced only if the disc is recorded with 5.1 channel sound.
• Is the audio language correctly set to Dolby Digital 5.1-CH in the
information display?
The remote control does not work.
• Is the remote control being operated within its operation range of angle and distance?
• Are the batteries drained?
• Have you selected the mode(TV/BD) functions of the remote control (TV or BD) correctly?
• Disc is rotating but no
picture is produced.
• Picture quality is poor and
picture is shaking.
• Is the TV power on?
• Are the video cables connected properly?
• Is the disc dirty or damaged?
• A poorly manufactured disc may not be playable.
Audio language and subtitles do not work.
• Audio language and subtitles will not work if the disc does not contain them.
Menu screen does not appear even
when the menu function is selected.
• Are you using a disc that does not contain menus?
Aspect ratio cannot be changed.
• You can play 16:9 BD/DVDs in 16:9 Wide mode, 4:3 Letter Box mode, or
4:3 Pan - Scan mode, but 4:3 BD/DVDs can be seen in 4:3 ratio only.
Refer to the Blu-ray Disc jacket and then select the appropriate function.
86
HT-BD1250A_ELS_0629-3.indd 86
2009-06-29
10:58:27
ENG
SYMPTOM
Check/Remedy
• Turn off the power and hold the STOP ( ) button on the main unit for
longer than 5 seconds.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
The password for rating level has been
forgotten.
• While (NO DISC) message appears on the display of main unit, hold the
main unit's STOP ( ) button for longer than 5 seconds. INITIAL
appears on the display and all settings will return to the default values.
• Press the POWER button.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
Can't receive radio broadcasts.
• Is the antenna connected properly?
• If the antenna's input signal is weak, install an external FM antenna in an
area with good reception.
While listening to TV audio through the
Blu-ray Home Cinema, no sound is
heard.
• If the EJECT button is pressed while listening to TV audio using the
D.IN or AUX functions, the BD/DVD functions are turned on and this mutes
the TV audio.
The
• The features or action cannot be completed at this time because:
1. The BD/DVD’s software restricts it.
2. The BD/DVD’s software doesn’t support the feature (e.g., angles)
3. The feature is not available at the moment.
4. You’ve requested a title or chapter number or search time that is out of range.
icon appears on screen.
● TROUBLESHOOTING
• The main unit is not working.
(Example: The power goes out or a
strange noise is heard.)
• The Blu-ray Home Cinema is not working
normally.
If the HDMI output is set to a resolution your
TV cannot support (for example, 1080p), you
may not see a picture on your TV.
• Press the STOP ( ) button (in front panel) for more than 5 seconds with
no disc inside. All settings will revert to the factory settings.
No HDMI output.
• Check the connection between the TV and the HDMI jack of the Blu-ray
Home Cinema.
• Check if your TV supports 576p(480p)/720p/1080i/1080p HDMI input
resolution.
Abnormal HDMI output screen.
• If random noise appears on the screen, it means that TV does not support
HDCP (High-bandwidth Digital Content Protection).
Cannot search for other access points
using USB wireless
• Check the Proxy is Off(Setup -> Network -> Proxy)
87
HT-BD1250A_ELS_0629-3.indd 87
2009-06-29
10:58:27
Appendix
CAUTIONS ON HANDLING AND STORING DISCS
Small scratches on the disc may reduce sound and picture quality or cause skipping.
Be especially careful not to scratch discs when handling them.
Handling discs
Do not touch the playback side of the disc.
Hold the disc by the edges so that fingerprints will not get on the surface.
Do not stick paper or tape on the disc.
Disc Storage
Do not keep in direct sunlight
M
Keep in a cool
ventilated area
Keep in a clean Protection jacket.
Store vertically.
Do not allow the discs to become contaminated with dirt.
 Do not load cracked or scratched discs.
Handling and Storing Discs
If you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft
cloth.
• When cleaning, wipe gently from the inside to the outside of the disc
M
Condensation may form if warm air comes into contact with cold parts inside the player.
When condensation forms inside the player, the player may not operate correctly. If this
occurs, remove the disc and let the player stand for 1 or 2 hours with the power on.
88
HT-BD1250A_ELS_0629-3.indd 88
2009-06-29
10:58:27
General
ENG
SPECIFICATIONS
85 W
Weight
4.4 Kg
Dimensions
440(W) x 345(D) x 63(H) mm
Operating Temperature Range
+5°C~+35°C
Operating Humidity Range
10 % to 75 %
BD (Blu-ray Disc)
Reading Speed : 4.917m/sec
● APPENDIX
Power Consumption
Reading Speed : 3.49 ~ 4.06 m/sec.
DVD (Digital Versatile Disc)
Approx. Play Time (Single Sided, Single Layer Disc) : 135 min.
Disc
Reading Speed : 4.8 ~ 5.6 m/sec.
CD : 12 cm (COMPACT DISC)
Maximum Play Time : 74 min.
Reading Speed : 4.8 ~ 5.6 m/sec.
CD : 8 cm (COMPACT DISC)
Maximum Play Time : 20 min.
1 channel : 1.0 Vp-p (75 Ω load)
Composite Video
Blu-ray Disc : 576i(480i)
DVD : 576i(480i)
Y : 1.0 Vp-p (75 Ω load)
Video Output
Pr : 0.70 Vp-p (75 Ω load)
Component Video
Pb : 0.70 Vp-p (75 Ω load)
Blu-ray Disc : 1080i, 720p, 576p(480p), 576i(480i) DVD : 576p(480p), 480i
1080p, 1080i, 720p, 576p(480p)
Video/Audio
HDMI
PCM multichannel audio, Bitstream audio, PCM audio
Front speaker output
165W x 2(3Ω)
Centre speaker output
170W(3Ω)
Surround speaker output
165W x 2(3Ω)
Subwoofer speaker output
170W(3Ω)
Amplifier
Frequency response
Analogue input
20Hz~20kHz (±3dB)
Digital input
20Hz~44kHz (±3dB)
S/N Ratio
70dB
Channel separation
60dB
Input sensitivity
(AUX)500mV
89
HT-BD1250A_ELS_0629-3.indd 89
2009-06-29
10:58:27
Appendix
HT-BD1250
Speaker system
Speaker
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
5.1ch speaker system
Front
3Ω
140Hz~50kHz
87dB/W/M
165W
330W
Surround
3Ω
140Hz~20kHz
87dB/W/M
165W
330W
Centre
3Ω
140Hz~20kHz
87dB/W/M
170W
340W
Dimensions (W x H x D)
Front/Surround : 100.5 x 210 x 99 mm
Centre : 300 x 59 x 50 mm
Subwoofer : 201 x 403 x 410 mm
Weights
Front/Surround : 0.70 Kg, Centre : 0.33 Kg
Subwoofer : 5.39 Kg
Subwoofer
3Ω
40Hz~160Hz
90dB/W/M
170W
340W
HT-BD1252
Speaker system
Speaker
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions (W x H x D)
Weights
5.1ch speaker system
Surround
Centre
Front
3Ω
3Ω
3Ω
140Hz~20kHz 140Hz~20kHz 140Hz~20kHz
87dB/W/M
87dB/W/M
87dB/W/M
165W
170W
165W
330W
340W
330W
Front : 260 x 1120x 260 mm
Surround : 100 x 151 x 89 mm
Centre : 300 x 59 x 50 mm
Subwoofer : 201 x 403 x 410 mm
Subwoofer
3Ω
40Hz~160Hz
88dB/W/M
170W
340W
Front : 2.88 Kg, Surround : 0.42 Kg
Centre : 0.32 Kg, Subwoofer : 5.39 Kg
HT-BD1255
Speaker system
Speaker
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions (W x H x D)
Weights
5.1ch speaker system
Surround
Centre
Front
3Ω
3Ω
3Ω
140Hz~50kHz 140Hz~20kHz 140Hz~20kHz
87dB/W/M
87dB/W/M
87dB/W/M
165W
170W
165W
330W
340W
330W
Front/Surround : 260 x 1202 x 260 mm
Centre : 300 x 59 x 50 mm
Subwoofer : 201 x 403 x 410 mm
Subwoofer
3Ω
40Hz~160Hz
88dB/W/M
170W
340W
Front/Surround : 2.88 Kg,
Centre : 0.34 Kg, Subwoofer : 5.39 Kg
*: Nominal specification
- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.
90
HT-BD1250A_ELS_0629-3.indd 90
2009-06-29
10:58:27
❖
❖
❖
❖
This product uses parts of the software from the Independent JPEG Group.
This product uses parts of the software owned by the Freetype Project (www.freetype.org).
This product uses some software programs which are distributed under the GPL/LGPL license.
This Product uses some software programs which are distributed under the OpenSSL license.
Accordingly, the following GPL and LGPL software source codes that have been used in this product can be
provided after asking to [email protected]
GPL software: Linu Kernel, Busybox, Binutilis
LGPL software: uClibc, directfb
The GNU General Public License (GPL)
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the
GNU General Public License is intended to guarantee your freedom to share and change free software--to make
sure the software is free for all its users. This General Public License applies to most of the Free Software
Foundation’s software and to any other program whose authors commit to using it. (Some other Free Software
Foundation software is covered by the GNU Library General Public License instead.) You can apply it to your
programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed
to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish),
that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new
free programs; and that you know you can do these things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to
surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the
software, or if you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all
the rights that you have. You must make sure that they, too, receive or can get the source code. And you must
show them these terms so they know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal
permission to copy, distribute and/or modify the software.
Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no
warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to
know that what they have is not the original, so that any problems introduced by others will not reflect on the original
authors’ reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that
redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To
prevent this, we have made it clear that any patent must be licensed for everyone’s free use or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other work which contains a notice placed by the copyright holder saying
it may be distributed under the terms of this General Public License. The “Program”, below, refers to any such
program or work, and a “work based on the Program” means either the Program or any derivative work under
copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications
and/or translated into another language. (Hereinafter, translation is included without limitation in the term
“modification”.) Each licensee is addressed as “you”.
Activities other than copying, distribution and modification are not covered by this License; they are outside its
scope. The act of running the Program is not restricted, and the output from the Program is covered only if its
contents constitute a work based on the Program (independent of having been made by running the Program).
Whether that is true depends on what the Program does.
HT-BD1250A_ELS_0629-3.indd 91
2009-06-29
10:58:27
Activities other than copying, distribution and modification are not covered by this License; they are outside its
scope. The act of running the Program is not restricted, and the output from the Program is covered only if its
contents constitute a work based on the Program (independent of having been made by running the Program).
Whether that is true depends on what the Program does.
1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any
medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright
notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of
any warranty; and give any other recipients of the Program a copy of this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty
protection in exchange for a fee.
2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on
the Program, and copy and distribute such modifications or work under the terms of Section 1 above,
provided that you also meet all of these conditions:
a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of
any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the
Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this
License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started
running for such interactive use in the most ordinary way, to print or display an announcement including an
appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty)
and that users may redistribute the program under these conditions, and telling the user how to view a copy of
this License. (Exception: if the Program itself is interactive but does not normally print such an announcement,
your work based on the Program is not required to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from
the Program, and can be reasonably considered independent and separate works in themselves, then this License,
and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute
the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be
on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each
and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather,
the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on
the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this
License.
3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or
executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable source code, which must be distributed
under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more
than your cost of physically performing source distribution, a complete machine-readable copy of the
corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium
customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This
alternative is allowed only for noncommercial distribution and only if you received the program in object code or
executable form with such an offer, in accord with Subsection b above.)
The source code for a work means the preferred form of the work for making modifications to it. For an executable
work, complete source code means all the source code for all modules it contains, plus any associated interface
definition files, plus the scripts used to control compilation and installation of the executable. However, as a special
exception, the source code distributed need not include anything that is normally distributed (in either source or
binary form) with the major components (compiler, kernel, and so on) of the operating system on which the
executable runs, unless that component itself accompanies the executable.
HT-BD1250A_ELS_0629-3.indd 92
2009-06-29
10:58:27
If distribution of executable or object code is made by offering access to copy from a designated place, then offering
equivalent access to copy the source code from the same place counts as distribution of the source code, even
though third parties are not compelled to copy the source along with the object code.
4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this
License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will
automatically terminate your rights under this License. However, parties who have received copies, or
rights, from you under this License will not have their licenses terminated so long as such parties remain in
full compliance.
5. You are not required to accept this License, since you have not signed it. However, nothing else grants
you permission to modify or distribute the Program or its derivative works. These actions are prohibited by
law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work
based on the Program), you indicate your acceptance of this License to do so, and all its terms and
conditions for copying, distributing or modifying the Program or works based on it.
6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically
receives a license from the original licensor to copy, distribute or modify the Program subject to these
terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights
granted herein. You are not responsible for enforcing compliance by third parties to this License.
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not
limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise)
that contradict the conditions of this License, they do not excuse you from the conditions of this License. If
you cannot distribute so as to satisfy simultaneously your obligations under this License and any other
pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a
patent license would not permit royalty-free redistribution of the Program by all those who receive copies
directly or indirectly through you, then the only way you could satisfy both it and this License would be to
refrain entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the
section is intended to apply and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest
validity of any such claims; this section has the sole purpose of protecting the integrity of the free software
distribution system, which is implemented by public license practices. Many people have made generous
contributions to the wide range of software distributed through that system in reliance on consistent application of
that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other
system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by
copyrighted interfaces, the original copyright holder who places the Program under this License may add
an explicit geographical distribution limitation excluding those countries, so that distribution is permitted
only in or among countries not thus excluded. In such case, this License incorporates the limitation as if
written in the body of this License.
9. The Free Software Foundation may publish revised and/or new versions of the General Public License
from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to
address new problems or concerns.
Each version is given a distinguishing version number. If the Program specifies a version number of this License
which applies to it and “any later version”, you have the option of following the terms and conditions either of that
version or of any later version published by the Free Software Foundation. If the Program does not specify a version
number of this License, you may choose any version ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions
are different, write to the author to ask for permission. For software which is copyrighted by the Free
Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our
decision will be guided by the two goals of preserving the free status of all derivatives of our free software
and of promoting the sharing and reuse of software generally.
HT-BD1250A_ELS_0629-3.indd 93
2009-06-29
10:58:27
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE
PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN
WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS”
WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD
THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR
OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY
COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE
PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO
USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED
INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM
TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Programs
If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to
achieve this is to make it free software which everyone can redistribute and change under these terms.
To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to
most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a
pointer to where the full notice is found.
One line to give the program’s name and a brief idea of what it does.
Copyright (C) <year> <name of author>
This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public
License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any
later version.
This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the
implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General
Public License for more details.
You should have received a copy of the GNU General Public License along with this program; if not, write to the
Free Software Foundation, Inc., 59
Temple Place, Suite 330, Boston, MA 02111-1307 USA
Also add information on how to contact you by electronic and paper mail.
If the program is interactive, make it output a short notice like this when it starts in an interactive mode:
Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO
WARRANTY; for details type `show w’. This is free software, and you are welcome to redistribute it under certain
conditions; type `show c’ for details.
The hypothetical commands `show w’ and `show c’ should show the appropriate parts of the General Public
License. Of course, the commands you use may be called something other than `show w’ and `show c’; they could
even be mouse-clicks or menu items--whatever suits your program.
You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright
disclaimer” for the program, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the program `Gnomovision’ (which makes passes at
compilers) written by James Hacker.
signature of Ty Coon, 1 April 1989
Ty Coon, President of Vice
This General Public License does not permit incorporating your program into proprietary programs. If your program
is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If
this is what you want to do, use the GNU Library General Public License instead of this License.
HT-BD1250A_ELS_0629-3.indd 94
2009-06-29
10:58:27
GNU Lesser General Public License (LGPL)
Version 2.1, February 1999
Copyright (C) 1991, 1999 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307
USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is
not allowed.
[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public
License, version 2, hence the version number 2.1.]
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the
GNU General Public Licenses are intended to guarantee your freedom to share and change free software--to make
sure the software is free for all its users.
This license, the Lesser General Public License, applies to some specially designated software packages--typically
libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we
suggest you first think carefully about whether this license or the ordinary General Public License is the better
strategy to use in any particular case, based on the explanations below.
When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are
designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if
you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces
of it in new free programs; and that you are informed that you can do these things.
To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to
surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the
library or if you modify it.
For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the
rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other
code with the library, you must provide complete object files to the recipients, so that they can relink them with the
library after making changes to the library and recompiling it. And you must show them these terms so they know
their rights.
We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which
gives you legal permission to copy, distribute and/or modify the library.
To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the
library is modified by someone else and passed on, the recipients should know that what they have is not the
original version, so that the original author’s reputation will not be affected by problems that might be introduced by
others.
Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a
company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent
holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the
full freedom of use specified in this license.
Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license,
the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the
ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into
non-free programs.
When a program is linked with a library, whether statically or using a shared library, the combination of the two is
legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore
permits such linking only if the entire combination fits its criteria of freedom.
The Lesser General Public License permits more lax criteria for linking other code with the library.
We call this license the “Lesser” General Public License because it does Less to protect the user’s freedom than the
ordinary General Public License. It also provides other free software developers Less of an advantage over
competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for
many libraries. However, the Lesser license provides advantages in certain special circumstances.
For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain
library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the
library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case,
there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.
HT-BD1250A_ELS_0629-3.indd 95
2009-06-29
10:58:27
In other cases, permission to use a particular library in non-free programs enables a greater number of people to
use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables
many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.
Although the Lesser General Public License is Less protective of the users’ freedom, it does ensure that the user of
a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified
version of the Library.
The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the
difference between a “work based on the library” and a “work that uses the library”. The former contains code
derived from the library, whereas the latter must be combined with the library in order to run.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License Agreement applies to any software library or other program which contains a notice placed by the
copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public
License (also called “this License”). Each licensee is addressed as “you”.
A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with
application programs (which use some of those functions and data) to form executables.
The “Library”, below, refers to any such software library or work which has been distributed under these terms. A
“work based on the Library” means either the Library or any derivative work under copyright law: that is to say, a
work containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly
into another language. (Hereinafter, translation is included without limitation in the term “modification”.)
“Source code” for a work means the preferred form of the work for making modifications to it. For a library,
complete source code means all the source code for all modules it contains, plus any associated interface definition
files, plus the scripts used to control compilation and installation of the library.
Activities other than copying, distribution and modification are not covered by this License; they are outside its
scope. The act of running a program using the Library is not restricted, and output from such a program is covered
only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing
it). Whether that is true depends on what the Library does and what the program that uses the Library does.
1. You may copy and distribute verbatim copies of the Library’s complete source code as you receive it, in
any medium, provided that you conspicuously and appropriately publish on each copy an appropriate
copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the
absence of any warranty; and distribute a copy of this License along with the Library.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty
protection in exchange for a fee.
2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the
Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided
that you also meet all of these conditions:
a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of
any change.
c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this
License.
d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application
program that uses the facility, other than as an argument passed when the facility is invoked, then you must
make a good faith effort to ensure that, in the event an application does not supply such function or table, the
facility still operates, and performs whatever part of its purpose remains meaningful.
(For example, a function in a library to compute square roots has a purpose that is entirely well-defined
independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table
used by this function must be optional: if the application does not supply it, the square root function must still
compute square roots.)
HT-BD1250A_ELS_0629-3.indd 96
2009-06-29
10:58:27
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from
the Library, and can be reasonably considered independent and separate works in themselves, then this License,
and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute
the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be
on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each
and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather,
the intent is to exercise the right to control the distribution of derivative or collective works based on the Library.
In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on
the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this
License.
3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a
given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer
to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than
version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead
if you wish.) Do not make any other change in these notices.
Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License
applies to all subsequent copies and derivative works made from that copy.
This option is useful when you wish to copy part of the code of the Library into a program that is not a library.
4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or
executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete
corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and
2 above on a medium customarily used for software interchange.
If distribution of object code is made by offering access to copy from a designated place, then offering equivalent
access to copy the source code from the same place satisfies the requirement to distribute the source code, even
though third parties are not compelled to copy the source along with the object code.
5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library
by being compiled or linked with it, is called a “work that uses the Library”. Such a work, in isolation, is not a
derivative work of the Library, and therefore falls outside the scope of this License.
However, linking a “work that uses the Library” with the Library creates an executable that is a derivative of the Library
(because it contains portions of the Library), rather than a “work that uses the library”. The executable is therefore
covered by this License. Section 6 states terms for distribution of such executables.
When a “work that uses the Library” uses material from a header file that is part of the Library, the object code for the
work may be a derivative work of the Library even though the source code is not. Whether this is true is especially
significant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true
is not precisely defined by law.
If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and
small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it
is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under
Section 6.)
Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of
Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with
the Library itself.
6. As an exception to the Sections above, you may also combine or link a “work that uses the Library” with
the Library to produce a work containing portions of the Library, and distribute that work under terms of your
choice, provided that the terms permit modification of the work for the customer’s own use and reverse
engineering for debugging such modifications.
You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its
use are covered by this License. You must supply a copy of this License. If the work during execution displays
copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing
the user to the copy of this License. Also, you must do one of these things:
HT-BD1250A_ELS_0629-3.indd 97
2009-06-29
10:58:27
a) Accompany the work with the complete corresponding machine-readable source code for the Library including
whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the
work is an executable linked with the Library, with the complete machine-readable “work that uses the Library”,
as object code and/or source code, so that the user can modify the Library and then relink to produce a modified
executable containing the modified Library. (It is understood that the user who changes the contents of definitions
files in the Library will not necessarily be able to recompile the application to use the modified definitions.)
b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses
at run time a copy of the library already present on the user’s computer system, rather than copying library
functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs
one, as long as the modified version is interface-compatible with the version that the work was made with.
c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials
specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution.
d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access
to copy the above specified materials from the same place.
e) Verify that the user has already received a copy of these materials or that you have already sent this user a
copy.
For an executable, the required form of the “work that uses the Library” must include any data and utility programs
needed for reproducing the executable from it. However, as a special exception, the materials to be distributed
need not include anything that is normally distributed (in either source or binary form) with the major components
(compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself
accompanies the executable.
It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not
normally accompany the operating system. Such a contradiction means you cannot use both them and the Library
together in an executable that you distribute.
7. You may place library facilities that are a work based on the Library side-by-side in a single library
together with other library facilities not covered by this License, and distribute such a combined library,
provided that the separate distribution of the work based on the Library and of the other library facilities is
otherwise permitted, and provided that you do these two things:
a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any
other library facilities. This must be distributed under the terms of the Sections above.
b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and
explaining where to find the accompanying uncombined form of the same work.
8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided
under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is
void, and will automatically terminate your rights under this License. However, parties who have received
copies, or rights, from you under this License will not have their licenses terminated so long as such parties
remain in full compliance.
9. You are not required to accept this License, since you have not signed it. However, nothing else grants
you permission to modify or distribute the Library or its derivative works. These actions are prohibited by
law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based
on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for
copying, distributing or modifying the Library or works based on it.
10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically
receives a license from the original licensor to copy, distribute, link with or modify the Library subject to
these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the
rights granted herein. You are not responsible for enforcing compliance by third parties with this License.
11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason
(not limited to patent issues), conditions are imposed on you (whether by court order, agreement or
otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this
License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any
other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if
a patent license would not permit royalty-free redistribution of the Library by all those who receive copies
directly or indirectly through you, then the only way you could satisfy both it and this License would be to
refrain entirely from distribution of the Library.
HT-BD1250A_ELS_0629-3.indd 98
2009-06-29
10:58:27
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the
section is intended to apply, and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest
validity of any such claims; this section has the sole purpose of protecting the integrity of the free software
distribution system which is implemented by public license practices. Many people have made generous
contributions to the wide range of software distributed through that system in reliance on consistent application of
that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other
system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by
copyrighted interfaces, the original copyright holder who places the Library under this License may add an
explicit geographical distribution limitation excluding those countries, so that distribution is permitted only
in or among countries not thus excluded. In such case, this License incorporates the limitation as if written
in the body of this License.
13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public
License from time to time. Such new versions will be similar in spirit to the present version, but may differ in
detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Library specifies a version number of this License which
applies to it and “any later version”, you have the option of following the terms and conditions either of that version
or of any later version published by the Free Software Foundation. If the Library does not specify a license version
number, you may choose any version ever published by the Free Software Foundation.
14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are
incompatible with these, write to the author to ask for permission. For software which is copyrighted by the
Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this.
Our decision will be guided by the two goals of preserving the free status of all derivatives of our free
software and of promoting the sharing and reuse of software generally.
NO WARRANTY
15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE
LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN
WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY “AS IS”
WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD
THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR
OR CORRECTION.
16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY
COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY
AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE
LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE
OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH
ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Libraries
If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making
it free software that everyone can redistribute and change. You can do so by permitting redistribution under these
terms (or, alternatively, under the terms of the ordinary General Public License).
To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source
file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a
pointer to where the full notice is found.
HT-BD1250A_ELS_0629-3.indd 99
2009-06-29
10:58:28
<one line to give the library’s name and an idea of what it does.> Copyright (C) <year> <name of author>
This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General
Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your
option) any later version.
This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the
implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser
General Public License for more details.
You should have received a copy of the GNU Lesser General Public License along with this library; if not, write
to the Free Software Foundation, Inc., 59
Temple Place, Suite 330, Boston, MA 02111-1307 USA
Also add information on how to contact you by electronic and paper mail.
You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright
disclaimer” for the library, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the library `Frob’ (a library for tweaking knobs) written by
James Random Hacker.
signature of Ty Coon, 1 April 1990
Ty Coon, President of Vice
That’s all there is to it!
OpenSSL License
Copyright (c) 1998-2007 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the
following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following
acknowledgment:
"This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://
www.openssl.org/)"
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products
derived from this software without prior written permission. For written permission, please contact [email protected]
5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their
names without prior written permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product
includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.
org/)"
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ``AS IS'' AND ANY EXPRESSED OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR
ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
HT-BD1250A_ELS_0629-3.indd 100
2009-06-29
10:58:28
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer
care centre.
Region
North America
Latin America
Europe
CIS
Asia Pacific
Country
1-800-SAMSUNG(726-7864)
01-800-SAMSUNG(726-7864)
1-800-SAMSUNG(726-7864)
0800-333-3733
0800-124-421, 4004-0000
800-SAMSUNG(726-7864)
00-1800-5077267
800-7919267
0-800-507-7267
1-800-10-7267
800-6225
1-800-299-0013
1-800-234-7267
800-7267
1-800-682-3180
1-800-751-2676
1-800-SAMSUNG(726-7864)
0-800-100-5303
01-8000112112
BELGIUM
02 201 2418
CZECH REPUBLIC
DENMARK
800-SAMSUNG(800-726786)
8-SAMSUNG(7267864)
HT-BD1250A_ELS_0629-3.indd 101
Web Site
www.samsung.com/ca
www.samsung.com/mx
www.samsung.com/us
www.samsung.com/ar
www.samsung.com/br
www.samsung.com/cl
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com.co
www.samsung.com/be (Dutch)
www.samsung.com/be_fr (French)
www.samsung.com/cz
www.samsung.com/dk
FINLAND
30-6227 515
www.samsung.com/fi
FRANCE
GERMANY
HUNGARY
ITALIA
LUXEMBURG
NETHERLANDS
NORWAY
POLAND
PORTUGAL
SLOVAKIA
SPAIN
SWEDEN
U.K
EIRE
AUSTRIA
SWITZERLAND
RUSSIA
KAZAKHSTAN
UZBEKISTAN
KYRGYZSTAN
TADJIKISTAN
UKRAINE
LITHUANIA
LATVIA
ESTONIA
AUSTRALIA
NEW ZEALAND
CHINA
HONG KONG
INDIA
INDONESIA
JAPAN
MALAYSIA
www.samsung.com/fr
www.samsung.de
www.samsung.com/hu
www.samsung.com/it
www.samsung.com/lu
www.samsung.com/nl
www.samsung.com/no
www.samsung.com/pl
www.samsung.com/pt
www.samsung.com/sk
www.samsung.com/es
www.samsung.com/se
www.samsung.com/uk
www.samsung.com/ie
www.samsung.com/at
www.samsung.com/ch
www.samsung.ru
www.samsung.com/kz_ru
www.samsung.com/kz_ru
SINGAPORE
THAILAND
TAIWAN
VIETNAM
TURKEY
01 4863 0000
01805 - SAMSUNG(726-7864 € 0,14/Min)
06-80-SAMSUNG(726-7864)
800-SAMSUNG(726-7864)
02 261 03 710
0900-SAMSUNG (0900-7267864) (€ 0,10/Min)
3-SAMSUNG(7267864)
0 801 1SAMSUNG(172678), 022-607-93-33
80820-SAMSUNG(726-7864)
0800-SAMSUNG(726-7864)
902-1-SAMSUNG (902 172 678)
075-SAMSUNG(726 78 64)
0845 SAMSUNG (7267864)
0818 717 100
0810-SAMSUNG(7267864, € 0.07/min)
0848-SAMSUNG(7267864, CHF 0.08/min)
8-800-555-55-55
8-10-800-500-55-500
8-10-800-500-55-500
00-800-500-55-500
8-10-800-500-55-500
8-800-502-0000
8-800-77777
8000-7267
800-7267
1300 362 603
0800 SAMSUNG (0800 726 786)
800-810-5858, 400-810-5858, 010-6475 1880
3698-4698
3030 8282, 1800 110011, 1-800-3000-8282
0800-112-8888
0120-327-527
1800-88-9999
1-800-10-SAMSUNG(726-7864)
1-800-3-SAMSUNG(726-7864), 02-5805777
1800-SAMSUNG(726-7864)
1800-29-3232, 02-689-3232
0800-329-999
1 800 588 889
444 77 11
SOUTH AFRICA
0860-SAMSUNG(726-7864 )
www.samsung.com/za
U.A.E
800-SAMSUNG (726-7864), 8000-4726
www.samsung.com/ae
PHILIPPINES
Middle East &
Africa
Customer Care Centre CANADA
MEXICO
U.S.A
ARGENTINE
BRAZIL
CHILE
NICARAGUA
HONDURAS
COSTA RICA
ECUADOR
EL SALVADOR
GUATEMALA
JAMAICA
PANAMA
PUERTO RICO
REP. DOMINICA
TRINIDAD & TOBAGO
VENEZUELA
COLOMBIA
www.samsung.ua
www.samsung.com/lt
www.samsung.com/lv
www.samsung.com/ee
www.samsung.com/au
www.samsung.com/nz
www.samsung.com/cn
www.samsung.com/hk
www.samsung.com/in
www.samsung.com/id
www.samsung.com/jp
www.samsung.com/my
www.samsung.com/ph
www.samsung.com/sg
www.samsung.com/th
www.samsung.com/tw
www.samsung.com/vn
www.samsung.com/tr
2009-06-29
10:58:28
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed
of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb
indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If
batteries are not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and
recycle them through your local, free battery return system.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.
charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material
resources.
Household users should contact either the retailer where they purchased this product, or their local government office,
for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
Code No. AH68-02228B(0.0)
HT-BD1250A_ELS_0629-3.indd 102
2009-06-29
10:58:28
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
