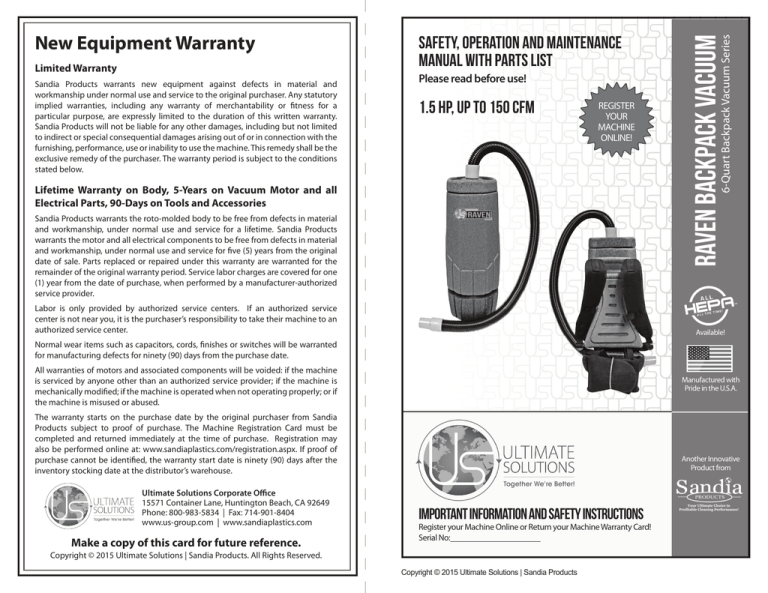

Raven Backpack Vacuum
Sandia Products warrants new equipment against defects in material and
workmanship under normal use and service to the original purchaser. Any statutory
implied warranties, including any warranty of merchantability or fitness for a
particular purpose, are expressly limited to the duration of this written warranty.
Sandia Products will not be liable for any other damages, including but not limited
to indirect or special consequential damages arising out of or in connection with the
furnishing, performance, use or inability to use the machine. This remedy shall be the
exclusive remedy of the purchaser. The warranty period is subject to the conditions
stated below.
Please read before use!
1.5 HP, up to 150 CFM
REGISTER
YOUR
MACHINE
ONLINE!
Lifetime Warranty on Body, 5-Years on Vacuum Motor and all
Electrical Parts, 90-Days on Tools and Accessories
Sandia Products warrants the roto-molded body to be free from defects in material
and workmanship, under normal use and service for a lifetime. Sandia Products
warrants the motor and all electrical components to be free from defects in material
and workmanship, under normal use and service for five (5) years from the original
date of sale. Parts replaced or repaired under this warranty are warranted for the
remainder of the original warranty period. Service labor charges are covered for one
(1) year from the date of purchase, when performed by a manufacturer-authorized
service provider.
Labor is only provided by authorized service centers. If an authorized service
center is not near you, it is the purchaser’s responsibility to take their machine to an
authorized service center.
6-Quart Backpack Vacuum Series
Limited Warranty
Safety, Operation and Maintenance
Manual with Parts List
Raven Backpack Vacuum
New Equipment Warranty
Available!
Normal wear items such as capacitors, cords, finishes or switches will be warranted
for manufacturing defects for ninety (90) days from the purchase date.
All warranties of motors and associated components will be voided: if the machine
is serviced by anyone other than an authorized service provider; if the machine is
mechanically modified; if the machine is operated when not operating properly; or if
the machine is misused or abused.
Manufactured with
Pride in the U.S.A.
The warranty starts on the purchase date by the original purchaser from Sandia
Products subject to proof of purchase. The Machine Registration Card must be
completed and returned immediately at the time of purchase. Registration may
also be performed online at: www.sandiaplastics.com/registration.aspx. If proof of
purchase cannot be identified, the warranty start date is ninety (90) days after the
inventory stocking date at the distributor’s warehouse.
Ultimate Solutions Corporate Office
15571 Container Lane, Huntington Beach, CA 92649
Phone: 800-983-5834 | Fax: 714-901-8404
www.us-group.com | www.sandiaplastics.com
Make a copy of this card for future reference.
Another Innovative
Product from
Important Information and Safety Instructions
Register your Machine Online or Return your Machine Warranty Card!
Serial No:
Copyright © 2015 Ultimate Solutions | Sandia Products. All Rights Reserved.
Copyright © 2015 Ultimate Solutions | Sandia Products
WARRANTY REGISTRATION
Dear Valued Client,
Congratulations on the purchase of your Raven 6-Quart Backpack Vacuum! The world
of carpet cleaning is becoming more high-tech and competitive and we strive to
provide you with the most innovative products. Our backpack vacuum is yet another
example of this, bringing a new dimension to carpet and upholstery cleaning with its
cutting-edge features, quality and value.
Please take a moment to register your machine. Fill out the
information below and mail back to Sandia Products immediately.
The warranty starts on the purchase date by the original purchaser subject to proof
of purchase. This Machine Registration Card must be completed and returned
immediately at the time of purchase. If proof of purchase cannot be identified,
the warranty start date is ninety (90) days after the inventory stocking date at the
distributor’s warehouse.
Please review this manual paying careful attention to the Safety Instructions section.
Keep in mind that any unnecessary damage, neglect or abuse of this machine will void
your warranty. You can be confident that simple maintenance will ensure that your
Backpack Vacuum provides quality performance for many years to come.
Your machine may also be registered online at:
www.sandiaplastics.com/registration.aspx
Machine Model
Purchase Date
If warranty questions arise, please consult your manual or contact your distributor.
Should you have any questions regarding maintenance, replacing parts or ordering
parts, please call an authorized distributor.
Motor Type
Serial No.
Place of Purchase
Before you begin using your Backpack Vacuum, thoroughly review the Owner’s
Manual.
Shipped To
Again, congratulations on the purchase of your Raven 6-Quart Backpack Vacuum!
Your Name
Phone
E-mail
Fax
Questions or Comments?
Phone: 714-901-8400
Toll Free: 800-983-5834
Fax: 714-901-8404
Ultimate Solutions Corporate Offices:
15571 Container Lane, Huntington Beach, CA 92649
Address Line 1
Address Line 2
City
State
Zip
Comments:
Visit our website at: www.sandiaplastics.com
Register your machine online at: www.sandiaplastics.com/registration.aspx
Mail to:
Ultimate Solutions Corporate Offices
15571 Container Lane
Huntington Beach, CA 92649
See reverse side for Warranty Information.
Make a copy of this card for future reference.
Copyright © 2015 Ultimate Solutions | Sandia Products. All Rights Reserved.
(2) Raven 6-Quart Backpack Vacuum
6-Quart RAVEN
BACKPACK VACUUM
By Ultimate Solutions | Sandia Products
Please fill out the following information:
Table of Contents
Model No:
Returned Material Authorization (RMA) Procedure.......................................................................3
Serial No:
New Equipment Warranty.......................................................................................................................4
Distributor Name:
1.0 Safety Instructions.............................................................................................................................5
Distributor Phone No:
2.0 Grounding Instructions....................................................................................................................6
Date of Purchase:
3.0 Care of your Backpack Vacuum Cleaner.....................................................................................7
The Ultimate Solutions Group
Our Family of Companies
TOGETHER WE’RE BETTER!
4.0 Operation and Assembly Instructions........................................................................................8
5.0 Trouble Shooting Guide................................................................................................................ 10
6.0 Machine Schematic Drawing...................................................................................................... 11
7.0 Machine Parts List........................................................................................................................... 12
8.0 5-Piece Tool Kit................................................................................................................................. 13
Ultimate Carpet Solutions
www.sandiaplastics.com
Returned Material Authorization (RMA) Procedure
Original purchaser (distributor/service center) must contact the manufacturer to follow correct
RMA/warranty procedures. Must include a copy of RMA Sheet enclosed in the box with returned
item. No returns shall be authorized unless proper RMA procedures are followed. It is the
responsibility of the distributor to repair the client’s equipment as soon as possible. Labor is only
provided by authorized service centers. If an authorized service center is not near you, it is the
purchaser’s responsibility to take their machine to an authorized service center.
Ultimate Hard Floor Solutions
www.mercuryfloormachines.com
Client must contact the distributor prior to working on or changing out any parts, etc. Manufacturer
must issue an RMA Sheet containing approved labor time and replacement parts. Do not send
parts or equipment back to manufacturer without an RMA number and approval. No labor will
be paid for, nor part costs paid for or reimbursed that have not been previously approved by the
manufacturer. All warranty work must be approved and authorized to qualify and appropriate
warranty procedures must be followed.
Ultimate Cleaning Solutions
www.ultimatesolutionsinc.net
Copyright © 2015 Ultimate Solutions | Sandia Products
Raven 6-Quart Backpack Vacuum (3)
New Equipment Warranty
8.0 5-Piece Standard Tool Kit
Lifetime on body, 5-years on motor and on all electrical components, 90-days on tools
and accessories.
Warranty Policy
All equipment is inspected and tested before shipping from the manufacturer. All parts are
warranted to be new and free from defects in workmanship and material, under normal use to the
original retail purchaser. This warranty limits manufacturer’s liability for defects in workmanship
or materials for replacement of defective parts only. The manufacturer accepts no liability for
incidental or consequential damages arisen from the use of any equipment, defective or not. This
warranty is in lieu of all expressed or implied warranties and is extended only to the original retail
purchaser. Manufacturer sales and service representatives are not authorized to waive or alter
the terms of this warranty, or to increase the obligations of the manufacturer under the warranty.
Parts replaced or repaired under this warranty are warranted for the remainder of the original
warranty period.
1
The original purchaser must contact the manufacturer to follow correct RMA/warranty procedures.
They must include a copy of the RMA Sheet enclosed in the box with the returned item. No returns
shall be authorized unless the proper RMA procedures are followed. It is the responsibility of the
distributor to repair the client’s equipment as soon as possible.
The manufacturer charges a 25% restocking fee for any items that are being returned to stock.
Items must be new, unused, free of damage and are only good for up to 30 days. After 30 days, the
manufacturer does not accept the return of any items for a store credit.
3
4
Labor is only provided by authorized service centers. If an authorized service center is not near
you, it is the purchaser’s responsibility to take their machine to an authorized service center.
The manufacturer covers up to one (1) year (365 days) of service labor at the manufacturer’s
calculated hourly labor rate/repair time when performed by a manufacturer-authorized service
provider. Ultimately, labor reimbursement costs are at the discretion of the manufacturer. At no
time is the manufacturer responsible for travel time to complete on-call repairs. After one (1) year,
the original retail purchaser is responsible for all labor costs with no manufacturer reimbursement.
2
5
Drawing No.
Item No.
Description
1
10-0031
5” Upholstery Tool
Quantity
1.00
2
10-0037
3” Round Dust Brush
1.00
3
10-0032
14” Scalloped Floor Tool
1.00
4
10-0033
17” Crevice Tool
1.00
5
10-0029
2-Piece, 2-Bend Button Lock Wand
1.00
* Only Included with Select Models
Authorized warranty replacement parts need to come directly from the manufacturer. Any use of
any other parts will void warranty. The manufacturer does not reimburse for parts used by client
that were not supplied directly for the machine under warranty.
The client must contact the manufacturer prior to working on or changing out of any parts, etc.
The manufacturer must issue an RMA Sheet containing approved labor time and replacement
parts. Do not send parts or equipment back to the manufacturer without an RMA Number and
approval. No labor will be paid for, nor parts cost paid for or reimbursed, that have not previously
been approved by the manufacturer. All warranty work must be approved and authorized to
qualify, and appropriate warranty procedures must be followed.
The warranty starts on the purchase date by the original purchaser from an authorized distributor,
subject to proof of purchase. The Machine Registration Form must be completed and sent to
the original manufacturer at the time of purchase. If proof of purchase cannot be identified, the
warranty start date is ninety (90) days after the date of sale to an authorized distributor.
Register your machine online at: www.sandiaplastics.com/registration.aspx
(4) Raven 6-Quart Backpack Vacuum
Raven 6-Quart Backpack Vacuum (13)
7.0 Machine Parts List
1.0 Safety Instructions
Drawing No.
Item No.
Description
Quantity
1
10-007-6
6-Quart Cloth Bag for 6-Quart Backpack
1.00
2A
10-0197
6-Quart Paper Bags (10 Pack)
0.10
2B
10-0197-HEPA
6-Quart HEPA Paper Bags (10 Pack)
0.10
3
BP-6-L-USI BLUE
6-Quart Backpack Lid - USI Blue
1.00
4
10-0155
Hose Cuff Straight
1.00
5
10-0024
1-1/2” Black Vacuum Hose
1.00
6
10-0195
Swivel Cuff
1.00
READ THIS MANUAL BEFORE OPERATING MACHINERY. KNOW THE
PROPER SET-UP, OPERATION, CORRECT APPLICATIONS AND THE
LIMITATIONS OF THIS EQUIPMENT BEFORE USE.
This backpack vacuum will afford you many years of trouble-free operating satisfaction,
provided it is given the proper care. All parts have passed rigid quality control standards
throughout the assembly process. Prior to packaging, your backpack vacuum was again
inspected for assurance of flawless operation.
This backpack vacuum is protectively packed to prevent damage in shipment. We
recommend that upon delivery, unpack the unit and inspect it for any possible damage.
Only a visual inspection will reveal damage that may have occurred.
7A
10-0008-B
Dome Filter with Bag Support
1.00
7B
10-0219-6
Complete 6-Quart HEPA Filter (HEPA
Model Only)
1.00
8A
10-0013
Super Motor (Super, HEPA, Aviation
Models)
1.00
8B
10-0012
Whisper Motor (Whisper Models Only)
1.00
8C
10-0346
D.P. Motor (Avenger Models Only)
1.00
9
10-0199
Vacuum Motor Gasket
1.00
Reduce the Risk of Fire, Electric Shock or Injury
10
10-0023
Shoulder and Waist Belt Washer
4.00
DO NOT USE ON WET SURFACES OR EXPOSE TO RAIN. STORE INDOORS.
11
10-0022
Shoulder and Waist Belt Screw
4.00
12
10-0021
Shoulder and Waist Belt
1.00
13
10-0020
Cushioned Back Pad
1.00
14
BP-6-T-USI BLUE
6-Quart Backpack Tank - USI BLUE
1.00
15
10-0015
1/4” Flat Washer
4.00
16
10-0014
Motor Screw
4.00
17
BP-6-B-BLKGRAN
6-Quart Backpack Base - Black Granite
1.00
18
10-0016-6
6-Quart Deflector Plate
1.00
19
10-0017
Deflector Plate Screw
3.00
20
10-0017
Sound Dampening Band
1.00
21
10-0018
6-Quart Dual Cell Noise Filter
1.00
22
10-0019-6
Screw for Well Nut
1.00
23
10-0070
Well Nut for Cord Lock
1.00
24
10-0027-A
Strain Relief Nut
1.00
25
10-0027
Strain Relief
1.00
26
10-0026
17” Power Cord (Cord Only)
1.00
27
10-0028
50-Foot Electrical Cord
1.00
28
10-0025
On/Off Switch
1.00
If damage is discovered, immediately notify the transportation company that delivered
your vacuum. As a shipper, we are unable to report any claim for damage. You must
originate any claim within five (5) days.
This manual is for your protection and information. Please read carefully since failure to
follow precautions could result in discomfort or injury.
Use only as described in this safety operating manual. Use only the manufacturer’s
recommended attachments, accessories, replacement parts and filters. Replace damaged
or worn parts immediately with genuine, original equipment parts to maintain safety and
to protect your limited warranty.
Always turn OFF the vacuum before connecting, disconnecting or working on the
vacuum. This vacuum must be connected to a properly grounded outlet only (see
grounding instructions). The extension cord provided with this unit is 50-foot, 16/3-gauge
wire and MUST be used with this unit to ensure grounding protection. Turn off all
controls before unplugging. Make sure the on/off switch is in the off position. This is
not a toy. Close attention is necessary when used around or near children. Use extra care
when cleaning on stairs.
NOTE: when using the vacuum with a powerhead tool and connection, always turn off
the vacuum and nozzle tool before connecting or disconnecting either the hose or power
nozzle. Depending on your vacuum model, the hose may contain electrical wires.
• DO NOT leave the vacuum when plugged in. Unplug it from the outlet when not in
use and before servicing.
• DO NOT use this vacuum with a damaged cord or plug. If the vacuum is not working
as it should because it has been dropped, damaged, left outdoors or dropped into
water, etc., contact an authorized service center.
• DO NOT unplug the vacuum by pulling the cord. To unplug, grasp the plug, not the
cord. DO NOT pull or carry by the cord, use the cord as a handle, close a door on the
cord, or pull the cord around sharp edges or corners. Keep the cord away from heated
surfaces.
• DO NOT overstretch the safety power cord between the vacuum and the electrical
outlet in the wall.
(12) Raven 6-Quart Backpack Vacuum
Raven 6-Quart Backpack Vacuum (5)
1.0 Safety Instructions Continued
6.0 Machine Schematic Drawing
Reduce the Risk of Fire, Electric Shock or Injury.
• DO NOT tie an extension cord to the pigtail cord. This will damage the cord and will
VOID your warranty.
• DO NOT handle the plug of the vacuum with wet hands.
• DO NOT vacuum up any liquids. This vacuum is for dry use only!
• DO NOT expose to rain or use on wet surfaces, to avoid electric shock. Store indoors.
• DO NOT pick up anything that is burning or smoking such as cigarettes, matches or
hot ashes.
• DO NOT use the vacuum to pick up flammable or combustible liquids such as
gasoline or use in areas where they may be present.
• DO NOT use where oxygen or anesthetics are used.
• DO NOT put objects into openings or use with any openings blocked. Keep free
of dust, lint, hair and anything that may reduce air flow. Keep hair, loose clothing,
fingers, and all body parts away from openings and moving parts to ensure safe
operation.
• DO NOT use without the proper cloth filtration bag, paper filter bag and other filters in
place. Failure to do so, will VOID your warranty.
• DO NOT use if any hoses or nozzles are damaged, cut or punctured.
• DO NOT lubricate the motor. If the motor is lubricated, this will VOID your warranty.
2.0 Grounding Instructions
DANGER: IMPROPER GROUNDING METHOD CAN RESULT IN A RISK OF
ELECTRIC SHOCK!
Electrical equipment must be grounded. Improper connection of the equipment grounding
conductor can result in a risk of electric shock. If the equipment should malfunction or
breakdown, grounding provides a path of least resistance for electrical current to reduce
the risk of electric shock.
This vacuum is equipped with a cord containing a grounding conductor and grounding
plug. The plug must be inserted into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
Check with a qualified electrician or service person if you are in doubt as to whether the
outlet is properly grounded. DO NOT modify the plug provided with the equipment. If it
will not fit into the outlet, have a proper outlet installed by a qualified electrician.
If repair or replacement of the cord or plug is necessary, DO NOT connect the grounded
wire to a flat bed terminal. The wire with insulation having an outer surface that is green
with or without yellow stripes is the grounding wire.
NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian
Electrical Code.
(6) Raven 6-Quart Backpack Vacuum
Raven 6-Quart Backpack Vacuum (11)
5.0 Troubleshooting Guide
CAUTION: Always disconnect power cord before servicing vacuum.
WARNING: Repairs should only be performed by an authorized service center.
Failure to do so will VOID warranty.
PROBLEM: Loss of vacuum
CAUSE
SOLUTION
Lid is damaged
Inspect and replace if needed
Faulty vacuum motor
Call manufacturer or authorized service center
Full paper bag filter
Replace paper filter bag
Clogged hose or wand
Remove obstruction
Loose or broken fan
Call manufacturer or authorized service center
PROBLEM: Motor is not running
CAUSE
SOLUTION
Faulty on/off switch
Call manufacturer or authorized service center
Power cord defective
Call manufacturer or authorized service center
Loose connection or wiring
Call manufacturer or authorized service center
Motor defective
Call manufacturer or authorized service center
Blown fuse or tripped circuit breaker
Replace fuse or reset circuit breaker
PROBLEM: Dust blowing from vacuum when running
CAUSE
SOLUTION
Full paper bag
Replace filter bag
Paper filter bag not installed properly Reinstall or replace paper filter bag properly
Cloth filter bag is dirty
Clean cloth filter bag by shaking and dusting
Cloth or paper filter bag is torn
Replace - failure to use a
2.0 Grounding Instructions Continued
This electric equipment is for use on a normal 120 volt circuit. It has a grounded plug that
looks like the plug illustrated in (Fig A). A temporary adapter, such as illustrated in (Fig B
and C), may be used to connect this plug into a two-pole receptacle, as shown in (Fig B),
if a properly grounded outlet is not available.
The temporary adapter should be used only until a properly grounded outlet (Fig A) can
be installed by a qualified electrician. The green color rigid ear lug or the like extending
from the adapter must be connected to a permanent ground such as a properly grounded
outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw.
3.0 Care of your Backpack Vacuum
Treat your vacuum as you would any other high grade, precision made product.
Dropping, unreasonable bumping across thresholds and other misuses may result in a
damaged unit which will not be covered under warranty.
When not in use, the power cord should be wrapped around the molded-in cord wrap and
stored in a dry area. After each use, wipe the vacuum body, accessories and power cord
with a slightly damp cloth.
WARNING: DO NOT use vacuum without the proper cloth filtration bag, paper
filter bag and other filters in place. Failure to do so, will VOID your warranty.
If using this vacuum in a paint, sawdust or drywall environment, you must dispose of
the paper filter bag and the shakeout cloth filter bag after each use. Failure to do so will
cause severe damage to your vacuum and VOID your warranty. Dispose of the paper
filter bag in a fireproof container. The combination of urethane and wood, may result in a
combustion.
All filters must be used at all times. Failure to do so will VOID your warranty.
(10) Raven 6-Quart Backpack Vacuum
Raven 6-Quart Backpack Vacuum (7)
4.0 Operation and Assembly Instructions
4.0 Operation and Assembly Instructions Continued
DRY PREPARATION AND OPERATION ONLY! DO NOT ASSEMBLE OR USE
ON WET SURFACES.
Maintaining the HEPA Cloth Filter:
This vacuum is equipped with an air-thru motor and is designed for dry pickup only.
Ensure assembly and use of this equipment is only conducted in a dry environment. To
begin, unpack the carton and remove the vacuum and attachments (if purchased with
tools). Always exercise caution when handling the vacuum. Dropping the vacuum could
cause permanent damage to the internal components.
Getting Started:
1. Make sure the on/off switch is in the OFF position.
2. Remove the lid and check to ensure you have both a cloth filter bag and paper filter
bag in place. Place the lid back onto the vacuum body, tightening securely. Both bags
must be used at all times. Any damage resulting from the lack of using both bags will
VOID your warranty.
3. Wrap the safety power cord around the molded-in cord wrap on the side of the unit.
Do not tie or loop the pigtail cord with the extension cord.
4. Loosen the shoulder and waist belt straps and slide vacuum onto your back.
5. Connect and tighten the waist belt making sure the majority of the weight is on your
hips and not your shoulders.
6. Adjust the shoulder straps for comfort.
7. Connect the sternum strap for added support and ideal fit.
8. Plug the vacuum into a properly grounded outlet.
9. Turn the unit to the ON position and proceed with vacuuming.
10. Always store vacuum, safety power cord and tools in a cool, dry place indoors.
NOTE: The weight of the vacuum should be distributed on your hips. Adjust any strap as
needed for your custom fit.
When the white disk inside your dome filter is discolored, replace it with a new HEPA
filter with bag support. Replacement time frame of the HEPA filter depends on the
frequency and application of use. For best results, replace every six (6) months.
IMPORTANT: Following the above instructions is critical in prolonging the life of your
vacuum. All filters must be used at all times. Failure to do so will VOID your warranty.
Assembling Attachments:
The vacuum comes assembled, but you will need to install the hose to the wand and the
wand to the attachment.
Wand Assembly (for 2-Piece Wand Only):
• Align the button lock of the upper wand section with the opening
for the button lock in the lower wand section.
• Push the sections together until the button lock slides into place
and the lock is secured.
To Connect Wand to Hose:
• Insert the tapered end of the wand into the swivel cuff at the end
of the hose.
To Connect Wand to Attachments:
• Turn wand nut counterclockwise approximately four (4)
complete turns.
• Insert the tool into the wand and coupling.
• While holding the tool in place, turn nut clockwise until wand
nut is fully locked.
Changing the Paper Filter Bag:
1. Unscrew lid and lift lid off of the body.
2. Remove the full paper bag from the tank and dispose of
properly in a fireproof container.
3. Take a new paper filter bag and set inside cloth filter bag,
expanding it to the sides of the cloth filter bag.
4. Place lid back onto the vacuum body, tightening securely.
Maintaining the Cloth Filter:
The cloth filter should be inspected and cleaned each time you empty the tank. DO NOT
wash the cloth filter. It could cause shrinkage of the cloth and damage to the gasket.
Simply shake off any dust or loose particles and brush the exposed surface with a soft
bristle brush.
(8) Raven 6-Quart Backpack Vacuum
Raven 6-Quart Backpack Vacuum (9)
