Panasonic CF-19 Specification

Panasonic CF-19 Specification

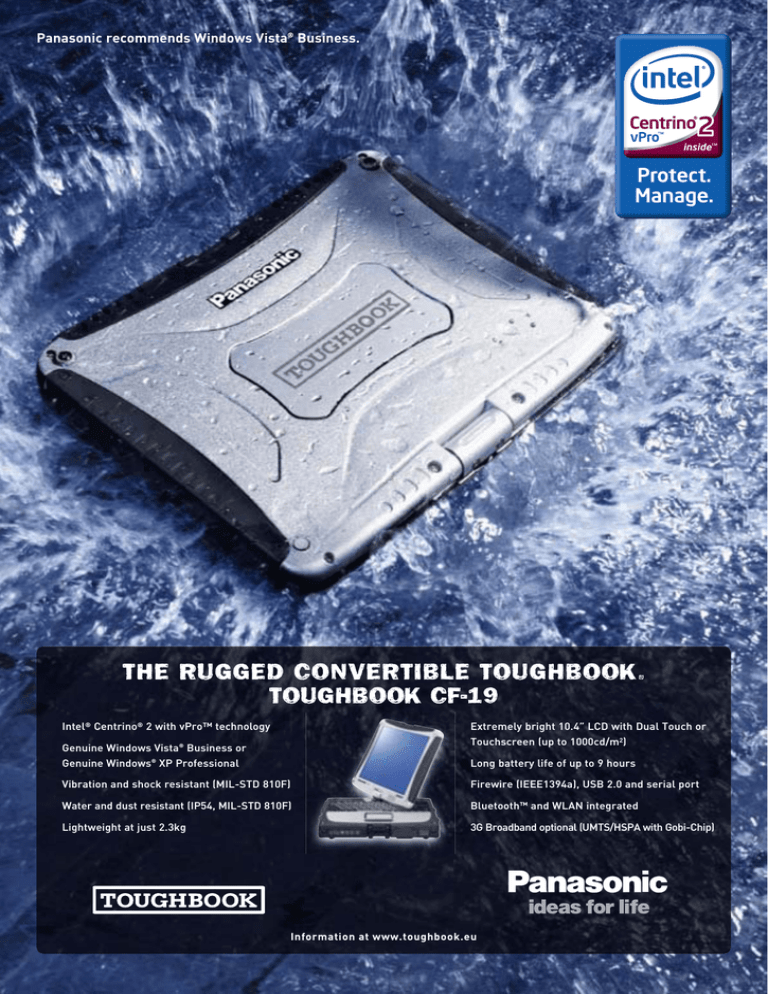

Panasonic recommends Windows Vista® Business.
THE RUGGED CONVERTIBLE TOUGHBOOK.
TOUGHBOOK CF-19
Intel® Centrino® 2 with vPro™ technology
Extremely bright 10.4” LCD with Dual Touch or
Touchscreen (up to 1000cd/m2)
Genuine Windows Vista® Business or
Genuine Windows® XP Professional
Long battery life of up to 9 hours
Vibration and shock resistant (MIL-STD 810F)
Firewire (IEEE1394a), USB 2.0 and serial port
Water and dust resistant (IP54, MIL-STD 810F)
Bluetooth™ and WLAN integrated
Lightweight at just 2.3kg
3G Broadband optional (UMTS/HSPA with Gobi-Chip)
Information at www.toughbook.eu
Panasonic recommends Windows Vista® Business.
Featuring a revolutionary LCD screen that transforms from a high-performance notebook to a fully portable tablet PC, the CF-19 convertible
tablet PC is reliable, durable and lightweight at just 2.3kg. The optimised display technology with low reflection allows for perfect visibility even
in direct sunlight environments (up to 1000cd/m2). The LCD itself is protected by a durable scratch-resistant magnesium alloy case, mounted
to the base cabinet with a reinforced 180 degree rotatable hinge. Data is secured on the hard disk drive – enclosed in a shock-absorbing
damper that sits inside an aluminium case. A double waterproof structure ensures a tight, durable seal that complies with IP54 water and
dust-proofing standards and a special HDD-heater counters any adverse temperatures. These striking features ensure that you can rely on
the CF-19, even in extreme conditions.
The Intel® Centrino® 2 with vPro™ technology and Intel® Core™ 2 Duo processor delivers high performance and efficient energy
consumption. Embedded WLAN and optional 3G Mobile Broadband capabilities enable wireless data transfer for business communication.
The high-power battery allows for a running time of up to 9 hours.
Mobile Computing
Intel® Centrino® 2 with vPro™ technology
Platform
– Intel® Core™ 2 Duo processor SU9300 (1.2GHz, 3MB L2 cache, 800MHz FSB)
– Mobile Intel® GS45 Express Chipsets
– Intel® Wireless WiFi link 5100 AGN Network Connection (supporting 802.11a/b/g/n draft 2.0 compliant)
OS
Genuine Windows Vista® Business Service Pack 1 (for Dual Touch and Touchscreen model) or
Genuine Windows® XP Professional Service Pack 2 (Downgrade for Touchscreen model) or
Genuine Windows® XP Tablet PC Edition 2005 (Downgrade for Dual Touch and Touchscreen model) RAM
2GB DDR2 SDRAM (max. 4GB)
Graphic Chip
Intel® Graphics Memory Control Hub; UMA (2GB RAM: Win XP: max. 1024MB; Win Vista: max. 797MB)
Storage
160GB HDD (SATA, easy accessible, shock resistant – withstands 90cm drop); SSD (max. 32GB – project driven)
LCD
10.4” sunlight-viewable XGA Active Matrix (TFT) colour LCD with up to 1000cd/m2
– Touchscreen model or
– Dual Touch model (Touchscreen and Digitizer)
1024 x 768 pixels (XGA); 16 million colours; Concealed Mode
Cabinet
Full magnesium alloy with handstrap
BluetoothTM
Version 2.0 + EDR (class 1)
WLAN IEEE 802.11a/b/g/n draft 2.0 compliant (max. 54Mbps); slide on/off switch
LAN
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
Modem
Data: 56kbps (V.92), FAX: 14.4kbps
Sound
SigmaTelTM STAC9751 AC-97 v.2.2 compliant audio codec, supporting Intel® High Definition Audio Subsystem
Monaural speaker (integrated in display cabinet)
Input Devices Touchscreen or Dual Touch LCD, Touchpad and Keyboard
Indicators
9 LEDs (Power, Battery, HDD, Caps Lock, Scroll Lock, Num Lock, SD Card, WWAN, Wireless Data Transfer)
Interfaces
Serial (16550A compatible):
Dsub, 9-pin
External display (VGA port):
Mini Dsub, 15-pin
Headphone:
Mini-jack, 3.5 DIA
Microphone:
Mini-jack, 3.5 DIA, stereo
DC In:
Jack
USB 2.0:
2x 4-pin
Modem:
RJ-11
LAN:
RJ-45
Firewire (IEEE1394a): 1x 4-pin
External Antennae:
2x (Dedicated 50Ω coaxial connector)
Port Replicator:
100-pin
Expansion Slots
PC Card:
1x Type I or Type II (3.3V: 400mA, 5V: 400mA)
Express Card:
1x ExpressCard/34 or ExpressCard/54
SD/SDHC Memory Card:
1x
Optional RAM Module:
1x SO-DIMM (200-pin, 1.8V, DDR2 SDRAM, PC2-5300 Compliant)
Power
AC Adapter Input: 100 ~ 240V AC, 50Hz/60Hz; Output: 16V DC, 3.75A
Battery:
Li-ion (10.65V, 5.7Ah)
Battery Life (Mobile Mark™ 2007, 60cd/m²): Approx. 9 hours (Vista model), approx. 10 hours (XP model)
Charging Time:
Power off: approx. 4.5 hours; Power on: approx. 6.5 hours
Power Consumption: Approx. 60W (maximum when recharging)
Power Management Standby function, Hibernation function, ACPI BIOS
Software
Adobe Reader, PC Information Viewer, Loupe Utility, Intel® PROSet/Wireless Software, Bluetooth™ Stack for Windows®
by TOSHIBA, Wireless Switch Utility, Hotkey Settings, Battery Recalibration Utility, Panasonic Hand Writing, Display Rotation
Tool, Infineon TPM Professional Package, Power Saving Utility, Wireless Connection Disable Utility, Concealed Mode Utility
Setup Utility, Hard Disk Data Erase Utility, PC-Diagnostic Utility
Security Features
TPM (Trusted Platform Module, TCG V1.2 compliant), Integrated hardware security lock slot,
Password security (supervisor password, user password, HDD Lock)
Dimensions (WxHxD) 271mm x 49mm x 216mm / 10.7” x 1.93” x 8.5” (excluding protrusions)
Weight
Approx. 2.3kg / 5.07lb (including battery)
Integrated Options
GPS, Fingerprint Reader, Smart Card Reader, 3G Mobile Broadband (HSPA, up to 7.2Mbps),
Solid State Disk (max. 32GB – project driven), 2MP camera with dual LED light (project driven)
Accessories
AC adapter:
CF-AA1633AE, CF-AA1633AG, CF-AA1633AT
Battery charger:
CF-VCBTB1W
Battery pack:
CF-VZSU48U
Car-Charger:
CF-AAV1601AW (Type A, 60W,12V/24V),
CF-LIND8024FD (EIAJ & Type A both 80W, 12-32V)
Car-Mount:
CF-WEB184B
Combo-Drive (USB):
CF-VDRRT3U
Port-Replicator:
CF-VEB181AU
RAM modules:
CF-WMBA801G (1GB), CF-WMBA802G (2GB)
Testing Standards
Water resistance test:
IEC529 (JIS C0920) IPX4, MIL-STD 810F 506.4-III
Dust resistance test:
IEC529 (JIS C0920) IP5X, MIL-STD 810F 510.4-Level
Gravity drop resistance test:
MIL-STD 810F 516.5 (90cm drop)
Vibration resistance test:
MIL-STD 810F 514.5 category 24
2009/01
Specification and configuration may vary depending on country. Accessories may vary depending on your notebook configuration. Consult a Panasonic sales
office near you for more details and availability of integrated options. All specifications are subject to change without notice.
As an ENERGY STAR® Partner, Panasonic Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.
Active Matrix colour display conforms to industry standards. Some displays may contain isolated illuminated or dark pixels as an artefact of the
manufacturing process (effective pixels: minimum 99.998%). RAM capacity calculated as follows: 1MB = 1,048,576 bytes. HDD capacity calculated as
follows: 1GB = 1,000,000,000 bytes.
Panasonic and Toughbook are brand names and registered trademarks of Panasonic Corporation. Acrobat® is a registered trademark of Adobe®
Systems Incorporated. Intel, the Intel logo, Centrino, Centrino Inside, Intel vPro and vPro Inside are trademarks of Intel Corporation in the
U.S. and other countries. Microsoft® and Windows® are registered trademarks of Microsoft® Corporation of the United States and/or other
countries. All other brand names shown are the registered trademarks of the relevant companies. All rights reserved.All working conditions,
times and figures quoted are optimum or ideal levels and may differ as a result of individual and local circumstances.
Panasonic Marketing Europe GmbH, Panasonic Computer Products Europe Headquarters, Hagenauer Straße 43, 65203 Wiesbaden (Germany).
www.toughbook.eu
