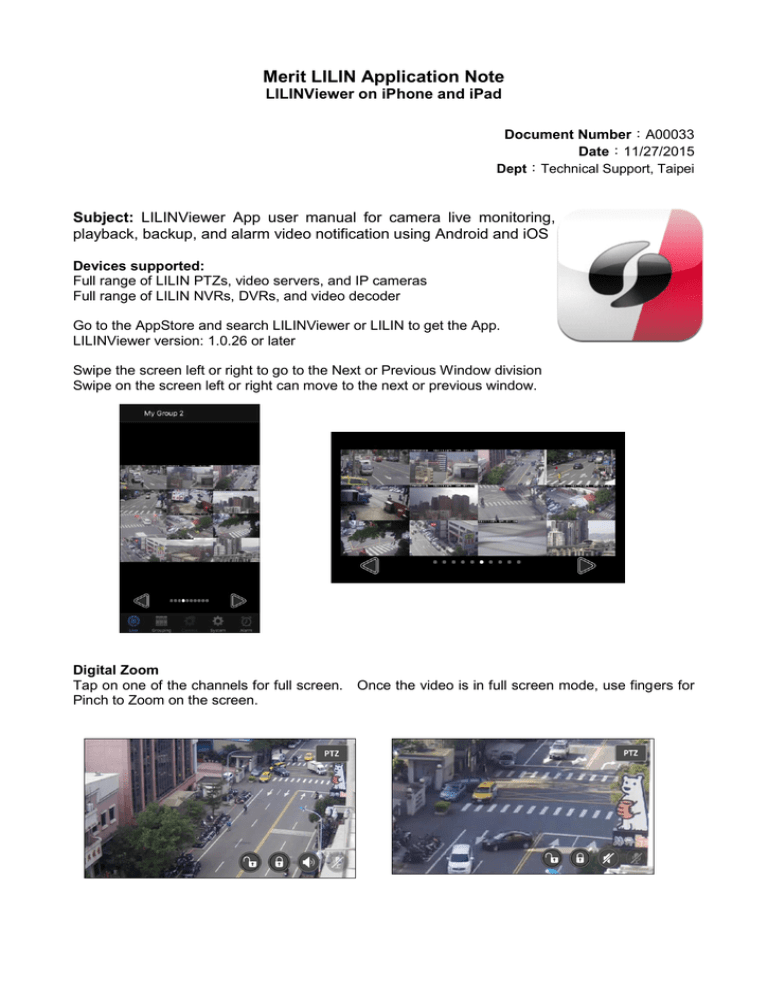

Merit LILIN Application Note

Merit LILIN Application Note
Merit LILIN Application Note
LILINViewer on iPhone and iPad
Document Number:A00033
Date:11/27/2015
Dept:Technical Support, Taipei
Subject: LILINViewer App user manual for camera live monitoring,
playback, backup, and alarm video notification using Android and iOS
Devices supported:
Full range of LILIN PTZs, video servers, and IP cameras
Full range of LILIN NVRs, DVRs, and video decoder
Go to the AppStore and search LILINViewer or LILIN to get the App.
LILINViewer version: 1.0.26 or later
Swipe the screen left or right to go to the Next or Previous Window division
Swipe on the screen left or right can move to the next or previous window.
Digital Zoom
Tap on one of the channels for full screen. Once the video is in full screen mode, use fingers for
Pinch to Zoom on the screen.
Tool Buttons
The tool buttons are described below:

: PTZ or ePTZ switch button

: Recall preset #1 of a PTZ camera

: Recall preset #2 of a PTZ camera

: Recall preset #3 of a PTZ camera

: Recall preset #4 of a PTZ camera

: Start/stop auto pan

: PTZ zoom in / PTZ zoom out

: PTZ directions pan

: Snapshot - A live picture is stored in the picture folder of the iPhone or iPad.

: Auto focus

: Open digital output (lock)

: Disable digital output (unlock)

: Speaker (output)

: Microphone (input)

: Panoramic view

Search: Search the date of recording video for playback

Playback: All recording video to playback
System Buttons
There are five system function options: Live, Grouping, Camera, System, and Alarm. The
features are described below:
Add Cameras
In live mode, tap on one of the multi-view windows for full screen view. Click on the Camera
System button this will enter the camera setting. The camera setting windows is described as
follows:












Cam Name—Name of the camera
URL—IP address or URL of the camera
Port—Port number of the camera
DVR/NVR/CMX/NAV—DVR/NVR/CMX/NAV
Motion Detection—Enable/Disable Motion Detection
PTZ Low Latency—Enable/Disable PTZ Low Latency
Username—The username of the camera
Password—The password of the camera
Import—Auto import switch for DVR/NVR
Import Cam Count—Import number of cameras
Delete—Delete the camera
Test—A quick look of the camera
Note: The default username and password are:
IP cameras: admin:pass
DVRs/NVRs: admin:1111
Navigator Enterprise: admin:EMPTY
Groupings

: Click on the Edit button and move the Group button that allows moving the
sequence of a group.



: Click on the Edit button and delete the Group button that allows moving the
sequence of a group.
Click on the Edit button and tap the Group item that allows editing the group Name
and Window Division.
To edit cameras of a group, tap on one of the groupings. It shows all the cameras of
a grouping. Tap the camera again. It will show the camera setting window.
Remote Playback for NVRs/DVRs/IP Cameras
For playing recordings from an NVR, DVR, or IP camera, tap on one live channel for full screen
view.
1: In full screen mode, click on the Search button.
2: Click on date and time for entering time.
3: Enter OK button for entering date and time.
4: Click on Play button to play the video.
5: Or in full screen mode, click on Playback button will play the video directly.
Alarm Video Notification
If motion, tampering, digital input alarm, and/or IVS alarm is activated, LILINViewer is able to
receive the alarm from a camera or a NVR. Click on the Play button that can see the video after
downloading. The video is then stored in the iPhone. You can delete the file by clicking on the
Delete All button.
Select an alarm event
for live video.
Click playback button
for playing the video.
Requirements
 Make sure that the SD card is plugged in for IP cameras’ alarm video notification feature.
 Only admin user can receive the alarm video notification.
 Navigator Enterprise does not support alarm video notification.
Three Steps to View Alarm Video Notification
Step #1:
Receive Alarm
Step #2:
Select the event
Click the event to go live or click
> for playback
Firmware Requirement
iMEGAPRO series: 1.0.58 or above
L series: 1.1.14 or above
NVR Touch series: 1.0.46 or above
DVR 3, 5, 7, and 8 series: 0.0.48 or above
Navigator Enterprise: 1.0.0.98 or above
iOS Requirement
Version: 5.1 or later
Android Requirement
Version: 4.4 or later
Step #3:
Play the video
