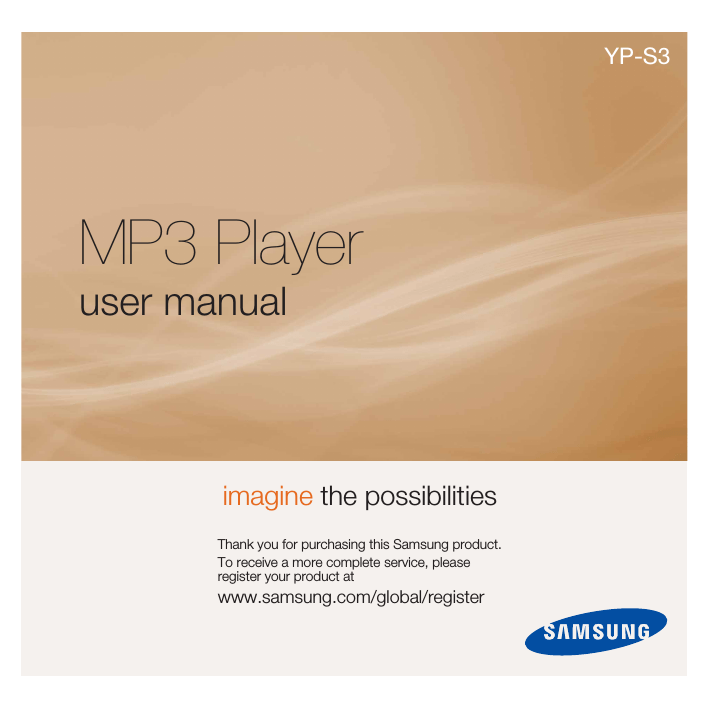

YP-S3
MP3 Player
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive a more complete service, please
register your product at
www.samsung.com/global/register
features of your new MP3 Player
Good looking. Smart. Reliable. And lots of fun. Your new MP3 player
is all this and more. Its compact silhouette takes up the tiniest space
in your pocket, and its state-of-the-art technology delivers rich sound,
vibrant pictures, and action-packed games. You’ll love your new MP3
player, whether you’re exercising, downloading your favorite tunes,
watching videos, playing games, or even listening to FM Radio.
Use it once, and you’ll wonder how you ever lived without it.
PUTTING THE “MULTI” IN MULTIMEDIA
We call it an MP3 player, but it’s much more
than that. It allows you to view pictures, text,
and videos and listen to FM radio and play
games.
LONGER PLAY TIME AND SHORTER
DOWNLOADING!
TOUCH NAVIGATION!
A fully charged battery can play up to 25
hours of music, or 4 hours of video.
Download times are shorter. Because of its
USB 2.0 capability, the player is much faster
than models with USB 1.1.
You can tap on the touch pad to navigate
through the menus.
ACOUSTIC WONDER
WHERE FORM MEETS FUNCTION
Sure, it’s sleek and good-looking. But it’s
easy to hold and use, too.
Your new MP3 player has built-in DNSe™
(Digital Natural Sound engine), Samsung’s
unique sound technology created to deliver
richer, deeper sound for an unbelievable
listening experience.
safety information
What the icons and signs in this user manual mean :
Means that death or serious personal injury is a risk.
WARNING
CAUTION
Means that there is a potential risk for personal injury or
material damage.
CAUTION
To reduce the risk of fire, explosion, electric shock, or
personal injury when using your MP3 Player, follow
these basic safety precautions:
NOTE
Means hints or referential pages that may be helpful to
operate the player.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Call the service center for help.
These warning signs are here to prevent injury to you and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
safety information
This manual describes how to properly use your new mp3 player.
Read it carefully to avoid damaging the player and injuring yourself.
Pay particular attention to the following serious warnings:
PROTECT YOURSELF
ƒ Do not disassemble, repair, or modify this product on your own.
CAUTION
ƒ Do not get the product wet or drop it in water. If the product gets wet, do
not switch it on because you could get an electric shock. Instead, contact
a Samsung Customer Service Center near you.
ƒ Do not use the product during a thunderstorm, as it may cause
malfunction or a risk of electric shock.
CAUTION
ƒ Do not use the earphones while you are driving a bicycle, automobile or
motorcycle.
It can cause a serious accident, and furthermore, is prohibited by law in some
areas.
Using the earphones while walking or jogging on a road, in particular, on a
crosswalk can lead to a serious accident.
ƒ For your safety, make sure the earphone cable does not get in the way of
your arm or other surrounding objects while you are taking exercise or a
walk.
WARNING
ƒ Do not place the product in damp, dusty, or sooty areas because these
environments could lead to fire or electric shock.
PROTECT YOURSELF
WARNING
ƒ Using earphones or headphones for an extended time may cause serious
damage to your hearing.
If you are exposed to sound louder than 85db for an extended time, you may
adversely affect your hearing. The louder the sound is, the more seriously damaged
your hearing may be (an ordinary conversation is between 50 to 60db and road
noise is approximately 80db).
You are strongly advised to set the volume level to medium (the medium level is
usually less than 2/3 of the maximum).
ƒ If you feel a ringing in the ear(s), lower the volume or stop using the
earphones or headphones.
PROTECT YOUR MP3 PLAYER
ƒ Do not leave the player in temperatures above 95°F (35°C), such as a
sauna or a parked car.
ƒ Do not cause excessive impact on the player by dropping it.
ƒ Do not place heavy objects on top of the player.
ƒ Prevent any foreign particles or dust from entering into the product.
ƒ Do not place the product near magnetic objects.
ƒ Be sure to backup important data. Samsung is not responsible for data loss.
ƒ Use only accessories provided by or approved by Samsung.
CAUTION
CAUTION
NOTE
ƒ Do not spray water on the product. Never clean the product with chemical
substances such as benzene or thinner, as it may cause fire, electric
shock or deteriorate the surface.
ƒ Failure to follow these instructions may lead to physical injuries or damage to
the player.
ƒ When printing this user manual, we recommend that you print in color and
check “Fit to Page” in the print option for better viewing.
contents
THE BASICS
10
10
11
14
17
18
19
19
20
20
21
21
22
23
23
24
25
26
27
28
30
EMODIO
31
31
32
33
What’s included
Your MP3 Player
Screen displays
Using the touch button
Charging the battery
Caring for the battery
Turning the Power on & off
Playing music
Controlling the volume
Disabling the buttons
Browsing for files using
“File Browser”
Deleting files with “File Browser”
Changing the settings and
preferences
Menu Style Settings
Sound Settings
Display Settings
Language Settings
Time Settings
System Settings
Resetting the system
PC requirements
Installing EmoDio
Transferring files to the player with
EmoDio
contents
LISTENING TO MUSIC
36
36
38
38
38
43
44
44
45
Listening by category
Pausing
Searching within a track
Playing from the beginning of the
current track
Playing the previous track
Playing the next track
Creating a playlist using EmoDio
Creating a Playlist
Adding music files to a playlist you’ve
created
Transferring a playlist to your player
using EmoDio
Creating a playlist on your mp3
player
Playing a playlist
Deleting a file from the playlist
Deleting all files from the playlist
Using the music menu
53
54
54
54
55
Pausing
To move to a specific frame
To play the previous video file
To play the next video file
Using the video menu
38
38
39
39
40
41
42
WATCHING A VIDEO
53
contents
VIEWING PICTURES
57
LISTENING TO
FM RADIO
62
73
USING THE DATACAST
ENJOYING
THE PRIME PACK
76
57
58
Viewing pictures
Using the picture menu
62
63
64
To use the mute function
To search for FM stations
Using the FM radio menu
73
74
74
75
Registering a channel
Creating a new channel group
Transferring a datacast from
<EmoDio>
Viewing Datacasts
76
77
80
82
85
Reading text
Using the text menu
Playing video games
Setting the alarm
Viewing the world clock
contents
TROUBLESHOOTING
86
Troubleshooting
89
90
91
Menu Tree
Product Specifications
License
86
APPENDIX
89
the basics
WHAT’S INCLUDED
Your new mp3 player comes with these accessories. If you’re missing any of these
items, contact Samsung Customer Service center near you.
Player
Earphones
USB Cable
Installation CD
The accessories in your box may look slightly different than these.
10 _ the basics
YOUR MP3 PLAYER
Neck string hole
Screen display
Power & Hold switch
Slide and hold in the opposite
direction of the arrow for power
on/off.
Slide in the direction of the arrow
to lock the button functions.
Reset hole
If a player malfunction occurs,
press the reset hole with a pointed
object to re-initialize the system.
the basics _ 11
YOUR MP3 PLAYER (Continued)
These buttons are ‘Touch Sensitive’ buttons.
Menu button
Tap to display the menu.
Up volume button
Tap to increase the volume or
move to an upper item/menu.
Back button
Tap to move to the previous
screen.
Press and briefly hold to move to
the main menu screen.
Left file browser button
Tap to move to the previous track/
menu or play the current track
from the beginning.
Press and briefly hold to quickly
scan tracks.
Play/Pause, Select button
Tap to select the play/pause and a
function, or move to the next screen.
Down volume button
Tap to reduce the volume or move
to a lower item/menu.
Right file browser button
Tap to move to the next track/
menu. Press and briefly hold to
quickly scan tracks.
12 _ the basics
YOUR MP3 PLAYER (Continued)
Earphone connection jack
USB connection port
Earphones
Labeled “L” for the left earpiece
and “R” for the right earpiece.
Also serves as an antenna for FM
Radio in the MP3 player.
the basics _ 13
SCREEN DISPLAYS
Music
1
Parent Menu Indicator
2
2
Lock/Alarm/Sleep Timer
Indicator
3
3
Battery Status
4
Current track playing / Total
number of tracks Indicator
5
Play Speed Indicator
6
Current Time
7
Total Play Time
8
Play/Pause, Search Indicator
9
Music Mode Indicator
10
Play Mode Indicator
11
DNSe Mode Indicator
12
Music Play Screen
13
Music Title
14
Play Status Bar
15
Current Play Time
8
1
9
Music
15/20
10
4
5
11
6
12
13
Rising Sun
14
15
02:13
04:28
7
ƒ The screen pictures are for illustration purposes only. The actual screen may differ.
NOTE
14 _ the basics
SCREEN DISPLAYS (Continued)
Video
1
5
6
2
Video Track 1
3
7
8
9
4
1
Lock/Alarm/Sleep Timer
Indicator
6
Video Mode Indicator
2
Battery Status
7
File Name
3
Current Time
8
Play Status Bar
4
Total Play Time
9
Current Play Time
5
Play/Pause, Search
Indicator
the basics _ 15
SCREEN DISPLAYS (Continued)
5
1
Lock/Alarm/Sleep Timer
Indicator
2
2
Battery Status
3
3
Current file /
Total number of files Indicator
4
Current Time
5
Music Play Status
6
Picture Mode Indicator
7
Parent Menu Indicator
8
File Name
1
1
Current Time
2
2
Battery Status
3
Lock/Alarm/Sleep Timer
Indicator
4
Radio Mode Indicator
5
Manual/Preset Indicator
6
Current Frequency(MHz) Indicator
7
Frequency Location Indicator
8
RDS Indicator
1
6
7
Pictures
Picture Image 1.jpg
1/8
4
8
[Preview Screen]
FM Radio
3
4
5
6
7
8
16 _ the basics
BBC R2
USING THE TOUCH BUTTON
Tap on the touch button with your fingertip.
NOTE
ƒ To avoid damage to the touch button, do not use any object other than your fingers
to operate it.
ƒ Do not tap on the touch button if your fingers are not clean.
ƒ Do not tap on the touch button with gloves on.
ƒ The touch button may not function if you use a fingernail or other instruments such
as a ballpoint pen.
the basics _ 17
CHARGING THE BATTERY
Charge the player before using it for the first time and when you haven’t used it
for awhile.
The battery for your mp3 player will fully charge in about 4 hours, although total
charging time varies depending on your PC environment.
Screen Display
ƒ USB Connected
2
1
1. Connect the larger end of the USB cable to the USB Connection Port on the
bottom of the player.
2. Connect the USB cable to the USB port (
) on your PC.
18 _ the basics
CARING FOR THE BATTERY
Your battery will last longer if you follow these simple guidelines for caring and
storing it.
• Recharge the battery within the temperature range of 5°C~35°C (40°F~95°F).
• Do not overcharge (longer than 12 hours).
Excessive charging or discharging may shorten the battery’s life.
• Battery life naturally shortens slowly over time.
ƒ If you are charging the player while it is connected to a laptop computer, make sure
the laptop’s battery is also fully charged or that the laptop is plugged into its power
source.
ƒ The rechargeable battery incorporated in this product is not user replaceable. For
information on its replacement, please contact your service provider.
CAUTION
NOTE
TURNING THE POWER ON & OFF
Turning the Power on
Slide and hold the
of the arrow.
switch in the opposite direction
ƒ Power is turned on.
Turning the Power off
Slide and hold the
of the arrow again.
switch in the opposite direction
ƒ Power is turned off.
NOTE
ƒ Your mp3 player will be automatically turned off when none of the buttons have
been pressed for a specific length of time in the pause mode. The factory setting for
<Auto Power Off> is 1 minute, but you can change this length of time. See page 29
for more information.
the basics _ 19
PLAYING MUSIC
Load music files onto your new mp3 player using EmoDio.
Learn more about EmoDio on pages 33~35.
1. Press and briefly hold [
screen.
] to move to the main menu
Music
2. Tap the [Left, Right] button to select <Music> and tap [
3. Use the [Up, Down] button and [
of your choice.
4. Tap [
NOTE
].
] to move to the previous screen.
ƒ Press and briefly hold [
].
] to select a music file
ƒ The music file will begin playing.
ƒ Tap [
15/20
Rising Sun
02:13
04:28
] to move to the main menu screen.
CONTROLLING THE VOLUME
Tap the [Up, Down] button.
Music
15/20
ƒ You will see a volume control icon.
ƒ The volume range is 0 to 30.
ƒ Tap the [Up] button to increase the volume and tap the [Down]
button to decrease it.
Rising Sun
02:13
20 _ the basics
04:28
DISABLING THE BUTTONS
The hold function disables all the other buttons on the mp3 player, so that if
you accidentally bump one-while working out, for example-your music won’t be
interrupted.
1. Slide the
switch in the direction of the arrow.
Music
15/20
switch in the opposite direction of the
2. Slide the
arrow to release the Lock function.
Rising Sun
02:13
04:28
BROWSING FOR FILES USING “File Browser”
Search easily for files using the “File Browser” function.
1. Press and briefly hold [
screen.
] to move to the main menu
2. Tap the [Left, Right] button to select <File Browser> and
tap [ ].
ƒ The <File Browser> folder list containing “Music, Playlists, Video,
Pictures, Datacasts, Texts, and Recorded Files” appears.
3. Tap the [Up, Down] button to select a desired folder.
4. Tap [
ƒ Tap [
] to bring up the file list in the selected folder.
] to move to the previous screen.
5. Tap the [Up, Down] button to select a desired file.
6. Tap [
].
ƒ The file will start playing.
the basics _ 21
DELETING FILES WITH “File Browser”
1. Press and briefly hold [
screen.
] to move to the main menu
File Browser
2. Tap the [Left, Right] button to select <File Browser> and
tap [ ].
Texts
Recorded Files
4. Tap the [Up, Down] button to select the file that you want
to delete and tap [ ].
].
ƒ The confirmation window will appear.
ƒ The file will be deleted
ƒ Once files are deleted, they cannot be recovered.
CAUTION
22 _ the basics
Video
Datacasts
3. Tap the [Up, Down] button to select a desired folder and
tap [ ].
6. Tap the [Left, Right] button to select <Yes> and tap [
Playlists
Pictures
ƒ The <File Browser> folder list appears.
5. Tap the [Up, Down] button to select <Delete> and tap [
Music
].
CHANGING THE SETTINGS AND PREFERENCES
Your mp3 player comes with settings and preferences that were set up at the
factory, but you can change these pre-set values to truly customize your player.
NOTE
ƒ Tap [ ] to move to the previous screen.
Press and briefly hold [ ] to move to the main menu screen.
Menu Style Settings
You can change the menu design and font and delete the background
image of the main menu.
1. Press and briefly hold [ ] to move to the main
Settings
menu screen.
Menu Style
2. Tap the [Left, Right] button to select <Settings>
Sound
Display
and tap [ ].
ƒ The <Settings> menu appears.
3. Tap the [Up, Down] button to select <Menu
Style> and tap [ ].
Language
Time
System
ƒ The <Menu Style> menu appears.
4. Use the [Up, Down] button and [
functions.
ƒ Tap [
] to set
] to move to the next item/select the menu.
ƒ Tap the [Up, Down] button to move up or down through the current menu.
Menu Style Setting Options
ƒ Menu Design : You can change the style of the main menu screen. Select from
<Sparkling>, <Crystal>, <My Skin>.
ƒ Font : You can change the font type of the menu language. Select one from 3
font types. In some menu languages, <Font> will be disabled.
ƒ Reset My Skin : Initializes the background image of the screen display to its
default image. If you set <Sparkling> or <Crystal> in <Menu Design>, <Reset
My Skin> will be disabled.
the basics _ 23
CHANGING THE SETTINGS AND PREFERENCES (Continued)
Sound Settings
You can set the master EQ, beep sound and volume limit.
1. Press and briefly hold [
menu screen.
] to move to the main
2. Tap the [Left, Right] button to select <Settings>
and tap [ ].
Settings
Menu Style
Sound
Display
Language
ƒ The <Settings> menu appears.
3. Tap the [Up, Down] button to select <Sound>
and tap [ ].
Time
System
ƒ The <Sound> menu appears.
4. Use the [Up, Down] button and [
functions.
] to set
Sound Setting Options
ƒ Master EQ : You can optimize sound settings. Tap the [Left, Right] button to
select the frequency you want to adjust. Tap the [Up, Down] button to adjust the
selected frequency’s level and then tap [ ].
ƒ Beep Sound : Sets the beep sound for button operations to on or off. Select
from <Off> and <On>.
ƒ Volume Limit : You can avoid hearing damage by setting the limit of the volume
when using the earphone. <On> will limit the maximum volume level to 15.
The maximum volume level when volume limit is set to <Off> is 30. Even if you
have selected <Off>, the volume will be set back to 15 to avoid hearing damage
when you turn the player back on.
24 _ the basics
CHANGING THE SETTINGS AND PREFERENCES (Continued)
Display Settings
Change the display off time, the screen saver and brightness of your
screen.
1. Press and briefly hold [
menu screen.
] to move to the main
2. Tap the [Left, Right] button to select <Settings>
and tap [ ].
ƒ The <Settings> menu appears.
3. Tap the [Up, Down] button to select <Display>
and tap [ ].
Settings
Menu Style
Sound
Display
Language
Time
System
ƒ The <Display> menu appears.
4. Use the [Up, Down] button and [
functions.
] to set
Display Setting Options
ƒ Display Off : If no button is tapped within the time shown below, the screen
display will automatically be turned off. Select either <15sec>, <30sec>,
<1min>, <3min>, <5min>, or <Always On>. Press any button to turn the display
back on.
ƒ Screen Saver : You can set an image to use as a screen saver. Select either
<Auto Change>, <Sweet>, <Blue Rain>, <Cheers>, <Analog Clock>, <Digital
Clock> and set the wait time. You can select from <Off>, <15sec>, <30sec>,
<1min>, <3min> and <5min>. If no button is tapped within the time shown
above, the player will display the screen saver image.
You can change the screen saver image by tapping [ ] during its operation.
ƒ Brightness : You can adjust the brightness of the display screen. Select a level
from <0-10>, where 10 is the brightest.
the basics _ 25
CHANGING THE SETTINGS AND PREFERENCES (Continued)
Language Settings
The menus on your new mp3 player can be set to appear in any one of
the available languages. You can change your preference language easily.
1. Press and briefly hold [ ] to move to the main
menu screen.
2. Tap the [Left, Right] button to select <Settings>
and tap [ ].
ƒ The <Settings> menu appears.
3. Tap the [Up, Down] button to select <Language>
and tap [ ].
Settings
Menu Style
Sound
Display
Language
Time
System
ƒ The <Language> menu appears.
4. Use the [Up, Down] button and [
functions.
Language Setting Options
] to set
ƒ Menu : Set the menu language. Select from <English>, <한국어>, <Français>,
<Deutsch>, <Italiano>, <日本語>, <简体中文>, <繁體中文>, <Español>,
<Русский>, <Magyar>, <Nederlands>, <Polski>, <Português>, <Svenska>,
<ไทย>, <Čeština>, <Ελληνικά>, <Türkçe>, <Norsk>, <Dansk>, <Suomi>,
<Español (Sudamérica)>, <Português (Brasil)>, <Indonesia>, <Tiếng Việt>,
<Bulgarian>, <Română>, <Українська>, <Slovenščina> or <Slovenský>.
ƒ Contents : Set the language in which the track information and Text will appear.
Select from <English>, <Korean>, <French>, <German>, <Italian>, <Japanese>,
<Simplified Chinese>, <Tranditional Chinese>, <Spanish>, <Russian>,
<Hungarian>, <Dutch>, <Polish>, <Portuguese>, <Swedish>, <Thai>, <Finnish>,
<Danish>, <Norwegian>, <Farsi>, <Afrikaans>, <Basque>, <Catalan>, <Czech>,
<Estonian>, <Greek>, <Hrvatski>, <Icelandic>, <Rumanian>, <Slovak>, <Slovene>,
<Turkish> or <Vietnamese>.
ƒ The supported languages can be changed or added.
NOTE
26 _ the basics
CHANGING THE SETTINGS AND PREFERENCES (Continued)
Time Settings
Setting the time allows you to use the date/time set, date type and even
time zone.
1. Press and briefly hold [
menu screen.
] to move to the main
2. Tap the [Left, Right] button to select <Settings>
and tap [ ].
ƒ The <Settings> menu appears.
3. Tap the [Up, Down] button to select <Time> and
tap [ ].
Settings
Menu Style
Sound
Display
Language
Time
System
ƒ The <Time> menu appears.
4. Use the [Up, Down] button and [
functions.
] to set
Time Setting Options
ƒ Date & Time : You can set the current time and date. Tap the [Left, Right] button
to move to <Year, Month, Date, Hour, Min, AM/PM> and tap the [Up, Down]
button to set each item.
ƒ Date Type : You can set the time display type for the World Clock. Select from
<YY-MM-DD>, <MM-DD-YY> and <DD-MM-YY>.
ƒ Time Zone : You can change the current time by selecting an international cityspecific time zone. You must set the time zone before you can display the world
time information. See page 85.
the basics _ 27
CHANGING THE SETTINGS AND PREFERENCES (Continued)
System Settings
Choose the sleep timer, start mode, auto power off and default setting
that’s right for you.
1. Press and briefly hold [
menu screen.
] to move to the main
2. Tap the [Left, Right] button to select <Settings>
and tap [ ].
ƒ The <Settings> menu appears.
3. Tap the [Up, Down] button to select <System>
and tap [ ].
ƒ The <System> menu appears.
4. Use the [Up, Down] button and [
functions.
28 _ the basics
] to set
Settings
Menu Style
Sound
Display
Language
Time
System
CHANGING THE SETTINGS AND PREFERENCES (Continued)
System Setting Options
ƒ Sleep : Turns off power automatically after the preset time. Select either <Off>,
<15 min>, <30 min>, <60 min>, <90 min>, or <120 min>.
ƒ Start Mode : You can set the start screen displayed when you turn on the
player. Select from <Home> and <Last State>. Select <Home> to start the
system with the main menu screen while <Last State> will use the last used
menu screen.
ƒ Auto Power Off : Automatically turns power off when there is no button
operation after the preset time in the pause mode. Select either <15sec>,
<30sec>, <1min>, <3min>, <5min> or <Always On>.
ƒ Default Set : Returns all settings to the default value. Select either <Yes> or
<No>. <Yes> initializes all settings to default. <No> cancels default settings.
ƒ Format : Formats the internal memory. Select either <Yes> or <No>.
Selecting <Yes> will format the internal memory and delete all files on the
player. Selecting <No> does not format the internal memory.
Check before formatting it.
ƒ About : Checks the firmware version and memory capacity.
<Firmware Version> displays the current firmware version.
<Used> indicates the usage, <Available> indicates the remaining capacity and
<Total> indicates the total memory capacity.
NOTE
ƒ Regarding the Built-In Memory
1GB=1,000,000,000 bytes : actual formatted capacity may be less as the
internal firmware uses a portion of the memory.
the basics _ 29
RESETTING THE SYSTEM
If your mp3 player won’t turn on, won’t play music, or isn’t recognized by your
computer when you connect it, you may have to reset the system.
Press the Reset hole at the rear of the
player with a pointed object such as a
safety clip.
ƒ The system will be initialized.
ƒ Your settings and files will not be affected.
30 _ the basics
EmoDio
EmoDio is an easy-to-use software application that helps you organize
your files on your PC. With your files already sorted and organized in
EmoDio, you can quickly transfer them to your mp3 without searching
your entire hard drive for the right file.
PC REQUIREMENTS
Your PC system must meet the following minimum specifications in order to
install and run EmoDio:
• Pentium 500MHz or higher
• USB Port 2.0
• Windows XP Service Pack 2 or higher
• DirectX 9.0 or higher
• 100MB of free hard disc space
• CD Rom Drive (2X or higher)
• Windows Media Player 10.0 or higher
• Resolution 1024 X 768 or higher
• Internet Explorer 6.0 or higher
• 512 MB RAM or higher
EmoDio _ 31
INSTALLING EMODIO
CAUTION
ƒ Ensure that you run the <EmoDio> installer in your PC’s administrator account.
Otherwise, <EmoDio> will not be installed. To find the administrator account, please
refer to your PC’s user manual.
1. Insert the Installation CD provided
with the player into the CD-ROM drive of
your computer.
2. Click <Install now>.
ƒ Follow the instruction to start installation.
ƒ <EmoDio> installation starts and then creates an
installation is complete.
icon on your desktop when
ƒ Use care when inserting the Installation CD into a vertically oriented CD-ROM drive.
CAUTION
32 _ EmoDio
TRANSFERRING FILES TO THE PLAYER WITH
EMODIO
<EmoDio> enables you to select and organize files and folders before
transferring them to your player. This will make scanning files on your mp3
player easier and faster. <EmoDio> file transfer is the easiest way to get files
from your PC to your mp3 player.
2
1
1. Connect the larger end of the USB cable to the USB Connection Port on the
bottom of the player.
) on your PC.
2. Connect the USB cable to the USB port (
ƒ <USB Connected> appears on the screen display of the player.
ƒ <EmoDio> will automatically start when the player is connected to your PC.
ƒ If the program does not start automatically, double click the <EmoDio> icon
desktop.
NOTE
on the
ƒ Music recognition technology and related data are provided by Gracenote and
Gracenote CDDB® Music Recognition ServiceSM.
ƒ CDDB is a registered trademark of Gracenote. The Gracenote logo and logotype,
the Gracenote CDDB logo and logotype, and the “Powered by Gracenote CDDB”
logo are trademarks of Gracenote. Music Recognition Service and MRS are service
marks of Gracenote.
EmoDio _ 33
TRANSFERRING FILES TO THE PLAYER WITH
EMODIO (Continued)
3. Click the icon for the type of file you want to
transfer.
ƒ Click
to display music list.
ƒ Click
to display video list.
ƒ Click
to display picture list.
3
4. Click <Add File> on the bottom of <EmoDio>.
ƒ The <Open> window will appear.
4
5. Select the files to add and click <Open>.
ƒ The files are added to the list on the left side of the
<EmoDio> Screen.
6. Select the file to transfer from the list on the left
side.
7. Click the
icon.
5
ƒ The file you selected is transferred to the player.
6
34 _ EmoDio
7
TRANSFERRING FILES TO THE PLAYER WITH
EMODIO (Continued)
CAUTION
ƒ Do not disconnect the USB cable during file transfer. Disconnecting during transfer
may damage the player or your PC.
ƒ Connect the player to the computer directly rather than through a USB hub to avoid
an unstable connection.
NOTE
ƒ When transferring a video file to the player using EmoDio, it is automatically
converted into .SVI format before transfer. The file size is automatically adjusted,
too.
ƒ When transferring a picture file to the player using <EmoDio>, it is automatically
converted into JPG format before transfer. The file size is automatically adjusted,
too.
ƒ All functions are disabled during connection.
ƒ If you connect the USB cable to the PC in the Low Battery condition, the player will
be charged for several minutes before connecting to the PC.
ƒ It is recommended to use FAT 32 for the file system when formatting the player on
your PC.
ƒ EmoDio has a thorough Help function. If you can’t find the answer to your question
about EmoDio, click <MENU> → <Help> → <Help> on the top of the <EmoDio>
program.
ƒ What is SVI?
Samsung Audio Video interleaving(SVI) is a new video format developed and
controlled by Samsung.
EmoDio _ 35
listening to music
ƒ Before you start - Connect the earphones, then turn on the player, and check the battery.
NOTE
ƒ Tap [ ] to move to the previous screen.
Press and briefly hold [ ] to move to the main menu screen.
LISTENING BY CATEGORY
Music
Music
15/20
Now Playing
Artists
Albums
Songs
Genres
Playlists
Recorded Files
Music Browser
1. Press and briefly hold [
Rising Sun
02:13
04:28
] to move to the main menu screen.
2. Tap the [Left, Right] button to select <Music> and tap [
].
ƒ The <Music> list appears.
3. Tap the [Up, Down] button to select the desired list and tap [
].
ƒ The music files appear.
4. Tap the [Up, Down] button to select the file to play and tap [
ƒ The music will start playing.
36 _ listening to music
].
LISTENING BY CATEGORY (Continued)
Music List
File information including the artist name, album name, music title and genre will be
displayed according to the ID3 Tag information on the appropriate music file. A file without
an ID3 Tag is displayed as [Unknown].
Now Playing : Plays a recently played file or moves to the playback screen of the current file.
Artists : To play by artist
Albums : To play by album
Songs : To play in numeric or alphabetical order
Genres : To play by genre
Playlists : To play by Playlist.
Recorded Files : Shows all recorded files.
Music Browser : Shows all the music files stored in the Music Folder.
NOTE
ƒ MP3 and WMA music files are compatible with the player.
ƒ MP1 or MP2 files which only have a changed extension to MP3 may not play on the
player.
ƒ Disconnecting the earphones during music playback will pause the playback.
ƒ What is an ID3 Tag?
This is what is attached to an MP3 to carry information relevant to the file such as
the title, artist, album, year, genre and a comment field.
listening to music _ 37
PAUSING
1. Tap [
] while the music is playing.
ƒ The music playback will be paused.
2. Tap [
] again.
ƒ The music will play from the point where it stopped.
SEARCHING WITHIN A TRACK
1. Press and briefly hold the [Left, Right] button while the selected track is playing.
ƒ It searches to the beginning or the end of the track.
2. Release the button at the point you wish to start.
ƒ It starts playing from the point you release the button.
PLAYING FROM THE BEGINNING OF THE CURRENT TRACK
1. Tap the [Left] button after 3 seconds of play has elapsed from the beginning
of the track.
ƒ The current track starts playing from the beginning.
PLAYING THE PREVIOUS TRACK
Tap the [Left] button before 3 seconds of play has elapsed from the beginning
of the track.
Tap the [Left] button twice after 3 seconds of play has elapsed from the
beginning of the track.
ƒ The previous track will start playing.
PLAYING THE NEXT TRACK
Tap the [Right] button.
ƒ The next track will start playing.
ƒ When playing VBR files, the previous track may not play even if you tap the [Left]
button within 3 seconds.
38 _ listening to music
CAUTION
CREATING A PLAYLIST USING EMODIO
With <EmoDio>, you can create your own collection, or playlist, of audio files.
ƒ Before you start - Connect the player to your PC.
EmoDio must be installed on your PC.
Creating a Playlist
1
OK
3
2
1. Click <Playlists> on the top of <EmoDio>.
ƒ The <Playlists> window appears.
2. Click <New Playlists> on the bottom.
ƒ The <Create Playlists> window appears.
3. Type in the playlist title and click [OK].
ƒ A new playlist will be named and stored in the <Playlists> section
of <EmoDio>.
listening to music _ 39
CREATING A PLAYLIST USING EMODIO (Continued)
Adding music files to a Playlist you’ve created
2
1
4
3
5
1. Click <My PC> on the top of <EmoDio>.
ƒ The <My PC> window appears.
2. Click <Playlists> in the right corner of the window.
ƒ The <Playlists> window appears.
3. Double click on a playlist in the right window.
4. Select files that you want to transfer in the <My PC> window.
5. Click
.
ƒ The selected files will be added to the playlist.
40 _ listening to music
CREATING A PLAYLIST USING EMODIO (Continued)
Transferring a Playlist to your player using EmoDio
1
2
3
1. Click <Playlists> on the top of <EmoDio>.
ƒ The <Playlists> window appears.
2. Select a playlist in the <Playlists> section.
3. Click
.
ƒ The selected playlist will be transferred to the player in <File Browser> →
<Playlists>.
ƒ The player can play up to 999 music files for each playlist.
NOTE
listening to music _ 41
CREATING A PLAYLIST ON YOUR MP3 PLAYER
If you’ve already downloaded files to your mp3 player, you can create a
“Favorites” playlist without EmoDio or your PC.
1. Press and briefly hold [
screen.
] to move to the main menu
Music
2. Tap the [Left, Right] button to select <File Browser> and
tap [ ].
3. Tap the [Up, Down] button to select <Music> and tap [
].
Life is cool
My love
Add to Playlist
Delete from Pla..
Delete
ƒ The music file(s) appear.
4. Tap the [Up, Down] button to select a file to add to the
playlist list and tap [ ].
ƒ The Playlist menu appears.
5. Tap the [Up, Down] button to select <Add to Playlist> and
tap [ ].
ƒ <Playlist 1> to <Playlist 5> appears.
6. Tap the [Up, Down] button to select a playlist number to
add the selected file and tap [ ].
ƒ The selected file will be added to the playlist.
ƒ You can check the playlist in <Music> → <Playlists> →
<Playlist 1> to <Playlist 5> in the main menu.
Music
Life is cool
My love
Playlist 1
Playlist 2
Playlist 3
Playlist 4
Playlist 5
ƒ You can add up to 100 music files to each playlist (<Playlist 1> to <Playlist 5>).
NOTE
42 _ listening to music
PLAYING A PLAYLIST
1. Press and briefly hold [
screen.
] to move to the main menu
2. Tap the [Left, Right] button to select <Music> and tap [
Music
].
ƒ The <Music> list appears.
3. Tap the [Up, Down] button to select <Playlists> and tap
[ ].
ƒ The playlist(s) appear.
4. Tap the [Up, Down] button to select the playlist of your
choice and tap [ ].
ƒ Music files stored in the selected playlist appear.
ƒ If there is no playlist found, you will see a <No file> message on
the screen.
5. Tap the [Up, Down] button to select a music file to play
and tap [ ].
ƒ The music file will start playing.
NOTE
Now Playing
Artists
Albums
Songs
Genres
Playlists
Recorded Files
Music Browser
Playlists
1/5
Playlist 1
Playlist 2
Playlist 3
Playlist 4
Playlist 5
ƒ See pages 39 and 41 to see how to transfer the playlist using
<EmoDio>.
listening to music _ 43
DELETING A FILE FROM THE PLAYLIST
1. Press and briefly hold [ ] to move to the main menu
screen.
2. Tap the [Left, Right] button to select <Music> and tap [
Playlist 1
].
Delete from Playlist
Delete All from ..
ƒ The <Music> list appears.
3. Tap the [Up, Down] button to select <Playlists> and tap [
Life is cool
My love
].
ƒ The playlist(s) appear.
4. Tap the [Up, Down] button to select the playlist of your
choice and tap [ ].
ƒ Music files stored in the selected playlist appear.
5. Tap the [Up, Down] button to select a file to delete from the playlist and tap [
ƒ The Playlist menu appears.
6. Tap the [Up, Down] button to select <Delete from Playlist> and tap [
].
ƒ The delete confirmation window appears.
7. Tap the [Left, Right] button to select <Yes> and tap [
].
ƒ The selected file is deleted from the playlist.
DELETING ALL FILES FROM THE PLAYLIST
Follow the steps 1-4 above.
5. Tap [ ].
Playlist 1
Life is cool
My love
ƒ The Playlist menu appears.
Delete from Pla..
Delete All from Pla
6. Tap the [Up, Down] button to select <Delete All from
Playlist> and tap [ ].
ƒ The delete confirmation window appears.
7. Tap the [Left, Right] button to select <Yes> and tap [
ƒ All files are deleted from the playlist.
44 _ listening to music
].
].
USING THE MUSIC MENU
The Music menu allows you manage all facets of listening - from repeating
tracks and albums to choosing the background on the screen as you listen.
To set the sound effect
You can enjoy clearer sound.
1. Tap [
] while listening to music.
Music
ƒ The <Music> menu appears.
2. Tap the [Up, Down] button to select <Sound
Effect> and tap [ ].
ƒ The <Sound Effect> menu appears.
3. Tap the [Up, Down] button to select the desired
sound effect and tap [ ].
15/20
Sound Effect
DNSe
Play Mode
Music Play Scre..
Add to Alarm
Play Speed
Rising
Sun
Skip Interval
02:13
04:28
Sound Effect Options
ƒ Street Mode : Allows you to hear the music outdoors clearly by filtering out
some of the street noise. Select either <Off> or <On>.
ƒ Clarity: You can enjoy clearer sound with improved quality. Select from <0 - 2>.
ƒ To exit the menu, tap [
].
NOTE
listening to music _ 45
USING THE MUSIC MENU (Continued)
To set the Digital Natural Sound engine (DNSe)
Select the right sound for each music genre.
1. Tap [
] while listening to music.
Music
ƒ The <Music> menu appears.
2. Tap the [Up, Down] button to select <DNSe> and
tap [ ].
ƒ The <DNSe> menu appears.
3. Tap the [Up, Down] button to select a desired
DNSe and tap [ ].
ƒ Select from <Normal>, <Rock>, <Vocal>, <Bass
Boost>, <Classical>, <Studio>, <Concert Hall>, and
<User>.
Sound Effect
DNSe
Play Mode
Music Play Scre..
Add to Alarm
Play Speed
Rising
Sun
Skip Interval
02:13
ƒ You can also set <EQ> and <3D & BASS> in the DNSe mode when you
have selected <User>. See page 47.
NOTE
ƒ What is DNSe?
Digital Natural Sound Engine (DNSe) is a sound effect function for MP3
players developed by Samsung. It provides various sound settings to
enhance the type of music you’re listening to.
46 _ listening to music
15/20
04:28
USING THE MUSIC MENU (Continued)
To set the Digital Natural Sound engine (DNSe) (Continued)
<EQ>
You can adjust individual frequencies to adjust the sound to your preference.
1 Tap the [Up, Down] button in the DNSe menu to
Music
select <User> and tap the [Right] button.
2. Tap the [Up, Down] button to select <EQ> and tap
EQ
[ ].
15/20
3D & BASS
ƒ The <EQ> setting screen appears.
3. Tap the [Left, Right] button to select the
frequency you want to adjust and tap the [Up,
Down] button to adjust the selected frequency’s
level.
Rising Sun
02:13
04:28
ƒ You can select from –10 to +10 for the selected
frequency’s level.
4. Tap [
].
ƒ The setting is completed.
<3D & BASS>
You can set the 3D surround sound and bass boost level.
1. Tap the [Up, Down] button in the DNSe menu to
Music
select <User> and tap the [Right] button.
2. Tap the [Up, Down] button to select <3D &
BASS> and tap [ ].
EQ
ƒ The <3D & BASS> setting screen appears.
15/20
3D & BASS
3. Tap the [Left, Right] button to select <3D> or
<Bass> and tap the [Up, Down] button.
ƒ You can select a <3D> level from 0 to 4, and <Bass>
from 0 to 4.
4. Tap [
Rising Sun
02:13
04:28
].
ƒ The setting is completed.
listening to music _ 47
USING THE MUSIC MENU (Continued)
To set the play mode
Select playback mode such as repeat settings.
1. Tap [
] while listening to music.
Music
ƒ The <Music> menu appears.
2. Tap the [Up, Down] button to select <Play
Mode> and tap [ ].
ƒ The <Play Mode> menu appears.
3. Tap the [Up, Down] button to select a desired
play mode and tap [ ].
Sound Effect
DNSe
Play Mode
Music Play Scre..
Add to Alarm
Play Speed
Rising
Sun
Skip Interval
02:13
Play Mode Options
ƒ Normal : To play all the tracks in order one time.
ƒ Repeat : To repeat all files in the current folder.
ƒ Repeat One : To repeat one file.
ƒ Shuffle : To play files at random.
48 _ listening to music
15/20
04:28
USING THE MUSIC MENU (Continued)
To select the music play screen
Choose a background image from those provided, or choose an image
of your own to be displayed as you listen to music.
1. Tap [
] while listening to music.
Music
15/20
ƒ The <Music> menu appears.
2. Tap the [Up, Down] button to select <Music Play
Screen> and tap [ ].
ƒ The <Music Play Screen> menu appears.
3. Tap the [Up, Down] button to select a desired
music play screen and tap [ ].
Sound Effect
DNSe
Play Mode
Music Play Screen
Add to Alarm
Play Speed
Rising
Sun
Skip Interval
02:13
04:28
Music Play Screen Options
ƒ Type 1 ~ Type 3 : You can select a desired music play screen.
ƒ Album Info. : Information on the artist name, album and genre is displayed if
ID3 Tag information is stored on the music file.
ƒ Album Art : The album cover image is displayed if an album cover image is
included in the ID3 Tag information of the music file.
Album cover images less than 200 pixel (horizontal) x 200
pixel(vertical) in size are supported.
ƒ Auto Change : Automatically switches <Type 1> through <Type 3> each time a
different music file is played.
NOTE
ƒ What is an ID3 Tag?
This is what is attached to an MP3 to carry information relevant to the file
such as the title, artist, album, year, genre and a comment field.
listening to music _ 49
USING THE MUSIC MENU (Continued)
To add to alarm sound
You can add your favorite music file to the alarm sound list, so it can
be heard the next time the alarm goes off. See page 82 to set the alarm.
1. Select a music file to add to the alarm sound and
tap [ ].
Music
15/20
ƒ The <Music> menu appears.
2. Tap the [Up, Down] button to select <Add to
Alarm> and tap [ ].
ƒ The selected music will be added to the alarm sound
list.
ƒ One music file can be added to the alarm sound.
Sound Effect
DNSe
Play Mode
Music Play Scre..
Add to Alarm
Play Speed
Rising
Sun
Skip Interval
02:13
04:28
To set the play speed
Speed up or slow down your favorite music by adjusting the play speed.
1. Tap [
] while listening to music.
ƒ The <Music> menu appears.
2. Tap the the [Up, Down] button to select <Play
Speed> and tap [ ].
ƒ The <Play Speed> menu appears.
3. Tap the [Up, Down] button to select a desired
play speed and tap [ ].
ƒ Select from <X 0.7>, <X 0.8>, <X 0.9>,
<X 1.0 (Normal)>, <X 1.1>, <X 1.2>, <X 1.3>.
Music
15/20
Sound Effect
DNSe
Play Mode
Music Play Scre..
Add to Alarm
Play Speed
Rising
Sun
Skip Interval
02:13
04:28
ƒ The higher the number is, the faster the speed is.
NOTE
ƒ The adjusted play speed may differ from the actual speed, depending on
the file.
50 _ listening to music
USING THE MUSIC MENU (Continued)
To set the skip interval
You can fast forward through a file at various intervals. Skip a whole
track or skip several seconds at a time.
1. Tap [
] while listening to music.
Music
ƒ The <Music> menu appears.
2. Tap the [Up, Down] button to select <Skip
Interval> and tap [ ].
ƒ The <Skip Interval> menu appears.
3. Tap the [Up, Down] button to select a desired
skip interval and tap [ ].
ƒ Select from <1 Song>, <5 sec>, <10 sec>, <30 sec>
and <1 min>.
NOTE
15/20
Sound Effect
DNSe
Play Mode
Music Play Scre..
Add to Alarm
Play Speed
Rising
Sun
Skip Interval
02:13
04:28
ƒ If the file was developed with a variable bit rate, the actual length of the
skip interval may not be exactly what you select.
listening to music _ 51
USING THE MUSIC MENU (Continued)
To set a bookmark
Once you set a bookmark, you can easily find that position later.
1. Tap [ ] at the point you want while listening to music.
Music
ƒ The <Music> menu appears.
2. Tap the [Up, Down] button to select <Bookmark>
and tap [ ].
ƒ The <Bookmark> menu appears.
3. Tap the [Up, Down] button to select <Add
Bookmark> and tap [ ].
15/20
DNSe
Play Mode
Music Play Scre..
Add to Alarm
Play Speed
Skip Interval
Rising
Sun
Bookmark
ƒ The current play / stop point will be added to the
02:13
04:28
bookmark.
ƒ You will see the [ │ ] symbol on the play status bar.
ƒ The Overwrite window appears if there is a bookmark previously set. If you
select <Yes>, the previously set bookmark is deleted and a new bookmark
NOTE
is added.
ƒ One bookmark can be set for each music file, and a maximum number of
50 bookmarks can be set.
To move to (play) / remove the bookmark
1. Tap [
] while listening to music.
Music
15/20
ƒ The <Music> menu appears.
2. Tap the [Up, Down] button to select
<Bookmark> and tap [ ].
Add Bookmark
Go to Bookmark
Delete Bookmark
ƒ The <Bookmark> menu appears.
3. Tap the [Up, Down] button to select <Go to
Bookmark> or <Delete Bookmark> and tap [
].
Rising Sun
02:13
04:28
ƒ When you selected <Go to Bookmark> then the player will
move to the selected bookmark in the file and start playback.
ƒ <Delete Bookmark> will remove the selected bookmark from the music file.
52 _ listening to music
watching a video
ƒ Before you start - Connect the earphones, then turn on the player, and check the
battery.
Transfer a video file to the player. See pages 33~35.
NOTE
ƒ Tap [ ] to move to the previous screen.
Press and briefly hold [ ] to move to the main menu screen.
1. Press and briefly hold [
screen.
] to move to the main menu
2. Tap the [Left, Right] button to select <Videos> and tap [
].
ƒ The <Videos> list appears.
3. Tap the [Up, Down] button to select a video to play and
tap [ ].
ƒ The selected video file starts to play horizontally.
[Up, Down] button
PAUSING
1. Tap [
] during video playback.
ƒ The player pauses playing.
2. Tap [
] again.
[Left, Right] button
ƒ The player resumes playing from the last played point.
NOTE
<In horizontal view>
ƒ When transferring a video file to the player using <EmoDio>, it is automatically
converted into SVI format before transfer. The file size is automatically adjusted, too.
watching a video _ 53
TO MOVE TO A SPECIFIC FRAME
1. In horizontal view, press and briefly hold the [Left,
Right] button.
Video Track 1
ƒ This enables you to move backwards or forwards within
the current video file.
2. Release the button when you have moved to the
position you want.
ƒ The video starts playing from the position.
TO PLAY THE PREVIOUS VIDEO FILE
Tap the [Left] button once before 3 seconds of play
has elapsed from the beginning of the file.
Video Track 1
Tap the [Left] button twice after 3 seconds of play has
elapsed from the beginning of the file.
ƒ This will return to the previous video.
TO PLAY THE NEXT VIDEO FILE
Tap the [Right] button.
ƒ This will move to the next video.
54 _ watching a video
Video Track 2
USING THE VIDEO MENU
To set a bookmark
Once you set a bookmark, you can easily find that position later.
1. Tap [ ] at the desired scene you want
during video playback.
ƒ The <Video> menu appears.
2. Tap the [Up, Down] button to select <Add
Bookmark> and tap [ ].
Add Bookmark
Go to Bookmark
Delete Bookmark
DNSe
Brightness
ƒ The current play / stop point will be added to
the bookmark.
ƒ You will see the [ │ ] symbol on the play status bar.
NOTE
ƒ The Overwrite window appears if there is a bookmark previously set. If you
select <Yes>, the previously set bookmark is deleted and a new bookmark
is added.
ƒ One bookmark can be set for each video file, and a maximum number of
50 bookmarks can be set.
To move to (play) / remove the bookmark
1. Tap [
] during video playback.
ƒ The <Video> menu appears.
2. Tap the [Up, Down] button to select <Go
to Bookmark> or <Delete Bookmark>
and tap [ ].
Add Bookmark
Go to Bookmark
Delete Bookmark
DNSe
Brightness
ƒ When you selected <Go to Bookmark> then
the player will move to the selected bookmark
in the file and start playback.
ƒ <Delete Bookmark> will remove the selected bookmark from the video file.
ƒ To exit the menu, tap [
NOTE
].
watching a video _ 55
USING THE VIDEO MENU (Continued)
To set the Digital Natural Sound engine (DNSe)
Select the right sound for each video genre.
1. Tap [
] during video playback.
ƒ The <Video> menu appears.
2. Tap the [Up, Down] button to select
<DNSe> and tap [ ].
ƒ The <DNSe> menu appears.
Add Bookmark
Go to Bookmark
Delete Bookmark
DNSe
Brightness
3. Tap the [Up, Down] button to select a
desired DNSe and tap [ ].
ƒ Select from <Normal>, <Drama> and <Action>.
NOTE
ƒ What is DNSe?
Digital Natural Sound Engine (DNSe) is a sound effect function for MP3
players developed by Samsung. It provides various sound settings to
enhance the type of music you’re listening to.
To adjust the brightness
You can adjust the screen brightness.
1. Tap [
] during video playback.
ƒ The <Video> menu appears.
2. Tap the [Up, Down] button to select
<Brightness> and tap [ ].
ƒ The <Brightness> menu appears.
3. Tap the [Up, Down] button to adjust a
desired brightness and tap [ ].
ƒ Select from <0~10>.
56 _ watching a video
Add Bookmark
Go to Bookmark
Delete Bookmark
DNSe
Brightness
viewing pictures
ƒ Before you start - Connect the earphones, then turn on the player, and check the battery.
NOTE
ƒ Tap [ ] to move to the previous screen.
Press and briefly hold [ ] to move to the main menu screen.
1. Press and briefly hold [
screen.
] to move to the main menu
2. Tap the [Left, Right] button to select <Pictures> and tap [
].
ƒ The picture preview window appears.
3. Tap the [Up, Down, Left, Right] button to select the
picture you want to look at and tap [ ].
ƒ The selected picture will be displayed.
ƒ Tap [
] to move to the preview window.
[Up, Down] button
To move to the previous/next picture
In horizontal view, tap the [Left, Right]
button.
ƒ The previous/next picture will be displayed.
NOTE
ƒ A JPG file including incorrect thumbnail data will
be displayed in .
[Left, Right] button
<In horizontal view>
ƒ Some pictures may be slow to appear.
ƒ When transferring a picture to the player using <EmoDio>, it is automatically
converted into JPG format before transfer. The file size is automatically adjusted,
too.
ƒ You can also use the <File Browser> to search for a picture. See page 21.
viewing pictures _ 57
USING THE PICTURE MENU
To listen to music while viewing your picture
You can listen to the current music file while viewing your picture.
1. Tap [
] while viewing a picture.
ƒ The <Picture> menu appears.
2. Tap the [Up, Down] button to select
<Music> and tap [ ].
ƒ The <Music> menu appears.
Music
Start Sildeshow
Slideshow Speed
Zoom
Rotate
Select as My Skin
3. Tap the [Up, Down] button to select a
desired mode and tap [ ].
ƒ <Off> : No background music is played while viewing a picture.
ƒ <On> : You can listen to the music that you last played while viewing your picture.
To watch a slideshow
How To 1
1. Tap [ ] while viewing a picture.
] on the screen and then the player
ƒ You will see [
will start the slideshow.
How To 2
1. In the picture preview mode, tap [
Start Slideshow
].
ƒ The Start Slideshow window appears.
2. Tap [
].
] on the screen and then the player
ƒ You will see [
will start the slideshow.
ƒ To exit the menu, tap [
NOTE
58 _ viewing pictures
].
Pictures
Picture Image 1
1/8
USING THE PICTURE MENU (Continued)
To stop the slideshow
How To 1
1. In the slideshow mode, tap [
].
ƒ The slideshow stops.
How To 2
1. In the slideshow mode, tap [
].
ƒ The <Picture> menu appears.
Music
Stop Sildeshow
Slideshow Speed
Zoom
Rotate
Select as My Skin
2. Tap the [Up, Down] button to select <Stop
Slideshow> and tap [ ].
ƒ The slideshow stops.
To set the slideshow speed
1. Tap [
] while viewing a picture.
ƒ The <Picture> menu appears.
2. Tap the [Up, Down] button to select
<Slideshow Speed> and tap [ ].
ƒ The <Slideshow Speed> menu appears.
Music
Start Sildeshow
Slideshow Speed
Zoom
Rotate
Select as My Skin
3. Tap the [Up, Down] button to select a
desired speed and tap [ ].
ƒ Select from <Fast>, <Normal>, and <Slow>.
viewing pictures _ 59
USING THE PICTURE MENU (Continued)
To enlarge a picture
You can zoom in a picture.
1. Tap [
] while viewing a picture.
ƒ The <Picture> menu appears.
2. Tap the [Up, Down] button to select
<Zoom> and tap [ ].
ƒ The <Zoom> menu appears.
Music
Start Sildeshow
Slideshow Speed
Zoom
Rotate
Select as My Skin
3. Tap the [Up, Down] button to select a
desired zoom factor and tap [ ].
ƒ Select from <100%>, <200%> and <400%>.
4. Tap the [Up, Down, Left, Right] button to move to the portion of the
picture to magnify.
To cancel the zooming
Tap [
] in an enlarged picture view.
ƒ This returns to the original size.
ƒ A big picture file may take awhile to zoom.
NOTE
60 _ viewing pictures
USING THE PICTURE MENU (Continued)
To rotate a picture
You can rotate a picture for your convenience.
1. Tap [
] while viewing a picture.
ƒ The <Picture> menu appears.
2. Tap the [Up, Down] button to select
<Rotate> and tap [ ].
ƒ The <Rotate> menu appears.
Music
Start Sildeshow
Slideshow Speed
Zoom
Rotate
Select as My Skin
3. Tap the [Up, Down] button to select a
desired angle and tap [ ].
ƒ Select from <Left 90°>, <Right 90°>, and <180°>.
To set a picture as a background image
You can set a desired picture as a background image for the display window.
1. Select a picture file to set as a background
image and tap [ ].
ƒ The <Picture> menu appears.
2. Tap the [Up, Down] button to select
<Select as My Skin> and tap [ ].
Music
Start Sildeshow
Slideshow Speed
Zoom
Rotate
Select as My Skin
ƒ The save confirmation window appears.
3. Tap the [Left, Right] button to select
<Yes> and tap [ ].
ƒ The selected picture will be set to the background image.
ƒ If <My Skin> is selected from <Settings> → <Menu Style> →
<Menu Design>, the set image will be displayed.
viewing pictures _ 61
listening to FM radio
ƒ Before you start - Connect the earphones, then turn on the player, and check the battery.
NOTE
ƒ Tap [ ] to move to the previous screen.
Press and briefly hold [ ] to move to the main menu screen.
1. Press and briefly hold [
screen.
] to move to the main menu
2. Tap the [Left, Right] button to select <FM Radio> and
tap [ ].
ƒ FM radio reception will start.
TO USE THE MUTE FUNCTION
1. Tap [
] while listening to FM Radio.
ƒ Sound is muted.
2. Tap [
NOTE
] once again to resume listening.
ƒ Always connect your earphones to the player when searching or setting frequencies
and listening to FM Radio.
The earphones serve as antennas to receive FM radio reception.
ƒ In poor reception areas, the player may not be able to find an available FM frequency.
62 _ listening to FM radio
TO SEARCH FOR FM STATIONS
1. Press and briefly hold the [Left, Right] button and then
release in Manual mode.
ƒ The search will stop at the frequency nearest from the point the
button is released.
Searching
OR,
1. Tap the [Left, Right] button to progress through the
frequencies one by one in Manual mode.
ƒ Moves to frequencies whenever the button is pressed.
BBC R2
listening to FM radio _ 63
USING THE FM RADIO MENU
To switch to Preset Mode
Select this mode if you want to search through your saved FM presets
one preset at a time.
1. Tap [
] in Manual mode.
ƒ The <FM Radio> menu appears.
2. Tap the [Up, Down] button to select <Go to
Preset Mode> and tap [ ].
ƒ You will see <Preset> on the screen.
NOTE
ƒ If no preset frequencies are set, the player will not
switch to Preset mode.
Go to Preset Mo..
Add to Preset
Auto Preset
Start Recording
FM REC Quality
FM Sensitivity
FM Region
To switch to Manual Mode
Select this mode if you want to manually search through the FM band
one frequency at a time.
1. Tap [
] in Preset mode.
ƒ The <FM Radio> menu appears.
2. Tap the [Up, Down] button to select <Go to
Manual Mode> and tap [ ].
ƒ You will see <Manual> on the screen.
64 _ listening to FM radio
Go to Manual M..
Delete from Pre..
Auto Preset
Start Recording
FM REC Quality
FM Sensitivity
FM Region
USING THE FM RADIO MENU (Continued)
To store stations in the preset memory
You can store up to 30 stations in your MP3 player’s memory and return
to them with the press of just one number. Have the MP3 player choose
only the stations you want using the manual process, or find and store
the local stations automatically.
Manual - choose only the stations you want to store
1. Tap the [Left, Right] button to select a frequency
to preset in Manual mode and tap [ ].
ƒ The <FM Radio> menu appears.
2. Tap the [Up, Down] button to select <Add to
Preset> and tap [ ].
ƒ The selected frequency will be added to the preset list.
3. To set a preset for other frequencies, follow 1-2
steps above.
Go to Preset Mo..
Add to Preset
Auto Preset
Start Recording
FM REC Quality
FM Sensitivity
FM Region
ƒ If the same frequency is already set, the setting is disabled.
NOTE
listening to FM radio _ 65
USING THE FM RADIO MENU (Continued)
To store stations in the preset memory (Continued)
Automatic – automatically store all the stations the player receives
1. Tap [
] in FM Radio mode.
ƒ The <FM Radio> menu appears.
2. Tap the [Up, Down] button to select <Auto Preset>
and tap [ ].
ƒ The confirmation window appears.
3. Tap the [Left, Right] button to select <Yes> and
tap [ ].
Go to Preset Mo..
Add to Preset
Auto Preset
Start Recording
FM REC Quality
FM Sensitivity
FM Region
ƒ Up to 30 frequencies are automatically set.
To cancel Auto Preset
If you want to cancel the auto preset, tap [
] in the process.
ƒ The auto preset setting is canceled, and only frequencies set up to that point are
stored.
NOTE
ƒ You may want to re-set the stored stations if you’re going to listen to your
MP3 player in a different city. To delete the preset stations and store new
ones, simply repeat the process.
66 _ listening to FM radio
USING THE FM RADIO MENU (Continued)
To listen to preset stations
While in Preset mode, tap the [Left, Right] button to
scroll through preset stations.
ƒ You can listen to the stored radio frequency.
BBC R2
To delete a preset
Follow the steps below to delete frequencies while listening to FM
Radio.
1. While in Preset mode, tap the [Left, Right] button to
search for a preset frequency to delete and tap [ ].
ƒ The <FM Radio> menu appears.
2. Tap the [Up, Down] button to select <Delete
from Preset> and tap [ ].
ƒ The selected frequency will be deleted.
3. To delete other preset frequencies, follow 1-2
steps above.
Go to Manual M..
Delete from Pre..
Auto Preset
Start Recording
FM REC Quality
FM Sensitivity
FM Region
listening to FM radio _ 67
USING THE FM RADIO MENU (Continued)
To record FM Radio broadcasting
You can record an FM radio program at any time while listening to the radio.
1. Tap the [Left, Right] button to select a frequency
to record in FM Radio mode and tap [ ].
ƒ The <FM Radio> menu appears.
2. Tap the [Up, Down] button to select <Start
Recording> and tap [ ].
ƒ An automatically created file name appears and the
recording starts.
Go to Manual M..
Delete from Pre..
Auto Preset
Start Recording
FM REC Quality
FM Sensitivity
FM Region
To stop recording
1. Tap [ ] during the recording.
ƒ A message appears asking you if you want to listen to
the file you just recorded.
2. Tap the [Left, Right] button to select <Yes> or
<No> and tap [ ].
ƒ Selecting <Yes> will play the just recorded file.
ƒ Selecting <No> will not play the recorded file.
ƒ The recorded file is stored in <File Browser> →
<Recorded Files> → <FM Radio>.
ƒ You can store a maximum of 999 files for FM radio recording.
ƒ You can make a recording for up to approximately 30 hours. (based on
128Kbps, 2GB)
ƒ The recording file name will be automatically specified, for example, as such as
“FM_XXX.mp3”. “FM” indicates FM radio recording and “XXX” is the recording
file number.
68 _ listening to FM radio
NOTE
USING THE FM RADIO MENU (Continued)
To set the FM recording quality
You can choose the recording quality for FM radio.
1. Tap [ ] in FM Radio mode.
ƒ The <FM Radio> menu appears.
2. Tap the [Up, Down] button to select <FM REC
Quality> and tap [ ].
ƒ The FM recording quality menu appears.
3. Tap the [Up, Down] button to select a desired
quality level and tap [ ].
ƒ Select from <Super High(192kbps)>, <High(160kbps)>
and <Normal(128kbps)>.
Go to Manual M..
Delete from Pre..
Auto Preset
Start Recording
FM REC Quality
FM Sensitivity
FM Region
ƒ The higher the number is, the better the audio quality and the larger the file
size becomes.
To set the FM sensitivity
To receive more or fewer FM radio frequencies, adjust the FM sensitivity.
1. Tap [ ] in FM Radio mode.
ƒ The <FM Radio> menu appears.
2. Tap the [Up, Down] button to select <FM
Sensitivity> and tap [ ].
ƒ The< FM Sensitivity> menu appears.
3. Tap the [Up, Down] button to select the search
level and tap [ ].
ƒ Select from <High>, <Middle> and <Low>.
ƒ If you select <High>, more frequencies will be received.
ƒ To exit the menu, tap [
NOTE
Go to Manual M..
Delete from Pre..
Auto Preset
Start Recording
FM REC Quality
FM Sensitivity
FM Region
].
listening to FM radio _ 69
USING THE FM RADIO MENU (Continued)
To set the FM region
You can change an FM region setting in preparation for overseas travel.
1. Tap [
] in FM Radio mode.
ƒ The <FM Radio> menu appears.
2. Tap the [Up, Down] button to select <FM
Region> and tap [ ].
ƒ The <FM Region> menu appears.
3. Tap the [Up, Down] button to select your regional
area for FM radio and tap [ ].
ƒ Select from <Korea/US>, <Japan> and <Other
Countries>.
NOTE
Go to Manual M..
Delete from Pre..
Auto Preset
Start Recording
FM REC Quality
FM Sensitivity
FM Region
ƒ Your previously stored radio frequencies will be deleted when you change
the <FM Region> on your player.
ƒ FM region can be deleted or changed according to the target region of the
player.
ƒ Frequency range by region
- Korea/US: Search for FM frequencies in 100 kHz increments between
87.5 MHz~108.0 MHz.
- Japan: Search for FM frequencies in 100 kHz increments between
76.0 MHz~108.0 MHz.
- Other Countries: Search for FM frequencies in 50 kHz increments between
87.50 MHz~108.00 MHz.
70 _ listening to FM radio
USING THE FM RADIO MENU (Continued)
To set the RDS display
Radio Data System(RDS) provides the reception and display of
messages such as broadcasting information. The program information
such as News, Sports or Music, or the broadcasting station information
is displayed on the screen.
1. Tap [
] in FM Radio mode.
ƒ The <FM Radio> menu appears.
2. Tap the [Up, Down] button to select <RDS
Display> and tap [ ].
Delete from Pre..
Auto Preset
Start Recording
FM REC Quality
FM Sensitivity
FM Region
RDS Display
ƒ The <RDS Display> menu appears.
3. Tap the [Up, Down] button to select the RDS
display mode and tap [ ].
ƒ Select either <Program Service> or <Program Type>.
RDS Display Options
ƒ Program Service : Displays the name of broadcasting station and is composed
of 8 characters. If the Program Service information is being received, the
Program Service name (BBC, AFO, NDR, etc.) is shown on the display. If the
Program Service information isn’t received, the original FM frequency is shown.
ƒ Program Type : Displays the type of program currently being broadcast.
ƒ If FM signal strength is weak, the RDS information might not be displayed.
NOTE
using the datacast _ 71
USING THE FM RADIO MENU (Continued)
To add to the alarm sound
You can add your FM radio to the alarm sound list, so it can be heard
the next time the alarm goes off. See page 82 to set the alarm.
1. Select a radio frequency to add to the alarm
sound and tap [ ].
ƒ The <FM Radio> menu appears.
2. Tap the [Up, Down] button to select <Add to
Alarm> and tap [ ].
ƒ If you set the alarm sound to <FM Radio> in the alarm
setting, you will hear FM radio when the alarm goes
off.
72 _ listening to FM radio
Auto Preset
Start Recording
FM REC Quality
FM Sensitivity
FM Region
RDS Display
Add to Alarm
using the datacast
Using <EmoDio>, you can transfer blog information and files registered on RSS
to the player for your entertainment.
NOTE
ƒ What is RSS?
RSS stands for Rich Site Summary or Really Simple Syndication. It is an xml-based data
transmission system used to deliver information on frequently updated web sites such as
news and blogs to users in a more convenient and easy way.
ƒ What is Datacasts?
You can automatically receive updated information without having to visit your frequently
visited news, blog and UCC sites every time.
ƒ Before you start - EmoDio must be installed on your PC. See page 32.
REGISTERING A CHANNEL
You can create a new channel by registering RSS-supported web sites or web pages.
1. Click <Subscribe> on the bottom of the
<Datacasts> of <EmoDio>.
2. Enter an address in the <URL> and Click
<►Next>.
2
ƒ When you copy a web address and click
<Subscribe>, the copied address is displayed
automatically in the <URL>.
ƒ The setting confirmation window appears if the
Web address supports RSS.
2
3. Click <OK>.
ƒ The channel you want is registered.
ƒ The
icon appears in Datacasts for the registered channel.
ƒ Refer to the <Datacasts> of <EmoDio> for detailed instructions.
NOTE
using the datacast _ 73
CREATING A NEW CHANNEL GROUP
You can create a new group to manage channels by the category.
1. Click <New Group> on the bottom of
<Datacasts> of <EmoDio>.
2. Type in a group name and description and
click <OK>.
2
TRANSFERRING A DATACAST FROM <EMODIO>
ƒ Before you start - Connect the player to your PC.
EmoDio must be installed on your PC. See page 32.
1. <EmoDio> will automatically start when the
player is connected to your PC.
2
ƒ If the program does not start automatically, double
on the desktop.
click the <EmoDio> icon
2. Click <Datacasts> on the top of <EmoDio>.
ƒ Datacasts group channel list appears.
3. Click a desired group channel.
4. Click a desired channel.
5. Select the post you want to transfer.
6. Click the
5
6
icon.
ƒ The Post of the selected channel will be transferred to the player in <File Browser> →
<Datacasts>.
NOTE
on the top of <EmoDio> to move to the previous screen.
ƒ Click
ƒ In <Datacasts> of <EmoDio>, if the post has the attachment, you can download
the attachment to the player. However, there may be times the attachment will not
download, depending on the policy of the applicable website.
74 _ using the datacast
VIEWING DATACASTS
You can view channel posts added to <Datacasts>.
ƒ Before you start - Transfer a desired channel post to the player using <EmoDio>.
See page 74.
NOTE
ƒ Tap [ ] to move to the previous screen.
Press and briefly hold [ ] to move to the main menu screen.
1. Press and briefly hold [
screen.
] to move to the main menu
2. Tap the [Left, Right] button to select <Datacasts> and
tap [ ].
ƒ The <Datacasts> list appears.
3. Tap the [Up, Down] button to select a desired channel list
and tap [ ].
ƒ The title is the same as that of the channel added to
<Datacasts> in <EmoDio>.
4. Tap the [Up, Down] button to select a desired post title
and tap [ ].
Datacasts
ƒ The file list appears.
ƒ
icon : main text for the transferred post
ƒ
icon : picture file
ƒ
icon : music file
ƒ
icon : video file
1/4
Datacast 1
Datacast 2
Datacast 3
Datacast 4
5. Tap the [Up, Down] button to select a desired file and tap
[ ].
ƒ The selected file will start playing.
using the datacast _ 75
enjoying the prime pack
Prime Pack enables you to enjoy various functions such as reading text,
playing games and the alarm setting, etc.
READING TEXT
Whether it’s a novel, the manuscript of a new story, or your research paper, your
mp3 player allows you to read it… all while listening to music!
NOTE
ƒ Before you start - Turn on the player and check the battery.
Transfer text files to the player using <EmoDio>. See page 33.
Set a preferred text language for text in <Settings> → <Language> →
<Contents>. See page 26.
ƒ Tap [ ] to move to the previous screen.
Press and briefly hold [ ] to move to the main menu screen.
1. Press and briefly hold [ ] to move to the main menu screen.
2. Tap the [Left, Right] button to select <Prime Pack> and
tap [ ].
ƒ The <Prime Pack> list appears.
3. Tap the [Up, Down] button to select <Text> and tap [
Prime Pack
Text
Games
Alarm
].
World Clock
ƒ The Text file list appears.
4. Tap the [Up, Down] button to select a desired text file and
tap [ ].
ƒ You will see the text on the screen.
To move to previous/next page
Tap the [Left, Right] button.
ƒ Press and briefly hold the [Left, Right] button to move continuously to the
previous / next page.
ƒ You can also use the <File Browser>>to search for a text file. See page 21.
ƒ Your mp3 player supports the TXT file format in Text mode.
76 _ enjoying the prime pack
NOTE
USING THE TEXT MENU
To listen to music while viewing your text
You can listen to the music that you last played while viewing your text.
1. Tap [
] while viewing a text.
Book1
ƒ The <Text> menu appears.
2. Tap the [Up, Down] button to select <Music>
and tap [ ].
ƒ The <Music> menu appears.
3. Tap the [Up, Down] button to select a desired
mode and tap [ ].
45.40%
It's a common fantasy:
rewind your life, erase all the
mistakes and cringe-worthy
Music
moments and start over
Go
1st slate.
PageBut for
with to
a clean
Samantha Newly, the fantasy
Add
Bookmark
is far too
real.
Go to Bookmark
Delete Bookmark
Font Size
Text Viewer Col..
ƒ <Off> : No background music is played while viewing
your text.
ƒ <On> : You can listen to the music that you last played while viewing your text.
To move to the first page
Use this if you want to view the text from the first page.
1. Tap [
] while viewing a text.
Book1
ƒ The <Text> menu appears.
2. Tap the [Up, Down] button to select <Go to 1st
Page> and tap [ ].
ƒ The Confirmation window will appear.
3. Tap the [Left, Right] button to select <Yes> and
tap [ ].
45.40%
It's a common fantasy:
rewind your life, erase all the
mistakes and cringe-worthy
Music
moments and start over
Go
1st slate.
PageBut for
with to
a clean
Samantha Newly, the fantasy
Add
Bookmark
is far too
real.
Go to Bookmark
Delete Bookmark
Font Size
Text Viewer Col..
ƒ Moves to the first page of the text file.
ƒ To exit the menu, tap [
].
NOTE
enjoying the prime pack_ 77
USING THE TEXT MENU (Continued)
To set a bookmark
Set a bookmark to return to that point in the text at any time.
1. Tap [ ] at the desired page you want while
viewing a text.
Book1
ƒ The <Text> menu appears.
2. Tap the [Up, Down ] button to select <Add
Bookmark> and tap [ ].
ƒ The current text screen is set to a bookmark with the
[ ] symbol displayed on the top left corner.
NOTE
45.40%
It's a common fantasy:
rewind your life, erase all the
mistakes and cringe-worthy
Music
moments and start over
Go
1st slate.
PageBut for
with to
a clean
Samantha Newly, the fantasy
Add
Bookmark
is far too
real.
ƒ The Overwrite window appears if there is a bookmark
previously set. If you select <Yes>, the previously set
bookmark is deleted and a new bookmark is added.
Go to Bookmark
Delete Bookmark
Font Size
Text Viewer Col..
ƒ One bookmark can be set for each text file, and you can set a maximum of
50 bookmarks.
To move to/ remove the bookmark
1. Tap [
] while viewing a text.
Book1
ƒ The <Text> menu appears.
2. Tap the [Up, Down] button to select <Go to
Bookmark> or <Delete Bookmark> and tap [
ƒ When you selected <Go to Bookmark> then it
will move to the selected bookmark and <Delete
Bookmark> will remove the selected bookmark from
the text file.
78 _ enjoying the prime pack
].
45.40%
It's a common fantasy:
rewind your life, erase all the
mistakes and cringe-worthy
Music
moments and start over
Go
1st slate.
PageBut for
with to
a clean
Samantha Newly, the fantasy
Add
Bookmark
is far too
real.
Go to Bookmark
Delete Bookmark
Font Size
Text Viewer Col..
USING THE TEXT MENU (Continued)
To change the font size
You can change the font size of the text.
1. Tap [
] while viewing a text.
Book1
ƒ The <Text> menu appears.
2. Tap the [Up, Down] button to select <Font Size>
and tap [ ].
ƒ The <Font Size> menu appears.
3. Tap the [Left, Right] button to select a desired
font size and tap [ ].
ƒ Select from <Small>, <Medium> and <Large>.
45.40%
It's a common fantasy:
rewind your life, erase all the
mistakes and cringe-worthy
Music
moments and start over
Go
1st slate.
PageBut for
with to
a clean
Samantha Newly, the fantasy
Add
Bookmark
is far too
real.
Go to Bookmark
Delete Bookmark
Font Size
Text Viewer Col..
To set the text viewer color
Choose what color you’d like the text to appear.
1. Tap [
Book1
] while viewing a text.
45.40%
It's a common fantasy:
rewind your life, erase all the
mistakes and cringe-worthy
Music
moments and start over
Go
1st slate.
PageBut for
with to
a clean
Samantha Newly, the fantasy
Add
Bookmark
is far too
real.
ƒ The <Text> menu appears.
2. Tap the [Up, Down] button to select <Text
Viewer Color> and tap [ ].
ƒ The <Text Viewer Color> menu appears.
3. Tap the [Left, Right] button to select a desired
text viewer color and tap [ ].
Go to Bookmark
Delete Bookmark
Font Size
Text Viewer Color
ƒ Select from <Type 1> ~ <Type 6>.
enjoying the prime pack_ 79
PLAYING VIDEO GAMES
Your mp3 player comes with exciting games already loaded!
NOTE
ƒ Before you start - Connect the earphones, then turn on the player, and check the
battery.
ƒ Tap [ ] to move to the previous screen.
Press and briefly hold [ ] to move to the main menu screen.
1. Press and briefly hold [ ] to move to the main menu.
2. Tap the [Left, Right] button to select <Prime Pack> and
tap [ ].
Prime Pack
Text
Games
Alarm
ƒ The <Prime Pack> list appears.
3. Tap the [Up, Down] button to select <Games> and tap [
ƒ The <Games> list appears.
4. Tap the [Up, Down] button to select a desired game and
tap [ ].
Baseball
Try to score against one of the league’s best
pitchers in this version of America’s favorite pastime.
Tap the [Up, Down, Left, Right] button to select a
menu or function.
Tap [ ] to pitch or hit the ball.
Pizza Delivery
See if you can get the pizza delivered on time
and avoid the many obstacles along the way.
Tap [ ] to jump up.
80 _ enjoying the prime pack
].
World Clock
PLAYING VIDEO GAMES (Continued)
Honeybee
This is a puzzle game where you can match more than
3 blocks to gain scores.
Use the [Up, Down, Left, Right] button to select a
menu or move the object’s direction.
Tap [ ] to select or cancel.
Jungmumun
This is a game requiring instantaneous reactionary
ability, in which you have to remove the stone
according to the arrow direction marked on the stone.
Use the [Up, Down, Left, Right] button and [ ] to
remove the stone.
Food King
This is a brain game that requires you to make food as
much as you can by changing the order of three blocks
to match 3 directions of width, length and diagonal.
Use the [Left, Right] button to move the object.
Use the [Up] button to change the position of the object.
Tap the [Down] button to drop the object.
NOTE
ƒ Games may be added or changed without notice.
ƒ For more information about the manipulation, see the Help section.
enjoying the prime pack_ 81
SETTING THE ALARM
This player has an alarm which can be set to go off at a scheduled time.
ƒ Before you start - Set the current date and time. See page 27.
1. Press and briefly hold [
screen.
] to move to the main menu
Prime Pack
2. Tap the [Left, Right] button to select <Prime Pack> and
tap [ ].
Games
Alarm
World Clock
ƒ The <Prime Pack> list appears.
3. Tap the [Up, Down] button to select <Alarm> and tap [
Text
].
4. Tap the [Up, Down] button to select <New Alarm> and
tap [ ].
ƒ The New Alarm Settings window appears.
5. Tap the [Up, Down] button to select an alarm frequency
and tap the [Right] button.
ƒ Select from <Once>, <Everyday>, <Mon~Fri>, <Mon~Sat>,
<Sat~Sun> and <Off>.
6. Tap the [Up, Down] button to select the hour and tap the
[Right] button.
7. Tap the [Up, Down] button to select the minute and tap
the [Right] button.
8. Tap the [Up, Down] button to select <AM> or <PM> and
tap the [Right] button.
82 _ enjoying the prime pack
Alarm
New Alarm
SETTING THE ALARM (Continued)
9. Tap the [Up, Down] button to select an alarm sound and
tap the [Right] button.
New Alarm Settings
ƒ Select one from <Alarm Sound 1> through <Alarm Sound 3>,
music files or FM Radio added to the alarm sound.
Once
08
10. Tap the [Up, Down] button to select an alarm interval and
tap [ ].
00
AM
▲
Alarm Sound 1
▼
ƒ Select one from <Interval : Off>, <Interval : 3min>,
<Interval : 5min> and <Interval : 10min>.
Interval : Off
ƒ The save confirmation window will appear.
11. Tap the [Left, Right] button to select <Yes> and tap [
ƒ When the alarm setting is done, the symbol (
].
) will appear on the top.
ƒ You can store up to 7 alarms.
NOTE
ƒ The player will sound the alarm when it reaches the scheduled time.
To end the alarm, tap [ ].
When the confirmation window appears, tap the [Left, Right] button to select <Yes>
and tap [ ]. This will exit the alarm and return to the main menu.
enjoying the prime pack_ 83
SETTING THE ALARM (Continued)
To edit the alarm setting
1. Tap the [Up, Down] button to select the alarm
setting to change in the alarm list and tap [ ].
Alarm
New Alarm
08:00 AM
ƒ The Alarm Settings window appears.
2. Use the [Up, Down, Left, Right] button and [
to edit the settings you prefer.
]
To delete an alarm setting
1. Tap the [Up, Down] button to select the alarm
setting to delete in the alarm list and tap [ ].
ƒ The delete menu appears.
2. Tap [
].
ƒ The Delete window appears.
3. Tap the [Left, Right] button to select <Yes> and
tap [ ].
ƒ The selected alarm will be deleted.
84 _ enjoying the prime pack
Alarm
New Alarm
08:00 AM
Delete
VIEWING THE WORLD CLOCK
You can check the location and date/time of major world cities based on their
respective time zone.
ƒ Before you start - Set the current date and time. See page 27.
Set the time zone you want in the <Settings> → <Time> → <Time Zone>.
1. Press and briefly hold [
screen.
] to move to the main menu
Prime Pack
2. Tap the [Left, Right] button to select <Prime Pack> and
tap [ ].
ƒ The <Prime Pack> list appears.
Text
Games
Alarm
World Clock
3. Tap the [Up, Down] button to select <World Clock> and
tap [ ].
ƒ The world clock screen appears.
4. Tap the [Left, Right] button to select a time zone.
You can check local time of the following time zones.
(‘/’ indicates the standard time zone in the region)
Cape Verde / London, Lisbon / Rome, Paris, Berlin, Stockholm, Madrid, Frankfurt/
Athens, Helsinki, Cairo, Ankara / Moscow, Riyadh / Abu Dhabi, Muscat / Tashkent, Ashgabat /
Alma Ata, Kathmandu / Bangkok, Jakarta, Rangoon / Hongkong, Beijing, Manila, Singapore /
Seoul, Tokyo, Pyongyang / Guam, Sydney, Brisbane / Okhotsk /
Wellingtons, Oakland, Fiji / Samoa, Midway / Honolulu, Hawaii, Tahiti / Alyeska /
Los Angeles, San Francisco, Vancouver, Seattle / Denver, Phoenix, Salt Lake City /
Chicago, Dallas, Houston, Mexico City / New York, Miami, Washington DC, Montreal, Atlanta /
Caracas, LA Paz, Santiago / Buenos Aires, Brasilia, Sao Paulo / The middle Atlantic
enjoying the prime pack_ 85
troubleshooting
If you have a problem with your new mp3 player, check for a solution
in this list. If the problem persists, contact Samsung Customer Service
center near you.
PROBLEM
SOLUTION
Power will not turn on.
• Power will not turn on if the battery is
completely drained. Recharge the battery and
turn the power on again.
• Press the Reset hole.
Buttons do not work.
switch is in the
• Check if the
direction of the arrow position.
• Check if you pressed the right button, then
press again.
• Press the Reset hole.
The screen will not
turn on.
86 _ troubleshooting
• The screen may not be visible under direct
sunlight.
• If <Display Off> is selected from <Settings>
→ <Display>, the screen display can be
turned off. Tap any button and see if it turns on.
PROBLEM
SOLUTION
Power is turning off.
• Check the battery status.
• The power is automatically turned off when the
battery is completely drained. Recharge the battery.
• If <Auto Power Off> is selected from
<Settings> → <System>, the Power will be
turned off when the player is in Pause mode.
Turn on the Player.
Battery life differs from
the manual.
• The battery life can vary depending on the
sound mode and display setting.
• Battery life may be shortened when the player
is left for extended periods in low or high
temperatures.
EmoDio Program
Malfunction
• Check if your PC meets the basic system
requirements.
• Check if the USB cable is correctly connected
and try again.
Connection to your PC
is disabled.
The file transfer rate is
too slow.
• Press <Start> on the toolbar of your PC to run
Windows Update. Select Key Updates and
Service Packs, then update all. Reboot your
PC and reconnect.
• If you are running multiple programs including
<EmoDio> on your PC, the file transfer rate will
be slow. Exit unnecessary programs and try
transferring again.
troubleshooting _ 87
PROBLEM
SOLUTION
Player isn’t playing.
• Check if the available file has been saved in
the memory.
• Check if the music file is damaged.
• Check if there is enough battery power.
File upload doesn’t
work.
• Check if the USB cable is securely connected.
Reconnect if necessary.
• Check if the memory is full.
• Press the Reset hole.
Files or data are
missing.
• Check if the USB cable has been disconnected
during file or data transmission. If this is
the case, it may cause serious damage not
only to files/data but also to the product. You
have to be extra cautious as Samsung is not
responsible for data loss.
Abnormal play time
display during play.
• Check if the file is in Variable Bit Rate (VBR)
format.
Abnormal display of file
name.
• Go to <Settings> → <Language> →
<Contents> in the main menu screen and set
an appropriate language.
The product is hot.
• Heat may be generated during recharging. This
has no effect on the product life or functions.
A message appears
while watching a video.
• Try to download the video clip through EmoDio
again.
88 _ troubleshooting
appendix
MENU TREE
Here’s a quick look at how the menus and functions are organized on your new
mp3 player.
Menu Select Screen
Music
Videos
Pictures
FM Radio
Datacasts
Prime Pack
File Browser
Settings
Text
Menu
Style
Games
Sound
Alarm
Display
World Clock
Language
Time
System
appendix _ 89
PRODUCT SPECIFICATIONS
Model Name
YP-S3
Rating
DC 5.0V/ 500mA
580 mAh/ DC 3.7V
AUDIO : MPEG1/2/2.5 Layer3 (8kbps ~ 320kbps,
8kHz~48kHz) WMA (48kbps ~ 192kbps,
8kHz~48kHz)
VIDEO : SVI (Video: MPEG4, Audio: MP3
(44.1kHZ, 128kbps),
Resolution: 208X176, Frame Rate: 15fps)
IMAGE : JPG (Progressive, Sequential Scanning,
File Size: less than 3MB)
Max. 5000 (Include folder)
20mW/Ch (France 5mW/Ch) (based on 16Ω)
40Hz~20kHz
90 dB with 20 kHz LPF(based on 1kHz 0 dB)
Maximum of 25 hours for music playback,
Maximum of 4 hours for video playback
(based on: MP3 128kbps, Volume: 15, Normal Mode)
-5~35°C (23~95°F)
Metal Plating, Plastic
53g
44 X 95 X 9.8 mm
Built-in Battery Power
File Compatibility
Supported Number of Files
Earphone Output
Output Frequency Range
Signal to Noise Ratio
Play Time
Temperature Range for Operation
Case
Weight
Dimensions (WxHxD)
FM Radio
FM Frequency
FM Signal to
Noise Ratio
87.5~108.0MHz
FM T.H.D
1%
55 dB
FM Useable
Sensitiivity
38dBμ
The contents of this Manual are subject to change without prior notice for further
improvement.
90 _ appendix
LICENSE
The product player accompanying this user manual is licensed under certain
intellectual property rights of certain third parties. This license is limited to
private non-commercial use by end-user consumers for licensed contents.
No rights are granted for commercial use.
The license does not cover any product player other than this product player
and the license does not extend to any unlicensed product player or process
conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination
with this product player. The license only covers the use of this product player
to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or
ISO/IEC 13818-3. No rights are granted under this license for product features
or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.
CORRECT DISPOSAL OF THIS PRODUCT (WASTE
ELECTRICAL & ELECTRONIC EQUIPMENT)
(Applicable in the European Union and other European countries with separate
collection systems)
This marking shown on the product or its literature,
indicates that it should not be disposed with other
household wastes at the end of its working life.
To prevent possible harm to the environment or human
health from uncontrolled waste disposal, please separate
this from other types of wastes and recycle it responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where
they purchased this product, or their local government
office, for details of where and how they can take this item
for environmentally safe recycling.
Business users should contact their supplier and check the
terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
appendix _ 91
CORRECT DISPOSAL OF BATTERIES IN THIS PRODUCT
(Applicable in the European Union and other European countries with separate
battery return systems.)
This marking on the battery, manual or packaging indicates
that the batteries in this product should not be disposed
of with other household waste at the end of their working
life. Where marked, the chemical symbols Hg, Cd or Pb
indicate that the battery contains mercury, cadmium or
lead above the reference levels in EC Directive 2006/66.
If batteries are not properly disposed of, these substances
can cause harm to human health or the environment.
To protect natural resources and to promote material reuse,
please separate batteries from other types of waste and recycle them through
your local, free battery return system.
92 _ appendix
CONTACT SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please
contact the SAMSUNG customer care center.
Country
CANADA
MEXICO
U.S.A
ARGENTINE
BRAZIL
CHILE
NICARAGUA
HONDURAS
COSTA RICA
ECUADOR
EL SALVADOR
GUATEMALA
JAMAICA
PANAMA
PUERTO RICO
REP. DOMINICA
TRINIDAD & TOBAGO
VENEZUELA
COLOMBIA
BELGIUM
CZECH REPUBLIC
DENMARK
FINLAND
FRANCE
GERMANY
HUNGARY
ITALIA
LUXEMBURG
NETHERLANDS
NORWAY
Customer Care Center 1-800-SAMSUNG(726-7864)
01-800-SAMSUNG(726-7864)
1-800-SAMSUNG(726-7864)
0800-333-3733
0800-124-421, 4004-0000
800-SAMSUNG(726-7864)
00-1800-5077267
800-7919267
0-800-507-7267
1-800-10-7267
800-6225
1-800-299-0013
1-800-234-7267
800-7267
1-800-682-3180
1-800-751-2676
1-800-SAMSUNG(726-7864)
0-800-100-5303
01-8000112112
02 201 2418
800-726-786 (800 - SAMSUNG)
70 70 19 70
030-6227 515
3260 SAMSUNG (€ 0,15/Min)
08 25 08 65 65 (€ 0,15/Min)
01805 - SAMSUNG(726-7864 € 0,14/Min)
06-80-SAMSUNG(726-7864)
800-SAMSUNG(726-7864)
02 261 03 710
0900-SAMSUNG (726-7864 € 0,10/Min)
815-56 480
Web Site
www.samsung.com/ca
www.samsung.com/mx
www.samsung.com/us
www.samsung.com/ar
www.samsung.com/br
www.samsung.com/cl
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com.co
www.samsung.com/be
www.samsung.com/cz
www.samsung.com/dk
www.samsung.com/fi
www.samsung.com/fr
www.samsung.de
www.samsung.com/hu
www.samsung.com/it
www.samsung.com/lu
www.samsung.com/nl
www.samsung.com/no
Country
POLAND
PORTUGAL
SLOVAKIA
SPAIN
SWEDEN
U.K
EIRE
AUSTRIA
SWITZERLAND
RUSSIA
KAZAKHSTAN
UZBEKISTAN
KYRGYZSTAN
TADJIKISTAN
UKRAINE
LITHUANIA
LATVIA
ESTONIA
AUSTRALIA
NEW ZEALAND
CHINA
HONG KONG
INDIA
INDONESIA
MALAYSIA
PHILIPPINES
SINGAPORE
THAILAND
TAIWAN
VIETNAM
TURKEY
SOUTH AFRICA
U.A.E
Customer Care Center 0 801 801 881, 022-607-93-33
80820-SAMSUNG(726-7864)
0800-SAMSUNG(726-7864)
902-1-SAMSU(72678)
0771-400 200
0845 SAMSUNG (7267864)
0818 717 100
0800-SAMSUNG(726-7864)
0800-SAMSUNG(726-7864)
8-800-555-55-55
8-10-800-500-55-500
8-10-800-500-55-500
00-800-500-55-500
8-10-800-500-55-500
8-800-502-0000
8-800-77777
8000-7267
800-7267
1300 362 603
0800 SAMSUNG (0800 726 786)
800-810-5858, 400-810-5858, 010-6475
1880
3698-4698
3030 8282, 1800 110011, 1-800-3000-8282
0800-112-8888
1800-88-9999
1800-10-SAMSUNG(726-7864)
1800-SAMSUNG(726-7864)
1800-29-3232, 02-689-3232
0800-329-999
1 800 588 889
444 77 11
0860-SAMSUNG(726-7864 )
800-SAMSUNG (726-7864), 8000-4726
Web Site
www.samsung.com/pl
www.samsung.com/pt
www.samsung.com/sk
www.samsung.com/es
www.samsung.com/se
www.samsung.com/uk
www.samsung.com/ie
www.samsung.com/at
www.samsung.com/ch
www.samsung.ru
www.samsung.com/kz_ru
www.samsung.com/kz_ru
www.samsung.ua
www.samsung.lt
www.samsung.com/lv
www.samsung.ee
www.samsung.com/au
www.samsung.com/nz
www.samsung.com/cn
www.samsung.com/hk
www.samsung.com/in
www.samsung.com/id
www.samsung.com/my
www.samsung.com/ph
www.samsung.com/sg
www.samsung.com/th
www.samsung.com/tw
www.samsung.com/vn
www.samsung.com/tr
www.samsung.com/za
www.samsung.com/ae
REV.2.0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
