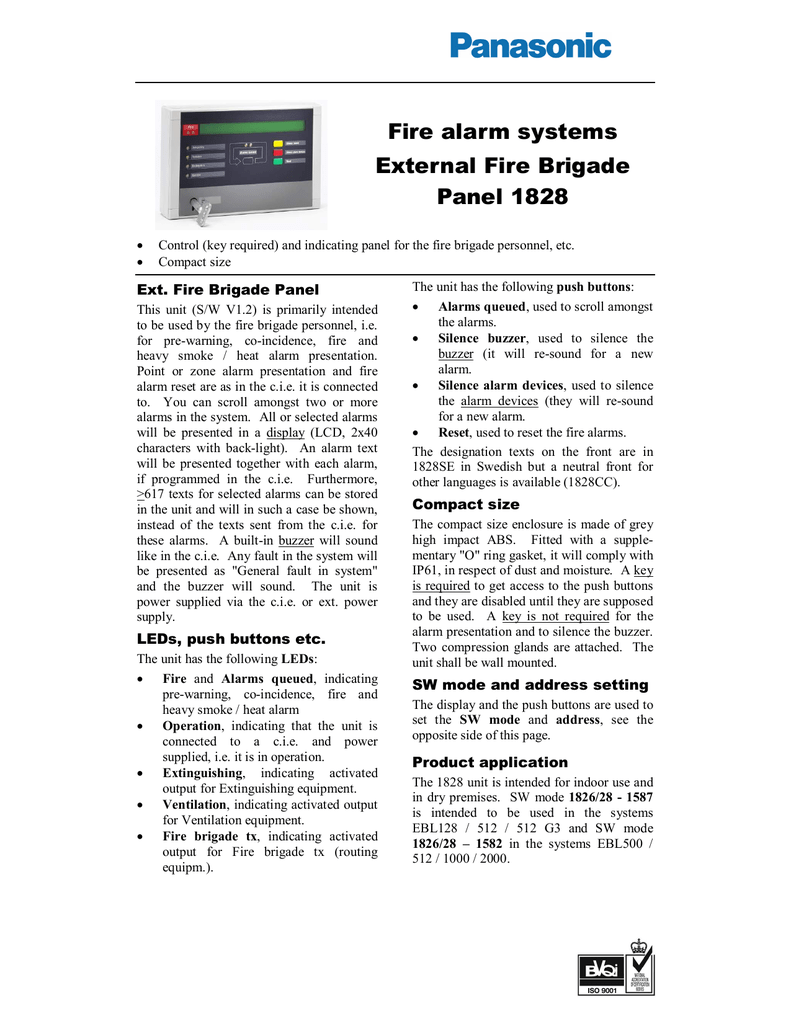

Fire alarm systems
External Fire Brigade
Panel 1828
Control (key required) and indicating panel for the fire brigade personnel, etc.
Compact size
Ext. Fire Brigade Panel
The unit has the following push buttons:
This unit (S/W V1.2) is primarily intended
to be used by the fire brigade personnel, i.e.
for pre-warning, co-incidence, fire and
heavy smoke / heat alarm presentation.
Point or zone alarm presentation and fire
alarm reset are as in the c.i.e. it is connected
to. You can scroll amongst two or more
alarms in the system. All or selected alarms
will be presented in a display (LCD, 2x40
characters with back-light). An alarm text
will be presented together with each alarm,
if programmed in the c.i.e. Furthermore,
>617 texts for selected alarms can be stored
in the unit and will in such a case be shown,
instead of the texts sent from the c.i.e. for
these alarms. A built-in buzzer will sound
like in the c.i.e. Any fault in the system will
be presented as "General fault in system"
and the buzzer will sound. The unit is
power supplied via the c.i.e. or ext. power
LEDs, push buttons etc.
The unit has the following LEDs:
 Fire and Alarms queued, indicating
pre-warning, co-incidence, fire and
heavy smoke / heat alarm
 Operation, indicating that the unit is
connected to a c.i.e. and power
supplied, i.e. it is in operation.
 Extinguishing, indicating activated
output for Extinguishing equipment.
 Ventilation, indicating activated output
for Ventilation equipment.
 Fire brigade tx, indicating activated
output for Fire brigade tx (routing
Alarms queued, used to scroll amongst
the alarms.
 Silence buzzer, used to silence the
buzzer (it will re-sound for a new
 Silence alarm devices, used to silence
the alarm devices (they will re-sound
for a new alarm.
 Reset, used to reset the fire alarms.
The designation texts on the front are in
1828SE in Swedish but a neutral front for
other languages is available (1828CC).
Compact size
The compact size enclosure is made of grey
high impact ABS. Fitted with a supplementary "O" ring gasket, it will comply with
IP61, in respect of dust and moisture. A key
is required to get access to the push buttons
and they are disabled until they are supposed
to be used. A key is not required for the
alarm presentation and to silence the buzzer.
Two compression glands are attached. The
unit shall be wall mounted.
SW mode and address setting
The display and the push buttons are used to
set the SW mode and address, see the
opposite side of this page.
Product application
The 1828 unit is intended for indoor use and
in dry premises. SW mode 1826/28 - 1587
is intended to be used in the systems
EBL128 / 512 / 512 G3 and SW mode
1826/28 – 1582 in the systems EBL500 /
512 / 1000 / 2000.
Type numbers
External Fire Brigade Panel (S/W V1.2). 1828SE / 1828CC: Designation texts on
the front in Swedish / see below. NOTE! In Swedish convention (SBF): No
"General fault" presentation.
External FBP interface board. (Required in EBL512 / 500 when SW mode 1826/28
– 1582 shall be used.)
External FBP / DU interface board. (Required in EBL512 when SW mode 1826/28
– 1587 shall be used. EBL512 software V>2.3.2 1 required.)
Connection board. (Required in EBL1000. SW mode 1826/28 – 1582 only.)
RS485 Transceiver component / comm. module. (Required in EBL128. SW mode
1826/28 – 1587 only. EBL128 software V>1.0.5 1 required.)
Only required if the function ("General fault" presentation) shall be used.
NOTE! The number of ext. FBPs that can be power supplied via the c.i.e. / board / external power
supply, is depending on all other units connected to the same c.i.e. / board / external power supply.2 Up
to 1200 m cable can be used.
1828CC is a unit with a neutral front where the designation texts by production are made separately and
put into a transparent "text slot" for the LED and push button respectively. CC=Country Code.
The ext. FBP 1828 can run in one of two different SW modes:
a) 1828 in SW mode 1826/28 – 1587 has the highest performance with regard to functionality, response
time, ability to store fire alarms, etc. and is an alternative to the ext. Presentation display 2428, the
Display unit 2236 and a compact size alternative to the ext. FBP 2426 but not as a spare part, since 1828,
in this SW mode, requires an Ext. FBP / DU interface board 1587 in the EBL512 c.i.e. and the look,
dimensions, etc. are not the same.
This mode is always used when the ext. FBP is connected to EBL128 / 512 G3.
b) 1828 in SW mode 1826/28 - 1582 is an alternative to the ext. Presentation display 2428, the Display
unit 2236 and a compact size spare part to the ext. FBP 2426, i.e. the performance is the same3 but the
look, dimensions, etc. are not the same. 1828, in this SW mode, requires an Ext. FBP interface board
1582 in the EBL512 / EBL500 c.i.e.
Technical data
Voltage (V DC)
normal (in the system)
normal (in the system by battery back-up)
Current consumption at norm. volt. (mA)
Ext. FBP 1828
quiescent / active
26 (at 24 V), 48 (at 12 V) / 49 (at 24 V), 88 (at 12 V)
Ambient temperature (C)
0 to +40
-40 to +70
Ambient humidity (% RH)
max. 90, non condensing
Ingress Protection rating (estimated)
IP61 (with the "O" ring gasket)
Size W x H x D (mm)
220 x 145 x 50
Weight (g)
Colour (high impact ABS)
Grey (RAL 7035)
CE; Conforms with EN54-2 and –4 whenever applicable.
Conforms with SS3654 edition 1.
On each 1582 board are up to eight addresses available and on each 1587 board up to sixteen addresses. In
EBL128 are up to four addresses available. In EBL512 G3 are up to sixteen addresses available.
Note! The alarm presentation will be as in the c.i.e. that ext. FBP is connected to, not as in 2425 / 2426. The 1828
front does not hold any LED "Zone/Detector not reset".
All technical features and data are subject to changes without notice, resulting from continuous development and improvement.
Product Leaflet
Date of issue
Revision / Date of revision
5 / 2011-03-09
