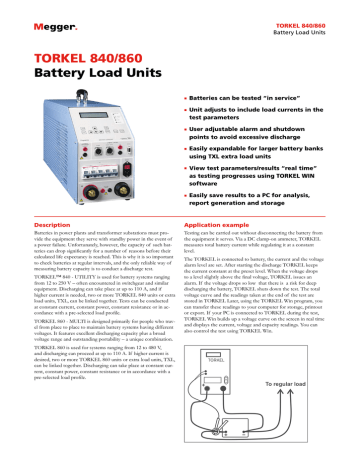

TORKEL 840/860 Battery Load Units
TORKEL 840/860
Battery Load Units
TORKEL 840/860
Battery Load Units
▪▪Batteries
can be tested “in service”
▪▪Unit
adjusts to include load currents in the
test parameters
▪▪User
adjustable alarm and shutdown
points to avoid excessive discharge
▪▪Easily
expandable for larger battery banks
using TXL extra load units
▪▪View
test parameters/results “real time”
as testing progresses using TORKEL WIN
software
▪▪Easily
save results to a PC for analysis,
report generation and storage
Description
Application example
Batteries in power plants and transformer substations must provide the equipment they serve with standby power in the event of
a power failure. Unfortunately, however, the capacity of such batteries can drop significantly for a number of reasons before their
calculated life expectancy is reached. This is why it is so important
to check batteries at regular intervals, and the only reliable way of
measuring battery capacity is to conduct a discharge test.
Testing can be carried out without disconnecting the battery from
the equipment it serves. Via a DC clamp-on ammeter, TORKEL
measures total battery current while regulating it at a constant
level.
TORKEL™ 840 - UTILITY is used for battery systems ranging
from 12 to 250 V – often encountered in switchgear and similar
equipment. Discharging can take place at up to 110 A, and if
higher current is needed, two or more TORKEL 840 units or extra
load units, TXL, can be linked together. Tests can be conducted
at constant current, constant power, constant resistance or in accordance with a pre-selected load profile.
TORKEL 860 - MULTI is designed primarily for people who travel from place to place to maintain battery systems having different
voltages. It features excellent discharging capacity plus a broad
voltage range and outstanding portability – a unique combination.
TORKEL 860 is used for systems ranging from 12 to 480 V,
and discharging can proceed at up to 110 A. If higher current is
desired, two or more TORKEL 860 units or extra load units, TXL,
can be linked together. Discharging can take place at constant current, constant power, constant resistance or in accordance with a
pre-selected load profile.
The TORKEL is connected to battery, the current and the voltage
alarm level are set. After starting the discharge TORKEL keeps
the current constant at the preset level. When the voltage drops
to a level slightly above the final voltage, TORKEL issues an
alarm. If the voltage drops so low that there is a risk for deep
discharging the battery, TORKEL shuts down the test. The total
voltage curve and the readings taken at the end of the test are
stored in TORKEL Later, using the TORKEL Win program, you
can transfer these readings to your computer for storage, printout
or export. If your PC is connected to TORKEL during the test,
TORKEL Win builds up a voltage curve on the screen in real time
and displays the current, voltage and capacity readings. You can
also control the test using TORKEL Win.
TORKEL 840/860
Battery Load Units
Features and benefits
1. Display
2. External measurement input used to measure current in an
external path by means of a clamp-on ammeter or a current
shunt.
3. Keys for operation and settings.
4. Alarm output equipped with a relay contact for triggering an
external alarm device.
5. Start/Stop input used for starting and stopping discharging
from an external device. Galvanically isolated.
6. Indicating lamps. Operating, Stop/Limit
7. TXL output used for control of TXL Extra Loads. Galvanically isolated.
8. Serial port used for connection to a PC or other controlling
equipment.
9. Voltage controlled circuit breaker that connects / disconnects the loading circuits in TORKEL from the battery.
10.Positive current connection for battery being tested.
11.Input for sensing voltage at the battery terminals.
12.Negative current connection for battery being tested.
13.Mains connector, equipped with ON/OFF switch.
1
2
3
4
5
6
7
8
Application examples with TORKEL/TXL systems
TORKEL and TXL can be combined into systems to match up
for different battery capacities. Here are two examples, you can
find more in the section Battery Testing Accessories.
These resistive extra loads do not perform any regulating functions. They are designed for use together with TORKEL Battery
Load Units. Their purpose is to provide higher load currents
for use in constant current or constant power tests. Together,
TORKEL and the TXL Extra Loads form a system that can
discharge batteries with currents of up to several kA. TXL Extra
Loads are connected directly to the battery, and TORKEL measures the total current using a clamp-on ammeter.
TXL Extra Loads are shut down automatically when TORKEL is
stopped.
TORKEL / TXL - systems examples
Max. constant current
Number of
Number of
(A)
TORKEL-units
TXL-units
TORKEL 840/860 + TXL830, 24 V battery (12 cells)1)
263
1
1
670
2
2
1005
3
3
TORKEL 840/860 + TXL850, 48 V battery (24 cells)1)
264
1
1
909
2
3
TORKEL 840/860 + TXL870, 110 V battery (54 cells)1)
188
1
1
532
2
4
845
2
8
TORKEL 840/860 + TXL870, 120 V battery (60 cells)2)
194
1
1
557
2
4
895
2
8
TORKEL 840/860 + TXL870, 220 V battery (108 cells)1)
94
1
1
266
2
4
423
2
8
1) Discharge from 2.15 V to 1.8 V per cell
2) Discharge from 2.15 to 1.75 V per cell
9
2
10
11
12
13
TORKEL and the extra load TXL
TORKEL 840/860
Battery Load Units
Specifications TORKEL 840/860
Specifications are valid at nominal input voltage and an ambient
temperature of +25°C, (77°F). Specifications are subject to change
without notice.
Environment
Application field
Temperature
Operating
Storage & transport
Humidity
The instrument is intended for use in
high-voltage substations and industrial environments.
0°C to +40°C (32°F to +104°F)
-40°C to +70°C (-40°F to +158°F)
5% – 95% RH, non-condensing
CE-marking
EMC
LVD
2004/108/EC
2006/95/EC
General
Mains voltage
Power consumption
(max)
Protection
Dimensions
Instrument
Transport case
Weight
Display
Available languages
Thermal cut-outs, automatic overload protection
210 x 353 x 700 mm (8.3” x 13.9” x 27.6”)
265 x 460 x 750 mm (10.4” x 18.1” x 29.5”)
21.5 kg (47.4 lbs)
38 kg (83.8 lbs) with accessories and
transport case.
LCD
English, French, German, Spanish,
Swedish
0.0 – 2999 A
±(0.5% of reading +0.2 A)
0.1 A
Internal current measurement
Range
0 – 270 A
Input for clamp-on ammeter
Range
0–1V
mV/A-ratio
Software settable, 0.3 to 19.9 mV/A
Input impedance
>1 MΩ
Voltage measurement
Time measurement
Basic inaccuracy
Max. current
Max. power
Load patterns
Current setting
Power setting
Resistance setting
Battery voltage range,
TORKEL 840
Battery voltage range,
TORKEL 860
Stabilization (For internal
current measurement)
Range 1
Range 2
Range 3
Range 4
Range
5 2)
288 V DC (TORKEL 840)
480 V DC (TORKEL 860)
110 A
15 kW
Constant current, constant power,
constant resistance, current or power
profile
0-110.0 A (2999.9 A) 1)
0-15.00 kW (299.99 kW) 1)
0.1-2999.8 Ω
4 ranges, selected automatically at
start of test
5 ranges, selected automatically at
start of test
±(0.5% of reading +0.5 A)
Battery
voltage
Highest permissible current
10 – 27.6 V
10 – 55.2 V
10 – 144 V
10 – 288 V
10 – 480 V
110 A
110 A
110 A
55 A
55 A (max power
15 kW)
Resistor element (Nominal values)
0.165 Ω
0.275 Ω
0.55 Ω
3.3 Ω
3.3 Ω
1) Maximum value for a system with more than one load unit
2) TORKEL 860
Inputs, maximal values
External
current
measurement
Start / Stop
Delay until start
Stop delay
Battery
Voltage sense
Serial
Alarm
1 V DC, 300 V DC to ground. Current
shunt should be connected to the
negative side of the battery
Closing / opening contact Closing and then opening the
contact will start / stop Torkel. It is
not possible to keep the contacts in
closed position.
200 – 300 ms
100 – 200 ms
480 V DC, 500 V DC to ground
480 V DC, 500 V DC to ground
< 15 V
250 V DC 0.28 A
28 V DC 8 A
250 V AC 8 A
Outputs, maximal values
Display range 0.0 – 60 V
Basic inaccuracy
Resolution
Display range 0.0 – 500 V
Basic inaccuracy
Resolution
Max. battery voltage
100 – 240 V AC, 50 / 60 Hz
150 W
Measurement section
Current measurement
Display range
Basic inaccuracy
Resolution
Load section
±(0.5% of reading +0.1 V)
0.1 V
Start / Stop
TXL
Serial
Alarm
5 V, 6 mA
Relay contact
< 15 V
Relay contact
±(0.5% of reading +1 V)
0.1 V
±0.1% of reading ±1 digit
3
TORKEL 840/860
Battery Load Units
Specifications TXL 850 / 870
Discharging capacity, examples
12 V battery (6 cells)
Final voltage
 3)
1.80 V / cell (10.8 V)
1.75 V / cell (10.5 V)
1.67 V / cell (10.0 V)
0 – 0.54 kW
0 – 0.51 kW
0 – 0.46 kW
24 V battery (12 cells) 3)
1.80 V / cell (21.6 V)
1.75 V / cell (21.0 V)
1.60 V / cell (19.2 V)
0 – 110 A
0 – 110 A
0 – 100 A
0 – 2.37 kW
0 – 2.31 kW
0 – 1.92 kW
48 V battery (24 cells) 3)
1.80 V / cell (43.2 V)
1.75 V / cell (42.0 V)
1.60 V / cell (38.4 V)
0 – 110 A
0 – 110 A
0 – 110 A
0 – 4.75 kW
0 – 4.62 kW
0 – 4.22 kW
110 V battery (54 cells) 3)
1.80 V / cell (97.2 V)
1.75 V / cell (94.5 V)
1.60 V / cell (86.4 V)
0 – 110 A
0 – 110 A
0 – 110 A
0 – 10.7 kW
0 – 10.4 kW
0 – 9.5 kW
120 V battery (60 cells) 3)
1.80 V / cell (108 V)
1.75 V / cell (105 V)
1.60 V / cell (96 V)
Mains voltage
Power consumption
Protection
0 – 110 A
0 – 110 A
0 – 110 A
0 – 11.9 kW
0 – 11.5 kW
0 – 10.5 kW
Dimensions
Instrument
220 V battery (108 cells) 3)
1.80 V / cell (194 V)
0 – 55 A
1.75 V / cell (189 V)
0 – 55 A
1.60 V / cell (173 V)
0 – 51.0 A
0 – 10.7 kW
0 – 10.4 kW
0 – 8.82 kW
240 V battery (120 cells) 3)
1.80 V / cell (216 V)
0 – 55 A
1.75 V / cell (210 V)
0 – 55 A
1.60 V / cell (192 V)
0 – 55 A
0 – 11.9 kW
0 – 11.5 kW
0 – 10.5 kW
UPS battery (180 cells) 3) (TORKEL 860)
1.70 V / cell (306 V)
0 – 38 A
1.60 V / cell (288 V)
0 – 38 A
0 – 15 kW
0 – 15 kW
UPS battery (204 cells) 3) (TORKEL 860)
1.80 V / cell (367 V)
0 – 34 A
1.60 V / cell (326 V)
0 – 34 A
0 – 15 kW
0 – 15 kW
3) 2.15 V per cell when test starts
TXL850
4
Constant power
Specifications are valid at nominal input voltage and an ambient
temperature of +25°C, (77°F). Specifications are subject to change
without notice.
Constant current
0 – 50.0 A
0 – 49.0 A
0 – 46.0 A
Environment
Application field The instrument is intended for use in high-voltage substations and industrial environments.
Temperature
Operating
0°C to +40°C (32°F to +104°F)
Storage &
-40°C to +70°C (-40°F to +158°F)
transport
Humidity
5% – 95% RH, non-condensing
CE-marking
EMC
LVD
2004/108/EC
2006/95/EC
General
Transport case
Weight
Cable sets
for TXL850
for TXL870
100 – 240 V AC, 50 / 60 Hz
75 W (max)
Thermal cut-outs, automatic overload protection
210 x 353 x 600 mm (8.3” x 13.9” x 23.6”)
265 x 460 x 750 mm (10.4” x 18.1” x 29.5”)
13 kg (28.7 lbs)
21.4 kg (47.2 lbs) with transport case
2 x 3 m (9.8 ft), 70 mm2, 270 A, with cable
lug. Max. 100 V. 5 kg (11 lbs)
2 x 3 m (9.8 ft), 25 mm2, 110 A, with cable
clamp / lug. Max. 480 V. 3 kg (6.6 lbs)
Load section
TXL850
TXL870
Max. voltage (DC) 56 V
140 V/ 280 V
Max. current
300 A
Max. power
16.4 kW
112 A at 140 V
56 A at 280 V
15.8 kW
Internal resistance, 3-position selector
Position 1
TXL850
TXL870
Current
0.55 Ω
4.95 Ω
100 A
at 55.2 V (24 x 2.3 V) –
78.5 A
at 43.2 V (24 x 1.8 V) –
50.1 A
–
at 248.4 V (108 x 2.3 V)
39.2 A
–
at 194.4 V (108 x 1.8 V)
Position 2
TXL850
TXL870
Current
0.275 Ω
2.48 Ω
200 A
at 55.2 V (24 x 2.3 V) –
156 A
43.2 V (24 x 1.8 V)– –
Position 3
TXL850
TXL870
Current
0.184 Ω
1.24 Ω
300 A
at 55.2 V (24 x 2.3 V) –
235 A
43.2 A (24 x 1.8 V)
–
100 A
–
at 124.2 V (54 x 2.3 V)
78.4 A
–
at 97.2 V (54 x 1.8 V)
TORKEL 840/860
Battery Load Units
Cable set GA-00550
TORKEL Win PC software
„„Shows
the complete voltage curve
„„Last
recorded time, voltage, current and discharged
capacity
„„Scroll-window
„„Remote
„„Report
for all recorded values
control of TORKEL
functions
Ordering information
Item
Art. No.
TORKEL 840
Complete with: Cable set GA-00550
Transport case GD-00054
BS-49094
TORKEL 860
Complete with: Cable set GA-00550
Transport case GD-00054
BS-49096
Optional
TORKEL Win
PC software
BS-8208X
Extra loads
TXL850
BS-59095
TXL870
BS-59097
Cable sets
Cable set for TXL850
2 x 3 m, 70 mm2, with cable lug. Max 100 V 270 A.
Weight: 5.0 kg (11 lbs)
GA-00554
Extension cable set, 110 A
2 x 3 m, 25 mm2. Max 480 V
Weight: 3.0 kg (6.6 lbs)
GA-00552
Sensing lead set
Cable set for measuring voltage at battery terminals.
GA-00210
2 x 5 m (16.4 ft)
Clamp-on ammeters
SWEDEN
Megger Sweden AB
Eldarvägen 4, Box 2970
SE-187 29 TÄBY
T +46 8 510 195 00
F +46 8 510 195 95
E [email protected]
UK
Archcliffe Road Dover
CT17 9EN England
T +44 (0) 1304 502101
F +44 (0) 1304 207342
DC clamp-on ammeter, 200 A
To measure current in circuit outside TORKEL
XA-12992
DC clamp-on ammeter, 1000 A
To measure current in circuit outside TORKEL
XA-12990
Other Technical Sales Offices
Dallas USA, Norristown USA,
Toronto CANADA, Trappes FRANCE,
Oberursel GERMANY, Johannesburg
SOUTH AFRICA, Kingdom of BAHRAIN
Mumbai INDIA, Chonburi THAILAND
Sydney AUSTRALIA
Registered to ISO 9001 and 14001
Subject to change without notice.
Art.No. ZI-BS02E • Doc. BS2643BE • 2010
TORKEL-840-860_DS_en_V05
www.megger.com
Megger is a registered trademark
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
