800 lb / 360 kg Capacity Optional Wi-Fi for EMR/EHR

800 lb / 360 kg Capacity Optional Wi-Fi for EMR/EHR
Optional

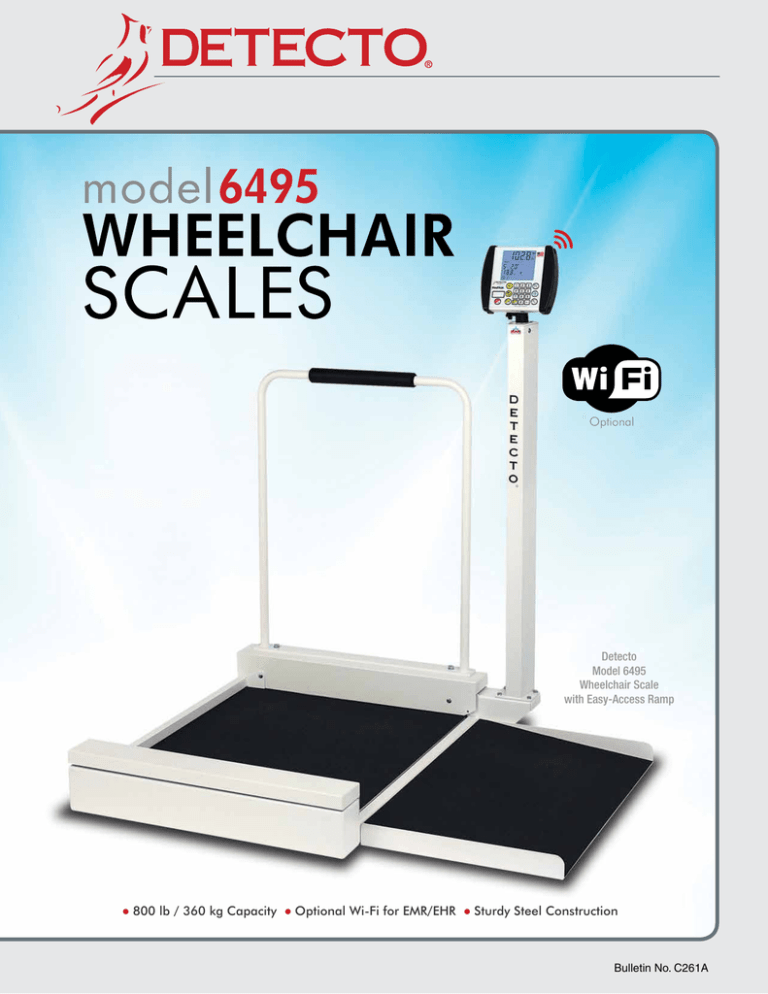

Detecto
Model 6495
Wheelchair Scale
with Easy-Access Ramp
● 800 lb / 360 kg Capacity ● Optional Wi-Fi for EMR/EHR ● Sturdy Steel Construction
Bulletin No. C261A
EFFICIENT MEASUREMENT
The 6495's MedVue® weight indicator
is the clinical industry's most advanced,
featuring EMR/EHR-ready serial, USB,
and optional Wi-Fi connectivity, BMI calculation,
yellow "quick keys" for basic weighing, and a multiline LCD display. The scale is powered by 6 AA
batteries (not included) or optional AC adapter.
● Up to 99 tares (optional) to store wheelchair weights
for efficient patient weighing.
● Hold/Release key to hold a weight after leaving the
scale for better patient care.
● Patient ID Barcode Scanning: Send 14-digit patient ID
to the scale's MedVue® indicator for EMR/EHR records.
● Sturdy steel handrails for patient assurance and safety.
With Detecto’s 6495 heavy-duty
wheelchair
digital
scale,
speed
you
and
receive
increased
accuracy. The scale's ramp with nonskid surface and padded handrails ease
wheelchair or standing patient weighing.
350-Degree Swivel Mounting Bracket
Enjoy freedom of movement
wherever you need to position the
display for the nurse or patient to
easily read with the tilt-and-swivel
mounting bracket.
350-degree ball-pivot mount
Spacious
Weighing
Platform
This heavy-duty stationary wheelchair scale features a detachable ramp for smooth entry and exit. The 6495 features a padded handrail
for ambulatory patients, and Detecto’s state-of-the-art MedVue® indicator allows height to be entered on the keypad for BMI calculation.
51.2 in / 130.1 cm
35.9 in / 91.2 cm
Wheel
Stop
2.1 in / 5.4 cm
Platform Height
Ramp
6
6.2 in / 15.8 cm
1.8 in / 4.4 cm
25 in / 63.5 cm
26.5 in / 67.3 cm
28.6 in / 72.7 cm
3.7 in / 9.4 cm
30 in / 76.2 cm
37.4 in / 95.1 cm
19 in / 48.3 cm
Capacity 800 lb x 0.2 lb / 360 kg x 0.1 kg
Display Weight: 5-digit, 7-segment, 7/8 inch (22.2 mm) high LCD
Height: 4-digit, 7-segment, 1/2 inch (12.7 mm) high LCD
Keypad Membrane type with 19 keys
Connectivity Ports RS232 serial and USB (standard), wired and Wi-Fi Ethernet (optional)
Power 6 AA cell Alkaline, Ni-Cad or NiMH batteries (not included)
OR an optional 12 VDC 1.25A wall plug-in AC power adapter (Detecto part number MV1PWR)
Resolution 5,000 divisions, maximum
Operating Temperature 14º to 104º F (-10º to +40º C)
Indicator Dimensions 6.8 inch H x 7.6 inch W x 1.8 inch D (171.4 mm W x 193.8 mm H x 44.4 mm D)
Platform Dimensions 26.5 inch W x 30 inch D (673 mm W x 762 mm D)
Construction Steel
UPC Code 809161138702
Shipping Weight 187 lb / 84.8 kg (2 boxes)
Detecto Scale reserves the right to improve, enhance, or modify features and specifications without prior notice.
DETECTO
®
SOLD BY:
A Division of Cardinal Scale Manufacturing Co.
203 E. Daugherty, Webb City, MO 64870 USA
Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-5001
www.Detecto.com
Mobile: m.detecto.com
© Copyright 2013 Cardinal Scale Mfg. Co.
• Printed in USA • MWC/5K/1013/C261A
