PORTABLE
Optional

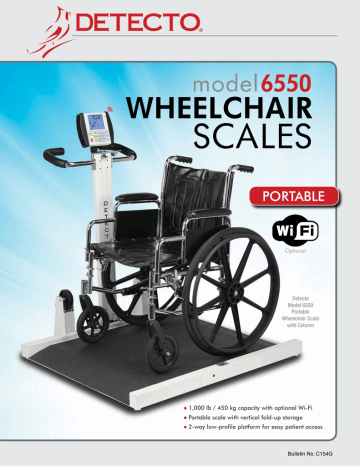

Detecto
Model 6550
Portable
Wheelchair Scale
with Column
● 1,000 lb / 450 kg capacity with optional Wi-Fi
● Portable scale with vertical fold-up storage
● 2-way low-profile platform for easy patient access
Bulletin No. C154G
EFFICIENT MEASUREMENT
The 6550's MedVue® weight indicator
is the clinical industry's most advanced,
featuring EMR/EHR-ready serial, USB,
and optional Wi-Fi connectivity, BMI calculation,
yellow "quick keys" for basic weighing, and a multiline LCD display. The scale is powered by 6 AA
batteries (not included) or optional AC adapter.
Optimum
patient weighing
"on-the-move"
● Up to 99 tares (optional) to store wheel-
chair weights for efficient patient weighing.
● Hold/Release key to hold weight after
leaving the scale for better patient care.
● Interface with a PC or printer via serial, USB or optional Wi-Fi or wired Ethernet for EMR.
● Patient ID Barcode Scanning: Send 14-digit patient ID to indicator for EMR/EHR records.
One of the most popular medical scales
in the industry, this ingeniously-designed scale
offers a wide range of versatility. It can be used
with wheelchairs, straight-legged chairs or as a
stand-on scale. The 6550’s 30 x 32 in / 76 x 81 cm
platform (flat portion) features integral sloped ramps
allowing access from either side. This lightweight
digital fold-up scale is made for heavyweight tasks in
patient care.
The 6550’s
column folds down and
latches securely for easy
transport in four directions.
Integral dual-access ramps allow maximum convenience
for loading and unloading patients from either side of the scale.
4-WAY EASY TRANSPORT
The 6550 scale's column folds down and latches securely for easy
transport in four directions made possible by the dual-direction
wheels. Detecto's 6550 vertical fold-up feature also equals minimal
floor space for storage in an upright position when not in use.
Ideal for use in multiple areas
Detecto's 6550 scale features
pushbutton and keypad tare
for removing the wheelchair
weight to display the actual
patient weight.
31.7
31.7inin(80.5
(80.5cm)
cm)
35.8
35.8inin(80.5
(90.7
(90.7cm)
cm)
31.7
35.843.3
in
(90.7
cm)cm)
43.3
inin(110
(110
cm)
43.3 in (110 cm)
(RAMP)
(RAMP)
(WEIGHING
PLATFORM)
30 in (76.5 cm)
in
(76.5
cm)
3030
inin(76.5
cm)
41.4
(105.1
cm)
41.4
41.4
in (105.1
in (105.1
cm)
cm)
12inin(30.5
(30.5cm)
cm)
12
12 in (30.5 cm)
22inin(4.9
(4.9cm)
cm)
.6.6
(1.5cm)
2inin(1.5
(4.9
cm)
.6 in (1.5 cm)
20 in (50.8 cm)
2020
in (50.8
in (50.8
cm)
cm)
39.4 in (100 cm)
39.4
39.4
in (100
in (100
cm)
cm)
33.8 in (85.6 cm)
33.8
in (85.6
cm)
33.8
in (85.6
cm)
Capacity 1,000 lb x 0.2 lb / 450 kg x 0.1 kg
Display Weight: 5-digit, 7-segment, 7/8 inch (22.2 mm) high LCD
Height: 4-digit, 7-segment, 1/2 inch (12.7 mm) high LCD
Keyboard Membrane type with 19 keys
Connectivity Ports RS232 serial and USB (standard), wired and Wi-Fi Ethernet (optional)
Display Dimensions 6.8 inch H x 7.6 inch W x 1.8 inch D (171.4 mm W x 193.8 mm H x 44.4 mm D)
Power 6 AA cell Alkaline, Ni-Cad or NiMH batteries (not included)
OR an optional 12 VDC 1.25A wall plug-in AC power adapter (Detecto part number MV1PWR)
Resolution 5,000 divisions, maximum
Operating Temperature 14º to 104º F (-10º to +40º C)
Enclosure Construction Steel and Aluminum
UPC Code 809161139402
Shipping Weight 91 lb / 41.2 kg
Detecto Scale reserves the right to improve, enhance, or modify features and specifications without prior notice.
DETECTO
Sold By:
®
A Division of Cardinal Scale Manufacturing Co.
203 E. Daugherty, Webb City, MO 64870 USA
Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-5001
www.Detecto.com
© Copyright 2013 Cardinal Scale Mfg. Co.
• Printed in USA • CAR/00/0513/C154G
