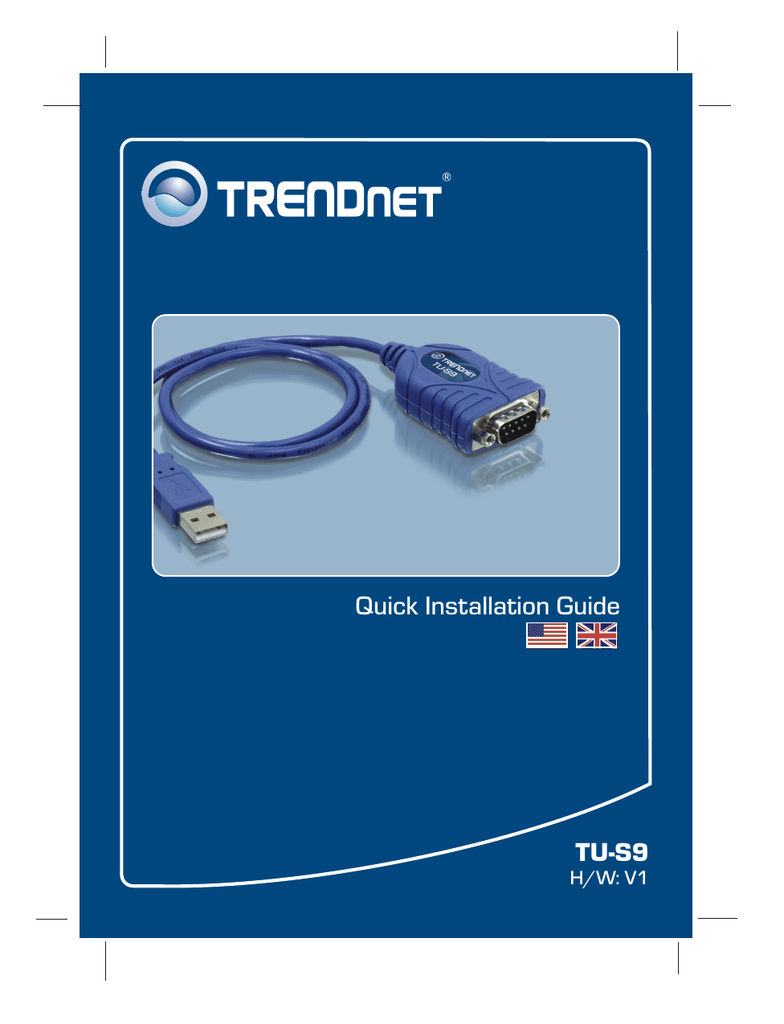

Trendnet TU-S9 Installation guide

Quick Installation Guide
TU-S9
H/W: V1
Table
of Contents
Table
of Contents
English ..................................................................................................... 1
1. Before You Start ................................................................................ 1
2. How to Install ..................................................................................... 2
Troubleshooting ........................................................................................ 7
Version 02.18.2009
1. Before You Start
Package Contents
?
TU-S9
?
Driver CD-ROM
?
Multi Language Quick Installation
Guide
System Requirements
?
CD-ROM Drive
?
Computer with An Available USB 1.1 or 2.0 Port
?
CPU: 300MHz or above / 800MHz or above
[ Windows Vista / Mac OS X (10.1~10.5) ]
?
Memory: 256MB RAM or above / 512MB RAM or above (Windows Vista)
?
Windows Vista/2003 Server/XP/2000/ME/98SE/Mac OS X (10.1~10.5)
?
RS-232 device (e.g. modem)
?
RS-232 Male to Female Serial Cable (Optional)
Application
USB to Serial
Converter
(TU-S9)
Serial Modem
Notebook
USB
Serial
1
English
2. How to Install
Note: Do not connect the TU-S9 until instructed to do so.
Windows 98SE/ME/2000/XP/2003 Server/Vista
1. Turn on your computer and wait
until the Windows desktop
appears.
2. Insert the Driver CD-ROM into
your CD-ROM drive.
3. Click Run Autorun.exe (Windows
Vista only).
4. Click Install Driver.
5. Click Next.
2
English
6. Click Finish.
7. Connect the Adapter to an
available USB port on your
computer.
8. Drivers will install automatically.
9. Connect the Serial device to the
TU-S9.
Mac OS X (10.1 ~ 10.5)
1. Turn on your computer and wait
until the Windows desktop
appears.
2. Insert the Driver CD-ROM into
your CD-ROM drive.
3. Double-click on the TU-S9 CDROM icon on your desktop.
3
English
4. Double-click on the Mac folder.
PL2303_1.2.1r2.dmg
5. Double-click on
PL2303_1.2.1r2.dmg.
PL2303_1.2.1
6. Double-click on PL2303_1.2.1.
7. Click Continue.
8. Select a destination and then click
Continue.
4
English
9. Click Install.
10. When the Authenticate screen
appears, enter the Name and
Password for your computer and
then click OK.
11. Click Continue Installation.
12. Click Restart.
5
English
13. Connect the Adapter to an
available USB port on your
computer.
14. Connect Serial device to the
TU-S9.
Your installation is now complete.
For detailed information regarding the TU-S9, please refer to the User's Guide
included on the Driver CD-ROM or TRENDnet's website at www.trendnet.com
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.TRENDnet.com/register
Thank you for choosing TRENDnet
6
English
Troubleshooting
Q1: The autorun window does not appear on my Windows PC after I put
in the Driver CD-ROM. What should I do?
A1: Go to Start -> Run, type in E:\autorun.exe and then click OK.
E:\represents the drive letter that is assigned to your CD-ROM drive.
Q2: My computer is unable to recognize my hardware. What should I do?
A2: First, make sure your computer meets the minimum requirements as
specified in Section 1 of this Quick Installation Guide. Second, try
plugging the TU-S9 into a different USB port on your computer.
Q3: Can I use the TU-S9 with my serial keyboard, mouse, or joystick?
A3: The TU-S9 does not support interrupt transfer mode devices. If your
serial keyboard, mouse, or joystick is an HID Device, it is not supported.
Q4: Can I connect or disconnect the USB cables while the computer is
on?
A4: Yes, you can connect or disconnect the USB cable while the
computer is on, because the USB interface is Plug-and-Play and hotpluggable.
Q5: I am installing the TU-S9 on my Mac OS X but I don't remember my
password. What should I do?
A5: If you don't remember your password, you will not be able to install
the TU-S9. An authentication error will appear if you try to continue with
the installation. Go to the following Web page for steps on resetting your
password: http://support.apple.com/kb/HT1274.
If you still encounter problems or have any questions regarding the TU-S9 USB
to Serial Converter, please contact TRENDnet's Technical Support
Department.
7
Troubleshooting
Certifications
This equipment has been tested and found to comply with FCC and CE Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may
cause undesired operation.
Waste electrical and electronic products must not
be disposed of with household waste. Please
recycle where facilities exist. Check with you Local
Authority or Retailer for recycling advice.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
ADVERTENCIA
En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de alimentacón
necesario para su funcionamiento. El uso de un adaptador distinto al mencionado puede producir
daños fisicos y/o daños al equipo conectado. El adaptador de alimentación debe operar con voltaje y
frecuencia de la energia electrica domiciliaria existente en el pais o zona de instalación.
Product Warranty Registration
Please take a moment to register your product online.
Go to TRENDnet’s website at http://www.trendnet.com/register
20675 Manhattan Place
Torrance, CA 90501
USA
Copyright ©2009. All Rights Reserved. TRENDnet.
