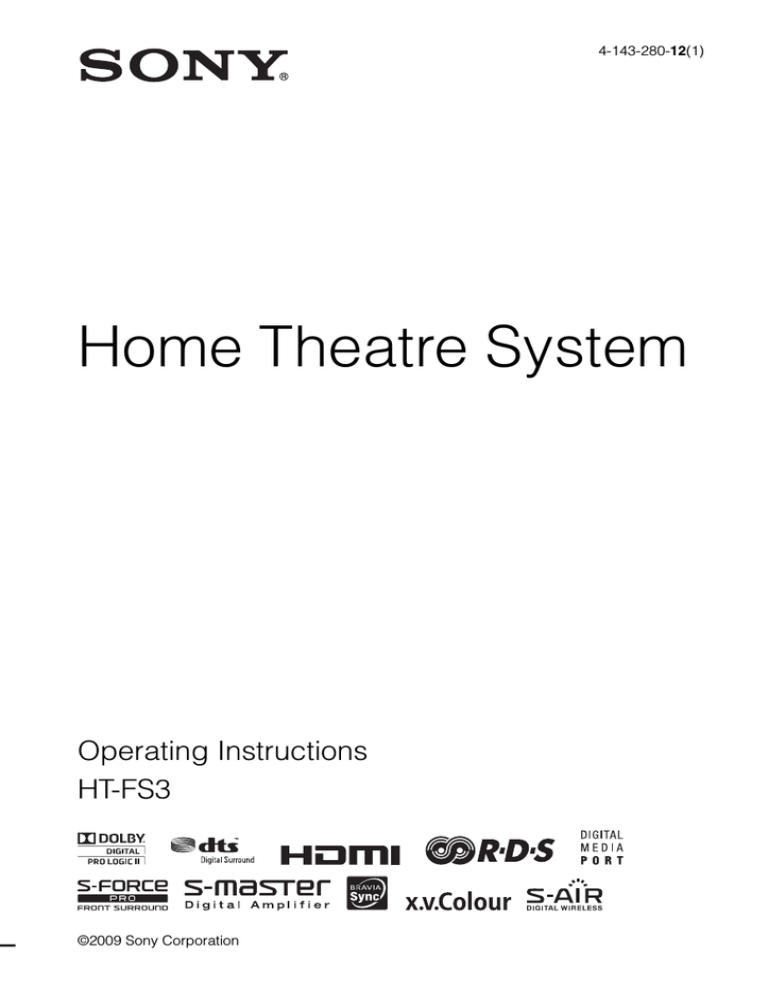

4-143-280-12(1)
Home Theatre System
Operating Instructions
HT-FS3
©2009 Sony Corporation
3
WARNING
Do not expose batteries or apparatus with batteryinstalled to excessive heat such as sunshine, fire or the
like.
Do not install the appliance in a confined space, such as
a bookcase or built-in cabinet.
To reduce the risk of fire, do not cover the ventilation
opening of the apparatus with newspapers, tablecloths,
curtains, etc. Do not place the naked flame sources such
as lighted candles on the apparatus.
To reduce the risk of fire or electric shock, do not
expose this apparatus to dripping or splashing, and do
not place objects filled with liquids, such as vases, on
the apparatus.
As the main plug is used to disconnect the unit from the
mains, connect the unit to an easily accessible AC
outlet. Should you notice an abnormality in the unit,
disconnect the main plug from the AC outlet
immediately.
Disposal of Old Electrical
& Electronic Equipment
(Applicable in the
European Union and
other European
countries with separate
collection systems)
This symbol on the product or
on its packaging indicates that
this product shall not be treated as household
waste. Instead it shall be handed over to the
applicable collection point for the recycling of
electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will
help prevent potential negative consequences for
the environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. The recycling of
materials will help to conserve natural resources.
For more detailed information about recycling of
this product, please contact your local Civic
Office, your household waste disposal service or
the shop where you purchased the product.
2GB
Disposal of waste
batteries (applicable in
the European Union and
other European
countries with separate
collection systems)
This symbol on the battery or on the packaging
indicates that the battery provided with this
product shall not be treated as household waste.
On certain batteries this symbol might be used in
combination with a chemical symbol. The
chemical symbols for mercury (Hg) or lead (Pb)
are added if the battery contains more than
0.0005% mercury or 0.004% lead. By ensuring
these batteries are disposed of correctly, you will
help prevent potentially negative consequences
for the environment and human health which
could otherwise be caused by inappropriate
waste handling of the battery. The recycling of
the materials will help to conserve natural
resources. In case of products that for safety,
performance or data integrity reasons require a
permanent connection with an incorporated
battery, this battery should be replaced by
qualified service staff only. To ensure that the
battery will be treated properly, hand over the
product at end-of-life to the applicable collection
point for the recycling of electrical and
electronic equipment. For all other batteries,
please view the section on how to remove the
battery from the product safely. Hand the battery
over to the applicable collection point for the
recycling of waste batteries. For more detailed
information about recycling of this product or
battery, please contact your local Civic Office,
your household waste disposal service or the
shop where you purchased the product.
Notice for customers: the following
information is only applicable to
equipment sold in countries applying EU
directives.
The manufacturer of this product is Sony Corporation,
1-7-1 Konan Minato-ku, Tokyo, 108-0075 Japan. The
Authorized Representative for EMC and product safety
is Sony Deutschland GmbH, Hedelfinger Strasse 61,
70327 Stuttgart, Germany. For any service or guarantee
matters, please refer to the addresses given in separate
service or guarantee documents.
On operation
Precautions
On safety
• Should any solid object or liquid fall into the system,
unplug the system and have it checked by qualified
personnel before operating it any further.
• Do not climb on the subwoofer, as you may fall down
and injure yourself, or system damage may result.
On power sources
• Before operating the system, check that the operating
voltage is identical to your local power supply. The
operating voltage is indicated on the nameplate at the
rear of the subwoofer.
• If you are not going to use the system for a long time,
be sure to disconnect the system from the wall outlet
(mains). To disconnect the AC power cord (mains
lead), grasp the plug itself; never pull the cord.
• AC power cord (mains lead) must be changed only at
the qualified service shop.
• The unit is not disconnected from the mains as long as
it is connected to the AC outlet, even if the unit itself
has been turned off.
Before connecting other components, be sure to turn off
and unplug the system.
If you encounter color irregularity on
a nearby TV screen
Color irregularities may be observed on certain types of
TV sets.
If color irregularity is observed...
Turn off the TV set, then turn it on again after 15 to 30
minutes.
If color irregularity is observed
again...
Place the subwoofer or the speakers further away from
the TV set.
On cleaning
Clean the system with a soft dry cloth. Do not use any
type of abrasive pad, scouring powder or solvent such
as alcohol or benzine.
If you have any question or problem concerning your
system, please consult your nearest Sony dealer.
On heat buildup
Although the system heats up during operation, this is
not a malfunction. If you continuously use this system
at a large volume, the system temperature of the back
and bottom rises considerably. To avoid burning
yourself, do not touch the system.
On placement
• Place the system in a location with adequate
ventilation to prevent heat buildup and prolong the
life of the system.
• Do not place the system near heat sources, or in a
place subject to direct sunlight, excessive dust, or
mechanical shock.
• Do not place anything at the rear of the subwoofer that
might block the ventilation holes and cause
malfunctions.
• Do not cover the grill of the subwoofer.
• Do not place the system near equipment such as a TV,
VCR, or tape deck. (If the system is being used in
combination with a TV, VCR, or tape deck, and is
placed too close to that equipment, noise may result,
and picture quality may suffer. This is especially
likely when using an indoor antenna. Therefore, we
recommend using an outdoor antenna.)
• Use caution when placing the system on surfaces that
have been specially treated (with wax, oil, polish, etc.)
as staining or discoloration of the surface may result.
continued
3GB
Copyrights
This system incorporates Dolby* Digital and Pro Logic
Surround and the DTS** Digital Surround System.
* Manufactured under license from Dolby
Laboratories.
“Dolby”, “Pro Logic”, and the double-D symbol are
trademarks of Dolby Laboratories.
** Manufactured under license under U.S. Patent #'s:
5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,487,535 & other U.S. and worldwide patents
issued & pending. DTS and DTS Digital Surround
are registered trademarks and the DTS logos and
Symbol are trademarks of DTS, Inc. © 1996-2008
DTS, Inc. All Rights Reserved.
This system incorporates High-Definition Multimedia
Interface (HDMI™) technology.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
“BRAVIA Sync” is a trademark of Sony Corporation.
“PLAYSTATION” is a trademark of Sony Computer
Entertainment Inc.
“S-AIR” and its logo are trademarks of Sony
Corporation.
“x.v.Colour (x.v.Color)” and “x.v.Colour (x.v.Color)”
logo are trademarks of Sony Corporation.
4GB
About the S-AIR function
The system is compatible with the S-AIR function,
which allows transmission of sound between S-AIR
products wirelessly.
S-AIR receivers can be used with the system. You can
enjoy system sound in another room.
S-AIR products can be purchased as options (the S-AIR
product lineup differs depending on the area).
Notes or instructions for the S-AIR receiver in these
Operating Instructions refer only to when the S-AIR
receiver is used.
For details on the S-AIR function, see “Using an S-AIR
product” (page 49).
Table of contents
Precautions ...............................................3
About the S-AIR function........................4
Getting Started
Unpacking ................................................6
Installing the system ................................7
Connecting the speakers ........................11
Connecting components with HDMI
jacks .................................................12
Connecting components without HDMI
jacks .................................................14
Setting up the sound output of the
connected component ......................16
Connecting the antenna (aerial) .............17
Connecting the other components..........19
Advanced Settings
Controlling the connected Sony
components with the remote ........... 39
Changing the input button assignments of
the remote........................................ 42
Settings and adjustments using the
amplifier menu ................................ 43
Using an S-AIR product........................ 49
Additional Information
Troubleshooting .................................... 59
Specifications ........................................ 62
Glossary................................................. 64
Index...................................................... 66
Playback Options
Index to parts and controls .....................21
Enjoying TV...........................................24
Enjoying other components ...................25
Surround Function
Enjoying the surround effect..................27
Enjoying the sound at low volume
(NIGHT mode) ................................28
“BRAVIA” Sync Features
What is “BRAVIA” Sync?.....................29
Preparing for the “BRAVIA” Sync........29
Enjoying Blu-ray Disc/DVD..................31
(One-Touch Play)
Enjoying the TV sound from the
speakers ...........................................32
(System Audio Control)
Turning off the TV, system and connected
components ......................................33
(System Power Off)
Using the power saving function ...........34
Tuner Functions
Presetting radio stations .........................35
Listening to the radio .............................36
Using the Radio Data System (RDS).....38
5GB
Getting Started
Unpacking
• Subwoofer (1)
• FM wire antenna (aerial) (1)
• Remote commander (RMAAU060) (1)
• Speaker cords (2)
• Speakers (2)
• Digital optical cord (2.5 m) (1)
• R6 (size AA) batteries (2)
• AM loop antenna (aerial) (1)
• Operating Instructions (1)
• Foot pads (8)
Inserting batteries into the remote
You can control the system using the supplied remote. Insert two R6 (size AA) batteries by matching
the + and – ends on the batteries to the markings inside the compartment.
Notes
• Do not leave the remote in an extremely hot or humid place.
• Do not use a new battery with an old one.
• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.
• Do not expose the remote sensor to direct light from the sun or lighting apparatus. Doing so may cause a
malfunction.
• If you do not intend to use the remote for an extended period of time, remove the batteries to avoid possible damage
from battery leakage and corrosion.
6GB
Getting Started
Installing the system
Install the subwoofer and speakers as shown in the illustration below.
Speaker (L)
Speaker (R)
Subwoofer
Notes
• Do not block the heat ventilation on the rear panel of the subwoofer.
• Do not cover the grill of the subwoofer.
• It is recommended to place the subwoofer on the front edge of a table or rack, etc., to accept the remote signal
correctly.
To use the speakers efficiently
Position the speakers so that the distance between each speaker and the listening position (A and B)
is the same (from 0.0 to 7.0 m).
Speaker (L)
Speaker (R)
TV
Subwoofer
• Place both speakers the same distance apart as they are from the listening position (to form an isosceles triangle).
• The speakers should be placed at least 0.6 m apart.
• Place the speakers forward of the TV. Make sure there are no reflecting obstacles in the way of the speakers.
continued
7GB
• Both speakers should be pointed straight forward. Do not place the speakers at an angle.
Incorrect
Correct
• It is recommended to place the speakers on the edge of a table or rack, etc., to prevent sound reflection.
Side view
Recommended
To connect the speaker cords to the speakers
The connector of the speaker cords is color-coded depending on the type of speaker.
Connect the speaker cords to match the color of the SPEAKER jacks of the subwoofer.
Be sure to match the speaker cords to the appropriate terminals on the speakers: the gray speaker
cord to +, and the gray speaker cord with a black line to –. Do not catch the speaker cord insulation
in the speaker terminals.
Rear of the speaker
(+) Gray
Connector
Speaker (L): White
Speaker (R): Red
8GB
(–) Gray with
a black line
To install the speakers on a flat surface
Getting Started
Before you install the speakers, be sure to attach the supplied foot pads to prevent vibration or
movement as shown in the illustration below.
You need to attach the supplied foot pads to both the right and left speakers.
To install the speakers on the speaker stand
For greater flexibility in positioning the speakers, use the optional WS-FV11 or WS-FV10D speaker
stand (available only in certain countries). For details, refer to the operating instructions supplied with
the speaker stand.
To install the speakers on a wall
You can install your speakers on the wall.
1
Prepare screws (not supplied) that are suitable for the hole on the back of each speaker.
See the illustrations below.
4 mm
More than 25 mm
2
4.6 mm
Hole on the rear of
the speaker
10 mm
Fasten the screws to the wall. The screws should protrude 5 to 7 mm.
5 to 7 mm
3
Hang the speakers on the screws.
continued
9GB
4.6 mm
10 mm
Rear of the speaker
Notes
• Use screws that are suitable for the wall material and strength. As a plaster board wall is especially fragile, attach
the screws securely to a beam and fasten them to the wall. Install the speakers on a vertical and flat wall where
reinforcement is applied.
• Contact a screw shop or installer regarding the wall material or screws to be used.
• Sony is not responsible for accident or damage caused by improper installation, insufficient wall strength or
improper screw installation, natural calamity, etc.
10GB
Getting Started
Connecting the speakers
The connector of the speaker cords is color-coded depending on the type of speaker.
Connect the speaker cords to match the color of the SPEAKER jacks of the subwoofer.
75
EZW-T100
BD IN
DVD IN
SAT/CATV IN
Rear of the
subwoofer
AM
FM
COAXIAL
ANTENNA
TV OUT
OPTICAL
HDMI
COAXIAL
ONLY FOR SS-FS3
TV IN
DIGITAL 1 IN
DIGITAL 2 IN
DIGITAL
L
R
SPEAKER
L
DC 5V
0.7A MAX
R
AUDIO IN
DMPORT
TV
Red (speaker (R))
White (speaker (L))
Speaker (L)
Speaker (R)
11GB
Connecting components with HDMI jacks
Sony recommends that you connect components to the system using HDMI cables.
With HDMI, you can easily enjoy both high quality sound and high quality images.
For details on the Control for HDMI function, refer to ““BRAVIA” Sync Features” (page 29).
Connect the AC power cord (mains lead) after you have finished connecting all components to the
system.
Connecting a TV monitor, projector, etc.
Connect the audio output of the TV to the audio input of the system using a digital optical cord or an
audio cord in order to listen to the TV sound from the system.
TV monitor, projector, etc.
Audio signal
Audio/video signal
or
A
B
C
75
EZW-T100
BD IN
DVD IN
SAT/CATV IN
Rear of the
subwoofer
AM
FM
COAXIAL
ANTENNA
TV OUT
OPTICAL
HDMI
COAXIAL
ONLY FOR SS-FS3
TV IN
DIGITAL 1 IN
DIGITAL 2 IN
DIGITAL
L
R
SPEAKER
L
DC 5V
0.7A MAX
R
AUDIO IN
DMPORT
A Audio cord (not supplied)
B Digital optical cord (supplied)
C HDMI cable (not supplied)
TV
: Signal flow
Note
• The OPTICAL TV IN jack has priority when you connect both the audio output of the TV to the OPTICAL TV IN
and AUDIO IN jack of the system.
12GB
Blu-ray Disc player (recorder),
“PlayStation 3”
DVD player (recorder)
Audio/video
signal
Satellite/cable television tuner
Audio/video
signal
Audio/video
signal
A
A
75
EZW-T100
DVD IN
SAT/CATV IN
A
Rear of the
subwoofer
AM
FM
BD IN
Getting Started
Connecting a Blu-ray Disc player (recorder), “PlayStation 3,”
DVD player (recorder), satellite/cable television tuner, etc.
COAXIAL
ANTENNA
TV OUT
OPTICAL
HDMI
COAXIAL
ONLY FOR SS-FS3
TV IN
DIGITAL 1 IN
DIGITAL 2 IN
DIGITAL
L
R
SPEAKER
L
DC 5V
0.7A MAX
R
AUDIO IN
DMPORT
A HDMI cable (not supplied)
TV
: Signal flow
Notes on HDMI connections
• Use a High Speed HDMI cable. If you use a Standard HDMI cable, 1080p images may not be
displayed properly.
• Sony recommends that you use an HDMI-authorized cable or Sony HDMI cable.
• Check the setup of the connected component if an image is poor or the sound does not come out of a
component connected via the HDMI cable.
• Audio signals (sampling frequency, bit length, etc.) transmitted from an HDMI jack may be
suppressed by the connected component.
• Sound may be interrupted when the number of channels or sampling frequency of audio output
signals from the playback component is changed.
• When the connected component is not compatible with copyright protection technology (HDCP), the
image and/or the sound from the HDMI TV OUT jack may be distorted or may not be output.
In this case, check the specification of the connected component.
• We do not recommend using an HDMI-DVI conversion cable.
• When TV, DIGITAL 1, DIGITAL 2, FM, AM, or DMPORT is selected, the video signal that was
selected last time is output.
• This system supports “x.v.Colour (x.v.Color)” transmission, extended by HDMI ver1.3.
13GB
Connecting components without HDMI jacks
When you connect a DVD player (recorder), satellite/cable television tuner, “PlayStation 2,” etc., that
has no HDMI jacks, connect to the system using the OPTICAL DIGITAL 1 IN or COAXIAL
DIGITAL 2 IN jack.
If the satellite/cable television tuner does not have an OPTICAL OUT jack, connect the system using
the COAXIAL DIGITAL 2 IN jack. In this case, it is not necessary to connect all the cables. Connect
the audio cords according to the jacks of your components.
Connect the AC power cord (mains lead) last.
Connecting a component to the OPTICAL DIGITAL 1 IN jack
DVD player (recorder), “PlayStation 2,”
satellite/cable television tuner, etc.
TV monitor, projector, etc.
Video signal
Audio signal
Video signal
Audio signal
or
Video signal
A
B
C
75
EZW-T100
BD IN
DVD IN
SAT/CATV IN
Rear of the
subwoofer
AM
FM
COAXIAL
ANTENNA
TV OUT
OPTICAL
HDMI
COAXIAL
ONLY FOR SS-FS3
TV IN
DIGITAL 1 IN
DIGITAL 2 IN
DIGITAL
L
R
SPEAKER
L
DC 5V
0.7A MAX
R
AUDIO IN
DMPORT
TV
: Signal flow
A Audio cord (not supplied)
B Digital optical cord (supplied)
C Digital optical cord (not supplied)
14GB
Connecting a component to the COAXIAL DIGITAL 2 IN jack
Video signal
Audio signal
Getting Started
DVD player (recorder),
satellite/cable television tuner, etc.
TV monitor, projector, etc.
Video signal
Audio signal
or
Video signal
A
B
C
75
EZW-T100
BD IN
DVD IN
SAT/CATV IN
Rear of the
subwoofer
AM
FM
COAXIAL
ANTENNA
TV OUT
OPTICAL
HDMI
COAXIAL
ONLY FOR SS-FS3
TV IN
DIGITAL 1 IN
DIGITAL 2 IN
DIGITAL
L
R
SPEAKER
L
DC 5V
0.7A MAX
R
AUDIO IN
DMPORT
TV
: Signal flow
A Audio cord (not supplied)
B Digital optical cord (supplied)
C Digital coaxial cord (not supplied)
Note
• The OPTICAL TV IN jack has priority when you connect both the audio output of the TV to the OPTICAL TV IN
and AUDIO IN jack of the system.
15GB
Setting up the sound output of the connected component
Depending on the audio output settings of the connected component, the sound may output in 2 channel
sound format only. In this case, set the connected component to output the sound in multi channel sound
format (PCM, DTS, Dolby Digital). For details on audio output settings, refer to the operating
instructions supplied with the connected component.
16GB
Connecting the AM loop antenna (aerial)
The shape and the length of the antenna (aerial) are designed to receive AM signals. Do not dismantle
or roll up the antenna (aerial).
1
2
3
Remove only the loop part from the plastic stand.
Set up the AM loop antenna (aerial).
Connect the cords to the AM antenna (aerial) terminals.
While pushing down the terminal clamp, insert the (*) part of the cords.
The cords can be connected to either terminal.
AM
FM
75
EZW-T100
BD IN
DVD IN
SAT/CATV IN
COAXIAL
ANTENNA
TV OUT
OPTICAL
*
HDMI
COAXIAL
TV IN
DIGITAL 1 IN
DIGITAL 2 IN
DIGITAL
L
DC 5V
0.7A MAX
R
AUDIO IN
PORT
TV
Rear of the subwoofer
Note
• Do not place the AM loop antenna (aerial) near the system or other AV component, as noise may
result.
Tip
• Adjust the direction of the AM loop antenna (aerial) for best AM broadcast sound.
4
Make sure the AM loop antenna (aerial) is connected firmly by pulling softly.
continued
17GB
Getting Started
Connecting the antenna (aerial)
Connecting the FM wire antenna (aerial)
Connect the FM wire antenna (aerial) to the FM 75 Ω COAXIAL jack.
75
EZW-T100
BD IN
DVD IN
COAXIAL
SAT/CATV IN
FM wire antenna (aerial)
(supplied)
AM
FM
ANTENNA
TV OUT
OPTICAL
HDMI
COAXIAL
TV IN
DIGITAL 1 IN
DIGITAL 2 IN
DIGITAL
FM 75 Ω COAXIAL jack
L
DC 5V
0.7A MAX
R
AUDIO IN
PORT
TV
Rear of the subwoofer
Notes
• Be sure to fully extend the FM wire antenna (aerial).
• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.
• Do not use the FM wire antenna (aerial) while it is bundled up.
• Insert the FM wire antenna (aerial) fully and firmly to the terminal.
Tip
• If you have poor FM reception, use a 75-ohm coaxial cable (not supplied) to connect the subwoofer to an outdoor
FM antenna (aerial) as shown below.
AM
FM
75
EZW-T100
BD IN
DVD IN
SAT/CATV IN
COAXIAL
ANTENNA
TV OUT
OPTICAL
HDMI
COAXIAL
TV IN
DIGITAL 1 IN
DIGITAL 2 IN
DIGITAL
L
DC 5V
0.7A MAX
R
AUDIO IN
PORT
TV
Rear of the subwoofer
18GB
Outdoor FM antenna
(aerial)
Getting Started
Connecting the other components
Connecting the DIGITAL MEDIA PORT adapter
You can enjoy sound from the connected component on the system by connecting the DIGITAL
MEDIA PORT adapter.
Connect the AC power cord (mains lead) last.
75
EZW-T100
BD IN
DVD IN
SAT/CATV IN
Rear of the
subwoofer
AM
FM
COAXIAL
ANTENNA
TV OUT
OPTICAL
HDMI
COAXIAL
ONLY FOR SS-FS3
TV IN
DIGITAL 1 IN
DIGITAL 2 IN
DIGITAL
L
R
SPEAKER
L
DC 5V
0.7A MAX
R
AUDIO IN
DMPORT
: Signal flow
TV
DIGITAL MEDIA PORT adapter
Notes
• Do not connect or disconnect the DIGITAL MEDIA PORT adapter while the system is turned on.
• When you connect the DIGITAL MEDIA PORT adapter, be sure the connector is inserted with the arrow mark
facing toward the arrow mark on the DMPORT jack. To detach the DIGITAL MEDIA PORT adapter, press and
hold A and then pull out the connector.
A
continued
19GB
Using the wireless system
The system is compatible with the S-AIR function, which allows sound transmission between the
subwoofer and S-AIR product (not supplied). When you purchase the S-AIR product, you need to
establish sound transmission.
For details, see page 49.
Slot cover
75
EZW-T100
BD IN
DVD IN
SAT/CATV IN
Rear of the
subwoofer
AM
FM
COAXIAL
ANTENNA
TV OUT
OPTICAL
HDMI
COAXIAL
ONLY FOR SS-FS3
TV IN
DIGITAL 1 IN
DIGITAL
L
R
SPEAKER
L
DC 5V
0.7A MAX
R
AUDIO IN
DMPORT
TV
CAUTION
• There is no need to open the slot cover until the S-AIR product is used.
20GB
DIGITAL 2 IN
Playback Options
Playback Options
Index to parts and controls
For more information, refer to the pages indicated in parentheses.
Top panel (subwoofer)
INPUT SELECTOR
A ?/1 (on/standby)
Press to turn the system on or off.
B INPUT SELECTOR
Press to select the input source to play back.
Every time you press the button, the input
source changes cyclically as follows:
TV t BD t DVD t SAT/CATV t
DIGITAL 1 t DIGITAL 2 t FM t AM
t DMPORT t TV ......
- VOLUME +
C VOLUME +/–
Press to adjust the volume level.
D Remote sensor
Point the remote here.
E Front panel display
Check the system status.
continued
21GB
Front panel display (subwoofer)
About the indications in the front panel display
POWER /
ACTIVE STANDBY
A POWER / ACTIVE STANDBY indicator
Lights as follows:
Green: the system is turned on.
No light: the system is turned off.
Amber: while the system is turned off, the Control for HDMI function or the S-AIR STANDBY
MODE function is working.
B Audio decoding indicators
Lights up according to the audio input signals.*
C SLEEP (48)
Flashes when the sleep timer function is active.
D TUNED (35)
Lights up when a radio station is received.
E S-AIR (49)
Lights up when the S-AIR transmitter (not supplied) is inserted in the subwoofer and the system
transmits the sound.
F HDMI (12, 60)
Lights up when HDMI equipment is in use.
G ST/MONO (36)
Lights up according to the stereo or monaural status of the radio.
H COAX/OPT
Lights up according to the cable that you are using.
I MUTING
Lights up when the sound is turned off.
J Message display area
Displays volume, selected input source, audio input signal, etc.
K NIGHT (28)
Lights up in NIGHT mode.
* When “
22GB
PLII” lights up, S-Force PRO Front Surround is applied after Dolby Pro Logic II.
A ?/1 (on/standby)
Remote control
Press to turn the system on or off.
B Input buttons
Press one of the buttons to select the
component you want to use.
The buttons are factory assigned to control
Sony components. You can change the
factory settings of the input buttons to suit
the components in your system. For details,
refer to “Changing the input button
assignments of the remote” (page 42).
Note
• Point the remote at the remote sensor
panel display.
in the front
Tip
• The 5, N, and 2 + buttons have a tactile dot. Use
it as a guide during operation.
TV ?/1
AV ?/1
THEATRE
BD
DVD
F1
DIGITAL ANALOG
D SOUND FIELD
SAT/CATV
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
BD/DVD
TOP MENU MENU
Press to enjoy sound effects for watching
movies at night (page 28).
?/1
SYSTEM STANDBY
TV
C NIGHT MODE
Press to select the sound field (page 27).
E AMP MENU
Press to display the menu of the system
(page 43).
F2
AUDIO
1
2
3
4
5
6
NIGHT
MODE
7
8
9
CLEAR
0
ENTER
SOUND
FIELD
F
(MUTING)
Press to turn off the sound.
G 2 +/–
AMP MENU
Press to adjust the volume.
TOOLS/
OPTIONS
DISPLAY
H C, X, x, c or
F
G
Press C, X, x or c to select the settings.
Then press
to enter the selection.
g
f
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
TUNING m
TUNING +
N
M
X
x
TV
23GB
Playback Options
Here describes the buttons for amplifier
operation only. See page 39 for the buttons for
operation of the connected components.
1
Enjoying TV
Refer to the operating instructions of your
TV for details.
TV ?/1
AV ?/1
THEATRE
?/1
?/1
SYSTEM STANDBY
TV
TV
(white)
BD
DVD
SAT/CATV
BD/DVD
TOP MENU MENU
F1
DIGITAL ANALOG
2
3
4
5
6
7
8
9
CLEAR
0
F2
NIGHT
MODE
SOUND
FIELD
AMP MENU
ENTER
TOOLS/
OPTIONS
F
G
g
2 +/–
f
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
TUNING m
TUNING +
N
M
X
x
TV
24GB
Turn the system on.
Press TV (white) on the remote.
Adjust the volume of the system.
• When you connect a Sony TV, the audio input of the
TV is switched and the image from the TV tuner is
displayed on the TV screen automatically by pressing
the TV (white) button. To change this setting, refer to
“Changing the input button assignments of the
remote” (page 42).
• The sound may be output from the TV’s speaker. In
this case, turn the volume of the TV’s speaker down
to the minimum.
AUDIO
1
2
3
4
Tips
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
DISPLAY
Turn on the TV and choose a program.
Enjoying satellite/cable
television tuner
Enjoying other
components
1
Turn on the TV.
TV ?/1
AV ?/1
THEATRE
?/1
2
Input
buttons
3
4
?/1
SYSTEM STANDBY
TV
BD
DVD
SAT/CATV
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
BD/DVD
TOP MENU MENU
F1
DIGITAL ANALOG
1
F2
3
NIGHT
MODE
4
5
6
7
8
9
CLEAR
0
ENTER
SOUND
FIELD
AMP MENU
5
SOUND
FIELD
F
G
g
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
m
Adjust the volume of the system.
Tip
2 +/–
f
TUNING -
Change the TV input.
• The sound may be output from the TV’s speaker. In
this case, turn the volume of the TV’s speaker down
to the minimum.
TOOLS/
OPTIONS
DISPLAY
Press SAT/CATV on the remote.
Refer to the operating instructions of your
TV for details.
AUDIO
2
Turn the satellite/cable television tuner
and the system on.
TUNING +
N
M
X
x
TV
Enjoying Blu-ray Disc, DVD or
“PlayStation 3”
1
2
3
4
Turn on the TV.
Turn the Blu-ray Disc/DVD player
(recorder) or “PlayStation 3” and the
system on.
Press BD or DVD on the remote.
Change the TV input.
Refer to the operating instructions of your
TV for details.
5
Play back the disc.
Tip
• Even if you play back Dolby True HD, Dolby Digital
Plus or DTS HD with a connected component
compatible with these sound formats, the system
accepts as Dolby Digital or DTS. When you play back
these high-quality sound formats, set the connected
component to output the sound in multi channel PCM,
if possible.
continued
25GB
Playback Options
Refer to the operating instructions of your
TV for details.
Enjoying a connected
component through digital
connection
You can enjoy an optically connected
component by pressing DIGITAL 1 on the
remote, and a coaxially connected component by
DIGITAL 2.
1
3
1
2
Press DMPORT on the remote.
Start playback of the connected
component.
Tip
Turn the component and the system on.
Turn on the TV if necessary, and switch the
input selector on your TV so that the signal
from the system appears on the TV screen.
For details, refer to the operating
instructions of the TV.
2
Enjoying a connected
component through DMPORT
connection
Press DIGITAL 1 or DIGITAL 2 on the
remote.
Play the component, and adjust the
volume of the system.
26GB
• When listening to MP3 or other compressed music
files using a portable audio source, you can enhance
the sound. Press SOUND FIELD repeatedly until “P.
AUDIO” appears in the front panel display.
Available sound fields
Surround Function
Enjoying the surround
effect
This system can create multi channel surround
sound. You can select one of the optimized
sound fields from system’s preprogrammed
sound fields.
TV ?/1
AV ?/1
THEATRE
?/1
Effect
STANDARD
Suits various sources.
MOVIE*
Recreates powerful and
realistic sound, along with
clear dialog.
DRAMA*
Suited for TV dramas.
NEWS*
Produces the announcer’s
voice clearly.
SPORTS*
Produces the play-by-play
commentary clearly and
realistic sound with
surround effects, such as
cheering, etc.
GAME*
Produces powerful and
realistic sound, suited for
playing video games.
MUSIC
Suited for music programs
or music videos on Blu-ray
Discs/DVDs.
LIVE
Recreates the atmosphere
of a live performance.
P. AUDIO**
Suited to replay portable
audio source.
SYSTEM STANDBY
TV
BD
DVD
SAT/CATV
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
BD/DVD
TOP MENU MENU
F1
DIGITAL ANALOG
1
F2
AUDIO
2
3
NIGHT
MODE
4
5
6
7
8
9
CLEAR
0
ENTER
SOUND
FIELD
AMP MENU
SOUND
FIELD
* These sound fields are not available when
“DMPORT” is selected by pressing INPUT
SELECTOR.
** “P. AUDIO” appears only when “DMPORT” is
selected.
TOOLS/
OPTIONS
DISPLAY
F
G
g
f
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
TUNING m
TUNING +
N
M
X
x
TV
Tips
• The sound fields memorized for each input are
retained even if you disconnect the AC power cord
(mains lead).
• If you press the THEATRE button when “CTRL:
HDMI” is set to “ON,” the sound field changes to
“MOVIE” (some Sony TVs excluded).
Press SOUND FIELD.
The present sound field appears.
Each time you press the SOUND FIELD button,
the display changes cyclically as follows:
STANDARD t MOVIE t DRAMA t
NEWS t SPORTS t GAME t MUSIC t
LIVE t P.AUDIO
Press SOUND FIELD repeatedly until the sound
field you want appears.
27GB
Surround Function
Selecting the sound field
Sound field
Enjoying the sound at low
volume (NIGHT mode)
You can enjoy sound effects and to hear the
dialog clearly even at a low volume level using
this function. This function is useful for enjoying
sound at night.
TV ?/1
AV ?/1
THEATRE
?/1
SYSTEM STANDBY
TV
BD
DVD
SAT/CATV
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
BD/DVD
TOP MENU MENU
F1
DIGITAL ANALOG
F2
AUDIO
1
2
3
4
5
6
NIGHT
MODE
7
8
9
CLEAR
0
ENTER
SOUND
FIELD
NIGHT
MODE
AMP MENU
TOOLS/
OPTIONS
DISPLAY
F
G
g
f
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
TUNING m
TUNING +
N
M
X
x
TV
Press NIGHT MODE.
To cancel the night mode, press NIGHT MODE
again.
Tip
• You can listen to Dolby Digital sound at low volume
by using AUDIO DRC (page 44).
28GB
“BRAVIA” Sync Features
What is “BRAVIA” Sync?
To use the “BRAVIA” Sync, set the Control for
HDMI function to on for the system and the
connected component.
When you connect a Sony TV with the Control
for HDMI function, the Control for HDMI
function for the system and the connected
component can be set simultaneously by setting
the Control for HDMI function of the TV.
TV ?/1
AV ?/1
THEATRE
?/1
?/1
SYSTEM STANDBY
TV
BD
SAT/CATV
DVD
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
BD/DVD
TOP MENU MENU
F1
Input
buttons
F2
DIGITAL ANALOG
AUDIO
1
2
3
4
5
6
7
8
9
CLEAR
0
NIGHT
MODE
“BRAVIA” Sync is compatible with a Sony TV,
Blu-ray Disc/DVD player, AV amplifier, etc.,
with the Control for HDMI function.
CONTROL FOR HDMI is a mutual control
function standard used by CEC (Consumer
Electronics Control) for HDMI (High-Definition
Multimedia Interface).
AMP MENU
We recommend that you connect this system to
products featuring “BRAVIA” Sync.
Note
ENTER
TOOLS/
OPTIONS
DISPLAY
F
C, X, x, c,
AMP
MENU
TV VOL
MASTER VOL
G
g
f
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
The Control for HDMI function will
not operate in the following
cases:
• When you connect this system to a component
that is not compatible with the Control for
HDMI function.
• When you connect the system and components
using other than HDMI connection.
SOUND
FIELD
TUNING m
TUNING +
N
M
X
x
TV
1
2
Make sure that the system is connected
to the TV and the connected
components (which should be
compatible with the Control for HDMI
function) using HDMI cables (not
supplied).
Turn on the system, the TV and the
connected components.
• Depending on the connected component, the Control
for HDMI function may not work. See the operating
instructions of the component.
continued
29GB
“BRAVIA” Sync Features
By connecting Sony components that are
compatible with the “BRAVIA” Sync with an
HDMI cable (not supplied), operation is
simplified as below:
• One-Touch Play: When you play back a
component such as a Blu-ray Disc/DVD player
(recorder), the system and the TV are turned on
automatically and switch to the appropriate
HDMI input.
• System Audio Control: While watching TV,
you can select to output the sound from the TV
speaker or the speakers of the system.
• System Power Off: When you turn off the TV,
the system and the connected components are
also turned off simultaneously.
Preparing for the
“BRAVIA” Sync
3
4
Select the input of the system
connected to the component you want
to watch (BD, DVD, SAT/CATV), and
switch the HDMI input of the TV, so that
an image from the connected
component is displayed.
Set the Control for HDMI function of the
TV to on.
The Control for HDMI function for the
system and the connected component is
simultaneously set to on.
During the setting, “SCANNING” appears
in the front panel display. After you finish
the setting, “COMPLETE” appears in the
front panel display. Wait until the setting is
complete.
If “SCANNING” or “COMPLETE”
does not appear after performing
the steps above
Set the Control for HDMI function to on for the
system and the connected component
individually.
1
2
3
4
5
Press AMP MENU.
Press x/X repeatedly until “SET HDMI”
appears, then press
or c.
Press x/X repeatedly until “CTRL:
HDMI” appears, then press
or c.
Press x/X to select “ON.”
Press AMP MENU.
The AMP menu turns off. The Control for
HDMI function is set to on.
6
Set the Control for HDMI function of the
connected component to on.
For details on setting the connected
component, refer to its operating
instructions.
7
Select the input of the system
connected to the component you want
to use the Control for HDMI function for
(BD, DVD, SAT/CATV), and repeat step
6.
30GB
If you add or reconnect the
component
Perform steps of “Preparing for the “BRAVIA”
Sync” and “If “SCANNING” or “COMPLETE”
does not appear after performing the steps
above” again.
Notes
• During the setting of the Control for HDMI function
for the system, the System Audio Control function
does not work.
• If the Control for HDMI function for the connected
component cannot be set simultaneously by setting
“CONTROL FOR HDMI” of the TV, set the Control
for HDMI function using the menu of the connected
component.
• For details on setting the TV and the connected
components, refer to their operating instructions.
Tip
• The default setting of the Control for HDMI function
of the system is “ON.”
Setting the Control for HDMI
function to off
Set the Control for HDMI function to off when
you connect components not compatible with the
“BRAVIA” Sync, or that do not have HDMI
jacks, etc.
TV ?/1
AV ?/1
THEATRE
The system and the TV are turned on
automatically and switch to the appropriate
HDMI input.
Note
• Depending on the TV, the start of the content may not
be output.
SAT/CATV
DVD
Play back a connected component.
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
Tip
BD/DVD
TOP MENU MENU
F1
F2
DIGITAL ANALOG
• You can enjoy the Blu-ray Disc/DVD player
(recorder) connected to the system, even if you turn
the system off. The POWER / ACTIVE STANDBY
indicator lights up in amber at this time.
AUDIO
1
2
3
4
5
6
NIGHT
MODE
7
8
9
CLEAR
0
ENTER
SOUND
FIELD
AMP MENU
TOOLS/
OPTIONS
DISPLAY
F
C, X, x, c,
AMP
MENU
TV VOL
MASTER VOL
G
g
f
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
TUNING m
TUNING +
N
M
X
x
TV
1
2
3
4
5
Press AMP MENU.
Press x/X repeatedly until “SET HDMI”
appears, then press
or c.
Press x/X repeatedly until “CTRL:
HDMI” appears, then press
or c.
Press x/X to select “OFF.”
Press AMP MENU.
The AMP menu turns off.
31GB
“BRAVIA” Sync Features
BD
(One-Touch Play)
?/1
SYSTEM STANDBY
TV
Enjoying Blu-ray Disc/DVD
Enjoying the TV sound
from the speakers
(System Audio Control)
You can enjoy the TV sound from the speakers
of the system by means of a simple operation.
For details, see the operating instructions of the
TV.
TV ?/1
AV ?/1
THEATRE
?/1
Using the Volume Limit
function
When the System Audio Control function is
active, and the output method changes from the
TV speaker to the system speaker automatically,
loud sound may be output depending on the
volume level of the system. You can prevent this
by limiting the maximum volume level.
1
2
?/1
SYSTEM STANDBY
TV
BD
SAT/CATV
DVD
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
BD/DVD
TOP MENU MENU
F1
Input
buttons
4
F2
DIGITAL ANALOG
3
AUDIO
1
2
3
4
5
6
7
8
9
CLEAR
0
ENTER
C, X, x, c,
Press x/X to select the maximum
volume level you want.
MAX y 49 y 48.....2 y 1 y MIN
TOOLS/
OPTIONS
AMP
MENU
5
TV VOL
MASTER VOL
G
Press x/X repeatedly until “VOL LIMIT”
appears, then press
or c.
SOUND
FIELD
AMP MENU
F
Press x/X repeatedly until “SET HDMI”
appears, then press
or c.
The maximum volume level changes as
follows:
NIGHT
MODE
DISPLAY
Press AMP MENU.
Press AMP MENU.
The AMP menu turns off.
g
Notes
f
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
TUNING m
TUNING +
N
M
X
x
TV
Press ?/1 to turn on the system.
The sound is output from the speaker of the
system. The sound is output from the TV’s
speaker when you turn the system off.
Notes
• When the TV is turned on before this system is turned
on, the TV sound will not be output for a moment.
• When you connect a TV that does not have System
Audio Control function, the System Audio Control
function does not work.
Tip
• You can adjust the volume or turn off the sound of the
system using the TV remote.
32GB
• This function is available only when the Control for
HDMI function is set to on.
• This function is not available when the output method
is changed from the system speaker to the TV speaker.
Tips
• We recommend that you set the maximum volume
level to a little lower than the volume you usually
listen to.
• Regardless of the maximum volume level you set, the
VOLUME +/– button of the subwoofer and the 2
+/– button of the remote are operable.
• If you do not want to limit the maximum volume
level, select “MAX.”
Using the input buttons of the
remote
(System Power Off)
When you turn the TV off by using the POWER
button on the TV’s remote, the system and the
connected components turn off automatically.
Also, when you turn the TV off by using the
system’s remote, the system and the connected
components turn off automatically.
Tip
TV ?/1
AV ?/1
THEATRE
• You can control connected Sony components by
pressing the input buttons. For details, refer to
“Controlling the connected Sony components with the
remote” (page 39).
?/1
SYSTEM STANDBY
TV
BD
DVD
AV ?/1
SAT/CATV
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
BD/DVD
TOP MENU MENU
F1
F2
DIGITAL ANALOG
AUDIO
1
2
3
4
5
6
7
8
9
CLEAR
0
NIGHT
MODE
SOUND
FIELD
AMP MENU
ENTER
TOOLS/
OPTIONS
DISPLAY
F
TV VOL
MASTER VOL
G
g
f
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
TUNING m
TV
(yellow)
TUNING +
N
M
X
x
TV
Hold down TV (yellow), and press AV ?/1.
The TV, the system and the connected
component are turned off.
Note
• Depending on the status, the connected components
may not be turned off. For details, see operating
instructions supplied with the connected components.
33GB
“BRAVIA” Sync Features
The input buttons (TV (white), BD, DVD, SAT/
CATV) work as follows when the Control for
HDMI function is set to on.
• BD, DVD, SAT/CATV: Since the input of the
TV is also switched automatically, you can
watch the image of the selected component on
the TV simply by pressing the buttons.
• TV: The input of the TV switches
automatically. When you connect a Sony TV,
you can watch the TV simply by pressing the
buttons.
Turning off the TV, system
and connected
components
Using the power saving
function
If a “BRAVIA” Sync-compatible TV is
connected to the system, and the system is in
active standby mode, if the TV is turned off,
HDMI signal transmission stops, and power
consumption is reduced.
TV ?/1
AV ?/1
THEATRE
?/1
SYSTEM STANDBY
TV
BD
SAT/CATV
DVD
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
BD/DVD
TOP MENU MENU
F1
F2
DIGITAL ANALOG
AUDIO
1
2
3
4
5
6
7
8
9
CLEAR
0
NIGHT
MODE
SOUND
FIELD
AMP MENU
ENTER
TOOLS/
OPTIONS
DISPLAY
F
C, X, x, c,
AMP
MENU
TV VOL
MASTER VOL
G
g
f
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
TUNING m
TUNING +
N
M
X
x
TV
1
2
3
4
Press AMP MENU.
Press x/X repeatedly until “SET HDMI”
appears, then press
or c.
Press x/X repeatedly until “POWER
SAVE” appears, then press
or c.
Press x/X to select the setting.
• ON: Reduces power consumption in
active standby mode. HDMI signal
transmission occurs only when the TV is
on.
• OFF: No reduction. HDMI signal
transmission occurs continuously even if
the system is turned off (active standby
mode).
34GB
5
Press AMP MENU.
The AMP menu turns off.
5
Press
.
A preset number appears in the front panel
display.
Tuner Functions
Presetting radio stations
You can preset 20 FM stations, and 10 AM
stations. Before tuning, make sure to turn the
volume down to minimum.
TV ?/1
AV ?/1
THEATRE
6
Tip
?/1
BD
DVD
SAT/CATV
7
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
BD/DVD
TOP MENU MENU
F1
DIGITAL ANALOG
F2
AUDIO
1
2
3
4
5
6
NIGHT
MODE
7
8
9
CLEAR
0
ENTER
.
The station is stored.
TUNER/
BAND
8
9
SOUND
FIELD
Press
Press MENU.
Repeat 2 to 8 to store other stations.
AMP MENU
To change the preset number
TOOLS/
OPTIONS
DISPLAY
Restart from step 3.
F
C, X, x, c,
G
g
f
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
TUNING m
TUNING +
N
M
X
x
TV
1
MENU
TUNING
–/+
Press TUNER/BAND.
You can change “FM” or “AM” by pressing
TUNER/BAND.
2
Press and hold TUNING + or – until the
auto scanning starts.
Scanning stops when the system tunes in a
station. “TUNED” and “ST” (for stereo
program) light up in the front panel display.
3
4
Press MENU.
Press X/x repeatedly until “Memory?”
appears in the front panel display.
35GB
Tuner Functions
• You can select the preset number directly by
pressing the number buttons.
SYSTEM STANDBY
TV
Press X/x to select the preset number
you want.
Listening to the radio
Preset radio stations in the system’s memory first
(see “Presetting radio stations” (page 35)).
TV ?/1
AV ?/1
THEATRE
?/1
SYSTEM STANDBY
TV
BD
DVD
SAT/CATV
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
BD/DVD
TOP MENU MENU
F1
F2
DIGITAL ANALOG
1
AUDIO
2
TUNER/
BAND
3
NIGHT
MODE
4
5
6
7
8
9
CLEAR
0
ENTER
SOUND
FIELD
C, X, x, c,
TOOLS/
OPTIONS
DISPLAY
Use manual or automatic tuning in step 2.
For manual tuning, press TUNING + or –
repeatedly.
For automatic tuning, press and hold TUNING +
or –. The automatic tuning stops automatically
when the system receives a radio station. To stop
the automatic tuning manually, press TUNING +
or –.
If an FM program is noisy
If an FM program is noisy, you can select
monaural reception. There will be no stereo
effect, but reception will improve.
1
2
AMP MENU
DISPLAY
To listen to non-preset radio
stations
F
G
3
g
f
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
PRESET
–/+
TUNING m
M
X
x
TV
1
TUNING
–/+
Press TUNER/BAND.
The last received station is tuned in.
You can change “FM” or “AM” by pressing
TUNER/BAND.
2
Press PRESET + or – repeatedly to
select the preset station.
Each time you press the button, the system
tunes in one preset station.
You can select the preset number directly by
pressing the number buttons.
3
Adjust the volume of the system.
To turn off the radio
Press "/1 to turn off the system, or change to
another function.
36GB
Press X/x repeatedly until “FM Mode?”
appears in the front panel display, then
press
or c.
Press X/x to select “MONO.”
“MONO” lights up in the front panel
display.
The default setting is underlined.
• STEREO: stereo broadcasts are received
in stereo.
• MONO: monaural reception.
MENU
TUNING +
N
Press MENU.
4
5
Press
.
Press MENU.
Tip
• To improve reception, reorient the supplied antennas
(aerials).
Naming preset stations
8
Press MENU.
Tip
You can enter a name for preset stations. These
names (for example, “XYZ”) appear in the front
panel display when a station is selected.
You can enter a name of up to 8 characters for
inputs and display it.
Note that no more than one name can be entered
for each preset station.
• You can check the frequency in the front panel display
by pressing DISPLAY repeatedly (page 37).
Note
• You cannot enter a name for preset stations of the
Radio Data System (RDS) (page 38).
When the system is set to “FM” or “AM,” you
can check the frequency using the front panel
display.
1
Press TUNER/BAND.
Press DISPLAY.
The last received station is tuned in.
You can change “FM” or “AM” by pressing
TUNER/BAND.
Each time you press DISPLAY, the front panel
display changes as shown.
1 Station name*
2 Frequency**
3
4
5
6
Press PRESET + or – repeatedly to
select the preset station you want to
create an index name for.
Press MENU.
* This is displayed if you have entered a name for a
preset station.
** Returns to the original display when several seconds
have elapsed.
Press X/x repeatedly until “Name In?”
appears in the front panel display.
Press
.
Create a name by using C/X/x/c.
Press X/x to select a character, then press c
to move the cursor to the next position.
Letters, numbers, and other symbols can be
input for a radio station name.
If you enter a wrong character
Press C/c repeatedly until the character to
be changed flashes, then press X/x to select
the desired character.
To erase the character, press C/c repeatedly
until the character to be erased flashes, then
press CLEAR.
7
Press
.
“Complete!” appears in the front panel
display, and the station name is stored.
37GB
Tuner Functions
2
Viewing the station name or
frequency in the front panel
display
Using the Radio Data
System (RDS)
What is the Radio Data
System?
The Radio Data System (RDS) is a broadcasting
service that allows radio stations to send
additional information along with the regular
program signal. This tuner offers convenient
RDS features, such as station name display. RDS
is available only for FM stations.*
* Not all FM stations provide RDS service, nor do
they provide the same type of services. If you are not
familiar with the RDS system, check with your local
radio stations for details on RDS services in your
area.
Receiving RDS broadcasts
Simply select a station from the FM band.
When you tune in a station that provides RDS
services, the station name* appears in the front
panel display.
* If an RDS broadcast is not received, a station name
will not appear in the front panel display.
Note
• RDS may not work properly if the station you are
tuned to is not transmitting the RDS signal properly,
or if the signal strength is weak.
Tip
• When a station name is displayed, you can check the
frequency by pressing DISPLAY repeatedly.
38GB
Controlling the component
Advanced Settings
1
Controlling the connected
Sony components with the
remote
You can control connected Sony components
with the remote of this system.
Some functions may not be selectable depending
on the equipment. In that case, select them using
the remote control supplied with the equipment.
?/1
?/1
The component assigned to the selected
input button becomes operable.
2
Referring to the following table, press
the corresponding button for the
operation.
Common operations
Remote Button
Function
1 TV ?/1
AV ?/1
(on/standby)
Turns on or off the Sony
TV or audio/video
components that the
remote is assigned to
operate.
Press ?/1 and 1 TV ?/1/
AV ?/1 at the same time to
turn off the system and all
other components that the
remote is assigned to
operate (SYSTEM
STANDBY).
5 ENTER
Enters the selection.
ql Number buttons
Selects channels and tracks
directly.
SYSTEM STANDBY
TV
BD
DVD
SAT/CATV
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
BD/DVD
TOP MENU MENU
F1
DIGITAL ANALOG
Input
buttons
F2
AUDIO
1
2
3
4
5
6
NIGHT
MODE
7
8
9
CLEAR
0
ENTER
SOUND
FIELD
AMP MENU
TOOLS/
OPTIONS
DISPLAY
F
G
To control the TV
g
f
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
TUNING m
TUNING +
N
M
TV
X
Press and hold the TV (yellow) button while
pressing the buttons with a yellow dot or yellow
printing to control the TV.
Remote Button
Function
2
Changes the screen format
manually to suit the
broadcast.
x
(Screen mode)
TV
(yellow)
3 AUDIO
Selects the sound from the
speaker for a stereo or
bilingual broadcast.
4
Press to display the guide
when you are watching
analog or digital channels.
(Guide)
5
(Previous channel)
Returns to the previous
channel watched (for more
than five seconds).
continued
39GB
Advanced Settings
TV ?/1
AV ?/1
THEATRE
Press one of the input buttons (TV, BD,
DVD or SAT/CATV) to select the
component you want to operate.
Remote Button
Function
Remote Button
Function
6 TOOLS/
OPTIONS
Enables you to access
various viewing options
and change/make
adjustments according to
the source and screen
format.
wd THEATRE
7
Press to turn off the sound.
Press to automatically set
the optimal picture settings
for watching movies, when
you connect a Sony TV
which is compatible with
the THEATRE button.
Also, the audio is
automatically switched to
the audio output of this
system when you connect
the TV and the system with
HDMI connection, and the
Control for HDMI function
is set to on.
(Muting)
8 2 +/–
Press to adjust the volume.
9 MENU/HOME
Allows you to select
channels or input sources
and change the settings for
your TV.
qa TV CH +/–/
qg
/
RETURN/EXIT Returns to the previous
screen of any displayed
menu.
qh C, X, x, c,
qj
In TV mode: Selects the
next (+) or previous (–)
channel.
In Text mode: Selects the
next (
) or previous
(
) page.
/
reveal)
qk
Selects a menu item and
enters the selection.
(Info/Text In digital mode: Displays
brief details of the program
currently being watched.
In analogue mode:
Displays information such
as current channel number
and screen format.
In text mode: Reveals
hidden information (e.g.
answers to a quiz).
(Text)
Displays text.
ql Number buttons
Selects channels. Press 5
ENTER to change
channels immediately.
w; DIGITAL
Changes to digital mode.
wa ANALOG
Changes to analog mode.
ws
In TV mode: Selects input.
In analogue text mode:
Holds the current page.
/
(Input
select/Text hold)
To control the Blu-ray Disc/DVD/
Hard disc recorder
Remote Button
Function
2 F1
Selects the HDD.
3 F2
Selects the Blu-ray Disc/
DVD.
4
(Guide)
Displays the MENU.
q; • ,
Jumps forward while
viewing recorded
programs.
qa .
Skips chapters.
>
Jumps forward to the next
available chapter.
qs m/M
To fast reverse or to fast
forward the disc when
pressed during playback.
qd N (playback)/X
Play mode buttons.
(pause, press again to
resume normal
playback)/x (stop)
qf < •
Jumps backward while
viewing live or recorded
programs.
qh C, X, x, c,
Selects a menu item and
enters the selection.
w; BD/DVD
TOP MENU
Displays the top menu/disc
menu.
wa BD/DVD MENU
40GB
Displays the guide menu.
9 MENU/HOME
To control the Blu-ray Disc/DVD
player
To control the satellite/cable
television tuner
Remote Button
Function
Remote Button
9 MENU/HOME
Displays the MENU.
4
q; • ,
Jumps forward.
9 MENU/HOME
Displays the MENU.
qa ./>
Skips chapters.
qh C, X, x, c,
qs m/M
To fast reverse or to fast
forward the disc when
pressed during playback.
Selects a menu item and
enters the selection.
qd N (playback)/X
Play mode buttons.
(pause, press again to
resume normal
playback)/x (stop)
Jumps backward.
qh C, X, x, c,
Selects a menu item and
enters the selection.
w; BD/DVD
TOP MENU
Displays the top menu/disc
menu.
Function
Displays the guide menu.
Note
• The above explanations are intended to serve as an
example only. Depending on the component, the
above operations may not be possible, or may operate
differently than described.
Tip
• The 5, N, and 2 + buttons have a tactile dot. Use
it as a guide during operation.
wa BD/DVD MENU
To control the HDD/DVD COMBO
Remote Button
Function
2 F1
Selects the HDD.
3 F2
4
Selects the DVD.
(Guide)
Displays the guide menu.
9 MENU/HOME
Displays the MENU.
q; • ,
Advance.
qa ./>
Specifies the previous/next
chapter/track.
qs m/M
To fast reverse or to fast
forward the disc when
pressed during playback.
qd N (playback)/X
Play mode buttons.
(pause, press again to
resume normal
playback)/x (stop)
qf < •
Changes to replay mode.
qh C, X, x, c,
Moves the highlight
(cursor) and selects the
item.
w; BD/DVD
TOP MENU
Displays the top menu/disc
menu.
wa BD/DVD MENU
41GB
Advanced Settings
qf < •
(Guide)
Changing the input button
assignments of the remote
You can change the factory settings of the input
buttons to suit the components in your system.
For example, if you connect a Blu-ray Disc
player to the DVD jack on the system, you can
set the DVD button on this remote to control the
Blu-ray Disc player.
You cannot assign any component other than a
TV to the TV (white) button of the remote.
Categories and the
corresponding buttons for BD,
DVD and SAT/CATV
Categories
Press
DVD player
(command mode DVD1)
1
DVD recorder
(command mode DVD3)*
2
Blu-ray Disc player
(command mode BD1)**
3
Blu-ray Disc recorder
(command mode BD3)
4
Euro Digital Satellite Receiver*** 7
TV ?/1
AV ?/1
THEATRE
?/1
?/1
/
SYSTEM STANDBY
TV
TV
(white)
BD
SAT/CATV
DVD
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
BD/DVD
TOP MENU MENU
F1
F2
DIGITAL ANALOG
Number
buttons
Input
buttons
AUDIO
1
2
3
4
5
6
NIGHT
MODE
7
8
9
CLEAR
0
ENTER
SOUND
FIELD
TOOLS/
OPTIONS
DISPLAY
F
TV VOL
MASTER VOL
G
g
f
TUNING -
TUNING +
N
M
X
x
TV
2
Categories
Press
TV*
5
TV**
6
2–
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
1
The default setting of the DVD button.
Sony DVD recorders are operated with a DVD1 or
DVD3 setting. For details, refer to the operating
instructions supplied with the DVD recorders.
** The default setting of the BD button.
For details on the BD1 or BD3 setting, refer to the
operating instructions supplied with the Blu-ray
Disc player or Blu-ray Disc recorder.
*** The default setting of the SAT/CATV button.
Categories and the
corresponding buttons for TV
AMP MENU
m
*
Hold down the input button you want to
change the assignment of.
*
The default setting of the TV (white) button.
When this setting is selected, the audio input of the
TV is switched and the image from the TV tuner is
displayed on the TV screen automatically, by
pressing the TV (white) button.
** When this setting is selected, the audio input of the
TV is switched automatically by pressing the TV
(white) button.
Example: Hold down DVD.
To clear all remote button
assignments
Referring to the following table, press
the corresponding button for the
category you want.
Press and hold 2 –, ?/1, and then press
/
. The remote is reset to its factory
settings.
Example: Press 3.
Now you can use the DVD button to control
the Blu-ray Disc player.
42GB
Settings and adjustments
using the amplifier menu
SET
S-AIR3)
Using the AMP menu
You can set the following items with AMP
MENU on the remote.
The default settings are underlined.
LEVEL
–6, –5,…0,...
+5, +6
AUDIO DRC
MAX
STD
OFF
BASS
TREBLE
AUDIO
A/V SYNC
DUAL MONO
SET
HDMI1)
SYSTEM
–6, –5,…0,...
+5, +6
–6, –5,…0,...
+5, +6
0ms, 10ms,
20ms,…
190ms, 200ms
MAIN/SUB
MAIN
SUB
CTRL: HDMI
ON
OFF
VOL LIMIT2)
MAX, 49,
48,…2, 1,
MIN
POWER SAVE2)
ON
OFF
DIMMER
ON
OFF
DISPLAY
ON
OFF
SLEEP
OFF, 10M,
20M,…80M,
90M
A
B
C
S-AIR MODE
PARTY
SEPARATE
RF CHANGE
AUTO
ON
OFF
S-AIR STBY
ON
OFF
PAIRING
START
1)
Refer to ““BRAVIA” Sync Features” (page 29).
2)
This setting appears only when “CTRL: HDMI” is
set to “ON.”
3)
This setting appears only when you insert the S-AIR
transmitter (not supplied).
1
2
3
Press AMP MENU to turn on the AMP
menu.
Press C/X/x/c repeatedly to select the
item and the setting.
Press AMP MENU to turn off the AMP
menu.
The following pages show details for each
setting.
continued
43GB
Advanced Settings
TONE
SW LEVEL
S-AIR ID
Setting the subwoofer level
(SW LEVEL)
Enjoying Dolby Digital sound
at low volume (AUDIO DRC)
You can use the SW LEVEL menu to adjust the
level of the subwoofer.
Narrows the dynamic range of the sound track.
Useful for enjoying movies at low volume.
AUDIO DRC only applies to Dolby Digital
sources.
TV ?/1
AV ?/1
THEATRE
?/1
SYSTEM STANDBY
TV
BD
SAT/CATV
DVD
TV ?/1
AV ?/1
THEATRE
?/1
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
SYSTEM STANDBY
TV
BD/DVD
TOP MENU MENU
F1
DIGITAL ANALOG
2
3
4
5
6
7
8
9
BD/DVD
TOP MENU MENU
NIGHT
MODE
CLEAR
0
F1
F2
DIGITAL ANALOG
AUDIO
SOUND
FIELD
1
2
3
AMP MENU
4
5
6
NIGHT
MODE
ENTER
TOOLS/
OPTIONS
DISPLAY
SAT/CATV
DVD
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
AUDIO
1
BD
F2
AMP
MENU
7
8
9
CLEAR
0
ENTER
SOUND
FIELD
AMP MENU
F
C, X, x, c,
TV VOL
MASTER VOL
G
TOOLS/
OPTIONS
DISPLAY
g
F
TV VOL
MASTER VOL
f
C, X, x, c,
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
TUNING m
M
X
x
G
f
TV
TUNING m
1
2
3
4
TUNING +
N
M
X
x
TV
Press AMP MENU.
Press x/X repeatedly until “LEVEL”
appears, then press
or c.
Press x/X repeatedly until “SW LEVEL”
appears, then press
or c.
Press x/X to adjust the subwoofer
level.
Default setting: 0 (dB)
You can adjust from –6 (dB) to +6 (dB) in
1 dB steps.
5
g
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
TUNING +
N
AMP
MENU
1
2
3
4
Press AMP MENU.
Press x/X repeatedly until “LEVEL”
appears, then press
or c.
Press x/X repeatedly until “AUDIO
DRC” appears, then press
or c.
Press x/X to select the setting.
• MAX: Compresses dynamic range fully.
• STD: Reproduces the sound track with
the kind of dynamic range that the
recording engineer intended.
• OFF: No compression of dynamic range.
Press AMP MENU.
The AMP menu turns off.
5
Press AMP MENU.
The AMP menu turns off.
44GB
Adjusting the bass and treble
level (BASS, TREBLE)
You can adjust the bass and treble level easily.
TV ?/1
AV ?/1
THEATRE
Adjusting the delay between
the sound and the image (A/V
SYNC)
You can delay the sound using this function
when the image is behind the sound.
?/1
SYSTEM STANDBY
TV
BD
SAT/CATV
DVD
TV ?/1
AV ?/1
THEATRE
?/1
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
SYSTEM STANDBY
TV
BD/DVD
TOP MENU MENU
F1
DIGITAL ANALOG
3
4
5
6
7
8
9
BD/DVD
TOP MENU MENU
NIGHT
MODE
CLEAR
0
1
2
3
AMP MENU
4
5
6
NIGHT
MODE
ENTER
AMP
MENU
7
8
9
CLEAR
0
ENTER
TV VOL
MASTER VOL
G
g
TOOLS/
OPTIONS
DISPLAY
F
C, X, x, c,
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
TUNING -
M
X
x
G
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
TV
TUNING m
1
2
3
4
Press x/X repeatedly until “BASS” or
“TREBLE” appears, then press
or
c.
Press x/X to adjust the level.
Default setting: 0 (dB)
You can adjust from –6 (dB) to +6 (dB) in
1 dB steps.
5
Press AMP MENU.
The AMP menu turns off.
TUNING +
N
M
X
x
TV
Press AMP MENU.
Press x/X repeatedly until “TONE”
appears, then press
or c.
g
f
TUNING +
N
AMP
MENU
TV VOL
MASTER VOL
f
m
SOUND
FIELD
AMP MENU
F
C, X, x, c,
F2
AUDIO
SOUND
FIELD
TOOLS/
OPTIONS
DISPLAY
F1
DIGITAL ANALOG
1
2
3
4
Press AMP MENU.
Press X/x repeatedly until “AUDIO”
appears, then press
or c.
Press X/x repeatedly until “A/V SYNC”
appears, then press
or c.
Press X/x to select the setting.
Default setting: 0 ms
You can adjust from 0 ms to 200 ms in 10
ms steps.
5
Press AMP MENU.
The AMP menu turns off.
Notes
• You may not be able to adjust the delay between
sound and image perfectly using this function.
• This function is useful only for Dolby Digital, DTS
and Linear PCM (2ch) input by coaxial (audio),
optical (audio) or HDMI.
continued
45GB
Advanced Settings
2
SAT/CATV
DVD
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
AUDIO
1
BD
F2
Enjoying multiplex broadcast
sound (DUAL MONO)
4
• MAIN/SUB: Main sound is output from
the left speaker and sub
sound is output from the
right speaker.
• MAIN:
Plays back only the main
channel.
• SUB:
Plays back only the sub
channel.
You can enjoy multiplex broadcast sound when
the system receives an AC-3 multiplex broadcast
signal.
Note
• To receive AC-3 signal, you need to connect a digital
satellite tuner to the system with a digital optical cord,
digital coaxial cord or HDMI cable, and set the digital
output mode of the digital satellite tuner to AC-3.
TV ?/1
AV ?/1
THEATRE
?/1
SYSTEM STANDBY
TV
BD
SAT/CATV
DVD
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
BD/DVD
TOP MENU MENU
F1
F2
DIGITAL ANALOG
AUDIO
1
2
3
4
5
6
NIGHT
MODE
7
8
9
CLEAR
0
ENTER
SOUND
FIELD
AMP MENU
TOOLS/
OPTIONS
DISPLAY
F
C, X, x, c,
AMP
MENU
TV VOL
MASTER VOL
G
g
f
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
TUNING m
TUNING +
N
M
X
x
TV
1
2
3
Press AMP MENU.
Press x/X repeatedly until “AUDIO”
appears, then press
or c.
Press x/X repeatedly until “DUAL
MONO” appears, then press
or c.
46GB
Press x/X to select the sound you want.
5
Press AMP MENU.
The AMP menu turns off.
Changing the brightness of
the front panel display
(DIMMER)
Changing the display setting
(DISPLAY)
You can change the display setting.
The brightness of the front panel display can be
set to one of 2 levels.
TV ?/1
AV ?/1
THEATRE
?/1
SYSTEM STANDBY
TV ?/1
AV ?/1
THEATRE
TV
?/1
BD
SAT/CATV
DVD
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
SYSTEM STANDBY
TV
BD
SAT/CATV
DVD
BD/DVD
TOP MENU MENU
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
BD/DVD
TOP MENU MENU
F1
1
2
2
3
AUDIO
4
5
6
NIGHT
MODE
7
8
9
SOUND
FIELD
CLEAR
0
6
8
9
CLEAR
0
ENTER
AMP MENU
TOOLS/
OPTIONS
C, X, x, c,
F
AMP
MENU
C, X, x, c,
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
f
TUNING -
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
m
3
4
m
M
X
x
Press AMP MENU.
1
2
Press X/x repeatedly until “SYSTEM”
appears, then press
or c.
3
Press X/x repeatedly until “DIMMER”
appears, then press
or c.
4
M
X
x
Press AMP MENU.
Press x/X repeatedly until “SYSTEM”
appears, then press
or c.
Press x/X repeatedly until “DISPLAY”
appears, then press
or c.
Press x/X to select the setting of the
front panel display.
• ON: The display appears all the time.
• OFF: The display appears for a moment
when you operate the system.
Press X/x to select the brightness of
the front panel display.
• ON: Dim.
• OFF: Bright.
5
TUNING +
N
TV
TUNING +
N
TV
1
2
g
f
g
TUNING -
AMP
MENU
TV VOL
MASTER VOL
G
TV VOL
MASTER VOL
G
ENTER
TOOLS/
OPTIONS
DISPLAY
AMP MENU
F
SOUND
FIELD
Note
Press AMP MENU.
• The display appears all the time when the
protection function is working, even if you set
the “DISPLAY” to “OFF.”
The AMP menu turns off.
5
Press AMP MENU.
The AMP menu turns off.
continued
47GB
Advanced Settings
5
7
DISPLAY
NIGHT
MODE
3
4
F2
AUDIO
1
F2
DIGITAL ANALOG
F1
DIGITAL ANALOG
Using the sleep timer
(SLEEP)
You can set the system to turn off at a preset time
when you sleep listening to music. You can
preset the time in 10 minutes decrements.
TV ?/1
AV ?/1
THEATRE
?/1
SYSTEM STANDBY
TV
BD
SAT/CATV
DVD
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
BD/DVD
TOP MENU MENU
F1
F2
DIGITAL ANALOG
AUDIO
1
2
3
4
5
6
NIGHT
MODE
7
8
9
CLEAR
0
ENTER
SOUND
FIELD
AMP MENU
TOOLS/
OPTIONS
DISPLAY
F
C, X, x, c,
AMP
MENU
TV VOL
MASTER VOL
G
g
f
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
TUNING m
TUNING +
N
M
X
x
TV
1
2
3
4
Press AMP MENU.
Press x/X repeatedly until “SYSTEM”
appears, then press
or c.
Press x/X repeatedly until “SLEEP”
appears, then press
or c.
Press x/X to select the preset time.
The minutes display (the remaining time)
changes as follows:
OFF y 10M y 20M
Y
Y
90M y 80M ..... 30M
5
Press AMP MENU.
The AMP menu turns off.
Note
• This function is only for this system, not for the
connected TV or other components.
48GB
Using an S-AIR product
The system is compatible with the S-AIR
function (page 64), which allows sound
transmission between the system and an S-AIR
receiver (not supplied).
About S-AIR products
To make use of the S-AIR function, you need to
insert the wireless transmitter into the subwoofer
and the wireless transceiver into the S-AIR sub
unit.
Notes
• When you insert the wireless transmitter/transceiver,
make sure that the AC power cord (mains lead) is not
connected to a wall outlet (mains).
• Do not touch the terminals of the wireless transmitter/
transceiver.
To insert the wireless transmitter
into the subwoofer
1
Remove the screws and detach the slot
cover.
Room A
S-AIR main unit
Slot cover
EZ
1
W-T
00
AM
FM
S-AIR sub unit
(S-AIR receiver)
75
EZW-T100
BD IN
DVD IN
COAXIAL
SAT/CATV IN
ANTENNA
TV OUT
OPTICAL
HDMI
COAXIAL
ONLY FOR SS-FS3
TV IN
DIGITAL 1 IN
DIGITAL 2 IN
DIGITAL
Room B
L
R
SPEAKER
S-AIR sub unit
(S-AIR receiver)
L
DC 5V
0.7A MAX
R
AUDIO IN
DMPORT
TV
Rear of the subwoofer
Notes
• Remove the screws from the slot cover bearing
the caution mark. Do not remove other screws.
• The slot cover is no longer necessary; however,
keep it after detaching.
continued
49GB
Advanced Settings
There are two types of S-AIR products.
• S-AIR main unit (this subwoofer): This is for
transmitting sound. You can use up to three
S-AIR main units. (The number of usable
S-AIR main units depends on the use
environment.)
• S-AIR sub unit (S-AIR receiver) (not
supplied): This is for receiving sound. You can
enjoy system sound in another room.
Inserting the wireless
transmitter/transceiver
2
Insert the wireless transmitter.
EZ
1
W-T
3
Make sure to use the same screws to
secure the wireless transmitter.
00
EZ
1
W-T
00
AM
FM
AM
FM
75
EZW-T100
BD IN
DVD IN
COAXIAL
SAT/CATV IN
ANTENNA
TV OUT
OPTICAL
75
EZW-T100
HDMI
BD IN
DVD IN
COAXIAL
SAT/CATV IN
ANTENNA
TV OUT
COAXIAL
OPTICAL
HDMI
COAXIAL
ONLY FOR SS-FS3
TV IN
DIGITAL 1 IN
DIGITAL 2 IN
ONLY FOR SS-FS3
TV IN
DIGITAL
DIGITAL 1 IN
DIGITAL 2 IN
DIGITAL
L
L
R
SPEAKER
L
R
DC 5V
0.7A MAX
R
SPEAKER
L
DC 5V
0.7A MAX
R
AUDIO IN
DMPORT
AUDIO IN
TV
DMPORT
Rear of the subwoofer
TV
Rear of the subwoofer
Notes
Note
• Insert the wireless transmitter with the S-AIR
logo facing up.
• Insert the wireless transmitter so that the V
marks are aligned.
• Do not insert anything other than the wireless
transmitter into the EZW-T100 slot.
• Do not use other screws to fasten the wireless
transmitter.
50GB
To insert the wireless transceiver
into the S-AIR sub unit
For details on installing the wireless transceiver
into the S-AIR sub unit, refer to the operating
instructions of the S-AIR sub unit.
Establishing sound
transmission between the
subwoofer and S-AIR sub unit
(ID setting)
Simply by matching the ID of the subwoofer and
the S-AIR sub unit, you can establish sound
transmission.
TV ?/1
AV ?/1
THEATRE
You can select any ID (A, B, or C).
6
BD
7
Press AMP MENU.
The AMP menu turns off.
8
Set the S-AIR sub unit to the same ID.
Sound transmission is established as follows
(example):
?/1
S-AIR main unit
(This subwoofer)
SAT/CATV
DVD
.
The setting is made.
SYSTEM STANDBY
TV
Press
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
ID A
F1
F2
DIGITAL ANALOG
Advanced Settings
BD/DVD
TOP MENU MENU
AUDIO
1
2
3
4
5
6
NIGHT
MODE
7
8
9
CLEAR
0
ENTER
SOUND
FIELD
AMP MENU
TOOLS/
OPTIONS
DISPLAY
F
C, X, x, c,
AMP
MENU
TV VOL
MASTER VOL
G
g
ID A
S-AIR sub unit
f
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
TUNING m
ID A
S-AIR sub unit
TUNING +
N
M
X
x
TV
Turn on the subwoofer.
The subwoofer turns on.
To set the ID of the S-AIR receiver
Press AMP MENU.
Refer to the operating instructions of the S-AIR
receiver.
To set the ID of the subwoofer
1
2
3
Tip
• To confirm the current ID, perform Steps 1 to 3 above.
When you pair the subwoofer with the S-AIR sub unit
(page 54), “(PAIRING)” appears beside ID in the
front panel display.
Press X/x repeatedly until “SET S-AIR”
appears in the front panel display, then
press
or c.
Note
• When the wireless transmitter is not inserted in
the subwoofer, “SET S-AIR” cannot be selected.
4
5
Press x/X repeatedly until “S-AIR ID”
appears in the front panel display, then
press
or c.
Press X/x to select the desired ID.
continued
51GB
To use multiple S-AIR main units
You can use multiple S-AIR main units by
setting a different ID for each component.
S-AIR main unit
(This subwoofer)
Other S-AIR
main unit
ID B
Enjoying the system’s sound
in another room
You can enjoy the system’s sound by using the
S-AIR receiver. The S-AIR receiver can be
placed in another room for enjoying the system’s
sound there.
For details of the S-AIR receiver, refer to the
operating instructions of the S-AIR receiver.
Note
• Sources with copyright protection may not be
playable on S-AIR receivers.
ID A
TV ?/1
AV ?/1
THEATRE
?/1
SYSTEM STANDBY
TV
BD
SAT/CATV
DVD
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
BD/DVD
TOP MENU MENU
ID A
S-AIR sub unit
ID A
S-AIR
sub unit
ID B
S-AIR sub unit
F1
F2
DIGITAL ANALOG
AUDIO
1
2
3
4
5
6
NIGHT
MODE
7
8
9
CLEAR
0
ENTER
SOUND
FIELD
AMP MENU
TOOLS/
OPTIONS
DISPLAY
F
C, X, x, c,
AMP
MENU
TV VOL
MASTER VOL
G
g
f
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
TUNING m
TUNING +
N
M
X
x
TV
1
2
Press AMP MENU.
Press X/x repeatedly until “SET S-AIR”
appears in the front panel display, then
press
or c.
Note
• When the wireless transmitter is not inserted in
the subwoofer, “SET S-AIR” cannot be selected.
3
52GB
Press x/X repeatedly until “S-AIR
MODE” appears in the front panel
display, then press
or c.
4
Press X/x to select the desired setting.
• “PARTY”: The S-AIR receiver outputs
sound according to functions set on the
subwoofer.
• “SEPARATE”: You can set the desired
function for the S-AIR receiver while
functions of the subwoofer do not change.
5
Press
.
The setting is made.
6
Press AMP MENU.
The AMP menu turns off.
7
Select the desired function on the
S-AIR receiver.
The S-AIR receiver’s function changes
sequentially as you press INPUT
SELECTOR of the main unit (page 21) or
S-AIR CH of the S-AIR receiver.
x When “SEPARATE” is set
The S-AIR receiver’s function changes by
pressing S-AIR CH of the S-AIR receiver as
follows.
You can control the system from the S-AIR
receiver by using the following buttons.
Press
Operation
N, X, x,
./>
Share the same operations on the
remote.
S-AIR CH
Change the function of the system.
For details, refer to the operating instructions of
the S-AIR receiver.
Enjoying the S-AIR receiver
while the subwoofer is in
standby mode
(S-AIR STANDBY MODE)
You can enjoy the S-AIR receiver while the
subwoofer is in standby mode by setting “S-AIR
STBY” to “STBY ON.”
“MAIN UNIT” t “TUNER FM” t
“TUNER AM” t “DMPORT” t …
?/1
SYSTEM STANDBY
TV
BD
SAT/CATV
DVD
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
BD/DVD
TOP MENU MENU
To enjoy the same function as the
subwoofer, select “MAIN UNIT.”
When “TUNER FM” or “TUNER AM” is
selected on the subwoofer, you can only
select the same band for the tuner on the
S-AIR receiver. In this case, when you
select other than “TUNER FM” or “TUNER
AM” on the subwoofer, you can select any
band for the tuner on the S-AIR receiver.
8
TV ?/1
AV ?/1
THEATRE
F1
F2
DIGITAL ANALOG
AUDIO
1
2
3
4
5
6
NIGHT
MODE
7
8
9
CLEAR
0
ENTER
SOUND
FIELD
AMP MENU
TOOLS/
OPTIONS
DISPLAY
F
C, X, x, c,
Adjust the volume on the S-AIR
receiver.
AMP
MENU
TV VOL
MASTER VOL
G
g
f
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
Note
TUNING -
• When the sound is other than 2 channel stereo, multichannel sound is downmixed to 2 channel.
m
TUNING +
N
M
X
x
TV
1
Press AMP MENU.
continued
53GB
Advanced Settings
x When “PARTY” is set
To control the system from the
S-AIR receiver
2
Press X/x repeatedly until “SET S-AIR”
appears in the front panel display, then
press
or c.
Note
• When the wireless transmitter is not inserted in
the subwoofer, “SET S-AIR” cannot be selected.
3
4
Press x/X repeatedly until “S-AIR
STBY” appears in the front panel
display, then press
or c.
Press X/x to select the desired setting.
• “STBY ON”: You can enjoy the S-AIR
receiver while the subwoofer is in standby
mode or turned on. The power
consumption during the standby mode
increases.
• “STBY OFF”: You cannot enjoy the
S-AIR receiver while the subwoofer is in
standby mode.
5
Press
.
Identifying the subwoofer
with a specific S-AIR sub unit
(Pairing operation)
It is easy to set the same ID for the subwoofer
and an S-AIR sub unit to establish sound
transmission. However, neighbors may also
receive your system’s sound if IDs are the same,
or you may receive sound from neighbors. To
prevent this, you can identify the subwoofer with
a specific S-AIR sub unit by performing the
pairing operation.
x Before pairing
Sound transmission is established by ID
(example).
Your room
Neighbor
This subwoofer
The setting is made.
6
Press AMP MENU.
The AMP menu turns off.
Note
• When you turn the system off while “S-AIR STBY”
is set to “STBY ON,” the POWER / ACTIVE
STANDBY indicator lights up in amber in the front
panel display.
ID A
ID A
S-AIR sub unit
54GB
ID A
S-AIR sub unit
x After pairing
Sound transmission is established between the
paired subwoofer and S-AIR sub unit(s) only.
TV ?/1
AV ?/1
THEATRE
?/1
SYSTEM STANDBY
Your room
TV
Neighbor
BD
SAT/CATV
DVD
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
BD/DVD
TOP MENU MENU
This subwoofer
F1
F2
DIGITAL ANALOG
AUDIO
1
2
3
4
5
6
NIGHT
MODE
7
8
9
CLEAR
0
ENTER
SOUND
FIELD
AMP MENU
No transmission
ID A
TOOLS/
OPTIONS
DISPLAY
F
TV VOL
MASTER VOL
G
g
Advanced Settings
C, X, x, c,
AMP
MENU
f
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
ID A
S-AIR sub unit
TUNING -
ID A
S-AIR sub unit
m
TUNING +
N
M
X
x
TV
Pairing
3
4
To perform pairing
1
2
Place the S-AIR sub unit that you want
to pair near the subwoofer.
Match the IDs of the subwoofer and the
S-AIR sub unit.
• To set the ID of the subwoofer, see “To set
the ID of the subwoofer” (page 51).
• To set the ID of the S-AIR sub unit, refer
to the operating instructions of the S-AIR
sub unit.
Press AMP MENU.
Press X/x repeatedly until “SET S-AIR”
appears in the front panel display, then
press
or c.
Note
• When the wireless transmitter is not inserted in
the subwoofer, “SET S-AIR” cannot be selected.
5
6
Press x/X repeatedly until “PAIRING”
appears in the front panel display, then
press
or c.
After “START” appears in the front
panel display, press
.
The subwoofer starts pairing and
“SEARCH” flashes in the front panel
display.
To cancel pairing, press AMP MENU.
continued
55GB
7
Start pairing of the S-AIR sub unit.
Refer to the operating instructions of the
S-AIR sub unit.
When sound transmission is established,
“COMPLETE” appears for two seconds in
the front panel display.
Note
• Perform pairing within several minutes of Step
6. If you do not, “FAILED” appears for two
seconds in the front panel display. To continue
pairing, press
and start again from Step 3.
To cancel pairing, press AMP MENU.
8
If sound transmission is
unstable
If you use multiple wireless systems which share
the 2.4 GHz band, such as wireless LAN or
Bluetooth, the transmission of S-AIR products or
other wireless systems may be unstable. In this
case, the transmission may be improved by
changing the following “RF CHANGE” setting.
TV ?/1
AV ?/1
THEATRE
?/1
SYSTEM STANDBY
Press AMP MENU.
TV
The AMP menu turns off.
BD
SAT/CATV
DVD
DIGITAL1 DIGITAL2 TUNER/BAND DMPORT
BD/DVD
TOP MENU MENU
Note
F1
F2
DIGITAL ANALOG
• After you have performed pairing, if you select
“S-AIR ID” (page 54), the ID setting (“A,” “B,” or
“C”) that you last used is displayed first by default.
AUDIO
1
2
3
4
5
6
7
8
9
CLEAR
0
NIGHT
MODE
To cancel pairing
SOUND
FIELD
AMP MENU
Perform the ID setting of the subwoofer
according to the procedure of “To set the ID of
the subwoofer.” If you select a new ID, pairing is
canceled.
ENTER
TOOLS/
OPTIONS
DISPLAY
F
C, X, x, c,
AMP
MENU
TV VOL
MASTER VOL
G
g
f
RETURN/EXIT
MENU/HOME
TV CH TV CH +
PRESET PRESET +
<
<
.
>
TUNING m
TUNING +
N
M
X
x
TV
1
2
3
56GB
Press AMP MENU.
Press x/X repeatedly until “SET S-AIR”
appears in the front panel display, then
press
or c.
Press X/x repeatedly until “RF
CHANGE” appears in the front panel
display, then press
or c.
4
Press X/x to select the desired setting.
• “AUTO”: Normally select this. The
system changes “RF CHANGE” to “ON”
or “OFF” automatically.
• “ON”: The system transmits sound by
searching for the better channel for
transmitting.
• “OFF”: The system transmits sound by
fixing the channel for transmitting.
5
Press
Press AMP MENU.
The AMP menu turns off.
Confirm the wireless adapters are inserted
correctly (page 49).
Confirm that the S-AIR IDs of the S-AIR
main unit and sub unit are the same
(page 51).
When you set “RF CHANGE” to “OFF,”
select the ID so that sound
transmission is most stable (page 51).
Notes
• When the wireless transmitter is not inserted in the
subwoofer, “SET S-AIR” cannot be selected.
• In most cases, you will not need to change this setting.
– If “RF CHANGE” is set to “OFF,” transmission
between the subwoofer and S-AIR sub unit can be
performed using one of the following channels.
– S-AIR ID A: equivalent channel for IEEE 802.11b/
g channel 1
– S-AIR ID B: equivalent channel for IEEE 802.11b/
g channel 6
– S-AIR ID C: equivalent channel for IEEE 802.11b/
g channel 11
• The transmission may be improved by changing the
transmission channel (frequency) of the other wireless
system(s). For details, refer to the operating
instructions of the other wireless system(s).
About environments where S-AIR
products (S-AIR main unit and sub
unit) are used
S-AIR products use a radio frequency of 2.4
GHz. Certain electronic equipment or other
factors may cause lost connection or instability
in S-AIR reception.
Electronic equipment influence
The following may cause interference or cross
talk.
– Cellular phones, cordless phones
– Wireless LAN, personal computers
– Game machines using radio signals
– Microwave ovens
Other factors
The following may cause poor reception.
– Materials or structures, such as walls and
floors
– The location where an S-AIR product is
placed
When using S-AIR products, place them as far as
possible from the above electronic equipment, or
place where S-AIR reception is stable.
continued
57GB
Advanced Settings
7
Read the following when S-AIR reception is
poor or unstable.
.
The setting is made.
6
Stabilizing S-AIR reception
When S-AIR reception is poor
Check the following.
Adjust the location (height, orientation, and
place in the room) of S-AIR products until
reception is the most stable.
Keep cords that are connected to the S-AIR
product (AC power cord (mains lead),
speaker cords, or other cords) away from
the wireless adapter and slot.
EZ
W-
T1
00
Place so that the wireless adapters of the S-AIR
main unit and sub unit are closer.
EZ
W-
T1
00
Keep as much space as possible around
S-AIR products.
Avoid placing S-AIR products on top of, or
directly below, other electronic equipment.
Avoid placing S-AIR products in a closed rack,
metal rack, or under a table.
Place so that S-AIR products are separated from
other wireless devices.
Place so that S-AIR products are separated from
metal doors or tables.
If you cannot improve S-AIR reception, change
the “RF CHANGE” setting (page 56).
58GB
Additional Information
Troubleshooting
If you experience any of the following
difficulties while using the system, use this
troubleshooting guide to help remedy the
problem before requesting repairs. Should any
problem persist, consult your nearest Sony
dealer.
When you install the S-AIR sub unit (optional),
in the event of a problem with the S-AIR
function, have a Sony dealer check the entire
system together (main unit and S-AIR sub unit).
General
• Check that the AC power cord (mains lead)
is connected securely.
No sound or only a very low-level sound is
heard from the speakers.
• Press 2 + and check the volume level.
• Press
or 2 + to cancel the muting
function.
• Press SOUND FIELD and check the
selected sound field.
• Depending on the source, the sound effect of
the speakers may be less noticeable.
• Check the speaker connection (page 11).
The sound comes out only from the speaker,
not the subwoofer.
If “PROTECTOR” and “PUSH POWER”
appears alternately in the front panel display.
• Depending on the disc, the sound may come
from the speaker only.
Press ?/1 to turn off the system, and check
the following item after “STANDBY”
disappears.
• Is anything blocking the ventilation holes of
the system?
After checking the above and fixing any
problems, turn on the system. If the cause of
the problem cannot be found even after
checking the above, consult your nearest
Sony dealer.
The sound is delayed compared to the image
of the TV.
Dolby Digital or DTS multi channel sound is
not reproduced.
• Check that the playing Blu-ray Disc, DVD,
etc., is recorded in Dolby Digital or DTS
format.
• Check the audio setting (settings for the
audio output) of the connected component.
The surround effect cannot be obtained.
• Change to another input by pressing the
input button (TV, BD, DVD, SAT/CATV,
DIGITAL 1, DIGITAL 2, TUNER/BAND,
or DMPORT) on the remote, and then go
back to the input you want to check. If
“2.0ch” or “1.0ch” is displayed in the front
panel display, the signal is stereo or
• Set “A/V SYNC” to 0 ms when “A/V
SYNC” is set to between 10 ms or 200 ms
(page 45).
Connected components
There is no sound or only a very low-level
sound no matter which component is selected.
• Check that this system and components are
connected correctly and securely.
• Check that both this system and the selected
component are turned on.
There is no sound from the selected
component.
• Check that the component is connected
correctly to the audio input jacks for that
component.
• Check that the cords are fully inserted into
the jacks on both the component and this
system.
• Check that the component is selected
correctly.
continued
59GB
Additional Information
The power is not turned on.
monaural and does not include multi channel
sound. If “5.1ch,” etc., is displayed, the
signal is multi channel, but the surround
effect may be low depending on the program
or disc.
• Depending on the digital signal, the
surround processing may not work
(page 27).
• If you resume playback of a disc when
volume is maximum, there may be no sound.
In this case, turn down the volume, turn off
the system and turn on again.
Sound is interrupted or there is noise.
• Check the output audio formats supported
by this system on page 62.
There is no picture or an unclear picture
appears on the TV screen.
• Check that the TV is selected correctly.
• Set the TV to the appropriate input mode.
• Move your audio components away from the
TV.
• If a video signal other than those supported
by the system is input, the image may be
distorted.
The source image input to the HDMI jack on the
subwoofer is not output from the TV.
• Check the HDMI connection.
• Depending on the playback component, you
may need to set up the component. Refer to
the operating instructions of each
component.
• Use a High Speed HDMI cable. If you use a
Standard HDMI cable, 1080p images may
not be displayed properly.
Control for HDMI
The Control for HDMI function does not work.
• Check the HDMI connection (page 12).
• Make sure “CTRL: HDMI” is set to “ON” in
AMP menu.
• Make sure the connected component is
compatible with the Control for HDMI
function.
• Check the Control for HDMI settings on the
connected component. Refer to the
operating instructions supplied with the
connected component.
• If you change the HDMI connection, or
connect/disconnect the AC power cord
(mains lead), or if there is a power failure,
repeat the procedures of “Preparing for the
“BRAVIA” Sync” (page 29).
60GB
• The system may not work correctly if you
select a component that is not compatible
with the Control for HDMI function on the
TV side.
No sound is output from the system and the
TV’s speaker.
• Check the volume of the system and the TV.
• Select the input of the system correctly.
The sound is output from both the system and
the TV.
• If the Control for HDMI function is set to off,
or the selected component is not compatible
with the Control for HDMI function, turn off
the sound of the system or the TV.
The System Power Off function does not work.
• Change the setting of the TV to turn
connected components off automatically
when you turn off the TV. For details, refer
to the operating instructions of the TV.
An image does not appear on the TV.
• Check whether HDMI IN and HDMI OUT
are connected correctly.
A message stating that the output method has
changed from the system speaker to the TV
speaker appears on the TV screen.
• When the DMPORT function is selected, the
System Audio Control function does not
work (page 32).
When the system is in standby mode, there is
no image or sound on the TV.
• When the system is in standby mode, image
and sound are output from the HDMI
component selected the last time you turned
off the system. If you are enjoying other
component, play the component and
perform the One-Touch Play operation, or
turn on the system to select the HDMI
component you want to enjoy.
• Make sure “POWER SAVE” is set to “OFF”
in the AMP menu if you connect
components not compatible with the
“BRAVIA” Sync to the system (page 34).
The S-AIR function
S-AIR connection is not established (sound
transmission is not established), e.g., the
indicator of the S-AIR sub unit turns off,
flashes, or turns red.
No sound is heard from the S-AIR sub unit.
• If you use another S-AIR main unit, place it
more than 8 m (about 25 feet) away from the
S-AIR main unit you are using.
• Confirm that the S-AIR IDs of the
subwoofer and the S-AIR sub unit are the
same (page 51).
• Check the pairing setting (page 54).
• Place the S-AIR main unit and S-AIR sub
unit closer together.
• If you are using any equipment that
generates electromagnetic energy such as a
microwave oven near an S-AIR product, turn
off the equipment and try using the S-AIR
product again after waiting for a short time.
• Place so that the S-AIR main unit and S-AIR
sub unit are separated from other wireless
devices.
• Avoid using any other wireless devices.
• Change the “RF CHANGE” setting
(page 56).
• Change the S-AIR ID settings of the S-AIR
main unit and S-AIR sub unit.
• Turn off the system and S-AIR sub unit, then
turn on them.
There is noise or the sound skips.
• If you use another S-AIR main unit, place it
more than 8 m (about 25 feet) away from the
S-AIR main unit you are using.
• Place the S-AIR main unit and S-AIR sub
unit closer together.
• If you are using any equipment that
generates electromagnetic energy such as a
microwave oven near an S-AIR product, turn
off the equipment and try using the S-AIR
product again after waiting for a short time.
• Place so that the S-AIR main unit and S-AIR
sub unit are separated from other wireless
devices.
• Avoid using any other wireless devices.
• Change the “RF CHANGE” setting
(page 56).
• Change the S-AIR ID settings of the S-AIR
main unit and S-AIR sub unit.
Other
The remote does not function.
• Point the remote at the remote sensor in
the front panel display.
• Remove any obstacles in the path between
the remote and the front panel display.
• Replace both batteries in the remote with
new ones, if they are weak.
• Make sure you select the correct input on the
remote.
The volume turns down when the output
method changes from the TV speaker to the
system speaker.
• The Volume Limit function is working. For
details, refer to “Using the Volume Limit
function” (page 32).
continued
61GB
Additional Information
• If you use another S-AIR main unit, place it
more than 8 m (about 25 feet) away from the
S-AIR main unit you are using.
• Confirm that the S-AIR IDs of the
subwoofer and the S-AIR sub unit are the
same (page 51).
• Another S-AIR sub unit is paired to the
S-AIR main unit. Pair the desired S-AIR sub
unit with the S-AIR main unit (page 54).
• Place so that the S-AIR main unit and S-AIR
sub unit are separated from other wireless
devices.
• Avoid using any other wireless devices.
• The S-AIR sub unit is turned off. Make sure
the AC power cord (mains lead) is connected
and turn on the S-AIR sub unit.
• Sources with copyright protection may not
be playable on S-AIR receivers.
• Wireless surround amplifiers cannot be used
with this system. The system does not
support S-AIR devices other than S-AIR
receivers.
If the system still does not
operate properly after performing
the above measures, reset the
system as follows:
Specifications
Use buttons on the system for this operation.
Formats supported by this
system
1
2
Digital input formats supported by this system
are as follows.
Press ?/1 to turn on the power.
Press INPUT SELECTOR, VOLUME –
and ?/1 at the same time.
“COLD RESET” appears and the system is
reset. AMP menu, sound field, etc., return to
the default settings.
Format
Supported/Not supported
Dolby Digital
a
DTS
a
Linear PCM (2ch)*
a
Linear PCM (5.1ch,
7.1ch)* (Only on
HDMI)
a
Dolby Digital Plus
×
Dolby True HD
×
DTS-HD
×
* Linear PCM accepts sampling frequencies of no
more than 48 kHz.
Amplifier section
Power output (rated)
L / R:
80 W + 80 W
(at 4 ohms, 1 kHz, 1 %
THD)
Power output (reference) RMS output power
L / R:
100 W/ch (per channel at 4
ohms, 1 kHz, 10 % THD)
Subwoofer:
200 W (at 2 ohms, 100 Hz,
10 % THD)
Inputs (Analog)
TV
Sensitivity: 550 mV
Impedance: 33 kohms
Inputs (Digital)
TV, DIGITAL 1
Optical
DIGITAL 2
Coaxial
62GB
HDMI section
Connector
Video inputs/outputs
Audio inputs
Subwoofer (SA-WFS3)
HDMITM Connecter
BD, DVD, SAT/CATV:
640 × [email protected] Hz
720 × [email protected]/60 Hz
1280 × [email protected]/60 Hz
1920 × [email protected]/
60 Hz
1920 × [email protected]/
60 Hz
720 × [email protected] Hz
1280 × [email protected] Hz
1920 × [email protected] Hz
1920 × [email protected] Hz
1920 × [email protected] Hz
BD, DVD, SAT/CATV:
Linear PCM 7.1ch/
Dolby Digital/DTS
Mass (approx.)
Subwoofer, Bass reflex
130 mm cone type
2 ohms
212 mm × 374 mm × 364
mm (w/h/d)
8.9 kg
General
Power requirements
220 – 240 V AC, 50/60 Hz
Power consumption
On: 95 W
Standby mode: 0.3 W (when “CTRL: HDMI”
and “S-AIR STBY” are set
to “OFF.”)
Power output
(DIGITAL MEDIA PORT) DC OUT: 5 V, 700 mA
PLL quartz-locked digital
synthesizer
FM tuner section
Tuning range
87.5 – 108.0 MHz
(50 kHz step)
Antenna (aerial)
FM wire antenna (aerial)
Antenna (aerial) terminals 75 ohms, unbalanced
Intermediate frequency
10.7 MHz
AM tuner section
Tuning range
531 kHz – 1,602 kHz (with
the interval set at 9 kHz)
Antenna (aerial)
AM loop antenna (aerial)
Intermediate frequency
450 kHz
• Standby power consumption 0.3 W.
• Halogenated flame retardants are not used in the
certain printed wiring boards.
• Over 85 % power efficiency of amplifier block is
achieved with the full digital amplifier, S-Master.
Speakers (SS-FS3)
Speaker system
Speaker unit
Rated impedance
Dimensions (approx.)
Mass (approx.)
Full range, Bass reflex
65 mm cone type
4 ohms
102 mm × 163 mm × 77
mm (with foot) (w/h/d)
0.55 kg
63GB
Additional Information
Design and specifications are subject to change without
notice.
Tuner section
System
Speaker system
Speaker unit
Rated impedance
Dimensions (approx.)
PCM (Pulse Code Modulation)
Glossary
Dolby Digital
This movie theater sound format is more
advanced than Dolby Surround Pro Logic. In this
format, the surround speakers output stereo
sound with an expanded frequency range, and a
subwoofer channel for deep bass is
independently provided. This format is also
called “5.1” with the subwoofer channel
designed as the 0.1 channel (since it functions
only when a deep bass effect is needed). All six
channels in this format are recorded separately
for superior channel separation. Furthermore,
since all the signals are processed digitally, less
signal degradation occurs.
Dolby Pro Logic II
Dolby Pro Logic II creates five full-bandwidth
output channels from 2 channel sources. This is
done using an advanced, high-purity matrix
surround decoder that extracts the spatial
properties of the original recording without
adding any new sounds or tonal colorations.
DTS
Digital audio compression technology
developed by Digital Theater Systems, Inc. This
technology conforms to 5.1-channel surround.
This format comprises of stereo rear channel and
there is discrete subwoofer channel in this
format. DTS provides the same 5.1 discrete
channels of high quality digital audio. The good
channel separation is realized due to the all
channel data being recorded discretely and
processed in digitally.
HDMI
HDMI (High-Definition Multimedia Interface)
is an interface that supports both video and audio
on a single digital connection, allowing you to
enjoy high quality digital picture and sound. The
HDMI specification supports HDCP (Highbandwidth Digital Contents Protection), a copy
protection technology that incorporates coding
technology for digital video signals.
64GB
A method of converting analog audio to digital
audio for easy enjoyment of digital sound.
S-AIR (Sony Audio Interactive Radio
frequency)
Recent times have seen the rapid spread of DVD
media, Digital Broadcasting, and other highquality media.
To ensure that the subtle nuances of these highquality media are transmitted with no
deterioration, Sony has developed a technology
called “S-AIR” for the radio transmission of
digital audio signals with no compression, and
has incorporated this technology into the EZWRT10/EZW-RT10A/EZW-T100/EZW-T100A.
This technology transfers digital audio signals
with no compression using the 2.4 GHz band
range of ISM band (Industrial, Scientific, and
Medical band), also used by wireless LANs and
Bluetooth applications.
S-Force PRO Front Surround
Sony’s long-term involvement in surround
technology (and the vast amounts of acoustic
data accumulated as a result) has led to the
development of all-new processing method and
advanced DSP to handle this task effectively,
which we call S-Force PRO Front Surround.
Compared with previous front surround
technologies, S-Force PRO Front Surround
reproduces a more convincing sense of distance
and space, resulting in a true surround sound
experience without the need for rear speakers.
S-Master
S-Master is an all-digital amplifier technology
developed by Sony, which effectively minimizes
the occurrence of sound fragmentation and jitter,
delivering superb dialog clarity and faithful
reproduction of the original sound. The compact
amplifier section supports a higher power
efficiency and improved thermal performance.
x.v.Colour (x.v.Color)
“x.v.Colour (x.v.Color)” enables the more
faithful reproduction of various colors such as
the brilliant colors of flowers and the turquoise
blue of the southern ocean.
“x.v.Color” is a promotion name given to the
products that have the capability to realize a wide
color space based on the xvYCC specifications
and is a trademark of Sony Corporation.
xvYCC is an international standard of the
technical specifications of the extended-gamut
color space for video signals. The color gamut of
xvYCC is wider than the one of sRGB that is
used with the current television system.
Additional Information
65GB
Index
A
P
A/V SYNC 45
AMP menu 43
AUDIO 45, 46
AUDIO DRC 44
PAIRING 54
“PlayStation 3”
connecting 12
POWER SAVE 34
Presetting radio stations 35
B
BASS 45
Blu-ray Disc player (recorder)
connecting 13
C
CTRL: HDMI 31
D
DIGITAL MEDIA PORT
connecting 19
DIMMER 47
DISPLAY 37, 47
DUAL MONO 46
DVD player (recorder)
connecting 13, 14
F
FM Mode 36
H
HDMI
connecting 12
R
Radio 36
Radio Stations 35
RDS 38
Remote
assignments 42
before use 6
operating 23, 39
RF CHANGE 56
S
S-AIR ID 51
S-AIR MODE 52
S-AIR STBY 53
Satellite tuner
connecting 12, 14
SET HDMI 31, 32, 34
SET S-AIR 51, 52, 53, 54, 56
Sleep timer 48
Sound field 27
SW LEVEL 44
SYSTEM 47, 48
T
I
Installing 7
TONE 45
TREBLE 45
L
V
LEVEL 44
VOL LIMIT 32
N
Naming preset stations 37
66GB
(1)
Sony Corporation Printed in Malaysia
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
