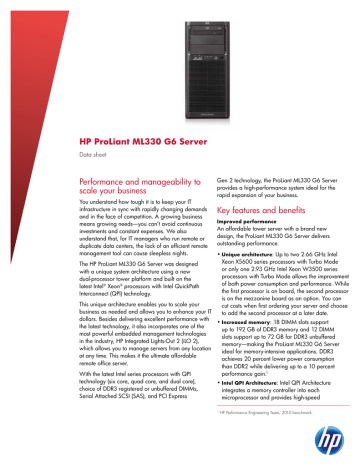

HP ProLiant ML330 G6 Server

Data sheet

Performance and manageability to scale your business

You understand how tough it is to keep your IT infrastructure in sync with rapidly changing demands and in the face of competition. A growing business means growing needs—you can’t avoid continuous investments and constant expenses. We also understand that, for IT managers who run remote or duplicate data centers, the lack of an efficient remote management tool can cause sleepless nights.

Gen 2 technology, the ProLiant ML330 G6 Server provides a high-performance system ideal for the rapid expansion of your business.

Key features and benefits

Improved performance

An affordable tower server with a brand new design, the ProLiant ML330 G6 Server delivers outstanding performance.

The HP ProLiant ML330 G6 Server was designed with a unique system architecture using a new dual-processor tower platform and built on the latest Intel

®

Xeon

®

processors with Intel QuickPath

Interconnect (QPI) technology.

This unique architecture enables you to scale your business as needed and allows you to enhance your IT dollars. Besides delivering excellent performance with the latest technology, it also incorporates one of the most powerful embedded management technologies in the industry, HP Integrated Lights-Out 2 (iLO 2), which allows you to manage servers from any location at any time. This makes it the ultimate affordable remote office server.

With the latest Intel series processors with QPI technology (six core, quad core, and dual core), choice of DDR3 registered or unbuffered DIMMs,

Serial Attached SCSI (SAS), and PCI Express

Unique architecture

: Up to two 2.66 GHz Intel

Xeon X5600 series processors with Turbo Mode or only one 2.93 GHz Intel Xeon W3500 series processors with Turbo Mode allows the improvement of both power consumption and performance. While the first processor is on board, the second processor is on the mezzanine board as an option. You can cut costs when first ordering your server and choose to add the second processor at a later date.

Increased memory

: 18 DIMM slots support up to 192 GB of DDR3 memory and 12 DIMM slots support up to 72 GB for DDR3 unbuffered memory—making the ProLiant ML330 G6 Server ideal for memory-intensive applications. DDR3 achieves 20 percent lower power consumption than DDR2 while delivering up to a 10 percent performance gain.

1

Intel QPI Architecture

: Intel QPI Architecture integrates a memory controller into each microprocessor and provides high-speed

1

HP Performance Engineering Team, 2010 benchmark.

2 connections between the microprocessors and other components like external memory and the I/O hub.

It also allows a processor to access the dedicated memory of any other processor through the QPI, which links all the processors.

Energy efficient

: The

HP Sea of Sensors

technology enhances server performance while reducing energy usage and expense. Achieve up to a

90 percent reduction in power usage at the server level with the HP Sea of Sensors

2

—the heart of

HP Thermal Logic technologies. The Sea of Sensors automatically tracks thermal activity across the server through a collection of up to 32 smart sensors. These sensors dynamically adjust system components such as fans, memory, and I/O processing to improve system cooling. In other words, the HP Sea of Sensors makes intelligent decisions about how much cooling is needed for the server to perform efficiently. The ProLiant ML330

G6 Server satisfies the

Climate Savers Computing

Initiative Gold criteria

.

PCI Express

: Four available (PCIe) Gen 2 expansion slots (standard) with optional PCI Extended (PCIx) slots provide the latest I/O performance technologies to meet different market requirements for various applications.

HP Smart Array

: Embedded HP Smart Array

B110i SATA RAID Controller with SAS HW RAID meets unique storage needs. An optional advanced

RAID controller provides up to RAID 6/60 and battery-supported write-back cache protection adding high availability to HDD efficiency.

Data security

: Customer and business information stored on corporate databases is a critical business asset, vulnerable to hackers and other catastrophic mishaps. The HP ProLiant ML330 G6 Server offers an optional feature called Trusted Platform

Module (TPM) that encrypts the hard drive and prevents unauthorized access from another system.

It also prevents offline viewing of the files that make up the OS itself.

Dual-port network adaptors

: Two embedded

Gigabit Ethernet network ports provide increased network throughput and redundancy.

Manageability

The HP ProLiant ML330 G6 Server is equipped with a set of powerful management tools like HP iLO 2 and the SmartStart deployment tool to enhance and control many aspects of your infrastructure. You may also purchase the HP Insight Control Environment (ICE) suite with new Dynamic Power Capping technology to take charge of power and cooling efficiency throughout your data center.

• The new HP iLO 2 simplifies server setup, health monitoring, power and thermal control, and lights-out remote administration of HP ProLiant

ML, DL, and BL servers. The HP ProLiant Onboard

Administrator functions without additional software, and functionality can be accessed locally from the server or remotely through a Web browser.

• Tools like SmartStart, HP Insight Rapid Deployment software, PxE, and ROM-Based Setup Utility (RBSU) simplify server configuration and deployment.

Ideal environments

With its unique system architecture, the ProLiant

ML330 G6 Server is suited for SMBs and remote-site applications.

Growing businesses (SMBs)

The ProLiant ML330 G6 Server offers excellent performance with an affordable price and ease of use, making it well suited for SMB applications. With its highly flexible, modular configurations, it provides upgradability. Its modular chassis and whisper-quiet fans make it ideal for small office environments.

Remote and replicate sites

HP iLO 2 provides the ProLiant ML330 G6 Server with enhanced security features and dedicated remote management and control for communicating with headquarters. Integrated Gigabit Ethernet equips the server with increased network throughput and redundancy. Additional memory slots provide it with flexible configuration for low-cost memory expansion.

Applications

The ProLiant ML330 G6 Server is suited for various applications like:

• Application/messaging server

• Microsoft

®

Windows

®

2008 Small Business Server

• Microsoft Windows Embedded Server

• Mailing/printing server

• Red Hat/SUSE Linux Enterprise Server

2

Energy efficiency based on HP testing.

HP ProLiant ML330 G6 Server

Technical specifications

Processor type

Available processors

Intel Xeon 5600, 5500, and 3500 series processors

Processor core

Six-core processors

Intel Xeon Processor X5650 (2.66 GHz, 12 MB L3 cache, 95 W)

Intel Xeon Processor E5649 (2.53 GHz, 12 MB L3 cache, 80 W)

Intel Xeon Processor E5645 (2.40 GHz, 12 MB L3 cache, 80 W)

Quad-core processors

Intel Xeon Processor E5640 (2.66 GHz, 12 MB L3 cache, 80 W)

Intel Xeon Processor E5630 (2.53 GHz, 12 MB L3 cache, 80 W)

Intel Xeon Processor E5620 (2.40 GHz, 12 MB L3 cache, 80 W)

Intel Xeon Processor E5607 (2.26 GHz, 12 MB L3 cache, 80 W)

Intel Xeon Processor E5606 (2.13 GHz, 12 MB L3 cache, 80 W)

Intel Xeon Processor E5603 (1.60 GHz, 12 MB L3 cache, 80 W)

Intel Xeon Processor E5540 (2.53 GHz, 8 MB L3 cache, 80 W)

Intel Xeon Processor E5530 (2.40 GHz, 8 MB L3 cache, 80 W)

Intel Xeon Processor E5520 (2.26 GHz, 8 MB L3 cache, 80 W)

Intel Xeon Processor E5507 (2.26 GHz, 4 MB L3 cache, 80 W)

Intel Xeon Processor E5506 (2.13 GHz, 4 MB L3 cache, 80 W)

Intel Xeon Processor E5504 (2.00 GHz, 4 MB L3 cache, 80 W)

Dual-core processors

Intel Xeon Processor E5503 (2.00 GHz, 4 MB L3 cache, 80 W)

Intel Xeon Processor E5502 (1.86 GHz, 4 MB L3 cache, 80 W)

Intel Xeon W3500 (UP) family:

Quad-core processors

Intel Xeon Processor W3540 (2.93 GHz, 8 MB L3 cache, 130 W)

Intel Xeon Processor W3520 (2.66 GHz, 8 MB L3 cache, 130 W)

Dual-core processors

Intel Xeon Processor W3505 (2.53 GHz, 4 MB L3 cache, 130 W)

Intel Xeon Processor W3503 (2.40 GHz, 4 MB L3 cache, 130 W)

6, 4, and 2

Cache memory

Maximum processor speed

Multiprocessor

Memory type

4 MB, 8 MB, or 12 MB

2.93 GHz

Up to 2

PC3-8500R/10600R DDR3 registered memory

PC3-10600E DDR3 unbuffered memory

2 GB for entry model, 2–4 GB for base model, 6 GB for performance model

Standard memory

Maximum memory

Memory slots

Maximum internal storage

192 GB DDR3 registered DIMM, 72 GB DDR3 unbuffered DIMM

18

• 9 slots on system board

• 9 slots on mezzanine board in processor option kit

16 TB LFF 3.5 in.

Advanced ECC, mirrored memory

Advanced memory protection

Storage type

Hot-plug 3.5 in. SATA

Hot-plug 3.5 in. SAS

Non-hot plug 3.5 in. SATA

Non-hot plug 3.5 in. SAS

Removable media bays

3 (1 for DVD-ROM)

Expansion slot

4 total: 3 PCIe Gen 2, 1 PCIe Gen 1, optional 2 PCIx

Storage controller

HP Smart Array B110i SATA RAID Controller (integrated)

HP Smart Array P212/Zero Memory Controller

HP Smart Array P410/256 MB Controller

HP Smart Array P411/256 MB Controller

Form factor

5U tower

Networking

HP NC326i Integrated Dual Port PCI Express Gigabit Server Adapter, HP NC112T PCI Express Gigabit Server Adapter, HP NC360T PCI Express

Dual Port Gigabit Server Adapter

Remote management

HP Integrated Lights-Out 2 (iLO 2), HP Insight Control Environment (ICE) suite, HP Systems Insight Manager, HP ProLiant Essentials Foundation Pack

Operating systems supported*

Redundant power supply

Redundant fans

Microsoft Windows Server, Microsoft Windows Hyper-V Server, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), Oracle

Enterprise Linux (OEL), VMware, Citrix Essentials for XenServer

Optional

Optional

Warranty

3-year parts/1-year labor/1-year onsite

* For a complete list of supported operating systems, visit: www.hp.com/go/

ossupport

3

Enhance performance with additional

HP solutions

You can gain even greater performance from your

ProLiant ML330 G6 Server by combining it with these

HP solutions:

• HP Insight Control software

: HP Insight Control software lets you build infrastructure management capabilities as you need them:

− The HP Insight Control Environment suite allows you to deploy servers rapidly, monitor system health and performance, enhance power consumption, and remotely control your entire server environment from any location.

− At the advanced level, HP Insight Dynamics

(VSE suite for ProLiant) delivers comprehensive functions for enhancing and balancing resources and workloads in real time.

HP Financial Services

HP Financial Services can help reduce your costs as you make a transition from legacy equipment, acquire new hardware and software, manage your data center efficiently, and dispose of equipment safely at the end of its lifecycle. For more information, visit:

www.hp.com/go/hpfinancialservices

HP Factory Express

HP Factory Express is designed to help you get a better return from your IT investment by providing customization, integration, and deployment services along with your storage and server purchases.

It provides predictable, trusted, and tested IT solutions tailored to your business needs. We allow you to customize hardware to your exact specifications in the factory, helping to speed up deployment and free up internal resources. For more information, visit:

www.hp.com/go/factoryexpress

HP Services

HP Technology Services—Our team of consultants and support experts can help solve your most complex infrastructure problems.

We help keep your business running. Boost availability and avoid downtime; trust our expertise to enhance your HP solution.

Recommended services

Hardware support—3-year, 13x5, same-business-day, 4-hour onsite response coverage

HP Hardware Support Onsite 4-Hour Service provides you with an HP authorized representative who will arrive at the customer’s site any time and day of the year to begin hardware maintenance service within four hours of the service request being logged.

Deployment services

HP Services offers complete implementation support to get your

HP server solution up and running rapidly. Options encompass server and storage, and Microsoft, Linux, Solaris, and VMware OS software plus Insight Control management solutions.

Related services

Hardware support—3-year, 24x7, same-business-day, 4-hour onsite response coverage

Fast, reliable 4-hour response onsite support—Get product expertise for fast and accurate problem resolution with integrated high-quality remote monitoring and problem diagnosis, helping to maintain predictable service levels and reduce unplanned downtime.

Hardware support—3-year, 6- or 24-hour call to repair

This support provides you with a team of support specialists who will quickly begin troubleshooting your system to validate that the hardware is operational within a maximum of 6 hours or 24 hours from your initial service request.

Proactive Select

Proactive Select is a flexible way to purchase HP first-rate consultancy and services. You can buy Proactive Select service credits when you purchase your hardware, then use the credits over the next 12 months or 3 to 5 years.

Trust the Services professionals at HP. For more information, contact your HP sales representative or HP authorized channel partner or visit: www.hp.com/hps

To scale your business as needed and improve the efficiency of how you spend your IT dollars, visit:

www.hp.com/servers/proliantml330-g6

Get connected www.hp.com/go/getconnected

Current HP driver, support, and security alerts delivered directly to your desktop

© Copyright 2009–2011 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Intel and Xeon are trademarks of Intel Corporation in the U.S. and other countries. Microsoft and Windows are U.S. registered trademarks of

Microsoft Corporation. Oracle is a registered trademark of Oracle and/or its affiliates.

4AA2-6543ENW, Created May 2009; Updated February 2011, Rev. 3

HP ProLiant ML350 G6 Server

Data sheet

Get a competitive edge with the adaptable and reliable HP ProLiant

ML350 G6 Server

As enhanced productivity translates into customer satisfaction, it is something that you cannot afford to take for granted. Similarly, you would not want downtime to affect business continuity. So an adaptable, reliable, and expandable infrastructure is a must for your business. The HP ProLiant ML350 G6

Server is designed to help you achieve these business imperatives. It comes with the latest Intel

®

QuickPath

Interconnect (QPI) architecture six-core, quad-core, and dual-core processors; serial performance I/O;

DDR3 memory; and tools that simplify management.

All these features are available at an affordable price, giving your infrastructure the competitive edge in more ways than one. Additionally, the dual-processor tower server delivers excellence with performance, expandability, and availability. HP Integrated Lights-

Out 2 (iLO 2), SmartStart, and HP Systems Insight

Manager (SIM) give you ease of management, while the processor and memory upgrades support additional users, thus boosting response times.

The HP ProLiant ML350 G6 Server addresses your business needs, whether you are a small/medium business, a large enterprise, or have remote offices.

Key features and benefits

A more secure foundation

Designed with best-in-class availability features, you can count on the ProLiant ML350 G6 Server to stay up and running 24x7:

• There is no need to panic if there is a system power, thermal memory, or disk error. The redundant fans, memory, power, and available disk RAID options enable your system to stay up and running.

• The ability to upgrade to the second processor provides the capability to upgrade the system memory to a 192 GB, and to 16 SFF or 8 LFF hot plug HDD that gives your system architecture the room to grow.

• Serial Attached SCSI (SAS) and Serial

Advanced Technology Attachment (SATA) RAID

0/1/10/5/50/6/60, which come with the

ProLiant ML350 G6 Server, make storage more reliable, versatile, and affordable.

• Your data is more secure with the Trusted Platform

Module (TPM) functionalities that include performing cryptographic functions and creating and managing keys while performing digital signature operations.

• You get to plan capacity and power, provision infrastructure consistently, and balance physical/ virtual resources while being able to deploy servers quickly and manage them from a remote location as well. All this is made possible by iLO 2.

Enterprise-class performance

Combining the latest Intel QPI architecture, six-core, quad-core, and dual-core processors, PCI Express

Gen 2, and DDR3 memory technology, the ProLiant

ML350 G6 Server provides enterprise-class performance that enables your IT administrators to:

• Get high-performance and enhanced throughput with advanced ECC and mirroring and with the

DDR3, while SAS simplifies cabling up to 16 TB of data storage capacity

• Speed up execution with the Intel ultimate processor, which has the latest QPI technology and multithreaded applications

• Take high availability to HDD efficiency with the protection awarded by advanced RAID

0/1/10/5/6/60 with 512 MB BBWC or 1 GB FBWC

• Get increased network throughput and redundancy with integrated dual Gigabit Ethernet

2

Watch the demo of the HP ProLiant ML350 G6

Server by the HP product marketing manager.

Compatible with virtualized environments

Will this server work in tandem with your virtualized IT infrastructure, you may wonder. Put your fears to rest, as the ProLiant ML350 G6 Server is a virtualization-ready server system. Compatible with VMware, Microsoft

®

,

Red Hat, and Linux, your IT administrators get a

“single pane of glass” for physical and virtual machine management through which they can provision, configure, start, stop, delete, relocate, and remotely access virtual machines with keyboard and mouse control. Advantages include:

• Server consolidation

• Resource management and high availability

• Cost reduction

• Business continuity through improved disaster recovery solutions

• Enjoy the power and thermal control features that help you get a peek into the power usage pattern of your IT architecture, thus helping you regulate power supply in your IT architecture. The

Dynamic Power Capping feature enables enhanced utilization of power and cooling capacity, which controls the total power consumption for a fixed power input in a rackmount server.

• Benefit from the SmartStart (included in the HP ProLiant

Essentials Foundation Pack shipped with the ProLiant

ML350 G6 Server) and get the server up and running in three easy steps. It provides a stable and reliable configuration for all ProLiant ML and DL 300, 500, and 700 series and BladeSystem servers.

• Take advantage of SIM and get your staff to concentrate on priority projects. You can also receive alerts on system status.

Adaptable and reliable

Intense competition and an ever-changing business landscape underscore the need for you to have an infrastructure that is reliable and adaptable. The

ProLiant ML350 G6 Server helps you achieve that by:

• Choosing processor and memory upgrades that support additional users and boost response times

• Allowing you to opt for the HP ProLiant ML350 G5

Server rack when physical location needs change

• Incorporating tape backup solutions to protect business data

• Attaching a wide array of external storage and backup devices as data storage needs increase

• Offering redundancy for power supply and fans for reliability

• Enforcing HP strict worst-case scenario environment testing processes for quality

Ease of management with SIM and iLO 2 management processor

Tools like SIM, iLO 2, and the ProLiant Essentials software ICE help reduce downtime and improve productivity. In fact, iLO 2 is a key enabling element for Insight Control and Insight Dynamics. Insight

Dynamics enables advanced management that includes planning capacity and power, consistently provisioning infrastructure, and balancing physical/ virtual resources. Correspondingly, Insight Control facilitates essential management that helps IT administrators to deploy servers quickly, proactively manage performance control from anywhere, and enhance power confidently. This is referred to as unified management across the server infrastructure, which provide for better business outcomes. Forming the core of ProLiant manageability, iLO 2 helps you:

• Get hassle-free setup, health monitoring, and remote administration. You can also access the iLO 2 remotely through a Web browser.

Click here to view the demo and get an overview of the HP ProLiant ML350 G6 Server

Technical specifications

HP ProLiant ML350 G6 Server

Processor type

Available processors

Intel Xeon

®

5600 and 5500 series processors

Six-core processors

Intel

Intel

Intel

Intel

Xeon processor X5675 (3.06 GHz, 12 MB L3 Cache, 95 W, DDR3-1333, HT, Turbo 1/1/2/2/3/3)

Xeon processor X5670 (2.93 GHz, 12 MB L3 Cache, 95 W, DDR3-1333, HT, Turbo 2/2/3/3/4/4)

Xeon processor X5660 (2.80 GHz, 12 MB L3 Cache, 95 W, DDR3-1333, HT, Turbo 2/2/3/3/4/4)

Intel

Intel

Xeon processor X5650 (2.66 GHz, 12 MB L3 Cache, 95 W, DDR3-1333, HT, Turbo 2/2/3/3/4/4)

Xeon processor E5649 (2.53 GHz, 12 MB L3 Cache, 80 W, DDR3-1333, HT, Turbo 1/1/2/2/3/3)

Xeon processor E5645 (2.40 GHz, 12 MB L3 Cache, 80 W, DDR3-1333, HT, Turbo 1/1/2/2/3/3)

Quad-core processors

Intel

Intel

Intel

Intel

Intel

Xeon processor X5672 (3.20 GHz, 12 MB L3 Cache, 95 W, DDR3-1333, HT, Turbo 1/1/2/2/3/3)

Xeon processor E5640 (2.66 GHz, 12 MB L3 Cache, 80 W, DDR3-1066, HT, Turbo NA/NA/1/1/2/2)

Xeon processor E5630 (2.53 GHz, 12 MB L3 Cache, 80 W, DDR3-1066, HT, Turbo NA/NA/1/1/2/2)

Xeon processor E5620 (2.40 GHz, 12 MB L3 Cache, 80 W, DDR3-1066, HT, Turbo NA/NA/1/1/2/2)

Intel

Intel

Intel

Intel

Xeon processor E5607 (2.26 GHz, 12 MB L3 Cache, 80 W, DDR3-1333, HT, Turbo 1/1/2/2/3/3)

Xeon processor E5606 (2.13 GHz, 12 MB L3 Cache, 80 W, DDR3-1333, HT, Turbo 1/1/2/2/3/3)

Xeon processor E5603 (1.60 GHz, 12 MB L3 Cache, 80 W, DDR3-1333, HT, Turbo 1/1/2/2/3/3)

Xeon processor X5570 (2.93 GHz, 8 MB L3 Cache, 95 W, DDR3-1333, HT, Turbo 2/2/3/3)

Intel

Intel

Intel

Intel

Xeon processor X5560 (2.80 GHz, 8 MB L3 Cache, 95 W, DDR3-1333, HT, Turbo 2/2/3/3)

Xeon processor X5550 (2.66 GHz, 8 MB L3 Cache, 95 W, DDR3-1333, HT, Turbo 2/2/3/3)

Xeon processor E5540 (2.53 GHz, 8 MB L3 Cache, 80 W, DDR3-1066, HT, Turbo 1/1/2/2)

Xeon processor E5530 (2.40 GHz, 8 MB L3 Cache, 80 W, DDR3-1066, HT, Turbo 1/1/2/2)

Intel

Intel

Intel

Intel

Xeon processor E5520 (2.26 GHz, 8 MB L3 Cache, 80 W, DDR3-1066, HT, Turbo 1/1/2/2)

Xeon processor E5507 (2.26 GHz, 4 MB L3 Cache, 80 W, DDR3-800)

Xeon processor E5506 (2.13 GHz, 4 MB L3 Cache, 80 W, DDR3-800)

Xeon processor E5504 (2.00 GHz, 4 MB L3 Cache, 80 W, DDR3-800)

Intel

Intel

Xeon processor L5630 (2.13 GHz, 12 MB L3 Cache, 40 W, DDR3-1066, HT, Turbo NA/NA/1/1/2/2)

Xeon processor L5520 (2.26 GHz, 8 MB L3 Cache, 60 W, DDR3-1066, HT, Turbo 1/1/2/2

Xeon processor L5506 (2.13 GHz, 4 MB L3 Cache, 60 W, DDR3-800)

Dual-core processors

Intel

Intel

Xeon processor E5503 (2.00 GHz, 4 MB L3 Cache, 80 W, DDR3-800)

Xeon processor E5502 (1.86 GHz, 4 MB L3 Cache, 80 W, DDR3-800)

Dual, quad, and six

4 MB, 8 MB, and 12 MB

3.20 GHz

Processor core

Cache memory

Maximum processor speed

Multiprocessor

Memory type

Standard memory

Maximum memory

Memory slots

Maximum internal storage

Advanced memory protection

Storage type

Removable media bays

Expansion slots

Storage controller

Form factor

Networking

Remote management

Operating systems supported*

1 or 2

PC3-6400/8500/10600 (DDR3 800/1066) Registered or Unbuffered memory

4 GB for entry model, 6 GB for base model, and 12 GB for performance model

192 GB DDR3 Registered Memory

48 GB DDR3 Unbuffered Memory

18

16 TB

Advanced ECC, Mirroring

Hot-plug 3.5-inch SAS

Hot-plug 3.5-inch SATA

Hot-plug 2.5-inch SAS

Hot-plug 2.5-inch SATA

5 (1 for DVD-ROM)

1 x PCI Express Gen 2 x16 (x8 speed)

1 x PCI Express Gen 2 x8 (x8 speed) 4 x PCI Express Gen 2 x8 (x4 speed)

Optional: 2 x PCI-X 100 MHz (replaces 1 x PCI Express slot)

HP Smart Array P410i SAS/SATA controller (integrated)

5U Tower

HP Embedded NC326i PCI Express Dual Port Gigabit Server Adapter

HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter

HP NC522SFP Dual Port 10GbE Server Adapter

HP Integrated Lights-Out 2 (iLO 2)

HP Insight Control Environment suite

HP Systems Insight Manager

HP Foundation Pack

Microsoft Windows

®

Server 2003 R2

Microsoft Windows Server 2008

Microsoft Windows Small Business Server 2008 and Microsoft Windows Essential Business Server 2008

Microsoft Windows Hyper-V Server 2008

Novell NetWare

Red Hat Enterprise Linux

SUSE Linux Enterprise Server

VMware ESX

Citrix XenServer

Red Hat and SLEX Xen

Optional

Redundant power supply

Redundant fans

Warranty (parts/labor/onsite)

Optional

3-year/3-year/3-year

* For a complete list of supported operating systems, visit: www.hp.com/go/ossupport

3

Energy efficient—Sea of Sensors

The HP Sea of Sensors technology enhances server performance while reducing energy usage and expense. Achieve up to a 90 percent

1

reduction in power usage at the server level with the HP Sea of

Sensors—the heart of HP Thermal Logic technologies.

The Sea of Sensors automatically tracks thermal activity across the server through a collection of up to 32 smart sensors. These sensors dynamically adjust system components such as fans, memory, and input/output processing to enhance system cooling. In other words, the HP Sea of Sensors makes intelligent decisions about how much cooling is needed for the server to perform efficiently.

Ideal environments and applications

Growing businesses

Easy on your pocket, the ProLiant ML350 G6 Server’s modular chassis provides both the flexibility to deploy in a tower or rack environment and the ability to expand— you can add a second processor, additional hard drive space, more memory, and more storage.

HP Services

When technology works, business works.

The challenge of virtually every IT organization is similar: to develop and maintain an agile, efficient server infrastructure that delivers the service levels your business needs. HP Technology Services offers a comprehensive portfolio of HP Care Pack services to help design, deploy, manage, and support your IT environment, enabling cost-effective upgrades to standard warranty with easy-to-buy, easy-to-use support packages.

Minimum recommended HP Care Pack offerings:

• 3-year, 4-hour response onsite 24-hour x 7-day hardware support

• Server Installation and Startup service

Enhanced service-level HP Care Pack offerings:

• 3-year Support Plus 24: 24-hour x 7-day coverage, integrated hardware and software OS support

• 3-year, Proactive Select delivers a flexibly priced consultancy portfolio

Benefit from HP Care Pack services, helping you:

• Reduce deployment time and manage ProLiant server solutions smoothly and efficiently

• Increase server uptime, performance, and availability to your business

• Detect, diagnose, and repair problems quickly, saving time, money, and resources

For more information, visit: www.hp.com/services/proliantservices or www.hp.com/go/proliant/carepack

Remote and branch office deployment

Security is the key issue in remote and branch office deployments. The HP Onboard Administrator provides more secure and dedicated remote management, and control for communicating with the head office.

In addition, the TPM functionalities make your data more secure.

Midmarket and entry enterprise

The 2.66 GHz, six-core with 12 MB cache, and

6.4 GT/s QPI technology with Turbo Mode, coupled with advanced RAID protection, makes the ProLiant server an ideal choice for highly available environments.

In addition, the redundant power and fan maintain the system’s performance, thereby reducing downtime. Also, where SIM enhances system health and uptime, the

HP Insight Control suite delivers comprehensive system health monitoring, remote control, vulnerability scanning, and patch management, as well as flexible deployment, virtual machine management, and power management in one easy-to-install package.

HP Financial Services

HP Financial Services provides innovative financing and financial asset management programs to help you cost-effectively acquire, manage, and ultimately retire your HP solutions. For more information on these services, visit:

www.hp.com/go/hpfinancialservices

To understand how the HP ProLiant ML350 G6

Server delivers excellence with performance, expandability, and availability, visit:

www.hp.com/servers/proliantml350-g6

1

Energy efficiency based on HP testing.

Share with colleagues

Get connected www.hp.com/go/getconnected

Current HP driver, support, and security alerts delivered directly to your desktop

© Copyright 2009–2011 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. Intel and Xeon are trademarks of Intel Corporation in the U.S. and other countries.

4AA2-4814ENW, Created March 2009; Updated February 2011, Rev. 2

HP ProLiant DL370 G6 Server HP ProLiant ML370 G6 Server

HP ProLiant DL370 G6 and HP ProLiant ML370 G6 Servers

Data sheet

Enhance data center efficiency and get better return for your budget with the

HP ProLiant DL370 G6 (4U optimized rack) and the HP ProLiant ML370 G6

(4U expandable tower) Servers.

Data centers have grown in size and complexity, and are characterized more by diversity than standardization. This means that your IT administrators have more on their hands than ever before. As they struggle to enhance data center efficiency, they also need to rein in rising power costs.

The HP ProLiant DL370 G6 and the HP ProLiant

ML370 G6 Servers help strike that balance.

HP Insight Control suite with the new Dynamic Power

Capping technology can triple

1

the capacity of the data center and tailor the power supply to the desired configuration. Talking about efficiency, both the DL370 G6 and the ML370 G6 offer the broadest range of Intel’s latest processors—Intel

®

Xeon

®

5600 and 5500 series processors. Additionally, the

HP ProLiant Onboard Administrator powered by the

Integrated Lights-Out 2, offers features like simplified server setup, health monitoring, power optimization, thermal control, and remote management. virtualization and consolidation environments, and are well-suited for deployment in growing businesses, remote office sites, or data centers and have also been designed to bring you the utmost confidence to run your business.

Enhanced performance

The DL370 G6 and the ML370 G6 promise to deliver enterprise-class performance. Both of these servers come equipped with Intel Xeon 5600 and 5500 series processors. The DDR3 memory technology offers twice

2

the bandwidth, double the capacity, and 25% less power, and since both of these servers support

18 DIMM slots, customers can achieve up to 192 GB of DDR3 registered memory. Both the DL370 G6 and the ML370 G6 include the new generation of HP Smart

Array Modular Controllers delivering 200% greater performance

3

and enhanced backward compatibility.

Key features and benefits

The DL370 (4U rack-optimized chassis) and the

ML370 (expandable tower chassis) servers deliver industry-leading management tools, performance, expandability, flexibility, and the latest energy-efficient technologies. These servers have been optimized for

1

HP Performance Engineering Team, 2008 Benchmark. For more details, visit: www.hp.com/go/reclaimcapacity

2

When moving from DDR2 to DDR3, memory bandwidth doubled from

667 to 1333 MHz. JEDEC is the governing body of memory standards.

For more information, visit: http://www.jedec.org/standards-documents/docs/jesd-79-3d

3

The bandwidth of the controller has doubled from 3 Gb/s SAS to

6 Gb/s SAS, equaling 2x the bandwidth or 200% faster. Workloads, applications, and environments may affect actual performance. For more information, visit: www.scsita.org/aboutscsi/sas/definition.html

2

Configure an optimized server—with the confidence of knowing it’s right. Use ProLiant Solution Blocks and

HP configuration tools co-designed and validated with leading software vendors and their energy-efficient leadership.

Improved power management

Struggling to get your soaring power bills under control? Not only do the right-sized ProLiant power supplies help reclaim lost data center power, but the

Intelligent Power and Cooling Savers can tell when power is being wasted. Correspondingly, you get to improve your IT architecture’s capacity up to 3x with

Dynamic Power Capping, which is available as part of the Insight Control suite. In addition, the Intel 45 nanometer technology and dynamic resource scaling further enable more efficient power management.

Supporting the high-efficiency power supplies, both the DL370 G6 and the ML370 G6 servers put a check on your undesirable power consumption. Improved power efficiency enabled by HP ProLiant Common Slot

Power Supplies (460 W and 750 W)

4

and HP ProLiant

Common Slot Power Supplies (1200 W)

5

has earned the servers various energy saving certifications.

Enhance system performance and ease of serviceability

With their inherent features that enhance business outcomes and facilitate ease of serviceability, the

ProLiant DL370 G6 and the ML370 G6 Servers have achieved numerous #1 benchmarks—VMmark,

TPC-C, SPECweb2005, and SPECweb2009. Feature enhancements like nine available PCI Express

Gen2 slots, 18 DIMM memory slots supporting

Advanced ECC, mirroring mode, and lock-step mode give these two servers a visible competitive advantage. For tool-free internal serviceability, snap-on quick deploy slide rails are included with rack models and tower-to-rack conversion kits. They enable rapid installation and save valuable time.

Watch the HP product marketing manager demo the HP ProLiant ML/DL370 G6 Server

Deploy easily, manage seamlessly

The ProLiant portfolio of deployment tools, such as

SmartStart, Preboot Execution Environment (PXE),

Array Configuration Utility (ACU), and ROM-Based

Setup Utility (RBSU), enables a hassle-free setup. The

HP ProLiant Onboard Administrator and HP Systems

Insight Manager give you the flexibility to manage and monitor all your DL370 G6 and ML370 G6 servers seamlessly, and make them an ideal fit for remote deployments.

Enterprise-class redundancy features

Business continuity is a must for businesses, both big and small. Intolerant to downtime as your business is, you can count on the DL370 G6 and the ML370 G6 servers to deliver 24x7 accessibility and proven data integrity. There are three hot-plug fans, which are a standard offering with every system. For full redundancy features, you can purchase the DL370 G6 and ML370 G6 redundant fan kit. Combined with this is the availability of two processors and support for redundant power supplies delivering high-availability and high-performance system processing.

Increased flexibility

Both of these servers support PCI Express

Gen2 slots (nine available), which, coupled with the 8-bay drive cage, provide room for expansion. Another outstanding feature is the flexibility of the tower models to convert to rack configurations, providing your infrastructure with additional deployment flexibility.

Ideal environments

A variety of environments from corporate workgroups to critical remote sites

With their large internal storage capacity— accommodating everything from web applications to databases—24x7 accessibility, and ease of serviceability, the DL370 G6 and the ML370 G6 servers are ideal choices for virtualization and consolidation environments spanning across corporate workgroups to critical remote sites.

Click here to view the demo and get an overview of the HP ProLiant ML/DL370 G6 Server

4

Meet Climate Savers Computing Initiative GOLD, ECOS Consulting

80 PLUS GOLD, and the standard specifications for Energy Star for

Servers Power Supply requirements

5

Meet Climate Savers Computing Initiative BRONZE, ECOS Consulting

80 PLUS BRONZE Power Supply requirements

Technical specifications

HP ProLiant DL370 G6 and HP ProLiant ML370 G6 Servers

Processor and memory

Processor type

Available processors

Intel Xeon 5600 and 5500 series processors

Intel naming Speed (GHz)

Six-core processors

X5690

X5680

X5675

X5670

X5660

X5650

E5649

E5645

Quad-core processors

3.46

3.33

3.06

2.93

2.80

2.66

2.53

2.40

X5687

X5677

X5672

X5667

E5640

E5630

E5620

W5580

X5570

X5560

X5550

E5540

E5530

E5520

E5607

E5606

E5506

E5504

E5603

3.20

2.93

2.80

2.66

2.53

2.40

3.60

3.46

3.20

3.06

2.66

2.53

2.40

2.26

2.26

2.13

2.13

2.00

1.60

Quad-core processors (low voltage)

L5630

L5520

2.13

2.26

Dual-core processors

E5502 1.86

6-, 4-, and 2-core processors

L3 cache (MB)

12

12

12

12

12

12

12

12

12

12

12

12

12

12

12

8

8

8

8

8

8

8

8

8

4

4

4

12

8

4

Wattage (W)

130 W

130 W

95 W

95 W

95 W

95 W

80 W

80 W

130 W

130 W

95 W

95 W

80 W

80 W

80 W

130 W

95 W

95 W

95 W

80 W

80 W

80 W

80 W

80 W

80 W

80 W

80 W

40 W

60 W

80 W

Turbo

1/1/1/1/2/2

1/1/1/1/2/2

2/2/2/2/3/3

2/2/2/2/3/3

2/2/2/2/3/3

2/2/2/2/3/3

1/1/1/1/2/2

1/1/1/1/2/2

1/1/2/2

1/1/2/2

2/2/3/3

2/2/3/3

1/1/2/2

1/1/2/2

1/1/2/2

1/1/1/2

2/2/3/3

2/2/3/3

2/2/3/3

1/1/2/2

1/1/2/2

1/1/2/2

N/A

N/A

N/A

N/A

N/A

1/1/2/2

1/1/2/2

N/A

DDR3 memory (MHz)

1333

1333

1333

1333

1333

1333

1333

1333

1333

1333

1333

1333

1066

1066

1066

1333

1333

1333

1333

1066

1066

1066

1066

1066

800

800

1066

1066

1066

800

Processor core

Processor cache

Maximum processor speed

12, 8, and 4 MB Level 3 cache depending on processor (see above)

3.46 GHz

Multiprocessor

Memory type

Standard memory

Maximum memory

Up to 2

PC3-10600R Registered (DDR3) Memory or

PC3-10600E Unbuffered (DDR3) Memory

Standard (Performance Models)—12 GB (6 x 2 GB) RDIMM

Standard (Base Models)—6 GB (3 x 2 GB) RDIMM

Standard (Entry Model)—4 GB (2 x 2 GB) RDIMM

Note: Depending on the memory configuration and processor model, the memory speed may run at 1333 MHz, 1066 MHz, or 800 MHz.

Please see the Online Memory Configuration Tool.

192 GB RDIMM

48 GB UDIMM

18 DIMMs Memory slots

Advanced memory protection

Storage type

Advanced ECC, mirrored memory, lock-step mode

Hot-plug 2.5-in SAS/SATA

Hot-plug 3.5-in SAS/SATA

Maximum number of hard drives 24

Maximum number of hard drives noted Supports (24) 2.5-in Small Form Factor or (14) 3.5-in Large Form Factor hard drives

Expansion slots

Storage controller

9 available PCI Express Gen2 expansion slots to provide you with the latest I/O performance

HP Smart Array P410i Controller with 256 MB, 512 MB battery-backed write cache (BBWC), 512 MB flash-backed write cache (FBWC), and 1 GB FBWC options

Deployment

Form factor

Rack height

Networking

Infrastructure management

Redundant power supply

Redundant fans

Warranty

Rack or tower

4U

HP NC375i Quad Port Multifunction Gigabit Server Adapter

HP ProLiant Onboard Administrator powered by the HP Integrated Lights-Out 2

HP Insight Control suite with new Dynamic Power Capping technology

Optional

Optional

3-year parts/3-year labor/3-year onsite

3

Growing businesses with expandability requirements

Designed to meet the requirements of growing businesses, the DL370 G6 and the ML370 G6 servers have nine available I/O slots that support PCI Express

Gen2. And what about storage capacity, you may ask. Put your fears to rest, as the 8-bay standard drive cage provides up to 4.8 TB of storage (8 x 600 GB).

Critical remote sites

You need not worry about connectivity or performance when you are working in a remote location. The new HP ProLiant Onboard Administrator and

HP Systems Insight Manager (SIM) make sure that you get enterprise-class management features, providing proven availability and uptime for critical applications.

Rendering and visualization requirements

The HP ProLiant DL370 G6 and the HP ProLiant ML370

G6 Servers support 3 x 16 PCI Express slots, allowing support for up to three 300 W graphic cards, making these servers ideal solutions for rendering and visualization requirements.

Options include

• Easy tower-to-rack conversion in the case of the

ProLiant ML370 G6 Servers, which includes a tower-to-rack conversion kit

• USB 2.0 support—five total USBs (two front; two rear; and, for security purposes, one internal)

• Up to 24 Small Form Factor drives and up to

14 Large Form Factor drives

• Hot-plug fans and power with optional redundancy

• HP Graphic Card Adapter Kit enabling support for up to three 300 W graphic cards

For more information about the HP ProLiant DL370

G6 and the HP ProLiant ML370 G6 Servers, visit: www.hp.com/servers/dl370-g6 www.hp.com/servers/ml370-g6

or

HP Services

When technology works, business works

The challenge of virtually every IT organization is similar: to develop and maintain an agile, efficient server infrastructure that delivers the service levels your business needs. HP Technology Services offers a comprehensive portfolio of HP Care Pack Services to help design, deploy, manage, and support your IT environment.

Minimum recommended HP Care Pack offerings

• 3-year, same business day, 4-hour response onsite; 24x7 coverage, hardware support

• Integrated hardware plus operating system installation and startup

Enhanced service level Care Pack offerings

• 3-year Support Plus 24: Integrated 24x7 hardware and software operating support

• Proactive Select: Access to HP technical consultants, purchase service credits, and obtain expertise when needed

Benefit from HP Care Pack Services, helping you:

• Reduce deployment time and manage ProLiant server solutions smoothly and efficiently

• Increase uptime and performance of server availability to your business

• Detect, diagnose, and repair problems quickly to save time, money, and resources

For more information, visit: www.hp.com/services/proliantservices or www.hp.com/go/proliant/carepack

• High-performance models with a second processor,

SAS controller, extra memory, redundant fans, and power supplies

• HP Insight Control suite helps you deploy servers rapidly, proactively monitor system health and performance, improve power consumption, and take total remote control of your infrastructure

HP Financial Services

HP Financial Services provides innovative financing and financial asset management programs to help you cost-effectively acquire, manage, and ultimately retire your HP solutions. For more information on these services, visit: www.hp.com/go/hpfinancialservices

Share with colleagues

Get connected www.hp.com/go/getconnected

Current HP driver, support, and security alerts delivered directly to your desktop

© Copyright 2009–2011 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Intel and Xeon are trademarks of Intel Corporation in the United States and other countries.

4AA2-5106ENW, Created March 2009; Updated January 2011, Rev. 4

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
