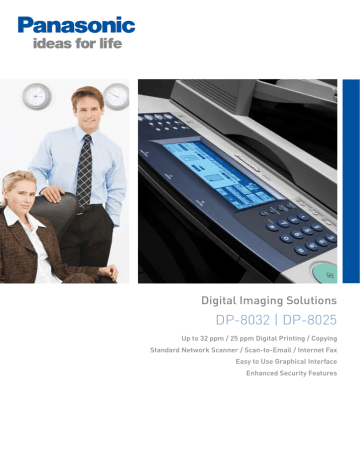

Digital Imaging Solutions
DP-8032 | DP-8025
Up to 32 ppm / 25 ppm Digital Printing / Copying
Standard Network Scanner / Scan-to-Email / Internet Fax
Easy to Use Graphical Interface
Enhanced Security Features
CONVERGENCE ON PRODUCTIVITY
Device Monitor
Printing: Fast printing plus unmatched connectivity
With DP-8032/8025 on your network, everyone can take advantage of upgraded
With the desktop printer Device Monitor,
you can check the current status of the
DP-8032/8025 without leaving your desk.
For example when the toner is low or the
paper tray is empty.
printing speed (max. 32-ppm/25ppm for A4 size) and enjoy high-quality output
that only Panasonic’s Image Enhancement Technology can deliver. Features like
the intuitive tabbed interface and the on-screen graphical preview of job settings
maximize ease of use and eliminate costly errors. This A3-size MFP is also IPv6
ready, and depending on your needs, a selection of optional modules and drivers
for extended compatibility with PCL*1 and genuine Adobe PostScript 3* 2 is
available. All this plus the built-in automatic duplex unit for paper-saving
2-sided printing and incredible print output options make the DP-8032/08025
a truly resourceful network printer.
*1 Optional PCL Printer Controller Module is required.
*2 Optional Multi-Page Description Language Controller Module is required.
Double Exposure / Digital SkyShot
Make copies of ID cards and other
double-sided documents on a single
sheet of paper. Even with the platen
cover open, there are no ugly borders.
You save time, paper and toner, and
get beautiful results.
Copying: Time-saving copying speed and top-of-class versatility
When time is of the essence, you can depend on the improved copying speed of
DP-8032/8025 (max. 32-cpm/25cpm for A4 size). This A3-size MFP not only
delivers high quality output up to 600 x 600 dpi and with 256 gray scale half tones
thanks to the advanced Panasonic image stabilisation system, but also empowers users with powerful productivity functions. In addition to the built-in stackless duplex unit and Inverting Automatic Document Feeder for paper-saving
double-sided copying, users can take advantage of convenient functions like
Double Exposure, Digital SkyShot, N-in-1 Copy, Zoom and Image Rotation.
Everything from the intuitive touch panel interface to Sort Copy for electronic
collation of copies as shifted and rotated sets streamlines the flow of your office
work. For beautifully stapled multi-page reports, add the 1-Bin Finisher option.
N in 1 Copy
N in 1 Copy is a cost efficient feature.
Copy multiple originals onto a single
sheet of paper.
Scanning: High-speed gateway to digital document management
As network scanner with a scanning speed up to approx. 32 originals per
minute (A4 size), DP-8032/8025 is the key to bringing your office into age of
digital document distribution. Once scanned, sending documents to an FTP
server, a PC on the LAN or even as an email attachment is easy right from
the console with the intuitive interface. The convenient “File Naming” feature
lets you assign a name to scanned files for easy identification. Of course,
scanned documents are clear and crisp thanks to high-resolution scanning
up to up to 600 x 600dpi with 256 gray scale halftone, and can be reprinted
QUICK IMAGE NAVIGATOR
This powerful application software not
only imports images from a network
scanner to your computer, but also can
manage scanned electronic documents
as well as other images created by
various applications with drag-and-drop
simplicity. Thumbnail display of image
files, annotation functions, and effortless
handling of large files are just some of
the features that will accelerate your shift
to a paperless office.
with near-original quality. Equipped with an inverting ADF unit, 2-sided
scanning up to A3-size multiplies productivity. Above all, everyone in the
office can immediately take advantage of network scanning right at their
desktop with the Quick Image Navigator software for importing images from
a network scanner and managing loaded images.
PC
SCAN TO
EMAIL
NETWORK ACCOUNTING MANAGER
Collects and tabulate log information
stored in network printing devices for
an accurate grasp of printed sheets
and sides. This server-based software
provides easy access and viewing of logs
using a standard web browser or can
export CSV-format data for analysis in
popular application software.
SERVER
Internet Fax
Document Distribution System
Inbound Fax
Combined with the DP-8032/8025, the optional Document
Scanned Documents
Distribution System completes your digital document sharing
solution. Once paper documents are scanned and converted
to digital data, this system can route those documents via fax,
email, ftp, or send them to a network folder, a web based
folder or even directly to a PC’s desktop. With an integrated
Save
automatically
Document
Distribution
System
Clients can view
shared files
Automatically distribute
files to specific clients
OCR function, the digital documents can be transformed into
text-searchable documents. Centrally stored and managed
documents can easily be shared by users right from their
desktop using familiar browser software.
DP-8032/8025
Faxing: Dedicated Fax Station Performance
With the optional fax communication kit, DP-8032/8025 becomes a highperformance fax station with fast 33.6 kbps Super G3 fax capability accelerated by 0.7-sec “Quick Scanning” and Quick Memory Transmission. When you
key in a number over 6 digits, it automatically treats it as fax number and
switches to fax mode.
Leverage your network with Internet Faxing
Built-in Internet Fax capability lets users to scan documents as TIFF images
or PDF files and transmit them as email attachments right from the console.
With “Scan-to-Email”, you can send scanned documents to other Internet
Fax-capable platforms or email clients anywhere in the world. The connectivity of the DP-8032/8025 also makes it a fax/email gateway that can automatically route incoming faxes to the recipient’s email inbox. This same gateway
can also be used to send documents directly from Panafax Deskto software
installed in the user's PC to G3 fax machines around the world.
Security:
In the digital world, security is paramount. DP-8032/8025
comes with an array of security features to strengthen every
aspect of digital document management and distribution.
User Authentication
Mailbox & Secure Mailbox
Hard Disk Data Erasing
Data Security Kit for Common Criteria (EAL-2)
Service: support to keep you up and running
DP-8032/8025 comes with a complete service and support system. “Check
and Call” enables our service centers to stay on top of your printer status and
performance. When toner is running low or if any mechanical problems need
attention, the built-in automatic report function automatically notifies our
service center. To further reduce time for any repairs, the Remote Diagnostic
System lets our technicians to quickly identify problems and have the right
solution when they arrive at your office.
Easily Accessible Toner
Easy Lifting ADF
DP-8032 / 8025 Options
Consumables
Paper Exit Options
Inner Tray
DA-XN201
Other Option
Fax Options
Toner
DQ-TU15E
Developer
DQ-Z120E
Drum
DQ-H060E
G3 Fax
Flash Memory
Fax Communication
Board
DA-FG300
Inner Tray
Hard Disk Drive Unit
Accounting
System
64MB DA-SM64B
DA-XT200
DA-WA10
3rd Paper Tray
Panasonic Document Distribution System
DA-DS305
3rd Paper Tray
4th Paper Tray
DA-DS306
PCL Printer
Plain Stand
Plain Stand
Base Plate with Casters
2-Paper Tray
Configuration
3-Paper Tray
Configuration
4-Paper Tray
Configuration
DA-DA311
Staple
FQ-SS32
(Standard with the optional Finisher)
DA-DA321
DA-WR10
Printer Options
1-Bin Finisher
DA-FS300
DA-HD31
Accounting Software
128MB DA-SM28B
DA-DS305
DA-SC06
HDD / Software Options
16MB DA-SM16B
Exit Tray (Outer)
Data Security Kit
8MB UE-410048
Image Memory Options
Paper Feed Options
Key Counter Cable Kit DA-KH200
4MB UE-410047
PS/PCL Printer
DA-DA230
Printer Controller Module
DA-PC302
Multi-Page Description
Language Controller Module
DA-MC302
Full-Height Configurations
Outer Tray
DP-8032 / 8025 Specifications
General
Type
Copy / Print Process
Developing Process
Inverting Automatic Document
Feeder (Option)
Paper Feed
Paper Weight
Power Requirements
Power Consumption
Warm-up Time (20°C)
Dimensions (W x D x H)*1
(Excluding optional equipment)
Weight*1
(Excluding optional equipment)
Printer
Network Printer Interface
Communication Protocol
Local Printer Interface
Printer Language (Standard)
(Option)
Printing Speed*2
Paper Size
Printing Resolution
Printer Memory
Compatible Operating Systems
Desktop
Laser Indirect Electrostatic
Dry Dual Component
50 sheets (A4, 80g/m2)
Std. 550-sheet paper tray unit x 2 + 50-sheet bypass
Max. 2,250 sheets with option
Paper Tray : 60 to 90 g/m2
Bypass: 55 to 133 g/m2
AC 220-240 V, 50/60 Hz
Max.: Less than 1.5 kW
Power saver mode: Approx. 28 W
Sleep mode: Approx. 18 W
Approx. 35 sec. (Main power switch ON)
Approx. 30 sec. (Power saver mode)
599 mm x 707 mm x 697 mm
Approx. 82 kg
Ethernet 10Base-T/100Base-TX
TCP/IP (LPD [Port9100/RAW], SNMP, DHCP)
AppleTalk (PS), IPP (PCL, PS)
USB 1.1
Panasonic Printing System for Windows®
PCL 5e Emulation*3, PCL 6 Emulation*3
Adobe® PostScript®3™*4
Up to 32 ppm (DP-8032)
Up to 25 ppm (DP-8025)
Paper Tray: A3 - A5
Bypass: A3 - A5
1,200 dpi equivalent x 600 dpi (PCL, PS),
600 dpi x 600 dpi, 300 dpi x 300 dpi
50 MB + 6 GB with optional HDD
Windows®Vista/XP/2000/Server 2003,
MacOS 8.6-10.5 (PS Only)*4
Digital Copier
First Copy Time
Resolution
Gray Scale
Multi Copy Speed*2
Maximum Original Size
Copy Size
Copy Ratio
Zoom (variable)
Multiple Copy
Exposure Control
Sort Memory (Standard)
(Option)
Network Scanner
Network Scanner Interface
Communication Protocol
Maximum Scanning Size
Scanning Speed*5
Scanning Resolution
Compatible Operating Systems
Data Format
G3 Fax (Option)
Compatibility
Modem Speed
Coding Scheme
Scanning Speed*5
Transmission Speed*6
Scanning Resolution
Approx. 4.5 sec. (A4)
600 dpi
256 steps
Up to 32 cpm (DP-8032)
Up to 25 cpm (DP-8025)
A3
A3 - A5 (fixed)
Enlargement (fixed)
200%, 173%, 141%, 122%, 115%
Reduction (fixed)
87%, 82%, 71%, 58%, 50%
25-400 % (in 1% increments)
1 to 999, Automatic reset to 1
Text, Text/Photo, Photo
16 MB
Base Memory (16 MB) plus / 64 MB / 128 MB (max.144 MB)
12 GB (with optional HDD)
Ethernet 10Base-T/100Base-TX
TCP/IP (LPR, FTP)
A3
Approx. 32 opm (Originals per minute – A4 portrait with ADF)
150 dpi x 150 dpi, 300 dpi x 300 dpi, 600 dpi x 600 dpi
Windows® Vista/XP/2000/Server 2003
TIFF, PDF
Maximum Original Size
Effective Scanning Width
Recording Resolution
Standard Memory*7
Optional Memory*7
Speed Dials
ITU-T Group 3, ECM
33.6-2.4 kbps with automatic fallback
JBIG / MMR / MR / MH
Approx. 0.7 sec. (A4 portrait in Standard or Fine mode with ADF)
Approx. 2.9 sec. (A4)
Standard: 8 dots/mm x 3.85 lines/mm
Fine: 8 dots/mm x 7.7 lines/mm
Super Fine: 16 dots/mm x 15.4 lines/mm
600 dpi: 600 dpi x 600 dpi
A3
292mm
600 x 600 dpi
3 MB (Approx. 180 pages)
Base memory plus 4 MB (320 pages)/8 MB (640 pages)
200 (Max. 1,000 with optional HDD and optional Image Memory)
Internet Fax/Scan-to-Email
Compatibility
Communication Protocol
Network Connectivity
Data Format
IETF RFC 3965, ITU-T T.37
TCP/IP (SMTP, POP3, LDAP*9)
Ethernet 10Base-T/100Base-TX
TIFF-FX (Profile S/F/J), PDF*10
Dimensions
976 mm
1168 mm
697 mm
707 mm
599 mm
Notes
*1
*2
*3
*4
*5
Dimensions and weight are approximate.
Speeds are contingent upon applications, machine configuration, and status. Individual speeds may vary.
Printer Controller Module or Multi-Page Description Language Controller Module option required.
Multi-Page Description Language Controller Module option required.
Scanning speed applies to the feeding process from the top to the end of a single page test chart.
The time for the feeding process does not include the time that it takes for the top edge of the page to
reach the scanning point and page ejection. Time for entire storing process is not applied.
*6 Transmission time applies to memory transmission of text data using only ITU-T Image No.1 between the
same models at maximum modem speed. Transmission time may vary in actual usage.
Usually public telephone lines can only support communication speeds of 28.8 Kbps or lower.
Via PBX, transmission speed may fall back to a lower speed.
*7 Based on ITU-T Image No.1 scanned in Standard mode.
*8 Depending on the receiving machines capability, the document may not be correctly printed
depending on the chosen resolution and document size.
*9 This function is not available in certain destinations.
*10 T.37 Internet Fax only supports TIFF format.
Design and specification are subject to change without notice. Not all options may be available at the time
of notification.
Microsoft® Windows® is a registered trademark of Microsoft Corporation.
Adobe, PostScript and PostScript 3 are either registered trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or other countries.
PCL is a registered trademark of Hewlett-Packard.
All other brand or product names are the property of their respective holders.
Common Criteria Validated EAL2
Data Security Kit DA-SC06 V.1.01
The certification obtained for this product regarding information security indicates that, as a result of
evaluation based on given evaluation criteria and evaluation method, the target of evaluation used for such
evaluation has been determined to conform to the security assurance requirements.
ISO 9001
Quality Management System
Our business processes which produce document, information and network
products, from manufacturing to marketing, conform to ISO9001 Quality
Management Systems standard. Design, development, manufacture,
installation, repair and maintenance of document, information and network
products, their associated devices and consumables. In addition, the plants
outside Japan have acquired ISO9001 certification.
MG-C501EE 0810 Printed in Japan
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
