Hardware Specifications
Software Specifications
Processor
Alarm Buzzer
Operating System
System Tools
.Marvell 6281 800MHz
.System warning
.Linux-embedded system
Memory
Form Factor
Networking
.256MB DDRII RAM, 16MB Flash
.Tower
HDD Capacity
Dimensions
.4 x 2.5" or 4 x 3.5” SATA I/II HDD
(the standard package is shipped
without HDD)
.177(H) x 180(W) x 235(D) mm
.6.97(H) x 7.09(W) x 9.25(D) inch
HDD Tray
.4 x hot-swappable and lockable tray
.Net weight: 3kg (6.61 lb)
.Gross weight: 4.6kg (10.14 lb)
LAN Port
Operation Environment
.TCP/IP, DHCP client, DHCP server,
CIFS/SMB, AFP, NFS, HTTP, HTTPS,
FTP, DDNS, NTP
.Multi-IP setting
.Port trunking (support 7 bonding modes)
.Network service discovery
(UPnP & Bonjour)
.Gigabit Jumbo frame
.2 x Gigabit RJ-45 Ethernet port
LED Indicators
.Temperature: 0~40˚C/ 32~104°F
.Humidity: 0~95% R.H.
.Status, LAN, USB, eSATA, HDD 1-4
Power Supply
USB
.External power adaptor, Input: 100-240V
AC, 50/60Hz, Output: 12V DC, 10A, 120W
.E-mail alert (SMTP authentication)
.SMS alert
.SNMP
.HDD standby mode
.Disk usage alert
.Automatic power on after power loss
.QPKG add-on firmware supported
.System firmware upgrade
.Change home page logo
.Back up, restore, reset system settings
.Smart fan setting
.Configurable management port
.Policy-based unauthorized IP blocking
.Secure remote login by SSH
connection; remote login by Telnet
connection
.USB, SNMP UPS support
.Schedule on/ off service
(max. 15 settings)
.Network recycle bin
.Import SSL certificate
.Real-time System Resource Monitor
.4 x USB 2.0 (Front: 1; Back: 3)
.Supports USB printer, USB disk,
pen drive, USB hub, and USB UPS, etc.
Weight
File System
Secure Design
.K-Lock security slot for theft prevention
eSATA
Fan
.2 x eSATA port (Back)
.Smart fan (9 cm, 12V DC)
.EXT3, EXT4 (Internal/ external HDD)
.FAT (External HDD)
.NTFS (External HDD)
Supported Operating Systems
.Microsoft® Windows® 2000/ XP/
2003/ Vista
.Mac OS X
.Linux & UNIX
Buttons
Disk Management
.Power button, one touch copy button,
reset button
.Single disk, RAID 0/1/5/6/
5+hot spare/JBOD
.Online RAID Capacity Expansion
.Online RAID Level Migration
.RAID Recovery
.Bitmap support for faster RAID rebuild
(RAID 1/5/6)
.Disk usage status management
.Check disk (Check Linux file system)
.HDD S.M.A.R.T.
.Bad blocks scan
.Built-in iSCSI target service
.Virtual Disk Drive (VDD) for storage
expansion (max. 8 Volumes)
Powerful All-in-one Server
File Server
.File sharing across Windows/ Mac/
Linux/ Unix and centralized
management
FTP Server
.Supports data access from remote
location via FTP (max. 128 concurrent
connections)
.FTP with SSL/ TLS (explicit) mode
.FXP supported
.FTP bandwidth control and connection
control
.Passive FTP port range control
Backup Server
.QNAP client-side backup software NetBak Replicator supports instant,
schedule, and auto-sync backup
.3rd party backup software support:
Acronis True Image, CA Brightstor
ARCserve Backup, EMC Retrospect,
Symantec Backup Exec, LaCie
Silverkeeper
Printer Server
.Network printer sharing via USB
(Windows & Mac)
.Supports all-in-one printer
(max. 3 sets)
Remote Replication
.Block-level remote replication
supports instant, schedule backup
management; supports synchronization
mode
Web Server
.Built-in phpMyAdmin, Joomla!,
editable php.ini, SQLite and MySQL
MySQL Server
.Supports MySQL database server
UPnP Media Server
(built-in TwonkyMedia)
.Supports UPnP or DLNA technology;
the video, music, and photos on the
NAS can be played by digital media
players over the local network
.Internet radio (built-in TwonkyMedia)
.Media playing with PS3, Xbox360,
PSP game consoles
.Supports Nokia N95 (DLNA control point)
.Supports iPhone/ iPod touch DLNA/
UPnP application
iTunes Server
.iTunes server for music sharing
.Smart playlist for iTunes software
User Management
Multimedia Station
.Image slide show and rotation
(+90°, -90°)
.Display photo details: date, exposure
time, aperture, etc.
.Automatic thumbnail generation for
easy browsing
.Photo album access authority
management
.Multimedia files (video and audio)
local playing
.Automatic file categorization
Download Station
.PC-less BitTorrent/ FTP/ HTTP
download
.QNAP remote download
software: QGet (Windows & Mac),
allows you to manage the download
tasks of multiple Turbo NAS on one PC
via LAN/ WAN
.BitTorrent download supports TCP/
UDP, DHT
.BT schedule download
.BT download (up to 500 tasks)
.Download configuration (current seed
number, configurable port range,
bandwidth control, download
percentage, UPnP NAT port forwarding
for BitTorrent download)
.Download status list management
(download percentage)
.Supports access from Mac by Mozilla
Firefox
.User quota management (per user)
.Windows AD
.User account management
(max. 2,048 users)
.User group management
(max. 256 groups)
.Batch creating users
File System Management
.Network share management
(max. 256 shares)
.Network volume status management
.Share folder level ACL support
.Hide share folder on Windows network
.Unicode support
.Journaling file system
.Web File Manager
Turbo NAS
All-in-one NAS Server with iSCSI
for SOHO and Home Users
4-Bay • Hot-swappable
RAID 0/ 1/ 5 / 6/ 5 + Hot Spare/ JBOD
• Dual Gigabit LAN: Failover, Load-Balancing & Multiple IP Setting
• Online RAID Capacity Expansion
Event Logs
.Complete system logs (file level):
system events management, logs,
current connection of on-line users
• Online RAID Level Migration
• Built-in iSCSI Target Service
Multilingual Support
.English, Traditional Chinese, Simplified
Chinese, Japanese, Korean, French,
German, Italian, Spanish, Russian,
Swedish, Norwegian, Finnish, Danish,
and Polish
• Virtual Disk for Storage Expansion
• Most Advanced Backup Solution (Auto-Sync, Instant, Schedule Backup)
• Low Power Consumption & Quiet Operation
Backup Management
.PC-client backup software-NetBak
Replicator: Instant/ Schedule/
Auto-sync backup
.Remote replication supports Rsync
.Encrypted remote replication
.One touch USB copy for different
destination folders
.Data backup to external storage device
• Built-in UPnP/ DLNA Media Server for Digital Home Entertainment
Brand NEW
800MHz CPU
Multi-browser Support
.Internet Explorer 7 & 8
.Safari 3 & 4
.Firefox 3
.Google Chrome
256MB DDRII Memory
Package Contents
2.5” & 3.5” HDD
dual support
Turbo NAS
CD-ROM
Ethernet cable x 2
Quick Installation Guide
Unleash the NAS Power with GUI V3
Simply the best user experience with Ajax technology
• Multi-browser Support
• Step-by-step Wizard
• 3 theme colors
• Fast user/ group/ share
search
• Instant Language Switch
• QNAP RSS Feed
• And more...
Surveillance Station
.Supports 4 IP cameras (optional
purchase) for network surveillance
Power cord Flat head screw x 16 Flat head screw x 12
(for 3.5” HDD)
(Black, for 2.5” HDD)
LED Indicators: Status,
LAN, USB, eSATA
Hard disk lock
Adaptor
Password & Network
Settings Reset Button
eSATA x 2
Giga LAN x 2
LED Indicators:
HDD1-4
USB 2.0 x 3
Power Button
One Touch Copy Button
USB 2.0
98/8
TS-410
Power Connector
K-Lock Security Slot
Abundant SOHO & Home Server Features
•
•
•
•
•
•
•
•
RAID Server
iSCSI Target
Web Server
File Server
FTP Server
MySQL Server
Media Server
Download Station
• Backup Server
• Printer Server
(Max. 3 sets)
• Remote Replication
(Rsync)
• Surveillance Station
• Multimedia Station
• and more…
iSCSI
Target
Virtual
Disk Drive
RAID
0/1/5/6/
5+Spare/JBOD
Online RAID
expansion
UPS
migration
SNMP
Support
Failover
Balancing
Load
Schedule
Online RAID
30%
70%
Printer
Server
Dual
Hot
Swappable
on/off
9
SMS
Support
!
1
4
7
*
2
3
5
8
0
6
9
#
OS
Support
2.5” & 3.5”
HDD support
QPKG
Support
PKG
UPnP
DLNA
6
Advanced RAID Management with
Hot-swap Design
All-in-one NAS Server with iSCSI
for SOHO and Home Users
Online RAID Capacity Expansion
Online RAID Level Migration
RAID 1 Mirroring
RAID recovery, policy-based IP blocking, instant SMS alert notification, schedule power on/
performance, high reliability, and numerous powerful software applications.
off, and 4 IP cameras (optional purchase) for network surveillance video recording.
Eye-catching industrial design and superior hardware specifications
Maximize the enjoyment of your home multimedia center
The TS-410 Turbo NAS incorporates a Marvell 800MHz CPU and 256MB of DDRII RAM
The built-in UPnP/ DLNA compliant media server (with TwonkyMedia enabled) of the Turbo
and is able to maintain superior performance in an intensive data access environment while
NAS supports a wide range of DLNA media players such as Sony PS3 and Microsoft Xbox
offering low power consumption. The TS-410 supports four hot-swappable SATA hard
360 gaming consoles and works well with NFS-supported High-Definition (HD) digital
drives, two Gigabit LAN ports for multi-IP settings, failover, and load-balancing, four USB
media players for HD video streaming. By installing the DLNA/ UPnP application on your
ports and two eSATA ports for external storage backup.
iPhone or iPod touch, you can access the Turbo NAS on the local network and play the
high-speed PC-less Download Station with the unique QGet utility enables you to manage
The TS-410 Turbo NAS supports cross-platform network services across Windows, Mac,
the BT/ FTP/ HTTP download tasks remotely over the local network or the Internet.
c. RAID 5 + spare (4 HDD)
Read
Write
QGget-Download Utility for Windows and Mac
You can use the QGet download utility provided by QNAP to
manage the download tasks on multiple Turbo NAS servers.
On NAS (LUN1)
Backup
Local drive
C:\ drive
Supports PS3 and XBox360
All the photos, music, and videos stored
on the Turbo NAS can be played via PS3
or XBox360 on your LCD TV or stereo
Hi-Fi system.
3. Power Resumption Settings: The Turbo NAS can be configured to be turned on or off
when the AC power resumes after a power loss.
4. UPS Support & Advanced Standby Setting: The Turbo NAS supports the majority of
USB UPS devices (usbhid-ups supported). You can also set the time for the server to
enter stand-by mode when an abnormal AC power supply is detected. When the
power resumes, the server resumes to the operation status before the power outage.
Local drive
C:\ drive
F:\ drive
Low Power Consumption
PC
TS-410 (Sleep mode)
TS-410 (In operation)
PC server
Virtual Disk Expansion
12W
20W
350W
Surveillance Station
A
B
Live Audio & Video Monitoring, Recording, and Playback over the Internet
Stack Target
Stack Target
2. Schedule Power on/ off: The flexible schedule power on/ off feature enables you to
manage the NAS server's up time according to the working hours. You can set the
time for automatic system power on, power off, or restart on any days of the week.
Server
LUN 2
C
Surveillance Station
The Surveillance Station enables you to configure and connect IP cameras
simultaneously and remotely manage the functions. The Surveillance Station
of QNAP NAS supports all the leading network camera brands such as AXIS,
D-Link, IPUX, LevelOne, Linksys, Panasonic and Vivotek, etc.
(MB/Sec)
1. Hard Disk Standby: You can configure the hard disks to enter standby mode if
there is no disk access within the specified period.
On NAS (LUN2)
Music Sharing by iTunes Server
All your MP3 music can be collectively stored and streamed to
Mac or Windows PC. Just turn on the iTunes program and enjoy
all the music around your home network.
40
With the built-in iSCSI target feature, the NAS can be an ideal solution for backup or
storage expansion. The users can easily create dedicated virtual drives on the NAS
for their PCs or existing servers. The iSCSI drives on the NAS can be formatted as
file system and used as local drives.
ALL-in-One Server Features
File Server
The Turbo NAS allows you to create user ID and password, and
define the authority and quota for each user.
30
Efficient Power Management
E:\ drive
Multimedia Station for Photo Sharing
You can share you photos, video, or music online by the
Multimedia Station of the Turbo NAS.
20
Flexible Built-in iSCSI Target Service
Volume
PC-less Download Station
The Turbo NAS supports BitTorrent, FTP, and HTTP download
without PC. TCP/ UDP, encrypted BT download function, and DHT
(Distributed Hash Tables) are also supported. It supports to
download BitTorrent, emule/ eDonkey and NZB files.
10
• Client PC: Intel® Core™2 Quad 2.34GHz CPU, 2GB RAM, NVIDIA nForce Networking Controller, Windows Vista 32-Bit SP1
• Testing Method: Connect the TS-410 and PC to switch, upload/download 5GB file, FTP program: FileZilla 3.1.5
LUN 1
UPnP Media Server (with built-in TwonkyMedia Server)
The Turbo NAS is a perfect media storage center and it works
well with DLNA (Digital Living Network Alliance) compliant media
players. You can play the photos and videos on TV, or listen to
your favorite music and Internet radio on your Hi-Fi system.
0
The TS-410 supports online RAID capacity expansion for expanding the storage
capacity of the RAID configuration and online RAID level migration for upgrading
the disk configuration to higher RAID level.
Linux, and UNIX. Enhanced industry-leading features are also provided, e.g. EXT3 and
iTunes
SAMBA
3TB (RAID5)
multimedia contents, e.g. videos, music, and photos on the server. In addition, the
Class-leading performance and compelling server applications
FTP
a. RAID 5 (4 HDD) b. RAID 6 (4 HDD)
+
+
1.5TB (RAID5)
TS-410
1TB
JBOD disk configurations, online RAID capacity expansion, online RAID level migration,
sharing, the TS-410 Turbo NAS features excellent hardware design, outstanding
1TB
and prosumer users. As a high capacity storage centre for data backup, management and
1TB
(VDD) by built-in iSCSI initiator for storage expansion, RAID 0/ 1/ 5/ 6/ 5+spare, single and
1TB
HDD network-attached storage server with iSCSI applications dedicated to SOHO, home
+
500GB
EXT4 file systems, built-in iSCSI target service (max 8 iSCSI targets), virtual disk drive
500GB
The QNAP TS-410 Turbo NAS is a high performance 4-bay, 2.5-inch and 3.5-inch SATA
500GB
500GB
Overview
RAID 5 (3 HDD)
Superior Performance
Router
QNAP NAS
High quality video recording in
MPEG4 and Motion JPEG format
Live 2-way audio supported for monitoring
and voice broadcasting
A
Real-time monitoring and
recording for up to 30 frames/sec
per channel
Easy installation and management from
remote locations
B
QNAP NAS
Living room
Garage
C
Stack Master
Stack Target
Virtual Disk Drive (VDD) adds flexibility to storage expansion along with
ease of management
The unique "Virtual Disk Drive" adds flexibility to expand the capacity of NAS. By
using the built-in iSCSI initiator, the NAS can connect to other iSCSI targets on the
network and turn them into virtual disks, which become multiple single volumes on
the NAS. Up to 8 virtual disks can be stacked. The NAS serves as the storage stack
chaining master. The user only needs to connect to this single entry (QNAP NAS)
and is able to reach and use all the iSCSI target storages on the network.
Router
Internet
Home
Remote monitoring
over the Internet
• TS-410
Software expansion via QPKG Center
Joomla!
MLDonkey
Optware
IPKG
QPKG
Exclusive Windows-based Backup Utility
The automatic backup software, NetBak Replicator, is
provided for you to perform real-time synchronization or
schedule backup from multiple PCs to the Turbo NAS.
FTP Server
You can establish your own FTP server by using the
Turbo NAS and share the files conveniently with your
friends or customers.
X
3
Printer Server
The NAS supports
network printer sharing
function (max 3 USB
printers).
Using QNAP NAS with iPhone or
iPod touch
By installing DLNA/ UPnP application
on the iPhone or iPod touch, you can
access QNAP NAS on the local
network and play the multimedia
contents, e.g. videos, music, and
photos on the server.
More...
orm
re Platf
Softwa
QNAP
NAS
The QPKG software package
platform enables you to maximize
the usage of the NAS by installing
additional software packages
developed by the users and
community worldwide. This can be
done by simple "download &
install" clicking without going
through any complicated process.
MLDonkey (eMule)
MLDonkey (eMule) is a door to the 'donkey' network, a
decentralized network used to exchange big files on the Internet
and present most features of the basic Windows donkey client.
(e.g., eMule)
Optware Ipkg (Itsy Package Management System)
Ipkg, or the Itsy Package Management System, is a lightweight
package management system designed for embedded devices.
It is used in the Unslung operating system for the Linksys
NSLU2, in OpenWRT, OpenMoko, Gumstix, iPAQ and now on
QNAP NAS too.
SABnzbd+
SABnzbd+ is a multi-platform binary newsgroup downloader
written in Python language. The program works in the
background and simplifies the downloading, verifying and
extracting of files from Usenet. SABnzbd+ does not search for
files, instead NZB files (similar to .torrent files, but for Usenet)
are fed to SABnzbd+ from sites like newzbin.com, binsearch.info
and tvnzb.com (Requires prior installation of Python)
Slim Server on Turbo Station (with SqueezeCenter 7)
Squeeze Center is the server software from Slim Device that
manages common digital audio formats (.mp3, .flac, .ogg, etc.) and
streams them to its players. Slim Server On Turbo Station (SSOTS)
developed by flipflip is an add-on to the Turbo Station's firmware
which provides the environment to run Squeeze Center 7 on it.
WordPress
WordPress is a free, open-source personal publishing system
that allows you to easily create a complex blog, or web log, on
your site. Written in PHP and supported by a MySQL database,
WordPress offers intuitive administrative tools and sophisticated
design features that make it easy to develop and integrate a
personal or professional blog on your site.
Advanced RAID Management with
Hot-swap Design
All-in-one NAS Server with iSCSI
for SOHO and Home Users
Online RAID Capacity Expansion
Online RAID Level Migration
RAID 1 Mirroring
RAID recovery, policy-based IP blocking, instant SMS alert notification, schedule power on/
performance, high reliability, and numerous powerful software applications.
off, and 4 IP cameras (optional purchase) for network surveillance video recording.
Eye-catching industrial design and superior hardware specifications
Maximize the enjoyment of your home multimedia center
The TS-410 Turbo NAS incorporates a Marvell 800MHz CPU and 256MB of DDRII RAM
The built-in UPnP/ DLNA compliant media server (with TwonkyMedia enabled) of the Turbo
and is able to maintain superior performance in an intensive data access environment while
NAS supports a wide range of DLNA media players such as Sony PS3 and Microsoft Xbox
offering low power consumption. The TS-410 supports four hot-swappable SATA hard
360 gaming consoles and works well with NFS-supported High-Definition (HD) digital
drives, two Gigabit LAN ports for multi-IP settings, failover, and load-balancing, four USB
media players for HD video streaming. By installing the DLNA/ UPnP application on your
ports and two eSATA ports for external storage backup.
iPhone or iPod touch, you can access the Turbo NAS on the local network and play the
high-speed PC-less Download Station with the unique QGet utility enables you to manage
The TS-410 Turbo NAS supports cross-platform network services across Windows, Mac,
the BT/ FTP/ HTTP download tasks remotely over the local network or the Internet.
c. RAID 5 + spare (4 HDD)
Read
Write
The TS-410 supports online RAID capacity expansion for expanding the storage
capacity of the RAID configuration and online RAID level migration for upgrading
the disk configuration to higher RAID level.
On NAS (LUN1)
Backup
Local drive
C:\ drive
LUN 1
Server
On NAS (LUN2)
File Server
The Turbo NAS allows you to create user ID and password, and
define the authority and quota for each user.
QGget-Download Utility for Windows and Mac
You can use the QGet download utility provided by QNAP to
manage the download tasks on multiple Turbo NAS servers.
Music Sharing by iTunes Server
All your MP3 music can be collectively stored and streamed to
Mac or Windows PC. Just turn on the iTunes program and enjoy
all the music around your home network.
LUN 2
Local drive
C:\ drive
F:\ drive
Supports PS3 and XBox360
All the photos, music, and videos stored
on the Turbo NAS can be played via PS3
or XBox360 on your LCD TV or stereo
Hi-Fi system.
40
(MB/Sec)
• Client PC: Intel® Core™2 Quad 2.34GHz CPU, 2GB RAM, NVIDIA nForce Networking Controller, Windows Vista 32-Bit SP1
• Testing Method: Connect the TS-410 and PC to switch, upload/download 5GB file, FTP program: FileZilla 3.1.5
4. UPS Support & Advanced Standby Setting: The Turbo NAS supports the majority of
USB UPS devices (usbhid-ups supported). You can also set the time for the server to
enter stand-by mode when an abnormal AC power supply is detected. When the
power resumes, the server resumes to the operation status before the power outage.
12W
20W
350W
Surveillance Station
Live Audio & Video Monitoring, Recording, and Playback over the Internet
Stack Target
Stack Target
3. Power Resumption Settings: The Turbo NAS can be configured to be turned on or off
when the AC power resumes after a power loss.
TS-410 (Sleep mode)
TS-410 (In operation)
PC server
A
B
2. Schedule Power on/ off: The flexible schedule power on/ off feature enables you to
manage the NAS server's up time according to the working hours. You can set the
time for automatic system power on, power off, or restart on any days of the week.
Low Power Consumption
PC
Virtual Disk Expansion
C
Surveillance Station
The Surveillance Station enables you to configure and connect IP cameras
simultaneously and remotely manage the functions. The Surveillance Station
of QNAP NAS supports all the leading network camera brands such as AXIS,
D-Link, IPUX, LevelOne, Linksys, Panasonic and Vivotek, etc.
30
1. Hard Disk Standby: You can configure the hard disks to enter standby mode if
there is no disk access within the specified period.
ALL-in-One Server Features
Multimedia Station for Photo Sharing
You can share you photos, video, or music online by the
Multimedia Station of the Turbo NAS.
20
With the built-in iSCSI target feature, the NAS can be an ideal solution for backup or
storage expansion. The users can easily create dedicated virtual drives on the NAS
for their PCs or existing servers. The iSCSI drives on the NAS can be formatted as
file system and used as local drives.
E:\ drive
PC-less Download Station
The Turbo NAS supports BitTorrent, FTP, and HTTP download
without PC. TCP/ UDP, encrypted BT download function, and DHT
(Distributed Hash Tables) are also supported. It supports to
download BitTorrent, emule/ eDonkey and NZB files.
10
Efficient Power Management
Volume
UPnP Media Server (with built-in TwonkyMedia Server)
The Turbo NAS is a perfect media storage center and it works
well with DLNA (Digital Living Network Alliance) compliant media
players. You can play the photos and videos on TV, or listen to
your favorite music and Internet radio on your Hi-Fi system.
0
Flexible Built-in iSCSI Target Service
Linux, and UNIX. Enhanced industry-leading features are also provided, e.g. EXT3 and
iTunes
SAMBA
3TB (RAID5)
multimedia contents, e.g. videos, music, and photos on the server. In addition, the
Class-leading performance and compelling server applications
FTP
a. RAID 5 (4 HDD) b. RAID 6 (4 HDD)
+
+
1.5TB (RAID5)
TS-410
1TB
JBOD disk configurations, online RAID capacity expansion, online RAID level migration,
sharing, the TS-410 Turbo NAS features excellent hardware design, outstanding
1TB
and prosumer users. As a high capacity storage centre for data backup, management and
1TB
(VDD) by built-in iSCSI initiator for storage expansion, RAID 0/ 1/ 5/ 6/ 5+spare, single and
1TB
HDD network-attached storage server with iSCSI applications dedicated to SOHO, home
+
500GB
EXT4 file systems, built-in iSCSI target service (max 8 iSCSI targets), virtual disk drive
500GB
The QNAP TS-410 Turbo NAS is a high performance 4-bay, 2.5-inch and 3.5-inch SATA
500GB
500GB
Overview
RAID 5 (3 HDD)
Superior Performance
Router
QNAP NAS
High quality video recording in
MPEG4 and Motion JPEG format
Live 2-way audio supported for monitoring
and voice broadcasting
A
Real-time monitoring and
recording for up to 30 frames/sec
per channel
Easy installation and management from
remote locations
B
QNAP NAS
Living room
Garage
C
Stack Master
Stack Target
Virtual Disk Drive (VDD) adds flexibility to storage expansion along with
ease of management
The unique "Virtual Disk Drive" adds flexibility to expand the capacity of NAS. By
using the built-in iSCSI initiator, the NAS can connect to other iSCSI targets on the
network and turn them into virtual disks, which become multiple single volumes on
the NAS. Up to 8 virtual disks can be stacked. The NAS serves as the storage stack
chaining master. The user only needs to connect to this single entry (QNAP NAS)
and is able to reach and use all the iSCSI target storages on the network.
Router
Internet
Home
Remote monitoring
over the Internet
• TS-410
Software expansion via QPKG Center
Joomla!
MLDonkey
Optware
IPKG
QPKG
Exclusive Windows-based Backup Utility
The automatic backup software, NetBak Replicator, is
provided for you to perform real-time synchronization or
schedule backup from multiple PCs to the Turbo NAS.
FTP Server
You can establish your own FTP server by using the
Turbo NAS and share the files conveniently with your
friends or customers.
X
3
Printer Server
The NAS supports
network printer sharing
function (max 3 USB
printers).
Using QNAP NAS with iPhone or
iPod touch
By installing DLNA/ UPnP application
on the iPhone or iPod touch, you can
access QNAP NAS on the local
network and play the multimedia
contents, e.g. videos, music, and
photos on the server.
More...
orm
re Platf
Softwa
QNAP
NAS
The QPKG software package
platform enables you to maximize
the usage of the NAS by installing
additional software packages
developed by the users and
community worldwide. This can be
done by simple "download &
install" clicking without going
through any complicated process.
MLDonkey (eMule)
MLDonkey (eMule) is a door to the 'donkey' network, a
decentralized network used to exchange big files on the Internet
and present most features of the basic Windows donkey client.
(e.g., eMule)
Optware Ipkg (Itsy Package Management System)
Ipkg, or the Itsy Package Management System, is a lightweight
package management system designed for embedded devices.
It is used in the Unslung operating system for the Linksys
NSLU2, in OpenWRT, OpenMoko, Gumstix, iPAQ and now on
QNAP NAS too.
SABnzbd+
SABnzbd+ is a multi-platform binary newsgroup downloader
written in Python language. The program works in the
background and simplifies the downloading, verifying and
extracting of files from Usenet. SABnzbd+ does not search for
files, instead NZB files (similar to .torrent files, but for Usenet)
are fed to SABnzbd+ from sites like newzbin.com, binsearch.info
and tvnzb.com (Requires prior installation of Python)
Slim Server on Turbo Station (with SqueezeCenter 7)
Squeeze Center is the server software from Slim Device that
manages common digital audio formats (.mp3, .flac, .ogg, etc.) and
streams them to its players. Slim Server On Turbo Station (SSOTS)
developed by flipflip is an add-on to the Turbo Station's firmware
which provides the environment to run Squeeze Center 7 on it.
WordPress
WordPress is a free, open-source personal publishing system
that allows you to easily create a complex blog, or web log, on
your site. Written in PHP and supported by a MySQL database,
WordPress offers intuitive administrative tools and sophisticated
design features that make it easy to develop and integrate a
personal or professional blog on your site.
Hardware Specifications
Software Specifications
Processor
Alarm Buzzer
Operating System
System Tools
.Marvell 6281 800MHz
.System warning
.Linux-embedded system
Memory
Form Factor
Networking
.256MB DDRII RAM, 16MB Flash
.Tower
HDD Capacity
Dimensions
.4 x 2.5" or 4 x 3.5” SATA I/II HDD
(the standard package is shipped
without HDD)
.177(H) x 180(W) x 235(D) mm
.6.97(H) x 7.09(W) x 9.25(D) inch
HDD Tray
.4 x hot-swappable and lockable tray
.Net weight: 3kg (6.61 lb)
.Gross weight: 4.6kg (10.14 lb)
LAN Port
Operation Environment
.TCP/IP, DHCP client, DHCP server,
CIFS/SMB, AFP, NFS, HTTP, HTTPS,
FTP, DDNS, NTP
.Multi-IP setting
.Port trunking (support 7 bonding modes)
.Network service discovery
(UPnP & Bonjour)
.Gigabit Jumbo frame
.2 x Gigabit RJ-45 Ethernet port
LED Indicators
.Temperature: 0~40˚C/ 32~104°F
.Humidity: 0~95% R.H.
.Status, LAN, USB, eSATA, HDD 1-4
Power Supply
USB
.External power adaptor, Input: 100-240V
AC, 50/60Hz, Output: 12V DC, 10A, 120W
.E-mail alert (SMTP authentication)
.SMS alert
.SNMP
.HDD standby mode
.Disk usage alert
.Automatic power on after power loss
.QPKG add-on firmware supported
.System firmware upgrade
.Change home page logo
.Back up, restore, reset system settings
.Smart fan setting
.Configurable management port
.Policy-based unauthorized IP blocking
.Secure remote login by SSH
connection; remote login by Telnet
connection
.USB, SNMP UPS support
.Schedule on/ off service
(max. 15 settings)
.Network recycle bin
.Import SSL certificate
.Real-time System Resource Monitor
.4 x USB 2.0 (Front: 1; Back: 3)
.Supports USB printer, USB disk,
pen drive, USB hub, and USB UPS, etc.
Weight
File System
Secure Design
.K-Lock security slot for theft prevention
eSATA
Fan
.2 x eSATA port (Back)
.Smart fan (9 cm, 12V DC)
.EXT3, EXT4 (Internal/ external HDD)
.FAT (External HDD)
.NTFS (External HDD)
Supported Operating Systems
.Microsoft® Windows® 2000/ XP/
2003/ Vista
.Mac OS X
.Linux & UNIX
Buttons
Disk Management
.Power button, one touch copy button,
reset button
.Single disk, RAID 0/1/5/6/
5+hot spare/JBOD
.Online RAID Capacity Expansion
.Online RAID Level Migration
.RAID Recovery
.Bitmap support for faster RAID rebuild
(RAID 1/5/6)
.Disk usage status management
.Check disk (Check Linux file system)
.HDD S.M.A.R.T.
.Bad blocks scan
.Built-in iSCSI target service
.Virtual Disk Drive (VDD) for storage
expansion (max. 8 Volumes)
Powerful All-in-one Server
File Server
.File sharing across Windows/ Mac/
Linux/ Unix and centralized
management
FTP Server
.Supports data access from remote
location via FTP (max. 128 concurrent
connections)
.FTP with SSL/ TLS (explicit) mode
.FXP supported
.FTP bandwidth control and connection
control
.Passive FTP port range control
Backup Server
.QNAP client-side backup software NetBak Replicator supports instant,
schedule, and auto-sync backup
.3rd party backup software support:
Acronis True Image, CA Brightstor
ARCserve Backup, EMC Retrospect,
Symantec Backup Exec, LaCie
Silverkeeper
Printer Server
.Network printer sharing via USB
(Windows & Mac)
.Supports all-in-one printer
(max. 3 sets)
Remote Replication
.Block-level remote replication
supports instant, schedule backup
management; supports synchronization
mode
Web Server
.Built-in phpMyAdmin, Joomla!,
editable php.ini, SQLite and MySQL
MySQL Server
.Supports MySQL database server
UPnP Media Server
(built-in TwonkyMedia)
.Supports UPnP or DLNA technology;
the video, music, and photos on the
NAS can be played by digital media
players over the local network
.Internet radio (built-in TwonkyMedia)
.Media playing with PS3, Xbox360,
PSP game consoles
.Supports Nokia N95 (DLNA control point)
.Supports iPhone/ iPod touch DLNA/
UPnP application
iTunes Server
.iTunes server for music sharing
.Smart playlist for iTunes software
User Management
Multimedia Station
.Image slide show and rotation
(+90°, -90°)
.Display photo details: date, exposure
time, aperture, etc.
.Automatic thumbnail generation for
easy browsing
.Photo album access authority
management
.Multimedia files (video and audio)
local playing
.Automatic file categorization
Download Station
.PC-less BitTorrent/ FTP/ HTTP
download
.QNAP remote download
software: QGet (Windows & Mac),
allows you to manage the download
tasks of multiple Turbo NAS on one PC
via LAN/ WAN
.BitTorrent download supports TCP/
UDP, DHT
.BT schedule download
.BT download (up to 500 tasks)
.Download configuration (current seed
number, configurable port range,
bandwidth control, download
percentage, UPnP NAT port forwarding
for BitTorrent download)
.Download status list management
(download percentage)
.Supports access from Mac by Mozilla
Firefox
.User quota management (per user)
.Windows AD
.User account management
(max. 2,048 users)
.User group management
(max. 256 groups)
.Batch creating users
File System Management
.Network share management
(max. 256 shares)
.Network volume status management
.Share folder level ACL support
.Hide share folder on Windows network
.Unicode support
.Journaling file system
.Web File Manager

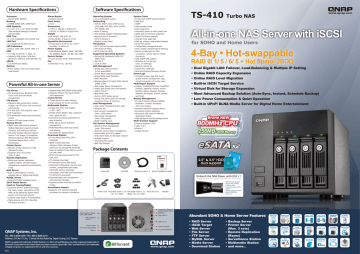

Turbo NAS
All-in-one NAS Server with iSCSI
for SOHO and Home Users
4-Bay • Hot-swappable
RAID 0/ 1/ 5 / 6/ 5 + Hot Spare/ JBOD
• Dual Gigabit LAN: Failover, Load-Balancing & Multiple IP Setting
• Online RAID Capacity Expansion
Event Logs
.Complete system logs (file level):
system events management, logs,
current connection of on-line users
• Online RAID Level Migration
• Built-in iSCSI Target Service
Multilingual Support
.English, Traditional Chinese, Simplified
Chinese, Japanese, Korean, French,
German, Italian, Spanish, Russian,
Swedish, Norwegian, Finnish, Danish,
and Polish
• Virtual Disk for Storage Expansion
• Most Advanced Backup Solution (Auto-Sync, Instant, Schedule Backup)
• Low Power Consumption & Quiet Operation
Backup Management
.PC-client backup software-NetBak
Replicator: Instant/ Schedule/
Auto-sync backup
.Remote replication supports Rsync
.Encrypted remote replication
.One touch USB copy for different
destination folders
.Data backup to external storage device
• Built-in UPnP/ DLNA Media Server for Digital Home Entertainment
Brand NEW
800MHz CPU
Multi-browser Support
.Internet Explorer 7 & 8
.Safari 3 & 4
.Firefox 3
.Google Chrome
256MB DDRII Memory
Package Contents
2.5” & 3.5” HDD
dual support
Turbo NAS
CD-ROM
Ethernet cable x 2
Quick Installation Guide
Unleash the NAS Power with GUI V3
Simply the best user experience with Ajax technology
• Multi-browser Support
• Step-by-step Wizard
• 3 theme colors
• Fast user/ group/ share
search
• Instant Language Switch
• QNAP RSS Feed
• And more...
Surveillance Station
.Supports 4 IP cameras (optional
purchase) for network surveillance
Power cord Flat head screw x 16 Flat head screw x 12
(for 3.5” HDD)
(Black, for 2.5” HDD)
LED Indicators: Status,
LAN, USB, eSATA
Hard disk lock
Adaptor
Password & Network
Settings Reset Button
eSATA x 2
Giga LAN x 2
LED Indicators:
HDD1-4
USB 2.0 x 3
Power Button
One Touch Copy Button
USB 2.0
98/8
TS-410
Power Connector
K-Lock Security Slot
Abundant SOHO & Home Server Features
•
•
•
•
•
•
•
•
RAID Server
iSCSI Target
Web Server
File Server
FTP Server
MySQL Server
Media Server
Download Station
• Backup Server
• Printer Server
(Max. 3 sets)
• Remote Replication
(Rsync)
• Surveillance Station
• Multimedia Station
• and more…
iSCSI
Target
Virtual
Disk Drive
RAID
0/1/5/6/
5+Spare/JBOD
Online RAID
expansion
UPS
migration
SNMP
Support
Failover
Balancing
Load
Schedule
Online RAID
30%
70%
Printer
Server
Dual
Hot
Swappable
on/off
9
SMS
Support
!
1
4
7
*
2
5
8
0
3
6
9
#
OS
Support
2.5” & 3.5”
HDD support
QPKG
Support
PKG
UPnP
DLNA
6
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
