Hardware Specifications
Software Specifications
Processor
LCD Panel
Operating System
System Tools
.Marvell 6281 1.2GHz
.Linux-embedded system
Memory
.Mono-LCD display with backlight and
buttons for system status check
.512MB DDRII RAM, 16MB Flash
Alarm Buzzer
HDD Capacity
.System warning
.4 x 2.5" or 4 x 3.5” SATA I/II HDD
(the standard package is shipped
without HDD)
Form Factor
HDD Tray
.4 x hot-swappable and lockable tray
.177(H) x 180(W) x 235(D) mm
.6.97(H) x 7.09(W) x 9.25(D) inch
LAN Port
Weight
.2 x Gigabit RJ-45 Ethernet port
LED Indicators
.Net weight: 3kg (6.61 lb)
.Gross weight: 4.6kg (10.14 lb)
.Status, LAN, USB, eSATA, HDD 1-4
Operation Environment
USB
.Temperature: 0~40˚C/ 32~104°F
.Humidity: 0~95% R.H.
.E-mail alert (SMTP authentication)
.SMS alert
.SNMP
.HDD standby mode
.Disk usage alert
.Automatic power on after power loss
.QPKG add-on firmware supported
.System firmware upgrade
.Change home page logo
.Back up, restore, reset system settings
.Smart fan setting
.Configurable management port
.Policy-based unauthorized IP blocking
.Secure remote login by SSH
connection; remote login by Telnet
connection
.USB, SNMP UPS support
.Schedule on/ off service
(max. 15 settings)
.Network recycle bin
.Import SSL certificate
.Real-time System Resource Monitor
.4 x USB 2.0 (Front: 1; Back: 3)
.Supports USB printer, USB disk,
pen drive, USB hub, and USB UPS, etc.
Networking
.TCP/IP, DHCP client, DHCP server,
CIFS/SMB, AFP, NFS, HTTP, HTTPS,
FTP, DDNS, NTP
.Multi-IP setting
.Port trunking (support 7 bonding modes)
.Network service discovery
(UPnP & Bonjour)
.Gigabit Jumbo frame
.Tower
Dimensions
File System
.EXT3, EXT4 (Internal/ external HDD)
.FAT (External HDD)
.NTFS (External HDD)
Supported Operating Systems
Power Supply
eSATA
.External power adaptor, Input: 100-240V
AC, 50/60Hz, Output: 12V DC, 10A, 120W
.2 x eSATA port (Back)
Secure Design
.Microsoft® Windows® 98/ ME/ NT/
2000/ XP/ 2003/ Vista
.Mac OS X
.Linux & UNIX
Buttons
.K-Lock security slot for theft prevention
Disk Management
.Power button, one touch copy button,
reset button
Fan
.Single disk, RAID 0/1/5/6/
5+hot spare/JBOD
.Online RAID Capacity Expansion
.Online RAID Level Migration
.RAID Recovery
.Bitmap support for faster RAID rebuild
(RAID 1/5/6)
.Disk usage status management
.Check disk (Check Linux file system)
.HDD S.M.A.R.T.
.Bad blocks scan
.Built-in iSCSI target service
.Virtual Disk Drive (VDD) for storage
expansion (max. 8 Volumes)
.Smart fan (9 cm, 12V DC)
Powerful All-in-one Server
File Server
iTunes Server
.File sharing across Windows/ Mac/
Linux/ Unix and centralized
management
.iTunes server for music sharing
.Smart playlist for iTunes software
FTP Server
.Image slide show and rotation
(+90°, -90°)
.Display photo details: date, exposure
time, aperture, etc.
.Automatic thumbnail generation for
easy browsing
.Photo album access authority
management
.Multimedia files (video and audio)
local playing
.Automatic file categorization
.Supports data access from remote
location via FTP (max. 256 concurrent
connections)
.FTP with SSL/ TLS (explicit) mode
.FXP supported
.FTP bandwidth control and connection
control
.Passive FTP port range control
Backup Server
.QNAP client-side backup software NetBak Replicator supports instant,
schedule, and auto-sync backup
.3rd party backup software support:
Acronis True Image, CA Brightstor
ARCserve Backup, EMC Retrospect,
Symantec Backup Exec, LaCie
Silverkeeper
Multimedia Station
Download Station
MySQL Server
.PC-less BitTorrent/ FTP/ HTTP
download
.QNAP remote download
software: QGet (Windows & Mac),
allows you to manage the download
tasks of multiple Turbo NAS on one PC
via LAN/ WAN
.BitTorrent download supports TCP/
UDP, DHT
.BT schedule download
.BT download (up to 500 tasks)
.Download configuration (current seed
number, configurable port range,
bandwidth control, download
percentage, UPnP NAT port forwarding
for BitTorrent download)
.Download status list management
(download percentage)
.Supports access from Mac by Mozilla
Firefox
.Supports MySQL database server
Surveillance Station
UPnP Media Server
(built-in TwonkyMedia)
.Supports 4 IP cameras (optional
purchase) for network surveillance
Printer Server
.Network printer sharing via USB
(Windows & Mac)
.Supports all-in-one printer
(max. 3 sets)
Remote Replication
.Block-level remote replication
supports instant, schedule backup
management; supports synchronization
mode
Web Server
.Built-in phpMyAdmin, Joomla!,
editable php.ini, SQLite and MySQL
.Supports UPnP or DLNA technology;
the video, music, and photos on the
NAS can be played by digital media
players over the local network
.Internet radio (built-in TwonkyMedia)
.Media playing with PS3, Xbox360,
PSP game consoles
User Management
.User quota management (per user)
.Windows AD
.User account management
(max. 4,096 users)
.User group management
(max. 512 groups)
.Batch creating users
File System Management
.Network share management
(max. 512 shares)
.Network volume status management
.Share folder level ACL support
.Hide share folder on Windows network
.Unicode support
.Journaling file system
.Web File Manager
TS-419P
Turbo NAS
All-in-one NAS Server with iSCSI
for SMB and SOHO Users
4-Bay • Hot-swappable
RAID 0/ 1/ 5 / 6/ 5 + Hot Spare/ JBOD
• 2.5” & 3.5” HDD Dual Support for Higher Flexibility
• Dual Gigabit LAN: Failover, Load-Balancing & Multiple IP Setting
LCD
.When the system is ready, users can
check or configure the IP settings,
physical disk info, volume info, system
info, shut down or reboot the NAS, etc.
• Online RAID Capacity Expansion & Online RAID Level Migration
• Built-in iSCSI Target Service & Virtual Disk for Storage Expansion
Event Logs
• Smart IP Filter & Comprehensive Log Systems
.Complete system logs (file level):
system events management, logs,
current connection of on-line users
• Most Advanced Backup Solution (Auto-Sync, Instant, Schedule Backup)
Multilingual Support
• Low Power Consumption & Quiet Operation
.English, Traditional Chinese, Simplified
Chinese, Japanese, Korean, French,
German, Italian, Spanish, Russian,
Swedish, Norwegian, Finnish, Danish,
and Polish
Backup Management
.PC-client backup software-NetBak
Replicator: Instant/ Schedule/
Auto-sync backup
.Remote replication supports Rsync
.Encrypted remote replication
.One touch USB copy for different
destination folders
.Data backup to external storage device
Brand NEW
1.2GHz CPU
512MB DDRII Memory
Multi-browser Support
.Internet Explorer 7 & 8
.Safari 3 & 4
.Firefox 3
.Google Chrome
Package Contents
2.5” & 3.5” HDD
dual support
Turbo NAS
CD-ROM
Ethernet cable x 2
Quick Installation Guide
Unleash the NAS Power with GUI V3
Simply the best user experience with Ajax technology
Power cord
Flat head screw x 16 Flat head screw x 12
(for 3.5” HDD)
(Black, for 2.5” HDD)
Hard disk lock
• Multi-browser Support
• Step-by-step Wizard
• 3 theme colors
• Fast user/ group/ share
search
• Instant Language Switch
• QNAP RSS Feed
• And more...
Adaptor
Enter Button
Select Button
LED Indicators: Status,
LAN, USB, eSATA
Password & Network
Settings Reset Button
eSATA x 2
Giga LAN x 2
LED Indicators:
HDD1-4
USB 2.0 x 3
Power Button
One Touch Copy Button
USB 2.0
Power Connector
K-Lock Security Slot
Abundant SMB & SOHO Server Features
•
•
•
•
•
•
•
RAID Server
iSCSI Target
Web Server
File Server
FTP Server
MySQL Server
Media Server
• Backup Server
• Printer Server
(Max. 3 sets)
• Remote Replication
(Rsync)
• Surveillance Station
• and more…
iSCSI
Target
Disk Drive
RAID
0/1/5/6/
5+Spare/JBOD
Online RAID
expansion
UPS
migration
SNMP
Support
Failover
Balancing
Load
Schedule
Online RAID
30%
70%
Printer
Server
Dual
Hot
Swappable
on/off
9
SMS
Support
!
1
4
7
*
98/8
Virtual
2
3
5
8
0
6
9
#
OS
Support
2.5” & 3.5”
HDD support
QPKG
Support
PKG
UPnP
DLNA
6
Advanced RAID Management with
Hot-swap Design
All-in-one NAS Server with iSCSI
for SMB and SOHO Users
Online RAID Capacity Expansion
Online RAID Level Migration
RAID 1 Mirroring
JBOD disk configurations, online RAID capacity expansion, online RAID level migration,
performance, high reliability, and numerous powerful software applications.
RAID recovery, policy-based IP blocking, instant SMS alert notification, schedule power on/
off, and 4 IP cameras (optional purchase) for network surveillance video recording.
Eye-catching industrial design and superior hardware specifications
The TS-419P Turbo NAS incorporates a Marvell 1.2 GHz CPU and 512MB of DDRII RAM
Maximize the enjoyment of your home multimedia center
and is able to maintain superior performance in an intensive data access environment while
The built-in UPnP/ DLNA compliant media server (with TwonkyMedia enabled) of the Turbo
offering low power consumption. The TS-419P supports four hot-swappable SATA hard
NAS supports a wide range of DLNA media players such as Sony PS3 and Microsoft Xbox
drives, two Gigabit LAN ports for multi-IP settings, failover, and load-balancing, four USB
360 gaming consoles and works well with NFS-supported High-Definition (HD) digital
ports and two eSATA ports for external storage backup, and is also equipped with an LCD
media players for HD video streaming. By installing the DLNA/ UPnP application on your
display for convenient system status checking.
iPhone or iPod touch, you can access the Turbo NAS on the local network and play the
+
high-speed PC-less Download Station with the unique QGet utility enables you to manage
The TS-419P Turbo NAS supports cross-platform network services across Windows, Mac,
the BT/ FTP/ HTTP download tasks remotely over the local network or the Internet.
200%
File Server
The Turbo NAS allows you to create user ID and password, and
define the authority and quota for each user.
QGget-Download Utility for Windows and Mac
You can use the QGet download utility provided by QNAP to
manage the download tasks on multiple Turbo NAS servers.
Music Sharing by iTunes Server
All your MP3 music can be collectively stored and streamed to
Mac or Windows PC. Just turn on the iTunes program and enjoy
all the music around your home network.
Supports PS3 and XBox360
All the photos, music, and videos stored
on the Turbo NAS can be played via PS3
or XBox360 on your LCD TV or stereo
Hi-Fi system.
10
20
30
40
(MB/Sec)
50
• Client PC: Intel® Core™2 Quad 2.34GHz CPU, 2GB RAM, NVIDIA nForce Networking Controller, Windows Vista 32-Bit SP1
• Testing Method: Connect the TS-419P and PC to switch, upload/download 5GB file, FTP program: FileZilla 3.1.5
Flexible Built-in iSCSI Target Service
Efficient Power Management
With the built-in iSCSI target feature, the NAS can be an ideal solution for backup or
storage expansion. The users can easily create dedicated virtual drives on the NAS
for their PCs or existing servers. The iSCSI drives on the NAS can be formatted as
file system and used as local drives.
1. Hard Disk Standby: You can configure the hard disks to enter standby mode if
there is no disk access within the specified period.
On NAS (LUN1)
Backup
Local drive
C:\ drive
LUN 1
Local drive
C:\ drive
Low Power Consumption
PC
TS-419P (Sleep mode)
TS-419P (In operation)
PC server
Virtual Disk Expansion
26W
350W
Live Audio & Video Monitoring, Recording, and Playback over the Internet
Stack Target
Router
QNAP NAS
High quality video recording in
MPEG4 and Motion JPEG format
Live 2-way audio supported for monitoring
and voice broadcasting
A
Real-time monitoring and
recording for up to 30 frames/sec
per channel
Easy installation and management from
remote locations
B
QNAP NAS
Stack Target
11W
Surveillance Station
A
Stack Target
3. Power Resumption Settings: The Turbo NAS can be configured to be turned on or off
when the AC power resumes after a power loss.
4. UPS Support & Advanced Standby Setting: The Turbo NAS supports the majority of
USB UPS devices (usbhid-ups supported). You can also set the time for the server to
enter stand-by mode when an abnormal AC power supply is detected. When the
power resumes, the server resumes to the operation status before the power outage.
F:\ drive
B
2. Schedule Power on/ off: The flexible schedule power on/ off feature enables you to
manage the NAS server's up time according to the working hours. You can set the
time for automatic system power on, power off, or restart on any days of the week.
Server
LUN 2
C
Surveillance Station
The Surveillance Station enables you to configure and connect IP cameras
simultaneously and remotely manage the functions. The Surveillance Station
of QNAP NAS supports all the leading network camera brands such as AXIS,
D-Link, IPUX, LevelOne, Linksys, Panasonic and Vivotek, etc.
0
The TS-419P supports online RAID capacity expansion for expanding the storage
capacity of the RAID configuration and online RAID level migration for upgrading
the disk configuration to higher RAID level.
On NAS (LUN2)
Multimedia Station for Photo Sharing
You can share you photos, video, or music online by the
Multimedia Station of the Turbo NAS.
Read
Write
TS-409 series
ALL-in-One Server Features
iTunes
UP
c. RAID 5 + spare (4 HDD)
E:\ drive
PC-less Download Station
The Turbo NAS supports BitTorrent, FTP, and HTTP download
without PC. TCP/ UDP, encrypted BT download function, and DHT
(Distributed Hash Tables) are also supported. It supports to
download BitTorrent, emule/ eDonkey and NZB files.
UP
80%
SAMBA
Volume
UPnP Media Server (with built-in TwonkyMedia Server)
The Turbo NAS is a perfect media storage center and it works
well with DLNA (Digital Living Network Alliance) compliant media
players. You can play the photos and videos on TV, or listen to
your favorite music and Internet radio on your Hi-Fi system.
UP
150%
3TB (RAID5)
multimedia contents, e.g. videos, music, and photos on the server. In addition, the
Class-leading performance and compelling server applications
UP
80%
FTP
a. RAID 5 (4 HDD) b. RAID 6 (4 HDD)
+
+
1.5TB (RAID5)
TS-419P
1TB
(VDD) by built-in iSCSI initiator for storage expansion, RAID 0/ 1/ 5/ 6/ 5+spare, single and
sharing, the TS-419P Turbo NAS features excellent hardware design, outstanding
1TB
and prosumer users. As a high capacity storage centre for data backup, management and
1TB
EXT4 file systems, built-in iSCSI target service (max 8 iSCSI targets), virtual disk drive
1TB
HDD network-attached storage server with iSCSI applications dedicated to SMB, SOHO
500GB
Linux, and UNIX. Enhanced industry-leading features are also provided, e.g. EXT3 and
500GB

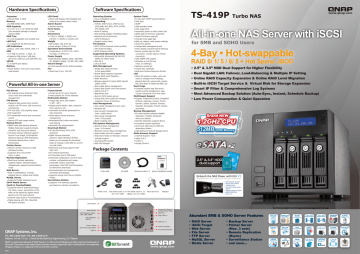

The QNAP TS-419P Turbo NAS is a high performance 4-bay, 2.5-inch and 3.5-inch SATA
500GB
500GB
Overview
RAID 5 (3 HDD)
Ultra-high Speed Performance
Living room
Garage
C
Stack Master
Virtual Disk Drive (VDD) adds flexibility to storage expansion along with
ease of management
The unique "Virtual Disk Drive" adds flexibility to expand the capacity of NAS. By
using the built-in iSCSI initiator, the NAS can connect to other iSCSI targets on the
network and turn them into virtual disks, which become multiple single volumes on
the NAS. Up to 8 virtual disks can be stacked. The NAS serves as the storage stack
chaining master. The user only needs to connect to this single entry (QNAP NAS)
and is able to reach and use all the iSCSI target storages on the network.
Router
Internet
Home
Remote monitoring
over the Internet
• TS-419P
Secure Measures for Data Storage and Access
Exclusive Windows-based Backup Utility
The automatic backup software, NetBak Replicator, is
provided for you to perform real-time synchronization or
schedule backup from multiple PCs to the Turbo NAS.
FTP Server
You can establish your own FTP server by using the
Turbo NAS and share the files conveniently with your
friends or customers.
X
3
Printer Server
The NAS supports
network printer sharing
function (max 3 USB
printers).
Using QNAP NAS with iPhone or
iPod touch
By installing DLNA/ UPnP application
on the iPhone or iPod touch, you can
access QNAP NAS on the local
network and play the multimedia
contents, e.g. videos, music, and
photos on the server.
1 Policy-based Unauthorized IP Blocking: You can allow, deny or auto block specified IP address or
network domain which attempts to connect to the Turbo NAS via SSH/ Telnet/ HTTP(S)/ FTP/ samba/
AFP.
2 Comprehensive Log System: Detailed logs of file-level data access to the Turbo NAS via samba, FTP,
AFP, HTTP, HTTPS, Telnet, iSCSI, and SSH. The networking services accessed by online users are all
recorded.
3 Syslog Setting: All the system event logs and connection logs can be saved to a remote syslog server.
4 Remote Login by SSH (secure shell) or Telnet connection is supported.
5 SSL Security (HTTPS): The Turbo NAS can be accessed and configured by the web browser securely.
You can also upload a secure certificate and RSA private key in X.509PEM format issued by a trusted
provider for the users to access the Turbo NAS by secure SSL login.
6 Secure FTP: The data can be transmitted with SSL/TLS (explicit) encryption. Passive FTP port range
setup is also supported.
7 Write-only access right on FTP server: The third party partners are allowed to upload data to the NAS but
not able to read or edit the data on FTP server.
8 Encrypted Remote Replication: The data on the NAS can be backed up to or from another Turbo NAS
over the network securely.
9 Share Folder Management: For the security of Windows network environment, you can hide or show
network share folders.
10 User Authority Management: You can create user ID and password, and define the authority and quota
for each user.
Branches
Web Visitors
Encrypted Remote
Replication
1
1
Web Server
(Joomla!, PHP/
MySQL/ SQLite)
8
Customers
FTP Server
7
1
6
X
3
Printer Server
2
Syslog
Server
MIS
3
Windows AD
4
5
9 10
Backup Server
File Server
1 10
Headquarters
Advanced RAID Management with
Hot-swap Design
All-in-one NAS Server with iSCSI
for SMB and SOHO Users
Online RAID Capacity Expansion
Online RAID Level Migration
RAID 1 Mirroring
JBOD disk configurations, online RAID capacity expansion, online RAID level migration,
performance, high reliability, and numerous powerful software applications.
RAID recovery, policy-based IP blocking, instant SMS alert notification, schedule power on/
off, and 4 IP cameras (optional purchase) for network surveillance video recording.
Eye-catching industrial design and superior hardware specifications
The TS-419P Turbo NAS incorporates a Marvell 1.2 GHz CPU and 512MB of DDRII RAM
Maximize the enjoyment of your home multimedia center
and is able to maintain superior performance in an intensive data access environment while
The built-in UPnP/ DLNA compliant media server (with TwonkyMedia enabled) of the Turbo
offering low power consumption. The TS-419P supports four hot-swappable SATA hard
NAS supports a wide range of DLNA media players such as Sony PS3 and Microsoft Xbox
drives, two Gigabit LAN ports for multi-IP settings, failover, and load-balancing, four USB
360 gaming consoles and works well with NFS-supported High-Definition (HD) digital
ports and two eSATA ports for external storage backup, and is also equipped with an LCD
media players for HD video streaming. By installing the DLNA/ UPnP application on your
display for convenient system status checking.
iPhone or iPod touch, you can access the Turbo NAS on the local network and play the
+
high-speed PC-less Download Station with the unique QGet utility enables you to manage
The TS-419P Turbo NAS supports cross-platform network services across Windows, Mac,
the BT/ FTP/ HTTP download tasks remotely over the local network or the Internet.
iTunes
200%
The TS-419P supports online RAID capacity expansion for expanding the storage
capacity of the RAID configuration and online RAID level migration for upgrading
the disk configuration to higher RAID level.
QGget-Download Utility for Windows and Mac
You can use the QGet download utility provided by QNAP to
manage the download tasks on multiple Turbo NAS servers.
Music Sharing by iTunes Server
All your MP3 music can be collectively stored and streamed to
Mac or Windows PC. Just turn on the iTunes program and enjoy
all the music around your home network.
Supports PS3 and XBox360
All the photos, music, and videos stored
on the Turbo NAS can be played via PS3
or XBox360 on your LCD TV or stereo
Hi-Fi system.
10
20
30
40
(MB/Sec)
50
• Client PC: Intel® Core™2 Quad 2.34GHz CPU, 2GB RAM, NVIDIA nForce Networking Controller, Windows Vista 32-Bit SP1
• Testing Method: Connect the TS-419P and PC to switch, upload/download 5GB file, FTP program: FileZilla 3.1.5
Efficient Power Management
With the built-in iSCSI target feature, the NAS can be an ideal solution for backup or
storage expansion. The users can easily create dedicated virtual drives on the NAS
for their PCs or existing servers. The iSCSI drives on the NAS can be formatted as
file system and used as local drives.
1. Hard Disk Standby: You can configure the hard disks to enter standby mode if
there is no disk access within the specified period.
On NAS (LUN1)
Backup
Local drive
C:\ drive
LUN 1
Server
LUN 2
Local drive
C:\ drive
F:\ drive
Stack Target
4. UPS Support & Advanced Standby Setting: The Turbo NAS supports the majority of
USB UPS devices (usbhid-ups supported). You can also set the time for the server to
enter stand-by mode when an abnormal AC power supply is detected. When the
power resumes, the server resumes to the operation status before the power outage.
11W
26W
350W
Surveillance Station
Live Audio & Video Monitoring, Recording, and Playback over the Internet
Stack Target
Router
QNAP NAS
High quality video recording in
MPEG4 and Motion JPEG format
Live 2-way audio supported for monitoring
and voice broadcasting
A
Real-time monitoring and
recording for up to 30 frames/sec
per channel
Easy installation and management from
remote locations
B
QNAP NAS
Stack Target
3. Power Resumption Settings: The Turbo NAS can be configured to be turned on or off
when the AC power resumes after a power loss.
TS-419P (Sleep mode)
TS-419P (In operation)
PC server
A
B
2. Schedule Power on/ off: The flexible schedule power on/ off feature enables you to
manage the NAS server's up time according to the working hours. You can set the
time for automatic system power on, power off, or restart on any days of the week.
Low Power Consumption
PC
Virtual Disk Expansion
C
Surveillance Station
The Surveillance Station enables you to configure and connect IP cameras
simultaneously and remotely manage the functions. The Surveillance Station
of QNAP NAS supports all the leading network camera brands such as AXIS,
D-Link, IPUX, LevelOne, Linksys, Panasonic and Vivotek, etc.
0
Flexible Built-in iSCSI Target Service
On NAS (LUN2)
File Server
The Turbo NAS allows you to create user ID and password, and
define the authority and quota for each user.
Read
Write
TS-409 series
ALL-in-One Server Features
Multimedia Station for Photo Sharing
You can share you photos, video, or music online by the
Multimedia Station of the Turbo NAS.
UP
80%
UP
c. RAID 5 + spare (4 HDD)
E:\ drive
PC-less Download Station
The Turbo NAS supports BitTorrent, FTP, and HTTP download
without PC. TCP/ UDP, encrypted BT download function, and DHT
(Distributed Hash Tables) are also supported. It supports to
download BitTorrent, emule/ eDonkey and NZB files.
UP
SAMBA
Volume
UPnP Media Server (with built-in TwonkyMedia Server)
The Turbo NAS is a perfect media storage center and it works
well with DLNA (Digital Living Network Alliance) compliant media
players. You can play the photos and videos on TV, or listen to
your favorite music and Internet radio on your Hi-Fi system.
UP
80%
150%
3TB (RAID5)
multimedia contents, e.g. videos, music, and photos on the server. In addition, the
Class-leading performance and compelling server applications
FTP
a. RAID 5 (4 HDD) b. RAID 6 (4 HDD)
+
+
1.5TB (RAID5)
TS-419P
1TB
(VDD) by built-in iSCSI initiator for storage expansion, RAID 0/ 1/ 5/ 6/ 5+spare, single and
sharing, the TS-419P Turbo NAS features excellent hardware design, outstanding
1TB
and prosumer users. As a high capacity storage centre for data backup, management and
1TB
EXT4 file systems, built-in iSCSI target service (max 8 iSCSI targets), virtual disk drive
1TB
HDD network-attached storage server with iSCSI applications dedicated to SMB, SOHO
500GB
Linux, and UNIX. Enhanced industry-leading features are also provided, e.g. EXT3 and
500GB
The QNAP TS-419P Turbo NAS is a high performance 4-bay, 2.5-inch and 3.5-inch SATA
500GB
500GB
Overview
RAID 5 (3 HDD)
Ultra-high Speed Performance
Living room
Garage
C
Stack Master
Virtual Disk Drive (VDD) adds flexibility to storage expansion along with
ease of management
The unique "Virtual Disk Drive" adds flexibility to expand the capacity of NAS. By
using the built-in iSCSI initiator, the NAS can connect to other iSCSI targets on the
network and turn them into virtual disks, which become multiple single volumes on
the NAS. Up to 8 virtual disks can be stacked. The NAS serves as the storage stack
chaining master. The user only needs to connect to this single entry (QNAP NAS)
and is able to reach and use all the iSCSI target storages on the network.
Router
Internet
Home
Remote monitoring
over the Internet
• TS-419P
Secure Measures for Data Storage and Access
Exclusive Windows-based Backup Utility
The automatic backup software, NetBak Replicator, is
provided for you to perform real-time synchronization or
schedule backup from multiple PCs to the Turbo NAS.
FTP Server
You can establish your own FTP server by using the
Turbo NAS and share the files conveniently with your
friends or customers.
X
3
Printer Server
The NAS supports
network printer sharing
function (max 3 USB
printers).
Using QNAP NAS with iPhone or
iPod touch
By installing DLNA/ UPnP application
on the iPhone or iPod touch, you can
access QNAP NAS on the local
network and play the multimedia
contents, e.g. videos, music, and
photos on the server.
1 Policy-based Unauthorized IP Blocking: You can allow, deny or auto block specified IP address or
network domain which attempts to connect to the Turbo NAS via SSH/ Telnet/ HTTP(S)/ FTP/ samba/
AFP.
2 Comprehensive Log System: Detailed logs of file-level data access to the Turbo NAS via samba, FTP,
AFP, HTTP, HTTPS, Telnet, iSCSI, and SSH. The networking services accessed by online users are all
recorded.
3 Syslog Setting: All the system event logs and connection logs can be saved to a remote syslog server.
4 Remote Login by SSH (secure shell) or Telnet connection is supported.
5 SSL Security (HTTPS): The Turbo NAS can be accessed and configured by the web browser securely.
You can also upload a secure certificate and RSA private key in X.509PEM format issued by a trusted
provider for the users to access the Turbo NAS by secure SSL login.
6 Secure FTP: The data can be transmitted with SSL/TLS (explicit) encryption. Passive FTP port range
setup is also supported.
7 Write-only access right on FTP server: The third party partners are allowed to upload data to the NAS but
not able to read or edit the data on FTP server.
8 Encrypted Remote Replication: The data on the NAS can be backed up to or from another Turbo NAS
over the network securely.
9 Share Folder Management: For the security of Windows network environment, you can hide or show
network share folders.
10 User Authority Management: You can create user ID and password, and define the authority and quota
for each user.
Branches
Web Visitors
Encrypted Remote
Replication
1
1
Web Server
(Joomla!, PHP/
MySQL/ SQLite)
8
Customers
FTP Server
7
1
6
X
3
Printer Server
2
Syslog
Server
MIS
3
Windows AD
4
5
9 10
Backup Server
File Server
1 10
Headquarters
Hardware Specifications
Software Specifications
Processor
LCD Panel
Operating System
System Tools
.Marvell 6281 1.2GHz
.Linux-embedded system
Memory
.Mono-LCD display with backlight and
buttons for system status check
.512MB DDRII RAM, 16MB Flash
Alarm Buzzer
HDD Capacity
.System warning
.4 x 2.5" or 4 x 3.5” SATA I/II HDD
(the standard package is shipped
without HDD)
Form Factor
HDD Tray
.4 x hot-swappable and lockable tray
.177(H) x 180(W) x 235(D) mm
.6.97(H) x 7.09(W) x 9.25(D) inch
LAN Port
Weight
.2 x Gigabit RJ-45 Ethernet port
LED Indicators
.Net weight: 3kg (6.61 lb)
.Gross weight: 4.6kg (10.14 lb)
.Status, LAN, USB, eSATA, HDD 1-4
Operation Environment
USB
.Temperature: 0~40˚C/ 32~104°F
.Humidity: 0~95% R.H.
.E-mail alert (SMTP authentication)
.SMS alert
.SNMP
.HDD standby mode
.Disk usage alert
.Automatic power on after power loss
.QPKG add-on firmware supported
.System firmware upgrade
.Change home page logo
.Back up, restore, reset system settings
.Smart fan setting
.Configurable management port
.Policy-based unauthorized IP blocking
.Secure remote login by SSH
connection; remote login by Telnet
connection
.USB, SNMP UPS support
.Schedule on/ off service
(max. 15 settings)
.Network recycle bin
.Import SSL certificate
.Real-time System Resource Monitor
.4 x USB 2.0 (Front: 1; Back: 3)
.Supports USB printer, USB disk,
pen drive, USB hub, and USB UPS, etc.
Networking
.TCP/IP, DHCP client, DHCP server,
CIFS/SMB, AFP, NFS, HTTP, HTTPS,
FTP, DDNS, NTP
.Multi-IP setting
.Port trunking (support 7 bonding modes)
.Network service discovery
(UPnP & Bonjour)
.Gigabit Jumbo frame
.Tower
Dimensions
File System
.EXT3, EXT4 (Internal/ external HDD)
.FAT (External HDD)
.NTFS (External HDD)
Supported Operating Systems
Power Supply
eSATA
.External power adaptor, Input: 100-240V
AC, 50/60Hz, Output: 12V DC, 10A, 120W
.2 x eSATA port (Back)
Secure Design
.Microsoft® Windows® 98/ ME/ NT/
2000/ XP/ 2003/ Vista
.Mac OS X
.Linux & UNIX
Buttons
.K-Lock security slot for theft prevention
Disk Management
.Power button, one touch copy button,
reset button
Fan
.Single disk, RAID 0/1/5/6/
5+hot spare/JBOD
.Online RAID Capacity Expansion
.Online RAID Level Migration
.RAID Recovery
.Bitmap support for faster RAID rebuild
(RAID 1/5/6)
.Disk usage status management
.Check disk (Check Linux file system)
.HDD S.M.A.R.T.
.Bad blocks scan
.Built-in iSCSI target service
.Virtual Disk Drive (VDD) for storage
expansion (max. 8 Volumes)
.Smart fan (9 cm, 12V DC)
Powerful All-in-one Server
File Server
iTunes Server
.File sharing across Windows/ Mac/
Linux/ Unix and centralized
management
.iTunes server for music sharing
.Smart playlist for iTunes software
FTP Server
.Image slide show and rotation
(+90°, -90°)
.Display photo details: date, exposure
time, aperture, etc.
.Automatic thumbnail generation for
easy browsing
.Photo album access authority
management
.Multimedia files (video and audio)
local playing
.Automatic file categorization
.Supports data access from remote
location via FTP (max. 256 concurrent
connections)
.FTP with SSL/ TLS (explicit) mode
.FXP supported
.FTP bandwidth control and connection
control
.Passive FTP port range control
Backup Server
.QNAP client-side backup software NetBak Replicator supports instant,
schedule, and auto-sync backup
.3rd party backup software support:
Acronis True Image, CA Brightstor
ARCserve Backup, EMC Retrospect,
Symantec Backup Exec, LaCie
Silverkeeper
Multimedia Station
Download Station
MySQL Server
.PC-less BitTorrent/ FTP/ HTTP
download
.QNAP remote download
software: QGet (Windows & Mac),
allows you to manage the download
tasks of multiple Turbo NAS on one PC
via LAN/ WAN
.BitTorrent download supports TCP/
UDP, DHT
.BT schedule download
.BT download (up to 500 tasks)
.Download configuration (current seed
number, configurable port range,
bandwidth control, download
percentage, UPnP NAT port forwarding
for BitTorrent download)
.Download status list management
(download percentage)
.Supports access from Mac by Mozilla
Firefox
.Supports MySQL database server
Surveillance Station
UPnP Media Server
(built-in TwonkyMedia)
.Supports 4 IP cameras (optional
purchase) for network surveillance
Printer Server
.Network printer sharing via USB
(Windows & Mac)
.Supports all-in-one printer
(max. 3 sets)
Remote Replication
.Block-level remote replication
supports instant, schedule backup
management; supports synchronization
mode
Web Server
.Built-in phpMyAdmin, Joomla!,
editable php.ini, SQLite and MySQL
.Supports UPnP or DLNA technology;
the video, music, and photos on the
NAS can be played by digital media
players over the local network
.Internet radio (built-in TwonkyMedia)
.Media playing with PS3, Xbox360,
PSP game consoles
User Management
.User quota management (per user)
.Windows AD
.User account management
(max. 4,096 users)
.User group management
(max. 512 groups)
.Batch creating users
File System Management
.Network share management
(max. 512 shares)
.Network volume status management
.Share folder level ACL support
.Hide share folder on Windows network
.Unicode support
.Journaling file system
.Web File Manager
TS-419P
Turbo NAS
All-in-one NAS Server with iSCSI
for SMB and SOHO Users
4-Bay • Hot-swappable
RAID 0/ 1/ 5 / 6/ 5 + Hot Spare/ JBOD
• 2.5” & 3.5” HDD Dual Support for Higher Flexibility
• Dual Gigabit LAN: Failover, Load-Balancing & Multiple IP Setting
LCD
.When the system is ready, users can
check or configure the IP settings,
physical disk info, volume info, system
info, shut down or reboot the NAS, etc.
• Online RAID Capacity Expansion & Online RAID Level Migration
• Built-in iSCSI Target Service & Virtual Disk for Storage Expansion
Event Logs
• Smart IP Filter & Comprehensive Log Systems
.Complete system logs (file level):
system events management, logs,
current connection of on-line users
• Most Advanced Backup Solution (Auto-Sync, Instant, Schedule Backup)
Multilingual Support
• Low Power Consumption & Quiet Operation
.English, Traditional Chinese, Simplified
Chinese, Japanese, Korean, French,
German, Italian, Spanish, Russian,
Swedish, Norwegian, Finnish, Danish,
and Polish
Backup Management
.PC-client backup software-NetBak
Replicator: Instant/ Schedule/
Auto-sync backup
.Remote replication supports Rsync
.Encrypted remote replication
.One touch USB copy for different
destination folders
.Data backup to external storage device
Brand NEW
1.2GHz CPU
512MB DDRII Memory
Multi-browser Support
.Internet Explorer 7 & 8
.Safari 3 & 4
.Firefox 3
.Google Chrome
Package Contents
2.5” & 3.5” HDD
dual support
Turbo NAS
CD-ROM
Ethernet cable x 2
Quick Installation Guide
Unleash the NAS Power with GUI V3
Simply the best user experience with Ajax technology
Power cord
Flat head screw x 16 Flat head screw x 12
(for 3.5” HDD)
(Black, for 2.5” HDD)
Hard disk lock
• Multi-browser Support
• Step-by-step Wizard
• 3 theme colors
• Fast user/ group/ share
search
• Instant Language Switch
• QNAP RSS Feed
• And more...
Adaptor
Enter Button
Select Button
LED Indicators: Status,
LAN, USB, eSATA
Password & Network
Settings Reset Button
eSATA x 2
Giga LAN x 2
LED Indicators:
HDD1-4
USB 2.0 x 3
Power Button
One Touch Copy Button
USB 2.0
Power Connector
K-Lock Security Slot
Abundant SMB & SOHO Server Features
•
•
•
•
•
•
•
RAID Server
iSCSI Target
Web Server
File Server
FTP Server
MySQL Server
Media Server
• Backup Server
• Printer Server
(Max. 3 sets)
• Remote Replication
(Rsync)
• Surveillance Station
• and more…
iSCSI
Target
Disk Drive
RAID
0/1/5/6/
5+Spare/JBOD
Online RAID
expansion
UPS
migration
SNMP
Support
Failover
Balancing
Load
Schedule
Online RAID
30%
70%
Printer
Server
Dual
Hot
Swappable
on/off
9
SMS
Support
!
1
4
7
*
98/8
Virtual
2
5
8
0
3
6
9
#
OS
Support
2.5” & 3.5”
HDD support
QPKG
Support
PKG
UPnP
DLNA
6
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
