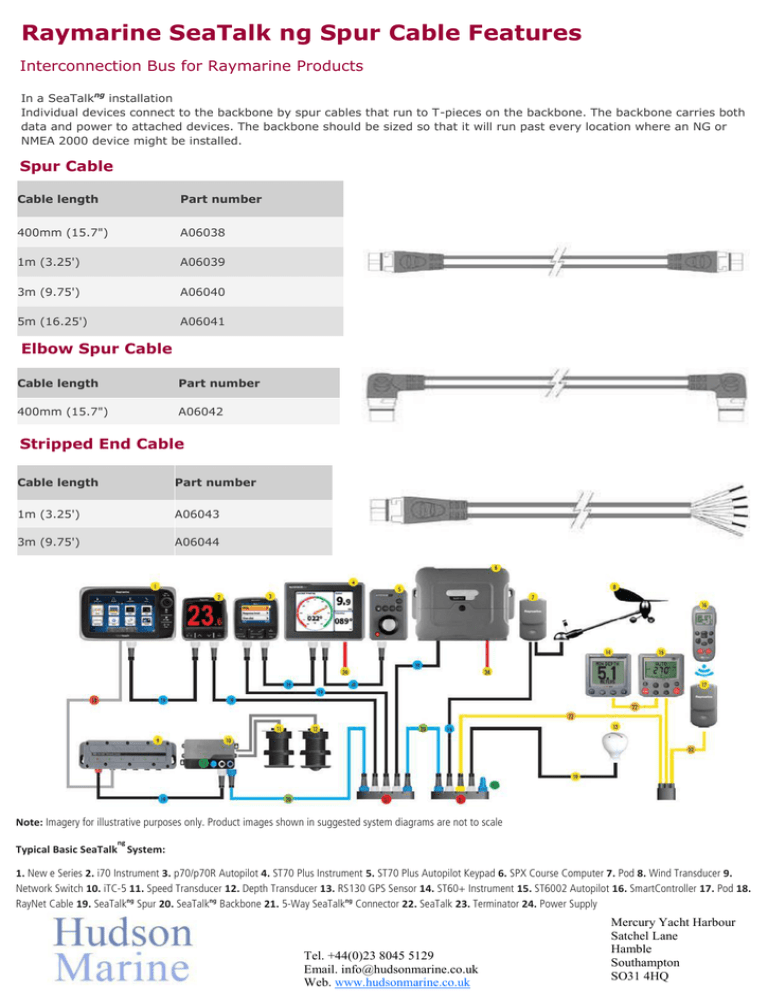

Raymarine SeaTalk ng Spur Cable Features
Interconnection Bus for Raymarine Products
In a SeaTalkng installation
Individual devices connect to the backbone by spur cables that run to T-pieces on the backbone. The backbone carries both
data and power to attached devices. The backbone should be sized so that it will run past every location where an NG or
NMEA 2000 device might be installed.
Spur Cable
Cable length
Part number
400mm (15.7")
A06038
1m (3.25')
A06039
3m (9.75')
A06040
5m (16.25')
A06041
Elbow Spur Cable
Cable length
Part number
400mm (15.7")
A06042
Stripped End Cable
Cable length
Part number
1m (3.25')
A06043
3m (9.75')
A06044
Note: Imagery for illustrative purposes only. Product images shown in suggested system diagrams are not to scale
ng
Typical Basic SeaTalk System:
1. New e Series 2. i70 Instrument 3. p70/p70R Autopilot 4. ST70 Plus Instrument 5. ST70 Plus Autopilot Keypad 6. SPX Course Computer 7. Pod 8. Wind Transducer 9.
Network Switch 10. iTC-5 11. Speed Transducer 12. Depth Transducer 13. RS130 GPS Sensor 14. ST60+ Instrument 15. ST6002 Autopilot 16. SmartController 17. Pod 18.
RayNet Cable 19. SeaTalkng Spur 20. SeaTalkng Backbone 21. 5-Way SeaTalkng Connector 22. SeaTalk 23. Terminator 24. Power Supply
