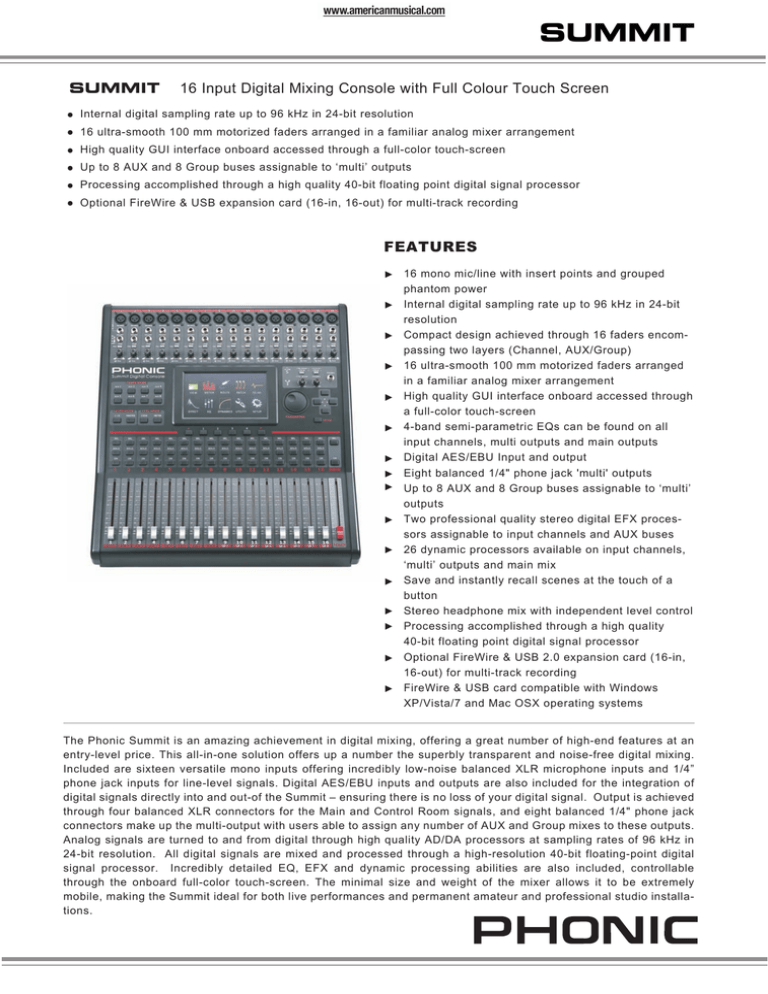

SUMMIT
SUMMIT
16 Input Digital Mixing Console with Full Colour Touch Screen
● Internal digital sampling rate up to 96 kHz in 24-bit resolution
● 16 ultra-smooth 100 mm motorized faders arranged in a familiar analog mixer arrangement
● High quality GUI interface onboard accessed through a full-color touch-screen
● Up to 8 AUX and 8 Group buses assignable to ‘multi’ outputs
● Processing accomplished through a high quality 40-bit floating point digital signal processor
● Optional FireWire & USB expansion card (16-in, 16-out) for multi-track recording
FEATURES
►
►
►
►
►
►
►
►
►
►
►
►
►
►
►
►
16 mono mic/line with insert points and grouped
phantom power
Internal digital sampling rate up to 96 kHz in 24-bit
resolution
Compact design achieved through 16 faders encompassing two layers (Channel, AUX/Group)
16 ultra-smooth 100 mm motorized faders arranged
in a familiar analog mixer arrangement
High quality GUI interface onboard accessed through
a full-color touch-screen
4-band semi-parametric EQs can be found on all
input channels, multi outputs and main outputs
Digital AES/EBU Input and output
Eight balanced 1/4" phone jack 'multi' outputs
Up to 8 AUX and 8 Group buses assignable to ‘multi’
outputs
Two professional quality stereo digital EFX processors assignable to input channels and AUX buses
26 dynamic processors available on input channels,
‘multi’ outputs and main mix
Save and instantly recall scenes at the touch of a
button
Stereo headphone mix with independent level control
Processing accomplished through a high quality
40-bit floating point digital signal processor
Optional FireWire & USB 2.0 expansion card (16-in,
16-out) for multi-track recording
FireWire & USB card compatible with Windows
XP/Vista/7 and Mac OSX operating systems
The Phonic Summit is an amazing achievement in digital mixing, offering a great number of high-end features at an
entry-level price. This all-in-one solution offers up a number the superbly transparent and noise-free digital mixing.
Included are sixteen versatile mono inputs offering incredibly low-noise balanced XLR microphone inputs and 1/4”
phone jack inputs for line-level signals. Digital AES/EBU inputs and outputs are also included for the integration of
digital signals directly into and out-of the Summit – ensuring there is no loss of your digital signal. Output is achieved
through four balanced XLR connectors for the Main and Control Room signals, and eight balanced 1/4" phone jack
connectors make up the multi-output with users able to assign any number of AUX and Group mixes to these outputs.
Analog signals are turned to and from digital through high quality AD/DA processors at sampling rates of 96 kHz in
24-bit resolution. All digital signals are mixed and processed through a high-resolution 40-bit floating-point digital
signal processor. Incredibly detailed EQ, EFX and dynamic processing abilities are also included, controllable
through the onboard full-color touch-screen. The minimal size and weight of the mixer allows it to be extremely
mobile, making the Summit ideal for both live performances and permanent amateur and professional studio installations.
SUMMIT
SPECIFICATIONS
Analog Input
Insert I/O
2TR In ANALOG
Stereo Output
Studio Monitor Out
C-R Monitor Out
Multi Output
AUX Output
Phones
Digital I/O
Word Clock I/O
Options
Sampling Frequency
Signal Delay
(CH INPUT to STEREO OUT)
Fader
Distortion (THD + N)
Frequency Response
(CH INPUT to STEREO OUT)
Hum & Noise
Power Supply
Dimensions (H x W x D)
Weight
MIC In: 16 x XLR (balanced)
Line In: 16 x 1/4” TRS (balanced)
16 x phone jacks (unbalanced)
2 x RCA Phono (unbalanced)
2 x XLR (balanced)
2 x RCA Phono (unbalanced)
2 x XLR (balanced)
2 x XLR (balanced)
8 x 1/4” TRS phone jacks (balanced)
(Shared with ‘Multi’)
1 x Stereo 1/4” TRS Phone Jack (unbalanced)
(AES/EBU) 2 x XLR Balanced
2 x BNC Connector
Universal 16 x 16 Expansion card
(2 x FireWire, 1 x USB 2.0)
SD Card for firmware update
44.1kHz, 48kHz, 88.2kHz, 96kHz
Fs=48kHz < 1.2ms
Fs=96kHz < 0.6ms
17 x 100mm touch sensitive motorized faders
< 0.001% (1kHz, mic +24 dBu to line out)
Fs=48,96kHz,
0/-1.5dBu
20Hz - 20kHz @+4dBu into 600Ω
(20Hz-20KHz),
Rs=150Ω,
-128dBu(EIN)
90dBu (residual output noise)
Input: 100-240VAC/47-63 Hz/2A
Output: 19VDC/3.42A/MAX: 65W
175.9 x 473 x 540.69 mm
6.93” x 18.62” x 21.29”
18.5 kg
40.79 lbs
Back Panel
V1.0 12/31/2009
Information in this document is subject to change without notice
