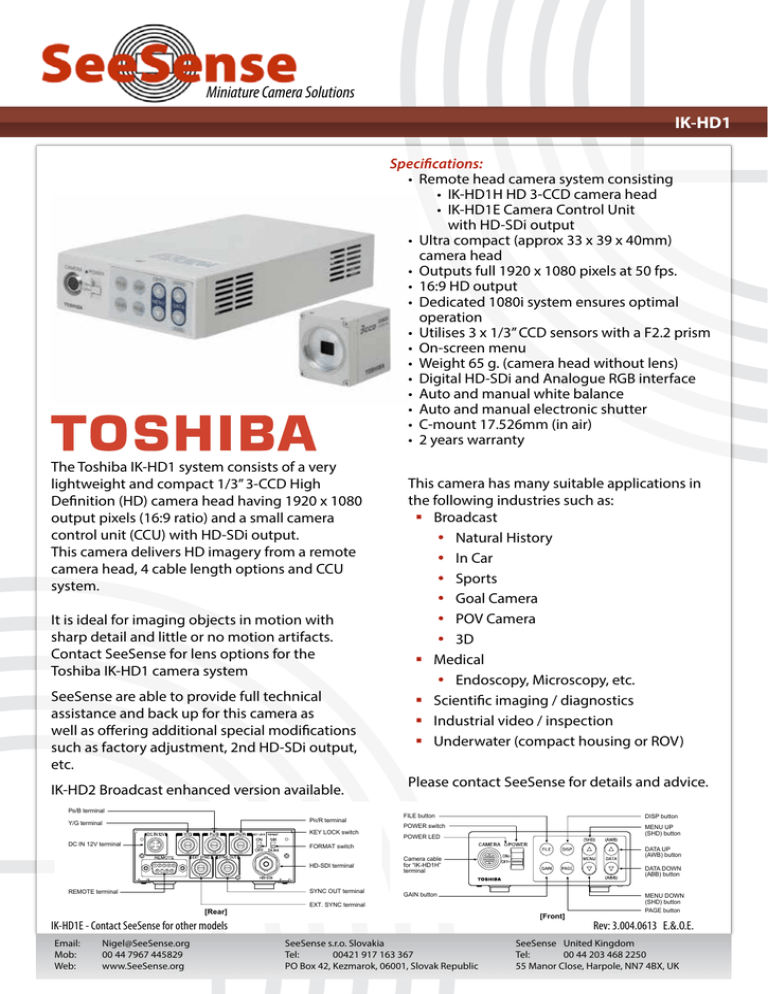

IK-HD1 Datasheet

Miniature Camera Solutions
IK-HD1
Specifications:
• Remote head camera system consisting
• IK-HD1H HD 3-CCD camera head
• IK-HD1E Camera Control Unit
with HD-SDi output
• Ultra compact (approx 33 x 39 x 40mm)
camera head
• Outputs full 1920 x 1080 pixels at 50 fps.
• 16:9 HD output
• Dedicated 1080i system ensures optimal
operation
• Utilises 3 x 1/3” CCD sensors with a F2.2 prism
• On-screen menu
• Weight 65 g. (camera head without lens)
• Digital HD-SDi and Analogue RGB interface
• Auto and manual white balance
• Auto and manual electronic shutter
• C-mount 17.526mm (in air)
• 2 years warranty
The Toshiba IK-HD1 system consists of a very
lightweight and compact 1/3” 3-CCD High
Definition (HD) camera head having 1920 x 1080
output pixels (16:9 ratio) and a small camera
control unit (CCU) with HD-SDi output.
This camera delivers HD imagery from a remote
camera head, 4 cable length options and CCU
system.
It is ideal for imaging objects in motion with
sharp detail and little or no motion artifacts.
Contact
SeeSense for lens options for the
4. NAMES AND FUNCTIONS
Toshiba IK-HD1 camera system
FILE button
DISP button
POWER switch
MENU UP
SeeSense
are able to provide full technical
(SHD) button
POWER LED
assistance and back up for this camera asDATA UP
(AWB) button
Camera cable
well
as
offering
additional
special
modifications
for “IK-HD1H”
DATA DOWN
terminal
(ABB) button
such as factory adjustment, 2nd HD-SDi output,
MENU DOWN
etc.GAIN button
(SHD) button
PAGE button
[Front]
IK-HD2 Broadcast enhanced
version available.
PB/B terminal
PR/R terminal
Y/G terminal
KEY LOCK switch
DC IN 12V terminal
1
2
4
3
This camera has many suitable applications in
the following industries such as:
ƒƒBroadcast
yyNatural History
yyIn Car
yySports
yyGoal Camera
yyPOV Camera
yy3D
ƒƒMedical
yyEndoscopy, Microscopy, etc.
ƒƒScientific imaging / diagnostics
ƒƒIndustrial video / inspection
ƒƒUnderwater (compact housing or ROV)
Please contact SeeSense for details and advice.
4. NAMES AND FUNCTIONS
FILE button
DISP button
POWER switch
MENU UP
(SHD) button
POWER LED
FORMAT switch
HD-SDI terminal
1 2 3 4 5
6 7 8 9
SYNC OUT terminal
REMOTE terminal
[Rear]
DATA UP
(AWB) button
Camera cable
for “IK-HD1H”
terminal
DATA DOWN
(ABB) button
GAIN button
EXT. SYNC terminal
[Front]
IK-HD1E - Contact SeeSense for other models
Email: [email protected]
SeeSense s.r.o. Slovakia
Y/G terminal
Mob:
00 44 7967 445829
Tel:
00421 917 163 367
POWER LED
Illuminates to indicate the unit is powered on.
Web:
www.SeeSense.org
PO Box 42, Kezmarok, 06001, Slovak Republic
POWER
switch
Turns power on or off.
Camera cable for
“IK-HD1H” terminal
Where the camera cable for “IK-HD1H” is connected.
FILE button
To switch the scene files.
GAIN button
To change the gain mode.
Rev: 3.004.0613 E.&.O.E.
SeeSense United Kingdom
Tel:
00 44 203 468 2250PR/R terminal
LOCK switch
55 Manor Close, Harpole, NN7 KEY
4BX,
UK
PB/B terminal
DC IN 12V terminal
MENU DOWN
(SHD) button
PAGE button
1
2
4
3
FORMAT switch
Miniature Camera Solutions
IK-HD1
Specification:
Power Requirements 12 V DC ± 10% DCIN connector (4pin)
Power Consumption 10.3 watts (0.75 Amps)
3 x 1/3-inch IT CCDs
Image Sensor
3-CCD, RGB f2.2 Micro Prism System
Output Pixels
1920H x 1080i HDTV 50 / 59.94Hz (switchable)
Scanning System
2:1 Interlaced (1080i)
[59.94Hz] Horizontal: 33.716kHz, Vertical: 59.94Hz
Scan Frequency
[50Hz] Horizontal: 28.125kHz, Vertical: 50Hz
Resolution
800TV lines standard (vertical and horizontal)
f7.4 @ 2000 Lux (50Hz)
Approx. 210 Lux at f2.2 / 0dB (100% video out)
Sensitivity
Approx. 105 Lux at f2.2 / +6dB Gain (100% video out)
Approx. 13 Lux at f2.2 / +18dB Gain (100% video out)
Signal/Noise Ratio 56dB (Gain @ 0dB, DNR OFF)
13 lux (59.94 Hz setting, F2.2, sensitivity+18 dB)
Min. Illumination
11 lux (50 Hz setting, F2.2, sensitivity +18 dB)
Frame Rate
50 fps 1080i
MAN: Manual Shutter OFF, 1/100s, 1/125s, 1/250s,
1/500s, 1/1000s, 1/3000s, 1/5000s, 1/10000s,
Shutter Modes
1/30000s, 1/50000s
AUTO: Automatic Shutter (EEI / CCD Iris)
SS: Synchro Scan 1/1125H - 560/1125H
Adjustable 6 axis colour matrix circuit
Colour Matrix
(Red, Green, Blue, Cyan, Yellow & Magenta)
AUTO: Automatic Gain Control to +18dB
(with upper limit MENU set)
Gain Modes
MAN: Manual Gain Control in 1 dB steps to +18dB
NORM: 0dB / OFF
MAN: Manual (RED and BLUE adjust)
White Balance
AWB: Auto White Balance (Push to Set White)
ATW: Auto Tracing White
Scene File Setting
5 Files A, B, C, D, E
Digital HD-SDI (SMPTE 292 M)
Video Signal Output
Analog RGB or Y / R-Y / B-Y
HD-SDI (SMPTE 292M) Output x 1 to BNC Connector
Y / R-Y / B-Y 75 Ω Unbalanced to BNC Connectors
Red, Green and Blue 75 Ω Unbalanced to BNC
Output Signals
connectors (YUV / RGB Output Menu Selectable)
Analog Tri-level Sync Output to BNC Connectors
Contact SeeSense for optional second HD-SDI Output
FOUR CCU versions:
Email: Mob:
Web: Sync. Signal Output
0.6 +/- 0.1 volts (p-p)
Negative
Load Impedance 75 Ω Unbalanced
On Screen Display
Output
Selectable: Analogue or Digital, both ON or both OFF
External Sync Input
Sync. System
Remote Control
Camera Mount
Dimensions
Weight
Operating Temp.
Humidity
0.6volts: 75 Ω Unbalanced, Sync Negative,
BNC Connector (Tri-Level)
Internal / External Automatic Switching
RS-232C Serial Data Control Interface
(9-pin Male D connector)
C-mount 17.526mm (in Air)
IK-HD1H: 32.6mm (W) x 38.6mm (H) x 40mm (D)
IK-HD1E: 110mm(W) x 40mm(H) x 186mm(D)
IK-HD1H: 65g (Head) : IK-HD1E 750g (CCU)
0°C to + 40°C
Less than 90% (non-condensing)
Recommended Accessories
Cables
Original Toshiba Cables (CCU - Camera head)
EXC-HD03
3 metre Camera Cable
EXC-HD06
6 metre Camera Cable
EXC-HD10
10 metre Camera Cable
EXC-HD30
30 metre Camera Cable
Use no imitations
Lenses
The following lenses have been tested by SeeSense and are known to be
compatible with this camera.
(angles of view quoted are in the horizontal plane).
SS-2.8F2.2 2.8mm*
F2.2-16
89°
SS-4F2.2
4mm *
F2.2-16
61°
SS-4.8F2.2 4.8mm
F2.2-Closed
57°
SS-8F2.2
8mm *
F2.2-16
33°
SS-15F2.2 15mm *
F2.2-16
18°
SS-25F2.2 25mm *
F2.2-16
10°
SS-4F1.8
4mm *
F1.8-16
64°
SS-6F1.8
6mm *
F1.8-16
34°
* Not fully “HD” but considered acceptable
All lenses available from SeeSense
If you have a specific requirement please contact SeeSense for advice.
Power Supply
IK-HD1C: HD SDI out, 59.94 / 60 Hz
Toshiba
ACM-601E Medical grade power supply
IK-HD1D: DVI out, 50Hz
SeeSense
Power
Supplies
also available
IK-HD1E: HD SDI out, 50 / 59.94Hz
IK-HD2E: Broadcast enhanced HD-SDI out (see separate datasheet)
