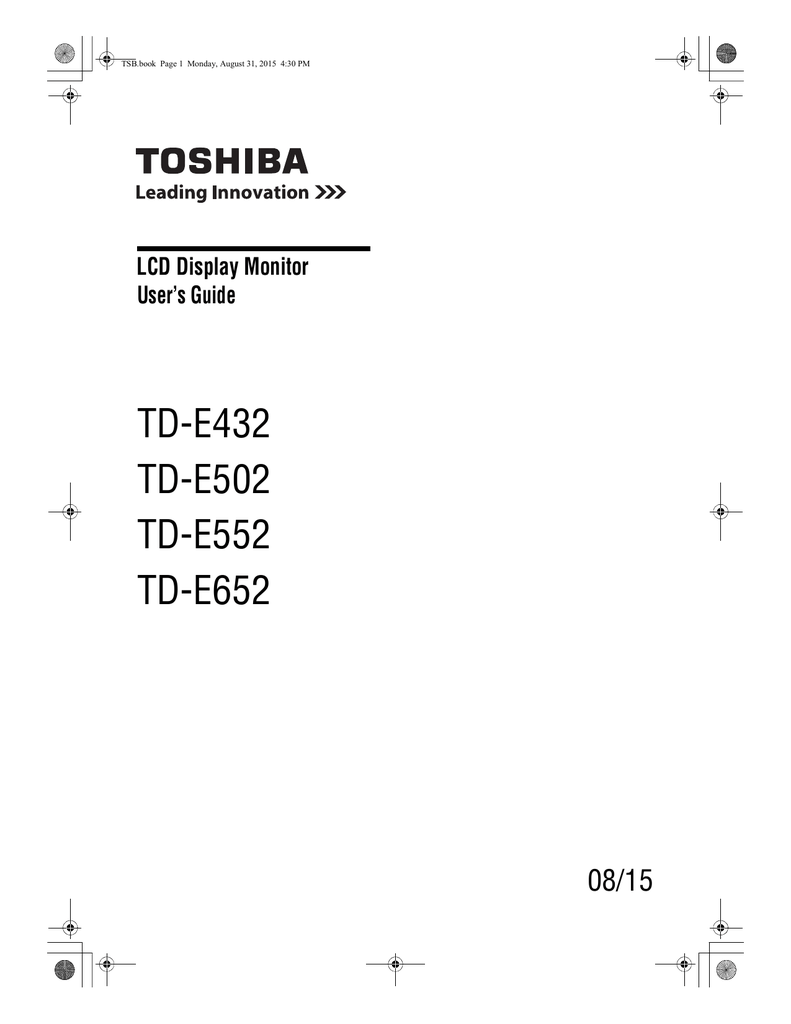

TSB.book Page 1 Monday, August 31, 2015 4:30 PM

LCD Display Monitor

User’s Guide

TD-E432

TD-E502

TD-E552

TD-E652

Owner’s Record

The model number and serial number are on the back of your TV. Record these numbers in the spaces below.

Refer to these numbers whenever you communicate with your Toshiba dealer about this TV.

Model

08/15

TSB.book Page 2 Monday, August 31, 2015 4:30 PM

2

Dear Customer,

Thank you for purchasing this Toshiba LCD Display monitor. This manual will help you use the many exciting features of your new LCD Display monitor.

Before operating your LCD Display monitor, please read this

manual completely, and keep it nearby for future reference.

Safety Precautions

WARNING: TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE.



   

  

    

    

   

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

WARNING: If you decide to wall mount this display, always use a mounting bracket that has been Listed by an independent laboratory (such as UL, CSA, ETL) and is appropriate for the size and weight of this display.

The use of inappropriate or non-Listed mounting brackets could result in serious bodily injury and/or property damage

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5)

Do not use this apparatus near water.

6)

Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8)

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9)

Do not defeat the safety purpose of the polarized or grounding type

plug.

A polarized plug has two blades with one wider than the other. A ground-

Grounding ing type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11)

Only use attachments/accessories specified by the

manufacturer.

12)

Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Additional Safety Precautions

13)

CAUTION: If the monitor is dropped and the cabinet or enclosure surface has been damaged or the monitor does not operate normally, take the following precautions:

• ALWAYS turn off the monitor and unplug the power cord to avoid possible electric shock or fire.

• NEVER allow your body to come in contact with any broken glass or liquid from the damaged monitor

The LCD panel inside the monitor contains glass and a toxic liquid. If the liquid comes in contact with your mouth or eyes, or your skin is cut by broken glass, rinse the affected area thoroughly with water and consult your doctor.

• ALWAYS contact a service technician to inspect the monitor any time it has been damaged or dropped.

TSB.book Page 3 Monday, August 31, 2015 4:30 PM

14)

CAUTION:

• To reduce the risk of electric shock, do not use the polarized plug with an extension cord, receptacle, or other outlet unless the blades can be inserted completely to prevent blade exposure.

• To prevent electric shock, match wide blade of plug to wide slot; fully insert.

15) WARNING:

Do not let children swallow the product or play with the plastic bag. Keep the product and the plastic bag out of the reach of children.

16) CAUTION:

Do not let water or other liquids come into contact with the product, as it may result in damage.

17) WARNING:

• To prevent the spread of fire, keep candles or other open flames away from this product at all times.

• Keep the product away from direct sunlight, fire or a heat source such as a heater. This may reduce the product lifetime or result in fire.

Installation, Care, and Service

Installation

Follow these recommendations and precautions and heed all warnings when installing your LCD Display monitor:

18) When operating the LCD display with its AC 220-

240V power supply in Europe, use the power supply provided with this display. If a power cord is not supplied with this display, please contact your supplier.

This equipment requires an Earthed mains supply connection.

19) In the UK, use a BS-approved power cord with molded plug and black (10A) fuse installed.

20) When operating the LCD display with a 120V, 60Hz

AC power supply in the United States or Canada, use the power cord provided with the display. If a power cord is not supplied with the display, please contact your supplier.

21) For all other cases, use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standards of your particular country.

22) Avoid displaying fixed patterns for long periods of time, to avoid image persistence (after image effects).

3

23) WARNING: NEVER expose batteries to excessive heat such as sunshine, fire or the like.

24) ALWAYS plug the product into an outlet that is located in such a manner that it can be easily unplugged in case the product requires service.

25) NEVER route the product’s power cord inside a wall or similar enclosed area.

26) Never modify this equipment. Changes or modifications may void: a) the warranty, and b) the user’s authority to operate this equipment under the rules of the Federal Communications Commission.

27)

DANGER: RISK OF SERIOUS PERSONAL

INJURY, DEATH, OR EQUIPMENT

DAMAGE!

Never place the monitor on an unstable cart, stand, or table. The LCD Display may fall, causing serious personal injury, death, or serious damage to the monitor.

28) When selecting a location for the display,

• NEVER allow any part of the display to hang over the edge of supporting furniture.

• NEVER place the display on tall furniture (for example, entertainment centers or bookcases) without anchoring both the furniture and the display to a suitable support.

• NEVER allow children to climb on the monitor.

29) To avoid damage to this product, never place or store the monitor in direct sunlight; hot, humid areas; or areas subject to excessive dust or vibration.

30) The product should not be exposed to dripping or splashing. Objects filled with liquids should not be placed on the apparatus.

31) Never block or cover the slots or openings in the monitor cabinet back, bottom, and sides. Never place the monitor:

• On a bed, sofa, rug, or similar surface;

• Too close to drapes, curtains, or walls; or

• In a confined space such as a bookcase, built-in cabinet, or any other place with poor ventilation.

32) Always leave a space of at least 10cm - 4 (four) inches around the monitor.The slots and openings are provided to protect the monitor from overheating and to help maintain reliable operation of the monitor.

TSB.book Page 4 Monday, August 31, 2015 4:30 PM

4

33) Never allow anything to rest on or roll over the power cord, and never place the monitor where the power cord is subject to wear or abuse.

34) Never overload wall outlets and extension cords.

Ergonomics

For maximum ergonomic benefit, we recommend the following:

35) For optimum performance, allow 20 minutes for warm-up.

36) Rest your eyes periodically by focusing on an object at least 5 feet away. Blink often.

37) Use the preset Size and Position controls with standard signals.

38) Use the preset Color Setting.

39) Use non-interlaced signals.

40) Do not use primary color blue on a dark background, as it is difficult to see and may produce eye fatigue due to insufficient contrast.

41) Adjust the display’s brightness, contrast, and sharpness controls to enhance readability.

42) Position the display at a 90° angle to windows and other light sources to minimize glare and reflections.

Care

For better performance and safer operation of your

TOSHIBA LCD Display monitor, follow these recommendations and precautions:

43) Always unplug the monitor before cleaning. Gently wipe the display panel surface (the monitor screen) using a dry, soft cloth (cotton, flannel, etc.). A hard cloth may damage the surface of the panel. Avoid contact with alcohol, thinner, benzene, acidic or alkaline solvent cleaners, abrasive cleaners, or chemical cloths, which may damage the surface. Never spray volatile compounds such as insecticide on the cabinet. Such products may damage or discolor the cabinet.

44) Never hit, press, or place anything on the back cover.

These actions will damage internal parts.

45)

   

Never spill liquids or push objects of any kind into the monitor cabinet slots.

46) During a lightning storm, do not touch the connecting cables or product.

47) Always unplug the monitor to completely disconnect from mains power. When the monitor is turned off using the on/off switch, it is not completely disconnected from power and a minute amount of current is still consumed.

48) During normal use, the monitor may make occasional snapping or popping sounds. This is normal, especially when the unit is being turned on or off. If these sounds become frequent or continuous, unplug the power cord and contact a Toshiba Authorized Service

Provider.

49) Handle with care when transporting. Save packaging for transporting. Please clean the ventilation slots on the back of the cabinet to remove dirt and dust at least once a year to maintain reliable operation of the monitor.

50) If using the cooling fan continuously, it’s recommended to clean the ventilation slots at least once a month.

51) When installing the remote control batteries;

• Align the batteries according to the (+) and (-) indications inside the case.

• Align the (-) indication of the batteries first inside the case.

Service

52)

   

Never attempt to service the monitor yourself.

Opening and removing the covers may expose you to dangerous voltage or other hazards. Failure to follow this WARNING may result in death or serious injury.

Refer all servicing not specified in this manual to a

Toshiba Authorized Service Provider.

53) If you have the monitor serviced:

• Ask the service technician to use only replacement parts specified by the manufacturer.

• Upon completion of service, ask the service technician to perform routine safety checks to determine that the monitor is in safe operating condition.

TSB.book Page 5 Monday, August 31, 2015 4:30 PM

Important Information

Canadian Department of Communications Compliance

Statement.

CAN ICES-3 (A)/NMB-3(A)

C-UL: Bears the C-UL Mark and is in compliance with

Canadian Safety Regulations according to CAN/CSA

C22.2 No. 60950-1.

FCC Declaration of Conformity Compliance

Statement (Part 15):

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Please use the supplied power cord and RCA to 3.5mm cable to ensure FCC compliance.If a power cord is not provided, please contact your supplier.

EU Conformity Statement

This product is labeled with the CE Mark in accordance with the related European

Directives, notably Low Voltage Directive

2006/95/EC, Electromagnetic Compatibility

Directive 2004/108/EC and RoHS Directive

2011/65/EU.

Responsible for CE-Marking is TOSHIBA, 23

Davy Rd, Plymouth, PL6 8BY, UK

Warning

This is a Class A product based on the standard of the

VCCI Council. If this equipment is used in a domestic environment, radio interference may occur, in which case, the user may be required to take corrective actions.

REACH Information

The European Union (EU) chemical regulation, REACH

(Registration, Evaluation, Authorization and Restriction of Chemicals), entered into force on 1 June 2007, with phased deadlines up to 2018. Toshiba will meet all

REACH requirements and is committed to provide our customers with information about the presence in our articles of substances included on the candidate list according to REACH regulation. Please consult the following website www.toshiba.eu/reach for about the presence in our articles of substances included on the candidate list according to REACH in a concentration above 0.1% weight by weight.

5

Disposal of your old product and batteries

The following information is only valid for EU member states:

Disposal of products

The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centres. The black bar indicates that the product was placed on the market after August 13, 2005.

By participating in separate collection of products and batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health. For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the dealer where you purchased the product.

Disposal of batteries and/or accumulators

The crossed out wheeled dust bin symbol indicates that batteries and/or accumulators must be collected and disposed of separately from household waste. If the battery or accumulator contains more than the specified values of lead (Pb), mercury

  

(Hg), and/or cadmium (Cd) defined in the Battery

Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.

By participating in separate collection of batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

TSB.book Page 6 Monday, August 31, 2015 4:30 PM

6

ENERGY STAR

®

User Information

ENERGY STAR User Information Statement: the factory default settings of this television meet ENERGY

STAR requirements. Changing Picture Settings may increase energy consumption, possibly beyond the limits required for ENERGY STAR certification.

ENERGY STAR

®

certified LCD Display.

Products that earn the ENERGY STAR prevent green house gas emissions by meeting strict guidelines set by the U.S.

Environmental Protection Agency.

ENERGY STAR and the ENERGY STAR mark are registered U.S. marks.

Note: ENERGY STAR certification does not apply to TD-E652.

Important notes about your monitor

The following symptoms are technical limitations of

LCD Display technology and are not an indication of malfunction; therefore, Toshiba is not responsible for perceived issues resulting from these symptoms.

(1) An afterimage (ghost) may appear on the screen if a fixed, nonmoving image is displayed for a long period of time. The afterimage is not permanent and will disappear in a short period of time.

(2) The LCD panel contained in this monitor is manufactured using an extremely high level of precision technology; however, there may be an occasional pixel (dot of light) that does not operate properly

(does not light, remains constantly lit, etc.). This is a structural property of LCD technology, is not a sign of malfunction, and is not covered under your warranty. Such pixels are not visible when the picture is viewed from a normal viewing distance.

Note: Interactive video games that involve shooting a

“gun” type of joystick at an onscreen target may not work with this monitor.

WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm.

Wash hands after handling.

Trademark Information

• Windows is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Manufactured under license from Dolby

Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

• All other brand and product names are trademarks or registered trademarks of their respective companies.

Copyright

Under the copyright laws, this guide cannot be reproduced in any form without the prior written permission of Toshiba. No patent liability is assumed, however, with respect to the use of the information contained herein.© 2015 by Toshiba Lifestyle Products

& Services Corporation. All rights reserved.

Notice

The information contained in this manual, including but not limited to any product specifications, is subject to change without notice.

TOSHIBA LIFESTYLE PRODUCTS & SERVICES

CORPORATION (TOSHIBA) PROVIDES NO

WARRANTY WITH REGARD TO THIS MANUAL

OR ANY OTHER INFORMATION CONTAINED

HEREIN AND HEREBY EXPRESSLY

DISCLAIMS ANY IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR ANY

PARTICULAR PURPOSE WITH REGARD TO

ANY OF THE FOREGOING.

TOSHIBA ASSUMES NO LIABILITY FOR ANY

DAMAGES INCURRED DIRECTLY OR

INDIRECTLY FROM ANY TECHNICAL OR

TYPOGRAPHICAL ERRORS OR OMISSIONS

CONTAINED HEREIN OR FOR

DISCREPANCIES BETWEEN THE PRODUCT

AND THE MANUAL. IN NO EVENT SHALL

TOSHIBA BE LIABLE FOR ANY INCIDENTAL,

CONSEQUENTIAL, SPECIAL, OR EXEMPLARY

DAMAGES, WHETHER BASED ON TORT,

CONTRACT OR OTHERWISE, ARISING OUT

OF OR IN CONNECTION WITH THIS MANUAL

OR ANY OTHER INFORMATION CONTAINED

HEREIN OR THE USETHEREOF.

TSB.book Page 7 Monday, August 31, 2015 4:30 PM

Contents

Important Safety Instructions ..........................................................................................2

Installation, Care, and Service ........................................................................................3

Chapter 1: Introduction .................................................................................................9

Safety Icons.................................................................................................................................................... 9

Features of your new LCD Display................................................................................................................ 10

Package Contents ......................................................................................................................................... 11

Parts Name and Functions............................................................................................................................ 12

Connectors and Terminals............................................................................................................................ 14

Infrared Remote Control............................................................................................................................... 16

How to Use the Infrared Remote Control................................................................................................ 17

Chapter 2: Preparation for use....................................................................................... 20

Preparation for installation .......................................................................................................................... 20

Determine the installation location ......................................................................................................... 20

Ventilation requirements for enclosure mounting ................................................................................. 20

Using the wall mount or ceiling mount or handles ................................................................................. 22

Installation in portrait or landscape orientation ............................................................................................ 25

Avoiding Image Retention ...................................................................................................................... 26

Connection procedure .................................................................................................................................. 27

Connecting with an analog video source ...................................................................................................... 28

Connecting with a digital video source ......................................................................................................... 29

Digital connection: ................................................................................................................................. 29

Connecting LAN............................................................................................................................................ 31

Display connection using LAN................................................................................................................ 31

Connecting the power cord to the display..................................................................................................... 31

Connecting the power source................................................................................................................. 31

Chapter 3: How to use the LCD Display Monitor .................................................................. 33

Turning on all the connected devices............................................................................................................ 33

Power Management Function................................................................................................................. 36

Selecting the video input .............................................................................................................................. 37

Select using the SOURCE button on the infrared remote control ........................................................... 37

Select using the SOURCE button on the LCD display ............................................................................. 37

Controlling the external devices ............................................................................................................. 37

Selecting the OSD language.......................................................................................................................... 38

Initial Setting ................................................................................................................................................ 39

Selecting the picture mode ........................................................................................................................... 40

Picture adjustment........................................................................................................................................ 41

Audio settings............................................................................................................................................... 42

Treble, bass, and balance adjustment .................................................................................................... 43

Schedule setting ........................................................................................................................................... 44

7

TSB.book Page 8 Monday, August 31, 2015 4:30 PM

8

Contents

How to set up a schedule.............................................................................................................................. 45

Viewing media from USB storage................................................................................................................. 47

Setting up a playlist................................................................................................................................ 49

Playing background music ..................................................................................................................... 51

Slideshow settings ................................................................................................................................. 51

Playing a playlist .................................................................................................................................... 52

Remote control............................................................................................................................................. 55

LAN remote control................................................................................................................................ 58

Configuration and basic operation of the OSD screen .................................................................................. 59

Basic operation of OSD screen............................................................................................................... 60

Picture Menu Screen.............................................................................................................................. 62

Aspect Ratio Menu Settings ................................................................................................................... 63

Sound Menu Screen............................................................................................................................... 64

Setup Menu Screen................................................................................................................................ 65

Initial Setting Menu Screen .................................................................................................................... 66

Multi Display Control Menu Screen........................................................................................................ 67

System Information Menu Screen.......................................................................................................... 69

Appendix A.............................................................................................................. 70

Specifications ............................................................................................................................................... 70

LCD Module ........................................................................................................................................... 70

Viewable Size (H x V) ............................................................................................................................. 71

Power Management ............................................................................................................................... 71

Power source ......................................................................................................................................... 71

Power consumption ............................................................................................................................... 71

Input/Output Signal ................................................................................................................................ 71

AV Input/Output ..................................................................................................................................... 72

Audio Input/Output................................................................................................................................. 72

Dimensions ............................................................................................................................................ 72

Mass (weight) ........................................................................................................................................ 73

TSB.book Page 9 Monday, August 31, 2015 4:30 PM

Chapter 1

Introduction

Safety Icons

This manual contains safety instructions that must be observed to avoid potential hazards that could result in personal injuries, damage to your equipment, or loss of data. These safety cautions have been classified according to the seriousness of the risk, and icons highlight these instructions as follows:

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

Indicates a potentially hazardous situation which, if not avoided, may result in property damage.

Provides important information.

9

TSB.book Page 10 Monday, August 31, 2015 4:30 PM

10

Chapter 1

Introduction

Features of your new LCD Display

True Commercial 16/7 Operation Digital Display

43”, 50”, 55”, and 65”— These robust displays are specifically designed for long hours of trouble-free operation in a commercial environment, as well as many other commercial features.

Industry LED backlight

LED backlight panel — Commercial grade panel with a LED backlight. With the LED backlight, the display has achieved low power consumption and eliminated mercury. The slim display design allows installation in various environments than the conventional displays. See page 70.

High-quality LCD panel providing a wide variety of content and messages clearly

Full HD panel — The TD-E432 , TD-E502 , TD-E552 and TD-E652 panels reproduce images from video and computer signals with precision and clarity, delivering full 1920 x 1080 high- definition resolution.

Brightness

450 cd/m

2

43”, 50”, 55”, 65”

— Creates more compelling, dynamic images to better attract and maintain customer attention in a variety of lighting environments.

Enhanced Display Functionality for Various Applications

Daisy Chain Connection — By connecting the DVI-D OUT connectors and the DVI-D IN connectors using DVI-

D cables (commercially available), you can transmit video signals to up to 9 displays (when using 2-meter cables).

This is useful when supplying a video signal to multiple displays.

LAN Control — You can control multiple displays by sending control commands from a computer via a LAN network. See pages 31 and 58.

Others

Built-in Speakers — This display offers built-in stereo speakers to deliver audio messages. External stereo speakers can also be used. The user can switch between external or built-in speakers from the menu. See pages 42,

43, and 64.

Remote Control — An infrared remote control is supplied to control the various functions of this display, including power on/off, input select, and menu access. See page 16-17.

USB Media Player — Display and schedule content without an external media player. See page 47. Built-in USB

Media Player CODECs include:

• Video: MPG, MPEG, AVI, MKV, MOV, MP4, TS, M2TS, H.264 (up to level 4.0)

• Music: MP3, WMA, AAC

• Photo: JPG, BMP, PNG (BMPs and JPGs with a resolution larger than 1024x768 may take additional time to display)

TSB.book Page 11 Monday, August 31, 2015 4:30 PM

Chapter 1

Introduction

11

Package Contents

Item

LCD display

Wireless remote control

Batteries

AC power cable

3.5mm jack

Logo cover sheet

User manual

Warranty Sheet

QSG (Quick Setup Guide)

Cable Clamps

Unit

2

1

1

1

1

1

1

1

1

5

Contents

Remark

AAA size

1.8m

Composite/component conversion cable

Except for EU models

For EU models only

The supplied power cord varies depending on destination. For the use in the other regions, use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of those regions or countries.

TSB.book Page 12 Monday, August 31, 2015 4:30 PM

12

Chapter 1

Introduction

Parts Name and Functions

Buttons and Indicator

Control buttons Left side Front

1

Menu button—Enters the On Screen Display (OSD) menu.

2

Source button—Displays the OSD menu to switch the video input. You can select [AV], [COMPONENT],

[HDMI1], [HDMI2], [DVI-D], [VGA], and [USB].

3

PLUS (+) button—Increases volume.

4

MINUS (-) button—Decreases volume.

5

UP ( ) button—Moves the highlighted area up in the OSD menu.

6

DOWN ( ) button—Moves the highlighted area down in the OSD menu.

7

POWER button—Switches the power on/off. This button does not work when the power indicator is off. In such cases, turn on the main power switch. (See page 13).

Logo Cover Sheet: If the user wants to hide the TOSHIBA logo while using the LCD Display monitor in portrait mode, use the Logo cover sheet provided in the package contents and place it on top of the logo (see page 11).

TSB.book Page 13 Monday, August 31, 2015 4:30 PM

Chapter 1

Introduction

13

Back

 

Underside

 

1

Handle screw holes —Used to mount handles (optional), for carrying the LCD display.

2

Main Power Switch —Switches the main power on/off and is used as the disconnect device.

3

Cable clamp holes — Used to clamp cables to the system.

Within 2 seconds after turning off the power by the POWER button on the infrared remote control or the display or by a communication command, don’t turn off the main power switch, don’t disconnect the power cord, and don’t turn off the breaker. If the AC power is turned off immediately after the power-off operation, all the OSD settings including the language selection may be reset to the factory defaults at the next power-on. If the OSD settings are reset to the factory defaults as described above, reconfigure the OSD settings using the following procedure.

• Turn off the power of the display using the infrared remote control or another method.

• Wait for at least 2 seconds.

• Turn on the power of the display using the infrared remote control or another method.

• Check and reconfigure the OSD settings.

TSB.book Page 14 Monday, August 31, 2015 4:30 PM

14

Chapter 1

Introduction

Connectors and Terminals

For details about using cable types and connections, see pages 27-29.

Back

Left side

















Underside

  

1

ANTI-THEFT LOCK—Used to attach a commercially available antitheft device.

2

AC IN (3-pin, with earth terminal)—Connects with the supplied power cord.

Class I Product requires an earthed mains supply connection.

3

LAN (RJ45 ETHERNET)—Connects with an Ethernet cable for LAN access.

4

RS-232C OUT—Connects with the RS-232C IN connector of other connected TD-E432/TD-E502/TD-E552/TD-

E652.

5

RS-232C IN—Connects with the RS-232C OUT connector of a computer or other connected TD-E432/TD-E502/

TD-E552/TD-E652.

6

DVI-D OUT—Outputs the signal that is supplied to the DVI-D IN connector (7).

7

DVI-D IN—Connects with the digital video output of a computer, etc.

8

REMOTE CONTROL SENSOR AND POWER INDICATOR— Remote control sensor: Receives the signal from the infrared remote control. Power indicator: Indicates the state of the LCD display. For details, see page 36.

9

IR IN—Connects with the IR output of an IR control.

10

IR OUT—Outputs the signal that is supplied to the IR IN connector (9).

11

ANALOG VIDEO—Use the supplied cable in the package to connect with the video output connector of external equipment such as a computer, VCR, and DVD player., etc. This connector supports component video (YPbPr) and analog video (AV) input.

TSB.book Page 15 Monday, August 31, 2015 4:30 PM

Chapter 1

Introduction

15

12

LINE OUT— Outputs the signal that is supplied to the LINE IN connector (13). Connects with an external audio amplifier, etc. Headphones and earphones are not supported.

13

LINE IN—Connects with the audio visual output connector of external equipment such as a computer, VCR, and

DVD player

14

VGA IN—Connects with the analog video output of a computer.

15

USB PORT—USB port for portable media (USB drive, etc).

16

HDMI2—Connects to devices supporting audio/video signals with HDMI interface.

17

HDMI1—Connects to devices supporting audio/video signals with HDMI interface.

TSB.book Page 16 Monday, August 31, 2015 4:30 PM

16

Chapter 1

Introduction

Infrared Remote Control

1

POWER button—Switches the power on/off. When the Power indicator is not glowing red, no controls will work.

2

NUMBER buttons—Used to input numbers when inputting remote ID setting and programming schedules.

3

SET ID button—Set Remote Control ID. Use in IR Daisy Chain

Mode. See pages 67-68.

4

MENU button—Switches the OSD menu mode on/ off.

5

UP/DOWN/RIGHT/LEFT buttons—Moves the currently highlighted area in the OSD menu. ( ) button moves the highlighted area up, ( ) moves the highlighted area down, ( ) moves the highlighted area left, ( ) moves the highlighted area right.

6

ADJUST button—Automaticaly adjusts image in VGA mode.

7

ASPECT button—Displays the current display aspect ratio. See page 63 for details on changing aspect ratio.

8

SOURCE button—Displays the OSD menu to switch the video input. You can select [AV], [COMPONENT], [HDMI1],

[HDMI2], [DVI-D], [VGA], and [USB].

9

MEDIA CONTROL buttons—Contextual buttons providing various media control functions in specific menus. Each button’s functions will be shown in the OSD in corresponding colors.





















10

AUDIO/VIDEO CONTROL buttons—Provide control functions when playing media files. Fast reverse ( fast forward ( ), track backwards (| and track forward ( |).

), play ( ),

), stop (3), pause (2),

11

PICTURE button—Selects the picture mode from [DYNAMIC], [CINEMA], [CUSTOM], and [STANDARD].

See pages 40 and 62.

12

ENTER button—Set Remote Control ID. Use in IR Daisy Chain Mode. See page 68.

13

INFO button—Displays the current screen resolution and refresh rate.

14

OK button—Accepts the settings made in the OSD menu.

15

BACK button—Displays the previous OSD menu.

16

MUTE button—Switches the mute function on/off.

17

QUICK button—Enters the quick program schedule settings in the OSD menu. You can program power-on/off and input selection using these settings.

18

VOLUME buttons (VOL)—Pressing the plus (+) side increases the audio output level. Pressing the minus (-) side decreases the audio output level.

19

PIP button—This button has no function.

TSB.book Page 17 Monday, August 31, 2015 4:30 PM

Chapter 1

Introduction

17

How to Use the Infrared Remote Control

Setting Up the Infrared Remote Control Sensor

Before using the infrared remote control, the LCD display’s remote control sensor must be positioned. The remote control sensor is a small black box located on the back of left of the LCD display. Press the small button near the base of the remote control sensor, and slide the sensor away from the LCD display until it locks in place.

Reverse this procedure to return the sensor to its original position.

Operating Range of the Infrared Remote Control

Point the infrared remote control toward the LCD display’s remote control sensor during button operation. Use the infrared remote control within a distance of about 10 m from the front of the LCD display’s remote control sensor and at a horizontal and vertical angle of within 30° within a distance of about 10 m.

 

The remote control system may not function when direct sunlight or strong illumination strikes the remote control sensor of the LCD display, or when there is an object in the path.

TSB.book Page 18 Monday, August 31, 2015 4:30 PM

18

Chapter 1

Introduction

Handling the infrared remote control

• Do not subject to a strong shock.

• Do not allow water or other liquid to splash on the infrared remote control. If the infrared remote control gets wet, wipe it dry immediately.

• Avoid exposure to heat and steam.

• Other than to install the batteries, do not open the infrared remote control.

Installing and removing the infrared remote control batteries

The infrared remote control is powered by two 1.5 V AAA batteries.

How to install the batteries

1

Unlock and pull up the cover.

2

Align the batteries according to the (+) and (-) indications inside the case.

3

Replace the cover.

TSB.book Page 19 Monday, August 31, 2015 4:30 PM

Chapter 1

Introduction

19

How to remove the batteries

1

Unlock and pull up the cover.

2

Remove the batteries.

Incorrect use of batteries can result in leaks or explosion. Be especially careful of the following points.

• Place “AAA” batteries matching the (+) and (-).

• Do not mix battery types.

• Do not combine new batteries with used ones.

• Remove dead batteries immediately to prevent battery leakage

• Do not touch exposed battery acid, because it will cause damage to your skin.

• When the remote control no longer works at all, replace both batteries with new ones.

• If you do not use the remote control for a long time, replace both batteries with new ones.

TSB.book Page 20 Monday, August 31, 2015 4:30 PM

Chapter 2

Preparation for use

Preparation for installation

Determine the installation location

DO NOT ATTEMPT TO INSTALL THE LCD DISPLAY BY YOURSELF.

Installing your LCD display must be done by a qualified technician. Contact your dealer for more information.

Proper operation of the display is not guaranteed when it is mounted upside down or face down.

Lay the protective sheet, which was wrapped around the LCD display when it was packaged, beneath the LCD display so as not to scratch the panel.

The LCD display requirements apply for equipment operating up to 2,000m above sea level.

Ventilation requirements for enclosure mounting

To allow heat to disperse, leave space around the display.

Don’t block the vents in the back of the display shown in the figure on the next page. If they are blocked, heat accumulates inside the display, and can cause breakdown. The upper limit of the operation guaranteed ambient temperature when the display is installed in the landscape position is 40°C (104°F). When installing the monitor in a case or an enclosure, ensure adequate ventilation to keep the temperature inside the case is be 40°C (104°F) or below by providing a cooling fan or ventilation holes in the case.

20

TSB.book Page 21 Monday, August 31, 2015 4:30 PM

Chapter 2

Preparation for use

    

    

 

 

 

 

21

TSB.book Page 22 Monday, August 31, 2015 4:30 PM

22

Chapter 2

Preparation for use

Using the wall mount or ceiling mount or handles

Lay the screen face down

Lay the protective sheet on a table, which was wrapped around the display when it was packaged, beneath the screen surface so as not to scratch the screen surface.

This device cannot be used or installed without a mounting accessory. Failure to follow the correct mounting procedures can result in damage to the product caused by improper installation. Failure to follow these recommendations can void your warranty.

For installation, use M6 screws (with a Boss screw thread of at least 15mm, a loose-proof spring washer, and a length

10 mm longer than the thickness of the mounting bracket), and tighten them securely.

Secure handles (optional parts), using M6 screws with a length less than the thickness of the handle plus the allowable depth of the screw holes (5mm for the 43” display, 9mm for the 50”/55” displays, and 6mm for the 65” display).

Toshiba recommends using a mounting interface that complies with VESA Requirements, TUV-GS or for North

America UL1678.

TSB.book Page 23 Monday, August 31, 2015 4:30 PM

   

Chapter 2

Preparation for use

23

   

43”

50”/55”/65”

TSB.book Page 24 Monday, August 31, 2015 4:30 PM

24

Chapter 2

Preparation for use

To prevent the display from falling:

• Install the display with metal brackets for wall or ceiling installation (commercially available) in your own responsibility. For detailed procedures of installation, refer to the instructions of the metal brackets.

• To reduce the probability of injury and damage, be sure to consult the bracket manufacturer for installation location.

• To reduce the risk of falling in case of unexpected shocks, earthquakes or other disasters, attach a rope to the left of the display and secure the rope to the wall display.

• The display may topple over or fall in case of earthquake or other disaster.

• Use stainless steel screws with enough strength to support the LCD display.

• With regard to the metal bracket:

• Use a VESA-compliant metal bracket (commercially available) that is strong enough to hold the display.

• When using a bracket, do not block the heat dissipating holes in the display. See pages

20-21.

• Before installation, make sure that the installation surface has sufficient strength.

• For details of the mounting procedure and the safe installation procedure, see the user instructions of the metal bracket (commercially available) to be used.

• Take measures such as using multiple metal brackets, holding the display at several points, and taking measures to prevent falling or dropping in case of a problem.

TSB.book Page 25 Monday, August 31, 2015 4:30 PM

Chapter 2

Preparation for use

25

Installation in portrait or landscape orientation

The display can be installed in portrait or landscape orientation. Ensure that the display is oriented as shown in the images in this section.

• The operating environmental condition (temperature) when the display is in portrait orientation is 0°C to 40°C (32° to 104°F).

• Proper operation of the display is not guaranteed when it is not mounted as shown below

(upside down, face down, etc.).

• In portrait or face-up orientation, the lifetime of the backlight is shorter than when in landscape orientation.

Installation in the portrait position

The logo should be on the RIGHT side when viewed from the front of the display.

This display doesn’t have a function to rotate displayed images. To display images in the portrait orientation, use already rotated images









Installing in the face-up position. Do not install in the face-down position.

TSB.book Page 26 Monday, August 31, 2015 4:30 PM

26

Chapter 2

Preparation for use

Operation environment for portrait and face down (between 0° and 15°) installation

The following operation environment details apply when the display is installed in portrait and face up orientations.

• Temperature 0 - 40°C / 32 - 104°F

• Humidity 20 - 80% (without condensation)

Power connection instructions

1

Confirm Main Switch is off before making any connections.

2

Use an AC socket located near the display.

Avoiding Image Retention

Do not display static (non-moving) content on the display for long periods of time. This may cause image “burn-in” or image retention, which is not covered under warranty.

Avoid Static Content

• Display dynamic (moving) images whenever possible.

• Turn off the display when not in use, or use the scheduling feature to turn the display off automatically at pre-set times of the day.

• To help prevent image retention, set Pixel Shift to ON. To reduce image retention, either the White Pixel or Pixel

Shift function can be used. See "Anti-Image Retention" in the table on page 66.

TSB.book Page 27 Monday, August 31, 2015 4:30 PM

Connection procedure

Before making connections:

• First turn off the power of all the connected equipment before making connections.

• Refer to the user manual of each piece of equipment.

Chapter 2

Preparation for use

27

Please use a low resistance audio cable when the audio output terminal of the audio device and PC is a stereo mini-jack. High resistance audio cables may affect audio levels, or mute sound completely.

TSB.book Page 28 Monday, August 31, 2015 4:30 PM

28

Chapter 2

Preparation for use

Connecting with an analog video source

Analog connection:

1

Connect a signal cable (VGA or YPbPr cable), to the VGA or AV IN connector.

2

Select AV, Component, or VGA using the SOURCE button on the LCD display, or the SOURCE button on the infrared remote control. Once selected, the audio automatically switches to [LINE IN].

Audio connection:

• Connect an audio cable (ø3.5-mm stereo mini) (commercially available), to the LINE IN connector. Because the audio automatically switches to [LINE IN], the audio is output simply by connecting the cable.

The display automatically distinguishes the timings shown in the table below, and sets the screen information. When a

PC or other device is connected, it automatically displays images properly. See “"Connecting with a digital video source"” on page 29.

TSB.book Page 29 Monday, August 31, 2015 4:30 PM

Chapter 2

Preparation for use

29

Connecting with a digital video source

Digital connection:

• Connection via the HDMI IN connector

(1) Connect an HDMI cable (commercially available) to the HDMI1 IN or HDMI2 IN connector.

(2) Select [HDMI1] or [HDMI2] according to the connected connector by pressing the SOURCE button on the LCD display or the HDMI1 or HDMI2 button on the infrared remote control.

• Connection via the DVI-D IN connector

(1) Connect a DVI-D cable (commercially available) to the DVI-D IN connector.

(2) Select [DVI-D] using the SOURCE button on the LCD display or the DVI-D button on the infrared remote control.

Second display connection:

• Connect the DVI-D OUT connector on the first display and the DIVI-DIN connector on the second display using a

DVI-D cable (commercially available).

• The daisy chain connection allows up to 9 LCD displays to be connected (when using

2-meter cables. However, the maximum number of connectable LCD displays may be limited. It is recommended to check the number of connectable LCD displays in your installation environment in advance.

• Set the power off time using the POWER SAVE selection in the SETUP menu.

• Tiling mode can be used in HDMI1/2 for multi displays, if there is an external HDMI splitter equipped.

Audio connection:

• For HDMI 1/2/DVI-D, the default setting of audio source is a TMDS signal with HDMI/ DVI cable. Users can use an external audio source if an audio cable (ø3.5-mm stereo mini) (commercially available) is connected to the

LINE IN connector. LINE IN” should be selected for the audio input source; see "Audio settings" on page 42.

• To output the audio to the second display, connect the LINE OUT connector on the first display and LINE IN connector on the second display using an audio cable (ø3.5-mm stereo mini) (commercially available). “LINE IN” should be selected for the audio input source when an HDMI cable is connected; see "Audio settings" on page 42.

TSB.book Page 30 Monday, August 31, 2015 4:30 PM

30

Chapter 2

Preparation for use

In this image the dashed lines around ports indicate connections OUT, and the small screen at front indicates the second display.

TSB.book Page 31 Monday, August 31, 2015 4:30 PM

Chapter 2

Preparation for use

31

Connecting LAN

Display connection using LAN

As shown in the illustration below, you can connect this display and a computer in network through a LAN hub.

Connect the display and the LAN hub using a straight type LAN cable (commercially available).

How to connect

• Turn off the main power switch of the computer and this display. If you make a connection while the power is on, it the devices may fail.

• Connect the computer and the LAN hub using a straight type LAN cable (commercially available).

• Connect this display and the LAN hub using a straight type LAN cable (commercially available).

• When you connect two or more displays, you can connect the display and the LAN hub using a straight type LAN cable (commercially available) as described above.

• When you use a cross type LAN cable (commercially available), you can connect the display and the computer one-to-one without using a LAN hub, however, the computer may not be supported. It is recommended to check the operation in advance.

• If “LAN” control is selected, set “Standby Mode” to “Normal”; the power-on function with

LAN control will not work when Standby Mode is ECO. See page 65 for information on the

Standby Mode settings.

Connecting the power cord to the display

Connecting the power source

Before making connections

1

Check that the main power switch is off.

Please refer to “Important Safety Instructions” and “Installation, Ergonomics, Care, and Service” in this manual for proper selection of the AC power cord. Use the clamper to prevent accidental disconnection of the power cord.

2

Insert the power plug into the power outlet socket.

• Fully insert the prongs into the power outlet socket. Loose connections may cause noise.

• Don’t plug and unplug the power cord repeatedly in a short period of time.

TSB.book Page 32 Monday, August 31, 2015 4:30 PM

32

Chapter 2

Preparation for use

TSB.book Page 33 Monday, August 31, 2015 4:30 PM

Chapter 3

How to use the LCD Display

Monitor

Turning on all the connected devices

1

Turn on all connected devices, such as a computer and DVD player.

2

Set Up the Infrared Remote Control Sensor

Before using the infrared remote control, the LCD display’s remote control sensor must be positioned. The remote control sensor is a small black box located on the back of left of the LCD display. Slide the sensor away from the

LCD display until it locks in place (see bottom right in the image below). Reverse this procedure to return the sensor to its original position.

33

TSB.book Page 34 Monday, August 31, 2015 4:30 PM

34

Chapter 3

How to use the LCD Display Monitor

3

Turn on the Main Power Switch.

The power indicator turns on green and the display turns on. The control buttons on the back, infrared remote control, and schedule setting do not work while then main power switch is off (the power indicator is off). When using them, check that the Main Power Switch is on (the power indicator is on).

Main power switch

(sample illustration) 43” power switch

TSB.book Page 35 Monday, August 31, 2015 4:30 PM

Chapter 3

How to use the LCD Display Monitor

35

4

Turn on the LCD Display.

Press the POWER button on the left side of the LCD display, or the POWER button on the top left of the infrared remote control.

Within two seconds of turning off the power using the POWER button on the infrared remote control or the display or by a communication command, don’t turn off the main power switch, don’t disconnect the power cord, and don’t turn off the breaker. If the AC power is turned off immediately after the power-off operation, all the OSD settings including the language selection may be reset to the factory defaults at the next power-on. If the OSD settings are reset to the factory defaults as described above, reconfigure the OSD settings using the following procedure.

• Turn off the power of the display using the infrared remote control or another method.

• Wait for at least 2 seconds.

• Turn on the power of the display using the infrared remote control or another method.

• Check and reconfigure the OSD settings.

TSB.book Page 36 Monday, August 31, 2015 4:30 PM

36

Chapter 3

How to use the LCD Display Monitor

Power Management Function

To reduce power, the display supports three power off methods, for different purposes.

• Sleep Timer

• The user can set the timer to power off the display, regardless of the current source signal status. Sleep timer options are 5 mins, 15 mins, 30 mins, 60 mins, 90 mins, 120 mins, 180 mins, and off, in OSD menu.

• This value will not be saved. It only executes once, and the default is OFF.

• Power Saving Timer

• This timer will power off the display when the current source has no signal. The power saving timer adjustable range is 30 sec-300 sec, or off. This timer can be disabled in the OSD menu.

• This value will be saved; the default is 300 sec.

• If the LCD display switches to standby mode as a result of the Power Saving Timer of a VGA or HDMI source

(but not DVI-D), the display will power on automatically if the signal from the current source returns.

Not all video devices are guaranteed to support the auto power on function when connected to the LCD display.

• Schedule

• The user can set seven schedules to determine power on times and power off times. Detailed settings refer to the schedule function.

The display also has a priority mode.

• Schedule setting priority is higher than sleep timer and power saving timer.

• Sleep timer priority is the same as power saving timer; if both timers are enabled, the display power off time will depend on the power saving timer or if the sleep timer is up.

Power Indicator

Status

Power-on mode

Power-off mode

Power Standby when “SCHEDULE” is enabled

Main power is off

Diagnosis (detecting failure)

LED

Green

Red

Amber

Off

Red Blinking *Please contact your nearest authorized service facility.

TSB.book Page 37 Monday, August 31, 2015 4:30 PM

Chapter 3

How to use the LCD Display Monitor

37

Selecting the video input

Select using the SOURCE button on the infrared remote control

You can select the desired video input by pressing the SOURCE button on the infrared remote control, and using the UP ( ) and DOWN ( ) buttons to make your selection.

Selectable video inputs are [AV], [COMPONENT], [HDMI1], [HDMI2], [DVI-D], [VGA], and [USB].

Select using the SOURCE button on the LCD display

When you press the SOURCE button on the LCD display, the video input OSD menu is displayed and you can select the video input using the UP ( ) and DOWN ( ) buttons.

Selectable video inputs are [AV], [COMPONENT], [HDMI1], [HDMI2], [DVI-D], [VGA], and [USB]. When you press the SOURCE button again, the selected video input is displayed.

The selection you make is input automatically after several seconds.

Controlling the external devices

To control the connected external devices, display images on the LCD display.

TSB.book Page 38 Monday, August 31, 2015 4:30 PM

38

Chapter 3

How to use the LCD Display Monitor

Selecting the OSD language

Display the OSD menu by pressing the MENU button on the infrared remote control, or the MENU button on the left side of the LCD display.

Using MENU LANGUAGE in the INITIAL SETTINGS menu of the OSD screen function, you can select the OSD language. See page 66.

TSB.book Page 39 Monday, August 31, 2015 4:30 PM

Chapter 3

How to use the LCD Display Monitor

39

Initial Setting

1

Press the MENU button on the infrared remote control to directly display the OSD menu function.

2

Use the DOWN ( ) button on the infrared remote control or the DOWN ( ) button on the left side of the LCD display, to select INITIAL SETTING.

3

Press the [OK] button on the infrared remote control, or the MENU button on the left side of the LCD display to enter the INITIAL SETTING menu.

Setting

OSD Rotation

Menu Language

Time Format

Clock

Logo Display

Remote Operation

Keypad Operation

Anti-Image Retention

Initial Settings

Details

Select the OSD orientation.

Select the menu language.

Set the time format.

Set the clock time.

Toshiba logo display option (enable/disable).

Remote control option (enable/disable). Note: If Remote operation

is disabled, you can press “menu”, “left”, “right”, “up”, ”down” to enable the function.

Keypad control option (enable/disable).

Anti-image retention options.

TSB.book Page 40 Monday, August 31, 2015 4:30 PM

40

Chapter 3

How to use the LCD Display Monitor

Selecting the picture mode

Using the PICTURE button on the infrared remote control, you can select the picture mode suitable for images to be displayed.

DYNAMIC

CINEMA

CUSTOM

Setting

Picture Mode

Details

Maximum brightness.

Suitable for viewing movies.

Use previously saved custom picture settings (by default this mode uses the STANDARD settings). Set up through the OSD once in

CUSTOM picture mode.

Factory default setting.

STANDARD

• “CINEMA” can be selected for video input (HDMI1*, HDMI2*, YPbPr, VIDEO, and S-VIDEO).

• *Automatically selected depending on the input signal.

TSB.book Page 41 Monday, August 31, 2015 4:30 PM

Chapter 3

How to use the LCD Display Monitor

41

Picture adjustment

Display the OSD menu by pressing the MENU button on the infrared remote control, or the MENU button on the left side of the LCD display. Using the PICTURE menu of the OSD screen function, you can adjust picture settings such as brightness, contrast, and sharpness, to obtain the desired image quality.

Setting

Contrast

Brightness

Sharpness

Color temperature

Picture Adjustment

Details

0-100

0-100

0-10

5000K-10000K/100K steps, 13000K, and CUSTOM

TSB.book Page 42 Monday, August 31, 2015 4:30 PM

42

Chapter 3

How to use the LCD Display Monitor

Audio settings

Select the built-in speakers or the external stereo speakers in the speaker setting in the OSD menu. Display the OSD menu by pressing the MENU button on the infrared remote control, or the MENU button on the left side of the LCD display. Using SPEAKER in the SOUND menu of the OSD screen function, you can select the speakers. Using

AUDIO SOURCE in the SOUND menu, you can select which source to use for audio input. This setting will display all available audio sources (LINE IN, HDMI2, etc); an audio source must be connected to the LCD display to be available.

Setting

Sound Mode

Surround Sound

Speaker

Audio Only

Audio Source

Reset Audio Setting

Audio Settings

Details

Set sound mode settings.

Turn surround sound on or off.

Select speaker (internal/external),

Output audio without video (on/off).

Select audio source.

Reset to factory default settings.

TSB.book Page 43 Monday, August 31, 2015 4:30 PM

Chapter 3

How to use the LCD Display Monitor

43

Treble, bass, and balance adjustment

You can adjust the speaker treble, bass, and balance, using the SOUND menu on the OSD screen function. For adjustment, display the OSD menu by pressing the MENU button on the infrared remote control or the MENU button on the left side of the LCD display. Using SOUND STYLE in the SOUND menu, you can select or edit sound styles.

There are three selections; STANDARD (default factory settings), DYNAMIC (settings for enhanced sound), and

CUSTOM (uses previously saved custom sound settings). By default, the CUSTOM mode uses the STANDARD settings.

Sound Style

Treble

Bass

Balance

Setting

Treble, Bass, and Balance Adjustment

Details

Select or edit sound style.

Adjust treble settings.

Adjust bass settings.

Adjust balance settings.

If no audio is output when an OPS-compliant computer is in use, check that the display is selected as the audio output source by the operating system of the computer. For the selection method, see the help documentation or the user’s manual of the operating system for the computer, or the driver for the audio device.

TSB.book Page 44 Monday, August 31, 2015 4:30 PM

44

Chapter 3

How to use the LCD Display Monitor

Schedule setting

You can program power-on/off and input selection using the QUICK button on the infrared remote control, which enters the SCHEDULER settings in the OSD menu. Alternatively, display the OSD menu by pressing the MENU button on the infrared remote control or the MENU button on the left side of the LCD display. Using SCHEDULER in the SETUP menu of the OSD screen function, you can program power-on/off and input selection.

TSB.book Page 45 Monday, August 31, 2015 4:30 PM

How to set up a schedule

Chapter 3

How to use the LCD Display Monitor

45

Program number selection

When the cursor is in any of the check boxes showing the program numbers 1 to 7 on the left side of the screen, press the UP ( ) and DOWN ( ) buttons to move the cursor up or down to select the program number you want to set.

To enable the selected program number, press the SET button to place a checkmark in the check box. To disable it, clear the checkmark.

Schedule setting of each program

When the cursor is in any of the check boxes, pressing the PLUS (+) button moves the cursor into the white frame on the right.

When the cursor is at any of the items within the white frame, pressing the PLUS (+) button moves the cursor to the right, and MINUS (-) button to the left.

You can set the power-on/off time and video input by pressing the UP ( ) and DOWN ( ) buttons. In addition, you can select or deselect the radio buttons by pressing the SET button.

Setting

SCHEDULE 1

EVERY DAY

MON-SUN

SOURCE

POWER ON

POWER OFF

ENABLE SCHEDULE

RESET ALL SCHEDULES?

Schedule Setting

Details

Select and program up to eight schedules.

Select this option to execute the schedule every day. When you select EVERY DAY, you cannot select both individual days of the week and EVERY WEEK.

Select the days of the week on which you want to execute the schedule. Unless you also select EVERY WEEK, the selection of the days of the week is cleared after the schedule is executed one time.

Select the preferred audio-video input source.

Set the time when the power is turned on. If you don’t want to set the power-on schedule, do not check the power on item.

Set the time when the power is turned off. If you don’t want to set the power-off schedule, do not check the power on item.

Enable/disable the current schedule.

Reset all schedules to factory defaults (no scheduling).

TSB.book Page 46 Monday, August 31, 2015 4:30 PM

46

Chapter 3

How to use the LCD Display Monitor

Schedule confirmation

To confirm the schedule, select ENABLE SCHEDULE in the OSD, then press the MENU button on the infrared remote control or the MENU button on the left side of the LCD display to exit the SCHEDULE menu of the OSD screen function. If you turn off the power before exiting the SCHEDULE menu, the schedule settings may be canceled.

• Before making the schedule settings, be sure to check the current date and time using

“DATE AND TIME”.

• When you close the SCHEDULE screen, the settings are saved.

• When two or more schedules are enabled, they are executed according to the setting of the timer. If the time period overlaps between different schedules, the schedule changes to the schedule started later, and the power turns off once the last executed schedule has completed.

• When two or more schedules have the same power-on/off time, the one with the smallest program number is executed.

• When a schedule has been set, the off timer is disabled.

• You cannot set the power-on time and the power-off time to the same time.

• The power-off time cannot be set if the power-on time has not been set.

• When the AC power supply turns off or the circuit breaker trips due to power failure or other causes, the schedule programs will be keep and executed when the AC power supply returns. However, system time will not be correct if the AC power is off for more than 168 hours.

TSB.book Page 47 Monday, August 31, 2015 4:30 PM

Chapter 3

How to use the LCD Display Monitor

47

Viewing media from USB storage

1

Insert USB storage medium into the USB port.

2

Use the SOURCE button on the infrared remote control or the LCD display to select USB as the input source.

3

The OSD will display three options, PHOTO, MUSIC, and MOVIE. Use the LEFT ( ), and RIGHT ( ), buttons on the infrared remote control to select the media type you wish to view, then enter your selection by pressing the

OK button.

4

When available, the USB storage medium will display on the screen as drive C. Open this drive by pressing the

OK button on the infrared remote control.

5

Use the UP ( ), and DOWN ( ), buttons on the infrared remote control to navigate the contents of the USB storage medium. Open the media you wish to view, using the OK button.

TSB.book Page 48 Monday, August 31, 2015 4:30 PM

48

Chapter 3

How to use the LCD Display Monitor

6

Use the audiovisual control buttons to navigate and open media files; fast reverse ( ), play ( ), fast forward

( ), track backwards (| ), stop (3), pause (2), and track forward ( |).

7

When media files are being viewed in this way, the colored buttons on the infrared remote control will be active.

Their functions are determined by context, and will be shown in the OSD at the bottom of the LCD display. See page 52.The functions of the menu buttons on the LCD display will also change. The following table explains the different menu button functions according to media source.

Menu Button Functions According To Media Source

Keypad

Definition

Key name

Menu

Input

Vol up

Vol down

Up

Down

Power

Media Root page

Input source key

OK

Right key

Left key

Up key

Down key

Power off

Media Source

Media list/playlist mode

Exit

On file: play/pause

On folder: OK key

On dialog OSD: OK key

Right key

Left key

Up key

Down key

Power off

Media player mode

Exit play/pause

Vol up

Vol down

Next image/music file/ movie

Previous image/music file/movie

Power off

TSB.book Page 49 Monday, August 31, 2015 4:30 PM

Chapter 3

How to use the LCD Display Monitor

49

Setting up a playlist

1

Enter one of the media type menus (PHOTO, MUSIC or MOVIE).

2

The USB storage medium will display on the screen as drive C. Open this drive by pressing the OK button on the infrared remote control.

3

Use the UP ( ), and DOWN ( ), buttons on the infrared remote control to navigate the contents of the USB storage medium. Press the [RED] button to display playlist functions.

4

The playlist menu now displays. Use the UP ( ), and DOWN ( ), buttons on the infrared remote control to navigate and select files.

Press the [OK] button to add a selected file to the playlist.

TSB.book Page 50 Monday, August 31, 2015 4:30 PM

50

Chapter 3

How to use the LCD Display Monitor

5

Use the colored buttons to select options in the playlist menu.

• [BLUE]: Save selected files to a playlist.

• [RED]: Cancel and return to the previous menu.

• [GREEN]: Load an existing playlist.

• [YELLOW]: Clear all selected files from the current playlist.

6

If no playlist has been defined, pressing the [BLUE] button ([PLAY ALL]), or the [OK] button, or the PLAY button ( ), will play all files in the current folder.

TSB.book Page 51 Monday, August 31, 2015 4:30 PM

Chapter 3

How to use the LCD Display Monitor

51

Playing background music

This is the background music icon. When viewing photos it is possible to play background music simultaneously, if the folder from which the photos are being played also contains music, and the music has been added to a playlist.

1

Press the UP ( ) button to display the playguide.

2

Use the LEFT ( ), and RIGHT ( ), buttons to select the background music icon, and press [OK].

3

The background music icon will be crossed out if no music files are available to play.

Slideshow settings

When in photo viewing mode, it is possible to view all available photos (or all photos in a playlist), using a slideshow.

Use the [YELLOW] button to display these slideshow options.

TSB.book Page 52 Monday, August 31, 2015 4:30 PM

52

Chapter 3

How to use the LCD Display Monitor

1

Slideshow Time: Set the time to wait between presenting each image in the slideshow:

• 3 seconds-20 seconds/1 second intervals

2

Transition: Set the transition type when changing from one image in the slideshow to another.

• Off

• Wipe left

• Wipe right

• Wipe up

• Wipe down

• Box in

• Box out

Playing a playlist

When playing a playlist, a playguide is available which provides additional functions. Use the UP ( ), button to display these functions, the LEFT ( ), and RIGHT ( ), buttons to select these functions, the [OK] button to choose a function, and the [INFO] button to hide the playguide.

Remote Key

2 /

| |

|

Playguide Functions

Function

Pause/play

Fast forward (not available in PICTURE mode)

Rewind (not available in PICTURE mode)

Previous photo/track/file

Next photo/track/file

TSB.book Page 53 Monday, August 31, 2015 4:30 PM

Chapter 3

How to use the LCD Display Monitor

53

Remote Key

3

Playguide Functions

Function

Stop playback

Play/stop background music (only available in PICTURE mode, and is crossed out if this feature is unavailable)

Repeat: play all files repeatedly in sequence

Shuffle: play all files randomly

Remote Key

/

OK

3

2

|

|

[BLUE]

Remote Key Functions With Playguide

Pictures

Show playguide

Hide playguide

Select item (play/pause/ skip-up/skip-down/stop/ music/repeat/shuffle/

SSTime/SSTransition)

Choose item (play/ pause/skip-up/skipdown/stop/music/repeat/ shuffle/SSTime/SSTransition)

Play back selected item

Stop and return to list window

Pause slideshow

Not used

Not used

Next photo

Previous photo

Not used

Music

Show playguide

Hide playguide

Select item (pause or play/fast forward/rewind/ skip-up/skip-down/ repeat/shuffle)

Choose item (pause or play/fast forward/rewind/ skip-up/skip-down/ repeat/info)

Playback selected item

Stop and return to list window

Pause playback

Fast forward

Rewind

Next track

Previous track

Not used

Movies

Show playguide

Hide playguide

Select item (pause or play/fast forward/rewind/ skip-up/skip-down/ repeat/shuffle)

Choose item (pause or play/fast forward/rewind/ skip-up/skip-down/ repeat/info)

Playback selected item

Stop and return to list window

Pause playback

Fast forward

Rewind

Next file

Previous file

Not used

[RED] [PLAYLIST]: Show playlist details

[PLAYLIST]: Show playlist details

[PLAYLIST]: Show playlist details

TSB.book Page 54 Monday, August 31, 2015 4:30 PM

54

Chapter 3

How to use the LCD Display Monitor

Remote Key

[GREEN]

[YELLOW]

Info

Remote Key Functions With Playguide

Pictures

[INFO]: Show details of current file

Music

[INFO]: Show details of current file

Movies

[INFO]: Show details of current file

Not used Not used [OPTION]: Slide show options

Show/hide playguide

Return to list window

Show/hide playguide

Return to list window

Show/hide playguide

Return to list window

TSB.book Page 55 Monday, August 31, 2015 4:30 PM

Chapter 3

How to use the LCD Display Monitor

55

Remote control

1

RS-232C Remote control

In order to control displays remotely, the displays support two communication interfaces: RS-232C and LAN.

Computers can communication to the display via the two connections. You can select communication interface in the

OSD menu. The two connection types for connecting a computer to the display are shown as below: i. RS-232C:

Using an RS-232C cross cable (reversed).

For connection with a 25-pin serial port connector on the computer, a conversion adapter (commercially available) is required.

For direct connection using RS-232C, use the RXD, TXD, and GND lines.

ii. LAN: Using a RJ45 connector for Ethernet networking.

By using the two communication interfaces, you can control displays remotely.

Please contact your local agent for details of the control functions, including command sets.

The following operations are supported control commands.

Control Command Function Overview

Main operations Description

Reset

Power ON or OFF

Volume control and mute

Input source

Restoring settings to the defaults. Reset commands including Picture Reset, Sound reset, etc.

Turn the LCD display on or off.

Adjusting the volume.

Items about picture

Items about sound

Switching between input signals.

Adjusting picture mode, backlight, over scan, etc

Adjusting sound mode, speaker, audio only, etc.

Items about multi-display control Options used to set up multiple displays, such as screen position, display ID, etc.

Items about initial setting Initial settings can also use command to adjust options, such as language, RTC time, time format, OSD rotation, etc. For example, selecting the language can change the on-screen menu language.

TSB.book Page 56 Monday, August 31, 2015 4:30 PM

56

Chapter 3

How to use the LCD Display Monitor

2

Command protocol

i. The communication protocol setting is as follows:

Protocol

Baud rate

Data length

Parity bit

Stop bit

Flow control

Communication Settings

9600 [bps]

8 [bit]

None

1 [bit]

None

RS-232C

ii. Control command protocol:

The command is structured by the command length code, ID code, command type code, function code, data

code and end code. The length of the command is different for each function.

Command length code

ID code

Command type code

Command code

Data code (value)

End code (CR)

Command Protocol

Total byte of message excluding end code.

Identification for each of the displays.

0x73: Set command; 0x67: Get command; 0x72: Reply command;

0x2B: Valid command reply; 0x2D: Invalid command reply

Each control function is assigned to a unique command code.

Value of each control function

0x0D

A remote tool (terminal software), helps users send control commands more conveniently. When you use the terminal software, you can adjust the timeout period in the user interface. The default timeout value is 5,000ms. If the computer does not acknowledge the message within the timeout period, a transmission error is assumed to have occurred. If the

LCD display receives the command, it will send a return command to the computer. The computer checks the return command to see whether or not the command it sent was received, and must receive the return command before sending the next command.

TSB.book Page 57 Monday, August 31, 2015 4:30 PM

Chapter 3

How to use the LCD Display Monitor

57

Two basic commands are shown here as examples. Note that these commands are used when a single computer connects to a single display. Contact your dealer for advanced command specifications if you want to connect multiple displays, or perform complicated controls using other commands than the basic commands.

Example 1: Set display ID-02 brightness to 76; this command is valid.

Byte 0

Name Length

(1 byte)

Hex 0x38 0x30

Send packet from computer

1

ID

(2 bytes)

2

0x32

3

Cmd

Type

(1 byte)

0x73

4

Cmd

Code

(1 byte)

0x24

5 6

Value (>= 3 bytes)

Byte1 Byte2

0x30 0x37

7

Byte3

0x36

8

CR

(1 byte)

0x0D

Hex 0x34

Return packet from display to computer

Byte 0 1

Name Length 0x32

0x30

2

0x32

3

Cmd

Type

0x2B

4

CR

0x0D

Example 2: Retrieve brightness value from display ID-02; this command is valid, and the brightenss value is 80.

Byte 0

Name Length

(1 byte)

Hex 0x38 0x30

Send packet from computer

1

ID

(2 bytes)

2

0x32

3

Cmd

Type

(1 byte)

0x67

4

Cmd

Code

(1 byte)

0x62

5 6

Value (>= 3 bytes)

Byte1 Byte2

0x30 0x30

7

Byte3

0x30

8

CR

(1 byte)

0x0D

Byte 0

Name Length

(1 byte)

Hex 0x38

Return packet from display to computer

1

ID

(2 bytes)

2

0x30 0x32

3

Cmd

Type

(1 byte)

0x72

4

Cmd

Code

(1 byte)

0x62

5 6

Value (>= 3 bytes)

Byte1 Byte2

0x30 0x38

7

Byte3

0x30

8

CR

(1 byte)

0x0D

TSB.book Page 58 Monday, August 31, 2015 4:30 PM

58

Chapter 3

How to use the LCD Display Monitor

LAN remote control

When you connect the display and the computer using a LAN hub and a LAN cable (see page 31), and then configure the network settings using ETHERNET SETTING in the SETUP menu of the OSD, you can control the LCD display remotely using the same commands as for RS-232C.

Setting procedure:

1

Select LAN as the communication interface used for the serial communication function. (See page 55, and see also the Control Setting in the "Setup Menu Screen" on page 65).

2

Set the following network paramaters using the OSD menu.

• DHCP client ON/OFF, IP address, subnet mask and default gateway.

3

Set the IP address described above and the port number (4660) using the application program of your computer to perform the socket communication.

4

Send the same control command as for RS-232RC via TCP/IP socket communication.

5

Check the return command sent from the LCD display. When it is received successfully, the setting is complete.

TSB.book Page 59 Monday, August 31, 2015 4:30 PM

Chapter 3

How to use the LCD Display Monitor

59

Configuration and basic operation of the OSD screen

This LCD display is equipped with an OSD (On Screen Display) function for easy adjustment of settings. The OSD function allows you to control the menus displayed on the screen, to adjust brightness, and other settings.

This table lists the initial OSD functions in the main menu screen. Detailed options are described in the following pages.

Main Menu Screen

Menu Option


Sound

Setup

Initial Setting

Multi Display Control

System Information

Detailed information

See page 62

See page 64

See page 65

See page 66

See page 67

See page 69

TSB.book Page 60 Monday, August 31, 2015 4:30 PM

60

Chapter 3

How to use the LCD Display Monitor

Basic operation of OSD screen

Check that the power indicator illuminates green and the LCD display is powered on.

Step

1

Wireless remote control

Monitor button Description

2

Press the MENU button to display the OSD screen and then press the UP ( ), and

DOWN ( ), buttons to select options in the main menu.

3

When you press the OK button to accept the selected main menu, the sub menu at the top is selected.

When you press the

SOURCE button to accept the selected main menu, the sub menu at the top is selected.

Press the UP ( ), and

DOWN ( ), buttons to select a sub menu.

TSB.book Page 61 Monday, August 31, 2015 4:30 PM

Step

4

Wireless remote control

Chapter 3

How to use the LCD Display Monitor

61

Monitor button Description

5

Press the OK button to accept the selected sub menu.

Press the SOURCE button to accept the selected sub menu.

6

Press the LEFT ( ), and

RIGHT ( ), buttons to select the setting and then press the OK button to accept it.

Press the PLUS (+), and

MINUS (-), buttons to select the setting and then press the MENU button to accept it.

Press the exit button to leave the current menu and return to the previous menu.

Press the MENU button to leave the current menu.

TSB.book Page 62 Monday, August 31, 2015 4:30 PM

62

Chapter 3

How to use the LCD Display Monitor

Picture Menu Screen

Picture mode

Backlight

Color Temperature

Gamma

Adaptive Contrast

Over Scan

Aspect Ratio

Color Range

VGA setting

Reset Picture Setting

Picture Menu Screen

Select picture style, Dynamic, Cinema, Custom, or Standard. See pages

16 and 41.

Adjust contrast, brightness, sharpness, tint, and color settings.

Adjust backlight settings.

Adjust color temperature and gain.

Select gamma setting.

Turn adaptive contrast on or off.

Adjust over scan settings.

• Adjust aspect ratio settings

• This option is grayed out and inactive when the zoom (in multi-display), is enabled.

• The options are 4:3, 16:9, zoom, cinema, and dot by dot.

• If overscan is off, only aspect ratios 4:3, 16:9. and dot by dot can be selected.

• If multi-display is active, the overscanoption is grayed out and set to

OFF.

Adjust color range settings, or set to automatic.

Adjust horizontal and vertical position, clock, and phase.

Reset settings to factory defaults.

TSB.book Page 63 Monday, August 31, 2015 4:30 PM

Aspect Ratio Menu Settings

Chapter 3

How to use the LCD Display Monitor

63

HDMI1/2

DVI-D

YPrPr

PC

Source ID

AV

Media Movie

Aspect Ratio Menu Settings

OverScan

OFF

Auto

Auto

OFF

Auto

Aspect Ratio

4:3

16:9

Dot by Dot

4:3

16:9

Zoom

Cinema

Dot by Dot

4:3

16:9

Zoom

Cinema

4:3

16:9

Dot by Dot

4:3

16:9

Zoom

Dot by Dot

TSB.book Page 64 Monday, August 31, 2015 4:30 PM

64

Chapter 3

How to use the LCD Display Monitor

Sound Menu Screen

Sound mode

Surround Sound

Speaker

Audio Only

Audio Source

Reset Sound Setting

Sound Menu Screen

Select sound style; Standard, Dynamic, or Custom.

Adjust Treble, Bass, and Balance settings.

Turn surround sound on or off.

Select internal or external speaker.

Select audio only, or audio/video.

Select audio source; Line In/HDMI1, or Line In/HDMI2.

Reset settings to factory defaults.

TSB.book Page 65 Monday, August 31, 2015 4:30 PM

Setup Menu Screen

Chapter 3

How to use the LCD Display Monitor

65

Scheduler

Signal Check Priority

Control Setting

Standby Mode

Ethernet Setting

Sleep Timer

Power Save

Setup Menu Screen

Change schedule settings.

• Set signal priority 1-5 (priority 1 is the highest). If the current source signal is lost, the display will search for a new signal source according signal priority setting).

• If signal priority check is enabled, upon power on the display will search for an active source according the signal priority check settings.

• If there is no signal source available in priority 1, the display will check other sources in descending order of priority, and switch source accordingly.

• If the signal source with the highest priority returns, the display will automatically switch back to this source.

• If signal priority check is disabled, upon power on the display will use will the last used source.

• If signal priority check is enabled and upon power on the source is USB, the system will automatically play from USB.

Choose to control the LCD display through RS-232C or LAN.

Select standby mode; ECO or normal.

Change ethernet settings for control via LAN.

Change sleep timing settings, or turn off the sleep timer.

Change power save settings, or turn off the power save mode.

TSB.book Page 66 Monday, August 31, 2015 4:30 PM

66

Chapter 3

How to use the LCD Display Monitor

Software Update (USB)

Restore Default

Initial Setting Menu Screen

Setup Menu Screen

Update software through the USB port.

Reset settings to factory defaults.

OSD Rotation

Menu Language

Time Format

Clock

Logo Display

Remote Operation

Keyboard Operation

Anti-Image Retention

Initial Setting Menu Screen

Selects portrait or landscape orientation for the OSD.

Change the OSD menu language.

Selects 12 hour or 24 hour time format.

Change time and date.

Select whether or not to display the Toshiba logo on power up.

Enable or disable remote operation.

Enable or disable keyboard operation.

Select one of two image retention prevention modes, or turn it off.

TSB.book Page 67 Monday, August 31, 2015 4:30 PM

Multi Display Control Menu Screen

Chapter 3

How to use the LCD Display Monitor

67

Tiling

Tiling Mode

Screen Position

Monitor ID

Frame Compensation

Multi Display Control Menu Screen

Enable Multi Display. Up to 25 panels (5 wide x 5 high), can be combined to create a single large image (i.e., video wall), or other highimpact signage.

Set the number of displays used for the horizontal and vertical display.

For installations using multiple displays,screen position is used for identification, especially when the “SET ID” key of the infrared remote controller and the control function by RS-232C are used.

Set this monitor’s ID number.

Turn frame compensation on or off. Frame compensation is used to compensate for the width of panel bezels so images are displayed with high accuracy.

TSB.book Page 68 Monday, August 31, 2015 4:30 PM

68

Chapter 3

How to use the LCD Display Monitor

Power ON Delay

Multi Display Control Menu Screen

For installations using multiple displays, the power-on delay function can power up the displays sequentially with a delay of 0-30 seconds after the power is applied. Using this function can prevent inrush current problems, and reduce the overall electrical load requirements when a single power supply is used.

• Set the power on delay or turn it off.

• 0-30 seconds/0.5 second steps.

• Set to "AUTO" by default.

• This function is interlocked with the number of the display ID.

• When multiple displays are used, each display is assigned an individual display ID.

• For "Power On Delay", when "AUTO" is chosen, each display's power supply delay time is defined as follows.

• Delay time = number of display ID × 0.3 seconds.

• For example, for a display in which display ID is set to 5, the power supply is turned on after 1.5 seconds.

Controlling Multiple Displays

Use these instructions to set a display’s ID number with the infrared remote control.

1

Press [MENU].

2

Use the DOWN button ( ), to move to the option “Multi Display Control”, and press [OK].

3

Use the LEFT ( ), and RIGHT ( ), buttons to select the display’s two digit ID.

4

Exit the menu by pressing the [MENU] button.

Use these instructions to select a display to control with the infrared remote control. Display IDs have two digits. In this example the selected display’s ID is “02”.

1

Press [SET ID]. The OSD will display “IR Set ID”.

2

Press “0”. The OSD will display “IR Set ID 0”.

3

Press “2”. The OSD will display “IR Set ID 02”.

4

Press [ENTER]. If the display’s ID is “02”, the OSD will display “IR Free 02”.

5

If the display’s ID is not “02”, the OSD will display “IR Lock 02”.

6

To clear the lock status, press [SET ID].

Use the [INFO] button to identify the current display’s ID. The OSD will display the ID. To reset all display IDs in the daisy chain, press [SET ID], “0”, “0”, then [ENTER].

TSB.book Page 69 Monday, August 31, 2015 4:30 PM

System Information Menu Screen

Chapter 3

How to use the LCD Display Monitor

69

Model Name

SW Version

LAN Version

IP Address

System Information Menu Screen

Shows the display’s model name and number.

Shows the display’s current software version.

Shows the display’s current LAN firmware version.

Shows the display’s current IP address.

TSB.book Page 70 Monday, August 31, 2015 4:30 PM

Appendix A

Specifications

• These models comply with the specifications listed below.

• Designs and specifications are subject to change without notice.

• These models may not be compatible with features and/or specifications that may be added in the future.

LCD Module

LCD Module

Screen size

Panel Type

Pixel Pitch (mm)

Resolution

Color

43”

43”

VA

0.49 x 0.49

1920 x 1080 pixels

8 bit

1.67 million colors

450 Brightness

(cd/m2, typ.)

Contrast ratio

Viewing Angle

(CR>=10)

Response time

3000

Up/Down 89°

Left/Right 89°

8ms (G to G)

50”

50”

VA

0.57 x 0.57

1920 x 1080 pixels

8 bit

1.67 million colors

450

3000

Up/Down 89°

Left/Right 89°

8ms (G to G)

55”

55”

VA

0.63 x 0.63

1920 x 1080 pixels

8 bit

1.67 million colors

450

3,500

Up/Down 89°

Left/Right 89°

8ms (G to G)

65”

65”

VA

0.744 x 0.744

1920 x 1080 pixels

10 bit

1.06 billion colors

450

4,000

Up/Down 89°

Left/Right 89°

8ms (G to G)

70

TSB.book Page 71 Monday, August 31, 2015 4:30 PM

71

Viewable Size (H x V)

43”

50”

55”

65”

940.9 x 529.3mm

1095.8 x 616.4mm

1209.6 x 680.4mm

1428.5 x 803.5mm

Power Management

VESA DPM

Power source

Input Voltage

Power Consumption in Power Saving mode

43”/50”/55”/65”

AC100-240V ±10% (50/60Hz)

Power switch off (DC-OFF, standby): <0.5W

Main power switch off: 0W

Power consumption

43”

50”

55”

65”

~90W

~170W

~180W

~226W

Input/Output Signal

PC Input/Output

Input Connector

Output Connector

Horizontal Frequency

Vertical Frequency

Pixel Clock

Video Signal

Sync Signal

Analog

Digital

D-SUB 15-pin or YPbPr cable (YPbPr CVBS

Common)

HDMI x 2 (PC/AV Common, HDCP supported), DVI-D

(HDCP supported)

Digital DVI-D (HDCP supported)

Analog: 15.625 kHz - 67.5 kHz, Digital: 31.5 kHz - 67.5 kHz

50 Hz - 60 Hz

Analog

Digital

13.5 - 148.5.0 MHz

25.0 - 148.5.0 MHz

Analog: Analog RGB, Digital: TMDS (with HDCP)

Analog: Separate (TTL), Composite (TTL), Sync on Green, Digital: TMDS

TSB.book Page 72 Monday, August 31, 2015 4:30 PM

72

Output Connector

Dimensions

43”

50”

55”

65”

Width

Height

Depth

Width

Height

Depth

Width

Height

Depth

Width

Height

Depth

Supported Resolutions Analog: 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 768,

1280 x 800,1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768,

1600 x 1200, 1920 x 1080

Digital: 640 x 800, 800 x 600, 1024 x 768, 1280 x 1024, 1280 x 768,

1360 x 768, 1680 x 1050, 1920 x 1080

AV Input/Output

Input Connector

Output Connector

Supported Resolution

Analog Composite (shared with Component Y/Pb/Pr), D-SUB 15-pin or

YPbPr cable

Digital

Digital

HDMI x 2 (HDCP supported), DVI-D (HDCP supported), USB

DVI-D (HDCP supported)

Composite/S-terminal: SDTV, DVD, HDTV

Component: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Audio Input/Output

Input Connector Analog

Digital

Analog

3.5mm jack

HDMI x 2 (digital audio)

3.5mm jack

38.1” (967mm)

22.4” (568mm)

2.8” (70mm)

44.6” (1133mm)

25.8” (656mm)

2.8” (70mm)

49” (1246mm)

28.3” (719mm)

2.7” (69mm)

57.6” (1463mm)

33.2” (844.3mm)

2.8” (70mm)

TSB.book Page 73 Monday, August 31, 2015 4:30 PM

73

Mass (weight)

43”

50”

55”

65”

Net 10.5kg (23.1lb); Gross 14.5kg (31.9lb)

Net 14kg (30.8lb); Gross 20.5kg (45.1lb)

Net 17kg (37.4lb); Gross 23.5kg (51.8lb)

Net 24kg (52.9lb); Gross 33.5kg (73.8lb)

Table 1: Media Support Specifications (Video)

File

Extension Container

.dat

.mpg

.mpeg

.ts

.trp

.to

.m2ts

.vob

.mp4

.mkv

.avi

MPG

MPEG

TS

MPEG2-

PS

MP4

MKV

AVI

Video codec

Maximum

Resolution

Max

Frame

Rate

MPEG1 1080P

MPEG2 1080P

MPEG2 1080P

H.264

1080P

MPEG2 1080P

MPEG4

H.264

H.264

1080P

1080P

1080P

MPEG1 1080P

MPEG2 1080P

MPEG4 1080P

MPEG2 1080P

MPEG4 1080P

H.264

1080P

Max Bit

Rate

30fps 20Mbit/

Sec

30fps 20Mbit/

Sec

30fps 20Mbit/

Sec

30fps 20Mbit/

Sec

30fps 20Mbit/

Sec

30fps 20Mbit/

Sec

30fps 20Mbit/

Sec

30fps 20Mbit/

Sec

30fps 20Mbit/

Sec

30fps 20Mbit/

Sec

30fps 20Mbit/

Sec

30fps 20Mbit/

Sec

30fps 20Mbit/

Sec

30fps 20Mbit/

Sec

MPEG1

(L2&

L3)

V

V

V

V

V

V

AC3 AAC WMA L-PCM

V

V

V

V

V

V

V

V

V

V

V

V

V

V

TSB.book Page 74 Monday, August 31, 2015 4:30 PM

74

Table 1: Media Support Specifications (Video)

.asf

File

Extension Container

Motion

JPEG

.wmv

Video codec

Maximum

Resolution

Max

Frame

Rate

Max Bit

Rate

“AVI, MOV” JPEG

ASF H.264

640x480 30fps 10Mbit/

Sec

1080P 30fps 20Mbit/

Sec

MPEG2 1080P

MPEG4 1080P

30fps 20Mbit/

Sec

30fps 20Mbit/

Sec

VC1 1080P

ASF

WMV3 1080P

MPEG4 1080P

30fps 20Mbit/

Sec

30fps 20Mbit/

Sec

30fps 20Mbit/

Sec

MPEG1

(L2&

L3)

V

AC3 AAC WMA L-PCM

V V

V

V

Table 2: Media Support Specifications (Audio)

File Extension

.mp3

.mp3

N/A

(works with video files only)

.m4a

.AAC

.wma

.asf

N/A

(work with video files only)

Audio codec

MPEG1 Layer2

MPEG1 Layer3

AC3

AAC, HEAAC

WMA

LPCM

Bit Rate

32Kbps - 448Kbps

32kbps - 320Kbps

32kbps - 640Kbps

24Kbps - 384Kbps

128bps - 320Kbps

64Kbps - 1.5 Mbps

Sample Rate

32Khz - 48Khz

32Khz - 48Khz

32Khz, 44.1Khz, 48Khz

8Khz - 48Khz

8Khz - 48Khz

8Khz - 48Khz

.jpg

File Extension

Table 3: Media Support Specifications (Photos)

JPEG

Image Photo

Base-line

Progressive

Resolution

15360x8640

1024x768

TSB.book Page 75 Monday, August 31, 2015 4:30 PM

.png

.bmp

File Extension

Table 3: Media Support Specifications (Photos)

PNG

BMP

Image Photo non-interlace interlace

Resolution

9600x6400

1200x800

9600x6400

.dat

.mpg

.mpeg

.vob

.ts

.trp

.tp”

Table 4: Media Support Specifications (Internal Subtitles)

File Extension Container Subtitle Codec

MPG

DVD Subtitle

MPEG

TS DVB Subtitle

.mp4

.mkv

.avi

MP4

MKV

AVI

DVB Subtitle

UTF-8 Plain Text

DVD Subtitle

UTF-8 Plain Text

ASS

SSA

Universal Subtitle Formate

VobSub

XSUB

75

.srt

.ssa

.ass

.smi

Table 5: Media Support Specifications (External Subtitles)

File Extension Container

SubRip

SubSation Alpha

Remark

SAMI

TSB.book Page 76 Monday, August 31, 2015 4:30 PM

76

.sub

.txt

Table 5: Media Support Specifications (External Subtitles)

File Extension Container

SubViewer

MicroDVD

DVDSubtitleSystem

SubIdx(VobSub)

TMPlayer

Remark

SubViewer 1.0 & 2.0 Only

TSB.book Page 77 Monday, August 31, 2015 4:30 PM

77

© 2015 Toshiba Lifestyle Products & Services Corporation. All rights reserved.
