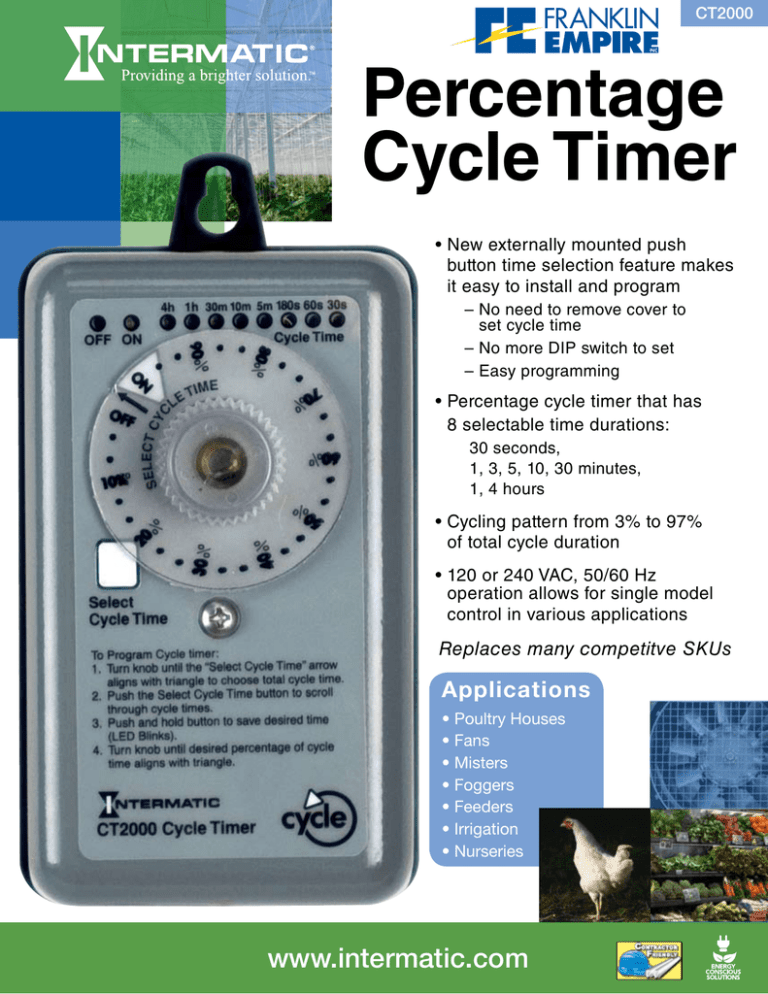

Percentage Cycle Timer
CT2000
Percentage
Cycle Timer
•N
ew externally mounted push
button time selection feature makes
it easy to install and program
– N
o need to remove cover to
set cycle time
–
No more DIP switch to set
–
Easy programming
•P
ercentage cycle timer that has
8 selectable time durations:
30 seconds,
1, 3, 5, 10, 30 minutes,
1, 4 hours
•C
ycling pattern from 3% to 97%
of total cycle duration
•1
20 or 240 VAC, 50/60 Hz
operation allows for single model
control in various applications
Replaces many competitve SKUs
Applications
• Poultry Houses
• Fans
• Misters
• Foggers
• Feeders
• Irrigation
• Nurseries
www.intermatic.com
Percentage Cycle Timer
5 3/4"
CT2000 Cycle Timer
3 1/2"
2 13/16"
Benefits
• Sealed enclosure handles dusty, ammonia rich or
wash-down environments
• LED indicators provide constant operation feedback
• Manual On or Off override allows users to bypass
cycling pattern when required
Specifications
Voltage/Frequency:
120/240 VAC, 50/60 Hz
Switch:
SPST
Resistive:
20 AMP
Motor:
2 H.P., 240 VAC; 1 H.P., 120 VAC
General Purpose:
20 AMP, 240 VAC
Tungsten (incandescent):
5 AMP, 240 VAC
Pilot Duty:
470 VA, 240 VAC
Ballast (fluorescent):
10 AMP, 277 VAC
Operating Ambient Temperature Range: -10ºC (14ºF) to +60ºC (140ºF)
Surge Protection:
Agency Approval:
©2010 Intermatic
7777 Winn Road Spring Grove, IL 60081
www.intermatic.com
(P) 815.675.2321 (F) 815.675.7105
300CT10002
Up to 6000 VAC
Total Cycle Minimum Maximum
Duration
ON/OFF
ON/OFF
30 Seconds
1 Second
29 Seconds
1 Minute
2 Seconds
58 Seconds
3 Minutes
6 Seconds
2 Minutes 54 Seconds
5 Minutes
10 Seconds 4 Minutes 50 Seconds
10 Minutes
20 Seconds 9 Minutes 40 Seconds
30 Minutes
1 Minute
29 Minutes
1 Hour
2 Minutes
58 Minutes
4 Hours
8 Minutes
3 Hours 52 Minutes
