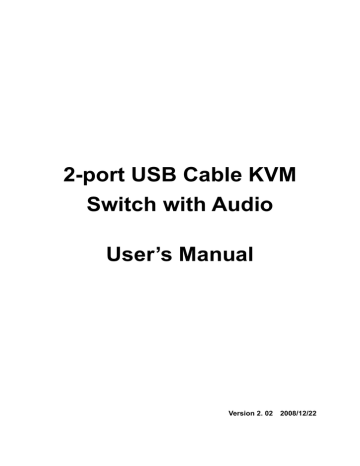

2-port USB Cable KVM
Switch with Audio
User’s Manual
Version 2. 02 2008/12/22
Index
1. INTRODUCTION……………………………………………………………………………………………2
1.1 FEATURES …………………….…..………………………………….………………………… ………2
1.2 PHYSICAL DIAGRAM…….…………………………………...…..………………………………………3
1.3 PACKAGE CONTENTS…………………………………...……………..………………………………...3
2. SPECIFICATIONS………………………………………………………………………………………….4
2.1 GENERAL……………………………………………………………...…………………………………4
3. INSTALLING THE CABLE KVM SWITCH………………………………………………………………5
3.1 SYSTEM REQUIREMENTS………………………………………….…………………………………….5
3.2 HARDWARE INSTALLATION………...………………………...……………..……………………………5
3.3 NOTICE FOR SUN MICRO SYSTEM USER……………………………………………………….……….6
3.4 HOT SWAPPABLE……………………….……………...……………………..………………………….6
3.5 DRIVER INSTALLATION(WINDOWS 98/SE ONLY)..………………………………………………………6
4. OPERATION……………………………………………………………………….…….………………….9
4.0 PUSH BUTTON……..……………………………………………………………………………………..9
4.1 HOT-KEY OPERATION…………………………………………………………………………………….9
4.2 PC SELECTION………………….…..……………………………………………………………………9
4.3 AUTO-SCAN FUNCTION……….……….………………………………………………………………..10
1
1. Introduction
Thank you for your purchase of the 2-port USB Cable KVM Switch with Audio!
You now have a high quality, durable system that enables you to control two
computers and/or servers from one console (USB Mouse, Keyboard, and
Monitor). In addition, proprietary new technology allows you to independently
control and switch audio between two computers.
1.1 Features
1. Controls 2 computers from a single console (Keyboard/Mouse) over USB
connection.
2. Support Window 98SE/ME/2000/XP/Vista/2003 server, Sun Micro , Mac , Linux
3. Allows sharing of audio devices.
4. Emulates a keyboard on each PC to allow your computers to boot normally
without a keyboard error.
5. Supports hot-swap. All devices connected to the KVM can be added or
removed at any time, without shutting the unit down.
6. Supports USB keyboard Hot-Key Switch and push buttons for easy operation.
7. Supports Auto-Scan function to alternate video between both computers in
preset intervals.
8. Supports LED display for PC and audio status monitoring.
9. Supports VGA resolutions up to 2048x1536 @ 85HZ.
10. Supports Plug and Play.
11. Self powered through USB connection.
12. Provides innovative cable management system to prevent tangles.
2
1.2 Physical Diagram
PC connection 2 LED Indicators (Green)
PC connection 1 LED Indicators (Green)
PC 1 LED Indicators (Red)
PC 2 LED Indicators (Red)
USB Keyboard
VGA Output
USB Mouse
PC Selection Push Button
PC Selection Push Button
Speaker Jack
MIC Jack
z
z
PC LED Indicators:
RED LED indicates that the 2-port USB Cable KVM Switch is switched to the
corresponding PC.
PC connection LED Indicators:
GREEN LED indicates the status of PC connection.
1.3 Package Contents
The product you purchased should contain the following equipment and
accessories:
1. One 2-port USB Cable KVM Switch with Audio.
2. User Manual.
3
2. Specifications
2.1 General
Specification
Number Of Computers Controlled
Selection Method
USB Versions supported
USB
Video
Speaker
Microphone
KVM Body
2
USB Keyboard Hot Key only
1.1
Red for PC Selection
Green for PC ON-Line Selection
2 x Type A USB Connectors
2 x HDB-15 male
2 x Stereo speaker plugs
2 x Mono microphone plugs
1 x DVI 24+5 Connector (male)
Keyboard / Mouse
Video
Speaker
Microphone
HOST
2 x Type A USB Connectors (female)
1 x HDB-15 female
1 x Stereo speaker jack
1 x Mono microphone jack
1 x DVI 24+5 Connector (female)
LEDs
PC
Connectors
Console Ports
Auto-Scan Interval
DDC, DDC2 monitor
Hot Swappable
5~60 Seconds
Yes (Max. Resolution: 2048x1536)@85Hz
Yes
Operating systems supported
Windows 98SE/ME/2000/XP/Vista/2003
Server, Sun Micro, Mac, Linux
Device driver
Power
Cable Length
No
By PC USB power
1.20 Meter
Dimensions (LxWxH)
Unit Weight
65 x 85 x 25 (mm)
450 g
4
3. Installing the Cable KVM Switch
3.1 System Requirements
A PC with USB port and 1 VGA port.
Windows 98 or later, Mac OS 8/9/OS X, Solaris 8 (SUN BLADE 100), Linux
Kernel 2.3 or later.
USB Keyboard and mouse.
3.2 Hardware Installation
5
Plug the USB keyboard, USB mouse, and monitor into the corresponding
connectors of your 2-port USB Cable KVM Switch.
Plug the speakers into the corresponding jacks of your 2-port USB Cable KVM
Switch.
Connect the KVM cables into the corresponding ports on the computers.
3.3 Notice for Sun Micro System user
Since some Sun Micro system will detect the monitor information, if system fail to
get information from the Monitor, then you won’t get any screen came out. So for
safety, “YOU MUST SWITCH USB KVM SWITCH TO THE SUN MICRO
SYSTEM” before you power on the Sun Micro System. After you seeing the
screen from the Sun Micro System, then you can switch to any other Host. If you
have multiple Sun Micro systems, then you have to repeat this procedure one by
one.
3.4 Hot Swappable
The 2-port USB Cable KVM Switch supports hot-swap technology. All the
components can be added or removed at any time without shutting the PC down.
3.5 Driver Installation (Windows 98/SE only)
After you connect the 2-port USB Cable KVM Switch to your PC, Win 98 will
automatically detect the device and prompt for the driver installation. Please
install the 2-port USB Cable KVM Switch by the following instruction from Step
A-E. Please have your Windows 98 CD ready.
A. Press “Next” to Continue.
(Ref. Fig. A)
Fig. A
6
B. Select “Search for the
best driver for your device”
and press “Next” to
continue.
(Ref. Fig. B).
Fig. B
C. Please insert the
“Windows 98” CD into your
CD-ROM drive. Click
“CD-Rom drive” and press
“Next” to continue.
(Ref. Fig. C)
Fig. C
D. Press “Next” to start the
installation process.
(Ref. Fig. D)
Fig. D
7
D1. Sometimes Windows
cannot locate the necessary
driver automatically. So you
need to choose “Browse” to
specify the location of the
driver on your “Windows
98” CD manually. *
(Ref. Fig. D1)
Fig. D1
* The driver might be located in a different directory from the figure above.
D2. Press “OK” to continue
(Ref. Fig. D2)
Fig. D2
E. Press “Finish” and
Windows has finished
installing the USB Human
Interface Device driver for
PS/2 keyboard & mouse.
(Ref. Fig. E)
Fig. E
8
4. Operation
The 2-port USB Cable KVM Switch can switch the keyboard, video, mouse and
audio simultaneously.
Note: When using the two-step Hot Key sequences, the keys must be
pressed within 5 seconds, otherwise the Hot Key action will terminate.
4.0 Push Button
User can switch PC by pressing push button.
4.1 Hot-Key operation
Note: If your keyboard is without < Scroll Lock > button, then you can
change the hotkey setting and use < Caps Lock > or <Num Lock > to
instead of Scroll Lock (please reference 4.2).
4.2 PC Selection
Hot Key:
Switch to PC1
[Scroll] + [Scroll] + [ 1 ]
Switch to PC2
[Scroll] + [Scroll] + [ 2 ]
Switch to Next PC
[Scroll] + [Scroll] + [→ ] or [↓]
Switch to Previous PC
[Scroll] + [Scroll] + [← ] or [↑]
9
4.3 Auto-Scan Function
Hot Key:
[Scroll] → [Scroll] → [S] → [Esc] to BEGIN.
There is about 10 seconds for the initial time waiting.
Press the [Esc] key to STOP.
NOTE : [Esc] will stop the
atuo-scan operation and make
the KMV jump to the current
scanning PC.
You can activate the Auto-Scan function by using the following two-step Hot Key
sequence. To send commands to the KVM Switch, press the [Scroll] key twice
(Step 1), then press [S] (Step 2). When you press the Auto-Scan hot key sequence,
the KVM Switch alternates between the two PCs and displays them on the
monitor.
Each PC is display one of time interval from 5 ~ 60 seconds (The interval is
adjustable) before switching to the next. When you press any key on the keyboard,
the Auto-Scan will stop and the monitor screen will jump back to the original PC.
During the Auto-Scan mode, the KVM will ignore the mouse operation, if you move
mouse you will not see the cursor move on the screen.
Adjustable scan time interval setting ( 5 ~ 60 sec. )
Hot-key: Pressing the <Scroll >, <Scroll > then <S> and < n>
*n = 1~ 9
<n>
1
2
3
4
5
Scan time
interval
<n>
Scan time
interval
5
10
15
20
25
6
7
8
9
30
35
40
60
10
Hot Key definition table
Step 1
Step 2
Action
[Scroll] + [Scroll]
[→ ] or [↓]
Switch to the next PC
[Scroll] + [Scroll]
[1]
Switch the active connection to PC 1
[Scroll] + [Scroll]
[2]
Switch the active connection to PC 2
[Scroll] + [Scroll]
[S]
Activate the Auto-Scan mode, default 10 sec.
[Scroll] + [Scroll]
[S] + [1~9 ]
Select the Auto-Scan interval from 5 to 60 Sec.
11
Disclaimer
Information in this document is subject to change without notice. The manufacturer does not make any representations or
warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for
any loss of profit or any other commercial damage, including but not limited to special, incidental, consequential, or other
damages.
No part of this document may be reproduced or transmitted in any form by any means, electronic or mechanical, including
photocopying, recording or information recording and retrieval systems without the express written permission of the
manufacturer.
All brand names and product names used in this document are trademarks, or registered trademarks of their respective
holders.
FCC Statement
This device generates and uses radio frequency and may cause interference to radio and television reception if not installed
and used properly. This has been tested and found to comply with the limits of a Class B computing device in accordance with
the specifications in Part 15 of the FCC Rules. These specifications are designed to provide reasonable protection against such
interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation.
If this device does cause harmful interference to radio or television reception, which can be determined by plugging the device
in and out, the user can try to correct the interference by one or more of the following measures:
z
Reorient or relocate the receiving antenna.
z
Increase the separation between the device and receiver.
z
Connect the computer into an outlet on a circuit different from that to which the receiver is connected.
z
Consult the dealer or an experienced radio/TV technician for help.
