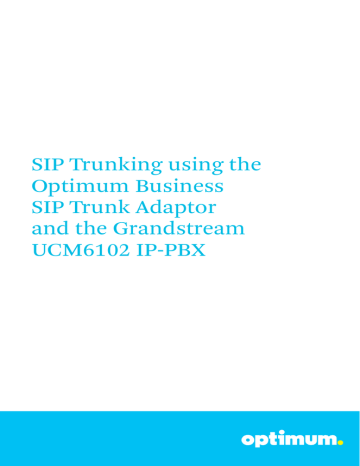

SIP Trunking using the

Optimum Business

SIP Trunk Adaptor and the Grandstream

UCM6102 IP-PBX

V 1.4

UCM6102 IP PBX

Table of Contents

Goal

Prerequisites

Grandstream UCM6102 Configuration

Network Access

SIP Trunk

DID/Extensions

Dial Plan

Auto Attendant

Backup/Restore

3

3

12

14

15

3

4

7

9

2

V 1.4

UCM6102 IP PBX

Goal

The purpose of this configuration guide is to describe the steps needed to configure the Grandstream UCM6102 IP-PBX for proper operation with Optimum Business

SIP Trunking.

Prerequisites

Please follow the instructions in the Optimum Business SIP Trunk Set-up Guide. The

Set-up Guide was left by the Optimum Business technician at installation. If you do not have the Set-up Guide, go to www.optimumbusiness.com/SIP to download a copy.

This knowledge base solution provides the configuration steps for both PBX registration and static or non-registration modes of PBX operation.

PBX Information

Manufacturer:

Model:

Software Version:

Does the PBX send SIP Registration messages (Yes/No)?

Grandstream Networks

UCM6102

1.0.4.7

Yes

Grandstream UCM6102 Configuration

The steps below describe the basic configuration required to enable the

Grandstream UCM6102 IP-PBX to use Optimum Business SIP trunking for inbound and outbound calling. Please refer to the Grandstream UCM6102 documentation for other advanced PBX features.

The configuration described here assumes that the PBX is already configured and operational with station side phones using assigned extensions or DIDs. This configuration is based on Grandstream UCM6102 version 1.0.4.7.

3

UCM6102 IP PBX

Network Access

The default IP of the LAN port of the PBX was 192.168.2.1 /24 and was unchanged.

As for the WAN port, it was given a static IP address of 10.10.154.11 /24 with the

Optimum Business SIP Trunk Adaptor being 10.10.154.1 /24. SIP traffic flow was via the WAN port.

The default username/password of the device was admin/admin. The IP address of the PC managing the device should fall in network 192.168.2.0/24. Once configured with an appropriate PC IP, the device can be configured via a Web browser through its LAN IP address.

V 1.4

4

UCM6102 IP PBX

To configure network settings navigate to Settings4Network Settings4

Basic Settings. Under Basic Settings next to Method select Route. Under WAN, first enter Static next to IP Method. Enter the address of the Optimum Business SIP

Trunk Adaptor next to Gateway IP and the address of the PBX next to IP Address.

Under LAN, enter the address of the PBX’s LAN port next to the IP Address field. For the phones, the DHCP range must be specified in the Allow IP Address From and

Allow IP Address To fields.

V 1.4

5

V 1.4

UCM6102 IP PBX

When done click Save. Thereafter there will be a prompt to restart the device for the network settings to take effect.

Click OK and upon restart the new settings will take effect.

Once the system has restarted, the new network configuration can be viewed by navigating to Status4System Status4Network as shown.

6

UCM6102 IP PBX

SIP Trunk

To register the Optimum Business SIP Trunk Adaptor to the PBX, navigate to

PBX4Basic/Call Routes4VoIP Trunks and click on Create New SIP/IAX Trunk.

Select Register SIP Trunk next to Type. Enter a name for the Optimum Business SIP

Trunk Adaptor next to Provider Name (EM-4552 was use in this example). The

Host Name field should follow the address of the Optimum Business SIP Trunk

Adaptor. Keep Trunk CID was left unchecked and is optional. If checked the Pilot

DID will be the Caller ID for the calls. The Username, Password and AuthID will be the given credentials between the PBX and the Optimum Business SIP Trunk Adaptor.

The Outbound Proxy should also be the address of the Optimum Business SIP Trunk

Adaptor. Auto Record is optional.

V 1.4

When done click Save then Apply Changes from above.

7

V 1.4

UCM6102 IP PBX

For Static Mode select Peer SIP Trunk instead next to Type. Enter a name for the

Optimum Business SIP Trunk Adaptor next to Provider Name and enter the address of the Optimum Business SIP Trunk Adaptor next to Host Name as shown.

When done click Save then Apply Changes from above.

8

UCM6102 IP PBX

DID/Extensions

To provision phones and assign extensions, navigate to PBX4Basic/Call Routes4

Extensions and click Create New User. Here the basic settings for a phone can be configured. Under General, the Extension field specifies the extension for the phone. CallerID Number and CallerID Name will be the DID number that will be mapped to this extension. Permission is the permission level the user will have for outgoing calls. Internal was used for all extensions. Under Technology check SIP.

Under SIP Settings enter the user’s DID next to AuthID and set DTMF Mode to

Inband as shown. All other settings can be configured according to preference.

Note: DTMF tone duration cannot be configured on the PBX.

V 1.4

When done click Save then Apply Changes from above.

The devices can also use Auto Provisioning where the PBX will discover a device upon boot up, automatically assign it an extension, and return a URL of the config file for the device to download.

To do this, from Basic/Call Routes navigate to Zero Config and click

Auto Provision Settings. Once here check Enable Zero Config. Check

Automatically Assign Extension and specify the beginning extension next to

Start extension. A default password can also be set next to Default Password.

9

UCM6102 IP PBX

When done click Save then Apply Changes from above.

By clicking on Auto Discover, the PBX can automatically discover the device using a specific Scan Method of Ping, ARP, or SIP-Message. Once that is selected the

Scan IP field can be filled to scan the entire network segment by entering 255.

V 1.4

When done click Save and a message will be presented prompting to check the result.

10

UCM6102 IP PBX

Click OK and the result will be displayed.

A user may also manually enter device information prior to performing the Auto

Discover step above. This can be done by clicking on Create New Device. Here an extension may be entered along with a MAC and IP Address of the device.

V 1.4

When done click Save then Apply Changes from above.

By going back to Extensions the status of this discovered phone can be viewed. It now shows green which implies that it is registered and free.

When finally done click Save then Apply Changes from above.

11

UCM6102 IP PBX

Dial Plan

To configure Dial Plan, Outbound and Inbound routes need to be configured.

First navigate to PBX4Basic Call Routes4Outbound Routes and click

Create New Outbound Rule.

Initially, a rule name needs to be given. Next to Pattern is where the dial pattern needs to be entered. All patterns are prefixed by “_”. Entering “[12345]” allows any single digit within these brackets. “N” allows any digit between 2 and 9. The “.” character matches one or more digits. The “!” character matches zero or more digits.

X” allows any digit between 0 and 9 and finally “Z” allows any digit between 1 and 9.

In this example “9408XXXXXXX” was entered to allow all numbers beginning with area code 408. The digit “9” was entered in the beginning and will be stripped by entering “1” next to Strip. Internal was selected next to Privilege Level and next to

Use Trunk the trunk for the Optimum Business SIP Trunk Adaptor was selected, in this case “EM-4552”.

V 1.4

When done click Save then Apply Changes from above. Other outbound rules may be configured in a similar manner.

12

UCM6102 IP PBX

As for inbound rules, click on Inbound Routes and then Create New Inbound Rule.

First select the trunk for the Optimum Business SIP Trunk Adaptor next to Trunks.

With the same character values as outbound rules, enter a pattern next to

DID Pattern. In this example, “4085555556” was entered to permit a call to extension 101. Internal was again selected next to Privilege Level. Extension was selected next to Default Destination following the extension this rule is to be forwarded to, in this case 101. Other extensions may be configured similarly.

V 1.4

When done click Save then Apply Changes from above.

13

UCM6102 IP PBX

Auto Attendant

To configure Auto Attendant navigate to PBX4Call Features4IVR and click on

Create New IVR. Enter a name next to Name and a valid extension number next to

Extension. Welcome Prompt may be left as is or manually created by clicking on

Prompt. A customized recording may be uploaded here. Below under Key Pressing

Events is where an extension can be matched to a specific digit. In this example digit

1 was mapped to extension 100. The rest of the fields may be configured according to preference. When done click Save then Apply Changes from above.

V 1.4

14

V 1.4

UCM6102 IP PBX

Backup/Restore

To back up or restore the configuration file, navigate to Maintenance4Backup 4

Local Backup. Here the option of Create New Backup and Upload Backup File will be displayed. If Create New Backup is selected, a window will prompt for a file name. When entered simply click Backup.

If Upload Backup File is selected, a window will prompt for a file to upload. When entered simply click Upload.

15
