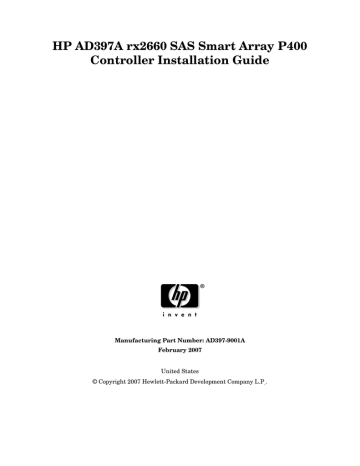

HP AD397A rx2660 SAS Smart Array P400
Controller Installation Guide
Manufacturing Part Number: AD397-9001A
February 2007
United States
© Copyright 2007 Hewlett-Packard Development Company L.P..
Legal Notices
The information in this document is subject to change without notice.
Hewlett-Packard makes no warranty of any kind with regard to this manual, including, but not limited to, the
implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be held
liable for errors contained herein or direct, indirect, special, incidental or consequential damages in
connection with the furnishing, performance, or use of this material.
Warranty
A copy of the specific warranty terms applicable to your Hewlett-Packard product and replacement parts can
be obtained from your local Sales and Service Office.
U.S. Government License
Proprietary computer software. Valid license from HP required for possession, use or copying. Consistent with
FAR 12.211 and 12.212, Commercial Computer Software, Computer Software Documentation, and Technical
Data for Commercial Items are licensed to the U.S. Government under vendor's standard commercial license.
Copyright Notice
Copyright © 2007 Hewlett-Packard Development Company L.P. All rights reserved. Reproduction,
adaptation, or translation of this document without prior written permission is prohibited, except as allowed
under the copyright laws.
Trademark Notices
UNIX® is a registered trademark in the United States and other countries, licensed exclusively through The
Open Group
Localized Documentation
This Installation Guide has been translated to:
http://www.docs.hp.com/ja/index.html
2
Contents
1. Installing the SAS Smart Array P400 Controller
Overview of Installation Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installing the Smart Array Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Power Off the Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Extending the Server from the Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Removing the Top Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Removing the I/O Backplane Card Cage from the Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing the SAS Smart Array and PCI-e Expansion Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installing the Smart Array P400 Controller Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Replacing the I/O Backplane Card Cage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Replacing the Top Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Checking and Updating Smart Array P400 Controller Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Checking the Controller Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Downloading the Firmware Update, If Needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Updating the Controller Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
HELP or ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Creating Logical Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
ORCA Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Creating a Logical Drive Using ORCA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
A. Smart Array P400 Controller Overview
Board Components and Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Controller Board Runtime LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery Pack LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Supported Drive Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22
24
26
27
B. Fault Management
Fault Management Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Fault Management in Supported RAID Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
C. Declaration of Conformity
3
Contents
4
1 Installing the SAS Smart Array P400
Controller
This chapter provides information to help you plan the installation and configuration of each Smart Array
Controller. This chapter addresses the following topics:
“Overview of Installation Steps” on page 5
“Installing the Smart Array Controller” on page 6
“Checking and Updating Smart Array P400 Controller Firmware” on page 15
“Creating Logical Drives” on page 19
Overview of Installation Steps
Complete Smart Array documentation (including the HP Smart Array RAID Controllers Support Matrix) is
available at:
http://docs.hp.com/en/netcom.html#Smart%20Array%20%28RAID%29
To view a detailed list of support accessories visit the system configuration site at:
http://h30099.www3.hp.com/configurator/index.asp
Following is a summary of the steps to install your Smart Array Series Controller:
Step 1. Plan your disk configurations. See “RAID Technology Overview” in the HP Smart Array P400
Support Guide, available at:
http://docs.hp.com/en/netcom.html#Smart%20Array%20%28RAID%29
Step 2. Verify that you have all of the components of the upgrade kit:
Table 1-1
HP AD397A Smart Array P400 Controller Option Kit Components
Part Number
Description
012760-001
Smart Array P400 Controller
AB419-60008
PCI-e Expansion Card
012764-004
Smart Array P400 controller cache module, 256 MB
381573-001
Smart Array P400 controller battery charger module
408658-001
Smart Array P400 controller battery cable assembly, 11.5-in
Step 3. Install the controller. See “Installing the Smart Array Controller” on page 6.
Step 4. Check the controller firmware version, and upgrade or downgrade the firmware if necessary. See
“Checking and Updating Smart Array P400 Controller Firmware” on page 15.
Step 5. Create one or more logical drives.
Chapter 1
5
Installing the SAS Smart Array P400 Controller
Installing the Smart Array Controller
Installing the Smart Array Controller
The rx2660 server has two slots dedicated for the SAS Smart Array P400 controller and PCI-e expansion
card. Use these procedures to install these cards on the system board. Here are the high level procedures to
install the SAS Smart Array card and the PCI-e expansion card:
•
Power off the server
•
Remove external LAN and power cables from the server
•
Extend the server from the rack
•
Remove the top access cover
•
Remove the I/O backplane assembly
•
Install the SAS Smart Array P400 controller card
•
Install the PCI-e expansion card
•
Install the P400 controller battery
•
Reroute the SAS cables from the system board to the P400 controller card
•
Install the I/O backplane assembly
•
Install the top access cover
•
Push the server into the rack
•
Connect external LAN and power cables
•
Power on the server
Power Off the Server
Power off the server using the following methods if the server is in the standby or full power state:
•
•
iLO MP PC command
Power button
Powering Off the Server Using the iLO MP
To power off the server using the iLO MP, follow these steps:
Step 1. Gracefully shut down the operating system.
Step 2. Initiate a console session, and access the MP Main Menu.
Step 3. Enter CM to enable command mode.
Step 4. Enter PC to use the remote power control command.
Step 5. Enter OFF to power off the server, and enter YES when prompted to confirm the action.
CAUTION
The main DC voltage is now removed from the system; however, AC voltage for
standby power is still present in the server.
Step 6. Unplug all power cables from the receptacles on the rear panel of the server.
6
Chapter 1
Installing the SAS Smart Array P400 Controller
Installing the Smart Array Controller
Powering Off the Server Manually
To manually power off the server, follow these steps:
Step 1. Gracefully shut down the operating system.
Step 2. Press the power button to power off the server.
CAUTION
The main DC voltage is now removed from the system; however, AC voltage for
standby power is still present in the server.
Step 3. Unplug all power cables from the receptacles on the rear panel of the server.
Extending the Server from the Rack
Ensure that there is enough area (approximately 1.5 meters [4.5 ft.]) to fully extend the server
from the front of the rack to work on it.
NOTE
To extend the server from the rack, follow these steps:
Step 1. Flip out the two pull handles located on both ends of the front bezel. This allows the server to slide
out of the rack.
Step 2. Slowly pull the server forward by the handles until it is fully extended.
NOTE
Figure 1-1
The server is fully extended when the rail clips are locked in place and the top cover
is completely accessible.
Extending the Server from the Rack
Flip handle down to slide
the server out of the rack
Chapter 1
Flip handle down to slide
the server out of the rack
7
Installing the SAS Smart Array P400 Controller
Installing the Smart Array Controller
Removing the Top Cover
When installing internal components into the server, you must first remove the top cover. To remove the top
cover, follow these steps:
Step 1. Unlock the cover release lever (if necessary) by turning the cam approximately 90 degrees
counterclockwise with the allen wrench provided on the rear panel of the server (1).
Step 2. Pull up on the cover release lever to disengage the top cover from the chassis (2). See Figure 1-2.
Figure 1-2 Removing the Top Cover
1
2
4
3
Step 3. Slide the cover toward the rear of the server until the tabs release from the slots in the chassis (3).
Step 4. Lift the cover off the chassis (4).
Removing the I/O Backplane Card Cage from the Server
To access the SAS cables in your server, you must first remove the I/O backplane card cage from the system
board.
To remove the I/O backplane card cage, follow these steps:
Step 1. Loosen the two captive screws. Follow these steps to loosen the captive screws:
a. Press the blue button to release the black knob. See Figure 1-3.
b. Turn the black knob counterclockwise until the captive screw is free from the server.
8
Chapter 1
Installing the SAS Smart Array P400 Controller
Installing the Smart Array Controller
Figure 1-3 Removing the I/O Backplane Card Cage
Captive screws
Front of server
Step 2. Lift the assembly straight up and out of the server.
Step 3. Disconnect the SAS cables connected to the system board, and remove the cables from the two
routing clips on the server chassis. See Figure 1-4.
Step 4. Route the cables through the unused clip against the server chassis back panel.
Figure 1-4 SAS Cables Connected to the System Board
B
Integrated SAS cable-routing clips
Chapter 1
A
Clip for new SAS
cable routing
9
Installing the SAS Smart Array P400 Controller
Installing the Smart Array Controller
Step 5. Check that the cables are routed around the I/O backplane card cage connector, so that they will not
be pinched when the backplane assembly is re-installed.
Figure 1-5 SAS Cables Connected to the System Board
SAS cable routed
around I/O backplane
card cage connector
Installing the SAS Smart Array and PCI-e Expansion Cards
The rx2660 server has two slots dedicated for the SAS Smart Array P400 controller and PCI-e expansion
cards. If you purchase the RAID option, you must install these cards on the system board. See Figure 1-6 for
the slot locations on the system board.
Installing the PCI-e Expansion Card
To install the PCI-e expansion card into the server, follow these steps:
Step 1. Pinch the card locking guides to expose the slot guides to the system board slot (1). See Figure 1-6.
Step 2. Guide the PCI-e expansion board down the rails and push into the slot on the system board (2).
NOTE
10
The board and slot are keyed, so the board only fits one way into the slot.
Chapter 1
Installing the SAS Smart Array P400 Controller
Installing the Smart Array Controller
Figure 1-6 SAS Smart Array P400 Controller and PCI-e Expansion Board Slots
1
2
1
Card
locking
guides
PCI-e
expansion
card (in slot)
Front of
server
SAS smart
array P400
controller card
slot
Step 3. Close the board locking guides to lock the PCI-e expansion card into place on the system board.
Installing the SAS Smart Array P400 Controller Card
To install the SAS Smart Array P400 controller card into the server, follow these steps:
Step 1. Install the 256 Mb memory card to the P400 controller card by snapping it into place. See
Figure 1-7.
Step 2. Open the blue SAS Smart Array P400 controller board lock on the rear panel of the server.
Chapter 1
11
Installing the SAS Smart Array P400 Controller
Installing the Smart Array Controller
Figure 1-7 SAS Ports on the Smart Array P400 Controller Board
Memory card installed on
P400 controller card
B
SAS ports on
the SAS Smart Array
P400 controller card
A
SAS Smart Array P400
controller card
Card lock
(open)
Step 3. Install the SAS Smart Array P400 controller card into the slot on the system board as shown in
Figure 1-7.
Step 4. Close the board lock over the tab on the SAS Smart Array P400 controller card and snap it shut.
Step 5. Attach the SAS cables to the SAS Smart Array P400 controller card. The SAS cables are clearly
marked A and B. Ensure they match up with the ports on the P400 controller card shown in
Figure 1-7.
CAUTION
When connecting the SAS cables, match each cable with the appropriate socket on the SAS
Smart Array P400 controller card. If the cables are mismatched, the server may not reboot.
Both cables and sockets are clearly marked with the correct channels.
Installing the Smart Array P400 Controller Battery
Use these procedures to install the Smart Array P400 Controller battery.
Step 1. To install the P400 controller battery onto the airflow guide, follow these steps:
12
Chapter 1
Installing the SAS Smart Array P400 Controller
Installing the Smart Array Controller
a. Align the tabs on the P400 controller battery with the slots on the airflow guide.
b. Slide the P400 controller battery toward the rear of the server until the locking clip locks the
P400 controller battery in place.
Figure 1-8 Installing the RAID battery
Battery cable
plugged into
battery
1
Step 2. Plug the battery cable into the battery. See Figure 1-8.
Step 3. Plug the battery cable into the P400 controller card. See Figure 1-9.
Figure 1-9 Battery Cable Port on the P400 Controller Card
Battery cable
plugged into the
P400 controller
card
Chapter 1
13
Installing the SAS Smart Array P400 Controller
Installing the Smart Array Controller
Replacing the I/O Backplane Card Cage
To replace the I/O backplane card cage into the server, follow these steps:
Step 1. Align the tabs with the guide slots in the server and slide the I/O backplane assembly into place.
See Figure 1-3.
Ensure the I/O backplane card cage is fully seated into the server. If the I/O
backplane card cage is not fully seated, the server may not boot.
NOTE
Ensure the SAS cables are not pinched under the I/O backplane card cage when
installing it into the server. The SAS cables should be routed to the right of the I/O
backplane card cage.
Step 2. Tighten the two captive screws.
a. Press the black knob down while turning it clockwise until it is fully tightened.
b. While holding the black knob and pressing down, press and release the blue button to lower the
black knob to the locked position.
Replacing the Top Cover
To replace the top cover, follow these steps:
Step 1. Ensure the cover release lever is in the open position. See Figure 1-10.
Step 2. Align the tabs of the top cover with the corresponding slots in the chassis and insert the tabs into
the slots (1).
Step 3. Slide the cover forward until it is flush with the front of the chassis (2).
Step 4. Push the cover release lever down into the latched position (3).
Step 5. Lock the cover release lever (if necessary) by turning the cam approximately 90 degrees clockwise.
Figure 1-10 Replacing the Top Cover
1
3
2
14
Chapter 1
Installing the SAS Smart Array P400 Controller
Checking and Updating Smart Array P400 Controller Firmware
Checking and Updating Smart Array P400 Controller Firmware
Follow the procedures in this section to verify that the correct adapter firmware version is installed before you
attempt to boot the server. Firmware version requirements are found in the HP Smart Array RAID
Controllers Support Matrix in the “Smart Array (RAID)” section of:
http://docs.hp.com/en/netcom.html
WARNING
The HP Smart Array P400 Controller Option has specific adapter firmware version
requirements for use in HP Integrity servers. If you use any other firmware version,
data loss may occur. Follow the steps in this section to ensure that the correct
firmware version is installed.
Checking the Controller Firmware
Use saupdate from the EFI Shell to update the firmware image on the HP Smart Array P400. Follow one of
these two procedures to run saupdate:
•
If you are using saupdate from the Offline Diagnostic CD:
Step 1. Place the Offline Diagnostic CD containing saupdate.efi in the CD drive before booting the
system.
Step 2. Boot the system to the EFI Shell prompt.
Step 3. Locate the cdrom entry in the list of mapped devices, and change to the device by typing its
associated fs number (for example, fs0) under EFI Shell prompt.
Step 4. If the EFI utility is not located in the root directory, move to the directory in which the file is
located, for example:
fs0:\>cd \EFI\HP\TOOLS\IO_CARDS\SmartArray
•
If you are not using the Offline Diagnostic CD:
Step 1. Download the SA EFI update utility saupdate.efi and copy it to the EFI partition.
Step 2. Boot the system to the EFI Shell and change directories to the EFI partition.
Step 3. If the EFI utility is not located in the root directory, move to the directory in which the file is
located, for example:
fs0:\>cd \EFI\HP\TOOLS\IO_CARDS\SmartArray
•
Run saupdate.efi using the using the fs0:\> saupdate.efi command.
•
Use saupdate LIST to display all detected Smart Array controllers along with the active firmware
versions:
Chapter 1
15
Installing the SAS Smart Array P400 Controller
Checking and Updating Smart Array P400 Controller Firmware
fs0:\EFI\TOOLS> saupdate list
********************************************************************************
Smart Array Offline Firmware Update Utility
Version 2.06.10.03
(C) Copyright 2006 Hewlett-Packard Development Company, L.P.
********************************************************************************
Seg
0
Bus
52
Dev
0
Func
0
Description
HP Smart Array P400
Version
2.08
In this example, the system contains one Smart Array P400 Controller at at segment 0, bus 52, device 0,
function 0, running firmware version 2.08. Compare this to the minimum recommended firmware version
found in the HP Smart Array RAID Controllers Support Matrix in the “Smart Array (RAID)” section of:
http://docs.hp.com/en/netcom.html
If the controller firmware meets the minimum recommended version, no further action is necessary.
Downloading the Firmware Update, If Needed
To locate and download firmware for the Smart Array P400 Controller, follow these steps:
Step 1. Go to the Business Support Center at: http://www.hp.com/go/bizsupport
Step 2. Search for “Smart Array P400”.
Step 3. In the “Narrow search using only:” section, click “Drivers and software.”
Step 4. Locate and click the link for the firmware download package.
Step 5. Review the installation instructions and release notes on the download page.
Step 6. Download the firmware.
HP recommends that you follow the procedures supplied with the update package to install the firmware
update.
Updating the Controller Firmware
NOTE
This section contains a generic procedure to update firmware from the EFI shell. HP
recommends that you follow the procedures supplied with the update package to install the
firmware update.
Use saupdate from the EFI Shell to update the firmware image on the HP Smart Array P400. Follow one of
these two procedures to run saupdate:
•
If you are using saupdate from the Offline Diagnostic CD:
Step 1. Download the firmware and copy it to the EFI partition.
Step 2. Place the Offline Diagnostic CD containing saupdate.efi in the CD drive before booting the
system.
Step 3. Boot the system to the EFI Shell prompt.
16
Chapter 1
Installing the SAS Smart Array P400 Controller
Checking and Updating Smart Array P400 Controller Firmware
Step 4. Locate the cdrom entry in the list of mapped devices, and change to the device by typing its
associated fs number (for example, fs0) under EFI Shell prompt.
Step 5. If the EFI utility and firmware image files are not located in the root directory, move to the
directory in which these files are located, for example:
fs0:\>cd \EFI\HP\TOOLS\IO_CARDS\SmartArray
IMPORTANT Both saupdate.efi and the firmware image file must be located in the same directory. If they
are not, copy them both to the EFI partition. Run the saupdate.efi using the fs0:\>
saupdate command.
•
If you are not using the Offline Diagnostic CD:
Step 1. Download the SA EFI update utility saupdate.efi and copy it to the EFI partition.
Step 2. Download the firmware and copy it to the EFI partition.
Step 3. Boot the system to the EFI Shell and change directories to the EFI partition.
•
When you are ready to run saupdate, use saupdate UPDATE to update the firmware on the Smart Array
P400 Controller.
The syntax of the saupdate UPDATE command is as follows:
saupdate UPDATE [<seg:bus:dev:func>] [smartarray_firmware_file]
For example, to update the controller at segment 0, bus 52, device 0, function 0 from the example output
above:
fs0:\> saupdate UPDATE 0:52:0:0 SPAWNxxxyyy.PAK
Replace SPAWNxxxyyy.PAK with the name of your firmware file.
For example:
fs0:\EFI\TOOLS> saupdate update 0:52:0:0 SPAWN208242.PAK
********************************************************************************
Smart Array Offline Firmware Update Utility
Version 2.06.10.03
(C) Copyright 2006 Hewlett-Packard Development Company, L.P.
********************************************************************************
Updating controller in Seg: 0, Bus: 52, Dev: 0, Func: 0
Current firmware version 2.06
Percentage completed: 100%
Activating firmware now, this may take several minutes.
Resetting and reinitializing controller.
Retrieving firmware version, this may take several minutes.
Current controller firmware version is 2.08.
Chapter 1
17
Installing the SAS Smart Array P400 Controller
Checking and Updating Smart Array P400 Controller Firmware
Verifying the Firmware Update
After updating the firmware, cycle the power on the system and on any external JBODS connected to the
system.
After performing the firmware update, use LIST to confirm that the correct firmware version is installed; see
“Checking the Controller Firmware” on page 15. For example:
fs0:\EFI\TOOLS> saupdate list
********************************************************************************
Smart Array Offline Firmware Update Utility
Version 2.06.10.03
(C) Copyright 2006 Hewlett-Packard Development Company, L.P.
********************************************************************************
Seg
0
Bus
52
Dev
0
Func
0
Description
HP Smart Array P400
Version
2.08
HELP or ?
Use HELP or ? to display usage text, program version number, and build date:
Enter: saupdate HELP
or
saupdate ?
Error Messages
The following error messages may appear when using the saupdate utility:
•
When keyword LIST or UPDATE is misspelled or extra parameters are specified:
Error: Syntax Error
Usage: saupdate LIST or saupdate UPDATE [ | all ]
•
When the controller ID in the saupdate UPDATE command is not correct:
No matching controller found
•
When a firmware file does not exist in the saupdate UPDATE command, the example shows:
SPAWN208242.BIN does not exist.
File SPAWN208242.BIN: Not Found
•
When an invalid firmware or corrupted file is specified in the saupdate UPDATE command, the example
shows: SPAWN208242.BIN does not exist.
File SPAWN208242.BIN: invalid or corrupted
18
Chapter 1
Installing the SAS Smart Array P400 Controller
Creating Logical Drives
Creating Logical Drives
This section describes the steps to create logical drives for a Smart Array Series Controller using the Option
ROM Configuration for Arrays (ORCA) utility.
ORCA Utility
To use ORCA, follow these steps:
Step 1. Power on the server. POST runs, and any array controllers that are in the server are initialized one
at a time. During each controller initialization process, POST halts for several seconds while an
ORCA prompt message displays.
Step 2. At the ORCA prompt:
•
If you are connected using a headless console, press the Esc+8 combination.
•
Otherwise, press F8. The ORCA Main Menu displays, enabling you to create, view, or delete a
logical drive.
Figure 1-11 ORCA Main Menu
Creating a Logical Drive Using ORCA
To create a logical drive using ORCA, follow these steps:
Step 1. Select Create Logical Drive. The screen displays a list of all available (unconfigured) physical drives
and the valid RAID options for the system.
Chapter 1
19
Installing the SAS Smart Array P400 Controller
Creating Logical Drives
Step 2. Use the Arrow keys, Spacebar, and Tab to navigate around the screen and set up the logical drive,
including an online spare drive if one is required.
NOTE
You cannot use ORCA to configure one spare drive to be shared among several arrays.
Only ACU enables you to configure shared spare drives.
Step 3. Press Enter to accept the settings.
Step 4. Press F8 to confirm the settings and save the new configuration. After several seconds, the
Configuration Saved screen displays.
Step 5. Press Enter to continue. You can now create another logical drive by repeating the previous steps.
NOTE
20
Newly created logical drives are invisible to the operating system. To make the new
logical drives available for data storage, format them using the instructions given in
the operating system documentation.
Chapter 1
A Smart Array P400 Controller Overview
This chapter describes the board components, features, and diagnostic LEDs on the Smart Array P400
Controller.
Appendix A
21
Smart Array P400 Controller Overview
Board Components and Features
Board Components and Features
Two models of the HP Smart Array P400 Controller are available. One model has the internal
Serial-Attached SCSI (SAS) connectors on the front of the board; see Figure A-1. The other model has the
connectors on the back of the board; see Figure A-2 on page 23. The two models have identical functionality.
Figure A-1 and Table A-1 illustrate the components of the Smart Array P400 Controller with connectors on
the front of the board.
Figure A-1
HP Smart Array P400 Controller with SAS Connectors on Front
Table A-1
Components of the HP Smart Array P400 Controller with SAS
Connectors on Front
Item ID
Description
1
SAS or SATA port 2I (internal), 4x wide SFF8484 connector.
2
SAS or SATA port 1I (internal), 4x wide SFF8484 connector.
3
Connectors for cache module (also known as BBWC or array accelerator)
4
Runtime LEDs. See “Controller Board Runtime LEDs” on page 24.
5
Cache module, with connector for the cable to the optional battery pack. The cache
module must be installed on the controller before the controller is installed in a
server, or the controller will not boot.
Figure A-2 and Table A-2 illustrate the components of the Smart Array P400 Controller with connectors on
the front of the board.
22
Appendix A
Smart Array P400 Controller Overview
Board Components and Features
Figure A-2
HP Smart Array P400 Controller with SAS Connectors on Back
Table A-2
Components of the HP Smart Array P400 Controller with SAS
Connectors on Back
Item ID
Description
1
Connectors for cache module (also known as BBWC or array accelerator)
2
SAS or SATA port 1I (internal), 4x wide SFF8484 connector.
3
Runtime LEDs. See “Controller Board Runtime LEDs” on page 24.
4
SAS or SATA port 2I (internal), 4x wide SFF8484 connector.
5
Cache module, with connector for the cable to the optional battery pack. The cache
module must be installed on the controller before the controller is installed in a
server, or the controller will not boot.
Appendix A
23
Smart Array P400 Controller Overview
Board Components and Features
Controller Board Runtime LEDs
The Smart Array P400 Controller board has eight runtime LEDs that indicate various activities and error
conditions. Figure A-3 illustrates their location, and Table A-3 describes how to interpret them.
Figure A-3
Smart Array P400 Controller Board Runtime LEDs
Table A-3
Interpretation of Runtime LEDs
LED
ID
Color
Name
LED Name and Interpretation
1
Amber
CR14
Controller lockup LED.
2
Amber
CR13
Disk Failure LED. A physical disk connected to the
controller has failed. Check the Fault LED on each disk
to identify the failed disk.
3
Green
CR3
Activity LED for SAS port 2I.
4
Green
CR8
Activity LED for SAS port 1I.
5
Green
CR5
Command Outstanding LED. The controller is working
on a command from the host driver.
6
Green
CR6
Heartbeat LED. This LED blinks every 2 seconds to
indicate the controller health.
7
Green
CR4
Gas Pedal LED. This LED, together with item 8 (CR7),
indicates the amount of controller CPU activity. See
Table A-4 on page 25.
8
Green
CR7
Idle Task LED. This LED, together with item 7 (CR4),
indicates the amount of controller CPU activity. See
Table A-4 on page 25.
24
Appendix A
Smart Array P400 Controller Overview
Board Components and Features
Table A-4
LED 7
Status
Determining the Controller CPU Activity Level
LED 8
Status
Controller CPU Activity Level
Off
Blinking
0 to 25%
Blinking
Off
25 to 50%
On Steady
Off
50% to 75%
On steady
On Steady
75% to 100%
NOTE
Appendix A
During server power on, each runtime LED illuminates randomly until POST completes.
25
Smart Array P400 Controller Overview
Board Components and Features
Battery Pack LEDs
The battery pack has four runtime LEDs that indicate battery readiness and error conditions. Figure A-4
illustrates their location; Table A-5 and Table A-6 describe how to interpret them.
Figure A-4
Smart Array P400 Battery Pack LEDs
Table A-5
Battery Pack LEDs
LED
Color
Description
1
Green
System Power LED. This LED glows steadily when the
system is powered up and 12 V system power is
available. This power supply is used to maintain the
battery charge and provide supplementary power to
the cache microcontroller.
2
Green
Auxiliary Power LED. This LED glows steadily when
3.3V auxiliary voltage is detected. The auxiliary
voltage is used to preserve BBWC data and is available
any time that the system power cords are connected to
a power supply.
3
Amber
Battery Health LED. To interpret the illumination
patterns of this LED, see the following table.
4
26
BBWC Status LED. To interpret the illumination
patterns of this LED, see the following table.
Appendix A
Smart Array P400 Controller Overview
Board Components and Features
Table A-6
Interpreting Battery Pack LEDs
LED 3
State
LED 4
State
Interpretation
--
One blink
every two
seconds
The system is powered down, and the cache contains data that
has not yet been written to the drives. Restore system power as
soon as possible to prevent data loss.
Data preservation time is extended any time that 3.3 V
auxiliary power is available, as indicated by LED 2. In the
absence of auxiliary power, battery power alone preserves the
data. A fullycharged battery can normally preserve data for at
least two days.
The battery lifetime also depends on the cache module size. For
further information, refer to the controller QuickSpecs on the
HP website (http://www.hp.com).
--
Blink twice,
then pause
The cache microcontroller is waiting for the host controller to
communicate.
--
One blink
per second
The battery pack is below the minimum charge level and is
being charged. Features that require a battery (such as write
cache, capacity expansion, stripe size migration, and RAID
migration) are temporarily unavailable until charging is
complete. The recharge process takes between 15 minutes and
two hours, depending on the initial capacity of the battery.
--
Steady glow
The battery pack is fully charged, and posted write data is
stored in the cache.
--
Off
The battery pack is fully charged, and there is no posted write
data in the cache.
One blink
per second
One blink
per second
An alternating green and amber blink pattern indicates that
the cache microcontroller is executing from within its boot
loader and receiving new flash code from the host controller.
Steady glow
--
There is a short circuit across the battery terminals or within
the battery pack. BBWC features are disabled until the battery
pack is replaced. The life expectancy of a battery pack is
typically more than three years.
One blink
per second
--
There is an open circuit across the battery terminals or within
the battery pack. BBWC features are disabled until the battery
pack is replaced. The life expectancy of a battery pack is
typically more than three years.
Supported Drive Types
You can connect the controller ports to internal SAS backplanes that are connected to SAS drives. Parallel
SCSI drives cannot be used with this controller.
Appendix A
27
Smart Array P400 Controller Overview
Board Components and Features
28
Appendix A
B Fault Management
This Appendix provides an overview of the fault management features of the HP Smart Array P400
Controller. This appendix contains the following sections:
“Fault Management Features” on page 30
“Fault Management in Supported RAID Configurations” on page 31
Appendix B
29
Fault Management
Fault Management Features
Fault Management Features
The Smart Array P400 Controller supports several fault management and data reliability features that
minimize the impact of disk drive defects on your systems.
Auto-Reliability Monitoring (ARM)
A firmware process that operates in the background, scanning physical disks for bad sectors
in fault-tolerant logical drives. ARM also verifies the consistency of parity data in logical
drives that use RAID 5 or RAID ADG. This process assures that you can recover all data
successfully if a disk fails. ARM operates only when you select a fault-tolerant
configuration.
Dynamic sector repair
Automatically remaps any sectors that have media faults detected either during normal
operation or by auto reliability monitoring.
S.M.A.R.T.
An industry-standard diagnostic and failure prediction feature of physical disks, developed
by HP in collaboration with the disk drive industry. S.M.A.R.T. monitors several factors that
predict imminent physical disk failure due to mechanical causes. These include the
condition of the read/write head, the seek error rate, and the spin-up time. When a
threshold value is exceeded for one of these factors, the disk sends an alert to the controller
that failure is imminent. Thus, you can back up data and replace the disk drive before
failure occurs.
NOTE
An online spare does not become active and start rebuilding when an
imminent failure alert is sent, because the degraded disk has not failed yet
and is still online. The online spare is activated only after a disk in an array
has failed.
Drive failure alert features
Send an alert message to Event Monitoring Services (EMS) when a physical disk or a logical
drive fails.
Interim data recovery
Occurs if a disk fails in a fault-tolerant configuration.
Recovery ROM
A redundancy feature that ensures continuous system availability by providing a backup
ROM. This feature protects against corruption of a ROM image (for example, by power
fluctuation during ROM upgrade). If corruption occurs, the server automatically restarts
using the remaining good copy of the ROM image. When you upgrade the ROM, the inactive
image (the one not being used by the system) is upgraded. There is not normally any
noticeable difference in operation. When you use Recovery ROM for the first time, however,
both ROM images are upgraded, causing a boot delay of about 60 seconds.
30
Appendix B
Fault Management
Fault Management in Supported RAID Configurations
Fault Management in Supported RAID Configurations
If a physical disk fails in RAID 1, RAID 1+0, RAID 5, or ADG, the system will still process I/O requests, but at
a reduced performance level. Replace the failed physical disk as soon as possible to restore performance and
full fault tolerance for the logical drive it belongs to.
The risk of continuing operations without replacing a failed physical disk varies depending on the RAID level
that has been configured:
RAID 1
RAID 1 is configured with a single mirrored pair of disks. If one physical disk fails, the
remaining disk in the mirrored pair can still provide all the data.
RAID 1+0
A RAID 1+0 configuration has a minimum of four physical disks, and the total number of
physical disks is divisible by two to support mirrored pairs. In RAID 1+0, if a physical disk
fails, the remaining disk in any mirrored pair still provides all of the data that was on the
failed disk. Several physical disks in an array can fail without incurring data loss, as long as
no two failed physical disks belong to the same mirrored pair.
RAID 5
If a physical disk fails in a RAID 5 configuration, data is recovered using a parity formula
and is typically written to an online spare physical disk. If a second physical disk fails
before the data from the initial physical disk failure has been rebuilt on the online spare
disk, the logical drive fails and data is lost.
ADG
Similar to RAID 5, ADG relies on a parity scheme to rebuild data if a physical disk fails.
However, in an ADG configuration the parity data is duplicated on two different physical
disks. As a result, ADG can support the failure of two physical disks without data loss.
For a more detailed description of the RAID levels supported by the Smart Array Controllers see the HP
Smart Array P400 Support Guide, available at http://www.docs.hp.com in the “I/O Cards and Networking”
section.
Appendix B
31
Fault Management
Fault Management in Supported RAID Configurations
32
Appendix B
C Declaration of Conformity
Appendix C
33
Declaration of Conformity
Figure C-1
34
Smart Array P400 Declaration of Conformity
Appendix C
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
