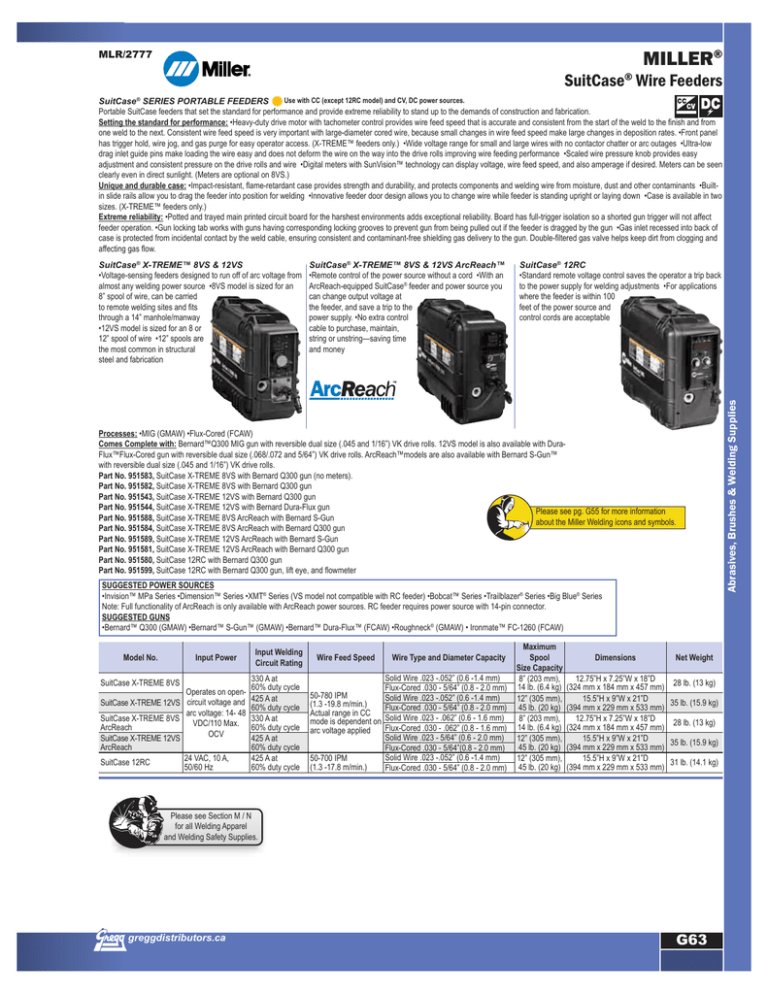

MILLER®
MLR/2777
SuitCase® Wire Feeders
Use with CC (except 12RC model) and CV, DC power sources.
SuitCase® SERIES PORTABLE FEEDERS
Portable SuitCase feeders that set the standard for performance and provide extreme reliability to stand up to the demands of construction and fabrication.
Setting the standard for performance: •Heavy-duty drive motor with tachometer control provides wire feed speed that is accurate and consistent from the start of the weld to the finish and from
one weld to the next. Consistent wire feed speed is very important with large-diameter cored wire, because small changes in wire feed speed make large changes in deposition rates. •Front panel
has trigger hold, wire jog, and gas purge for easy operator access. (X-TREME™ feeders only.) •Wide voltage range for small and large wires with no contactor chatter or arc outages •Ultra-low
drag inlet guide pins make loading the wire easy and does not deform the wire on the way into the drive rolls improving wire feeding performance •Scaled wire pressure knob provides easy
adjustment and consistent pressure on the drive rolls and wire •Digital meters with SunVision™ technology can display voltage, wire feed speed, and also amperage if desired. Meters can be seen
clearly even in direct sunlight. (Meters are optional on 8VS.)
Unique and durable case: •Impact-resistant, flame-retardant case provides strength and durability, and protects components and welding wire from moisture, dust and other contaminants •Builtin slide rails allow you to drag the feeder into position for welding •Innovative feeder door design allows you to change wire while feeder is standing upright or laying down •Case is available in two
sizes. (X-TREME™ feeders only.)
Extreme reliability: •Potted and trayed main printed circuit board for the harshest environments adds exceptional reliability. Board has full-trigger isolation so a shorted gun trigger will not affect
feeder operation. •Gun locking tab works with guns having corresponding locking grooves to prevent gun from being pulled out if the feeder is dragged by the gun •Gas inlet recessed into back of
case is protected from incidental contact by the weld cable, ensuring consistent and contaminant-free shielding gas delivery to the gun. Double-filtered gas valve helps keep dirt from clogging and
affecting gas flow.
SuitCase® X-TREME™ 8VS & 12VS ArcReach™
•Remote control of the power source without a cord •With an
ArcReach-equipped SuitCase® feeder and power source you
can change output voltage at
the feeder, and save a trip to the
power supply. •No extra control
cable to purchase, maintain,
string or unstring—saving time
and money
SuitCase® 12RC
•Standard remote voltage control saves the operator a trip back
to the power supply for welding adjustments •For applications
where the feeder is within 100
feet of the power source and
control cords are acceptable
Processes: •MIG (GMAW) •Flux-Cored (FCAW)
Comes Complete with: Bernard™Q300 MIG gun with reversible dual size (.045 and 1/16”) VK drive rolls. 12VS model is also available with DuraFlux™Flux-Cored gun with reversible dual size (.068/.072 and 5/64”) VK drive rolls. ArcReach™models are also available with Bernard S-Gun™
with reversible dual size (.045 and 1/16”) VK drive rolls.
Part No. 951583, SuitCase X-TREME 8VS with Bernard Q300 gun (no meters).
Part No. 951582, SuitCase X-TREME 8VS with Bernard Q300 gun
Part No. 951543, SuitCase X-TREME 12VS with Bernard Q300 gun
Part No. 951544, SuitCase X-TREME 12VS with Bernard Dura-Flux gun
Please see pg. G55 for more information
Part No. 951588, SuitCase X-TREME 8VS ArcReach with Bernard S-Gun
about the Miller Welding icons and symbols.
Part No. 951584, SuitCase X-TREME 8VS ArcReach with Bernard Q300 gun
Part No. 951589, SuitCase X-TREME 12VS ArcReach with Bernard S-Gun
Part No. 951581, SuitCase X-TREME 12VS ArcReach with Bernard Q300 gun
Part No. 951580, SuitCase 12RC with Bernard Q300 gun
Part No. 951599, SuitCase 12RC with Bernard Q300 gun, lift eye, and flowmeter
SUGGESTED POWER SOURCES
•Invision™ MPa Series •Dimension™ Series •XMT® Series (VS model not compatible with RC feeder) •Bobcat™ Series •Trailblazer® Series •Big Blue® Series
Note: Full functionality of ArcReach is only available with ArcReach power sources. RC feeder requires power source with 14-pin connector.
SUGGESTED GUNS
•Bernard™ Q300 (GMAW) •Bernard™ S-Gun™ (GMAW) •Bernard™ Dura-Flux™ (FCAW) •Roughneck® (GMAW) • Ironmate™ FC-1260 (FCAW)
Model No.
Input Power
SuitCase X-TREME 8VS
Operates on openSuitCase X-TREME 12VS circuit voltage and
arc voltage: 14- 48
SuitCase X-TREME 8VS
VDC/110 Max.
ArcReach
OCV
SuitCase X-TREME 12VS
ArcReach
24 VAC, 10 A,
SuitCase 12RC
50/60 Hz
Input Welding
Circuit Rating
330 A at
60% duty cycle
425 A at
60% duty cycle
330 A at
60% duty cycle
425 A at
60% duty cycle
425 A at
60% duty cycle
Wire Feed Speed
Wire Type and Diameter Capacity
Solid Wire .023 -.052” (0.6 -1.4 mm)
Flux-Cored .030 - 5/64” (0.8 - 2.0 mm)
50-780 IPM
Solid Wire .023 -.052” (0.6 -1.4 mm)
(1.3 -19.8 m/min.)
Flux-Cored .030 - 5/64” (0.8 - 2.0 mm)
Actual range in CC
mode is dependent on Solid Wire .023 - .062” (0.6 - 1.6 mm)
Flux-Cored .030 - .062” (0.8 - 1.6 mm)
arc voltage applied
Solid Wire .023 - 5/64” (0.6 - 2.0 mm)
Flux-Cored .030 - 5/64”(0.8 - 2.0 mm)
Solid Wire .023 -.052” (0.6 -1.4 mm)
50-700 IPM
(1.3 -17.8 m/min.)
Flux-Cored .030 - 5/64” (0.8 - 2.0 mm)
Maximum
Spool
Size Capacity
8” (203 mm),
14 lb. (6.4 kg)
12” (305 mm),
45 lb. (20 kg)
8” (203 mm),
14 lb. (6.4 kg)
12” (305 mm),
45 lb. (20 kg)
12” (305 mm),
45 lb. (20 kg)
Dimensions
Net Weight
12.75”H x 7.25”W x 18”D
(324 mm x 184 mm x 457 mm) 28 lb. (13 kg)
15.5”H x 9”W x 21”D
(394 mm x 229 mm x 533 mm) 35 lb. (15.9 kg)
12.75”H x 7.25”W x 18”D
(324 mm x 184 mm x 457 mm) 28 lb. (13 kg)
15.5”H x 9”W x 21”D
(394 mm x 229 mm x 533 mm) 35 lb. (15.9 kg)
15.5”H x 9”W x 21”D
(394 mm x 229 mm x 533 mm) 31 lb. (14.1 kg)
Please see Section M / N
for all Welding Apparel
and Welding Safety Supplies.
greggdistributors.ca
G63
Abrasives, Brushes & Welding Supplies
SuitCase® X-TREME™ 8VS & 12VS
•Voltage-sensing feeders designed to run off of arc voltage from
almost any welding power source •8VS model is sized for an
8” spool of wire, can be carried
to remote welding sites and fits
through a 14” manhole/manway
•12VS model is sized for an 8 or
12” spool of wire •12” spools are
the most common in structural
steel and fabrication
