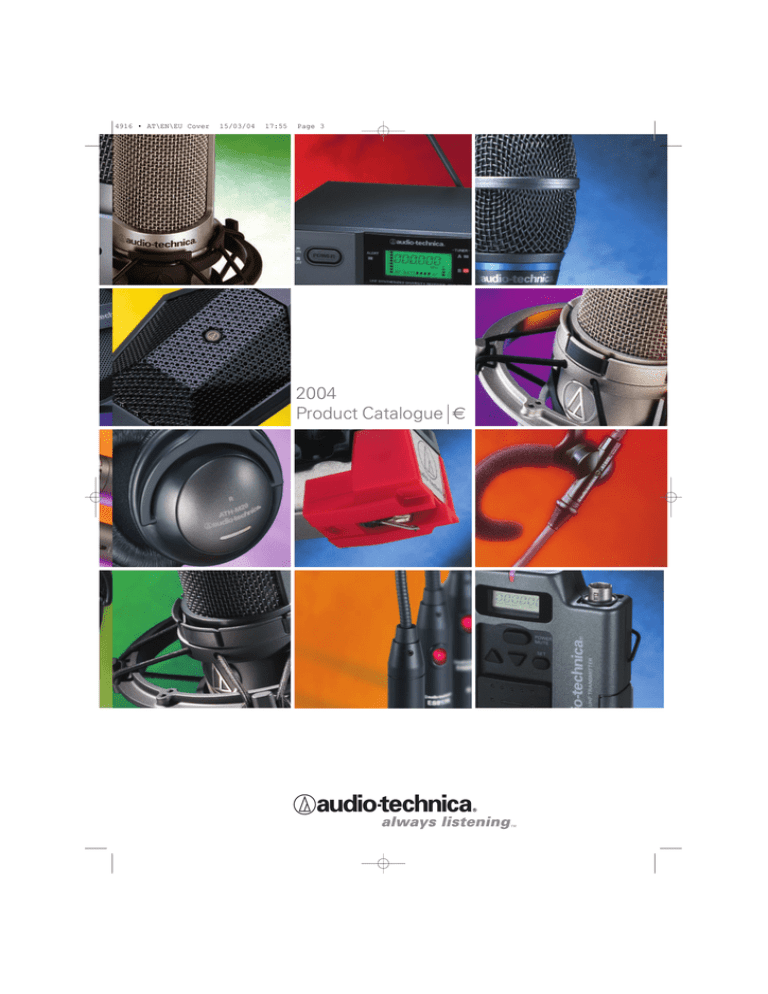

4916 • AT\EN\EU Cover 15/03/04 17:55 Page 3

2004

Product Catalogue

4916 • AT\EN\EU Cover 15/03/04 17:55 Page 4

contents

Product Index

Microphones

Artist Elite ®

40 Series

30 Series

Artist Series

Midnight Blues ®

KitPak ™

Pro Series

Adaptive Array, Delta Beam

Broadcast & Production

ProPoint ®

UniPoint ®

Engineered Sound

Gooseneck Microphones

Interchangeable Elements

Rigid-pipe Microphones

Dual-element Microphones

Hanging Microphones

Boundary Microphones

Lavalier Microphones

Handheld Microphones

Wireless Systems

Artist Elite ® 4000 & 5000 Series

3000 Series

1600 Series

1400 Series

Wireless Essentials ®

Wireless Accessories

Headphones

Precision Studiophones

Headphones and Headsets

Electronics

SmartMixer ® Automatic Mixers

Phantom Power Supplies

In-Line Accessories, UniTools ®

Microphone Accessories

Microphone Mounts

Windscreens

Consumer Microphones

ATR Microphones

Phono Cartridges

Standard Series Cartridges

Audiophile Series Cartridges

Professional Series Cartridges

Replacement Styli

Alphanumeric Product Listing

Terms, Sales Policies & Limited Warranty

30

33

34

35

36

37

24

25

26

26

27

28

29

29

38

39

40

41

41

42

44

46

II

12

13

14

15

16

20

21

1

2

4

7

9

47

47

47

47

48

III

4916 • AT\EN\EU 2/21 15/03/04 17:45 Page 1

a message from the president

1

Welcome to the first issue of our European Catalogue. With its publication, we are delighted to offer our European colleagues a better service by providing product descriptions and technical specifications in no less than eight languages.

At Audio-Technica, our work begins with transducers, the interface between people and the equipment that captures, transports and delivers audio communication. When designing these products—highperformance microphones, headphones, wireless systems, mixers and more—we push the limits of the laws of physics to create the highest performance possible at prices that make our products widely accessible.

We are proud to have earned recognition for these leading innovations in electro-acoustic design and manufacturing. We are equally pleased to be recognized as a company that benefits both our customers and our communities: we are committed to supporting the music, broadcast, entertainment and communication industries in which our end-users work.

In 2002, as we celebrated our 40th anniversary, Audio-Technica supplied approximately 2000 microphones during the Winter Games in

Salt Lake City. A-T microphones delivered outstanding performance despite the extreme challenges of on-site coverage of events like luge, skiing, biathlon, skating and more. Two years later and 60° Celsius higher, we are committed to doing our part for the Summer Games—as we did in Atlanta (1996) and Sydney (2000). In August of 2004, we will support broadcasting in Athens by supplying more than 1600 microphones and associated technical support.

To all who use our products: we are committed to meeting your needs and helping improve your performance. To all our dealers and distributors: we are dedicated to supplying your business and your customers with outstanding products and support. Wherever you do business, don’t hesitate to contact us for further product innovations, for information and expertise. Whatever your needs, please be assured, at Audio-Technica, we are... always listening.

Kazuo Matsushita

President

4916 • AT\EN\EU 2/21 15/03/04 17:45 Page 2

2

artist elite

microphones

( PC 304-MC 220)

CONDENSER VOCAL MICROPHONES

AE5400

350.00

Cardioid condenser microphone

• Pristine sound quality demanded by the most discriminating microphone user.

• Large-diaphragm element and true condenser design.

• Superior anti-shock engineering ensures low handling noise and quiet performance.

• Excellent protection against plosives and sibilance without compromising high-frequency clarity.

• Robust design for enduring dependability on the road.

• Integral 80 Hz HPF switch and 10 dB pad.

AE3300

280.00

Cardioid condenser microphone

• Exacting detail, brilliant clarity and uncoloured realism.

• Well-tempered polar pattern with outstanding rejection qualities.

• Superior anti-shock engineering ensures low handling noise and quiet performance.

• Excellent protection against plosives and sibilance without compromising high-frequency clarity.

• Robust design for enduring dependability on the road.

• Integral 80 Hz HPF switch and 10 dB pad.

DYNAMIC VOCAL MICROPHONES

AE6100

180.00

Hypercardioid dynamic microphone

• Great presence with excellent monitor cut

• High output, fast transients and clean articulation

• Maximum feedback rejection

• Superior anti-shock engineering for low handling noise

• Outstanding pop protection

• Tough, durable, resilient – built for the road

AE410 0

180.00

Cardioid dynamic microphone

• Aggressive sound that stays up-front in the mix

• Optimized for the stage with excellent isolation properties

• Superior anti-shock engineering for low handling noise

• Outstanding pop protection

• Tough, durable, resilient – built for the road

AE3300, AE5400

AE4100, AE6100

Specifications

Element

AE5400

Externally polarized condenser

Polar Pattern

Frequency Response

Open Circuit Sensitivity

Impedance

Maximum Input Sound Level

1 kHz at 1% T.H.D.

Signal-to-Noise Ratio *

Dynamic Range (1 kHz)

Noise

Low Frequency Roll-Off

20-20,000 Hz

–40 dB (10.0 mV)

150

147 dB SPL

157 dB SPL, with 10 dB pad

80 dB

133 dB

14 dB SPL

80 Hz, 12 dB/octave

Phantom Power Requirements

11-52V DC, 4 mA

Weight (less accessories)

330 g (11.6 oz)

Dimensions

179 mm (7.05”) long;

50 mm (1.97”) diameter

Output Connector

3-pin XLRM-type

Accessories Furnished

AT8470 Quiet-Flex™ stand clamp, soft protective pouch

1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

* Typical, A-weighted

AE3300

Electret condenser

30-18,000 Hz

–42 dB (7.9 mV)

150

147 dB SPL

157 dB SPL, with 10 dB pad

75 dB

128 dB

19 dB SPL

80 Hz, 12 dB/octave

11-52V DC, 3 mA

300 g (10.6 oz)

179 mm (7.05”) long;

50 mm (1.97”) diameter

3-pin XLRM-type

AT8470 Quiet-Flex™ stand clamp, soft protective pouch

AE6100

Dynamic

60-15,000 Hz

–55 dB (1.7 mV)

250

310 g (10.9 oz)

177 mm (6.97”) long;

48 mm (1.89”) diameter

3-pin XLRM-type

AT8470 Quiet-Flex™ stand clamp, soft protective pouch

AE4100

Dynamic

90-18,000 Hz

–55 dB (1.7 mV)

250

310 g (10.9 oz)

177 mm (6.97”) long;

48 mm (1.89”) diameter

3-pin XLRM-type

AT8470 Quiet-Flex™ stand clamp, soft protective pouch

European professional price guide 2004, prices in Euro EX-VAT 1

4916 • AT\EN\EU 2/21 15/03/04 17:45 Page 3

AE2500

520.00

Dual-element cardioid microphone

• Revolutionary, first-of-its-kind dual-element design represents a ground-breaking transducer achievement.

• Two elements (condenser and dynamic) are enclosed in a single housing.

• Dynamic element delivers the aggressive attack of the beater while the condenser captures the round tonalities of the shell.

• Elements are positioned in a perfect phase relationship, something practically unachievable with two separate microphones.

• Robust design for enduring dependability on the road.

• Integral 80 Hz HPF switch and 10 dB pad.

AE3000

240.00

Cardioid condenser microphone

• Excels in high-SPL applications such as guitar cabinets, toms, snare, timpani and overheads.

• Large-diaphragm capsule combines with the open architecture of the headcase to provide an extremely accurate and open sound.

• Low-profile side-address design with tapered grille allows optimal positioning of element vis-à-vis sound source.

• Robust design for enduring dependability on the road.

• Integral 80 Hz HPF switch and 10 dB pad.

AE5100

260.00

Cardioid condenser microphone

• Uncompromising sound quality for overheads, percussion, acoustic guitar, strings and other acoustic instruments.

• Large-diaphragm capsule delivers accurate, uncoloured and extremely natural response.

• Low-profile design permits innovative placement options previously unattainable with a large-diaphragm condenser.

• Robust design for enduring dependability on the road.

• Integral 80 Hz HPF switch and 10 dB pad.

AE2500

AE3000

Specifications

Element

Polar Pattern

Frequency Response

AE2500

Condenser, Dynamic

Open Circuit Sensitivity

Impedance

Maximum Input Sound Level

1 kHz,T.H.D. 1%

Signal-to-Noise Ratio (1 kHz, 1 Pa)

Dynamic Range (1 kHz)

Low Frequency Roll-Off

Power Requirement

Weight (less accessories)

Dimensions

Output Connector

Accessories Furnished

Dynamic : 30-10,000 Hz

Condenser : 20-17,000 Hz

Dynamic : –54 dB (1.9 mV)

Condenser : –51 dB (2.8 mV)

Dynamic : 600

Condenser : 100

Condenser : 148 dB SPL

158 dB SPL, with 10 dB pad

Condenser : 70 dB

Condenser : 124 dB

80 Hz, 12 dB/octave

11-52V DC, 3 mA

390 g (13.8 oz)

165 mm (6.50”) long

55 mm (2.17”) diameter

Integral 5-pin XLRM type

Protective pouch

AT8471 Isolation clamp

1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

AE5100

AE3000

Condenser

20-20,000 Hz

–43 dB (7 mV)

100

148 dB SPL

158 dB SPL, with 10 dB pad

83 dB

137 dB

80 Hz, 12 dB/octave

11-52V DC, 3 mA

170 g (6.0 oz)

115.5 mm (4.55”) long

48 mm (1.89”) diameter

Integral 3-pin XLRM type

Protective pouch

AT8471 Isolation clamp

AE5100

Condenser

20-20,000 Hz

–36 dB (15.8 mV)

150

148 dB SPL

158 dB SPL, with 10 dB pad

83 dB

137 dB

80 Hz, 12 dB/octave

11-52V DC, 3.2 mA

143 g (5.0 oz)

L 148.5 mm (5.85”) long

26 mm (1.02”) diameter

Integral 3-pin XLRM type

Protective pouch

AT8471 Isolation clamp

3

4916 • AT\EN\EU 2/21 15/03/04 17:45 Page 4

4

40

series precision studio microphones

( PC 345-MC 210)

The AT4033a’s low-noise circuitry is symmetrical and transformerless, resulting in exceptional transient response and clean output signals, even under high-output conditions. From vocals to drum overheads, from woodwind sections to guitar cabinets and on-air announcing, the AT4033a is a microphone of many talents – as useful on stage and in a broadcast facility as it is in the recording studio.

AT4033aSM

420.00

Cardioid condenser microphone with shock mount

A marriage of technical precision and artistic inspiration, the AT4040 features an advanced large diaphragm tensioned specifically to provide smooth, natural sonic characteristics.

Designed as a multi-purpose performer, this externally polarized

(DC bias) true condenser microphone offers exceptionally low noise, wide dynamic range and high-SPL capability for greatest versatility.

The AT4040’s low-noise circuitry is symmetrical and transformerless, resulting in exceptional transient response and clean output signals, even under high-output conditions.

The microphone is totally free of the distortion associated with conventional transformer-coupled outputs.

AT4040SM

400.00

Cardioid condenser microphone with shock mount

AT4033aSM

Deemed “the stuff legends are made of” at its introduction, the AT4050 exhibits a remarkable combination of high SPL capability with transparent and airy uppers/mids complemented by rich low-end qualities. And numerous legendary studio engineers agree that it is the perfect studio tool for use on vocals, piano, strings, drum overheads, guitar amps, ensembles – the list goes on and on.

The externally polarized (DC bias) true condenser element of the AT4050 utilizes dual, gold-vaporized and aged, large diaphragms to provide consistent, superior performance in three switchable polar patterns (cardioid, omnidirectional and figure-of-eight).

AT4050SM

690.00

Multi-pattern condenser microphone with AT8449 shock mount

AT4050SC

730.00

Multi-pattern condenser microphone with AT8430 stand clamp

AT4050SM

AT4040SM

Specifications

Element

Polar Pattern

AT4033aSM AT4040SM

Permanently polarized condenser Externally polarized condenser

Cardioid Cardioid

Frequency Response

Open Circuit Sensitivity

Impedance

Maximum Input Sound Level

1 kHz,T.H.D. 1%

Signal-to-Noise Ratio

Dynamic Range

Noise

30-20,000 Hz

–32 dB (25.1 mV)

100

145 dB SPL

155 dB SPL, with 10 dB pad

77 dB (1 kHz, 1 Pa)

128 dB, 1 kHz at Max SPL

17 dB SPL

Low Frequency Roll-Off

80 Hz, 12 dB/octave

Phantom Power Requirement

48V DC, 3.2 mA

Weight (less accessories)

Dimensions

380 g (13.4 oz)

170 mm (6.69”) long

53,4 mm (2.10”) diameter

20-20,000 Hz

–32 dB (25.1 mV)

100

145 dB SPL

155 dB SPL, with 10 dB pad

82 dB (1 kHz, 1 Pa)

133 dB, 1 kHz at Max SPL

12 dB SPL

80 Hz, 12 dB/octave

48V DC, 4.2 mA

360 g (12.7 oz)

170 mm (6.69”) long

53.4 mm (2.10”) diameter

Output Connector

Accessories Furnished

Integral 3-pin XLRM type

Protective carrying case

AT8449 Shock mount

Integral 3-pin XLRM type

Protective carrying case

AT8449 Shock mount

1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

AT4050SM and AT4050SC

Externally polarized condenser

Cardioid, omnidirectional, figure-of-eight

20-18,000 Hz

–36 dB (15.8 mV)

100

149 dB SPL

159 dB SPL, with 10 dB pad

77 dB (1 kHz, 1 Pa)

132 dB, 1 kHz at Max SPL

17 dB SPL

80 Hz, 12 dB/octave

48V DC, 4.2 mA

510 g (18.0 oz)

188 mm (7.40”) long

53.4 mm (2.10”) diameter

Integral 3-pin XLRM type

Protective carrying case

AT8449 Shock mount (AT4050SM)

AT8430 Stand clamp (AT4050SC)

European professional price guide 2004, prices in Euro EX-VAT 1

4916 • AT\EN\EU 2/21 15/03/04 17:45 Page 5

The AT4047/SV is a large-diaphragm condenser microphone designed to provide the warm sonic characteristics reminiscent of early F.E.T. studio microphone designs.

Wide dynamic range, high SPL capability and exceptionally low self-noise combine in a versatile tool that excels in digital recording environments. Also ideal for critical applications in broadcast and live sound, the precisionengineered AT4047/SV delivers the consistency and reliability expected of A-T’s 40 Series.

The AT4047/SV features a switchable 80 Hz hi-pass filter and 10 dB pad. Both the microphone and included

AT8449/SV shock mount are provided in a vintage mattsilver finish.

AT4047SVSM

600.00

Cardioid condenser microphone with AT8449SV shock mount

AT4047SVSC

640.00

Cardioid condenser microphone with AT8430 stand clamp

The AT4060 combines premium 40 Series engineering and vintage tube technology to deliver the exacting, versatile performance required in the most demanding studio applications. With a dynamic range that far exceeds that of other tube mics, the AT4060 provides the coveted sound of valve design without compromising the specification standards necessary to excel in today’s diverse recording situations.

The dual large-diaphragm element delivers extended frequency response, while the carefully controlled cardioid pattern maintains uniform off-axis response. Included with each AT4060 are the AT8560 power supply, the AT8447 shock mount, a 32’ cable.

AT4060

1 800.00

Cardioid vacuum tube condenser microphone with AT8447 shock mount

AT4047SVSM

AT4060

Specifications

Element

Polar Pattern

AT4047SV

Externally polarized (DC bias) condenser

Cardioid

Frequency Response

Open Circuit Sensitivity

Impedance

Maximum Input Sound Level

1 kHz,T.H.D. 1%

Signal-to-Noise Ratio

Dynamic Range

Noise

20-18,000 kHz

–35 dB (17.7 mV) ± 2 dB, re 1V at 1 Pa

250

149 dB SPL

159 dB SPL, with 10 dB pad

85 dB (1 kHz at 1 Pa)

140 dB (1 kHz at Max SPL)

9 dB SPL

Low Frequency Roll-Off

Power Requirement

Weight (less accessories)

Dimensions

80 Hz, 12 dB/octave

Phantom 48 V, 3.0 mA

410 g (14.5 oz)

170 (6.69”) long. 53.4 mm (2.10”) diameter

Output Connector

Accessories Furnished

Integral 3-pin XLRM type

AT8449SV Shock mount or AT8430 Stand clamp (with 4047SVSC)

1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

AT4060

Externally polarized (DC bias) condenser

Cardioid

20-20,000 kHz

–34 dB (19.9 mV) ± 2 dB, re 1V at 1 Pa

200

150 dB SPL

75 dB (1 kHz at 1 Pa)

131 dB (1 kHz at 150 SPL)

19 dB SPL

AT8560 power supply (230 V AC)

640 g (22.6 oz)

210 mm (8.27”) long. 53.4 mm (2.10”) diameter

Integral 6-pin XLRM type

AT8447 Shock mount, AT8560 Power supply

10 m (32.8’) cable, protective mic carrying case

5

4916 • AT\EN\EU 2/21 15/03/04 17:46 Page 6

40

series precision studio microphones

( PC 345-MC 210 )

This premium electret condenser microphone is engineered to meet the most critical acoustic requirements of professional recording, broadcast and live sound. The AT4041 features a transformerless output for very high SPL-handling capability.

A unique combination of audio excellence and moderate cost, the AT4041 is a rugged microphone housed in a case of turned brass with black chrome plating for durability and low reflectivity.

AT4041

260.00

Cardioid condenser microphone

These versatile studio performers may be used with confidence in a wide variety of professional miking applications, even under the stringent demands of modern digital recording systems. Featuring directcoupled balanced outputs for clean signals in high output conditions, the microphones are totally free of the distortion associated with conventional transformer-coupled outputs.

Each microphone consists of two modular subassemblies: the AT4900a-48 handle containing the microphone’s electronics, and a corresponding condenser head capsule (the omnidirectional

AT4 0 4 9 a - E L , the cardioid AT4051a-EL or the hypercardioid AT4053a-EL). All head capsules are interchangeable and available separately. The microphone housing is constructed of rugged turned brass with a low-reflective black chrome plating.

AT4041

AT4049a

520.00

Modular ominidirectional condenser microphone

AT4051a

440.00

Modular cardioid condenser microphone

AT4053a

440.00

Modular hypercardioid condenser microphone

AT4049a, AT4051a, AT4053a

AT4049a-48

40 SERIES MICROPHONE COMPONENTS

AT4900a-48

280.00

Electronics/body only

AT4049a-EL

260.00

Omnidirectional element only

AT4051a-EL

180.00

Cardioid element only

AT4053a-EL

180.00

Hypercardioid element only

AT4049a-EL, AT4051a-EL, AT4053a-EL

Specifications

Element

Polar Pattern

AT4041

Permanently Polarized Condenser

Frequency Response

Open Circuit Sensitivity

20-20,000 Hz

–36 dB (15.8 mV)

Impedance

Maximum Input Sound Level

Signal-to-Noise Ratio

Dynamic Range

Noise

Low Frequency Roll-Off

Phantom Power Requirement

Weight (less accessories)

Dimensions

Output Connector

Accessories Furnished

100

145 dB SPL, 1 kHz at 1% T.H.D.

70 dB (1 kHz, 1 Pa)

121 dB, 1 kHz at Max SPL

24 dB SPL

80 Hz, 12 dB/octave

48V DC, 3.2 mA

120 g (4.20 oz)

159.5 mm (6.28”) long; 21 mm (0.83”) diameter

Integral 3-pin XLRM type

Protective carrying case

AT8405a Snap-in clamp, foam windscreen

1 Pascal = 10 dynes/cm2 = 10 microbars = 94 dB SPL

European professional price guide 2004, prices in Euro EX-VAT 1

AT4049a/AT4051a/AT4053a

Externally Polarized (DC bias) Condenser

Cardioid (AT4051a)

Hypercardioid (AT4051a)

20-20,000 Hz

–33 dB (22.4 mV) AT4049a/AT4053a

–34 dB (19.9 mV) AT4051a

100

146 dB SPL, 1 kHz at 1% T.H.D.

75 dB (1 kHz, 1 Pa)

127 dB, 1 kHz at Max SPL

19 dB SPL

80 Hz, 12 dB/octave

48V DC, 3.2 mA

120 g (4.20 oz)

155 mm (6.10”) long; 21 mm (0.83”) diameter

Integral 3-pin XLRM type

Protective carrying case

AT8405a Snap-in clamp, foam windscreen

4916 • AT\EN\EU 2/21 15/03/04 17:46 Page 7

30

series studio microphones

( PC 343-MC 210 )

The new AT3060 tube microphone offers the convenience and easy setup of a standard studio condenser by operating exclusively on 48V phantom power – no dedicated power supplies and special cables required.

Add to that an all-new large-diaphragm cardioid capsule design and you get the warm sound of a vintage tube mic combined with the exceptional quality and consistency you count on from Audio-Technica.

AT3060

520.00

Phantom-powered tube microphone, includes AT8458 shock mount

• Newest addition to the 30 Series is the first tube microphone in the line, one of the most affordable high-quality tube mics on the market

• No dedicated power supply or special cable needed; operates exclusively on 48V DC phantom power

• All-new large-diaphragm cardioid condenser element provides high sensitivity and smooth sound reproduction with low noise levels

• Hand-selected tubes are individually tested and aged to maintain peak performance

• Shock-mounted tube assembly dampens mechanically-coupled vibrations

• Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity

• Large coupling transformer provides superior low-frequency linearity

• Includes AT8458 shock mount and protective pouch

• State-of-the-art design and manufacturing techniques ensure compliance with A-T‘s stringent consistency and reliability standards

AT3060

AT8458

AT3060

Specifications

Element

Polar Pattern

Frequency Response

Open Circuit Sensitivity

Impedance

Maximum Input Sound Level

Signal-to-Noise Ratio

Dynamic Range

Noise

Phantom Power Requirement

Weight (less accessories)

Dimensions

Output Connector

Accessories Furnished

1 Pascal = 10 dynes/cm2 = 10 microbars = 94 dB SPL

AT3060

Fixed-charge back plate permanently polarized condenser

Cardioid

50 - 16,000 Hz

–32 dB (25.1 mV) re 1V at 1 Pa

400

134 dB SPL (1 kHz, 1% T.H.D.)

77 dB (1 kHz, 1 Pa)

117 dB, 1 kHz at Max SPL

17 dB SPL

48V DC, 3 mA

540 g (19.1 oz)

170.5 mm (6.71”) long; 52 mm (2.05”) maximum body diameter

Integral 3-pin XLRM type

Soft protection pouch, AT8458 Shock mount

4916 • AT\EN\EU 2/21 15/03/04 17:46 Page 8

30

series studio microphones

( PC 343-MC 210 )

“Make it happen” – Bringing a new level of professional performance to home and project studios, the 30 Series offers all the advantages of high-quality studio microphones at an affordable price. Every aspect of these microphones has been tailored for a very smooth, natural sound while ensuring maximum accuracy, making them a perfect complement for today’s digital recording equipment.

In addition to their rugged construction and high performance specifications, the 30 Series features the legendary reliability of Audio-Technica’s modern engineering and manufacturing technology. This provides an exceptional level of consistency from model to model, critical when any of these mics are purchased in pairs.

AT3035

260.00

Large-diaphragm cardioid condenser microphone, includes AT8458 shock mount

AT3031

199.00

Small diaphragm cardioid condenser microphone

AT3032

199.00

Small diaphragm omnidirectional condenser microphone

AT3035

AT3032

AT3031

AT8458

AT3032

AT3035

AT3031

Specifications

Element

Polar Pattern

Frequency Response

Low Frequency Roll-Off

Open Circuit Sensitivity

Impedance

Maximum Input Sound Level

Signal-to-Noise Ratio

Dynamic Range

Noise

Phantom Power Requirement

Weight (less accessories)

Dimensions

Output Connector

Accessories Furnished

AT3035 AT3031

Fixed-charge back plate Fixed-charge back plate permanently polarized condenser permanently polarized condenser

Cardioid

20-20,000 Hz

80 Hz, 12 dB/octave

–32 dB (25.1 mV) re 1V at 1 Pa

250

148 dB SPL, 1 kHz at 1% T.H.D.

158 dB SPL, with 10 dB pad

82 dB, 1 kHz at 1 Pa

136 dB, 1 kHz at Max SPL

12 dB SPL

11-52V DC, 3 mA

390 g (13.8 oz)

170 mm (6.69”) long

52 mm (2.05”) max diameter

Integral 3-pin XLRM-type

AT8458 shock mount

Soft protective pouch

Cardioid

30-20,000 Hz

80 Hz, 12 dB/octave

–34 dB (19.9 mV) re 1V at 1 Pa

250

148 dB SPL, 1 kHz at 1% T.H.D.

158 dB SPL, with 10 dB pad

78 dB, 1 kHz at 1 Pa

132 dB, 1 kHz at Max SPL

16 dB SPL

11-52V DC, 3 mA

112 g (4.0 oz)

144 mm (5.67”) long

21 mm (0.83”) max diameter

Integral 3-pin XLRM-type

AT8405a snap-in clamp, AT8159 windscreen Soft protective pouch

1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European professional price guide 2004, prices in Euro EX-VAT 1

AT3032

Fixed-charge back plate permanently polarized condenser

Omnidirectional

30-20,000 Hz

80 Hz, 12 dB/octave

–34 dB (19.9 mV) re 1V at 1 Pa

250

148 dB SPL, 1 kHz at 1% T.H.D.

158 dB SPL, with 10 dB pad

78 dB, 1 kHz at 1 Pa

132 dB, 1 kHz at Max SPL

16 dB SPL

11-52V DC, 3 mA

116 g (4.10 oz)

144 mm (5.67”) long

21 mm (0.83”) max diameter

Integral 3-pin XLRM-type

AT8405a snap-in clamp, AT8159 windscreen Soft protective pouch

4916 • AT\EN\EU 2/21 15/03/04 17:46 Page 9

artist series microphones

( PC 305-MC 220 )

The first choice of many audio professionals is

Audio-Technica’s established line of Artist Series microphones. The broad range of ATM dynamic and condenser models is ideal for both studio and soundreinforcement applications. Unique, specialized designs solve the most difficult pickup problems with innovative engineering and ultra-precise manufacturing.

ATM10a

140.00

Omnidirectional condenser microphone

Ideal for vocal/instrument use when maximum ambient pickup is desired. Use it on hi-hat, strings, guitar, piano, and overheads. Operates on battery or phantom power.

ATM31a

149.00

Cardioid condenser microphone

Designed for general studio/stage use with a wide frequency response. Excellent for closeup vocals, piano, reeds, and brass. Operates on battery or phantom power.

ATM33a

169.00

Cardioid condenser microphone

Designed for general studio/stage use with a wide frequency response. Excellent for closeup vocals, piano, reeds, and brass. Operates on battery or phantom power.

ATM10a

ATM31a

ATM89R

189.00

Hypercardioid condenser microphone, interchangeable elements

Designed for general studio/stage use with a wide frequency response. Excellent for closeup vocals, piano, reeds, and brass. Operates on

48V DC phantom power. Additional patterns are available on request. See page 21 (AT853C-

ELE, AT853H-ELE, AT853O-ELE).

ATM33a

Hi-SPL BOUNDARY MICROPHONE FOR KICK-DRUM

ATM87R

199.00

Hi-SPL cardioid condenser boundary plate microphone

ATM87R

Operates on 48V phantom power.

Integral preamplifier with bass roll off switching facility. For placement inside a kick-drum.

• Frequency response: 30-20,000Hz

• Maximum input sound level:

151dB SPL

• Impedance: 100 ohms

ATM89R

Specifications

Element

Polar Pattern

Frequency Response

Open Circuit Sensitivity

Impedance

Maximum Input Sound Level

1 kHz at 1% T.H.D.

Signal-to-Noise Ratio

Dynamic Range

Power Requirement

Weight (less accessories)

Output Connector

Accessories Furnished

ATM10a

Condenser Condenser

Omnidirectional Cardioid

20-18,000 Hz

–44 dB (6.3 mV)

200

137 dB SPL

70 dB, 1 kHz at 1 Pa

113 dB (1 kHz at Max SPL)

Phantom 9-52V, 2 mA or 1.5 V AA battery

200 g (7.1 oz)

Integral 3-pin XLRM-type

AT8405a stand clamp

AT8136 windscreen

1 Pascal = 10 dynes/cm2 = 10 microbars = 94 dB SPL

ATM31a

30-20,000 Hz

–44 dB (6.3 mV)

200

137 dB SPL

70 dB, 1 kHz at 1 Pa

113 dB (1 kHz at Max SPL)

Phantom 9-52V, 2 mA or 1.5 V AA battery

200 g (7.1 oz)

Integral 3-pin XLRM-type

AT8405a stand clamp

AT8114 windscreen

ATM33a

Condenser

Cardioid

30-20,000 Hz

–44 dB (6.3 mV)

200

137 dB SPL

ATM89R

Condenser

Hypercardioid

70-20,000 Hz

–42 dB (7.9 mV)

100

138 dB SPL

70 dB, 1 kHz at 1 Pa

113 dB (1 kHz at Max SPL)

Phantom 9-52V, 2 mA or 1.5 V AA battery

150 g (5.3 oz)

Integral 3-pin XLRM-type

AT8405a stand clamp

AT8136 windscreen

67 dB, 1 kHz at 1 Pa

111 dB (1 kHz at Max SPL)

Phantom 48V, 3.2 mA

290 g (10.2 oz)

Integral 3-pin XLRM-type

AT8406a stand clamp

Protective pouch

9

4916 • AT\EN\EU 2/21 15/03/04 17:46 Page 10

10

artist series microphones

( PC 305-MC 220 )

ATM73a

170.00

Professional miniature headworn cardioid condenser microphone

Offers side-of-mouth pickup. Ideal for drummers, keyboardists, and people who need to keep their hands free. Unobtrusive headband, flexible mic boom. Operates on battery or phantom power.

ATM73ac

100.00

Same as ATM73a but unterminated for wireless and special applications

Includes AT8125 and AT8128 windscreens; no power module.

ATM75

130.00

Headworn cardioid condenser microphone

Offers front-of-mouth pickup. Pivot-mount mic boom descends from left or right side.

Operates on battery or phantom power

ATM75c

60.00

Same as ATM75 but unterminated for wireless and special applications

Includes AT8139L large windscreen and

AT8439 cable clothing clip; no power module.

ATM35

240.00

High-intensity clip-on cardioid condenser instrument microphone

Includes UniMount ® clip for direct attachment instruments. Crisp, clear, well-balanced response– even at high SPLs. Included

UniMount ® clips to brass, reeds, piano, string bass, toms, and snare. Operates on battery or phantom power.

ATM75

ATM73a

ARTIST SERIES MICROPHONES FOR

A-T UNIPAK ™ WIRELESS SYSTEMS

(PC 458-MC 140)

(see wireless essentials, page 36)

ATM73cW

148.00

Professional miniature headworn cardioid condenser microphone, terminated with

HRS plug

ATM75cW

88.00

Headworn cardioid condenser microphone, terminated with HRS plug

ATM35cW

220.00

High-intensity clip-on cardioid condenser instrument microphone, terminated with

HRS plug

ATM73cW

ATM35

Specifications

Element

ATM73a

Condenser

ATM75

Condenser

Polar Pattern

Frequency Response

Open Circuit Sensitivity

Impedance

Maximum Input Sound Level

–55 dB (1.5 mV)

200

135 dB SPL

Signal-to-Noise Ratio (1 kHz, 1 Pa)

60 dB

Dynamic Range (1 kHz)

Cardioid Cardioid

60-15,000 Hz 60-15,000 Hz

99 dB

–51 dB (2.8 mV)

200

132 dB SPL

58 dB

96 dB

Power Requirement

Weight (less accessories)

Output Connector

Accessories Furnished

Phantom 9-52V, 2 mA or 1.5 V AA battery

31.2 g (1.1 oz)

Phantom 9-52V, 2 mA or 1.5 V AA battery

60 g (2.1 oz)

XLRM-type on power module XLRM-type on power module

AT8530 power module (attached) AT8139L large windscreen

Windscreen AT8530 power module (attached)

AT8139S small windscreen

AT8439 clothing clip

1 Pascal = 10 dynes/cm2 = 10 microbars = 94 dB SPL

ATM35

Condenser

Cardioid

30-20,000 Hz

–45 dB (5.6 mV)

200

145 dB SPL

67 dB

118 dB

Phantom 11-52V, 2 mA typical or 9 V battery

8.5 g (0.3 oz)

XLRM-type on power module

AT8418 UniMount ® instrument mount

AT8532 power module

Protective pouch

European professional price guide 2004, prices in Euro EX-VAT 1

4916 • AT\EN\EU 2/21 15/03/04 17:46 Page 11

INSTRUMENT MICROPHONES

ATM23HE

160.00

Hi-ENERGY ® neodymium dynamic hypercardioid microphone

Very rugged, designed specifically for use with snare drum. Also suitable for all high SPL environments such as kick drum, tom toms and guitar cabinets.

ATM25

169.00

Rugged dynamic hypercardioid microphone

Featuring tailored bass response ideal for miking kick drums and other high SPL applications.

ATM23HE

ATM29HE

STAGE/STUDIO DYNAMIC MICROPHONES

ATM27HE

89.00

Hi-ENERGY ® handheld hypercardioid dynamic microphone

Professional designed for stage or recording vocal applications.

ATM29HE

99.00

Hi-ENERGY ® hypercardioid dynamic microphone

Features a Hi-ENERGY® design for increased gain before feedback and superb handling noise for professional performance for vocal applications.

ATM41HE

120.00

Hi-ENERGY ® handheld hypercardioid dynamic microphone

Low handling noise and sonic qualities make this the choice of professional vocalists who require a dynamic microphone for stage and recording applications.

ATM61HE

110.00

Hi-ENERGY ® hypercardioid dynamic vocal microphone

Similar in many ways to the ATM41HE.

The ATM61HE microphone features a slightly longer headbasket to suit vocalists who experience popping and sibilance.

ATM27HE

ATM61HE

ATM61HE/S

129.00

As ATM61HE with on/off switch

ATM63HE

119.00

Close-working Hi-ENERGY ® hypercardioid dynamic microphone

Ideal for applications as varied as guitar cabinets, vocals and a wide range of instrumentation.

ATM23HE ATM25 Specifications

Polar Pattern

Frequency Response

Open Circuit Sensitivity

Impedance

Output Connector

Accessories Furnished

70-16,000 Hz

–53 dB (2.2 mV)

600

XLRM-type

Integral stand clamp

Protective pouch

30-15,000 Hz

–54 dB (1.9 mV)

600

XLRM-type

Integral stand clamp

Protective pouch

Specifications

Polar Pattern

Frequency Response

Open Circuit Sensitivity

Impedance

Output Connector

Accessories Furnished

ATM41HE

50-17,000 Hz

–51 dB (2.8 mV)

600

XLRM-type

AT8406a stand clamp

Protective pouch

1 Pascal = 10 dynes/cm2 = 10 microbars = 94 dB SPL

ATM61HE

50-18,000 Hz

–51 dB (2.8 mV)

600

XLRM-type

AT8406a stand clamp

Protective pouch

ATM25

ATM63HE

ATM41HE

ATM27HE

60-15,000 Hz

–56 dB (1.5 mV)

200

XLRM-type

AT8406a stand clamp

Protective pouch

ATM29HE

Hypercardioid

70-16,000 Hz

–56 dB (1.5 mV)

200

XLRM-type

AT8406a stand clamp

Protective pouch

Foam windscreen

ATM63HE

50-18,000 Hz

–52 dB (2.5 mV)

600

XLRM-type

AT8406a stand clamp

Protective pouch, Foam windscreen

11

4916 • AT\EN\EU 2/21 15/03/04 17:46 Page 12

12

midnight blues

®

microphones

( PC 323-MC 220 )

The Midnight Blues’ all-metal construction says quality and its velvety finish gives a secure, comfortable grip.

This ultra-soft-touch surface also minimizes mechanical noise and sealed magnetic reed switches on all dynamic models are contoured to fit the mic’s sleek profile.

High volumes come through without distortion, clarifying the intensity of vocals and instruments and even subtle nuances are clean and precise.

This is truly high-output performance on a budget.

• Suitable for piano, percussion, guitar, string instruments

• Antishock resistant construction

• Antipop and wind protection head case and shield

• Cardioid polar pattern

• Anti-corrosion XLRM-type connectors

DYNAMIC MICROPHONES

MB1k

39.00

Dynamic vocal microphone with hi-output

• Hi-ENERGY ® dynamic neodymium element for improved output and transient response

• Silent on-off operation with the

Magna-Lock ™ switch design

• 600 ohms impedance allowing a longer cable

• Frequency response: 80-12,000 Hz

MB1k/c

49.00

MB2k

48.00

MB1k microphone with 4.50 m XLR-XLR cable

Dynamic instrument microphone

• For amplified and acoustic instruments at an attractive price

• Tailored frequency response for optimal instrument reproduction

• Hi-ENERGY ® dynamic neodymium element for improved output and transient response

• Silent on-off operation with the

Magna-Lock ™ switch design

• 600 ohms impedance allowing a longer cable

• Frequency response: 60-14,000 Hz

MB2k/c

58.00

MB3k

52.00

MB2k microphone with 4.50 m XLR-XLR cable

Dynamic vocal microphone with extended response

• Extended frequency response for optimal vocal reproduction

• Hi-ENERGY ® dynamic neodymium element for improved output and transient response

• Silent on-off operation with the

Magna-Lock ™ switch design

• Antishock suspension reducing handling noise

• 600 ohms impedance allowing a longer cable

• Frequency response: 60-14,000 Hz

MB3k/c

62.00

MB3k microphone with 4.50 m XLR-XLR cable

CARDIOID CONDENSER MICROPHONE

MB4k

110.00

Cardioid condenser microphone

• A quality studio microphone at a quality price

• Electret technology for vocal and instrument studio applications

• Extended frequency response

• Antishock suspension reducing handling noise

• Phantom power 11-52V DC 2 mA typical or 1.5 V AA

• Includes AT8405a stand clamp, windscreen

• Frequency response: 80-20,000 Hz

• Impedance : 200 ohms

MB4k/c

120.00

MB4k microphone with 4.50 m XLR-XLR cable

MB1k

MB2k

MB3k

MB 4k

European professional price guide 2004, prices in Euro EX-VAT 1

4916 • AT\EN\EU 2/21 15/03/04 17:47 Page 13

KitPak

microphone kits

( PC 324-MC 220 )

KP-VOCALS

159.00

KP-VOCALS vocal microphone kit

The KP-VOCALS KitPak™ handles any band’s front-line vocal miking needs with ease. An incredible value in a convenient, portable package, the KP-VOCALS includes three “VOCAL” mics and three bonus cable ties in a durable carrying case.

• Three custom-engineered cardioid dynamic vocal mics with stand clamps

• Road-ready metal construction

• Superior internal shock mounting

• Multistage windscreen and on/off switch

• Element: Dynamic

• Polar Pattern: Cardioid

• Frequency Response: 100-15,000 Hz

• Open Circuit Sensitivity:

–54 dB (1.9 mV) re 1V at 1 Pa

• Impedance: 500 ohms

KP-VOCALS

KP-DRUMS

199.00

KP-DRUMS drum microphone kit

The KP-DRUMS KitPak™ offers exceptional performance and outstanding value in a convenient, portable package. Each KP-DRUMS includes two “Snare/Tom” mics and two

“Kick/Tom” mics in a durable carrying case.

Bonus drum key is also included.

• Four custom-engineered cardioid dynamic drum mics

• Road-ready all-metal construction

• Low-profile percussion-style design with built-in adjustable stand mount

• Kick/Tom and Snare/Tom mics available separately

KP-DRUMS

KICK/ TOM

59.00

Kick/Tom dynamic microphone

The Kick/Tom cardioid dynamic microphone combines big, warm low-frequency response with excellent presence and is ideal for kick and floor toms.

• Element: Dynamic

• Polar Pattern: Cardioid

• Frequency Response: 60-12,000 Hz

• Open Circuit Sensitivity:

–59 dB (1.1 mV) re 1V at 1 Pa

• Impedance: 500 ohms

• Weight: 317 grams

• Dimensions: 116.5 mm long x Ø 53.5 mm

• Output Connector: Integral 3-pin XLRM type

SNARE/ TOM

56.00

Snare/Tom dynamic microphone

The Snare/Tom cardioid dynamic microphone provides high performance and rugged dependability for miking snare, floor and rack toms.

• Element: Dynamic

• Polar Pattern: Cardioid

• Frequency Response: 60-12,000 Hz

• Open Circuit Sensitivity:

–58 dB (1.2 mV) 1V at 1 Pa

• Impedance: 500 ohms

• Weight: 324 grams

• Dimensions: 113.2 mm long x Ø 41.5 mm

• Output Connector: Integral 3-pin XLRM type

KICK/TOM

SNARE/TOM

13

4916 • AT\EN\EU 2/21 15/03/04 17:47 Page 14

14

pro series microphones

( PC 320-MC 240 )

PRO4L

69.00

Cardioid moving coil dynamic microphone

Hugely popular low impedance handheld dynamic vocal microphone. Suitable for live work due to its excellent resistance to handling noise.

On/off switch. Includes 5 m cable (XLRF-XLRM), stand clamp and soft protective pouch.

PRO8HEx

99.00

Hi-ENERGY ® headworn hypercardioid dynamic microphone

With a 1.8 m long cable terminated with XLRM.

Front of mouth pick-up, ideal solution for hands free speech applications and hard wearing activities such as aerobics. includes AT8139L large windscreen, AT8139S small windscreen,

AT8439 clothing clip.

PRO4L

PRO8HE/S

59.00

Headworn microphone as PRO8HEx product but with unterminated cable

PRO25

109.00

High-SPL hypercardioid dynamic instrument microphone

High intensity, dynamic microphone. Designed for problem free use in extremely high SPL situations such as kick drum and bass guitar cabinets. Output on integral 3-pin XLRM-type connector, includes integral stand clamp and soft protective pouch.

PRO7a

129.00

Cardioid condenser lavalier for vocal and acoustic guitar applications

Crisp, full voice and instrument pickup, lowfrequency roll-off switch, integral 1.8 m long permanently attached cable between microphone and power module. Supplied with

AT8411 clothing clip, AT8444 instrument adaptor,

AT8116 windscreen, power module, battery.

PRO35x

149.00

High-intensity miniature remote-powered condenser microphone with cardioid polar pattern

Instrument microphone. Unique foam padded bulldog clip enables the PRO35x to be mounted onto a variety of musical instruments, and flexible gooseneck ensures accurate positioning.

Supplied with AT8418 UniMount ® microphone instrument mount, AT8533x power module.

PRO95

129.00

Acoustic instrument condenser microphone

Battery powered (LR44 1.5 V) clip on condenser instrument microphone specially designed for acoustic guitar performance and recording applications. Flexible gooseneck ensures accurate positioning of capsule in relation to the sound hole. Supplied with windscreen, power module clip, end-pin-jack and 1/4" phone plug.

PRO37R

139.00

Small-diaphragm cardioid condenser microphone

End fire microphone for professional sounding results on a wide variety of instrument applications.

Especially suitable for the pick up of drums, piano and brass. Operates on 9-52 V phantom power.Supplied with AT8405a snap-in clamp, foam windscreen.

PRO8HEx

PRO35x

PRO37R

European professional price guide 2004, prices in Euro EX-VAT 1

PRO25

PRO7a

PRO95

4916 • AT\EN\EU 2/21 15/03/04 17:47 Page 15

adaptive-array microphone

( PC 307-MC 210 )

ADAPTIVE-ARRAY MICROPHONE SYSTEM

The AT895 System incorporates a revolutionary DSPcontrolled five-element microphone array that provides adaptive directional audio acquisition.

The output of the array is manipulated and filtered by acoustical, analogue and digital means to enhance the pick up of a sound source from a desired direction relative to unwanted background noise or interference, providing cancellation of up to 80 dB.

The AT895 is available as the AT895RK ’Remote kit’ for field use.

AT895/RK

2 400.00

AT895/RK “Remote kit” for field use

The system configuration includes

• AT895MIC Adaptive-array Microphone

• AT895CP Control Pack with attached belt clip

• AT895BH Click-on Battery Housing

• AT895PG Pistol-grip shock mount

• AT895Z Zeppelin-type windscreen

• AT895C-10 Special 6-conductor shielded

Cable, 10’ long

• AT895CC Carrying Case

AT895/RK

AT895CP

AT895MIC

Specifications

Element

Frequency Response

AT895

Condenser

60-12,000 Hz

Open Circuit Sensitivity

Impedance

Maximum Input Sound Level

Signal-to-Noise Ratio

-23 dB (70 mV)

450

117 dB (1 kHz at 1% T.H.D)

70 dB, 1 kHz at 1 Pa

Dynamic Range

Monitor Headphone Output

93 dB (1 kHz at Max. SPL)

120 mW max. into 20 ohms each channel

External Power Requirement

9-15V DC, 250 mA

Battery Requirement (AT895BH) Three 9V type 1604

1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

AT895 vs.Typical Shotgun Performance

Compare acceptance angles (at 3 dB down):

Microphone

Shotgun

AT895

200 Hz

60˚

20˚

400 Hz 1 kHz

60˚ 60˚

20˚

Compare Polar Patterns at 200 Hz:

20˚

Microphone

Shotgun

Rejection 200 Hz at 90˚/270˚

15 dB

AT895 70 dB

Compare maximum off-axis rejection:

Microphone

Shotgun

AT895

Maximum Off-axis Rejection

30 dB

80 dB

2 kHz

50˚

20˚

4 kHz

30˚

60˚

8 kHz

20˚

50˚

15

4916 • AT\EN\EU 2/21 15/03/04 17:47 Page 16

16

broadcast & production

microphones

( PC 306-MC 210)

LINE + GRADIENT CAPACITOR MICROPHONES

Audio-Technica AT4071a and AT4073a condenser shotguns have been specially created to meet the highest demands of broadcasting, film/video recording and theater sound reinforcement at only half the size of the traditional shot gun microphones. They have a switch-selectable hipass filter. The microphone casing is made of almuminium making it robust yet lightweight.

They feature a broad-band, linear on-axis frequency response, with maximum rejection of sounds from both the sides and the rear of the microphone. Rear polar lobing, common in shotgun microphones, has been greatly reduced and the off-axis response remains highly uniform. The resultant lack of sound coloration on- and off-axis makes those microphones particularly useful for miking dynamic action in film/TV audio as well as in “spot” miking techniques in the music studio or theatre.

The effective working distance of a directional microphone is determined in great part by its polar pattern and the uniformity of its off-axis response.

These factors help determine the signal-to ambient-noise ratio. Of course, the electronic signal-to-noise ratio also affects the usable miking distance. The AT4071a and the AT4073a provide extremely high output and a noise floor that is hardly measurable, much less audible. It may be used with confidence in distant miking applications and even under the stringent demands of modern digital recording systems.

AT4071a

860.00

Line + gradient capacitor microphone,

395 mm long

AT4073a

780.00

Line + gradient capacitor microphone,

232 mm long

AT4071a

AT4073a

Specifications

Frequency Response

Open Circuit Sensitivity

Impedance

Maximum Input Sound Level

Noise, typical (A-weighted)

Dynamic Range, typical

AT4071a

30-20,000 Hz

–21 dB (89.1 mV)

100

124 dB SPL, 1 kHz at 1% T.H.D.

12 dB SPL

112 dB, 1 kHz at Max. SPL

AT4073a

30-20,000 Hz

–23 dB (70.8 mV)

100

126 dB SPL, 1 kHz at 1% T.H.D.

14 dB SPL

112 dB, 1 kHz at Max. SPL

Signal-to-Noise Ratio, typical

82 dB, 1 kHz at 1 Pa 80 dB, 1 kHz at 1 Pa

Power Requirement

Weight

Dimensions

11-52V DC

155 g (5.5 oz)

L 395 mm; Ø 21 mm

11-52V DC

114 g (4.0 oz)

L 232 mm; Ø 21 mm

Accessories Furnished: AT8405a snap-in clamp; protective carrying case; AT8135 reticulated, open-cell foam windscreen

1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European professional price guide 2004, prices in Euro EX-VAT 1

4916 • AT\EN\EU 2/21 15/03/04 17:47 Page 17

STEREO SHOTGUN MICROPHONES

Switch selectable non-matrixed M-S mode and two internallymatrixed left/right stereo modes provide versatile professional performance. In M-S mode, each microphone provides independent mid and side signals. This allows the desired stereo image to be created at the recording desk or mixing electronics.

The two internally-matrixed modes provide traditional “left-right” stereo to accomodate varying acoustic environments, the user may select between a “wide” pattern (LR-W) with increased ambient pickup, and “narrow” pattern (LR-N) which offers more rejection and less ambience.

AT815ST

980.00

380 mm stereo shotgun microphones

AT835ST

720.00

236 mm stereo shotgun microphones

Specifications

Frequency Response

Polar Pattern

AT815ST AT835ST

30-20,000 Hz 40-20,000 Hz

Line Cardioid and figure-of-eight

Low-Frequency Roll-Off

Open Circuit Sensitivity

re 1 V at 1 Pa

Impedance

Maximum Input Sound Level

Mid:

80 Hz, 12 dB/octave

–30 dB (31.6 mV)

Side: –34 dB (19.9 mV)

LR Stereo: –36 dB (15.8 mV)

200

Mid Side LR Stereo

Dynamic Range

1 kHz at Max SPL

Signal-to-Noise Ratio

Phantom Power

Requirements

Weight

Dimensions

123 dB

Mid

101 dB

127 dB 126 dB SPL

Side LR Stereo

101 dB

72 dB

102 dB

11-52 DC, 4 mA typical at 48V each channel

142 g (5.0 oz)

380 mm long

103 g (3.6 oz)

236 mm long

Ø 21 mm

1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

Ø 21 mm

LINE + GRADIENT CONDENSER MICROPHONES.

The AT815b and the AT835b are wide-range condenser microphones with a line + gradient polar pattern specifically designed to provide the narrow acceptance angle desirable for long distance sound pickup.

AT815b

290.00

460 mm line + gradient condenser microphone

AT835b

280.00

369 mm line + gradient condenser microphone

SHORT SHOTGUN MICROPHONE

AT897

290.00

279 mm long. Short shotgun microphone

The AT897 mounts conveniently on a DV camcorder without adding noticeably to the weight, and delivers smooth natural-sounding audio quality with the versatility of battery/phantom power.

Specifications

Frequency Response

Polar Pattern

AT815b

30-20,000 Hz

Line + gradient

Low-Frequency Roll-Off

180 Hz 12 dB/octave

Open Circuit Sensitivity

–38 dB (12.5 mV)

Impedance

500

Maximum Input Sound

130 dB SPL (phantom)

Level

115 dB SPL (battery)

Dynamic Range

Signal-to-Noise Ratio

106 dB (phantom)

91 dB (battery)

70 dB 1 kHz at 1 Pa

Power Requirement

Weight

Dimensions

Accessories

Furnished

9-52V DC or

1.5 V AA

200 g (7.1 oz)

L 460 mm (18.11”)

Ø 21 mm

AT8405a Snap-in clamp

Windscreen

Protection carrying case

1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

AT815ST

AT8315b

AT835b

40-20,000 Hz

Line + gradient

180 Hz 12 dB/octave

–38 dB (12.5 mV)

500

130 dB SPL ( phantom)

115 dB SPL (battery)

106 dB ( phantom)

91 dB (battery)

70 dB 1 kHz at 1 Pa

9-52V DC or

1.5 V AA

150 g (5.3 oz)

L 369 mm (14.53”)

Ø 21 mm

AT8405a Snap-in clamp

AT8132 Windscreen

Protection carrying case

AT897

20-20,000 Hz

Line + gradient

80 Hz 12 dB/octave

–40 dB (10 mV)

200

129 dB SPL ( phantom)

115 dB SPL (battery)

112 dB ( phantom)

98 dB (battery)

77 dB 1 kHz at 1 Pa

11-52V DC or

1.5 V AA

145 g (5.1 oz)

L 279 mm (10.98”)

Ø 21 mm

AT8405a Stand clamp

AT8134 Windscreen

Protection carrying case

AT835b

AT897

AT897

AT835ST

17

4916 • AT\EN\EU 2/21 15/03/04 17:47 Page 18

18

broadcast & production

microphones

( PC 306-MC 210 )

STEREO MICROPHONES

AT825

440.00

OnePoint ® X/Y stereo field recording microphone

5-pin XLRM type output. 16.5’ cable with two 3-pin balanced XLRM-type connectors at equipment end. Roll-off switch.

5-52V phantom power or 1.5V AA battery.

Includes AT8405a stand clamp, AT8120 windscreen, battery and protective pouch

AT822

340.00

OnePoint ® X/Y stereo DAT microphone

XLRM-type output. Cables: 1.7’ with stereo

3.5 mm mini-plug output for DAT and camcorders; 10’ with two mono 3.5 mm mini-plug outputs and 1/4“ adaptors.

1.5 V AA battery only.

AT849

460.00

Stereo condenser boundary microphone

Full mono compatibility. Intended primarily for surface mount applications in broadcast, professional recording and sound reinforcement.

OMNIDIRECTIONAL MICROPHONES

AT804

140.00

Omnidirectional microphone

The ideal microphone for ENG reporting applications due to its ultra rugged dynamic design and very simple operation.

AT804L

230.00

Omnidirectional microphone for reporting

Moving coil dynamic microphone. Designed for interviews, & sports casting. Used as

“mono” in conjunction with a stereo microphone.

MULTI-CHANNEL BOUNDARY MICROPHONE

AT854R

540.00

Multi-channel condenser boundary microphone

“Quad mic” ® cardioid capsules mounted in a single die cast metal housing. Ideal for conference applications, especially when used in conjunction with A-T Smartmixer products.

9-52 V phantom power only.

XLR GOOSENECK MICROPHONE

AT808G

115.00

Subcardioid moving coil dynamic console microphone

412.7 mm long.

XLRM-type output plugs directly into

XLRF-type panel mount or console connector.

AT822

AT804

AT808G

AT825

AT849

AT854R

European professional price guide 2004, prices in Euro EX-VAT 1

4916 • AT\EN\EU 2/21 15/03/04 17:48 Page 19

AT899 AND AT898 SYSTEMS

AT899

280.00

Subminiature omnidirectional condenser microphone

For interviews, documentary, film and theatre applications. With AT8537 power module and AT899AK accessory kit.

AT899c

130.00

Unterminated version of AT899, 1.40 m cable

AT899c-TH

130.00

Unterminated version of AT899 in beige

AT899AK

48.00

AT899 accessories pack

AT899AK-TH

48.00

AT899 accessories pack in beige

AT898

280.00

Subminiature cardioid condenser microphone

With AT8537 power module, AT898 Acc Set, and AT8463 neck wire.

AT898c

149.00

Unterminated version of AT898

AT898AK

44.00

AT898 accessories pack

AT899

ELECTRET LAVALIER MICROPHONES

AT803b

159.00

Miniature omnidirectional condenser microphone. For lavalier and musical instrument use. 1.80 m cable

AT803cb

64.00

Unterminated version of AT803b

(less power module and unterminated)

AT831R

198.00

Miniature unidirectional condenser microphone

Suitable for musical instruments and lavalier use where feedback or room noise is a problem.

AT831b

168.00

Miniature cardioid condenser microphone

Same as AT831R but operates on a single 1.5V AA battery or phantom power if available.

AT831c

78.00

Unterminated version of AT831R and b

MT830R

220.00

Miniature omnidirectional condenser microphone

For use as lavalier, or may be worn in clothing or hair.

MT830c

72.00

Unterminated version of MT830R

MT350b

26.00

Ultra miniature cosmetic stage/ theatre microphone

With free ended cable for use in wireless applications, comes with AT8435 clothing clip windscreen.

MT838b

52.00

Miniature omnidirectional condenser lavalier microphone

With free ended cable for use in wireless applications, comes with clip, windscreen.

AT803b

MT838b

Specifications

Element

Polar Pattern

Frequency Response

Open Circuit Sensitivity

Impedance

Maximum Input Sound

Level 1 kHz,T.H.D. 1%

Signal-to-Noise Ratio

1 kHz at 1 Pa

Low Frequency Roll-Off

Power Requirement

AT803b

Condenser

Omnidirectional

30-20,000 Hz

–45 dB (5.6 mV)

200

135 dB SPL

65 dB

Output Connector

Accessories Furnished

80 Hz, 18 dB/octave

9-52V DC or 1.5 V AA battery

XLRM (power module)

AT8530 Power module

(for AT803b),

AT8116 Windscreen

AT8417 Clothing clip

1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL 1 Pa

AT831R

Condenser

Cardioid

40-20,000 Hz

–42 dB (7.9 mV)

200

141 dB SPL

65 dB

N.A.

9-52V DC phantom only

XLRM (power module)

AT8533 Power module

AT8444 Instrument adaptor

AT8417 Clothing clip

AT8418 UniMount Mount

AT831b

MT350b

MT830R

AT898

AT831b

Condenser

Cardioid

40-20,000 Hz

–44 dB (6.3 mV)

200

135 dB SPL

MT830R

Condenser

Omnidirectional

30-20,000 Hz

–34 dB (19.9 mV)

200

131 dB SPL

65 dB 70 dB

80 Hz, 18 dB/octave

9-52V DC or 1.5 V AA battery

N.A.

9-52V DC phantom only

XLRM (power module)

AT8530 Power module

AT8116 Windscreen AT8130 Windscreen

AT8444 Instrument adaptor AT8420 Clothing clip

AT8417 Clothing clip

XLRM on cable

AT8533 Power module

19

4916 • AT\EN\EU 2/21 15/03/04 17:48 Page 20

20

propoint

®

microphones

( PC 311-MC 230 )

BOUNDARY MICROPHONES

PRO 42

89.00

Miniature unidirectional condenser boundary microphone

• 7.6 m cable with XLRM-type output connector.

PRO 44

119.00

Unidirectional condenser boundary microphone

• Includes 7.6 m cable with TA3F connector;

XLRM-type connector at equipment end.

HANGING MICROPHONES

PRO 45

99.00

Cardioid condenser hanging microphone

• 7.6 m cable with XLRM-type output connector.

Includes AT8146 windscreen and AT8451 steel hanger.

PRO 45W

129.00

White finished version of PRO45

White cable with XLRM-type output connector.

Includes AT8146(WH) windscreen and

AT8451(WH) steel hanger.

GOOSENECK MICROPHONES

PRO 47T

129.00

Cardioid condenser thread-mount gooseneck microphone attaches to 5/8"-27 thread

• 3 m cable with XLRM-type output connector.

315 mm long. Includes AT8146 windscreen and AT8425 threaded mounting stud

PRO 47TL

139.00

Cardioid condenser thread-mount gooseneck microphone attaches to 5/8"-27 thread

• 3 m cable with XLRM-type output connector.

401 mm long. Includes AT8146 windscreen and AT8425 threaded mounting stud

PRO 49Q

109.00

Cardioid condenser quick-mount gooseneck microphone

• Plugs directly into a panel- or desk-mounted

XLRF-type connector,or to a standard XLRFtype microphone cable 332 mm long. Includes

AT8146 windscreen.

PRO 49QL

119.00

Cardioid condenser quick-mount gooseneck microphone

• Plugs directly into a panel- or desk-mounted

XLRF-type connector,or to a standard XLRFtype microphone cable 418 mm long. Includes

AT8146 windscreen.

PRO 49QL

PRO 49Q

PRO 45

PRO 42

PRO 47TL

PRO 47T

PRO 44

Specifications PRO 42 PRO 44 PRO 45

Application

Element

Polar Pattern

Frequency Response

Open Circuit Sensitivity

Impedance

Maximum Input Sound

Level

Signal-to-Noise Ratio

Dynamic Range

Boundary microphone Boundary microphone Hanging microphone

Condenser Condenser Condenser

Unidirectional

70-14,000 Hz

Unidirectional

70-16,000 Hz

Cardioid

70-16,000 Hz

–38 dB (12.5 mV)

100

134 dB

1 kHz at 1% T.H.D.

65 dB 1 kHz at 1 Pa

105 dB

1 kHz at Max. SPL

–25 dB (56.2 mV)

100

114 dB

1 kHz at 1% T.H.D.

66 dB 1 kHz at 1 Pa

86 dB

1 kHz at Max. SPL

–37 dB (14.1 mV)

100

134 dB

1 kHz at 1% T.H.D.

66 dB 1 kHz at 1 Pa

106 dB

1 kHz at Max. SPL

1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

PRO 47T

PRO 47TL

PRO 49Q

PRO 49QL

Gooseneck microphone Gooseneck microphone

Condenser Condenser

Cardioid

70-16,000 Hz

–37 dB (14.1 mV)

100

134 dB

1 kHz at 1% T.H.D.

66 dB 1 kHz at 1 Pa

106 dB

1 kHz at Max. SPL

Cardioid

70-16,000 Hz

–37 dB (14.1 mV)

100

134 dB

1 kHz at 1% T.H.D.

66 dB 1 kHz at 1 Pa

106 dB

1 kHz at Max. SPL

European professional price guide 2004, prices in Euro EX-VAT 1

4916 • AT\EN\EU 2/21 15/03/04 17:48 Page 21

unipoint

®

microphones

( PC 310-MC 230 )

MINIATURE HANGING MICROPHONES

Versatile ultraminiature microphone designed for high-quality recording, broadcast,and sound reinforcement applications. Perfect for suspension over a choir, orchestra, stage, etc. Available interchangeable elements provide a variety of pickup patterns.

AT853a

240.00

Miniature cardioid condenser microphone

AT853Wa

250.00

White version of AT853a

AT853Rx

220.00

Miniature cardioid condenser microphone same as AT853a with phantom only power module

AT853RWx

260.00

White version of AT853Rx

REPLACEMENT ELEMENTS

These capsules are compatible with the microphones

AT851, AT853, AT857, AT871, AT873R, ATM89R and

ES973

AT853C-ELE

72.00

Cardioid capsule, black version

120° frontal pickup pattern

AT853H-ELE

72.00

Hypercardioid capsule, black version

Increases directionality to provide better gainbefore-feedback or reduction of background noise over the other patterns. 100° pickup pattern.

AT853O-ELE

72.00

Omnidirectional capsule, black version

Allows operation in all directions with a 360° pickup pattern.

AT8451

AT853a/AT853Rx

AT8531 AT853Wa AT8451WH AT8438WH

AT853C-ELE

Specifications

Element

Polar Pattern

Frequency Response

Open Circuit Sensitivity

Impedance

Maximum Input Sound Level (Phantom)

Signal-to-Noise Ratio

Low Frequency Roll-Off

Power Requirement

Weight (less accessories)

Dimensions

Output Connector

Accessories Furnished

AT853a (AT853Wa)

Condenser

Cardioid (interchangeable elements available)

30-20,000 Hz

–44 dB (6.3 mV)

200

135 dB 1 kHz at 1% T.H.D.

67 dB 1 kHz at 1 Pa

80 Hz, 18 dB/octave

9-52V DC or battery 1.5V AA

10 grams (0.4 oz)

35.2 mm long ; Ø 12 mm

Integral 3-pin XLRM-type

AT8102 Windscreen (AT8102 WH)

AT8451 Steel hanger (AT8451 WH)

AT8531 Power module

1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

AT853Rx (AT853RWx)

Condenser

Cardioid (interchangeable elements available)

30-20,000 Hz

–43 dB (7.0 mV)

200

138 dB 1 kHz at 1% T.H.D.

67 dB 1 kHz at 1 Pa

150 Hz, 6 dB/octave

9-52V DC phantom power only

10 grams (0.4 oz)

35.2 mm long ; Ø 12 mm

Integral 3-pin XLRM-type

AT8102 Windscreen (AT8102 WH)

AT8451 Steel hanger (AT8451 WH)

AT8533x Power module

21

4916 • AT\EN\EU22/47 15/03/04 18:10 Page 22

22

unipoint

®

microphones

( PC 310-MC 230 )

GOOSENECK MICROPHONES

Double gooseneck microphones designed for high-quality sound reinforcement, professional recording and broadcasting. Direct mounts to any 5/8"-27 desk or floor stand, or to threaded mounting stud included. Available interchangeable elements provide a variety of pickup patterns (see AT

853 Series interchangeable elements, page 21)

AT857AMa

200.00

Miniature cardioid condenser adaptor-mount

310 mm long gooseneck microphone

AT857AMLa

220.00

483 mm-long version of AT857AMa

AT857AMx

190.00

Phantom power only version of AT857AMa

AT857AMLx

200.00

483 mm-long version of AT857AMx

AT857QMa

190.00

Cardioid condenser quick-mount gooseneck microphone

Similar to the AT857AMx in a quick-mount version which allows instant installation and removal. Plugs into any standard XLRF-type surface or cable connector. 370 mm long. Available interchangeable elements provide a variety of pickup patterns.

Integral power module requires phantom power.

AT857QMLa

170.00

482.6 mm-long version of AT857QMa

MINIATURE GOOSENECK MICROPHONE

(Not using AT853 series interchangeable elements)

AT859QMLx

140.00

Miniature cardioid condenser gooseneck microphone

Plugs directly to XLRF-type panel-mount or cable connector. 9-52V phantom power only. Roll-off switch. 470 mm long.

AT873R

AT857AMa

AT859QMLx

AT857AMLa

HANDHELD CONDENSER MICROPHONE

AT873R

Handheld remote-powered hypercardioid condenser microphone (now replaced by the ES973)

(see page 29)

Specifications

Element

AT857AMa and AMLa

Condenser

Polar Pattern

Frequency Response

30-20,000 Hz

Open Circuit Sensitivity

Impedance

–44 dB (6.3 mV)

200

Maximum Input Sound Level

135 dB SPL

1 kHz at 1% T.H.D.

Signal-to-Noise Ratio

Low Frequency Roll-off

67 dB (1 kHz at 1 Pa)

80 Hz, 18 dB/octave

Phantom Power Requirement 9-52V DC or battery 1.5V AA

Output Connectors

Accessories Furnished

Integral 3-pin XLRM-type on the power module

AT 8102 windscreen,

AT8425 mounting stud,

AT8531 power module,

3 m cable (AT3F connector) permanently attached to mic

1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

AT857AMx and AMLx

Condenser

30-20,000 Hz

–43 dB (7.0 mV)

200

138 dB SPL

AT8615RS

67 dB (1 kHz at 1 Pa)

150 Hz, 6 dB/octave

9-52V DC phantom power only

Integral 3-pin XLRM-type on the power module

AT 8102 windscreen,

AT8425 mounting stud,

AT8533x power module,

3 m cable (AT3F connector) permanently attached to mic

AT857QMa and QMLa

Condenser

30-20,000 Hz

–43 dB (7.0 mV)

200

139 dB SPL

67 dB (1 kHz at 1 Pa)

150 Hz, 6 dB/octave

9-52V DC phantom power only

Integral 3-pin XLRM-type on gooseneck

Windscreen AT8102

AT859QMLx

AT859QMLx

Condenser

50-18,000 Hz

–46 dB (5.0 mV)

200

140 dB SPL

65 dB (1 kHz at 1 Pa)

150 Hz, 6 dB/octave

9-52V DC phantom power only

Integral 3-pin XLRM-type on gooseneck

Windscreen AT8102

European professional price guide 2004, prices in Euro EX-VAT 1

4916 • AT\EN\EU22/47 15/03/04 18:10 Page 23

OMNIDIRECTIONAL BOUNDARY MICROPHONES

AT841a

240.00

OmniPlate™ condenser plate microphone

Operates on 1.5V AA battery or 9-52V phantom power. In-line pre-amplifier includes off/on/ roll-off switch. 8 m cable. Circular with 65 mm diameter.

AT841Rx

230.00

OmniPlate™ condenser plate microphone with its own preamp AT8533x

Phantom power only.

CARDIOID BOUNDARY MICROPHONES

AT851a

210.00

UniPlate ® unidirectional condenser plate microphone

Operates either from 1.5V AA battery or 9-52V phantom power. In-line pre-amplifier includes off/on/roll-off switch. 8 m cable.

AT851Wa

230.00

White version AT851a

AT851Rx

200.00

Phantom power only version of AT851a

Operates on 9-52V DC. Integral roll-off switch in pre amplifier module.

AT851RWx

205.00

White version AT851Rx

AT871R

245.00

UniPlate ® unidirectional condenser plate microphone

Pre amplifier module is built-in, plugs directly into XLRF-type input with 9-52V phantom power. 8 m cable with XLRM-type plug at equipment end.

AT871RW

275.00

White version AT871R

AT891R

210.00

UniPlate unidirectional condenser plate microphone with sensitive switch

With a press to touch sensitive switch featuring three position switching; on/off, push to talk and push to mute settings. Operates on 9-52 V phantom power.

AT891R/C

220.00

UniPlate unidirectional condenser plate microphone with sensitive switch without connector

Special version of AT891R with permanently attached cable

AT851Wa

AT841a

AT851a

AT871R

AT891R

Specifications

Element

AT841a AT841Rx

Condenser Condenser

AT851a AT851Rx

Condenser Condenser

AT871R

Condenser

Polar Pattern

Frequency Response

Omnidirectional

30-20,000 Hz

Open Circuit Sensitivity

–42 dB (7.9 mV)

Impedance

200

Maximum Input Sound

133 dB SPL

Level 1 kHz at 1% T.H.D.

Omnidirectional

30-20,000 Hz

–42 dB (7.9 mV)

200

133 dB SPL

Unidirectional

30-20,000 Hz

–44 dB (6.3 mV)

200

135 dB SPL

Unidirectional

30-20,000 Hz

–43 dB (7.0 mV)

200

138 dB SPL

Unidirectional

30-20,000 Hz

–33 dB (22.4 mV)

200

130 dB SPL

Signal-to-Noise Ratio

1 kHz at 1 Pascal

Low Frequency Roll-Off

Power Requirement

Output Connector

65 dB

80 Hz, 18 dB/octave

9-52V DC

65 dB

150 Hz, 18 dB/octave

9-52V DC

67 dB

80 Hz, 18 dB/octave

9-52V DC

67 dB

150 Hz, 6 dB/octave

9-52V DC

67 dB

NA

9-52 V DC or 1.5V AA battery phantom only or 1.5V AA battery phantom only phantom only

XLRM

(power module)

XLRM

(power module)

XLRM

(power module)

XLRM

(power module)

XLRM on cable

Accessories Furnished

AT8531 Power module AT8533x Power module AT8531 Power module AT8533x Power module TA3F XLRM cable

Protective pouch Protective pouch Protective pouch Protective pouch Protective pouch

1 Pascal = 94 dB SPL

AT891R

Condenser

Unidirectional

30-10,000 Hz

–33 dB (22.4 mV)

200

123 dB SPL

64 dB

80 Hz, 18 dB/octave

12-52V DC phantom only

XLRM on cable

TA3F XLRM cable

Protective pouch

4916 • AT\EN\EU22/47 15/03/04 18:11 Page 24

24

engineered sound

®

microphones

( PC 309-MC 230 )

ES915 DOUBLE GOOSENECK MICROPHONES

Condenser gooseneck microphone with interchangeable capsules. Adjustable length 355 mm- 425 mm except

ML version 474 mm-544 mm.

It features an XLRM-type connector insert at its base with recessed flat response/low-roll-off switch.

ES915/C

259.00

Miniature condenser cardioid gooseneck microphone

ES915/H

269.00

Miniature condenser hypercardioid gooseneck microphone

ES915/ML

299.00

Miniature condenser MicroLine ® gooseneck microphone

ES915/O

269.00

Miniature condenser omnidirectional gooseneck microphone

ES917S GOOSENECK MICROPHONES

WITH MUTE SWITCH AND LED

Condenser gooseneck microphone with interchangeable capsules. Fixed length 443 mm except ML version 562 mm.

XLR mount with recessed flat response/low-roll-off switch and mute/on switch with status LED.

ES917S/C

302.00

Miniature condenser cardioid gooseneck microphone with mute switch/LED

ES917S/H

312.00

Miniature condenser hypercardioid gooseneck microphone with mute switch/LED

ES917S/ML

342.00

Miniature condenser MicroLine ® gooseneck microphone with mute switch/LED

ES917S/O

312.00

Miniature condenser omnidirectional gooseneck microphone with mute switch/LED

ES915/ C

/ H /O / ML ES917S/ C / H /O / ML

Specifications

Element

Polar Pattern

Frequency Response

Open Circuit Sensitivity re 1 V at 1 Pa

Impedance

Maximum Input Sound Level

1 kHz at 1% T.H.D.

Signal-to-Noise Ratio

1 kHz at 1 Pa

Low Frequency Roll-off

Phantom Power Requirement

Output Connector

Length

Accessories Furnished

ES915

Condenser

O : Omnidirectional

ES917S

Condenser

O : Omnidirectional

ES935

Condenser

O : Omnidirectional

ES935S

Condenser

O : Omnidirectional

C : Cardioid

H : Hypercardioid

ML : MicroLine ®

C : 30-20,000 Hz

H : 80-20,000 Hz

ML : 30-20,000 Hz

C : –40 dB (10.0 mV)

H : –40 dB (10.0 mV)

ML : –35 dB (17.7 mV)

250

C : 138 dB SPL

H : 138 dB SPL

ML : 133 dB SPL

C : 65 dB

H : 65 dB

ML : 68 dB

80 Hz, 12 dB/octave

11-52V DC

Integral 3-pin XLRM-type

355 - 425 mm

C : Cardioid

H : Hypercardioid

ML : MicroLine

250

C : 138 dB SPL

H : 138 dB SPL

C : 65 dB

H : 65 dB

ML : 68 dB

11-52V DC

443 mm

®

C : 30-20,000 Hz

H : 80-20,000 Hz

ML : 30-20,000 Hz

C : –40 dB (10.0 mV)

H : –40 dB (10.0 mV)

ML : –35 dB (17.7 mV)

ML : 133 dB SPL

80 Hz, 12 dB/octave

Integral 3-pin XLRM-type

C : Cardioid

H : Hypercardioid

ML : MicroLine

C : 30-20,000 Hz

H : 80-20,000 Hz

ML : 30-20,000 Hz

C : –40 dB (10.0 mV)

H : –40 dB (10.0 mV)

ML : –35 dB (17.7 mV)

250

C : 138 dB SPL

H : 138 dB SPL

®

ML : 133 dB SPL

C : 65 dB

H : 65 dB

ML : 68 dB

80 Hz, 12 dB/octave

11-52V DC

Integral 3-pin XLRM-type

191 mm

C : Cardioid

H : Hypercardioid

ML : MicroLine

ML : 133 dB SPL

C : 65 dB

H : 65 dB

ML : 68 dB

80 Hz, 12 dB/octave

11-52V DC

Integral 3-pin XLRM-type

191 mm

®

C : 30-20,000 Hz

H : 80-20,000 Hz

ML : 30-20,000 Hz

C : –40 dB (10.0 mV)

H : –40 dB (10.0 mV)

ML : –35 dB (17.7 mV)

250

C : 138 dB SPL

H : 138 dB SPL

ML : 474 - 544 mm

AT8109 (AT8138) Windscreen

ML : 562 mm

AT8109 (AT8138) Windscreen

ML : 310 mm

AT8109 (AT8138) Windscreen

ML : 310 mm

AT8109 (AT8138) Windscreen

AT8651Thread-mount adaptor AT8651 Thread-mount adaptor AT8651 Thread-mount adaptor AT8651 Thread-mount adaptor

AT8658 Shock mount AT8658 Shock mount AT8658 Shock mount AT8658 Shock mount

1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European professional price guide 2004, prices in Euro EX-VAT 1

4916 • AT\EN\EU22/47 15/03/04 18:11 Page 25

ES935 SINGLE-GOOSENECK MICROPHONES

Condenser gooseneck microphone with interchangeable capsules. Fixed length 191 mm except ML version 310 mm.

XLR mount with recessed flat response/low-roll-off switch.

ES935/C

221.00

Miniature condenser cardioid gooseneck microphone

ES935/H

231.00

Miniature condenser hypercardioid gooseneck microphone

ES935/ML

261.00

Miniature condenser MicroLine ® gooseneck microphone

ES935/O

231.00

Miniature condenser omnidirectional gooseneck microphone

ES935S SINGLE-GOOSENECK MICROPHONES

WITH MUTE SWITCH AND LED

Condenser gooseneck microphone with interchangeable capsules. Fixed length 191 mm except ML version 310 mm.

XLR mount with recessed flat response/low-roll-off switch and mute/on switch with status LED. Includes AT8109

(C/H/O) snap-on foam windscreen or AT8138 (ML) and

AT8651 thread-mount adaptor; AT8658 shock mount.

ES935S/C

269.00

Miniature condenser cardioid gooseneck microphone with mute switch/LED

ES935S/H

279.00

Miniature condenser hypercardioid gooseneck microphone with mute switch/LED

ES935S/ML

309.00

Miniature condenser MicroLine ® gooseneck microphone with mute switch/LED

ES935S/O

279.00

Miniature condenser omnidirectional gooseneck microphone with mute switch/LED

INTERCHANGEABLE ELEMENTS FOR ENGINEERED

SOUND MICROPHONES ES

905

, ES

915

, ES

917

, ES

933

,

ES

935

, ES

991

, ES

993

, ES

995

, ES

943

ESE-C

59.00

Cardioid element for Engineered Sound microphones, 120° pickup pattern

ESE-H

69.00

Hypercardioid element for Engineered

Sound microphones, 100° pickup pattern

ESE-O

69.00

Omnidirectional element for Engineered

Sound microphones, 360° pickup pattern

ESE-ML

99.00

MicroLine ® element for Engineered

Sound microphones, 90° pickup pattern

NB : This capsule is not suitable for microphones ES943 (tie clip), ES991, ES993 and ES995 (dual element microphones), due to its length

ES935/ C

/ H /O / ML

330

ESE-C

0

30

300 60

270

240

LEGEND

200 Hz

1 kHz

5 kHz

8 kHz

210

180

SCALE IS 5 DECIBELS PER DIVISION

150

330

ESE-ML

30

300

120

60

90

270

240

LEGEND

200 Hz

1 kHz

5 kHz

8 kHz

210

180

SCALE IS 5 DECIBELS PER DIVISION

150

120

90

ES935S/ C

/ H /O / ML

330

ESE-H

0

30

300 60

270

240

LEGEND

200 Hz

1 kHz

5 kHz

8 kHz

210

180

SCALE IS 5 DECIBELS PER DIVISION

150

330

ESE-O

0

30

120

300 60

90

270

240

LEGEND

200 Hz

1 kHz

5 kHz

8 kHz

210

180

SCALE IS 5 DECIBELS PER DIVISION

150

120

90

4916 • AT\EN\EU22/47 15/03/04 18:11 Page 26

26

engineered sound

®

microphones

( PC 309-MC 230 )

ES905 RIGID-PIPE MICROPHONES

Condenser rigid-pipe microphone with interchangeable capsules. Fixed length 426.2 mm except ML version

545.3 mm. Rigid-pipe design with ball-and-socket base for permanent mounting to flat surface. Phantom power only,

11-52V. 3 m cable permanently attached to mic, free end attached to screw terminals in power module. XLRM-type output connector on power module. Includes: foam windscreen; AT8536 in-line power module with roll-off switch.

ES905/C

309.00

Rigid-pipe condenser microphone, cardioid polar pattern

ES905/H

319.00

Rigid-pipe condenser microphone, hypercardioid polar pattern

ES905/ML

349.00

Rigid-pipe condenser microphone,

MicroLine ® polar pattern

DUAL-ELEMENT MICROPHONES

ES991

889.00

Dual element condenser flexible gooseneck design microphone

Plugs directly to XLRF-type panel-mount or cable connector. 11-52V phantom power

ES993

689.00

Dual element condenser rigid-pipe design microphone with ball-in socket base for permanent mounting to flat surface

Remote mute switch with three modes and

LED indicator light.

ES995

749.00

Dual element condenser rigid-pipe microphone with ball-in socket design on portable base

(see page 25 for ESE Series interchangeable elements)

ES993

ES905/C ES905/H ES905/ML

ES995 ES991

Specifications

Element

Polar Pattern

Frequency Response

Open Circuit Sensitivity

Impedance

Maximum Input Sound Level

1 kHz at 1% T.H.D.

Signal-to-Noise Ratio

1 kHz at 1 Pa

Low Frequency Roll-off

Phantom Power Requirement

Output Connector

Length

Accessories Furnished

ES905

Condenser

C : Cardioid

H : Hypercardioid

ML : MicroLine ®

C : 30-20,000 Hz

H : 80-20,000 Hz

ML : 30-20,000 Hz

C : –40 dB (10.0 mV)

H : –40 dB (10.0 mV)

ML : –35 dB (17.7 mV)

250

C : 138 dB SPL

H : 138 dB SPL

ML : 133 dB SPL

C : 65 dB

H : 65 dB

ML : 68 dB

80 Hz, 12 dB/octave

11-52V DC

Integral 3-pin XLRM-type

426 mm

ML : 545 mm

AT8536 Power Module

AT8109 Windscreen

1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European professional price guide 2004, prices in Euro EX-VAT 1

ES991

Two Condensers

Cardioid

90-15,000 Hz

–41 dB (8.9 mV)

250

138 dB SPL

65 dB

ES993

Two Condensers

Cardioid

90-15,000 Hz

–41 dB (8.9 mV)

250

138 dB SPL

65 dB

120 Hz, 12 dB/octave

11-52V DC

Integral 6-pin Neutrik XLRM

548 mm

AT8407 Stand Clamp

6-pin panel mount XLRF

120 Hz, 12 dB/octave

11-52V DC

Two 3-pin XLRM-type

470 mm

AT8510 Power Module

Screws

ES995

Two Condensers

Cardioid

90-15,000 Hz

–41 dB (8.9 mV)

250

138 dB SPL

65 dB

120 Hz, 12 dB/octave

11-52V DC

Integral 6-pin Neutrik XLRM

495 mm

Switch Cover Label

9.1 m six conductor cable

4916 • AT\EN\EU22/47 15/03/04 18:11 Page 27

ES933 HANGING MICROPHONES

Miniature condenser suspension microphone with interchangeable capsules available in black or white. Fixed length 23.3 mm except ML version 142.3 mm. XLRM output connector with recessed flat response, low-roll-off switch.

Integral 15.2 m long cable. Operates from 11-52V phantom power. C/H/O includes AT8109 snap-on foam windscreen,

AT8452 steel hanger and AT8536 power module; ML includes AT8138 foam windscreen, AT8452 steel hanger and AT8536 power module. Windscreens and steel hangers also available in white.

ES933/C

266.00

Miniature condenser hanging microphone, cardioid polar pattern

ES933W/C

270.00

White version ES933/C

ES933/O

280.00

Miniature condenser hanging microphone, omnidirectional polar pattern

ES933W/O

290.00

White version ES933/O

ES933/H

280.00

Miniature condenser hanging microphone, hypercardioid polar pattern

ES933W/H

290.00

White version ES933/H

ES933/ML

300.00

Miniature condenser hanging microphone, MicroLine ® polar pattern

ES933W/ML

310.00

White version ES933/ML

(see page 25 for ESE Series interchangeable elements)

ES933/C

ES933/H ES933/O

ES933/ML

27

Specifications

Element

Polar Pattern

Frequency Response

Open Circuit Sensitivity re 1 V at 1 Pa

Impedance

1000 ohms without power module

Maximum Input Sound Level

1 kHz at 1% T.H.D.

Signal-to-Noise Ratio

1 kHz at 1 Pa

Low Frequency Roll-off

Phantom Power Requirement

Output Connector

Dimensions

Accessories Furnished

ES933/C

Condenser

Cardioid

30-20,000 Hz

–40 dB (10.0 mV)

250

138 dB SPL

65 dB

80 Hz, 12 dB/octave

11-52V DC

Integral 3-pin XLRM-type

23.3 mm long; Ø 8.4 mm

AT8452 Steel hanger

AT8536 Power Module

AT8109 Windscreen

1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

ES933/H

Condenser

Hypercardioid

80-20,000 Hz

–40 dB (10.0 mV)

250

138 dB SPL

65 dB

80 Hz, 12 dB/octave

11-52V DC

Integral 3-pin XLRM-type

23.3 mm long; Ø 8.4 mm

AT8452 Steel hanger

AT8536 Power Module

AT8109 Windscreen

ES933/ML

Condenser

MicroLine ®

30-20,000 Hz

–35 dB (17.7 mV)

250

133 dB SPL

68 dB

80 Hz, 12 dB/octave

11-52V DC

Integral 3-pin XLRM-type

142.3 mm long; Ø 8 mm

AT8452 Steel hanger

AT8536 Power Module

AT8138 Windscreen

4916 • AT\EN\EU22/47 15/03/04 18:11 Page 28

28

engineered sound

®

microphones

( PC 309-MC 230 )

BOUNDARY MICROPHONES

ES945

145.00

Omnidirectional fixed charge condenser boundary microphone

For table or ceiling mounting in 15 /

16

” (24 mm) diameter hole.

Operates on 9-52V phantom power only.

Power module is built-in, integral XLRM-type output.

ES945W

155.00

White finished version of ES945

ES947

178.00

Cardioid wide range fixed charge condenser boundary microphone

For table or ceiling mounting in 15 /

16

” (24 mm) diameter hole.

Operates on 9-52V phantom power only.

Power module is built-in, integral XLRM-type output.

ES947W

182.00

White finished version of ES947

ES961

180.00

Cardioid wide range fixed charge condenser boundary microphone

Operates on 9-52V phantom power with built in recessed switch for flat or low-roll-off response. Supplied with 7.6 m output cable terminated in TA3F and XLRM type plugs.

ES961W

185.00

White version of ES961

ES961P

195.00

Cardioid wide range fixed charge condenser boundary microphone with

1/4” TRS plug on bottom of plate

Operates on 9-52V phantom power with built in recessed switch for flat or low-roll-off response and a field replaceable element.

Permanently mounted with a 1/4" TRS phone plug.

ES945W

ES961

ES947

ES961P

Specifications

Element

Polar Pattern

Frequency Response

Open Circuit Sensitivity

Impedance

Maximum Input Sound Level

1 kHz at 1% T.H.D.

Dynamic Range

1 kHz at Max SPL

Signal-to-Noise Ratio

1 kHz at 1 Pa

Low Frequency Roll-off

Phantom Power Requirement

Output Connector

Dimensions

Accessories Furnished

ES945

Condenser

Omnidirectional

30-20,000 Hz

–42 dB (7.9 mV)

200

142 dB SPL

112 dB

64 dB

9-52V DC

Integral 3-pin XLRM-type

69 mm long; Ø 28 mm

One pair isolators

1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

ES947

Condenser

Cardioid

30-20,000 Hz

–42 dB (7.9 mV)

200

142 dB SPL

113 dB

65 dB

9-52V DC

Integral 3-pin XLRM-type

69 mm long; Ø 30 mm

One pair isolators

ES961

Condenser

Cardioid

30-20,000 Hz

–33 dB (22.4 mV)

200

130 dB SPL

ES961P

Condenser

Cardioid

30-20,000 Hz

–33 dB (22.4 mV)

200

130 dB SPL

103 dB

67 dB

103 dB

67 dB

150 Hz, 6 dB/octave

9-52V DC

TB3M

91.3 mm length; 73 mm width

Soft protective pouch

150 Hz, 6 dB/octave

9-52V DC

1/4” (6.35 mm) TRS plug

91.3 mm length; 73 mm width

Soft protective pouch

European professional price guide 2004, prices in Euro EX-VAT 1

4916 • AT\EN\EU22/47 15/03/04 18:11 Page 29

LAVALIER MICROPHONES

ES943/C

240.00

Condenser lavalier microphone, cardioid polar pattern

With permanently attached 1.4 m cable connected to an AT8536 power module with recessed switch for flat response or low-roll-off. Operates on 11-52V phantom power supply.

ES943/O

250.00

Condenser lavalier microphone, omnidirectional polar pattern

LAVALIER MICROPHONES FOR WIRELESS

( PC 458-MC 140)

See page 36, Wireless Essentials

®

ES943cW/C

See p.36

Condenser lavalier microphone, cardioid polar pattern. Terminated for use with wireless HF A-T UniPak™

ES943cW/O

See p.36

Condenser lavalier microphone, omnidirectional polar pattern.Terminated for use with wireless HF A-T UniPak™

ES943/O

ACCESSORIES

( PC 630-MC 510)

AT8536

69.00

Power module supplied with ES933/

ES943/ ES905

HANDHELD MICROPHONE

ES973

198.00

Vocal handheld condenser microphone with internal shock mount and hypercardioid polar pattern

Accepts interchangeable elements (see page 21, elements AT853x-ELE).

Operates on 11-52V DC phantom power supply.

ES943/C

ES973

Specifications

Element

Polar Pattern

Frequency Response

Open Circuit Sensitivity

Impedance

Maximum Input Sound Level

1 kHz at 1% T.H.D.

Dynamic Range

1 kHz at Max SPL

Signal-to-Noise Ratio

1 kHz at 1 Pa

Low Frequency Roll-off

Phantom Power Requirement

Output Connector

Dimensions

Accessories Furnished

ES943/C

Condenser

Cardioid

30-20,000 Hz

–40 dB (10 mV)

250

138 dB SPL

109 dB

65 dB

80 Hz, 12 dB/octave

11-52V DC

3-pin XLRM-type (power module)

23.3 mm long; Ø 8.4 mm

AT8110 Windscreen

AT8460 Clothing clip

AT8536 Power Module

1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

ES943/O

Condenser

Omnidirectional

30-20,000 Hz

–40 dB (10 mV)

250

138 dB SPL

109 dB

65 dB

80 Hz, 12 dB/octave

11-52V DC

3-pin XLRM-type (power module)

23.3 mm long; Ø 8.4 mm

AT8110 Windscreen

AT8460 Clothing clip

AT8536 Power Module

ES973

Condenser

Hypercardioid

80-15,000 Hz

–41 dB (8.9 mV)

250

144 dB SPL

117 dB

67 dB

11-52V DC

Integral 3-pin XLRM-type

156.1 mm long; 37.7 mm head diameter

AT8122 Windscreen

AT8405 Stand clamp

Protective pouch

29

4916 • AT\EN\EU22/47 15/03/04 18:12 Page 30

30

artist elite

®

wireless transmitters

( PC 480-MC 130 )

• All transmitters offer rugged, ergonomic metal bodies, programmable features, soft-touch controls, and 10 mW/35 mW switchable RF power

• All components store up to five preset configurations, with customized “names” if desired

• All components operates on two 1.5V AA batteries

UHF SERIES ARTIST ELITE WIRELESS

TRANSMITTERS (4000 & 5000)

AEW-T3300

540.00

Cardioid condenser UHF transmitter

Including AT8456a stand clamp.

The same element as in the legendary AT4033

AEW-T5400

660.00

Cardioid large diaphragm condenser UHF transmitter

Including AT8456a stand clamp.

The same large-diaphragm element as in the AT4050

AEW-T4100

380.00

UHF Cardioid dynamic transmitter

Including AT8456a stand clamp.

The same element used in the AE4100.

AEW-T6100

380.00

UHF Hypercardioid dynamic transmitter

Including AT8456a stand clamp.

The same element used in the AE6100.

4000/5000 UniPak™ TRANSMITTER

AEW-T1000

340.00

UHF UniPak™ transmitter

Compatible with the wireless essentials range

(page 36).

Rugged, ergonomic metal housing.

Includes field-replaceable helical and flexiblewhip antennas.

Three-position sliding cover limits access to controls as desired: full access, Power/Mute button only, or no access.

Two position mounting clip.

AEW-TB44

40.00

Transmitter bag for AEW Series

Holds 4 handheld transmitters and 4 body pack transmitters (included with all 5000 Series systems, page 32).

AEW-T1000

AEW-T3300

AEW-T5400

AEW-T4100

AEW-T6100

AEW-TB44

European professional price guide 2004, prices in Euro EX-VAT 1

Specifications AEW-T1000 UniPak ™ Handheld Transmitters

RF Power Output

Dynamic Range

Hi-35 mW, Low-10 mW

110 dB, A-weighted

Batteries (not included) Two 1.5V AA alkaline

Hi-35 mW, Low-10 mW

110 dB, A-weighted

Two 1.5V AA alkaline

Current Consumption

High : 185 mA

Low : 165 mA

Battery Life

Approx. 8 hours (High)

10 hours (Low)

High : 185 mA

Low : 165 mA

Approx. 6 hours (High)

8 hours (Low)

4916 • AT\EN\EU22/47 15/03/04 18:12 Page 31

artist elite

®

wireless receivers

( PC 480-MC 130 )

4000 SERIES RECEIVER

• 200 selectable UHF channels and True Diversity reception

• IntelliScan™ feature automatically finds and sets best available frequencies on all linked receivers

• Advanced digital Tone Lock™ squelch effectively blocks stray RF; the digitally encoded tone also communicates transmitter data for receiver display

• Dual Compander circuitry processes high and low frequencies separately for unmatched audio quality

• Link and coordinate multiple receiver channels

• High-visibility white-on-blue LCD information display

• Metal half-rack receiver chassis with mounting hardware

• All AEW components store up to five preset configurations, with user-definable “names” if desired

AEW-R4100

840.00

Frequency-agile true diversity UHF receiver

ACCESSORIES

(PC 458-MC 140)

AT8628B

32.00

Joining plate kit for two AEW-R4100 receivers in a single 19” space rack

5000 SERIES RECEIVER

Two independent receivers in a single housing

• 200 selectable UHF channels and True Diversity reception

• IntelliScan™ feature automatically finds and sets best available frequencies on all linked receivers

• On-board Ethernet interface for monitoring and controlling system parameters with included software

• Advanced digital Tone Lock™ squelch effectively blocks stray RF; the digitally encoded tone also communicates transmitter data for receiver display

• Dual Compander circuitry processes high and low frequencies separately for unmatched audio quality

AEW-R5200

2 100.00

Frequency-agile true diversity UHF dual receiver with ethernet connection

Included CD-Rom with computer interface software

Receiver Specifications

Receiving System

Dual independent RF sections,

Image Rejection

Signal-to-Noise

Ratio

automatic switching diversity

60 dB typical

115 dB at 40 kHz deviation (IEC weighted), maximum modulation 75 kHz

1% (10 kHz deviation at 1 kHz)

Total Harmonic

Distortion

Sensitivity

20 dBµV (S/N 60 dB at 5 kHz deviation, IEC weighted)

Audio Output (ATTN switch at ”0“)

Instrument :

Microphone :

50 mV (at 1kHz, ±5 kHz deviation, 10k ohms load)

25 mV (at 1kHz, ±5 kHz deviation, 10k ohms load)

Computer

Interface*

Dimensions

Ethernet 10BaseT, RJ45 connector proprietary software supplied on CD-Rom

5000 Series : 482 mm x 44 mm x 275.5 mm (W x H x D)

Net Weight

4000 Series : 211 mm x 44 mm x 235 mm (W x H x D)

5000 Series : 4 kg - 4000 Series : 1.7 kg

Accessories Included Two flexible UHF half-wave antennas, Link cable,

Detachable IEC-type cable, rack mount adaptors

*With 5000 Series receivers only.

AEW-R4100

AEW-R5200

4916 • AT\EN\EU22/47 15/03/04 18:12 Page 32

32

artist elite

®

wireless systems

( PC 480-MC 130 )

5000 SERIES COMPLETE SYSTEMS

AEW-5111

2 820.00

AEW-R5200 dual receiver and two AEW-T1000 UniPak™ transmitters

AEW-5233

3 220.00

AEW-R5200 dual receiver and two AEW-T3300 handheld cardioid condenser microphone/transmitters

AEW-5244

2 900.00

AEW-R5200 dual receiver and two AEW-T4100 handheld cardioid dynamic microphone/transmitters

AEW-5255

3 460.00

AEW-R5200 dual receiver and two AEW-T5400 handheld cardioid condenser microphone/transmitters

AEW-5266

2 900.00

AEW-R5200 dual receiver and two AEW-T6100 handheld hypercardioid dynamic microphone/transmitters

AEW-5313

3 020.00

AEW-R5200 dual receiver, AEW-T1000

UniPak™ transmitter and AEW-T3300 handheld cardioid condenser microphone/transmitter

AEW-5314

2 860.00

AEW-R5200 dual receiver, AEW-T1000

UniPak™ transmitter and AEW-T4100 handheld cardioid dynamic microphone/transmitter

AEW-5315

3 140.00

AEW-R5200 dual receiver, AEW-T1000

UniPak™ transmitter and AEW-T5400 handheld cardioid condenser microphone/transmitter

AEW-5316

2 860.00

AEW-R5200 dual receiver, AEW-T1000

UniPak™ transmitter and AEW-T6100 handheld hypercardioid dynamic microphone/transmitter

4000 SERIES COMPLETE SYSTEMS

AEW-4110

1 180.00

AEW-R4100 receiver and

AEW-T1000 UniPak™ transmitter

AEW-4230

1 380.00

AEW-R4100 receiver and

AEW-T3300 handheld cardioid condenser microphone/transmitter

AEW-4240

1 220.00

AEW-R4100 receiver and

AEW-T4100 handheld cardioid dynamic microphone/transmitter

AEW-4250

1 500.00

AEW-R4100 receiver and

AEW-T5400 handheld cardioid condenser microphone/transmitter

AEW-4260

1 220.00

AEW-R4100 receiver and

AEW-T6100 handheld hypercardioid dynamic microphone/transmitter

See page 36, Wireless Essentials

®

For use with all Audio-Technica UniPak™ Wireless Systems.

See page 37, Wireless Accessories

Overall System Specifications

UHF Operating Frequency

UK Band

840.125 to 864.875 MHz

(Great-Britain)

EU Band

(Continental Europe)

C Band

795.500 to 820.000 MHz

541.500 to 566.375 MHz

(Special order product only)

D Band

655.500 to 680.375 MHz

(Special order product only)

E Band

721.500 to 746.375 MHz

(Special order product only)

Number of Channels

200 total

Frequency Stability

Modulation Mode

Normal Deviation

Operating Range

±0.005%, Phase Lock Loop frequency control

FM

±5 kHz

60 m (300’) typical

5° C to 45° C

Operating Temperature

Range

Frequency Response

70 Hz to 15 kHz

European professional price guide 2004, prices in Euro EX-VAT 1

4916 • AT\EN\EU22/47 15/03/04 18:12 Page 33

3000

series wireless systems

( PC 468-MC 120 )

For the wireless user ready to step up to an advanced UHF system, the 3000 Series is the solution. The 3000 Series is a 200-channel frequency-agile UHF wireless designed for a wide range of applications including live performance, regional touring companies, fixed installation, public address, and houses of worship. All components in the 3000 Series have soft-touch controls for quick, easy access to the most important functions during set-up and operation. And the system is compatible with the entire line of Wireless Essentials ® mics and cables (see page 36).

ATW-3141

599.00

Handheld transmitter system

• ATW-T341 handheld microphone/transmitter with AE4100 dynamic capsule

• ATW-R310 receiver

ATW-3110

529.00

3000 Series UniPak ™ system

• ATW-R310 receiver

• ATW-T310 UniPak ™ transmitter

ATW-3110/G

549.00

3000 Series UniPak ™ guitar system

• With AT8319 instrument cable

• ATW-T3110 UniPak ™ transmitter system

ATW-3110/P

569.00

UniPak™ system with AT829cW

• AT829cW miniature cardioid condenser mic.

• ATW-T3110 UniPak ™ transmitter system

ATW-3110/P1

659.00

UniPak ™ system with AT899cW

• AT899cW subminiature omnidirectional condenser mic.

• ATW-T3110 UniPak ™ transmitter system

ATW-3110/P2

629.00

UniPak ™ system with AT831aW

• AT831aW miniature cardioid condenser mic.

• ATW-T3110 UniPak ™ transmitter system

ATW-3110/P3

599.00

UniPak ™ system with MT838cW

• MT838cW omnidirectional condenser

Lavalier microphone

• ATW-T3110 UniPak ™ transmitter system

ATW-3110/H

589.00

UniPak ™ system with PRO8HEcW

• PRO8HEcW headworn hypercardioid dynamic microphone

• ATW-T3110 UniPak ™ transmitter system

ATW-3110/HC1

609.00

UniPak ™ system with ATM75cW

• ATM75cW headworn cardioid condenser microphone

• ATW-T3110 UniPak™ transmitter system

ATW-3110/HC2

669.00

UniPak ™ system with ATM73cW

• ATM73cW professional headworn cardioid condenser microphone

• ATW-T3110 UniPak™ transmitter system

Specifications

RF Power Output

Dynamic Range

Microphone Element

Batteries (not included)

Current Consumption

Battery Life

Dimensions

Weight (without battery)

Accessories Included

ATW-T310 UniPak ™ Transmitter

High: 30 mW, Low: 10 mW

110 dB, A-weighted

Two 1.5V AA alkaline

High: 200 mA ; Low: 150 mA typical

Approx. 6 hours (High); 8 hours (Low)

66 mm x 87 mm x 24 mm (W x H x D)

80 grams

ATW-R310

ATW-T310

ATW-T341

3000 SERIES TRANSMITTERS

ATW-T310

280.00

3000 Series UniPak™ transmitter

ATW-T341

360.00

3000 Series handheld microphone/ transmitter with cardioid dynamic element

3000 SERIES RECEIVER

ATW-R310

300.00

UHF diversity receiver with 200 frequencies

ACCESSORIES

(PC 458-MC 140)

AT8630

26.00

Joining plate kit for mounting two 3000 series receivers in a single 19” rack space

Overall System Specifications

EX Operating Frequency

UK Operating Frequency

UHF - 798.850 MHz to 819.700 MHz

UHF - 840.125 MHz to 864.875 MHz

Number of Channels

Frequency Stability

Modulation Mode

Normal Deviation

200 total

±0.005% Phase Lock Loop frenquency control

FM

±10 kHz

Operating Range

100 m (300’) typical

Operating Temperature Range

5° C to 45° C

Frequency Response

70 Hz to 15 kHz

ATW-R310 Receiver Specifications

Receiving System

Dual independant receivers, automatic-switching diversity

Image Rejection

Signal-to-Noise Ratio

60 dB nominal, 55 dB minimum

110 dB at 35 kHz deviation (IEC-weighted), maximum modulation 75 kHz

Total Harmonic Distorsion

1% (10 kHz deviation at 1 kHz)

Sensitivity

24 dBµV (S/B 60 dB at 5 kHz deviation, IEC-weighted)

Audio Output Unbalanced : 50 mV (10k ohms load), 1/4” phone jack

Balanced : 32 mV (10k ohms load), XLRM-type

Dimensions

Weight

Accessories Furnished

210 mm x 49 mm x 176 mm (W x H x D)

1.1 kg (2.4 lbs)

Two flexible UHF antennas, rack mount adaptors

Optional System Accessory AT8630 Joining-plate kit, mounts two ATW-R310 receivers in one rack space

ATW-T341 Handheld Transmitter

10 mW nominal

110 dB, A-weighted

Dynamic cardioid

Two 1.5V AA alkaline

High: 230 mA ; Low: 180 mA typical

Approx. 6 hours (High); 8 hours (Low)

237 mm long - 48 mm dia.

280 grams

AT8456a Stand clamp

33

4916 • AT\EN\EU22/47 15/03/04 18:12 Page 34

34

1600

series wireless systems

( PC 456-MC 120 )

Designed for both the performance and contractor markets, the 1600 series offers an affordable UHF solution with a choice of handheld or body pack transmitters.

The ATW-R160 receiver, a robust 1/2 rack metal unit, features an independent diversity switching, frequency scan function across 16 pre-selected channels (accessed by a rotary switch on the transmitters) and comes complete with A/C power supply and rackmount adaptors as standard.

ATW-1661

439.00

1600 UniPak ™ system

• ATW-T161 UniPak ™ transmitter

• ATW-R160 receiver

ATW-1662

449.00

1600 Handheld dynamic system

• ATW-T162 handheld hypercardioid microphone/transmitter with dynamic capsule

• ATW-R160 receiver

ATW-1663

499.00

1600 Handheld condenser system

• ATW-T163 handheld microphone/transmitter with condenser capsule

• ATW-R160 receiver

ATW-1661/G

459.00

1600 Series guitar wireless system

• AT8319 instrument cable

• ATW-1661 UniPak

™ transmitter system

ATW-1661/P

479.00

1600 UniPak™ system with AT829cW

• AT829cW miniature cardioid condenser mic

• ATW-1661 UniPak ™ transmitter system

ATW-1661/P1

569.00

1600 UniPak ™ system with AT899cW

• AT899cW subminiature omnidirectional condenser mic

• ATW-1661 UniPak ™ transmitter system

ATW-1661/P2

539.00

1600 UniPak ™ system with AT831aW

• AT831aW miniature cardioid condenser mic

• ATW-1661 UniPak ™ transmitter system

ATW-1661/P3

509.00

1600 UniPak ™ system with MT838cW

• MT838cW omnidirectional condenser lavalier microphone

• ATW-1661 UniPak ™ transmitter system

ATW-1661/H

499.00

1600 UniPak ™ system with PRO8HEcW

• PRO8HEcW headworn hypecardioid dynamic microphone

• ATW-1661 UniPak ™ transmitter system

ATW-1661/HC1

519.00

1600 UniPak ™ system with ATM75cW

• ATM75cW headworn cardioid condenser microphone

• ATW-1661 UniPak ™ transmitter system

ATW-1661/HC2

579.00

1600 UniPak ™ system with ATM73cW

• ATM73cW professional headworn cardioid condenser microphone

• ATW-1661 UniPak ™ transmitter system

TRANSMITTERS

ATW-T161

250.00

1600 Series UniPak ™ transmitter

ATW-T162

260.00

Handheld microphone/transmitter with dynamic capsule

ATW-T163

TBA Handheld microphone/transmitter with condenser capsule

RECEIVER

ATW-R160

220.00

1600 Series UHF true diversity receiver

RECEIVER ACCESSORIES

(PC 458-MC 140)

AT8616

24.00

Joining plate kit for mounting two ATW-R160 receivers in a single 19” one rack space.

ATW-RA1

72.00

Antenna kit, mounts antennas (included) at the front of receiver.

European professional price guide 2004, prices in Euro EX-VAT 1

ATW-T162

ATW-T161

ATW-R160

ATW-T161

Overall System Specifications

EX Operating Frequency

UHF - 795.500 MHz to 819.025 MHz

UK Operating Frequency

Number of Channels

Frequency Stability

Modulation Mode

Normal Deviation

Operating Range

Dynamic Range

Frequency Response

UHF - 840.125 MHz to 864.375 MHz

16 total

±0.005% Phase Lock Loop frenquency control

FM

±10 kHz

100 m (300’) typical

110 dB, A-weighted

70 Hz to 15 kHz

ATW-R160 Receiver Specifications

Receiving System

Dual independant receivers, automatic-switching diversity

Image Rejection

Signal-to-Noise Ratio

DHT

Open Circuit Sensitivity

Audio Output

55 dB minimum

105 dB at 22.5 kHz deviation (IEC-weighted),

1%

15 dBµV (S/B 60 dB)

Unbalanced

:

52 mV (10k ohms load), 1/4” phone jack

Dimensions

Weight

Balanced mV (10k ohms load), XLRM-type

210 mm x 49 mm x 195 mm

(W x H x D)

1.1 kg

Accessories Furnished

Optional System Accessory

Two flexible UHF antennas, rack mount adaptors

AT8616 joining-plate kit mounts two

ATW-R160 receivers in one rack space

Transmitter Specifications

RF Power Output

Conforms to national regulations

Dynamic Range

UniPak ™ Transmitter

Handheld Transmitter

Microphone Element

ATW-T162 Dynamic hypercardioid

ATW-T163 Condenser cardioid

110 dB

110 dB

Batteries (not included)

Current consumption

Battery Life UniPak ™ Transmitter

Handheld Transmitters

Two 1.5V AA alkaline

160 mA

Approx. 6 hours (High) or 8 hours (Low)

Approx. 8 hours (no High position)

65 mm x 87 mm x 24 mm (W x H x D)

UniPak ™ Dimensions

Weight (without battery)

UniPak ™ Transmitter

Handheld Transmitter

90 grams

240 grams

Accessories Included (ATW-T162)

AT8456a Stand clamp

See page 36, Wireless Essentials

®

For use with all Audio-Technica UniPak™

Wireless Systems.

See page 37, Wireless Accessories

4916 • AT\EN\EU22/47 15/03/04 18:12 Page 35

1400

series wireless systems

( PC 467-MC 120 )

The 1400 Series true diversity wireless systems feature:

• Interference resistant UHF band operation

• Convenient detachable front mounted antennas

• Rugged metal receiver housing

TRUE DIVERSITY UHF WIRELESS SYSTEMS

ATW-1451

219.00

1400 UniPak ™ transmitter system

• ATW-T51 UniPak ™ transmitter

• ATW-R14 receiver

ATW-1452

249.00

1400 Handheld dynamic transmitter system

• ATW-T52 handheld microphone/transmitter with Hi-ENERGY ® dynamic capsule

• ATW-R14 receiver

ATW-1451/G

239.00

1400 Series guitar wireless system

• AT8319 instrument cable

• ATW-1451 UniPak ™ system

ATW-1451/P

259.00

1400 UniPak™ system with AT829cW

• AT829cW miniature cardioid condenser mic

• ATW-1451 UniPak ™ system

ATW-1451/H

279.00

1400 UniPak ™ system with PRO8HEcW

• PRO8HEcW headworn hypercardioid dynamic microphone

• ATW-1451 UniPak ™ system

ATW-1451/HC1

299.00

1400 UniPak ™ system with ATM75cW

• ATM75cW headworn cardioid condenser microphone

• ATW-1451 UniPak ™ system

ATW-1451/HC2

359.00

1400 UniPak ™ system with ATM73cW

• ATM73cW professional headworn cardioid condenser microphone

• ATW-1451 UniPak ™ system

TRANSMITTERS

ATW-T51

150.00

1400 Serie UniPak ™ transmitter

ATW-T52

180.00

Handheld microphone/transmitter with Hi-ENERGY ® dynamic capsule

RECEIVER

ATW-R14

P.O.A.

1400 Series UHF true diversity receiver

RECEIVER ACCESSORIES

(PC 458-MC 140)

AT8628B

32.00

Joining plate kit for mounting two ATW-

R14 receivers in a single 19” one rack space.

ATW-T52

ATW-R14

ATW-T51

Overall System Specifications

EX Operating Frequency

UK Operating Frequency

Number of Channels

Frequency Stability

Modulation Mode

Normal Deviation

Operating Range

Operating Temperature Range

Frequency Response

UHF - 802.225 MHz to 809.475 MHz

UHF - 854.900 MHz to 864.780 MHz

Fixed channel

±0.005%,

FM

±15 kHz

100 m (300’) typical

4° C to 43° C

100 Hz to 15 kHz

ATW-R14 Receiver Specifications

Receiving System

Dimensions

Dual independant receivers, automatic-switching diversity

Image Rejection

45 dB minimum

Signal-to-Noise Ratio

DHT

Open Circuit Sensitivity

Audio Output

95 dB at 10 kHz deviation (IEC-weighted),

1%

20 dBµV (S/B 60 dB)

Unbalanced

:

280 mV (10k ohms load), 1/4” phone jack

Balanced mV (10k ohms load), XLRM-type

210 mm x 49 mm x 251 mm

Weight

Accessories Furnished

Optional System Accessory

(W x H x D)

1.3 kg

Two flexible UHF antennas, rack mount adaptors

AT8628 Joining-plate kit, mounts two

ATW-R14 receivers in one rack space

Transmitter Specifications

RF Power Output

Conforms to national regulations

Dynamic Range

UniPak ™ Transmitter

Handheld Transmitter

Microphone Element

90 dB

90 dB

ATW-T52

Batteries (not included)

Current Consumption

Battery Life

Dynamic cardioid

9 V alkaline

50 mA

Approx. 8 hours (High) 10 hours (Low)

110 mm H x 65 mm W x 25.4 mm D

UniPak ™ Dimensions

Weight (without battery)

UniPak™ Transmitter

Handheld Transmitter

90 g

350 g

Accessories Included (ATW-T52)

AT8431 stand clamp

See page 36, Wireless Essentials

®

For use with all Audio-Technica UniPak™

Wireless Systems.

See page 37, Wireless Accessories

35

4916 • AT\EN\EU22/47 15/03/04 18:13 Page 36

36

microphones for use with A-T UniPak™ transmitters

( PC 458-MC 140 )

All microphones are fitted with a 4-pin HRS connector, for use with A-T UniPak™ transmitters.

TIE CLIP AND LAVALIER MICROPHONES

AT829cW

48.00

Miniature cardioid condenser microphone

AT831aW

118.00

Miniature cardioid condenser microphone

( full description page 19)

AT803aW

108.00

Omnidirectional tie clip microphone for broadcast applications

( full description page 19)

ES943cW/C

190.00

Cardioid condenser lavalier microphone,

1.4 m cable

Includes windscreen and clothing clip

ES943cW/O

200.00

Omnidirectional condenser Lavalier microphone, 1.4 m cable

Includes windscreen and clothing clip

SUB-MINIATURE MICROPHONES FOR A-T UniPak ™

AT898cW

158.00

Subminiature cardioid condenser microphone

( full description page 19)

AT899cW

158.00

Subminiature omnidirectional condenser microphone

( full description page 19)

AT899cW-TH

158.00

Beige version of AT899cW

( full description page 19)

MT830cW

112.00

Miniature omnidirectional condenser microphone

( full description page 19)

MT838cW

92.00

Cardioid microphone with clip and windscreen

CONFERENCE MICROPHONES FOR A-T UniPak ™

AT857AMLcW

180.00

Cardioid condenser gooseneck microphone,

45 cm long

( full description page 22)

AT851cW

170.00

Unidirectional condenser boundary microphone

( full description page 23)

AT841aW

200.00

Omnidirectional condenser boundary microphone

( full description page 23)

INSTRUMENT MICROPHONES

ATM35cW

220.00

Cardioid condenser clip-on instrument microphone

( full description page 10)

PRO35xcW

98.00

Cardioid condenser clip-on instrument microphone

( full description page 14)

HEADWORN MICROPHONES FOR A-T UniPak ™

AT889cW

220.00

Subminiature omnidirectional condenser microphone

Humidity and perspiration resistant.

PRO8HEcW

74.00

Headworn hypercardioid dynamic microphone

( full description page 14)

ATM75cW

88.00

Headworn cardioid condenser microphone.

( full description page 10)

ATM73cW

148.00

Headworn cardioid condenser microphone

( full description page 10

AT829cW

AT889cW

AT899cW

AT851cW

European professional price guide 2004, prices in Euro EX-VAT 1

AT831aW

ATM73cW

MT830cW

AT857AMLcW

4916 • AT\EN\EU22/47 15/03/04 18:13 Page 37

wireless accessories

( PC 458-MC-140 )

CONNECTING CABLES

FOR UNIPAK ™ TRANSMITTERS

AT8317

32.00

XLRF cable to HRS connector; 1.50 m

AT8319

24.00

Guitar cable 6.35 mm jack to HRS connector

ANTENNA CABLES

AC12

19.00

BNC - BNC 4 m link cable, type RG58

AC25

79.00

AC50

POA

BNC - BNC 8 m link cable, type RG8

BNC - BNC 16 m link cable, type RG8

AC100

POA BNC - BNC 33 m link cable, type RG8

TRANSMITTERS ACCESSORIES

AT8141

9.00

Water resistant pouch for UniPak™ bodypack transmitter

ATW-VP10

9.00

Vinyl pouch for UniPak™ body-pack transmitter

ANTENNAS

ATW-A20

150.00

Pair of ground-plane antennas with

5/

8

”-27 thread for UHF wireless systems,

1400 and 3000 Series

ATW-A49

340.00

Pair of wide band dipole antennas for use with 440-900 MHz UHF systems (3000,

4000 and 5000 Series)

DIVERSITY UHF ANTENNA DISTRIBUTIONS SYSTEMS

AEW-DA550C

560.00

Active unity-gain distribution amplifier for UHF bands 541.500 MHz to

566.375 MHz

AEW-DA660D

560.00

Active unity-gain distribution amplifier for UHF bands 655.500 MHz to

680.375 MHz

AEW-DA800EU

560.00

Active unity-gain distribution amplifier for UHF bands 795.500 MHz to

820.000 MHz

AEW-DA860UK

560.00

Active unity-gain distribution amplifier for

UHF bands 840.125 MHz to 864.875 MHz

AT8317

AC12

ATW-A49

AEW-DA660D

AT8319

ATW-VP10

ATW-A20

37

4916 • AT\EN\EU22/47 15/03/04 18:13 Page 38

38

studio professional headphones

( PC 205-MC 310)

PRECISION “STUDIOPHONES”

Full-sized closed back stereo headphones for studio monitoring and home listening applications. Fully field serviceable. Terminated in a 1/4" plug.

ATH-M40fs

90.00

Extended-response closed-back dynamic monitor headphones

ATH-D40fs

90.00

Enhanced-bass closed-back dynamic monitor headphones

ATH-D40fs

ATH-M40fs

The ATH-M30 is a closed-back dynamic headphone for mixing with high power handling for tracking sessions. 65 ohms.

Terminated in a 3.5 mm connector with screw-on 6.3 mm adaptor.

ATH-M30

64.00

Closed-back dynamic monitor headphones

ATH-M30

ATH-M20

SEMI-PROFESSIONAL HEADPHONES

The ATH-M20 is a closed-back dynamic headphones with neodymium magnets. Impedance 40 ohms, terminated in a

3.5 mm stereo mini plug with 6.3 mm adaptor

ATH-M20

42.00

Closed-back headphones

Specifications

Type

Driver Size

Magnet

Voice Coil

Frequency Response

Maximum Input Power

Sensitivity

Impedance

Weight (without cable)

Cables

Connectors

ATH-M40fs

Closed-back dynamic

40 mm diameter

Neodymium

Copper-clad aluminum wire

5-28,000 Hz

1,600 mW at 1 kHz

100 dB

60 ohms

250 g (8.8 oz)

3.4 m (11’)

(OFC litz wire, left-side exit)

6.3 mm (1/4”) phone-plug

ATH-D40fs

Closed-back dynamic

40 mm diameter

Neodymium

Copper-clad aluminum wire

20-28,000 Hz

1,600 mW at 1 kHz

102 dB

66 ohms

250 g (8.8 oz)

3.4 m (11’)

(OFC litz wire, left-side exit)

6.3 mm (1/4”) phone-plug

ATH-M30

Closed-back dynamic

40 mm diameter

Neodymium

Copper-clad aluminum wire

20-20,000 Hz

1,600 mW at 1 kHz

100 dB

65 ohms

200 g (7.0 oz)

3.4 m (11’)

(OFC litz wire, left-side exit)

3.5 mm (1/8”) with screw-on and 6.3 mm (1/4”) adaptor

ATH-M20

Closed-back dynamic

40 mm diameter

Neodymium

Copper-clad aluminum wire

30-20,000 Hz

1,200 mW at 1 kHz

98 dB

40 ohms

230 g (7.1 oz)

3.0 m (10’)

(coiled, left-side exit)

3.5 mm (1/8”) stereo mini-plug and 6.3 mm (1/4”) adaptor

European professional price guide 2004, prices in Euro EX-VAT 1

4916 • AT\EN\EU22/47 15/03/04 18:13 Page 39

ATH910PRO HEADPHONES

(PC 205-MC 310)

Full-size closed-back dynamic headphones featuring

Samarium Cobalt magnets, large diaphragm drivers. Ideal for both home listening and studio monitoring applications.

Impedance 30 ohms. Terminated in a 1/4” plug.

ATH910PRO

99.00

Closed-back headphones, 40 ohms

• closed-back dynamic

• driver size 44 mm diameter

• samarium-cobalt magnet

• voice coil: copper-clad aluminum wire

• frequency response:

20-22,000 Hz

• maximum input power:

120 mW at 1 kHz

• sensitivity: 90 dB

• impedance: 40 ohms

• weight: 205 g (without cable)

• cable: 3 m (10’)

• connector: stereo jack 6.35 mm

ATH910PRO

COMMUNICATION HEADSETS

(PC 205 - MC 310)

ATH-COM1

44.00

Monophone/dynamic boom mic combination

Two 3.5 mm plugs with 1/4" adaptors.

Impedance 40 ohms (headphone) / 600 ohms

(microphone).

• 1 open-back dynamic

• driver size 40 mm diameter

• neodymium magnet

• frequency response:

30-20,000 Hz

• maximum input power:

50 mW at 1 kHz

• sensitivity: 91 dB

• impedance: 40 ohms

• microphone sensitivity:

–55 dB (1.7 mV) re 1 V at 1 Pa

• weight: 70 g (without cable)

• cable: 1.5 m (4.9’)

• connectors: two 3.5 mm (1/8”) mono mini-plugs + two gold plated

6.3 mm (1/4”) mono plug adaptors

ATH-COM1

ATH-COM2

49.00

Stereophone/dynamic boom mic combination

Two 3.5 mm plugs with 1/4" adaptors.

Impedance 40 ohms (Headphone) / 600 ohms

(Microphone).

• 2 open-back dynamic

• driver size 40 mm diameter

• neodymium magnet

• frequency response:

30-20,000 Hz

• maximum input power:

50 mW at 1 kHz

• sensitivity: 91 dB

• impedance: 40 ohms

• microphone sensitivity:

–55 dB (1.7 mV) re 1 V at 1 Pa

• weight: 100 g (without cable)

• cable: 1.5 m (4.9’)

• connectors: one mono and one stereo

3.5 mm (1/8”) mini-plugs

+ one stereo and one mono

6.3 mm (1/4”) gold plated plug adaptor

ATH-COM2

4916 • AT\EN\EU22/47 15/03/04 18:13 Page 40

40

automatic mixers

( PC 630-MC 510)

Innovative automatic mixers are microprocessor controlled for uncomplicated, automated operation.

• Easy to install, easy to operate and completely transparent in operation

• Choice of one-channel-at-a-time operation, all active, or any mix of moderator override

• Versatile, switchable inputs accept microphones or line-level devices; mic- or line-level out

• Individual gain controls for each channel

• Last microphone on stays on so that ambient sound is never muted

• XLR inputs with phantom power provided for condenser mics

AT-MX341a

640.00

Automatic SmartMixer ® featuring four switchable microphone or line channels

Half rack width,1u high. Supplies 12V phantom power on each channel.

AT-MX351

780.00

Automatic SmartMixer ® microphone mixer featuring four switchable microphone or line channels and one auxiliary input. 19" rack width 1u high. Supplies 48V phantom power on each channel.

RACK MOUNT ACCESSORIES

(PC 458-MC 140)

AT8628B

32.00

Joining plate for mounting two AT-MX341a mixers in a one rack space

ACCESSORIES

(PC 630-MC 510)

AT8325/1.0

29.00

Link cable (included with Smart Mixer ® )

Specifications

Input Impedance

Output Impedance

AT-MX351

Mic: 8,000

Line: 50,000

Mic: 200

Line: 300

Mic: –24 dBV

AT-MX341a

Mic: 4,000

Line: 30,000

Mic: 320

Line: 200

Mic: –20 dBV

Maximum Input Level

Maximum Gain

Line: +27 dBV

73 dB

Frequency Response (–3 dB)

Equivalent Input Noise

40 Hz to 22 kHz

–128 dBV (150

)

Microphone Phantom Power

+48V DC

Power Supply

120V/230V AC

Operating Temperature

Dimensions (including feet, knobs and connectors)

Weight

Accessories Furnished

0° to 40° C

W 430 mm

D 238 mm

H 44 mm

Line: +30 dBV

70 dB

60 Hz to 30 kHz

–120 dBV (150

)

+12V DC

12AC, 150 mA

0° to 40° C

W 210 mm

D 238 mm

H 44 mm

3.1 kg 1.6 kg

AT8325/1.0 link cable AT8325/1.0 link cable

Rack-mount adaptors Rack-mount adaptors

AC power cable AC power supply

Comparison Chart

Automatic mic/line balanced inputs

Unbalanced Aux input

Priority pre-select switch for each

Automatic threshold setting

Single threshold setting for all channels

Phantom power selectable for each channel

Switchable manual mode

Master output level control

Individual gain controls for each channels

Limiter on each mic/line channel

Output level meter with Peak and RMS mode

Off attenuation for each input adjustable to:

TTL logic output

Closure control of each input

Pre- or post-controller audio output

Switchable NOMA operation

Headphone output with adjustable level

19” rack mounting space (1U)

Rack-mount adaptors included

AT-MX351 AT-MX341a

4

1

4

– yes

–40 dB yes yes yes yes yes full yes yes yes

48V yes yes yes yes yes

–20 dB yes

1/2 yes yes

– yes

12V yes yes yes

AT-MX341a

AT-MX351

European professional price guide 2004, prices in Euro EX-VAT 1

4916 • AT\EN\EU22/47 15/03/04 18:14 Page 41

accessories, power supplies, UniTools

®

( PC 630-MC 510)

and attenuators

( PC 315-MC 410)

POWER SUPPLIES

(PC 630-MC 510)

AT8801

88.00

Single channel 48V DC phantom supply

(AC power adaptor included)

This line-powered device allow the use of remotepowered microphones with systems that do not supply phantom power. Each unit features a highlyregulated power supply which provides a constant voltage source, even with a heavily-loaded input. The regulator IC is internally protected to prevent overheating or damage even if shorted. The rugged steel case is finished in enamel and provides shielding from electrostatic interference.

PRE-AMPLIFIERS, ADAPTORS

( PC 630-MC 510)

AT8531

90.00

1.5V AA battery/phantom mic pre-amplifier with bass roll-off. TA3M to XLRM 3-pin

AT8533

62.00

Phantom only mic pre-amplifier for AT853Rx.

TA3M to XLRM 3-pin

AT8533x

64.00

Phantom only in line pre-amplifier with bass rolloff and 7.60 m cable with TA3F to XLRM 3-pin

ATTENUATORS

( PC 315-MC 410)

AT8202

69.00

Adjustable In-line Attenuator

• Prevents overload of sensitive input stages

• Provides -10 dB, -20 dB or -30 dB attenuation

• Compatible for use in phantom power applications

• Durable steel case provides optimum shielding from hum

• For use with balanced Lo-Z microphones

• Can be plugged directly into a female 3-pin chassismount connector

AT8801

AT8531

AT8533x

UNITOOLS ® (PC 630-MC 510)

Phantom-powered in-line microphone accessories overcome commonly-encountered sound installation challenges quickly, easily and effectively. Available in four function-specific models,

UniTools ® are intended primarily for use with UniPoint ® and similar condenser microphones. They have professional XLR-type input/output connectors, and require balanced cables and 24-48V

DC phantom power for operation. ("In" and "Out" markings refer to the mic audio.) All units permit phantom voltage to pass on to the microphone. Featuring rugged steel housings, UniTools can be installed anywhere in-line, either at the mixer input or near the mic.

AT8681

66.00

UniMix ® 2-to-1 mic combiner with balance control

Combines the output from two microphones into one channel. Balance control attenuates each microphone by 6 dB (typical) at midpoint.

AT8682

76.00

UniGate ® voice-operated switch with adjustable threshold

Automatically attenuates a channel when microphone is not in use. Threshold adjusts to compensate for the vocal dynamics of individual speakers and for situations with excessive background noise. LED indicates when gate is open.

AT8683

49.00

UniSteep ® 80 Hz mic hi-pass filter

Provides a steep 18 dB/octave low-frequency attenuation to improve the quality of sound pickup under difficult conditions without affecting voice quality.

AT8684

56.00

UniMute ® mic attenuator with user-definable switch function

Versatile attenuator permits easy in-line switch installation and flexible application. Type of external single-pole switch the user supplies determines muting function; closed contact causes muting. Use for on/off, push-to-talk, push-to-mute, etc. (Additional, isolated poles on the switch may be used to control logic-level

DC circuits.)

AT8681

AT8683

AT8533

AT8202

AT8682

AT8684

41

4916 • AT\EN\EU22/47 15/03/04 18:14 Page 42

42

accessories, clamps, mounts, suspensions

( PC 315-MC 410)

MICROPHONE CLAMPS

AT8401

8.00

Standard slip-in clamp for tapered microphones

AT8405a

9.80

Snap-in mic clamp, metal base, for 21 mm body diameter mics

AT8406a

9.20

Tapered slip-in mic clamp, metal base for all tapered mics

AT8407

14.00

Universal mic clamp, spring loaded clip, metal base. Fits most mics with diameter

15 to 25 mm

AT8470

12.00

Quiet-Flex ™ stand clamp for tapered Artist Elite ® microphones

AT8471

22.00

Isolation clamp in a secure locking mount compatable with

5/

8

-27 threaded stands

HANDHELD TRANSMITTER MICROPHONE CLAMPS

AT8456a

18.00

Clamp for wireless handheld microphones in the Artist Elite ® AEW and 3000 Series

AT8431

7.20

Clamp for handheld wireless microphone in the 1400 Series

ADAPTORS AND STAND ACCESSORIES

AT8422

1.20

Plastic thread adaptor converts 3/

8 to

5/

8

” thread

” stands

AT8459

38.00

Swivel mount microphone clamp adaptor.

Provides unlimited number of angles/ positions. Compatable with 5/

8

-27 threaded stands

CLAMPS AND SHOCK MOUNTS FOR STUDIO

MICROPHONES

AT8430

122.00

Stand clamp with 5/

8

- 27 thread for

AT4033a /AT4040/AT4050/AT4047SV

AT8446

68.00

Pop filter for use with AT8449 shock mount

AT8447

142.00

Shock mount for AT4060

AT8449

68.00

Shock mount for AT4033a/AT4040/AT4050

AT8449SV

84.00

Shock mount for AT4047SV

AT8458

64.00

Shock mount for AT3035/AT3060

DESK STANDS

AT8601

19.00

Desk stand for all

5/

8

-27 mic holders

AT8614

48.00

Desk stand with thru-hole in

5/

8

-27 stud for cable passage. UniPoint AM and ES range

AT8615A

72.00

QM plug-in desk stand; XLRF in, XLRM out for all QM mics

AT8615RS

76.00

Oval desk stand: XLR female with switch

ACCESSORIES FOR MINIATURE MICROPHONES

AT8418

35.00

UniMount ® microphone instrument mount

ATM35/AT803/AT831/AT829/PRO35x/PRO7a

AT8444

29.00

Instrument adaptor ATM35/AT803/AT831/

AT829/PRO35x/PRO7a for acoustic guitar/violin

Because the American microphone bases have a 5 /

8

” thread and

European microphones have a standard 3 /

8

” thread, the microphone stands have a thread of 5 /

8

”which allows for an adaptor to be used.

AT8405a

AT8471

AT8410a

AT8407

AT8430

AT8415

AT8470

AT8418

UNIVERSAL SHOCK MOUNTS

AT8410a

49.00

Shock mount, spring loaded, fits most mics with diameter 15 to 22 mm

AT8415

59.00

Low-profile shock mount with flexible bands.

Fits most mics

AT8601 AT8615a

European professional price guide 2004, prices in Euro EX-VAT 1

4916 • AT\EN\EU22/47 15/03/04 18:14 Page 43

AT8411

CLAMPS AND ACCESSORIES FOR TIE CLIP

MICROPHONES

AT8321

22.00

AT8411

8.60

Lavalier neck cord

Plastic clothing clip, fits AT803/AT829/

AT831

AT8412

14.00

AT8414

18.00

AT8417

10.00

AT8420

7.20

AT8434

7.20

AT8435

7.20

AT8460

14.00

Plastic double clothing clip, fits AT803/

AT831/AT829

Metal tie tac, fits AT803/AT831

Wire clothing clip, AT803/AT831/AT829

Metal clothing clip, for MT830

Plastic clothing clip, for AT829

Tie clip for AT805/MT350

Clothing clip for ES943

AT8414 AT8417

AT899 MINIATURE MICROPHONE ACCESSORIES

AT8461

14.00

Clothing clip base for AT899 with single and double microphone holders

AT8461-TH

14.00

Clothing clip base for AT899 with single and double microphone adaptors in beige

AT899AK

48.00

Accessory kit for AT899 models in black

AT899AK-TH

48.00

Accessory kit for AT899 models in beige

AT898AK

44.00

Accessory kit for AT898

ACCESSORIES FOR HEADWORN MICROPHONES

AT8439

5.20

Cable clothing clip for AT889cW/ATM73/

ATM75/PRO8HE

AT8646AM

SUSPENSION ACCESSORIES FOR FIXED

INSTALLATION MICROPHONES

AT8416

54.00

Shock mount for all UniPoint AM and ES range. For fixed installation

AT8438

16.00

Custom stand adaptor for AT853 and

AT853W fits 5/

8

"-27 stands

AT8438WH

16.00

As AT8438 in white

AT8451

12.00

Wire hanger adaptor for overhead applications with AT853 and PRO45

AT8451WH

12.00

White version of AT8451

AT8452

12.00

Wire hanger adaptor for overhead

MicroLine ® ES933

AT8452WH

12.00

White version of AT8452

AT8651

7.00

Thread mount adaptor for ES range

AT8658

28.00

Shock mount for ES gooseneck microphones, ES935 and ES915

AT8616x

32.00

Locking ring/ isolator for Engineered

Sound QM Models

AT8646AM

34.00

Shockmount plate with

5/

8

"-27 threaded adaptor mount

AT8646QM

48.00

Shockmount plate with XLRF connector

AT8647QM/S

86.00

Shockmount plate for quick mount microphones with on/off switch for fixed installation

AT8646QM AT8647QM/S

4916 • AT\EN\EU22/47 15/03/04 18:14 Page 44

44

windscreens

(PC-315-MC410)

WINDSCREENS FOR 30 AND 40 SERIES

MICROPHONES

AT8137

38.00

Large studio foam windscreen for

AT4033a / AT4040 / AT4050/AT4047SV/

AT3035/ AT3060

AT8106

40.00

Metal slip-on pop filter for AT4041/ AT4049

/ AT4051/ AT4053 (for ultimate pop and wind protection, use an AT8114 in addition)

AT8159

6.00

Small egg-shaped foam windscreen

WINDSCREENS FOR VOCAL

AND INSTRUMENT MICROPHONES

AT8101

8.00

Large cylindrical foam windscreen for

AT804 / AT804L

AT8111

9.00

Thin cylindrical foam windscreen for ATM29HE

AT8112

8.00

Large cylindrical foam windscreen for

ATM29HE / ATM63HE

AT8114

9.00

Ball-shaped foam windscreen for

ATM27HE / ATM31a / ATM41HE /

ATM61HE

AT8115

11.00

Large-pore egg-shaped foam windscreen for ATM63HE

AT8120

14.00

Large foam windscreen for ATM25 /

AT822 / PRO25 / AT825 / PRO4L

AT8122

8.00

AT8136

9.00

Small foam windscreen for ES973

Small egg-shaped foam windscreen for

ATM10a / ATM33a

WINDSCREENS FOR SHOTGUN MICROPHONES

AT8132

18.00

AT8134

17.00

Shotgun windscreen for AT835b

Shotgun windscreen for AT897/ AT835ST/

AT4073a

AT8135

19.00

Shotgun windscreen for AT815b/

AT4071a/ AT815ST

AT8137

AT8101

AT8120

AT8136

AT8111 AT8112 AT8115

AT8106

AT8135

European professional price guide 2004, prices in Euro EX-VAT 1

AT8132

AT8134

4916 • AT\EN\EU22/47 15/03/04 18:15 Page 45

HEADWORN MICROPHONE WINDSCREENS

AT8119

2.60

AT8125

7.00

AT8128

8.00

Windscreen for headworn ATM73

Large foam golfball windscreen for ATM73

Small foam torpedo windscreen for headworn mic ATM73

AT8139L

6.80

Large foam windscreen for headworn mic

ATM75 / PRO8HE

AT8139S

6.80

Small foam windscreen for headworn mic

ATM75 / PRO8HE

AT8142A

2.80

Foam temple pads (pair) for headworn mic

ATM75 / PRO8HE

MINIATURE AT899 MICROPHONE ACCESSORIES

AT8150

14.00

Element covers (pack of 3)

AT8150-TH

14.00

Beige AT899 element covers (pack of 3)

AT8151

12.00

AT899 windscreen (pack of 3)

AT8151-TH

12.00

Beige AT899 windscreen (pack of 3)

AT8119

AT8125

AT8128

AT81395

AT8142B

2.80

Foam temple pads (pair) for headworn mic

ATM73

AT8143

22.00

Coloured windscreen pack suitable for

ATM75 / PRO8HE, set of 4 (pink, purple, green and yellow)

AT8150 AT8150-TH AT8151 AT8151-TH

UNIPOINT ® , PROPOINT ® AND ENGINEERED

SOUND ® WINDSCREENS

AT8102

8.60

Small 2-stage foam windscreen for use with AT853 / AT859 / AT857

AT8102WH

9.80

White version of AT8102

AT8104a

48.00

Small metal lockable windscreen with additional outer foam windscreen provided suitable for AT853 / 857 / 859

AT8109

14.00

Snap-on foam windscreen for ES Series gooseneck mics

AT8117

9.80

Large high density foam windscreen for

AT853 outdoor use

AT8143

AT8109

AT8104a

TIE CLIP MICROPHONE WINDSCREENS

AT8110

13.20

Foam windscreen for ES943

AT8116

9.60

AT8129

2.40

AT8130

5.80

AT8131

2.40

Mini windscreen for AT803b/ AT829 /

AT831 / PRO7a

Miniature foam windscreen for MT350

Subminiature foam windscreens

(packet of 3) for MT830

Miniature foam windscreen for

AT829 / AT803 / AT831 / PRO7a

AT8117

AT8138

9.20

Windscreen for MicroLine ®

All ML/suffix mics

AT8138WH

16.00

White version of AT8138

AT8138WH

AT8138

AT8146

8.20

Windscreen for PRO47 / PRO49

AT8146WH

8.20

White version of AT8146

AT8116

AT8131

AT8130

AT8146

4916 • AT\EN\EU22/47 15/03/04 18:15 Page 46

46

atr series microphones

( PC 312-MC 240)

ATR20

24.00

Vocal or instrument microphone

• for use with home or portable systems

• unidirectional dynamic

• on/off switch

• integral 5 m cable with 3.5 mm jack

• 6.35 mm adaptor and desk stand

• frequency response: 80-12,000 Hz

ATR25

49.00

Dual unidirectional stereo condenser microphone

• for use with most cameras or portable recording systems

• on/off switch

• integral short cable for camera use and with 3.5 mm jack and adapter

• frequency response: 70-18,000 Hz

ATR30

45.00

Multi-purpose dynamic microphone

• unidirectional dynamic

• vocal and instrument

• on/off switch

• metallic construction

• detachable 5 m XLR cable to 6.35 mm jack

• frequency response: 60-15,000 Hz

ATR3M

56.00

Dynamic gooseneck microphone

• dynamic cardioid

• ideal for close talking and paging situations

• integral windscreen and robust construction

• push to talk switching facility

• quickmount XLR and 445 mm long

• frequency response: 150-10,000 Hz

ATR35S

34.00

Miniature lavalier microphone with integral battery pack

• omnidirectional condenser

• ideal for aerobics/dance/sports/reporting

• 6 m cable with 3.5 mm jack

• on/off switch

• includes clip, 1.5V battery, windshield and

6.35 mm adapter

• frequency response: 50-18,000 Hz

ATR50

59.00

Dynamic unidirectional vocal/instrument microphone

• vocal / instrument, karaoke

• metal robust construction

• on/off switch

• includes clamp and 4.6 m XLR/XLR cable

• frequency response: 70-14,000 Hz

ATR55

79.00

Telemike ™ shotgun microphone

• has two polar patterns; unidirectional or supercardioid

• 90 cm cable with 3.5 mm jack

• includes camera mount, pistol grip mount, windshield, battery and 6.35 mm adapter

• frequency response: 70-18,000 Hz

ATR97

38.00

Low profile omnidirectional boundary microphone

• operates from internal battery

• ideal for conferences, teleconferences

• on/off switch

• integral 1.5 m cable with 3.5 mm jack

• frequency response : 50-15,000 Hz

ATR20

ATR25

ATR30

ATR55

European professional price guide 2004, prices in Euro EX-VAT 1

ATR50

ATR3M

ATR35S

ATR97

4916 • AT\EN\EU22/47 15/03/04 18:15 Page 47

STANDARD CARTRIDGES

(PC105-MC 520)

AT91BL

24.00

1/

2

” mount cartridge with conical shaped diamond tip ideal as a starter cartridge or as a replacement for older decks

AT95EBL

28.00

1/

2

” mount cartridge with elliptical shaped diamond tip gives good overall performance in modestly priced decks

AT101EP

36.00

P mount cartridge with elliptical shaped

(0.4x0.7 mm) diamond tip for improved tracking and long vinyl life

AT110E

36.00

1/

2

” mount cartridge with elliptical shaped

(0.4x0.7 mm) diamond tip ensuring good channel balance, seperation and long vinyl life

AT120E/T

68.00

1/

2

” mount cartridge with elliptical shaped

(0.3x0.7 mm) diamond tip, this model gives best results in mid price range turntables

AT120E /T

AT-OC9ML/II

ATP-2XN

AUDIOPHILE CARTRIDGES

(PC105-MC 520)

AT440ML

99.00

1/

2

” mount cartridge with MicroLine ® shaped diamond tip for the most accurate tracking, seperation and performance

AT-OC9ML/II

399.00

1/

2

” moving coil cartridge with polished elliptical diamond tip, for the best in clarity, transparancy, precise stereo imaging, lower distortion and extended vinyl life

STANDARD STYLI

(PC106-MC 520)

ATN91

14.00

Genuine replacement stylus for AT91BL

ATN95E

18.00

Genuine replacement stylus for AT95EB

ATN101EP

18.00

Genuine replacement stylus for AT101EP

ATN110E

23.00

Genuine replacement stylus for AT110E

ATN120E

44.00

Genuine replacement stylus for AT120E/T

PRO SERIES CARTRIDGES

(PC115-MC 520)

ATP-2XN

39.00

1/

2

” mount cartridge with elliptical shaped

(0.4x0.7 mm) diamond tip and strengthened cantilever for the DJ market, an extra stylus is included

AUDIOPHILES STYLI

( PC106-MC 520 )

ATN440ML

79.00

Genuine replacement stylus for AT440ML

PROFESSIONAL STYLI

( PC116-MC 520 )

ATP-N2

22.00

Genuine replacement stylus for ATP-2XN

Specifications

Mount

Frequency Response

Channel Separation

Impedance

Output Voltage

Stylus Shape

Tracking Force

Weight

AT101EP(E)

Universal (1/2”)

20-22,000 Hz

25 dB at 1 kHz

47 k

4 mV

Elliptical

1.0-1.5 g

5.9 g

AT120E/T

1/2”

15-25,000 Hz

29 dB at 1 kHz

47 k

5.0 mV

Elliptical

1.0-1.8 g

6.5 g

HI-FI ACCESSORIES

(PC640-MC 510)

AT607

6.90

Stylus cleaning fluid with applicator brush

AT91BL(EBL)

1/2”

20-20,000 Hz

20 dB at 1 kHz

47 k

3.5 mV

Conical

1.4-2.5 g

5.8 g

AT440ML

1/2”

20-20,000 Hz

20 dB at 1 kHz

47 k

5.0 mV

Super Elliptical

0.8-1.6 g

6.5g

AT-OC9ML/II

1/2”

15-25,000 Hz

31 dB at 1 kHz

20 k

0.4 mV

Super Elliptical

1.0-1.6 g

7.8 g

ATP-2XN

1/2”

15-22,000 Hz

23 dB at 1 kHz

47 k

5.3 mV

Elliptical

3.0-5.0 g

7.2 g

4916 • AT\EN\EU22/47 15/03/04 18:15 Page 48

48

alphanumeric product listing

Product Code Page

AT8435

AT8438

AT8438WH

AT8439

AT8444

AT8446

AT8447

AT8449

AT8449SV

AT8451

AT8451WH

AT8452

AT8452WH

AT8456A

AT8458

AT8459

AT8460

AT8461

AT8461-TH

AT8470

AT8120

AT8122

AT8125

AT8128

AT8129

AT8130

AT8131

AT8132

AT8134

AT8135

AT8136

AT8137

AT8138

AT8138WH

AT8139L

AT8139S

AT8141

AT8142A

AT8142B

AT8143

AT8146

AT8146WH

AT8150

AT8150-TH

AT8151

AT8151-TH

AT8159

AT815B

AT815ST 17

AT8202 41

AT822 18

AT825 18

45

45

44

17

45

45

45

45

37

45

45

45

45

45

45

45

44

44

44

44

45

45

45

44

44

44

45

45

AT829CW 36

AT8317 37

AT8319 37

AT831AW 36

AT831B 19

AT831C 19

AT831R

AT8321

19

43

AT8325/1.0

AT835B

40

17

AT835ST 17

AT8401 42

AT8405A 42

AT8406A 42

AT8407 42

AT8410A 42

AT8411 43

AT8412 43

AT8414 43

AT8415 42

AT8416 43

AT8417 43

AT8418 42

AT841A 23

AT841AW

AT841RX

AT8420

AT8422

AT8424

AT8430

AT8431

AT8434

42

42

42

43

36

23

43

42

43

42

42

42

42

43

43

43

43

43

43

42

42

42

42

42

43

43

43

43

Product Code Page

AC100

AC12

AC25

AC50

AE2500

AE3000

AE3300

AE4100

AE5100

AE5400

AE6100

AEW-4110

AEW-4230

AEW-4240

AEW-4250

AEW-4260

AEW-5111

AEW-5233

AEW-5244

AEW-5255

AEW-5266

AEW-5313

AEW-5314

AEW-5315

AEW-5316

AEW-DA550C

AEW-DA660D

AEW-DA800EU

AEW-DA860UK

AEW-R4100

AEW-R5200

AEW-T1000

AEW-T3300

AEW-T4100

AEW-T5400

AEW-T6100

AEW-TB44

AT-0C9ML/II

AT101EP

AT110E

AT120E/T

AT3031

AT3032

AT3035

AT3060

AT4033ASM

AT4040SM

AT4041

AT4047SVSC

AT4047SVSM

AT4049A

AT4049A-EL

AT4050SC

AT4050SM

AT4051A

AT4051A-EL

AT4053A

AT4053A-EL

AT4060

AT4071A

AT4073A

AT440ML

AT4900A48

47

6

AT607 47

AT803AW 36

16

16

6

5

6

6

4

6

6

4

5

6

AT803B

AT803CB

19

19

AT804 18

AT804L 18

AT808G 18

AT8101 44

AT8102

AT8102WH

45

45

AT8104A 45

AT8106 44

AT8109

AT8110

45

45

AT8111

AT8112

44

44

AT8114 44

AT8115 44

AT8116

AT8117

AT8119

45

45

45

37

31

31

30

32

37

37

37

32

32

32

32

32

32

32

32

32

32

32

32

2

32

3

2

2

2

3

3

37

37

37

37

4

6

5

7

4

47

8

8

8

30

47

47

47

30

30

30

30

Product Code Page

ATM33A 9

ATM35 10

ATM35CW

ATM35CW

10

36

ATM41HE

ATM61HE

ATM61HE/S

ATM63HE

11

11

11

11

ATM73A

ATM73AC

ATM73CW

ATM73CW

ATM75

ATM75C

ATM75CW

ATM75CW

10

10

10

36

10

10

10

36

ATM87R

ATM89R

AT-MX341A 40

AT-MX351 40

9

9

ATN101EP

ATN110E

ATN120E

ATN440ML

47

47

47

47

ATN91

ATN95E

ATP-2XN

ATP-N2

ATR20

ATR25

ATR30

ATR35S

46

46

46

46

47

47

47

47

ATR3M

ATR50

ATR55

ATR97

ATW-1451

ATW-1451/G

ATW-1451/H

ATW-1451/HC1

ATW-1451/HC2

ATW-1451/P

35

35

ATW-1452 35

ATW-1661 34

ATW-1661/G

ATW-1661/H

ATW-1661/HC1

ATW-1661/HC2

34

34

34

34

35

35

35

35

46

46

46

46

ATW-1661/P

ATW-1661/P1

ATW-1661/P2

ATW-1661/P3

ATW-1662

ATW-1663

ATW-3110

ATW-3110/G

ATW-3141

ATW-A20

ATW-A49

ATW-R14

ATW-R160

ATW-R310

ATW-RA1

ATW-T161

34

33

34

34

33

37

37

35

34

34

33

33

34

34

34

34

ATW-T162

ATW-T163

ATW-T310

ATW-T3110/H

ATW-T3110/HC1

ATW-T3110/HC2

ATW-T3110/P

ATW-T3110/P1

ATW-T3110/P2

ATW-T3110/P3

ATW-T341

ATW-T51

ATW-T52

ATW-VP10

ES905/C

ES905/H

ES905/ML

ES915/C

ES915/H

ES915/ML

35

37

26

26

33

33

33

35

26

24

24

24

33

33

33

33

34

34

33

33

Product Code Page

AT8471

AT849

AT851A

AT851CW

AT851RWX

AT851RX

AT851WA

AT8531

AT8533

AT8533X

AT8536

AT853A

AT853C-ELE 21

AT853H-ELE 21

AT853O-ELE 21

AT853RWX 21

41

41

29

21

23

23

23

41

42

18

23

36

AT853RX

AT853WA

AT854R

AT857AMA

AT857AMLA

AT857AMLCW

AT857AMLX

AT857AMX

AT857QMA

AT857QMLA

22

22

AT859QMLX 22

AT8601 42

AT8614

AT8615A

42

42

AT8615RS 42

AT8616 34

22

36

22

22

21

21

18

22

AT8616X

AT8628B

AT8628B

AT8628B

AT8630 33

AT8646AM 43

AT8646QM 43

AT8647QM/S 43

43

31

35

40

AT8651

AT8658

AT8681

AT8682

AT8683

AT8684

AT871R

AT871RW

41

41

23

23

43

43

41

41

AT873R

AT8801

AT889CW

AT891R

AT891R/C

AT895/RK

AT897

AT898

AT898AK

AT898AK

AT898C

AT898CW

AT899

AT899AK

AT899AK

AT899AK-TH

19

19

43

19

19

43

19

36

23

15

17

19

22

41

36

23

AT899AK-TH

AT899C

AT899C-TH

AT899CW

AT899CW-TH

AT91BL

36

47

AT95EBL 47

ATH910PRO 39

43

19

19

36

ATH-COM1 39

ATH-COM2 39

ATH-D40FS 38

ATH-M20 38

ATH-M30 38

ATH-M40FS 38

ATM10A

ATM23HE

9

11

ATM25

ATM27HE

ATM29HE

ATM31A

11

11

11

9

Product Code Page

ES915/O

ES917S/C

ES917S/H

ES917S/ML

ES917S/O

ES933/C

ES933/H

ES933/ML

ES933/O

ES933W/C

ES933W/H

ES933W/ML

ES933W/O

ES935/C

ES935/H

ES935/ML

ES935/O

ES935S/C

ES935S/H

ES935S/ML

ES935S/O

ES943/C

ES943/O

ES943CW/C

ES943CW/C

ES943CW/O

ES943CW/O

ES945

ES945W

ES947

ES947W

ES961

ES961P

ES961W

ES973

ES991

ES993

ES995

ESE-C

ESE-H

ESE-ML

ESE-O

KICK/TOM

KP-DRUMS

KP-VOCALS

MB1K

MB1K/C

MB2K

MB2K/C

MB3K

MB3K/C

MB4K

MB4K/C

MT350B

12

19

MT830C 19

MT830CW 36

12

12

12

12

MT830R

MT838B

MT838CW

PRO-25

PRO-35X

PRO35XCW

14

36

PRO-37R 14

PRO42 20

19

19

36

14

13

12

12

12

25

25

13

13

26

26

25

25

28

28

29

26

PRO44

PRO45

PRO45W

PRO47T

PRO47TL

PRO49Q

PRO49QL

PRO-4L

PRO-7A

PRO-8HE/S

PRO-8HECW

PRO-8HEX

PRO-95

SNARE/TOM

14

14

36

14

14

13

20

20

20

14

20

20

20

20

28

28

28

28

36

29

36

28

25

29

29

29

25

25

25

25

27

25

25

25

27

27

27

27

24

27

27

27

24

24

24

24

4916 • AT\EN\EU Cover 15/03/04 17:55 Page 5

Terms, Sales Policies & Limited Warranty

Prices and Sales Policy in Europe

(1) Prices featured in this catalogue are intended as an indication only of the current average prices for our products in continental Europe.

The price indications exclude VAT.

Please note that due to currency exchange rate fluctuations, varying taxation systems, differences in overheads and operating costs between European countries, prices may vary from country to country.

As our prices are recommended prices only, product prices may also vary between dealers and between distributors.

Audio-Technica Product Availability and Sales

Policies in Europe

The Audio-Technica products featured in this catalogue are available throughout Great Britain, Western and Eastern Europe, North Africa and the Middle East.

They are supplied through the European Division of Audio-Technica Ltd,

Leeds, UK.

Our products are available through a network of authorised distributors, as well as from dealers. The European Division of Audio-Technica Ltd does not sell directly to European end users.

Limited Warranty

All Audio-Technica products purchased from Audio-Technica Ltd are guaranteed for TWO years from date of purchase to be free of defects in materials and workmanship.

In the event of such defect, the product will be repaired or replaced without charge.

Such products should be returned to Audio-Technica Ltd or to the authorised distributor together with proof of purchase.

Before return to Audio-Technica Ltd European Division, prior authority must be sought from Audio-Technica Ltd.

Contact your local Audio-Technica authorised distributor or dealer before trying to obtain a return authorisation number from

Audio-Technica Ltd.

Wherever Audio-Technica has an authorised distributor, warranty terms will be exercised by the local Audio-Technica distributor. Please contact your local distributor for the warranty details. Shall the warranty period from the distributor/dealer exceed the Audio-Technica warranty period it will remain the responsibility of the distributor.

Shall the standard warranty terms of the distributor/dealer expire before those of Audio-Technica, the Audio-Technica terms will apply and the balance of the warranty period will be the European Division of

Audio-Technica Ltd. The Audio-Technica warranty excludes defects due to normal wear, abuse, shipping damage, or failure to use the product in accordance with the instructions.

This warranty is void in the event of unauthorised repair or modification, or removal or defacing of the product label and/ or serial number.

III

4916 • AT\EN\EU Cover 15/03/04 17:54 Page 2

2004 Product Catalogue

Audio-Technica Europe

A Division of Audio-Technica Ltd

Technica House

Royal London Industrial Estate

Old Lane, Leeds LS11 8AG England

Tel. : + 44 (0) 113 277 1441

Fax : + 44 (0) 113 270 4836 e-mail : [email protected]

www.audio-technica-europe.com

Form No. 0000-6129-00 - EUR 2004 Full-line Catalog-ENG-

©2004 Audio-Technica Ltd - Printed in France

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
