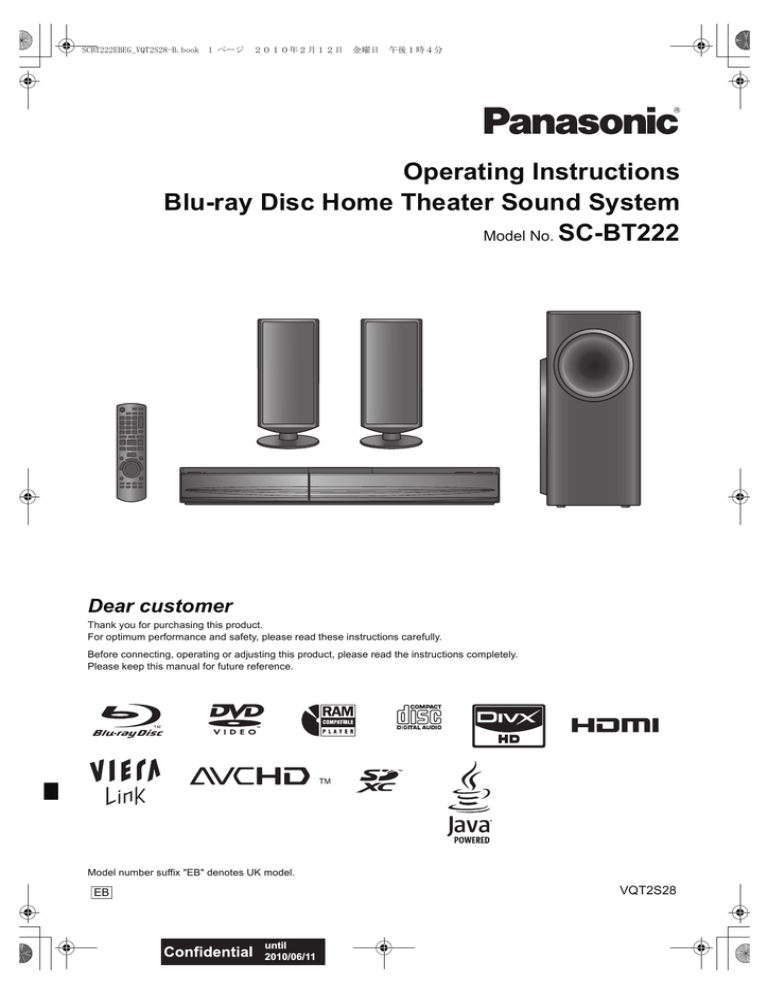

Operating Instructions
Blu-ray Disc Home Theater Sound System
Model No. SC-BT222
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Before connecting, operating or adjusting this product, please read the instructions completely.
Please keep this manual for future reference.
Model number suffix "EB" denotes UK model.
VQT2S28
EB
until
2010/06/11
SCBT222EBEG_VQT2S28-B.book 2 ページ
2010年2月12日 金曜日 午後1時4分
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
CAUTION!
≥ DO NOT INSTALL OR PLACE THIS UNIT IN A
BOOKCASE, BUILT-IN CABINET OR IN ANOTHER
CONFINED SPACE. ENSURE THE UNIT IS WELL
VENTILATED. TO PREVENT RISK OF ELECTRIC
SHOCK OR FIRE HAZARD DUE TO OVERHEATING,
ENSURE THAT CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT THE VENTILATION
VENTS.
≥ DO NOT OBSTRUCT THE UNIT’S VENTILATION
OPENINGS WITH NEWSPAPERS, TABLECLOTHS,
CURTAINS, AND SIMILAR ITEMS.
≥ DO NOT PLACE SOURCES OF NAKED FLAMES,
SUCH AS LIGHTED CANDLES, ON THE UNIT.
≥ DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY
FRIENDLY MANNER.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE,
≥ DO NOT EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND THAT
NO OBJECTS FILLED WITH LIQUIDS, SUCH AS
VASES, SHALL BE PLACED ON THE APPARATUS.
≥ USE ONLY THE RECOMMENDED ACCESSORIES.
≥ DO NOT REMOVE THE COVER (OR BACK); THERE
ARE NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
THIS UNIT IS INTENDED FOR USE IN MODERATE
CLIMATES.
This product may receive radio interference caused by
mobile telephones during use. If such interference is
apparent, please increase separation between the product
and the mobile telephone.
The socket outlet shall be installed near the equipment and
easily accessible.
The mains plug of the power supply cord shall remain
readily operable.
To completely disconnect this apparatus from the AC
Mains, disconnect the power supply cord plug from AC
receptacle.
VQT2S28
2
(Side of product)
(Inside of product)
SCBT222EBEG_VQT2S28-B.book 3 ページ
2010年2月12日 金曜日 午後1時4分
Caution for AC Mains
Lead
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains plug
for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the
replacement fuse has a rating of 5-ampere and that it is
approved by ASTA or BSI to BS1362.
Check for the ASTA mark Ï or the BSI mark Ì on the body of
the fuse.
If the plug contains a removable fuse cover you must ensure
that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a
replacement cover is obtained.
A replacement fuse cover can be purchased from your local
dealer.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of AC
mains plug (figures A and B). Confirm the AC mains plug fitted
and follow the instructions below.
Illustrations may differ from actual AC mains plug.
1
Open the fuse cover with a screwdriver.
Figure A
Figure B
Fuse cover
2
Replace the fuse and close or attach the fuse cover.
Figure A
Figure B
Fuse
(5 ampere)
Fuse
(5 ampere)
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR
THE SOCKET OUTLET IN YOUR HOME THEN THE
FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF
AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL
SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY
13-AMPERE SOCKET.
If a new plug is to be fitted please observe the wiring code as
stated below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accordance with
the following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured
markings identifying the terminals in your plug, proceed as
follows:
The wire which is coloured Blue must be connected to the
terminal which is marked with the letter N or coloured Black or
Blue.
The wire which is coloured Brown must be connected to the
terminal which is marked with the letter L or coloured Brown or
Red.
WARNING: DO NOT CONNECT EITHER WIRE TO THE
EARTH TERMINAL WHICH IS MARKED WITH THE LETTER
E, BY THE EARTH SYMBOL Ó OR COLOURED GREEN
OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF—KEEP DRY.
VQT2S28
3
SCBT222EBEG_VQT2S28-B.book 4 ページ
2010年2月12日 金曜日 午後1時4分
Safety precautions
Placement
Set the unit up on an even surface away from direct sunlight,
high temperatures, high humidity, and excessive vibration.
These conditions can damage the cabinet and other
components, thereby shortening the unit’s service life. Do not
place heavy items on the unit.
Voltage
Do not use high voltage power sources. This can overload the
unit and cause a fire. Do not use a DC power source. Check
the source carefully when setting the unit up on a ship or other
place where DC is used.
AC mains lead protection
Ensure the AC mains lead is connected correctly and not
damaged. Poor connection and lead damage can cause fire or
electric shock. Do not pull, bend, or place heavy items on the
lead.
Grasp the plug firmly when unplugging the lead. Pulling the AC
mains lead can cause electric shock. Do not handle the plug
with wet hands. This can cause electric shock.
Foreign matter
Do not let metal objects fall inside the unit. This can cause
electric shock or malfunction.
Do not let liquids get into the unit. This can cause electric
shock or malfunction. If this occurs, immediately disconnect
the unit from the power supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain
flammable gases which can ignite if sprayed into the unit.
Service
Do not attempt to repair this unit by yourself. If sound is
interrupted, indicators fail to light, smoke appears, or any other
problem that is not covered in these instructions occurs,
disconnect the AC mains lead and contact your dealer or an
authorized service centre. Electric shock or damage to the unit
can occur if the unit is repaired, disassembled or reconstructed
by unqualified persons.
Extend operating life by disconnecting the unit from the power
source if it is not to be used for a long time.
VQT2S28
4
Information for Users on Collection and Disposal of
Old Equipment and used Batteries
These symbols on the products, packaging,
and/or accompanying documents mean that
used electrical and electronic products and
batteries should not be mixed with general
household waste.
For proper treatment, recovery and recycling
of old products and used batteries, please
take them to applicable collection points, in
accordance with your national legislation and the Directives
2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you
will help to save valuable resources and prevent any
potential negative effects on human health and the
environment which could otherwise arise from
inappropriate waste handling.
For more information about collection and recycling of old
products and batteries, please contact your local
municipality, your waste disposal service or the point of
sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this
waste, in accordance with national legislation.
For business users in the European
Union
If you wish to discard electrical and
electronic equipment, please contact your
dealer or supplier for further information.
[Information on Disposal in other Countries outside the
European Union]
These symbols are only valid in the European Union. If you
wish to discard these items, please contact your local
authorities or dealer and ask for the correct method of
disposal.
Cd
Note for the battery symbol (bottom two
symbol examples):
This symbol might be used in combination
with a chemical symbol. In this case it
complies with the requirement set by the
Directive for the chemical involved.
SCBT222EBEG_VQT2S28-B.book 5 ページ
2010年2月12日 金曜日 午後1時4分
Getting started
Table of contents
Getting started
TV
Accessory .......................................................... 6
Unit and media care .......................................... 7
Using the remote control ................................... 7
Control reference guide ..................................... 8
Enjoying TV with unit’s speakers .....................25
STEP 4 : AC mains lead connection ............... 16
STEP 5: Easy setup ......................................... 16
STEP 6:
Reprogramming the remote control ................. 17
Inserting or removing a media ......................... 17
START menu ................................................... 18
Enjoying various sound effects ........................ 19
•Enjoying surround sound effects ....................................19
Playback
Playing video contents .................................... 20
•Other operations during play ..........................................20
•Useful functions ..............................................................21
•Enjoying BONUSVIEW in BD-Video................................21
•Regarding DivX ..............................................................22
Playing music .................................................. 22
Playing still pictures ......................................... 23
•Useful functions ..............................................................23
Radio
Listening to the Radio ...................................... 24
Radio
Other devices
Using the iPod/iPhone ..................................... 28
•iPod/iPhone Connection ................................................ 28
•iPod/iPhone Playback .................................................... 28
Advanced operations
TV
•Speaker cable connection ..............................................13
•Radio antenna connection ..............................................13
•Connection to a TV .........................................................14
•Setting the audio link ...................................................... 26
•Easy control only with VIERA remote control ................ 27
Playback menu ................................................ 29
Setup menu .....................................................31
Other devices
STEP 1: Preparing the speakers ..................... 12
STEP 2: Positioning ........................................ 12
STEP 3: Connections ...................................... 13
Linked operations with the TV
(VIERA Link “HDAVI ControlTM”) ...................... 26
Optional speaker settings
Speaker installation option ............................... 35
Advanced operations
Playable discs/Cards/USB devices ................. 10
•Surround sound effects .................................................. 25
•Sound modes ................................................................. 25
•Making settings for digital audio input ............................ 25
Reference
Troubleshooting guide ..................................... 36
Messages ........................................................ 39
About MP3/JPEG/DivX/
AVCHD/MPEG2 files .......................................40
Supplemental information ................................ 42
Glossary ...........................................................43
Specifications ...................................................44
Index ................................................. Back Cover
Optional speaker
settings
•Remote control .................................................................8
•Main unit (Front) ...............................................................9
•Main unit (Rear) ................................................................9
Playback
Caution for AC Mains Lead ................................ 3
Safety precautions.............................................. 4
Reference
•Presetting stations automatically ....................................24
•Presetting stations manually ...........................................24
•Listening/confirming the preset channels .......................24
•RDS broadcasting ..........................................................24
VQT2S28
5
SCBT222EBEG_VQT2S28-B.book 6 ページ
2010年2月12日 金曜日 午後1時4分
Getting started
Operations in these instructions are described mainly with the remote control, but you can perform the operations on
the main unit if the controls are the same.
System
SC-BT222
Main unit
SA-BT222
Front speakers
SB-HF222
Subwoofer
SB-HW480
≥Some models may not be on sale in certain regions.
≥Some accessories and external devices mentioned in these operating instructions that are not included with this
product may not be on sale in certain regions.
Accessory
Check the supplied accessories before using this unit.
∏ 1 Remote control
(N2QAKB000091)
∏
Speaker cables
(Front)
[REEX1152A]
with red connector
[REEX1153A]
with white connector
∏
2 Batteries for
remote control
∏ 1 Video cable
(K2KA2BA00001)
∏ 1 FM indoor antenna
(RSAX0002)
∏ 1 Antenna plug
adaptor
(K1YZ02000013)
∏ 1 AC mains lead
(RFAX1022)
≥ Product numbers correct as of January 2010. These may be subject to change.
≥ Do not use AC mains lead with other equipment.
∫ Sales and Support Information
Customer Care Centre
≥ For customers within the UK: 0844 844 3852
≥ For customers within the Republic of Ireland: 01 289 8333
≥ Visit our website for product information
www.panasonic.co.uk
≥ E-mail: customer.care@panasonic.co.uk
VQT2S28
6
Direct Sales at Panasonic UK
≥ For customers: 0844 844 3856
≥ Order accessory and consumable items for your product with ease
and confidence by phoning our Customer Care Centre
Monday–Thursday 9:00 a.m.–5:30 p.m., Friday 9:30 a.m.–5:30 p.m.
(Excluding public holidays)
≥ Or go on line through our Internet Accessory ordering application at
www.pas-europe.com
≥ Most major credit and debit cards accepted.
≥ All enquiries transactions and distribution facilities are provided
directly by Panasonic UK Ltd.
≥ It couldn’t be simpler!
≥ Also available through our Internet is direct shopping for a wide range
of finished products, take a browse on our website for further details.
2010年2月12日 金曜日 午後1時4分
Unit and media care
∫ Clean this unit with a soft, dry cloth
Using the remote
control
≥ Never use alcohol, paint thinner or benzine to clean this unit.
≥ Before using chemically treated cloth, carefully read the
instructions that came with the cloth.
Insert so the poles (i and j) match those in the remote
control.
Getting started
SCBT222EBEG_VQT2S28-B.book 7 ページ
∫ Clean the lens with the lens cleaner
Lens cleaner: RP-CL720E
≥ This lens cleaner may not be available for sale in all
countries, e.g. not available in Germany, please consult
your Panasonic dealer for advice.
≥ This lens cleaner is primarily for use on Panasonic DVD
recorders (DIGA), but it is also suitable for use on this unit.
R6/LR6, AA
(Alkaline or manganese
batteries)
∫ Clean discs
DO
DO NOT
Point it at remote control signal sensor on this unit. (> 9)
Wipe with a damp cloth and then wipe dry.
∫ Disc and card handling precautions
≥ Handle discs by the edges to avoid inadvertent scratches or
fingerprints on the disc.
≥ Do not attach labels or stickers to discs.
≥ Do not use record cleaning sprays, benzine, thinner, static
electricity prevention liquids or any other solvent.
≥ Clean any dust, water, or foreign matter from the terminals
on the rear side of the card.
≥ Do not use the following discs:
jDiscs with exposed adhesive from removed stickers or
labels (rented discs etc).
jDiscs that are badly warped or cracked.
jIrregularly shaped discs, such as heart shapes.
Mishandling of batteries can cause electrolyte leakage which can damage
items the fluid contacts and may cause a fire.
≥ Do not mix old and new batteries or different types at the same time.
≥ Do not heat or expose to flame.
≥ Do not leave the battery(ies) in an automobile exposed to direct sunlight for
a long period of time with doors and windows closed.
≥ Do not take apart or short circuit.
≥ Do not attempt to recharge alkaline or manganese batteries.
≥ Do not use batteries if the covering has been peeled off.
Remove batteries if the remote control is not going to be used for a long
period of time. Store in a cool, dark place.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions.
∫ To dispose or transfer this unit
The unit may keep the user settings information in the unit. If
you discard this unit either by disposal or transfer, then follow
the procedure to return all the settings to the factory presets to
delete the user settings. (> 36, “To return to the factory
preset.”)
≥ The operation history may be recorded in the memory of this
unit.
VQT2S28
7
SCBT222EBEG_VQT2S28-B.book 8 ページ
2010年2月12日 金曜日 午後1時4分
Control reference guide
1
VOL
SLEEP
3
1
4
7
CANCEL
BD/SD
4
1
2
AV
2
2
5
8
0
3
6
9
VOL
MUTE
PIP
iPod
SEARCH
RADIO
EXT-IN
PLAY
SEARCH
5
PAUSE
SKIP
STOP
STATUS
6
16
18
EN
U
8
OPTION
M EN U
OK
11
12
SOUND SURROUND DISPLAY
-CH SELECT
20
9
10
21
RETURN
9
10
4
5
6
7
8
19
P
-UP
7
START
3
EXIT
OP
DIRECT
NA
TOP M VIGAT
OR
≥ Timer selection is up to 120 minutes.
≥ Select “OFF” when cancelling the setting.
≥ To confirm the remaining time
Press and hold the button again.
15
17
22
11
23
12
13
AUDIO
24
14
15
16
17
18
19
20
21
22
23
24
VQT2S28
8
Turn the unit on and off (> 16)
Set the sleep timer
1 Press [SLEEP].
2 While “SLEEP ££” is displayed, press [SLEEP]
several times to select the time (in minutes).
14
SLOW
SKIP
Remote control
13
TV
Select title numbers, etc./Enter numbers
[CANCEL] : Cancel
Basic playback control buttons (> 20)
Select preset radio stations (> 24)
Show status messages (> 20)
Show Top Menu/DIRECT NAVIGATOR (> 20)
[3, 4, 2, 1]: Menu selection
[OK]: Selection
[2, 1]: Select preset radio station (> 24)
[2] (2;), [1] (;1): Frame-by-frame (> 20)
Show OPTION menu (> 21)
Coloured buttons (red, green yellow, blue)
These buttons are used when;
≥ Operating a BD-Video disc that includes JavaTM
applications (BD-J).
≥ Displaying “Title View” and “Album View” screens.
(> 23)
Set the sound mode (> 19)/Select speaker channel
(> 19)
Select surround sound effects (> 19)
TV operation buttons
You can operate the TV through the unit’s remote control.
[Í]: Turn the television on and off
[AV]: Switch the input select
[i j VOL] : Adjust the volume
Adjust the volume of the main unit
Mute the sound
≥ “MUTE” flashes on the unit’s display, while the function is
on.
≥ To cancel, press the button again or adjust the volume.
≥ Muting is cancelled if the unit is turned off.
Switch on/off Secondary Video (Picture-in-picture) (> 21)
Select the source
[BD/SD]: Select disc drive or SD card drive (> 18)
[iPod]: Select iPod/iPhone as the source (> 18, 28)
[RADIO/EXT-IN]: Select FM tuner, USB or external audio
as the source (> 18, 24, 25)
Select radio stations manually (> 24)
Exit the menu screen
Show START menu (> 18)
Show Pop-up menu (> 20)
Return to previous screen
Select audio (> 20)
Show Playback menu (> 29)
SCBT222EBEG_VQT2S28-B.book 9 ページ
2010年2月12日 金曜日 午後1時4分
1 2
4
3
VOLUME
Getting started
Main unit (Front)
5
OPEN/CLOSE
iPod
Pull open.
SD CARD
6
1
2
3
4
5
6
SELECTOR
7
Standby/on switch (Í/I) (> 16)
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a small
amount of power.
Power indicator
The indicator lights when this unit is turned on.
Connect iPod/iPhone (> 28)
Adjust the volume of the main unit
Open or close the disc tray (> 17)
Disc tray
8
7
9
10 11 12 13
SD card slot (> 17)
8 USB port (> 17)
9 Display (FL display)
10 Remote control signal sensor
Distance: within approx. 7 m.
Angle: Approx. 20e up and down, 30e left and right
11 Select the source (> 18)
12 Stop (> 20)
13 Start play (> 20)
∫ If the front cover comes off
1 Hold rear side of main unit by one hand and match up left
or right side protruding hook on the cover first with the
corresponding slot on the unit.
2 Push the hook firmly towards the unit until it clicks into
place. Then push the succeeding hooks one by one until
all have clicked into place.
3 Check that the cover now moves correctly.
≥ If it does not, remove it and repeat the above procedure.
Main unit (Rear)
1
2
3
4
5
6
DIGITAL AUDIO IN
AC IN
OPTICAL
OPTICAL
L
+
-
1
2
AV
AV
OUT
R
6Ω
SUBWOOFER
R 3Ω L
FRONT
(ARC)
VIDEO
OUT
AUX
FM ANT
(75 Ω )
7 8
1
2
3
4
5
AC IN terminal (> 16)
Speaker terminals (> 13)
Cooling fan
HDMI AV OUT terminal (> 15)
FM radio antenna terminal (> 13)
6
DIGITAL AUDIO IN terminals (> 14 , 15)
Terminal 1 is designated for connection with the TV.
Terminal 2 can be used with equipment other than the
STB.
7
8
VIDEO OUT terminal (> 14)
AUX terminal (> 14)
VQT2S28
9
SCBT222EBEG_VQT2S28-B.book 10 ページ
2010年2月12日 金曜日 午後1時4分
Playable discs/Cards/USB devices
Type
Logo examples
[BD]
Type detail
BD-Video
Video
BD-RE
Video
JPEG
BD-R
Video
DivX®
DVD-Video
Video
DVD-RAM
Video
AVCHD
JPEG
DVD-R
[DVD]
DVD-R DL
DVD-RW
—
[CD]
—
Playable contents*
+R/+RW/+R DL
Video
AVCHD
DivX
MP3
JPEG
Video
AVCHD
Music CD
Music [CD-DA]
CD-R
CD-RW
DivX
Music [CD-DA]
MP3
JPEG
SD Memory Card ( 8 MB to 2 GB)
(Includes miniSD Card and microSD Card)
MPEG2
AVCHD
SDXC Memory Card (48 GB, 64 GB) JPEG
SDHC Memory Card ( 4 GB to 32 GB)
[SD]
(Includes microSDHC Card)
(Includes microSDXC Card)
(as of December 2009)
[USB]
—
USB device
(up to 128 GB)
* See page 11, 40–41 for more information on the types of content that can be played.
VQT2S28
10
DivX
MP3
JPEG
2010年2月12日 金曜日 午後1時4分
∫ Discs that cannot be played in this unit
Any other disc that is not specifically supported or
previously described.
≥ 2.6 GB and 5.2 GB DVD-RAM
≥ DVD-RAM that cannot be removed from cartridge
≥ Super Audio CD
≥ Photo CD
≥ DVD-Audio
≥ Video CD and Super Video CD
≥ WMA discs
≥ HD DVD
∫ Region management information
BD-Video
This unit plays BD-Video marked with labels containing the
region code “B”.
Example:
∫ SD card
≥ MiniSD Cards, microSD Cards, microSDHC
Cards and microSDXC Cards can be used, but
must be used with an adaptor card. These are
usually supplied with such cards, or otherwise
customer provided.
≥ Keep the Memory Card out of reach of children to
prevent swallowing.
≥ To protect the card’s contents, move the record prevention
tab (on the SD card) to “LOCK”.
≥ This unit is compatible with SD Memory Cards that meet SD
Card Specifications FAT12 and FAT16 formats, as well as
SDHC Memory Cards in FAT32 format (Does not support
long file name.) and SDXC Memory Cards in exFAT.
≥ If the SD card is used with incompatible computers or
devices, recorded contents may be erased due to the card
being formatted etc.
≥ Useable memory may be slightly less than the card capacity.
Getting started
SCBT222EBEG_VQT2S28-B.book 11 ページ
∫ USB device
DVD-Video
This unit plays DVD-Video marked with labels containing the
region number “2” or “ALL”.
Example:
2
ALL
1
2
≥ This unit supports connecting a USB memory, digital camera
and video camera produced by Panasonic, etc. It is not
warranted that all USB devices will work with this unit.
≥ This unit does not support USB device charging.
≥ FAT12, FAT16 and FAT32 file systems are supported.
≥ This unit supports USB 2.0 High Speed.
4
∫ Finalize
DVD-R/RW/R DL, +R/+RW/+R DL and CD-R/RW recorded by
a recorder, etc. needs to be finalized by the recorder to play on
this unit. Please refer to the recorder’s instructions.
∫ BD-Video
This unit supports high bit rate audio (Dolby Digital Plus, Dolby
TrueHD, DTS-HD High Resolution Audio and DTS-HD Master
Audio) adopted in BD-Video. In order to enjoy these audio
formats, refer to page 32.
∫ Music CD
Operation and sound quality of CDs that do not conform to
CD-DA specifications (copy control CDs, etc.) cannot be
guaranteed.
≥ It may not be possible to play the above media in some cases due to the type of media, the condition of the recording, the recording method and how the files
were created.
≥ The producers of the disc can control how discs are played. So you may not always be able to control play as described in these operating instructions. Read
the disc’s instructions carefully.
VQT2S28
11
SCBT222EBEG_VQT2S28-B.book 12 ページ
2010年2月12日 金曜日 午後1時4分
STEP 1: Preparing the
speakers
≥ Connecting the speaker cables. Insert the wire fully, taking
care not to insert beyond the wire insulation.
e.g. Front speaker
r: White
s: Blue line
STEP 2: Positioning
Caution
≥ The main unit and supplied speakers are to be used
only as indicated in this setup. Failure to do so may
lead to damage to the amplifier and/or the speakers,
and may result in the risk of fire. Consult a qualified
service person if damage has occurred or if you
experience a sudden change in performance.
≥ Do not attempt to attach these speakers to walls using
methods other than those described in this manual.
≥ Do not touch the front netted area of the speakers. Hold
by the sides.
How you set up your speakers can affect the bass and the
sound field.
Setup example
Push!
Place the front speakers at approximately the same distance
from the seating position. The angles in the diagram are
approximate.
≥ Keep your speakers at least 10 mm away from the system for proper
ventilation.
≥ For wall mount, refer to page 35.
≥ Be careful not to cross (short-circuit) or reverse the polarity of the
speaker wires as doing so may damage the speakers.
≥ To avoid injury by falling or dropping the speaker, place the speaker cables
with care not to stumble or hook.

60°60°


A Front speakers
B Subwoofer
≥ Use only supplied speakers
Using other speakers can damage the unit, and sound quality will be
negatively affected.
≥ You can damage your speakers and shorten their useful life if you play
sound at high levels over extended periods.
≥ Place speakers on flat secure bases.
≥ Placing speakers too close to floors, walls, and corners can result in
excessive bass. Cover walls and windows with thick curtains.
∫ If irregular colouring occurs on your TV,
turn the TV off for about 30 minutes.
If it persists, move the speakers further away from the TV.
VQT2S28
12
SCBT222EBEG_VQT2S28-B.book 13 ページ
2010年2月12日 金曜日 午後1時4分
Turn off all equipment before connection and read the appropriate operating instructions.
Do not connect the AC mains lead until all other connections are complete.
Speaker cable connection
Connect to the terminals of the same colour.
PURPLE
Subwoofer
RED
Front speaker (Rch)
WHITE
Front speaker (Lch)
Getting started
STEP 3: Connections
Main unit
+
-
+
-
6Ω
SUBWOOFER
R 3Ω L
6Ω
SUBWOOFER
FRONT
R 3Ω L
FRONT
Radio antenna connection
Using an indoor antenna

Main unit

A FM indoor antenna (included)
B Adhesive tape
Affix this end of the antenna where reception is best.
FM ANT
(75 )
Using an outdoor antenna
Use outdoor antenna if FM radio reception is poor.

Main unit
FM ANT
(75Ω )


A FM outdoor antenna [Using a TV antenna
(not included)]
The antenna should be installed by a competent technician.
B 75 ≠ coaxial cable (not included)
C Antenna plug adaptor
≥ Keep the adaptor out of reach of children to prevent swallowing.
VQT2S28
13
SCBT222EBEG_VQT2S28-B.book 14 ページ
2010年2月12日 金曜日 午後1時4分
Connection to a TV
≥ Do not make the video connections through the VCR.
Due to copy guard protection, the picture may not be displayed properly.
≥Turn off all equipment before connection.
≥ Please use High Speed HDMI Cables that have the HDMI
∫ OPTICAL IN
logo (as shown on the cover). It is recommended that you
≥ After making the digital audio connection, make settings to
use Panasonic’s HDMI cable. When outputting 1080p signal,
suit the type of audio from your digital equipment (> 25).
please use HDMI cables 5.0 meters or less.
Recommended part number:
∫ HDMI
RP-CDHS15 (1.5 m), RP-CDHS30 (3.0 m),
The HDMI connection supports VIERA Link “HDAVI Control”
RP-CDHS50 (5.0 m), etc.
(> 26) when used with a compatible Panasonic TV.
Basic connection
TV
VIDEO IN
AUDIO IN
AUDIO OUT
L
L
R
R


AUX
L
A Video cable (included)
B Audio cable (not included)
1
AV
OUT
R
VIDEO
OUT
AUX
AUX
VIDEO OUT
≥To enjoy TV audio from this home theatre system’s speakers, select "AUX (TV)" as a source (> 18).
Connection for the better audio
VIDEO IN
TV
OPTICAL
OUT
AUDIO IN
L
R


DIGITAL AUDIO IN
OPTICAL
L
R
VIDEO
OUT
1
2
OPTICAL 1
A Video cable (included)
B Optical digital audio cable (not included)
AUX
VIDEO OUT
≥To enjoy TV audio from this home theatre system’s speakers, select “DIGITAL IN 1 (TV)” or “D-IN 1” as a source.
e.g.,
VIDEO IN
AV1


VQT2S28
14
If the TV does not have a VIDEO IN terminal, connect using
a Scart adaptor (Scart—VIDEO IN).
A Scart adaptor (not included)
B Video cable (included)
SCBT222EBEG_VQT2S28-B.book 15 ページ
2010年2月12日 金曜日 午後1時4分
TV
Getting started
Connection for the best picture and audio
OPTICAL
OUT
AV IN


DIGITAL AUDIO IN
OPTICAL
OPTICAL
L
1
2
AV
AV
OUT
R
VIDEO
OUT
(ARC)
FM ANT
(75 Ω )
AUX
OPTICAL 1
A HDMI cable (not included)
B Optical digital audio cable (not included)
≥ For the TV audio, an audio cable (not included) can be also
used by connecting the AUX terminal with the AUDIO OUT
terminal on the TV.
HDMI AV OUT (ARC)
≥To enjoy TV audio from this home theatre system’s speakers, select “DIGITAL IN 1 (TV)” or “D-IN 1” as a source (> 18).
ARC (Audio Return Channel)
(Available when using an ARC compatible TV)
With this function it is possible to receive the digital audio signal from the TV without connecting any other audio cables.
≥Select “ARC (TV)” as the audio input source (> 18)
≥Refer to the operating instructions of the TV for the settings to output digital audio.
Connection with Set Top Box, etc.
Refer to the operating instructions of the respective
devices for the optimal connections.

TV
OPTICAL
OUT

DIGITAL AUDIO IN
OPTICAL
L
R
AUX
1
2
OPTICAL 2
A Optical digital audio cable (not included)
B Set Top Box, cable TV, VCR, DVD recorder, etc.
≥To enjoy TV audio from this home theatre system’s speakers, select “DIGITAL IN 2 (CABLE/SAT)” or “D-IN 2” as a source
(> 18).
NECESSARY SETTINGS
≥ “HDMI Audio Output” : “Off” (> 34)
VQT2S28
15
SCBT222EBEG_VQT2S28-B.book 16 ページ
2010年2月12日 金曜日 午後1時4分
STEP 4 : AC mains lead connection
BE SURE TO READ THE CAUTION FOR THE AC
MAINS LEAD ON PAGE 4 BEFORE CONNECTION.
≥ Connect only after all other connections are complete.
≥ The main unit consumes a small amount of AC power, even
when it is turned off ( when the “Quick Start” setting is “Off”:
approx. 0.2 W). In the interest of power conservation, if you
will not be using this unit for a long time, unplug it from the
household mains socket.
≥ Do not use any other AC mains lead except the supplied one.
AC IN
+
6Ω
SUBWOOFER

R 3Ω L
FRONT
Main unit

A AC mains lead (included)
B To a household mains
socket
STEP 5: Easy setup
The Easy setup assists you to make necessary
settings.
Follow the on-screen prompts to make basic settings for the
system.
1
2
Press [Í].
Follow the on-screen instructions and
make the settings with [3, 4, 2, 1] and
press [OK].
Language
Select the language used on menu screen.
TV Aspect
Select the aspect to suit your TV and preference.
Speaker check
Check if the connection to each speaker is valid.
TV Audio
Select the audio input connection from your TV,
[item with “(TV)”].
OK
Quick Start
Speed of startup from standby mode is increased.
OK
Preparation
≥ Turn on your TV and select the appropriate video input mode
(e.g., VIDEO 1, AV 1, HDMI, etc.) to suit the connections to
this unit.
VQT2S28
16
3
Press [OK] several times to finish the “Easy
setup”.
≥ You can perform this setup anytime by selecting “Easy setup” in the Setup
menu. (> 34)
≥ Language and TV Aspect settings are automatically retrieved If this unit is
connected to a Panasonic TV (VIERA) supporting HDAVI Control 2 or later
via an HDMI cable.
2010年2月12日 金曜日 午後1時4分
STEP 6:
Reprogramming the
remote control
Inserting or removing a
media
When other Panasonic products respond to this
remote control
Change “Remote Control” (> 34) on the main unit and the
remote control (the two must match) if you place other
Panasonic products close together and it responds to this
remote control.
Getting started
SCBT222EBEG_VQT2S28-B.book 17 ページ
SD CARD
To change the code on the main unit.
1
2
While stopped, press [START].
Press [3, 4] to select “To Others” and
press [OK].
3
Press [3, 4] to select “Setup” and press
[OK].
4
Press [3, 4] to select “General” and press
[OK].
5
Press [3, 4] to select “Remote Control”
and press [OK].
6
Press [3, 4] to select the code (1 or 2) and
press [OK].
To change the code on the remote control.
1
While pressing [OK]
Press and hold the numbered button (1 or
2), which has the same number you
selected in the step 6 for more than 5
seconds.
2
≥ When inserting a media, ensure that it is facing the right way
up.
≥ While the reading indicator is displayed, do not turn off the
unit or remove the media. Such action may result in loss of
the media’s contents.
≥ When removing the SD card, press on the centre of the card
and pull it straight out.
≥ If you connect a Panasonic product with a USB connection
cable, setup screen may be displayed on connected
equipment. For details, refer to the instructions for the
connected equipment.
∫ To switch sources
Press [BD/SD] or [EXT-IN] to select “BD/DVD”, “SD” or
“USB” .
≥ If a media is inserted while the unit is stopped, the source
switches automatically depending on the inserted media.
Press [OK].
VQT2S28
17
SCBT222EBEG_VQT2S28-B.book 18 ページ
2010年2月12日 金曜日 午後1時4分
START menu
Major functions of this unit can be operated from the START
menu.
1
2
Playlists:
You can play playlists
created on DVD-VR.
To Others
Setup: (> 31)
Press [START].
Card Management: (> 21)
Press [3, 4] to select the item and press
[OK].
To exit the screen
Press [START].
e.g., BD-Video
∫ Selecting the source by the remote control
Home Cinema
START
Button
BD-Video
Source
Playback
Top Menu
BD/SD
iPod
Input Selection
Sound(Equalizer)
RADIO
EXT-IN
To Others
OK
RETURN
Playback
Viewing Picture
Play back the contents.
Top Menu
(> 20)
Menu
(> 20)
Switches to each source
BD/DVD or SD card (SD) (> 20)
iPod (IPOD) (> 28)
FM Radio (FM) (> 24)
AUX*1 (> 25)
USB (> 20)
ARC*1 (> 25)
DIGITAL IN 1*1 (D-IN 1) (> 25)
DIGITAL IN 2*2 (D-IN 2) (> 25)
*1 “(TV)” is displayed next to items set for
TV AUDIO input.
*2 “(CABLE/SAT)” is displayed next to
DIGITAL IN when set for CABLE/SAT
AUDIO input.
To enjoy sound from the TV
Select one source from either “AUX (TV)”,
“ARC (TV)” or “DIGITAL IN 1 (TV)”.
BD/DVD/CD
SD card
iPod
Input Selection
FM Radio:
To enjoy the FM radio
(> 24)
USB device
AUX*1:
To enjoy TV broadcasts with
this unit’s speakers (> 25)
ARC*1: To enjoy TV
broadcasts with this unit’s
speakers (> 25)
DIGITAL IN 1*1:
To enjoy TV broadcasts with
this unit’s speakers (> 25)
*1
“(TV)” is displayed next to
items set for TV AUDIO input.
DIGITAL IN 2*2:
To enjoy audio from other
devices with this unit’s
speakers (> 25)
*2
“(CABLE/SAT)” is displayed
next to DIGITAL IN 2 when set
for CABLE/SAT AUDIO input.
To enjoy sound from the
TV
Select one source from
either “AUX (TV)”, “ARC
(TV)” or “DIGITAL IN 1 (TV)”.
Sound(Equalizer)
VQT2S28
18
(> 19)
≥ Items to be displayed may vary with the media.
2010年2月12日 金曜日 午後1時4分
Enjoying various
sound effects
Enjoying surround sound
effects
Press [SURROUND] several times to select the
effect.
7.1CH VS (7.1CH Virtual Surround)
You can enjoy 5.1/6.1/7.1-channel surround-like effect
using 2.1-channel speakers.
2CH STEREO
You can play any source in stereo. Sound will be
output to the front speakers and the subwoofer only.
∫ Adjusting speaker level during play
1 Press and hold [jCH SELECT] to activate the speaker
setting mode.
2 Press [jCH SELECT] several times to select the speaker.
Each time you press the button:
L R_) SW
^"""""b
L R: Front speaker (left and right:only the balance
is adjustable.)
≥ Press [2, 1] to adjust the balance of the front
speakers.
SW:Subwoofer
3 Press [3] (increase) or [4] (decrease) to adjust the
speaker level for each speaker.
s6 dB to r6 dB
∫ Changing the sound modes
1 Press [SOUND] several times to select the mode.
≥ The selected mode will only be displayed on the main
unit.
2 While the selected mode is displayed
Press [2, 1] and select the desired setting.
EQ: (Equalizer)
You can select sound quality settings.
FLAT
Cancel (no effect is added).
HEAVY
Adds punch to rock.
CLEAR
Clarifies higher sounds.
SOFT
For background music.
SUB W: (Subwoofer level)
You can adjust the amount of base.
1 (Weakest effect) to 4 (Strongest effect)
≥ The setting you make is retained, and recalled every
time you play the same type of source.
H.BASS
You can enhance low-frequency sound so that heavy
bass sound can be heard clearly, even if the acoustics
of your room are not optimal.
≥ The setting you make is retained, and recalled every
time you play from the same type of source.
W.SRND: (Whisper-mode Surround)
You can enhance the surround effect for low volume
sound. (Convenient for late night viewing.)
Getting started
SCBT222EBEG_VQT2S28-B.book 19 ページ
≥ The sound effects/modes may not be available or have no effect with some
sources.
≥ You may experience a reduction in sound quality when these sound
effects/modes are used with some sources. If this occurs, turn the sound
effects/modes off.
VQT2S28
19
SCBT222EBEG_VQT2S28-B.book 20 ページ
2010年2月12日 金曜日 午後1時4分
Playing video contents
Playback
These functions may not work depending on the media and
contents.
[BD] [DVD] [CD] [SD] [USB]
Preparation
Turn on the television and select the appropriate video input on
the television.
1
2
Other operations during play
Stop
Press [∫ STOP].
The stopped position is memorized.
Press [Í] to turn on the unit.
Insert the media.
Play starts.
≥ If the menu is displayed, press [3, 4, 2, 1] to select
the item and press [OK].
≥ If play does not start, press [1 PLAY].
∫ To show menus
You can display Top Menu, DIRECT NAVIGATOR or Pop-up
Menu.
Press [TOP MENU/DIRECT NAVIGATOR] or [POP-UP
MENU].
≥ Press [3, 4, 2, 1] to select the item and press [OK].
≥ Pop-up menu also appears by pressing [OPTION] and
selecting “Pop-up Menu”.
Resume play function
Press [1 PLAY] to restart from this position.
≥ The position is cleared if the tray is opened or you press
[∫ STOP] several times to display “STOP” on unit’s display.
≥ On BD-Video discs including BD-J (> 43), the resume
play function does not work.
Pause
Press [;PAUSE].
≥ Press [;PAUSE] again or [1 PLAY] to restart play.
Search/Slow-motion
Search
∫ To show the status messages
While playing, press [STATUS].
The status messages give you information about what is
currently being played. Each time you press [STATUS], the
information displayed will change.
e.g. BD-Video
While playing, press [SEARCH6] or [SEARCH5].
≥ Music and MP3: The speed is fixed to a single step.
Slow-motion
While paused, press [SEARCH6] or [SEARCH5].
≥ BD-Video and AVCHD: Forward direction [SEARCH5]
only.
The speed increases up to 5 steps.
≥ Press [1 PLAY] to revert to normal playback speed.
T: Title, C: Chapter, PL: Playlist
Elapsed time in the title
 T1
C1
BD-Video
0:05.14
0:20.52
Current position
Skip
PLAY
Total time
≥ Signal from PAL discs is output as PAL. Signal from NTSC discs is output
as “NTSC” or “PAL60”. You can select “NTSC” or “PAL60” in “NTSC
Contents Output” for NTSC discs. (> 32)
≥ Depending on media and contents, the display may change or may not
appear.
≥ DivX: Successive play is not possible.
≥ It is not possible to playback AVCHD and MPEG2 video which have been
dragged and dropped, copied and pasted to the media.
While playing or paused, press [SKIP:] or [SKIP9].
Skip to the title, chapter or track you want to play.
≥ Each press increases the number of skips.
≥ DivX: Backward direction [SKIP:] only.
Frame-by-frame
While paused, press [2] (2;) or [1] (;1).
≥ Press and hold to change in succession forward or
backward.
≥ Press [1 PLAY] to revert to normal playback speed.
≥ BD-Video and AVCHD: Forward direction [1] (;1) only.
Changing audio
Press [AUDIO].
You can change the audio channel number or soundtrack
language (> 42), etc.
VQT2S28
20
2010年2月12日 金曜日 午後1時4分
Useful functions
1
2
Press [OPTION].
Select an item and press [OK].
While DIRECT NAVIGATOR screen is displayed
Properties
To display the titles properties (recording
date, etc.)
Chapter
View
To select the chapter
To Picture
Playing still pictures (> 23)
Folder
To switch to another folder
To turn on/off secondary audio
1 Press [DISPLAY].
2 Press [3, 4] to select the “Disc” menu and press [1].
3 Press [3, 4] to select the “Signal Type” menu and press
[OK].
4 Press [3, 4] to select the “Soundtrack” under “Secondary
Video” menu and press [1].
5 Press [3, 4] to select the “On” or “Off”.
When “On” is selected, press [1] and then press [3, 4] to
select the language.
6 Press [RETURN] to exit.
≥ During search/slow-motion or frame-by-frame, only the primary video is
displayed.
≥ When “BD-Video Secondary Audio” in “Digital Audio Output” is set to “Off”,
secondary audio will not be played (> 32).
Playback
SCBT222EBEG_VQT2S28-B.book 21 ページ
∫ Deleting data/Formatting SD cards
While playing
Screen
Aspect
When black bars are shown at the top,
bottom, left, and right sides of the screen, you
can enlarge the image to fill the screen.
Top Menu
To display Top Menu.
Pop-up
Menu
To display Pop-up Menu.
Menu
To display Menu.
Insert an SD card.
Press [START].
Press [3, 4] to select “To Others” and press [OK].
Press [3, 4] to select “Card Management” and press
[OK].
5 Press [3, 4] to select “BD-Video Data Erase” or “Format
SD Card” and press [OK].
1
2
3
4
Card Management
SD card
≥ Depending on the played contents if you perform “Screen
Aspect”, there may be no effect.
≥ When “TV Aspect” (> 33) is set to “4:3” or “4:3 Letterbox”,
the “Zoom” effect is disabled.
No. of Files 6
Free space 300 MB
BD-Video Data Erase
Format SD Card
≥ Depending on the media and contents, displayed items are different.
OK
Format this SD Card.
RETURN
Enjoying BONUSVIEW in
BD-Video
6 Press [2, 1] to select “Yes” and press [OK].
7 Press [2, 1] to select “Start” and press [OK].
What is BONUSVIEW?
BONUSVIEW allows you to enjoy functions such as
picture-in-picture or secondary audio etc.
≥ To use the above functions, it is recommended that you format the card on
this unit. If the SD card you use is formatted, all data on the card will be
erased. It cannot be recovered.
≥ The usable functions and the operating method may vary
with each disc, please refer to the instructions on the disc
and/or visit their website.
Playing picture-in-picture
To turn on/off secondary video
Press [PIP].


A Secondary video
B Primary video
VQT2S28
21
SCBT222EBEG_VQT2S28-B.book 22 ページ
2010年2月12日 金曜日 午後1時4分
Playing music
Regarding DivX
ABOUT DIVX VIDEO:
DivX® is a digital video format created by DivX, Inc. This is an
official DivX Certified device that plays DivX video. Visit
www.divx.com for more information and software tools to
convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND:
This DivX Certified® device must be registered in order to play
DivX Video-on-Demand (VOD) content.
To generate the registration code, locate the DivX VOD section
in the device setup menu.
Go to vod.divx.com with this code to complete the registration
process and learn more about DivX VOD.
≥ It is not possible to playback DivX VOD content recorded on
the USB device.
[DVD] [CD] [USB]
(DVD-R/-R DL, music CD, CD-R/RW, USB device)
1
Insert a disc or USB device.
If the menu is displayed, press [3, 4] to select the item
and press [OK].
2
Press [3, 4] to select the track and press
[OK].
Music list
DIRECT NAVIGATOR
CD
No.
01
02
03
04
05
Display the unit’s registration code.
(> 34, “DivX Registration” in “General”)
DivX Registration
OPTION
0.09
4.30
Track1
5 Tracks / Total Play Time 20min54sec
Track Name
Play Time
4min30sec
Track1
3min41sec
Track2
Track3
4min30sec
Track4
3min11sec
5min 2sec
Track5
Play
RETURN
You must register this unit to play
protected DivX videos.
“
The registration code is necessary to
register this unit.
Registration Code: XXXXXXXXXX
Please register at www.divx.com/vod/

A 10 alphanumeric characters
≥ After playing DivX VOD content for first time, the registration
code is not displayed.
≥ If you purchase DivX VOD content using a registration code
different from this unit’s code, you will not be able to play this
content. (“Authorisation Error.” is displayed.)
Cancel the unit’s registration.
(> 34, “DivX Registration” in “General”)
Press [2, 1] to select “Yes” in “DivX Registration”.
Use the deregistration code to cancel the registration in
www.divx.com.
Regarding DivX VOD content that can only be played a set
number of times
Some DivX VOD content can only be played a set number of
times. When you play this content, the remaining number of
plays is displayed. You cannot play this content when the
number of remaining plays is zero. (“Rental Expired.” is
displayed.)
≥ The remaining number of plays decreases each time a
program is played. However, when playing from the point
where play was previously stopped, the remaining number of
plays does not decrease due to the resume play function.
∫ Displaying subtitles text
You can display subtitles text on the DivX video disc on this
unit.
This function has no relation to the subtitles specified in DivX
standard specifications and has no clear standard. The
operation might be different or it may not operate properly
depending on the way the file was made or the state of this unit
(playing, stopped, etc.).
Set “Subtitle” in “Disc” (> 30)
VQT2S28
22
≥ DivX video files that do not display “Text” do not contain subtitles text.
≥ If the subtitles text are not displayed correctly, try changing the language
settings. (> 31)
” indicates the track currently playing.
∫ Playing a track in another folder
1 While the “Music list” is displayed
Press [OPTION].
2 Press [3, 4] to select “Select Folder” and press [OK].
≥ You cannot select folders that contain no compatible tracks.
2010年2月12日 金曜日 午後1時4分
Playing still pictures
[BD] [DVD] [CD] [SD] [USB]
(BD-RE, DVD-RAM/-R/-R DL, CD-R/RW, SD Card,
USB device)
1
2
1
2
Press [OPTION].
Select an item and press [OK].
Insert a disc, SD card or USB device.
While “Album View” or “Picture View” screen is displayed
If the menu is displayed, press [3, 4] to select the item
and press [OK].
Start
Slideshow
BD-RE, DVD-RAM
Press [3, 4, 2, 1] to select the album and
press [OK].
Album View
DIRECT NAVIGATOR
DVD-RAM(VR)
2006 9 12
Total 13

Previous
Video
OK
RETURN
OPTION
Video
106_DVD
Total 8
3
Useful functions

Slideshow
Setting
Next

Slideshow
Page 02/02
Press OK to go to Picture View.
Press [3, 4, 2, 1] to select the still
picture and press [OK].
Picture View
DIRECT NAVIGATOR
DVD-RAM(VR)
Video
2006 9 12
0001
0002
0003
0004
0005
0006
0007
0008
0009
You can display still pictures one by one at a
constant interval.
Display Interval
Change the display interval.
Transition Effect
Set display method.
Repeat Play
Repeat slideshow.
Soundtrack
Music files on an iPod/iPhone or a music CD
or USB device can be played back as
background music during the slideshow.
Soundtrack Folder
A folder to playback can be selected when a
USB device with MP3 recorded is connected
to this unit.
Playback
SCBT222EBEG_VQT2S28-B.book 23 ページ
Press [3, 4, 2, 1] to select “Set” and
press [OK].
Select
Folder
To switch to another higher folder
≥ Only if there is a multiple number of higher
folders recognizable
Folder
To select the still pictures in another folder
To Video
Playing video contents (> 20)
To album
view
To display album view.
Page 001/001
Play
OPTION
RETURN
Press [2, 1] to display the previous or next still picture.
While playing (except for slideshow)
To exit the screen
Press [TOP MENU/DIRECT NAVIGATOR].
Rotate
RIGHT
∫ To show the picture properties
Rotate LEFT
While playing, press [STATUS] twice.
e.g. JPEG on DVD-RAM
Shooting date
Date
11.12.2009
To exit the screen
Press [STATUS].
Total
Rotate the still picture.
Zoom out
Reduce the still picture
≥ This function is only available for
small-sized still pictures.
Zoom in
Cancel “Zoom out”
3/9
≥ Depending on the media and contents, displayed items are different.
≥ When a still picture with large number of pixels is played, the display
interval may become longer. Even if the setting is changed, the display
interval may not become shorter.
≥ When a music CD, a USB device with MP3 recorded and an iPod/iPhone
are inserted/connected to this unit, iPod/iPhone has a priority to be played
back as background music.
VQT2S28
23
SCBT222EBEG_VQT2S28-B.book 24 ページ
2010年2月12日 金曜日 午後1時4分
Listening to the Radio
Radio
Presetting stations
automatically
Up to 30 stations can be set.
1
2
Press [RADIO] to select “FM”.
Press [STATUS] to select the position to
start the auto preset search.
LOWEST:
To begin auto preset with the lowest frequency (FM87.50).
CURRENT:
To begin auto preset with the current frequency.*
* To change the frequency, refer to “Presetting stations
manually”.
3
Press and hold [OK].
Listening/confirming the preset
channels
1
2
Press [RADIO] to select “FM”.
Press the numbered buttons to select the
channel.
To select a 1-digit number
e.g., 1: [1] B [OK].
To select a 2-digit number
e.g., 12: [1] B [2].
Alternatively, press [W, X] or [2, 1].
RDS broadcasting
Release the button when “AUTO” is displayed.
The tuner starts to preset all the stations it can receive into
the channels in ascending order.
If the station you are listening to is transmitting RDS signals,
“RDS” will light up on the display.
While listening to the radio broadcast
Press [DISPLAY] to display the text data.
≥ “SET OK” is displayed when the stations are set, and the radio tunes to the
last preset station.
≥ “ERROR” is displayed when automatic presetting is unsuccessful. Preset
the stations manually.
PS: Programme service
PTY: Programme type
OFF: Frequency display
PTY displays
Presetting stations manually
NEWS
VARIED
FINANCE
COUNTRY
AFFAIRS
POP M
CHILDREN
NATIONAL
INFO
ROCK M
SOCIAL A
OLDIES
SPORT
M.O.R. M*
RELIGION
FOLK M
EDUCATE
LIGHT M
PHONE IN
DOCUMENT
DRAMA
CLASSICS
TRAVEL
TEST
While listening to the radio broadcast
CULTURE
OTHER M
LEISURE
ALARM
Press [OK].
SCIENCE
WEATHER
JAZZ
Preparation
Select a radio broadcast.
1 Press [RADIO] to select “FM”.
2 Press [SEARCH6] or [SEARCH5] to select the
frequency.
≥ To start automatic tuning, press and hold [SEARCH6], [SEARCH5]
until the frequency starts scrolling. Tuning stops when a station is found.
1
2
While “P” is flashing on the display
* M.O.R. M=Middle of the road music
Press the numbered buttons to select a
channel.
To select a 1-digit number
e.g., 1: [1] B [OK].
To select a 2-digit number
e.g., 12: [1] B [2]
≥ A station previously stored is overwritten when another station is stored in
the same channel preset.
∫ Display on the main unit
TUNED/STEREO:
TUNED:
VQT2S28
24
Displayed when receiving stereo
broadcasting
Displayed when receiving monaural
broadcasting or monaural sound is
selected.
∫ If noise is excessive
Press [AUDIO] to display “MONO”.
The sound becomes monaural.
Press the button again to cancel the mode. “AUTO ST” will
be displayed on the main unit. Depending on the broadcast
system, stereo or monaural will be selected.
“MONO” is also canceled when you change the frequency.
≥ This setting can be preset for each broadcasting station.
SCBT222EBEG_VQT2S28-B.book 25 ページ
2010年2月12日 金曜日 午後1時4分
Enjoying TV with unit’s speakers
TV
Surround sound effects
You can enhance stereo sources with surround sound effect.
Press [SURROUND] several times to select the
effect.
For more detailed information on this operation, please refer to
the “Enjoying surround sound effects” section on page 19.
Sound modes
You can adjust the mode depending on the source or situation.
1
2
Press [SOUND] several times to select the
mode.
While the selected mode is displayed on the unit’s
display
Press [2, 1] and select the desired setting.
For more detailed information on this operation, please refer to
the “Changing the sound modes” section on page 19.
Making settings for digital
audio input
Select to suit the type of audio from the DIGITAL AUDIO IN
terminals on the main unit.
Press [EXT-IN] several times to select “D-IN 1”
(DIGITAL IN 1) or “D-IN 2” (DIGITAL IN 2).
∫ DIGITAL IN 1/DIGITAL IN 2
Press [AUDIO].
M1
M2
M1rM2 (stereo audio)
(Only works with Dolby Dual Mono)
≥ “M1” or “M2” is not available if “On” is selected in “Digital
Audio Input”. (> 32)
Radio
Turn on your TV and select the appropriate audio input mode
[AUX, ARC, D-IN 1 or D-IN 2] to suit the connections to this
unit. (> 18)
∫ DIGITAL IN 2
Press [STATUS].
CABLE/SAT AUDIO
Select when an HDMI connected STB is selected on the
TV, "D-IN 2" input is automatically selected. (> 26,
“Setting the audio link with the STB”).
TV
Preparation
≥ Audio that is input through the DIGITAL AUDIO IN or AUX terminals are not
output from the HDMI AV OUT terminal.
VQT2S28
25
SCBT222EBEG_VQT2S28-B.book 26 ページ
2010年2月12日 金曜日 午後1時4分
Linked operations with
the TV
(VIERA Link “HDAVI ControlTM”)
One touch play
You can turn on this unit and the TV, and start play with a
single press of a button.
While the unit and the TV are in standby mode;
Press [1 PLAY].
Speaker Selection
What is VIERA Link “HDAVI Control”?
VIERA Link “HDAVI Control” is a convenient function
that offers linked operations of this unit, and a
Panasonic TV (VIERA) under “HDAVI Control”.
You can use this function by connecting the equipment
with an HDMI cable. See the operating instructions for
connected equipment for operational details.
Preparation
1 Set “VIERA Link” to “On” (> 34).
(The default setting is “On”.)
2 Set the “HDAVI Control” operations on the connected
equipment (e.g., TV).
3 Turn on all “HDAVI Control” compatible equipment and
select this unit’s input channel on the connected TV so that
the “HDAVI Control” function works properly.
Also when the connection or settings are changed,
repeat this procedure.
Setting the audio link
∫ Setting the audio link with the TV
With the remote control;
≥ Select the actual TV audio connection on the main unit.
1 Press [START] and press [3, 4] to select “To Others” and
press [OK].
2 Press [3, 4] to select “Setup” and press [OK].
3 Press [3, 4] to select “TV / Device Connection” and press
[OK].
4 Press [3, 4] to select “TV Audio Input”.
5 Press [2, 1] to switch “AUX”, “ARC” or “DIGITAL IN 1”.
Whenever the connection or settings are changed, reconfirm
the points above.
∫ Setting the audio link with the STB
With the remote control;
≥ Select the STB input channel on the TV.
1 Press [EXT-IN] to select “D-IN 2”.
2 Press [STATUS] to select “CABLE/SAT AUDIO ON”.
≥ If the input channel of the STB on the TV is changed or if you
want to change the device allocated for the linked
operations, select “CABLE/SAT AUDIO OFF” in step 2
above and then repeat steps 1 to 2.
≥ VIERA Link “HDAVI Control”, based on the control functions provided by
HDMI which is an industry standard known as HDMI CEC (Consumer
Electronics Control), is a unique function that we have developed and
added. As such, its operation with other manufacturers’ equipment that
supports HDMI CEC cannot be guaranteed.
≥ This unit supports “HDAVI Control 5” function.
“HDAVI Control 5” is the newest standard (current as of December, 2009)
for Panasonic’s HDAVI Control compatible equipment. This standard is
compatible with Panasonic’s conventional HDAVI equipment.
≥ Please refer to individual manuals for other manufacturers’ equipment
supporting VIERA Link function.
VQT2S28
26
You can select whether audio is output from the unit’s
speakers or the TV speakers by using the TV menu settings.
Home Cinema
This unit’s speakers are active.
≥ When this unit is in standby mode, changing the TV
speakers to this unit’s speakers in the TV menu will
automatically turn the unit on and select, “AUX”*1, “ARC”*1 or
“D-IN 1” (DIGITAL IN 1)*1 as the source.
≥ You can control the volume setting using the volume or mute
button on the TV’s remote control.
≥ If you turn off this unit, TV speakers will be automatically
activated.
TV
TV speakers are active.
≥ The volume of this unit is set to “0”.
≥ Audio output is 2-channel audio.
≥ When switching between this unit’s speakers and TV speakers, the TV
screen may be blank for several seconds.
SCBT222EBEG_VQT2S28-B.book 27 ページ
2010年2月12日 金曜日 午後1時4分
Automatic input switching
(Power on link)
Automatic lip-sync function
(for HDAVI Control 3 or later)
Delay between audio and video is automatically adjusted,
enabling you to enjoy smooth audio for the picture.(> 32,
“Audio Delay”)
≥ This function works only when “BD/DVD”, “SD”, ”USB”,
“AUX”*1, “ARC”*1, “D-IN 1” (DIGITAL IN 1)*1 or “D-IN 2”
(DIGITAL IN 2)*2 is selected as the source on this unit.
*1
*2
“AUX”, “ARC” or “D-IN 1” works depending on the setting in “Setting the
audio link with the TV”. (> 26)
“D-IN 2” works depending on the setting in “Setting the audio link with
the STB”. (> 26)
Only TV supports “HDAVI Control 2” or later
By using the TV remote control, you can play discs using the
“Control Panel” and display the Top Menu or Pop-up Menu,
etc.
≥ This works only during “BD/DVD”, “SD” or “USB” playback
and resume modes.
1
Press [OPTION].
e.g. BD-Video
Control Panel
Screen Aspect
Top Menu
Pop-up Menu
OPTION
2
OK
RETURN
Select an item and press [OK].
≥ The OPTION menu may not appear while the Top Menu for
BD-Video or DVD-Video is displayed.
TV
When the following operations are performed, the television
will automatically switch the input channel and display the
corresponding action. When the television is off, the television
will automatically turn on.
jWhen play starts on the unit
jWhen an action that uses the display screen is performed
(e.g., DIRECT NAVIGATOR screen)
jBD-Video, DVD-Video:
When playback stops, the TV will automatically return to TV
tuner mode.
≥ When you switch the TV input to TV tuner mode, this unit will
automatically switch to “AUX”*1, “ARC”*1 or “D-IN 1” (DIGITAL
IN 1)*1 or “D-IN 2” (DIGITAL IN 2)*2.
≥ This function does not work when the iPod/iPhone selector is
chosen. (> 28)
Easy control only with VIERA
remote control
≥ The buttons that you can use for this unit vary depending on the TV. For
details, refer to the operating instructions of the TV.
≥ The operation of this unit may be interrupted when you press incompatible
buttons on the TV remote control.
≥ Depending on the menu, some button operations cannot be performed
from the TV’s remote control.
Power Off Link
All connected equipment compatible with “HDAVI Control”,
including this unit, automatically turns off when you switch the
television off.
Playing music continuously even after turning off the TV
(When the unit is connected to a Panasonic TV (VIERA) that
supports HDAVI Control 2 or later.)
Select “Video” in “Power Off Link” (> 34)
VQT2S28
27
SCBT222EBEG_VQT2S28-B.book 28 ページ
2010年2月12日 金曜日 午後1時4分
Using the iPod/iPhone
Other devices
iPod/iPhone Connection
Preparation
≥ Before connecting/disconnecting the iPod/iPhone, turn the
main unit off or reduce the volume of the main unit to its
minimum.
≥ Make sure that the video cable connection is made to view
photos/videos from the iPod/iPhone.
1
2
iPod/iPhone Playback
Preparation
≥ Make sure that the “IPOD” source is selected. Press [iPod] to
select the source.
≥ To view photos/videos from the iPod/iPhone
Operate the iPod/iPhone menu to make the appropriate
photo/video output settings for your TV.
≥ To display the picture, turn on the TV and select the
appropriate video input mode.
Enjoy music/video
Push # to open the iPod/iPhone lid.
Connect the iPod/iPhone (not included)
firmly.
1
2
Main unit
iPod/iPhone


To use the iPod touch/iPhone features
1 Press the Home button on the iPod touch/iPhone.
2 Select the iPod touch/iPhone features on the touch screen
to operate.
1
2
Press [iPod] to select “IPOD”.
3
Press [3, 4] to select an item and press
[OK].
A Dock adapter (not included)
≥ Attach the dock adapter until firmly fitting into the
dock. The adapter should be supplied with your
iPod/iPhone for the stable use.
If you need an adapter, consult your iPod/iPhone
dealer.
B Dock for iPod/iPhone
Press [STATUS] several times to select the
music menu or videos menu.
≥ Repeat this step until the selected title starts playback.
≥ Press [2, 1] to display the previous or next page.
e.g., music playback screen
iPod
Good morning
Ronaldo
Happy days
1:00
About recharging the battery
≥ iPod/iPhone will start recharging regardless of whether this unit is on or off.
≥ “IPOD ¢” will be shown on the main unit’s display during iPod/iPhone
charging in main unit standby mode.
≥ Once fully recharged, additional recharging will not occur.
-2:30
45 of 1230
Shuffle (Albums)
Repeat (All)
To exit, press [TOP MENU/DIRECT NAVIGATOR].
Compatible iPod/iPhone (as of December 2009)
≥ Compatibility depends on the software version of your iPod/iPhone.
VQT2S28
28
Name
Memory size
iPhone 3GS
16 GB, 32 GB
iPhone 3G
8 GB, 16 GB
iPod nano 5th generation (video camera)
8 GB, 16 GB
iPod touch 2nd generation
8 GB, 16 GB, 32 GB,
64 GB
iPod classic
120 GB, 160 GB (2009)
iPod nano 4th generation (video)
8 GB, 16 GB
iPod classic
160 GB (2007)
iPod touch 1st generation
8 GB, 16 GB, 32 GB
iPod nano 3rd generation (video)
4 GB, 8 GB
iPod classic
80 GB
iPod nano 2nd generation (aluminum)
2 GB, 4 GB, 8 GB
iPod 5th generation (video)
60 GB, 80 GB
iPod 5th generation (video)
30 GB
iPod nano 1st generation
1 GB, 2 GB, 4 GB
iPod 4th generation (colour display)
40 GB, 60 GB
iPod 4th generation (colour display)
20 GB, 30 GB
iPod 4th generation
40 GB
iPod 4th generation
20 GB
iPod mini
4 GB, 6 GB
Enjoy photos
1
2
Press [iPod] to select “IPOD”.
3
4
Switch the TV input to video in.
Press [STATUS] several times to select
“ALL” on the unit’s display.
Play a slideshow on your iPod/iPhone.
The picture will be displayed on your TV.
You can use the remote control to operate the iPod/iPhone
menu.
The operation may vary among iPod/iPhone models.
≥ [3, 4]: To navigate menu items
≥ [OK]: To go to the next menu.
≥ [RETURN]: To return to the previous menu.
SCBT222EBEG_VQT2S28-B.book 29 ページ
2010年2月12日 金曜日 午後1時4分
Other methods of playback
1
2
3
4
Press [START].
Press [3, 4] to select “Menu” and then
press [OK].
1
2
Press [3, 4] to select the setting and press
[OK].
Press [DISPLAY].
Disc
Play
Sound
Press [3, 4] to select an item and press
[OK].
Repeat
One:
Play a single song/video repeatedly.
All:
Play all songs/videos from selected items (e.g., Playlists,
Albums, etc.) repeatedly.
Press [BD/SD] to select “BD/DVD”.
e.g., BD-Video
Press [3, 4] to select “Play Mode” and
then press [OK].
Shuffle (For music playback only.)
Songs:
Play all songs on iPod/iPhone in random order.
Albums:
Play all songs on an album in random order.
5
Playback menu
Menus
Signal Type
Subtitle
Subtitle Style
Items
Off
-
Main
1ENG
Angle
-
Settings
3
Press [3, 4] to select the menu and press
[1].
4
Press [3, 4, 2, 1] to select the item and
press [1].
5
Press [3, 4] to select the setting.
Some items can be changed by pressing [OK].
To exit the screen
Press [DISPLAY].
Depending on the condition of the unit (playing, stopped,
etc.) and media contents, there may be some items that
you cannot select or change.
Regarding Language, Audio attribute and Video attribute:
(> 42)
Other devices
≥ The setting of the playback mode will be kept until changes are made on
the same iPod/iPhone.
≥ This function does not work when “Use iPod display (All)” is selected.
Basic controls
(For music and video playback only)
Functions
[1 PLAY]
Play
[∫ STOP]
Pause
[;PAUSE]
[SKIP:,
SKIP9]
(Press and hold)
[SEARCH6,
SEARCH5]
Skip
Advanced operations
Buttons
Search
≥ Sound mode are available (> 19).
Advanced operations
VQT2S28
29
SCBT222EBEG_VQT2S28-B.book 30 ページ
2010年2月12日 金曜日 午後1時4分
Disc
Signal Type
Mode
Primary Video
Select the picture quality mode during play.
Video
The recording method of original video
appears.
Soundtrack
Select the type of audio or language.
Secondary Video
Video
Select on/off of images. The recording
method of original video appears.
Soundtrack
Select on/off of audio and the language.
Detail Clarity
The picture is sharp and detailed.
Progressive
Select the method of conversion for progressive output to suit
the type of material being played.
≥ If the video is disrupted when "Auto" is selected, select either
"Video" or "Film" depending on the material to be played
back.
24p
Video
The recording method of original video appears.
Soundtrack
Show or change the soundtrack.
Movies and other material recorded on DVD-Video at 24p are
output at 24p.
≥ Only when you have selected “On” in “24p Output” (> 33)
and play discs recorded at a rate of 60 fields per second.
Sound
Subtitle
Turn the subtitle on/off, and change the language depending
on the media.
Subtitle Style
Select the subtitle style.
Audio channel
Sound Effects*
(Discs recorded at 48 kHz or less)
This feature gives you brighter sound by increasing the high
frequency portion of the audio.
Select the audio channel number.
(> 20, “Changing audio”)
Angle
Select the number of the angle.
Some items may be changed only on the disc specific menu.
(> 20)
Play
Repeat Play
(Only when the elapsed time is being displayed on the unit’s
display.)
Select the item which you want to repeat. The items displayed
differ depending on the type of media.
Select “Off” to cancel.
Random
Select whether or not to play random.
Playback Information Window
Displays the following.
Audio/video attribute information of disc.
Settings status of “Digital Audio Output” (> 32).
*&/+
HDMI output information.
Press [RETURN] to exit.
VQT2S28
30
Re-master 1
Pop and rock
Re-master 2
Jazz
Re-master 3
Classical
\
Dialog Enhancer*
The volume of the centre channel is raised to make dialog
easier to hear.
High Clarity Sound
When connected to TV via HDMI AV OUT terminal for
outputting image, it produces clearer sound.
Only when you have selected “Enable” in “High Clarity Sound”
(> 32)
* When audio is output from the HDMI AV OUT terminal this function is
effective only when “Dolby D/Dolby D +/Dolby TrueHD” or “DTS/DTS-HD”
is set to “PCM”. (> 32)
SCBT222EBEG_VQT2S28-B.book 31 ページ
2010年2月12日 金曜日 午後1時4分
Setup menu
Change the unit’s settings if necessary. The settings remain
intact even if you switch the unit to standby.
1
Press [START] and press [3, 4] to select
“To Others” and press [OK].
2
Press [3, 4] to select “Setup” and press
[OK].
DVD-Video Ratings
Set a ratings level to limit DVD-Video play.
≥ Follow the on-screen instructions. Enter a 4-digit password
with the numbered buttons when the password screen is
shown.
BD-Video Ratings
Set an age limit of BD-Video play.
≥ Follow the on-screen instructions. Enter a 4-digit password
with the numbered buttons when the password screen is
shown.
Disc
Sound
Display
TV / Device Connection
Soundtrack Preference
General
Choose the language for audio.
OK
RETURN
3
Press [3, 4] to select the menu and press
[OK].
4
Press [3, 4] to select the item and press
[OK].
If there are any other items, repeat these steps.
Press [3, 4, 2, 1] to select the option and
press [OK].
≥ There may be differences in operation methods. If this
happens, follow the on-screen instructions for the operation.
About the password
The password of the following items are common.
Don’t forget your password.
≥ "DVD-Video Ratings”
≥ “BD-Video Ratings”
≥ If “Original” is selected, the original language of each disc
will be selected.
≥ Enter a code (> 42) with the numbered buttons when you
select “Other ¢¢¢¢”.
Subtitle Preference
Choose the language for subtitle.
≥ If “Automatic” is selected and the language selected for
“Soundtrack Preference” is not available, subtitles of that
language will automatically appear if available on that disc.
≥ Enter a code (> 42) with the numbered buttons when you
select “Other ¢¢¢¢”.
Menu Preference
Choose the language for disc menus.
≥ Enter a code (> 42) with the numbered buttons when you
select “Other ¢¢¢¢”.
DivX Subtitle Text
Select a suitable item according to the language used for DivX
subtitles text (> 22).
≥ This item is displayed only after playing back a file.
Advanced operations
Setup
5
Disc
VQT2S28
31
SCBT222EBEG_VQT2S28-B.book 32 ページ
2010年2月12日 金曜日 午後1時4分
Still Mode
Select the type of picture shown when you pause playback.
Automatic Automatically selects the type of picture shown.
Field
Select if jittering occurs when “Automatic” is
selected.
Frame
Select if small text or fine patterns cannot be
seen clearly when “Automatic” is selected.
Seamless Play
The chapters segment in playlists are played seamlessly.
≥ Select “On” when the picture freezes for a moment at the
chapters segment in playlists.
NTSC Contents Output
Select PAL60 or NTSC output when playing NTSC discs.
Sound
Dynamic Range Compression
You can listen at low volumes but still hear dialogue clearly.
(Dolby Digital, Dolby Digital Plus and Dolby TrueHD only)
≥ “Auto” is effective only when playing Dolby TrueHD.
Digital Audio Output
Press [OK] to show the following settings.
Dolby D/Dolby D +/Dolby TrueHD
DTS/DTS-HD
MPEG Audio
Select the audio signal to output.
≥ Select “PCM” when the connected equipment cannot
decode the respective audio format.
≥ Not making the proper settings may result in noise.
BD-Video Secondary Audio
Select whether to mix or not mix the primary audio and
secondary audio (including the button click sound). (> 21)
≥ If “Off” is selected, the unit outputs the primary audio only.
Digital Audio Input
Select whether to receive the digital sound as PCM or the
original sound format.
Select “On” if the sound is cut off intermittently.
Downmix
Select "Surround encoded" when connected to equipment that
supports the conversion from 2 channels to multi channel
surround.
≥ There is no downmix effect on the bitstream audio signal.
≥ The audio will be output in “Stereo” in the following cases.
– AVCHD playback
jPlayback of secondary audio (including the button click
sound).
VQT2S28
32
High Clarity Sound
When connected to TV via HDMI AV OUT terminal for
outputting image, it produces clearer sound.
≥ Set to “Enable” and then set “High Clarity Sound” on the
playback menu to “On”. (> 30)
Audio Delay
Mis-sync between the video and audio is corrected by delaying
the audio output.
Speaker
Refer to page 34
SCBT222EBEG_VQT2S28-B.book 33 ページ
2010年2月12日 金曜日 午後1時4分
Display
HDMI Connection
Press [OK] to show the following settings.
On-Screen Messages
Choose whether to show status messages automatically.
On-Screen Language
Choose the language for these menus and on-screen
messages.
Screen Saver Function
This is to prevent burn-in on the screen.
≥ When this is set to “On”:
If there is no operation for 5 minutes or more, DIRECT
NAVIGATOR screen switches to START menu automatically.
≥ While playing and pausing, etc., this function is not available.
≥ As for Music [CD-DA] or MP3, regardless of the setting, if
there is no operation for a while, DIRECT NAVIGATOR
screen switches to the other states automatically.
FL Display
Changes the brightness of the unit’s display.
≥ If “Automatic” is selected, the display is dimmed but
brightens when you perform some operations.
HDMI Video Format
The items supported by the connected devices are
indicated on the screen as “¢”. When any item without “¢”
is selected, the images may be distorted.
≥ If “Automatic” is selected, automatically selects the output
resolution best suited to the connected television.
≥ To enjoy high definition video up-converted to 1080p, you
need to connect the unit directly to 1080p compatible
HDTV (High Definition Television). If this unit is connected
to an HDTV through other equipment, it must also be
1080p compatible.
24p Output
When this unit is connected to a TV supporting 1080/24p
output using an HDMI cable, movies and other material
recorded at 24p are output at 24p.
≥ When playing DVD-Video, set to “On” and then set “24p”
in “Picture” (> 30) to “On”
≥ When BD-Video images other than 24p are played,
images are output at 60p.
Software Licence
Information about the software used by this unit is displayed.
TV / Device Connection
TV Aspect
4:3
The sides are cut off so
the picture fills the screen.
When playing BD-Video,
video is output as “4:3
Letterbox”.
4:3 Letterbox Black bands appear at the
top and bottom of the
picture.
Advanced operations
Set to match the type of television connected.
When connected to a 4:3 aspect television and playing 16:9
ratio image:
When connected to a 16:9 widescreen television and playing
4:3 ratio image:
16:9
Video is displayed as a 4:3 ratio image in the
centre of the screen.
VQT2S28
33
SCBT222EBEG_VQT2S28-B.book 34 ページ
2010年2月12日 金曜日 午後1時4分
HDMI Colour Mode
This setting is for selecting colour-space conversion of the
image signal when the unit is connected using an HDMI
cable.
General
Remote Control
Change the remote control code if other Panasonic products
react to this remote control.
HDMI Audio Output
This setting selects whether or not to output audio from
HDMI.
≥ Audio will be output through the system's speakers when
"Off" is selected.
VIERA Link
Set to use “HDAVI Control” function when connected with
an HDMI cable to a device that supports “HDAVI Control”.
≥ Select “Off” when you do not want to use “HDAVI Control”.
Deep Colour Output
This setting is for selecting whether to use Deep Colour
Output when a television that supports Deep Colour is
connected.
Contents Type Flag
Depending on the playback content, the TV will output
adjusting to the optimal method when a TV that supports
Contents Type Flag is connected.
Power Off Link
Select the desired power off link setting of this unit for
VIERA Link operation (> 27). (This works depending on the
settings of the connected VIERA Link “HDAVI Control”
compatible equipment.)
Video/Audio:
When the TV is turned off, this unit will turn off automatically.
Video:
When the TV is turned off, this unit will turn off except during
the following conditions:
jCD or MP3 audio playback
jiPod/iPhone mode
jRadio mode
j“AUX”, “ARC” or “D-IN 1” (DIGITAL IN 1) mode
(non-selected TV AUDIO setting for VIERA Link)
j“D-IN 2” (DIGITAL IN 2) mode (non-selected CABLE/SAT
AUDIO setting for VIERA Link)
TV Audio Input
Select the TV audio input to work with the VIERA Link
operations
Quick Start*
Speed of startup from standby mode is increased.
≥ Internal control unit will be powered when it is set to “On” so
compared to when the setting is“Off” the following will occur.
jIdle power consumption will increase. (about the power
consumption > 44)
*The cooling fan may turn slowly to prevent overheating of
internal parts.
* Depending on the power conserving setting activated on
the TV, this function may have less effect when the unit is
started by the power on link function. (> 27)
Easy setup (> 16)
You can execute basic settings to optimize your home theatre
system.
Default Settings
This returns all values in the Setup menu and the playback
menu, except for “Remote Control”, “On-Screen Language”,
“DVD-Video Ratings” and “BD-Video Ratings” to the default
settings.
DivX Registration (> 22)
You need this registration code to purchase and play DivX
Video-on-Demand (VOD) content.
System Information
Display firmware version of this unit.
Optional speaker settings
Speaker check
1 Select “Test” and press [OK].
A test signal is output.
Front (L) ,) Front (R)
2 Press [OK].
The test signal stops.
≥ No signal is output for the subwoofer. To adjust its volume,
see page 19, Adjusting speaker level during play.
TV System
Change the setting to match the equipment you are connecting
with.
≥ When NTSC contents are played, they are outputted in the
signal format specified in the “NTSC Contents Output”,
irrespective of the settings here.
L

Complete
Test
R
dB
0
SW
A Test
To finish the speaker setting
Press [3, 4, 2, 1] to select “Complete” and press [OK].
VQT2S28
34
SCBT222EBEG_VQT2S28-B.book 35 ページ
2010年2月12日 金曜日 午後1時4分
Speaker installation option
Attaching to a wall
You can attach all of the speakers (except subwoofer) to a wall.
≥The wall or pillar on which the speakers are to be attached should be capable of supporting 10 kg per screw. Consult a qualified
building contractor when attaching the speakers to a wall. Improper attachment may result in damage to the wall and speakers.
≥Do not attempt to attach these speakers to walls using methods other than those described in this manual.
2
Preaparation
Remove the speaker bases.

Fit the speaker securely onto the screw(s)
with the hole(s).
Front speaker
DO NOT


DO


1 Remove the screw from the speaker.
2 Remove the speaker base.
Drive a screw (not included) into the wall.

Front speaker






At least 30 mm
‰ 4.0 mm
‰ 7.0 mm to ‰ 9.4 mm
Wall or pillar
5.5 mm to 7.5 mm

A
B
C
D
String (not included)
Screw eye (not included)
Less than 10 cm
Rear of the speaker
≥ Consult a qualified building contractor to avoid damage to
the wall or speakers.
≥ Use a string of less than ‰ 2.0 mm, which is capable of
supporting over 10 kg.
Preventing the speakers from falling
≥Consult a qualified housing contractor concerning the appropriate procedure when attaching to a concrete wall or a surface that
may not have strong enough support. Improper attachment may result in damage to the wall or speakers.
≥Use a string of less than ‰ 2.0 mm, which is capable of supporting over 10 kg.
A String (not included)
Thread from the wall to the speaker and tie tightly.
B Rear of the speaker
C Screw eye (not included)
D Wall
E Approx.150 mm
Front speaker



Advanced operations

A
B
C
D
E
∫ To avoid speaker dropping
Optional speaker
settings
1
A 48.5 mm
B In this position, the speaker will likely fall if moved to the
left or right.
C Move the speaker so that the screw is in this position.


VQT2S28
35
SCBT222EBEG_VQT2S28-B.book 36 ページ
2010年2月12日 金曜日 午後1時4分
Troubleshooting guide
Before requesting service, please perform the
following steps.
Do you have the latest firmware installed?
Firmware updates may be released to correct operating
irregularities that are discovered with certain movies.
For details, refer to the included sheet about the latest
firmware updates.
4
Make the following checks.
If the problem remains unresolved, consult your
dealer for instructions.
The following do not indicate a problem with this unit:
≥ Regular disc rotating sounds.
≥ Image disturbance during search.
∫ Unit doesn’t respond to remote control or
front panel buttons.
≥ This phenomenon may occur, depending on the TV setting,
when “Quick Start” is set to “On”.
≥ Depending on the TV, this phenomenon may be prevented
by reconnecting the HDMI cable to a different HDMI input
terminal or by changing the HDMI auto connection setting.
You have forgotten your ratings password.
You want to cancel the ratings level.
While the disc tray is empty and “BD/DVD” is selected as a
source, press and hold [SKIP:] on the remote control and
[1] (Play) on the unit at the same time for more than 5
seconds. The ratings level returns to the factory preset.
Power
No power.
≥ Insert the AC mains lead securely into a household mains
socket. (> 16)
∫ Cannot eject disc.
The unit switches to standby mode.
≥ When the time set for the sleep timer has passed, the power
will be turned off. (> 8)
≥ One of the unit’s safety devices is activated. Press [Í/I] on
the main unit to turn the unit on.
General operation
To return to the factory preset.
≥ Select “Yes” in “Default Settings” in the Setup menu. (> 34)
To return all settings to the factory preset.
≥ Reset the unit as follows:
While the unit is off, press and hold [+ VOLUME], [< OPEN/
CLOSE] and [Í/I] on the main unit at the same time for more
than 5 seconds.
The remote control doesn’t work properly.
≥ The remote control and main unit are using different codes.
Change the code on the remote control. (> 17)
≥ It may be necessary to set the code of the remote control
again after changing the batteries for remote control. (> 17)
Disc cannot be played.
≥ The disc is dirty. (> 7)
≥ Check the region code.
Still pictures (JPEG) do not playback normally.
≥ The images that were edited on the PC, such as Progressive
JPEG, etc., may not playback.
36
The TV tuner mode is not displayed when the TV is
switched on.
Press and hold [Í/I] on the main unit for 5 seconds.
jIf still unable to turn the unit off, disconnect the AC mains
lead, wait 1 minute, then reconnect the AC mains lead.
The unit may have a problem.
While the unit is off, press and hold [SKIP9] on the remote
control and [< OPEN/CLOSE] on the unit at the same time for
more than 5 seconds.
VQT2S28
Reference
The main unit is turned off when the input for the TV is
changed.
≥ This is a normal phenomenon when using VIERA Link
(HDAVI Control 4 or later). For details please read the
operating instructions for the TV.
Displays
The display is dim.
≥ Change “FL Display” in the Setup menu. (> 33)
SCBT222EBEG_VQT2S28-B.book 37 ページ
2010年2月12日 金曜日 午後1時4分
TV screen and video
The images from this unit do not appear on the TV.
Picture is distorted.
Jittering occurs.
≥ An incorrect resolution is selected in “HDMI Video Format”.
Reset the setting as follows:
While the disc tray is empty and “BD/DVD” is selected as a
source, press and hold [1] (Play) and [∫] (Stop) on the main
unit at the same time for more than 5 seconds to cancel the
setting.
≥ When Dolby Digital Plus, Dolby TrueHD, and DTS-HD audio
are not output in bitstream, select “Yes” in “Default Settings”
and make proper settings. (> 34)
≥ The unit and television are using different video systems.
While stopped, keep pressing [∫] (Stop) and [< OPEN/
CLOSE] on the main unit for 5 or more seconds. The system
switches from PAL to NTSC or vice versa.
≥ The system used on the disc doesn’t match your television.
– PAL discs cannot be correctly viewed on an NTSC
television.
– This unit can convert NTSC signals to PAL60 for viewing
on a PAL television (“NTSC Contents Output” in the
“Picture”).
Video is not output.
≥ Set the “High Clarity Sound” in the playback menu to “Off” to
use the VIDEO OUT terminal. (> 30)
Video is not output in high definition.
≥ Confirm that “HDMI Video Format” in the Setup menu is set
properly. (> 33)
A black band is displayed around the edge of the screen.
The aspect ratio of the screen is abnormal.
Sound
No sound.
Low volume.
Distorted sound.
Cannot hear the desired audio type.
≥ Check connections to speakers and other equipment.
(> 12s16)
≥ To output audio from a device connected with an HDMI cable,
set “HDMI Audio Output” to “On” in the Setup menu. (> 34)
≥ When “BD-Video Secondary Audio” is set to “On”, Dolby
TrueHD, Dolby Digital Plus, DTS-HD Master Audio and
DTS-HD High Resolution Audio are output as Dolby Digital
or DTS Digital Surround.
≥ Re-master will not work when the bitstream signal is output
from the HDMI AV OUT terminal. (> 30)
≥ Depending on the connected equipment, the sound may be
distorted if this unit is connected with an HDMI cable.
No surround sound.
≥ Press [SURROUND] to select a surround effect. (> 19)
Cannot switch audio.
≥ When audio is output from the HDMI AV OUT terminal, set
“Dolby D/Dolby D +/Dolby TrueHD”, “DTS/DTS-HD” or
“MPEG Audio” to “PCM”. (> 32)
No sound from the TV.
≥ Press [EXT-IN] to select the corresponding source. (> 18)
≥ The ARC (Audio Return Channel) function is not available.
Instead, use an optical digital audio cable or an audio cable
to have the TV sound. (> 14, 15)
≥ If the TV is not ARC compatible and only the HDMI connection
is used, an extra audio connection is necessary (> 14, 15).
≥ Confirm the “TV Aspect” is set properly. (> 33)
≥ Adjust the aspect setting on the television.
(Adjustment using “Screen Aspect” (> 21) on the unit is also
possible.)
Reference
After choosing “Home Cinema” in “Speaker Selection” with
the TV’s remote control, the TV’s input selection also changes.
≥ Disconnect the HDMI cable from the TV and reconnect it to a
different HDMI IN terminal.
VQT2S28
37
SCBT222EBEG_VQT2S28-B.book 38 ページ
2010年2月12日 金曜日 午後1時4分
USB
The contents of the USB device cannot be read.
≥ If inserted during playback, the USB device may not be
recognized by this unit.
iPod/iPhone operation
Cannot charge or operate.
≥ Check that the iPod/iPhone is connected firmly. (> 28)
≥ The battery of the iPod/iPhone is depleted. Charge the iPod/
iPhone, and then operate again.
Cannot display iPod/iPhone videos/photos on the TV.
≥ Make sure that TV is connected to the VIDEO OUT terminal
on this unit. (> 14)
≥ Operate the iPod/iPhone menu to make the appropriate
video/photo output settings for your TV. (Refer to operating
instructions for your iPod/iPhone.)
The TV input channel unintentionally changes to HDMI input.
≥ When the main unit is connected with an “HDAVI Control”
compatible TV and VIDEO IN is selected for iPod/iPhone video
or photo playback, the TV input channel will automatically
change to the HDMI input channel when [START] is pressed.
jRe-select the TV’s VIDEO IN input channel.
Radio
Distorted sound or noise is heard.
≥ Adjust the position of the antenna.
≥ Use an outdoor antenna. (> 13)
A beat sound is heard.
≥ Try to keep a certain amount of distance between the
antenna and the TV.
Other difficulties with playback
BD-Video or DVD-Video is not played.
≥ Ensure the disc is for the correct BD-Video region code or
DVD-Video region number, and is not defective. (> 11)
≥ You have set a ratings level to limit BD-Video or DVD-Video
play. Change this setting. (> 31)
≥ Some BD-Video can only be output with HDMI.
Alternative soundtrack and subtitles cannot be selected.
≥ The languages are not recorded on the disc.
≥ You may not be able to use the playback menu to change the
soundtrack and subtitles on some discs. Use the disc’s
menus to make changes. (> 20)
Angle cannot be changed.
≥ Angles can only be changed during scenes where different
angles are recorded.
VQT2S28
38
2010年2月12日 金曜日 午後1時4分
Messages
The following messages or service numbers appear on the
television or unit’s display when something unusual is detected
during startup and use.
On the television
Cannot play.
≥ You inserted an incompatible disc.
Cannot play on this unit.
≥ You tried to play a non-compatible image.
No disc is inserted.
≥ The disc may be upside down.
$ This operation is not available.
≥ Some operations are unsupported by the unit. For example;
– BD-Video: During playback, reverse slow-motion or
reverse frame-by-frame is not possible.
No Video
≥ Depending on the connected iPod/iPhone, video menu may
not be available on the TV. Select “ALL” on the unit’s display
and operate video playback from your iPod/iPhone menu.
(> 28)
On the unit’s display
F99
≥ The unit fails to operate properly. Press [Í] on the main unit
to switch the unit to standby for 3 seconds. Now press [Í]
on the main unit again to turn the unit on.
U59
≥ The unit is hot.
The unit switches to standby for safety reasons. Wait for
about 30 minutes until the message disappears.
Select a position with good ventilation when installing the
unit. Do not block the ventilation hole on the rear and side of
the unit.
U72
U73
≥ The HDMI connection acts unusually.
– Turn the unit and TV off.
– Disconnect the HDMI cable between the player and the
TV.
HDMI ONLY
≥ Some BD-Video discs can only be output with HDMI.
No PLAY
≥ There is a viewing restriction on a BD-Video or DVD-Video.
(> 31)
No READ
≥ The media is dirty or badly scratched. The unit cannot play.
PLEASE WAIT
≥ The unit is carrying out internal process. This is not a
malfunction. You cannot operate the unit while “PLEASE
WAIT” is displayed.
REMOVE
≥ The USB device is drawing too much power. Remove the
USB device.
SET 
(“  ” stands for a number.)
≥ The remote control and main unit are using different codes.
Change the code on the remote control. (> 17)
H or F
(“  ” stands for a number.)
≥ Check and correct the speaker cable connections.
≥ There is something unusual.
≥ Check the unit using the troubleshooting guide. If the service
number does not disappear, do the following.
1 Disconnect the plug from the household mains socket, wait
a few seconds, then reconnect it.
2 Press [Í/I] to turn the unit on.
If the service number does not disappear despite doing the
above, request service from the dealer. Inform the dealer of
the service number when requesting service.
IPOD OVER CURRENT ERROR
≥ The iPod/iPhone is drawing too much power. Remove the
iPod/iPhone, and turn the unit off and on again.
NOT CONDITIONAL
≥ The requested operation cannot be conducted.
Reference
SCBT222EBEG_VQT2S28-B.book 39 ページ
VQT2S28
39
SCBT222EBEG_VQT2S28-B.book 40 ページ
2010年2月12日 金曜日 午後1時4分
About MP3/JPEG/DivX/
AVCHD/MPEG2 files
MP3
File format
MP3
Extension
Files must have the extension “.mp3” or
“.MP3”.
Compression
rate
32 kbps to 320 kbps
Sampling rate
44.1 kHz/48 kHz
Reference
ID3 tags: version 1, 2.2, 2.3, 2.4
(Only titles and the names of artists)
JPEG
File format
JPEG
Extension
Files must have the extension “.jpg” or
“.JPG”.
resolution
between 34k34 and 8192k8192 pixels
(sub sampling is 4:2:2 or 4:2:0)
Reference
JPEG conforming DCF* is supported.
≥ MOTION JPEG and Progressive JPEG is
not supported.
* Design rule for Camera File system: unified standard
established by Japan Electronics and Information
Technology Industries Association (JEITA).
≥ DVD-RAM must conform to UDF 2.0.
≥ BD-RE must conform to UDF 2.5.
File format
DivX
Extension
Files must have the extension “.DIVX”,
“.divx”, “.AVI” or “.avi”.
Reference
Up to 1920k1080 pixels
≥ DivX certified to play DivX video up to HD
1080p, including premium content.
Video
jNumber of stream: Up to 1
– Codec: DIV3, DIV4, DIVX, DX50, DIV6
– FPS (Frame Per Second): Up to 60 fps
Audio
jNumber of stream: Up to 8
jFormat: MP3, MPEG, Dolby Digital
jMulti channel: Dolby Digital is possible.
MPEG multi is 2 ch conversion.
≥ GMC (Global Motion Compensation) is
not supported.
≥ DVD-R and DVD-R DL must conform to UDF 1.02 without
ISO9660 and UDF 1.5 with ISO9660.
≥ BD-R must conform to UDF 2.5.
VQT2S28
40
File format
Subtitles text file of DivX
File format
MicroDVD, SubRip, or TMPlayer
Extension
Files must have the extension “.SRT”,
“.srt”, “.SUB”, “.sub”, “.TXT”, or “.txt”
Reference
≥ The DivX video file and subtitles text file
are inside the same folder, and the file
names are the same except for the file
extensions.
≥ Depending on the methods used to
create the file or the state of the
recording, only parts of the subtitles may
be displayed, or the subtitles may not be
displayed at all.
AVCHD
File format
AVCHD format (V1.0) used on High
Definition Video Camera
(Panasonic and some other’s)
Codec
MPEG-4 AVC/H.264
≥ Discs must conform to UDF 2.5.
MPEG2
File format
SD-Video format* used on Standard
Definition Video Camera
(Panasonic and some other’s)
Codec
MPEG2
* SD-Video Entertainment Video Profile
DivX
resolution
Subtitles text file of DivX
≥ With certain recording states and folder structures, the play order may
differ or playback may not be possible.
≥ CD-R, CD-RW : ISO9660 level 1 or 2 (except for extended formats), Joliet
This unit is compatible with multi-session.
This unit is not compatible with packet writing.
≥ DVD-R, DVD-R DL (except for AVCHD) : ISO9660 level 1 or 2 (except for
extended formats), Joliet, UDF bridge (UDF 1.02/ISO9660)
This unit is not compatible with multi-session.
This unit is not compatible with packet writing.
SCBT222EBEG_VQT2S28-B.book 41 ページ
2010年2月12日 金曜日 午後1時4分
Structure of folders that can be
played in this unit
Structure of MP3 folders
Root
001
You can play files on this unit by structure of folders as
shown below. However depending on the method of
writing data (writing software), play may not be in the
order you numbered the folders.
Folder B
006XXXX.mp3
007XXXX.mp3
008XXXX.mp3
009XXXX.mp3
Folder C
010XXXX.mp3
011XXXX.mp3
012XXXX.mp3
Structure of DivX folders
Root
P0000001.divx
P0000002.divx
e.g.,
Folder A
P0000003.divx
P0000004.divx
P0000005.divx
Structures of still picture (JPEG) folders
Root
Folder B
in DVD-R*4/DVD-R DL*4/
CD-R*5/CD-RW*5
Files inside a folder are
displayed in the order they
were updated or taken.
e.g.,
Folder A
Folder C
P0000010.divx
P0000011.divx
P0000012.divx
*5
Folder C
*6
*7
e.g.,
in BD-R*7/DVD-R*7/DVD-R
DL*7/CD-R*7/CD-RW*7/USB
device*7
Files inside a folder are
displayed in the order they
were updated or taken.
P0000006.divx
P0000007.divx
P0000008.divx
P0000009.divx
*4
Folder B
Root
in DVD-R/DVD-R DL/CD-R/
CD-RW/USB device
Prefix the file names with
3-digit numbers in the order
you want to play them.
The total combined maximum number of recognizable picture contents
and folders: 3000 picture contents and 300 folders.
The total combined maximum number of recognizable picture contents
and folders: 999 picture contents and 99 folders.
The total combined maximum number of recognizable picture contents
and folders: 9999 picture contents and 300 folders.
The total combined maximum number of recognizable file contents and
folders: 200 file contents and 300 folders.
in BD-RE*6/DVD-RAM*4
Folder structure is not
displayed.
JPEG
DCIM
*1
XXXXX *2
XXXX.jpg*3
DCIM
XXXXX *2
XXXX.jpg*3
Root
DCIM
e.g.,
in SD card*4/USB device*4
Displays JPEG files in all
folders.
Folder structure is not
displayed.
XXXXX *2
XXXX.jpg*3
Folder A
Reference
*3
¢¢¢: from 001 to 999
¢¢¢: from 100 to 999
XXXXX: 5 figures
¢¢¢¢: from 0001 to 9999
XXXX: 4 figures
Folder A
003XXXX.mp3
004XXXX.mp3
005XXXX.mp3
: Folder which can be displayed with this unit
¢¢¢: Numbers
XXX: Letters
*1
*2
e.g.,
001XXXX.mp3
002XXXX.mp3
VQT2S28
41
SCBT222EBEG_VQT2S28-B.book 42 ページ
2010年2月12日 金曜日 午後1時4分
Supplemental information
∫ Language code list
∫ Display languages list
Display Language Display Language Display Language
ENG
FRA
DEU
ITA
ESP
NLD
SVE
NOR
DAN
POR
RUS
English
French
German
Italian
Spanish
Dutch
Swedish
Norwegian
Danish
Portuguese
Russian
JPN
CHI
KOR
MAL
VIE
THA
POL
CES
SLK
HUN
FIN
Japanese
Chinese
Korean
Malay
Vietnamese
Thai
Polish
Czech
Slovak
Hungarian
Finnish
ARA
HIN
PER
IND
MRI
BUL
RUM
GRE
TUR
Arabic
Hindi
Persian
Indonesian
Maori
Bulgarian
Romanian
Greek
Turkish
Others
∫ Video attribute
Display
MPEG-2/MPEG-4 AVC/VC-1
480/576/720/1080
24p/50i/60i/50p/60p
YCbCr4:2:2/YCbCr4:4:4/RGB
bps (bit per second)
Meaning
Video recording method
Video Format
Video Frame rate
Colour Space
Transfer rate of bit
∫ Audio attribute
Display
LPCM/
Digital/
TrueHD/DTS/DTS 96/DTS-HD HI RES/
DTS-HD MSTR/MPEG
ch (channel)
k (kHz)
b (bit)
bps (bit per second)
VQT2S28
42
Meaning
Digital+/
Signal type
Number of channels
Sampling frequency
Number of bits
Transfer rate of bit
Language Code Language Code Language Code
Abkhazian
6566
Afar:
6565
Afrikaans:
6570
Albanian:
8381
Amharic:
6577
Arabic:
6582
Armenian:
7289
Assamese:
6583
Aymara:
6589
Azerbaijani:
6590
Bashkir:
6665
Basque:
6985
Bengali; Bangla:
6678
Bhutani:
6890
Bihari:
6672
Breton:
6682
Bulgarian:
6671
Burmese:
7789
Byelorussian: 6669
Cambodian:
7577
Catalan:
6765
Chinese:
9072
Corsican:
6779
Croatian:
7282
Czech:
6783
Danish:
6865
Dutch:
7876
English:
6978
Esperanto:
6979
Estonian:
6984
Faroese:
7079
Fiji:
7074
Finnish:
7073
French:
7082
Frisian:
7089
Galician:
7176
Georgian:
7565
German:
6869
Greek:
6976
Greenlandic:
7576
Guarani:
7178
Gujarati:
Hausa:
Hebrew:
Hindi:
Hungarian:
Icelandic:
Indonesian:
Interlingua:
Irish:
Italian:
Japanese:
Javanese:
Kannada:
Kashmiri:
Kazakh:
Kirghiz:
Korean:
Kurdish:
Laotian:
Latin:
Latvian, Lettish:
Lingala:
Lithuanian:
Macedonian:
Malagasy:
Malay:
Malayalam:
Maltese:
Maori:
Marathi:
Moldavian:
Mongolian:
Nauru:
Nepali:
Norwegian:
Oriya:
Pashto, Pushto:
Persian:
Polish:
Portuguese:
Punjabi:
Quechua:
7185
7265
7387
7273
7285
7383
7378
7365
7165
7384
7465
7487
7578
7583
7575
7589
7579
7585
7679
7665
7686
7678
7684
7775
7771
7783
7776
7784
7773
7782
7779
7778
7865
7869
7879
7982
8083
7065
8076
8084
8065
8185
Rhaeto-Romance:
8277
Romanian:
8279
Russian:
8285
Samoan:
8377
Sanskrit:
8365
Scots Gaelic:
7168
Serbian:
8382
Serbo-Croatian: 8372
Shona:
8378
Sindhi:
8368
Singhalese:
8373
Slovak:
8375
Slovenian:
8376
Somali:
8379
Spanish:
6983
Sundanese:
8385
Swahili:
8387
Swedish:
8386
Tagalog:
8476
Tajik:
8471
Tamil:
8465
Tatar:
8484
Telugu:
8469
Thai:
8472
Tibetan:
6679
Tigrinya:
8473
Tonga:
8479
Turkish:
8482
Turkmen:
8475
Twi:
8487
Ukrainian:
8575
Urdu:
8582
Uzbek:
8590
Vietnamese:
8673
Volapük:
8679
Welsh:
6789
Wolof:
8779
Xhosa:
8872
Yiddish:
7473
Yoruba:
8979
Zulu:
9085
SCBT222EBEG_VQT2S28-B.book 43 ページ
2010年2月12日 金曜日 午後1時4分
Glossary
BD-J
Some BD-Video discs contain Java applications, and these
applications are called BD-J. You can enjoy various interactive
features in addition to playing normal video.
Bitstream
This is the digital form of multi-channel audio data (e.g., 5.1
channel) before it is decoded into its various channels.
Deep Colour
This unit incorporates HDMI (V.1.4, Content Type) technology
that can reproduce greater colour gradation (4096 steps) when
connected to a compatible TV.
You can enjoy exceptionally rich, natural-looking colours, with
smooth, detailed gradation and minimal colour banding.
[A lower colour gradation (256 steps), without Deep Colour, will
be reproduced if connected to a TV which does not support
Deep Colour.
The unit will automatically set appropriate output to suit the
connected TV.]
DTS-HD High Resolution Audio
This is a signal format achieved by improving the previous
DTS, DTS-ES and DTS 96/24 formats. It is compatible with
sampling frequency 96 kHz/48 kHz.
DTS-HD Master Audio | Essential
This is a lossless audio format and compatible with 96 kHz/
7.1 ch and 192 kHz/2 ch or less. In addition, faithful
reproduction of the master audio is enabled using lossless
audio encoding technology.
Dynamic range
Dynamic range is the difference between the lowest level of
sound that can be heard above the noise of the equipment and
the highest level of sound before distortion occurs.
Dynamic range compression means reducing the gap between
the loudest and softest sounds. This means you can listen at
low volumes but still hear dialogue clearly.
HDMI (High-Definition Multimedia Interface)
HDMI is a digital interface for consumer electronic products.
Unlike conventional connections, it transmits uncompressed
digital video and audio signals on a single cable.
Dolby Digital
This is a method of coding digital signals developed by Dolby
Laboratories. Apart from stereo (2-channel) audio, these
signals can also be multi-channel audio.
LPCM (Linear PCM)
These are a kind of PCM format.
These are uncompressed digital signals, similar to those found
on CDs.
Dolby Digital Plus
Multi-channel audio and higher audio quality is made possible
using Dolby Digital Plus.
PCM (Pulse Code Modulation)
This is one format for converting analogue audio into digital
audio, enabling you to enjoy digital audio with no hassle.
Dolby TrueHD
Dolby TrueHD is a very high quality audio format that
reproduces the studio master audio.
P4HD (Pixel Precision Progressive Processing for HD)
This is a processor which makes use of an exclusive
Panasonic algorithm. Various processing is supported,
including a high-level conversion of the TV scanning format
from interlace to progressive and a high-level conversion of
standard resolution (480i or 576i) video signal to a 1080 High
Definition video signal.
Consequently, this unit is able to provide video of optimal
resolution to the connected TV.
Down-mixing
This is the process of remixing the multi-channel audio found
on some discs into fewer channels.
DTS (Digital Theater Systems)
This surround system is used in many movie theatres. There is
good separation between the channels, so realistic sound
effects are possible.
DTS-HD
DTS-HD is a high-quality, sophisticated audio format used in
movie theatres. Previous DTS Digital Surround-compatible
equipment can play DTS-HD as DTS Digital Surround audio.
x.v.ColourTM
x.v.ColourTM is a name for devices that are compatible with the
xvYCC format, an international standard for expanded colour
in motion pictures, and that follow the rules for signal
transmission.
You can enjoy vivid colours of wider colour ranges for a more
realistic picture when connected to a TV that supports the
x.v.ColourTM with HDMI cable.
24p
This is a progressive image recorded at a rate of 24 frames per
second (motion-picture film). Many BD-Video movie contents
are recorded in 24 frames/second in accordance with the film
materials.
Reference
AVCHD
AVCHD is a new format (standard) for high definition video
cameras that can be used to record and play high-resolution
HD images.
VQT2S28
43
SCBT222EBEG_VQT2S28-B.book 44 ページ
2010年2月12日 金曜日 午後1時4分
Specifications
GENERAL
Power consumption:
FM TUNER SECTION
90 W
Power consumption in standby mode:
Approx. 0.2 W
Power supply:
iPod/iPhone Connector:
Dimensions (WkHkD):
Mass:
Operating temperature
range:
Operating humidity range:
DC OUT 5 V 500 mA MAX
430 mmk54 mmk287 mm
Approx. 3.0 kg
(Dimensions and Weight do not
include speakers)
0 oC to 40 oC
35 % to 80 % RH
(no condensation)
RMS TTL POWER OUTPUT: 500 W
1 kHz, 10 % total harmonic distortion
FRONT:
125 W per ch (3 ≠)
100 Hz, 10 % total harmonic distortion
SUBWOOFER:
250 W per ch (6 ≠)
DIN TTL POWER OUTPUT: 310 W
1 kHz, 1.0 % total harmonic distortion
FRONT:
100 W per ch (3 ≠)
100 Hz, 1.0 % total harmonic distortion
SUBWOOFER:
110 W per ch (6 ≠)
44
Antenna terminals:
30 stations
87.50 MHz to 108.00 MHz (50 kHz
step)
75 ≠ (unbalanced)
AC 220 V to 240 V, 50 Hz
AMPLIFIER SECTION
VQT2S28
Preset memory:
Frequency range:
SPEAKER SECTION
FRONT SPEAKERS
SB-HF222
Type:
Full range:
Impedance:
Output sound pressure:
Frequency range:
Dimensions (WkHkD):
Mass:
SUBWOOFER
SB-HW480
Type:
Woofer:
Impedance:
Output sound pressure:
Frequency range:
Dimensions (WkHkD):
Mass:
1 WAY 1 SPEAKER Bass-ref.
6.5 cm CONE TYPE
3≠
79 dB/W (1 m)
95 Hz to 25 kHz (j16 dB),
120 Hz to 22 kHz (j10 dB)
92 mmk200 mmk99 mm
Approx. 0.71 kg
1 WAY 1 SPEAKER Bass- ref.
16 cm CONE TYPE
6≠
78 dB/W (1 m)
40 Hz to 220 Hz (j16 dB),
45 Hz to 180 Hz (j10 dB)
145 mmk289.5 mmk258 mm
Approx. 2.8 kg
SCBT222EBEG_VQT2S28-B.book 45 ページ
2010年2月12日 金曜日 午後1時4分
VIDEO SECTION
Signal system:
Video output
Output level:
Output connector:
HDMI AV output
Output format:
Output connector:
LASER Specification
Class 1 LASER Product
Wave length:
Laser power:
PAL625/50, PAL525/60, NTSC
1.0 Vp-p (75 ≠)
Pin jack (1 system)
480p (525p)/1080i (1125i)/
720p (750p)/1080p (1125p)
Type A (19 pin)
HDMI (V.1.4, Content Type)
This unit supports “HDAVI
Control 5” function.
790 nm (CDs)/655 nm (DVDs)/
405 nm (BDs)
No hazardous radiation is
emitted with the safety
protection
TERMINAL SECTION
USB:
(Front)
USB port power:
Bit rate:
USB 2.0 High speed
Max 500 mA
Up to 4 Mbps (DivX)
SD card slot:
Connector : 1 system
Audio Input
AUX:
k1
Digital Audio Input
Optical:
Sampling frequency:
Audio Format:
k2
32 kHz, 44.1 kHz, 48 kHz
PCM, Dolby Digital
Reference
Specifications are subject to change without notice.
VQT2S28
45
SCBT222EBEG_VQT2S28-B.book 46 ページ
2010年2月12日 金曜日 午後1時4分
Java and all Java-based trademarks and logos are trademarks or
registered trademarks of Sun Microsystems, Inc. in the United States and
other countries.
This product incorporates copyright protection technology that is protected
by U.S. patents and other intellectual property rights. Use of this copyright
protection technology must be authorized by Macrovision, and is intended
for home and other limited viewing uses only unless otherwise authorized
by Macrovision. Reverse engineering or disassembly is prohibited.
This product incorporates the following software:
(1) the software developed independently by or for Panasonic
Corporation,
(2) the software owned by third party and licensed to Panasonic
Corporation,
(3) the software licensed under the GNU General Public License, Version
2 (GPL v2),
(4) the software licensed under the GNU LESSER General Public
License, Version 2.1 (LGPL v2.1) and/or,
(5) open sourced software other than the software licensed under the
GPL v2 and/or LGPL v2.1
For the software categorized as (3) and (4), please refer to the terms and
conditions of GPL v2 and LGPL v2.1, as the case may be at
http://www.gnu.org/licenses/old-licenses/gpl-2.0.html and
http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html.
In addition, the software categorized as (3) and (4) are copyrighted by
several individuals.
Please refer to the copyright notice of those individuals at
http://www.am-linux.jp/dl/JPRCBW98
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
The GPL/LGPL software is distributed in the hope that it will be useful, but
WITHOUT ANY WARRANTY, without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.
Manufactured under license from Dolby Laboratories. Dolby and the
double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674;
5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,392,195; 7,272,567;
7,333,929; 7,212,872 & other U.S. and worldwide patents issued &
pending.
DTS and the Symbol are registered trademarks, & DTS-HD, DTS-HD
Master Audio | Essential and the DTS logos are trademarks of DTS, Inc.
Product includes software.
© DTS, Inc. All Rights Reserved.
This product is licensed under the AVC patent portfolio license and VC-1
patent portfolio license for the personal and non-commercial use of a
consumer to (i) encode video in compliance with the AVC Standard and
VC-1 Standard (“AVC/VC-1 Video”) and/or (ii) decode AVC/VC-1 Video
that was encoded by a consumer engaged in a personal and
non-commercial activity and/or was obtained from a video provider
licensed to provide AVC/VC-1 Video. No license is granted or shall be
implied for any other use. Additional information may be obtained from
MPEG LA, LLC. See http://www.mpegla.com.
HDAVI ControlTM is a trademark of Panasonic Corporation.
x.v.ColourTM is a trademark.
“AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation
and Sony Corporation.
SDXC Logo is a trademark of SD-3C, LLC.
“Blu-ray Disc” is a trademark.
DivX® is a registered trademark of DivX, Inc., and is used under license.
“BONUSVIEW” is a trademark of Blu-ray Disc Association.
“Made for iPod” means that an electronic
accessory has been designed to connect
specifically to iPod and has been certified by the
developer to meet Apple performance standards.
“Works with iPhone” means that an
electronic accessory has been designed to
connect specifically to iPhone and has been
certified by the developer to meet Apple
performance standards.
Apple is not responsible for the operation of
this device or its compliance with safety and
regulatory standards.
iPod is a trademark of Apple Inc., registered in the U.S. and other
countries.
iPhone is a trademark of Apple Inc.
VQT2S28
46
At least three (3) years from delivery of products, Panasonic will give to
any third party who contacts us at the contact information provided below,
for a charge no more than our cost of physically performing source code
distribution, a complete machine-readable copy of the corresponding
source code covered under GPL v2/LGPL v2.1.
Contact Information
cdrequest@am-linux.jp
Source code is also freely available to you and any other member of the
public via our website below.
http://www.am-linux.jp/dl/JPRCBW98
2010年2月12日 金曜日 午後1時4分
Reference
SCBT222EBEG_VQT2S28-B.book 47 ページ
VQT2S28
47
SCBT222EBEG_VQT2S28-B.book 57 ページ
2010年2月12日 金曜日 午後1時4分
Index
A
AC mains lead connection . . . . . . . . . .16
Angle . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Audio
Attribute . . . . . . . . . . . . . . . . . . . . . .42
Changing audio during play . . . . . . .20
Channel . . . . . . . . . . . . . . . . . . . . . .30
Language . . . . . . . . . . . . . . . . . . . . .31
AVCHD . . . . . . . . . . . . . . . . . . . . . . .40, 43
B
BD-J . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
BD-Video Ratings . . . . . . . . . . . . . . . . .31
BONUSVIEW . . . . . . . . . . . . . . . . . . . . .21
C
Chapter. . . . . . . . . . . . . . . . . . . . . . . . . .21
Cleaning
Disc. . . . . . . . . . . . . . . . . . . . . . . . . . .7
Lens . . . . . . . . . . . . . . . . . . . . . . . . . .7
Main unit . . . . . . . . . . . . . . . . . . . . . . .7
Connection
Antenna . . . . . . . . . . . . . . . . . . . . . .13
AUX . . . . . . . . . . . . . . . . . . . . . . . . .14
DVD recorder . . . . . . . . . . . . . . . . . .15
HDMI. . . . . . . . . . . . . . . . . . . . . . . . .15
iPod/iPhone . . . . . . . . . . . . . . . . . . .28
OPTICAL IN . . . . . . . . . . . . . . . .14, 15
Set Top Box . . . . . . . . . . . . . . . . . . .15
Speaker . . . . . . . . . . . . . . . . . . . . . .13
TV . . . . . . . . . . . . . . . . . . . . . . . . . . .14
USB . . . . . . . . . . . . . . . . . . . . . . . . .17
Video cassette recorder . . . . . . . . . .15
D
Deep Colour. . . . . . . . . . . . . . . . . . . . . .43
Default Settings. . . . . . . . . . . . . . . . . . .34
Dialog Enhancer . . . . . . . . . . . . . . . . . .30
Direct Navigator . . . . . . . . . . . . . . . . . .20
Disc and card handling. . . . . . . . . . . . . .7
DivX . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Dolby Digital . . . . . . . . . . . . . . . . . .32, 43
Dolby Digital Plus . . . . . . . . . . . . . .32, 43
Dolby TrueHD . . . . . . . . . . . . . . . . .32, 43
DTS . . . . . . . . . . . . . . . . . . . . . . . . . .32, 43
DTS-HD. . . . . . . . . . . . . . . . . . . . . . .32, 43
F
Finalize . . . . . . . . . . . . . . . . . . . . . . . . . .11
Formatting SD cards. . . . . . . . . . . . . . .21
Frame-by-frame . . . . . . . . . . . . . . . . . . .20
H
HDMI . . . . . . . . . . . . . . . . . . . . . . . . 15, 43
High Clarity Sound . . . . . . . . . . . . . 30, 32
I
iPod/iPhone. . . . . . . . . . . . . . . . . . . . . . 28
J
JPEG . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
L
Language
Audio . . . . . . . . . . . . . . . . . . . . . . . . 31
Code list . . . . . . . . . . . . . . . . . . . . . . 42
Menu . . . . . . . . . . . . . . . . . . . . . . . . 31
On-Screen . . . . . . . . . . . . . . . . . . . . 33
Soundtrack. . . . . . . . . . . . . . . . . . . . 30
Subtitle . . . . . . . . . . . . . . . . . . . . 30, 31
LPCM . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
M
Menu
Playback . . . . . . . . . . . . . . . . . . . . . 29
Pop-up . . . . . . . . . . . . . . . . . . . . . . . 20
Setup . . . . . . . . . . . . . . . . . . . . . . . . 31
MPEG2. . . . . . . . . . . . . . . . . . . . . . . . . . 40
MP3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Mute the sound. . . . . . . . . . . . . . . . . . . . 8
O
On-Screen
Language . . . . . . . . . . . . . . . . . . . . . 33
Status Message . . . . . . . . . . . . . . . . 20
P
Picture-in-picture . . . . . . . . . . . . . . . . . 21
Playback
AVCHD . . . . . . . . . . . . . . . . . . . . . . 20
DivX . . . . . . . . . . . . . . . . . . . . . . . . . 22
JPEG . . . . . . . . . . . . . . . . . . . . . . . . 23
MPEG2 . . . . . . . . . . . . . . . . . . . . . . 20
MP3 . . . . . . . . . . . . . . . . . . . . . . . . . 22
Playback Information Window . . . . . . 30
Playlists. . . . . . . . . . . . . . . . . . . . . . . . . 18
Pop-up menu . . . . . . . . . . . . . . . . . . . . 20
Product Disposal . . . . . . . . . . . . . . . . . . 7
Progressive. . . . . . . . . . . . . . . . . . . . . . 30
Properties
Title . . . . . . . . . . . . . . . . . . . . . . . . . 21
Still picture . . . . . . . . . . . . . . . . . . . . 23
P4HD . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Q
Quick Start . . . . . . . . . . . . . . . . . . . . . . 34
R
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Random play . . . . . . . . . . . . . . . . . . . . 30
Re-master . . . . . . . . . . . . . . . . . . . . . . . 30
Remote control
Remote control code . . . . . . . . . . . . 17
Using the remote control . . . . . . . . . . 7
Repeat play . . . . . . . . . . . . . . . . . . . . . 30
Resume play function . . . . . . . . . . . . . 20
S
SD card . . . . . . . . . . . . . . . . . . . . . . 11, 21
Search . . . . . . . . . . . . . . . . . . . . . . . . . 20
Setup menu . . . . . . . . . . . . . . . . . . . . . 31
Skip . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Sleep timer . . . . . . . . . . . . . . . . . . . . . . . 8
Slideshow. . . . . . . . . . . . . . . . . . . . . . . 23
Slow-motion . . . . . . . . . . . . . . . . . . . . . 20
Soundtrack. . . . . . . . . . . . . . . . . . . . . . 30
Status Message . . . . . . . . . . . . . . . . . . 20
Still picture . . . . . . . . . . . . . . . . . . . . . . 23
Subtitle . . . . . . . . . . . . . . . . . . . . . . . . . 30
Surround sound. . . . . . . . . . . . . . . . . . 19
V
VIERA Link “HDAVI ControlTM” . . . . . 26
W
Whisper-mode Surround . . . . . . . . . . 19
X
x.v.ColourTM . . . . . . . . . . . . . . . . . . . . . 43
24p . . . . . . . . . . . . . . . . . . . . . . 30, 33, 43
EU
Web Site: http://panasonic.net
Pursuant to at the directive 2004/108/EC, article 9(2)
Winsbergring 15, 22525 Hamburg, Germany
Panasonic Corporation 2010
VQT2S28
F0210BT0
