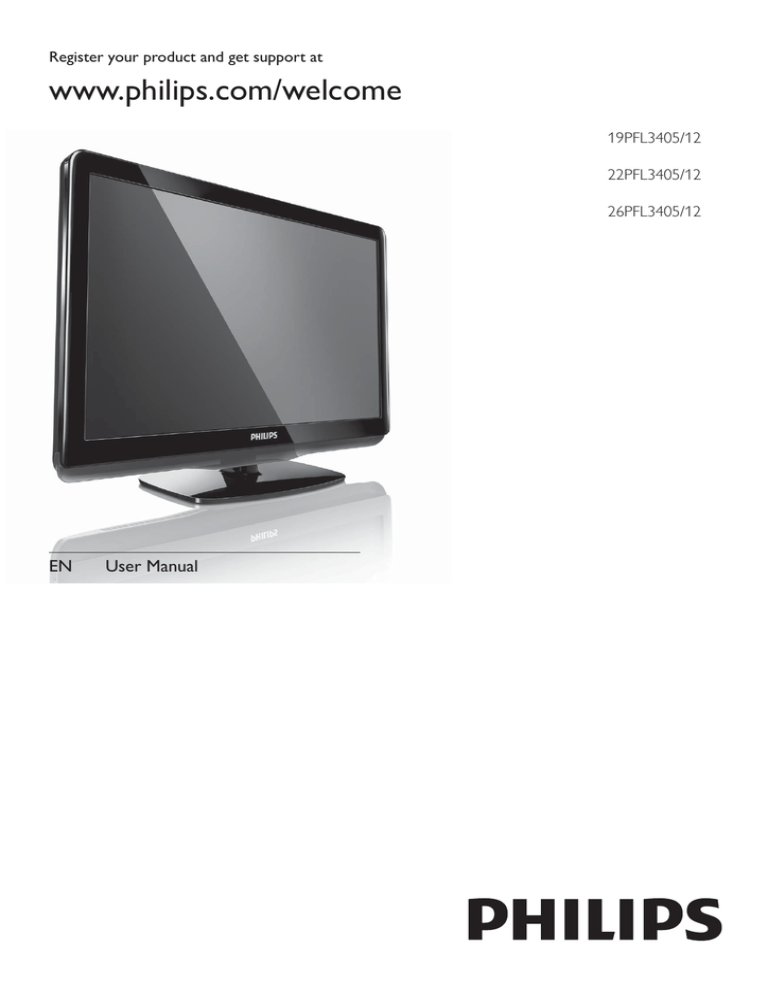

Register your product and get support at
www.philips.com/welcome
19PFL3405/12
22PFL3405/12
26PFL3405/12
EN
User Manual
Model
Serial
www.philips.com/support
Österreich
0810 000 205
€0.07 pro Minute
België/Belgique
078250145
€0.03 Per minuut/Par minute
България
+3592 489 99 96
Местен разговор
Hrvatska
01 6403 776
Lokalni poziv
Česká republika
800142840
Bezplatný hovor
Danmark
3525 8759
Lokalt opkald
Estonia
6008600
kohalik kõne tariifi
Suomi
09 2311 3415
paikallispuhelu
France
0805 025 510
numéro sans frais
Deutschland
0800 000 7520
gebührenfreier Anruf
Ελλάδα
0 0800 3122 1280
Κλήση χωρίς χρέωση
Magyarország
0680018189
Ingyenes hívás
Hrvatska
0800 222778
free
Ireland
North 0800 055 6882
South 1800-PHILIPS 7445477
free
Italia
800 088774
Numero Verde
Қазақстан
+7 727 250 66 17
local
Latvia
52737691
local
Lithuania
67228896
local
Luxemburg/Luxembourg
40 6661 5644
Ortsgespräch/Appel local
Nederland
0800 0230076
Gratis nummer
Norge
22 70 81 11
Lokalsamtale
Polska
(022) 349-15-05
Monitory i akcesoria komputerowe,
Portugal
800 780 903
Chamada Grátis
România
0800-894910
0318107125
Apel gratuit
Apel local
Россия
(495) 961-1111
0.15 USD/minute
Србија
+381 114 440 841
Lokalni poziv
Slovensko
0800 004537
Bezplatný hovor
Slovenija
00386 12 80 95 00
lokalni klic
España
900 800 655
Teléfono local gratuito solamente para
clientes en España
Sverige
08 5792 9100
Lokalsamtal
Suisse/Schweiz/Svizzera
0844 800 544
Schweizer Festnetztarif
Türkiye
0800 261 3302
Şehiriçi arama
United Kingdom
General No: 0800 331 6015
General National Rate No:
0870 911 0036
free
National rate
Україна
8-800-500-69-70
Місцевий виклик
This information is correct at the time of press. For updated information, see www.philips.com/support.
1 Notice
2
2 Important
4
3 Your TV
7
7
8
Side controls and indicators
Remote control
4 Use your TV
Switch your TV on / off or to standby
Switch channels
Watch connected devices
Adjust TV volume
Use teletext
10
10
10
11
11
11
29
29
29
29
29
29
30
Supported display resolutions
Tuner / Reception / Transmission
Remote control
Power
Supported TV mounts
Product specification
9 Troubleshooting
31
31
31
31
32
32
32
32
General TV issues
TV channel issues
Picture issues
Sound issues
HDMI connection issues
Computer connection issues
Contact us
10 Index
33
5 Use more of your TV
12
Access TV menus
12
Change picture and sound settings
12
Use advanced teletext features
15
Create and use list of favourite channels 16
Use the TV clock
17
Use timers
17
Use TV locks
18
Update the TV software
19
Change TV preferences
20
Access decoder channel
20
Reset the TV to factory settings
20
6 Install channels
Automatically install channels
Manually install channels
Rename channels
Rearrange channels
7 Connect devices
Back connectors
Side connectors
Connect a computer
Use Philips EasyLink
Use a Kensington lock
21
21
21
23
23
24
24
26
27
28
28
EN
1
Eng lish
8 Product information
Contents
1 Notice
2010 © Koninklijke Philips Electronics N.V. All
rights reserved.
Specifications are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
The material in this manual is believed
adequate for the intended use of the system.
If the product, or its individual modules or
procedures, are used for purposes other than
those specified herein, confirmation of their
validity and suitability must be obtained. Philips
warrants that the material itself does not
infringe any United States patents. No further
warranty is expressed or implied.
Warranty
• Risk of injury, damage to TV or void of
warranty! Never attempt to repair the TV
yourself.
• Use the TV and accessories only as
intended by the manufacturer.
• The caution sign printed on the back of
the TV indicates risk of electric shock.
Never remove the TV cover. Always
contact Philips Customer Support for
service or repairs.
•
Any operation expressly prohibited in
this manual, or any adjustments and
assembly procedures not recommended
or authorised in this manual shall void the
warranty.
2
EN
Pixel characteristics
This LCD product has a high number of
colour pixels. Although it has effective
pixels of 99.999% or more, black dots or
bright points of light (red, green or blue)
may appear constantly on the screen.
This is a structural property of the display
(within common industry standards) and
is not a malfunction.
Compliance with EMF
Koninklijke Philips Electronics N.V.
manufactures and sells many products
targeted at consumers which, like
any electronic apparatus, in general
have the ability to emit and receive
electromagnetic signals.
One of Philips’ leading Business Principles
is to take all necessary health and safety
measures for our products, to comply
with all applicable legal requirements and
to stay well within the EMF standards
applicable at the time of producing the
products.
Philips is committed to develop, produce
and market products that cause no
adverse health effects. Philips confirms
that if its products are handled properly
for their intended use, they are safe
to use according to scientific evidence
available today.
Philips plays an active role in the
development of international EMF
and safety standards, enabling Philips
to anticipate further developments in
standardisation for early integration in its
products.
1
2
Eng lish
Mains fuse (UK only)
This TV is fitted with an approved
moulded plug. Should it become
necessary to replace the mains fuse, this
must be replaced with a fuse of the same
value as indicated on the plug (example
10A).
Remove fuse cover and fuse.
The replacement fuse must comply with
BS 1362 and have the ASTA approval
mark. If the fuse is lost, contact your
dealer in order to verify the correct type.
3
Refit the fuse cover.
In order to maintain conformity to the EMC
directive, the mains plug on this product must
not be detached from the mains cord cable.
Copyright
®
Kensington and Micro Saver are registered US
trademarks of ACCO World corporation with
issued registrations and pending applications in
other countries throughout the world.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
All other registered and unregistered
trademarks are the property of their respective
owners.
EN
3
2 Important
Read and understand all instructions before you
use your TV. If damage is caused by failure to
follow instructions, the warranty does not apply.
Safety
Risk of electric shock or fire!
• Never expose the TV to rain or water.
Never place liquid containers, such as
vases, near the TV. If liquids are spilt on
or into the TV, disconnect the TV from
the power outlet immediately. Contact
Philips Consumer Care to have the TV
checked before use.
• Never place the TV, remote control or
batteries near naked flames or other heat
sources, including direct sunlight.
To prevent the spread of fire, keep
candles or other flames away from the
TV, remote control and batteries at all
times.
•
Never insert objects into the ventilation
slots or other openings on the TV.
• When the TV is swivelled ensure that
no strain is exerted on the power cord.
Strain on the power cord can loosen
connections and cause arcing.
Risk of short circuit or fire!
• Never expose the remote control or
batteries to rain, water or excessive heat.
• Avoid force coming onto power plugs.
Loose power plugs can cause arcing or
fire.
4
EN
Risk of injury or damage to the TV!
• Two people are required to lift and carry
a TV that weighs more than 25 kg.
• When stand mounting the TV, use only
the supplied stand. Secure the stand to
the TV tightly. Place the TV on a flat, level
surface that can support the combined
weight of the TV and the stand.
• When wall mounting the TV, use only a
wall mount that can support the weight of
the TV. Secure the wall mount to a wall
that can support the combined weight of
the TV and wall mount. Koninklijke Philips
Electronics N.V. bears no responsibility
for improper wall mounting that result in
accident, injury or damage.
Risk of injury to children!
Follow these precautions to prevent the
TV from toppling over and causing injury to
children:
• Never place the TV on a surface covered
by a cloth or other material that can be
pulled away.
• Ensure that no part of the TV hangs over
the edge of the surface.
• Never place the TV on tall furniture (such
as a bookcase) without anchoring both
the furniture and TV to the wall or a
suitable support.
• Educate children about the dangers of
climbing on furniture to reach the TV.
Risk of overheating!
• Never install the TV in a confined space.
Always leave a space of at least 4 inches
or 10 cm around the TV for ventilation.
Ensure curtains or other objects never
cover the ventilation slots on the TV.
Risk of damage to the TV!
• Before you connect the TV to the power
outlet, ensure that the power voltage
matches the value printed on the back
of the TV. Never connect the TV to the
power outlet if the voltage is different.
Disposal of your old product and
batteries
Eng lish
Risk of injury, fire or power cord damage!
• Never place the TV or any objects on the
power cord.
• To disconnect the TV power cord easily
from the power outlet, ensure that you
have full access to the power cord at all
times.
• When you disconnect the power cord,
always pull the plug, never the cable.
• Disconnect the TV from the power
outlet and antenna before lightning
storms. During lightning storms, never
touch any part of the TV, power cord or
antenna cable.
Risk of hearing damage!
• Avoid using earphones or headphones at
high volumes or for prolonged periods of
time.
Low temperatures
• If the TV is transported in temperatures
below 5°C, unpack the TV and wait
until the TV temperature matches room
temperature before connecting the TV to
the power outlet.
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol
is attached to a product it means that the
product is covered by the European Directive
2002/96/EC. Please inform yourself about the
local separate collection system for electrical
and electronic products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste.
Correct disposal of your old product helps to
prevent potential negative consequences for
the environment and human health.
Screen care
•
•
•
•
•
Avoid stationary images as much as
possible. Stationary images are images
that remain on-screen for extended
periods of time. Examples include:
on-screen menus, black bars and time
displays. If you must use stationary
images, reduce screen contrast and
brightness to avoid screen damage.
Unplug the TV before cleaning.
Clean the TV and frame with a soft,
damp cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the TV.
Risk of damage to the TV screen! Never
touch, push, rub or strike the screen with
any object.
To avoid deformations and colour fading,
wipe off water drops as soon as possible.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed with normal household
waste.
Please inform yourself about the local rules
on separate collection of batteries because
correct disposal helps to prevent negative
consequences for the environmental and
human health.
EN
5
ECO-Green
• High energy efficiency
• Low standby power
• Designed to facilitate recycling
Philips continuously focuses on lowering
the environmental impact of its innovative
consumer products. We aim our efforts
towards environmental improvements
during manufacturing, reduction of harmful
substances, energy-efficient use, end-of-life
instructions and product recycling.
Thanks to our environmental effort, this TV
has been awarded the European Ecolabel –the
flower– www.ecolabel.eu
You can find detailed information on standby
energy consumption, warranty policy, spare
parts and recycling of this TV on the Philips
website for your country at www.philips.com.
This TV has features that contribute to
energy-efficient use. This TV was awarded
the European Ecolabel for its environmental
qualities.
6
EN
Energy efficiency features
• Energy saving
The energy saving setting of the TV
combines several TV settings that result
in saving energy. See the smart settings in
the setup menu.
• Low standby power consumption
The class-leading and highly advanced
power circuitry brings down the power
consumption of the TV to an extremely
low level, without losing out on the
constant standby functionality.
Power management (Available in selected
models only)
The advanced power management of this TV
ensures the most efficient use of its energy.
You can check how your personal TV settings,
the level of brightness in current onscreen
pictures and the surrounding light conditions
determine the relative power consumption.
End of use
To inform yourself on the correct disposal
of the TV and batteries, refer to ‘Disposal of
your old product and batteries’ in the user
manual (see ‘Disposal of your old product and
batteries’ on page 5).
Side controls and indicators
Eng lish
3 Your TV
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your TV at
www.philips.com/welcome.
1
2
This section gives you an overview of
commonly used TV controls and functions.
3
4
5
a
+/-: Increases or decreases volume.
b
(Home): Toggles the home menu on
or off.
c P/CH +/-: Switches to the next or
previous channel.
d
(Power): Switches the product on
or off. The product is not powered
off completely unless it is physically
unplugged.
e Remote control sensor.
EN
7
a
Remote control
22
21
20
19
•
•
1
2
b
3
4
5
6
7
c MHEG/TELETEXT
Toggles teletext on or off.
8
18
9
17
10
11
d
15
14
SOURCE
Selects connected devices.
f AD (Audio Descriptor) (For RF Digital
TV only)
UK only: Enables audio commentary for
the visually handicapped.
12
13
MENU
Toggles the main menu on or off.
e Colour buttons
Selects tasks or options.
g
16
(Standby-On)
Switches the TV to standby if it is on.
Switches on the TV if it is in standby.
OPTIONS
Accesses options relating to the current
activity or selection.
h OK
Confirms an entry or selection and
displays the channel grid, when watching
TV.
i
(Navigation buttons)
Navigates menus.
j
INFO
Displays program information, when
available. If the information spans multiple
pages, press OPTIONS to go to the next
page.
k
(Mute)
Mutes or restores volume.
l P +/- (Programme +/-)
Switches to the next or previous channel.
When the TV menu is on, this functions
as Page Up / Down.
m 0-9 (Numeric buttons)
Selects a channel or setting.
n
8
EN
PICTURE (Smart picture)
Launches the picture menu.
SOUND (Smart Sound)
Launches the sound menu.
p
+/- (Volume +/-)
Increases or decreases volume.
q
BACK P/P (Previous channel)
• Returns to a previous screen.
• Returns to the previously viewed
channel.
r
GUIDE
Switches between channel grid and
programme list.
Eng lish
o
s SUBTITLE (For RF Digital TV only)
Enables or disables subtitles.
t DEMO (Used in selected models only)
Toggles the demonstration menu on or
off.
u
FORMAT
Selects a picture format.
v
INCR. SURR
Enables Incredible Surround for stereo
sources. Enables spatial mode for mono
sources.
Remote control usage
When using the remote control, hold it close
to the TV and point it at the remote control
sensor. Make sure that the line-of-sight
between the remote control and TV is not
blocked by furniture, walls or other objects.
~5m
~30˚
EN
9
4 Use your TV
Note
• If you cannot locate your remote control and
want to switch on the TV from standby, press
P/CH +/- on the side of the TV.
This section helps you perform basic TV
operations.
Switch your TV on / off or to
standby
Switch channels
•
•
•
•
Press P +/- on the remote control or
P/CH +/- on the side of the TV.
Enter a channel number using the
Numeric buttons.
Press OK to use the channel grid.
Press
BACK P/P on the remote
control to return to the previous channel.
Note
• When you use a favourite list, you can only
select those channels in the list (see ‘Select a
favourite list’ on page 16).
To switch on
• If the standby indicator is off, press
(Power) at the side of the TV.
• If the standby indicator is red, press
(Standby-On) on the remote control.
To switch to standby
• Press (Standby-On) on the remote
control.
» The standby indicator switches to red.
To switch off
• Press (Power) at the side of the TV.
» The standby indicator switches off.
Switch channels with the channel grid
The channel grid allows you to view all
available channels in a grid format.
1
Press OK.
» The channel grid appears.
2
3
Press
Tip
• Though your TV consumes very little power
when in standby, energy continues to be
consumed. When not in use for an extended
period of time, disconnect the TV power cable
from the power outlet.
10
EN
to browse the channel grid.
Press OK to select a channel.
Use teletext
Eng lish
Watch connected devices
Note
• Switch on the device before selecting it as a
source on the TV.
Use the source button
1
Press
SOURCE.
» The source list appears.
2
3
Press
1
Press MHEG/TELETEXT.
» The main index page appears.
2
Select a page as follows:
• Press the Numeric buttons to enter
a page number
• Press P +/- to view the next or
previous page
• Press the Colour buttons to select a
colour coded item
• Press
BACK to return to a
previously viewed page
3
Press MHEG/TELETEXT to exit teletext.
to select a device.
Press OK to confirm your choice.
» The TV switches to the selected
device.
Adjust TV volume
To increase or decrease volume
• Press
+/-.
To mute or unmute sound
• Press to mute the sound.
• Press again to restore the sound.
EN
11
5 Use more of
your TV
Access TV menus
Menus help you to install channels, change
picture and sound settings and access other
features.
1
Change picture and sound
settings
Change picture and sound settings to suit your
preferences. You can apply pre-defined settings
or change settings manually.
Note
• When watching TV or using external devices,
press OPTIONS then select [Picture and
sound] for quick access to picture and sound
settings.
Press MENU.
» The menu screen appears.
Smart picture
Use smart picture
Video contrast
Sound
Contrast
Brightness
Features
Colour
Sharpness
Software update
3
4
1
Press PICTURE.
» The [Smart picture] menu appears.
2
Press
to select one of the following
settings.
• [Vivid]: Applies rich and dynamic
settings.
Hue
Installation
2
Use smart picture to apply pre-defined
picture settings.
Noise reduction
Press
to select and navigate
through one of the following menus.
• [Picture] : Adjusts the picture setting
for optimal viewing.
• [Sound] : Adjusts the sound setting.
• [Features] : Accesses different
features like timer and TV lock.
• [Installation] : Selects channel
installation menu, adjusts preferences
and resets the TV to factory settings.
• [Software update] : Updates the TV
software.
•
•
•
•
•
Press OK to confirm your choice.
Press
MENU to exit.
•
3
12
EN
[Standard]: Adjusts picture settings
to suit most environments and types
of video.
[Cinema]: Applies settings for movie
viewing.
[Game]: Applies settings for games.
[Energy saving]: Applies low-energy
settings.
[Natural]: Applies the best picture
quality.
[Custom]: Lists customised picture
settings.
Press OK to confirm your choice.
» The selected smart picture setting is
applied.
•
1
2
3
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Press
MENU.
Select [Picture] and press OK.
Press
to select the following
settings.
[Smart picture]: Accesses pre-defined
smart picture settings.
[Video contrast]: Adjusts the intensity
of video contents, keeping backlight
unchanged.
[Contrast]: Adjusts the intensity of
backlight areas, keeping video contents
unchanged.
[Brightness]: Adjusts the intensity and
details of dark areas.
[Colour]: Adjusts colour saturation.
[Hue]: Compensates for colour variations.
[Sharpness]: Adjusts sharpness in the
image.
[Noise reduction]: Filters and reduces
noise in an image.
[Tint]: Adjusts the colour balance in an
image.
[Custom tint]: Customises tint setting.
(Only available if [Tint] > [Custom] is
selected)
[Digital Crystal Clear]: Fine-tunes each
pixel to match surrounding pixels. This
produces a brilliant, high-definition image.
• [Dynamic contrast]: Enhances
contrast. A [Medium] setting is
recommended.
• [Dynamic backlight]: Adjusts
brightness of the TV backlight to
match lighting conditions.
• [Colour enhancement]: Makes
colours more vivid and improves
the details in bright colours. You can
switch this feature on or off.
[PC mode]: Adjusts the picture when a
PC is connected to the TV via HDMI or
DVI.
[Picture format]: Changes the picture
format.
•
[Picture size]: Adjusts the viewing area.
(when set to maximum, you might see
noise or a rough edge of an image.)
[Horizontal shift]: Adjusts the picture
horizontally for PC-VGA or HDMI input.
[Vertical shift]: Adjusts the picture
vertically for PC-VGA or HDMI input.
EN
13
Eng lish
Manually adjust picture settings
Change picture format
1
Press
FORMAT.
» A picture format bar appears.
2
Press
to select a picture format.
» The selected picture format is
activated.
3
Press OK to confirm your choice.
[Movie expand 16:9]:
(Not for HD and PC
mode.) Scales 4:3 format
to 16:9.
[Wide screen]: Scales 4:3
format to 16:9.
[Unscaled]: For HD
and PC mode only,
and in selected models
only. Allows maximum
sharpness. Some
distortion may be present
due to the broadcaster’s
systems. Set your PC
resolution to wide screen
mode for best results.
Summary of picture formats
The following picture settings can be
configured.
Note
• Depending on the format of the picture
source, some picture settings are not available.
[Auto format]: (Not for
PC mode.) Enlarges the
picture automatically to
best fit the screen. The
subtitles remain visible.
[Super zoom]: (Not
for HD and PC mode.)
Removes the black bars on
the side of 4:3 broadcasts.
There is minimal
distortion.
[4:3]: Shows the classic 4:3
format.
[Subtitle zoom]: (Not
for HD and PC mode)
Displays 4:3 pictures over
the full area of the screen,
with sub-titles visible. Part
of the top of the picture is
clipped off.
[Movie expand 14:9]: (Not
for HD and PC mode.)
Scales 4:3 format to 14:9.
14
EN
Use smart sound
Use smart sound to apply pre-defined sound
settings.
1
Press SOUND.
» The [Smart sound] menu appears.
2
Press
to select the following settings.
• [Standard] : Adjusts sound settings
to suit most environments and types
of audio.
• [News] : Applies settings for spoken
audio, such as news.
• [Movie] : Applies settings for movies.
• [Custom] : Applies the settings that
were customised in the sound menu.
3
Press OK to confirm your choice.
» The selected smart sound setting is
applied.
1
2
3
Press
Press
OK.
MENU.
Use advanced teletext
features
Eng lish
Manually adjust sound settings
to select [Sound] and press
Press
to select the following
settings.
• [Smart sound] : Accesses predefined smart sound settings.
• [Bass] : Adjusts the bass level.
• [Treble] : Adjusts the treble level.
• [Volume] : Adjusts the volume.
• [Balance] : Adjusts the balance of the
right and left speakers.
• [Dual I-II] : Selects audio languages if
dual sound broadcast is available.
• [Mono/Stereo] : Selects mono
or stereo if stereo broadcast is
available.
• [Surround] : Enables spatial sound.
• [Headphone volume] : Adjusts
headphone volume. (Available only
when the headphones are connected
to the TV).
• [Auto volume levelling] :
Automatically reduces sudden
volume changes, for example, when
switching channels.
• [Delta volume] : Levels out volume
differences between channels or
connected devices. Switch to the
connected device before you change
the delta volume.
Access the teletext options menu
Access the teletext features through the
teletext options menu.
1
Press MHEG/TELETEXT.
» The teletext screen appears.
2
Press OPTIONS.
» The teletext options menu appears.
3
Press
to select one of the following
options.
• [Freeze page] : Freezes the current
page.
• [Reveal] : Hides or reveals hidden
information on a page, such as
solutions to riddles or puzzles.
• [Cycle subpage] : Cycles through
subpages automatically if subpages
are available.
• [Language] : Switches to a different
language group to display a language
correctly when it uses a different
character set.
4
Press
to make a selection, then
press OK to confirm.
5
Press
BACK to exit the teletext
options menu.
Select teletext subpages
A teletext page can hold several subpages.
Subpages are displayed on a bar next to the
main page number.
1
Press MHEG/TELETEXT.
» The teletext screen appears.
2
3
Press P +/- to select a teletext page.
Press
to enter a subpage.
EN
15
Select T.O.P. teletext broadcasts
View all channels
Table Of Pages (T.O.P.) teletext broadcasts
allow you to jump from one subject to
another without using page numbers. T.O.P.
teletext is not broadcast on all TV channels.
You can exit a favourite list, and view all
installed channels.
1
When watching TV, press OK.
» The channel grid appears.
1
Press MHEG/TELETEXT.
» The teletext screen appears.
2
2
Press OPTIONS.
» The channel options menu appears.
Press INFO.
» The T.O.P. overview appears.
3
3
4
Press
to select [Select list], then
press OK or to enter.
Press
4
Select [All], then press OK.
» All channels are displayed in the
channel grid.
to select a subject.
Press OK to view the page.
Create and use list of
favourite channels
Note
• All favourite channels are marked by an
asterisk when you view the channel grid.
You can create a list of your preferred TV
channels so that you can find those channels
easily.
Select a favourite list
Add a channel to a favourite list
1
When watching TV, press OK.
» The channel grid appears.
1
When watching TV, press OK to display
the channel grid.
2
Press
to select a channel to add to
a favourite list.
2
Press OPTIONS.
» The channel options menu appears.
3
Press OPTIONS.
» The channel options menu appears.
3
Press
to select [Select list], then
press OK to enter.
» The channel list options appear.
4
4
Select [Favourite], then press OK.
» Only channels in the favourite list
appear in the channel grid.
Select [Mark as favourite], then press
OK.
» The channel is added to the favourite
list.
Note
• All favourite channels are marked by an
Note
• The favourite channel grid is empty until you
add channels into the favourite lists.
16
EN
asterisk in the channel grid.
Use timers
1
When watching TV, press OK.
» The channel grid appears.
You can set timers to switch the TV to standby
at a specified time.
2
Press
remove.
3
4
Press
Tip
to select a channel to
• Set the TV clock before you use timers.
OPTIONS.
Select [Unmark as favourite], then press
OK.
» The channel is removed.
Use the TV clock
Automatically switch the TV to
standby (sleep timer)
Sleep timer switches the TV to standby after a
pre-defined period of time.
Tip
You can display a clock on the TV screen.
• You can switch off your TV earlier or reset the
sleep timer during the countdown.
Set the TV clock
1
2
3
4
5
Press
MENU.
Press
to select [Features] >
[Clock]
» The [Clock] menu appears.
Press
to enter time.
1
2
1
When watching TV, press OPTIONS.
» The TV option menu appears.
2
3
Select [Clock].
Press
to select [Features] >
[Sleep timer].
» The [Sleep timer] menu appears.
Press
to select a value between zero
and 180 minutes.
» The sleep timer can be set in steps of
five minutes. If set to zero, the sleep
timer is switched off.
4
Press OK to switch on the sleep timer.
» The TV switches to standby after the
specified time.
MENU to exit.
Display the TV clock
MENU.
3
Select [Done] and press OK to confirm.
Press
Press
Press OK.
EN
17
Eng lish
Remove a channel from a favourite
list
Automatically switch the TV on (on
timer)
You can switch on the TV from standby to a
specific channel at a specified time.
1
2
3
4
Press
Press
timer].
You can prevent your children from watching
certain programmes or channels by locking the
TV controls.
MENU.
to select [Features] > [On
Press to enter the [On timer] menu.
• [Activate]: Selects how often the TV
is switched on.
• [Time]: Sets the time to switch on
the TV.
• [Programme no.]: Selects the
channel or the connected device.
Press
Use TV locks
Set or change your PIN code
1
2
3
MENU to exit.
Press
MENU.
Press
to select [Features] > [Set
code] / [Change code].
» The [Set code] / [Change code] menu
appears.
Enter your code using the Numeric
buttons.
» Follow the on-screen instructions to
create or change your PIN code.
Tip
Tip
• Select [On timer] > [Activate] > [Off] to
disable this feature.
• When [On timer] is switched off, only
• If you forget your code, enter ‘8888’ to
override any existing codes.
[Activate] option is available.
Lock or unlock the TV
Lock the TV to prevent access to all channels
and connected devices.
1
2
Press
MENU.
Press
to select [Features] > [TV
lock].
» You are prompted to enter your PIN
code.
3
Enter your code using Numeric buttons.
» The [TV lock] menu appears.
4
5
Press
6
Press
to select [Lock] or [Unlock].
Press OK to confirm.
» All channels and connected devices are
locked or unlocked.
MENU to exit.
Note
• Switch the TV off and on again for the change
to take effect.
• If you select [Lock], you have to enter your
code every time you turn on your TV.
18
EN
1
When watching TV, press OK to display
the channel grid.
2
Press
unlock.
3
4
Press
5
For each selection, press OK to lock or
unlock the channel.
» You are prompted to enter your PIN
code.
6
7
to select a channel to lock or
Update the TV software
Philips continuously tries to improve its
products and we recommend that you update
the TV software when updates are available.
Check www.philips.com/support for availability.
OPTIONS.
Press
to select [Lock channel] or
[Unlock channel].
Enter your code and press OK.
» If the channel is locked, a lock icon is
displayed.
Repeat the process to lock or unlock
more channels.
Note
• Switch the TV off and on again for the change
to take effect.
• If you access the locked channels by pressing
P +/- on the remote control or from the
channel grid, you are prompted to enter your
PIN code.
Check the current software version
1
2
Press
MENU.
Press
to select [Software update]
> [Current software inf].
» The TV displays the current software
information.
Download the software
1
On your PC, open a web browser and go
to www.philips.com/support.
2
Download the latest software upgrade
file to your PC.
3
4
Decompress the ZIP-file.
Copy the autorun.upg file to the root
directory of the USB device.
Update using a USB device
1
Connect your USB device to the USB
port at the side of your TV.
2
3
Press
MENU.
Press
to select [Software update]
> [Local updates] > [USB].
4
Press OK to update the TV software
manually.
5
Follow the on-screen instructions to
complete the update.
Note
• The TV restarts after the software update is
complete.
EN
19
Eng lish
Lock or unlock one or more channels
Disconnect a USB storage device
Caution
4
Press
to select [Channel], then press
to enter.
5
Select one channel to map to the
decoder / descrambler channel and press
OK to confirm.
6
7
Select [Status], then press
8
9
Press OK.
• Follow this procedure to avoid damage to your
USB storage device.
1
Wait for five seconds before you
disconnect the USB storage device.
Change TV preferences
Use the preferences menu to customise your
TV settings.
1
2
3
4
5
Press
Press
to select your preference.
Press OK.
Press
MENU to exit.
Access decoder channel
You can map channels provided through a
decoder or descrambler to your TV channel
selection. In this way, you can select these
channels by using the RC of your TV. The
decoder or a descrambler must be connected
to EXT 1 (SCART).
Set decoder channel
Map channels from a decoder or descrambler.
1
2
Press
3
Press
20
EN
MENU.
Press
to select [Installation] >
[Decoder].
to enter [Decoder] menu.
Select [EXT 1] (SCART), the connector
used by the decoder / descrambler.
Press
MENU to exit.
Note
• Select [None] if you do not want to map to
the decoder / descrambler channel.
MENU.
Press
to select [Installation] >
[Preferences].
• [Volume bar]: Displays the volume
bar when you adjust the volume.
• [EasyLink]: Enables one-touch play
and one-touch standby between
EasyLink-compliant devices.
to enter.
Reset the TV to factory
settings
You can restore the default picture and sound
settings of your TV. The channel installation
settings remain the same.
1
2
Press
3
4
5
6
Press
MENU.
Press
to select [Installation] >
[Factory settings].
to enter [Factory settings].
Select [Reset] to start resetting.
Press OK.
Press
MENU to exit.
The first time you set up your TV, you are
prompted to select a menu language and to
install TV and digital radio channels (if available).
This chapter provides instructions on how to
re-install and fine tune channels.
Automatically install channels
This section describes how to search and store
channels automatically.
5
Select [Start], then press OK to re-install
channels.
• To stop searching, select [Stop] and
press OK.
6
Press OK when installation is complete.
Manually install channels
This section describes how to search and store
analogue TV channels manually.
Step 1 Select your system
Note
Step 1 Select your menu language
• Skip this step if your system settings are
correct.
Note
• Skip this step if your language settings are
correct.
1
2
Press
3
4
5
6
Press
1
2
Press
3
4
Select [System], then press OK to enter.
5
6
Press OK to confirm.
MENU.
Press
to select [Installation] >
[Menu language].
Press
to enter [Menu language].
to select a language.
Press OK to confirm.
Press
MENU to exit.
MENU.
Press
to select [Installation] >
[Channel installation] > [Analogue:
manual install].
» The [Analogue: manual install] menu
appears.
Press
region.
Press
to select your country or
MENU to exit.
Step 2 Select your country
Select the country where you are installing the
TV. The available channels for the country are
installed on the TV.
1
2
3
4
Press
MENU.
Press
to select [Installation]
> [Channel installation] > [Channel
assistant].
» The [Channel assistant] menu appears.
Select [Yes] and then press OK to enter.
Press
press
to select your country, then
to go to the next step.
EN
21
Eng lish
6 Install channels
Step 2 Search and store new TV
channels
1
2
3
Press
MENU.
Press
to select [Installation] >
[Channel installation] > [Analogue:
manual install].
» The [Analogue: manual install] menu
appears.
Press
to select [Search], then press
to enter.
4
Press Numeric buttons to manually enter
the three-digit frequency.
5
Press OK to begin search.
» If a channel is unavailable at the
selected frequency, the system searches
for the next available channel.
6
7
8
9
When the new channel appears, press
to select [Store as new channel].
» This stores the channel under a new
channel number.
Press
to enter [Store as new channel].
Select [Yes], then press OK to store the
new channel.
Press
MENU to exit.
Step 3 Fine-tune analogue channels
1
2
Press
MENU.
Press
to select [Installation] >
[Channel installation] > [Analogue:
manual install].
» The [Analogue: manual install] menu
appears.
3
Press
to select [Fine tune], then press
to enter.
4
5
6
Press
7
8
Press
9
to adjust frequency.
Press OK to confirm.
Press
to select [Store current
channel] to store channel number.
to enter [Store current channel].
Select [Yes], then press OK to store
current channel.
Press
MENU to exit.
Skip channels
1
When watching TV, switch to the channel
that you want to skip.
2
3
Press
MENU.
Press
to select [Installation] >
[Channel installation] > [Analogue:
manual install].
» The [Analogue: manual install] menu
appears.
4
Press
press
5
Press
to select [Yes], then press OK
to skip current channel.
» The selected channel is skipped when
you press P +/- on your remote
control or view from the channel grid.
6
To skip more channels, repeat the
procedure.
to select [Skip channel], then
to enter.
Tip
• To access the skipped channels, press Numeric
buttons.
• To restore a skipped channel, repeat steps 1 to
4, and then select [No] in step 5.
22
EN
Rearrange channels
You can rename channels. The name appears
when you select the channel.
After you install channels, you can rearrange the
order in which they appear.
1
When watching TV, press OK to display
the channel grid.
1
When watching TV, press OK to display
the channel grid.
2
Press
rename.
2
Press OPTIONS.
» The channel options menu appears.
3
Press OPTIONS.
» The channel options menu appears.
3
Press
OK.
4
Press
to select [Rename channel],
then press OK.
» A text input box appears.
4
Select the channel to rearrange, then
press OK.
» The selected channel is highlighted.
5
6
7
Press
5
Press
to move the highlighted
channel to the desired location, then
press OK.
6
Press OPTIONS.
» [Done reordering] appears on the
screen.
7
8
Press OK to confirm.
to select the channel to
to select characters.
Press OK to confirm each character.
Select [Done], then press OK to finish
renaming channels.
Tip
• The device name can be up to six characters
long.
• Press [Aa] to change an uppercase letter to a
lowercase letter and vice versa.
Press
to select [Reorder], then press
BACK to exit the channel grid.
EN
23
Eng lish
Rename channels
7 Connect devices
a HDMI 1
Digital audio and video input from highdefinition digital devices such as Blu-ray
players.
This section describes how to connect devices
with different connectors. Examples are
provided in the Quick Start.
Note
• You can use different types of connectors to
connect a device to your TV.
Back connectors
Connections via DVI or VGA require an
additional audio cable (see ‘Connect a
computer’ on page 27).
b EXT 1 (RGB/CVBS)
Analogue audio and video input from
analogue or digital devices such as DVD
players or game consoles.
c For use by service personnel only.
24
EN
f PC IN (VGA and AUDIO)
Audio and video input from a computer.
PC AUDIO IN/ PC IN(AUDIO)
TV ANTENNA
VGA
VGA
e EXT 2 (Y Pb Pr and AUDIO L/R)
Analogue audio and video input from
analogue or digital devices such as DVD
players or game consoles.
g SERV. U
For use by service personnel only.
EN
25
Eng lish
d TV ANTENNA
Signal input from an antenna, cable or
satellite.
Side connectors
c AUDIO L/R
Audio input from analogue devices
connected to VIDEO.
d VIDEO
Composite video input from analogue
devices such as VCRs.
a USB (Used for software upgrade only)
Data input from USB storage devices.
b
Stereo audio output to headphones or
earphones.
26
EN
Before you connect a computer to the TV
• Set the screen refresh rate on your
computer to 60Hz.
• Select a supported screen resolution on
your computer.
Connect a computer with one of the
following connectors:
HDMI cable and HDMI-DVI adaptor
Eng lish
•
Connect a computer
PC AUDIO IN/ PC IN(AUDIO)
DVI
Note
• Connections via DVI or VGA require an
additional audio cable.
•
HDMI cable
•
VGA cable
PC AUDIO IN/ PC IN(AUDIO)
DVI-HDMI cable
VGA
VGA
•
PC AUDIO IN/ PC IN(AUDIO)
DVI
EN
27
Use Philips EasyLink
Use a Kensington lock
Your TV supports Philips EasyLink, which
uses the HDMI CEC (Consumer Electronics
Control) protocol. EasyLink-compliant devices
that are connected through HDMI connectors
can be controlled by a single remote control.
There is a Kensington security slot at the back
of the TV. Prevent theft by looping a Kensington
lock between the slot and a permanent object,
such as a heavy table.
Note
• The EasyLink-compliant device must be
switched on and selected as the source.
• Philips does not guarantee 100%
interoperability with all HDMI CEC devices.
Enable or disable EasyLink
Note
• Do not enable Philips EasyLink if you do not
intend to use it.
1
2
3
Press
MENU.
Press
to select [Setup] >
[Installation] > [Preferences] >
[EasyLink].
Select [On] or [Off].
Use one-touch play
1
After enabling EasyLink, press play on
your device.
» The TV automatically switches to the
correct source.
Use one-touch standby
1
Press (Standby-On) on the TV’s or
device’s remote control.
» The TV and all connected HDMI
devices switch to standby.
28
EN
Product information is subject to change
without notice. For detailed product
information, go to www.philips.com/support.
Supported display resolutions
Computer formats
• Resolution - refresh rate:
• 640 x 480 - 60Hz
• 800 x 600 - 60Hz
• 1024 x 768 - 60Hz
• 1280 x 768 - 60Hz
• 1360 x 768 - 60Hz
Video formats
• Resolution - refresh rate:
• 480i - 60Hz
• 480p - 60Hz
• 576i - 50Hz
• 576p - 50Hz
• 720p - 50Hz, 60Hz
• 1080i - 50Hz, 60Hz
• 1080p - 24Hz, 25Hz, 30Hz, 50Hz,
60Hz.
Tuner / Reception /
Transmission
•
•
•
•
Remote control
•
•
Eng lish
8 Product
information
Type: PF02E09B
Batteries: 2 x AAA (LR03 type)
Power
•
•
•
Mains power: 220-240V, 50Hz
Standby power: < 0.3 W
Ambient temperature: 5 to 40 degrees
Celsius
Supported TV mounts
To mount the TV, purchase a Philips TV mount.
To prevent damage to cables and connectors,
be sure to leave a clearance of at least 2.2
inches or 5.5cm from the back of the TV.
Warning
• Follow all instructions provided with the TV
mount. Koninklijke Philips Electronics N.V.
bears no responsibility for improper TV
mounting that results in accident, injury or
damage.
TV screen Required
size (inches) pitch (mm)
19
22
26
75 x 75
75 x 75
75 x 75
Required
mounting bolts
(≤ 10mm)
4 x M4
4 x M4
4 x M4
Aerial input: 75ohm coaxial (IEC75)
TV system: PAL I, B/G, D/K; SECAM B/G,
D/K, L/L’
Video playback: NTSC, SECAM, PAL
Tuner Bands: Hyperband, S-channel, UHF,
VHF
EN
29
Product specification
Design and specifications are subject to change
without notice.
19PFL3405
• Without TV stand
• Dimension (WxHxD): 455 x 303.7 x
56 (mm)
• Weight: 3.16 kg
• With TV stand
• Dimension (WxHxD): 455 x 328.7 x
137.9 (mm)
• Weight: 3.32 kg
22PFL3405
• Without TV stand
• Dimension (WxHxD): 526.02 x
343.5 x 55.79 (mm)
• Weight: 4.0 kg
• With TV stand
• Dimension (WxHxD): 526.02 x
369.5 x 148.96 (mm)
• Weight: 4.2 kg
26PFL3405
• Without TV stand
• Dimension (WxHxD): 637.4 x 410.8
x 63 (mm)
• Weight: 5.21 kg
• With TV stand
• Dimension (WxHxD): 637.4 x
447.25 x 170 (mm)
• Weight: 5.5 kg
30
EN
This section describes commonly encountered
issues and accompanying solutions.
General TV issues
The TV does not switch on:
•
Disconnect the power cable from the
power outlet. Wait for one minute then
reconnect it.
•
Check that the power cable is securely
connected.
The remote control is not working properly:
•
Check that the remote control batteries
are correctly inserted according to the
+/- orientation.
•
Replace the remote control batteries if
they are flat or weak.
•
Clean the remote control and TV sensor
lens.
The standby light on the TV blinks red:
•
Disconnect the power cable from the
power outlet. Wait until the TV cools
down before reconnecting the power
cable. If the blinking reoccurs, contact
Philips Consumer Care.
You forgot the code to unlock the TV lock
feature
•
Enter ‘8888’.
The TV menu is in the wrong language.
•
Change the TV menu to your preferred
language.
When turning the TV on / off / to standby, you
hear a creaking sound from the TV chassis:
•
No action is required. The creaking sound
is normal expansion and contraction of
the TV as it cools down and warms up.
This does not impact performance.
TV channel issues
Previously installed channels do not appear in
the channel list:
•
Check that the correct channel list is
selected.
Some channels are not automatically installed
on my TV:
•
During installation, make sure that
you select the country where you are
installing the TV (see ‘Step 2 Select your
country’ on page 21).
Picture issues
The TV is on, but there is no picture:
•
Check that the antenna is properly
connected to the TV.
•
Check that the correct device is selected
as the TV source.
There is sound but no picture:
•
Check that the picture settings are
correctly set.
There is poor TV reception from an antenna
connection:
•
Check that the antenna is properly
connected to the TV.
•
Loudspeakers, unearthed audio devices,
neon lights, high buildings and other large
objects can influence reception quality.
If possible, try to improve the reception
quality by changing the antenna direction
or moving devices away from the TV.
•
If reception on only one channel is poor,
fine tune this channel.
There is poor picture quality from connected
devices:
•
Check that the devices are connected
properly.
•
Check that the picture settings are
correctly set.
The TV did not save your picture settings:
• Check that the TV location is set to the
home setting. This mode offers you the
flexibility to change and save settings.
EN
31
Eng lish
9 Troubleshooting
The picture does not fit the screen; it is too
big or too small:
•
Try using a different picture format.
The picture position is incorrect:
•
Picture signals from some devices may
not fit the screen correctly. Check the
signal output of the device.
Sound issues
There is a picture but sound quality is poor:
•
If you use an HDMI-to-DVI adapter
or HDMI-to-DVI cable, check that an
additional audio cable is connected to
AUDIO (mini-jack only).
Computer connection issues
The computer display on the TV is not stable:
•
Check that your PC uses the supported
resolution and refresh rate.
•
Set the TV picture format to unscaled.
Note
• If no audio signal is detected, the TV
automatically switches the audio output off
— this does not indicate malfunction.
•
Check that all cables are properly
connected.
•
Check that the volume is not set to 0.
•
Check that the sound is not muted.
There is a picture but the sound quality is
poor:
•
Check that the sound settings are
correctly set.
There is a picture but sound comes from one
speaker only:
•
Verify that sound balance is set to the
centre.
Contact us
If you cannot resolve your problem, refer to the
FAQs for this TV at www.philips.com/support.
If the problem remains unresolved, contact
Philips Consumer Care in your country as
listed in this user manual.
Warning
• Do not attempt to repair the TV yourself. This
may cause severe injury, irreparable damage to
your TV or void your warranty.
Note
• Make a note of your TV model and serial
HDMI connection issues
There are problems with HDMI devices:
•
Note that HDCP (High-bandwidth Digital
Content Protection) support can delay
the time taken for a TV to display content
from a HDMI device.
•
If the TV does not recognise the HDMI
device and no picture is displayed, try
switching the source from one device to
another and back again.
•
If there are intermittent sound
disruptions, check that output settings
from the HDMI device are correct.
32
EN
number before you contact Philips. These
numbers are printed on the back of the TV
and on the packaging.
A
analogue
fine-tune
antenna
22
24
B
batteries
bracket for wall mount
29, 5
29
C
care
channel grid
channels
favourites list
fine-tune
grid
install
automatic
manual
list
lock
rename
reorder / rearrange
skip channels
switch
troubleshooting
tune
child lock
lock channels
lock connected devices
PIN code
computer
connect
display resolution
connect
antenna
PC
connectors
HDMI
overview
country
5
10
16
22
10
21
21
16
18
23
23
22
10
31
22
19
18
18
32, 27
29
24
32, 27
32, 24
24
21
default settings
devices
devices
add to home menu
connect
watch
digital services
teletext
disconnect USB
display
resolution
dispose
20
11
12
24
11
11, 15
20
29
5
E
EasyLink
disable
enable
one-touch play
one-touch standby
end of life
environmental care
e-sticker
28
28
28
28
5
5
20
F
factory settings
favourites list
create list
view list
fine-tune channels
20
16
16
22
H
HDMI
home mode
32
20
I
install channels
automatic
manual
21
21
K
Kensington lock
28
EN
33
Eng lish
D
10 Index
L
R
language
troubleshoot
list
favourites list
location
country
home or shop
lock
Kensington lock
lock channels
lock connected devices
PIN code
rearrange channels
reception
recycle
register product
remote control
batteries
overview
technical specifications
rename channels
reorder channels
resolution
restore default
31
16
21
20
28
19
18
18
M
S
menu
main menu
teletext
MHEG teletext
MPEG artifact reduction
safety
screen care
settings
sound
shop mode
skip channels
smart picture
smart settings
smart sound
software
version
sound settings
specifications
standby
subpages in teletext
switch
channels
on and off
source
12
15
11
13
O
on timer
one-touch play
one-touch standby
17
28
28
P
PC
connect
resolution
picture format
change
troubleshooting
picture settings
PIN code
pixel plus link
power
power consumption
preferences
product specifications
34
EN
27, 32
29
14
31
12
18
20
29
29
20
29
23
31
5
7
29, 5
8
29
23
23
29
20
4
5
13
15
20
22
12
12, 14
14
19
15
29
10
15
10
10
11
© 2010 Koninklijke Philips Electronics N.V.
All rights reserved.
