HID Identity ProxPoint Plus 6008

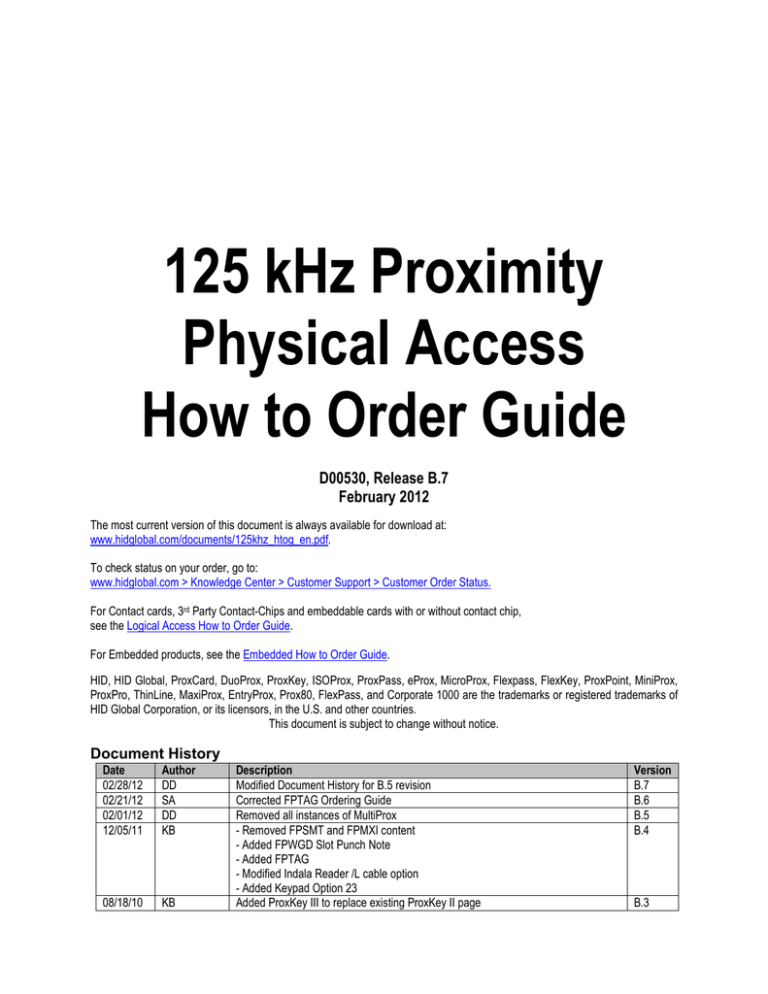

125 kHz Proximity
Physical Access
How to Order Guide
D00530, Release B.7
February 2012
The most current version of this document is always available for download at:
www.hidglobal.com/documents/125khz_htog_en.pdf.
To check status on your order, go to:
www.hidglobal.com > Knowledge Center > Customer Support > Customer Order Status.
For Contact cards, 3rd Party Contact-Chips and embeddable cards with or without contact chip,
see the Logical Access How to Order Guide.
For Embedded products, see the Embedded How to Order Guide.
HID, HID Global, ProxCard, DuoProx, ProxKey, ISOProx, ProxPass, eProx, MicroProx, Flexpass, FlexKey, ProxPoint, MiniProx,
ProxPro, ThinLine, MaxiProx, EntryProx, Prox80, FlexPass, and Corporate 1000 are the trademarks or registered trademarks of
HID Global Corporation, or its licensors, in the U.S. and other countries.
This document is subject to change without notice.
Document History
Date
02/28/12
02/21/12
02/01/12
12/05/11
Author
DD
SA
DD
KB
08/18/10
KB
Description
Modified Document History for B.5 revision
Corrected FPTAG Ordering Guide
Removed all instances of MultiProx
- Removed FPSMT and FPMXI content
- Added FPWGD Slot Punch Note
- Added FPTAG
- Modified Indala Reader /L cable option
- Added Keypad Option 23
Added ProxKey III to replace existing ProxKey II page
Version
B.7
B.6
B.5
B.4
B.3
125 kHz How to Order Guide - D00530, B.7
Contents
Credentials .................................................................................................................................................... 3
Overview ...................................................................................................................................................................3
®
1326 - ProxCard II Card Ordering Form ..................................................................................................................4
®
1336 / 1536 - DuoProx II Card Ordering Form.........................................................................................................5
®
1346 - ProxKey III Keyfob Ordering Form................................................................................................................6
®
1386 / 1586 - ISOProx II Card Ordering Form .........................................................................................................7
®
1351 - ProxPass II Vehicle Identification Tag Ordering Form ..................................................................................8
1391 - MicroProx® Tag Proximity Ordering Form .....................................................................................................9
®
168/169 Style - ProxCard Plus Card Ordering Form ............................................................................................. 10
Direct Image PVC Glossy Label Part Numbers ....................................................................................................... 11
Custom Artwork Checklist Form .............................................................................................................................. 12
Indala 125kHz Credential ............................................................................................................................ 13
FPISO - FlexPass Imageable Card Ordering Guide ................................................................................................ 14
FPSMT - Flexpass™ Imageable Card with Contact Chip Ordering Guide .............................................................. 15
FPCRD - FlexCard Standard Card Ordering Guide................................................................................................. 16
FPTAG - FlexTag® Ordering Guide ........................................................................................................................ 17
FPKEY - FlexKey® Keytag Ordering Guide ............................................................................................................ 18
CXKEY - CX Keytag Ordering Guide ...................................................................................................................... 19
FPMXI - Flexpass™ Proximity Multiple Technology Imageable Card Ordering Guide ............................................ 20
FlexPass Formats ................................................................................................................................................... 21
Electronic Artwork Requirement Checklist .................................................................................................. 22
Anti-Counterfeiting Descriptions ................................................................................................................. 23
Custom Artwork Placement and Inkjet Location Form ................................................................................ 24
®
ProxCard II Cards .................................................................................................................................................. 24
®
DuoProx II Cards ................................................................................................................................................... 25
®
ISOProx II Cards ................................................................................................................................................... 26
MicroProx Tag ......................................................................................................................................................... 27
®
1050AGN00 ProxProgrammer Ordering Guide ........................................................................................ 28
HID Proximity Readers ................................................................................................................................ 29
Accessories ............................................................................................................................................................. 29
®
6005 / 6008 - ProxPoint Plus Proximity Reader Part Numbers and Options ......................................................... 31
®
5365 / 5368 - MiniProx Proximity Reader Part Numbers and Options ................................................................... 32
®
5455 / 5458 / 5355 / 5352 / 5358 - ProxPro Family Proximity Reader Part Numbers and Options........................ 33
®
5395 / 5398 - ThinLine II Proximity Reader Part Numbers and Options ................................................................ 34
®
5375 - MaxiProx Proximity Reader Part Numbers and Options ............................................................................. 35
4045 - EntryProx™ Proximity Reader Part Numbers and Options .......................................................................... 36
™
5405 / 5408 - Prox80 Proximity Reader Part Numbers and Options ..................................................................... 37
Indala Proximity Readers ............................................................................................................................ 38
Overview ................................................................................................................................................................. 38
®
FP - FlexPass Reader Ordering Guide .................................................................................................................. 39
Advantage Series (ASR) Reader Ordering Guide ................................................................................................... 40
ProxSmith Programmer and Software Part Numbers .............................................................................................. 40
FlexPass Accessories ............................................................................................................................................. 41
Corporate 1000™ Format - Request & Authorization Form ....................................................................... 42
Index of Terms for HID Credentials ............................................................................................................ 44
Page 2 of 44
© 2007 – 2012 HID Global Corporation. All rights reserved.
February 2012
125 kHz How to Order Guide - D00530, B.7
Credentials
Overview
Each part number consists of a base number, to indicate the type of Credential, and a number or letter to indicate each
Credential option. Each Credential has a standard part number which includes default options, as indicated on the attached
Credential guides. When an order is placed for a credential, the base number and all options must be specified. If you require
any options that are different from the default options, you must also indicate those options at the time the order is placed. All
part numbers must be complete to be accepted by HID’s order entry system.
All credential orders must have the following information:
• Base Model Number - Indicates type of credential
• Frequency - Indicates high (400 kHz), low (125 kHz), or (13.56 MHz) frequency. Low frequency (125 kHz) is
standard for all HID Proximity access credentials. 400 kHz is an optional frequency offered for use with the older
generation Destron/IDI products and ProxCard® II proximity credentials. 13.56 MHz is the contactless frequency
associated with iCLASS® and MIFARE®.
• Programming - Indicates whether the credential is programmed at the factory by HID or programmed by you with an
HID field programmer. If the credential is ordered non-programmed, an HID field programmer must be used for
programming. (Contact an HID sales representative for field programmer eligibility.)
Note: For the iCLASS Prox embeddable card, see the Logical Access How to Order Guide.
• Front Packaging - Indicates standard or custom artwork and type of finish.
• Back Packaging - Indicates standard or custom artwork and type of finish.
• 125 kHz Credential Numbering - Internal 125 kHz programmed number and visible external credential number.
• Slot Punch
All orders for custom artwork credentials must have the following information:
• Custom Artwork Number (Call your Customer Service Representative if number is not available.)
In addition, all credential orders must have the following programming information:
• Bit and Format(s) Numbers
• Facility Code(s)
• Internal and External Start Numbers
• Any Special Instructions
February 2012
© 2007 - 2012 HID Global Corporation. All rights reserved.
Page 3 of 44
125 kHz How to Order Guide - D00530, B.7
1326 - ProxCard® II Card Ordering Form
Ensure each required option has been checked with the appropriate choice to fulfill a completed order form.
1326 Base Model
Programming (Check One)
L - Programmed, Low Frequency (125 kHz) HID. Specify Programming Information.
C - Programmed, Low Frequency (125 kHz) Casi Rusco4. (Identified on Ink jet Markings) Specify Programming Information.
N - Non-Programmed, Low Frequency (125 kHz). Programming Information Not Required.
Front Packaging (Check One)
S - ProxCard II Artwork - Vinyl with Matte Finish
M - Plain White Vinyl with Matte Finish
G - Plain White PVC with Gloss Finish
A - ProxCard II with Adhesive Front1
C - Custom Artwork - Specify Custom Artwork Number2
Back Packaging (Check One)
S - Base with Molded HID Logo
C - Custom Artwork - Specify Custom Artwork Number2
(Cover)
Front
Packaging
Card Numbering3 (Check One)
M - Sequential Matching Internal/External (Inkjetted)
N - No External Card Numbering
S - Sequential Internal/Sequential Non-Matching External (Inkjetted)
R - Random Internal/Non-Matching Sequential External (Inkjetted)
(Base)
Back
Packaging
12345 = Card ID Number
YYYYYYYY-YY = Sales Order Number
Slot Punch
V - Vertical Slot Punch
Option - Custom Artwork2
(Specify Artwork Number – Refer to the Custom Artwork Forms for new Artwork)
Enter your final card options from check boxes above. Example: 1326LSSMV
Final Part Number
1326
V
-
(Options #)
125 kHz Card Programming Information
Bit Numbers
. (example: 26 bit)
Facility Code
.
(Custom Formats) Site Code
. City Code
Internal Card No. Start
. Stop
External Card No. Start
. Stop
Format Number
. OEM Code
(example: H10301)
.
.
.
Special Instructions:
.
1 The
part numbers for non-adhesive labels to be used with the ProxCard II with the adhesive front are 1324GGN31 without slot and 1324GGV31 with slot.
For new artwork files, contact Customer Service for custom artwork number, lead-times, and cost.
3 The external card number is placed in the top left-hand corner on the back of the card. HID logo molded into base on back.
4 Programmed as a sequential 12 digit number.
2
Page 4 of 44
© 2007 – 2012 HID Global Corporation. All rights reserved.
February 2012
125 kHz How to Order Guide - D00530, B.7
1336 / 1536 - DuoProx® II Card Ordering Form
Ensure each required option has been checked with the appropriate choice to fulfill a completed order form.
Base Model
1336 Standard PVC
1536 Composite 40% Polyester / PVC *
Programming (Check One)
L - Programmed, Low Frequency (125 kHz). Specify Programming Information.
C - Programmed, Low Frequency (125 kHz) Casi Rusco6. (Identified on Ink jet Markings)
Specify Programming Information.
N - Non-Programmed, Low Frequency (125 kHz). Programming Information Not Required.
Front Packaging (Check One)
G - Plain White PVC w/ Gloss Finish
C - Custom Artwork w/ Gloss Finish – Specify Custom Artwork Number1
Back Packaging (Check One)
G - Plain White PVC w/ Gloss Finish2
S - Standard DuoProx II Artwork Gloss Finish2
C - Custom Artwork w/ Gloss Finish – Specify Custom Artwork Number1, 2
Back Packaging
Card Numbering3 (Check One)
M - Sequential Matching Internal/External (Inkjette
N - No External Card Numbering
S - Sequential Internal/Sequential Non-Matching External (Inkjetted)
R - Random Internal/Non-Matching Sequential External (Inkjetted)
A - Sequential Matching Internal/External (Engraved)5
B - Sequential Internal/Sequential Non-Matching External (Engraved)5
C - Random Internal/Non-Matching Sequential External (Engraved)5
Slot Punch4 (Check One)
N - No Slot Punch (Printed location of vertical and horizontal slot punch will remain)
V - Vertical Slot Punch (Printed location of horizontal slot punch will remain)
H - Horizontal Slot Punch (Printed location of vertical slot punch will remain)
12345 = Card ID Number
YYYYYYYY-YY = Sales Order Number
For the DuoProxII embeddable card, see the Logical Access How to Order Guide.
Option - Custom Artwork1
(Specify Artwork Number – Refer to the Custom Artwork Forms for new Artwork)
Enter your final card options from check boxes above. Example: 1336LGGMN
Final Part Number
(Options #)
125 kHz Card Programming Information
Bit Numbers
. (example: 26 bit)
Facility Code
.
(Custom Formats) Site Code
Format Number
. City Code
. OEM Code
Internal Card No. Start
. Stop
.
External Card No. Start
. Stop
.
Special Instructions:
(example: H10301)
.
.
For new artwork files, contact Customer Service for custom artwork number, lead-times, and cost.
Cards ordered with plain white front and back packaging, with no HID artwork or with custom artwork, will still have a small “HID logo” "
" and reference
number printed in the lower left-hand corner and a slot punch target printed on the back of the card.
3 The external card number is placed in the bottom right-hand corner on the back of the card.
4 Cards are provided with an optional slot punch at no additional charge. Some video imaging printers cannot accommodate pre-slot punched cards.
Please consult with the printer manufacturer prior to ordering.
5 For Laser Engraved external numbers, consult factory for lead times and cost.
6 Programmed as a sequential 12 digit number.
* The composite construction is recommended for all cards that will have an over-laminate applied.
1
2
February 2012
© 2007 - 2012 HID Global Corporation. All rights reserved.
Page 5 of 44
125 kHz How to Order Guide - D00530, B.7
1346 - ProxKey® III Keyfob Ordering Form
Ensure each required option has been checked with the appropriate choice to fulfill a completed order form.
1346 Base Model
Programming (Check One)
L - Programmed, Low Frequency (125 kHz). Specify Programming Information.
N - Non-Programmed, Low Frequency (125 kHz). Programming Information Not Required.
Front Packaging
.24 in
[6 mm]
N – ProxKey III - Black with grey insert. Includes HID Standard Artwork
S - Standard
Keyfob Numbering1 (Check One)
M - Sequential Matching Internal/External (Inkjetted)
N - No External Card Numbering
S - Sequential Internal/Sequential Non-Matching External (Inkjetted)
R - Random Internal/Non-Matching Sequential External (Inkjetted)
A - Sequential Matching Internal/External (Engraved)2
B - Sequential Internal/Sequential Non-Matching External (Engraved)2
C - Random Internal/Non-Matching Sequential External (Engraved)2
Additional
Front Packaging
Back Packaging
1. 55 in [39.4 mm]
Back Packaging
1. 25 in [31.75 mm]
Shown – Front Packaging Option “N”
Options3
12345 = Keyfob ID Number
YYYYYYYY-YY = Sales Order Number
N - No Option
Enter your final ProxKey options from check boxes above. Example: 1346LNSMN
Final Part Number
1346
N
S
N
125 kHz ProxKey Programming Information
Bit Numbers
. (example: 26 bit)
Facility Code
.
(Custom Formats) Site Code
. City Code
Internal Key No. Start
. Stop
.
External Key No. Start
. Stop
.
Format Number
. OEM Code
Special Instructions:
(example: H10301)
.
.
The external number is placed on the back of the Keyfob.
For Laser Engraved external numbers, consult factory for lead times and cost.
3 Key Ring sold separately (Part Number: 57-0001-02).
1
2
Page 6 of 44
© 2007 – 2012 HID Global Corporation. All rights reserved.
February 2012
125 kHz How to Order Guide - D00530, B.7
1386 / 1586 - ISOProx® II Card Ordering Form
Ensure each required option has been checked with the appropriate choice to fulfill a completed order form.
Base Model
1386 Standard PVC
1586 Composite 40% Polyester / PVC *
Programming (Check One)
L - Programmed, Low Frequency (125 kHz). Specify Programming Information.
C - Programmed, Low Frequency (125 kHz) Casi Rusco6. (Identified on Ink jet Markings) Specify Programming Information.
N - Non-Programmed, Low Frequency (125 kHz). Programming Information Not Required.
Front Packaging (Check One)
G - Plain White PVC w/ Gloss Finish
C - Custom Artwork w/ Gloss Finish – Specify Custom Artwork Number1
Front Packaging
Back Packaging (Check One)
G - Plain White PVC w/ Gloss Finish2
S - Standard ISOProx II Artwork Gloss Finish2
C - Custom Artwork w/ Gloss Finish – Specify Custom Artwork Number1, 2
Card Numbering (Check One)
M - Sequential Matching Internal/External (Inkjetted)
N - No External Card Numbering
S - Sequential Internal/Sequential Non-Matching External (Inkjetted)
R - Random Internal/Non-Matching Sequential External (Inkjetted)
A - Sequential Matching Internal/External (Engraved)5
B - Sequential Internal/Sequential Non-Matching External (Engraved)5
C - Random Internal/Non-Matching Sequential External (Engraved)5
Back Packaging
Slot Punch4 (Check One)
N - No Slot Punch (Printed location of vertical and horizontal slot punch will remain)
V - Vertical Slot Punch (Printed location of horizontal slot punch will remain)
H - Horizontal Slot Punch (Printed location of vertical slot punch will remain)
12345 = Card ID Number
YYYYYYYY-YY = Sales Order Number
For the IsoProx II embeddable card, see the Logical Access How to Order Guide.
Option - Custom Artwork1
(Specify Artwork Number – Refer to the Custom Artwork Forms for new Artwork)
Enter your final card options from check boxes above. Example: 1386LGGMN
Final Part Number
-
(Options #)
125 kHz Card Programming Information
Bit Numbers
Facility Code
(Custom Formats) Site Code
Internal Card No. Start
External Card No. Start
Special Instructions:
. (example: 26 bit)
.
. City Code
. Stop
. Stop
Format Number
.
.
. OEM Code
(example: H10301)
.
.
For new artwork files, contact Customer Service for custom artwork number, lead-times, and cost.
Cards ordered with plain white front and back packaging, with no HID artwork or with custom artwork, will still have a small “HID logo” "
" and reference
number printed in the lower left-hand corner and a slot punch target printed on the back of the card.
3 The external card number is placed in the bottom right-hand corner on the back of the card.
4 Cards are provided with an optional slot punch at no additional charge. Some video imaging printers cannot accommodate pre-slot punched cards. Please
consult with the printer manufacturer prior to ordering.
5 For Laser Engraved external numbers, consult factory for lead times and cost.
6 Programmed as a sequential 12 digit number.
* The composite construction is recommended for all cards that will have an over-laminate applied.
1
2
February 2012
© 2007 - 2012 HID Global Corporation. All rights reserved.
Page 7 of 44
125 kHz How to Order Guide - D00530, B.7
1351 - ProxPass® II Vehicle Identification Tag Ordering Form
Ensure each required option has been checked with the appropriate choice to fulfill a completed order form.
1351 Base Model
Programming
L - Programmed, Low Frequency (125 kHz). Specify Programming Information.
Color
B - Standard beige finish
Back Packaging
S - Standard HID logo
Tag Numbering (Check One)
M - Sequential Matching Internal/External (Inkjetted)
N - No External Card Numbering
S - Sequential Internal/Sequential Non-Matching External (Inkjetted)
R - Random Internal/Non-Matching Sequential External (Inkjetted)
Hardware Option
N - None
Enter your final Tag options from check boxes above. Example: 1351LBSMN
Final Part Number
1351
L
B
S
N
Front Packaging
-
(Optional Artwork #)
Back Packaging
12345 = Tag ID Number
YYYYYYYY-YY = Sales Order Number
125 kHz Tag Programming Information
Bit Numbers
. (example: 26 bit)
Facility Code
.
(Custom Formats) Site Code
. City Code
Internal Tag No. Start
. Stop
.
External Tag No. Start
. Stop
.
Format Number
. OEM Code
(example: H10301)
.
Special Instructions:
.
The ProxPass II Tag includes two replaceable internal batteries and Velcro strips for a complete and simple installation.
Battery Part # BR2330, available at most electronic stores (not sold by HID).
Page 8 of 44
© 2007 – 2012 HID Global Corporation. All rights reserved.
February 2012
125 kHz How to Order Guide - D00530, B.7
1391 - MicroProx® Tag Proximity Ordering Form
Ensure each required option has been checked with the appropriate choice to fulfill a completed order form.
1391 Base Model
Programming (Check One)
L - Programmed, Low Frequency (125 kHz). Specify Programming Information.
C - Programmed, Low Frequency (125 kHz) Casi Rusco6. (Identified on Ink jet Markings) Specify Programming Information.
N - Non-Programmed, Low Frequency (125 kHz). Programming Information Not Required.
Front Packaging (Check One)
S - Gray with HID Standard Artwork
K - Black with HID Standard Artwork
B - Plain Black Finish, (No Artwork)
G - Plain Gray Finish, (No Artwork)
C - Custom Artwork – Specify Custom Artwork Number1
Back Packaging3
S - Adhesive Backing
Tag Numbering2 (Check One)
M - Sequential Matching Internal/External (Inkjetted)
N - No External Tag Numbering
S - Sequential Internal/Sequential Non-Matching External (Inkjetted)
R - Random Internal/Non-Matching Sequential External (Inkjetted)
Slot Punch
N - None
Optional Custom Artwork1
(Specify Artwork Number – Refer to the Custom Artwork Forms for new Artwork)
Enter your final Tag options from check boxes above. Example: 1391LKSMN
Final Part Number
1391
S
N
-
(Optional Artwork #)
125 kHz Tag Programming Information
Bit Numbers
. (example: 26 bit)
Facility Code
.
(Custom Formats) Site Code
. City Code
Internal Tag No. Start
. Stop
.
External Tag No. Start
. Stop
.
Format Number
. OEM Code
Special Instructions:
(example: H10301)
.
.
For new artwork files, contact Customer Service for custom artwork number, lead-times, minimum order quantities, and cost.
The external tag number is placed on the back of the tag.
3 The MicroProx Tag is not for use on cards that use full insertion or tractor feed type readers.
Do not adhere to metal surfaces. Metal shields the RF, making the tag inoperable. Due to variations in cards and reading devices, HID does not claim that the
MicroProx Tag will work in every situation. Functional and non-functional MicroProx Tags are available for compatibility testing with existing credential and
reader technologies. Compatibility should be confirmed prior to ordering.
1
2
MicroProx Placement
February 2012
© 2007 - 2012 HID Global Corporation. All rights reserved.
Page 9 of 44
125 kHz How to Order Guide - D00530, B.7
168/169 Style - ProxCard® Plus Card Ordering Form
Instructions
1. Select one option from each category (1-5) and mark the appropriate box.
2. Complete the Programming Information and Company Information Sections.
3. Fax the completed Ordering Guide to HID’s North Haven, CT, office at 1-203-407-5967, Attn.: Customer Service.
4. HID Corporation will determine the correct part number based on the options you specify, and fax you the part number and specification
sheet.
5. Place an order for the ProxCard Plus card with the part number provided by HID.
Card Thickness: 0.047” ± 0.004” - Check with your printer manufacturer to verify card printability
- Magnetic Stripe applications: Verify reader slot width.
Style 168 card = Non-printable surface, Matte Finish
1. Card Front
ProxCard Plus Artwork
Plain White 1
Custom Artwork (500 Min.)
6. Card Style (Wiegand Code Strip Location)
A (If unsure, or card is to be used in a mixed reader environment, please
contact the factory)
A1
2. Card Back
Plain White
Custom Artwork (500 Min.)
3. Card Finish
Matte Finish
Gloss Finish
NOTE: Cards are manufactured with similar front and
back side finishes only, (i.e. Matte/Matte or Gloss/Gloss)
4. High Coercivity Magnetic Stripe
Front
Back
None
“B” Field
Bit Format:
.
(if required)
.
Front
Back
.
Company Information:
(If different than Wiegand Programming Info)
Facility Code: “A” Field
“B” Field
.
Internal PIN Start No:
External Card Numbering 2 :
Notes:
Please call customer service for availability, minimum order requirements, and a quote for custom
cards.
1 Cards ordered with plain white front and back packaging, with no HID artwork or custom artwork,
will have a small “HID” printed in the lower right-hand corner and a horizontal slot punch halo target
printed on the back of the card.
2 The external card number is ink jet printed in the lower left-hand corner on the back of the card.
Zero gap numbering is not available. The external PIN numbers will be associated with the
Wiegand programming unless otherwise specified.
3 Some video imaging printers cannot accommodate pre-slot punched cards. Please consult with
the printer manufacturer prior to printing.
4 Consult customer service for vertical slot punch.
Programming Information (Proximity):
Programming Information (Wiegand):
Facility Code: “A” Field
Style 169 card = Printable surface, Gloss Finish
5. Slot Punch 3
No Slot Punch (Printed halo of horizontal slot punch will remain)
Horizontal Slot Punch 4
.
(if required)
.
Company Name:
.
Contact:
.
Address:
.
Bit Format:
.
City:
.
Internal PIN Start No:
.
State:
.
Zip Code:
.
Phone:
.
Fax:
.
Total Qty.:
(100 Min.)
Matching PIN
Non-Matching Sequential Start No.:
.
Non-Matching Start No. (Random):
.
None
For Internal Use Only (To be Completed by HID):
ProxCard Plus Part Number:
Part No.: 1 6 8
or 1 6 9
.
Issued By:
Date:
.
Page 10 of 44
© 2007 – 2012 HID Global Corporation. All rights reserved.
February 2012
125 kHz How to Order Guide - D00530, B.7
Direct Image PVC Glossy Label Part Numbers
Part #
Description
Thickness
Dimensions
1324GAV11
1324GAN11
ProxCard II size with slot punch, white adhesive back
ProxCard II size, no slot punch, white adhesive back
10 mil PVC
10 mil PVC
3.310” x 2.060"
3.310” x 2.060"
1324GAV21
1324GAN21
ProxCard II size with slot punch, white adhesive back
ProxCard II size, no slot punch, white adhesive back
20 mil PVC
20 mil PVC
3.310” x 2.060"
3.310” x 2.060"
1324GGV31
1324GGN31
ProxCard II size with slot punch, no adhesive
ProxCard II size, no slot punch, no adhesive
30 mil PVC
30 mil PVC
3.310” x 2.060"
3.310” x 2.060"
1324GBV22
1324GBN22
ISOProx II and ProxCard II size with slot punch, brown (3M) adhesive back
ISOProx II and ProxCard II size, no slot punch, brown (3M) adhesive back
20 mil PVC
20 mil PVC
3.370” x 2.125”
3.370” x 2.125”
1324GAV22
1324GAN22
ISOProx II and ProxCard II size, with slot punch, white adhesive back
ISOProx II and ProxCard II size, no slot punch, white adhesive back
20 mil PVC
20 mil PVC
3.370” x 2.125”
3.370” x 2.125”
1324CAN10
Clear guard protection label for use with all direct image cards
1.
2.
3.
Some dye sublimation printers cannot accommodate pre-slot punched labels; please consult with the printer manufacturer prior to ordering.
Labels are packaged in multiples of 100 pieces. Minimum order quantity is 100 pieces. Orders will be accepted in multiples of 100 pieces per label Model.
Please make sure to adjust your dye sublimation printer setting to the proper PVC label thickness and dimension.
February 2012
© 2007 - 2012 HID Global Corporation. All rights reserved.
Page 11 of 44
125 kHz How to Order Guide - D00530, B.7
Custom Artwork Checklist Form
Company Name:
PO No.
Quantity:
Card/Tag and Artwork File No.
Date
Minimum order quantity for Custom Artwork is 500 cards per order. Some Custom Artworks may be higher.
This form, accompanied with the “Custom Artwork placement and Inkjet Location Form”
MUST be filled out, SIGNED and returned to HID so that your order can be processed.
Card Type: Standard PVC
1326 - ProxCard® II
1386 - ISOProx® II
1336 - DuoProx® II
1391 - MicroProx Tag
Card Type: Composite PVC/Polyester (Additional fee and longer lead-time)
1586 - ISOProx® II
1536 - DuoProx® II
Artwork Placement, Font styles and Colors:
Artwork Placement on Front Side of card
Artwork Placement on Back Side of card
Font Style(s):
.
Front Side Color(s):
.
Back Side Color(s):
.
Do you plan to print over or around the custom artwork with a dye sublimation printer?
Yes
No
“Surface” or
“Laminated” Lithographic Printing (Refer to the “Anti-Counterfeiting Descriptions” page in this guide for details)
Card Options:
Slot Punch1, 4:
Yes
No
Signature Panel:
Yes
No
Front Card Finish:
Gloss
Back Card Finish:
Gloss
Magnetic Stripe Coercivity:
Magnetic Stripe Type:
Horizontal
Vertical
Size:
.
HID Standard (4000 OE)
Standard 3 Track
Debitek 1/8"
(2750 OE)
Other:
.
Anti-Counterfeiting Options:
Invisible Ink:
Microfine Print:
Red
Yes
Yellow
No
Hologram 6:
Surface
Embedded
Blue
Green
Glow in the Dark
Notes:
1. ProxCard II card is only available with a vertical slot punch. Some cards will have printed "indicators" on the back of the card to
show both the vertical and horizontal slot punch locations.
2. Magnetic Stripe available for DuoProx II, Smart DuoProx II.
3. Some cards will have a small “HID logo” "
" and reference number, custom artwork file number, and external number (optional) printed on the card.
4. Do not order slot punched cards for use in dye sublimation printers. Slot edge may damage the printer ribbon. Slot should be punched after dye sublimation printing.
5. Some video imaging printers cannot accommodate pre-slot punched cards. Please consult with the printer manufacturer prior to ordering
6. Surface Holograms cannot be placed over internal electronics.
7. “Representation, Warranty and Indemnity. Customer represents and warrants to HID that it owns, controls, or otherwise has the full and unrestricted right to use the custom artwork
provided to HID for use in connection with this Custom Artwork Checklist Form (the “Custom Artwork”) and to authorize and license HID to use and apply the Custom Artwork to the
cards in the manner provided in this Custom Artwork Checklist Form. Customer agrees to indemnify HID and hold it harmless from and against any claims, liabilities, losses and/or
expenses (including reasonable attorney fees and costs of suit) arising out of the use by HID of the Custom Artwork in the manner provided by this Custom Artwork Checklist Form
or by any custom artwork proofs approved by the Customer.”
8. HID does not recommend placing custom graphics on either side of the Contact Smart Chip area.
9. Halftones not recommended for ProxCard II cards.
Name:
Page 12 of 44
Signature:
© 2007 – 2012 HID Global Corporation. All rights reserved.
Date:.
February 2012
125 kHz How to Order Guide - D00530, B.7
Indala 125kHz Credential
Every part number consists of a base model number to indicate the type of product, and a letter or number to indicate
®
each product option. Each Indala product has a standard part number that includes default options, as indicated on
the order guide. When an order is placed for a product, the base model number and all options must be specified. If
you require any options that are different from the default options, you must also indicate those options at the time the
order is placed. All part numbers must be complete to be accepted by HID’s order entry system.
All card orders must have the following information:
• BASE MODEL NUMBER – Specifies card or type
• PROGRAMMING – Specifies if card is factory or field programmed (format or format number,
facility code, and ID number range must be given at time of order)
• FRONT or FLAT SIDE GRAPHICS – Specifies standard or custom artwork, and smart chip
placement
• BACK or EMBOSSED SIDE GRAPHICS – Specifies standard or custom artwork, and smart chip
placement
• MARKING POSITION – Specifies location of card marking.
Note: Card marking is surface printed and, therefore is not to be considered permanent. In
certain cases Laser etching may be used instead of inkjet marking. Laser etching is permanent
marking but is not used on all products.
•
•
•
•
SLOT PUNCH – Specifies slot location if available
CARD OPTIONS – Applies to FlexCard® (Base Model FPCRD/CXCRD) only
MAGNETIC STRIPE OPTION – Specifies if card is to have a magstripe and which type (ISO
Imageable Cards only)
CUSTOM FILE NUMBER – Specifies the artwork number to be used
February 2012
© 2007 - 2012 HID Global Corporation. All rights reserved.
Page 13 of 44
125 kHz How to Order Guide - D00530, B.7
FPISO - FlexPass Imageable Card Ordering Guide
Standard Part No.:
Description:
FPISO-SSSCNA-0000
125 kHz, white glossy finish front, white glossy finish with Indala logo back, marking on
standard location, no slot punch, no magstripe, no artwork
FPISO S S S
C
N
A
0000
BASE MODEL NUMBERS
PROGRAMMING
FRONT GRAPHICS
BACK GRAPHICS
MARKING POSITION
SLOT PUNCH
MAGNETIC STRIPE OPTION
CUSTOM FILE NO
BASE MODEL NUMBERS
FPISO
FlexISO® Proximity Card
FPWGD
FlexISO Proximity and Wiegand Combination Card
FPIXT
FlexISO XT Composite Proximity Card
(See “Multiple Technology Combination Cards and Tags” Section for additional choices)
PROGRAMMING
S = Standard, Programmed, Low Frequency 125 kHz – exact coding standard, with no gaps or over-runs
(Please specify Format Number, Facility Code, and ID Range)
N = Not Programmed, Low Frequency 125 kHz (Blank/Programmable)
FRONT GRAPHICS
S = Standard white glossy finish, suitable for video imaging
C = Custom (Artwork on file or new)
BACK GRAPHICS
S = Standard white glossy finish with Indala logo, card marking (Sales Order & matching internal ID
number), suitable for dye sublimation imaging in most areas
C = Custom (Artwork on file or new)
MARKING POSITION
(Standard Marking is Label Code E153, which is Sales Order number & matching 5 digit internal ID number,
is used unless otherwise specified)
C = Position 3/Standard Location (Back Side/Lower Right Corner)
Note: Inkjet marking is surface printed and, therefore is not to be considered permanent.
In some cases Laser etching will replace inkjet marking. Laser etching is permanent in most applications.
SLOT PUNCH
N = None
V = Vertical (portrait orientation) – Unavailable for FPWGD
H = Horizontal (landscape orientation)
MAGNETIC STRIPE OPTION
A = No Magstripe
B = Standard Magstripe (3-track, high coercivity, 4000 oersted)
Other Magstripe options are available as special orders.
Please call Customer Service for special order minimums and lead times)
Optional Magnetic Stripe
14098765 12345
Position C
CUSTOM FILE NUMBER (4 Characters – Factory Assigned)
0000 = No Artwork
(Call your Customer Service Representative for new artwork)
Page 14 of 44
© 2007 – 2012 HID Global Corporation. All rights reserved.
February 2012
125 kHz How to Order Guide - D00530, B.7
FPSMT - Flexpass™ Imageable Card with Contact Chip Ordering Guide
NOTE – All contact chip cards are available in the Logical Access How to Order Guide.
February 2012
© 2007 - 2012 HID Global Corporation. All rights reserved.
Page 15 of 44
125 kHz How to Order Guide - D00530, B.7
FPCRD - FlexCard Standard Card Ordering Guide
Standard Part No.:
Description:
FPCRD-SSSMW-0000
125 kHz, printed Indala logo on front, embossed Indala logo on back, card marking on flat side
(lower right corner with slot to the right), white color (not printable), no artwork. Vertical slot
punch only.
FPCRD
S
S
S
M
W
0000
BASE NUMBER
PROGRAMMING
FLAT SIDE GRAPHICS
EMBOSSED SIDE GRAPHICS
MARKING POSITION
CARD OPTION
CUSTOM FILE NO
BASE NUMBER:
FPCRD – 125 kHz Clamshell type Proximity Card
PROGRAMMING
S = Standard, Programmed, Low Frequency 125 kHz – exact coding standard, with no gaps or over-runs
(Please specify Format or Format Number, Facility Code, and ID Range)
N = Not Programmed, Low Frequency 125 kHz (Blank/Programmable)
FLAT SIDE GRAPHICS
S = Standard (Flat Side with printed Indala logo)
C = Custom (Artwork on file or new)
EMBOSSED SIDE GRAPHICS
S = Standard (Embossed Side with embossed Indala logo)
C = Custom (Artwork on file or new, still with embossed Indala logo)
MARKING POSITION
(Standard Marking or Label Code E153, which is Sales Order number & matching internal ID number, is
used unless otherwise specified.
Note: Inkjet marking is surface printed and, therefore is not to be considered permanent.
In some cases Laser etching will replace inkjet marking. Laser etching is permanent in most applications.
A = Position 1/Flat Side (with slot punch to the right, lower left corner) – available with Printable Option only
C = Position 3/Flat Side (with slot punch to the right, lower right corner) – available with Printable Option
only
K = Position 1/Embossed Side (with slot punch to the right, lower left corner)
M = (Standard) = Position 3/Embossed Side (with slot punch to the right, lower right corner)
CARD OPTION
W = White (standard color) - surface treated with UV protection – may not accept printing
P = Printable, matt finish – No varnish, no logo, surface will accept post printing
Flat side
CUSTOM FILE NUMBER (4 Characters – Factory Assigned)
0000 = No Artwork
(Call your Customer Service Representative for new artwork)
A (1)
Embose side
C (3)
position(s)
Page 16 of 44
© 2007 – 2012 HID Global Corporation. All rights reserved.
K
M (3)
(1)
position(s)
February 2012
125 kHz How to Order Guide - D00530, B.7
FPTAG - FlexTag® Ordering Guide
Standard Part No.: FPTAG-SSSS-XXXX
Description: 125 kHz, printed Indala logo on front side
FPTAG
S
S
S
S
XXXX
BASE NUMBER
PROGRAMMING
FRONT GRAPHICS
BACK GRAPHICS
MARKING POSITION
CUSTOM FILE NO
BASE NUMBER
FPTAG - 125 kHz Keytag Type Proximity Card
PROGRAMMING
S = Standard Programmed, Low Frequency 125 kHz – exact coding standard, with no gaps or over-runs.
(Specify Format or Format Number, Facility Code, and ID Range)
N = Not Programmed
FRONT GRAPHICS
S = Standard (printed Indala logo)
BACK GRAPHICS
S = Standard (no logo, printed strip for marking)
MARKING POSITION
Standard Marking or Label Code E201, which is a shortened version of the Sales Order number & matching
internal ID number, is used unless otherwise specified.
Note: Inkjet marking is surface printed and, therefore is not to be considered permanent. Most Keytag
marking will be with Laser etching which is permanent in most applications.
S = Standard (back side on printed strip)
CUSTOM FILE NUMBER XXXX (4 Characters – Factory Assigned)
0002 = No Artwork
AAAA = Custom Artwork (Contact your Customer Service Representative for new artwork)
February 2012
© 2007 - 2012 HID Global Corporation. All rights reserved.
Page 17 of 44
125 kHz How to Order Guide - D00530, B.7
FPKEY - FlexKey® Keytag Ordering Guide
Standard Part No.: FPKEY-SSSS-0000
Description:125 kHz, printed Indala logo on front side, printed strip for marking on back side
FPKEY
S
S
S
S
0000
BASE NUMBER
PROGRAMMING
FRONT GRAPHICS
BACK GRAPHICS
MARKING POSITION
CUSTOM FILE NO
BASE NUMBER
FPKEY - 125 kHz Keytag Type Proximity Card
PROGRAMMING
S = Standard, Programmed, Low Frequency 125 kHz – exact coding standard, with no gaps or
over-runs
(Please specify Format or Format Number, Facility Code, and ID Range)
N = Not Programmed, Low Frequency 125 kHz (Blank/Programmable)
FRONT GRAPHICS
S = Standard (printed Indala logo)
C = Custom (Artwork on file or new)
BACK GRAPHICS
S = Standard (no logo, printed strip for marking)
C = Custom (Artwork on file or new)
MARKING POSITION
(Standard Marking or Label Code E201, which is a shortened version of the Sales Order number & matching
internal ID number, is used unless otherwise specified)
Note: Inkjet marking is surface printed and, therefore is not to be considered permanent. Most Keytag
marking will be with Laser etching which is permanent in most applications.
S = Standard (back side on printed strip)
CUSTOM FILE NUMBER (4 Characters – Factory Assigned)
0000 = No Artwork
(Call your Customer Service Representative for new artwork)
Page 18 of 44
© 2007 – 2012 HID Global Corporation. All rights reserved.
February 2012
125 kHz How to Order Guide - D00530, B.7
CXKEY - CX Keytag Ordering Guide
Standard Part No.:
Description:
CXKEY-SSSS-0000
125 kHz, printed Indala logo on front side, printed strip for marking on back side.
CXKEY
S
S
S
S
0000
BASE NUMBER
PROGRAMMING
FRONT GRAPHICS
BACK GRAPHICS
MARKING POSITION
CUSTOM FILE NO.
BASE NUMBER
CXKEY Keytag style proximity card
PROGRAMMING
S = Standard Programmed, Low Frequency 125 kHz – CASI-RUSCO 12-digit format with no external
marking number. Marking of “CXdddy” is standard.
M = Sequential Matching. Programmed, Low Frequency 125 kHz – CASI-RUSCO 12-digit format with
matching (6-digit) external marked number. Note: the programmed internal number of a CASI card is a
12-digit ID number, example 151234123456. When Matching external numbers are requested, only the
last six digits of the 12-digit encoded number are printed on the card along with the CX designation and
a date code. For the sample number shown, the marking would be “CXdddy 123456” A cross
reference of marking to encoded number will be provided with the order in .txt (text) format
Q = Sequential Non Matching. Programmed, Low Frequency 125 kHz – CASI-RUSCO 12-digit format with
a sequential 6-digit external marked number with a customer specified start number. (For example, if
2000 cards are ordered with a starting marking number of 425000, the marking would start at “CXdddy
425000” and end at “CXdddy 426999”) A cross reference of marking to encoded number will be
provided with the order in .txt (text) format.
FRONT GRAPHICS
S = Standard (printed Indala logo)
C = Custom (Artwork on file or new)
BACK GRAPHICS
S = Standard (no logo, printed strip for marking)
C = Custom (Artwork on file or new)
MARKING POSITION
(Standard Marking (the CX designation and a date code), is used unless otherwise specified)
Note: Inkjet marking is surface printed and, therefore is not to be considered permanent.
Most Keytag marking will be with Laser etching which is permanent in most applications.
S = Standard (back side on printed strip)
CUSTOM FILE NUMBER (4 Characters – Factory Assigned)
0000 = No Artwork
(Call your Customer Service Representative for new artwork)
February 2012
© 2007 - 2012 HID Global Corporation. All rights reserved.
Page 19 of 44
125 kHz How to Order Guide - D00530, B.7
FPMXI - Flexpass™ Proximity Multiple Technology Imageable Card Ordering Guide
NOTE – MIFARE Prox Combination cards are available in the 13.56 MHz HTOG. Program the standard
MIFARE/Prox card as Indala Prox to provide full backwards compatibility.
Page 20 of 44
© 2007 – 2012 HID Global Corporation. All rights reserved.
February 2012
125 kHz How to Order Guide - D00530, B.7
FlexPass Formats
The following formats are non-proprietary and are available to all customers. Please call HID to discuss
other formats.
Format Name: 26-BIT WIEGAND
Card Format Number
Facility Code Range
40134
0 to 255
ASP 10022
0 to 255
ID Number Range
0 to 65,535 (Systems installed prior to June 2003)
0 to 65,535 (All new Systems except FP Lite)
Reader Format Numbers
10022 (1L = 1x Wire for LED control)
10200 (2L = 2x Wires for LED control)
Format Name: 27-BIT INDALA
Card Format Number
Facility Code Range
4010X
0 to 8,191
ID Number Range
0 to 16,383
Reader Format Numbers
10251 (1L = 1x Wire for LED control)
1026X (2L = 2x Wires for LED control)
Format Name: ABA TRACK 2
Card Format Numbers Facility Code Range
4038X (ASP)
0 to 255
17256 (ASP+)
0 to 99,999
ID Number Range
0 to 99,999
0 to 99,999
Reader Format Numbers
11037 OC (Open Collector)
11738 PUR (Pull Up Resistor)
Format Name: RS232 Serial Data
Card Format Number
Card Programming Range
16144
up to 24 characters in total length, i.e. ABCD12345678901234567890
Reader Format Number
16144
Format options for FP506B/FP507B Proximity & Keypad Readers (e.g. Format 10022K01)
CFG. Number
K01
Buf/Unbuf
UnBuffered
Data Type
8-bit burst
Options
Pin Size
Special Keys
*/# keys enabled
K02
UnBuffered
8-bit burst
K03
Buffered
Wiegand
facility code xx
K04
Buffered
Wiegand
facility code xx
K05
Buffered
Magstripe
LSB First
4 digit PIN
*/# keys enabled
ARK-501 BUFFERED
K06
Buffered
Magstripe
LSB First
4 digit PIN
*/# keys disabled
ARK-501 BUFFERED PINKERTON
*/# keys disabled
*/# keys enabled
*/# keys disabled
K07
Buffered
Magstripe
LSB First
5 digit PIN
*/# keys enabled
K08
Buffered
Magstripe
LSB First
5 digit PIN
*/# keys disabled
K09
Buffered
Magstripe
MSB First
4 digit PIN
*/# keys enabled
K10
Buffered
Magstripe
MSB First
4 digit PIN
*/# keys disabled
K11
Buffered
Magstripe
MSB First
5 digit PIN
*/# keys enabled
K12
Buffered
Magstripe
MSB First
5 digit PIN
*/# keys disabled
K13
Unbuffered
4 bit burst
*/# keys enabled
K14
Unbuffered
4 bit burst
*/# keys disabled
February 2012
Emulates
ARK-501
© 2007 - 2012 HID Global Corporation. All rights reserved.
Page 21 of 44
125 kHz How to Order Guide - D00530, B.7
Electronic Artwork Requirement Checklist
File Submission & Preparation
This document gives digital artwork specifications from our press department. Use these guidelines and your project should go
smoothly through the pre-press department.
MEDIA:
Please submit files via E-Mail or on CD. Compressed files should be self extracting. Submitted media will not be returned o the
customer. FTP site available upon request.
PLATFORM: MS WINDOWS®/Macintosh®
Projects that are set up in any of the major applications (listed below under "Graphic Applications") generally translate to Macintosh®
smoothly. Please save your final file with pictures embedded, outlined fonts and EPS Vector editable file.
FONTS:
Use Type 1 fonts and include screen and printer fonts on disk. Type may be converted to paths or outlines, but we cannot make copy
changes to text submitted in this form. In addition, converted type loses the benefits of PostScript font definitions; hence, type quality
may suffer. This is more noticeable in small type (-18 point).
PLACED GRAPHICS:
All placed graphics, saved as TIFF or EPS, should be included in their native program. If a Photoshop image is placed in a Quark
document, we need the Photoshop image to produce the job. Sizing, cropping, rotation, etc. should all be done to the element in its
native program and placed in Quark. Color images should be converted from RGB to CMYK. Special colors should be designated using
PMS or provide color sample to be matched. Resolution of color images, B&W halftones, or duotones should be 300 dpi.
GRAPHIC APPLICATIONS (latest version):
Adobe Photoshop® - Adobe Illustrator® - QuarkXpress®
BITMAPS AND TRACING:
Scanned line art converted to bitmaps should have a resolution of 1200 - 2400 dpi. Lower resolutions will result in jagged curves. Many
programs can convert (trace) bitmaps to vector drawings. Smoothing a traced image can be time consuming, but once completed
yields a resolution independent graphic that will provide crisp reproduction for all future uses. We can provide this service for you at our
regular file intervention rate. Minimum required DPI (dots per inch) is 300.
BLEEDS:
Please incorporate 0.125" of overwork for all bleed images. Any portion of the image that extends to the edge of the product is
considered a bleed. Minimum required size with bleed is 2.227" x 3.477" for standard card size file.
MARGINS:
Elements that do not bleed should be at least 0.125" from the edge.
Page 22 of 44
© 2007 – 2012 HID Global Corporation. All rights reserved.
February 2012
125 kHz How to Order Guide - D00530, B.7
Anti-Counterfeiting Descriptions
Printing Types
1)
Laminated Lithographic Printing: High resolution (>3600 dpi) offset printing technology yields photographic quality
images. Laminated printing places the ink layer under a rigid clear plastic overlay which protects the printed image
from abrasion and allows you to re-print over the existing artwork on the card. The cards are compatible with all Photo
ID printing methods: dye-sub, reverse transfer and resin transfer.
2)
Surface Lithographic Printing: This process is identical to the Laminated Lithographic Printing, but the ink layer is
applied to the outer surface of the finished card and may include a clear coat. You may not be able to re-print on the
card. The inks and clear coat are not compatible with D2T2 printing (Dye Diffusion Thermal Transfer, AKA dyesublimation) but may be compatible with reverse transfer printing methods. The surface printing is durable enough for
normal handling and use, but may wear more quickly in heavy use or swipe (magnetic stripe) applications. It is not
recommended for high use applications, or for printing critical data such as emergency information. This process is
often used for quick turnaround of simple text and graphics on card backs.
Surface Hologram
Holograms are one of the most recognizable anti-counterfeiting devices on the market. The optically variable image cannot be
duplicated with standard printing. Surface holograms are applied via hot stamping to the exterior of the card surface. This style
of application is common to all financial transaction cards.
Embedded Hologram
Embedded holograms are positioned under the rigid clear outer layer of the card surface. Unlike surface holograms, embedded
holograms are amenable to dye sublimation – allowing the entire card surface to be personalized. This application style furthers
the effectiveness of the anti-counterfeiting feature by requiring expensive specialized equipment during manufacture.
Embedded Advantage™ Security Seal
The Advantage™ product is a specialized optically variable device that is manufactured in only one plant worldwide. It has been
the OVD of choice for many government identity documents, including many states driver licenses and the INS card. Like the
embedded hologram, this device is placed under the rigid clear outer layer and is not subject to surface abrasion and wear.
Advantage™ images shift from orange to green at different viewing angles.
Invisible Ultra-Violet (UV) Fluorescing Images
Common on credit card, currency and travel documents, invisible ink images provide a covert anti-counterfeiting mechanism.
Though blue/violet fluorescing ink is readily available and inexpensive, red, green, yellow and orange fluorescing pigments
remain difficult to acquire. This covert anti-counterfeiting device remains popular because of its relatively easy implementation in
the field.
Microfine Printing
Very small spot color printing that exploits the limitations of inkjet, toner based (laser) and dye sublimation printers. Counterfeit
reproductions can be determined with a handheld magnification tool.
Guilloche Printing
Fine line interlocking spot color patterns that are extremely difficult to scan and reproduce. These design elements are often
multicolor and are commonly used on currency and travel documents.
Composite Formulations
Composite formulations are designed for durable applications and for use in dye sublimation printers that employ re-transfer
technology and/or polyester laminant patches. Composite cards will minimize the warping caused by such processes. These
formulations derive their strength from combining biaxially oriented polyester (OPET) with traditional polyvinyl chloride (PVC).
February 2012
© 2007 - 2012 HID Global Corporation. All rights reserved.
Page 23 of 44
125 kHz How to Order Guide - D00530, B.7
Custom Artwork Placement and Inkjet Location Form
ProxCard® II Cards
Company Name:
Quantity:
Card and Artwork File No.
PO No.
Date
1. External Number:
Standard Location: The standard external # location is shown on the template below. The external # can only be printed on
the back of the card. The external # will be printed in the standard location, unless otherwise specified.
Custom Location: Please indicate the desired external # location by writing "12345" on the appropriate template. The
external # can only be printed on the back of the card.
2. Artwork Placement: Please indicate the placement of your artwork on the template below. Custom artwork must clear the
slot punch location and edges by a min. of 0.125"
ProxCard® II Card Artwork Templates
Cover (Front)
12345 = Card ID Number
YYYYYYYY-YY = Sales Order Number
Base (Back)
Notes:
1. All Prox Card II cards have a molded HID logo on the back side (as indicated) as well as a beveled edge all the way around the card. Custom artwork
graphics need to clear the molded logo and bevel by a minimum of 0.125"
2. External # location reads in the direction as shown. External # character height is approximately 0.1"
3. Please note that there is no custom artwork file number on the Prox Card II.
Name:
Page 24 of 44
Signature:
© 2007 – 2012 HID Global Corporation. All rights reserved.
Date:.
February 2012
125 kHz How to Order Guide - D00530, B.7
®
DuoProx II Cards
Company Name:
Quantity:
Card and Artwork File No.
PO No.
Date
1. External Number:
Standard Location: The standard external # location is shown on the template below. The external # can only be printed on
the back of the card. The external # will be printed in the standard location, unless otherwise specified.
Custom Location: Please indicate the desired external # location by writing "12345" on the appropriate template. The external
# can only be printed on the back of the card.
2. An Artwork File Number is placed on each card. The standard location is indicated by the "CCCCC". The standard location
for the custom artwork number is on the back side of the card. Please indicate/incorporate the artwork number on the artwork.
If there will be front side printing only, the custom artwork number will be placed on the printed side, opposite the standard
location.
3. Artwork Placement: Please indicate the placement of your artwork on the template below. Custom artwork must clear the
slot punch locations, edges and magnetic stripe by a min. of 0.125".
4. Magnetic Stripe: If the location of the magnetic stripe is custom (other than standard) and/or if other types of magnetic
stripes are to be added to the card (i.e. Debitek stripe), indicate the location(s) of the magnetic stripe(s) on the template.
Standard Location
Custom Location
DuoProx® II Card Artwork Templates
Slot Punch Indicators
Front
12345 = Card ID Number
YYYYYYYY-YY = Sales Order Number
Back
Notes:
1. External # location reads in the direction as shown. External # character height is approximately 0.1".
2. Cards will have a small “HID logo” "
" and reference number printed in the lower left-hand corner and a slot punch target printed on the back of the card.
3. A standard custom artwork file number is printed on the back side of the card. Front side printing of this same number is an option.
4. Slot punch location "indicators" will appear on the back side of the card only.
5. Do not order slot punched cards for use in dye sublimation printers.
Slot edge may damage the printer ribbon. Slot should be punched after dye sublimation printing.
6. Some video imaging printers cannot accommodate pre-slot punched cards. Please consult with the printer manufacturer prior to ordering.
Name:
February 2012
Signature:
© 2007 - 2012 HID Global Corporation. All rights reserved.
Date:.
Page 25 of 44
125 kHz How to Order Guide - D00530, B.7
ISOProx® II Cards
Company Name:
Quantity:
Card and Artwork File No.
PO No.
Date
1. External Number:
Standard Location: The standard external # location is shown on the template below. The external # can only be printed on
the back of the card. The external # will be printed in the standard location, unless otherwise specified.
Custom Location: Please indicate the desired external # location by writing "12345" on the appropriate template. The external
# can only be printed on the back of the card.
2. An Artwork File Number is placed on each card. The standard location is indicated by the "CCCCC". The standard location
for the custom artwork number is on the back side of the card. Please indicate/incorporate the artwork number on the artwork.
If there will be front side printing only, the custom artwork number will be placed on the printed side, opposite the standard
location.
3. Artwork Placement: Please indicate the placement of your artwork on the template below. Custom artwork must clear the
slot punch locations and edges by a min. of 0.125".
ISOProx® II Card Artwork Templates
Slot Punch Indicators
Front
12345 = Card ID Number
YYYYYYYY-YY = Sales Order Number
Back
Notes:
1. External # location reads in the direction as shown. External # character height is approximately 0.1".
2. Cards will have a small “HID logo” "
" and reference number printed in the lower left-hand corner and a slot punch target printed on the back of the card.
3. A standard custom artwork file number is printed on the back side of the card. Front side printing of this same number is an option.
4. Slot punch location "indicators" will appear on the back side of the card only.
5. Do not order slot punched cards for use in dye sublimation printers.
Slot edge may damage the printer ribbon. Slot should be punched after dye sublimation printing.
6. Some video imaging printers cannot accommodate pre-slot punched cards. Please consult with the printer manufacturer prior to ordering.
Name:
Page 26 of 44
Signature:
© 2007 – 2012 HID Global Corporation. All rights reserved.
Date:.
February 2012
125 kHz How to Order Guide - D00530, B.7
MicroProx Tag
Company Name:
Quantity:
Tag and Artwork File No.
PO No.
Date
1. External Number:
Standard Location: The external # can only be printed on the back of the Tag.
2. Artwork Placement: Please indicate the placement of your artwork on the template below (Front side only). Custom artwork
must clear the inner circle by a min. of 0.125".
MicroProx Tag Artwork Template
Front
Notes:
1. Minimum order quantity 10,000 pieces per Purchase Order.
2. Maximum two color artwork.
Name:
February 2012
Signature:
© 2007 - 2012 HID Global Corporation. All rights reserved.
Date:.
Page 27 of 44
125 kHz How to Order Guide - D00530, B.7
1050AGN00 ProxProgrammer® Ordering Guide
The HID ProxProgrammer is now located in the Credential Programmer How To Order Guide.
Page 28 of 44
© 2007 – 2012 HID Global Corporation. All rights reserved.
February 2012
125 kHz How to Order Guide - D00530, B.7
HID Proximity Readers
Accessories
Part No.
Description
ProxPro Family
5455AGM00
5350-113-01
5350-113-02
5350-113-03
5350-113-04
5355A-302-01
5355A-302-02
5355A-302-03
5355A-302-04
5350-101-01
5350-101-02
5355A-306-01
5355A-306-02
5355A-306-03
5355A-306-04
5355A-306-05
5355A-306-06
5355A-306-07
5355A-306-08
5455-311-01
5455-311-02
5455-311-03
5455-311-04
30-0003-01
137-0005-11
Glass Mount Kit, ProxPro and ProxPro II Readers
Bezel, ProxPro Reader with Keypad (Rev. A) - Charcoal Gray
Bezel, ProxPro Reader (Rev. A) - Charcoal Gray
Bezel, ProxPro Reader with Keypad (Rev. A) - Beige
Bezel, ProxPro Reader (Rev. A) - Beige
Cover, ProxPro w/Keypad Reader (Rev. A) - Charcoal Gray
Cover, ProxPro Reader (Rev. A) - Charcoal Gray
Cover, ProxPro w/Keypad Reader (Rev. A) - Beige
Cover, ProxPro Reader (Rev. A) - Beige
Base, ProxPro Reader (Rev. A) - Charcoal Gray
Base, ProxPro Reader (Rev. A) - Beige
ProxPro Keypad assembly upgrade, "K" Version, (Rev. A) - Gray Cover only
ProxPro Keypad assembly upgrade, "K" Version, (Rev. A) - Beige Cover only
ProxPro Keypad assembly upgrade, "S" Version, (Rev. A) - Gray Cover only
ProxPro Keypad assembly upgrade, "S" Version, (Rev. A) - Beige Cover only
ProxPro Keypad assembly upgrade, "K" Version, (Rev. A) - Gray Cover and Bezel
ProxPro Keypad assembly upgrade, "K" Version, (Rev. A) - Beige Cover and Bezel
ProxPro Keypad assembly upgrade, "S" Version, (Rev. A) - Gray Cover and Bezel
ProxPro Keypad assembly upgrade, "S" Version, (Rev. A) - Beige Cover and Bezel
Cover, ProxPro II Reader (Rev. B) - Charcoal Gray (No Bezel Required)
Cover, ProxPro II Reader (Rev. B) - Beige (No Bezel Required)
Cover, ProxPro II Reader (Rev. B) - Black (No Bezel Required)
Cover, ProxPro II Reader (Rev. B) - White (No Bezel Required)
Rubber Keypad Cover, ProxPro Reader (Rev. A)
Connector Feed Back Nut and Washer, ProxPro Reader (Rev. A)
MiniProx
5365-371-01
5365-371-02
5365-371-03
5365-371-04
New Look 1
5365-372-01
5365-372-02
5365-372-04
5365-372-05
ThinLine II
5395-104-01
5395-104-02
5395-104-03
5395-104-04
New Look 2
5395-371-01
5395-371-02
5395-371-04
5395-371-05
February 2012
Classic cover, MiniProx Reader (Rev. E) - Charcoal Gray
Classic cover, MiniProx Reader (Rev. E) - Beige
Classic cover, MiniProx Reader (Rev. E) - Black
Classic cover, MiniProx Reader (Rev. E) - White
Designer cover, MiniProx Reader (Rev. E) - Black
Designer cover, MiniProx Reader (Rev. E) - Charcoal Gray
Designer cover, MiniProx Reader (Rev. E) - Wave Blue
Designer cover, MiniProx Reader (Rev. E) - White
Classic cover, ThinLine II Reader (Rev. C) - White
Classic cover, ThinLine II Reader (Rev. C) - Beige
Classic cover, ThinLine II Reader (Rev. C) - Black
Classic cover, ThinLine II Reader (Rev. C) - Charcoal Gray
Designer cover, ThinLine II Reader (Rev. C) - Black
Designer cover, ThinLine II Reader (Rev. C) - Charcoal Gray
Designer cover, ThinLine II Reader (Rev. C) - Wave Blue
Designer cover, ThinLine II Reader (Rev. C) - White
© 2007 - 2012 HID Global Corporation. All rights reserved.
Page 29 of 44
125 kHz How to Order Guide - D00530, B.7
Part No.
Description
MaxiProx
5370A-305-01
5375-303-01
5375-313-01
56-0002-01
Cover, MaxiProx Reader (Rev. A) - Gray
Accessory Kit, MaxiProx Reader (Old wiring Diagram) (Rev. A)
Accessory Kit, MaxiProx Reader (New wiring Diagram) (Rev. A)
MaxiProx Reader Rubber Gasket (Rev. A)
ProxPoint Plus
6005-111-01
6005-111-02
6005-111-03
6005-111-04
New Look 3
6005-312-01
6005-312-02
6005-312-04
6005-312-05
Classic cover, ProxPoint Plus Reader (Rev. B) - White
Classic cover, ProxPoint Plus Reader (Rev. B) - Beige
Classic cover, ProxPoint Plus Reader (Rev. B) - Black
Classic cover, ProxPoint Plus Reader (Rev. B) - Charcoal Gray
Designer cover, ProxPoint Plus Reader (Rev. B) - Black
Designer cover, ProxPoint Plus Reader (Rev. B) - Charcoal Gray
Designer cover, ProxPoint Plus Reader (Rev. B) - Wave Blue
Designer cover, ProxPoint Plus Reader (Rev. B) - White
ProxPoint
6005-101-01
6005-101-02
6005-101-03
6005-101-04
Cover, ProxPoint Reader (Rev. A) - White
Cover, ProxPoint Reader (Rev. A) - Beige
Cover, ProxPoint Reader (Rev. A) - Black
Cover, ProxPoint Reader (Rev. A) - Charcoal Gray
Prox80
5405-103-02
5405-103-05
Classic cover, Prox80 Reader - Gray
Classic cover, Prox80 Reader - White
Other
0300-301-1
0300-301-2
4045-390-03
4045-303-01
6020-302-01
33-0001-01
156-XXXX-XX
57-0001-02
02-0004-01
1050-306-01
Prox Readers Demo Kit (ProxPro & MiniProx Readers)
Wiegand/Prox Readers Demo Kit (MiniProx & Classic Swipe)
EntryProx Spare Parts Accessories Kit
EntryProx Reader Replacement Antenna
Accessory Kit, HSM
RELAY, 1.00A-24VDC , SPDT-1 FO
Firmware Chip - Verify Programming with Technical Support
Key Ring for ProxKey (Keyfob)
Universal Power Supply for the ProxProgrammer
ProxProgrammer Software Upgrade
MiniProx Covers will only fit MiniProx readers with removable covers series (Model # 5365E or later), and will NOT fit older versions with electronics potted into
the cover (Model #s 5365A, 5365B, nor 5365C) .
2 Thinline II Designer Covers will only fit Thinline II readers (Model # 5395C or later), and will NOT fit Thinline II readers (Model #s 5395A nor 5395B).
3 ProxPoint Plus Designer Covers will fit all ProxPoint Plus readers (Model # 6005B or later), and will NOT fit ProxPoint readers (Model # 6005A).
1
All trademarks and registered trademarks are the properties of their respective companies.
Page 30 of 44
© 2007 – 2012 HID Global Corporation. All rights reserved.
February 2012
125 kHz How to Order Guide - D00530, B.7
6005 / 6008 - ProxPoint® Plus Proximity Reader Part Numbers and Options
Card Reader Description
ProxPoint Plus Proximity Reader
with Wiegand output
with Clock and Data output
Base Part
No.
Current
Rev. No.*
6005
6008
Color Options
G = Classic Charcoal Gray
B = Classic Beige
W = Classic White
K = Classic Black
1 = Designer Black
2 = Designer Charcoal Gray
4 = Designer Wave Blue
5 = Designer White
B
B
Hardware Options
B = Pigtail (18 inches/45.7 cm)
L = Long Pigtail (9 feet/3 meters)3
Configuration Setting
Options¹
00
01
02
03
04
05
06
07
Custom²
XXXX Y
*Revision numbers and availability are subject to change without notice.
Notes:
1 Configuration Setting Options are as follows (factory programmed):
00 = Beep on, LED normally red, reader flashes green on tag read
01 = Beep off, LED normally red, reader flashes green on tag read
02 = Beep on, LED normally off, reader flashes green on tag read
03 = Beep off, LED normally off, reader flashes green on tag read
04 = Beep on, LED normally red, host must flash green
05 = Beep off, LED normally red, host must flash green
06 = Beep on, LED normally off, host must flash red and/or green
07 = Beep off, LED normally off, host must flash red and/or green
2 Consult
3
Factory
An optional 9 foot pigtail is available through our HID European office and can also be available in the Americas and Asia Pacific regions via special order of 2,500 unit minimum order quantity. Call the HID factory
for pricing and lead-times.
To order, please specify the following:
Card Reader Description
February 2012
Base Part
No.
Current
Rev. No.*
Color Options
Hardware Options
© 2007 – 2012 HID Global Corporation. All rights reserved
Configuration Setting
Options
Custom
Page 31 of 44
125 kHz How to Order Guide - D00530, B.7
5365 / 5368 - MiniProx® Proximity Reader Part Numbers and Options
Card Reader Description
MiniProx Proximity Reader
with Wiegand output
with Clock and Data output
Base Part
No.
Current
Rev. No.*
5365
5368
Color Options
G = Classic Charcoal Gray
B = Classic Beige
W = Classic White
K = Classic Black
1 = Designer Black
2 = Designer Charcoal Gray
4 = Designer Wave Blue
5 = Designer White
E
E
Hardware Options
P = Pigtail (18 inches/45.7 cm)
T = Terminal Strip
H = Hazardous back box³
L = Long Pigtail (9 feet/3 meters)4
Configuration Setting
Options¹
00
01
02
03
04
05
06
07
Custom²
XXXX Y
*Revision numbers and availability are subject to change without notice.
Notes:
1 Configuration Setting Options are as follows (factory programmed):
00 = Beep on, LED normally red, reader flashes green on tag read
01 = Beep off, LED normally red, reader flashes green on tag read
02 = Beep on, LED normally off, reader flashes green on tag read
03 = Beep off, LED normally off, reader flashes green on tag read
2 Consult
3 The
4
04 = Beep on, LED normally red, host must flash green
05 = Beep off, LED normally red, host must flash green
06 = Beep on, LED normally off, host must flash red and/or green
07 = Beep off, LED normally off, host must flash red and/or green
Factory
hazardous back box option MiniProx is available in gray Terminal Strip only.
An optional 9 foot pigtail is available through our HID European office and can also be available in the Americas and Asia Pacific regions via special order of 2,500 unit minimum order quantity. Please call the HID factory
for pricing and lead-times.
To order, please specify the following:
Card Reader Description
Page 32 of 44
Base Part
No.
Current
Rev. No.*
Color Options
Hardware Options
© 2007 - 2012 HID Global Corporation. All rights reserved.
Configuration Setting
Options
Custom
February 2012
125 kHz How to Order Guide - D00530, B.7
5455 / 5458 / 5355 / 5352 / 5358 - ProxPro® Family Proximity Reader Part Numbers and Options
ProxPro® II Card Reader Description
ProxPro® II Proximity Reader
with Wiegand output
with Clock & Data Output
ProxPro® Card Reader Description
ProxPro® Proximity Reader
with Wiegand output
with Clock & Data Output
ProxPro® Proximity Reader with Serial
output
Base Part
No.
Current
Rev. No.*
G = Charcoal Gray
B = Beige
W = White
K = Black
5455
5458
B
Base Part
No.
Current
Rev. No.*
5355
5358
Color Options
Color Options
G = Charcoal Gray
B = Beige
A
5352
Hardware Options
N = No Keypad, Pigtail (18 inches/45.7 cm)
L = No Keypad, Long Pigtail (9 feet/3 meters)8
Hardware Options
N = No Keypad, Terminal Strip
K = Keypad3, Terminal Strip
S = Keypad4, Terminal Strip
Configuration Setting
Options¹
00
01
02
03
04
05
06
07
Custom²
XXXX Y
Configuration Setting
Options5, 7
00
10
11
19
20
21
23
00
10
11
19
20
21
23
Custom²
XXXX Y
*Revision numbers and availability are subject to change without notice.
1 ProxPro II Configuration Setting Options are as follows (factory programmed):
00 = Beep on, LED normally red, reader flashes green on tag read
04 = Beep on, LED normally red, host must flash green
01 = Beep off, LED normally red, reader flashes green on tag read
05 = Beep off, LED normally red, host must flash green
02 = Beep on, LED normally off, reader flashes green on tag read
06 = Beep on, LED normally off, host must flash red and/or green
03 = Beep off, LED normally off, reader flashes green on tag read
07 = Beep off, LED normally off, host must flash red and/or green
2 Consult Factory.
3 ProxPro Reader with Keypad (Hardware Option “K” Version): data is outputted over shared Wiegand cable. Reader processes keystrokes.
4 ProxPro Reader with Keypad (Hardware Option “S” Version): (3 x 4 Matrix) requires additional 7 conductor keypad cable. Control panel processes keystrokes.
5 ProxPro Configuration Setting options are as follows (factory programmed)::
00 = Buffer one key, no parity, 4 bit message
14 = Buffer one to five keys (Standard 26 bit output)
09 = Buffer one key, add compliment, 8 bit message (Dorado)
19 = Buffer four keys and add parity
10 = Buffer six keys and add parity
20 = Single Key buffering
11 = Buffer one key and add parity
21 = Supervision Mode
23 = Buffer one to 11 keys
6 ProxPro Serial output reads cards with up to 37-bit formats, and outputs RS232, RS422, and RS485.
7 ProxPro reader Configuration Settings are selected by the customer via dip switch settings. 00 = LED normally red, reader flashes green on tag reads.
8
An optional 9 foot pigtail is available through our HID European office and can also be available in the Americas and Asia Pacific regions via special order of 2,500 unit minimum order quantity. Please call the HID factory
for pricing and lead-times.
Optional Glass Mount Kit for ProxPro and ProxPro II Readers = 5455AGM00.
To order, please specify the following:
Card Reader Description
February 2012
Base Part
No.
Current
Rev. No.*
Color Options
Hardware Options
© 2007 – 2012 HID Global Corporation. All rights reserved
Configuration Setting
Options
Custom
Page 33 of 44
125 kHz How to Order Guide - D00530, B.7
5395 / 5398 - ThinLine® II Proximity Reader Part Numbers and Options
Card Reader Description
Base Part
No.
ThinLine II Proximity Reader
with Wiegand output
with Clock and Data output
Current
Rev. No.*
5395
5398
Color Options
G = Classic Charcoal Gray
B = Classic Beige
W = Classic White
K = Classic Black
1 = Designer Black
2 = Designer Charcoal Gray
4 = Designer Wave Blue
5 = Designer White
C
Hardware Options
1 = Pigtail (18 inches/45.7 cm)
L = Long Pigtail (9 feet/3 meters)3
Configuration Setting
Options¹
00
01
02
03
04
05
06
07
Custom²
XXXX Y
*Revision numbers and availability are subject to change without notice.
Notes:
1 Configuration Setting Options are as follows (factory programmed):
00 = Beep on, LED normally red, reader flashes green on tag read
01 = Beep off, LED normally red, reader flashes green on tag read
02 = Beep on, LED normally off, reader flashes green on tag read
03 = Beep off, LED normally off, reader flashes green on tag read
04 = Beep on, LED normally red, host must flash green
05 = Beep off, LED normally red, host must flash green
06 = Beep on, LED normally off, host must flash red and/or green
07 = Beep off, LED normally off, host must flash red and/or green
2 Consult
3
Factory
An optional 9 foot pigtail is available through our HID European office and can also be available in the Americas and Asia Pacific regions via special order of 2,500 unit minimum order quantity. Please call the HID factory
for pricing and lead-times.
To order, please specify the following:
Card Reader Description
Page 34 of 44
Base Part
No.
Current
Rev. No.*
Color Options
Hardware Options
© 2007 - 2012 HID Global Corporation. All rights reserved.
Configuration Setting
Options
Custom
February 2012
125 kHz How to Order Guide - D00530, B.7
5375 - MaxiProx® Proximity Reader Part Numbers and Options
Card Reader Description
MaxiProx® Proximity Reader
Base Part
No.
Current
Rev. No.*
5375
A
Color Options
G = Charcoal Gray
Hardware Options
N = None
Configuration Setting
Options¹
Custom²
00
XXXX Y
*Revision numbers and availability are subject to change without notice.
Notes:
1 Configuration Setting 00 = LED normally red, reader flashes green on tag reads.
The MaxiProx® reader configuration settings are selected by the customer via internal dip switch settings.
2 Consult
Factory
To order, please specify the following:
Card Reader Description
February 2012
Base Part
No.
Current
Rev. No.*
Color Options
Hardware Options
© 2007 – 2012 HID Global Corporation. All rights reserved
Configuration Setting
Options
Custom
Page 35 of 44
125 kHz How to Order Guide - D00530, B.7
4045 - EntryProx™ Proximity Reader Part Numbers and Options
Base Part
No.
Current
Rev. No.*
EntryProx™ Proximity Reader
Stand-Alone Access Control Unit
4045
C
G = Charcoal Gray
EntryProx™ Proximity Reader
Stand-Alone Access Control Unit
4045
C
EntryProx™ Proximity Reader
Stand-Alone Access Control Unit
4045
C
Card Reader Description
Configuration
Setting Options¹
Custom²
N = None
U0
XXXX Y
G = Charcoal Gray
K = Key Kit (Includes 10 ProxKey® II Tags)³
U0
XXXX Y
G = Charcoal Gray
C = Card Kit (Includes 20 ProxCard® II Cards)³
U0
XXXX Y
Color Options
Hardware Options
*Revision numbers and availability are subject to change without notice.
Notes:
1 Configuration Setting U0 = LED normally red, reader flashes green on tag reads.
2 Consult Factory
3 Proximity cards and keytags included in kits will be programmed with HID's 37-bit Wiegand format (H10302).
HID tracks the issuance of this format and does not duplicate numbers. Numbers will be issued in random order.
4 Infrared Printer and Printer Paper can be used with previously purchased 4045B EntryProx Models, which are no longer available.
To order, please specify the following:
Card Reader Description
Page 36 of 44
Base Part
No.
Current
Rev. No.*
Color Options
Hardware Options
© 2007 - 2012 HID Global Corporation. All rights reserved.
Configuration
Setting Options
Custom
February 2012
125 kHz How to Order Guide - D00530, B.7
5405 / 5408 - Prox80™ Proximity Reader Part Numbers and Options
Card Reader Description
Base Part No. Current Rev. No.*
Prox80™ Proximity Reader1
with Wiegand output
with Clock and Data output
5405
5408
Color Options
W = White
G = Gray
A
Hardware Options
Configuration Setting Options2
00
01
02
03
L = Long Pigtail (9 feet/3 meters)
04
05
06
07
Custom3
XXXX Y
*Revision numbers and availability are subject to change without notice.
Notes:
1 Available through our HID European office and can also be available in the Americas and Asia Pacific regions via special order of 2,500 unit minimum order quantity. Please call the HID factory
for pricing and lead-times.
2 Configuration
Setting Options are as follows (factory programmed):
00 = Beep on, LED normally red, reader flashes green on tag read
01 = Beep off, LED normally red, reader flashes green on tag read
02 = Beep on, LED normally off, reader flashes green on tag read
03 = Beep off, LED normally off, reader flashes green on tag read
3
04 = Beep on, LED normally red, host must flash green
05 = Beep off, LED normally red, host must flash green
06 = Beep on, LED normally off, host must flash red and/or green
07 = Beep off, LED normally off, host must flash red and/or green
Consult Factory
To order, please specify the following:
Card Reader Description
February 2012
Base Part
No.
Current Rev.
No.*
Color Options
Hardware Options
© 2007 – 2012 HID Global Corporation. All rights reserved
Configuration Setting
Options
Custom
Page 37 of 44
125 kHz How to Order Guide - D00530, B.7
Indala Proximity Readers
Overview
Every part number consists of a base model number to indicate the type of product, and a letter or number to indicate each product option.
Each product has a standard part number that includes default options, as indicated on the order guide. When an order is placed for a product,
the base model number and all options must be specified. If you require any options that are different from the default options, you must also
indicate those options at the time the order is placed. All part numbers must be complete to be accepted by HID’s order entry system.
All reader orders must have the following information:
• BASE MODEL NUMBER
• STYLE
• READ RANGE
• TYPE
• COLOR
• OUTPUT FORMAT (reader’s format or format number must also be given at time of order)
Page 38 of 44
© 2007 – 2012 HID Global Corporation. All rights reserved.
February 2012
125 kHz How to Order Guide - D00530, B.7
FP - FlexPass® Reader Ordering Guide
FP
1 5 1 1 A /L
BASE NUMBER
STYLE
READ RANGE
TYPE
COLOR
OUTPUT FORMAT
CABLE LENGTH
BASE NUMBER
FP = FlexPass (reader format required)
STYLE
1 = Wave
2 = Curve
3 = Arch
4 = Linear
5 = Keypad
0 = Core Electronics Module
READ RANGE
5 = 5 in. (13 cm.) – available in STYLES: Wave, Curve, Arch, Linear TYPES: Slim and Wall switch
2 = 12 in. (30 cm.) – available in STYLES: Wave, Arch TYPE: Midrange
0 = 4 in. (10 cm.) – available only in STYLE: Keypad; TYPE: Keypad
TYPE
1 = Slim – available in STYLES: Wave, Curve, Arch, Linear
2 = Wall switch – available in STYLES: Wave, Curve, Arch, Linear, MIFARE®
3 = Midrange – available in STYLES: Wave, Arch
5 = Classic (previously known as Mag-Stripe) – available STYLE: Linear
6 = Membrane Keypad – available only in STYLE: Keypad
7 = Heavy Duty Keypad – available only in STYLE: Keypad
0 = Module only
COLOR
1 = Black – available in STYLES: Wave, Curve, Arch, Linear TYPES: Slim, Wall switch, Midrange, Classic
4 = Blue – available in STYLES: Wave TYPES: Slim, Wall switch, Midrange
5 = Grey – available in STYLES: Arch TYPES: Slim, Wall switch, Midrange
6 = White – available in STYLES: Arch TYPES: Slim, Wall switch, Midrange
7 = Beige – available in STYLES: Arch, Keypad TYPES: all
0 = N/A
OUTPUT FORMAT
(Aside from choosing below, please specify reader’s format or format no. – e.g. 26-bit Wiegand or format no. 10022)
A = Standard Wiegand – available in all STYLES and TYPES
S = Serial – available in STYLES: Wave, Curve, Arch TYPE: Midrange
B = Buffered or 8-Bit Burst (must be specified) - available only in Keypad STYLE and TYPE (Membrane or Heavy Duty)
M = 3 X 4 Matrix
CABLE LENGTH
The default cable length for Indala modules is 18 inches (46 cm). No entry is needed for an 18 inch cable.
For Reader Cores an optional 10 ft (3 m) pigtail is available through the HID European, America and Asia Pacific offices.
Requires a minimum 2,500 unit order quantity. Place “/L” in the 7th position for ordering the 10 ft (3 m) cable.
Note: Do not order Reader Packages with the 10 ft (3 m) cable. When ordering the 10 ft (3 m) cable, bezels must be
ordered separately. Call Customer Service for assistance.
February 2012
© 2007 – 2012 HID Global Corporation. All rights reserved
Page 39 of 44
125 kHz How to Order Guide - D00530, B.7
Advantage Series (ASR) Reader Ordering Guide
Part Number
Description
ASR-620++
Long Range Reader
ASR-505-NGR-BGE
Legacy Wall Switch Beige
(Not compatible with ASP+ formats)
ASR-620++/L
Long Range Reader
w/10 foot (3 meter) cable
ASR-503-NGR
Legacy Mullion Black
(Not compatible with ASP+ formats)
ASR-503-NGR/L
Legacy Mullion Black w/10 foot
(3 meter) cable
(Not compatible with ASP+ formats)
ASR-505-NGR-BLK
Legacy Wall switch Black
(Not compatible with ASP+ formats)
ASR-505-NGR-BLK/L
Legacy Wall switch Black w/10 foot
(3 meter) cable
Legacy Wall switch Beige
(Not compatible with ASP+ formats)
Legacy Wall switch Beige w/10 foot
(3 meter) cable
(Not compatible with ASP+ formats)
ASR-505-NGR-BGE
ASR-505-NGR-BGE/L
Notes
(Not compatible with ASP+ formats)
ProxSmith Programmer and Software Part Numbers
The Indala Prox ProxSmith Programmer is now located in the Credential Programmer How To Order Guide.
Page 40 of 44
© 2007 – 2012 HID Global Corporation. All rights reserved.
February 2012
125 kHz How to Order Guide - D00530, B.7
FlexPass Accessories
Part Number
21211-001
21212-001
BIL-422-232
FPZ1231A
FPZ1234A
FPZ1511A
FPZ1514A
FPZ1521A
FPZ1524A
FPZ2511A
FPZ2521A
FPZ3231A
FPZ3235A
FPZ3236A
FPZ3237A
FPZ3511A
FPZ3515A
FPZ3516A
FPZ3517A
FPZ3521A
FPZ3521H
FPZ3525A
FPZ3526A
FPZ3527A
FPZ3527H
FPZ4511A
FPZ-4511A
FPZ4517A
FPZ4521A
FPZ4525A
FPZ4526A
FPZ4527A
FPZ4551A
FPZC1511A
FPZC1511H
FPZC1514A
FPZC1514H
FPZC1521A
FPZC1524H
KIT-AFP1000-2005
KIT-AFP1000-2005-A/R
XXZ112
XXZ122
XXZ321
SH-003
Description
Enclosure Base, ASR-620
Enclosure Cover, ASR-620++
RS232/432 Protocol Adaptor
Bezel Wave Style, Midrange Type, Black
Bezel Wave Style, Midrange Type, Blue
Bezel Wave Style, Slim Type, Black
Bezel Wave Style, Slim Type, Blue
Bezel Wave Style, Wallswitch Type, Black
Bezel Wave Style, Wallswitch Type, Blue
Bezel Curve Style, Slim Type, Black
Bezel Curve Style, Wallswitch Type, Black
Bezel Arch Style, Midrange Type, Black
Bezel Arch Style, Midrange Type, Grey
Bezel Arch Style, Midrange Type, White
Bezel Arch Style, Midrange Type, Beige
Bezel Arch Style, Slim Type, Black
Bezel Arch Style, Slim Type, Grey
Bezel Arch Style, Slim Type, White
Bezel Arch Style, Slim Type, Beige
Bezel Arch Style, Wallswitch Type, Black
Bezel Arch Style, Wallswitch Type, Black (HID)
Bezel Arch Style, Wallswitch Type, Grey
Bezel Arch Style, Wallswitch Type, White
Bezel Arch Style, Wallswitch Type, Beige
Bezel Arch Style, Wallswitch Type, Beige (HID)
Bezel Linear Style, Slim Type, Black
Bezel Linear Slim Black Cover
Bezel Linear Style, Slim Type, Beige
Bezel Linear Style, Wallswitch Type, Black
Bezel Linear Style, Wallswitch Type, Grey
Bezel Linear Style, Wallswitch Type, White
Bezel Linear Style, Wallswitch Type, Beige
Bezel Linear Style, Slim Type, Black
Bezel, Blank, Wave, Slim,5", Black
Bezel, HID, Wave, Slim,5", Black
Bezel, Blank, Wave, Slim, 5", Blue
Bezel, HID, Wave, Slim, 5", Blue
Bezel, Blank, Wave, Wallswitch, 5”, Black
Bezel, HID, Wave, Wallswitch, 5”, Blue
AFP1000-2005, Upgrade
AFP1000 Advance Replacement
Bezel, Wave, Slim, 5", Blue
Bezel, Wave, W/S, 5", Blue
Bezel, Arch, W/S, Black
Indala Credentials Special Handling, New marking label codes
To ensure security of the format and cards, a Software License Agreement must be signed by the final user of the 3175BNN00, 3012AKN00, 3012ANS00, and
be on file at HID prior to shipment.
2 Developer's Resource CD includes: Serial Protocol Documentation and Developer's Test Program to assist in developing custom MIFARE software
applications.
3 Demo CD Includes: MIFARE Documentation and Sample Application Program.
1
February 2012
© 2007 – 2012 HID Global Corporation. All rights reserved
Page 41 of 44
125 kHz How to Order Guide - D00530, B.7
Corporate 1000™ Format - Request & Authorization Form
Corporate 1000 is a 35-bit card format that is developed specifically for use by individual end-user organizations. Organizations
must qualify, formally enroll and be accepted by HID Global Corporation.
The Corporate 1000 Format is offered to large, multi-location, and end-user organizations which use HID access control readers
and cards. In this program, the end-user has the flexibility to choose any access control hardware/software platform and any
HID System Provider. As the end-user utilizing the Corporate 1000 Program, fill in your company information in TABLE I.
Ensure all fields are complete for the primary and secondary (if desired) authorized contacts within your company.
TABLE I: Your Company’s Primary and Secondary Contacts
Information
Primary Company Contact
Secondary Company Contact
Company Name
Mailing Address
City
State/Province
Country
Zip/Postal Code
Contact Name
Title
Contact Signature
X
X
Phone Number
Fax Number
E-mail Address
Card numbers available within the Corporate 1000 format are 0 – 1,048,575.
Indicate the card number in which your first order should start: Enter start number here.
All card numbers following this number will be “blocked” from use. If you do not specify a card start number, your first order will
start at one (1). Should you require assistance, contact your systems provider or HID directly.
Added card security:
Invisible Ink
Advantage® OVD
Hologram
Micro-fine Printing
Signature Panel
Once accepted into the Corporate 1000 Program, HID shall grant a royalty free license to use the Corporate 1000 Format within
your organization. Please sign below to enroll in this program and to confirm your acceptance of the License Agreement.
ACCEPTANCE OF HID CREDENTIAL PROGRAM LICENSE AGREEMENT
The undersigned party hereby accepts and agrees to be bound by the terms and conditions of the HID Credential Program.
License Agreement is located at www.hidglobal.com/pdfs/credential_license.pdf, pursuant to which a license is granted to the
undersigned party authorizing the use of certain credential formats in connection with participation by the undersigned in the
HID Corporate 1000 Program.
Dated:
Company Name :
Page 42 of 44
Authorized Signature : X
Contact Name:
Title :
© 2007 – 2012 HID Global Corporation. All rights reserved.
February 2012
125 kHz How to Order Guide - D00530, B.7
To ensure the security of your card format, authorize any HID System Provider to purchase and manage your Corporate 1000
cards on your behalf. Enter authorized HID System Provider information in Table II, and HID System Installers in Table III.
Use this form to communicate all authorization concerning your Corporate 1000 format. It is recommended for each end-user to
maintain an original copy of this form listing all authorizations.
TABLE II: Authorized HID System Providers
Company # 1
Company # 2
Company Name
Contact Name
Title
Address
Phone Number
Fax Number
E-Mail Address
Authorized End-User Name
X
Authorized End-User Signature
X
Date
TABLE III: Authorized HID System Installers
Company # 1
Company # 2
Company Name
Contact Name
Title
Address
Phone Number
Fax Number
E-Mail Address
Authorized End-User Name
X
Authorized End-User Signature
X
Date
Send to HID Global for approval and processing: Fax: (949) 732-2359.
For assistance, contact your Customer Service Representative. To add or remove authorizations, submit an HID Global
Corporate 1000 Change Form.
For Internal Use Only:
HID Sales Manager:
Print Name
Issued Corporate 1000 Format No.:
February 2012
X
Signature
Date
Entered by HID Global after approval.
© 2007 – 2012 HID Global Corporation. All rights reserved
Page 43 of 44
125 kHz How to Order Guide - D00530, B.7
Index of Terms for HID Credentials
Card
An HID Card is a credit card size piece of plastic that contains electronic circuitry that
works with HID readers. The term “Card” is often loosely applied to Keyfobs and Tags as
well.
Keyfob
A plastic device, roughly the size of a car key, that works like a Card. It is more rugged
than a card and very convenient to carry on a key ring. It has a shorter “Read Range”
(distance from the reader) than a true card because it is smaller.
Tag
Tags work like Cards, but are made in a circular shape. a little larger than a quarter. They
have an adhesive back and can be adhered to any non-metallic surface to allow some
other device to work like an HID Card. Like the Keyfob, Tags have a shorter read range.
(NOTE: The Model 1351 Vehicle ID Tag is a special case. It is a battery powered
Prox device, larger and thicker than a card, that is used only for identifying cars,
trucks, etc. in parking applications.)
Model
Every HID credential has a unique “Base Part Number”. This number is used when
ordering Cards, Keyfobs or Tags to identify exactly what you want to buy.
Options
Each Model has a unique set of available options selected from the following choices. For
example, a Tag is not available with a slot punch; however, you still must enter an “N” in
the order form.
Programming Every HID Card, Keyfob or Tag must have specific data programmed into it before it can
be used. Most customers have HID do the programming and order their cards that way. A
few customers have their own programmers and order non-programmed cards.
Front / Back
Packaging
Packaging is a term that defines the appearance of the Front and Back of every
credential. Options include color, glossy finish, custom artwork, etc. Front and Back
Packaging are defined individually.
Credential
Numbering
There are two distinct “Numbers” that apply to each credential. Every programmed Card,
Keyfob, Tag will have a number inside it that will be read by the HID reader when the
card is used. This is the “Internal Number. It is how an Access Control Unit recognizes
the Credential. It is also possible for cards to have a number printed on the outside
surface. This number is for use by people who manage the entry of cardholder data into
an Access Control System. It can be the same as, or different from the internal number.
Slot Punch
Some cards can have a slot punched in the edge to allow them to hang either horizontally
or vertically. ProxCard II (1326) has a built-in slot.
Custom
Artwork
Some customers pay HID to print their cards with personalized artwork. This may include
a company Logo, a return address (for lost cards), or a special artistic color scheme. The
card front, back, or both sides can be printed. The customer must provide the exact
artwork they want to HID. We will issue a unique number for that customer to identify their
artwork.
Page 44 of 44
© 2007 – 2012 HID Global Corporation. All rights reserved.
February 2012
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
