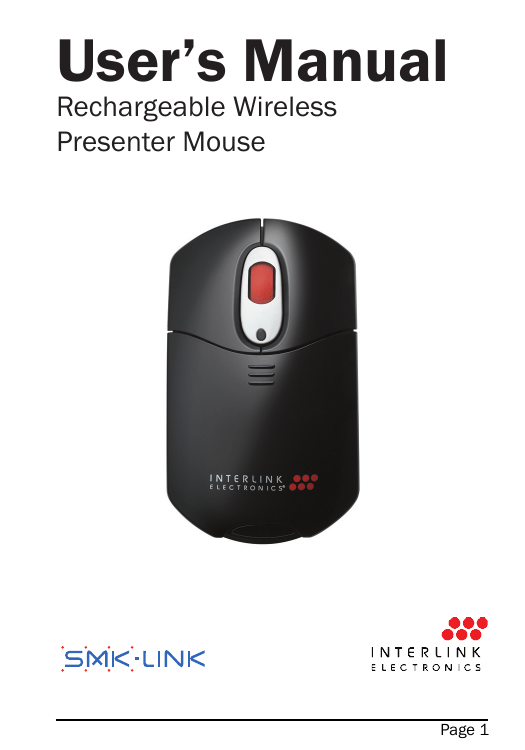

User’s Manual
Rechargeable Wireless
Presenter Mouse
Page Regulatory Compliance
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
FCC Certification
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful
interference when the equipment is operated in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and
receiver.
Page •
Consult the dealer or an experienced radio/TV
technician for help.
Notice: Any changes or modifications not expressly
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Extension cables are not recommended, if used, they
must be shielded in order to comply with the emission
limits.
IC Certification
The term “IC” before the certification/registration
number only signifies that the Industry Canada technical
specifications were met.
Declaration of conformity
Hereby, SMK-LINK Electronics Corporation, declares
that this product is in compliance with the essential
requirements and other relevant provisions of Directive
1999/5/EC.
All trademarks and registered trademarks mentioned
in this document are the property of their respective
owners.
Features and specifications are subject to change without
notice.
© 2008 SMK-LINK Electronics, Inc.
Page System Requirements
Hardware: 2 available USB ports
Operating System: Windows 2000, XP or Vista
Macintosh OS X or above (Mouse Mode fully
compatible; F5 and Application Switch in Presenter Mode not
supported)
Package Contents
•
•
•
•
•
•
Wireless presenter mouse
Micro USB receiver dongle (stored inside
battery compartment)
USB charging cable
2 x AAA rechargeable Ni-MH batteries
User’s manual
Carrying case
Installing the Rechargeable
Batteries (Supplied)
Battery Compartment Cover Latch
(Press down to open)
Page Micro USB receiver dongle
storage
2 AAA Rechargeable Ni-MH Batteries
•
Open the battery compartment by pressing
down the cover latch located at the end of
the mouse. Please note that the micro USB
receiver dongle also stores in this compartment
when traveling.
•
Insert the two supplied AAA rechargeable
Ni-MH batteries (included in the package)
to the battery slots. Make sure the positive
(+) and negative (-) ends of the batteries
match the polarity markings inside the battery
compartment.
•
Close the battery cover back into position.
Do not use any disposable or Alkaline
batteries in this mouse. Use only the
rechargeable Ni-MH batteries supplied
with this mouse. Shall replacing batteries
become necessary use only rechargeable
AAA batteries. Do not mix new and old
batteries in the mouse.
Page Charging the Batteries
Power Indicator
(Power Low: Green
LED flashing;
Fully Charged: LED
turns to solid green)
•
It’s recommended that you fully charge the
batteries before initial use; nevertheless the
mouse is functional anytime during charging.
•
Plug the USB connector of the charging cable
(included in the box) into the computer’s
available USB port.
•
Connect the barrel-tip end of the USB
chargimg cable to the mouse’s charge port
located at the front end of the mouse.
•
The power-indicator LED flashes green
indicating the battery power is low and turns to
solid green when fully charged.
•
The initial charging process may take up to 4
hours. Subsequent recharge may require less
time depending on the level of residual power
Page of the batteries.
•
The mouse is operational during charging; you
can continue use the mouse while charging it
via the USB charge cable.
•
The mouse is designed with a sleep mode to
save power. When the mouse is inactive for
approximately 10 minutes it will automatically
shot off the optical sensor. To wake it up just
click on the right- or left-button.
•
You are now ready to connect the mouse
to your computer system. (Note: it’s not
necessary to wait for the batteries to be fully
charged before connecting the mouse to your
system.) Turn on the power by sliding the on/
off switch located at the bottom of the mouse
to the “on” position.
Make sure the computer’s power
management is set to disable hibernation
mode while the mouse is being charged.
(Go to Control Panel, Power Options,
select “Hibernate” from the tabs and
uncheck the box marked “Enable
Hibernation.)
Page Connecting the Mouse to the
Computer
Connect Button
On/Off
Switch
•
Retrieve the micro USB receiver dongle
stored inside the battery compartment
by opening the battery door as shown
in Installing the Rechargeable Batteries
section. Close the door.
•
Connect the micro USB receiver dongle to
an available USB port on your computer.
Wait for the computer to go through its
default process of recognizing the new
hardware and installing the built-in native
mouse driver. You don’t need to do
anything while your computer is going
through the installation of a new device.
Page •
The radio frequency (RF) codes are
factory preset for your convenience; the
mouse should be functional at this point.
•
If for any reason the mouse does
not function correctly, i.e. no cursor
movements or sluggish cursor movements,
there may be other wireless devices in
the vicinity operating in the same radio
frequency channel. The mouse can be
easily reset to another channel by pressing
on the connect button located on the top of
the micro USB receiver dongle while it’s
plugged in to the computer’s USB port,
and pressing the connect button located at
the bottom of the mouse. This will switch
the mouse and the receiver to a different
channel to avoid interference. This step
can be repeated when needed.
Page Using the Presenter Mouse
Connect Button
On/Off
Switch
Cover
Working in mouse mode – the sliding door on the
top is closed
• The mouse functions as a standard 3-button
mouse: right click, left click and the scroll
wheel as the 3rd button.
•
The mouse goes to sleep mode to save battery
power after approximately 10 minutes of
inactivity. Wake it up by clicking on any
button.
Mouse Mode
(Door Closed)
Page 10
Presenter Mode
(Door Open)
Working in presenter mode – the sliding door in
open position
• Open the sliding door by pressing on the top
cover with 2 thumbs and gently glide the door
toward the back of the mouse, away from the
2 mouse buttons, until it stops and clicks. Do
not force the door open or pulling the door
beyond the open position.
•
The presenter automatically detects the mode
switch when the sliding door is open. The
presentation control buttons are exposed
and the device automatically converts to
a presenter with laser pointer. The optical
sensor for the mouse function is shut off. To
use the mouse cursor control you must close
the sliding door first.
•
There are 5 presenter functions plus laser
pointer:
- Under Windows OS: fully compatible
- Under Macintosh OS: F5 (Slide Show) and
Application Switch not supported.
Page 11
Laser Warning
Light (Green LED)
Previous Page
Application Switch
F5(Slide Show)/
ESC
Sliding Door (Mode
Switch)
Next Page
Dark Screen/
Resume
Laser Pointer
Trigger
Operating Tips & Trouble Shooting
•
Make sure the mouse is turned on by checking the
on/off switch located at the bottom of the mouse before
using it.
•
Conserve the battery power by switching the on/off
switch to “off” position while traveling or if the mouse
will not be in use for awhile. If you will not use the
mouse for a long period of time remove the batteries
from the battery compartment.
•
Optical mouse works best in non-reflective, non-white,
surface. If cursor movements are lagging, placing
the mouse on a mousepad will help. Darker surface
requires more energy to operate thus consumes more
battery power.
•
When the mouse cursor behaves erratically check the
power-indicator LED for power status, i.e. LED light
Page 12
flashing for power-low; and follow the instructions
in Charging the Batteries section to recharge the
batteries. The mouse is functional during charging.
•
The mouse stays connected to your computer
even when it’s turned off. If for any reason the
connection to the system is lost or interference is
detected (erratic cursor movements), first check if
the micro USB receiver dongle is plugged in to the
computer USB port, then verify that the presenter
mouse is within the range (up to 33 feet) from your
computer. If the connection is lost it can be fixed
by following the instructions in the Connecting the
Mouse to the Computer section to reconnect the
devices.
•
Make sure the sliding door is closed when the
device is not in use and when traveling in order to
avoid damaging to the door.
•
Remember to store the micro USB receiver dongle
in the storage compartment when traveling.
Warranty: SMK-LINK Electronics warrants to the
original end-user purchaser of the Product (“you”) that the
Product, excluding batteries, will be free from defects in
materials or workmanship under normal use and service for
one-year from date of purchase. Dated invoice or sales receipt
is necessary to accompany the Product returned for warranty
service consideration. Any Product repaired or replaced under
the terms of the warranty is covered for the remainder of the
original warranty period or ninety (90) days from the date of
service or return shipping, whichever is longer. If the Product
becomes defective in materials or workmanship during the
warranty period, SMK-LINK Electronics will, at its option,
Page 13
either repair or replace it with a more current or upgraded
model if the originally purchased model is not available. This
warranty does not cover products which have been subjected
to misuse, accident, physical damage, improper installation,
abnormal operation or handling, neglect, inundation or fire, or
when product regulatory label has been removed, altered or
rendered illegible; nor does it cover accessory and consumable
items. In no case shall SMK-LINK Electronics be liable for
any indirect special, incidental, or consequential damages
based upon breach of warranty, breach of contract, negligence,
strict tort or any other legal theory. Such damages include, but
are not limited to, loss of profits, loss of savings or revenues,
inability to use the product or any associated equipment, cost of
capital, cost of any substitute equipment, facilities or services,
claims by third parties other than you, and injury to property.
SMK-LINK Electronics’s total liability for damages for any
cause related to, or arising out of, the use or inability to use
the product, shall not exceed the original price paid for the
product even if SMK-LINK Electronics has been informed of
such possibility. If your Product requires warranty service, you
must first contact SMK-LINK Electronics Product Support to
receive an RMA Number. The contact information can be found
on SMK-LINK Electronics website: http://www.smklink.com/
support/contactsupport.html. This warranty does not affect your
statutory right and you may also have other rights which vary
from state to state. Unless modified in writing, signed by both
you and SMK-LINK Electronics, this warranty is understood to
be the complete and exclusive agreement between the parties,
superseding all prior agreements, oral or written, and all other
communications between the parties relating to the subject
matter of this warranty.
Product Support
For technical support please contact SMK-LINK
Electronics at http://www.smklink.com/support
Page 14
LASER RADIATION – DO NOT
STARE INTO BEAM
WAVE LENGTH: 635nm
MAX OUTPUT: <1mW
CLASS II LASER PRODUCT
Laser Warning
The LASER button located under the sliding door of the
presenter mouse activates a laser which emits a red laser
beam from the front of the presenter mouse unit. It is
typically used as a pointer during presentations. The laser
beam emits for the duration that you press the button.
Caution
Do not stare into laser beam for it can cause harmto your
eyes. Do not aim the laser at people and procedures
other than those specified therin may result in hazardous
radiation exposure.
FDA Compliance for Class 2 Laser
CFR21 SUBCHAPTER J
EN 60825-1:1994+A1+A2
Page 15
Thank You
Thank you for purchasing the Rechargeable
Wireless Presenter Mouse. We know you
had other choices and we appreciate that you
chose Interlink Electronics Wireless Presenter
Mouse by SMK-LINK for your product needs.
So that we may better serve you in the future,
please register online at
www.smklink.com/register.
© 2008 SMK-LINK Electronics
P/N 94-36544
Page 16
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
