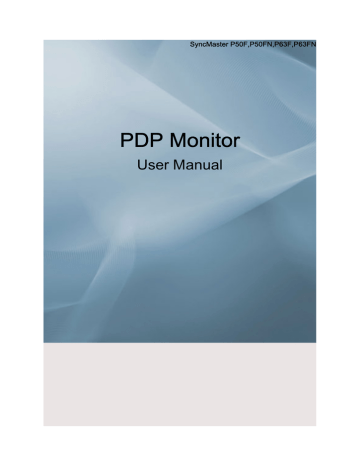

SyncMaster P50F,P50FN,P63F,P63FN
PDP Monitor
User Manual
Safety Instructions
Notational
Note
These safety instructions must be followed to ensure your safety and prevent property damage.
Make sure to read the instructions carefully and use the product in the correct manner.
Warning / Caution
Failure to follow directions noted by this symbol could result in bodily harm or damage to the equipment.
Notational Conventions
Prohibited
Do not disassemble
Do not touch
Important to read and understand at all times
Disconnect the plug from the outlet
Ground to prevent an electric shock
Power
When not used for extended period of time, set your computer to DPM.
If using screen saver, set it to active screen mode.
The images here are for reference only, and are not applicable in all cases
(or countries).
Shortcut to Anti-Afterimage Instructions
Do not use a damaged power cord or plug or a damaged or loose power outlet.
• Otherwise, this may result in electric shock or fire.
Do not touch the power plug with wet hands when removing or plugging the plug into the outlet.
• Otherwise, this may result in electric shock.
Make sure to connect the power cord to a grounded power outlet.
• Otherwise, it may result in electric shock or personal injury.
Safety Instructions
Ensure that the power plug is plugged into the power outlet firmly and correctly.
• Otherwise, this may result in fire.
Do not forcefully bend or pull the power plug and do not place any heavy material on it.
• Otherwise, this may result in fire.
Do not connect multiple appliances to the same power outlet.
• Otherwise, this may cause fire due to overheating.
Do not disconnect the power cord while using the product.
• Otherwise, this may result in damage to the product due to electric shock.
To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.
• This may cause electric shock or fire.
Use only the power cord provided by our company. Do not use the provided power cord of another product.
• Otherwise, this may result in fire or electric shock.
Installation
Be sure to contact an authorized Service Center when installing your monitor in a location with heavy dust, high or low temperatures, high humidity, and exposed to chemical substances and where it operates for 24 hours such as at airports, train stations etc.
Failure to do so may cause serious damage to your monitor.
Ensure that at least two persons lift and move the product.
• Otherwise, it may be dropped and cause personal injury, and/ or damage the product.
When installing the product in a cabinet or rack, make sure that the front end of the bottom of the product does not project out.
• Otherwise, it may fall or cause personal injury.
• Use a cabinet or rack of a size appropriate to the product.
DO NOT PLACE CANDLES, MOSQUITO REPELLANT, CIG-
ARETTES AND ANY HEATING APPLIANCES NEAR THE
PRODUCT.
• Otherwise, this may result in fire.
Clean
Safety Instructions
Keep heating appliances as far away from the power cord or the product as possible.
• Otherwise, this may result in electric shock or fire.
Do not install it in a badly ventilated location such as a bookcase or closet.
• Otherwise, this may result in fire due to an increase in the internal temperature.
When putting the product down, make sure to put it down softly.
• Otherwise, this may result in damage to the screen display.
Do not place the front of the product on the floor.
• Otherwise, this may result in damage to the screen display.
Ensure that an authorized installation company installs the wall mount.
• Otherwise, it may fall and cause personal injury.
• Make sure to install the specified wall mount.
Install your product in a well ventilated location. Ensure that there is a clearance of more than 10 cm from the wall.
• Otherwise, it may result in fire due to an increase in the internal temperature.
Ensure that the packaging vinyl is kept away from children.
• Otherwise, it may result in serious harm (suffocation) if children play with it.
If the height of your monitor is adjustable, do not place any object or part of your body on the stand when lowering it.
• This may cause damage to the product or the person carrying it.
When cleaning the monitor case or the surface of the PDP screen, wipe with a slightly moistened, soft fabric.
Do not spray cleaner directly onto the surface of the product.
• Otherwise, this may result in the discoloration and distortion of the structure and the screen surface may peel off.
Clean the product using a soft cloth with a monitor cleaner only.
If you must use a cleaner other than the monitor cleaner, dilute it with water at a ratio of 1:10.
Others
Safety Instructions
When cleaning the power plug pins or dusting the power outlet, clean it with a dry cloth.
• Otherwise, it may result in fire.
When cleaning the product, make sure to disconnect the power cord.
• Otherwise, it may result in electric shock or fire.
When cleaning the product, disconnect the power cord and clean it softly with a dry cloth.
• (Do not use chemicals such as wax, benzene, alcohol, thinner, mosquito repellant, lubricant, or cleaner.) These may change the appearance of the product surface and peel off the indication labels on the product.
Since the product housing is easily scratched, make sure to use the specified cloth only.
• Use the specified cloth adding only a little water. As the product may be scratched if there is any foreign material on the cloth, make sure to shake it thoroughly before using it.
When cleaning the product, do not spray water directly onto the main body of the product.
• Ensure that water does not enter the product and that it is not wet.
• Otherwise, this may result in electric shock, fire or a malfunction.
The product is a high voltage product. Ensure that users do not disassemble, repair or modify the product themselves.
• Otherwise, this may result in electric shock or fire. If the product needs to be repaired, contact a Service Center.
If there is a strange smell or a strange sound or smoke is coming from the product, disconnect the power plug immediately and contact a Service Center.
• Otherwise, this may result in electric shock or fire.
Do not place this product in a location exposed to moisture, dust, smoke, water, or in a car.
• Otherwise, this may result in electric shock or fire.
When you drop the product or the case is broken, turn the power off and disconnect the power cord. Contact a Service Center.
• Otherwise, this may result in electric shock or fire.
Safety Instructions
If thunder or lightening is occurring, do not touch the power cord or antenna cable.
• Otherwise, this may result in electric shock or fire.
Do not try to move the monitor by pulling only the wire or the signal cable.
• Otherwise, it may fall and result in electric shock, damage to the product or fire due to damage to the cable.
Do not lift or move the product back and forwards or right and left while only holding the power cord or signal cables.
• Otherwise, it may fall and result in electric shock, damage to the product or fire due to damage to the cable.
Make sure that the ventilating opening is not blocked by a table or curtain.
• Otherwise, it may result in fire due to an increase in the internal temperature.
Do not place any containers containing water, vases, flowerpots, medicines as well as any metal on the product.
• If water or a foreign material enters the product, disconnect the power cord and contact a Service Center.
• This may result in a product malfunction, electric shock, or fire.
Do not use or keep combustible spray or flammable material near the product.
• Otherwise, this may result in an explosion or fire.
Do not insert any metal, such as chopsticks, coins, pins and steel, or flammable objects, such as matches or paper, inside the product (through the ventilating openings, input and output terminals, etc).
• If water or foreign material enters the product, disconnect the power cord and contact a Service Center.
• Otherwise, this may result in electric shock or fire.
When using a fixed screen for a long time, an afterimage or stain may occur.
• If you are not using your product for a long period of time, put it into sleep mode or use a moving screen saver.
Set a resolution and frequency appropriate to the product.
• Otherwise, your eyesight may be damaged.
When using headphones or earphones, do not turn the volume too high.
• Having the sound too loud may damage your hearing.
Safety Instructions
If you continually move closer to the product screen, your eyesight may be failing.
Take a rest for at least five (5) minutes after using the monitor for one (1) hour.
This reduces the weariness of your eyes.
Do not install it in an unstable location such as an unstable rack or uneven surface or a location exposed to vibrations.
• Otherwise, it may fall and cause personal injury and/or damage the product.
• If you use the product in a location exposed to vibrations, it may damage the product and result in fire.
When moving the product, turn the power off and disconnect the power plug, antenna cable, and all the cables connected to the product.
• Otherwise, it may result in electric shock or fire.
Ensure that children do not hang onto the product or climb up onto the product.
• The product may fall and cause personal injury or death.
If you do not use the product for a long period of time, disconnect the power cord from the power outlet.
• Otherwise, this may result in overheating or fire due to dust, and may result in fire due to electric shock or leakage.
Do not place any heavy items or toys or confectionery, such as cookies etc. That may attract the attention of children and to the product.
• Your children may hang onto the product causing it to fall and this may result in personal injury or death.
Be careful that children do not place the battery in their mouths when removed from the remote control. Place the battery in a location that children or infants cannot reach.
• If children have had the battery in their mouths, consult your doctor immediately.
When replacing the battery, insert it with right polarity (+, -).
• Otherwise, the battery may become damaged or it may cause fire, personal injury or damage due to leakage of the internal liquid.
Use only the specified standardized batteries, and do not use a new battery and a used battery at the same time.
• Otherwise, the batteries may be damaged or cause fire, personal injury or damage due to a leakage of the internal liquid.
Safety Instructions
The batteries (and rechargeable batteries) are not ordinary refuse and must be returned for recycling purposes. The customer is responsible for returning the used or rechargeable batteries for recycling.
• The customer can return used or rechargeable batteries to a nearby public recycling center or to a store selling the same type of the battery or rechargeable battery.
Do not place the product in a location exposed to direct sunlight or near any heat such as a fire or heater.
• This may reduce the lifetime of the product, and may result in fire.
Do not drop any objects onto the product or cause any impact to the product.
• Otherwise, this may result in electric shock or fire.
Do not use a humidifier or kitchen table near the product.
• Otherwise, this may result in electric shock or fire.
When there is a gas leak, do not touch the product or the power plug but ventilate immediately.
• If a spark occurs, it may cause an explosion or fire.
If the product has been turned on for a long time, the display panel becomes hot. Do not touch it.
• Keep the small accessories in a location out of the reach of children.
Be careful when adjusting the angle of the product or the height of the stand.
• This may result in personal injury as your hand or fingers may become caught.
• Also, if you tilt the product too far, it may fall and cause personal injury.
Do not install the product in a location low enough for children to reach.
• Otherwise, it may fall and result in personal injury.
• Since the front part of the product is heavy, install the product on a level and stable surface.
Do not put any heavy objects on the product.
• This may result in personal injury and/or damage to the product.
Introduction
Package Contents
Note
Please make sure the following items are included with your PDP Display.
If any items are missing, contact your dealer.
Contact a local dealer to buy optional items.
Unpacking
PDP Display
Manuals
Quick Setup Guide Warranty Card
(Not available in all locations)
Cables
User's Guide
Power Cord
Others
D-Sub Cable
Remote Control Batteries (AAA X 2) Ferrite Core for Power
Cord
Others
Sold separately
DVI Cable
Introduction
(Not available in all locations)
(3301-001305)
Wall Mount KIT LAN Cable
(Applicable to the P50FN /
P63FN model only)
TV tuner box NetWork Box
(Applicable to the P50F /
P63F model only)
Semi Stand KIT
(P50F(N))
Note
• You can purchase and connect a separate network box or TV tuner box. For information on how to use these, refer to their respective user manuals.
• You can only connect one external box.
Ferrite Core (Power Cord)
• The ferrite cores are used to shield the cables from interference.
• When connecting a cable, open the ferrite core and clip it around the cable near the plug.
Your PDP Display
Front
Introduction
SOURCE button [SOURCE]
Switches from PC mode to Video mode. Changing the source is only allowed for external devices that are connected to the PDP Display at the time.
[PC] → [DVI] → [AV] → [HDMI] → [MagicInfo]
Note
• The TV menu is available when a TV tuner box is installed.
• F model can use MagicInfo menu when mounted Network box.
Enter button [ ]
Activates a highlighted menu item.
MENU button [MENU]
Opens the on-screen menu and exits from the menu. Also use to exit the
OSD menu or return to the previous menu.
- VOL+
Moves from one menu item to another horizontally or adjusts selected menu values. When OSD is not on the screen, push the button to adjust volume.
SEL
Moves from one menu item to another vertically or adjusts selected menu values.
/ When OSD is not on the screen, push the button to adjust channel.
Power button [ ]
Use this button for turning the PDP Display on and off.
Power indicator
Shows PowerSaver mode by blinking green
Note
See PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your PDP Display
OFF when it is not needed or when leaving it unattended for long periods.
Remote Control Sensor
Aim the remote control towards this spot on the PDP Display.
Rear(P50F(N))
Note
For detailed information concerning cable connections, refer to Connecting Cables under
Setup. The PDP Display 's configuration at the back may vary slightly depending on the PDP
Display model.
Introduction
POWER
The power cord plugs into the PDP Display and the wall plug.
LAN (LAN Connection Terminal)
(Applicable to the P50FN, P63FN model only)
USB(USB Connection Terminal)
Keyboard / Mouse, Mass Storage Device
Compatible.
(Applicable to the P50FN, P63FN model only)
Note
The number of PDP Displays that can be connected to loopout may differ depending on the cables, signal source etc. With cables where there is no degradation or signal source, up to ten PDP Displays can be connected.
Introduction
RS232C OUT/IN (RS232C Serial PORT)
MDC(Multiple Display Control) Program Port
DVI / PC / HDMI IN [DVI/PC/HDMI AU-
DIO IN] (PC/DVI/HDMI Audio Connection
Terminal (Input))
DVI / PC / HDMI IN [HDMI]
Connect the HDMI terminal at the back of your PDP Display to the HDMI terminal of your digital output device using a HDMI cable.
DVI / PC / HDMI IN [RGB](PC Video
Connection Terminal)
Using a D-Sub Cable (15 pin D-Sub) - PC mode (Analog PC)
DVI / PC / HDMI IN [DVI] (PC Video Connection Terminal)
Using a DVI Cable (DVI-D to DVI-D) - DVI mode (Digital PC)
DC OUT [5V 1.5A]
Connect this to the POWER connector of a
TV tuner box or network box.
AV IN [VIDEO]
Connect the [ VIDEO ] terminal of your PDP
Display to the video output terminal of the external device using a VIDEO cable.
AV AUDIO IN [L- AUDIO - R]
Connect the port of the DVD, VCR (DVD /
DTV Set-Top Box) to the [ L- AUDIO - R ] port of the PDP Display.
AUDIO OUT [L- AUDIO - R]
Headphone output terminal.
Introduction
Kensington Lock
The Kensington Lock is a device used to physically fix the system when using it in a public place. The locking device has to be purchased separately. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington
Lock for proper use. The locking device has to be purchased separately.
Note
The location of the Kensington Lock may be different depending on its model.
Using the Anti-Theft Kensington Lock
1. Insert the locking device into the Kensington slot on the Monitor and turn it in the locking direction .
2. Connect the Kensington Lock cable.
3. Fix the Kensington Lock to a desk or a heavy stationary object.
Note
See Connecting Cables for further information regarding cable connections.
Rear(P63F(N))
Note
For detailed information concerning cable connections, refer to Connecting Cables under
Setup. The PDP Display 's configuration at the back may vary slightly depending on the PDP
Display model.
Introduction
POWER
The power cord plugs into the PDP Display and the wall plug.
LAN (LAN Connection Terminal)
(Applicable to the P50FN, P63FN model only)
USB(USB Connection Terminal)
Keyboard / Mouse, Mass Storage Device
Compatible.
(Applicable to the P50FN, P63FN model only)
Note
The number of PDP Displays that can be connected to loopout may differ depending on the cables, signal source etc. With cables where there is no degradation or signal source, up to ten PDP Displays can be connected.
RS232C OUT/IN (RS232C Serial PORT)
MDC(Multiple Display Control) Program Port
DVI / PC / HDMI IN [DVI/PC/HDMI AU-
DIO IN] (PC/DVI/HDMI Audio Connection
Terminal (Input))
DVI / PC / HDMI IN [HDMI]
Connect the HDMI terminal at the back of your PDP Display to the HDMI terminal of your digital output device using a HDMI cable.
DVI / PC / HDMI IN [RGB](PC Video
Connection Terminal)
Introduction
Using a D-Sub Cable (15 pin D-Sub) - PC mode (Analog PC)
DVI / PC / HDMI IN [DVI] (PC Video Connection Terminal)
Using a DVI Cable (DVI-D to DVI-D) - DVI mode (Digital PC)
DC OUT [5V 1.5A]
Connect this to the POWER connector of a
TV tuner box or network box.
AV IN [VIDEO]
Connect the [ VIDEO ] terminal of your PDP
Display to the video output terminal of the external device using a VIDEO cable.
AV AUDIO IN [L- AUDIO - R]
Connect the port of the DVD, VCR (DVD /
DTV Set-Top Box) to the [ L- AUDIO - R ] port of the PDP Display.
AUDIO OUT [L- AUDIO - R]
Headphone output terminal.
Note
See Connecting Cables for further information regarding cable connections.
Remote Control
Note
The performance of the remote control may be affected by a TV or other electronic device operating near the PDP Display , causing a malfunction due to interference with the frequency.
1. POWER
2. Off
3. Number Buttons
4. DEL button
Introduction
POWER
OFF
Number Buttons
DEL
+ VOL -
MUTE
TV/DTV
button
MENU
INFO
COLOR BUTTONS
TTX/MIX
STILL
AUTO
S.MODE
MDC
LOCK
SOURCE
ENTER/PRE-CH
CH/P
D.MENU
GUIDE
RETURN
Up-Down Left-Right buttons
EXIT
SRS
MagicInfo
P.MODE
DUAL/MTS
PIP
SWAP
Turns the product On.
Turns the product Off.
Press to change the channel.
The "-" button operates only for DTV. It is used to select
MMS (multi-channel) for a DTV.
5. + VOL -
6. MUTE
7. TV/DTV
8. MENU
9.
10. INFO
11. COLOR BUTTONS
12.
13. STILL
14. AUTO
15. S.MODE
16. MDC
17. LOCK
TTX/MIX
18. SOURCE
19. ENTER/PRE-CH
20. CH/P
21. D.MENU
22. GUIDE
Introduction
Adjusts the audio volume.
Pauses (mutes) the audio output temporarily. This is displayed on the lower left corner of the screen. The audio resumes if MUTE or - VOL + is pressed in the Mute mode.
Selects the TV and DTV mode directly.
Opens the on-screen menu and exits from the menu or closes the adjustment menu.
Activates a highlighted menu item.
Current picture information is displayed on the upper left corner of the screen.
Press to add or delete channels and to store channels to the favorite channel list in the “Channel List” menu.
TV channels provide written information services via teletext.
- Teletext Buttons
For more information > TTX / MIX
Press the button once to freeze the screen. Press it again to unfreeze.
Adjusts the screen display automatically in PC mode. By changing the resolution in the control panel, auto function is performed.
When pressing this button, the current mode is displayed at the bottom centre of the screen. The PDP Display has a built-in high fidelity stereo amplifier. Then press the button again to circle through available preconfigured modes.
( Standard → Music → Movie → Speech → Custom )
MDC Quick Launch Button.
Activates or deactivates all function keys on both the remote control and the PDP Display except for the Power and LOCK buttons.
Press the button to change the input signal SOURCE.
Changing the SOURCE is only allowed for external devices that are connected to the monitor at the time.
This button is used to return to the immediately previous channel.
In TV mode, selects TV channels.
DTV menu display
Electronic Program Guide (EPG) display.
Introduction
23. RETURN
24. Up-Down Left-Right buttons
25. EXIT
26. SRS
27. MagicInfo
28. P.MODE
Returns to the previous menu.
Moves from one menu item to another horizontally, vertically or adjusts selected menu values.
Exits from the menu screen.
Selects SRS TruSurround XT mode.
MagicInfo Quick Launch Button.
When you press this button, current picture mode is displayed on the lower center of the screen.
AV / HDMI / TV : P.MODE
The PDP Display has four automatic picture settings that are preset at the factory. Then push button again to circle through available preconfigured modes. ( Dynamic →
Standard → Movie → Custom )
29. DUAL/MTS
30.
31.
PIP
SWAP
PC / DVI / MagicInfo: M/B (MagicBright)
MagicBright is a feature providing the optimum viewing environment depending on the contents of the image you are watching. Then push button again to circle through available preconfigured modes. (Entertain → Internet → Text → Custom )
DUAL-
STEREO/MONO, DUAL l / DUAL ll and MONO/NICAM
MONO/NICAM STEREO can be operated depending on the broadcasting type by using the DUAL button on the remote control while watching TV.
MTS-
You can select MTS (Multichannel Television Stereo) mode.
FM Stereo
Audio Type MTS/S_Mode
Mono Mono
Stereo Mono ↔ Stereo
SAP Mono ↔ SAP
Default
Manual
Change
Mono
Every time you press the button, a PIP screen appears.
- This fuction does not work for this PDP Display.
Swaps the contents of the PIP and main image. The image in the PIP window will appear on the main screen, and the main screen image will appear in the PIP window.
- This fuction does not work for this PDP Display.
Mechanical Layout (P50F(N))
Mechanical Layout
NETWORK MODEL SIZE
Introduction
PDP Display Head
NETWORK MODEL SIZE
Introduction
Installation VESA Bracket
• When installing VESA, make sure to comply with the international VESA standards.
• Purchasing VESA Bracket and Installation Information : Please contact your nearest
SAMSUNG Distributor to place an order. After your order is placed, installation professionals will visit you and install the bracket.
• At least 2 persons are needed in order to move the PDP Display.
• SAMSUNG is not responsible for any product damage or any injury caused by installation at customer's discretion.
Dimensions
Introduction
Notice
For securing the bracket on a wall, use only machine screws of 6 mm diameter and 8 to 12 mm length.
Wall Bracket Installation
• Contact a technician for installing the wall bracket.
• SAMSUNG Electronics is not responsible for any damages to the product or harm to customers when the installation is done by the customer.
• This product is for installing on cement walls. The product may not stay in place when installed on plaster or wood.
Components
Only use the components and accessories shipped with the product.
Wall Bracket(1) Hinge(Left 1, Right
1)
Plastic
Hanger
(4)
Screw
(A)(11)
Screw
(B)(4)
Wall Bracket Assembly
Note
There are two hinges(left and right). Use the correct one.
1. Insert and tighten the Captive Screw in the direction of the arrow.
When done, mount the wall bracket on the wall.
Anchor
(11)
There are two hinges(left and right). Use the correct one.
Introduction
A -
B -
C -
D -
Captive Screw
Wall Bracket
Hinge (Left)
Hinge (Right)
2. Before drilling into the wall, check if the length between the two locking holes at the back of the product is correct.
If the length is too short or long, loosen all or some of the 4 screws on the wall bracket to adjust the length.
A Length between the two locking holes
3. Check the installation diagram and mark the drill points on the wall. Use the 5.0 mm bit to drill holes deeper than 35 mm. Fix each anchor in the corresponding hole. Match each of the brackets and hinge holes to the corresponding anchor holes and insert and tighten the 11 screws A.
To mount the product on the wall bracket
The shape of the product may vary depending on the model. (The assemblies of the plastic hanger and the screw are the same)
Introduction
1. Remove the 4 screws on the back of the product.
2. Insert the screw B into the plastic hanger.
Notice
• Mount the product on the wall bracket and make sure it is properly fixed to the left and right plastic hangers.
• Be careful when installing the product on the bracket as fingers can be caught in the holes.
• Make sure the wall bracket is securely fixed to the wall, or the product may not stay in place after installation.
3. Tighten the 4 screws in step 2 (plastic hanger + screw B)to the rear holes of the product.
4. Remove safety pin (3) and insert the 4 product holders into the corresponding bracket holes (1). Then place the product(2) so that it is firmly fixed to the bracket. Make sure to re-insert and tighten the safety pin (3) to securely hold the product to the bracket.
Introduction
A -
B -
C -
PDP Display
Wall Bracket
Wall
Wall Bracket Angle Adjustment
Adjust the bracket angle to -2° before installing it on the wall.
1. Fix the product to the wall bracket.
2. Hold the product at the top in the center and pull it forward (direction of the arrow) to adjust the angle.
Note
You can adjust the bracket angle between -2° and 15°.
Make sure to use the top center, and not the leftor the right side of the product to adjust the angle.
Mechanical Layout (P63F(N))
Mechanical Layout
NETWORK MODEL SIZE
Introduction
PDP Display Head
NETWORK MODEL SIZE
Wall Bracket Installation
• Contact a technician for installing the wall bracket.
• SAMSUNG Electronics is not responsible for any damages to the product or harm to customers when the installation is done by the customer.
• This product is for installing on cement walls. The product may not stay in place when installed on plaster or wood.
Components
Only use the components and accessories shipped with the product.
Introduction
Wall Bracket(1) Hinge(Left 1, Right
1)
Plastic
Hanger
(4)
Screw
(A)(11)
Screw
(B)(4)
Wall Bracket Assembly
Note
There are two hinges(left and right). Use the correct one.
1. Insert and tighten the Captive Screw in the direction of the arrow.
When done, mount the wall bracket on the wall.
Anchor
(11)
There are two hinges(left and right). Use the correct one.
A -
B -
C -
D -
Captive Screw
Wall Bracket
Hinge (Left)
Hinge (Right)
2. Before drilling into the wall, check if the length between the two locking holes at the back of the product is correct.
If the length is too short or long, loosen all or some of the 4screws on the wall bracket to adjust the length.
Introduction
A Length between the two locking holes
3. Check the installation diagram and mark the drill points on the wall. Use the 5.0 mm bit to drill holes deeper than 35 mm. Fix each anchor in the corresponding hole. Match each of the brackets and hinge holes to the corresponding anchor holes and insert and tighten the 11 screws A.
To mount the product on the wall bracket
The shape of the product may vary depending on the model. (The assemblies of the plastic hanger and the screw are the same)
1. Remove the 4 screws on the back of the product.
2. Insert the screw B into the plastic hanger.
Notice
• Mount the product on the wall bracket and make sure it is properly fixed to the left and right plastic hangers.
• Be careful when installing the product on the bracket as fingers can be caught in the holes.
Introduction
• Make sure the wall bracket is securely fixed to the wall, or the product may not stay in place after installation.
3. Tighten the 4 screws in step 2 (plastic hanger + screw B)to the rear holes of the product.
4. Remove safety pin (3) and insert the 4 product holders into the corresponding bracket holes (1). Then place the product(2) so that it is firmly fixed to the bracket. Make sure to re-insert and tighten the safety pin (3) to securely hold the product to the bracket.
A -
B -
C -
PDP Display
Wall Bracket
Wall
Wall Bracket Angle Adjustment
Adjust the bracket angle to -2° before installing it on the wall.
1. Fix the product to the wall bracket.
2. Hold the product at the top in the center and pull it forward (direction of the arrow) to adjust the angle.
Introduction
Note
You can adjust the bracket angle between -2° and 15°.
Make sure to use the top center, and not the leftor the right side of the product to adjust the angle.
Connections
Connecting a Computer
Using a Power cord with Earth
• In the event of failure, the earth lead may cause electric shock. Make sure to wire the earth lead in correctly, before connecting the AC power.
When un-wiring the earth lead, make sure to disconnect the AC power in advance.
Note
AV input devices such as DVD players, VCRs or camcorders as well as your computer can be connected to the PDP Display. For detailed information on connecting AV input devices, refer to the contents under Adjusting Your PDP Display.
Note
Please refer to below image which contains explanations based on 50 inch model.
(Only the terminal location is different between 50 inch and 63 inch models)
Connect the power cord for your PDP Display to the power port on the back of the PDP Display. Turn on the power switch.
There are 2 ways to connect the D-sub to your PDP Display. Choose one of the following:
Using the D-sub (Analog) connector on the video card.
• Connect the D-sub to the 15-pin, RGB port on the back of your PDP
Display and the 15 pin D-sub Port on the computer.
Using the DVI (Digital) connector on the video card.
• Connect the DVI Cable to the DVI port on the back of your PDP Display and the DVI port on the computer.
Connections
Connect the audio cable for your PDP Display to the audio port on the back of your computer.
Note
• Turn on both your computer and the PDP Display.
• The DVI cable is optional.
• Contact a local SAMSUNG Electronics Service Center to buy optional items.
Connecting to Other devices
Using a Power cord with Earth
• In the event of failure, the earth lead may cause electric shock. Make sure to wire the earth lead in correctly, before connecting the AC power.
When un-wiring the earth lead, make sure to disconnect the AC power in advance.
Note
AV input devices such as DVD players, VCRs or camcorders as well as your computer can be connected to the PDP Display. For detailed information on connecting AV input devices, refer to the contents under Adjusting Your PDP Display.
Note
Please refer to below image which contains explanations based on 50 inch model.
(Only the terminal location is different between 50 inch and 63 inch models)
Connecting AV Devices
1. Connect the port of the DVD, VCR (DVD / DTV Set-Top Box) to the [R-AUDIO-L] port of the PDP Display.
2. Then, start the DVD, VCR or Camcorders with a DVD disc or tape inserted.
3. Select AV using the SOURCE .
Connections
Note
The PDP Display has AV connection terminals to connect AV input devices like DVDs, VCRs or Camcorders. You may enjoy AV signals as long as the PDP Display is turned on.
Connecting to a Camcorder
1. Locate the AV output jacks on the camcorder. They are usually found on the side or back of the camcorder. Connect a set of audio cables between the AUDIO OUTPUT jacks on the camcorder and the AV AUDIO IN [L-AUDIO-R] on the PDP Display.
2. Connect a video cable between the VIDEO OUTPUT jack on the camcorder and the AV
IN [VIDEO] on the PDP Display.
3. Select AV for the Camcorder connection using the Source button on the front of the PDP
Display or on the remote control.
4. Then, start the Camcorders with a tape inserted.
Note
The audio-video cables shown here are usually included with a Camcorder. (If not, check your local electronics store.) If your camcorder is stereo, you need to connect a set of two cables.
Connecting Using a HDMI Cable
Note
• Input devices such as digital DVD are connected to the HDMI IN terminal of the PDP
Display using the HDMI cable.
• You cannot connect a PC to the HDMI IN terminal.
Connections
Connecting Using a DVI to HDMI Cable
Note
• Connect the DVI output terminal of a digital output device to the HDMI IN terminal of the
PDP Display using a DVI to HDMI cable.
• Connect the red and white jacks of an RCA to stereo (for PC) cable to the same colored audio output terminals of the digital output device, and connect the opposite jack to the
HDMI / PC / DVI AUDIO IN terminal of the PDP Display.
Connecting to an Audio System
Note
• Connect a set of audio cables between the AUX L, R jacks on the AUDIO SYSTEM and
AUDIO OUT [L-AUDIO-R] on PDP Display.
Connecting a LAN Cable
Using a Power cord with Earth
• In the event of failure, the earth lead may cause electric shock. Make sure to wire the earth lead in correctly, before connecting the AC power.
When un-wiring the earth lead, make sure to disconnect the AC power in advance.
Note
AV input devices such as DVD players, VCRs or camcorders as well as your computer can be connected to the PDP Display. For detailed information on connecting AV input devices, refer to the contents under Adjusting Your PDP Display.
Connections
Note
Please refer to below image which contains explanations based on 50 inch model.
(Only the terminal location is different between 50 inch and 63 inch models)
Note
Connect the LAN cable.
(Applicable to the P50FN / P63FN model only)
Connecting a USB device
Using a Power cord with Earth
• In the event of failure, the earth lead may cause electric shock. Make sure to wire the earth lead in correctly, before connecting the AC power.
When un-wiring the earth lead, make sure to disconnect the AC power in advance.
Note
AV input devices such as DVD players, VCRs or camcorders as well as your computer can be connected to the PDP Display. For detailed information on connecting AV input devices, refer to the contents under Adjusting Your PDP Display.
Note
Please refer to below image which contains explanations based on 50 inch model.
(Only the terminal location is different between 50 inch and 63 inch models)
Note
You can connect USB devices such as a mouse or keyboard.
Connections
(Applicable to the P50FN / P63FN model only)
Using the Software
Installation MagicInfo Pro
Installation
1. Insert CD into the CD-ROM drive.
2. Click the MagicInfo Pro installation file.
3. When the Install Shield Wizard window appears, click "Next."
4. Select "I agree to the terms of the license agreement" to accept the terms of use.
5. You are required to log in to the MagicInfo Pro Server program. Please enter the password to login. The password cannot be changed when you are logged in.
Using the Software
6. Choose a folder to install the MagicInfo Pro program.
7. Click "Install."
Using the Software
8. The "Installation Status" window appears.
9. It is recommended restarting the system for the normal operation of the MagicInfo Pro
Server program. Click "Finish".
Using the Software
10. When the installation is complete, the MagicInfo Pro executable icon appears on your desktop.
11. Double-click the icon to start the program.
System Requirements
CPU
Minimum P1.8
Recommended
RAM
256M
P3.0GHz
512M
Ethernet OS
100M/1G Windows
XP Windows 2000
(Service
Pack 4)
Application
WMP 9 or later
Introduction
A Multiple Display Control (MDC) is an application allowing various displays to be easily and simultaneously operated on a PC. RS-232C, a standard of serial communication, is used for the communication between a PC and a display. Therefore, a serial cable should be connected between the serial port on a PC and the serial port on a display.
Main Screen
Click Start > Program > Samsung > MDC System to start the program.
Select a set to see the volume of the selected set within the slider.
Main Icons
Remocon
Safety Lock
Port Selection
Select Button
Info Grid
Display Selection
Control Tools
1. Use the main icons to switch into each screen.
2. Allows you to enable or disable the remote control signal receiving function of the display unit.
3. Set the Safety Lock function.
When setting the Lock function, you can only operate power and lock buttons on the remote control and set.
4. The setting for the PC Serial Port can change. The original value is COM1.
5. Click Select all or Clear to select or clear all displays.
6. Use Grid to view brief information on selected display.
7. Select a display from Display Selection.
8. Use Control Tools to control displays.
<Note> The remote control Enable/Disable function operates whether or not the power is On/Off, and this applies to all displays connected to the MDC. However, regardless of the status at the time the MDC is shut down, the remote control signal receiving function of all displays is initialized to Enable when the
MDC is closed.
Port Selection
1. The Multiple Display Control is originally set to COM1.
2. If any port other than COM1 is used, COM1 through COM4 can be selected in the Port Selection Menu.
3. If the exact port name that is connected to the PDP Display using a serial cable is not selected, communication will be unavailable.
4. The selected port is stored in the program and used for the next program as well.
Power Control
1. Click Power Control of the main icons and the Power Control screen appears.
Info Grid shows some basic information necessary to Power Control.
1) (Power Status)
3) Image Size
4) On Timer
5) Off Timer
2. Use the Select All button or Check Box to choose a display to control.
Power Control allows controlling some of the functions of the selected display.
1) Power On/Off
- Turns the power of the selected display On/Off.
2) Volume
- Controls the volume level of the selected display.
It receives the volume value of the selected display from the sets and displays it in the slider.
(When you cancel the selection or choose Select All, the value returns to the default value 10)
3) (Mute On/Off)
- Turns on/off the Mute function of the selected display.
When selecting one set at a time, turn on the Mute function for the selected set.
The Mute function is disabled automatically when you adjust the volume level.
(The values return to the default settings when you undo the selections or choose "Select All".)
The Power Control feature is available for all displays.
The Volume Control and Mute features are available only for the displays whose power status is ON.
Input Source
1. Click Input Source of the main icons and the Input Source control screen appears.
Click Select All or use Check Box to select a display to control.
• TV Mode
• PC Mode
1)
2)
3)
Info Grid shows some basic information necessary to Input Source Control.
PC
- Changes the Input Source of the selected display to PC.
BNC
- Changes the Input Source of the selected display to BNC.
DVI
- Changes the Input Source of the selected display to DVI.
4)
5)
6)
7)
8)
TV
- Changes the Input Source of the selected display to TV.
DTV
- Changes the Input Source of the selected display to DTV.
AV
- Changes the Input Source of the selected display to AV.
S-Video
- Changes the Input Source of the selected display to S-Video.
Component
- Changes the Input Source of the selected display to Component.
9) MagicInfo
- The Input source of MagicInfo works only on MagicInfo model.
10) HDMI
- Changes the Input Source of the selected display to HDMI.
11) Channel
- Channel arrow appears when the Input Source is TV.
TV Source can be selected only in products with TV and controlling channels is allowed only when
Input Source is TV.
The Input Source Control feature is available only for the displays whose power status is ON.
Image Size
PC, BNC, DVI
1. Click Image Size of the main icons and the Image Size control screen appears.
1)
Info Grid shows some basic information necessary to Image Size Control.
( Power Status)
- Shows the power status of the current display.
2) Image Size
- Shows the current Image Size of the display in use.
3) Input
- Shows the current Input Source of the display in use.
4) Info Grid displays only the displays whose Input Source is PC, BNC, DVI.
5) PC Source - When you click Image Size, the PC Source tab first appear.
- The Image Size Control button controls Image Size available for PC, BNC, DVI.
6) Video Source
- Click the Video Source tab to control Image Size for respective Input Source.
The Input source of MagicInfo works only on MagicInfo model.
The Input source of TV works only on TV model.
Image Size Control is available only for the displays for which power status is ON.
Image Size
TV, AV, S-Video, Component, DVI(HDCP), HDMI, DTV
1. Click Image Size of the main icons and the Image Size control screen appears.
Info Grid shows some basic information necessary to Image Size Control.
1) Click the Video Source tab to adjust Image Size for TV, AV, S-Video, Component, DVI(HDCP), HDMI, DTV.
Click Select All or use Check Box to select a display to control.
2) Info Grid displays only the display having TV, AV, S-Video, Component or DVI(HDCP) as input source.
3) Switch Image Size of the selected display randomly.
Note: Auto Wide, Zoom1 and Zoom2 are not available for selection when the input signal type for
Component and DVI (HDCP) is 720p or 1080i.
( The Auto Wide mode is available only for TV, AV, and S-Video. )
The Input source of MagicInfo works only on MagicInfo model.
The Input source of TV works only on TV model.
The Image Size Control feature is available only for the displays whose power status is ON.
Time
1. Click Time of the main icons and the Time Control screen appears.
Info Grid shows some basic information necessary to Time Control.
1) Current Time
- Set the current time for the selected display (PC Time).
- To change the current time, first change the PC Time.
2) On Time Setup
- Set the Hour, Minute, AM/PM of On Time Setup, Status, Source, Volume of the selected display.
3) Off Time Setup
- Set the Hour, Minute, and AM/PM, Status for Off Time Setup of the selected display.
4) Shows the On Time settings.
5) Shows the Off Time settings.
The Input source of MagicInfo works only on MagicInfo model.
The Input source of TV works only on TV model.
Time Control is available only for the displays for which the power status is ON.
At On Time Setup, TV Source functions only for TV Model.
At On Time Setup, MagicInfo Source functions only for MagicInfo Model.
PIP
PIP Size
1. Click PIP of the main icons and the PIP control screen appears.
Click Select All or use Check Box to select a display to control.
Info Grid shows some basic information necessary to PIP Size Control.
1) PIP Size
- Shows the current PIP Size of the display in use.
2) OFF
- Turns off the PIP of the selected display.
3) Large
- Turns on the PIP of the selected display and changes the size to Large.
4) Small
- Turns on the PIP of the selected display and changes the size to Small.
5) Double 1
- Turns on the PIP of the selected display and changes the size to Double 1.
6) Double 2
- Turns on the PIP of the selected display and changes the size to Double 2.
7) Double 3 (Picture By Picture)
- Turns on the PBP of the selected display and changes the size to Double 3.
The Input source of MagicInfo works only on MagicInfo model.
The Input source of TV works only on TV model.
PIP Size can be controlled with turning on the PDP Display power.
PIP
PIP Source
1. Click PIP of the main icons and the PIP control screen appears.
Info Grid shows some basic information necessary to PIP Source Control.
1) PIP Source
- PIP Source can be controlled with turning on the PDP Display power.
2) PC
- Changes the source of the PIP of the selected display to PC.
3) BNC
- Changes the source of the PIP of the selected display to BNC.
4) DVI
- Changes the source of the PIP of the selected display to DVI.
5) AV
- Changes the source of the PIP of the selected display to AV.
6) S-Video
- Changes the source of the PIP of the selected display to S-Video.
7) Component
- Changes the source of the PIP of the selected display to Component.
8) HDMI
- Changes the source of the PIP of the selected display to HDMI.
Note: Some of the PIP Sources may not be available for selection, depending on the input source type of the Main Screen.
The Input source of MagicInfo works only on MagicInfo model.
The PIP Control feature is available only for the displays whose power status is ON and the PIP function is set to ON.
Settings
1. Click Settings of the main icons and the Settings Control screen appears.
Info Grid shows some basic information necessary to Settings Control.
When each function is selected, the set value of the selected function is displayed in the slide.When selected, each function fetches the value for the set and displays it on the slide bar. When "Select All" is chosen, the default value is displayed. Changing a value in this screen will automatically change the mode to "CUSTOM."
1) Picture
- Available only for TV, AV, S-Video, Component, HDMI, DTV.
2) Contrast
- Adjusts Contrast of the selected display.
3) Brightness
- Adjusts Brightness of the selected display.
4) Sharpness
- Adjusts Sharpness of the selected display.
5) Color
- Adjusts Color of the selected display.
6) Tint
- Adjusts Tint of the selected display.
- Available only for NT.
7) Color Tone
- Adjusts the Color Tone for the selected display.
8) Color Temp
- Adjusts the Color Temp for the selected display.
9) Brightness Sensor
- Adjusts the Brightness Sensor for the selected display.
10) Dynamic Contrast
- Adjusts the Dynamic Contrast for the selected display.
The Input source of MagicInfo works only on MagicInfo model.
Color Temp is only enabled if the Color Tone is set to Off.
The Input source of TV works only on TV model.
This feature is available only for the displays whose power status is ON and if no selection is made, the factory default is displayed.
Settings
Picture PC
1. Click Settings of the main icons and the Settings Control screen appears.
Info Grid shows some basic information necessary to Settings Control. When each function is selected, the set value of the selected function is displayed in the slide. When selected, each function fetches the value for the set and displays it on the slide bar. When "Select All" is chosen, the default value is displayed. Changing a value in this screen will automatically change the mode to "CUSTOM."
1) Picture PC
- Available only for PC, BNC, DVI.
2) Contrast
- Adjusts Contrast of the selected display.
3) Brightness
- Adjusts Brightness for the selected display.
4) Red
- Adjusts red Color of the selected display.
- Available only for NT.
5) Green
- Adjusts green Color of the selected display.
- Available only for NT.
6) Blue
- Adjusts blue Color of the selected display.
- Available only for NT.
7) Color Tone
- Adjusts the Color Tone for the selected display.
8) Color Temp
- Adjusts the Color Temp for the selected display.
9) Brightness Sensor
- Adjusts the Brightness Sensor for the selected display.
The Input source of MagicInfo works only on MagicInfo model.
The Input source of TV works only on TV model.
Color Temp is only enabled if the Color Tone is set to Off.
This feature is available only for the displays whose power status is ON and if no selection is made, the factory default is displayed.
Settings
Audio
1. Click Settings of the main icons and the Settings Control screen appears.
Info Grid shows some basic information necessary to Settings Control. When each function is selected, the set value of the selected function is displayed in the slide. When selected, each function fetches the value for the set and displays it on the slide bar. When "Select All" is chosen, the default value is displayed. Changing a value in this screen will automatically change the mode to "CUSTOM."
1) Audio
- Controls audio settings for all input sources.
2) Bass
- Adjusts Bass of the selected display.
3) Treble
- Adjusts Treble of the selected display.
4) Balance
- Adjusts Balance of the selected display.
5) SRS TS XT
- SRS TS XT Sound ON/OFF of the selected display.
6) Sound Select
- Select either Main or Sub when PIP is On.
The Input source of MagicInfo works only on MagicInfo model.
The Input source of TV works only on TV model.
This feature is available only for the displays whose power status is ON and if no selection is made, the factory default is displayed.
Settings
Image Lock
1. Click Settings of the main icons and the Settings Control screen appears.
Info Grid shows some basic information necessary to Settings Control.
1) Image Lock
- Available only for PC, BNC.
2) Coarse
- Adjusts Coarse of the selected display.
3) Fine
- Adjusts Fine of the selected display.
4) Position
- Adjusts Position of the selected display.
5) Auto Adjustment
- Self-Adjust to the incoming PC signal.
The Input source of MagicInfo works only on MagicInfo model.
The Input source of TV works only on TV model.
Settings Control is available only for the displays for which the power status is ON.
Maintenance
Lamp Control
1. Click on the "Maintenance" icon in the Main Icon column to display the Maintenance screen.
An "Info Grid" showing several basic data items appears.
1) Maintenance
- Allows the Maintenance Control function for all input sources.
2) Auto Lamp Control
- Automatically adjusts the backlight of the selected display at a specified time.
The Manual Lamp Control automatically turns off if you adjust using the Auto Lamp Control.
3) Manual Lamp Control
- Allows you to adjust the backlight of the selected display regardless of the time.
The Auto Lamp Control automatically turns off if you adjust using the Manual Lamp Control.
The Maintenance Control feature is available only for the displays whose power status is ON.
The Input source of MagicInfo works only on MagicInfo model.
The Input source of TV works only on TV model.
Maintenance
Scroll
1. Click on the "Maintenance" icon in the Main Icon column to display the Maintenance screen.
1) Safety Screen
- Eliminates the afterimages that can result when the selected display stays in Pause mode for an extended period of time. You can set the repeat cycle timer by selecting the "Interval" by hour and "Second" by second.
It can be set to Scroll, Pixel, Bar and Eraser by Screen Type.
The Input source of MagicInfo works only on MagicInfo model.
The Input source of TV works only on TV model.
Setting Second, you can set to 1, 2, 3, 4, 5 for Scroll Type and to 10, 20, 30, 40, 50 for Pixel, Bar, and
Eraser Type.
The Maintenance Control feature is available only for the displays whose power status is ON.
Maintenance
Video Wall
1. Click on the "Maintenance" icon in the Main Icon column to display the Maintenance screen.
1) Video Wall
- A Video Wall is a set of video screens that are connected together, so that each screen shows a part of the whole picture or so that the same picture is repeated on each screen.
2) Video Wall (Screen divider)
- The screen can be divided into.
You can select a number of screens with a different layout when dividing. z z
Select a mode from Screen divider.
Select a display from Display Selection. z z
The place will be set up by pressing a number in the selected mode.
The MDC program supplied by Samsung supports up to 5x5 PDP Displayes.
3) On / Off
- Turns on/off the Video Wall function of the selected display.
4) Format
- The format can be selected to see a divided screen. z
Full z
Natural
You may not operate this function in MagicInfo.
The Input source of TV works only on TV model.
The Maintenance Control function is available only for the displays where the power status is ON.
Troubleshooting
1. The display you wish to control does not appear on the Power Control Info Grid
- Check the connection of RS232C. (Check if it is properly connected to the Com1 port)
- Check the displays to see if any of the other displays connected have the same ID. If more than one displays have the same ID, those displays are not properly detected by the program due to data conflict.
- Check if the Display Set ID is a number between 0 and 25. (Adjust using the Display menu)
Note : A Display Set ID must be a value between 0 and 25 .
2. The display you wish to control does not appear on the other Control Info Grids
- Check to see if the display power is ON. (You can check this in Power Control Info Grid)
- Check if you can change the input source of the display.
3. The dialogue box appears repeatedly.
- Check to see if the display you wish to control is selected.
4. Both On Timer and Off Timer have been set but different time is showing.
- Apply current time to synchronize the display clocks.
5. The remote may not function properly when you turn off the remote Function, disconnect the RS-232C cable, or exit the program in an Irregular manner. Rerun the program and turn the remote function again to Restore normal functions.
<Note> This program may malfunction due to problems in communication circuits or interference from electronic appliances nearby.
Settings Value Display In Multiple Display Mode
When there are more than one displays connected, the settings values are displayed as follows.
1. No selection: Displays the Factory Default Value.
2. Selected one display: Fetches and displays the settings value for the selected display.
3. Selected one display (ID1) and add another display (ID3): The program, which was displaying the settings value of
ID 1, fetches and displays the value of ID3.
4. Selected all sets using Select All: Returns to the Factory Default Value.
Adjusting the PDP Display
Input
•
•
•
•
•
Available Modes
PC / DVI
AV
HDMI
MagicInfo
TV
Note
• The TV menu is available when a TV tuner box is installed.
• F model can use MagicInfo menu when mounted Network box.
Source List
MENU → ENTER → [Input] → ENTER → [Source List] → , → ENTER
Use to select PC, DVI or other external input sources connected to the PDP Display. Use to select the screen of your choice.
1. PC
2. DVI
3. AV
4. HDMI
This is deactivated when a TV tuner box is installed.
5. MagicInfo
F model can use MagicInfo menu when mounted Network box.
6. TV
This is activated when a TV tuner box is installed.
Adjusting the PDP Display
Note
• The direct button on the remote control is the 'SOURCE' button.
Edit Name
MENU → ENTER → [Input] → → ENTER → [Edit Name] → , → ENTER
Name the input device connected to the input jacks to make your input source selection easier.
VCR / DVD / Cable STB / HD STB / Satellite STB / AV Receiver / DVD Receiver / Game /
Camcorder / DVD Combo / DHR / PC
Note
• When connecting a PC to the HDMI or DVI terminal, set Edit Name to PC.
• In other cases, set Edit Name to AV.
• However, since 640x480, 720P (1280x720), and 1080p (1920x1080) are common signals for AV and PC, make sure to set the Edit Name in accordance with the input signal.
• The Picture menu changes depending on the input signal and Edit Name.
Picture [PC / DVI / HDMI / MagicInfo Mode]
•
•
•
•
Available Modes
PC / DVI / HDMI
AV
MagicInfo
TV
Note
• The TV menu is available when a TV tuner box is installed.
Adjusting the PDP Display
• F model can use MagicInfo menu when mounted Network box.
MagicBright
MENU → → ENTER → [Picture] → ENTER → [MagicBright] → , → ENTER
MagicBright is a feature providing the optimum viewing environment depending on the contents of the image you are watching. Currently four different modes are available: Entertain,
Internet, Text and Custom. Each mode has its own pre-configured brightness value. You can easily select one of the four settings by simply pressing the MagicBright control button.
1. Entertain
High brightness
For watching motion pictures such as a DVD or VCD.
2. Internet
Medium brightness
For working with a mixture of images such as texts and graphics.
3. Text
Normal brightness
For documentations or works involving heavy text.
4. Custom
Although the values are carefully chosen by our engineers, the pre-configured values may not be comfortable to your eyes depending on your taste.
If this is the case, adjust the brightness and contrast by using the OSD menu.
Custom
By using the on-screen menus, the contrast and brightness can be changed to your personal preference.
MENU → → ENTER → [Picture] → → ENTER → [Custom]
Note
By adjusting the picture using the Custom function, MagicBright will change to Custom mode.
Contrast
MENU → → ENTER → [Picture] → → ENTER → [Custom] → ENTER→ [Contrast] →
, → ENTER
Adjusting the PDP Display
Adjusts the Contrast.
Brightness
MENU → → ENTER → [Picture] → → ENTER → [Custom] → → ENTER → [Brightness] → , → ENTER
Adjusts the Brightness.
Sharpness
MENU → → ENTER → [Picture] → → ENTER → [Custom] → → → ENTER→
[
Sharpness] → , → ENTER
Adjusts the Sharpness.
Color Tone
MENU → → ENTER → [Picture] → → →ENTER → [Color Tone] → , → ENTER
The color tones can be changed.
1. Off
2. Cool
3. Normal
4. Warm
5. Custom
Note
If you set the Color Tone to Cool, Normal, Warm, or Custom, the Color Temp function is disabled.
If you set the Color Tone to Off, the Color Control function is disabled
Color Control
Adjusts individual Red, Green, Blue color balance.
Red
Adjusting the PDP Display
MENU → → ENTER → [Picture] → → → → ENTER → [Color Control]
Note
If you adjust the picture by using the Color Control function, Color Tone will turn to the Custom mode.
MENU → → ENTER → [Picture] → → → → ENTER → [Color Control] → ENTER →
[
Red] → , → ENTER
Green
MENU → → ENTER → [Picture] → → → → ENTER → [Color Control] → → ENTER
→ [ Green] → , → ENTER
Blue
MENU → → ENTER → [Picture] → → → → ENTER → [Color Control] → → →
ENTER → [Blue] → , → ENTER
Color Temp
MENU → → ENTER → [Picture] → → → → ENTER → [Color Temp] → , → ENTER
Color Temp is a measure of the 'warmth' of the image colors.
Note
This function is only enabled if the Color Tone is set to Off.
Image Lock
Image Lock is used to fine-tune and get the best image by removing noise that creates unstable images with jitters and shakiness. If satisfactory results are not obtained using the Fine adjustment, use the Coarse adjustment and then use Fine again.
(Available in PC mode only)
MENU → → ENTER → [Picture] → → → → → ENTER → [Image Lock]
Coarse
MENU → → ENTER → [Picture] → → → → → ENTER → [Image Lock] → ENTER
→ [ Coarse] → , → ENTER
Adjusting the PDP Display
Removes noise such as vertical stripes. Coarse adjustment may move the screen image area. You may relocate it to the center using the horizontal control menu.
Fine
MENU → → ENTER → [Picture] → → → → → ENTER → [Image Lock] → →
ENTER → [Fine] → , → ENTER
Removes noise such as horizontal stripes. If the noise persists even after Fine tuning, repeat it after adjusting the frequency (clock speed).
H-Position
MENU → → ENTER → [Picture] → → → → → ENTER → [Image Lock] → →
→ ENTER → [H-Position] → , → ENTER
Adjusts the screen location horizontally.
V-Position
MENU → → ENTER → [Picture] → → → → → ENTER → [Image Lock] → → →
→ ENTER → [V-Position] → , → ENTER
Adjusts the screen location vertically.
Auto Adjustment
MENU → → ENTER → [Picture] → → → → → → ENTER → [Auto Adjustment ]
The values of Fine, Coarse, Position are adjusted automatically. By changing the resolution in the control panel, the auto function is performed.
(Available in PC mode only)
Note
The direct button on the remote control is the 'AUTO' button.
Signal Balance
This is used to make up for the weak RGB signal transmitted by a long signal cable.
MENU → → ENTER → [Picture] → → → → → → → ENTER → [Signal Balance]
(Available in PC mode only)
Adjusting the PDP Display
Signal Balance
MENU → → ENTER → [Picture] → → → → → → → ENTER → [Signal Balance] → ENTER → [Signal Balance] → , → ENTER
Selects either On or Off with the signal control.
Signal Control
MENU → → ENTER → [Picture] → → → → → → → ENTER → [Signal Balance]
→ → ENTER → [Signal Control]
1. R-Gain
MENU → → ENTER → [Picture] → → → → → → → ENTER → [Signal
Balance] → → ENTER → [Signal Control] → ENTER → [R-Gain] → , → ENTER
2. G-Gain
MENU → → ENTER → [Picture] → → → → → → → ENTER → [Signal
Balance] → → ENTER → [Signal Control] → → ENTER → [G-Gain] → , → ENTER
3. B-Gain
MENU → → ENTER → [Picture] → → → → → → → ENTER → [Signal
Balance] → → ENTER → [Signal Control] → → → ENTER → [B-Gain] → , →
ENTER
4. R-Offset
MENU → → ENTER → [Picture] → → → → → → → ENTER → [Signal
Balance] → → ENTER → [Signal Control] → → → → ENTER → [R-Offset] → ,
→ ENTER
5. G-Offset
MENU → → ENTER → [Picture] → → → → → → → ENTER → [Signal
Balance] → → ENTER → [Signal Control] → → → → → ENTER → [G-Offset]
→ , → ENTER
Adjusting the PDP Display
6. B-Offset
MENU → → ENTER → [Picture] → → → → → → → ENTER → [Signal
Balance] → → ENTER → [Signal Control] → → → → → → ENTER → [B-
Offset] → , → ENTER
Size
MENU → → ENTER → [Picture] → → → → → → → → ENTER → [Size] → ,
→ ENTER
The Size can be switched.
1. 16:9
2. 4:3
Picture [ AV / HDMI / DVI / TV Mode]
•
•
•
•
•
Available Modes
PC
AV
HDMI / DVI
MagicInfo
TV
Note
• The TV menu is available when a TV tuner box is installed.
• F model can use MagicInfo menu when mounted Network box.
Mode
MENU → → ENTER → [Picture] → ENTER → [Mode] → , → ENTER
Adjusting the PDP Display
The PDP Display has four automatic picture settings ("Dynamic", "Standard", "Movie" and
"Custom") that are preset at the factory.
Dynamic, Standard, Movie, or Custom can be activated.
1. Dynamic
2. Standard
3. Movie
4. Custom
Note
The direct button on the remote control is the 'P.MODE' button.
Custom
By using the on-screen menus, the contrast and brightness can be changed to your personal preference.
MENU → → ENTER → [Picture] → → ENTER → [Custom]
Contrast
MENU → → ENTER → [Picture] → → ENTER → [Custom] → ENTER→ [Contrast] →
, → ENTER
Adjusts the Contrast.
Brightness
MENU → → ENTER → [Picture] → → ENTER → [Custom] → → ENTER → [Brightness] → , → ENTER
Adjusts the Brightness.
Sharpness
MENU → → ENTER → [Picture] → → ENTER → [Custom] → → → ENTER →
[
Sharpness] → , → ENTER
Adjusting the PDP Display
Adjusts the picture Sharpness.
Color
MENU → → ENTER → [Picture] → → ENTER → [Custom] → → → → ENTER →
[
Color] → , → ENTER
Tint
Adjusts the picture Color.
MENU → → ENTER → [Picture] → → ENTER → [Custom] → → → → → ENTER
→ [ Tint] → , → ENTER
Adds a natural tone to the display.
Note
Tint function can be available just in NTSC system.
Color Tone
MENU → → ENTER → [Picture] → → → ENTER → [Color Tone] → , → ENTER
The color tones can be changed. The individual Color components are also user adjustable.
1. Off
2. Cool2
3. Cool1
4. Normal
5. Warm1
6. Warm2
Note
If you set the Color Tone to Cool2, Cool1, Normal, Warm1, or Warm2, the Color Temp function is disabled.
Adjusting the PDP Display
Color Temp.
MENU → → ENTER → [Picture] → → → → ENTER → [Color Temp.] → , → ENTER
Size
Color temp is a measure of the 'warmth' of the image colors.
Note
This function is only enabled if the Color Tone is set to Off.
MENU → → ENTER → [Picture] → → → → → ENTER → [Size] → , → ENTER
The Size can be switched.
1. 16:9 - Sets the picture to 16:9 wide mode.
2. Zoom 1 - Magnifies the size of the picture on the screen.
3. Zoom 2 - Magnifies the size of the picture more than “Zoom 1”.
4. 4:3 - Sets the picture to 4:3 normal mode.
5. Just Scan - Displays the input scenes as they are without any cutoff when HDMI 720p,
1080i, 1080p signals are input.
Note
Certain external devices may feed the display an out of spec signal that may cause cutoff even when using the Just Scan feature.
ZOOM1, ZOOM2 will be unavailabel in HDMI mode.
Note
The Position and Reset functions are available when Zoom1 or Zoom2 is run.
Digital NR (Digital Noise Reduction)
MENU → → ENTER → [Picture] → → → → → → ENTER → [Digital NR] → ,
→ ENTER
Adjusting the PDP Display
Turns the Digital Noise Reduction feature Off/On. The Digital Noise Reduction feature allows you to enjoy clearer and crisper images.
1. Off
2. On
Film Mode
MENU → → ENTER → [Picture] → → → → → → → ENTER → [Film Mode ] →
, → ENTER
Sound
The Film Mode feature offers you a theater-quality viewing experience.
(In HDMI mode, this function can be available when the input signal is interlaced scan; it cannot be available with progressive scan signal.)
1. Off
2. On
•
•
•
•
•
Available Modes
PC / DVI
AV
HDMI
MagicInfo
TV
Note
• The TV menu is available when a TV tuner box is installed.
• F model can use MagicInfo menu when mounted Network box.
Mode
MENU → → → ENTER → [Sound] → ENTER → [Mode] → , → ENTER
Adjusting the PDP Display
The PDP Display has a built-in high fidelity stereo amplifier.
1. Standard
Selects Standard for the standard factory settings.
2. Music
Selects Music when watching music videos or concerts.
3. Movie
Selects Movie when viewing movies.
4. Speech
Selects Speech when watching a show that is mostly dialogue (i.e., news).
5. Custom
Selects Custom if you want to adjust the settings according to your personal preferences.
Custom
The sound settings can be adjusted to suit your personal preferences.
MENU → → → ENTER → [Sound] → → ENTER → [Custom ]
Note
• You can hear the sound even when sound value is set to 0.
• If you adjust sound using Custom function, Mode will turn to Custom mode.
Bass
MENU → → → ENTER → [Sound] → → ENTER → [Custom ]→ENTER→ [Bass] → ,
→ ENTER
Emphasizes low frequency audio.
Treble
MENU → → → ENTER → [Sound] → → ENTER → [Custom ]→ →ENTER→ [Treble] →
, → ENTER
Adjusting the PDP Display
Balance
Emphasizes high frequency audio.
MENU → → → ENTER → [Sound] → → ENTER → [Custom ]→ → →ENTER→ [Balance] → , → ENTER
Allows you to Adjusts the sound balance between the left and right speakers.
Auto Volume
MENU → → → ENTER → [Sound] → → → ENTER → [Auto Volume] → , → ENTER
Reduces the difference in volume control between broadcasters.
1. Off
2. On
SRS TS XT
MENU → → → ENTER → [Sound] → → → → ENTER → [SRS TS XT] → , → ENTER
SRS TS XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.
1. Off
2. On
Note
The direct button on the remote control is the 'SRS' button.
Adjusting the PDP Display
Setup
•
•
•
•
•
Available Modes
PC / DVI
AV
HDMI
MagicInfo
TV
Note
• The TV menu is available when a TV tuner box is installed.
• F model can use MagicInfo menu when mounted Network box.
Language
MENU → → → → ENTER → [Setup] → ENTER → [Language ] → , → ENTER
You can choose one of 11 languages.
Note
The language chosen affects only the language of the OSD. It has no effect on any software running on the computer.
Time
Selects from one of 4 time settings, Clock Set, Sleep Timer, On Timer, and Off Timer.
MENU → → → → ENTER → [Setup] → → ENTER → [Time ]
Clock Set
MENU → → → → ENTER → [Setup] → → ENTER → [Time ] → ENTER→ [Clock
Set] → , → , → ENTER
Adjusting the PDP Display
Current Time Setting.
Sleep Timer
MENU → → → → ENTER → [Setup] → → ENTER → [Time ] → → ENTER→ [Sleep
Timer] → , → ENTER
Turns the PDP Display off automatically at certain times.
1. Off
2. 30
3. 60
4. 90
5. 120
6. 150
7. 180
On Timer
MENU → → → → ENTER → [Setup] → → ENTER → [Time ] → → → ENTER→
[
On Timer] → , / , → ENTER
Turns the PDP Display on automatically at a preset time. Controls the mode and the volume level at the time the PDP Display turns on automatically.
Adjusting the PDP Display
Off Timer
MENU → → → → ENTER → [Setup] → → ENTER → [Time ] → → → → ENTER
→ [ Off Timer] → , / , → ENTER
Turns the PDP Display off automatically at a preset time.
Menu Transparency
MENU → → → → ENTER → [Setup] → → → ENTER → [Menu Transparency] → ,
→ ENTER
Change the transparency of the background of the OSD.
1. High
2. Medium
3. Low
4. Opaque
Safety Lock PIN
MENU → → → → ENTER → [Setup] → → → → ENTER → [Safety Lock PIN ] →
[0
∼9] → [0∼9] → [0∼9] → [0∼9]
The password can be changed.
Note
The preset password for the PDP Display is "0000"
Adjusting the PDP Display
Energy Saving
MENU → → → → ENTER → [Setup] → → → → → ENTER → [Energy Saving] →
, → ENTER
This feature adjusts the power consumption of the unit in order to save energy.
1. Off
2. On
Note
If you want to reduce the standby power consumption, set Energy Saving to On. However, when Energy Saving is On, you cannot use the remote Power On function of the MDC and the WOL (Wake On LAN) function of MagicInfo.
HDMI Black Level
MENU → → → → ENTER → [Setup] → → → → → → ENTER → [HDMI Black
Level ] → , → ENTER
When a DVD or set-top box is connected to your TV via HDMI, it may cause a degradation in the screen quality, such as an increase in the black level, a low contrast, or discoloration, etc., depending on the external device connected. In this case, adjust the screen quality of your TV by configuring the HDMI black level.
1. Normal
2. Low
Video Wall
A Video Wall is a set of video screens connected together, so that each screen shows a part of the whole picture or where the same picture is repeated on each screen.
When the Video Wall is on, you can adjust the Video Wall screen setting.
MENU → → → → ENTER → [Setup] → → → → → → → ENTER → [Video
Wall ]
Adjusting the PDP Display
Note
When Video Wall is running, the Auto Adjustment, Image Lock, and Size functions are not available. Video Wall does not operate in MagicInfo mode.
Video Wall
MENU → → → → ENTER → [Setup] → → → → → → → ENTER → [Video
Wall ]→ ENTER → [Video Wall ] → , → ENTER
Turns Off/On the Video Wall function of the selected display Off/On.
1. Off
2. On
Format
MENU → → → → ENTER → [Setup] → → → → → → → ENTER → [Video
Wall ]→ → ENTER → [Format] → , → ENTER
The Format can be selected to see a divided screen.
1. Full
Provides a full screen without any margins.
2. Natural
Displays a natural image with the original aspect ratio intact.
Horizontal
MENU → → → → ENTER → [Setup] → → → → → → → ENTER → [Video
Wall ]→ → → ENTER → [Horizontal] → , → ENTER
Adjusting the PDP Display
Sets how many parts the screen should be divided horizontally.
Five adjustment levels: 1, 2, 3, 4, and 5.
Vertical
MENU → → → → ENTER → [Setup] → → → → → → → ENTER → [Video
Wall ]→ → → → ENTER → [Vertical] → , → ENTER
Sets how many parts the screen should be divided vertically.
Five adjustment levels: 1, 2, 3, 4, and 5.
Screen Divider
MENU → → → → ENTER → [Setup] → → → → → → → ENTER → [Video
Wall ]→ → → → → ENTER → [Screen Divider]
The screen can be divided into several images. A number of screens can be selected with a different layout when dividing.
• Select a mode in Screen Divider.
• Select a display in Display Selection.
• The selection will be set up by pressing a number in the selected mode.
Safety Screen
The Safety Screen function is used to prevent afterimages that may appear when a still picture is displayed on the screen over a long time.
Adjusting the PDP Display
• The Safety Screen function scrolls the screen for the specified period of time.
• This function is not available when the power is turned off.
MENU → → → → ENTER → [Setup] → → → → → → → → ENTER → [Safety
Screen]
Pixel Shift
Pixel Shift
MENU → → → → ENTER → [Setup] → → → → → → → → ENTER → [Safety
Screen] → ENTER → [Pixel Shift] → ENTER → [Pixel Shift] → , → ENTER
To prevent after-images on the screen you can use this function, so that every minute pixels on the PDP are moved in horizontal or vertical direction.
1. Off
2. On
Note
The Pixel Shift is not available when Video Wall is On.
Horizontal Dot
MENU → → → → ENTER → [Setup] → → → → → → → → ENTER → [Safety
Screen] → ENTER → [Pixel Shift] → → ENTER → [Horizontal Dot] → , → ENTER
Sets how many pixels the screen moves horizontally.
Five adjustment levels: 1, 2, 3, 4, and 5.
Vertical Line
MENU → → → → ENTER → [Setup] → → → → → → → → ENTER → [Safety
Screen] → ENTER → [Pixel Shift] → → → ENTER → [Vertical Line] → , → ENTER
Adjusting the PDP Display
Sets how many pixels the screen moves vertically.
Five adjustment levels: 1, 2, 3, 4, and 5.
Time
MENU → → → → ENTER → [Setup] → → → → → → → → ENTER → [Safety
Screen] → ENTER → [Pixel Shift] → → → → ENTER → [Time] → , → ENTER
Timer
Timer
Set the time interval for performing the horizontal or vertical movement, respectively.
MENU → → → → ENTER → [Setup] → → → → → → → → ENTER → [Safety
Screen] → → ENTER → [Timer] → ENTER → [Timer] → , → ENTER
You can set the timer for Screen Burn Protection.
If you start the operation to erase any residual image, the operation will be performed for the set period of time and then automatically finish.
1. Off
2. On
Mode
MENU → → → → ENTER → [Setup] → → → → → → → → ENTER → [Safety
Screen] → → ENTER → [Timer] → → ENTER → [Mode] → , → ENTER
Adjusting the PDP Display
Period
You can change the Safety Screen Type.
1. Scroll
2. Bar
3. Eraser
4. All White
5. Pattern
MENU → → → → ENTER → [Setup] → → → → → → → → ENTER → [Safety
Screen] → → ENTER → [Timer] → → → ENTER → [Period] → , → ENTER
Time
Use this function to set the execution period for each mode set in the timer.
MENU → → → → ENTER → [Setup] → → → → → → → → ENTER → [Safety
Screen] → → ENTER → [Timer] → → → → ENTER → [Time] → , → ENTER
Within the set period of time specify a time for execution.
• Mode-Scroll : 1~5 sec
• Mode-Bar, Eraser : 10~50 sec
• Mode-All White, Pattern : 1, 5, 10, 20, 30 min
Adjusting the PDP Display
Scroll
MENU → → → → ENTER → [Setup] → → → → → → → → ENTER → [Safety
Screen] → → → ENTER → [Scroll]
Bar
This function prevents after-images on the screen by moving all the pixels on the PDP according to a pattern.
Use this function when there are remaining after-images or symbols on the screen, especially when you displayed a still image on the screen for a long time.
MENU → → → → ENTER → [Setup] → → → → → → → → ENTER → [Safety
Screen] → → → →ENTER → [Bar]
Eraser
This function prevents after-images on the screen by moving long black and white vertical lines.
MENU → → → → ENTER → [Setup] → → → → → → → → ENTER → [Safety
Screen] → → → → →ENTER → [Eraser]
All White
This function prevents after-images on the screen by moving a rectangular pattern.
MENU → → → → ENTER → [Setup] → → → → → → → → ENTER → [Safety
Screen] → → → → → →ENTER → [All White]
Adjusting the PDP Display
Pattern
This function prevents after-images on the screen by changing the color of pixels to white.
Use this function when there are remaining after-images or symbols on the screen, especially when you displayed a still image on the screen for a long time.
MENU → → → → ENTER → [Setup] → → → → → → → → ENTER → [Safety
Screen] → → → → → → →ENTER → [Pattern]
This function prevents after-images on the screen by moving a diagonal pattern stored in the panel repeatedly.
Resolution Select
MENU → → → → ENTER → [Setup] → → → → → → → → →ENTER →
[
Resolution Select ] → , → ENTER
When the picture is not displayed properly on the screen when setting the graphics card resolution of the computer to 1024 x 768 @ 60Hz, 1280 x 768 @ 60Hz, 1360 x 768@ 60Hz ,
1366 x768 @ 60Hz or 1920 x 1080 @ 60Hz, by using this function(Resolution Select), you can have the picture displayed on the screen in the specified resolution.
Note
Available in PC mode only
1. Off
2. 1024 X 768
Adjusting the PDP Display
3. 1280 X 768
4. 1360 x 768
5. 1366 X 768
6. 1920 X 1080
Note
Selecting the menu is only allowed when the graphics resolution is set to 1024 x 768 @ 60Hz,
1280 x 768 @ 60Hz, 1360 x 768@ 60Hz, 1366 x768 @ 60Hz or 1920 x 1080 @ 60Hz.
Power On Adjustment
MENU → → → → ENTER → [Setup] → → → → → → → → → → ENTER
→ [ Power On Adjustment ] → , → ENTER
Adjusts the Power On time for the screen.
Caution: Set the Power On time to be longer to avoid overvoltage.
Side Gray
MENU → → → → ENTER → [Setup] → → → → → → → → → → →
ENTER → [Side Gray] → , → ENTER
Select the brightness of the grey for the screen background.
1. Off
2. Light
3. Dark
Reset
Reverts the product settings to factory defaults. The Reset function is only available when
PC / DVI is being used.
Adjusting the PDP Display
MENU → → → → ENTER → [Setup] → → → → → → → → → → →
→ ENTER → [Reset ]
Image Reset
MENU → → → → ENTER → [Setup] → → → → → → → → → → →
→ ENTER → [Reset ]→ ENTER → [Image Reset ] → , → ENTER
Note
Available in PC mode only
Note
The Reset function is not available when Video Wall is On.
Color Reset
MENU → → → → ENTER → [Setup] → → → → → → → → → → →
→ ENTER → [Reset ]→ → ENTER → [Color Reset ] → , → ENTER
Multi Control
•
•
•
Available Modes
PC / DVI
AV
HDMI
• MagicInfo
• TV
Multi Control
Assigns an individual ID to the SET.
MENU → → → → → ENTER → [Multi Control ] → ENTER → , → [0~9]
• ID Setup
Assigns distinctive IDs to the SET.
Adjusting the PDP Display
MagicInfo
• ID Input
Use to select the transmitter functions of the individual SET. Only a SET where the ID corresponds to the transmitter setting becomes activated.
•
•
•
•
•
Available Modes
PC / DVI
AV
HDMI
MagicInfo
TV
Note
• The operating system for this set only supports English so the other languages might be corrupted on the screen.
• For MagicInfo, a remote control is available for MagicInfo. However, it is recommended using a separate USB keyboard.
• For MagicInfo in Device mode, moving external devices while booting may cause errors.
Set up external devices only if the PDP Display turns on.
• Do not unplug the LAN cable used for the network (ex: video display). Otherwise, the program (MagicInfo) may stop. If you do unplug the cable, restart the system.
• Do not unplug the LAN cable used by an USB device (ex: video display). Otherwise, the program (MagicInfo) may stop.
• To access other sources, press the SOURCE button in MagicInfo.
• The preset password for the PDP Display is "000000".
• The server program's Power-On option works only if the PDP Display's power is completely shut off.
Please make sure not to use the Power-On option when the PDP Display is in the process of shutting down since this may cause system errors on the PDP Display.
• In the OSD image of MagicInfo, Network mode is the same as Device.
• When using MagicInfo with the MagicInfo Pro Server Program: perform Network mode.
• When using MagicInfo with the device directly connected to PDP Display : execute Device mode.
• Press ALT + F12 to directly go to the MagicInfo Window screen.
• To setup MagicInfo on a Windows screen, a keyboard and mouse are required.
• To setup MagicInfo on a Windows screen, refer to the MagicInfo Server Help.
It is highly recommended not to turn off the AC power during an operation.
Adjusting the PDP Display
Magicinfo
• For pivoted PDP Displays, ticker transparency is not supported.
• For pivoted PDP Displays, a screen resolution of up to 720*480(SD) is supported for movies.
• For drive D:, EWF is not applied.
• When the contents of Setup have been changed when EWF is in the Enable state, to save the changes in the disk, you must Commit them.
• By selecting Disable, Enable or Commit, the system is restarted.
1. Select Magicinfo in the Source List menu.
2. The MUTSetup screen appears.Select the language you want to use.
3. Press the Install button.
If you select Do not show again and click the Install button, the Scheduler screen is displayed after rebooting.
Adjusting the PDP Display
4. Connect your keyboard and mouse and press the “ALT + F12” keys on your keyboard.
5. The Windows Desktop is displayed and the Magicinfo pro icon (the image will be inserted) appears. Move the cursor over the icon.
Note
If the Magicinfo icon is not displayed on the notification area, double click the Magicinfo icon on the window desktop. The icon will appear.
6. Right-click on the Magicinfo pro icon (the image will be inserted) and select 'Program' -->
'player' from the displayed menu.
Adjusting the PDP Display
7. The Player screen of Magicinfo pro is displayed.
Note
To finish the MagicInfo, press ALT + F12.
The JPEG, BMP file format are supported.
Auto
Adjusting the PDP Display
Automatically fits the image to the window.
Original
Shows the properties of the original file.
Slide Show
Displays the properties of the original file as they are.
Interval
Adjusting the PDP Display
Rotation
Controls the time intervals between image files for a slide show. (5 Sec, 10 Sec, 20 Sec, 30
Sec, 60 Sec)
Displays an image file by turning it clockwise by 90 degrees.
Zoom
Adjusting the PDP Display
Close
Displays a reduced picture.
Closes the image control Menu.
Music
Adjusting the PDP Display
Movie
The MP3 file format is supported.
The MPEG1, WMV file format are supported.
Play
Plays a movie file.
Full Size
Adjusting the PDP Display
Plays a movie file in full screen.
OFFICE / HTML
PPT(Power Point), DOC(MS Word), XLS(MS Excel), PDF, HTML, HTM files are displayed.
Note
• Install the proper viewer(freeware) program to see the MS Office(Word, Excel, Power
Point) or PDF doucuments.
Internet
Adjusting the PDP Display
Connects to the Internet
Setup
Sets various functions in MagicInfo mode. A password must be entered to access Setup mode.
Schedule View
Displays a schedule.
TCP/IP
Adjusting the PDP Display
Changes the TCP/IP settings.
Connection
Modifies the network settings.
Password
Adjusting the PDP Display
File
The password can be changed.
• The password should be between 6 and 12 characters in numeric format.
(You should enter a password between 6 and 12 characters in numeric format)
• If you enter the wrong password three times, the setup configuration is reset and a warning message appears from the server.
• If you forget the password, enter Info, 8, 2 and 4 on the remote control to initialize the password. This will reset the previous settings of Setup mode.
Local : You can delete or copy files on both local and removable disks.
Play Option
Adjusting the PDP Display
You can set the repeat play and screen settings.
Repeat : Determines the repeat option for playing movies and music.
• None - Select No Repeat to play a movie or tune in the list only once.
• File Repeat - Select Repeat File to play a movie or tune in the list repeatedly.
• List Repeat - Select Repeat List to play movies or tunes in the list in sequence repeatedly.
Rotation - Sets the picture orientation.
• Landscape - Sets the screen resolution to 1366x768 pixels.
• Portrait - Sets the screen resolution to 768x1366 pixels.
EWF(Enhanced Write Filter) : Prevents change to and loss of the data saved on the disk.
• Disable - Disables EWF to allow saved data to be changed data on the protected disk
(drive C:). When switching from the Enable to the Disable state, you can select Commit.
• Enable - Enables EWF to prevent saved data to be changed on the protected disk (drive
C:).
• Commit - Commit the changed data to the protected disk (drive C:) when EWF is in the
Enable state. Commit is not available when EWF is in the Disable state.
Troubleshooting
Self-Test Feature Check
Note
Check the following items yourself before calling for assistance. Contact a Service Center for problems that you cannot solve by yourself.
Self-Test Feature Check
1. Turn off both your computer and the PDP Display.
2. Unplug the video cable from the back of the computer.
3. Turn on the PDP Display.
The figure shown below ("Check Signal Cable") appears on a black background when the PDP Display is working normally even though no video signal is detected: While in the Self-Test mode, the LED power indicator remains green and the figure moves around on the screen.
4. Turn off your PDP Display and reconnect the video cable; then turn on both your computer and the PDP Display
If your PDP Display screen remains blank after using the previous procedure, check your video controller and computer system; your PDP Display is functioning properly.
Warning Messages
You can even view the screen at a resolution of 1920 x 1080. However, you will receive the following message for a minute; You can choose to change the screen resolution or stay in the current mode during that time. And if the resolution is more than 85Hz, you will see the black screen because the PDP Display does not support over 85Hz.
Note
Refer to Specifications > Preset Timing Modes for the resolutions or frequencies supported by the PDP Display.
Maintenance and Cleaning
1) Maintaining the PDP Display Case.
Clean with a soft cloth after disconnecting the power cord.
Troubleshooting
• Do not use benzene, thinner or other flammable substances, or a wet cloth.
• We recommend that a SAMSUNG cleansing agent is used to prevent damage to the screen.
2) Maintaining the Flat Panel Display Screen.
Clean with a soft cloth (cotton flannel) smoothly.
• Never use acetone, benzene or thinner.
(They may cause flaws or deformation of the screen surface.)
• The user will be required to pay costs and related expenses for repairing damages caused.
Symptoms and Recommended Actions
Note
A PDP Display recreates visual signals received from the computer. Therefore, if there is a problem with the computer or the video card, this can cause the PDP Display to become blank, have poor coloring, become noisy, and video mode not supported, etc. In this case, first check the source of the problem, and then contact a Service Center or your dealer.
1. Check if the power cord and the video cables are properly connected to the computer.
2. Check if the computer beeps more than 3 times when booting.
(If it does, request an a service for the main board of the computer.)
3. If you installed a new video card or if you assembled the PC, check if you installed the
Adaptor(video).
4. Check if the scanning ratio of the video screen is set to between 50 Hz ~ 85 Hz.
(Do not exceed 60Hz when using the maximum resolution.)
5. If you have problems in installing the Adaptor (video) driver, boot the computer in Safe
Mode, remove the Display Adaptor in the "Control Panel −> System −> Device Administrator" and then reboot the computer to reinstall the Adaptor (video) driver.
Check List
Note
• The following table lists possible problems and their solutions. Before calling for assistance, check the information in this section to see if you can remedy any problems for yourself. If you do need assistance, please call the phone number on the Information section or contact your dealer.
• For more network-related information, refer to the MagicInfo Troubleshooting section.
Problems related to the Installation (PC Mode)
Note
Problems related to the PDP Display installation and their solutions are listed.
Q: The PDP Display screen flickers.
Troubleshooting
A: Check if the signal cable between the computer and the PDP Display is securely connected.
(Refer to Connecting a Computer)
Problems related to the Screen
Note
Problems related to the PDP Display screen and their solutions are listed.
Q: The screen is blank and the power indicator is off.
A: Ensure that the power cord is firmly connected and the PDP Display is on.
(Refer to the Connecting a Computer)
Q: "Check Signal Cable" message.
A: Ensure that the signal cable is firmly connected to the PC or video sources.
(Refer to the Connecting a Computer)
A: Ensure that the PC or video sources are turned on.
Q: "Not Optimum Mode" message.
A: Check the maximum resolution and the frequency of the video Adaptor.
A: Compare these values with the data in the Preset Timing Modes Chart.
Q: The picture rolls vertically.
A: Check if the signal cable is securely connected. Re-connect it, if necessary.
(Refer to Connecting a Computer)
Q: The image is not clear; picture is blurred.
A: Run Frequency Coarse and Fine tuning.
A: Turn on again after removing all accessories (video extension cable, etc.)
A: Set the resolution and frequency to the recommended ranges.
Q: The picture image is unstable and shakes.
A: Check if the resolution and frequency set for the computer video card falls in the range supported by the PDP Display. If not, reset them referring to the current Information under the PDP Display menu and Preset Timing Modes.
Q: Ghost images are shown in the picture.
A: Check if the resolution and frequency set for the computer video card falls in the range supported by the PDP Display. If not, reset them referring to the current Information under the PDP Display menu and Preset Timing Modes.
Q: The image is too light or too dark.
A: Adjusts the brightness and contrast.
(Refer to the Brightness, Contrast)
Troubleshooting
Q: The screen color is inconsistent.
A: Adjust color using Custom under OSD Color Adjustment menu.
Q: The color image is distorted by dark shadows.
A: Adjust color using Custom under OSD Color Adjustment menu.
Q: The color white is poor.
A: Adjust color using Custom under OSD Color Adjustment menu.
Q: The Power Indicator blinks.
A: The PDP Display is currently saving the changes made in the settings to the OSD memory.
Q: The screen is blank and the power indicator light blinks every 0.5 or 1 seconds. The
PDP Display is using its power management system. Press any key on the keyboard.
A: The PDP Display is using its power management system.
A: Press a key on the keyboard.
Q: The screen is blank and it is blinking.
A: If you see the "TEST GOOD" message on the screen when you pressing the MENU button, check the cable connection between the PDP Display and the computer to ensure that the connector is properly connected.
Problems related to Audio
Note
Problems related to audio signals and their solutions are listed below.
Q: No sound.
A: Ensure that the audio cable is firmly connected to both the audio-in port on your PDP
Display and the audio-out port on your sound card.
(Refer to the Connecting a Computer)
A: Check the volume level.
Q: The sound level is too low.
A: Check the volume level.
A: If the volume is still too low after turning the control to its maximum, check the volume control on the computer sound card or software program.
Q: The sound is too high or too low.
A: Adjusts the Treble and Bass to the appropriate levels.
Problems related to the Remote Control
Note
Problems related to the remote control and their solutions are listed.
Q: The remote control buttons do not respond.
Troubleshooting
A: Check the polarities (+/-) of the batteries.
A: Check if the batteries are empty.
A: Check if the power is on.
A: Check if the power cord is securely connected.
A: Check if a special fluorescent or neon lamp is on in the vicinity.
Problems related to MagicInfo
Note
Making a Bootable USB Flash Disk.
Q: Making a Bootable USB Flash Disk
A: 1) You can turn a common 512-MB or bigger USB storage media into a bootable disk using a USB bootable disk creation tool. (For example, the HP USB Disk Storage Format Tool)
A: 2) Copies the OS ghost image and executables to your USB disk.
A: 3) Enter the BIOS menu of your set by pressing the F2 key in the BIOS logo screen.
Then, enable the USB Boot First option by selecting that option and pressing the Enter key in the Boot menu.
A: 4) Switch your set on while your USB disk is connected and boot up in DOS mode.
A: 5) Run C:\ghost.exe and choose Local → Partition → From Image from the menu.
Choose the ghost image to update your USB disk with and choose the target disk.
A: 6) When the ghost image update finishes, the set will be rebooted automatically.
Q & A
Q: How can I change the frequency?
A: The frequency can be changed by reconfiguring the video card.
Note
That video card support can vary, depending on the version of the driver used. (Refer to the computer or the video card manual for details.)
Q: How can I Adjusts the resolution?
A: Windows XP:
Set the resolution in the Control Panel → Appearance and Themes → Display → Settings.
A: Windows ME/2000:
Set the resolution in the Control Panel → Display → Settings.
* Contact the video card manufacturer for details.
Q: How can I set the Power Saving function?
A: Windows XP:
Troubleshooting
Set the resolution in the Control Panel → Appearance and Themes → Display → Screen
Saver.
Set the function in the BIOS-SETUP of the computer. (Refer to the Windows / Computer
Manual).
A: Windows ME/2000:
Set the resolution at the Control Panel → Display → Screen Saver.
Set the function in the BIOS-SETUP of the computer. (Refer to the Windows / Computer
Manual).
Q: How can I clean the outer case/PDP Panel?
A: Disconnect the power cord and then clean the PDP Display with a soft cloth, using either a cleaning solution or plain water.
Do not leave any detergent or scratches on the case. Do not let any water enter the
PDP Display.
Q: How can I play the video?
A: The video supports the MPEG1 and WMV codecs only. Install the corresponding codec to play the video. Note that some of the codecs can be incompatible.
Note
Before calling for assistance, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call the phone number on the Information section or contact your dealer.
Specifications
General
General
Model Name SyncMaster P50F(N)
SyncMaster P63F(N)
PDP Panel
Size
Display area
Pixel Pitch
SyncMaster
P50F(N)
SyncMaster
P63F(N)
SyncMaster
P50F(N)
SyncMaster
P63F(N)
SyncMaster
P50F(N)
SyncMaster
P63F(N)
50 " Diagonal (127 cm)
63 " Diagonal (159 cm)
1105.92 mm (H) X 622.08 mm (V)
1393.92mm(H) X 784.08mm(V)
0.576mm(H) x 0.576mm(V)
0.726mm(H) x 0.726mm(V)
Synchronization
Horizontal
Vertical
Display Color
16.7 M
30 ~ 81 kHz
56 ~ 85 Hz
Resolution
Optimum resolution
Maximum resolution
P50F(N)
P63F(N)
P50F(N)
P63F(N)
1920 x 1080 @ 60 Hz
1920 x 1080 @ 60 Hz
1920 x 1080 @ 60 Hz
1920 x 1080 @ 60 Hz
Input Signal, Terminated
RGB Analog, DVI Compliant Digital RGB
0.7 Vp-p ±5 %
Separate H/V sync, Composite, SOG(Option)
TTL level (V high ≥ 2.0 V, V low ≤ 0.8 V)
Maximum Pixel Clock
SyncMaster P50F(N) 170MHz (Analog,Digital)
SyncMaster P63F(N) 170MHz (Analog,Digital)
Specifications
Power Supply
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz ± 3 Hz
Signal Cable
15pin-to-15pin D-sub cable, Detachable
DVI-D to DVI-D connector, Detachable (Sold separately)
Dimensions (W x H x D) / Weight
SyncMaster P50F(N) 1204.6x 724.1 x 97.1 mm (47.4 x 28.5 x 3.8 inch) (Without
Stand)
1204.6 x 773.2 x 362.4 mm (47.4 x 30.4 x 14.3 inch) (With
Stand) / 37.4 kg (82.5 lbs)
SyncMaster P63F(N) 1502.7x 893.1 x 99.0 mm (59.2 x 35.2 x 3.9 inch) (Without
Stand)/ 65.0 kg (143.3 lbs)
VESA Mounting Interface
SyncMaster P50F(N) 600 x 400 mm
Environmental considerations
Operating Temperature : 50°F ~ 104°F (10°C ~ 40°C)
Reliability - MTBF
Storage
Humidity : 10 % ~ 80 %, non-condensing
More than 50,000 hours at 90% confidence level.
Temperature : -4°F ~ 113°F (-20°C ~ 45°C)
Humidity : 5 % ~ 95 %, non-condensing
Audio Characteristics
Audio Input
Audio Output
PC Audio Input
Frequency
Response
RCA Jack Red(R) White(L), 0.5 Vrms (-9 dB)
RCA Jack Red(R) White(L), 0.5 Vrms (-9 dB)
3.5 øStereo Jack, 0.5 Vrms (-9 dB)
RF: 80 Hz ~ 15 kHz (at -3 dB)
A/V: 80 Hz ~ 20 kHz (at -3 dB)
Plug and Play Capability
This PDP Display can be installed on any Plug & Play compatible system. The interaction of the PDP Display and the computer systems will provide the best operating conditions and PDP Display settings. In most cases, the PDP Display installation will proceed automatically, unless the user wishes to select alternate settings.
Dot Acceptable
PDP panels manufactured by using advanced semiconductor technology with precision of 1ppm (one millionth) above are used for this product. But the pixels of
RED, GREEN, BLUE and WHITE color appear to be bright sometimes or some black pixels may be seen. This is not from bad quality and you can use it without any problems.
Specifications
Dot Acceptable
For example, the number of PDP sub pixels contained in this product are
6,220,800.
Note
Design and specifications are subject to change without prior notice.
Class B Equipment (Information Communication equipment for residential use)
This product complies with the Electromagnetic Compatibility Directives for residential use and can be used in all areas including common residential areas. (Class B equipment emits less electromagnetic waves than Class A equipment.)
MagicInfo - Client
Note
F model can use MagicInfo menu when mounted Network box.
Contents
Item
LAN
USB
Music
Movie
Internet Browser
Language
OS
File
Specification Remarks
Keyboard/Mouse, Mass
Storage Device Compatible
1 Gbps
USB removable storage can be supported.
2274x1704 or less Supported File Format :
BMP/JPEG
Supported File Format :
MP3
- MPEG1, WMV
Sound bandwidth : 50 Hz to
15 kHz
- Max 1280 x 720 30 fps
MS Office(Word, Excel,
Power Point), HTML, PDF
- Some files may not be supported depending on the format or the version.
MS Internet Explorer
English
Windows XP Embedded
- Install the proper viewing
(freeware) program to see
MS Office (Word, Excel,
Power Point) or PDF documents.
Not Support Flash, Java
Applet, Security Site
MagicInfo Pro - Server Requirement
Note
F model can use MagicInfo menu when mounted Network box.
Minimum
CPU RAM Ethernet OS
P1.8 GHz 256 M 100 M / 1
G
Windows
XP
Application
WMP 9 or later
Specifications
Recommended
CPU RAM Ethernet OS
P3.0 GHz 512 M 100 M / 1
G
Windows
XP
Application
WMP 9 or later
PowerSaver
This PDP Display has a built-in power management system called PowerSaver. This system saves energy by switching your PDP Display to low-power mode when it has not been used for a certain amount of time. The PDP Display automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your PDP Display OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature.
PowerSaver (When used as a Network PDP Display)
State
Power Indicator
Power Consumption
P50F(N)
P63F(N)
Normal Operation
Green
550 W
750 W
Power saving mode
Green, Blinking
Less than5 watts
Power off
EPA/ENERGY
2000
Red
Less than5 watts
PowerSaver (When used as a normal PDP Display)
State
Power Indicator
Power Consumption
P50F(N)
P63F(N)
Normal Operation
Power saving mode
Green
550 W
750 W
Green, Blinking
Less than2 watts
Power off
EPA/ENERGY
2000
Red
Less than2 watts
Preset Timing Modes
If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjusts the screen as follows.
Display Mode
IBM, 640 x 350
IBM, 640 x 480
IBM, 720 x 400
MAC, 640 x 480
MAC, 832 x 624
MAC, 1152 x 870
Horizontal
Frequency
(kHz)
31.469
31.469
31.469
35.000
49.726
68.681
Vertical Frequency (Hz)
Pixel Clock
(MHz)
70.086
59.940
70.087
66.667
74.551
75.062
25.175
25.175
28.322
30.240
57.284
100.000
Sync Polarity
(H/V)
+/-
-/-
-/+
-/-
-/-
-/-
Specifications
Display Mode
VESA, 640 x 480
VESA, 640 x 480
VESA, 800 x 600
VESA, 800 x 600
VESA, 800 x 600
VESA, 800 x 600
VESA, 848 x 480
VESA, 1024 x 768
VESA, 1024 x 768
VESA, 1024 x 768
VESA, 1152 x 864
VESA, 1280 x 768
VESA, 1280 X 960
VESA, 1280 X 1024
VESA, 1280 X 1024
VESA, 1360 x 768
VESA, 1600 x 1200
VESA, 1920 x 1080
60.023
67.500
47.776
60.000
63.981
79.976
47.712
75.000
66.587
Horizontal
Frequency
(kHz)
37.861
37.500
35.156
37.879
48.077
46.875
31.020
48.363
56.476
Vertical Frequency (Hz)
Pixel Clock
(MHz)
72.809
75.000
56.250
60.317
72.188
75.000
60.000
60.004
70.069
75.029
75.000
59.870
60.000
60.020
75.025
60.015
60.000
59.934
31.500
31.500
36.000
40.000
50.000
49.500
33.750
65.000
75.000
78.750
108.000
79.500
108.000
108.000
135.000
85.500
162.000
138.500
Sync Polarity
(H/V)
+/+
+/+
-/+
+/+
+/+
+/+
-/-
-/-
-/-
-/-
+/+
+/+
+/+
+/+
+/+
+/+
+/+
+/-
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of the screen horizontally is called the
Horizontal Cycle and the inverse number of the Horizontal Cycle is called the Horizontal Frequency.
Unit: kHz
Vertical Frequency
Like a fluorescent lamp, the screen has to repeat the same image many times per second to display an image to the user. The frequency of this repetition is called the Vertical Frequency or Refresh Rate. Unit:
Hz
Information
For Better Display
Adjust the computer resolution and screen injection rate (refresh rate) on the computer as described below to enjoy the best picture quality. You can have an uneven picture quality on screen if the best picture quality is not provided for PDP.
• Resolution: 1920 x 1080 @ 60Hz
• Vertical frequency (refresh rate): 60 Hz
PDP panels manufactured by using advanced semiconductor technology with a precision of 1ppm (one millionth) and above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE color seem to be bright sometimes or some of black pixels could be seen. This is not from bad quality and you can use it without any problems.
• For example, the number of PDP sub pixels contained in this product are
6,220,800.
When cleaning the monitor and the panel outside, please apply the recommended small amount of cleaner by using a soft cloth to polish. Do not force the
PDP area but rub softly. If excessive force is applied, you may stain it.
If you are not satisfied with the picture quality, you can get better quality of picture by performing the "Auto Adjustment function" in display screen that is appeared as window termination button is pressed. If there's still noise after the automatic adjustment, use the Fine/Coarse adjustment function.
When viewing a fixed screen for an extended period of time, a residual image or blurriness may appear. Change the mode to energy save or set a screensaver to move the picture when you need to be away from the monitor for an extended period of time.
PRODUCT INFORMATION (Image Retention Free)
What is Image Retention ?
Image retention may not occur when a PDP panel is operated under normal conditions.Normal conditions are defined as continuously changing video patterns.
When the PDP panel is operated for a long time with a fixed pattern .
Phosphor degradation may occur and the brightness is decreased. To prevent this, the video pattern should be changed from time to time.
When viewing a still screen for a long time, the brightness of any part which was bright in the previous fixed pattern becomes lower than that of its surroundings.
Information
Power Off, Screen Saver, or Power Save Mode
• Turn the power off for 4 hours after 20 hours in use
• Turn the power off for 2 hours after 12 hours in use
• Set the Monitor to power off with the PC Display Properties Power Scheme.
• Use a Screen saver if possible - Screen saver in one color or a moving image is recommended.
Change the Color Information periodically
Note
Use Two different colors
Rotate the Color Information with 2 different colors every 30 minutes.
• Avoid using a combination of characters and background color with large difference in luminance.
Avoid using Grey colors, which can cause Image retention easily.
Avoid: Colors with big difference in luminance (Black & White, Grey)
Change the characters color periodically
Information
• Use Bright colors with little difference in luminance.
- Cycle : Change the characters color and background color every 30 minutes
• Every 30 minutes, change the characters with movement.
• All area display Moving image together with Logo periodically.
- Cycle: Display moving image together with Logo for 60 seconds after 4 hours in use.
• The best way to protect your monitor from Image retention is to turn Power off, or set your PC, or System to operate a Screen Saver program when you are not using it. Also Warranty service will be limited based on instruction guide.
Apply the Screen Scroll function on Product
• Apply the Screen Scroll function
- Symptom: Horizontal Bar with Black Color move up and down.
- Select method
• Instruction Guide : OSD Menu -> Set Up -> Safety Screen -> Screen Scroll
• Time Interval : 1 ~ 10 hours ( Recommend : 1 )
• Time Period : 1 ~ 5 second ( Recommend : 5 )
Note
( Please check CD's User Guide at "OSD Function", some model's will not available )
Apply the Screen Pixel function on Product
• Apply the Screen Pixel function
- Symptom: Dot with Black Color move up and down.
Information
- Select method
• Instruction Guide : OSD Menu -> Set Up -> Safety Screen -> Pixel
• Time Interval : 1 ~ 10 hours ( Recommend : 1 )
• Time Period : 10 ~ 50 second ( Recommend : 50 )
• Apply the Screen Bar function
- Symptom: Horizontal / Vertical Bar with Black Color move up and down.
- Select method
• Instruction Guide : OSD Menu -> Set Up -> Safety Screen -> Bar
• Time Interval : 1 ~ 10 hours ( Recommend : 1 )
• Time Period : 10 ~ 50 second ( Recommend : 50 )
Note
( Please check CD's User Guide at "OSD Function", some model's will not available. )
Apply the Screen Erasing function on Product
• Apply the Screen Erasing function
- Symptom: 2 Vertical blocks move with erasing the display
- Select method
• Instruction Guide : OSD Menu -> Set Up -> Safety Screen -> Eraser
Information
• Time Interval : 1 ~ 10 hours ( Recommend : 1 )
• Time Period : 10 ~ 50 second ( Recommend : 50 )
Note
( Please check CD's User Guide at "OSD Function", some model's will not available )
Appendix
Contact SAMSUNG WORLDWIDE
Note
If you have any questions or comments relating to Samsung products, please contact the
SAMSUNG customer care center.
U.S.A
CANADA
MEXICO
North America
1-800-SAMSUNG(726-7864) http://www.samsung.com/us
1-800-SAMSUNG(726-7864) http://www.samsung.com/ca
01-800-SAMSUNG
(726-7864) http://www.samsung.com/mx
ARGENTINE
BRAZIL
Latin America
0800-333-3733
0800-124-421 http://www.samsung.com/ar http://www.samsung.com/br
CHILE
COLOMBIA
COSTA RICA
ECUADOR
EL SALVADOR
GUATEMALA
HONDURAS
4004-0000
800-SAMSUNG(726-7864) http://www.samsung.com/cl
01-8000112112
0-800-507-7267 http://www.samsung.com/co http://www.samsung.com/latin
1-800-10-7267
800-6225
1-800-299-0013
800-7919267 http://www.samsung.com/latin http://www.samsung.com/latin http://www.samsung.com/latin http://www.samsung.com/latin
JAMAICA
NICARAGUA
PANAMA
PUERTO RICO
1-800-234-7267
00-1800-5077267
800-7267
1-800-682-3180 http://www.samsung.com/latin http://www.samsung.com/latin http://www.samsung.com/latin http://www.samsung.com/latin
REP. DOMINICA
TRINIDAD & TO-
BAGO
VENEZUELA
1-800-751-2676 http://www.samsung.com/latin
1-800-SAMSUNG(726-7864) http://www.samsung.com/latin
0-800-100-5303 http://www.samsung.com/latin
AUSTRIA
Europe
0810 - SAMSUNG (7267864,
€ 0.07/min) http://www.samsung.com/at
Appendix
BELGIUM 02 201 2418
CZECH REPUBLIC 800 -
(800-726786)
Europe
SAMSUNG http://www.samsung.com/be http://www.samsung.com/cz
DENMARK
EIRE
FINLAND
FRANCE
8 - SAMSUNG (7267864)
0818 717 100
30 - 6227 515
3260 'dites' SAMSUNG (€
0,15/Min) http://www.samsung.com/dk http://www.samsung.com/ie http://www.samsung.com/fi http://www.samsung.com/fr
GERMANY
0825 08 65 65 (€ 0.15/Min)
01805 - SAMSUNG
(7267864, € 0.14/Min) http://www.samsung.de
HUNGARY
ITALIA
LUXEMBURG
NORWAY
POLAND
06-80-SAMSUNG (726-7864) http://www.samsung.com/hu
800-SAMSUNG (726-7864) http://www.samsung.com/it
02 261 03 710
NETHERLANDS 0900 - SAMSUNG (7267864,
€ 0.10/Min)
3 - SAMSUNG (7267864)
0 - 801 - 1SAMSUNG
(172678) http://www.samsung.com/lu http://www.samsung.com/nl http://www.samsung.com/no http://www.samsung.com/pl
PORTUGAL
022 - 607 - 93 - 33
808 20 - SAMSUNG
(7267864) http://www.samsung.com/pt
SLOVAKIA
SPAIN
0800-SAMSUNG (726-7864) http://www.samsung.com/sk
902 - 1 - SAMSUNG(902 172
678) http://www.samsung.com/es
SWEDEN
SWITZERLAND
075 - SAMSUNG (726 78 64) http://www.samsung.com/se
0848 - SAMSUNG (7267864,
CHF 0.08/min) http://www.samsung.com/ch
U.K
0845 SAMSUNG (7267864) http://www.samsung.com/uk
ESTONIA
LATVIA
LITHUANIA
KAZAKHSTAN
KYRGYZSTAN
RUSSIA
TADJIKISTAN
UKRAINE
UZBEKISTAN
CIS
800-7267
8000-7267
8-800-77777
8-10-800-500-55-500
00-800-500-55-500
8-800-555-55-55
8-10-800-500-55-500
8-800-502-0000
8-10-800-500-55-500 http://www.samsung.ee
http://www.samsung.com/lv http://www.samsung.lt
http://www.samsung.com/ kz_ru http://www.samsung.ru
http://www.samsung.ua
http://www.samsung.com/ kz_ru
Appendix
AUSTRALIA
CHINA
INDIA
1300 362 603
Asia Pacific
800-810-5858
400-810-5858 http://www.samsung.com/au http://www.samsung.com/cn
010-6475 1880
HONG KONG:3698 - 4698 http://www.samsung.com/hk
3030 8282 http://www.samsung.com/in
1800 110011
INDONESIA
JAPAN
MALAYSIA
1-800-3000-8282
0800-112-8888
0120-327-527
1800-88-9999
NEW ZEALAND 0800 SAMSUNG(0800 726
786)
PHILIPPINES 1800-10-SAMSUNG
(726-7864)
SINGAPORE
THAILAND http://www.samsung.com/id http://www.samsung.com/jp http://www.samsung.com/my http://www.samsung.com/nz http://www.samsung.com/ph
1800-SAMSUNG(726-7864) http://www.samsung.com/sg
1800-29-3232 http://www.samsung.com/th
TAIWAN
VIETNAM
02-689-3232
0800-329-999
1 800 588 889 http://www.samsung.com/tw http://www.samsung.com/vn
Middle East & Africa
SOUTH AFRICA 0860-SAMSUNG(726-7864) http://www.samsung.com/za
TURKEY
U.A.E
444 77 11
800-SAMSUNG(726-7864) http://www.samsung.com/tr http://www.samsung.com/ae
8000-4726
Terms
Dot Pitch
Vertical Frequency
Horizontal Frequency
The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the resolution. The distance between two dots of the same color is called the 'Dot
Pitch'. Unit: mm
The screen must be redrawn several times per second in order to create and display an image for the user. The frequency of this repetition per second is called the Vertical
Frequency or Refresh Rate. Unit: Hz
Example: If the same light repeats itself 60 times per second, this is regarded as 60 Hz.
The time to scan one line connecting the right edge to the left edge of the screen horizontally is called the Horizontal
Cycle. The inverse number of the Horizontal Cycle is called
Horizontal Frequency. Unit: kHz
Appendix
Interlace and Non-Interlace
Methods
Plug & Play
Resolution
SRS TS XT
Showing the horizontal lines of the screen from the top to the bottom sequentially is called the Non-Interlace method while showing odd lines and then even lines in turn is called the Interlace method. The Non-Interlace method is used for the majority of monitors to ensure a clear image. The Interlace method is the same as that used in TVs.
This is a function that provides the best quality screen for the user by allowing the computer and the monitor to exchange information automatically. This monitor follows the international standard VESA DDC for the Plug & Play function.
The number of horizontal and vertical dots used to compose the screen image is called the 'resolution'. This number shows the accuracy of the display. A high resolution is good for performing multiple tasks as more image information can be shown on the screen.
Example: If the resolution is 1920 x 1080, this means the screen is composed of 1920 horizontal dots (horizontal resolution) and 1080 vertical lines (vertical resolution).
This feature outputs sonorous and vivid 3D sound as for 5.1
channel speaker sound but through a 2-channel speaker. It has a good effect when stereo signals are input.
Correct Disposal
Correct Disposal of This Product (Waste Electrical & Electronic Equipment) -
Europe only
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.
Authority
Information in this document is subject to change without notice.
© 2008 Samsung Electronics Co., Ltd. All rights reserved.
Appendix
Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden.
Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
Samsung is the registered trademark of Samsung Electronics Co., Ltd.; Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation; VESA, DPM and DDC are registered trademarks of Video Electronics Standard Association; the ENERGY STAR ® name and logo are registered trademarks of the U.S. Environmental Protection Agency
(EPA). All other product names mentioned herein may be the trademarks or registered trademarks of their respective owners.
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Key Features
- 127 cm (50") Plasma
- Full HD 1920 x 1080 pixels
- 1000 cd/m²
- 550 W
Related manuals
advertisement
Table of contents
- 1 PDP Monitor
- 2 Safety Instructions
- 2 Notational
- 2 Power
- 3 Installation
- 4 Clean
- 5 Others
- 9 Introduction
- 9 Package Contents
- 9 Unpacking
- 10 Your PDP Display
- 10 Front
- 11 Rear(P50F(N))
- 14 Rear(P63F(N))
- 16 Remote Control
- 20 Mechanical Layout (P50F(N))
- 20 Mechanical Layout
- 20 NETWORK MODEL SIZE
- 21 PDP Display Head
- 21 NETWORK MODEL SIZE
- 21 Installation VESA Bracket
- 21 Dimensions
- 22 Wall Bracket Installation
- 22 Components
- 22 Wall Bracket Assembly
- 23 To mount the product on the wall bracket
- 25 Wall Bracket Angle Adjustment
- 26 Mechanical Layout (P63F(N))
- 26 Mechanical Layout
- 26 NETWORK MODEL SIZE
- 26 PDP Display Head
- 26 NETWORK MODEL SIZE
- 26 Wall Bracket Installation
- 26 Components
- 27 Wall Bracket Assembly
- 28 To mount the product on the wall bracket
- 29 Wall Bracket Angle Adjustment
- 31 Connections
- 31 Connecting a Computer
- 32 Connecting to Other devices
- 32 Connecting AV Devices
- 33 Connecting to a Camcorder
- 33 Connecting Using a HDMI Cable
- 34 Connecting Using a DVI to HDMI Cable
- 34 Connecting to an Audio System
- 34 Connecting a LAN Cable
- 35 Connecting a USB device
- 37 Using the Software
- 37 Installation MagicInfo Pro
- 37 Installation
- 40 System Requirements
- 41 MDC
- 41 Introduction
- 41 Main Screen
- 42 Port Selection
- 43 Power Control
- 45 Input Source
- 47 Image Size
- 48 Time
- 49 PIP
- 51 Settings
- 55 Maintenance
- 59 Troubleshooting
- 60 Adjusting the PDP Display
- 60 Input
- 60 Source List
- 61 Edit Name
- 61 Picture [PC / DVI / HDMI / MagicInfo Mode]
- 62 MagicBright
- 62 Custom
- 62 Contrast
- 63 Brightness
- 63 Sharpness
- 63 Color Tone
- 63 Color Control
- 64 Red
- 64 Green
- 64 Blue
- 64 Color Temp
- 64 Image Lock
- 64 Coarse
- 65 Fine
- 65 H-Position
- 65 V-Position
- 65 Auto Adjustment
- 65 Signal Balance
- 66 Signal Balance
- 66 Signal Control
- 67 Size
- 67 Picture [ AV / HDMI / DVI / TV Mode]
- 67 Mode
- 68 Custom
- 68 Contrast
- 68 Brightness
- 68 Sharpness
- 69 Color
- 69 Tint
- 69 Color Tone
- 70 Color Temp.
- 70 Size
- 70 Digital NR (Digital Noise Reduction)
- 71 Film Mode
- 71 Sound
- 71 Mode
- 72 Custom
- 72 Bass
- 72 Treble
- 73 Balance
- 73 Auto Volume
- 73 SRS TS XT
- 74 Setup
- 74 Language
- 74 Time
- 74 Clock Set
- 75 Sleep Timer
- 75 On Timer
- 76 Off Timer
- 76 Menu Transparency
- 76 Safety Lock PIN
- 77 Energy Saving
- 77 HDMI Black Level
- 77 Video Wall
- 78 Video Wall
- 78 Format
- 78 Horizontal
- 79 Vertical
- 79 Screen Divider
- 79 Safety Screen
- 80 Pixel Shift
- 80 Pixel Shift
- 80 Horizontal Dot
- 80 Vertical Line
- 81 Time
- 81 Timer
- 81 Timer
- 81 Mode
- 82 Period
- 82 Time
- 83 Scroll
- 83 Bar
- 83 Eraser
- 83 All White
- 84 Pattern
- 84 Resolution Select
- 85 Power On Adjustment
- 85 Side Gray
- 85 Reset
- 86 Image Reset
- 86 Color Reset
- 86 Multi Control
- 86 Multi Control
- 87 MagicInfo
- 88 Magicinfo
- 90 Photo
- 91 Auto
- 91 Original
- 91 Slide Show
- 92 Interval
- 92 Rotation
- 93 Zoom
- 93 Close
- 94 Music
- 94 Movie
- 94 Play
- 95 Full Size
- 95 OFFICE / HTML
- 96 Internet
- 96 Setup
- 96 Schedule View
- 97 TCP/IP
- 97 Connection
- 98 Password
- 98 File
- 99 Play Option
- 100 Troubleshooting
- 100 Self-Test Feature Check
- 100 Self-Test Feature Check
- 100 Warning Messages
- 100 Maintenance and Cleaning
- 101 Symptoms and Recommended Actions
- 101 Check List
- 101 Problems related to the Installation (PC Mode)
- 102 Problems related to the Screen
- 103 Problems related to Audio
- 103 Problems related to the Remote Control
- 104 Problems related to MagicInfo
- 104 Q & A
- 106 Specifications
- 106 General
- 108 MagicInfo - Client
- 108 MagicInfo Pro - Server Requirement
- 109 PowerSaver
- 109 PowerSaver (When used as a Network PDP Display)
- 109 PowerSaver (When used as a normal PDP Display)
- 109 Preset Timing Modes
- 111 Information
- 111 For Better Display
- 111 PRODUCT INFORMATION (Image Retention Free)
- 116 Appendix
- 116 Contact SAMSUNG WORLDWIDE
- 118 Terms
- 119 Correct Disposal
- 119 Authority
