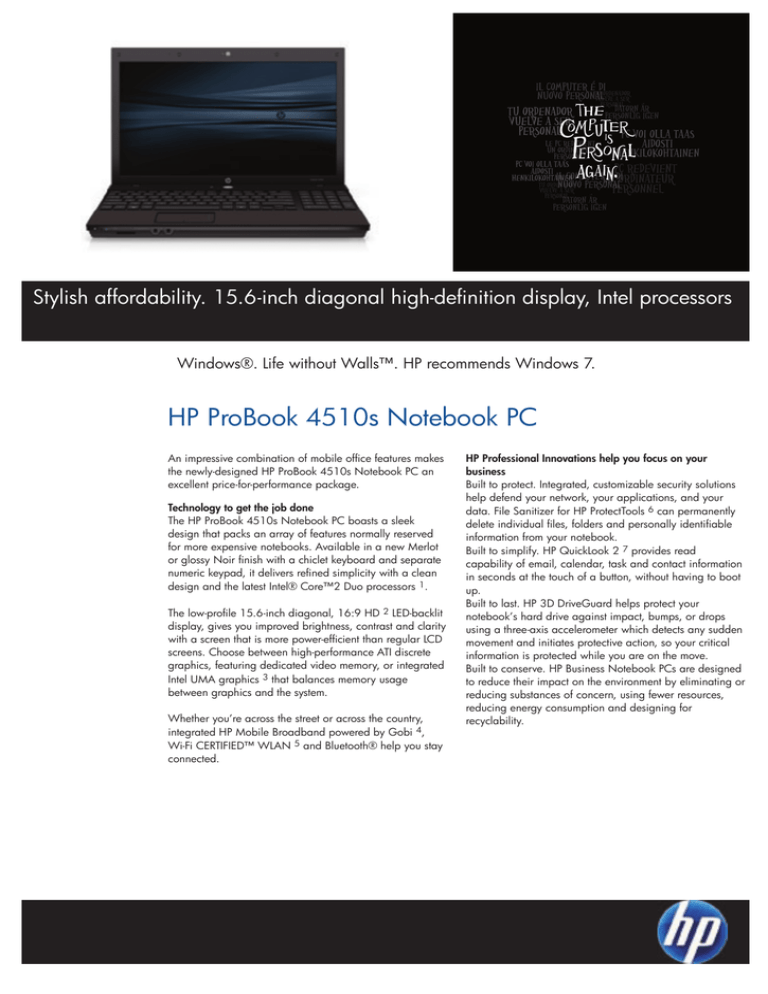

PSG Commercial Notebook Datasheet

PSG Commercial Notebook Datasheet
Stylish affordability. 15.6-inch diagonal high-definition display, Intel processors
Windows®. Life without Walls™. HP recommends Windows 7.
HP ProBook 4510s Notebook PC
An impressive combination of mobile office features makes
the newly-designed HP ProBook 4510s Notebook PC an
excellent price-for-performance package.
Technology to get the job done
The HP ProBook 4510s Notebook PC boasts a sleek
design that packs an array of features normally reserved
for more expensive notebooks. Available in a new Merlot
or glossy Noir finish with a chiclet keyboard and separate
numeric keypad, it delivers refined simplicity with a clean
design and the latest Intel® Core™2 Duo processors 1.
The low-profile 15.6-inch diagonal, 16:9 HD 2 LED-backlit
display, gives you improved brightness, contrast and clarity
with a screen that is more power-efficient than regular LCD
screens. Choose between high-performance ATI discrete
graphics, featuring dedicated video memory, or integrated
Intel UMA graphics 3 that balances memory usage
between graphics and the system.
Whether you’re across the street or across the country,
integrated HP Mobile Broadband powered by Gobi 4,
Wi-Fi CERTIFIED™ WLAN 5 and Bluetooth® help you stay
HP Professional Innovations help you focus on your
Built to protect. Integrated, customizable security solutions
help defend your network, your applications, and your
data. File Sanitizer for HP ProtectTools 6 can permanently
delete individual files, folders and personally identifiable
information from your notebook.
Built to simplify. HP QuickLook 2 7 provides read
capability of email, calendar, task and contact information
in seconds at the touch of a button, without having to boot
Built to last. HP 3D DriveGuard helps protect your
notebook’s hard drive against impact, bumps, or drops
using a three-axis accelerometer which detects any sudden
movement and initiates protective action, so your critical
information is protected while you are on the move.
Built to conserve. HP Business Notebook PCs are designed
to reduce their impact on the environment by eliminating or
reducing substances of concern, using fewer resources,
reducing energy consumption and designing for
HP ProBook 4510s Notebook PC
Windows®. Life without Walls™. HP recommends Windows 7.
Operating system
Genuine Windows® 7 Professional 32-bit
Genuine Windows® 7 Home Premium 32-bit
Genuine Windows® 7 Home Basic 32-bit
Windows XP Professional (available through downgrade rights from Genuine Windows® 7 Professional)
SuSE Linux
Intel® Celeron® Dual-Core Processor T3000 (1.8 GHz, 800 MHz FSB, 1 MB L2 cache) or Intel® Core™2 Duo Processor T6570 / T6670 / P7570 / P8700 (2.00
to 2.53 GHz, 800 to 1066 MHz FSB, 2 to 3 MB L2 cache)
Mobile™ Intel® GL40 Express Chipset or Mobile™ Intel® GM45 Express Chipset or Mobile™ Intel® PM45 Express Chipset
DDR2, 800 MHz, 1024, 2048 or 4096 MB; 2 SODIMM slots supporting dual channel memory; Upgradeable to 8192 MB maximum
HP Recovery Manager, HP QuickLook 3, HP SoftPaq Download Manager, Roxio Creator Business, Skype, WinZip
HP Help and Support Center, HP QuickLaunch Buttons Software, PDF Complete SE, Intervideo WinDVD - DVD Player, Synaptics Touchpad Driver, Webcam
Software (with optional 2 MP webcam)
Hard drive
SATA hard drive 160, 250, 320 or 500 GB (7200 rpm), HP 3D DriveGuard
Optical device
SATA DVD+/-RW SuperMulti DL LightScribe Drive, SATA Blu-ray ROM DVD+/-RW SuperMulti DL LightScribe Drive
15.6" LED HD Anti-Glare (1366 x 768 resolution) or 15.6" LED HD BrightView (1366 x 768 resolution), optional 2 MP webcam
Mobile™ Intel® Graphics Media Accelerator X4500 HD; ATI Mobility Radeon™ HD 4330; 512 MB dedicated video memory (1024 MB HyperMemory)
Dimensions (W x D x H)
37.18 x 24.96 x 3.15 (at front) cm
Starting at 2.59 kg
6-cell (47 WHr) Li-Ion battery or 8-cell (63 WHr) Li-Ion battery; External 65W HP Smart AC Adapter or 90W HP Smart AC Adapter (discrete graphics only), HP
Fast Charge
Battery life
Up to 5h (6-cell battery) or up to 7h (8-cell battery)
High Definition Audio, stereo speakers, stereo headphone/line out, stereo microphone in, integrated microphone
Wireless support
Intel 802.11a/b/g/n, b/g/n or a/b/g, Broadcom 802.11b/g, Bluetooth® 2.0, HP Wireless Assistant, optional HP un2400 EV-DO/HSPA Mobile Broadband
Module (requires mobile network operator service) with HP Connection Manager
Optional 56K modem; Marvell Ethernet (10/100/1000 NIC)
Expansion slots
Slots available for additional devices: 1 ExpressCard/34 slot, Media Card Reader
I/O ports and connectors
4 USB 2.0 ports, VGA, stereo microphone in, stereo headphone/line out, HDMI, power connector, RJ-45, optional RJ-11
Full-sized chiclet keyboard with separate numeric keypad
Pointing device
Touchpad with scroll zone
HP ProtectTools, Device Access Manager, Enhanced Pre-Boot Security, HP Spare Key, HP Disk Sanitizer, Drive Encryption for HP ProtectTools, Credential Manager
for HP ProtectTools, File Sanitizer for HP ProtectToolsMcAfee Security Solution, Kensington Lock slot
Docking solutions
HP USB 2.0 Docking Station, HP Essential USB Port Replicator, HP Basic Adjustable Stand (all sold separately)
1 year pick-up and return (upgrades available, sold separately), 1 year warranty on primary battery
1 Dual Core is a technology designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology 64-bit computing on Intel
architecture requires a computer system with a processor, chipset, BIOS, operating system, device drivers and applications enabled for Intel® 64 architecture. Processors will not operate (including 32-bit operation) without
an Intel 64 architecture-enabled BIOS. Performance will vary depending on your hardware and software configurations
2 HD content required to view HD images
3 Shared video memory (UMA) uses part of the total system memory for video performance. System memory dedicated to video performance is not available for other use by programs
4 Gobi wireless technology requires separately purchased wireless data service contracts. Check with local service provider for coverage and availability in your area. Connection speeds will vary due to location,
environment, network conditions, and other factors
5 Wireless access point and Internet service is required and is not included. Availability of public wireless access points limited
6 For the use cases outlined in the DOD 5220.22-M Supplement
7 HP QuickLook 2 is accessible when the notebook is off or in hibernation from Windows XP or Vista. Timings may vary depending on the system configuration.
© 2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Bluetooth is a trademark of its proprietor and used by Hewlett-Packard Company under license.
Certain Windows Vista® product features require advanced or additional hardware. See and for details. Windows Vista® Upgrade Advisor can help you determine which features of Windows Vista® will run on your computer. To download the
tool, visit
Bluetooth is a trademark of its proprietor and used by Hewlett-Packard Company under license. Microsoft, Windows and Windows Vista are trademarks of the Microsoft group of companies. Intel and Core are
trademarks or registered trademarks of Intel Corporation or its subsidiaries in the U.S. and other countries.
For more information, please visit
4AA2-5009EEE. October 2009
HP ProBook 4510s Notebook PC
Windows®. Life without Walls™. HP recommends Windows 7.
Recommended accessories and services
HP Mobile Productivity Bundle
Mobile product essentials like case and optical USB mouse bundled for enhanced
mobile productivity.
Product number: AQ729AA
HP Basic Adjustable Notebook
The HP Basic Adjustable Notebook Stand can be used to turn your HP Business
Notebook into a desktop solution.
Product number: AL549AA
HP USB 2.0 Docking Station
Optimizes your workspace by leveraging easy expansion to dual video options and
connect to your external monitor and other peripherals like keyboard, mouse, printer etc.
through one simple USB 2.0 connection to your notebook.
Product number: FQ834AA
HP Kensington MicroSaver
Security Cable Lock
Peace of mind in an instant. This handy cable lock device attaches itself to your
hardware and is then secured to an anchor point in your workspace, ensuring your
hardware remains exactly where it should.
Product number: PC766A
HP Mobile Audio Speakers
Compact and lightweight, HP Mobile Speakers are designed for easy portability and
optimal stereo enjoyment of DVDs, CDs and digital audio, producing a rich high quality
sound for notebook PC users.
Product number: FS944AA
3 years Next Business Day
Onsite, HW Support
Receive next business day onsite repair from an HP-qualified technician for your
computing device, if the issue cannot be solved remotely. Offers easy-to-purchase,
easy-to-use onsite hardware repair service for your HP product.
Product number: UK704E
For more information, please visit
