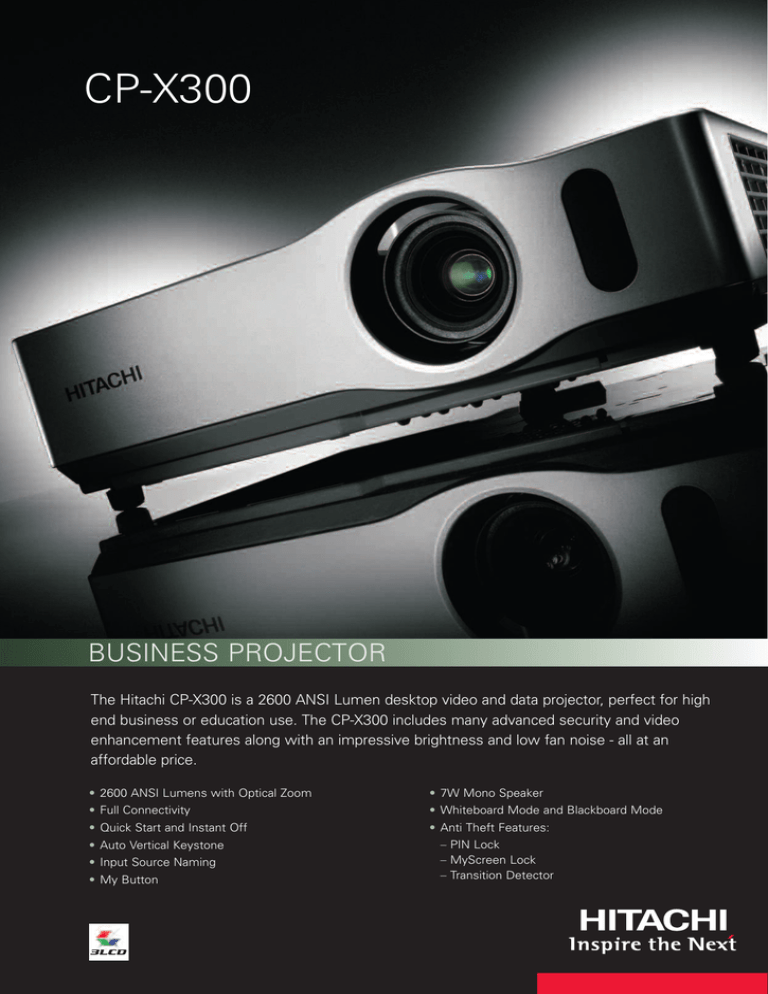

CP-X300
BUSINESS PROJECTOR
The Hitachi CP-X300 is a 2600 ANSI Lumen desktop video and data projector, perfect for high
end business or education use. The CP-X300 includes many advanced security and video
enhancement features along with an impressive brightness and low fan noise - all at an
affordable price.
• 2600 ANSI Lumens with Optical Zoom
• 7W Mono Speaker
• Full Connectivity
• Whiteboard Mode and Blackboard Mode
• Quick Start and Instant Off
• Anti Theft Features:
• Auto Vertical Keystone
• Input Source Naming
• My Button
– PIN Lock
– MyScreen Lock
– Transition Detector
CP-X300 Technical Specifications
CP-X300
OPTICAL
LCD Panel
Resolution
Brightness
Normal Mode
Whisper Mode
Contrast Ratio
Lens
Lamp
Lamp Life
Projection Distance
Distance to Width Ratio (:1)
Diagonal Display Size
Number of Colour
Keystone Correction
0.63" P-Si TFT x 3
XGA: 1024 dots x 768 lines
2600 ANSI Lumens
2100 ANSI Lumens
500:1 (typ)
F1.7~1.9 (f=19.5~23.4mm) Manual Focus, Manual Zoom x 1.2
220W UHB
2000 (normal)/3000 (whisper)
0.9 ~ 11.0m
1.5 (WIDE), 1.8 (TELE)
30 ~ 300" (60"@1.8m, Wide)
8 Bit/colour, 16.7M colours
9:1upward shift, fixed
COMPATIBILITY
Computer Compatibility
IBM Compatible VGA, SVGA, XGA, SXGA/SXGA+,
UXGA Capability, MAC 13", MAC 16" (Pixelworks chip)
NTSC/PAL(-BGDHI)/SECAM/PAL-M,N/NTSC4.43
SDTV: 525i(480i), 525p(480p), 625i(576i)
HDTV: 750p ([email protected]/60Hz), 1125i([email protected]/60Hz)
DDC2B
FV 56~120Hz, FH 31.5~106kHz
Video Compatibility
Plug & Play
Frequency Range
FEATURES
7W Mono
Freeze, Magnifying, Blank, Auto adjustment, Search, Page
UP&DOWN (for USB mouse function), Equalising Gamma
Correction, 2-3 pull down, Progressive Scan, Noise Reduction,
Auto V keystone +/- 30 degrees (@XGA 60Hz), MyScreen,
My Memory, My Button, blackboard/whiteboard mode, input
source naming (english), resolution setting. Easy Lamp
replace from Top, Air Filter on side, Serial Number label on
side, Quick ON (4 sec), Direct ON, Direct Off, Security
Bar, PIN Lock, MyScreen PIN lock, Keypad Lock, Kensington
slot, Transition Detector
MENU : 17 Language
Speakers
Other
OSD Languages
CONNECTIONS
Computer Input
Computer Output
Video Input
15-pin Mini D-sub x 2
15-pin Mini D-sub x 1
RCA Jack x 1
S-Video Jack x 1
RCA Jack x 3 for Component
Stereo Mini Jack x 2
RCA (L/R) x 1 pair
(Selectable on OSD)
Stereo Mini Jack x 1
9-pin D-sub x 1 for RS232 control
USB type B x 1 for mouse control
Audio Input
Audio Output
Control and Mouse
340
POWER
100
270
Power Supply
Power Consumption
AC90-132 / 198-264 V Auto Switching
320W
PHYSICAL
Dimensions (W x H x D)
Weight
Noise Level
Air Filter
Unit: mm
340 x 100 x 270mm (excluding feet and extrusions)
3.5kg (Target)/7.8lbs
35dB/29dB
MU04951
MISCELLANEOUS
Lamp indicator light, Power light, Ceiling Mount image, Rear Projection Image
b
CERTIFICATION
(Top)
a: Projection Distance
b: Lens centre to the higher edge of the screen
c: Lens centre to the lower edge of the screen
c
(Bottom)
a
UL60950/C-UL, FCC Part 15 Class B, 'CE, AS/NZS CISPR22 Class B
ACCESSORIES SUPPLIED
Remote Control with batteries, Computer Cable, Power Cord, User Manual (detail & concise),
Softcase, Lens Cap (& strap), Security Label, AV cable
OPTIONAL ACCESSORIES
Replacement Lamp
Image Size 4:3
Screen Size
(Diagonal)
40" (1.0)
60" (1.5)
100" (2.5)
150" (3.8)
200" (5.1)
300" (7.6)
Projection Distance (a)
min. (m)
max. (m)
1.4
1.2
1.8
2.2
3.0
3.6
4.6
5.5
6.1
7.3
9.1
11
DT00841
Image Size 16:9
Screen Height (cm)
c (bottom)
b (top)
6
55
82
9
137
15
206
23
274
30
411
46
Screen Size
(Diagonal)
40" (1.0)
60" (1.5)
100" (2.5)
150" (3.8)
200" (5.1)
300" (7.6)
Projection Distance (a)
min. (m)
max. (m)
1.6
1.3
2
2.4
3.3
4
4.9
6
8
6.6
9.9
12
Screen Height (cm)
c (bottom)
b (top)
-2
51
77
-2
129
-4
193
-6
-8
257
386
-12
HITACHI DIGITAL MEDIA, Hitachi Europe Ltd, Whitebrook Park, Lower Cookham Road, Maidenhead, Berkshire SL6 8YA UNITED KINGDOM
Tel: +44 (0)1628 585 000 Fax: +44 (0)1628 585 500 www.hitachidigitalmedia.com
The specification above and photography is for reference only and may be subject to change.
07/07
