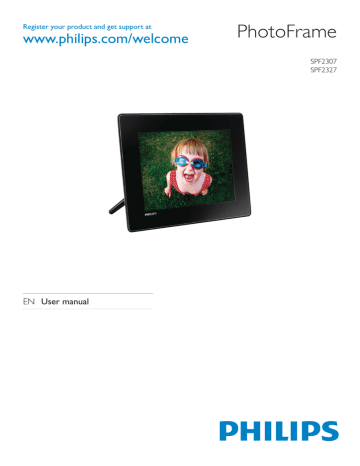

Register your product and get support at
www.philips.com/welcome
PhotoFrame
SPF2307
SPF2327
EN User manual
8 Settings
Contents
1 Important
Safety
Notice
Banned Substance Declaration
Class II statement
2 Your PhotoFrame
Introduction
What’s in the box
Overview of your PhotoFrame
3 Get started
Install the stand
Connect power
Turn on the PhotoFrame
Transfer media
Know these keypad icons
4 Display photos
Manage slideshow and photos
Zoom and crop a photo
5 Browse
Browse and manage albums and media
6 Clock
Display the clock
Clock menu
7 Message
Create a message
Edit a message
View a message
4
4
4
6
6
7
7
7
8
9
9
9
10
11
12
Select an on-screen language
Adjust brightness
Set time/date
Set SmartPower timer
Hibernate the PhotoFrame
Set auto orientation
Turn button sound on/off
Slideshow setting
View information of the PhotoFrame
Reset all settings to factory default
23
23
23
24
25
26
26
27
27
30
30
9 Upgrade the PhotoFrame
31
10 Product information
32
11 Frequently asked questions
34
12 Glossary
35
13
13
14
15
15
18
18
18
19
19
20
22
Need help?
Please visit www.philips.com/welcome where
you can access a full set of supporting materials
such as user manual, the latest software updates
and answers to frequently asked questions.
EN
3
1 Important
Safety
Failure to do so shall void any warranty, stated
or implied.
Any operation expressly prohibited in
this manual, any adjustments, or assembly
procedures not recommended or authorised
in this manual shall void the warranty.
Safety precautions and maintenance
•
•
•
•
•
•
•
•
•
•
Never touch, push, rub or strike the
screen with hard objects as this may
damage the screen permanently.
When the product is not used for long
periods, unplug it.
Before you clean the screen, turn off and
unplug the power cord. Only clean the
screen with a soft, water-damp cloth.
Never use substances such as alcohol,
chemicals or household cleaners to clean
the product.
Never place the product near naked
flames or other heat sources, including
direct sunlight.
Never expose the product to rain or
water. Never place liquid containers, such
as vases, near the product.
Never drop the product. When you drop
the product, it will be damaged.
Ensure that you install and use services or
software only from trustworthy sources
free of virus or harmful software.
This product is designed for indoor use
only.
Only use the supplied power adaptor for
the product.
The socket-outlet shall be installed
near the equipment and shall be easily
accessible.
Notice
Warranty
No components are user serviceable. Do not
open or remove covers to the inside of the
product. Repairs may only be done by Philips
Service Centres and official repair shops.
4
EN
This product is in compliance with the
essential requirements and other relevant
provisions of Directives 2006/95/EC (Low
Voltage), 2004/108/EC (EMC).
Respect copyrights
The making of unauthorized copies of
copy-protected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
End of life disposal
•
Your new product contains materials that
can be recycled and reused. Specialized
companies can recycle your product to
increase the amount of reusable materials
and to minimize the amount to be
disposed of.
• Please find out about the local regulations
on how to dispose your old monitor from
your local Philips dealer.
• (For customers in Canada and U.S.A.)
Dispose the old product in accordance to
local-state and federal regulations.
For additional information on recycling contact
www.eia.org (Consumer Education Initiative).
Recycling Information for Customers
Philips establishes technically and
economically viable objectives to optimize
the environmental performance of the
organization’s product, service and activities.
From the planning, design and production
stages, Philips emphasizes the importance of
making products that can easily be recycled.
At Philips, end-of-life management primarily
entails participation in national take-back
initiatives and recycling programs whenever
possible, preferably in cooperation with
competitors.
There is currently a system of recycling up and
running in the European countries, such as
The Netherlands, Belgium, Norway, Sweden
and Denmark.
In U.S.A., Philips Consumer Lifestyle North
America has contributed funds for the
Electronic Industries Alliance (EIA) Electronics
Recycling Project and state recycling initiatives
for end-of-life electronics products from
household sources. In addition, the Northeast
Recycling Council (NERC) - a multi-state
non-profit organization focused on promoting
recycling market development - plans to
implement a recycling program.
In Asia Pacific, Taiwan, the products can
be taken back by Environment Protection
Administration (EPA) to follow the IT product
recycling management process, detail can be
found in web site www.epa.gov.tw.
Environmental information
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
North Europe Information (Nordic
Countries)
VARNING:
FÖRSÄKRA DIG OM ATT HUVUDBRYTARE
OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR
DU STÄLLER DIN UTRUSTNING PÅPLATS.
Placering/Ventilation
ADVARSEL:
SØRG VED PLACERINGEN FOR, AT
NETLEDNINGENS STIK OG STIKKONTAKT
ER NEMT TILGÆNGELIGE.
Paikka/Ilmankierto
VAROITUS:
SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO
VOIDAAN TARVITTAESSA HELPOSTI
IRROTTAA PISTORASIASTA.
Plassering/Ventilasjon
ADVARSEL:
NÅR DETTE UTSTYRET PLASSERES, MÅ
DU PASSE PÅ AT KONTAKTENE FOR
STØMTILFØRSEL ER LETTE Å NÅ.
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
EN
5
Banned Substance
Declaration
This product complies with RoHs and Philips
BSD (AR17-G04-5010-010) requirements.
Class II statement
Class II equipment symbol:
This symbol indicates that this product has a
double insulation system.
Norge
Typeskilt finnes på apparatens underside.
Observer: Nettbryteren er sekundert innkoplet.
Den innebygde netdelen er derfor ikke
frakoplet nettet så lenge apparatet er tilsluttet
nettkontakten.
For å redusere faren for brann eller elektrisk
støt, skal apparatet ikke utsettes for regn eller
fuktighet.
6
EN
2 Your
PhotoFrame
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Register your product and get support at
www.philips.com/welcome
PhotoFrame
Quick Start Guide
•
Quick start guide
Introduction
With this Philips Digital PhotoFrame, you can
use the PhotoFrame to:
• Display JPEG photos
• Create gift messages
What’s in the box
•
Philips Digital PhotoFrame
•
Stand
•
AC-DC power adaptor
PhotoAlbum
•
CD-ROM with User manual
EN
7
Overview of your
PhotoFrame
a
j
b
c
d
i
h
e
f
a
g
f
•
•
Press to switch mode: slideshow/
clock/calendar
Hold to turn on/off the PhotoFrame
g
•
•
Press to go back
Hold to go to the home screen
h
•
b
c OK (Joystick)
• Press to confirm a selection
• Press to pause or resume play
• Move up/down/left/right to select
the upper/lower/right/left option
d MENU
• Press to enter/exit the menu
e DC
• Socket for the AC-DC power
adaptor
8
EN
Slot for a USB cable to PC
SD/MMC/MS/MS Pro
• Slot for an SD/MMC/MS/MS Pro
card
Kensington lock
i Stand hole
j Wall mounting hole
3 Get started
Caution
• Use the controls only as stated in this user
manual.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of this apparatus. The
model number and serial number are on the
back of the apparatus. Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Install the stand
Connect power
Note
• When you position the PhotoFrame, ensure
that the power plug and outlet are easily
accessible.
1
Connect the power cord to the DC
socket of the PhotoFrame.
2
Connect the power cord to a power
supply socket.
To place the PhotoFrame on a flat surface,
attach the supplied stand to the back of the
PhotoFrame.
1
2
Insert the stand into the PhotoFrame and
position the indication on the stand to
the position.
Turn the stand anti-clockwise 45 degrees
to the position and lock it to the
PhotoFrame firmly.
» A few seconds later, the PhotoFrame
turns on automatically.
EN
9
Turn on the PhotoFrame
Note
• When you connect the PhotoFrame to a
power supply, the PhotoFrame turns on
automatically.
1
When the PhotoFrame is turned off and
connected to the power supply, hold to
turn on the PhotoFrame.
For the first time you turn on the
PhotoFrame:
• The screen prompts you to select a
language.
•
•
Move the joystick to set time and date,
and then press OK.
Tip
Select a language, and then press OK.
• If the PhotoFrame is disconnected from the
power supply for a long time, you need set
time and date again after you turn on the
PhotoFrame.
Turn off the PhotoFrame
Note
• You can only turn off the PhotoFrame after all
copy and save actions are complete.
•
•
The screen prompts you to set time and
date.
10
EN
To turn off the PhotoFrame, press and
hold for about 2 seconds.
Transfer media
Transfer photos with a storage device
To copy photos to the PhotoFrame:
1
Select [Yes], and then press OK.
•
To remove a storage device, pull it out of
the PhotoFrame.
Caution
• Do not disconnect the storage device from the
PhotoFrame during media transfer.
The PhotoFrame supports most types of the
following storage device:
• Secure Digital (SD)
• Secure Digital High Capacity (SDHC)
• Multimedia Card (MMC)
• Memory Stick (MS)
• Memory Stick Pro (MS Pro) (with
adaptor)
1
Transfer photos with a computer
Caution
• Do not disconnect the PhotoFrame from the
computer during media transfer.
1
Connect a USB cable to the PhotoFrame
and to the computer.
Insert a storage device into the
PhotoFrame.
» An option menu is displayed.
» You can drag and drop the media from
the computer to an album on the
PhotoFrame.
2
[Play Photos]: Select it to play media
on the storage device
[Browse]: Select it to browse media
on the storage device
[Copy to PhotoFrame]: Select it to
start transfer operation
2
Select [Copy to PhotoFrame], and then
press OK.
» A confirmation message is displayed.
When the transfer is complete,
disconnect the USB cable from the
computer and the PhotoFrame.
Tip
• You can transfer media from the PhotoFrame
to a computer.
• The transfer speed depends the operating
system and the software configuration of the
computer.
EN
11
Know these keypad icons
/ ABC
aA
12
EN
Input in English
Input in supported
European languages
Input in Simplified Chinese
Input in Russian
Switch to select symbols,
punctuations, alphabet or
numbers
Switch between upper and
lower case
Enter a blank space
Enter a line break
4 Display photos
Note
• You can display JPEG photos in slideshow
Manage slideshow and photos
You can take the following steps to manage
the photo in slideshow mode or the slideshow
settings:
1
Press MENU.
» An option menu is displayed.
2
Select an option, and then press OK.
[View Mode]: Select the view mode
[Add to Favorites]: Add the photo to the
[Favorites] album on the PhotoFrame
[Slideshow Settings]
• [Interval]: Set the interval in
slideshow
• [Shuffle]: Play media randomly or not
• [Color Tone]: Select the color for
the photo
• [Transition Effect]: Select the
transition effect
• [Background Color]: Select the
background color
[Rotate]: Select an orientation to rotate
the photo
[Copy]: Copy the photo to another
album
[Delete]: Delete the photo
[Zoom]: Zoom and crop a photo
[Brightness]: Move the joystick up/down
to adjust the brightness of display
mode on the PhotoFrame.
1
In the home screen, select [Play], and
then press OK.
» Photos are displayed in slideshow
mode.
•
•
•
In slideshow mode:
• To pause the slideshow, press OK.
• To resume the slideshow, press OK again.
• To select the previous/next photo, move
the joystick to the left/right.
• To view photos in filmstrip mode, move
the joystick up.
In filmstrip mode:
• To select the previous/next photo, move
the joystick to the left/right.
• To return to slideshow mode, press OK.
Tip
• During collage slideshow, photos are displayed
randomly.
•
•
•
•
•
EN
13
Zoom and crop a photo
8
Select a location to save the new photo,
and then press OK.
With the PhotoFrame, you can zoom in a
photo, crop it, and save it as a new photo.
1
In slideshow mode, press MENU.
» An option menu is displayed.
2
Select [Zoom].
» After the photo is saved, the
PhotoFrame goes back to the
slideshow mode.
3
Press OK repeatedly to zoom in the
photo (or exit the zoom mode).
4
5
6
Move the joystick to pan the photo.
Press MENU.
Select [Crop and Save], and then press
OK.
» A confirmation message is displayed.
7
Select [Yes], and then press OK.
• To cancel the operation, select [No]
and then press OK.
14
EN
5 Browse
Browse and manage albums
and media
You can browse and manage albums and media
in wave mode or album mode.
• Wave mode:
» Albums are displayed in wave mode.
•
•
To access album mode, press .
• To return to wave mode, press .
In wave/album mode,
• Press OK once: A photo is displayed
in pause mode.
• Press OK twice: Slideshow is started.
Manage albums and media:
•
1
Select an album/device, press MENU.
» An option menu is displayed.
2
Select an option, and then press OK to
continue.
Album mode:
Album menu:
Browse albums:
1
In the home screen, select [Browse] and
then press OK.
•
•
[Add to Favorites]: Add media in the
album to the [Favorites] album
[Create New Album]: Create an album
EN
15
•
•
•
•
•
[Copy]: Copy media in the album to
another album
[Move]: Move media in the album to
another album
[Delete]: Delete media in the album
[Rename]: Rename the album
[Multiple-select]: Select multiple photos
to manage
Add media to the favorite album
To add media in the album to the [Favorites]
album:
1
Select [Add to Favorites], and then press
OK.
Create an album
Thumbnail photo menu:
•
•
•
•
•
•
•
[Add to Favorites]: Add media in the
album to the [Favorites] album
[Copy]: Copy media in the album to
another album
[Move]: Move media in the album to
another album
[Delete]: Delete media in the album
[Rotate]: Rotate the photo in the album
[Color Tone]: Select a color for the
[Multiple-select]: Select multiple photos
to manage
1
Select [Create New Album], and then
press OK.
2
To enter the name (about 24 characters),
select an alphabet/number and then press
OK.
• To switch between uppercase and
lowercase, select aA on the displayed
keypad and then press OK.
3
When the name is complete, select
and then press OK.
4
Press OK to start the saving process.
Copy media
1
2
Select [Copy], and then press OK.
Select a destination album, and then
press OK to start copy.
Move media
1
2
Select [Move], and then press OK.
Select a destination album, and then
press OK to start move.
Delete media
When you select the [Favorites] album, a
different menu is displayed.
• [Delete]: Delete media in the album
• [Copy]: Copy media in the album to
another album
16
EN
1
Select [Delete], and then press OK.
» A confirmation message is displayed.
2
Select [Yes], and then press OK to start
deletion.
• To cancel the operation, hold .
Rename an album
1
Select [Rename], and then press OK to
confirm.
» A keypad is displayed.
2
Move the joystick downwards twice to
enter the keypad.
3
To enter the name (about 24 characters),
select an alphabet/number and then press
OK.
• To switch between uppercase and
lowercase, select aA on the displayed
keypad and then press OK.
4
When the name is complete, select
and then press OK.
Select multiple photos to manage
1
Select [Multiple-select], and then press
OK.
2
Select media.
• To select all media in the album,
press OK.
• To select some of the media: Move
the joystick and press OK to select
a medium. Then repeat this step to
select others.
• To de-select a medium, select it and
then press OK again.
3
After selection is complete, press MENU
to continue.
» An option menu is displayed.
4
Select an option to continue.
• [Add to Favorites]: Add the selected
media to the [Favorites] album
• [Copy]: Copy the selected media to
another album
• [Move]: Move the selected media to
another album
• [Delete]: Delete the selected media
• [Rotate]: Rotate the selected media
• [Play Slideshow]: Play the selected
media in slideshow mode
Rotate photos
1
2
Select [Rotate], and then tap OK.
Tap / to rotate the photo, and then
tap OK.
EN
17
6 Clock
•
[Time and Date]: Move the joystick up/
down/left/right to set time/date or to
select a time/date format. For details, see
Section “Settings - Set time and date”.
Display the clock
1
In the home screen, select [Clock] and
then press OK.
Select a clock/calendar style
1
In the clock menu, select [Select Clock]
and then press OK.
2
Move the joystick left/right to select a
clock or calendar template, and then
press OK.
» A clock/calendar is displayed.
Clock menu
•
1
When a clock/calendar is displayed, press
MENU to enter the clock menu.
•
[Select Clock]: Move the joystick left/
right to select another clock or calendar
to be displayed.
18
EN
To go back to the home screen, hold
.
7 Message
Create a message
1
2
3
In the home screen, select [Message] and
then press OK.
•
Edit the text of the message or
change image of the message.
•
Set the real time and date if
applicable.
Select [Add a message to your photo],
and then press OK.
4
Select [Done].
» The screen prompts you to schedule
the message.
5
Schedule the message.
Move the joystick right or left to select a
message template, and then press OK.
EN
19
•
•
•
•
6
[Message Name]: Enter the name.
For details, see “Enter the name of a
message”.
[Repeat]: Select a repeat frequency
[Set Date]: Set the date or day
[Set Time]: Set the time
After you complete the message, select
[Done] and press OK.
•
To view the available messages, select
[View Message].
•
To go back to the home screen, hold .
Enter the name of a message
1
Select [Message Name], and then press
OK.
2
Move the joystick downward twice to
enter the keypad.
3
To enter the name (about 24 characters),
select an alphabet/number and then press
OK.
• To switch between uppercase and
lowercase, select aA on the displayed
keypad and then press OK.
4
When the name is complete, select
and then press OK.
Edit a message
1
20
EN
In the home screen, select [Message] and
then press OK.
•
•
[Change Image]: Change the photo
of the message
[Edit Text]: Edit the message text
To change the photo of a message:
2
1
Select [Change Image], and then press
OK.
2
Select a photo available on the
PhotoFrame, and then press OK.
Select [Add a message to your photo],
and then press OK.
To edit the text of a message:
3
4
1
Select [Edit Text], and then press OK.
2
Select a preset template, and then press
OK.
» The keypad is displayed.
Move the joystick right or left to select a
message template, and then press OK.
Move the joystick to select one of the
following options to edit a message.
EN
21
View a message
3
Move the joystick downwards twice to
enter the keypad.
4
To enter the text, select an alphabet/
number and then press OK.
• Select an input method, see “Know
these keypad icons”.
• To switch between uppercase and
lowercase, select aA on the displayed
keypad and then press OK.
5
After you enter the text, select
then press OK.
and
6
Move the joystick up/down/right/left to
position the text, and then press OK.
7
Move the joystick up/down/right/left to
select the color or font of the text, and
then press OK.
1
In the home screen, select [Message] and
then press OK.
2
Select [View Message], and then press
OK.
3
Select a message template, and then
press OK.
» A message template is displayed.
4
Press MENU, and then select an option
to continue.
5
Follow the on screen instruction to
reschedule the message or delete the
message.
To go back to the message browser
screen, select [Done] and then press OK.
•
8
9
Move to
22
EN
, and then press OK.
Select [Done], and then press OK.
8 Settings
Select an on-screen language
1
2
3
Adjust brightness
You can adjust the brightness of the
PhotoFrame to achieve the best view.
1
In the home screen, select [Settings] and
then press OK.
2
Select [Brightness], and then press OK.
3
Move the joystick up/down to adjust
brightness, and then press OK.
In the home screen, select [Settings] and
then press OK.
Select [Language], and then press OK.
Select a language, and then press OK.
EN
23
Set time/date
1
In the home screen, select [Settings] and
then press OK.
2
Select [Time and Date], and then press
OK.
3
24
Select [Set Time] / [Set Date], and then
press OK.
EN
4
Move the joystick up/down/right/left to
adjust minute/hour/day/month/year, and
then press OK.
Set time/date format
1
In the home screen, select [Settings] and
then press OK.
2
Select [Time and Date], and then press
OK.
3
Select[Select Time Format] / [Select
Date Format], and then press OK.
4
Select a format, and then press OK.
3
Select [Set On-Time] / [Set Off-Time],
and then press OK.
• To switch off the SmartPower
function, select [Off] and then press
OK.
4
Move the joystick up/down/right/left to
set time, and then press OK.
Set SmartPower timer
With the SmartPower timer, you can configure
the time for the display of the PhotoFrame to
turn on or turn off automatically. When the
display automatically turns off, the PhotoFrame
goes to standby (sleep) mode.
Note
• Ensure that the current time of the
PhotoFrame is set correctly.
1
In the home screen, select [Settings] and
then press OK.
Tip
• When the PhotoFrame is in standby (sleep)
mode, you can press
PhotoFrame.
2
to wake up the
Select [SmartPower], and then press OK.
EN
25
Hibernate the PhotoFrame
» After the selected period, the
PhotoFrame hibernates.
1
In the home screen, select [Settings] and
then press OK.
•
2
3
Select [Hibernate], and then press OK.
•
Select an option, and then press OK.
To disable the hibernation function,
select [Never] and then press OK.
To get the PhotoFrame out of
hibernation, press .
Set auto orientation
With the auto orientation function, you can play
photos in the correct orientation depending
on the horizontal/vertical orientation of the
PhotoFrame.
1
26
EN
In the home screen, select [Settings] and
then press OK.
2
Select [Auto-orientate], and then press
OK.
3
Select [On], and then press OK.
3
To turn on the button sound, select [On]
and then press OK.
•
•
To disable the auto orientation
function, select [Off] and then press
OK.
To turn off the button sound, select
[Off] and then press OK.
Slideshow setting
Turn button sound on/off
1
In the home screen, select [Settings] and
then press OK.
2
Select [Set Beep], and then press OK.
Select slideshow interval
1
In the home screen, select [Settings] and
then press OK.
2
Select [Slideshow], and then press OK.
EN
27
3
4
Select [Interval], and then press OK.
1
In the home screen, select [Settings] and
then press OK.
2
3
Select [Slideshow], and then press OK.
Select a slideshow interval, and then
press OK.
Select slideshow sequence
1
Select transition effect
In the home screen, select [Settings] and
then press OK.
4
2
3
4
Select [Slideshow], and then press OK.
28
EN
Select [Shuffle], and then press OK.
To display slideshow randomly, select
[On] and then press OK.
• To display slideshow in sequence,
select [Off] and then press OK.
Select [Transition Effect], and then press
OK.
Select a transition effect, and then press
OK.
Select background color
You can select a background border color for
photos that are smaller than the PhotoFrame
display.
1
» If you select [RadiantColor], the
PhotoFrame extends the color on the
edges of a photo that is smaller than
the full screen to fill the screen without
black bars or aspect ratio distortion.
In the home screen, select [Settings] and
then press OK.
2
3
Select [Slideshow], and then press OK.
4
Select [RadiantColor] / a background
color/ [Auto-fit], and then press OK.
» If you select a background color, the
PhotoFrame displays a photo with a
background color.
Select [Background Color], and then
press OK.
EN
29
» If you select [Auto-fit], the
PhotoFrame extends a photo to fill the
screen with picture distortion.
2
Select [Info].
» The information of the PhotoFrame is
displayed on the screen.
View information of the
PhotoFrame
Reset all settings to factory
default
You can find the model name, the firmware
version of the PhotoFrame, and the memory
status of the PhotoFrame and other storage
device available on the PhotoFrame.
1
In the home screen, select [Settings] and
then press OK.
2
Select [Default Settings], and then press
OK.
» A confirmation message is displayed.
3
Select [Yes], and then press OK.
» All settings on the PhotoFrame are set
to factory default.
•
To cancel the operation, select [No] in
the prompt message and then press OK.
1
30
In the home screen, select [Settings] and
then press OK.
EN
9 Upgrade the
PhotoFrame
Caution
• Do not power off the PhotoFrame during
software upgrade.
If there is a software update, you can download
the latest software from www.philips.com/
support to upgrade your PhotoFrame. The
earlier software is unavailable on line.
1
2
Visit www.philips.com/support.
3
Download the latest software onto the
root directory of an SD card.
4
5
Insert the SD card into the PhotoFrame.
6
Search for your PhotoFrame and go to
the software section.
Turn on the PhotoFrame
» A confirmation message is displayed.
Select [Yes], and then press OK to
confirm.
» When the upgrade is complete, the
PhotoFrame reboots.
EN
31
10 Product
information
Note
• Product information is subject to change
without prior notice.
Picture/Display
• Viewing angle: @ C/R > 10, 130°
(H)/110° (V)
• Lifetime, to 50% brightness: 20000 hr
• Aspect ratio: 4:3
• Panel resolution: 800 x 600
• Brightness (typical): 180 cd/m²
• Contrast ratio (typical): 300:1
• Photo format support: JPEG photo
(maximum: 8000 x 6000 pixel resolution)
Storage media
• Internal memory capacity: 128 MB
• Memory Card Types:
• Secure Digital (SD)
• Secure Digital High Capacity
(SDHC)
• Multimedia Card (MMC)
• Memory Stick (MS)
• Memory Stick Pro (MS Pro)
Connectivity
• USB: USB 2.0 Slave
Dimensions & Weight
• Set dimensions without stand (W x
H x D): 194.5 x 159 x 28 mm
• Set dimensions with stand (W x H x D):
194.5 x 159 x 93.5 mm
• Weight (with stand): 0.378 kg
Temperature range
• Operation: 0 °C - 40 °C/32 °F - 104 °F
• Storage: -10 °C - 60 °C/14 °F - 140 °F
32
EN
Power
• Power mode supported: AC powered
• Efficiency level: V
• Average consumption (system on): 4 W
• Power adaptor:
• Manufacturer: Philips Consumer
Lifestyle International B.V.
• Model number: DSA-3RNA-05 Fxx
(xx=EU, UK, AU, CN)
• Input: AC 100-240V ~ 50-60Hz
0.3A
• Output : DC 5V
650mA
Adaptor
DSA-3RNA-05
FEU
DSA-3RNA-05
FUK
DSA-3RNA-05
FAU
DSA-3RNA-05
FCN
Region
Europe, Russia, and
Singapore
U.K. and Hong Kong
Australia and New
Zealand
China
Accessories
• AC-DC adaptor
• CD-ROM with digital user manual
• Quick start guide
Convenience
• Card Reader: Built-in
• Photo format supported:
• JPEG photo (maximum: 8000 x 8000
pixel resolution)
• Progressive JPEG photo (Up to 1024
x 768 pixels)
• Placement supported: Photo auto
orientation
• Buttons and controls: Joystick, home/
back button, menu button, power/mode
button
• Playback mode: Slideshow, thumbnail
view, wave view, album view
• Album management: Create, copy, move,
delete, add to the favorites album
• Photo management: Copy, move, delete,
rotate, add to the favorites album, color
tone
•
•
•
•
•
•
•
•
•
•
•
Clock: Clock, calendar, set time and date
Message: Create message, view message
Slideshow setting: Transition effect,
background color, view mode, interval,
shuffle, color tone
Color tone: Black and white, Sepia, other
colors
Screen background: Black, white, gray,
auto fit, RadiantColor
Settings: Language, brightness, time
and date, SmartPower, hibernate, auto
orientation, beep (button sound),
slideshow settings, information of the
PhotoFrame, reset the PhotoFrame to
the factory default
System status: Friendly name, software
version, memory size
Plug & Play Compatibility: Windows
Vista/XP/7, Mac OS X 10.4/10.5/10.6
Regulatory Approvals: BSMI, C-Tick,
CCC, CE, GOST, PSB
Other convenience: Kensington lock
compatible
On-Screen Display languages: English,
French, German, Spanish, Italian, Danish,
Dutch, Portuguese, Russian, Simplified
Chinese, Traditional Chinese
EN
33
11 Frequently
asked questions
Is the LCD screen touch-enabled?
The LCD screen is not touch-enabled. Use the
buttons on the back to control the PhotoFrame.
Can I use the PhotoFrame to delete photos
on a memory card?
Yes, it supports operations to delete photos
on an external device, such as a memory card.
Ensure that you enable the deletion function on
a memory card available on the PhotoFrame.
Why does my PhotoFrame not show some of
my photos?
• The PhotoFrame plays only JPEG photos
(maximum: 8000 x 8000 pixel resolution)
and Progressive JPEG photo (Up to 1024
x 768 pixels).
• Ensure that these photos are not
damaged.
Why does the PhotoFrame not go into autooff status after I set it?
Ensure that you set the real time, autooff time, and auto-on time correctly. The
PhotoFrame automatically turns off its display
exactly at the auto-off time. If the time has
already passed for the day, it starts to go into
auto-off status at the specified time from the
next day.
Can I increase the memory size to store more
pictures on the PhotoFrame?
No. The internal memory of the PhotoFrame
is fixed and cannot be expanded. However,
you could switch between different photos
by using different storage devices on the
PhotoFrame.
34
EN
12 Glossary
A
Aspect ratio
Aspect ratio refers to the length to height
ratio of TV screens. The ratio of a standard
TV is 4:3, while the ratio of a high-definition
or wide TV is 16:9. The letter box allows you
to enjoy a picture with a wider perspective on
a standard 4:3 screen.
J
JPEG
A very common digital still picture format.
A still-picture data compression system
proposed by the Joint Photographic Expert
Group, which features small decrease in image
quality in spite of its high compression ratio.
Files are recognized by their file extension
‘.jpg’ or ‘.jpeg.’
K
Kbps
Kilobits per second. A digital-data-rate
measurement system which is often used
with highly compressed formats such as AAC,
DAB, MP3 etc. The higher the amount, the
better the quality generally is.
Kensington lock
A Kensington Security Slot (also called a
K-Slot or Kensington lock). Part of an antitheft system. It is a small, metal-reinforced
hole found on almost all small or portable
computer and electronics equipment,
particularly on expensive and/or relatively light
ones, such as laptops, computer monitors,
desktop computers, gaming consoles, and
video projectors. It is used for attaching a
lock-and-cable apparatus, in particular those
from Kensington.
M
Memory Stick
Memory Stick. A flash memory card for digital
storage on cameras, camcorders and other
handheld devices.
MMC Card
MultiMedia Card. A flash memory card that
provides storage for cellphones, PDAs and
other handheld devices. The card uses flash
memory for read/write applications or ROM
chips (ROM-MMC) for static information, the
latter widely used for adding applications to a
Palm PDA.
S
SD Card
Secure Digital Memory Card. A flash memory
card that provides storage for digital cameras,
cellphones and PDAs. SD Cards use the same
32 x 24mm form factor as the MultiMediaCard
(MMC), but are slightly thicker (2.1mm vs.
1.4mm), and SD Card readers accept both
formats. Cards up to 4GB are available.
T
Thumbnail
A thumbnail is reduced-size versions of a
picture that is used to make it easier to
recognize an them. Thumbnails serve the
same role for images as a normal text index
does for words.
EN
35
© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
UM_V3.0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
